This document provides an overview of Microsoft SharePoint, including: - SharePoint can be used for document management, collaboration, and as a development platform. - It includes features like workflows, tagging, social networking capabilities, and integration with Office clients. - Developers can create SharePoint solutions using tools like Visual Studio and deploy packages containing features and elements.

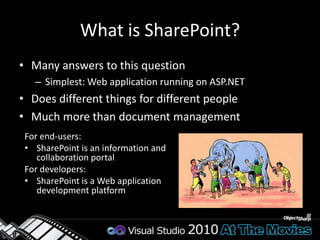

2. What is SharePoint?Many answers to this questionSimplest: Web application running on ASP.NETDoes different things for different peopleMuch more than document managementFor end-users:SharePoint is an information and collaboration portalFor developers:SharePoint is a Web application development platformMicrosoft SharePoint 2010Ribbon UISharePoint WorkspaceSharePoint MobileOffice Client + Web App IntegrationStandards SupportBusiness Connectivity SvcsInfoPath Form ServicesExternal ListsWorkflowSharePoint DesignerVisual StudioAPI EnhancementsREST/ATOM/RSSSitesTagging, Tag Cloud, RatingsSocial BookmarkingBlogs and WikisMy SitesActivity FeedsProfiles and ExpertiseOrg BrowserCommunitiesCompositesPerformancePointSvcsExcel ServicesChart Web PartVisio ServicesWeb AnalyticsSQL Server IntegrationPowerPivotContentInsightsEnterprise Content TypesMetadata and NavigationDocument SetsMulti-stage DispositionAudio + Video Content TypesList EnhancementsSearchSocial RelevancePhonetic SearchNavigation

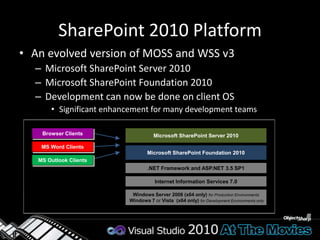

3. SharePoint 2010 PlatformAn evolved version of MOSS and WSS v3Microsoft SharePoint Server 2010Microsoft SharePoint Foundation 2010 Development can now be done on client OSSignificant enhancement for many development teamsBrowser ClientsMicrosoft SharePoint Server 2010MS Word ClientsMicrosoft SharePoint Foundation 2010MS Outlook Clients.NET Framework and ASP.NET 3.5 SP1Internet Information Services 7.0Windows Server 2008 (x64 only)for Production EnvironmentsWindows 7 or Vista (x64 only) for Development Environments only

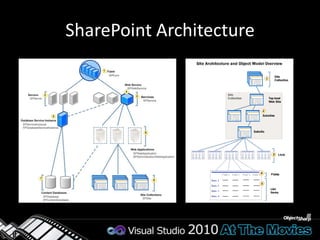

4. SharePoint Architecture

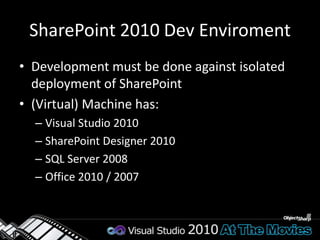

5. SharePoint 2010 Dev EnviromentDevelopment must be done against isolated deployment of SharePoint(Virtual) Machine has: Visual Studio 2010SharePoint Designer 2010SQL Server 2008Office 2010 / 2007

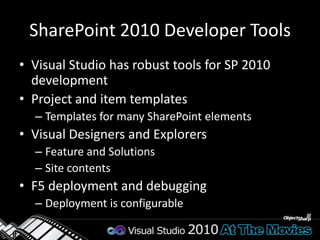

6. SharePoint 2010 Developer ToolsVisual Studio has robust tools for SP 2010 developmentProject and item templatesTemplates for many SharePoint elementsVisual Designers and ExplorersFeature and SolutionsSite contentsF5 deployment and debuggingDeployment is configurable

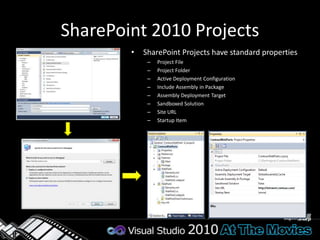

7. SharePoint 2010 ProjectsSharePoint Projects have standard propertiesProject FileProject FolderActive Deployment ConfigurationInclude Assembly in PackageAssembly Deployment TargetSandboxed SolutionSite URLStartup Item

8. DEMOBuilding a SharePoint 2010 project

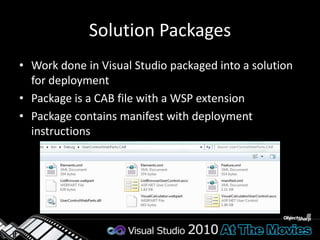

9. Solution PackagesWork done in Visual Studio packaged into a solution for deploymentPackage is a CAB file with a WSP extensionPackage contains manifest with deployment instructions

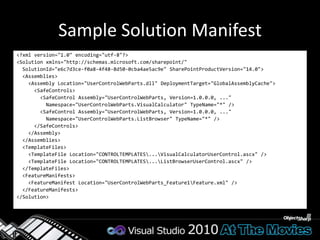

10. Sample Solution Manifest<?xml version="1.0" encoding="utf-8"?><Solution xmlns="http://schemas.microsoft.com/sharepoint/" SolutionId="e6c7d3ce-f0a8-4f48-8d50-0cba4ae5ac9e" SharePointProductVersion="14.0"> <Assemblies> <Assembly Location="UserControlWebParts.dll" DeploymentTarget="GlobalAssemblyCache"> <SafeControls> <SafeControl Assembly="UserControlWebParts, Version=1.0.0.0, ..." Namespace="UserControlWebParts.VisualCalculator" TypeName="*" /> <SafeControl Assembly="UserControlWebParts, Version=1.0.0.0, ..." Namespace="UserControlWebParts.ListBrowser" TypeName="*" /> </SafeControls> </Assembly> </Assemblies> <TemplateFiles> <TemplateFile Location="CONTROLTEMPLATES\...\VisualCalculatorUserControl.ascx" /> <TemplateFile Location="CONTROLTEMPLATES\...\ListBrowserUserControl.ascx" /> </TemplateFiles> <FeatureManifests> <FeatureManifest Location="UserControlWebParts_Feature1\Feature.xml" /> </FeatureManifests></Solution>

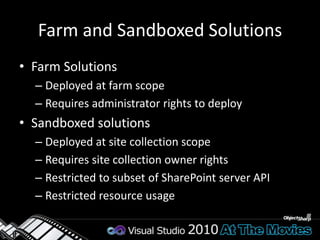

11. Farm and Sandboxed SolutionsFarm SolutionsDeployed at farm scopeRequires administrator rights to deploySandboxed solutionsDeployed at site collection scopeRequires site collection owner rightsRestricted to subset of SharePoint server APIRestricted resource usage

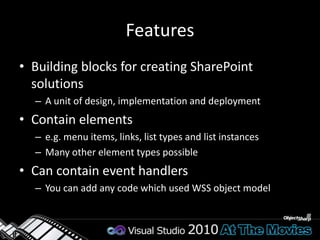

12. FeaturesBuilding blocks for creating SharePoint solutionsA unit of design, implementation and deploymentContain elementse.g. menu items, links, list types and list instancesMany other element types possibleCan contain event handlersYou can add any code which used WSS object model

13. Sample Feature Manifest<?xml version="1.0" encoding="utf-8"?><Feature xmlns="http://schemas.microsoft.com/sharepoint/" Id="734f2957-51f6-444c-b8cc-ab165c2fa4c5" Scope="Site" Title="UserControlWebParts Feature1"> <ElementManifests> <ElementManifest Location="VisualCalculator\Elements.xml" /> <ElementFile Location="VisualCalculator\VisualCalculator.webpart" /> <ElementManifest Location="ListBrowser\Elements.xml" /> <ElementFile Location="ListBrowser\ListBrowser.webpart" /> </ElementManifests></Feature>

14. User’s View of FeaturesSupport concept of activation and deactivation

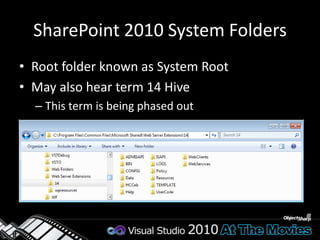

15. SharePoint 2010 System FoldersRoot folder known as System RootMay also hear term 14 HiveThis term is being phased out

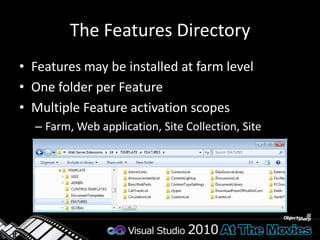

16. The Features DirectoryFeatures may be installed at farm levelOne folder per FeatureMultiple Feature activation scopesFarm, Web application, Site Collection, Site

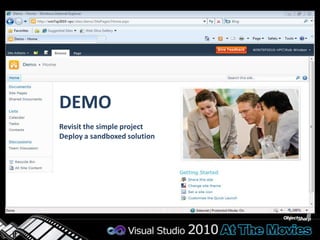

17. DEMORevisit the simple projectDeploy a sandboxed solution

18. Content Storage in SharePointStorage is based on the concept of listsEverything is modeled in terms of rows and columnsThe Document Library is really just a hybrid listSharePoint adds value on top of the generic listTransparent content storage in SQL ServerAutomatic generation of the user interface

19. Lists

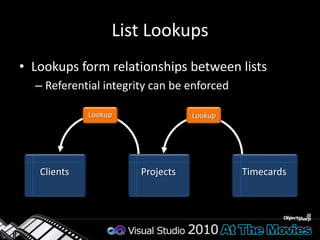

20. List LookupsLookups form relationships between listsReferential integrity can be enforcedLookupLookup11mmProjectsTimecardsClients

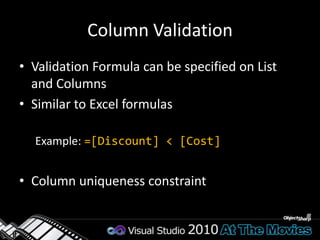

21. Column ValidationValidation Formula can be specified on List and ColumnsSimilar to Excel formulasExample: =[Discount] < [Cost]Column uniqueness constraint

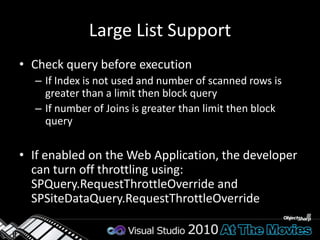

22. Large List SupportCheck query before executionIf Index is not used and number of scanned rows is greater than a limit then block queryIf number of Joins is greater than limit then block queryIf enabled on the Web Application, the developer can turn off throttling using:SPQuery.RequestThrottleOverride and SPSiteDataQuery.RequestThrottleOverride

23. Overview of Data TechnologiesREST APIsStrongly-typedClientOMWeakly-typedClient-sideData PlatformFarmSiteList DataExternal ListsServerOMServer-sideWeakly-typedNew in 2010ImprovedLINQStrongly-typed

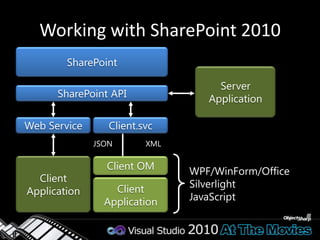

24. Working with SharePoint 2010SharePointServerApplicationSharePoint APIWeb ServiceClient.svcJSONXMLClient ApplicationClient OMWPF/WinForm/OfficeSilverlightJavaScriptClient Application

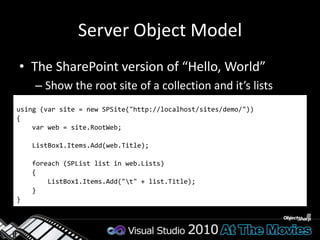

25. Server Object ModelThe SharePoint version of “Hello, World”Show the root site of a collection and it’s listsusing (var site = new SPSite("http://localhost/sites/demo/")){var web = site.RootWeb; ListBox1.Items.Add(web.Title);foreach (SPList list in web.Lists) { ListBox1.Items.Add("\t" + list.Title); }}

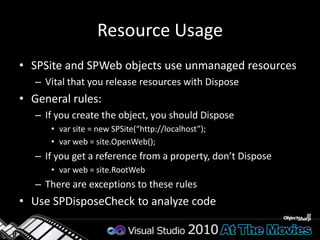

26. Resource UsageSPSite and SPWeb objects use unmanaged resourcesVital that you release resources with DisposeGeneral rules:If you create the object, you should Disposevar site = new SPSite(“http://localhost”);var web = site.OpenWeb();If you get a reference from a property, don’t Disposevar web = site.RootWebThere are exceptions to these rulesUse SPDisposeCheck to analyze code

27. DEMOWorking with the Server Object Model

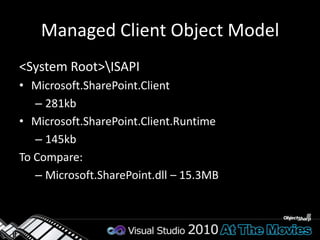

28. Managed Client Object Model<System Root>\ISAPI Microsoft.SharePoint.Client281kbMicrosoft.SharePoint.Client.Runtime145kbTo Compare:Microsoft.SharePoint.dll – 15.3MB

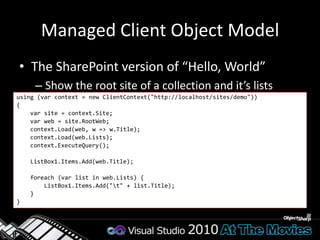

29. Managed Client Object ModelThe SharePoint version of “Hello, World”Show the root site of a collection and it’s listsusing (var context = new ClientContext("http://localhost/sites/demo")){var site = context.Site;var web = site.RootWeb;context.Load(web, w => w.Title);context.Load(web.Lists); context.ExecuteQuery(); ListBox1.Items.Add(web.Title);foreach (var list in web.Lists) { ListBox1.Items.Add("\t" + list.Title); }}

30. Retrieve DataClient Context methods wrap service callsContext.Load(object, paramsLinqExpression)Fills out the objects in the context: in-placeContext.LoadQuery(IQueryable)Use Linq query to return custom objectsNot filled into the contextvar query = from list in clientContext.Web.Lists where list.Title != null select list; var result = clientContext.LoadQuery(query);clientContext.ExecuteQuery();

31. Silverlight Client Object Model<System Root>\TEMPLATE\LAYOUTS\ClientBinMicrosoft.SharePoint.Client.Silverlight262KBMicrosoft.SharePoint.Client.Silverlight.Runtime138KB

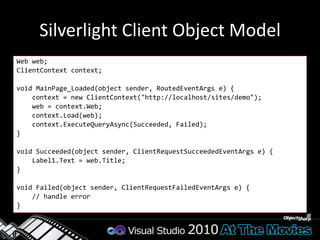

32. Silverlight Client Object ModelWeb web; ClientContext context;void MainPage_Loaded(object sender, RoutedEventArgs e) { context = new ClientContext("http://localhost/sites/demo"); web = context.Web;context.Load(web);context.ExecuteQueryAsync(Succeeded, Failed);}void Succeeded(object sender, ClientRequestSucceededEventArgs e) { Label1.Text = web.Title;}void Failed(object sender, ClientRequestFailedEventArgs e) { // handle error}

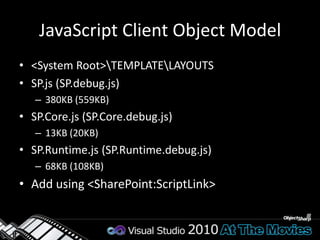

33. JavaScript Client Object Model<System Root>\TEMPLATE\LAYOUTS SP.js (SP.debug.js)380KB (559KB)SP.Core.js (SP.Core.debug.js)13KB (20KB)SP.Runtime.js (SP.Runtime.debug.js)68KB (108KB)Add using <SharePoint:ScriptLink>

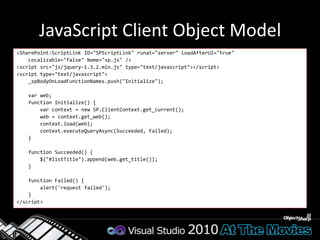

34. JavaScript Client Object Model<SharePoint:ScriptLink ID="SPScriptLink" runat="server" LoadAfterUI="true" Localizable="false" Name="sp.js" /><script src="js/jquery-1.3.2.min.js" type="text/javascript"></script><script type="text/javascript"> _spBodyOnLoadFunctionNames.push("Initialize");var web; function Initialize() {var context = new SP.ClientContext.get_current(); web = context.get_web();context.load(web);context.executeQueryAsync(Succeeded, Failed); } function Succeeded() { $("#listTitle").append(web.get_title()); } function Failed() { alert('request failed'); }</script>

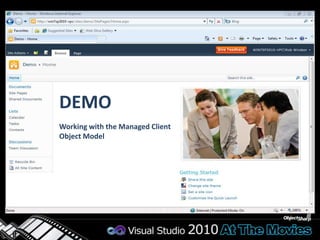

35. DEMOWorking with the Managed Client Object Model

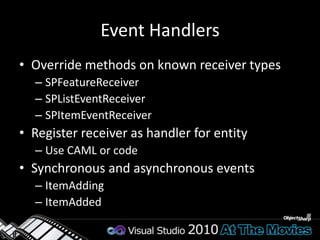

36. Event HandlersOverride methods on known receiver typesSPFeatureReceiverSPListEventReceiverSPItemEventReceiverRegister receiver as handler for entityUse CAML or codeSynchronous and asynchronous eventsItemAddingItemAdded

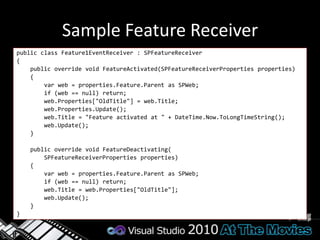

37. Sample Feature Receiverpublic class Feature1EventReceiver : SPFeatureReceiver{ public override void FeatureActivated(SPFeatureReceiverProperties properties) {var web = properties.Feature.Parent as SPWeb; if (web == null) return;web.Properties["OldTitle"] = web.Title;web.Properties.Update();web.Title = "Feature activated at " + DateTime.Now.ToLongTimeString();web.Update(); } public override void FeatureDeactivating(SPFeatureReceiverProperties properties) {var web = properties.Feature.Parent as SPWeb; if (web == null) return;web.Title = web.Properties["OldTitle"];web.Update(); }}

38. DEMOWorking with Event Handlers

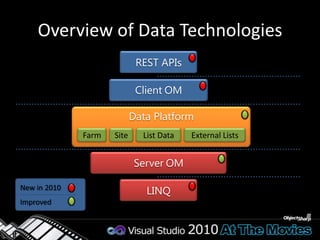

39. Overview of Data TechnologiesREST APIsStrongly-typedClientOMWeakly-typedClient-sideData PlatformFarmSiteList DataExternal ListsServerOMServer-sideWeakly-typedNew in 2010ImprovedLINQStrongly-typed

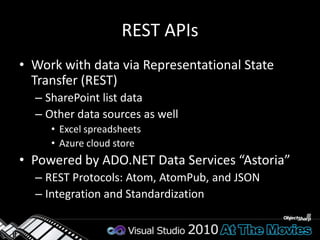

40. REST APIsWork with data via Representational State Transfer (REST)SharePoint list dataOther data sources as wellExcel spreadsheetsAzure cloud storePowered by ADO.NET Data Services “Astoria”REST Protocols: Atom, AtomPub, and JSONIntegration and Standardization

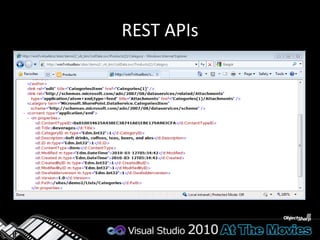

41. REST APIs

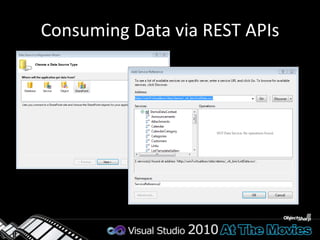

42. Consuming Data via REST APIs

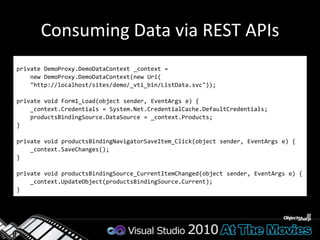

43. Consuming Data via REST APIsprivate DemoProxy.DemoDataContext _context = new DemoProxy.DemoDataContext(new Uri( "http://localhost/sites/demo/_vti_bin/ListData.svc"));private void Form1_Load(object sender, EventArgs e) { _context.Credentials = System.Net.CredentialCache.DefaultCredentials;productsBindingSource.DataSource = _context.Products;}private void productsBindingNavigatorSaveItem_Click(object sender, EventArgs e) { _context.SaveChanges();}private void productsBindingSource_CurrentItemChanged(object sender, EventArgs e) { _context.UpdateObject(productsBindingSource.Current); }

44. DEMOUsing the REST APIs

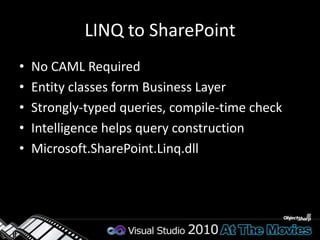

45. LINQ to SharePointNo CAML RequiredEntity classes form Business LayerStrongly-typed queries, compile-time checkIntelligence helps query constructionMicrosoft.SharePoint.Linq.dll

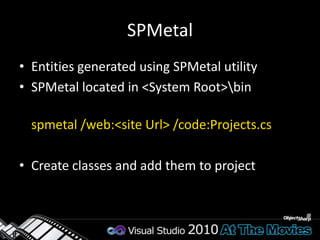

46. SPMetalEntities generated using SPMetal utilitySPMetal located in <System Root>\binspmetal /web:<site Url> /code:Projects.csCreate classes and add them to project

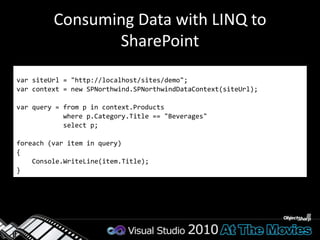

47. Consuming Data with LINQ to SharePointvarsiteUrl = "http://localhost/sites/demo";var context = new SPNorthwind.SPNorthwindDataContext(siteUrl);var query = from p in context.Products where p.Category.Title == "Beverages" select p;foreach (var item in query){Console.WriteLine(item.Title);}

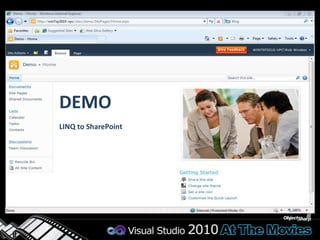

48. DEMOLINQ to SharePoint

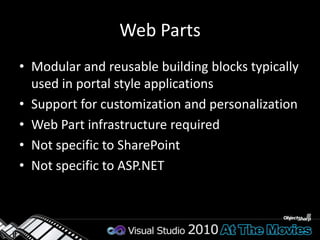

49. Web PartsModular and reusable building blocks typically used in portal style applicationsSupport for customization and personalizationWeb Part infrastructure requiredNot specific to SharePointNot specific to ASP.NET

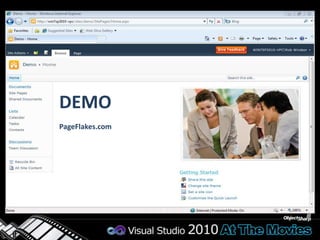

50. DEMOPageFlakes.com

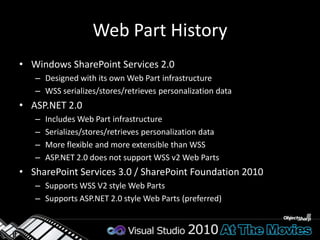

51. Web Part HistoryWindows SharePoint Services 2.0 Designed with its own Web Part infrastructureWSS serializes/stores/retrieves personalization dataASP.NET 2.0Includes Web Part infrastructureSerializes/stores/retrieves personalization dataMore flexible and more extensible than WSSASP.NET 2.0 does not support WSS v2 Web PartsSharePoint Services 3.0 / SharePoint Foundation 2010Supports WSS V2 style Web PartsSupports ASP.NET 2.0 style Web Parts (preferred)

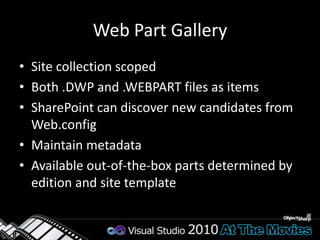

52. Web Part GallerySite collection scopedBoth .DWP and .WEBPART files as itemsSharePoint can discover new candidates from Web.configMaintain metadataAvailable out-of-the-box parts determined by edition and site template

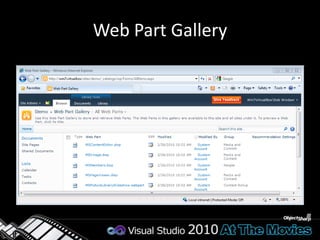

53. Web Part Gallery

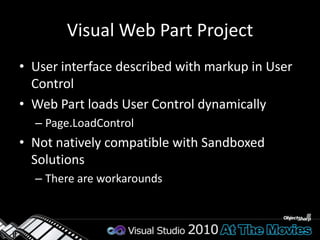

54. Visual Web Part ProjectUser interface described with markup in User ControlWeb Part loads User Control dynamicallyPage.LoadControlNot natively compatible with Sandboxed SolutionsThere are workarounds

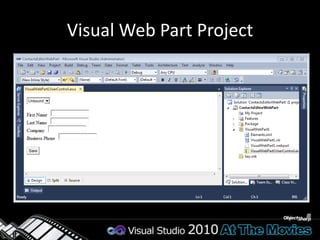

55. Visual Web Part Project

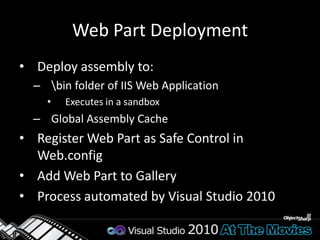

56. Web Part DeploymentDeploy assembly to:\bin folder of IIS Web ApplicationExecutes in a sandboxGlobal Assembly CacheRegister Web Part as Safe Control in Web.configAdd Web Part to GalleryProcess automated by Visual Studio 2010

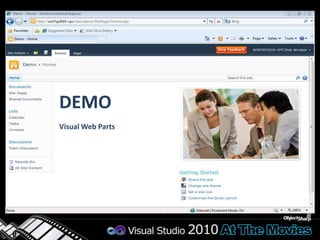

57. DEMOVisual Web Parts

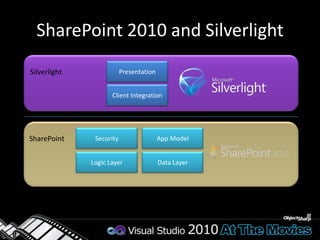

58. SharePoint 2010 and SilverlightPresentationSilverlightClient IntegrationSecurityApp ModelSharePointData LayerLogic Layer

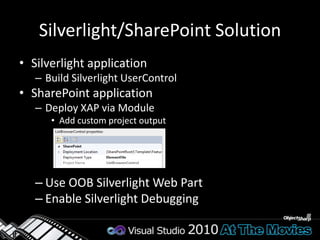

59. Silverlight/SharePoint SolutionSilverlight applicationBuild SilverlightUserControlSharePoint applicationDeploy XAP via ModuleAdd custom project outputUse OOB Silverlight Web PartEnable Silverlight Debugging

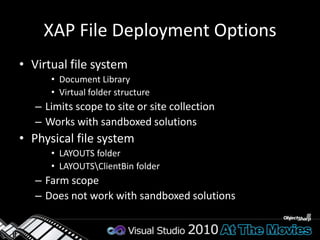

60. XAP File Deployment OptionsVirtual file systemDocument LibraryVirtual folder structure Limits scope to site or site collectionWorks with sandboxed solutionsPhysical file systemLAYOUTS folderLAYOUTS\ClientBin folderFarm scopeDoes not work with sandboxed solutions

61. DEMOSilverlight Web Parts
