Locating elements can be easy and stable using a better modelling of the DOM elements. Wix has developed a new wrapper of the native selenium which provides better control & simplifies the way to handle elements. This presentation is one of the lectures provided at Wix successful meetup "Wix Automation - It's that easy!" which was held on 12th October 2015. For more information about the meetup please follow below link: http://www.meetup.com/at-wix/events/225868226/ Enjoy!

1. 1
Wix Automation
Core
Roi Ashkenazi
Oded Gefen

2. 2
Introduction

3. 3
Introduction
Wix Editor

4. 4
Modeling DOM Elements

5. 5
Modeling DOM Elements
Concept
• Each editor component will have its own class (driver)
• Driver represents a DOM node and its sub DOM nodes
• ClassAPI will consist of methods returning sub drivers of the
component (building blocks)
• Methods can return other complex drivers or simple web
elements

6. 6
Finding Elements

7. 7
Finding Elements
Wix Editor

8. 8
Finding Elements - Selenium
Wix Editor – Top Bar
public TopBar topBar() {
return getElement().byClass("top-bar-editor", TopBar.class);
}

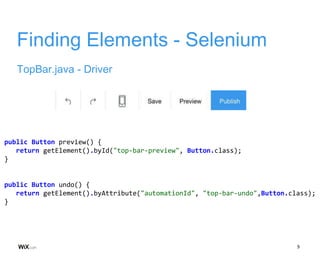

9. 9
Finding Elements - Selenium
TopBar.java - Driver
public Button preview() {
return getElement().byId("top-bar-preview", Button.class);
}
public Button undo() {
return getElement().byAttribute("automationId", "top-bar-undo",Button.class);
}

10. 10
Finding Elements - JavaScript
• Re-written completely using React.js
• DOM nodes are less “rich” with information
• Need stable selectors to find elements
Wix Editor – Revisited

11. 11
Finding Elements - JavaScript
Top Bar – React DOM

12. 12
Finding Elements - JavaScript
TopBar.java - Driver
public PageNavButton pageNavigation() {
return getElement().byDisplayName("topBarPageNavButton", PageNavButton.class);
}

13. 13
Finding Elements - Core

14. 14

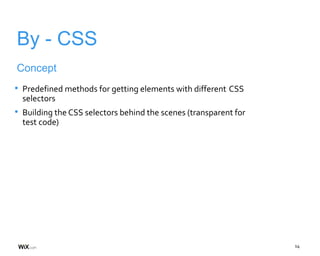

By - CSS
Concept
• Predefined methods for getting elements with different CSS
selectors
• Building the CSS selectors behind the scenes (transparent for
test code)

15. 15
By - CSS
Standard examples
• byId (#)
• byClass (.)
• byAttribute ([attribute=‘value’])
• byCss(…)
Actual implementation
webDriver.findElement(By.cssSelector(selector));

16. 16

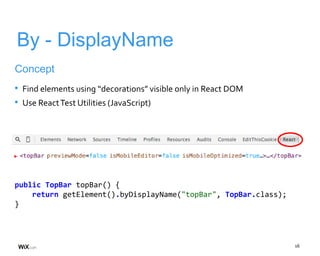

By - DisplayName
Concept
• Find elements using “decorations” visible only in React DOM
• Use ReactTest Utilities (JavaScript)
public TopBar topBar() {
return getElement().byDisplayName("topBar", TopBar.class);
}

17. 17
By - DisplayName
Actual implementation
Executing script located in client project:
- Pass display name string as script argument
- Script returns a corresponding list of seleniumWebElements
- Usage of findAllInRenderedTree method from ReactTest Utilities inside script
implementation
domSelectors.getElementsByDisplayName(arguments[0]);

18. 18
By - DisplayName
Actual implementation
Stream<WebElementProxy> searchElements(WebElementProxy root) {
List elements = (List) executeScript(...);
return Stream.of(elements.toArray())
.filter(Objects::nonNull)
.map(WebElement.class::cast)
.map(WebElementProxy::new);
}
WebElementProxy searchElement(WebElementProxy root) {
return searchElements(root)
.findFirst()
.orElseThrow(() ->
new RuntimeException("Failed to get element " + this));
}

19. 19
Wrapping Native Selenium

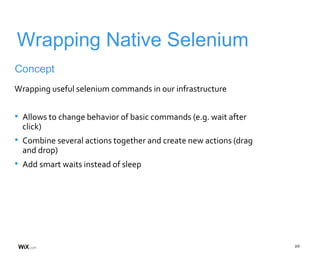

20. 20
Wrapping Native Selenium
Concept
Wrapping useful selenium commands in our infrastructure
• Allows to change behavior of basic commands (e.g. wait after
click)
• Combine several actions together and create new actions (drag
and drop)
• Add smart waits instead of sleep

21. 21
Wrapping WebDriver
API
• Navigation
 Open URL in new window
 Close extra tabs
 Switch focus to last window
 Wait for number of windows to be (etc..)
• Logs
 Network
 Console errors
• Cookies
 Add
 Find
 Remove

22. 22
Wrapping WebDriver
API
• Navigation
 Open URL in new window
 Close extra tabs
 Switch focus to last window
 Wait for number of windows to be (etc..)
• Logs
 Network
 Console errors
• Cookies
 Add
 Find
 Remove

23. 23
Wrapping WebDriver
API – Navigation – Open URL in new window
public void openUrlInNewWindow(String url) {
webDriver.executeScript("window.open()");
Object[] windowHandles = webDriver.getWindowHandles().toArray();
int numberOfWindows = windowHandles.size();
String targetWindowHandle = (String) windowHandles[numberOfWindows - 1];
webDriver.switchTo().window(targetWindowHandle);
webDriver.manage().window().maximize();
webDriver.get(url);
}

24. 24

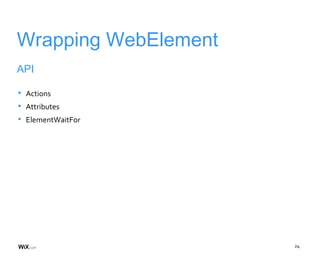

Wrapping WebElement
API
• Actions
• Attributes
• ElementWaitFor

25. 25
Wrapping WebElement
API
• Actions
• Attributes
• ElementWaitFor

26. 26
Wrapping WebElement
API – Actions
• dragAndDrop
• clickAtOffset
• doubleClick
• mouseMoveToElement
• setText
• rightClick

27. 27
Wrapping WebElement
API – Actions
• dragAndDrop
• clickAtOffset
• doubleClick
• mouseMoveToElement
• setText
• rightClick

28. 28

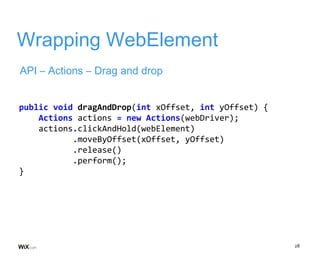

Wrapping WebElement
API – Actions – Drag and drop
public void dragAndDrop(int xOffset, int yOffset) {
Actions actions = new Actions(webDriver);
actions.clickAndHold(webElement)
.moveByOffset(xOffset, yOffset)
.release()
.perform();
}

29. 29
Wrapping WebElement
API
• Actions
• Attributes
• ElementWaitFor

30. 30
Wrapping WebElement
API – Attributes
• getInnerHTML
• getId
• getCssClasses
• getSize
• getText
• getPosition
• isVisible
• isEnabled

31. 31
Wrapping WebElement
API – Attributes
• getInnerHTML
• getId
• getCssClasses
• getSize
• getText
• getPosition
• isVisible
• isEnabled

32. 32
Wrapping WebElement
API – Attributes – Get inner HTML
public String getInnerHTML() {
String script = "return arguments[0].innerHTML;";
return (String) webDriver.executeScript(script, webElement);
}

33. 33
Wrapping WebElement
API
• Actions
• Attributes
• ElementWaitFor

34. 34
Wrapping WebElement
API – ElementWaitFor
• attributeToBe
• toExist
• toBeDisplayed
• textToBe
• toContainsCssClass

35. 35

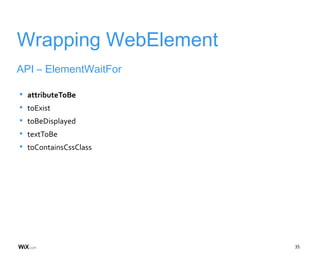

Wrapping WebElement
API – ElementWaitFor
• attributeToBe
• toExist
• toBeDisplayed
• textToBe
• toContainsCssClass

36. 36
Wrapping WebElement
API – ElementWaitFor – Wait for attribute to be
public void attributeToBe(String attribute, String value) {
BusyWait.create(TIMEOUT,
POLLING_INTERVAL,
__ -> webElement.getAttribute(attribute).equals(value))
.execute();
}

37. 37

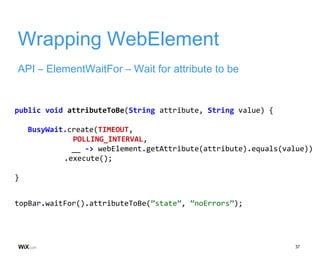

Wrapping WebElement
API – ElementWaitFor – Wait for attribute to be
public void attributeToBe(String attribute, String value) {
BusyWait.create(TIMEOUT,
POLLING_INTERVAL,
__ -> webElement.getAttribute(attribute).equals(value))
.execute();
}
topBar.waitFor().attributeToBe(”state”, ”noErrors”);

38. 38

39. 39
Iframes
Concept
• Each element “knows” if it’s inside an iframe
• Each driver “knows” if it contains an iframe
• Getting an element inside the iframe is done differently

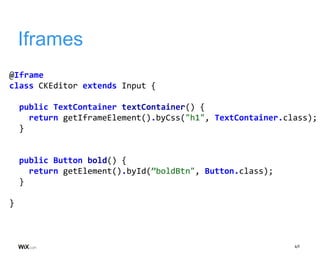

40. 40
Iframes
@Iframe
class CKEditor extends Input {
public TextContainer textContainer() {
return getIframeElement().byCss("h1", TextContainer.class);
}
public Button bold() {
return getElement().byId(”boldBtn", Button.class);
}
}

41. 41
