1. Grails webflow
Ivo Houbrechts
Ixor

2. About Ixor
• Since 2002
• 40 experienced ICT professionals
• Software development for the JVM
• Consultancy and product development
• Loyal customers in Finance, Telecom and Government
• www.ixor.be

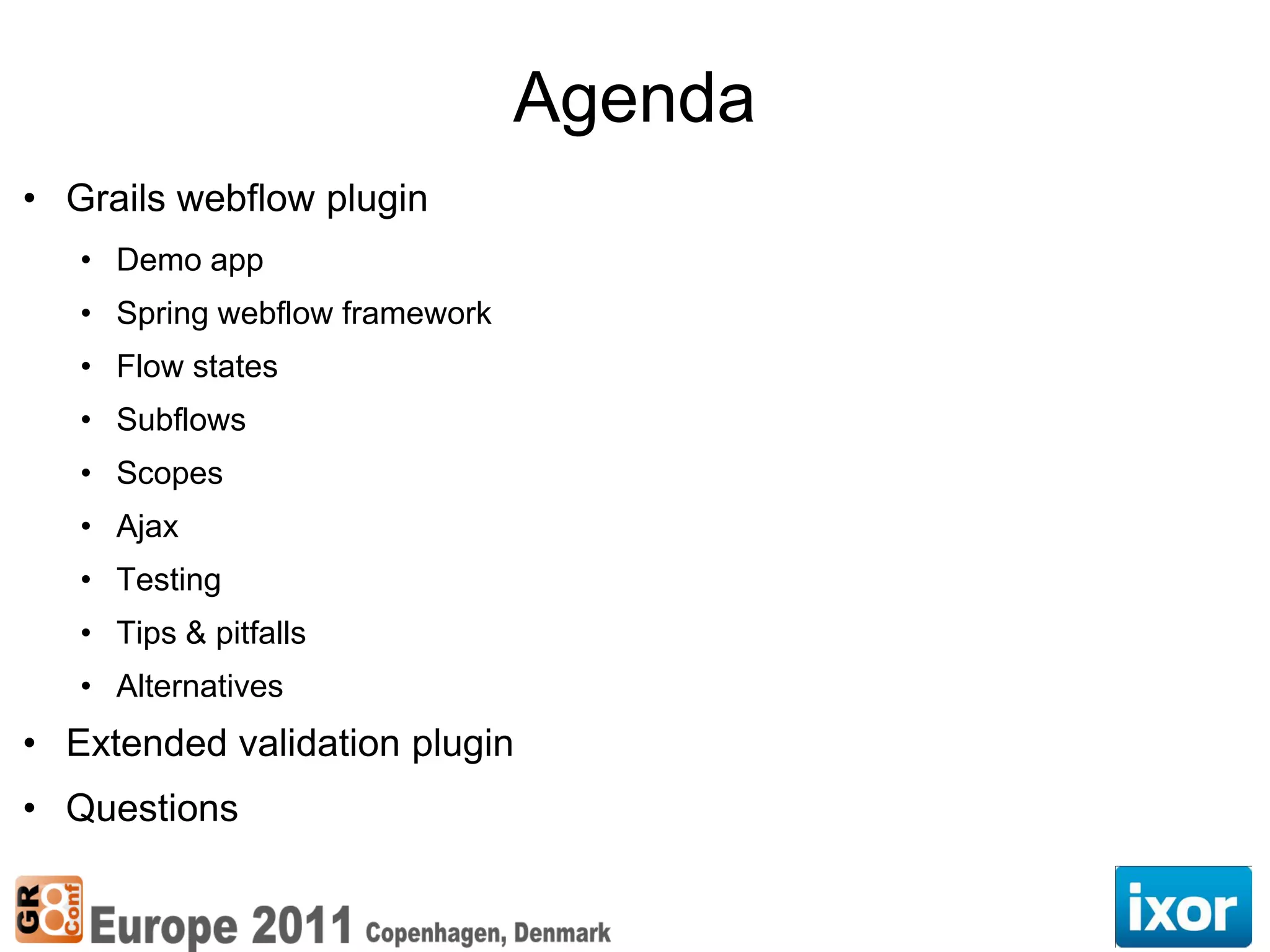

3. Agenda
• Grails webflow plugin
• Demo app
• Spring webflow framework
• Flow states
• Subflows
• Scopes
• Ajax
• Testing
• Tips & pitfalls
• Alternatives
• Extended validation plugin
• Questions

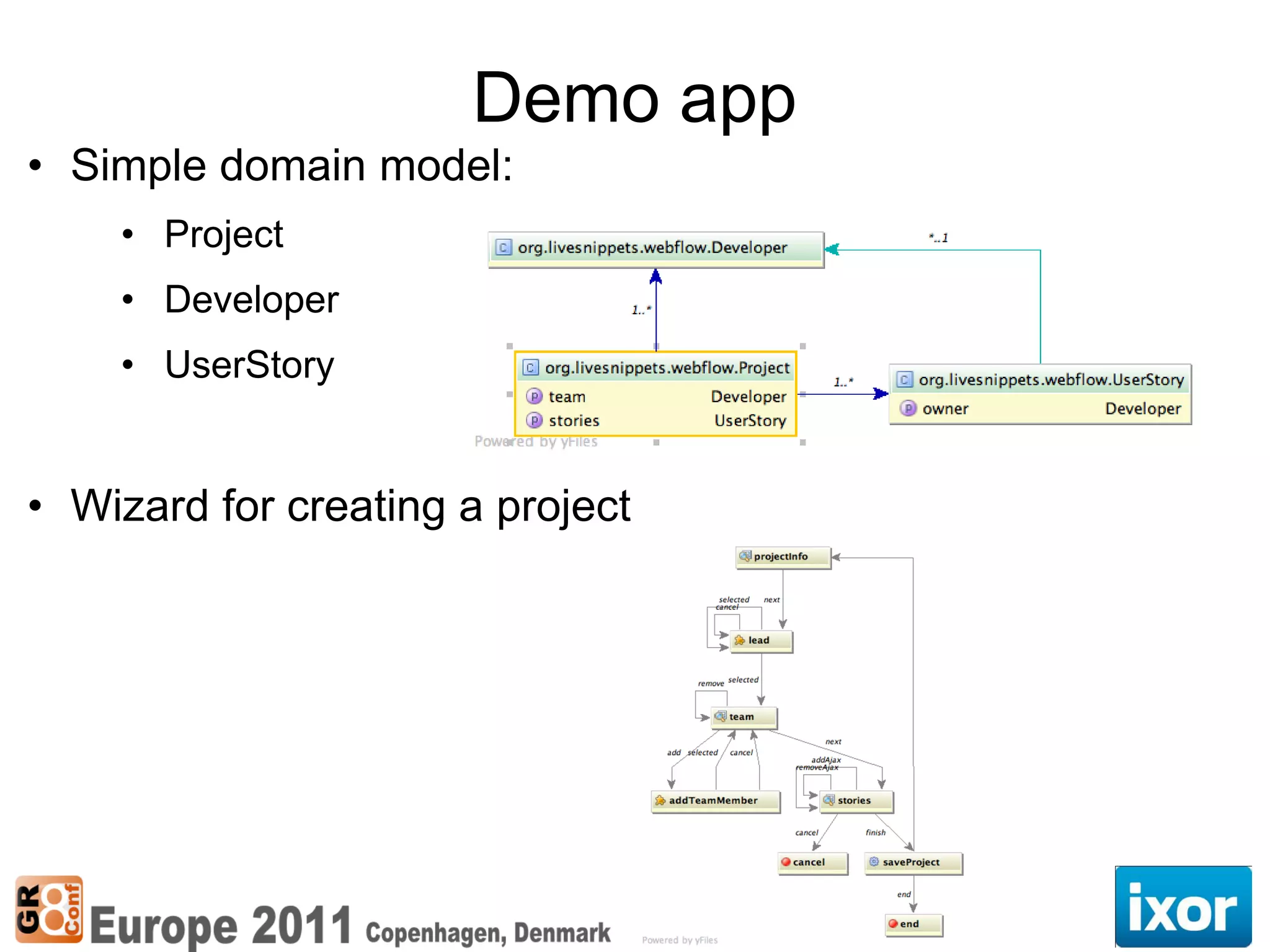

4. Demo app
• Simple domain model:
• Project
• Developer
• UserStory
• Wizard for creating a project

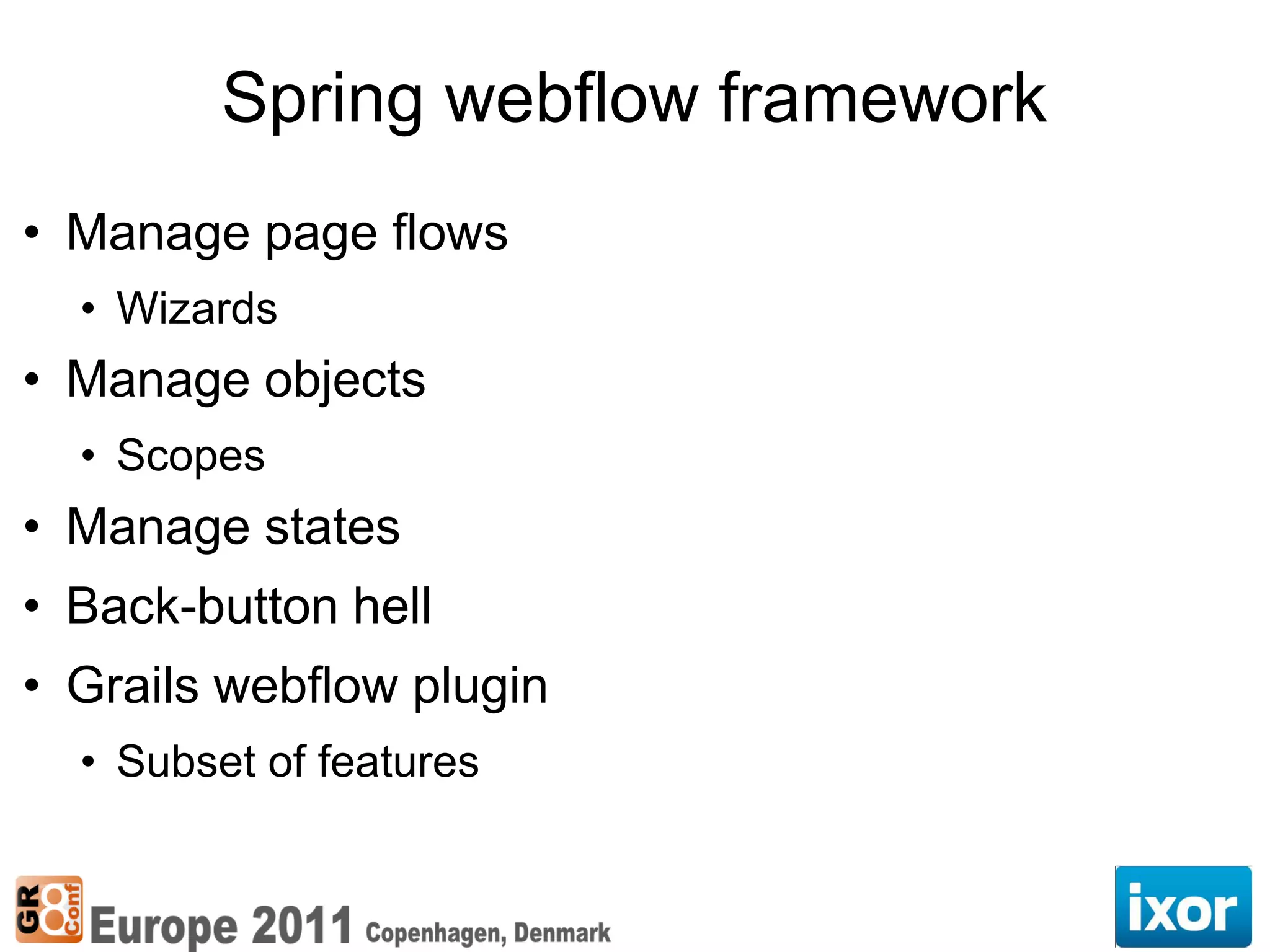

5. Spring webflow framework
• Manage page flows
• Wizards
• Manage objects
• Scopes
• Manage states
• Back-button hell
• Grails webflow plugin
• Subset of features

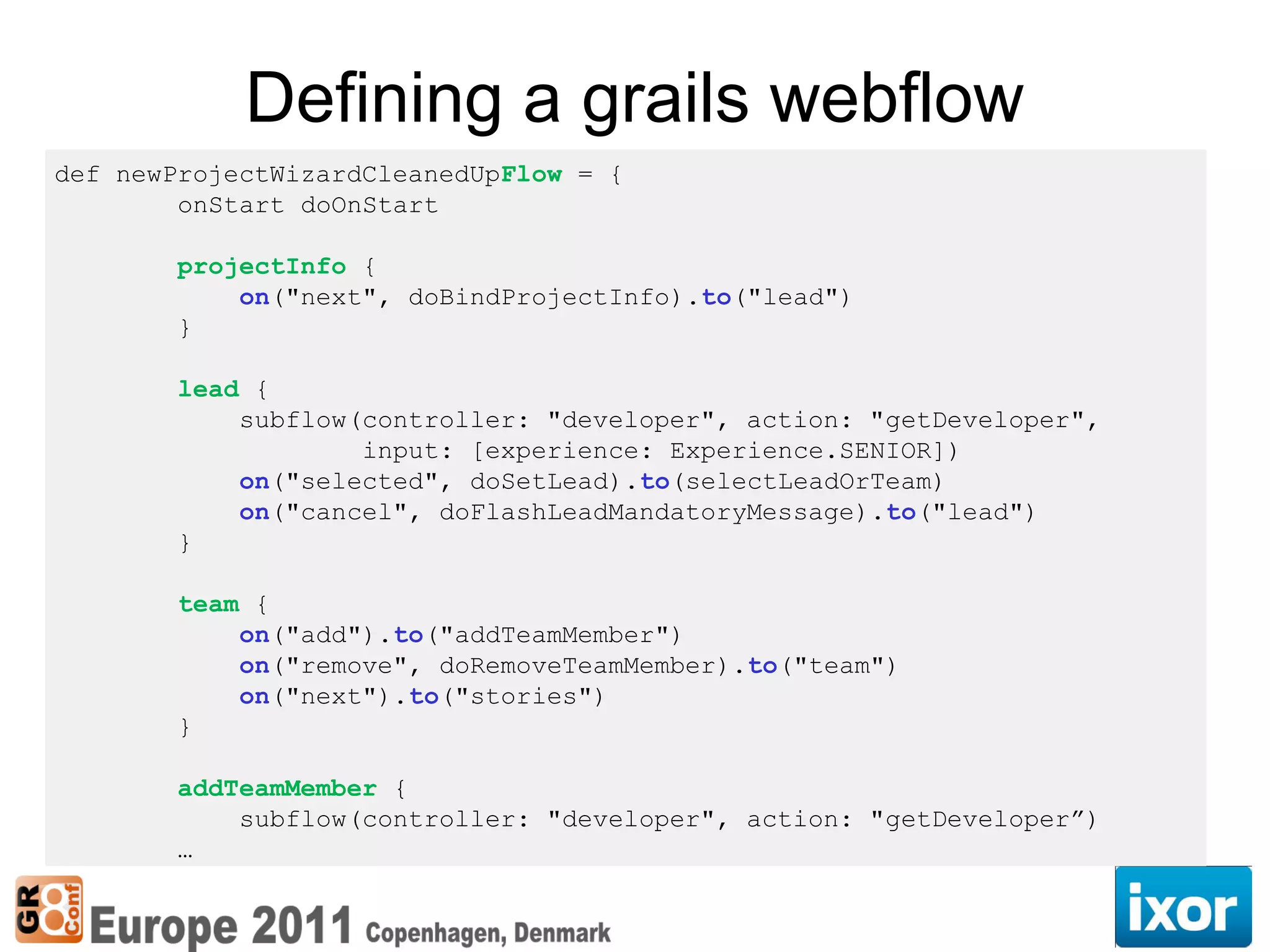

6. Defining a grails webflow
def newProjectWizardCleanedUpFlow = {
onStart doOnStart
projectInfo {
on("next", doBindProjectInfo).to("lead")
}
lead {
subflow(controller: "developer", action: "getDeveloper",
input: [experience: Experience.SENIOR])
on("selected", doSetLead).to(selectLeadOrTeam)
on("cancel", doFlashLeadMandatoryMessage).to("lead")
}
team {
on("add").to("addTeamMember")
on("remove", doRemoveTeamMember).to("team")
on("next").to("stories")
}
addTeamMember {
subflow(controller: "developer", action: "getDeveloper”)
…

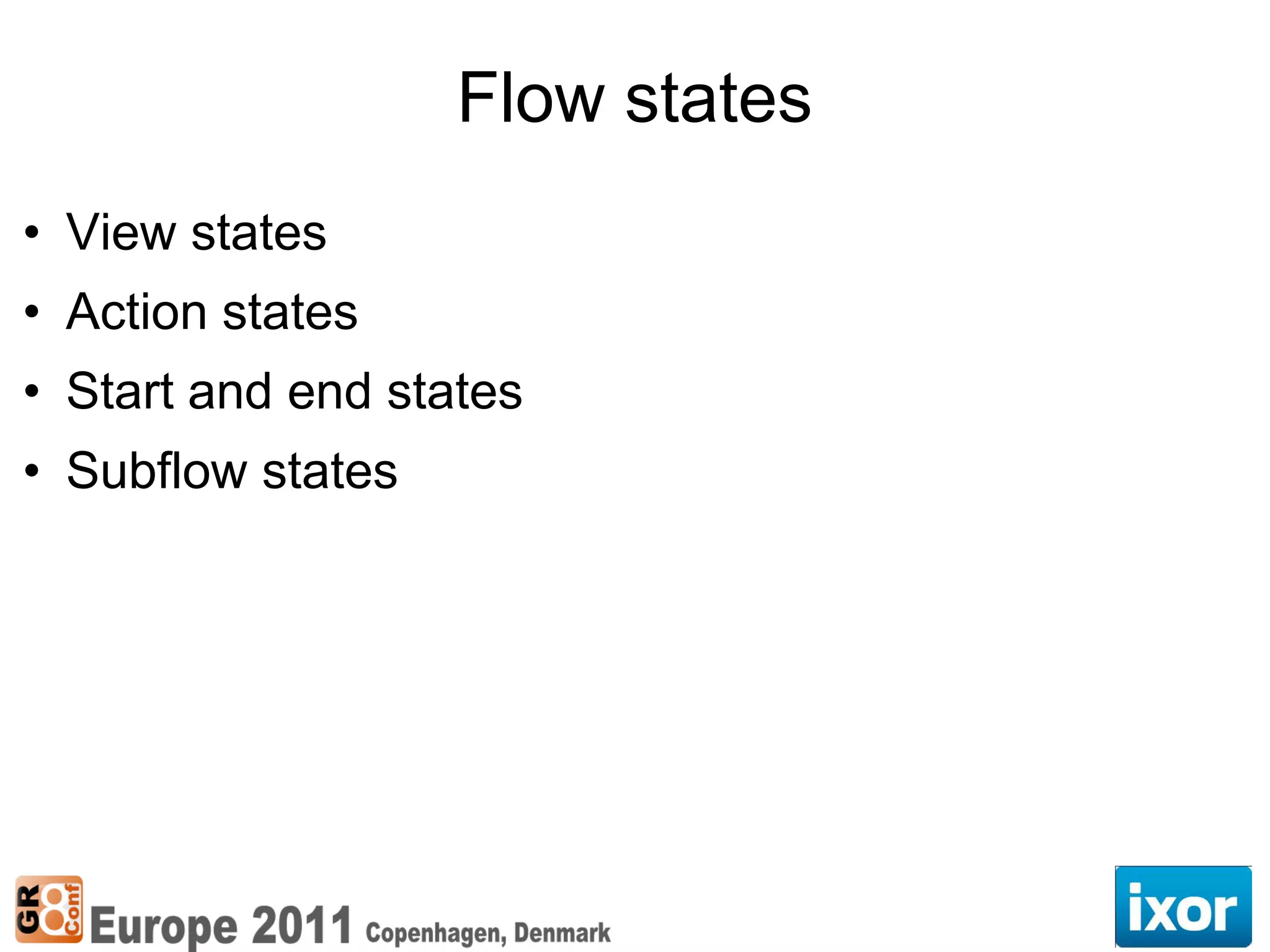

7. Flow states
• View states
• Action states
• Start and end states
• Subflow states

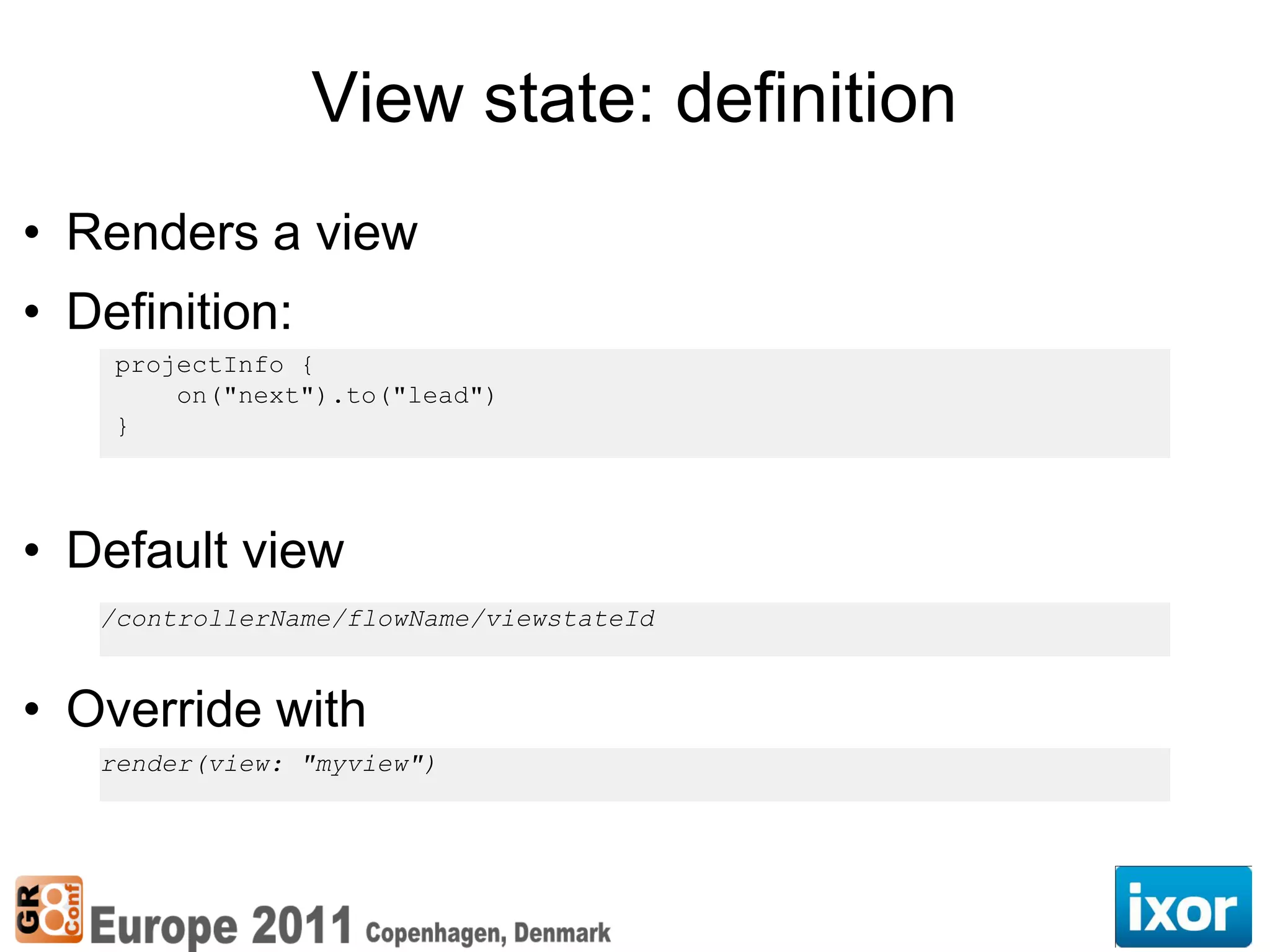

8. View state: definition
• Renders a view
• Definition:
projectInfo {
on("next").to("lead")
}
• Default view
/controllerName/flowName/viewstateId
• Override with
render(view: "myview")

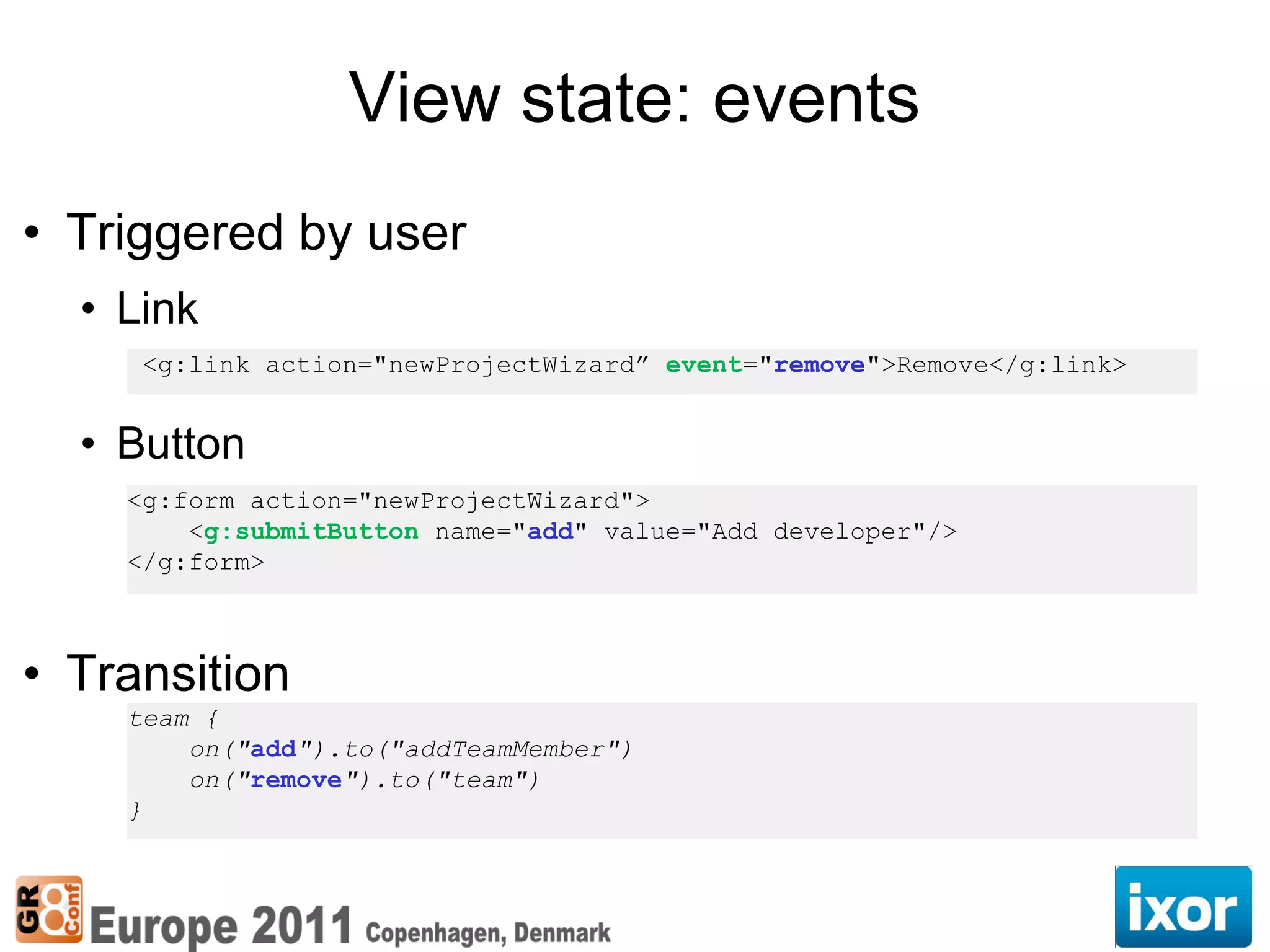

9. View state: events
• Triggered by user
• Link
<g:link action="newProjectWizard” event="remove">Remove</g:link>
• Button
<g:form action="newProjectWizard">
<g:submitButton name="add" value="Add developer"/>
</g:form>
• Transition
team {
on("add").to("addTeamMember")
on("remove").to("team")
}

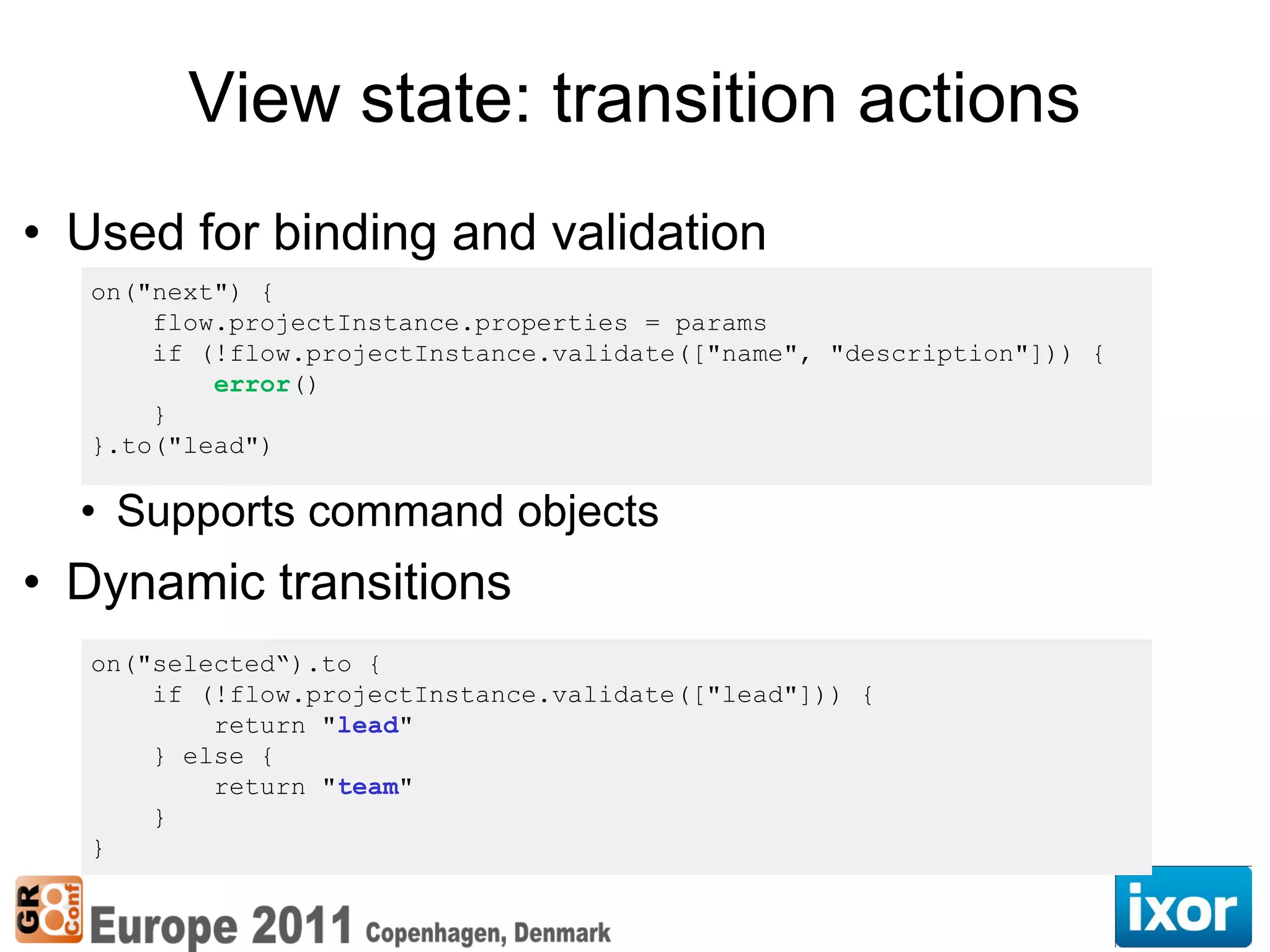

10. View state: transition actions
• Used for binding and validation
on("next") {
flow.projectInstance.properties = params
if (!flow.projectInstance.validate(["name", "description"])) {
error()
}
}.to("lead")
• Supports command objects
• Dynamic transitions
on("selected“).to {
if (!flow.projectInstance.validate(["lead"])) {
return "lead"
} else {
return "team"
}
}

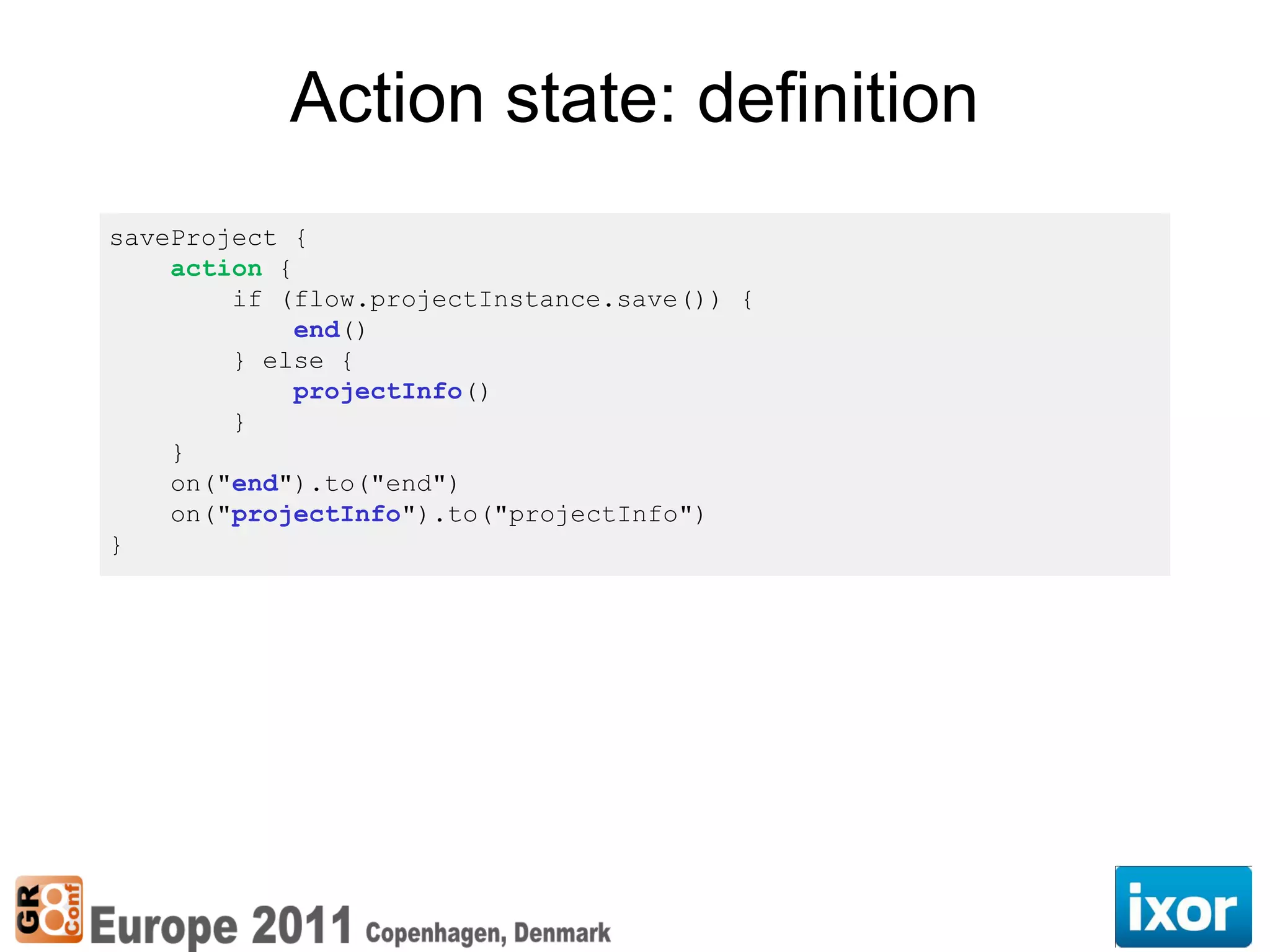

11. Action state: definition
saveProject {
action {
if (flow.projectInstance.save()) {
end()
} else {
projectInfo()
}
}
on("end").to("end")
on("projectInfo").to("projectInfo")
}

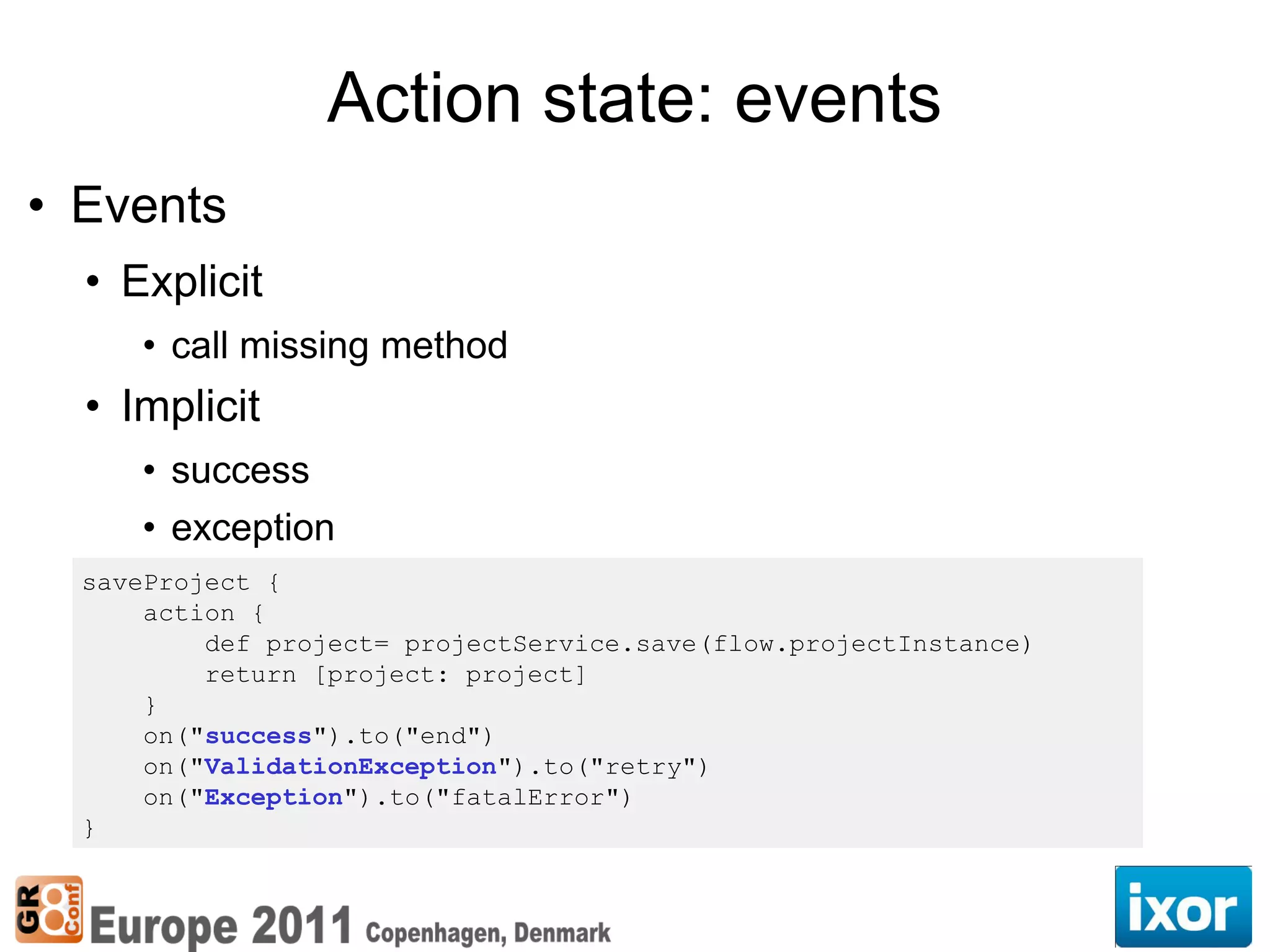

12. Action state: events
• Events
• Explicit
• call missing method
• Implicit
• success
• exception
saveProject {
action {
def project= projectService.save(flow.projectInstance)
return [project: project]
}
on("success").to("end")
on("ValidationException").to("retry")
on("Exception").to("fatalError")
}

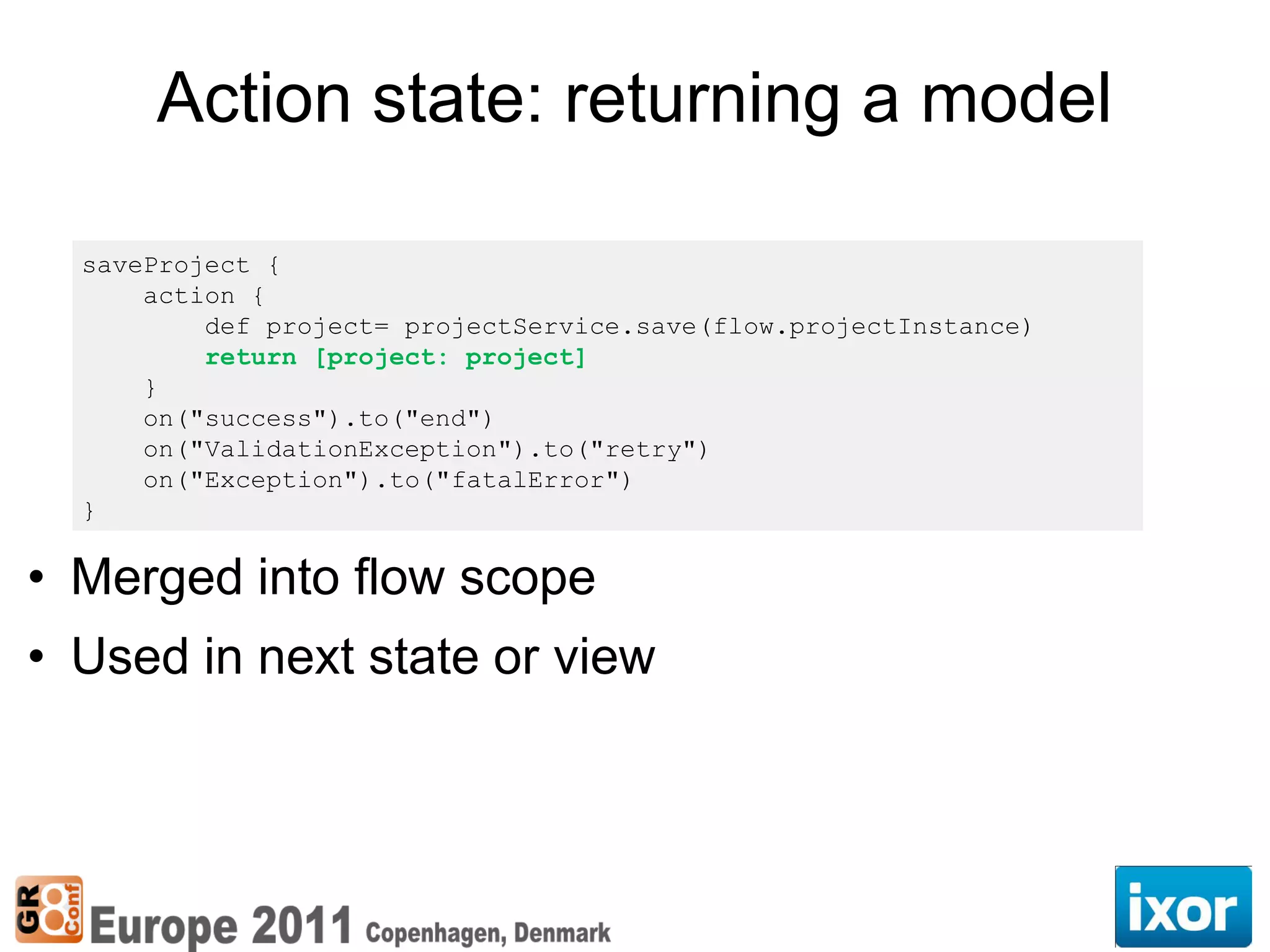

13. Action state: returning a model
saveProject {
action {
def project= projectService.save(flow.projectInstance)
return [project: project]
}
on("success").to("end")
on("ValidationException").to("retry")
on("Exception").to("fatalError")
}
• Merged into flow scope
• Used in next state or view

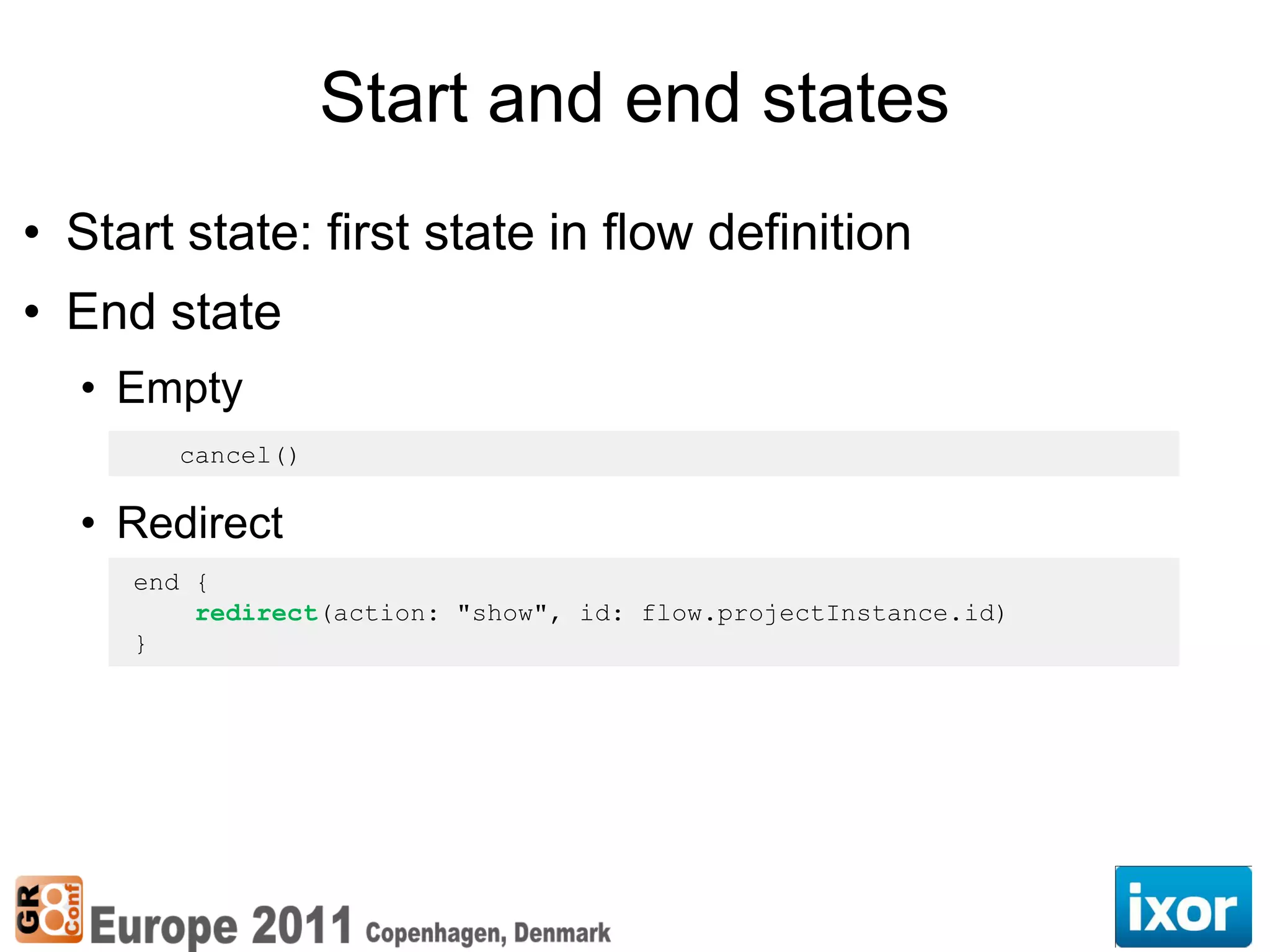

14. Start and end states
• Start state: first state in flow definition
• End state
• Empty
cancel()
• Redirect
end {
redirect(action: "show", id: flow.projectInstance.id)
}

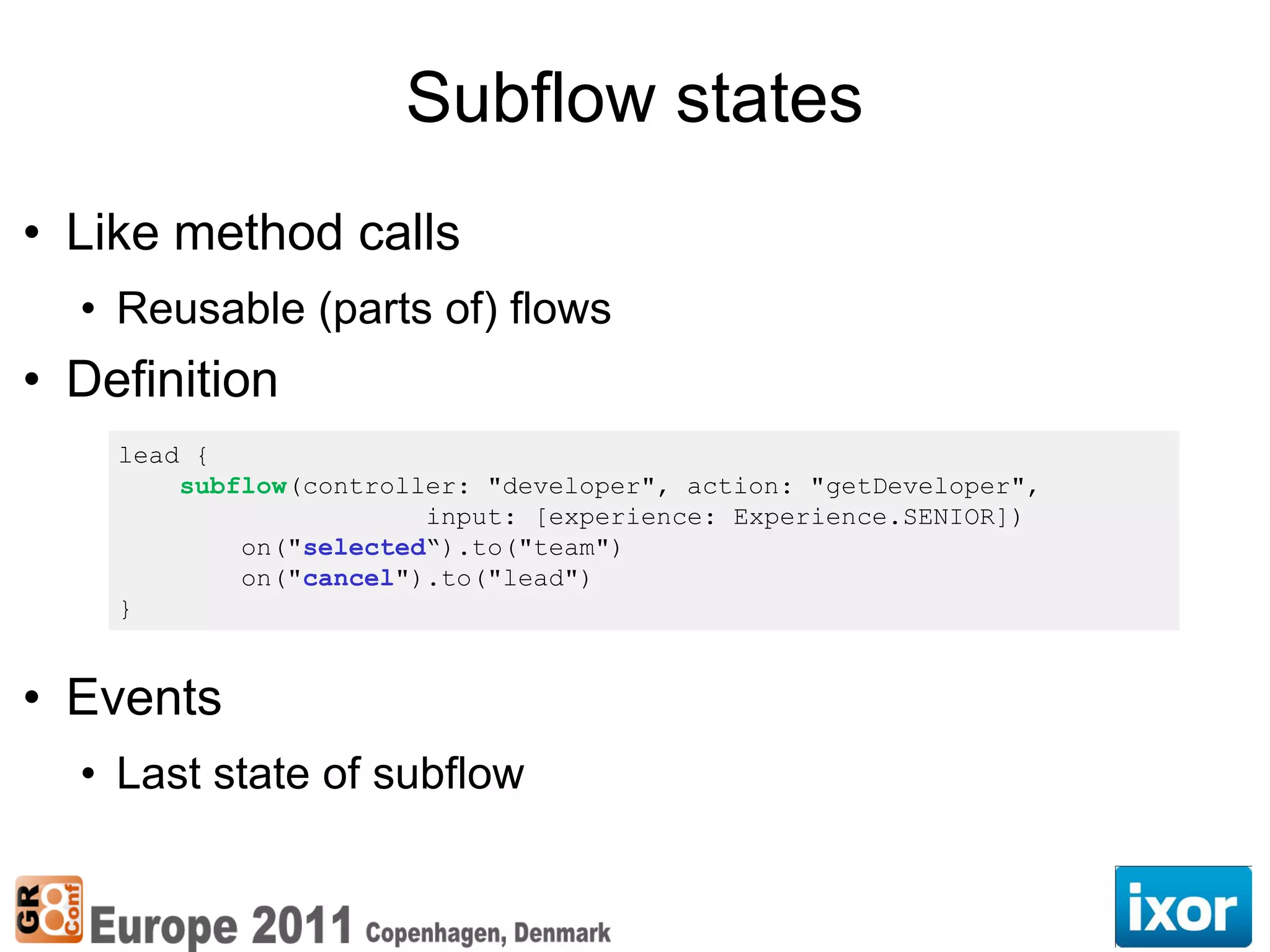

15. Subflow states
• Like method calls
• Reusable (parts of) flows
• Definition
lead {
subflow(controller: "developer", action: "getDeveloper",
input: [experience: Experience.SENIOR])
on("selected“).to("team")
on("cancel").to("lead")
}
• Events
• Last state of subflow

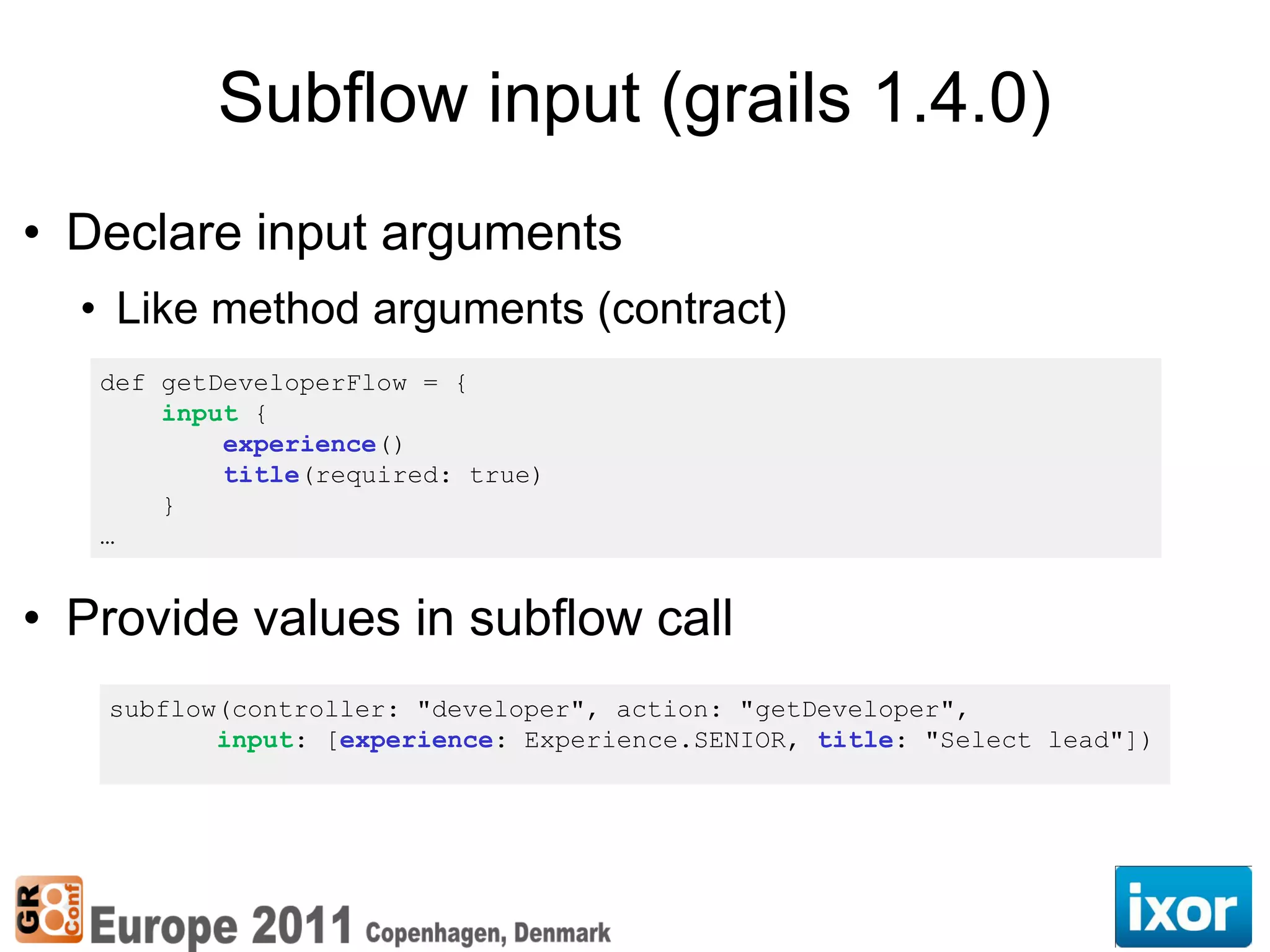

16. Subflow input (grails 1.4.0)
• Declare input arguments
• Like method arguments (contract)
def getDeveloperFlow = {
input {
experience()
title(required: true)
}
…
• Provide values in subflow call
subflow(controller: "developer", action: "getDeveloper",
input: [experience: Experience.SENIOR, title: "Select lead"])

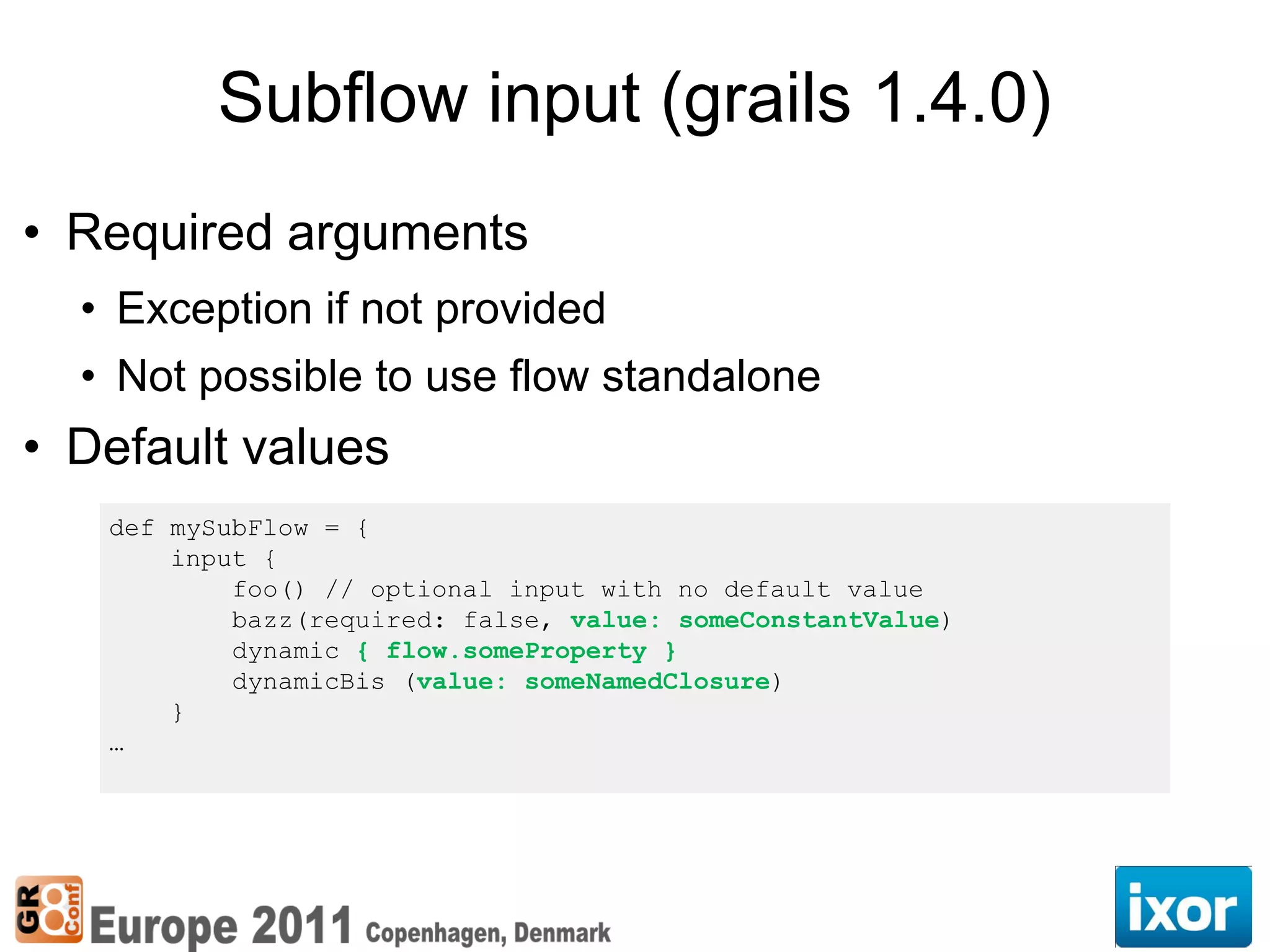

17. Subflow input (grails 1.4.0)
• Required arguments
• Exception if not provided
• Not possible to use flow standalone
• Default values
def mySubFlow = {
input {
foo() // optional input with no default value
bazz(required: false, value: someConstantValue)
dynamic { flow.someProperty }
dynamicBis (value: someNamedClosure)
}
…

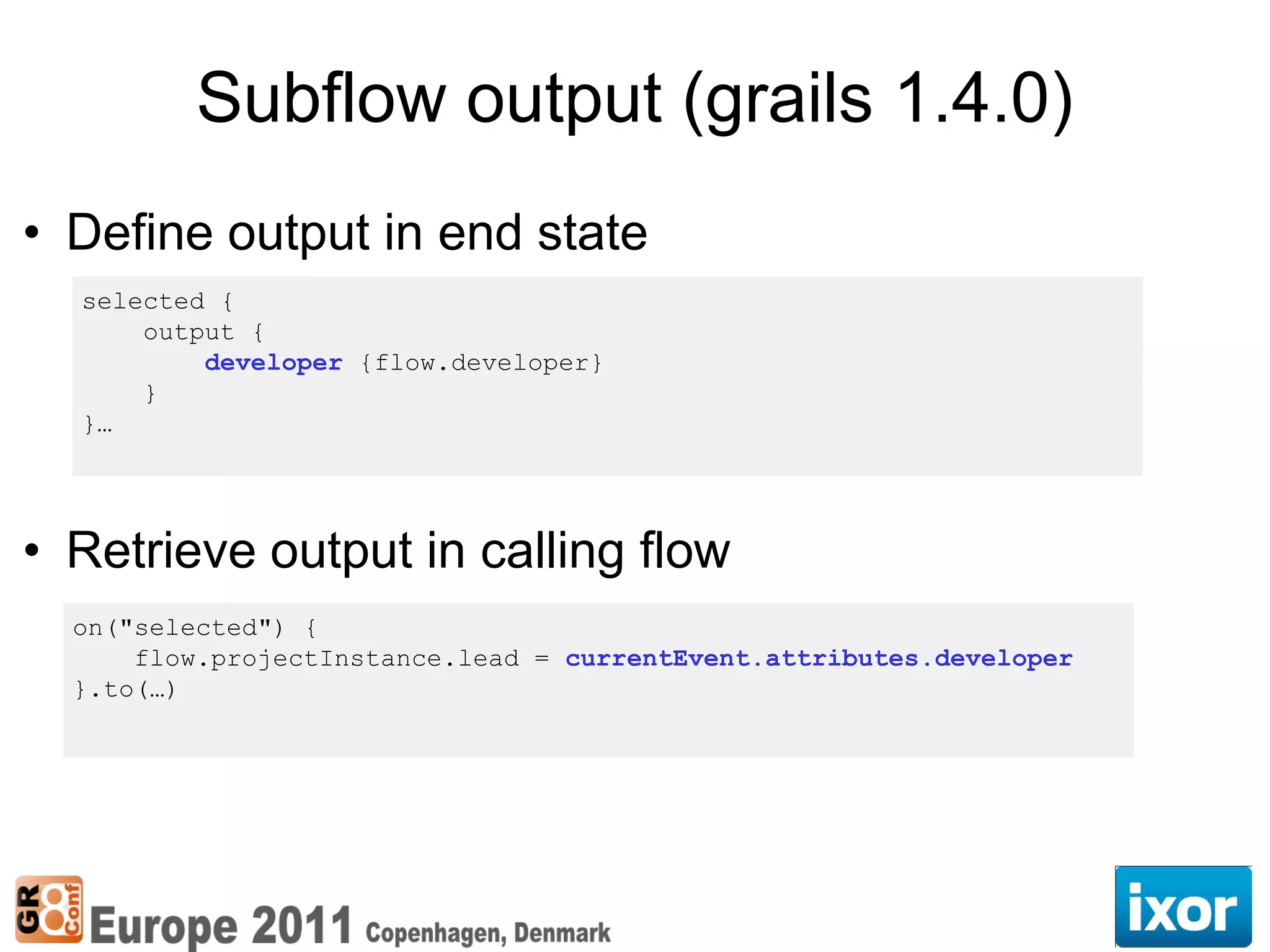

18. Subflow output (grails 1.4.0)
• Define output in end state
selected {
output {
developer {flow.developer}
}
}…
• Retrieve output in calling flow
on("selected") {
flow.projectInstance.lead = currentEvent.attributes.developer
}.to(…)

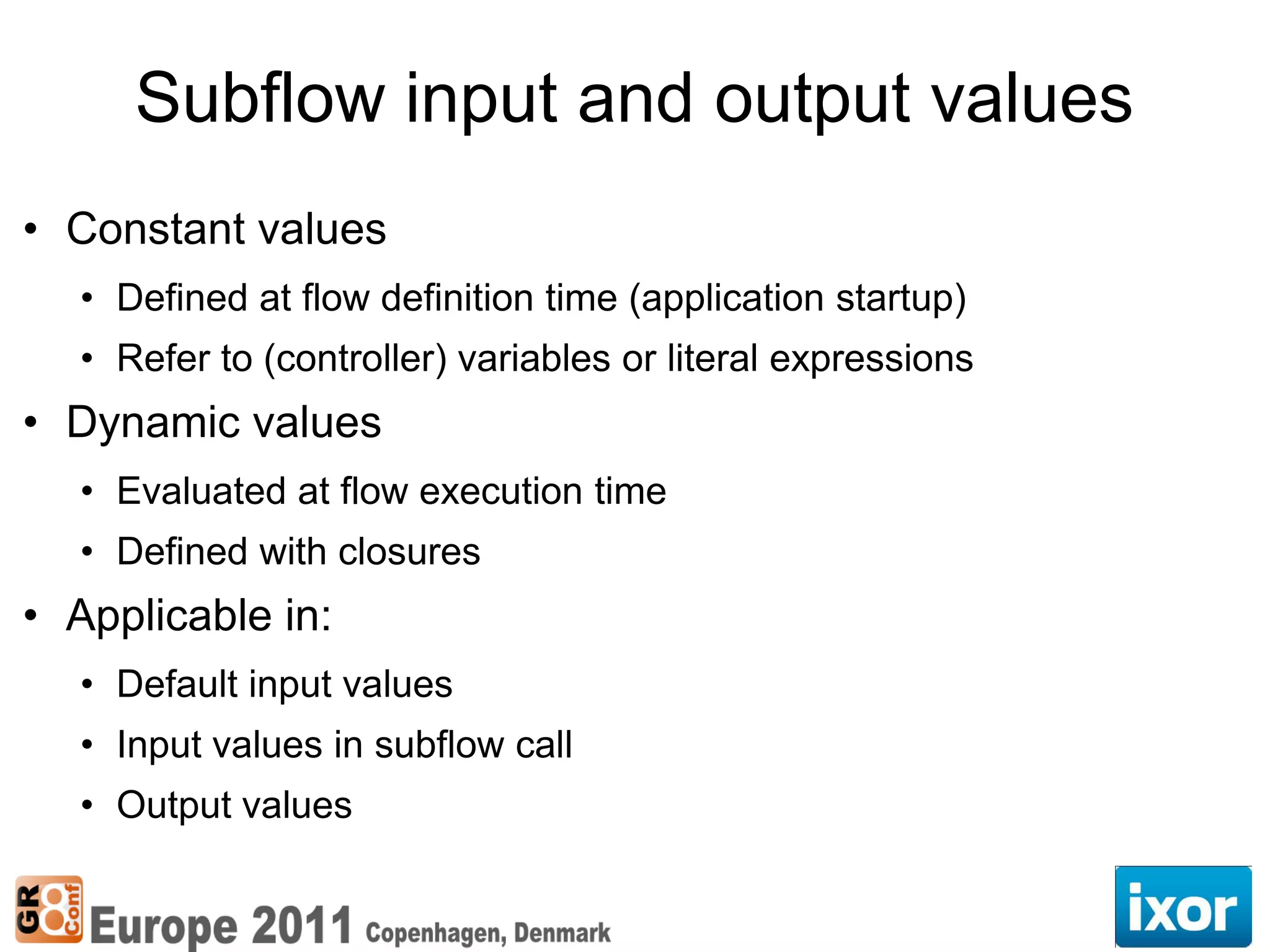

19. Subflow input and output values
• Constant values
• Defined at flow definition time (application startup)
• Refer to (controller) variables or literal expressions
• Dynamic values
• Evaluated at flow execution time
• Defined with closures
• Applicable in:
• Default input values
• Input values in subflow call
• Output values

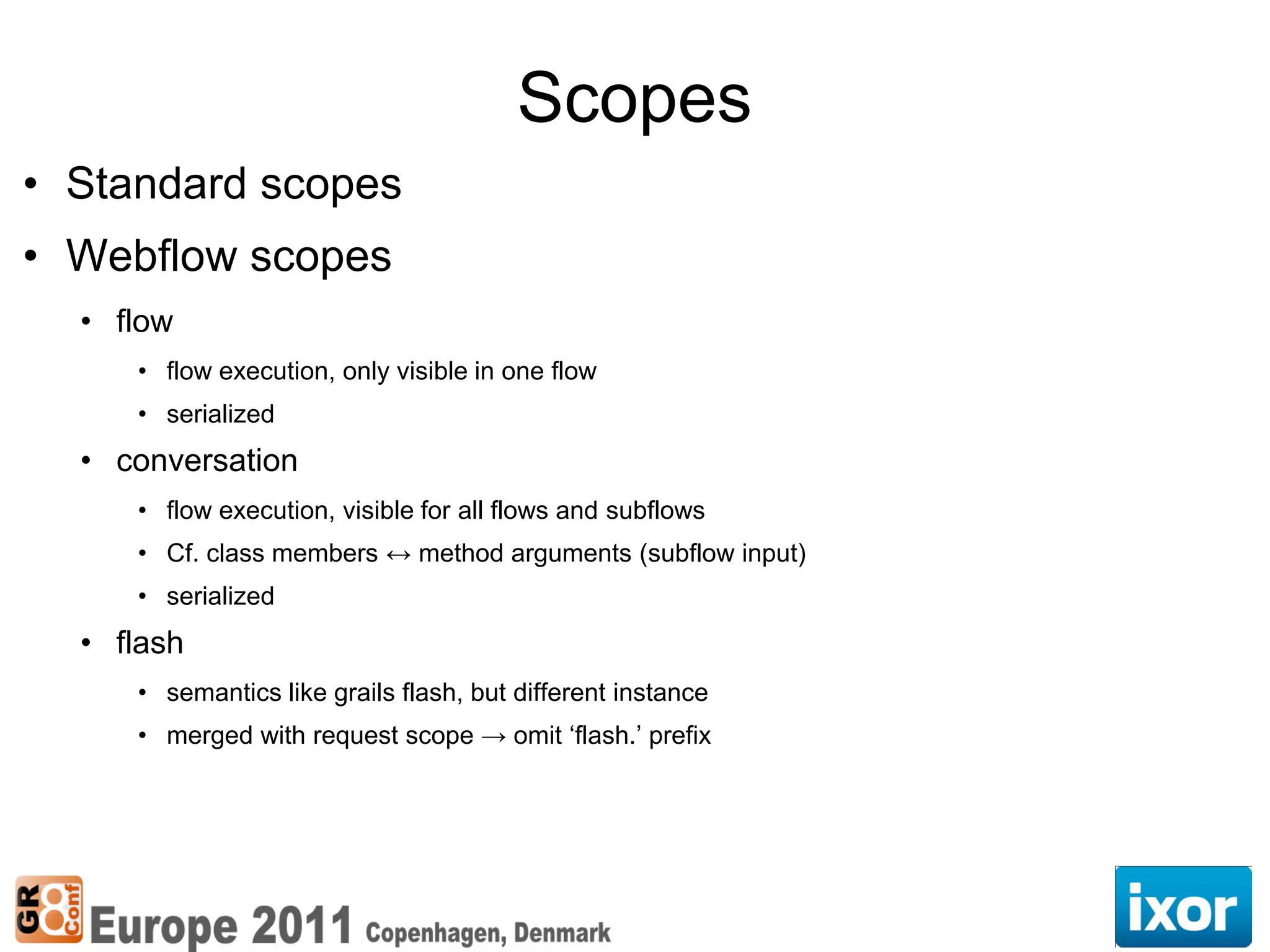

20. Scopes
• Standard scopes
• Webflow scopes
• flow
• flow execution, only visible in one flow
• serialized
• conversation
• flow execution, visible for all flows and subflows
• Cf. class members ↔ method arguments (subflow input)
• serialized
• flash
• semantics like grails flash, but different instance
• merged with request scope → omit ‘flash.’ prefix

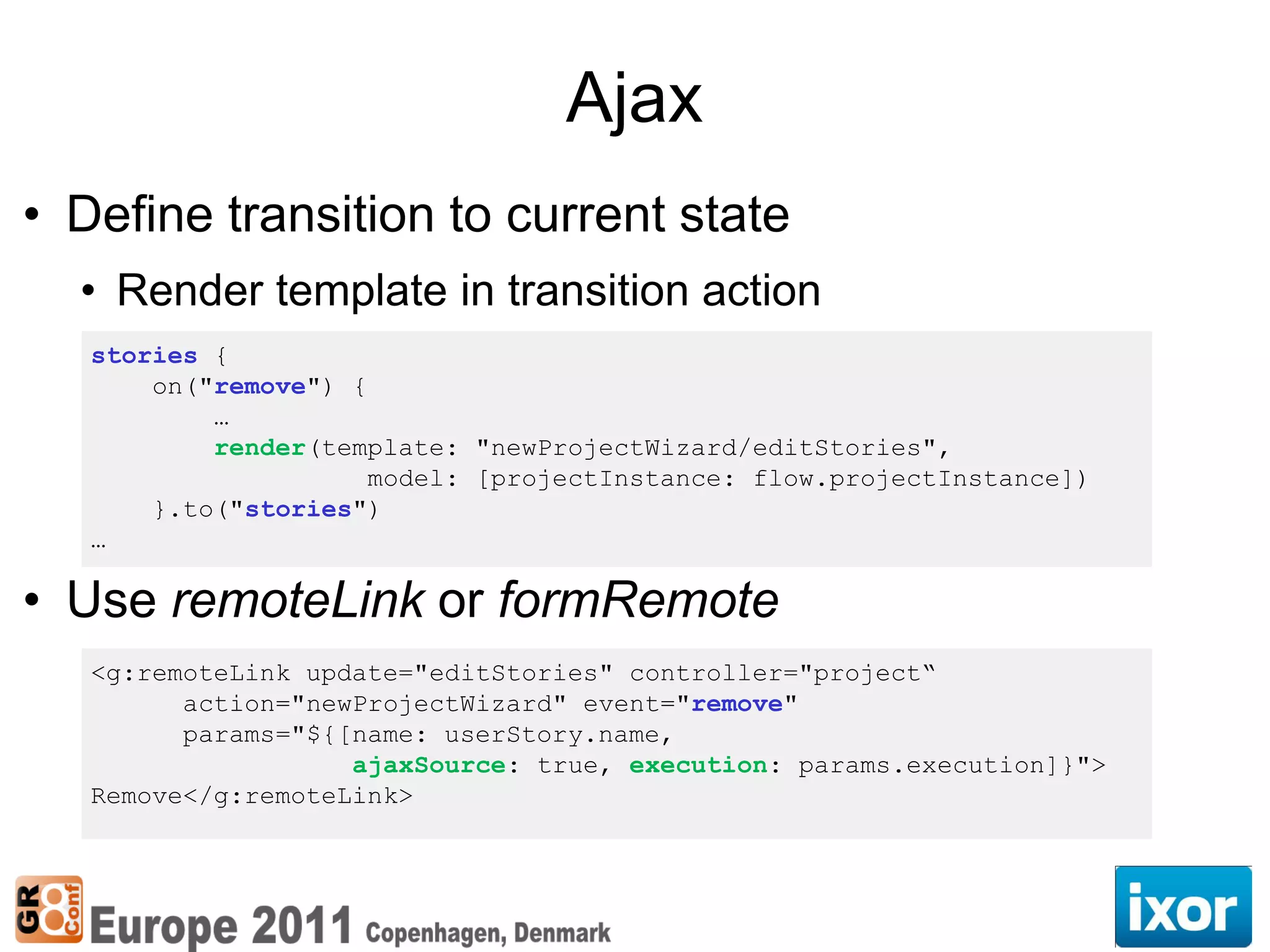

21. Ajax
• Define transition to current state
• Render template in transition action
stories {
on("remove") {
…
render(template: "newProjectWizard/editStories",
model: [projectInstance: flow.projectInstance])
}.to("stories")
…
• Use remoteLink or formRemote
<g:remoteLink update="editStories" controller="project“
action="newProjectWizard" event="remove"
params="${[name: userStory.name,
ajaxSource: true, execution: params.execution]}">
Remove</g:remoteLink>

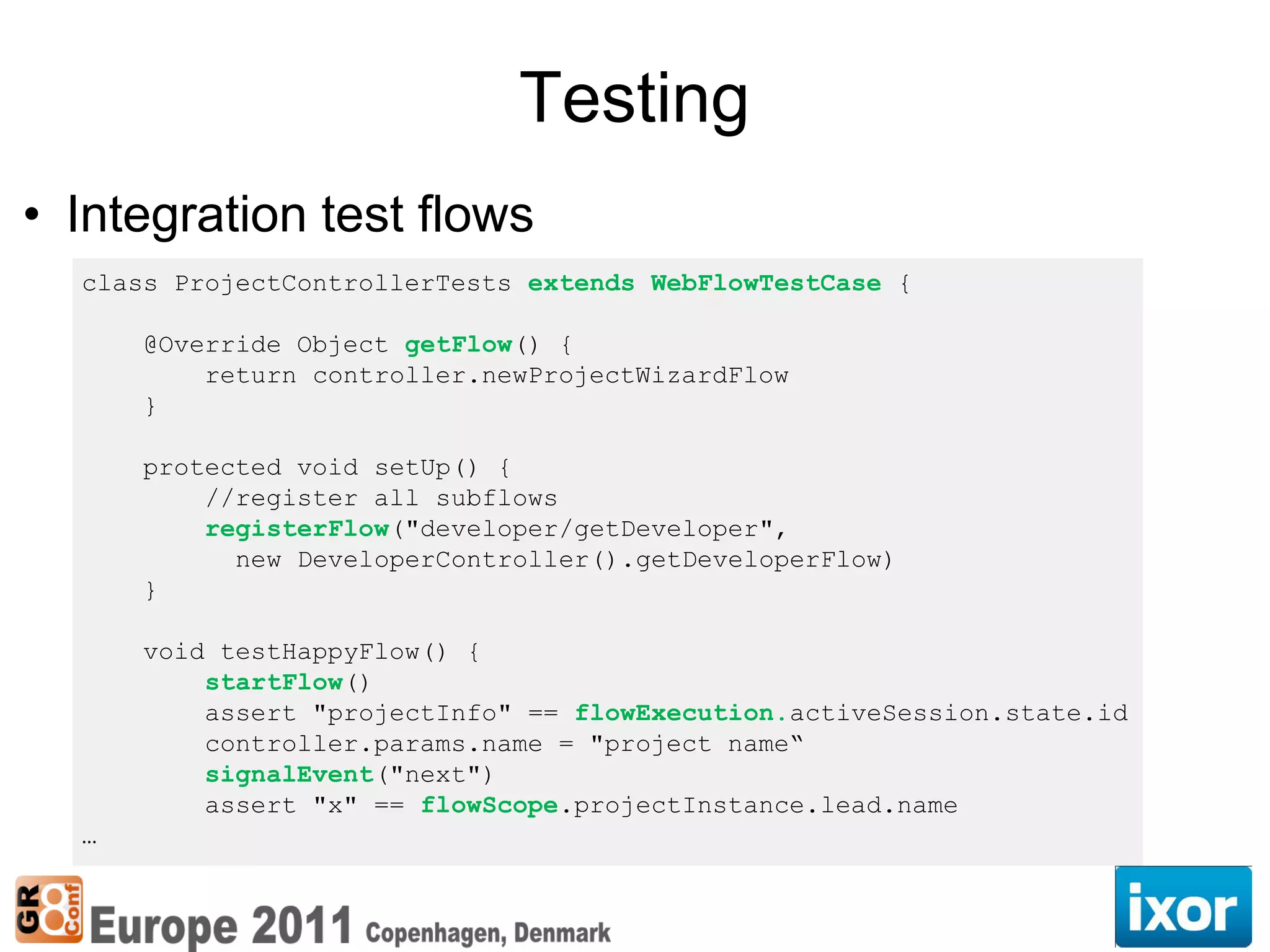

22. Testing
• Integration test flows
class ProjectControllerTests extends WebFlowTestCase {
@Override Object getFlow() {
return controller.newProjectWizardFlow
}
protected void setUp() {
//register all subflows
registerFlow("developer/getDeveloper",
new DeveloperController().getDeveloperFlow)
}
void testHappyFlow() {
startFlow()
assert "projectInfo" == flowExecution.activeSession.state.id
controller.params.name = "project name“
signalEvent("next")
assert "x" == flowScope.projectInstance.lead.name
…

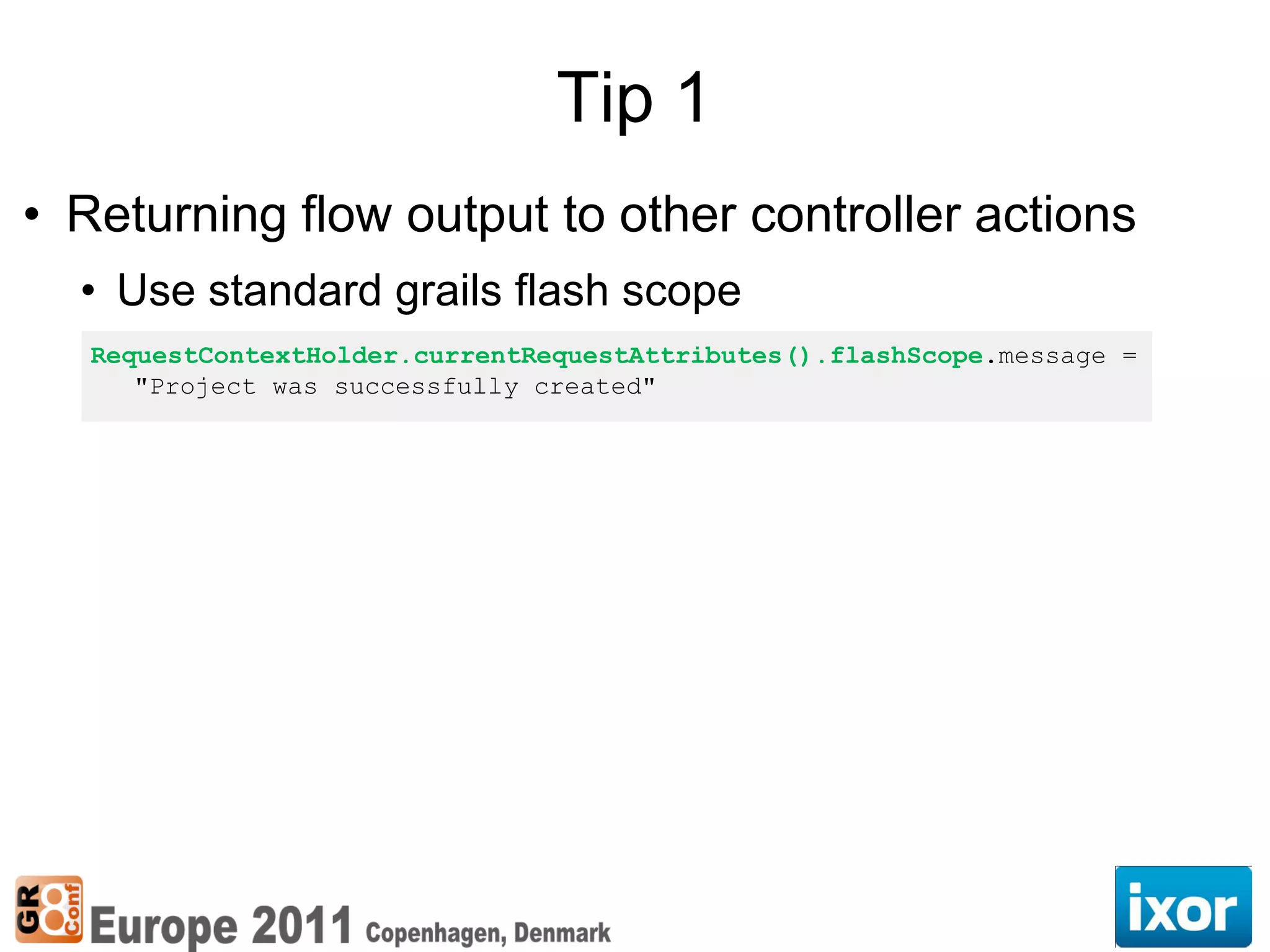

23. Tip 1
• Returning flow output to other controller actions
• Use standard grails flash scope
RequestContextHolder.currentRequestAttributes().flashScope.message =
"Project was successfully created"

24. Tip 2
• Create clean readable flow definitions
• Use closure variables
def newProjectWizardCleanedUpFlow = {
onStart doOnStart
projectInfo {
on("next", doBindProjectInfo).to("lead")
}
…
• Define private closures
private def doBindProjectInfo = {
…
}

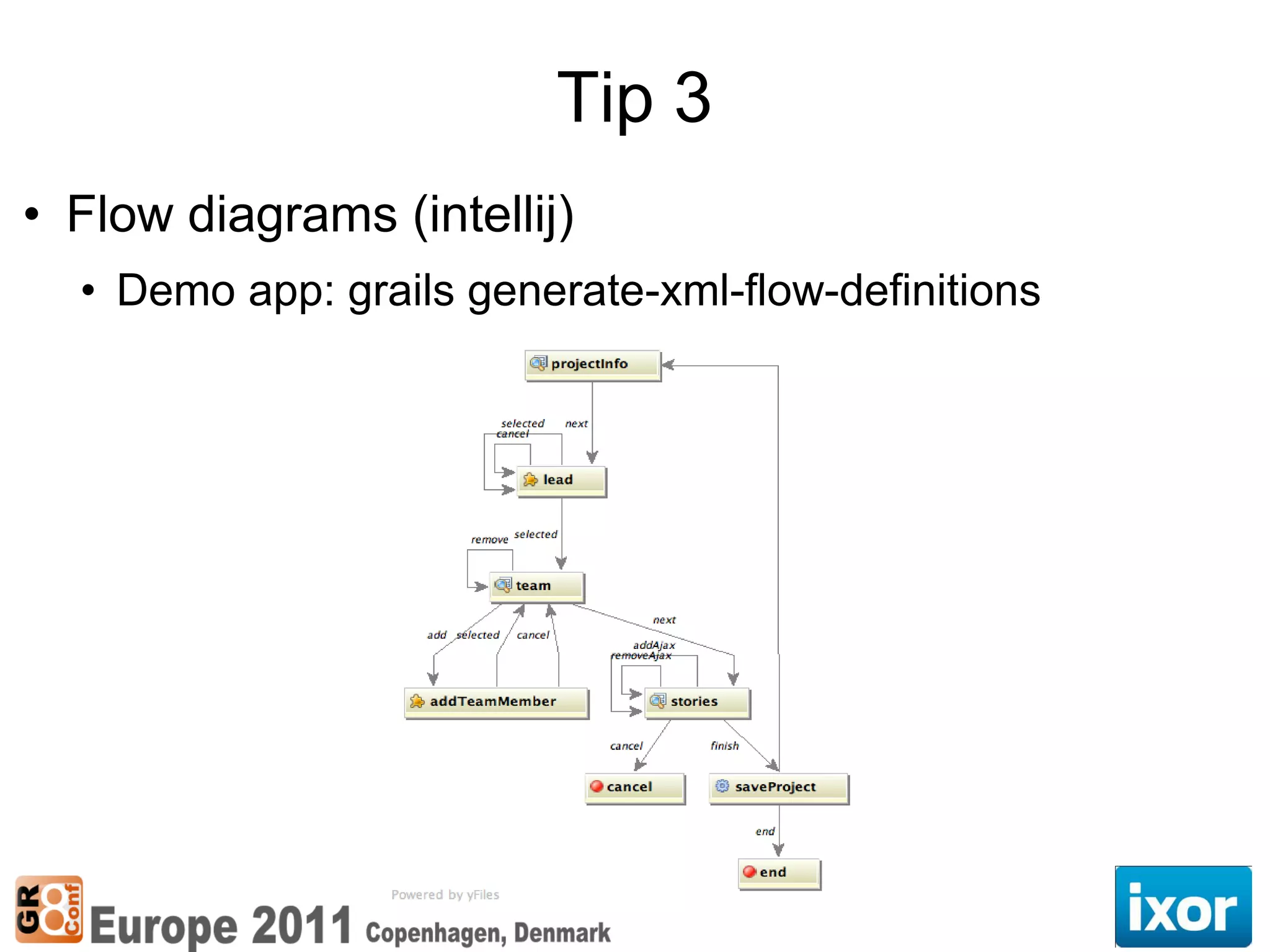

25. Tip 3
• Flow diagrams (intellij)
• Demo app: grails generate-xml-flow-definitions

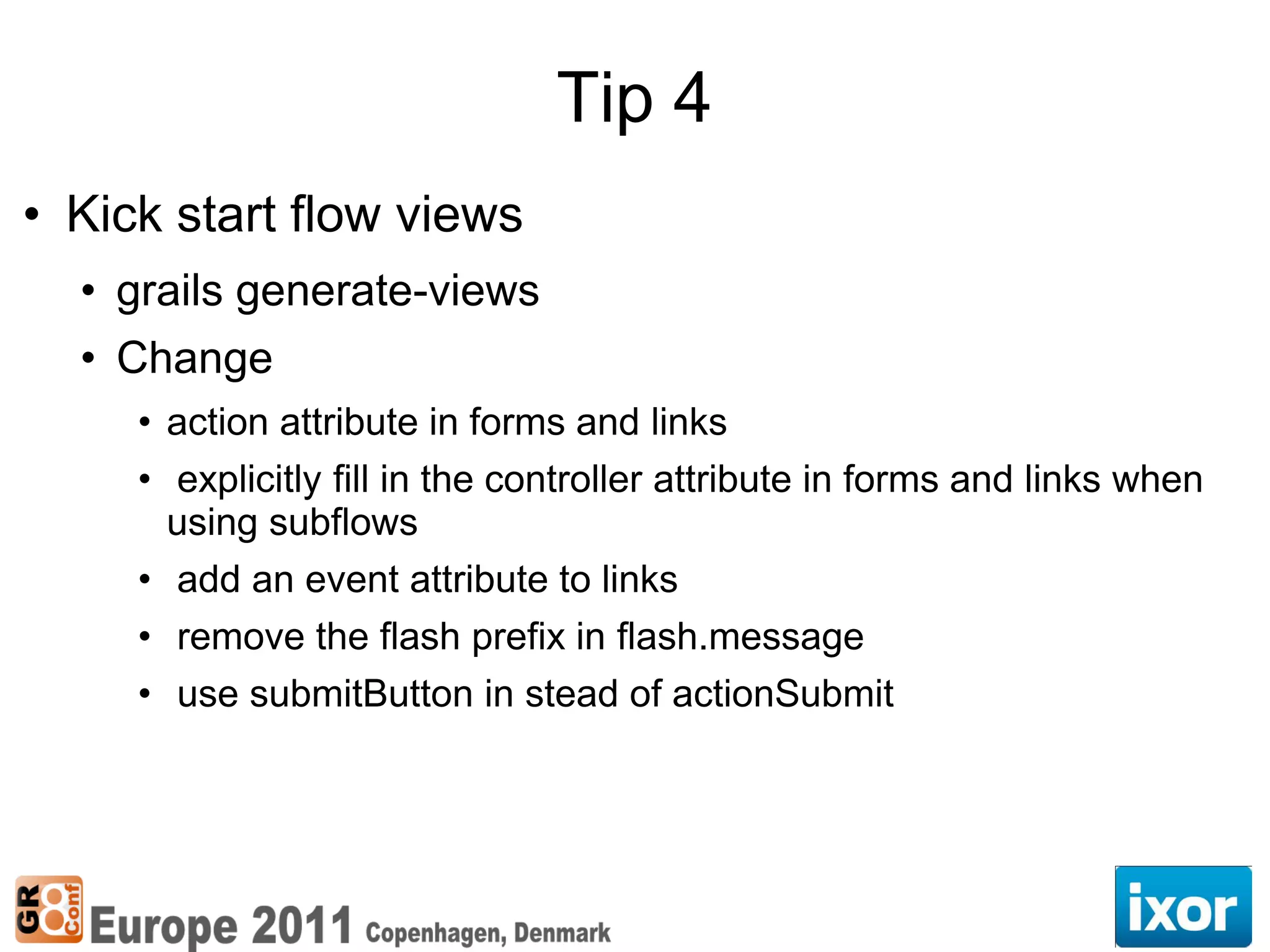

26. Tip 4
• Kick start flow views
• grails generate-views
• Change
• action attribute in forms and links
• explicitly fill in the controller attribute in forms and links when
using subflows
• add an event attribute to links
• remove the flash prefix in flash.message
• use submitButton in stead of actionSubmit

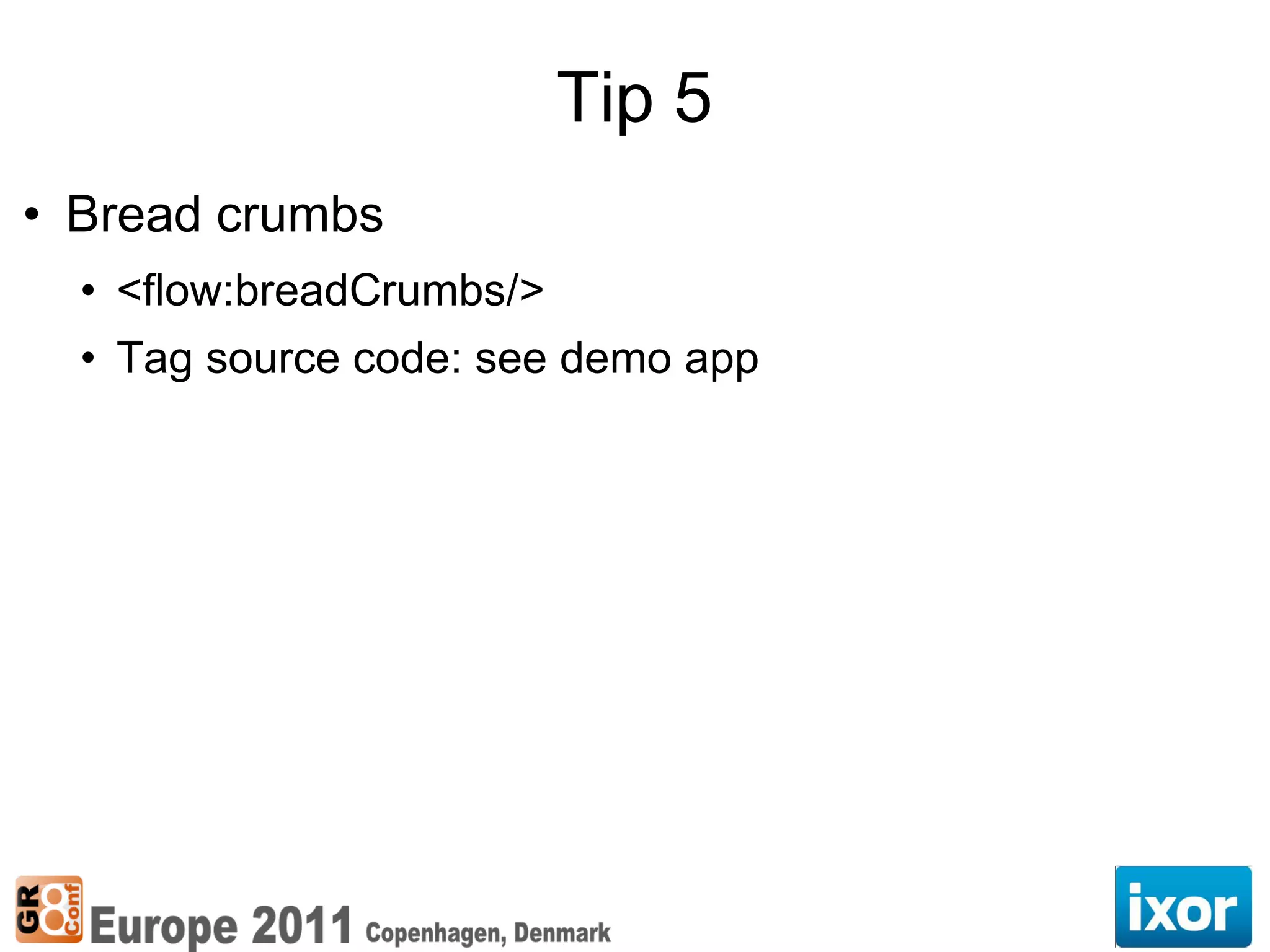

27. Tip 5
• Bread crumbs
• <flow:breadCrumbs/>
• Tag source code: see demo app

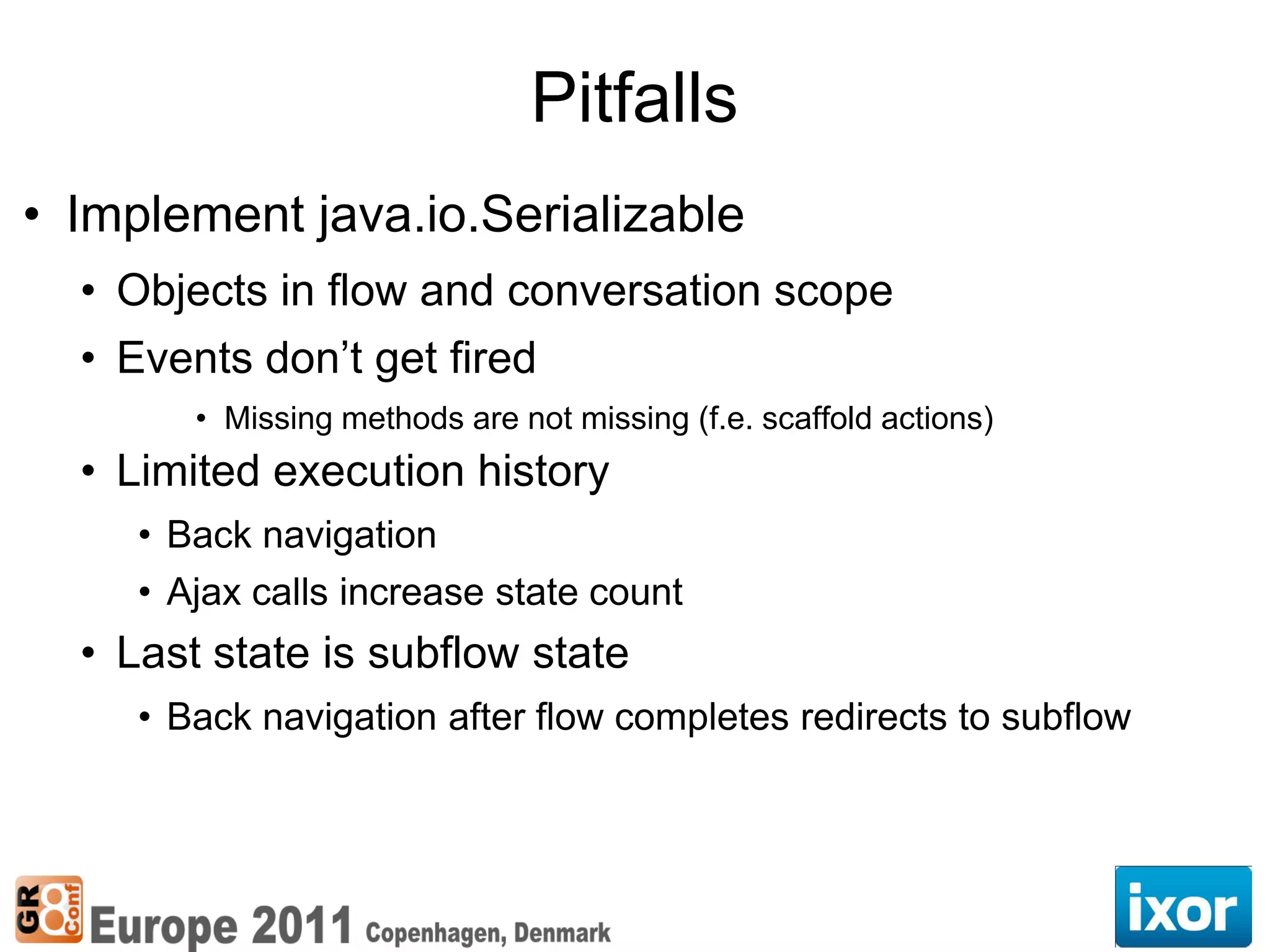

28. Pitfalls
• Implement java.io.Serializable
• Objects in flow and conversation scope
• Events don’t get fired
• Missing methods are not missing (f.e. scaffold actions)
• Limited execution history
• Back navigation
• Ajax calls increase state count
• Last state is subflow state
• Back navigation after flow completes redirects to subflow

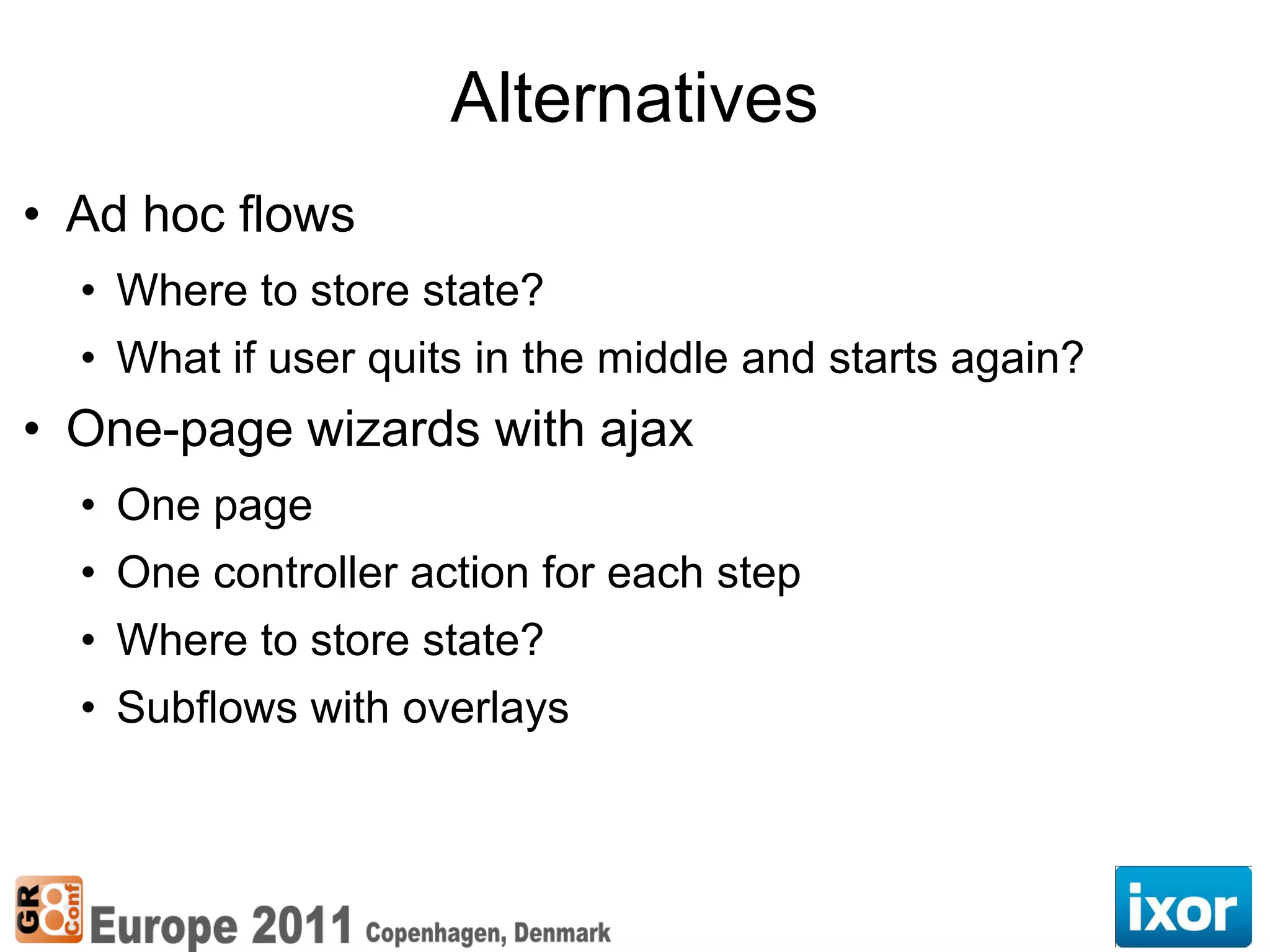

29. Alternatives
• Ad hoc flows
• Where to store state?
• What if user quits in the middle and starts again?
• One-page wizards with ajax
• One page
• One controller action for each step
• Where to store state?
• Subflows with overlays

30. Extended validation plugin
• Validation for non-grails domain classes
• Particularly useful in combination with webflow
• Cascade constraint
static constraints = {
customer(cascade: true)
…
• Instance constraint
static constraints = {
creditCheck(validator: {order ->
if (order.customer.creditScore == CreditScore.BAD
&& order.orderLines.size() > 1) {
return "order.creditCheck.BAD"
}
})
…

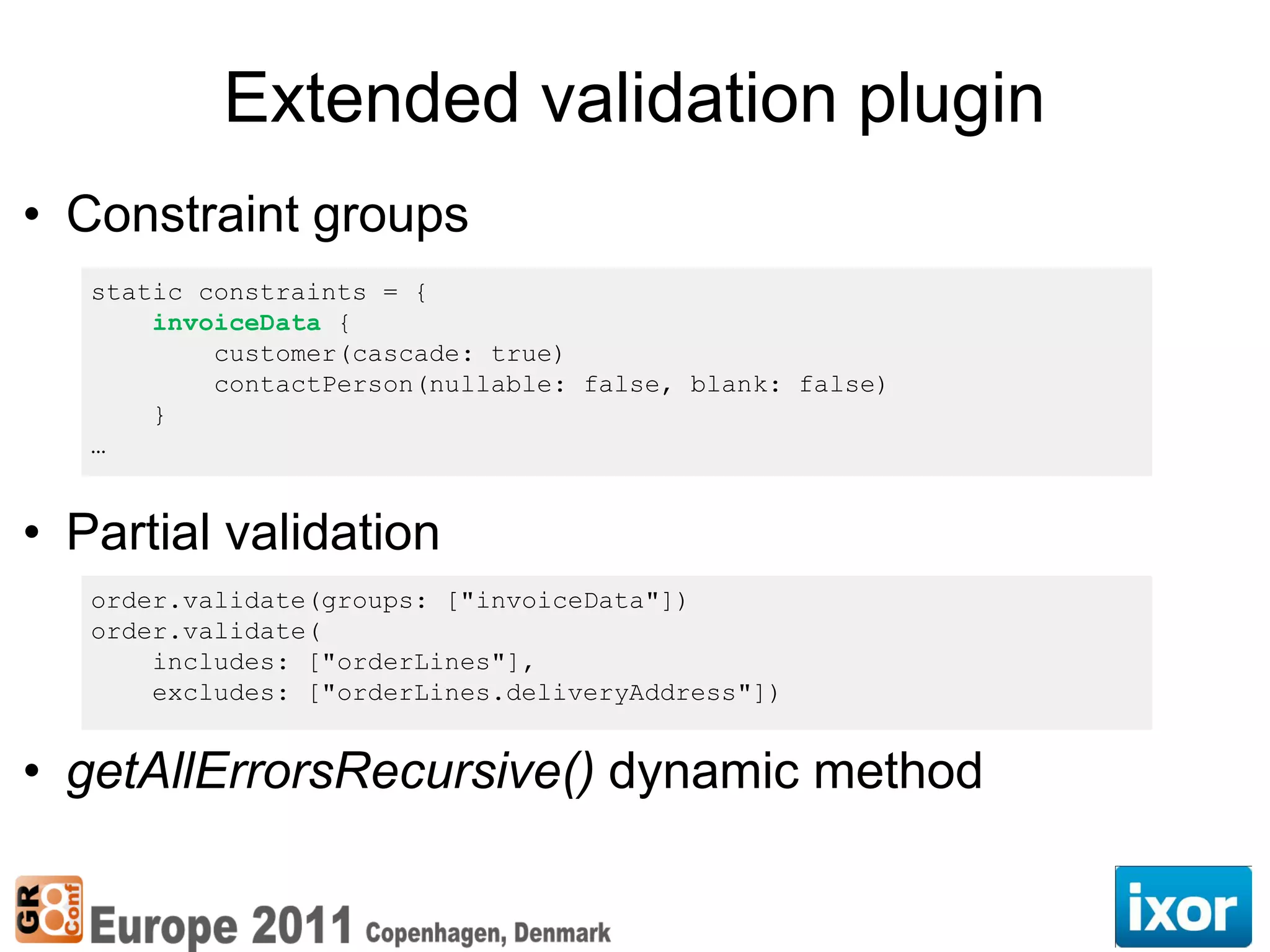

31. Extended validation plugin
• Constraint groups
static constraints = {
invoiceData {
customer(cascade: true)
contactPerson(nullable: false, blank: false)
}
…
• Partial validation
order.validate(groups: ["invoiceData"])
order.validate(
includes: ["orderLines"],
excludes: ["orderLines.deliveryAddress"])
• getAllErrorsRecursive() dynamic method

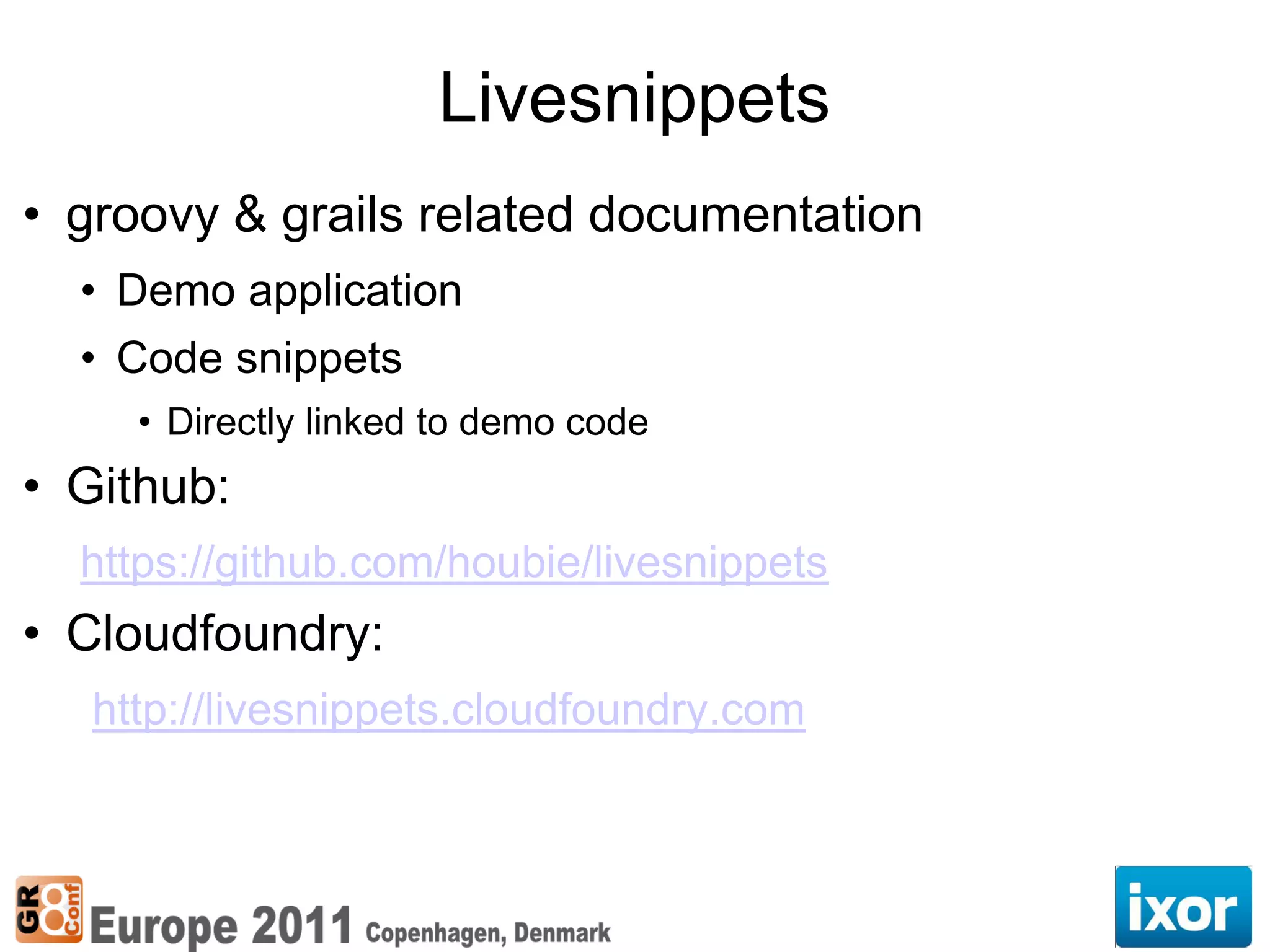

32. Livesnippets
• groovy & grails related documentation
• Demo application
• Code snippets
• Directly linked to demo code
• Github:
https://github.com/houbie/livesnippets
• Cloudfoundry:
http://livesnippets.cloudfoundry.com

33. Questions
?
