The Windsor Probe Test measures the compressive strength of concrete by driving a probe into the material with a known force. It features an electronic measuring unit that enhances accuracy and stores measurements for later use, conforming to ASTM standards. The system is suitable for various types of concrete and is designed for applications such as structural analysis and concrete strength determination.

1. WINDSOR PROBE
TEST
PRESENTED BY
AGLAIA

2. WINDSOR PROBE TEST
Measures the compressive strength of concrete
accurately and effectively.
This system accurately determines the concrete
compressive strength of a structure by driving a
probe into the concrete with a known amount of
force.
 It is simple system to operate.

3. An electronic measuring unit has been added
to help ensure proper test results which can
be recorded for later review or uploading to
a personal computer.
Two probe styles are available: one for
lightweight, low density concrete with air
filled aggregate and the other probe for more
standard mix designs.

5. FEATURES & BENEFITS
New electronic measuring system enhances
accuracy and efficiency
Measurement to 17000 psi (110 MPa)
Memory for data storage and uploading to PC
no accidental discharge and no recoil
Fast and economical use

6. Determines the developing strength of
concrete; improves safety, ensures quality and
reduces
Monitors the strength for rehabilitation as
concrete ages
Conforms to ASTM C-803 and other official
tests.

8. PROCEDURE
A. Actuating
Load the driver with a power load and probe suited
for the type of concrete being examined.
 Place the driver firmly on the actuating template
and fire.
The locating template is then used to locate the
probes at the corners of a fixed triangle.

9. Normally, three measurements are required for
consistent and statistically reliable results.

10. B. Measuring
The electronic measuring device is menu driven and
programmed for selection according to the
Following parameters.
 Aggregate hardness
 Light weight, normal, or HP concrete
 American or Metric units

11. The three individual tests are automatically
averaged and displayed on the LCD in
accordance with the ASTM procedure.
This data together with time and date of the test
are stored in the memory for subsequent
uploading to a PC.
 An extractor is supplied to facilitate probe
removal after the test

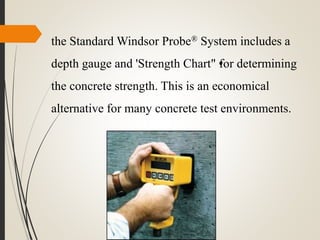

12. the Standard Windsor Probe® System includes a
depth gauge and 'Strength Chart"•for determining
the concrete strength. This is an economical
alternative for many concrete test environments.

13. APPLICATIONS
Form Removal
Structural Analysis
Light-weight concrete strength determination
Standard concrete strength determination
High-strength concrete strength determination
High-precision determination
