Windows 10 IoT Core is a specialized version of Windows 10 compiled for ARM devices like the Raspberry Pi 2. It allows developers to write .NET and C++ applications for IoT devices and access device capabilities like GPIO pins. IoT Core applications can integrate with Azure services like Event Hubs to process and analyze sensor data from devices in the cloud. The document provides an overview of IoT Core and demos a simple distance-sensing application with a Raspberry Pi that streams data to an Event Hub.

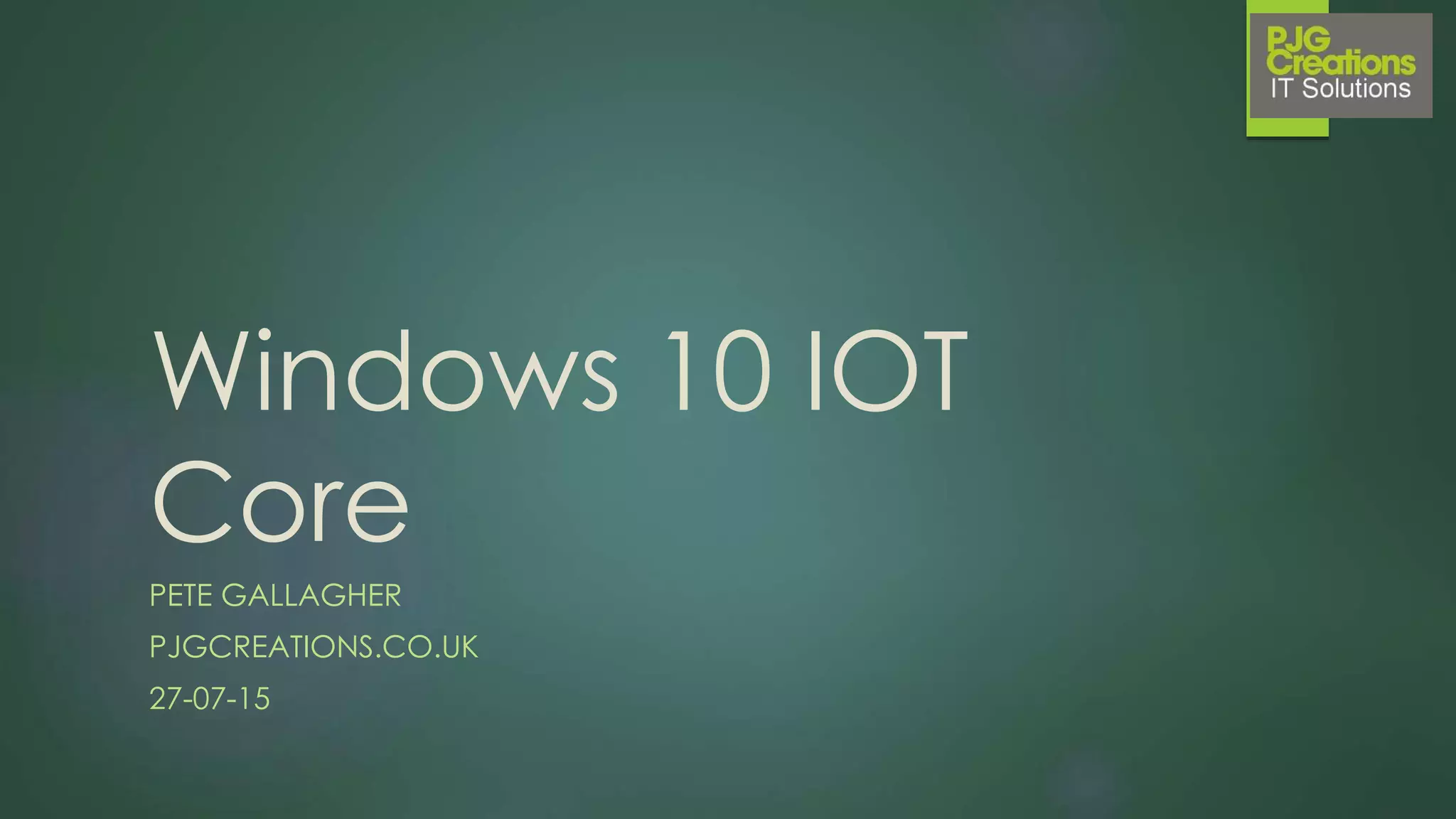

1. Windows 10 IoT Core
PETE GALLAGHER
PJGCREATIONS.CO.UK
27-07-15

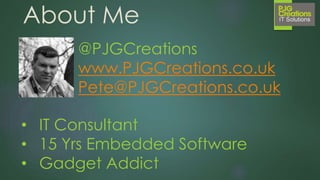

2. About Me
@PJGCreations
www.PJGCreations.co.uk
Pete@PJGCreations.co.uk
• IT Consultant
• 15+ Years Desktop, Web &
Embedded Software
• Gadget Addict

3. • Special Build of Windows 10 – “Core”
• Released at //Build 2015
• Compiled for ARM on the Raspberry Pi 2, also the MinnowBoard
Max
• No Shell
• Second Version released at the beginning of this month.
Windows 10 IoT
Core is...

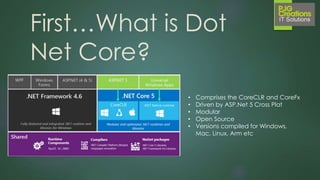

4. • Comprises the CoreCLR and CoreFx
• Driven by ASP.Net 5 Cross Plat
• Modular
• Open Source
• Versions compiled for Windows,
Mac, Linux, Arm etc
First…What is Dot
Net Core?

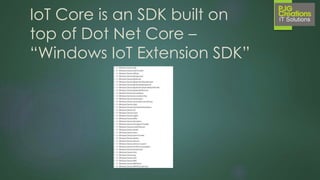

5. So where does Dot
Net IoT Core fit in?
… AND WHAT DOES IT LET US DO?

6. Dot Net IoT Core…
• Based on Dot Net Core
• Adds in the IoT SDK’s..
• “Windows IoT Extension SDK”
• Gives access to IoT Goodies
• GPIO, SPI, I2C, Serial etc etc

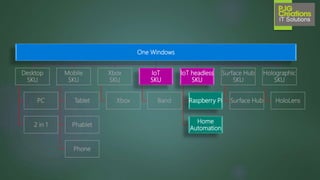

7. One Windows
Desktop
SKU
PC
2 in 1
Mobile
SKU
Tablet
Phablet
Phone
Xbox
SKU
Xbox
IoT
SKU
Band
IoT headless
SKU
Raspberry Pi
Home
Automation
Surface Hub
SKU
Surface Hub
Holographic
SKU
HoloLens

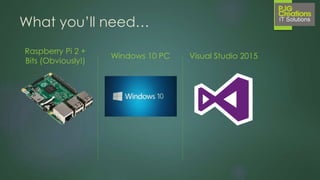

8. What you’ll need…
Raspberry Pi 2 +
Bits (Obviously!)
Windows 10 PC Visual Studio 2015

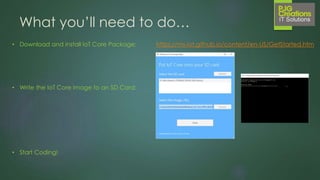

9. What you’ll need to do…
• Download and install IoT Core Tools: https://ms-iot.github.io/content/en-US/GetStarted.htm
• Write the IoT Core image to an SD Card:
• Install the IoT Project Templates for VS 2015 from the VS Gallery
• Enable Windows 10 Developer Mode
• Start Coding!

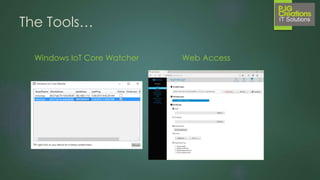

10. The Tools…
Windows IoT Core Watcher Web Access

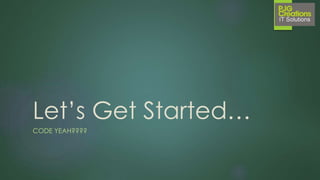

11. Let’s Get Started…
CODE YEAH????

12. Something in the
real world….

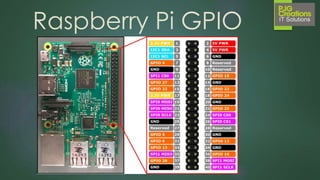

13. Raspberry Pi GPIO

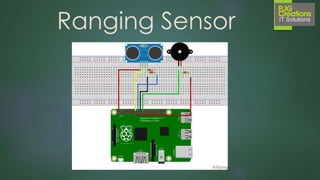

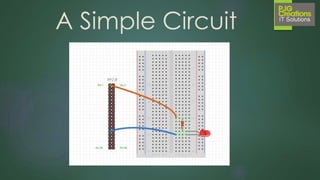

14. A Simple Circuit

15. Ranging Sensor

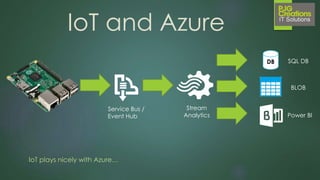

16. IoT and Azure
IoT plays nicely with Azure…
DB
Service Bus /
Event Hub
Stream
Analytics
SQL DB
BLOB
Power BI

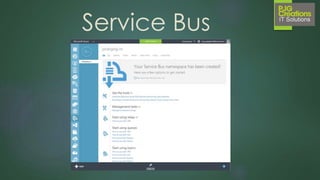

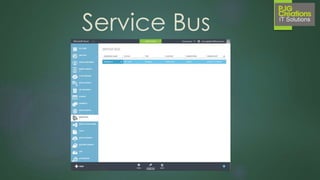

17. Service Bus

18. Service Bus

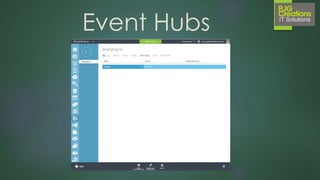

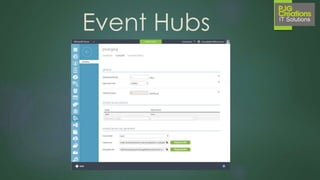

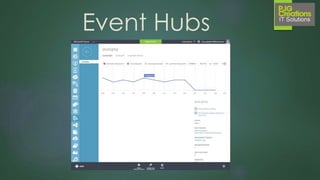

19. Event Hubs

20. Event Hubs

21. Event Hubs

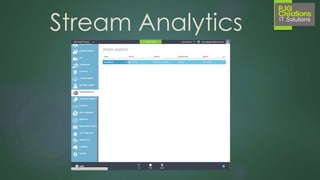

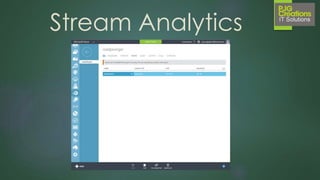

22. Stream Analytics

23. Stream Analytics

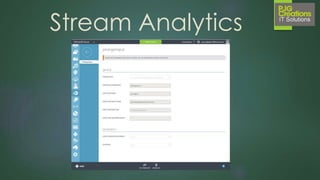

24. Stream Analytics

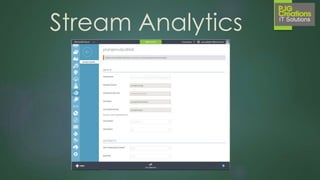

25. Stream Analytics

26. Stream Analytics

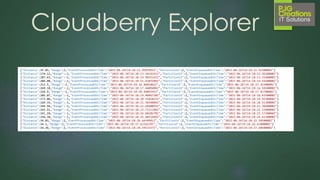

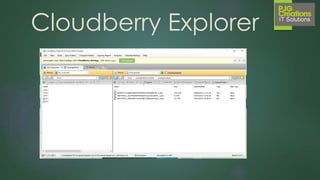

27. Cloudberry Explorer

28. Cloudberry Explorer
{"Distance":35.85,"Range":2,"EventProcessedUtcTime":"2015-06-26T14:18:12.9507965Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:11.9230000Z"}
{"Distance":174.12,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:13.3414141Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:12.3610000Z"}
{"Distance":287.43,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:14.9835192Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:13.3240000Z"}
{"Distance":204.08,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:15.4105509Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:14.3410000Z"}
{"Distance":212.5,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:16.4602862Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:15.3630000Z"}
{"Distance":269.18,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:17.4409409Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:16.3810000Z"}
{"Distance":226.9,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:18.4409345Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:17.4170000Z"}
{"Distance":205.07,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:19.4096730Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:18.4350000Z"}
{"Distance":173.06,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:20.5502833Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:19.4550000Z"}
{"Distance":169.55,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:21.5034004Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:20.5130000Z"}
{"Distance":244.94,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:22.6440093Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:21.5020000Z"}
{"Distance":243.51,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:23.7221184Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:22.5360000Z"}
{"Distance":241.59,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:24.6020570Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:23.5720000Z"}
{"Distance":236.18,"Range":-1,"EventProcessedUtcTime":"2015-06-26T14:18:25.6031466Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:24.6110000Z"}
{"Distance":34.03,"Range":2,"EventProcessedUtcTime":"2015-06-26T14:18:26.6434981Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:25.5850000Z"}
{"Distance":34.1,"Range":2,"EventProcessedUtcTime":"2015-06-26T14:18:27.6126239Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:26.6180000Z"}
{"Distance":34.36,"Range":2,"EventProcessedUtcTime":"2015-06-26T14:18:28.5953337Z","PartitionId":2,"EventEnqueuedUtcTime":"2015-06-26T14:18:27.6050000Z"}

29. Something a bit
more fun…

30. Handy Links
Slides: http://goo.gl/3FC9Ql
Robot Code: https://github.com/PJGCreations/PiRobot
Microsoft IoT Homepage: https://dev.windows.com/en-us/iot
Some Cool IoT Projects: https://www.hackster.io/windowsiot/
Dot Net Core on GitHub: http://dotnet.github.io/core/
Introducing Dot Net Core: http://blogs.msdn.com/b/dotnet/archive/2014/12/04/introducing-net-core.aspx
