This document summarizes a presentation about Microsoft's Windows Developer Program for IoT. The program aims to bring Windows to small IoT devices by allowing developers to use familiar Windows and .NET tools to develop for resource-constrained embedded devices. It leverages the Windows platform and hardware ecosystem to make IoT development easier. The presentation demonstrates connecting sensors to a Raspberry Pi 2 running Windows 10 through the developer program.

1. Windows developer program for IoT
We're bringing Windows to a new class of small device.
What will you make?
Mirco Vanini
Microsoft® MVP
Windows Embedded

2. Sponsor

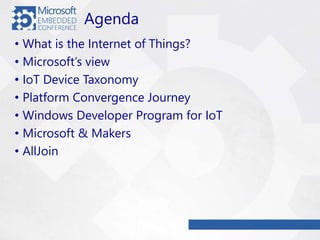

3. Agenda
• What is the Internet of Things?
• Microsoft’s view
• IoT Device Taxonomy
• Platform Convergence Journey
• Windows Developer Program for IoT
• Microsoft & Makers
• AllJoin

4. What is the Internet of Things?
The network of physical objects
that contain embedded
technology to communicate and
interact with their internal states
or the external environment.
Source: Gartner
The term was created by Kevin Ashton in 1999
to describe a technology for the unique
identification of objects within a "network“.

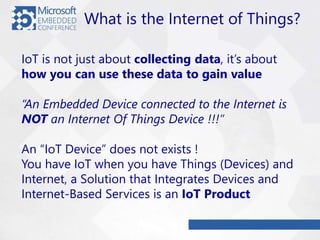

5. What is the Internet of Things?
IoT is not just about collecting data, it’s about
how you can use these data to gain value
“An Embedded Device connected to the Internet is
NOT an Internet Of Things Device !!!”
An “IoT Device” does not exists !
You have IoT when you have Things (Devices) and
Internet, a Solution that Integrates Devices and
Internet-Based Services is an IoT Product

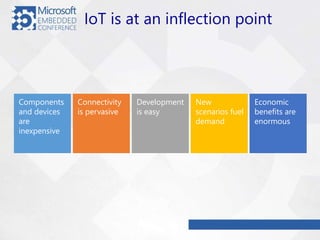

6. IoT is at an inflection point
Components
and devices
are
inexpensive
Connectivity
is pervasive
Development
is easy
Economic
benefits are
enormous
New
scenarios fuel
demand

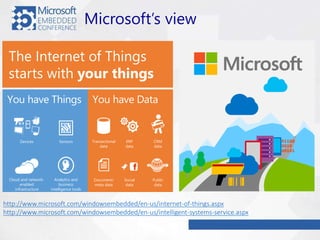

7. Microsoft’s view
The Internet of Things
starts with your things
You have DataYou have Things
Transactional
data
ERP
data
CRM
data
Document/
meta data
Public
data
Social
data
Devices
Analytics and
business
intelligence tools
Cloud and network-
enabled
infrastructure
Sensors
http://www.microsoft.com/windowsembedded/en-us/internet-of-things.aspx
http://www.microsoft.com/windowsembedded/en-us/intelligent-systems-service.aspx

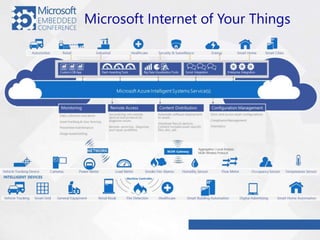

8. Microsoft Internet of Your Things

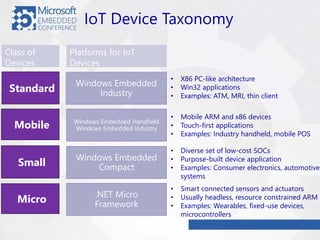

9. IoT Device Taxonomy
Mobile
Standard
Micro
Small
Class of
Devices
Platforms for IoT
Devices
Windows Embedded
Industry
Windows Embedded Handheld
Windows Embedded Industry
Windows Embedded
Compact
.NET Micro
Framework
• X86 PC-like architecture
• Win32 applications
• Examples: ATM, MRI, thin client
• Mobile ARM and x86 devices
• Touch-first applications
• Examples: Industry handheld, mobile POS
• Diverse set of low-cost SOCs
• Purpose-built device application
• Examples: Consumer electronics, automotive
systems
• Smart connected sensors and actuators
• Usually headless, resource constrained ARM
• Examples: Wearables, fixed-use devices,
microcontrollers

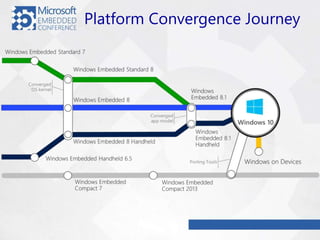

10. Platform Convergence Journey

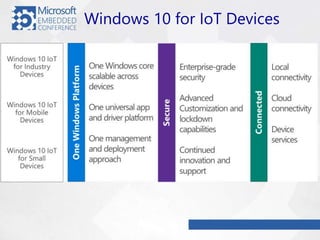

11. Windows 10 for IoT Devices

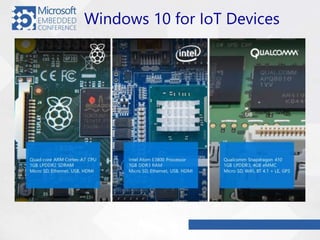

12. Windows 10 for IoT Devices

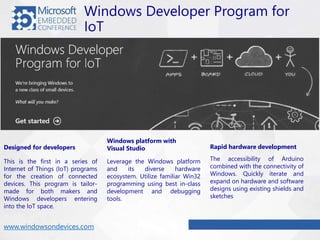

13. Windows Developer Program for
IoT
This is the first in a series of
Internet of Things (IoT) programs
for the creation of connected
devices. This program is tailor-
made for both makers and
Windows developers entering
into the IoT space.
Designed for developers
Leverage the Windows platform
and its diverse hardware
ecosystem. Utilize familiar Win32
programming using best in-class
development and debugging
tools.
Windows platform with
Visual Studio
The accessibility of Arduino
combined with the connectivity of
Windows. Quickly iterate and
expand on hardware and software
designs using existing shields and
sketches
Rapid hardware development
www.windowsondevices.com

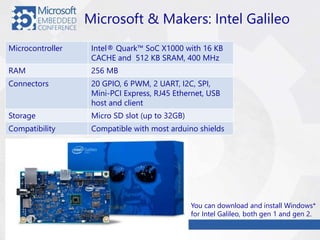

14. Microsoft & Makers: Intel Galileo
Microcontroller Intel® Quark™ SoC X1000 with 16 KB
CACHE and 512 KB SRAM, 400 MHz
RAM 256 MB
Connectors 20 GPIO, 6 PWM, 2 UART, I2C, SPI,
Mini-PCI Express, RJ45 Ethernet, USB
host and client
Storage Micro SD slot (up to 32GB)
Compatibility Compatible with most arduino shields
You can download and install Windows*
for Intel Galileo, both gen 1 and gen 2.

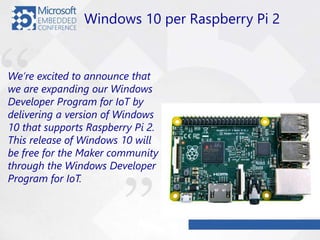

15. We’re excited to announce that
we are expanding our Windows
Developer Program for IoT by
delivering a version of Windows
10 that supports Raspberry Pi 2.
This release of Windows 10 will
be free for the Maker community
through the Windows Developer
Program for IoT.
Windows 10 per Raspberry Pi 2

16. DEMO
Starting with Intel Galileo

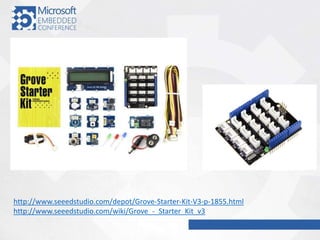

17. http://www.seeedstudio.com/depot/Grove-Starter-Kit-V3-p-1855.html
http://www.seeedstudio.com/wiki/Grove_-_Starter_Kit_v3

18. DEMO
Connect the things

19. Q&A

20. Contatti
feedback
10
Blog http://mircovanini.blogspot.com
Email info@proxsoft.it
mirco.vanini@adamfactory.com
Web www.proxsoft.it
www.adamfactory.com
Twitter @MircoVanini
