1. 1
Sagi Brody, CTO
@WebairSagi
sagi@webair.com
sagi@webair.com
sagi@webair.com
Why Managed Service Providers Should Embrace
Container Technology

2. 2

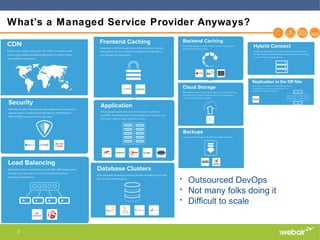

What’s a Managed Service Provider Anyways?
• Outsourced DevOps
• Not many folks doing it
• Difficult to scale

3. 3

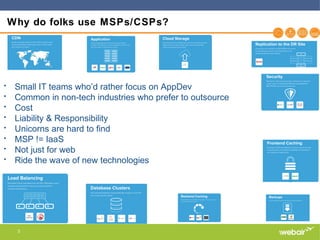

Why do folks use MSPs/CSPs?
• Small IT teams who’d rather focus on AppDev
• Common in non-tech industries who prefer to outsource
• Cost
• Liability & Responsibility
• Unicorns are hard to find
• MSP != IaaS
• Not just for web
• Ride the wave of new technologies

4. 4
What’s it look like?
LAMP at scale, redis,
memcache, nginx..
LAMP at scale, redis,
memcache, nginx..
Linux, FreeBSD, Agents/AutomationLinux, FreeBSD, Agents/Automation
HAProxy + keepalived, nginx, csyncHAProxy + keepalived, nginx, csync
MikroTik, PaloAlto, JuniperMikroTik, PaloAlto, Juniper
FlowSpec, SDN hooksFlowSpec, SDN hooks
L7 mitigation + automated /24 swingsL7 mitigation + automated /24 swings
Redirects to CDN in App or via HTTP rewriteRedirects to CDN in App or via HTTP rewrite
Applicatio
n
Serve
r
Load
Balancers
Firewal
l
Networ
k
DDo
S
CDN/Proxie
s
BareMetal, VM (Hybrid SAN, Flash,Xen/Vmware), or IaaS
Infrastructur
e

5. 5

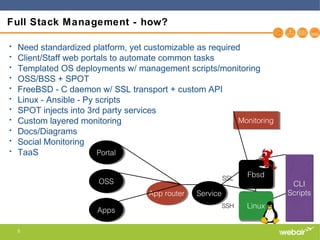

Full Stack Management - how?
• Need standardized platform, yet customizable as required
• Client/Staff web portals to automate common tasks
• Templated OS deployments w/ management scripts/monitoring
• OSS/BSS + SPOT
• FreeBSD - C daemon w/ SSL transport + custom API
• Linux - Ansible - Py scripts
• SPOT injects into 3rd party services
• Custom layered monitoring
• Docs/Diagrams
• Social Monitoring
• TaaS
LinuxLinux
ServiceService
SSL
SSH
App routerApp router
CLI
Scripts
CLI
Scripts
PortalPortal
AppsApps
OSSOSS
MonitoringMonitoring
FbsdFbsd

6. 6

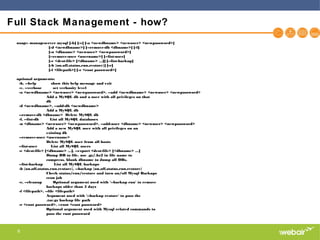

Full Stack Management - how?
usage: manageserver mysql [-h] [-v] [-a <newdbname> <newuser> <newpassword>]
[-d <newdbname>] [--remove-db <dbname>] [-l]
[-u <dbname> <newuser> <newpassword>]
[--remove-user <username>] [--list-user]
[-e <dest-file> [<dbname> ...]] [--list-backup]
[-b {on,off,status,run,restore}] [-c]
[-f <filepath>] [-r <root password>]
optional arguments:
-h, --help show this help message and exit
-v, --verbose set verbosity level
-a <newdbname> <newuser> <newpassword>, --add <newdbname> <newuser> <newpassword>
Add a MySQL db and a user with all privileges on that
db
-d <newdbname>, --add-db <newdbname>
Add a MySQL db
--remove-db <dbname> Delete MySQL db
-l, --list-db List all MySQL databases
-u <dbname> <newuser> <newpassword>, --add-user <dbname> <newuser> <newpassword>
Add a new MySQL user with all privileges on an
existing db
--remove-user <username>
Delete MySQL user from all hosts
--list-user List all MySQL users
-e <dest-file> [<dbname> ...], --export <dest-file> [<dbname> ...]
Dump DB to file. use .gz/.bz2 in file name to
compress. blank dbname to dump all DBs.
--list-backup List all MySQL backups
-b {on,off,status,run,restore}, --backup {on,off,status,run,restore}
Check status/run/restore and turn on/off Mysql Backups
cron job
-c, --cleanup Optional argument used with '--backup run' to remove
backups older than 5 days
-f <filepath>, --file <filepath>
Argument used with '--backup restore' to pass the
.tar.gz backup file path
-r <root password>, --root <root password>
Optional argument used with Mysql related commands to
pass the root password

7. 7
MSP Pain Points
• Guilty until proven innocent
• Not always involved or notified of code updates and
changes
• Not aware of 3rd party integrations
• Legacy apps (“bring us your tired your poor..”)
• Backup/Restore
• Application security
• Not involved in design
• Multi-tenancy systems (vendor nightmare)
• Per client customization
• Keeping OS/Software current
Containers to the rescue?

8. 8

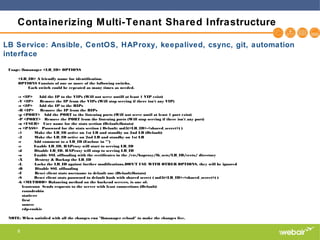

Containerizing Multi-Tenant Shared Infrastructure
Usage: lbmanager <LB_ID> OPTIONS
<LB_ID> A friendly name for identification.
OPTIONS Consists of one or more of the following switchs.
Each switch could be repeated as many times as needed.
-v <IP> Add the IP to the VIPs (Will not serve untill at least 1 VIP exist)
-V <IP> Remove the IP from the VIPs (Will stop serving if there isn't any VIP)
-r <IP> Add the IP to the RIPs
-R <IP> Remove the IP from the RIPs
-p <PORT> Add the PORT to the listening ports (Will not serve until at least 1 port exist)
-P <PORT> Remove the PORT from the listening ports (Will stop serving if there isn't any port)
-u <USER> User name for the stats section (Default:lbstats)
-s <PASS> Password for the stats section ( Default: md5(<LB_ID>-<shared_secret>) )
-1 Make the LB_ID active on 1st LB and standby on 2nd LB (Default)
-2 Make the LB_ID active on 2nd LB and standby on 1st LB
-c Add comment to a LB_ID (Enclose in "")
-e Enable LB_ID. HAProxy will start to serving LB_ID
-d Disable LB_ID. HAProxy will stop to serving LB_ID
-o Enable SSL offloading with the certificates in the /etc/haproxy/lb_sets/LB_ID/certs/ directory
-X Destroy & Backup the LB_ID
-L Locks the LB_ID against further modifications.DON'T USE WITH OTHER OPTIONS, they will be ignored
-O Disable SSL offloading
-U Reset client stats username to default one (Default:lbstats)
-S Reset client stats password to default hash with shared secret ( md5(<LB_ID>-<shared_secret>) )
-b <METHOD> Balancing method on the backend servers, is one of:
leastconn Sends requests to the server with least connections (Default)
roundrobin
static-rr
first
source
rdp-cookie
NOTE: When satisfied with all the changes run "lbmanager reload" to make the changes live.
LB Service: Ansible, CentOS, HAProxy, keepalived, csync, git, automation
interface

9. 9

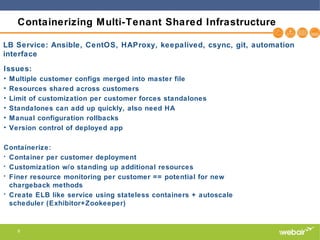

Containerizing Multi-Tenant Shared Infrastructure
LB Service: Ansible, CentOS, HAProxy, keepalived, csync, git, automation
interface
Issues:
• Multiple customer configs merged into master file
• Resources shared across customers
• Limit of customization per customer forces standalones
• Standalones can add up quickly, also need HA
• Manual configuration rollbacks
• Version control of deployed app
Containerize:
• Container per customer deployment
• Customization w/o standing up additional resources
• Finer resource monitoring per customer == potential for new
chargeback methods
• Create ELB like service using stateless containers + autoscale
scheduler (Exhibitor+Zookeeper)

10. 10

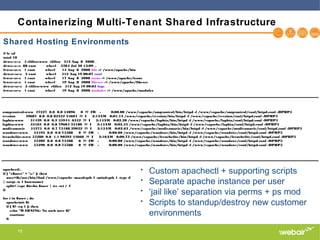

Containerizing Multi-Tenant Shared Infrastructure
Shared Hosting Environments
# ls -al
total 10
drwx--x--x 4 clifico-www clifico 512 Aug 8 2008 .
drwx--x--x 88 root wheel 3584 Jul 30 13:09 ..
lrwxr-xr-x 1 root wheel 15 Aug 8 2008 bin -> /www/apache/bin
drwxr-xr-x 3 root wheel 512 Aug 19 00:07 conf
lrwxr-xr-x 1 root wheel 17 Aug 8 2008 icons -> /www/apache/icons
lrwxr-xr-x 1 root wheel 19 Aug 8 2008 libexec -> /www/apache/libexec
drwxr-xr-x 2 clifico-www clifico 512 Aug 19 00:05 logs
lrwxr-xr-x 1 root wheel 19 Aug 8 2008 modules -> /www/apache/modules
zsmgcontrol-www 47227 0.0 0.0 54096 0 ?? IW - 0:00.00 /www/vapache/smgcontrol/bin/httpd -f /www/vapache/smgcontrol/conf/httpd.conf -DPHP5
revsinn 49687 0.0 0.8 82332 34604 ?? I 2:13AM 0:01.13 /www/vapache/revsinn/bin/httpd -f /www/vapache/revsinn/conf/httpd.conf -DPHP5
laphta-www 51439 0.0 0.2 55944 6352 ?? I 2:14AM 0:02.20 /www/vapache/laphta/bin/httpd -f /www/vapache/laphta/conf/httpd.conf -DPHP5
laphta-www 53163 0.0 0.8 79604 33180 ?? I 2:15AM 0:02.53 /www/vapache/laphta/bin/httpd -f /www/vapache/laphta/conf/httpd.conf -DPHP5
msdivamarie 54375 0.0 0.7 75108 29032 ?? I 2:15AM 0:02.63 /www/vapache/msdivamarie/bin/httpd -f /www/vapache/msdivamarie/conf/httpd.conf -DPHP5
woodswe-www 55193 0.0 0.0 75588 0 ?? IW - 0:00.00 /www/vapache/woodswe/bin/httpd -f /www/vapache/woodswe/conf/httpd.conf -DPHP5
frenchelite-www 55280 0.0 1.1 90392 44660 ?? I 2:16AM 0:00.73 /www/vapache/frenchelite/bin/httpd -f /www/vapache/frenchelite/conf/httpd.conf -DPHP5
woodswe-www 55289 0.0 0.0 75588 0 ?? IW - 0:00.00 /www/vapache/woodswe/bin/httpd -f /www/vapache/woodswe/conf/httpd.conf -DPHP5
woodswe-www 55290 0.0 0.0 75588 0 ?? IW - 0:00.00 /www/vapache/woodswe/bin/httpd -f /www/vapache/woodswe/conf/httpd.conf -DPHP5
apachectl..
if [ "x$user" = "x-" ]; then
user=$(/usr/bin/find /www/vapache -maxdepth 1 -mindepth 1 -type d
| xargs -n 1 basename)
split=`expr $(echo $user | wc -w) / 4`
fi
for i in $user ; do
apacheinit $i
if [ $? -eq 1 ]; then
echo "WARNING: No such user $i"
continue
fi
• Custom apachectl + supporting scripts
• Separate apache instance per user
• ‘jail like’ separation via perms + ps mod
• Scripts to standup/destroy new customer
environments

11. 11
Containerizing Multi-Tenant Shared Infrastructure
Shared Hosting Environments:
Issues:
• No per user resource limits, only application
• No dependency separation
• 0day local root exploits
• Difficult to move users
Containerize:
• Don’t deploy user accounts, deploy applications
• Cloudapps == deploy small Xen instance + application specific template
• Already being done well in containers, tons of OSS in dockerhub
• Easier to manage hosts
• Potential for better security than user land

12. 12

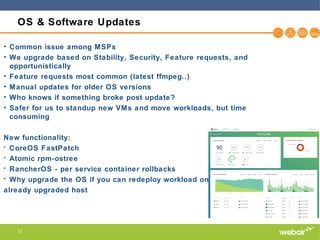

OS & Software Updates
• Common issue among MSPs
• We upgrade based on Stability, Security, Feature requests, and
opportunistically
• Feature requests most common (latest ffmpeg..)
• Manual updates for older OS versions
• Who knows if something broke post update?
• Safer for us to standup new VMs and move workloads, but time
consuming
New functionality:
• CoreOS FastPatch
• Atomic rpm-ostree
• RancherOS - per service container rollbacks
• Why upgrade the OS if you can redeploy workload onto
already upgraded host

13. 13

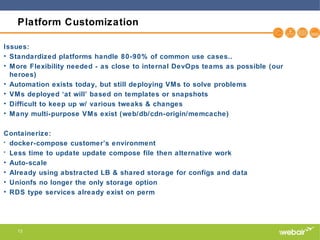

Platform Customization
Issues:
• Standardized platforms handle 80-90% of common use cases..
• More Flexibility needed - as close to internal DevOps teams as possible (our
heroes)
• Automation exists today, but still deploying VMs to solve problems
• VMs deployed ‘at will’ based on templates or snapshots
• Difficult to keep up w/ various tweaks & changes
• Many multi-purpose VMs exist (web/db/cdn-origin/memcache)
Containerize:
• docker-compose customer’s environment
• Less time to update update compose file then alternative work
• Auto-scale
• Already using abstracted LB & shared storage for configs and data
• Unionfs no longer the only storage option
• RDS type services already exist on perm

14. 14
SaaS Platform Segmentation & Scale
• SaaS platforms with X customers, each with their own VH
directive, subdir, or subdomain
• Each customer gets their own container
• App can identify customer baed on URL string or HOST
• Allows per customer changes without affecting others
• Fork and customize codebase per customer
• Easier to align multiple platform flavors per
customer/container
• Adding container monitoring (sysdig, prometheus) allows
instant resource utilization per platform customer - quickly
find noisy neighbors and ability to up charge for resources
• Single customer load spikes may not affect other
customers
• Shard customer across zones/regions

15. 15

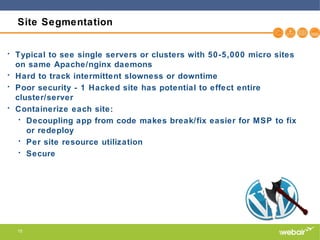

Site Segmentation
• Typical to see single servers or clusters with 50-5,000 micro sites
on same Apache/nginx daemons
• Hard to track intermittent slowness or downtime
• Poor security - 1 Hacked site has potential to effect entire
cluster/server
• Containerize each site:
• Decoupling app from code makes break/fix easier for MSP to fix
or redeploy
• Per site resource utilization
• Secure

16. 16

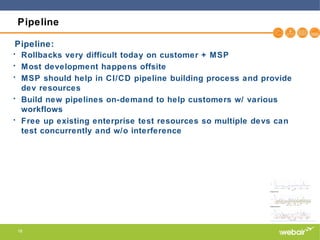

Pipeline
• Rollbacks very difficult today on customer + MSP
• Most development happens offsite
• MSP should help in CI/CD pipeline building process and provide
dev resources
• Build new pipelines on-demand to help customers w/ various
workflows
• Free up existing enterprise test resources so multiple devs can
test concurrently and w/o interference
Pipeline:

17. 17

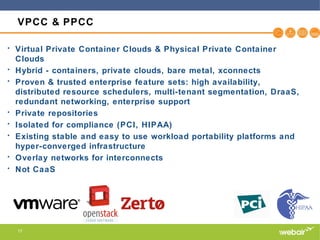

VPCC & PPCC
• Virtual Private Container Clouds & Physical Private Container
Clouds
• Hybrid - containers, private clouds, bare metal, xconnects
• Proven & trusted enterprise feature sets: high availability,
distributed resource schedulers, multi-tenant segmentation, DraaS,
redundant networking, enterprise support
• Private repositories
• Isolated for compliance (PCI, HIPAA)
• Existing stable and easy to use workload portability platforms and
hyper-converged infrastructure
• Overlay networks for interconnects
• Not CaaS

18. 18

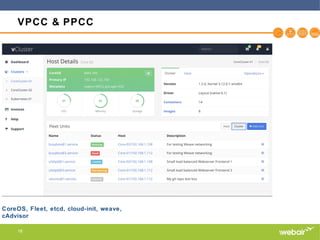

VPCC & PPCC
CoreOS, Fleet, etcd, cloud-init, weave,
cAdvisor

19. 19

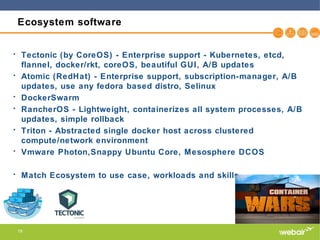

Ecosystem software
• Tectonic (by CoreOS) - Enterprise support - Kubernetes, etcd,
flannel, docker/rkt, coreOS, beautiful GUI, A/B updates
• Atomic (RedHat) - Enterprise support, subscription-manager, A/B
updates, use any fedora based distro, Selinux
• DockerSwarm
• RancherOS - Lightweight, containerizes all system processes, A/B
updates, simple rollback
• Triton - Abstracted single docker host across clustered
compute/network environment
• Vmware Photon,Snappy Ubuntu Core, Mesosphere DCOS
• Match Ecosystem to use case, workloads and skills

20. 20

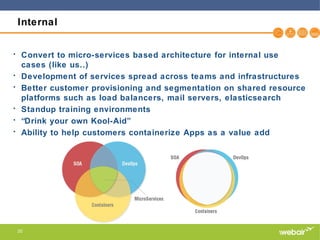

Internal
• Convert to micro-services based architecture for internal use
cases (like us..)
• Development of services spread across teams and infrastructures
• Better customer provisioning and segmentation on shared resource
platforms such as load balancers, mail servers, elasticsearch
• Standup training environments
• “Drink your own Kool-Aid”
• Ability to help customers containerize Apps as a value add

21. 21

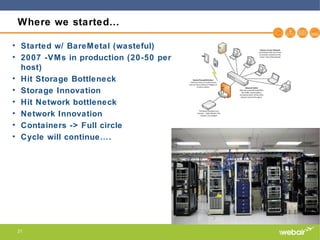

Where we started…
• Started w/ BareMetal (wasteful)
• 2007 -VMs in production (20-50 per
host)
• Hit Storage Bottleneck
• Storage Innovation
• Hit Network bottleneck
• Network Innovation
• Containers -> Full circle
• Cycle will continue….

22. 22
THANK YOU!
Sagi Brody, CTO
@WebairSagi
sagi@webair.com
