1. 1 © 2013 IBM Corporation
IBM Open Mic
What's New in IBM® iNotes® 9.0 Social Edition
Manisha Parida | IBM Software Group

2. 2 © 2013 IBM Corporation
OPEN MIC TEAM
• Manisha Parida - IBM ICS Support engineer
• Presenter
•
•
• Ranjit Rai - IBM ICS SWAT
• Focussing on entire Notes/Domino
•
•
• Jayavel Rajendran - IBM ICS SWAT
• Focussing on entire Notes/Domino
•
•
• Hansraj Mali - IBM ICS SWAT
• Focussing on Notes/Domino
•
•
• Vinayak Tavargeri – IBM ICS Support
• Facilitator for Open Mics

3. 3 © 2013 IBM Corporation

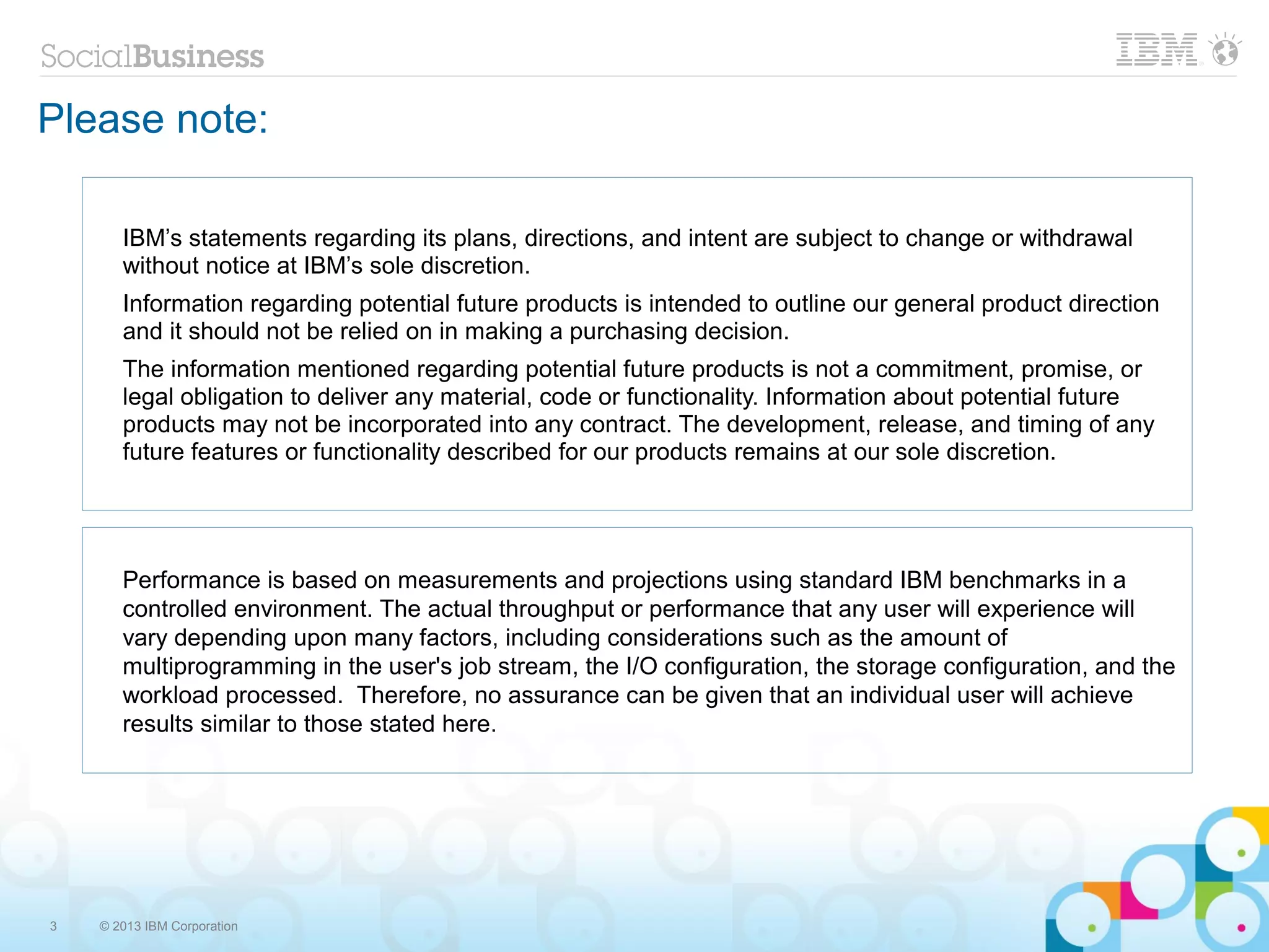

Please note:
IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal
without notice at IBM’s sole discretion.
Information regarding potential future products is intended to outline our general product direction
and it should not be relied on in making a purchasing decision.
The information mentioned regarding potential future products is not a commitment, promise, or
legal obligation to deliver any material, code or functionality. Information about potential future
products may not be incorporated into any contract. The development, release, and timing of any
future features or functionality described for our products remains at our sole discretion.
Performance is based on measurements and projections using standard IBM benchmarks in a
controlled environment. The actual throughput or performance that any user will experience will
vary depending upon many factors, including considerations such as the amount of
multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the
workload processed. Therefore, no assurance can be given that an individual user will achieve
results similar to those stated here.

4. 4 © 2013 IBM Corporation

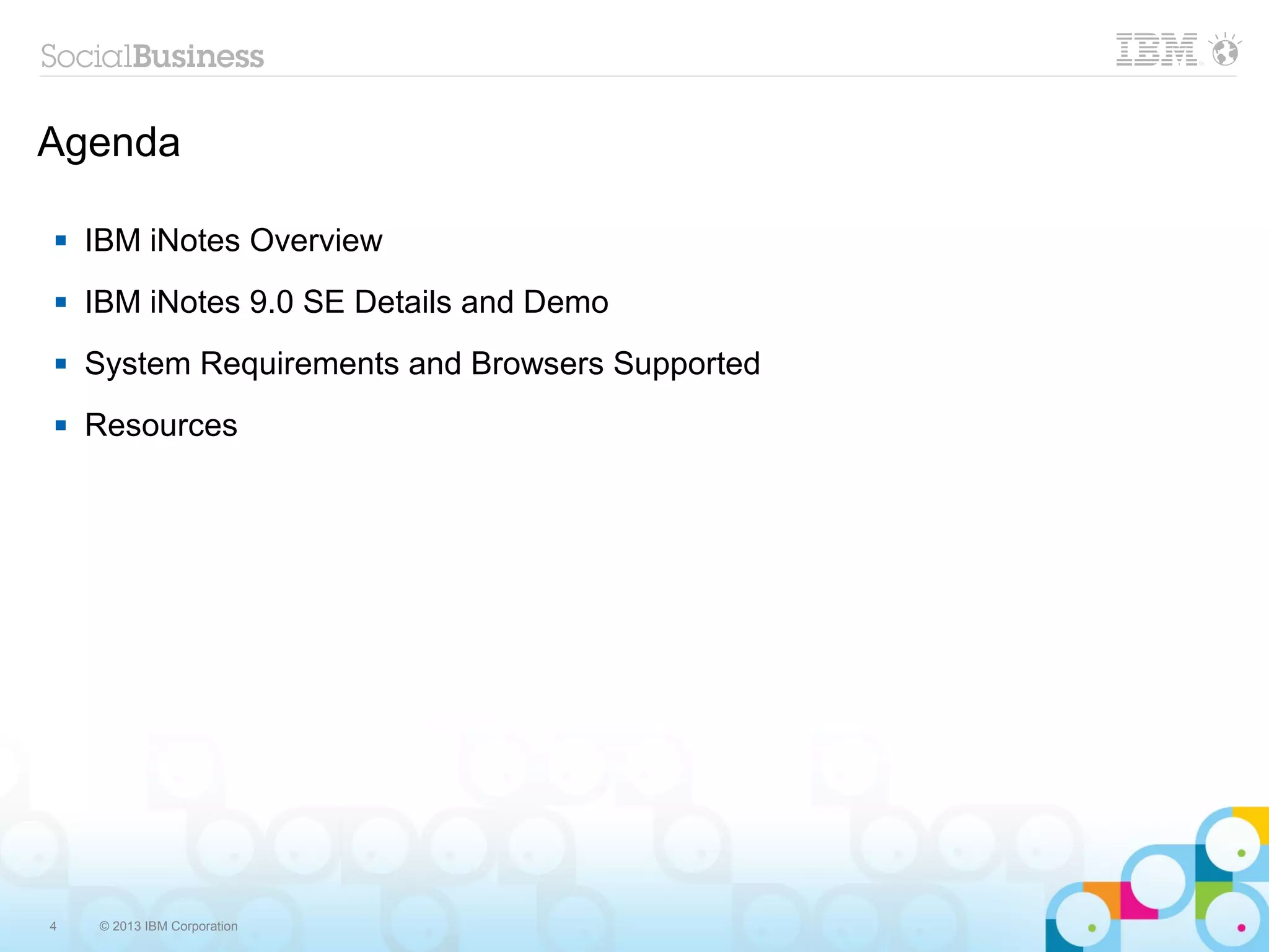

Agenda
 IBM iNotes Overview
 IBM iNotes 9.0 SE Details and Demo
 System Requirements and Browsers Supported
 Resources

5. 5 © 2013 IBM Corporation

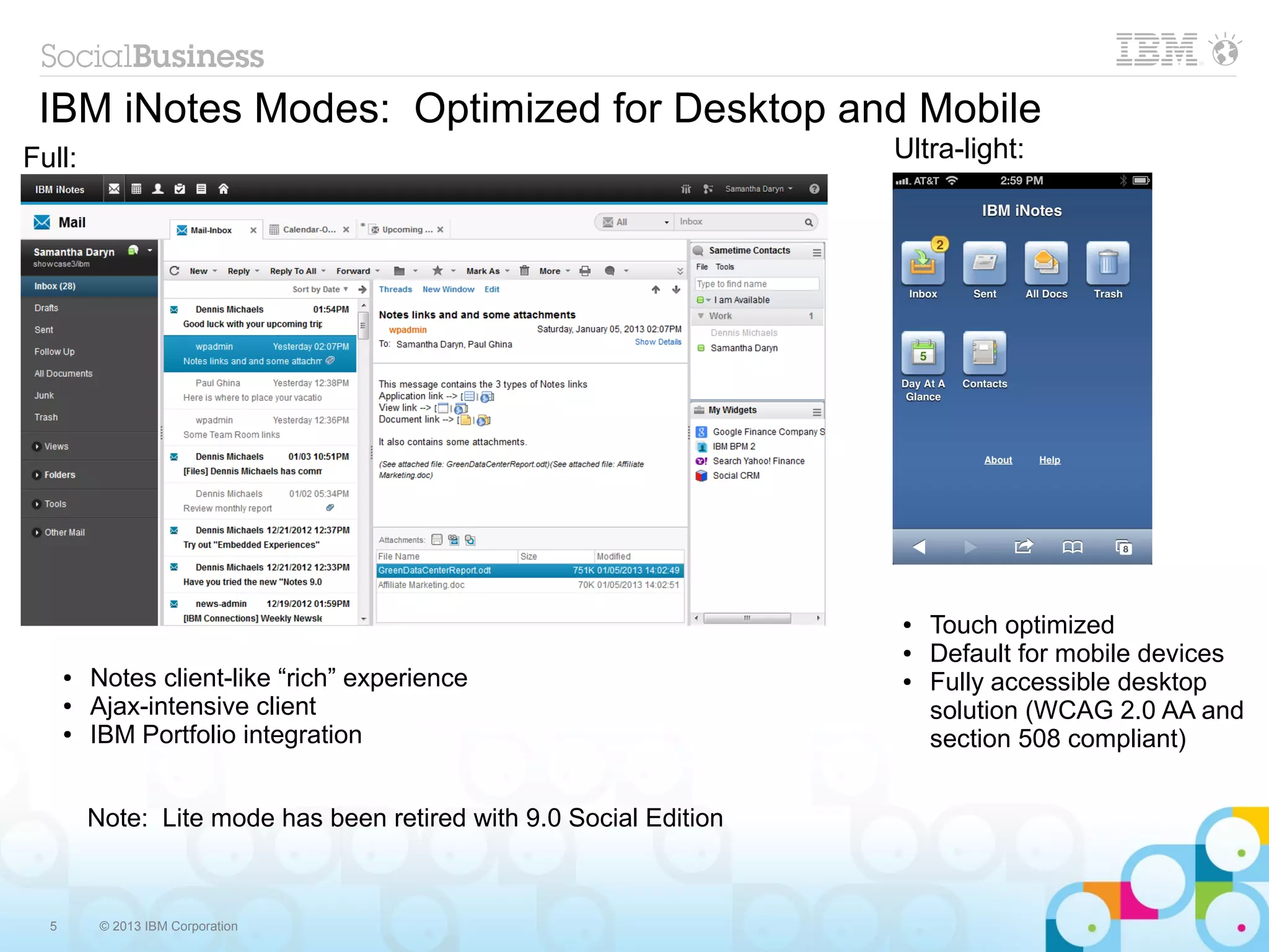

IBM iNotes Modes: Optimized for Desktop and Mobile
Note: Lite mode has been retired with 9.0 Social Edition
Full: Ultra-light:
● Notes client-like “rich” experience
● Ajax-intensive client
● IBM Portfolio integration
● Touch optimized
● Default for mobile devices
● Fully accessible desktop
solution (WCAG 2.0 AA and
section 508 compliant)

6. 6 © 2013 IBM Corporation

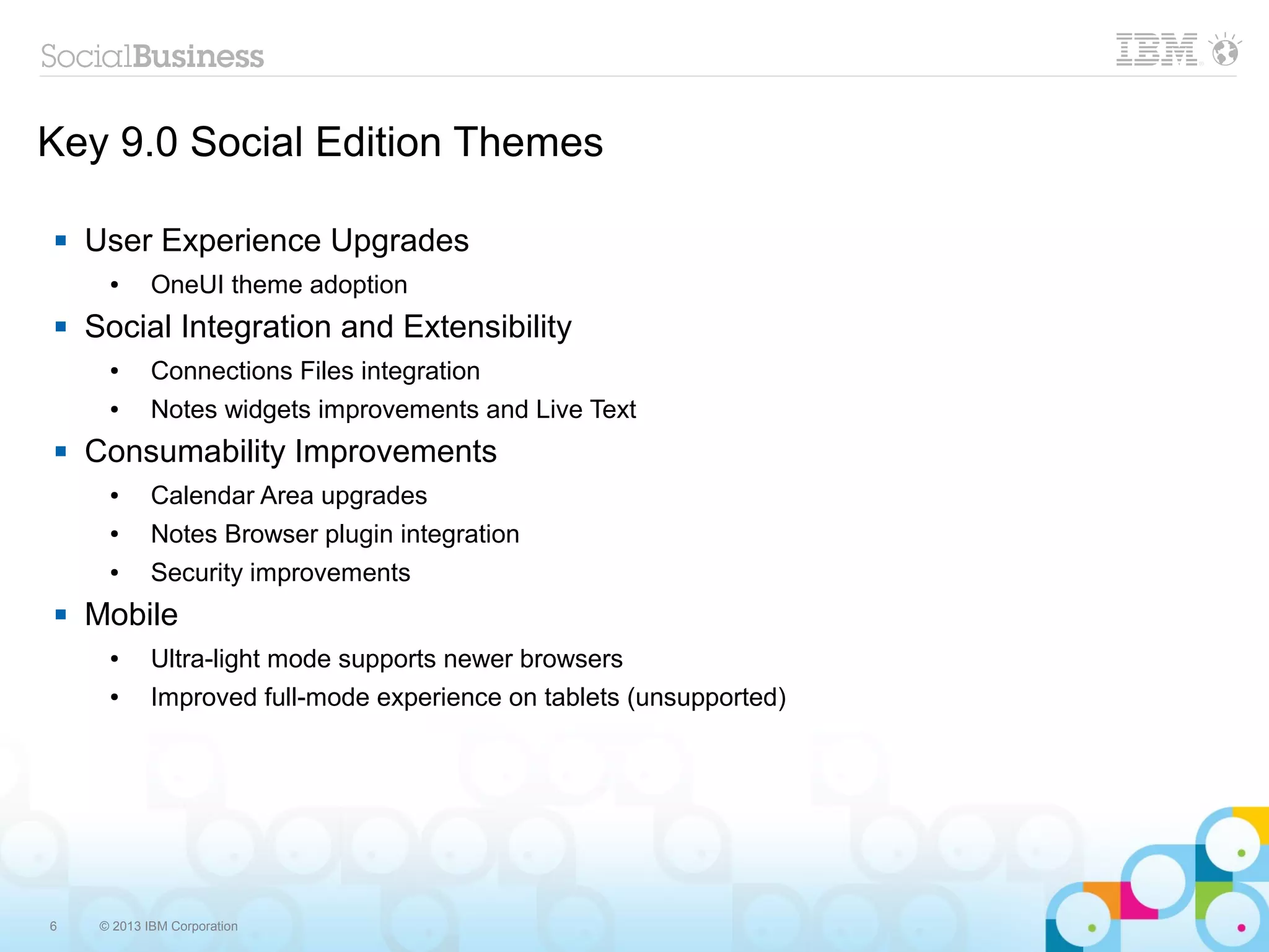

Key 9.0 Social Edition Themes
 User Experience Upgrades
● OneUI theme adoption
 Social Integration and Extensibility
● Connections Files integration
● Notes widgets improvements and Live Text
 Consumability Improvements
● Calendar Area upgrades
● Notes Browser plugin integration
● Security improvements
 Mobile
● Ultra-light mode supports newer browsers
● Improved full-mode experience on tablets (unsupported)

7. 7 © 2013 IBM Corporation

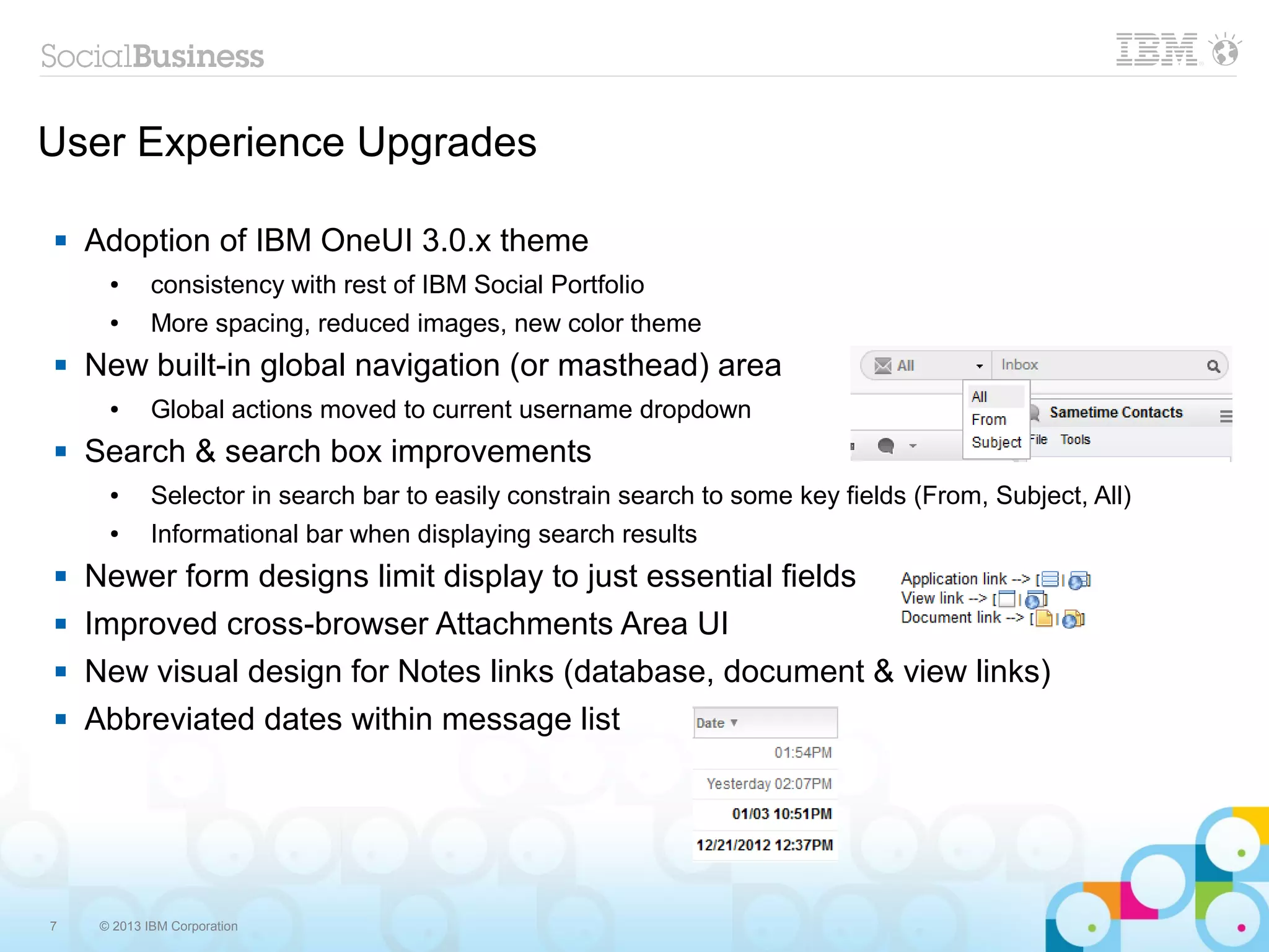

User Experience Upgrades
 Adoption of IBM OneUI 3.0.x theme
● consistency with rest of IBM Social Portfolio
● More spacing, reduced images, new color theme
 New built-in global navigation (or masthead) area
● Global actions moved to current username dropdown
 Search & search box improvements
● Selector in search bar to easily constrain search to some key fields (From, Subject, All)
● Informational bar when displaying search results
 Newer form designs limit display to just essential fields
 Improved cross-browser Attachments Area UI
 New visual design for Notes links (database, document & view links)
 Abbreviated dates within message list

8. 8 © 2013 IBM Corporation

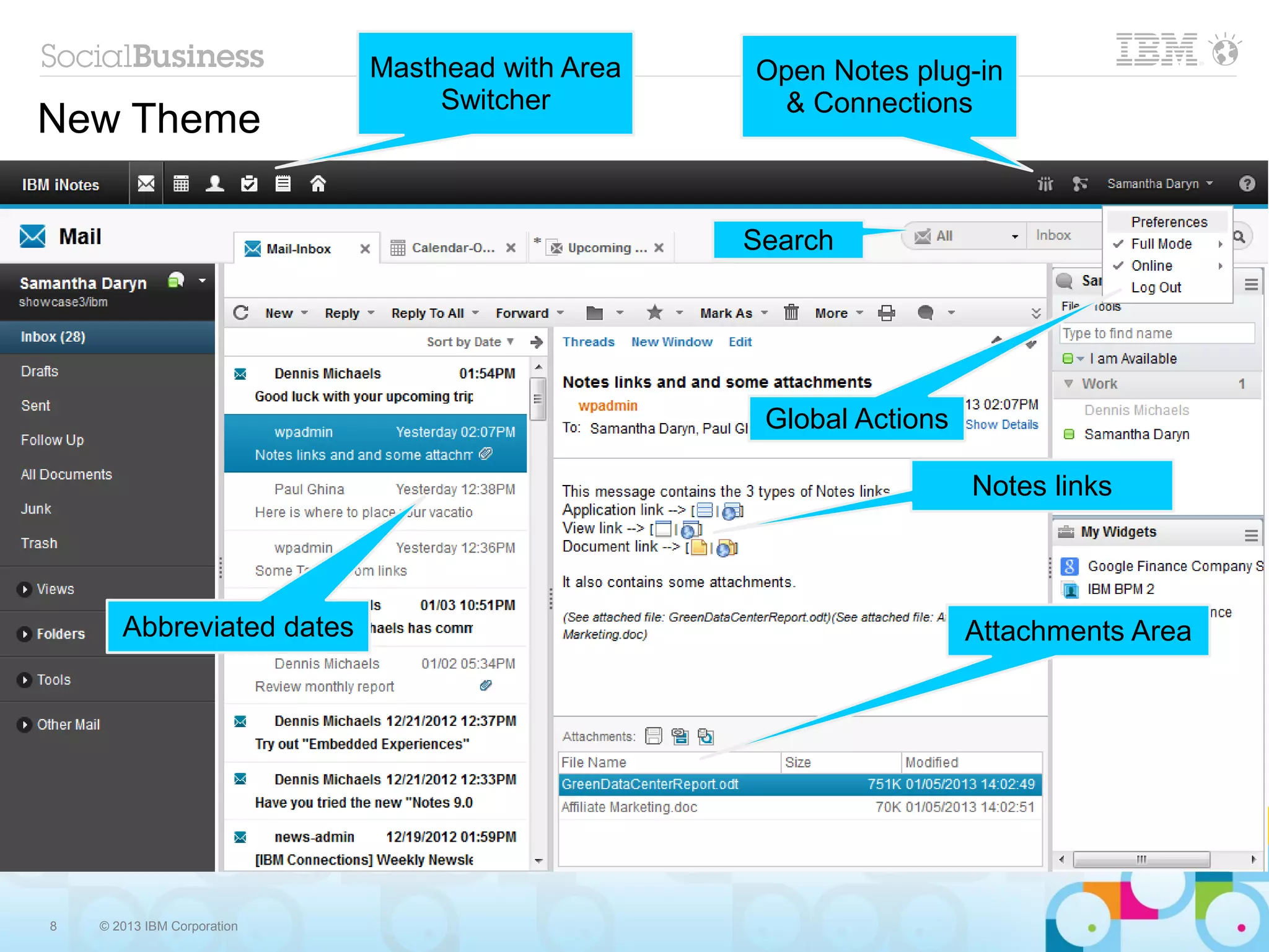

New Theme
Global Actions
Open Notes plug-in
& Connections
Search
Attachments Area
Masthead with Area
Switcher
Abbreviated dates
Notes links

9. 9 © 2013 IBM Corporation

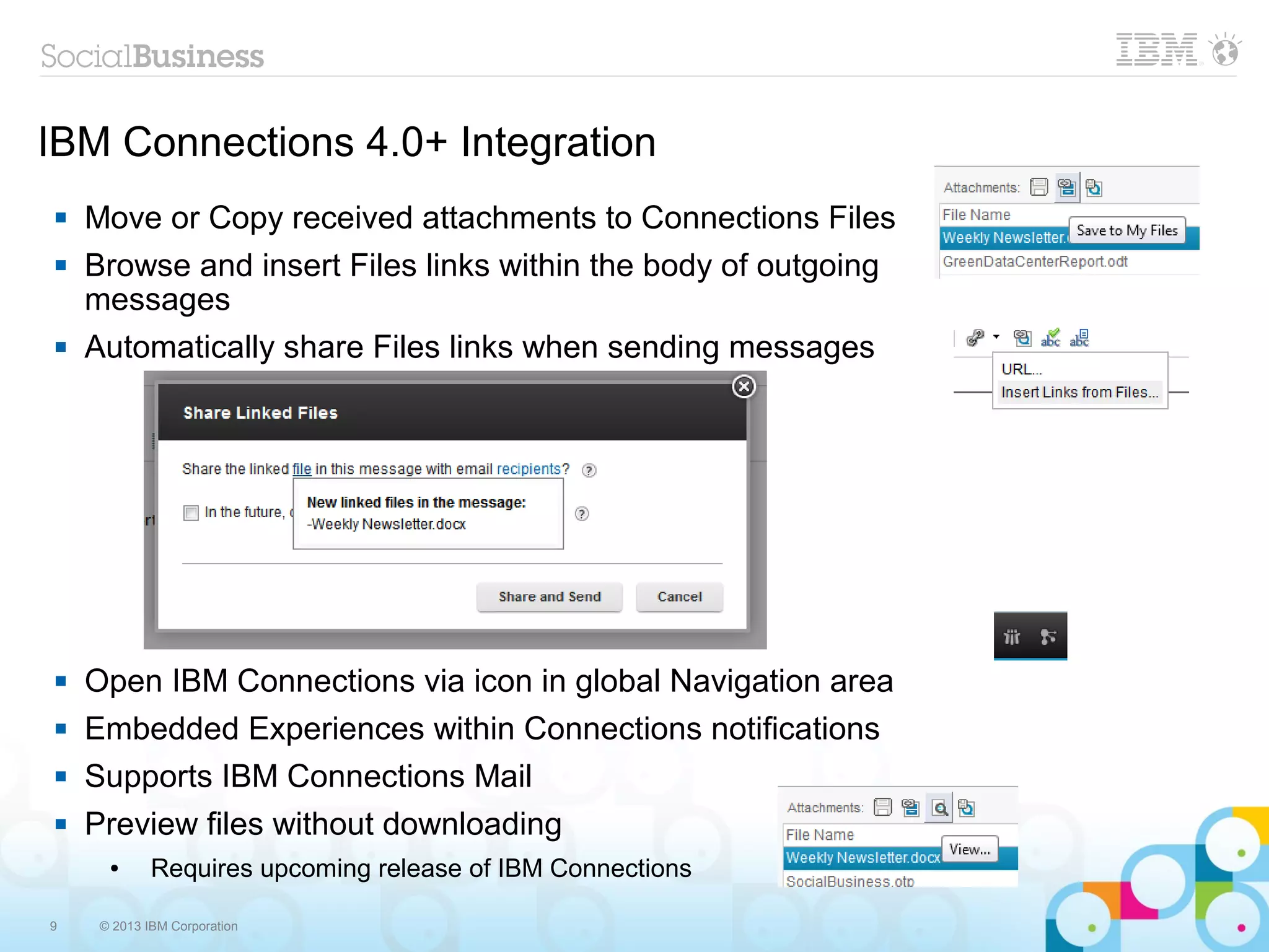

IBM Connections 4.0+ Integration
 Move or Copy received attachments to Connections Files
 Browse and insert Files links within the body of outgoing
messages
 Automatically share Files links when sending messages
 Open IBM Connections via icon in global Navigation area
 Embedded Experiences within Connections notifications
 Supports IBM Connections Mail
 Preview files without downloading
● Requires upcoming release of IBM Connections

10. 10 © 2013 IBM Corporation

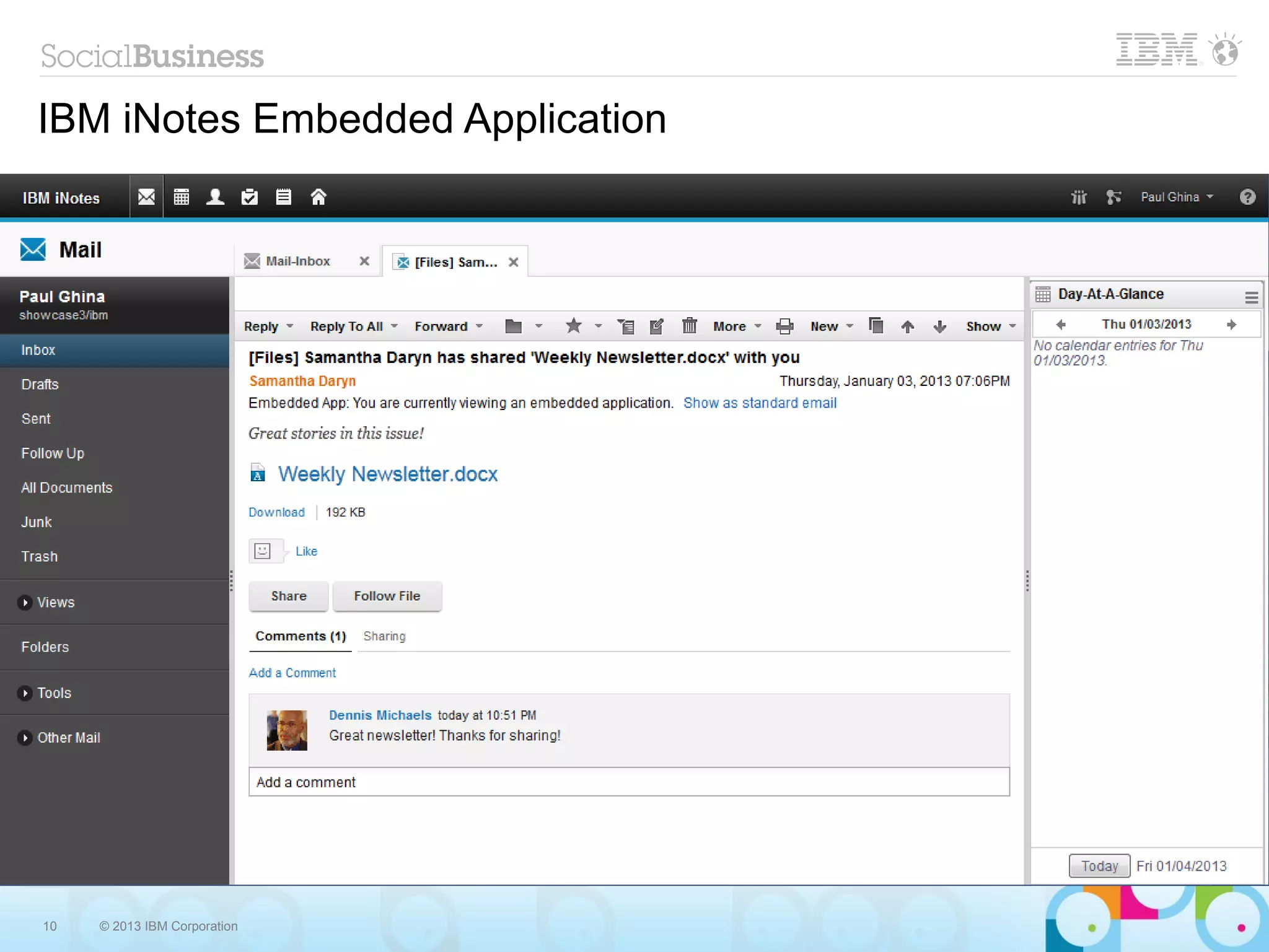

IBM iNotes Embedded Application

11. 11 © 2013 IBM Corporation

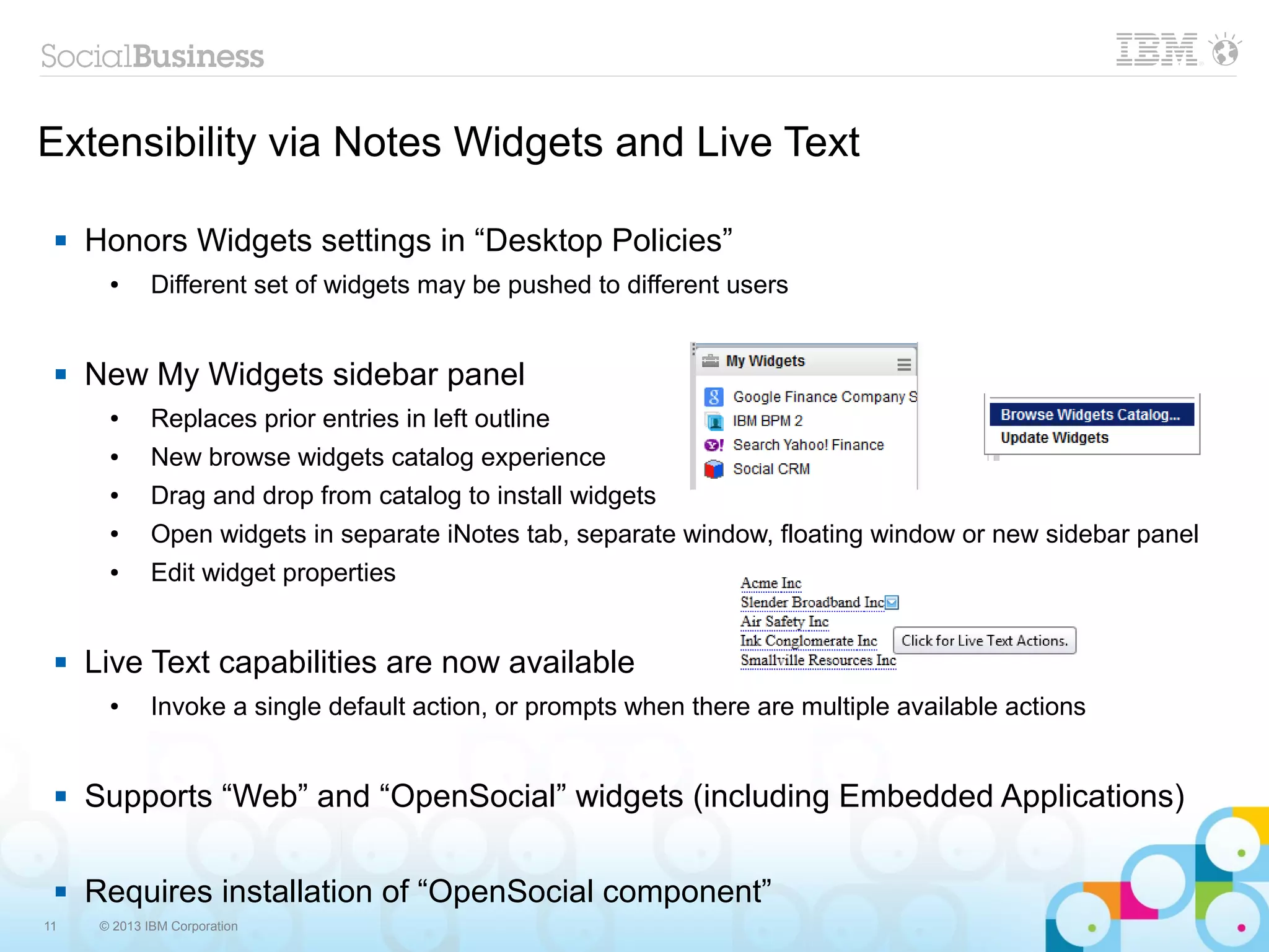

Extensibility via Notes Widgets and Live Text
 Honors Widgets settings in “Desktop Policies”
● Different set of widgets may be pushed to different users
 New My Widgets sidebar panel
● Replaces prior entries in left outline
● New browse widgets catalog experience
● Drag and drop from catalog to install widgets
● Open widgets in separate iNotes tab, separate window, floating window or new sidebar panel
● Edit widget properties
 Live Text capabilities are now available
● Invoke a single default action, or prompts when there are multiple available actions
 Supports “Web” and “OpenSocial” widgets (including Embedded Applications)
 Requires installation of “OpenSocial component”

12. 12 © 2013 IBM Corporation

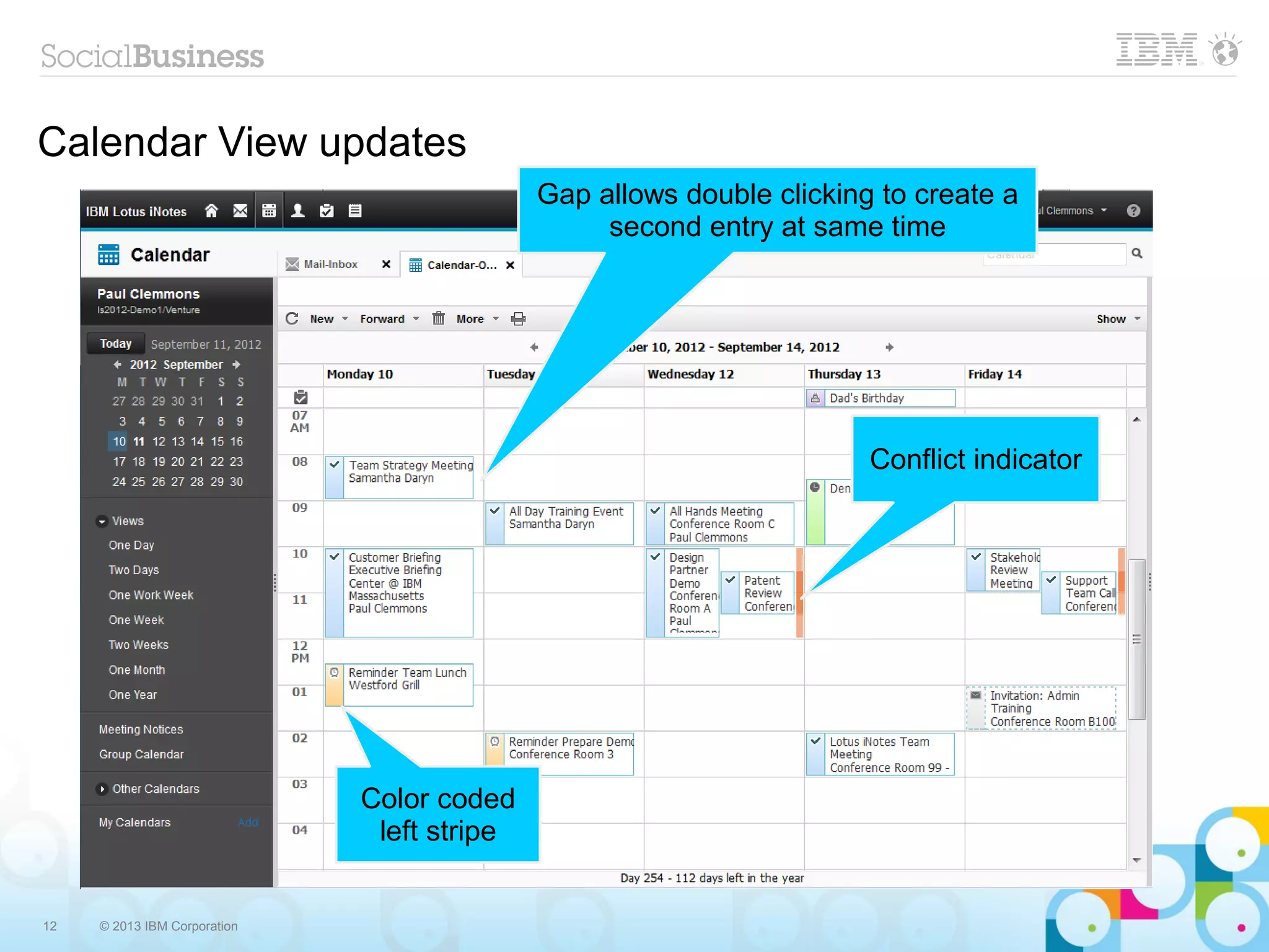

Calendar View updates
Color coded
left stripe
Conflict indicator
Gap allows double clicking to create a
second entry at same time

13. 13 © 2013 IBM Corporation

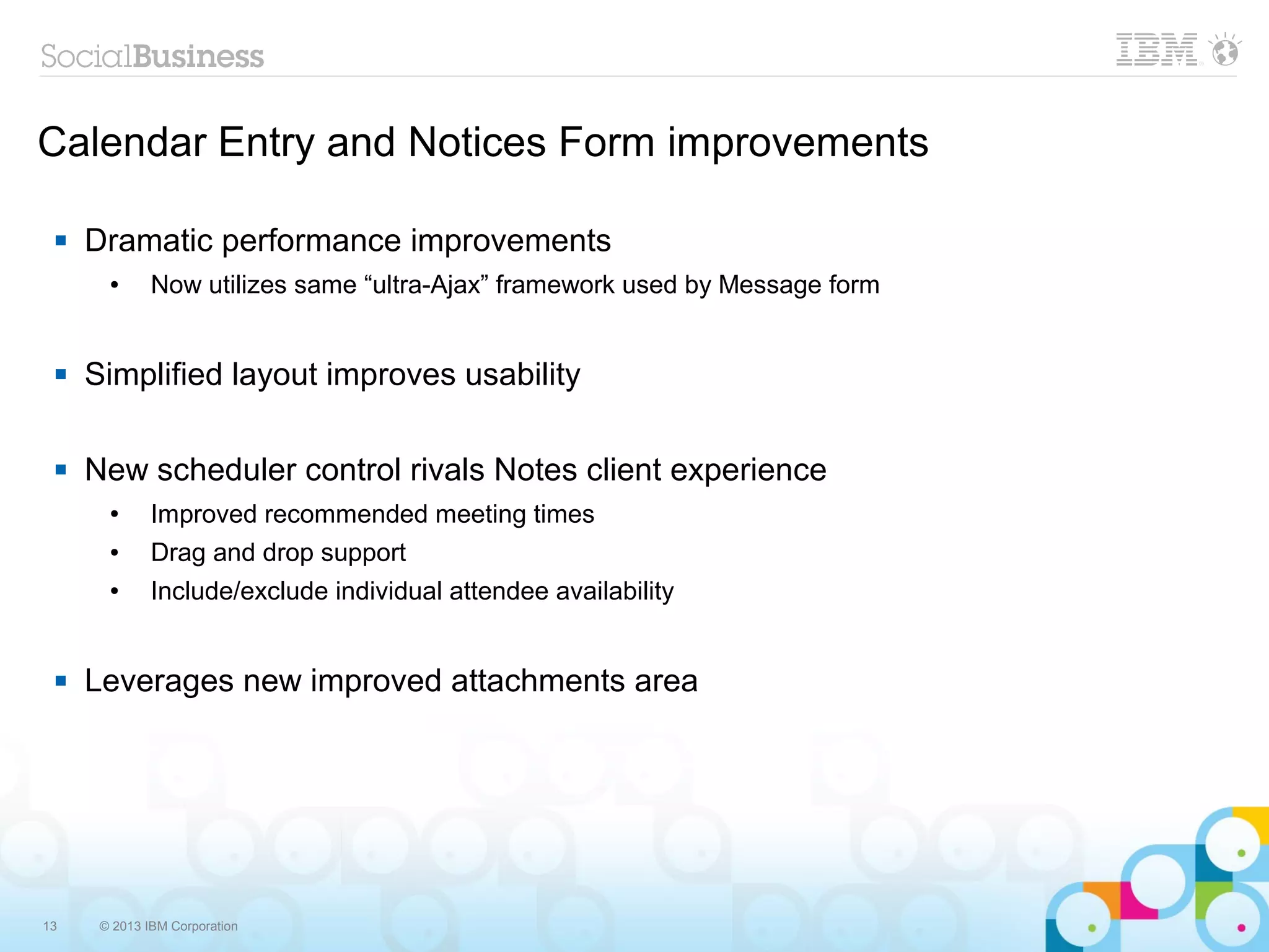

Calendar Entry and Notices Form improvements
 Dramatic performance improvements
● Now utilizes same “ultra-Ajax” framework used by Message form
 Simplified layout improves usability
 New scheduler control rivals Notes client experience
● Improved recommended meeting times
● Drag and drop support
● Include/exclude individual attendee availability
 Leverages new improved attachments area

14. 14 © 2013 IBM Corporation

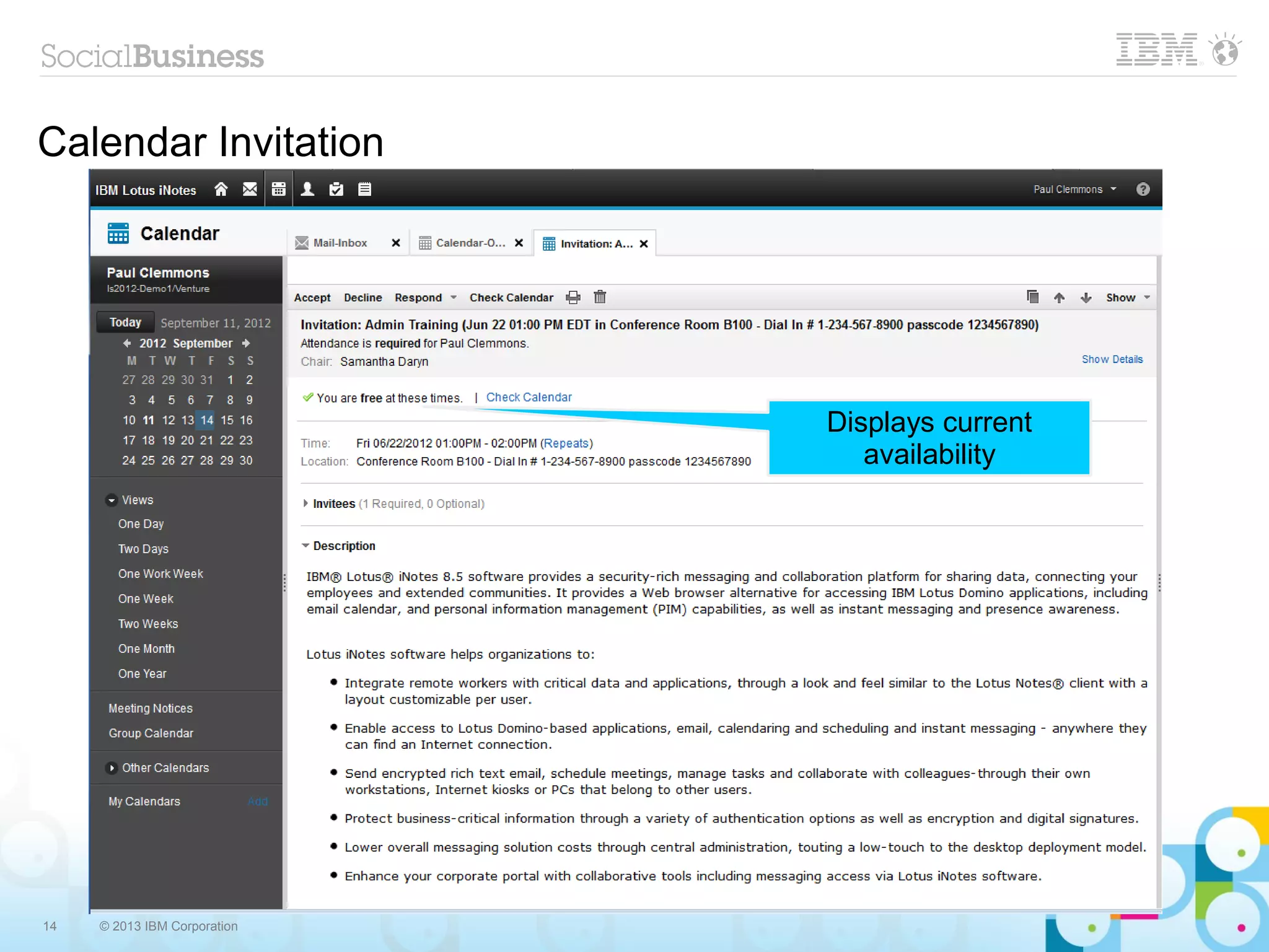

Calendar Invitation
Displays current
availability

15. 15 © 2013 IBM Corporation

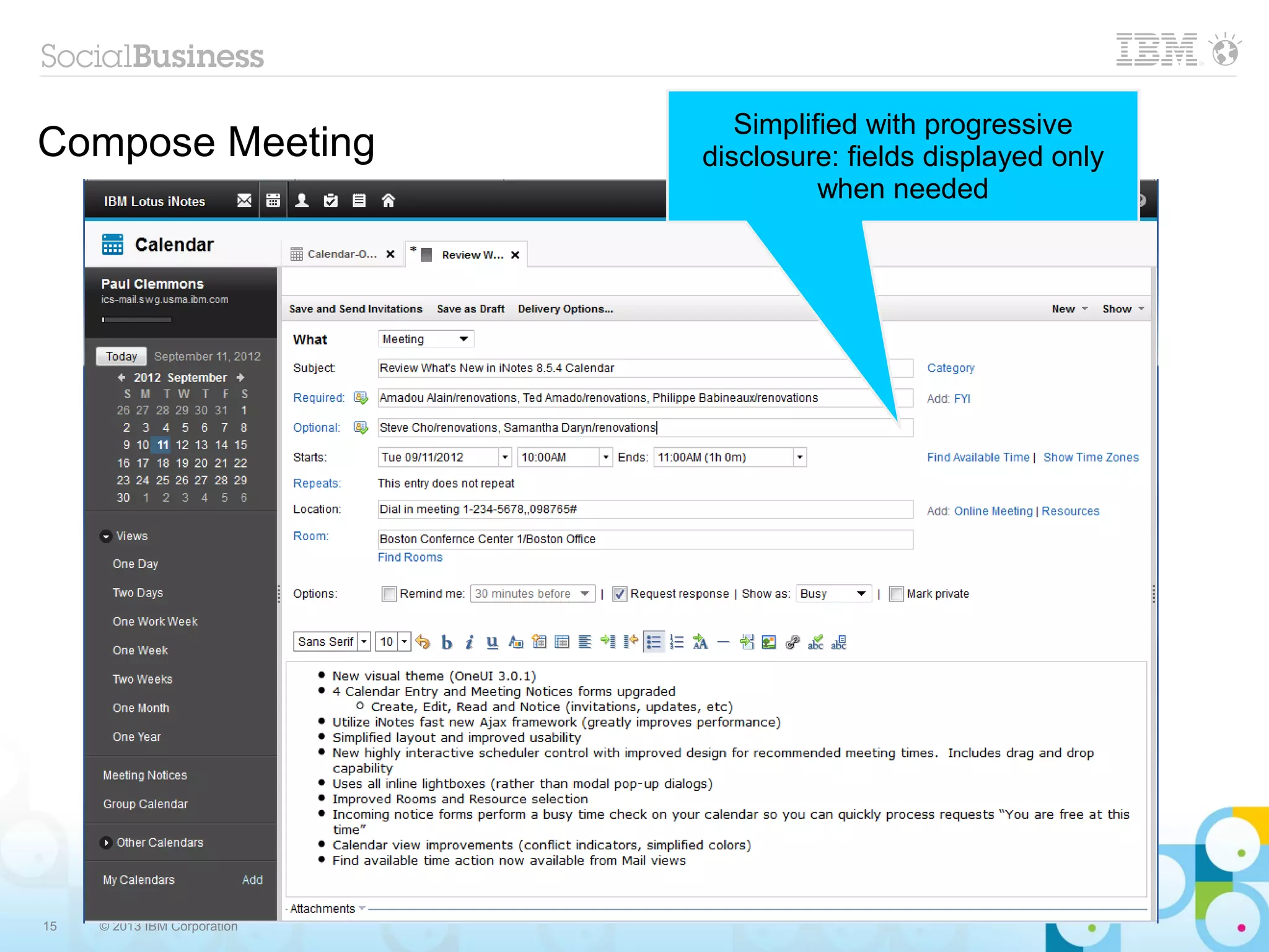

Compose Meeting
Simplified with progressive
disclosure: fields displayed only
when needed

16. 16 © 2013 IBM Corporation

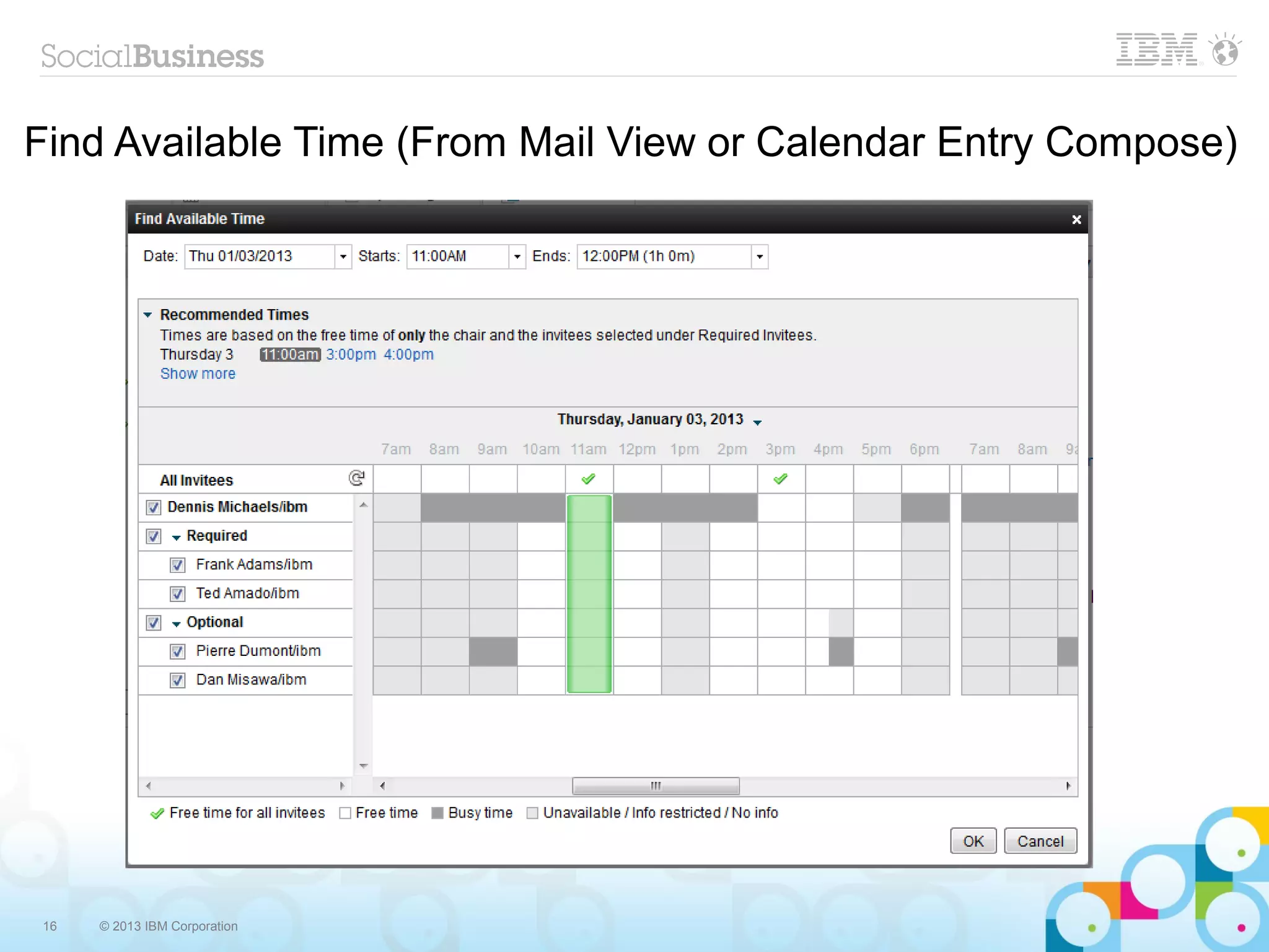

Find Available Time (From Mail View or Calendar Entry Compose)

17. 17 © 2013 IBM Corporation

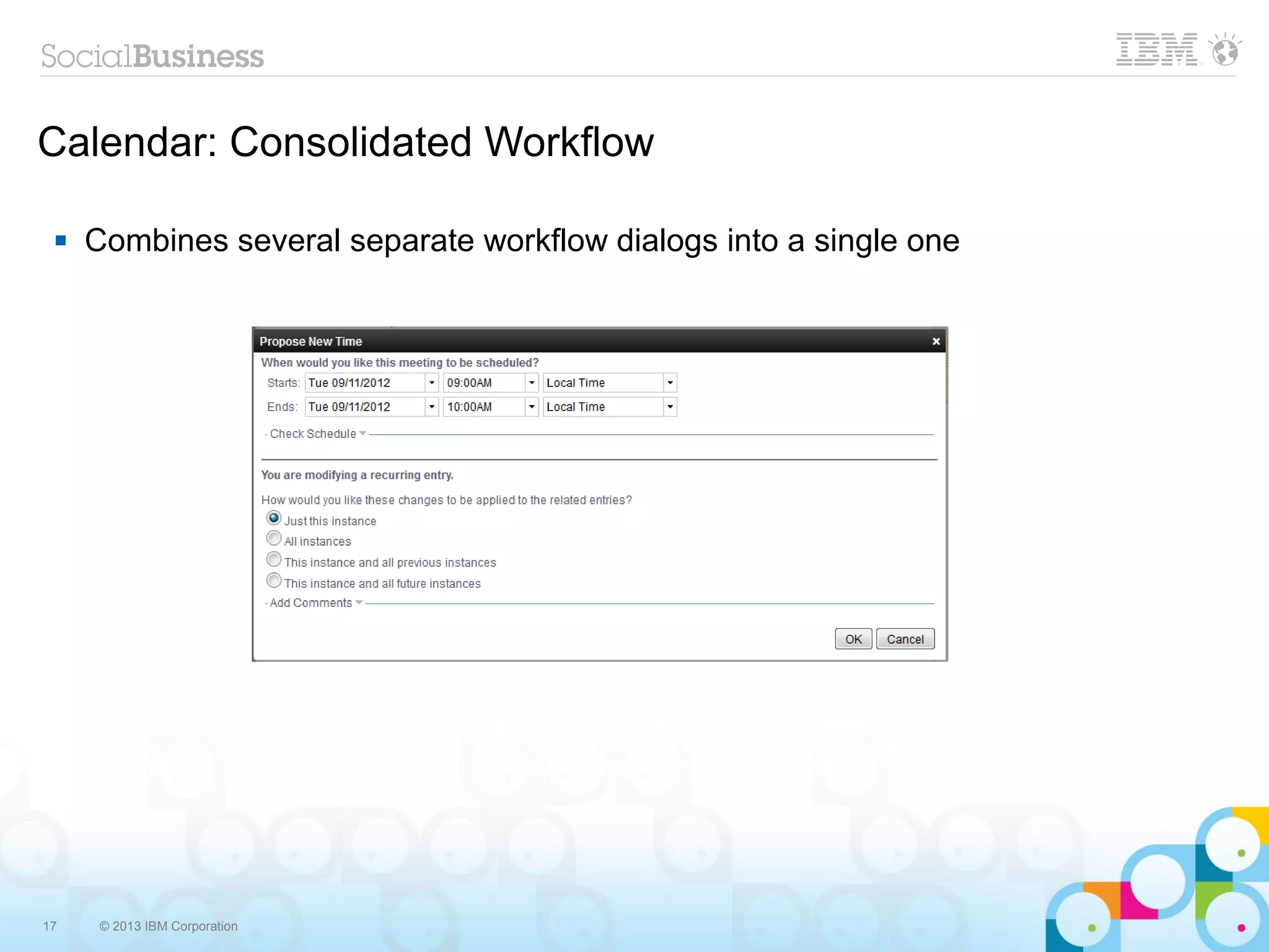

Calendar: Consolidated Workflow
 Combines several separate workflow dialogs into a single one

18. 18 © 2013 IBM Corporation

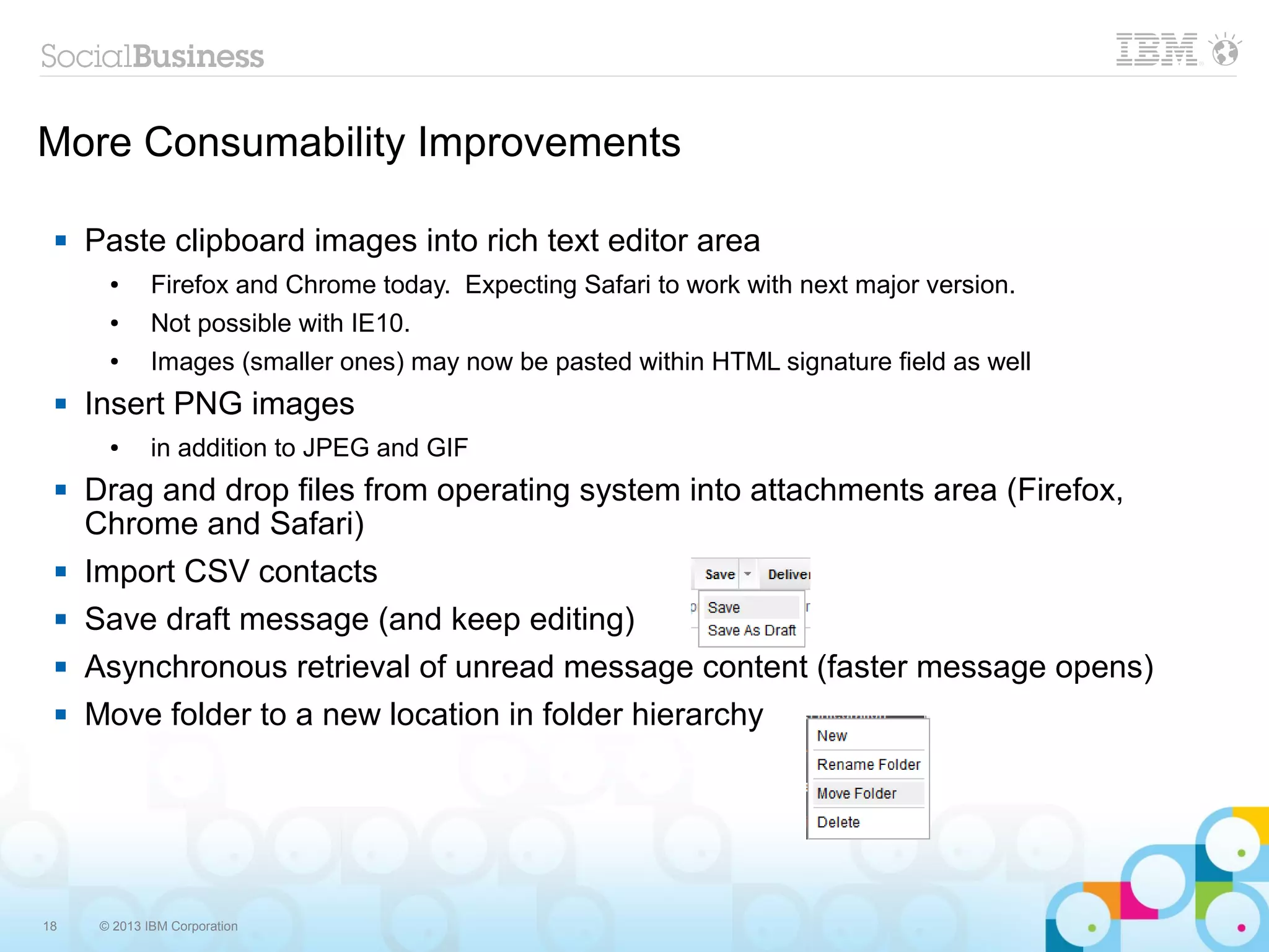

More Consumability Improvements
 Paste clipboard images into rich text editor area
● Firefox and Chrome today. Expecting Safari to work with next major version.
● Not possible with IE10.
● Images (smaller ones) may now be pasted within HTML signature field as well
 Insert PNG images
● in addition to JPEG and GIF
 Drag and drop files from operating system into attachments area (Firefox,
Chrome and Safari)
 Import CSV contacts
 Save draft message (and keep editing)
 Asynchronous retrieval of unread message content (faster message opens)
 Move folder to a new location in folder hierarchy

19. 19 © 2013 IBM Corporation
Additional 9.0 Features
 Some default preferences are set (on first use of new template):
● Automatically process meeting updates and apply changes to calendar
● Display unprocessed meetings within calendar
 Security related
● SHA-2 S/MIME certificate support (more secure S/MIME messaging)
● SAML-based authentication
● OAuth support for displaying embedded experiences (requires EE plugin)
 Control over Return Receipt generation
● iNotes_WA_SendReturnReceipt (0: Never; 1: Always [default]; 2: Prompt)
●
●
●
●
●
 STLinks No Longer Supported with 9.0 Social Edition
● replaced with non-Java based Sametime Ajax Proxy

20. 20 © 2013 IBM Corporation

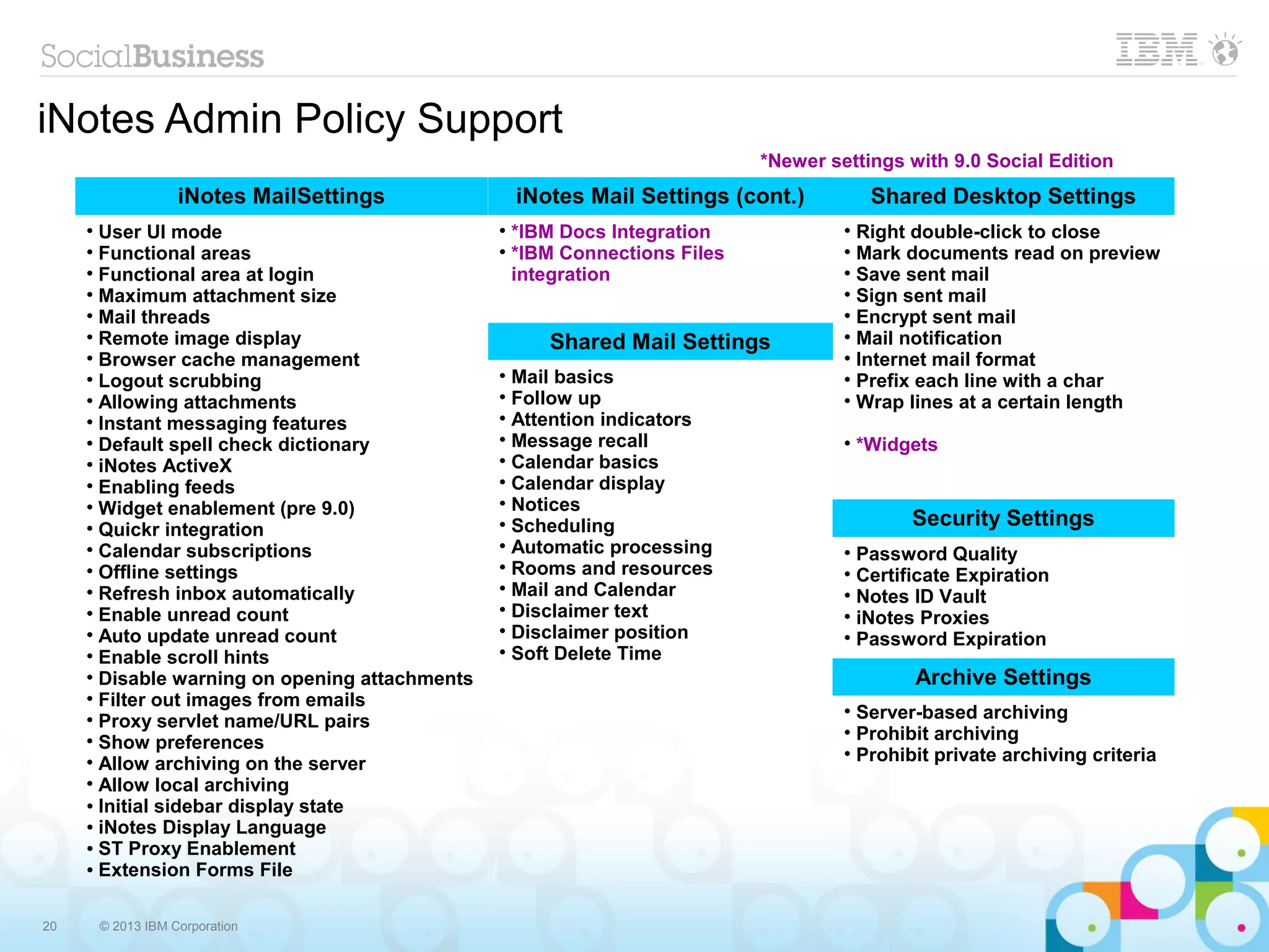

iNotes Admin Policy Support
iNotes MailSettings
• User UI mode
• Functional areas
• Functional area at login
• Maximum attachment size
• Mail threads
• Remote image display
• Browser cache management
• Logout scrubbing
• Allowing attachments
• Instant messaging features
• Default spell check dictionary
• iNotes ActiveX
• Enabling feeds
• Widget enablement (pre 9.0)
• Quickr integration
• Calendar subscriptions
• Offline settings
• Refresh inbox automatically
• Enable unread count
• Auto update unread count
• Enable scroll hints
• Disable warning on opening attachments
• Filter out images from emails
• Proxy servlet name/URL pairs
• Show preferences
• Allow archiving on the server
• Allow local archiving
● Initial sidebar display state
● iNotes Display Language
● ST Proxy Enablement
● Extension Forms File
iNotes Mail Settings (cont.)
• *IBM Docs Integration
• *IBM Connections Files
integration
Shared Mail Settings
• Mail basics
• Follow up
• Attention indicators
• Message recall
• Calendar basics
• Calendar display
• Notices
• Scheduling
• Automatic processing
• Rooms and resources
• Mail and Calendar
• Disclaimer text
• Disclaimer position
• Soft Delete Time
Shared Desktop Settings
• Right double-click to close
• Mark documents read on preview
• Save sent mail
• Sign sent mail
• Encrypt sent mail
• Mail notification
• Internet mail format
• Prefix each line with a char
• Wrap lines at a certain length
• *Widgets
Security Settings
• Password Quality
• Certificate Expiration
• Notes ID Vault
• iNotes Proxies
• Password Expiration
Archive Settings
• Server-based archiving
• Prohibit archiving
• Prohibit private archiving criteria
*Newer settings with 9.0 Social Edition

21. 21 © 2013 IBM Corporation

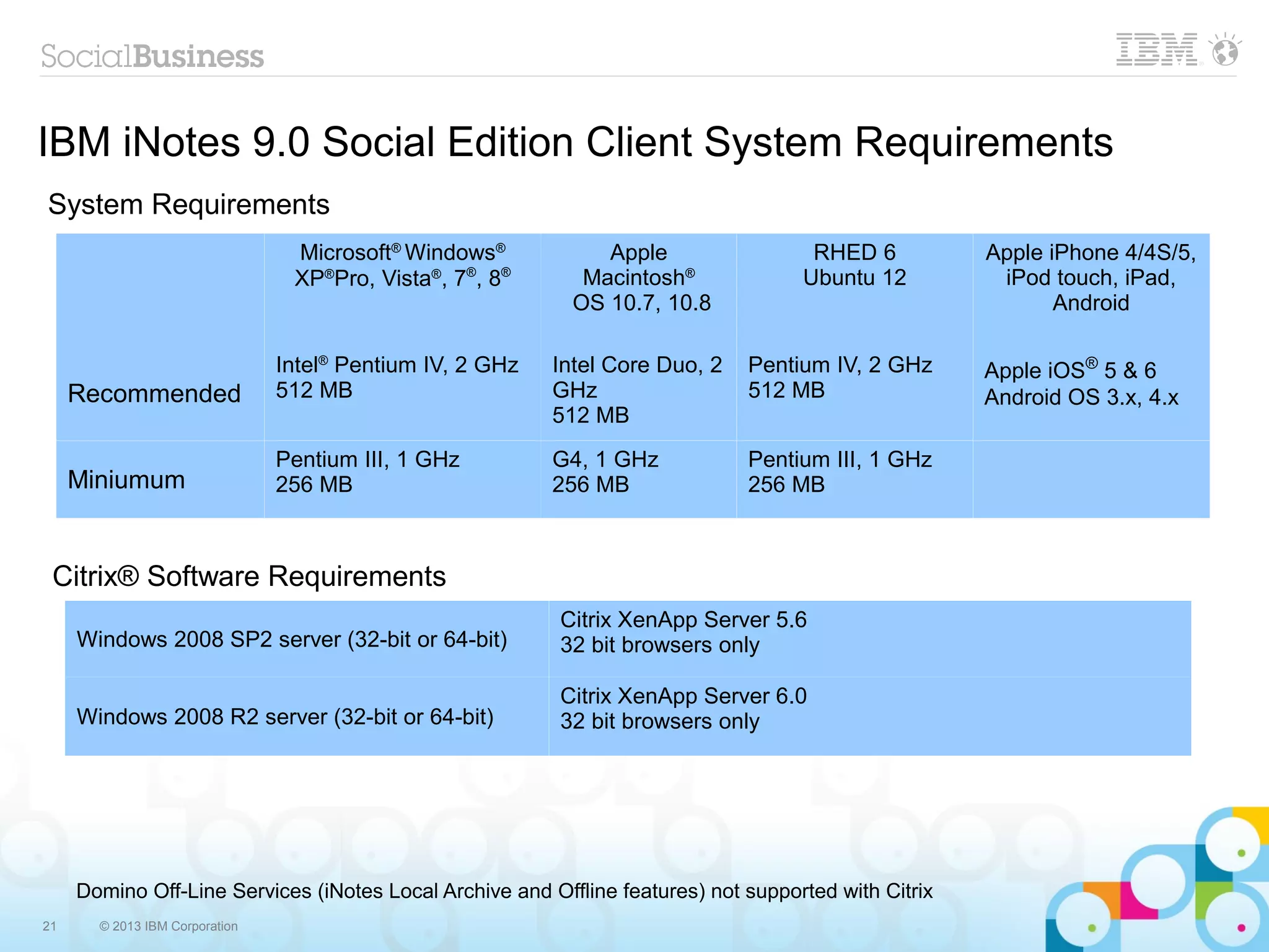

IBM iNotes 9.0 Social Edition Client System Requirements
System Requirements
Microsoft®
Windows®
XP®
Pro, Vista®
, 7®
, 8®
Apple
Macintosh®
OS 10.7, 10.8
RHED 6
Ubuntu 12
Apple iPhone 4/4S/5,
iPod touch, iPad,
Android
Recommended
Intel®
Pentium IV, 2 GHz
512 MB
Intel Core Duo, 2
GHz
512 MB
Pentium IV, 2 GHz
512 MB
Apple iOS®
5 & 6
Android OS 3.x, 4.x
Miniumum
Pentium III, 1 GHz
256 MB
G4, 1 GHz
256 MB
Pentium III, 1 GHz
256 MB
Citrix® Software Requirements
Windows 2008 SP2 server (32-bit or 64-bit)
Citrix XenApp Server 5.6
32 bit browsers only
Windows 2008 R2 server (32-bit or 64-bit)
Citrix XenApp Server 6.0
32 bit browsers only
Domino Off-Line Services (iNotes Local Archive and Offline features) not supported with Citrix

22. 22 © 2013 IBM Corporation

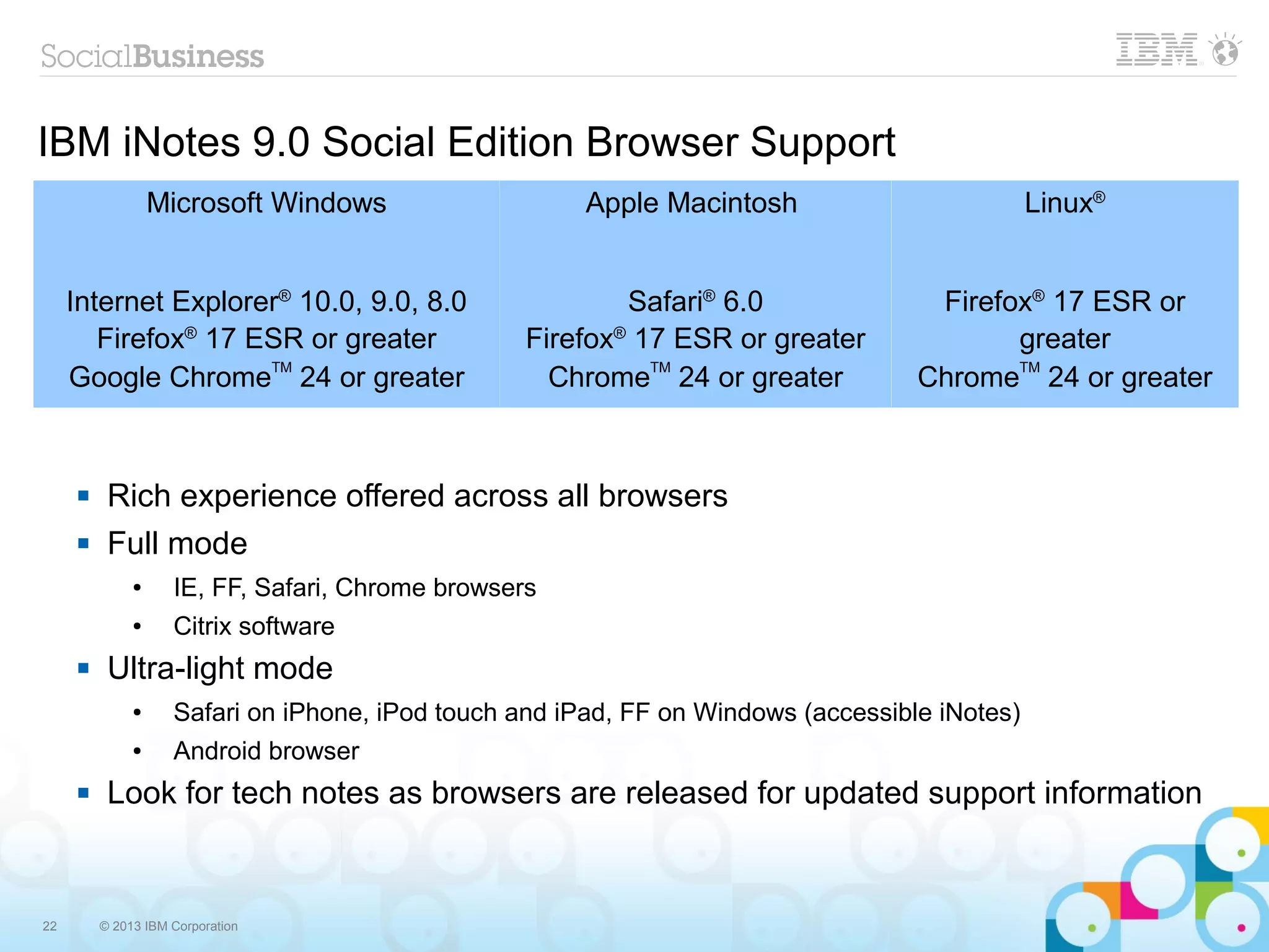

IBM iNotes 9.0 Social Edition Browser Support
Microsoft Windows Apple Macintosh Linux®
Internet Explorer®
10.0, 9.0, 8.0
Firefox®
17 ESR or greater
Google Chrome
TM
24 or greater
Safari®
6.0
Firefox®
17 ESR or greater
Chrome
TM
24 or greater
Firefox®
17 ESR or
greater
Chrome
TM
24 or greater
 Rich experience offered across all browsers
 Full mode
● IE, FF, Safari, Chrome browsers
● Citrix software
 Ultra-light mode
● Safari on iPhone, iPod touch and iPad, FF on Windows (accessible iNotes)
● Android browser
 Look for tech notes as browsers are released for updated support information

23. 23 © 2013 IBM Corporation

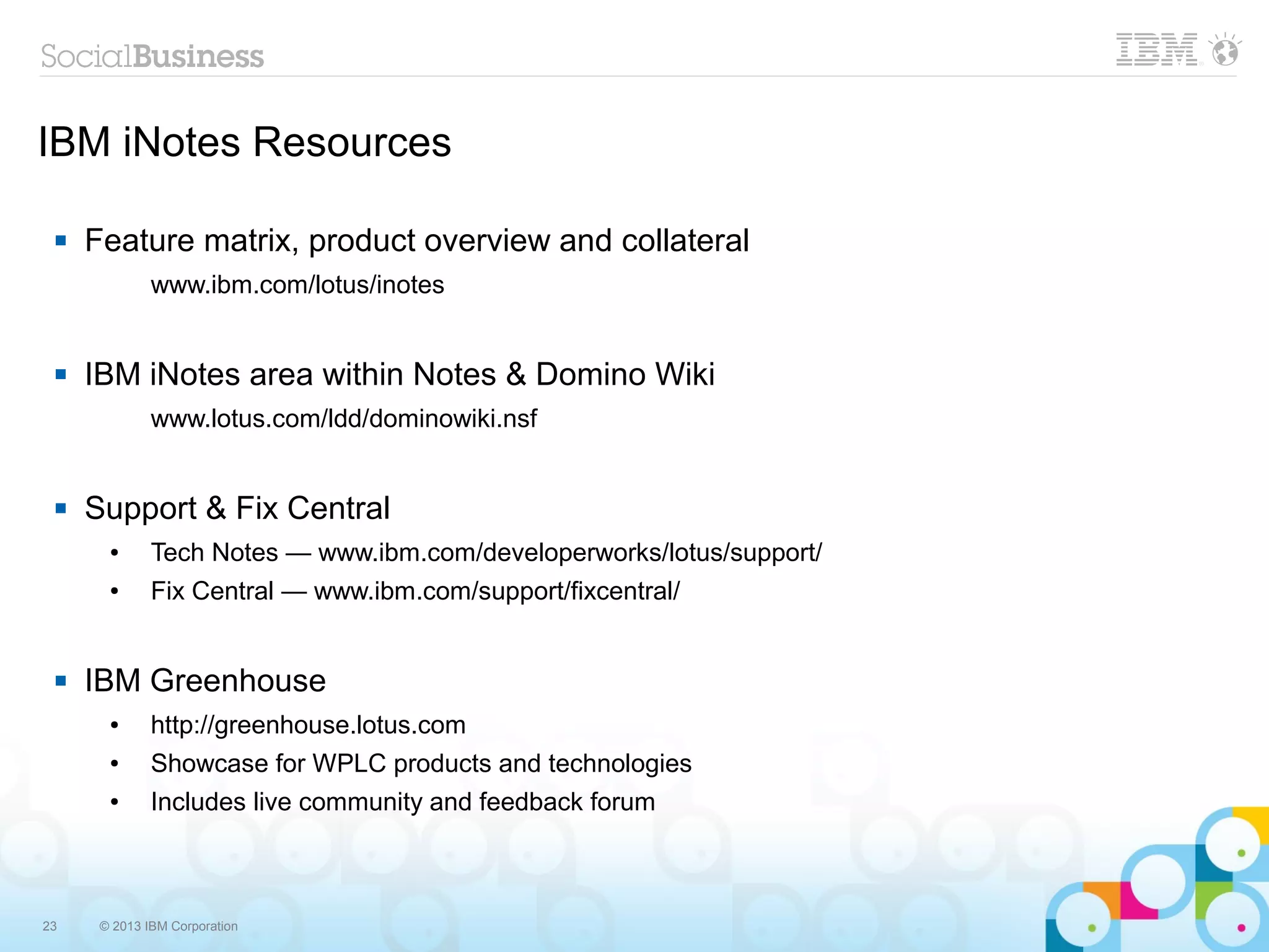

IBM iNotes Resources
 Feature matrix, product overview and collateral
www.ibm.com/lotus/inotes
 IBM iNotes area within Notes & Domino Wiki
www.lotus.com/ldd/dominowiki.nsf
 Support & Fix Central
● Tech Notes — www.ibm.com/developerworks/lotus/support/
● Fix Central — www.ibm.com/support/fixcentral/
 IBM Greenhouse
● http://greenhouse.lotus.com
● Showcase for WPLC products and technologies
● Includes live community and feedback forum

24. 24 © 2013 IBM Corporation

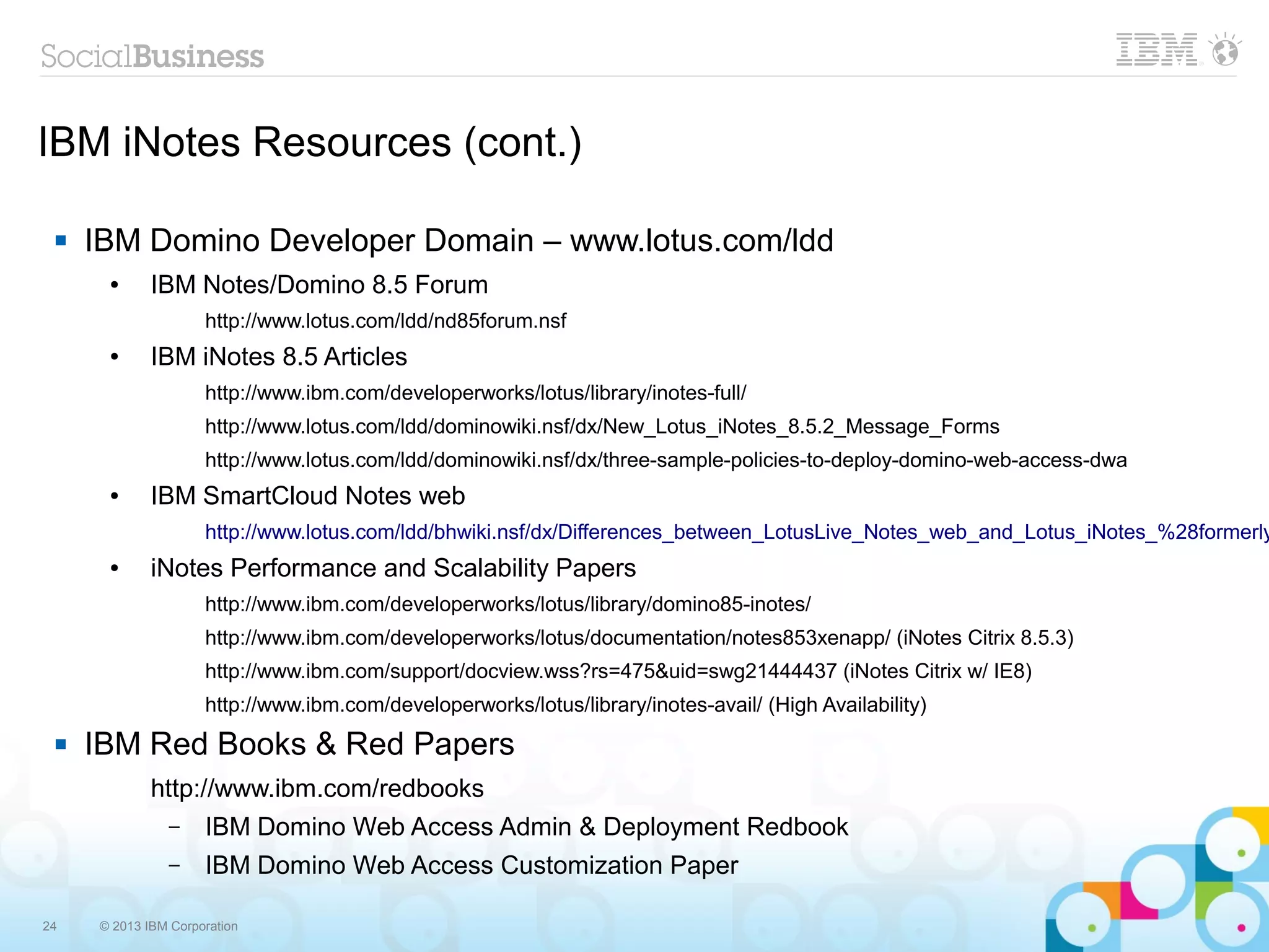

IBM iNotes Resources (cont.)
 IBM Domino Developer Domain – www.lotus.com/ldd
● IBM Notes/Domino 8.5 Forum
http://www.lotus.com/ldd/nd85forum.nsf
● IBM iNotes 8.5 Articles
http://www.ibm.com/developerworks/lotus/library/inotes-full/
http://www.lotus.com/ldd/dominowiki.nsf/dx/New_Lotus_iNotes_8.5.2_Message_Forms
http://www.lotus.com/ldd/dominowiki.nsf/dx/three-sample-policies-to-deploy-domino-web-access-dwa
● IBM SmartCloud Notes web
http://www.lotus.com/ldd/bhwiki.nsf/dx/Differences_between_LotusLive_Notes_web_and_Lotus_iNotes_%28formerly
● iNotes Performance and Scalability Papers
http://www.ibm.com/developerworks/lotus/library/domino85-inotes/
http://www.ibm.com/developerworks/lotus/documentation/notes853xenapp/ (iNotes Citrix 8.5.3)
http://www.ibm.com/support/docview.wss?rs=475&uid=swg21444437 (iNotes Citrix w/ IE8)
http://www.ibm.com/developerworks/lotus/library/inotes-avail/ (High Availability)
 IBM Red Books & Red Papers
http://www.ibm.com/redbooks
– IBM Domino Web Access Admin & Deployment Redbook
– IBM Domino Web Access Customization Paper

25. 25 © 2013 IBM Corporation
Get Social. Do Business.
Thanks!

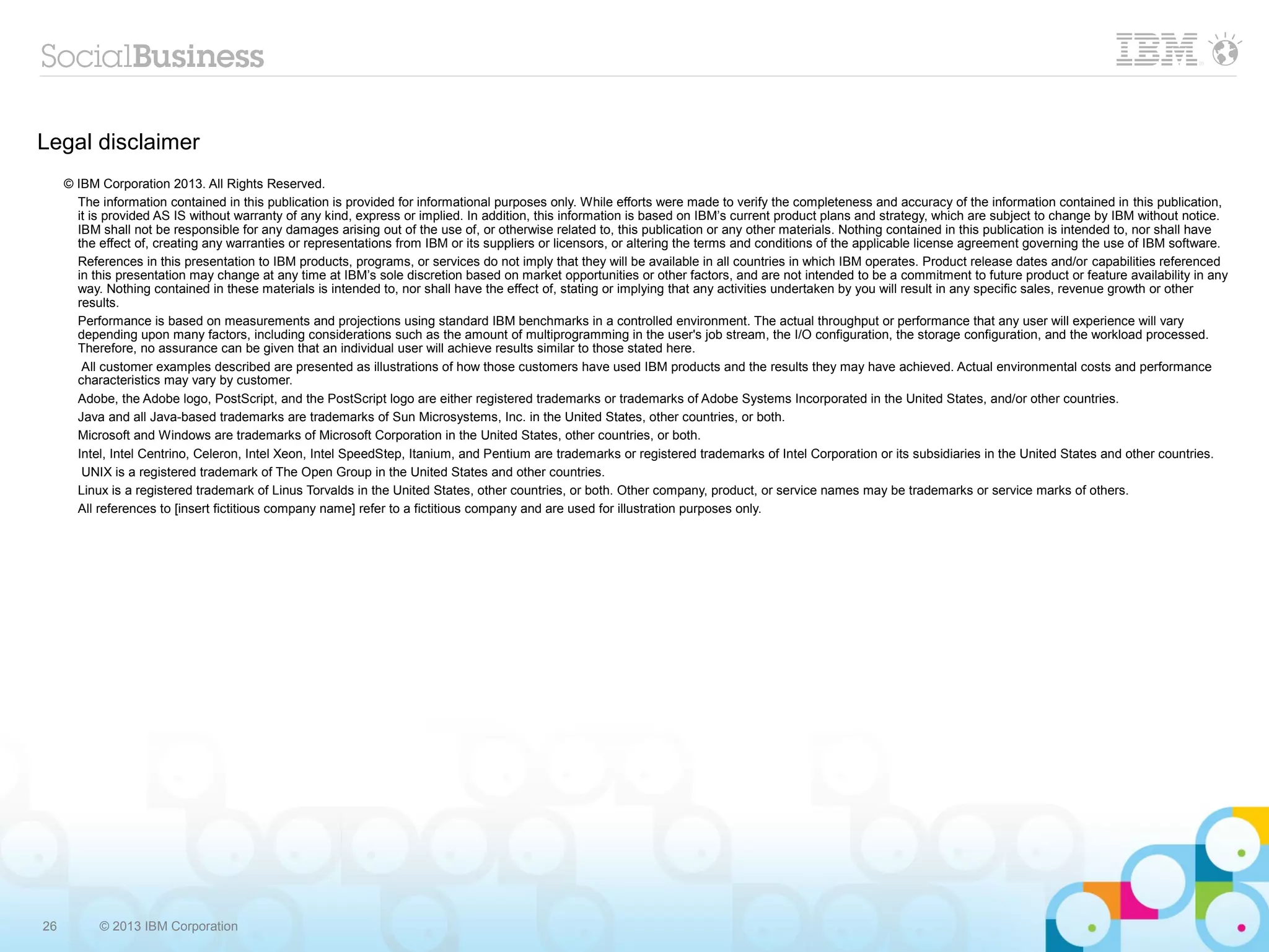

26. 26 © 2013 IBM Corporation
Legal disclaimer
© IBM Corporation 2013. All Rights Reserved.
The information contained in this publication is provided for informational purposes only. While efforts were made to verify the completeness and accuracy of the information contained in this publication,
it is provided AS IS without warranty of any kind, express or implied. In addition, this information is based on IBM’s current product plans and strategy, which are subject to change by IBM without notice.
IBM shall not be responsible for any damages arising out of the use of, or otherwise related to, this publication or any other materials. Nothing contained in this publication is intended to, nor shall have
the effect of, creating any warranties or representations from IBM or its suppliers or licensors, or altering the terms and conditions of the applicable license agreement governing the use of IBM software.
References in this presentation to IBM products, programs, or services do not imply that they will be available in all countries in which IBM operates. Product release dates and/or capabilities referenced
in this presentation may change at any time at IBM’s sole discretion based on market opportunities or other factors, and are not intended to be a commitment to future product or feature availability in any
way. Nothing contained in these materials is intended to, nor shall have the effect of, stating or implying that any activities undertaken by you will result in any specific sales, revenue growth or other
results.
Performance is based on measurements and projections using standard IBM benchmarks in a controlled environment. The actual throughput or performance that any user will experience will vary
depending upon many factors, including considerations such as the amount of multiprogramming in the user's job stream, the I/O configuration, the storage configuration, and the workload processed.
Therefore, no assurance can be given that an individual user will achieve results similar to those stated here.
All customer examples described are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual environmental costs and performance
characteristics may vary by customer.
Adobe, the Adobe logo, PostScript, and the PostScript logo are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States, and/or other countries.
Java and all Java-based trademarks are trademarks of Sun Microsystems, Inc. in the United States, other countries, or both.
Microsoft and Windows are trademarks of Microsoft Corporation in the United States, other countries, or both.
Intel, Intel Centrino, Celeron, Intel Xeon, Intel SpeedStep, Itanium, and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
UNIX is a registered trademark of The Open Group in the United States and other countries.
Linux is a registered trademark of Linus Torvalds in the United States, other countries, or both. Other company, product, or service names may be trademarks or service marks of others.
All references to [insert fictitious company name] refer to a fictitious company and are used for illustration purposes only.
