A solar AC distribution board (ACDB) is a crucial component of solar power plants that consolidates AC power from inverters into a single unit. Accu-Panels, a CPRI approved manufacturer in India, fabricates customized ACDBs with different enclosures and protective devices to ensure durability and compliance with international standards. These boards help manage electrical loads while providing safety features like surge protection and energy metering.

1. What is Solar Ac Distribution Board?
Solar ACDB (Ac distribution board) is an important part of SPV system for Solar power Plant. Accu-
panels is CPRI approved acdb dcdb manufacturer in india.
It combines the output 3 phase as well as single phase AC power of inverter placed in solar plant system into
single box called ACDB (AC Distribution Board).
AC Distribution Panel Board (DPB) shall control the AC power from PCU, have necessary surge arrestors.
Requirement/specifications of DCDB and ACDB changed as per site conditions. An ACDB to be provided at
the cable terminating point emanating from 5 KVA PCU for interconnection control of dedicated electrical
loads.
All switches at the, circuit breakers, connectors shoul IEC 60947, part I, II and III.
A distribution board (also panelboard or breaker panel) component of an electricity supply system which
divides an feed into subsidiary circuits, while providing a protective fuse breaker circuit. The ACDB receives
the AC power from the solar inverter and directs it to AC loads through the distribution board.
We are the prominent Manufacturer, Supplier and Exporter of AC Distribution Boards. The AC
Distribution Boards that we provide are easy to work . We manufacture our AC Distribution Boards with the
utilization of highest quality components that ensure high durability and performance. These AC Distribution
Boards are made as per the industry norms and are properly tested for flawless functioning.
What kind of ACDB is made?
We are making customized Board according to client’s specifications,such as indoor type (IP52), outdoor
type floor standing, wall mounting, stand mounting according to the client requirement. Also We provide
IP67 Certificate for Polycarbonate box and IP65 certificate for MS box
What ARE THE FEATURES?
AC-DB comes with the package of protection devices such as surge protection device (SPD),

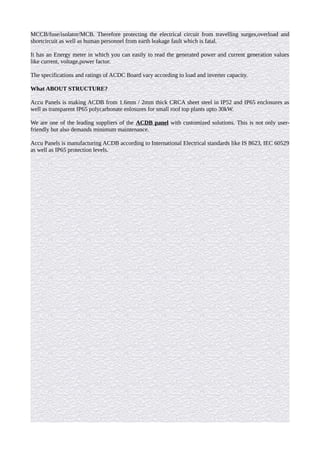

2. MCCB/fuse/isolator/MCB. Therefore protecting the electrical circuit from travelling surges,overload and
shortcircuit as well as human personnel from earth leakage fault which is fatal.
It has an Energy meter in which you can easily to read the generated power and current generation values
like current, voltage,power factor.
The specifications and ratings of ACDC Board vary according to load and inverter capacity.
What ABOUT STRUCTURE?
Accu Panels is making ACDB from 1.6mm / 2mm thick CRCA sheet steel in IP52 and IP65 enclosures as
well as transparent IP65 polycarbonate enlosures for small roof top plants upto 30kW.
We are one of the leading suppliers of the ACDB panel with customized solutions. This is not only user-
friendly but also demands minimum maintenance.
Accu Panels is manufacturing ACDB according to International Electrical standards like IS 8623, IEC 60529
as well as IP65 protection levels.
