1. Windows Application Management - May 3 2016
Windows Application Management
with Puppet
Automating Windows

2. Windows Application Management - May 3 2016
Who Am I
• Kaustubh Chaudhari Working as DevOps Consultant and
Puppet Trainer in OlinData

3. Windows Application Management - May 3 2016
Overview
• What is puppet?
• Puppet Architecture
• Understanding Windows Application Management
• Puppet Code for Windows
• Puppet Forge
• Questions

4. Windows Application Management - May 3 2016

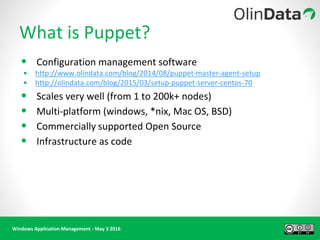

What is Puppet?
• Configuration management software
• http://www.olindata.com/blog/2014/08/puppet-master-agent-setup
• http://olindata.com/blog/2015/03/setup-puppet-server-centos-70
• Scales very well (from 1 to 200k+ nodes)
• Multi-platform (windows, *nix, Mac OS, BSD)
• Commercially supported Open Source
• Infrastructure as code

5. Windows Application Management - May 3 2016

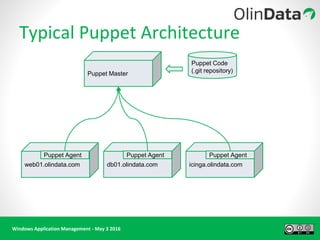

Typical Puppet Architecture
Puppet Master
Puppet Code
(.git repository)
web01.olindata.com icinga.olindata.comdb01.olindata.com
Puppet Agent Puppet AgentPuppet Agent

6. Windows Application Management - May 3 2016

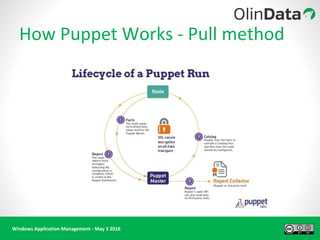

How Puppet Works - Pull method

7. Windows Application Management - May 3 2016

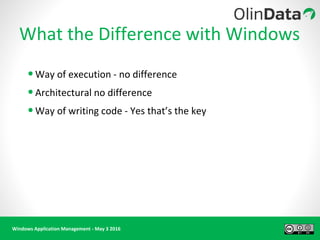

•Way of execution - no difference
•Architectural no difference
•Way of writing code - Yes that’s the key
What the Difference with Windows

8. Windows Application Management - May 3 2016

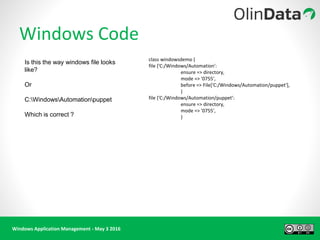

Windows Code
class windowsdemo {
file {'C:/Windows/Automation':
ensure => directory,
mode => '0755',
before => File['C:/Windows/Automation/puppet'],
}
file {'C:/Windows/Automation/puppet':
ensure => directory,
mode => '0755',
}
Is this the way windows file looks
like?
Or
C:WindowsAutomationpuppet
Which is correct ?

9. Windows Application Management - May 3 2016
More Code
exec { 'sepstatus.bat':
command => "C:WindowsSystem32cmd.exe /c cd C:WindowsAutomationpuppet && sepstatus.bat",
}
exec { 'ConfigureNetworkSettings.bat':
command => "C:WindowsSystem32cmd.exe /c cd C:WindowsAutomationpuppet &&
ConfigureNetworkSettings.bat",
onlyif => "C:WindowsSystem32cmd.exe /c dir C:WindowsAutomationpuppetdisableipv6.txt",
returns => [ '0' ],
}
A quick talk on EXEC and Idempotency !

10. Windows Application Management - May 3 2016

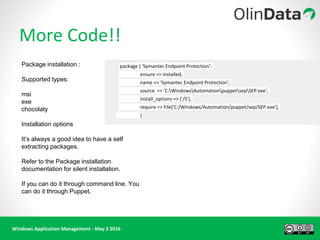

More Code!!
package { 'Symantec Endpoint Protection':
ensure => installed,
name => 'Symantec Endpoint Protection',
source => 'C:WindowsAutomationpuppetsepSEP.exe',
install_options => ['/S'],
require => File['C:/Windows/Automation/puppet/sep/SEP.exe'],
}
Package installation :
Supported types:
msi
exe
chocolaty
Installation options
It’s always a good idea to have a self
extracting packages.
Refer to the Package installation
documentation for silent installation.
If you can do it through command line. You
can do it through Puppet.

11. Windows Application Management - May 3 2016

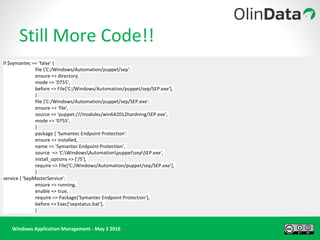

Still More Code!!
if $symantec == 'false' {
file {'C:/Windows/Automation/puppet/sep':
ensure => directory,
mode => '0755',
before => File['C:/Windows/Automation/puppet/sep/SEP.exe'],
}
file {'C:/Windows/Automation/puppet/sep/SEP.exe':
ensure => 'file',
source => 'puppet:///modules/win642012hardning/SEP.exe',
mode => '0755',
}
package { 'Symantec Endpoint Protection':
ensure => installed,
name => 'Symantec Endpoint Protection',
source => 'C:WindowsAutomationpuppetsepSEP.exe',
install_options => ['/S'],
require => File['C:/Windows/Automation/puppet/sep/SEP.exe'],
}
service { 'SepMasterService':
ensure => running,
enable => true,
require => Package['Symantec Endpoint Protection'],
before => Exec['sepstatus.bat'],
}

12. Windows Application Management - May 3 2016

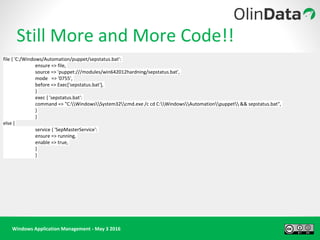

Still More and More Code!!
file { 'C:/Windows/Automation/puppet/sepstatus.bat':
ensure => file,
source => 'puppet:///modules/win642012hardning/sepstatus.bat',
mode => '0755',
before => Exec['sepstatus.bat'],
}
exec { 'sepstatus.bat':
command => "C:WindowsSystem32cmd.exe /c cd C:WindowsAutomationpuppet && sepstatus.bat",
}
}
else {
service { 'SepMasterService':
ensure => running,
enable => true,
}
}

13. Windows Application Management - May 3 2016

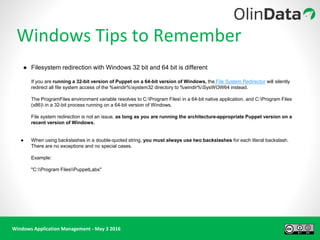

Windows Tips to Remember
● Filesystem redirection with Windows 32 bit and 64 bit is different
If you are running a 32-bit version of Puppet on a 64-bit version of Windows, the File System Redirector will silently
redirect all file system access of the %windir%system32 directory to %windir%SysWOW64 instead.
The ProgramFiles environment variable resolves to C:Program Files in a 64-bit native application, and C:Program Files
(x86) in a 32-bit process running on a 64-bit version of Windows.
File system redirection is not an issue, as long as you are running the architecture-appropriate Puppet version on a
recent version of Windows.
● When using backslashes in a double-quoted string, you must always use two backslashes for each literal backslash.
There are no exceptions and no special cases.
Example:
"C:Program FilesPuppetLabs"

14. Windows Application Management - May 3 2016
Demo Time !!

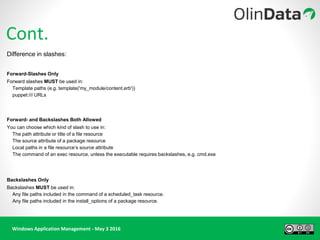

Cont.
Difference in slashes:
Forward-Slashes Only
Forward slashes MUST be used in:
Template paths (e.g. template('my_module/content.erb'))
puppet:/// URLs
Forward- and Backslashes Both Allowed
You can choose which kind of slash to use in:
The path attribute or title of a file resource
The source attribute of a package resource
Local paths in a file resource’s source attribute
The command of an exec resource, unless the executable requires backslashes, e.g. cmd.exe
Backslashes Only
Backslashes MUST be used in:
Any file paths included in the command of a scheduled_task resource.
Any file paths included in the install_options of a package resource.

15. Windows Application Management - May 3 2016

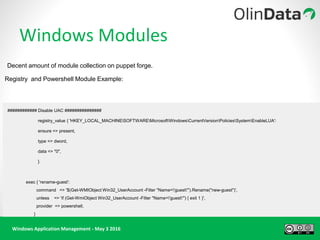

Windows Modules
Decent amount of module collection on puppet forge.
Registry and Powershell Module Example:
############ Disable UAC ###############
registry_value { 'HKEY_LOCAL_MACHINESOFTWAREMicrosoftWindowsCurrentVersionPoliciesSystemEnableLUA':
ensure => present,
type => dword,
data => "0",
}
exec { 'rename-guest':
command => '$(Get-WMIObject Win32_UserAccount -Filter "Name='guest'").Rename("new-guest")',
unless => 'if (Get-WmiObject Win32_UserAccount -Filter "Name='guest'") { exit 1 }',
provider => powershell,
}

16. Windows Application Management - May 3 2016

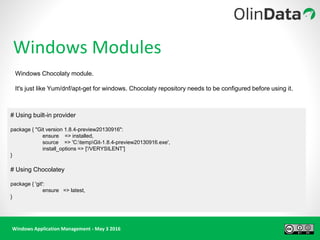

Windows Modules
# Using built-in provider
package { "Git version 1.8.4-preview20130916":
ensure => installed,
source => 'C:tempGit-1.8.4-preview20130916.exe',
install_options => ['/VERYSILENT']
}
# Using Chocolatey
package { 'git':
ensure => latest,
}
Windows Chocolaty module.
It's just like Yum/dnf/apt-get for windows. Chocolaty repository needs to be configured before using it.

17. Windows Application Management - May 3 2016
More details on windows module can be found on
https://forge.puppet.com/
I recommend you to look at :
https://forge.puppet.com/puppetlabs/windows
This is a collection of few windows module useful in day to day life.
Windows Modules

18. Windows Application Management - May 3 2016
Questions?
http://www.olindata.com
kaustubh@olindata.com
OpsTheater

19. Windows Application Management - May 3 2016
Thankyou
