1. Puppet control-repo
to the next level
(an opinionated big fat control-repo)
Alessandro Franceschi
@alvagante

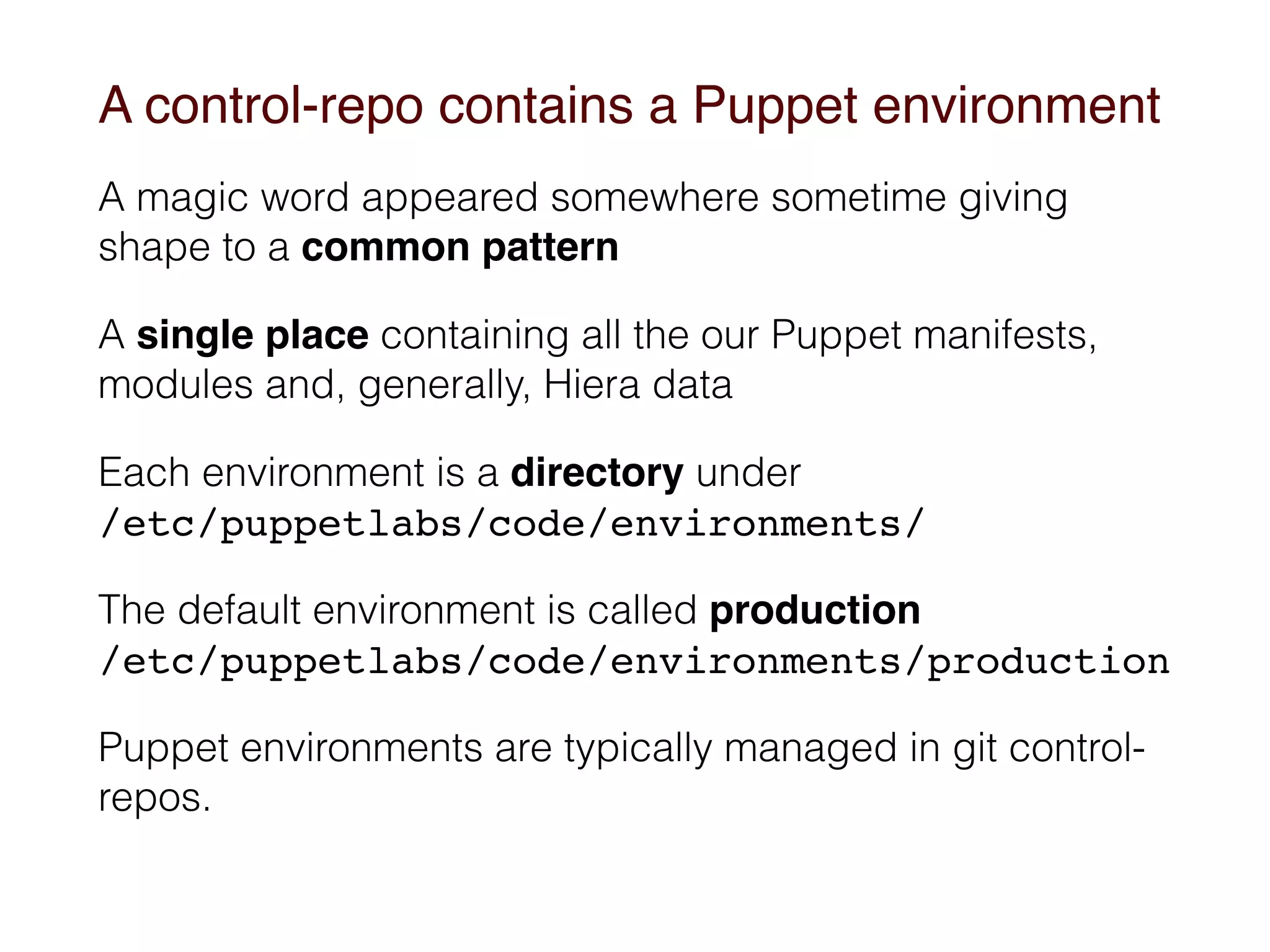

2. A control-repo contains a Puppet environment
A magic word appeared somewhere sometime giving
shape to a common pattern
A single place containing all the our Puppet manifests,
modules and, generally, Hiera data
Each environment is a directory under
/etc/puppetlabs/code/environments/
The default environment is called production
/etc/puppetlabs/code/environments/production
Puppet environments are typically managed in git control-
repos.

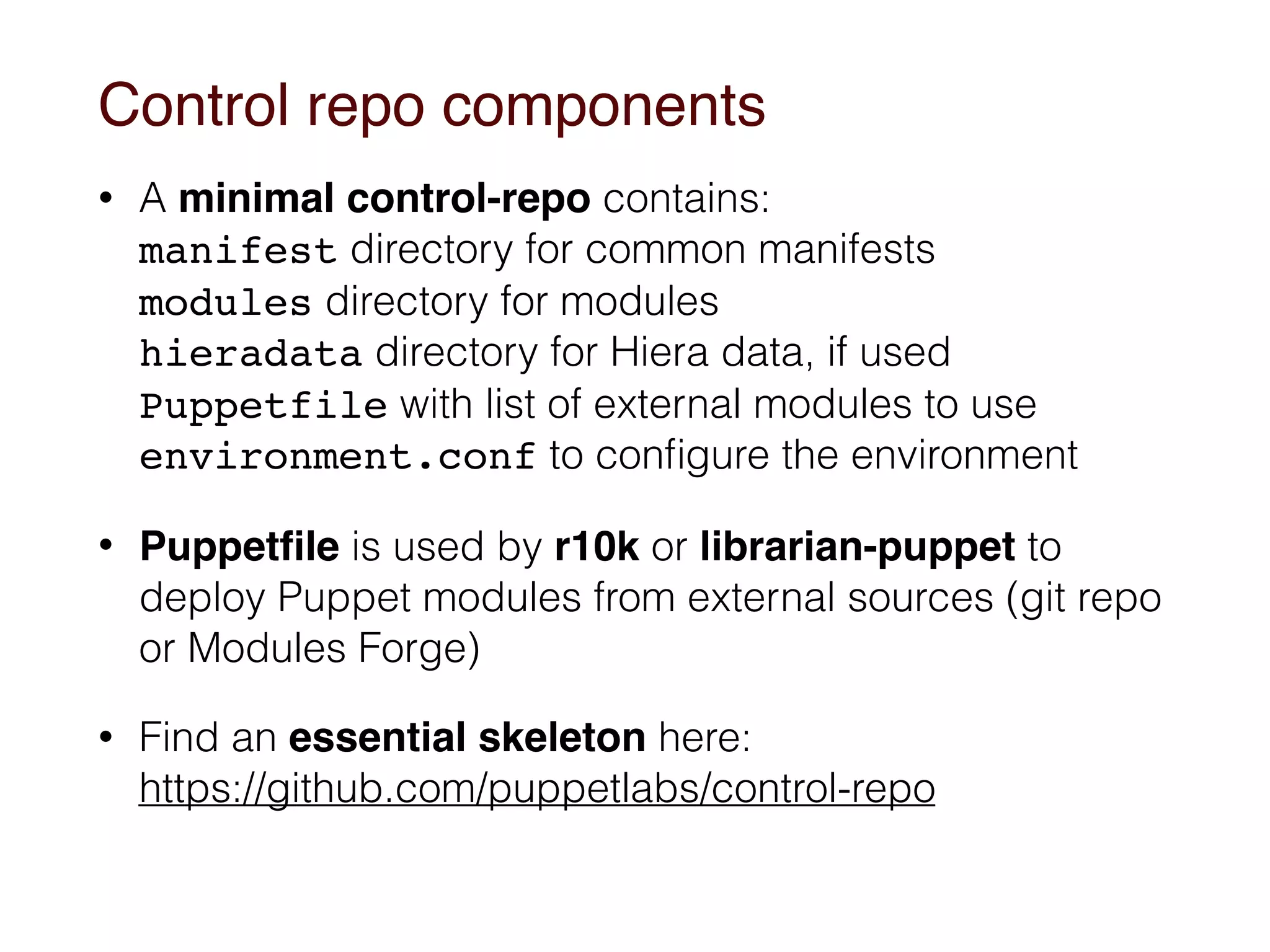

3. Control repo components
• A minimal control-repo contains:
manifest directory for common manifests
modules directory for modules
hieradata directory for Hiera data, if used
Puppetfile with list of external modules to use
environment.conf to configure the environment
• Puppetfile is used by r10k or librarian-puppet to
deploy Puppet modules from external sources (git repo
or Modules Forge)
• Find an essential skeleton here:
https://github.com/puppetlabs/control-repo

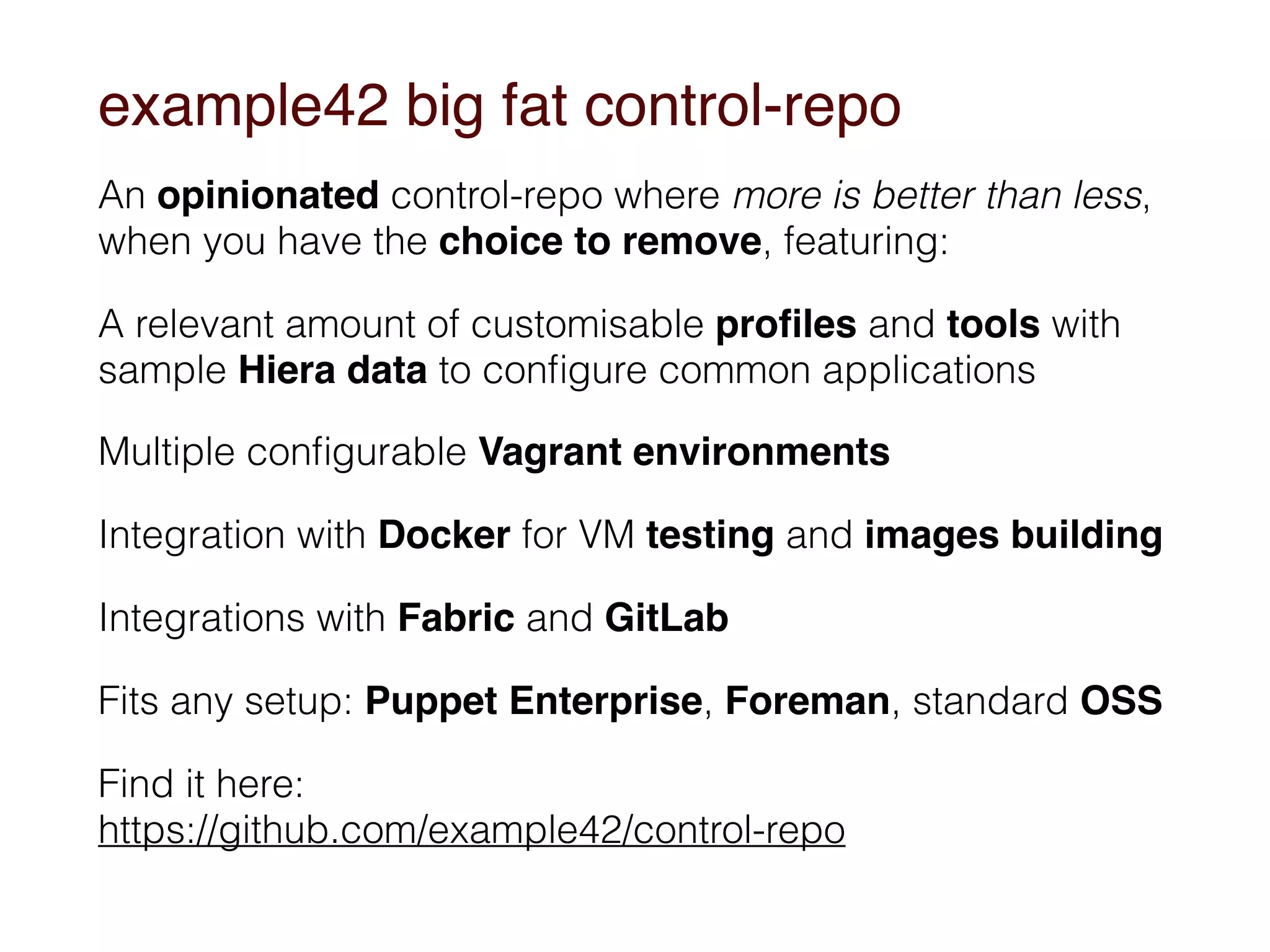

4. example42 big fat control-repo
An opinionated control-repo where more is better than less,
when you have the choice to remove, featuring:
A relevant amount of customisable profiles and tools with
sample Hiera data to configure common applications
Multiple configurable Vagrant environments
Integration with Docker for VM testing and images building
Integrations with Fabric and GitLab
Fits any setup: Puppet Enterprise, Foreman, standard OSS
Find it here:
https://github.com/example42/control-repo

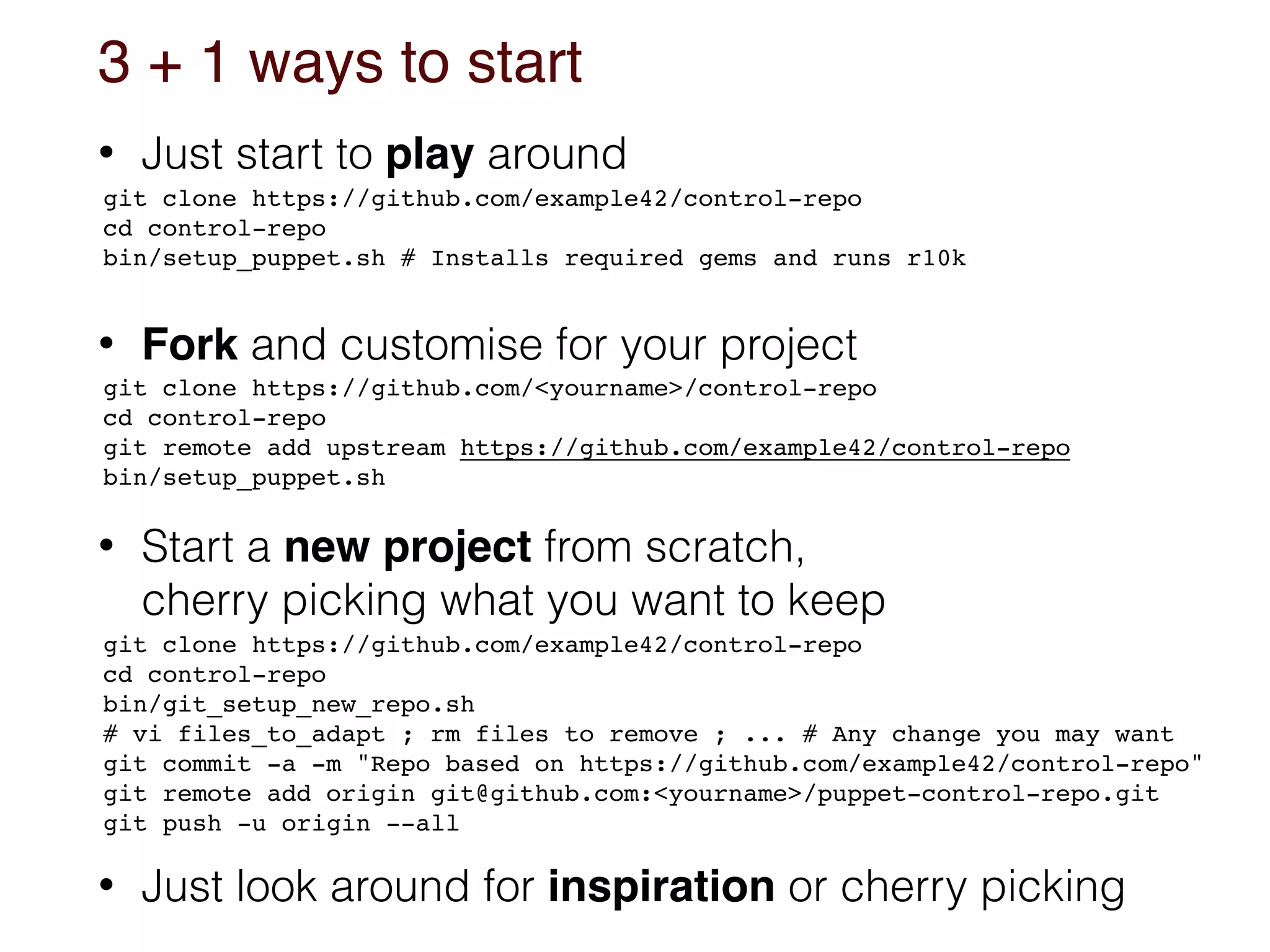

5. 3 + 1 ways to start
• Just start to play around
• Fork and customise for your project
• Start a new project from scratch,
cherry picking what you want to keep
• Just look around for inspiration or cherry picking
git clone https://github.com/example42/control-repo
cd control-repo
bin/setup_puppet.sh # Installs required gems and runs r10k
git clone https://github.com/example42/control-repo
cd control-repo
bin/git_setup_new_repo.sh
# vi files_to_adapt ; rm files to remove ; ... # Any change you may want
git commit -a -m "Repo based on https://github.com/example42/control-repo"
git remote add origin git@github.com:<yourname>/puppet-control-repo.git
git push -u origin --all
git clone https://github.com/<yourname>/control-repo
cd control-repo
git remote add upstream https://github.com/example42/control-repo
bin/setup_puppet.sh

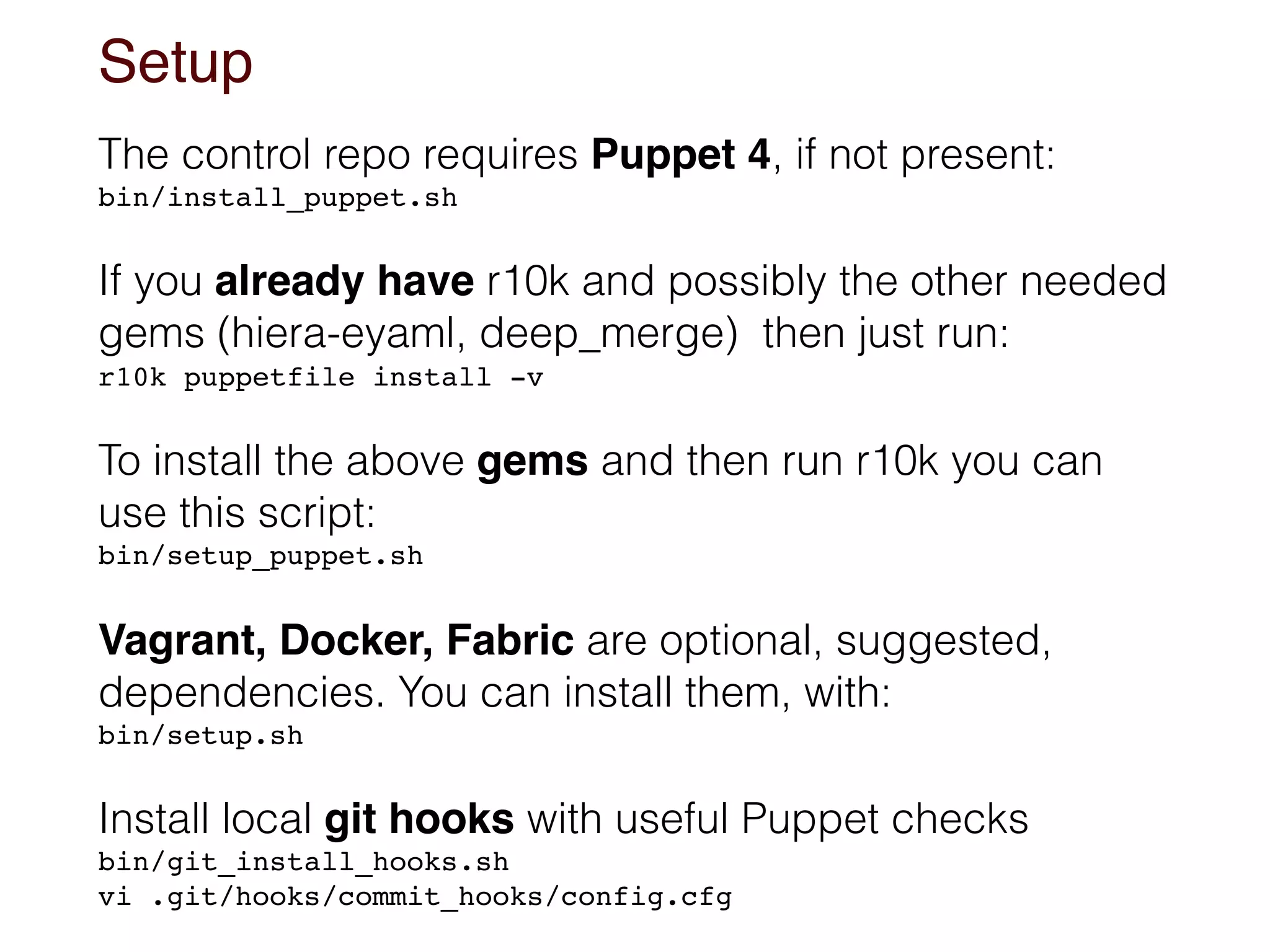

6. Setup
The control repo requires Puppet 4, if not present:
bin/install_puppet.sh
If you already have r10k and possibly the other needed
gems (hiera-eyaml, deep_merge) then just run:
r10k puppetfile install -v
To install the above gems and then run r10k you can
use this script:
bin/setup_puppet.sh
Vagrant, Docker, Fabric are optional, suggested,
dependencies. You can install them, with:
bin/setup.sh
Install local git hooks with useful Puppet checks
bin/git_install_hooks.sh
vi .git/hooks/commit_hooks/config.cfg

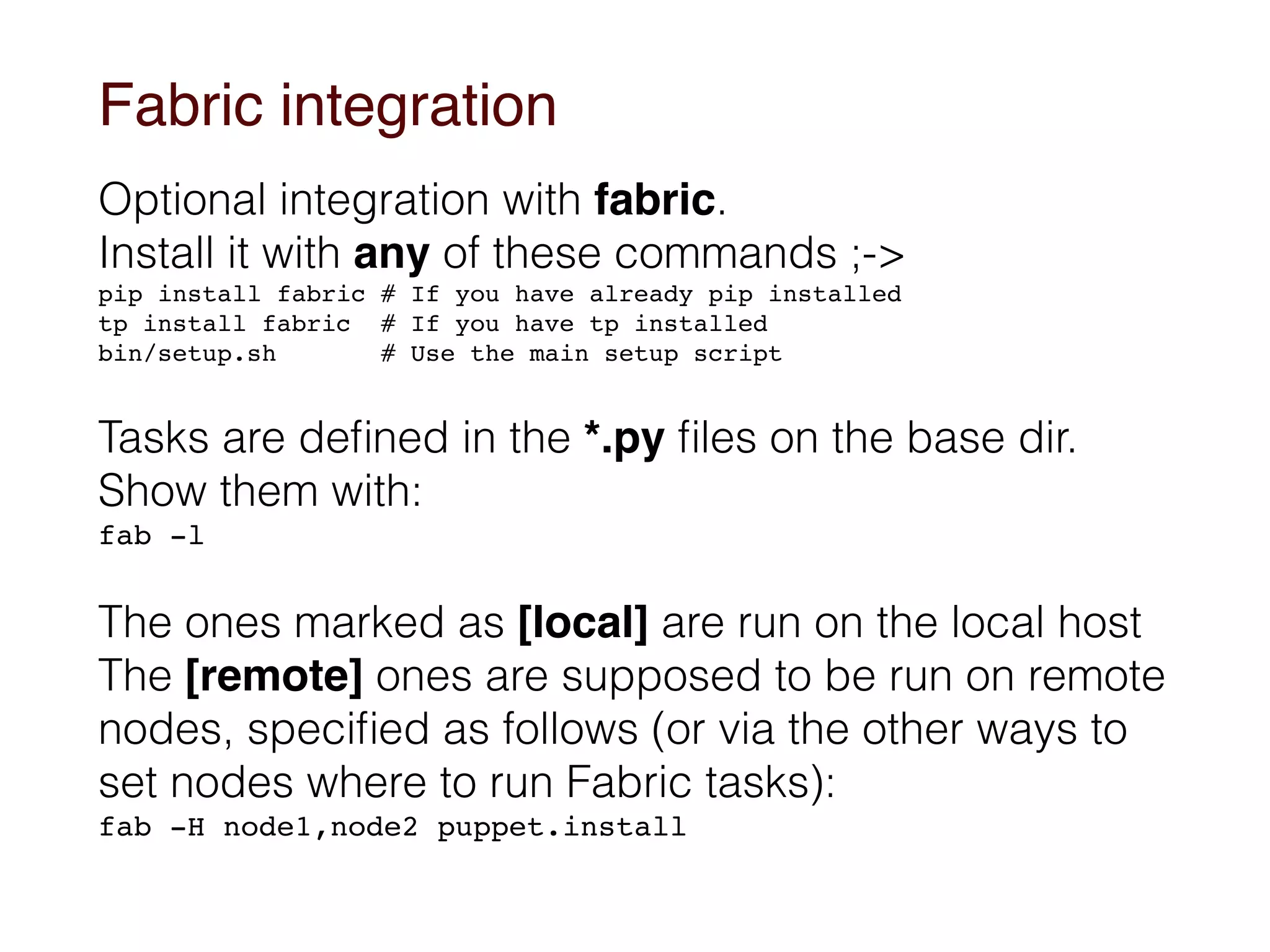

7. Fabric integration
Optional integration with fabric.
Install it with any of these commands ;->
pip install fabric # If you have already pip installed
tp install fabric # If you have tp installed
bin/setup.sh # Use the main setup script
Tasks are defined in the *.py files on the base dir.
Show them with:
fab -l
The ones marked as [local] are run on the local host
The [remote] ones are supposed to be run on remote
nodes, specified as follows (or via the other ways to
set nodes where to run Fabric tasks):
fab -H node1,node2 puppet.install

8. demo

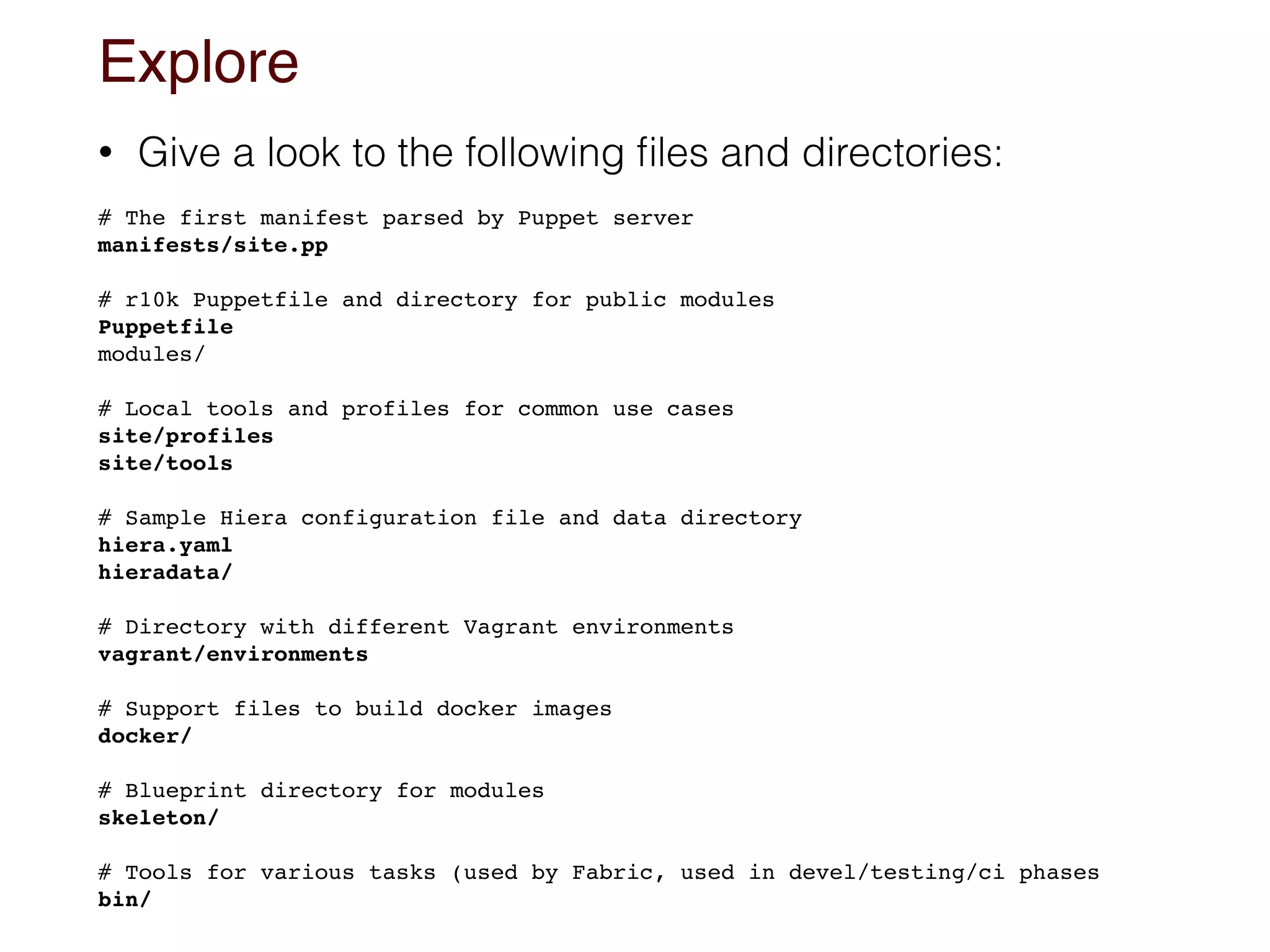

9. Explore
• Give a look to the following files and directories:
# The first manifest parsed by Puppet server
manifests/site.pp
# r10k Puppetfile and directory for public modules
Puppetfile
modules/
# Local tools and profiles for common use cases
site/profiles
site/tools
# Sample Hiera configuration file and data directory
hiera.yaml
hieradata/
# Directory with different Vagrant environments
vagrant/environments
# Support files to build docker images
docker/
# Blueprint directory for modules
skeleton/
# Tools for various tasks (used by Fabric, used in devel/testing/ci phases
bin/

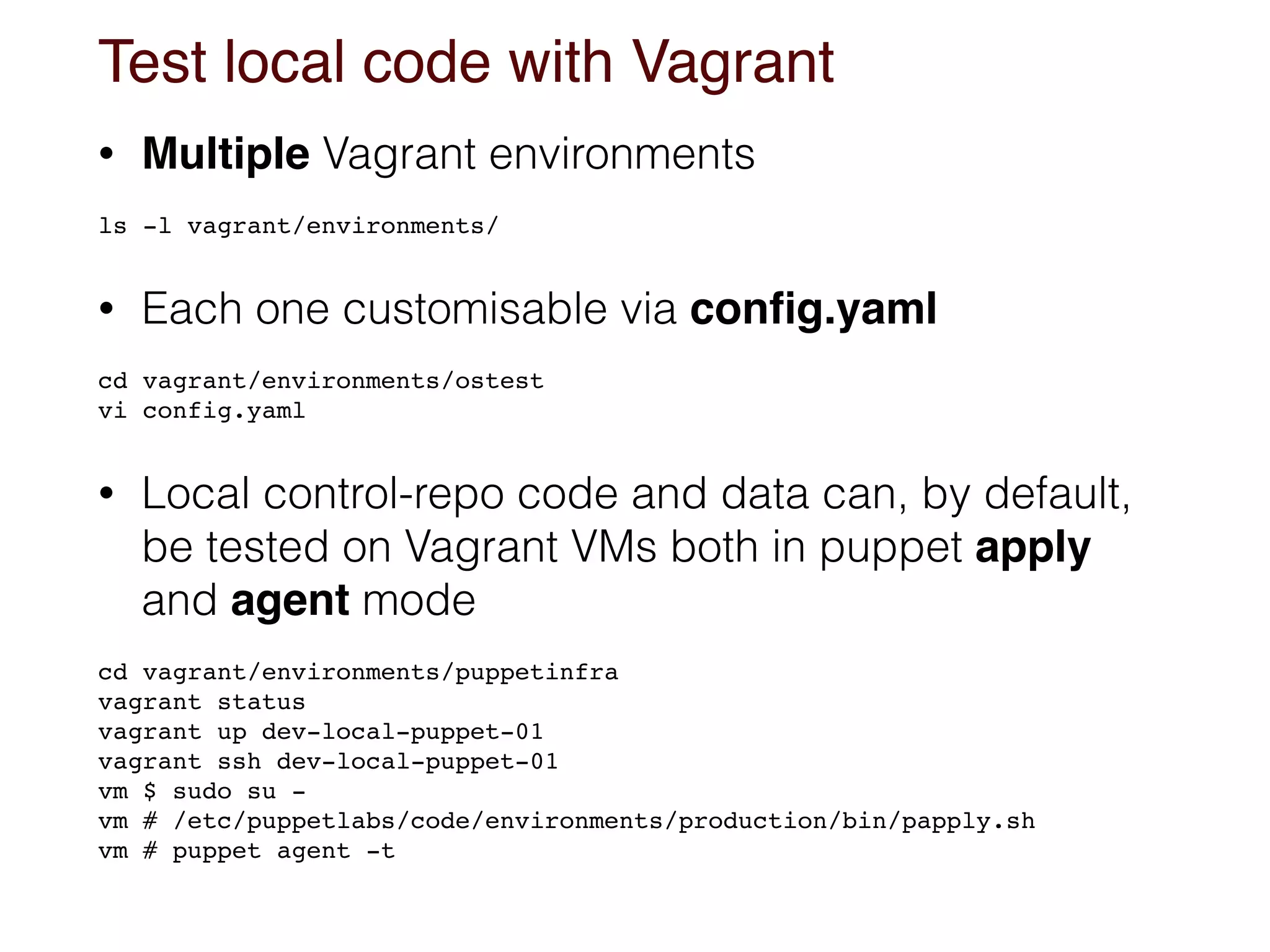

10. Test local code with Vagrant
• Multiple Vagrant environments
ls -l vagrant/environments/
• Each one customisable via config.yaml
cd vagrant/environments/ostest
vi config.yaml
• Local control-repo code and data can, by default,
be tested on Vagrant VMs both in puppet apply
and agent mode
cd vagrant/environments/puppetinfra
vagrant status
vagrant up dev-local-puppet-01
vagrant ssh dev-local-puppet-01
vm $ sudo su -
vm # /etc/puppetlabs/code/environments/production/bin/papply.sh
vm # puppet agent -t

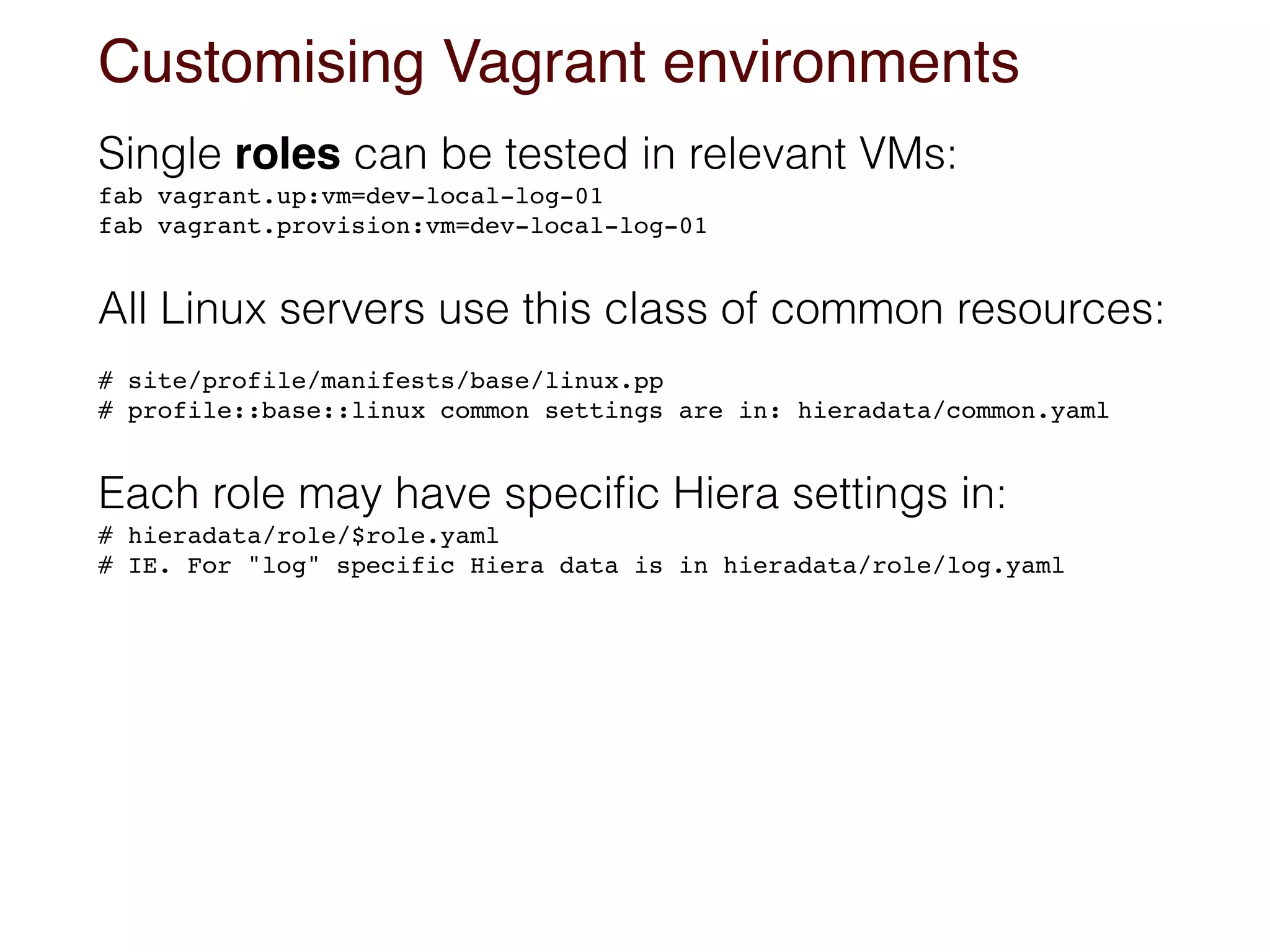

11. Customising Vagrant environments
Single roles can be tested in relevant VMs:
fab vagrant.up:vm=dev-local-log-01
fab vagrant.provision:vm=dev-local-log-01
All Linux servers use this class of common resources:
# site/profile/manifests/base/linux.pp
# profile::base::linux common settings are in: hieradata/common.yaml
Each role may have specific Hiera settings in:
# hieradata/role/$role.yaml
# IE. For "log" specific Hiera data is in hieradata/role/log.yaml

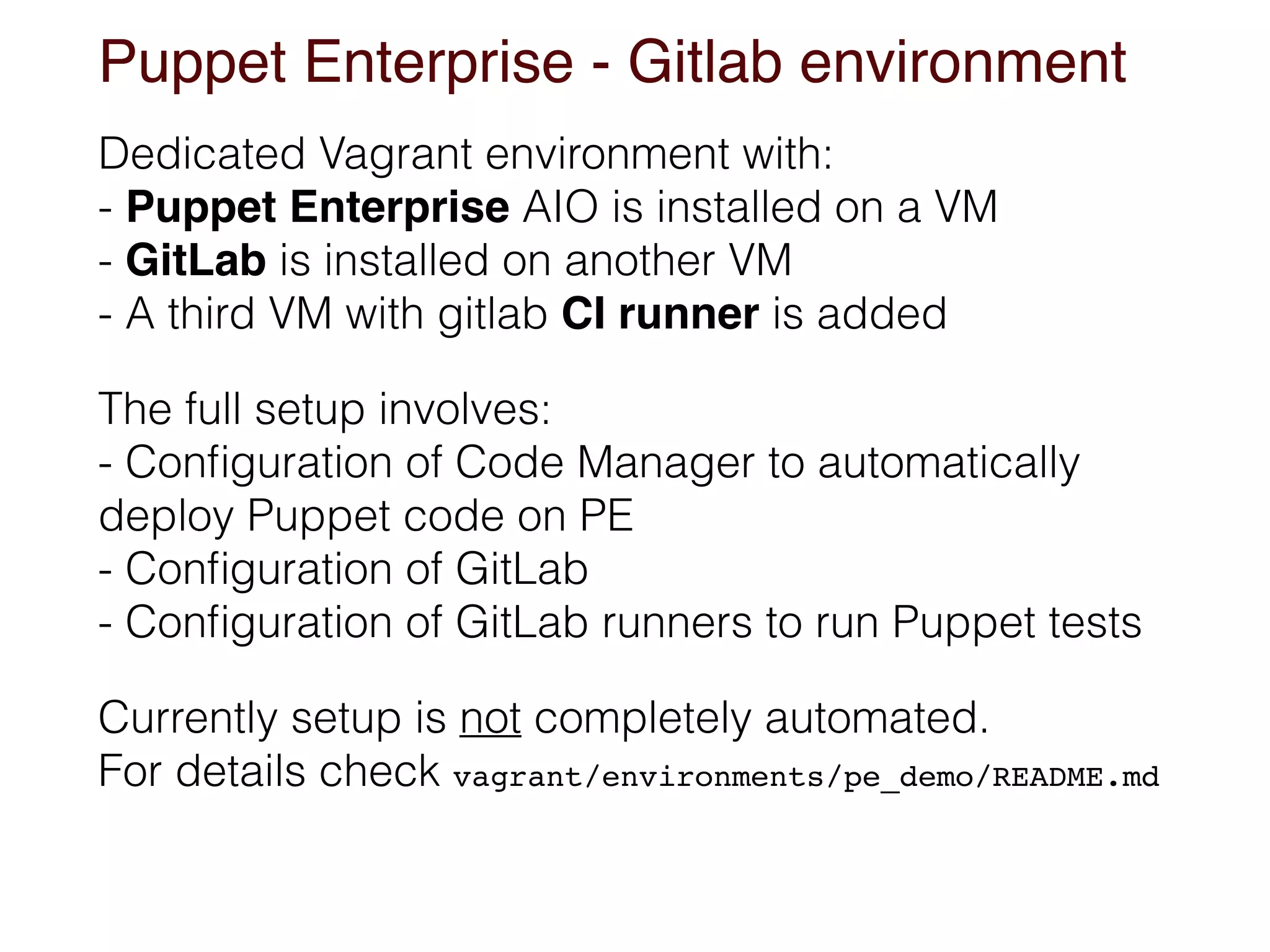

12. Puppet Enterprise - Gitlab environment
Dedicated Vagrant environment with:
- Puppet Enterprise AIO is installed on a VM
- GitLab is installed on another VM
- A third VM with gitlab CI runner is added
The full setup involves:
- Configuration of Code Manager to automatically
deploy Puppet code on PE
- Configuration of GitLab
- Configuration of GitLab runners to run Puppet tests
Currently setup is not completely automated.
For details check vagrant/environments/pe_demo/README.md

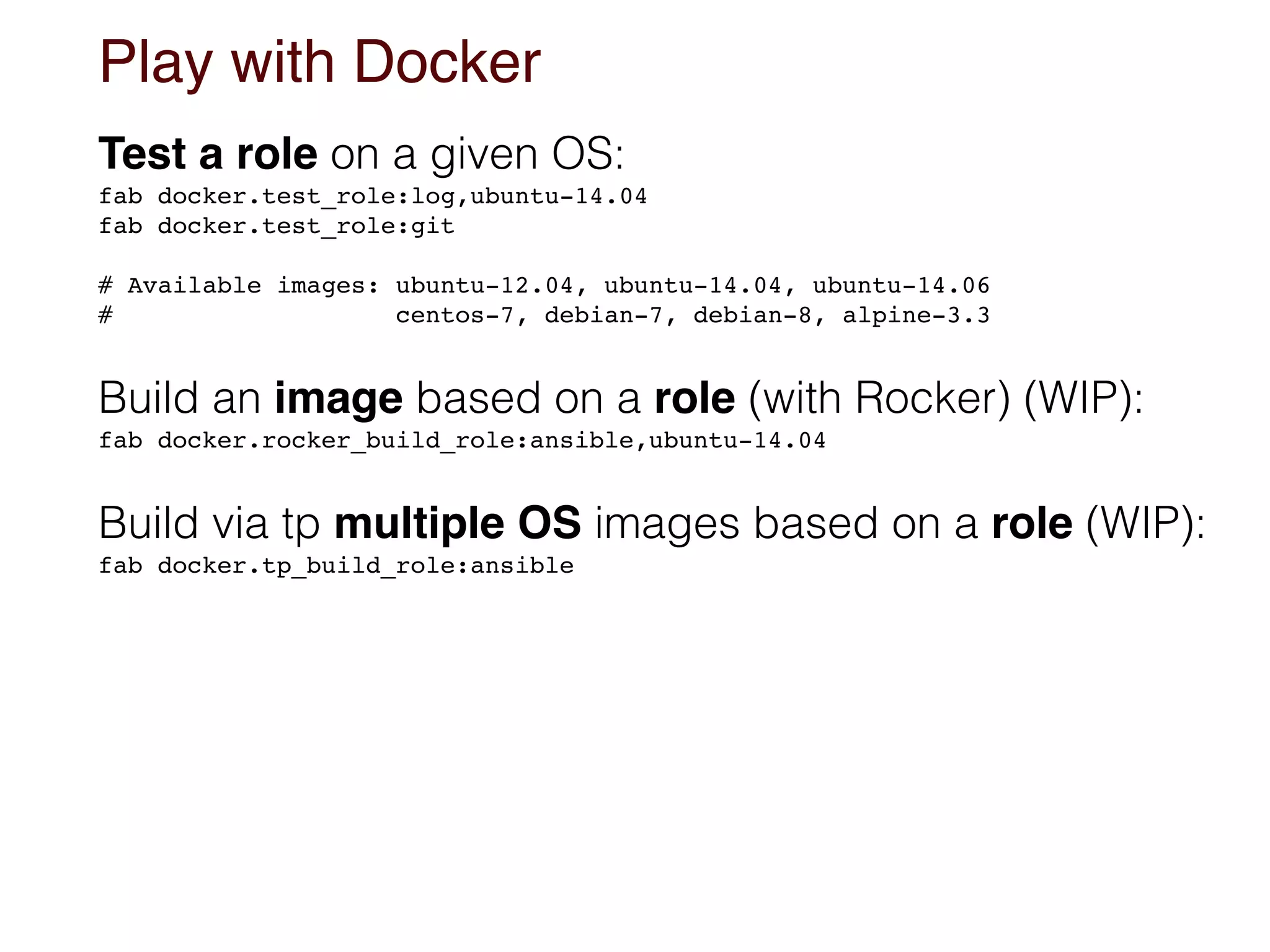

13. Play with Docker
Test a role on a given OS:
fab docker.test_role:log,ubuntu-14.04
fab docker.test_role:git
# Available images: ubuntu-12.04, ubuntu-14.04, ubuntu-14.06
# centos-7, debian-7, debian-8, alpine-3.3
Build an image based on a role (with Rocker) (WIP):
fab docker.rocker_build_role:ansible,ubuntu-14.04
Build via tp multiple OS images based on a role (WIP):
fab docker.tp_build_role:ansible

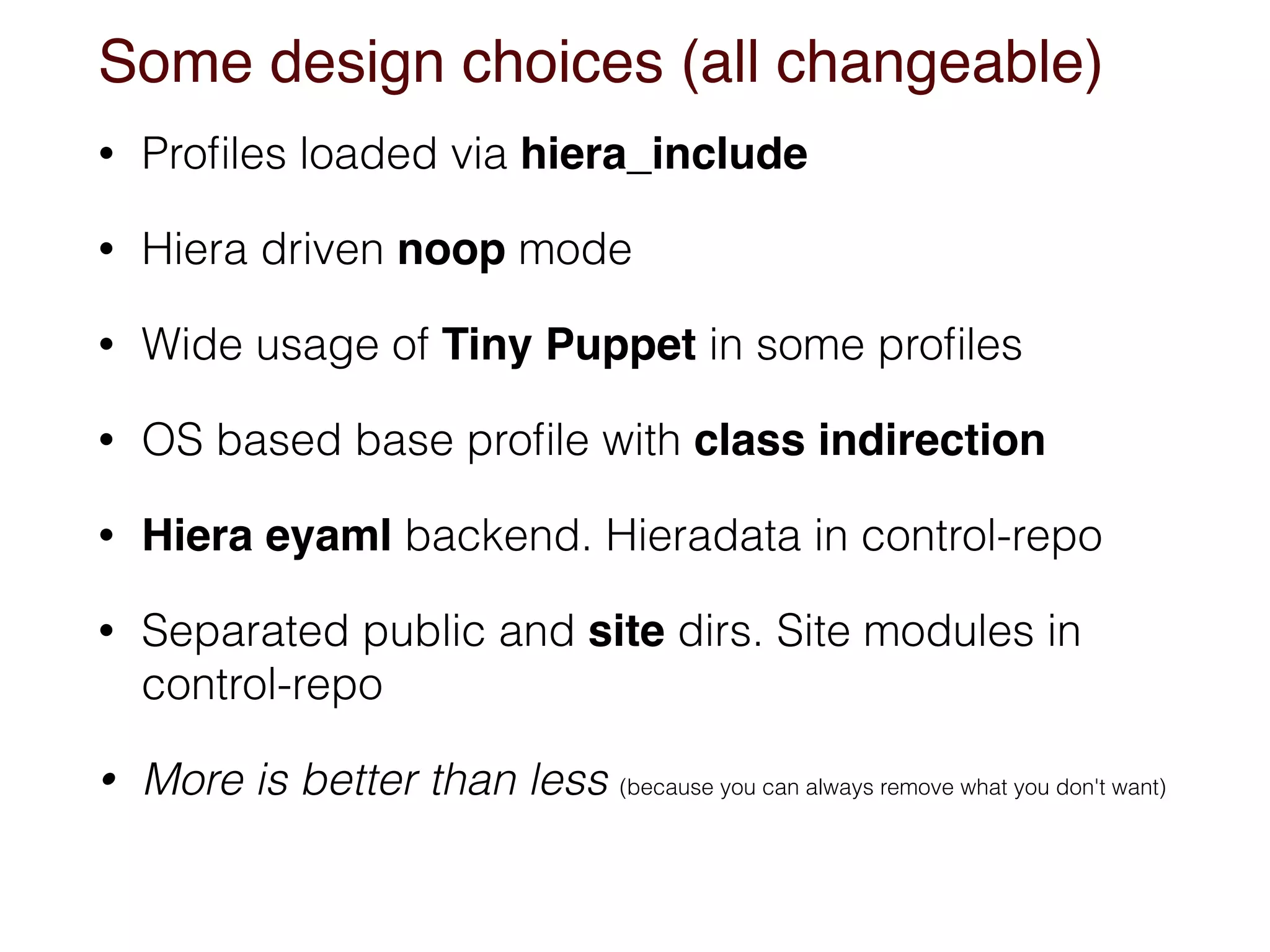

14. Some design choices (all changeable)
• Profiles loaded via hiera_include
• Hiera driven noop mode
• Wide usage of Tiny Puppet in some profiles
• OS based base profile with class indirection
• Hiera eyaml backend. Hieradata in control-repo
• Separated public and site dirs. Site modules in
control-repo
• More is better than less (because you can always remove what you don't want)

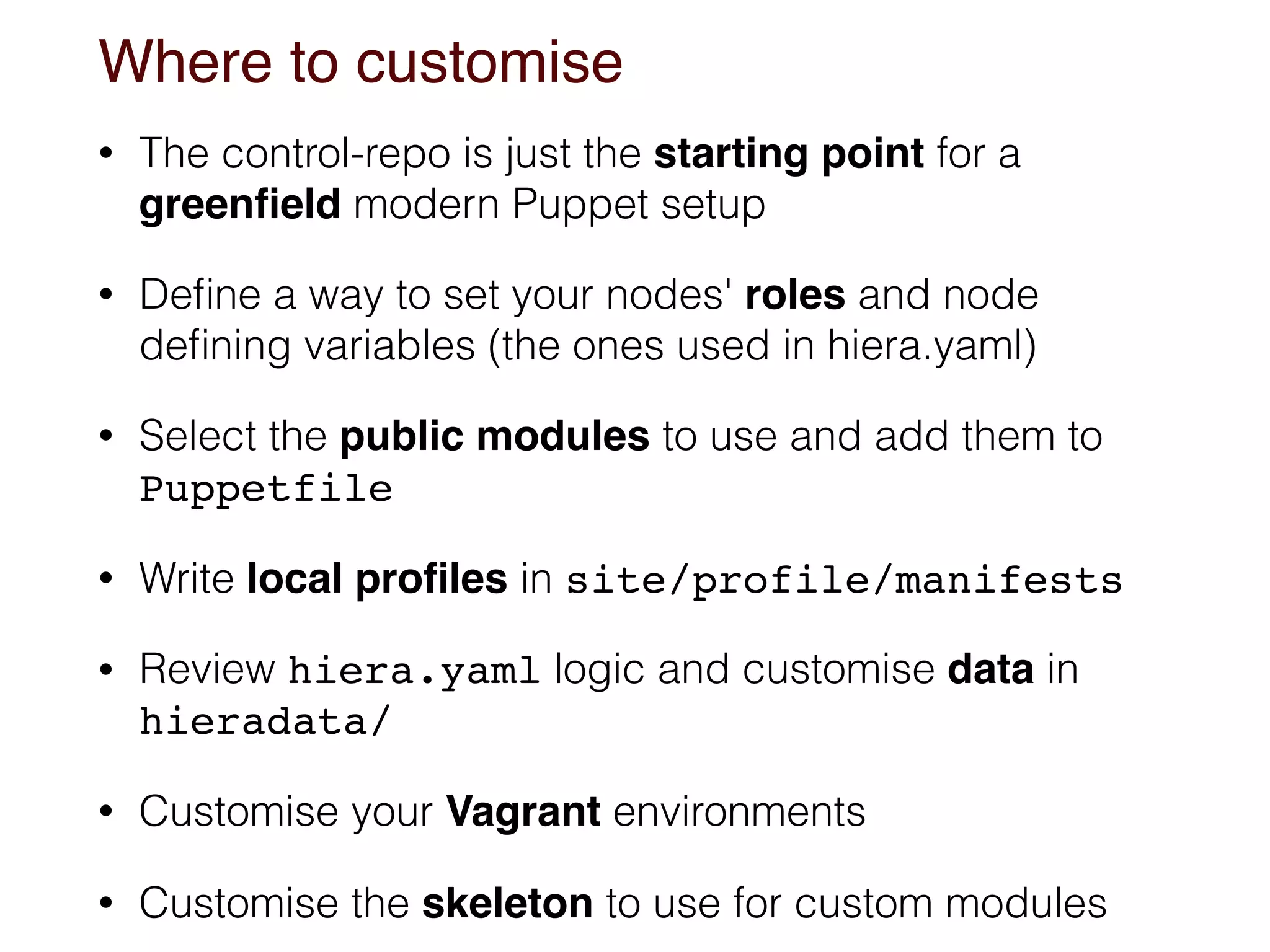

15. Where to customise
• The control-repo is just the starting point for a
greenfield modern Puppet setup
• Define a way to set your nodes' roles and node
defining variables (the ones used in hiera.yaml)
• Select the public modules to use and add them to
Puppetfile
• Write local profiles in site/profile/manifests
• Review hiera.yaml logic and customise data in
hieradata/
• Customise your Vagrant environments
• Customise the skeleton to use for custom modules

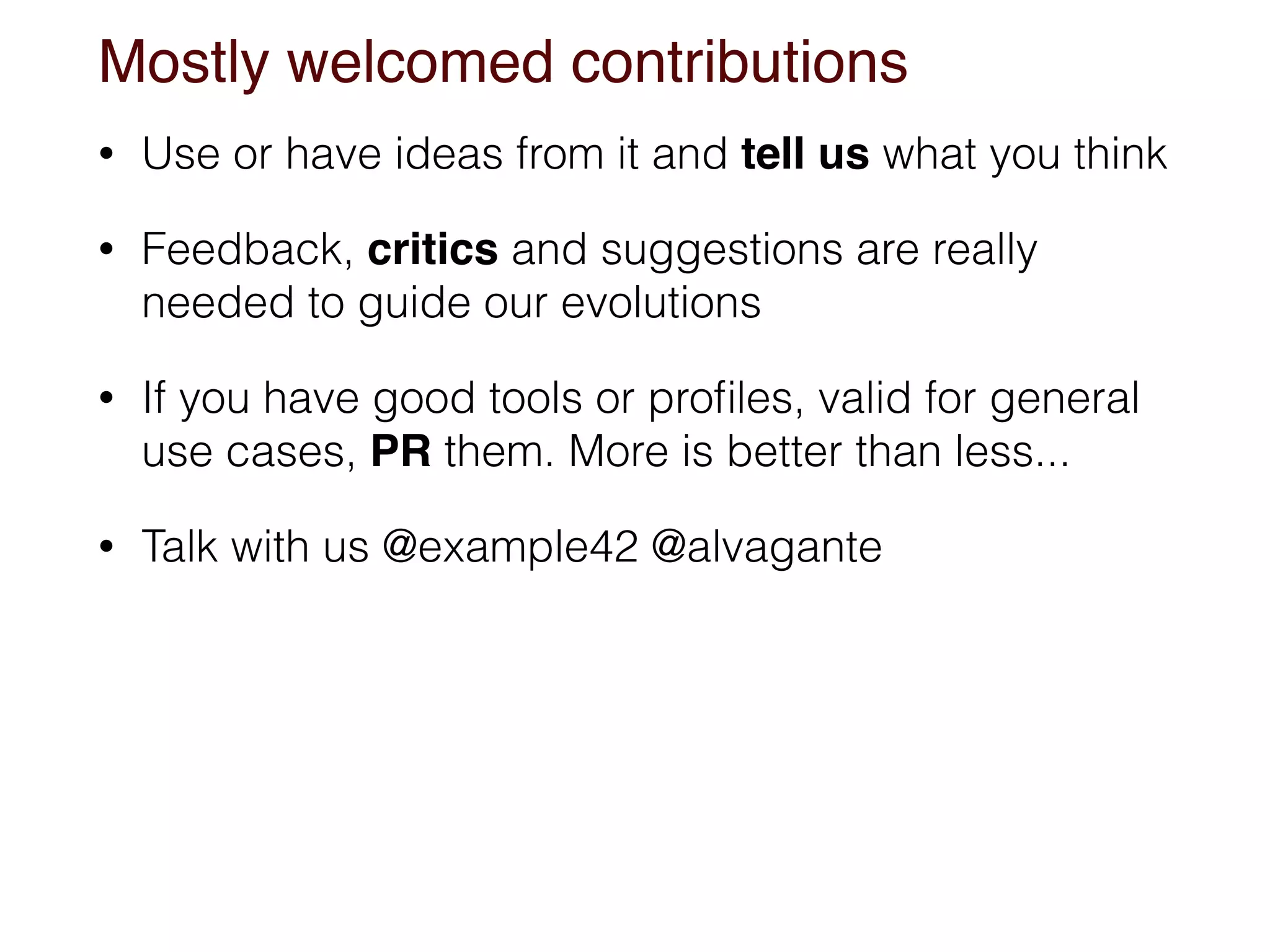

16. Mostly welcomed contributions
• Use or have ideas from it and tell us what you think
• Feedback, critics and suggestions are really
needed to guide our evolutions
• If you have good tools or profiles, valid for general
use cases, PR them. More is better than less...
• Talk with us @example42 @alvagante

17. enough Puppet ramblings
Thank You for all the fish
Alessandro Franceschi
@alvagante
