This document discusses wearable technologies and virtual reality. It provides a history of wearable technologies like smartwatches and fitness trackers. It then covers Google Glass and Google Cardboard virtual reality headsets. Google Cardboard uses cardboard mounts with lenses to turn smartphones into affordable VR viewers. The document discusses how Cardboard works and resources for developing Cardboard apps. It concludes with tips for designing user interfaces for virtual reality.

1. HOUSSEM EDDINE LASSOUED
19 DÉCEMBRE 2015– GDG DEVFEST ORAN|ALGERIE
Wearable
Technologies

2. EDUCATOR

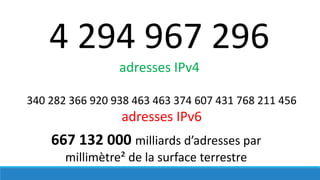

5. 4 294 967 296
adresses IPv4
340 282 366 920 938 463 463 374 607 431 768 211 456
adresses IPv6
667 132 000 milliards d’adresses par
millimètre² de la surface terrestre

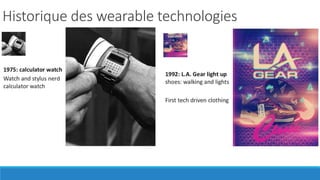

9. Historique des wearable technologies

12. Mimo
http://mimobaby.com/mimo/

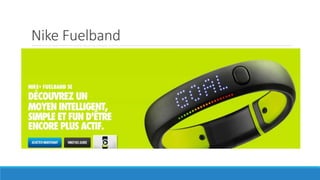

13. Nike Fuelband

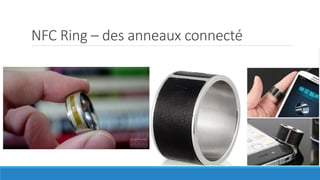

15. NFC Ring – des anneaux connecté

18. Pebble Smartwatch

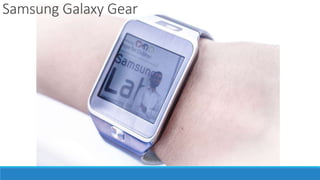

19. Samsung Galaxy Gear

20. Samsung Galaxy Gear

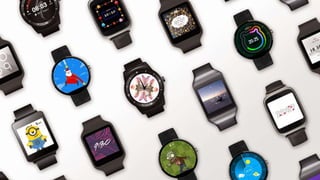

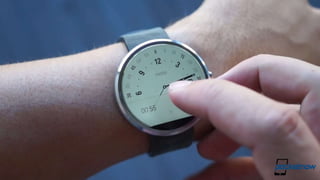

21. Android Wear

22. Notifications
Apps on Wear
Android Fit
Android Wear

23. Node API
- Inform when Wear is connected
Message API
- Manage API calls
between devices
Data API
- Centralized data store
managed by GPS
APK
Android Wear

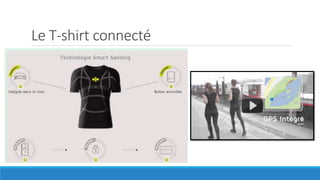

26. Le T-shirt connecté

27. Faites votre propre vêtement intelligent
LilyPad

28. Qu’est ce qu’on peut
faire avec
?

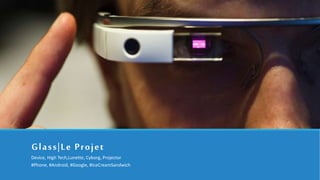

30. Glass|Le Projet
Device, High Tech,Lunette, Cyborg, Projector
#Phone, #Android, #Google, #IceCreamSandwich

31. Les Prototypes

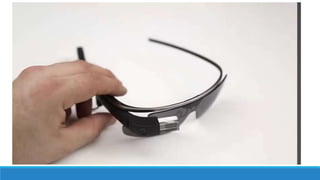

32. Vue Globale

33. Fonctionnalités par défaut

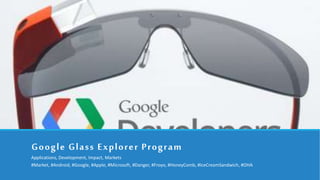

34. Google Glass Explorer Program
Applications, Development, Impact, Markets
#Market, #Android, #Google, #Apple, #Microsoft, #Danger, #Froyo, #HoneyComb, #IceCreamSandwich, #OHA

35. Développer sur Google Glass
•Le Google Glass Development Kit (GDK): preview mode
•Mirror API

38. Le futur de Google
Glass
?

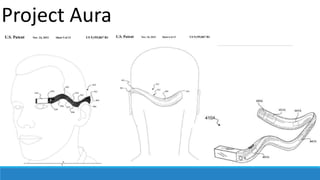

39. Project Aura

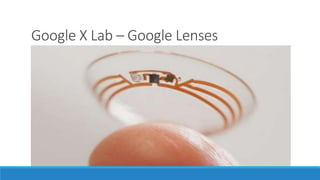

40. Google X Lab – Google Lenses

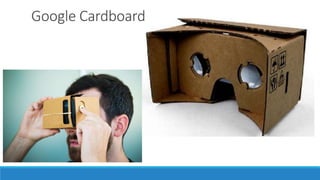

41. Google Cardboard

42. C’est quoi la Réalité
Virtuelle (VR)
?

44. VIRTUAL ENVIRONMENTS
BEGINNING WITH FLIGHT SIMULATORS, ADVANCING THROUGH SCIENTIFIC APPLICATIONS, AND INTO
THE ENTERTAINMENT ARENA, VIRTUAL ENVIRONMENTS HAVE BEEN DEVELOPED TO PROVIDE AN
IMMERSIVE SIMULATED EXPERIENCE WITHOUT THE EXPENSE AND RISK ASSOCIATED WITH THE REAL
THING.
BOEING
787
FLIGHT
SIMULATO
R FROM
ALTEON
MOLECULAR
SIMULATION AT
ARGONNE
NATIONAL
LABORATORY
MATTEL POWER GLOVE, VECTREX
3D IMAGER, AND NINTENDO

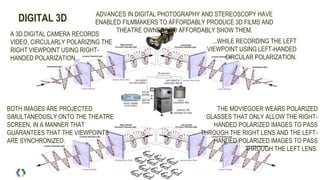

45. DIGITAL 3D ADVANCES IN DIGITAL PHOTOGRAPHY AND STEREOSCOPY HAVE
ENABLED FILMMAKERS TO AFFORDABLY PRODUCE 3D FILMS AND
THEATRE OWNERS TO AFFORDABLY SHOW THEM.
A 3D DIGITAL CAMERA RECORDS
VIDEO, CIRCULARLY POLARIZING THE
RIGHT VIEWPOINT USING RIGHT-
HANDED POLARIZATION...
...WHILE RECORDING THE LEFT
VIEWPOINT USING LEFT-HANDED
CIRCULAR POLARIZATION.
BOTH IMAGES ARE PROJECTED
SIMULTANEOUSLY ONTO THE THEATRE
SCREEN, IN A MANNER THAT
GUARANTEES THAT THE VIEWPOINTS
ARE SYNCHRONIZED.
THE MOVIEGOER WEARS POLARIZED
GLASSES THAT ONLY ALLOW THE RIGHT-
HANDED POLARIZED IMAGES TO PASS
THROUGH THE RIGHT LENS AND THE LEFT-
HANDED POLARIZED IMAGES TO PASS
THROUGH THE LEFT LENS.

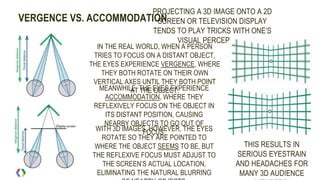

46. VERGENCE VS. ACCOMMODATION
PROJECTING A 3D IMAGE ONTO A 2D
SCREEN OR TELEVISION DISPLAY
TENDS TO PLAY TRICKS WITH ONE’S
VISUAL PERCEPTION.
IN THE REAL WORLD, WHEN A PERSON
TRIES TO FOCUS ON A DISTANT OBJECT,
THE EYES EXPERIENCE VERGENCE, WHERE
THEY BOTH ROTATE ON THEIR OWN
VERTICAL AXES UNTIL THEY BOTH POINT
AT THE OBJECT.MEANWHILE, THE EYES EXPERIENCE
ACCOMMODATION, WHERE THEY
REFLEXIVELY FOCUS ON THE OBJECT IN
ITS DISTANT POSITION, CAUSING
NEARBY OBJECTS TO GO OUT OF
FOCUS.WITH 3D IMAGES, HOWEVER, THE EYES
ROTATE SO THEY ARE POINTED TO
WHERE THE OBJECT SEEMS TO BE, BUT
THE REFLEXIVE FOCUS MUST ADJUST TO
THE SCREEN’S ACTUAL LOCATION,
ELIMINATING THE NATURAL BLURRING
THIS RESULTS IN
SERIOUS EYESTRAIN
AND HEADACHES FOR
MANY 3D AUDIENCE

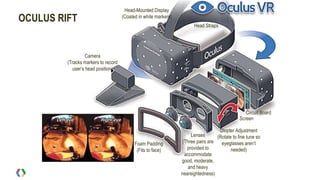

47. Head-Mounted Display
(Coated in white markers)
Camera
(Tracks markers to record
user’s head position)
Head Straps
Circuit Board
Screen
Diopter Adjustment
(Rotate to fine tune so
eyeglasses aren’t
needed)
Lenses
(Three pairs are
provided to
accommodate
good, moderate,
and heavy
nearsightedness)
Foam Padding
(Fits to face)
OCULUS RIFT

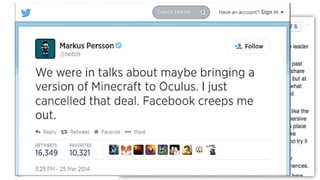

48. Oculus has been acquired by Facebook. $ 2,000,000,000
Mark Zuckerberg - March 25,
2014

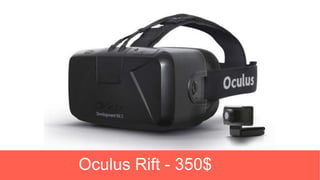

49. Oculus Rift - 350$

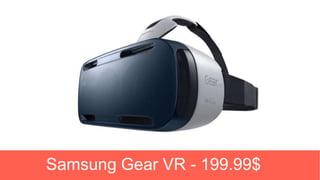

50. Samsung Gear VR - 199.99$

51. Razer OSVR Hacker Dev Kit - 199.99$

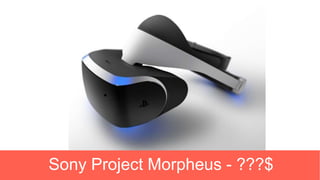

52. Sony Project Morpheus - ???$
• 1

53. Google Cardboard

54. Fold-out Cardboard smartphone mount!

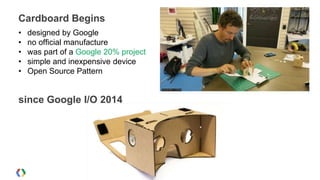

55. Cardboard Begins
• designed by Google
• no official manufacture
• was part of a Google 20% project
• simple and inexpensive device
• Open Source Pattern
since Google I/O 2014

56. 1 million units of the cardboard has been used all over the world.

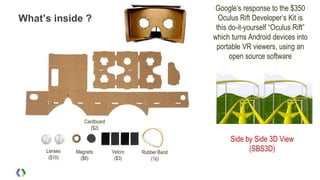

57. Cardboard
($2)
Lenses
($10)
Magnets
($6)
Velcro
($3)
Rubber Band
(1¢)
Google’s response to the $350
Oculus Rift Developer’s Kit is
this do-it-yourself “Oculus Rift”
which turns Android devices into
portable VR viewers, using an
open source software
developers kit.
Side by Side 3D View
(SBS3D)
What’s inside ?

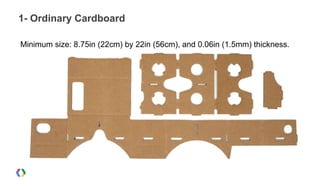

58. Minimum size: 8.75in (22cm) by 22in (56cm), and 0.06in (1.5mm) thickness.
1- Ordinary Cardboard

59. Two Asymmetric-BiConvex optical lenses.
With 45mm focal distance.
Biconvex lenses work best because they prevent distortion around the edges.
2- Two Lenses

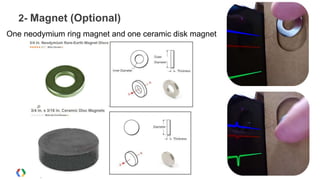

60. One neodymium ring magnet and one ceramic disk magnet
2- Magnet (Optional)

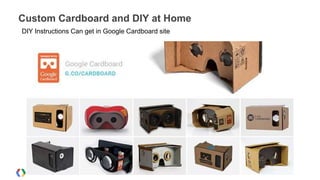

61. Custom Cardboard and DIY at Home
DIY Instructions Can get in Google Cardboard site

62. A lot of the design have been made in freedom

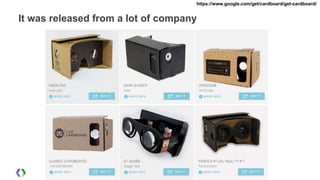

63. It was released from a lot of company
https://www.google.com/get/cardboard/get-cardboard/

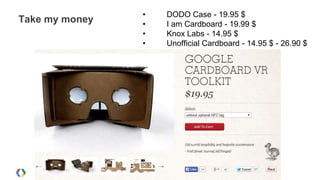

64. • DODO Case - 19.95 $
• I am Cardboard - 19.99 $
• Knox Labs - 14.95 $
• Unofficial Cardboard - 14.95 $ - 26.90 $
Take my money

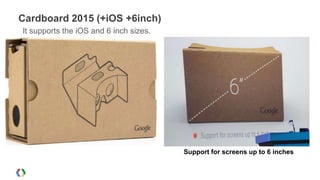

65. Cardboard 2015 (+iOS +6inch)
It supports the iOS and 6 inch sizes.
Support for screens up to 6 inches

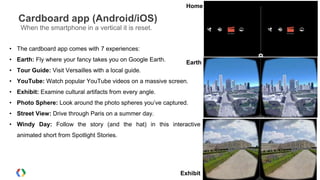

66. Cardboard app (Android/iOS)
When the smartphone in a vertical it is reset.
• The cardboard app comes with 7 experiences:
• Earth: Fly where your fancy takes you on Google Earth.
• Tour Guide: Visit Versailles with a local guide.
• YouTube: Watch popular YouTube videos on a massive screen.
• Exhibit: Examine cultural artifacts from every angle.
• Photo Sphere: Look around the photo spheres you’ve captured.
• Street View: Drive through Paris on a summer day.
• Windy Day: Follow the story (and the hat) in this interactive
animated short from Spotlight Stories.
Earth
Home
Exhibit

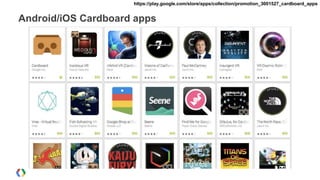

67. Android/iOS Cardboard apps
https://play.google.com/store/apps/collection/promotion_3001527_cardboard_apps

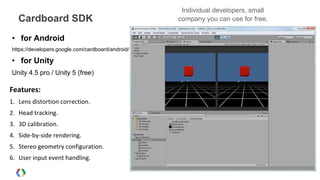

68. Cardboard SDK
• for Android
https://developers.google.com/cardboard/android/
• for Unity
Unity 4.5 pro / Unity 5 (free)
Individual developers, small
company you can use for free.
Features:
1. Lens distortion correction.
2. Head tracking.
3. 3D calibration.
4. Side-by-side rendering.
5. Stereo geometry configuration.
6. User input event handling.

69. Tips for VR

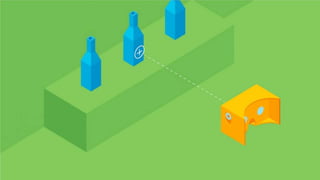

71. Using a Reticle

72. Using a Reticle

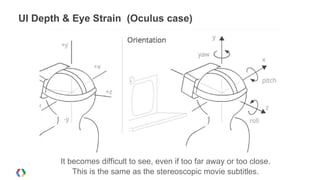

73. UI Depth & Eye Strain (Oculus case)
It becomes difficult to see, even if too far away or too close.
This is the same as the stereoscopic movie subtitles.

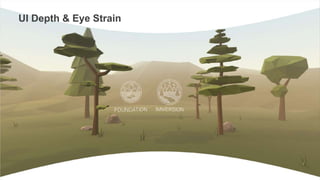

74. UI Depth & Eye Strain

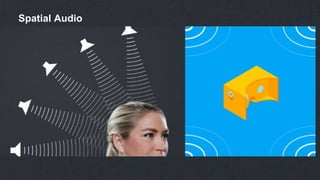

75. Spatial Audio

76. Resources
Twitter @googlecardboard
Google+ +GoogleCardboard
Cardboard design guide
http://www.google.com/design/spec-vr/
stackoverflow #google-cardboard
Codelabs https://io2015codelabs.appspot.com
Facebook Groups : 360 Video Professionals
g.co/expeditionsEXPEDITIONS

77. Houssem Eddine Lassoued
19 Décembre 2015– GDG DevFest ORan|ALGERIE
Wearable Technologies

78. Bon Devfest à vous
