The document discusses the complexities and challenges of mechanical ventilation, particularly the problems associated with positive pressure ventilation (PPV) such as volutrauma and patient-ventilator synchrony. It outlines criteria for weaning patients from mechanical ventilation and emphasizes evidence-based recommendations for optimizing the weaning process, including regular assessments and individualized care based on patient conditions. The importance of addressing underlying causes affecting ventilator dependence and the potential benefits of nurse-led weaning protocols are also highlighted.

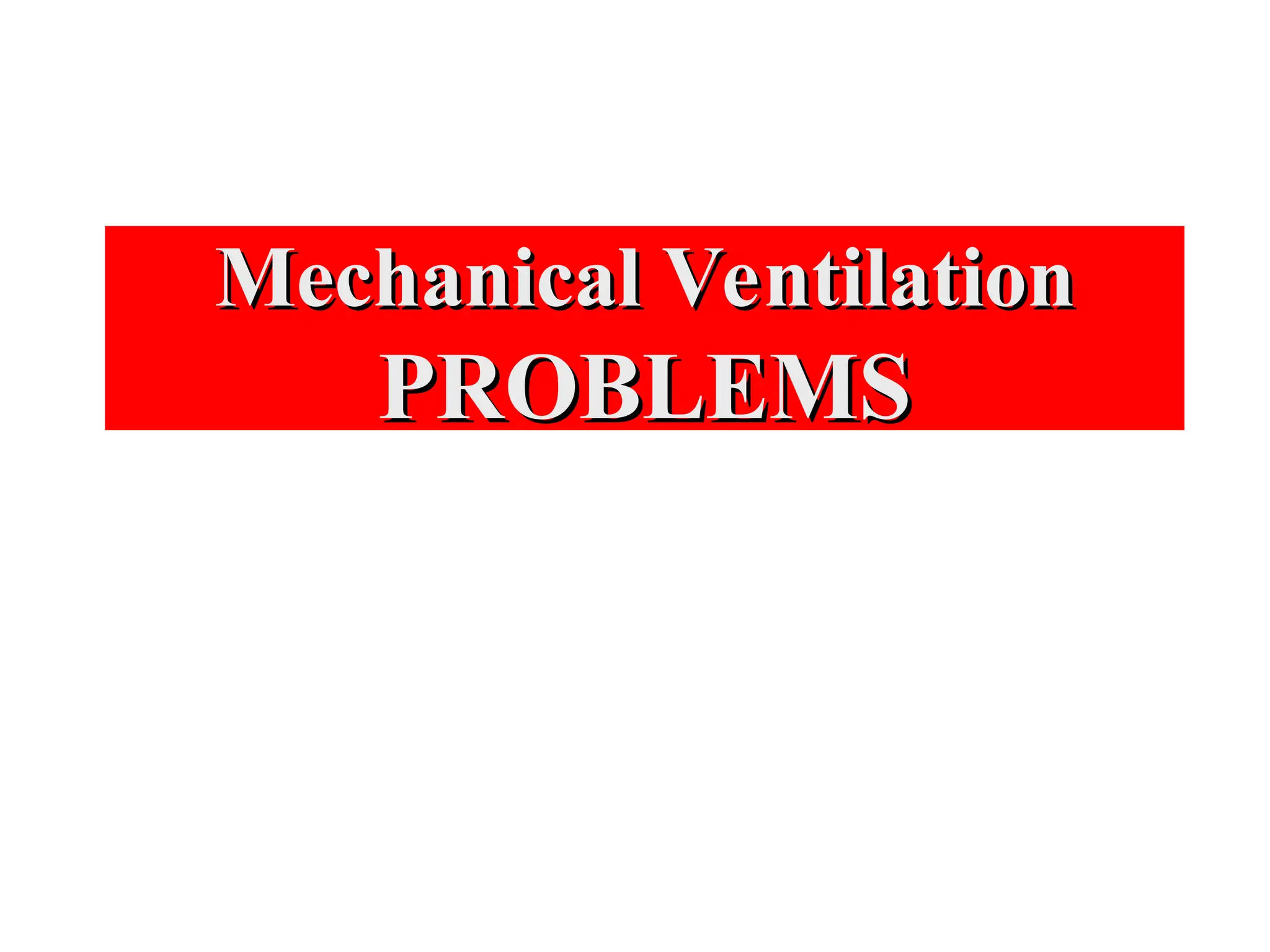

1. Mechanical Ventilation
Mechanical Ventilation
PROBLEMS
PROBLEMS

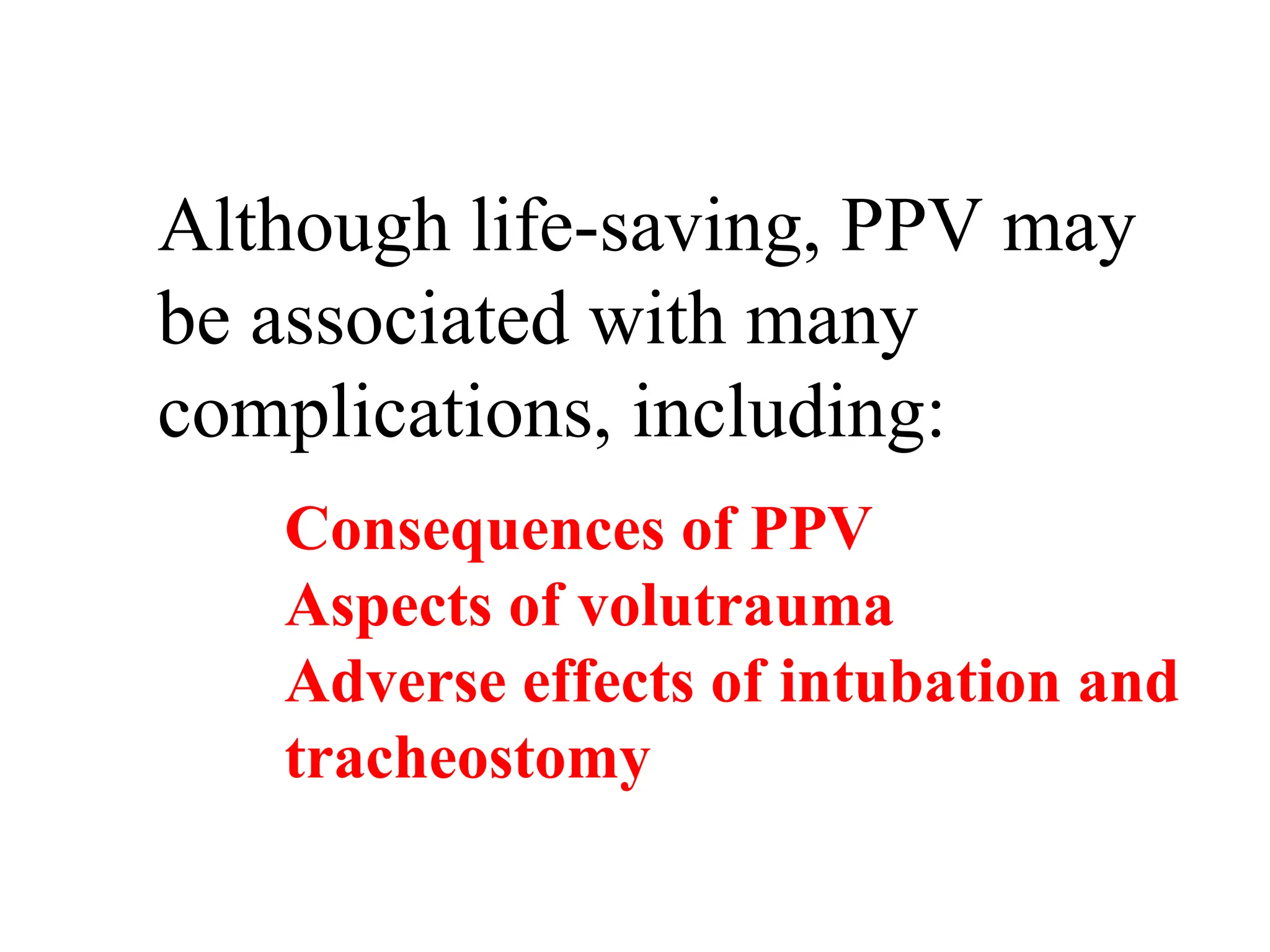

2. Although life-saving, PPV may
be associated with many
complications, including:
Consequences of PPV
Aspects of volutrauma
Adverse effects of intubation and
tracheostomy

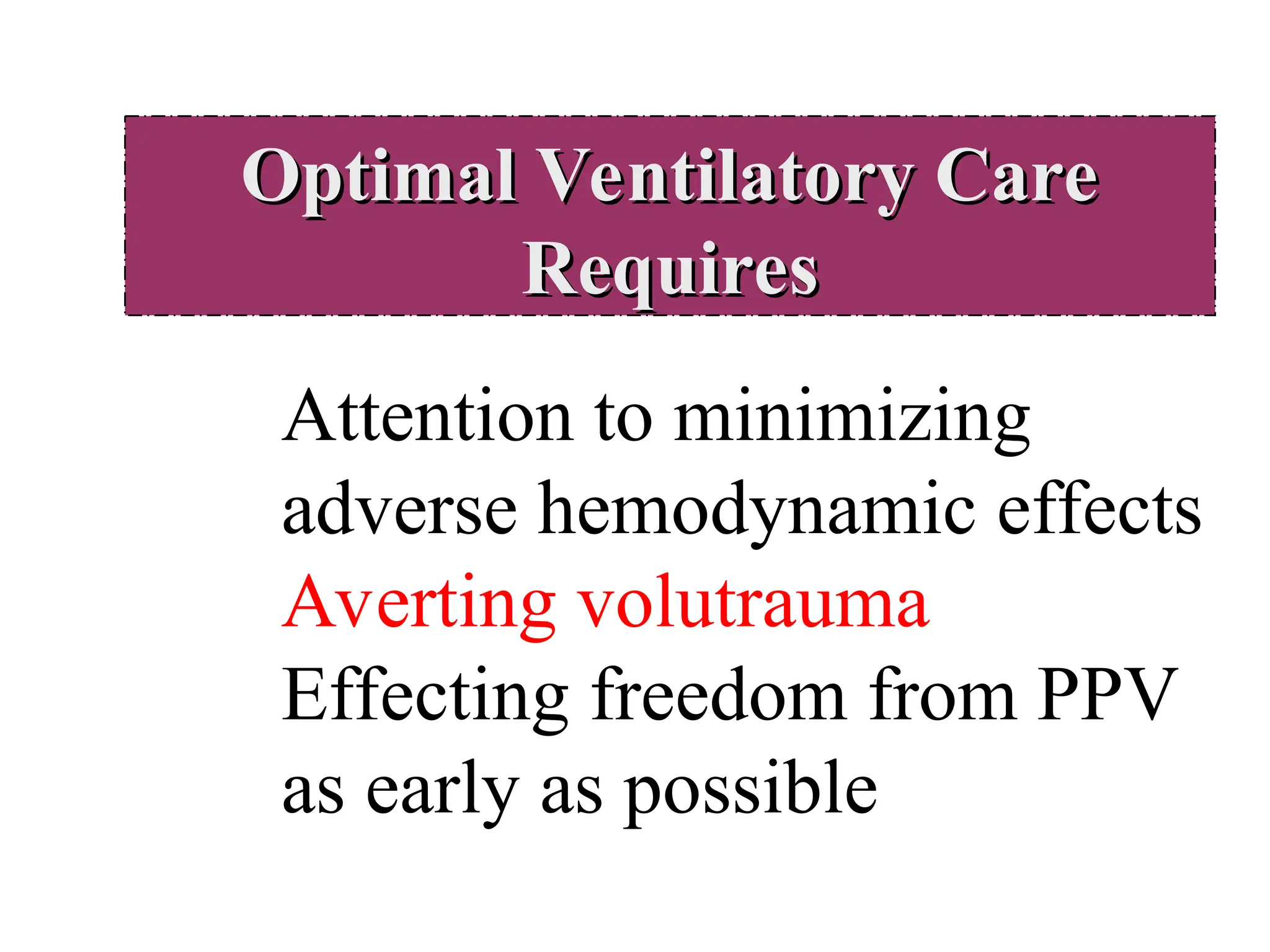

3. Optimal Ventilatory Care
Optimal Ventilatory Care
Requires
Requires
Attention to minimizing
adverse hemodynamic effects
Averting volutrauma
Effecting freedom from PPV
as early as possible

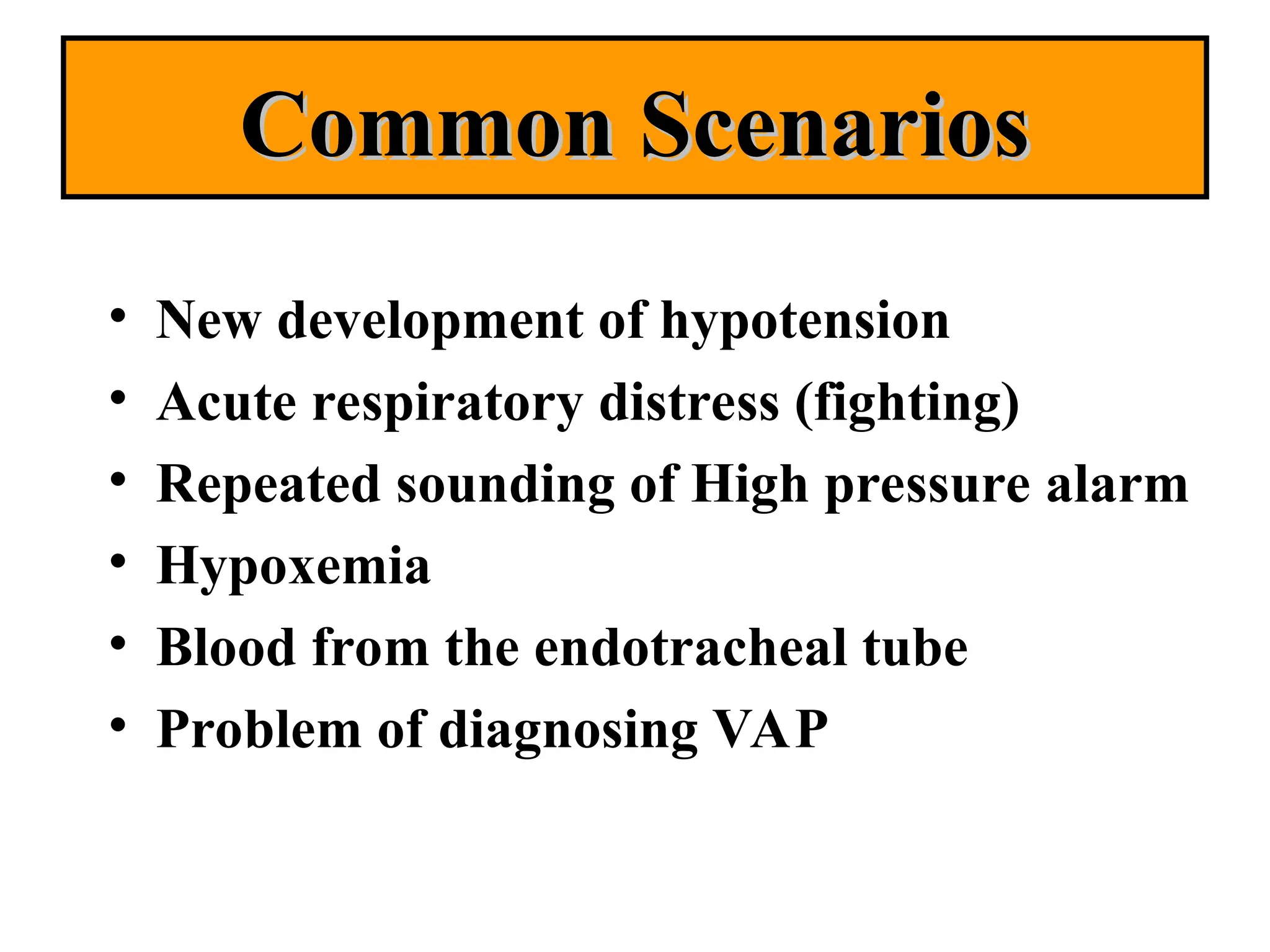

4. Common Scenarios
Common Scenarios
• New development of hypotension
• Acute respiratory distress (fighting)
• Repeated sounding of High pressure alarm
• Hypoxemia
• Blood from the endotracheal tube
• Problem of diagnosing VAP

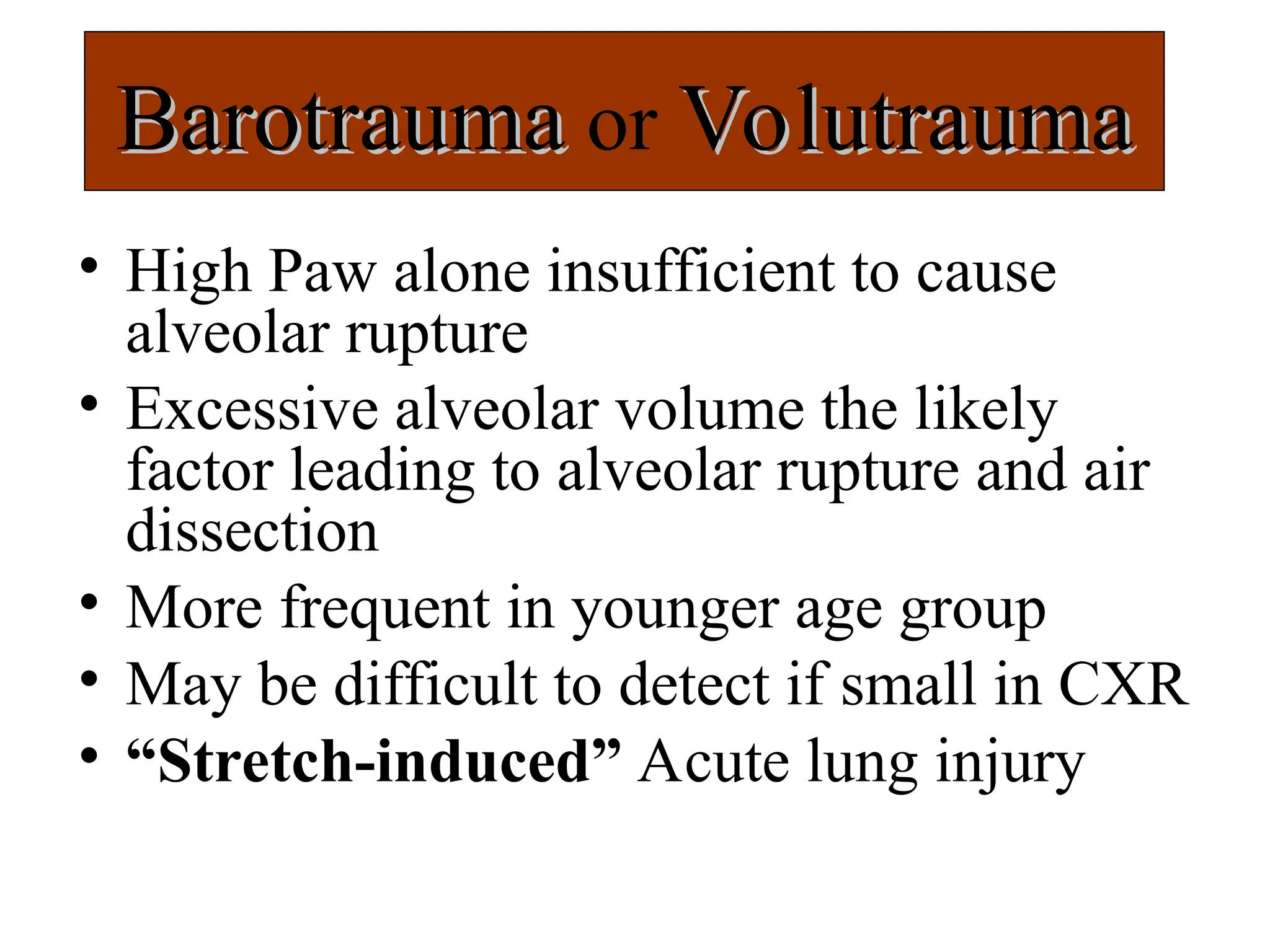

5. Barotrauma
Barotrauma or Volutrauma
Volutrauma
• High Paw alone insufficient to cause
alveolar rupture
• Excessive alveolar volume the likely
factor leading to alveolar rupture and air
dissection
• More frequent in younger age group
• May be difficult to detect if small in CXR
• “Stretch-induced” Acute lung injury

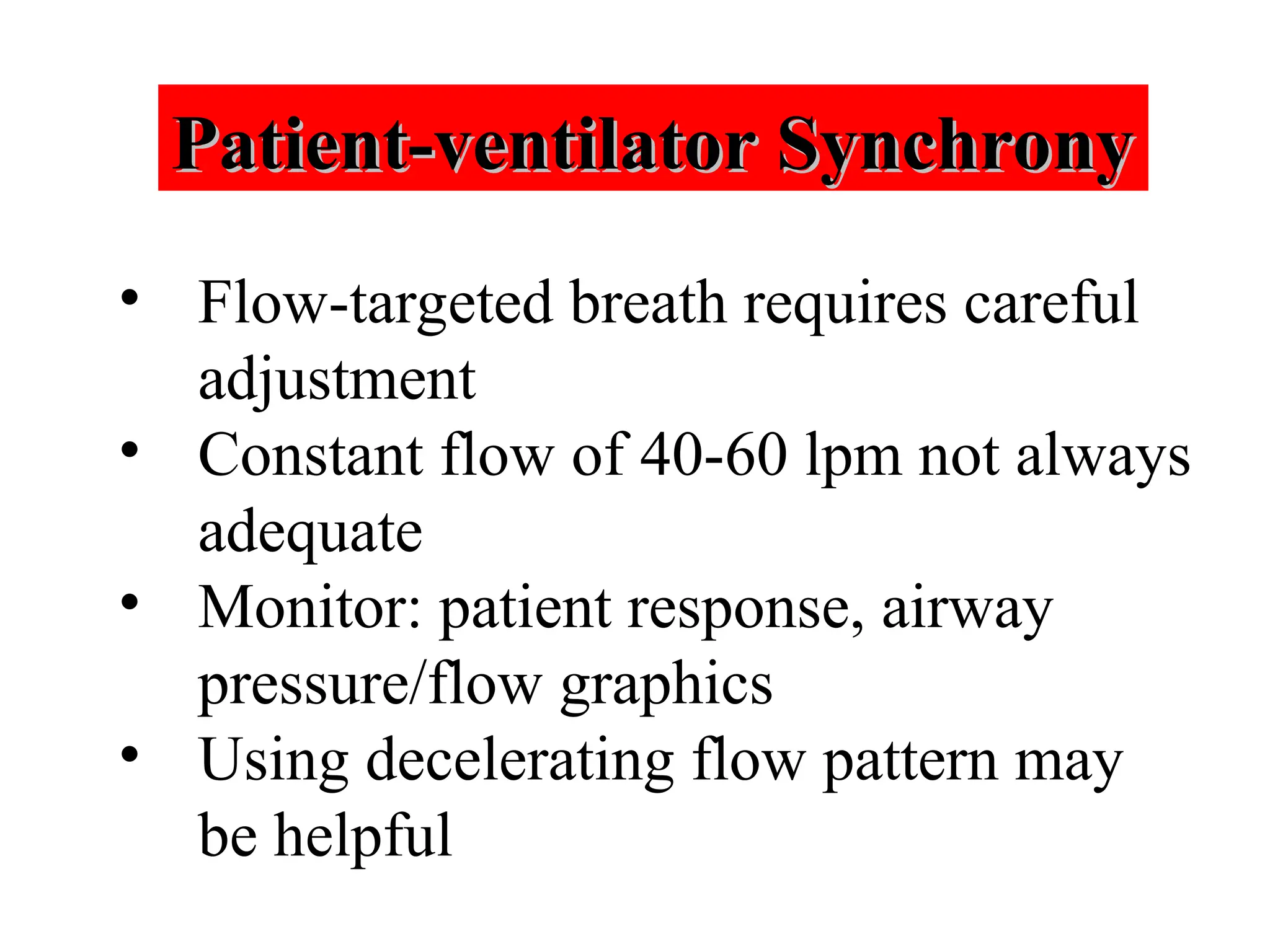

8. Patient-ventilator Synchrony
Patient-ventilator Synchrony
• Flow-targeted breath requires careful
adjustment
• Constant flow of 40-60 lpm not always
adequate
• Monitor: patient response, airway
pressure/flow graphics
• Using decelerating flow pattern may
be helpful

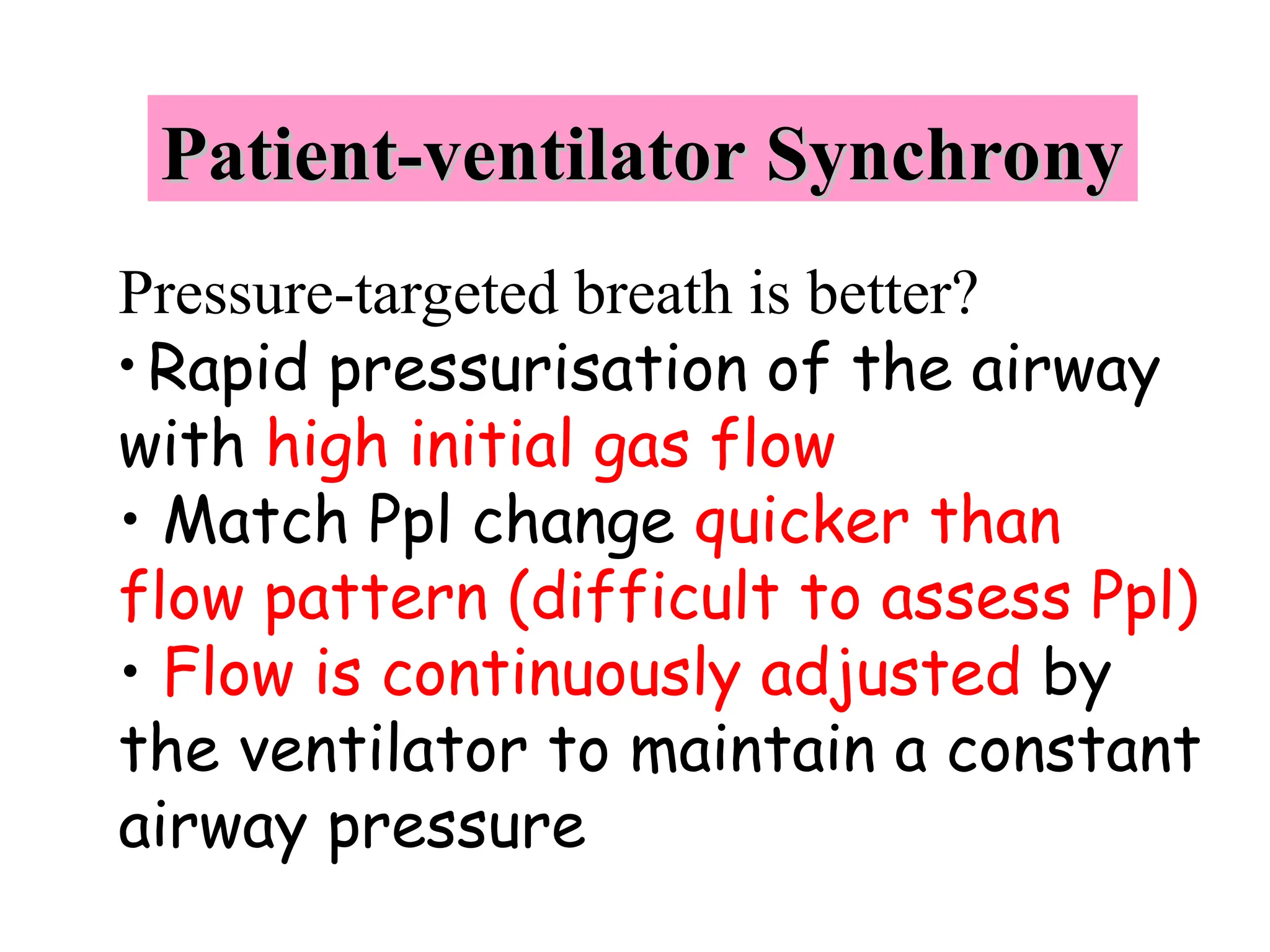

9. Patient-ventilator Synchrony
Patient-ventilator Synchrony
Pressure-targeted breath is better?
• Rapid pressurisation of the airway
with high initial gas flow
• Match Ppl change quicker than
flow pattern (difficult to assess Ppl)
• Flow is continuously adjusted by
the ventilator to maintain a constant
airway pressure

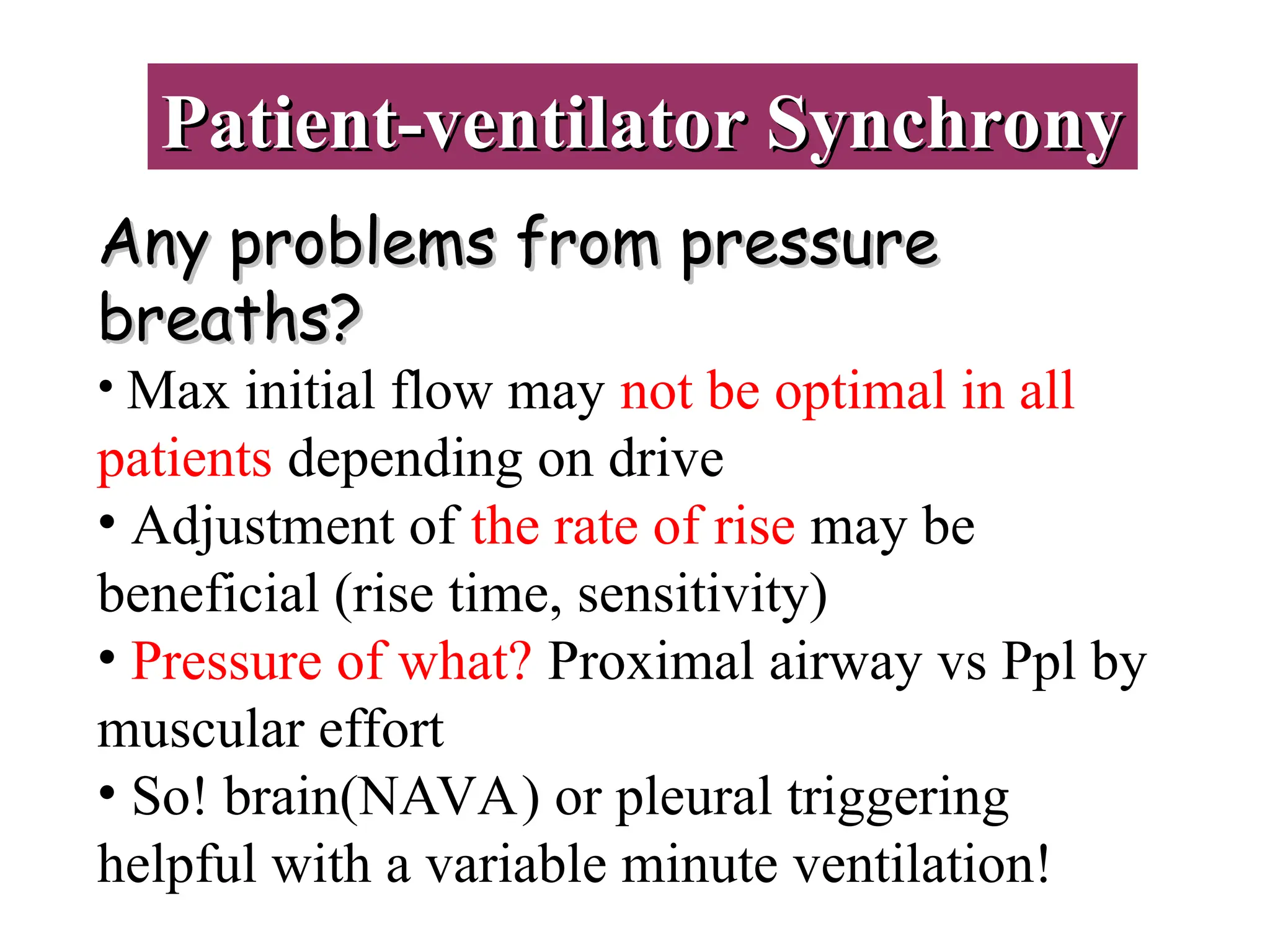

10. Patient-ventilator Synchrony
Patient-ventilator Synchrony
Any problems from pressure
Any problems from pressure
breaths?
breaths?
• Max initial flow may not be optimal in all
patients depending on drive
• Adjustment of the rate of rise may be
beneficial (rise time, sensitivity)
• Pressure of what? Proximal airway vs Ppl by
muscular effort
• So! brain(NAVA) or pleural triggering
helpful with a variable minute ventilation!

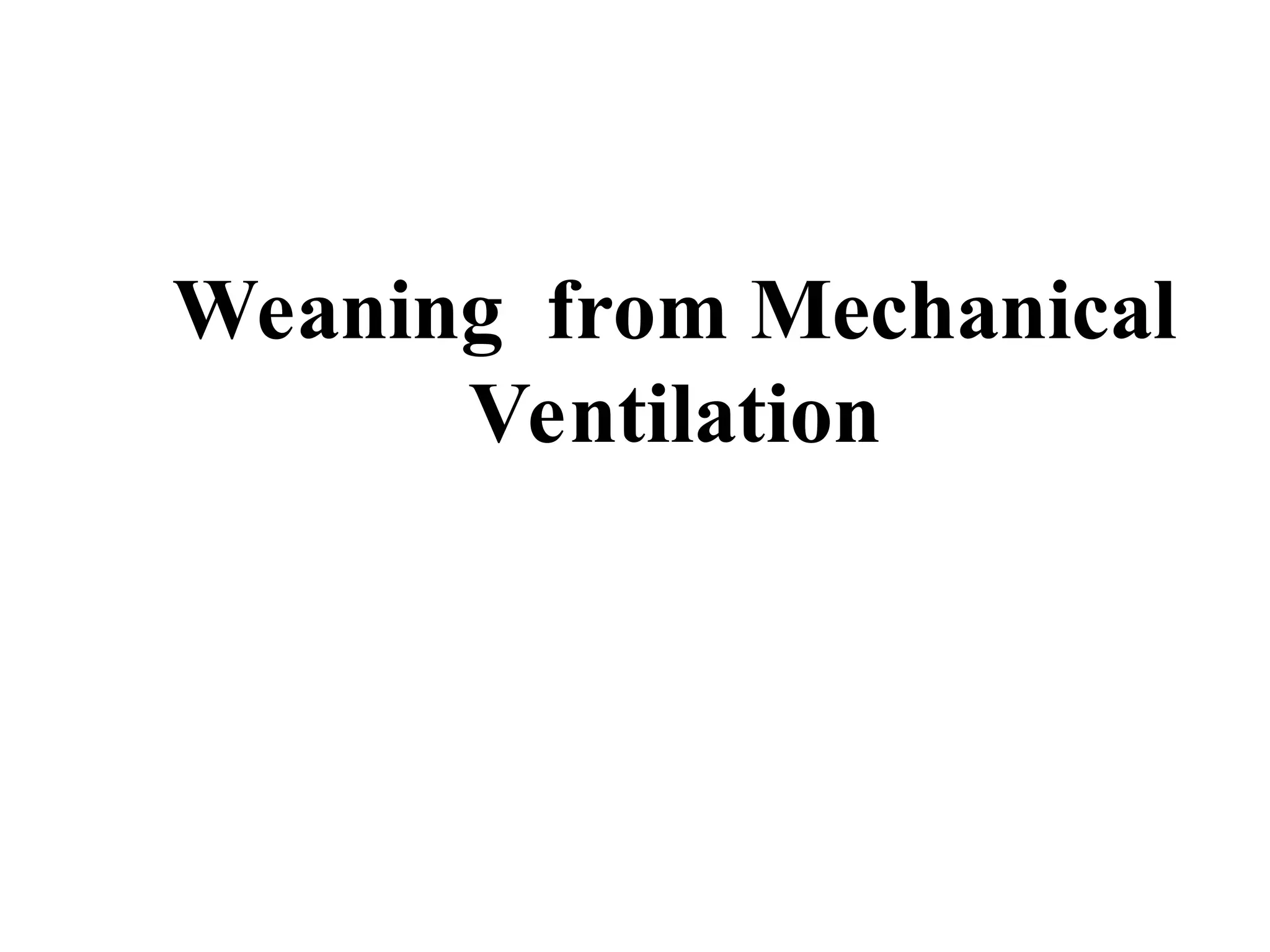

11. Weaning from Mechanical
Ventilation

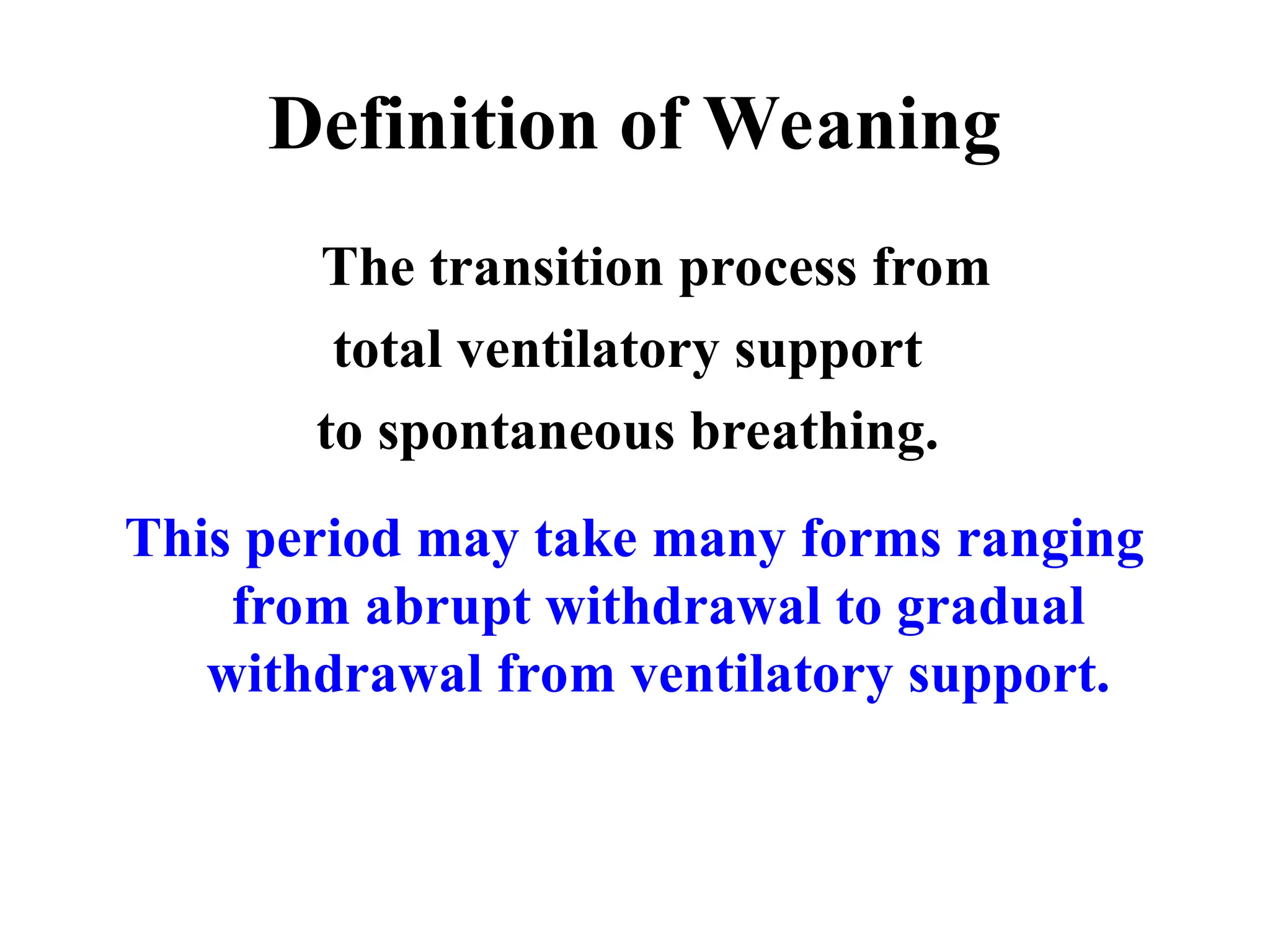

12. Definition of Weaning
The transition process from
total ventilatory support
to spontaneous breathing.
This period may take many forms ranging
from abrupt withdrawal to gradual
withdrawal from ventilatory support.

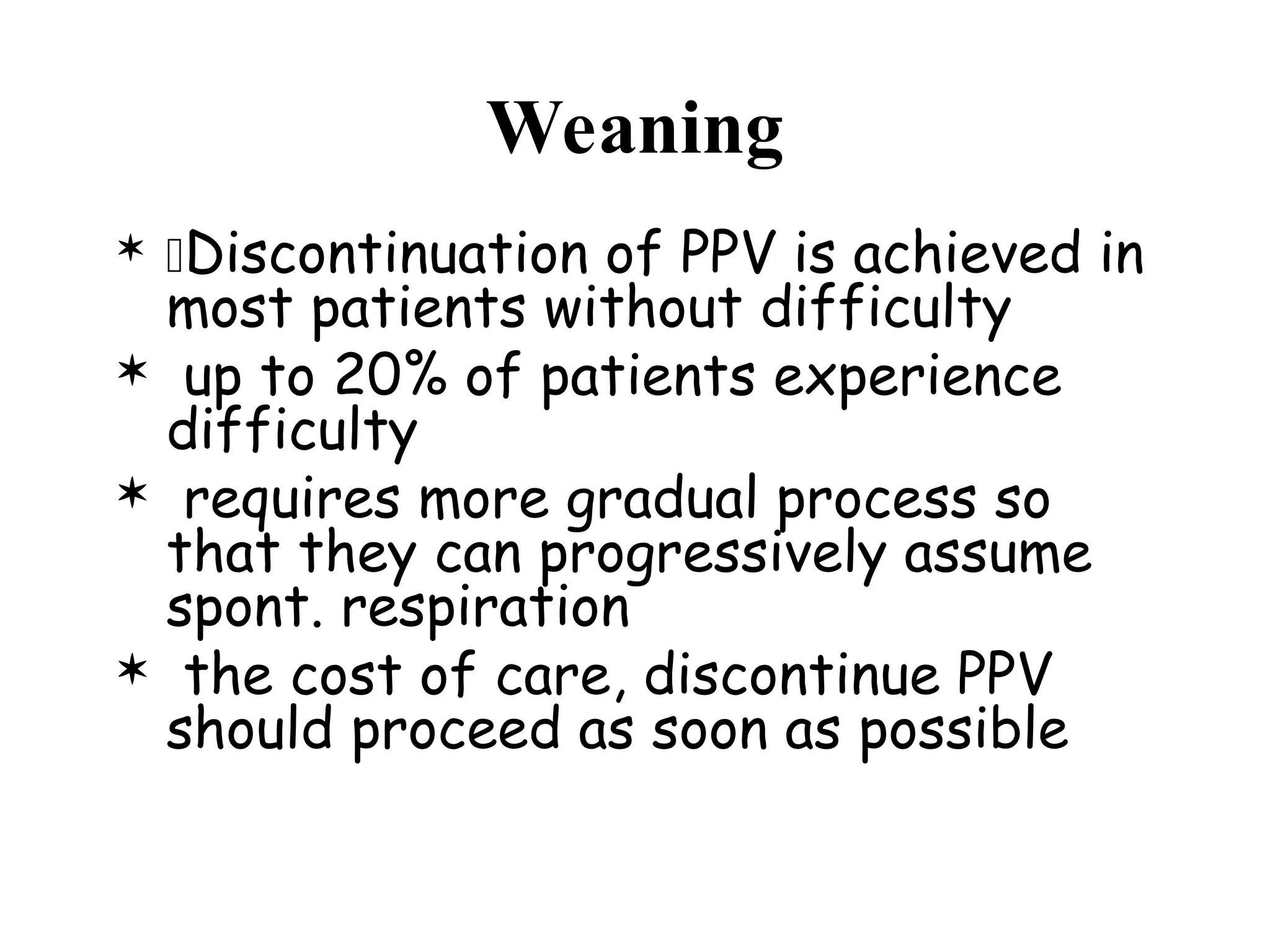

13. Weaning
 Discontinuation of PPV is achieved in
most patients without difficulty
 up to 20% of patients experience
difficulty
 requires more gradual process so
that they can progressively assume
spont. respiration
 the cost of care, discontinue PPV
should proceed as soon as possible

14. Reversible reasons for prolonged
mechanical ventilation
• Inadequate respiratory drive
• Inability of the lungs to carry
out gas exchange effectively
• Psychological dependency
• Inspiratory fatigue

15. Weaning
• Patients who fail attempts at weaning
constitute a unique problem in critical
care
• It is necessary to understand the
mechanisms of ventilatory failure in
order to address weaning in this
population

16. Why patients are unable to
sustain spontaneous breathing
• Concept of Load exceeding
Capacity to breathe
• Load on respiratory system
• Capacity of respiratory system

17. Balance Load vs Capacity
• Most patients fail the transition from
ventilator support to sustain spont.
breathing because of failure of the
respiratory muscle pump
• They typically have a resp muscle
load the exceeds the resp
neuromuscular capacity

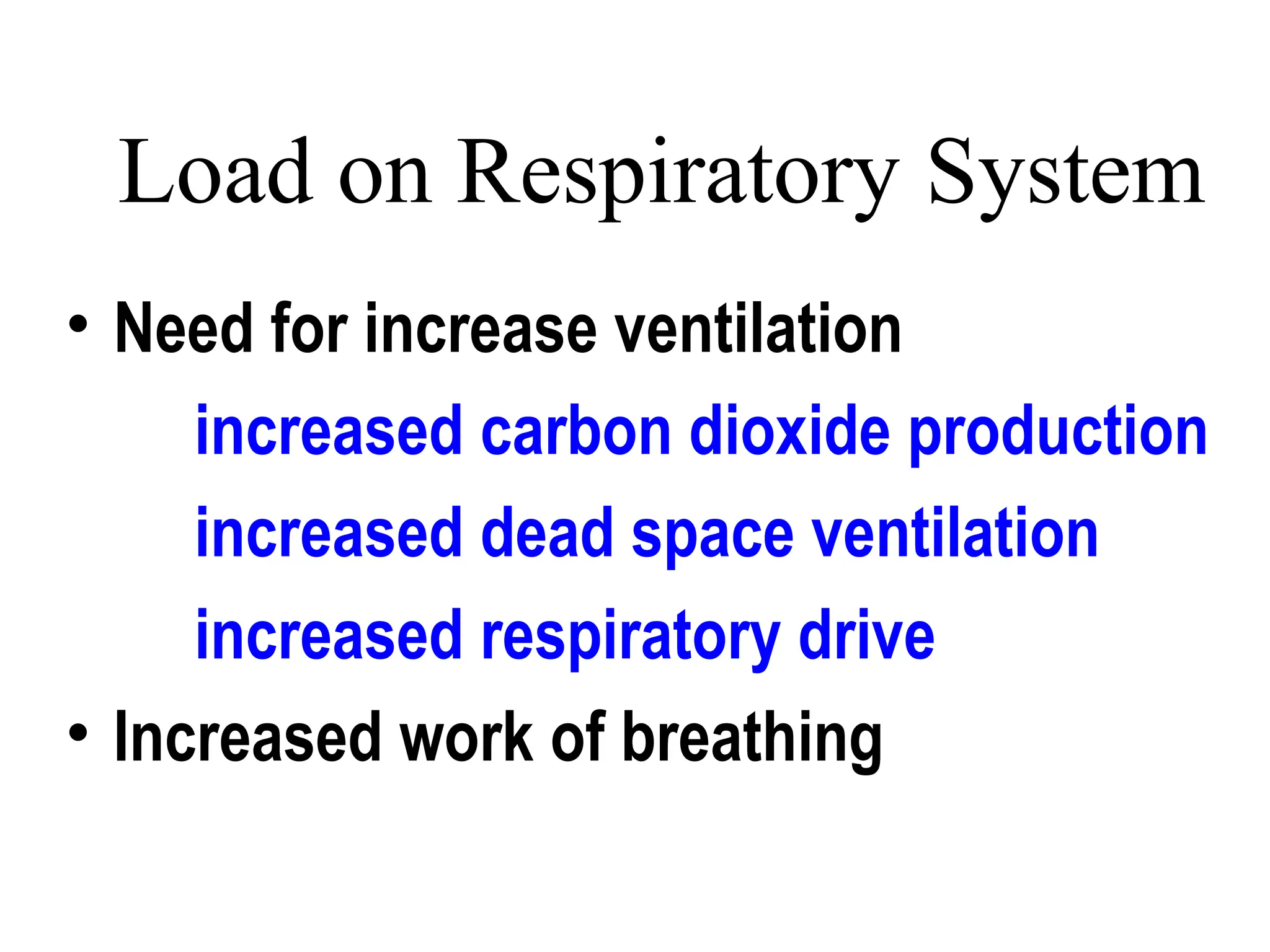

18. Load on Respiratory System
• Need for increase ventilation
increased carbon dioxide production
increased dead space ventilation
increased respiratory drive
• Increased work of breathing

19. Causes of Inspiratory respiratory
muscle fatigue
• Nutrition and metabolic deficiencies: K,
Mg, Ca, Phosphate and thyroid hormone
• Corticosteroids
• Chronic renal failure
• Systemic disceases; protein synthesis,
degradation, glycogen stores
• Hypoxemia and hypercapnia
• Excessive sedation

20. Capacity of respiratory system
• Central drive to breathe
• Transmission of CNS signal via Phrenic
nerve
• Impairment of resp muscles to generate
effective pressure gradients
• Impairment of normal muscle force
generation

21. Evidence based medicine
Evidence based medicine
• When to start weaning process?
When to start weaning process?
• Decision making, any guideline?
Decision making, any guideline?
How long it will take?
How long it will take?

22. When to begin the weaning process?
• Numerous trials performed to develop criteria
for success weaning, however, not useful to
predict when to begin the weaning
• Physicians must rely on clinical judgement
• Consider when the reason for IPPV is stabilised
and the patient is improving and
haemodynamically stable
• Daily screening may reduce the duration of MV
and ICU cost

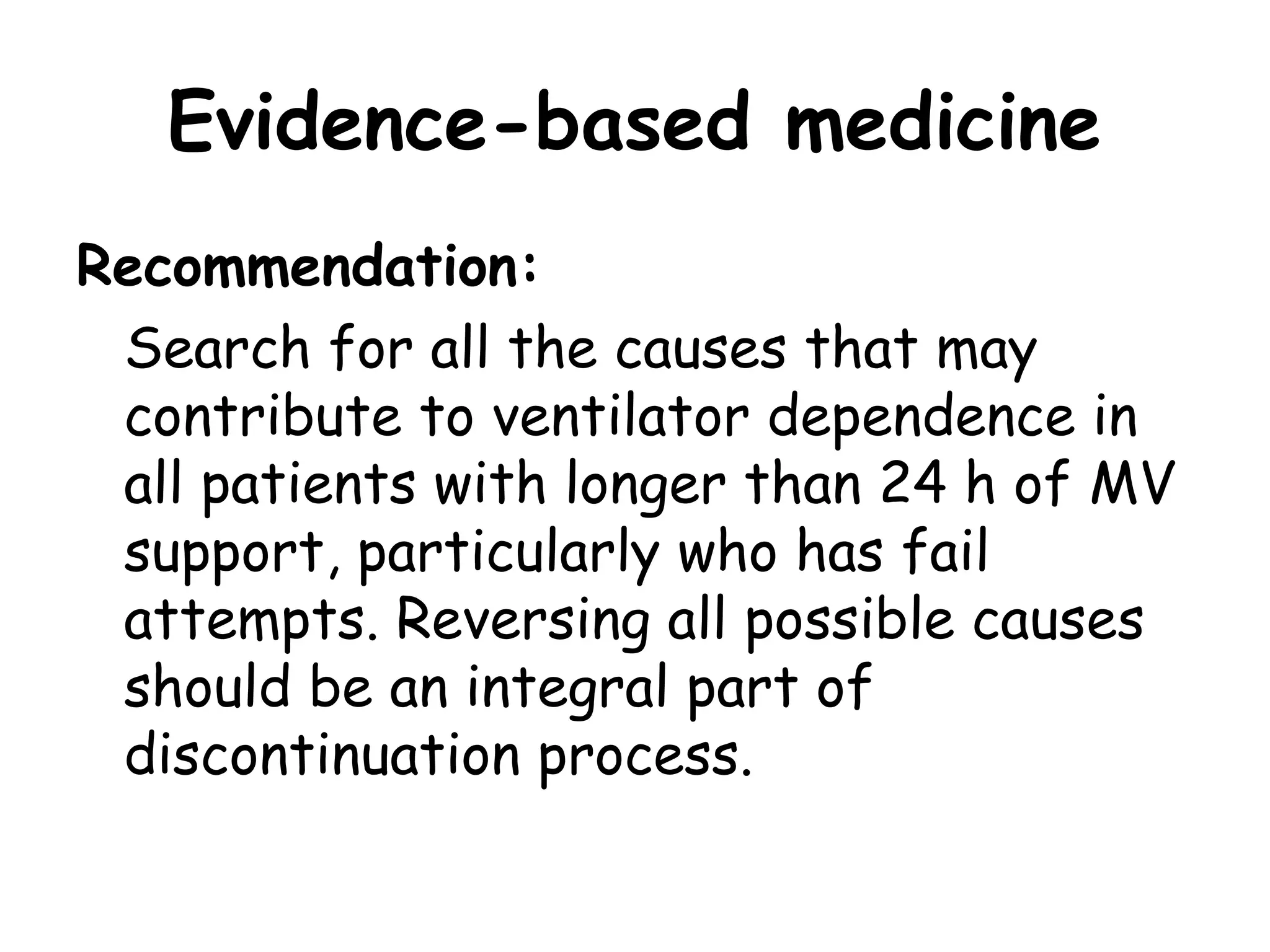

23. Evidence-based medicine
Recommendation:
Search for all the causes that may
contribute to ventilator dependence in
all patients with longer than 24 h of MV
support, particularly who has fail
attempts. Reversing all possible causes
should be an integral part of
discontinuation process.

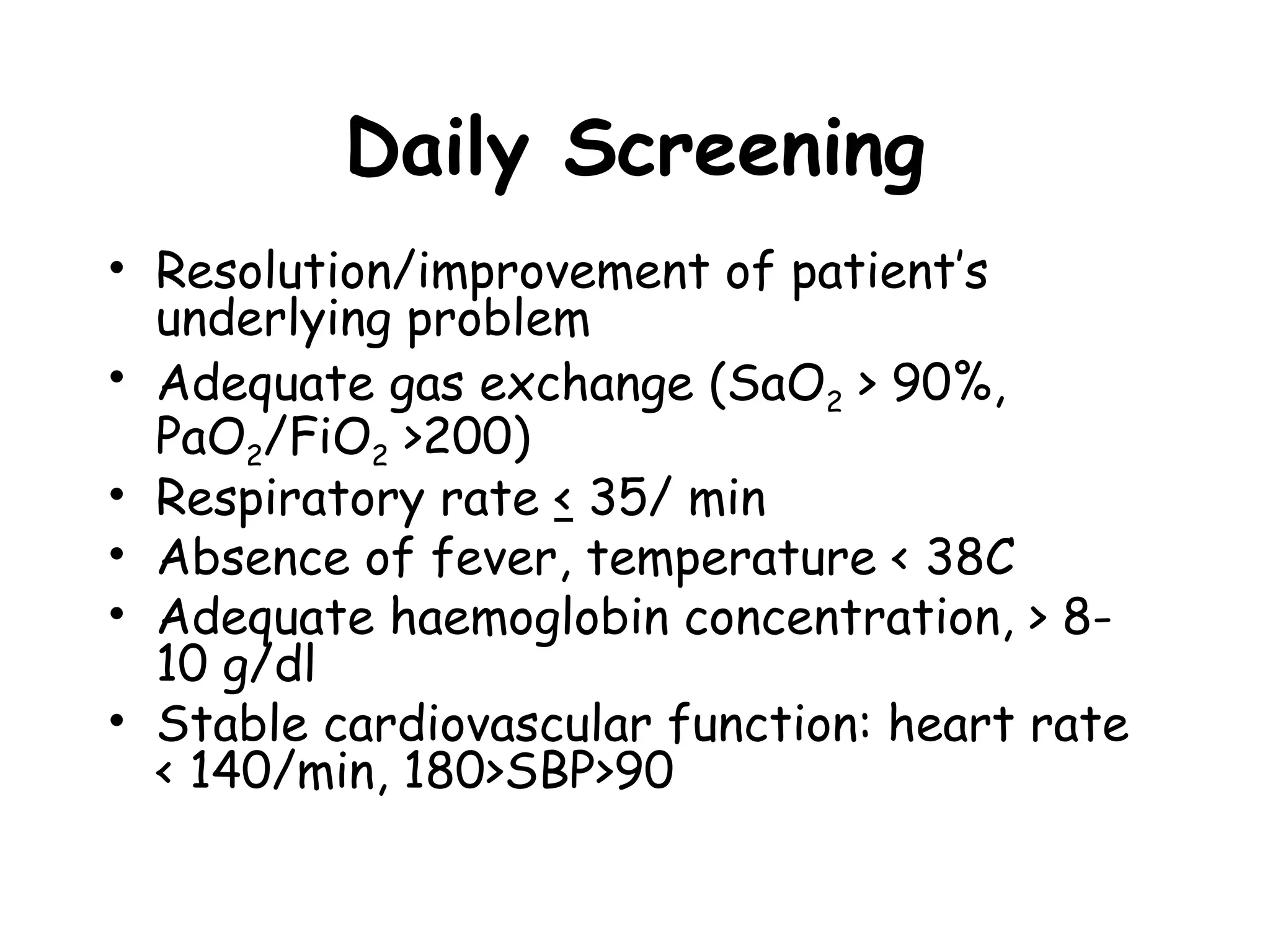

24. Daily Screening
• Resolution/improvement of patient’s underlying
problem
• OFF potent sedation
• Adequate gas exchange (SaO2 > 90%, PaO2/FiO2
>200)
• Respiratory rate < 35/ min
• Absence of fever, temperature < 38C
• Adequate haemoglobin concentration, > 8-10
g/dl
• Stable cardiovascular function: heart rate <
140/min, 180>SBP>90

25. Daily Screening (cont.)
• Indices suggesting an adequate capacity
of the ventilatory pump: respiratory
rate of less than 30/ min,
• Maximum inspiratory pressure < -20 to -
30 cmH2O
• Correction of metabolic and electrolyte
disorders
• Normal state of consciousness

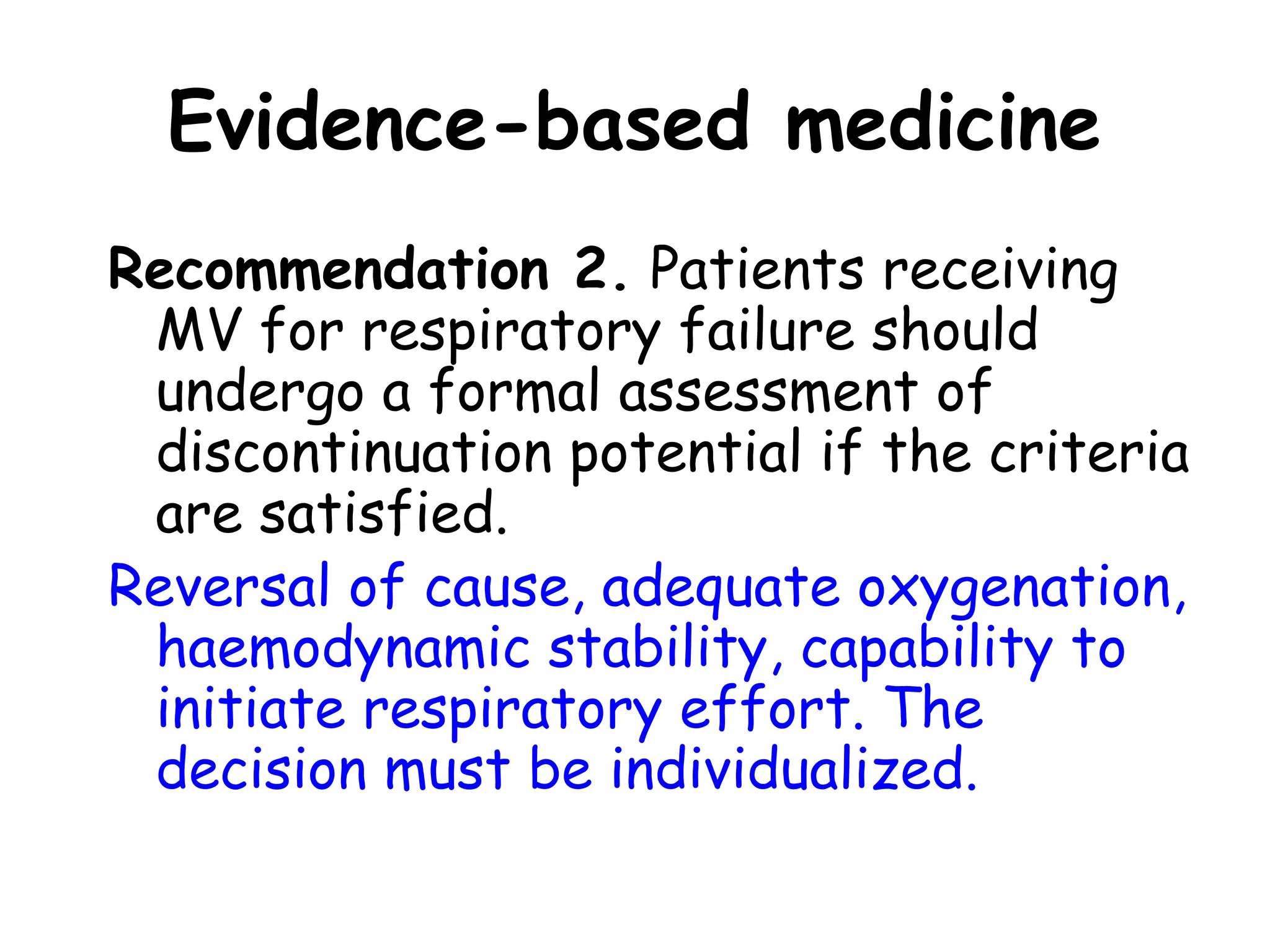

26. Evidence-based medicine
Recommendation 2. Patients receiving
MV for respiratory failure should
undergo a formal assessment of
discontinuation potential if the criteria
are satisfied.
Reversal of cause, adequate oxygenation,
haemodynamic stability, capability to
initiate respiratory effort. The
decision must be individualized.

27. Predictions of the outcome of
weaning
Variables used to predict weaning
success: Gas exchange
• PaO2 of > 60 mmHg with FiO2 of < 0.35
• A-a PaO2 gradient of < 350 mmHg
• PaO2/FiO2 ratio of > 200

28. Weaning success prediction
Ventilation Pump
• Vital capacity > 10- 15 ml/kg BW
• Maximal negative insp pressure
< -30 cmH2O
• Minute ventilation < 10 l/min
• Maximal voluntary ventilation more
than twice resting MV

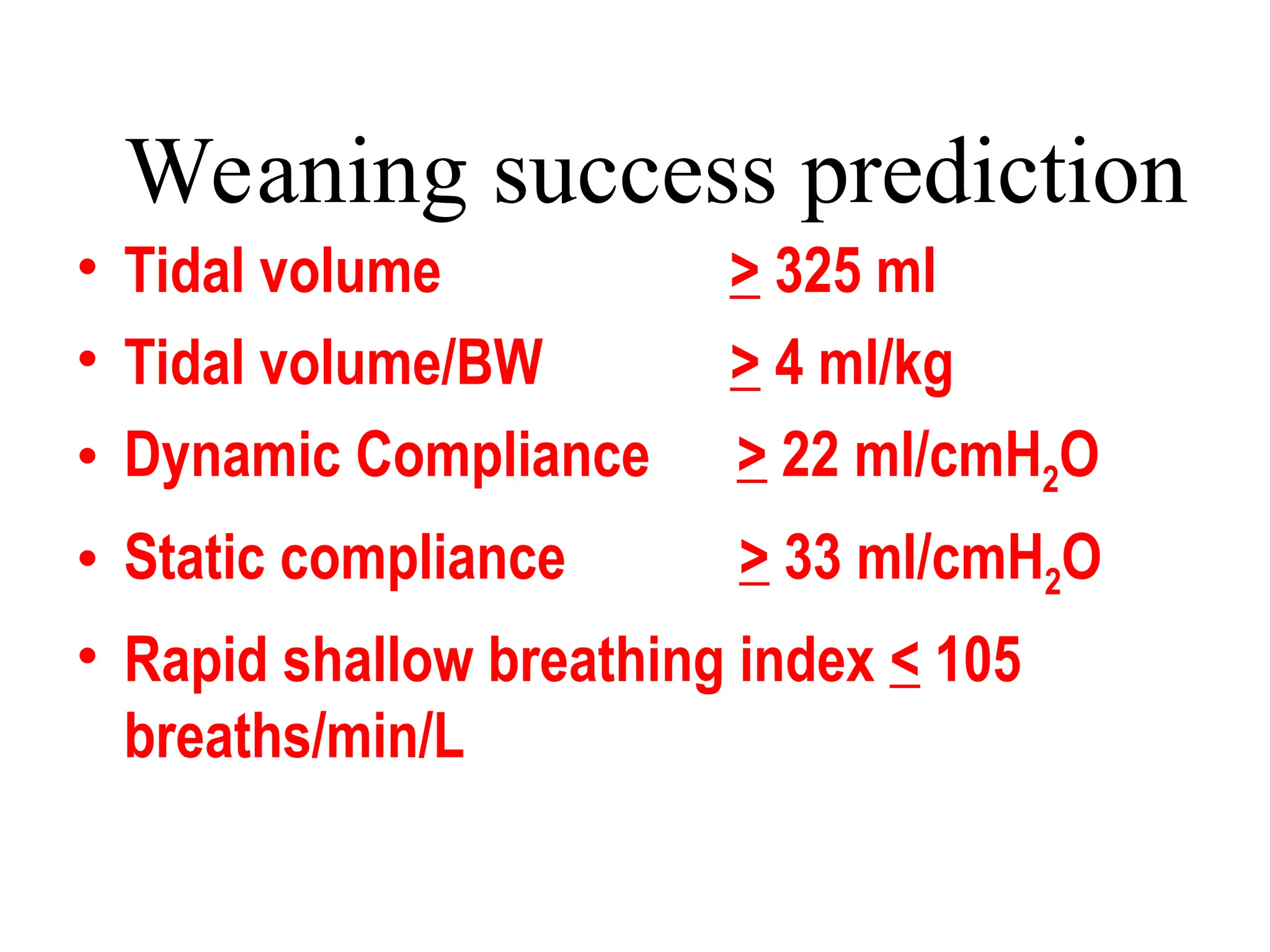

29. Weaning success prediction
• Tidal volume > 325 ml
• Tidal volume/BW > 4 ml/kg
• Dynamic Compliance > 22 ml/cmH2O
• Static compliance > 33 ml/cmH2O
• Rapid shallow breathing index < 105
breaths/min/L

30. Clinical observation of
the Respiratory Muscles
• Initially thought to be reliable in predicting
subsequent weaning failure
• from inductive plethysmographic studies
not necessary
• a substantial increase in load will effect on
the rate, depth, and pattern of breathing
• a manifestation of fatigue

31. Both respiratory rate and minute
ventilation initially increase, may
be followed by a paradoxical
inward motion of the anterior
abdominal wall during inspiration
which indicates the insufficient
diaphragmatic contraction to
descend and move the abdominal
content downward

32. Cyclic change in breathing
patterns with either a chest wall
motion or a predominantly
abdominal wall motion are
another indicator, called
respiratory alternans

33. Duration of weaning prior to initial episod
e of
fatigue (days)
Fatigue criteria
Hypoxia (PaO2 <60, SpO2 <90%)
Hypercarbia (PaCO2 > 50 mmHg)
Pulse rate > 120/min
SBP > 180 or < 90 mmHg
Respiratory rate > 30/min
Clinical respiratory distress
Fatigue Criteria

34. 1. Maximal expiratory pressure
2. Peak expiratory flow rate
3. Cough strength
4. Secretion volume
5. Suctioning frequency
6. Cuff leak test
7. Neurological function (GCS) keep
higher than 11
Parameters that assess airway
patency and protection

35. Evidence-based medicine
Recommendation 3.
The removal of the artificial airway
from a patient who has successfully
been discontinued from ventilatory
support should be based on assessment
of airway patency and the ability of the
patient to protect the airway.

36. Methods of Weaning
• Abrupt Discontinuation
• Extubation to NPPV, IPPB/IS…
• T- tube trials (ATC is preferred)
• SIMV to CPAP
• Pressure support/Volume
Support

37. Spontaneous breathing protocol
• Communicate with patient, weaning is about to
begin, allow pt to express fear whenever
possible
• Obtain baseline value and monitoring clinical
parameters; vital signs, subj distress, gas
exchange, arrhythmia
• Ensure a calm atmosphere, avoid sedation
• Sit the patient upright in bed or chair
• Fit T-tube with adequate flow, observe for 2
hr

38. For How long I will have to
For How long I will have to
monitor the weaning process
monitor the weaning process
with SBT in my patient?
with SBT in my patient?

39. Evidence-based medicine
Recommendation 4.
Formal assessments should be done
during SBT rather than receiving
substantial support. The criteria to
assess patient tolerance during SBTs
are respiratory pattern, gas exchange,
hamodynamics stability and patient
comfort. The tolerance of SBTs lasting
30 to 120 minutes should prompt for
permanent ventilator discontinuation.

40. SIMV Protocol
• Switch to SIMV from assist mode or decrease RR
• Begin with RR 8/min decrease SIMV rate by two
breaths per hour unless clinical deterioration
• if assume to fail, increase SIMV rate to previous
level, until stable
• if stable at least 1 hour of rate 0/ min extubate
• in patient without respiratory disorders, decrease
rate with half an hour interval, 2 hr extubate

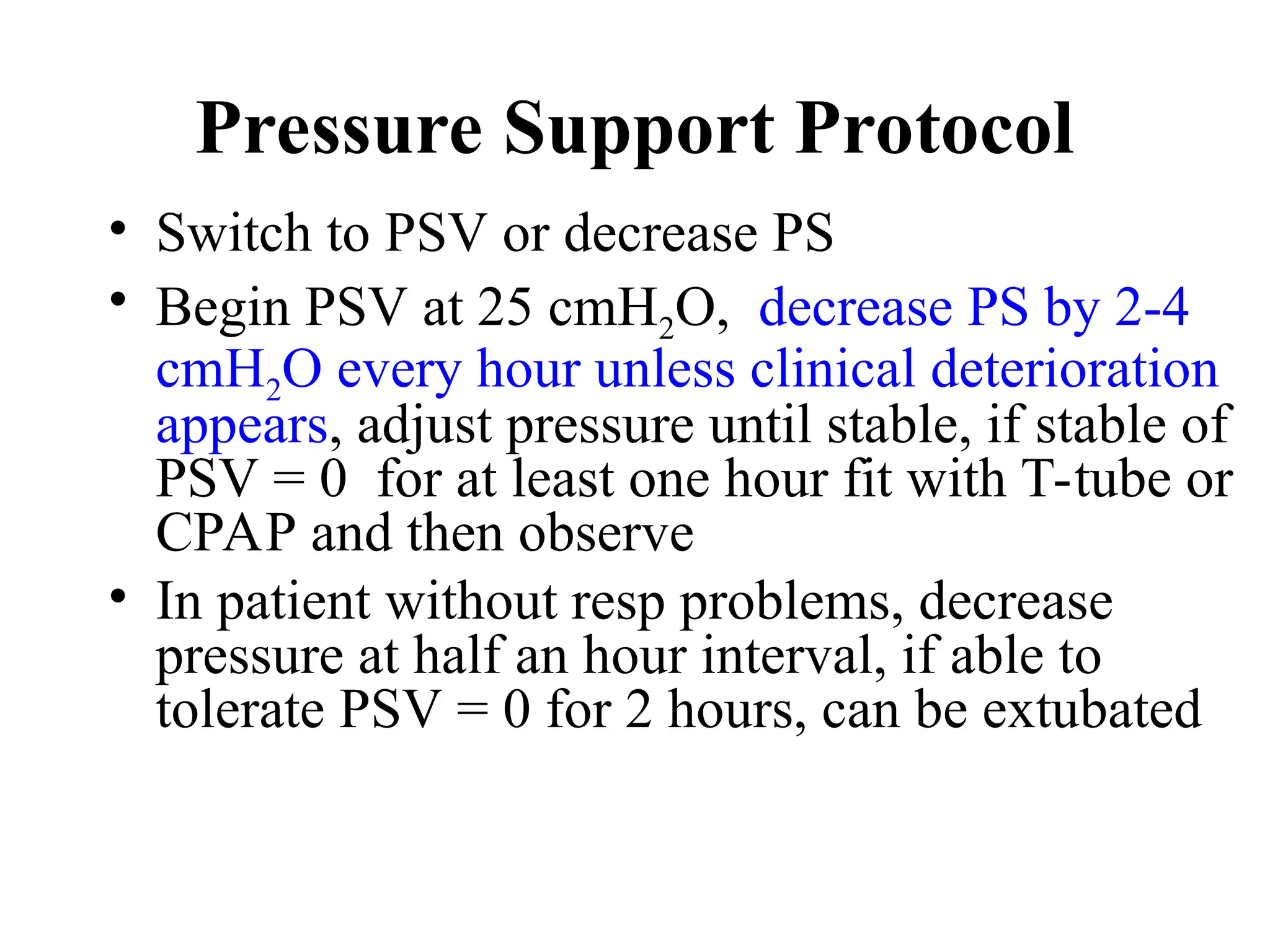

41. Pressure Support Protocol
• Switch to PSV or decrease PS
• Begin PSV at 25 cmH2O, decrease PS by 2-4
cmH2O every hour unless clinical deterioration
appears, adjust pressure until stable, if stable of
PSV = 0 for at least one hour fit with T-tube or
CPAP and then observe
• In patient without resp problems, decrease
pressure at half an hour interval, if able to
tolerate PSV = 0 for 2 hours, can be extubated

42. Failed to Wean
• Associated with intrinsic lung disease
• Associated with prolonged critical
illness
• Incidence approximately 20%
• Increased risk in patient with longer
duration of mechanical ventilation
• Increased risk of complications,
mortality

43. Evidence-based medicine
Recommendation 5.
Patients receiving MV who fail an SBT
should have the cause determined.
Once causes are corrected, and if the
patient still meets the criteria of
weaning, subsequent SBTs should be
performed every 24 hours.

44. Evidence-based medicine
Recommendation 6.
Patients receiving MV for
respiratory failure who fail an
SBT should receive a stable,
nonfatiguing, comfortable form
of ventilatory support.

45. Why a Weaning Protocol
Reduced ventilator time
Reduced weaning time; early
beginning by non-physician
healthcare workers
Reduced cost
Reduced complications: VAP

47. Evidence-based medicine
Recommendation 7.
Weaning protocols designed for non-
physician health care professionals
should be developed and implemented by
ICUs. Protocols aimed at optimizing
sedation should also be developed and
implemented.

48. Evidence-based medicine
Recommendation 8.
Tracheostomy should be considered
after period of stabilization on the
ventilator when it becomes apparent
that the patient will require
prolonged MV. Tracheostomy should
be performed when the patient
appears likely to gain one or more
benefits from the procedure.

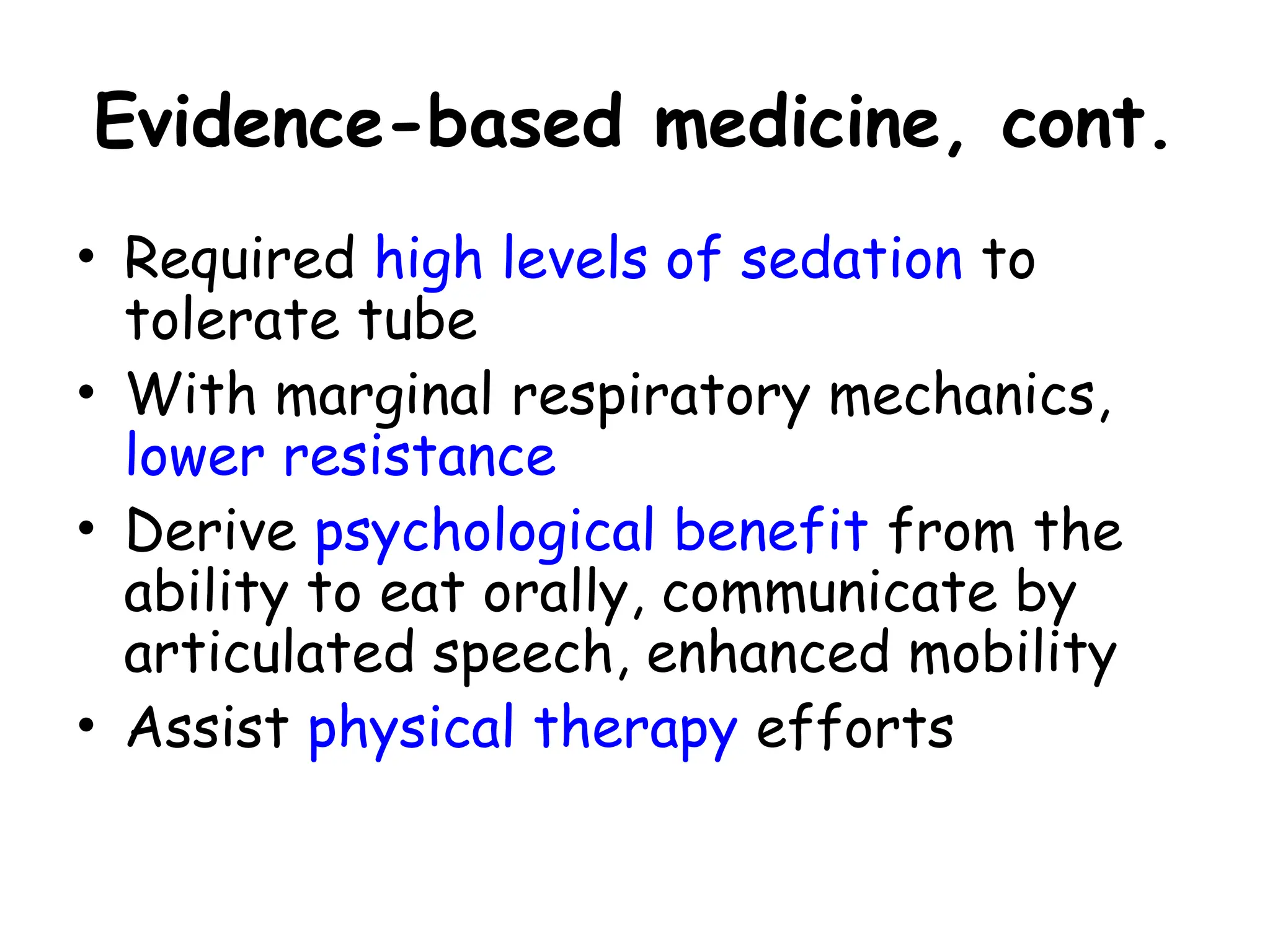

49. Evidence-based medicine, cont.
• Required high levels of sedation to
tolerate tube
• With marginal respiratory mechanics,
lower resistance
• Derive psychological benefit from the
ability to eat orally, communicate by
articulated speech, enhanced mobility
• Assist physical therapy efforts

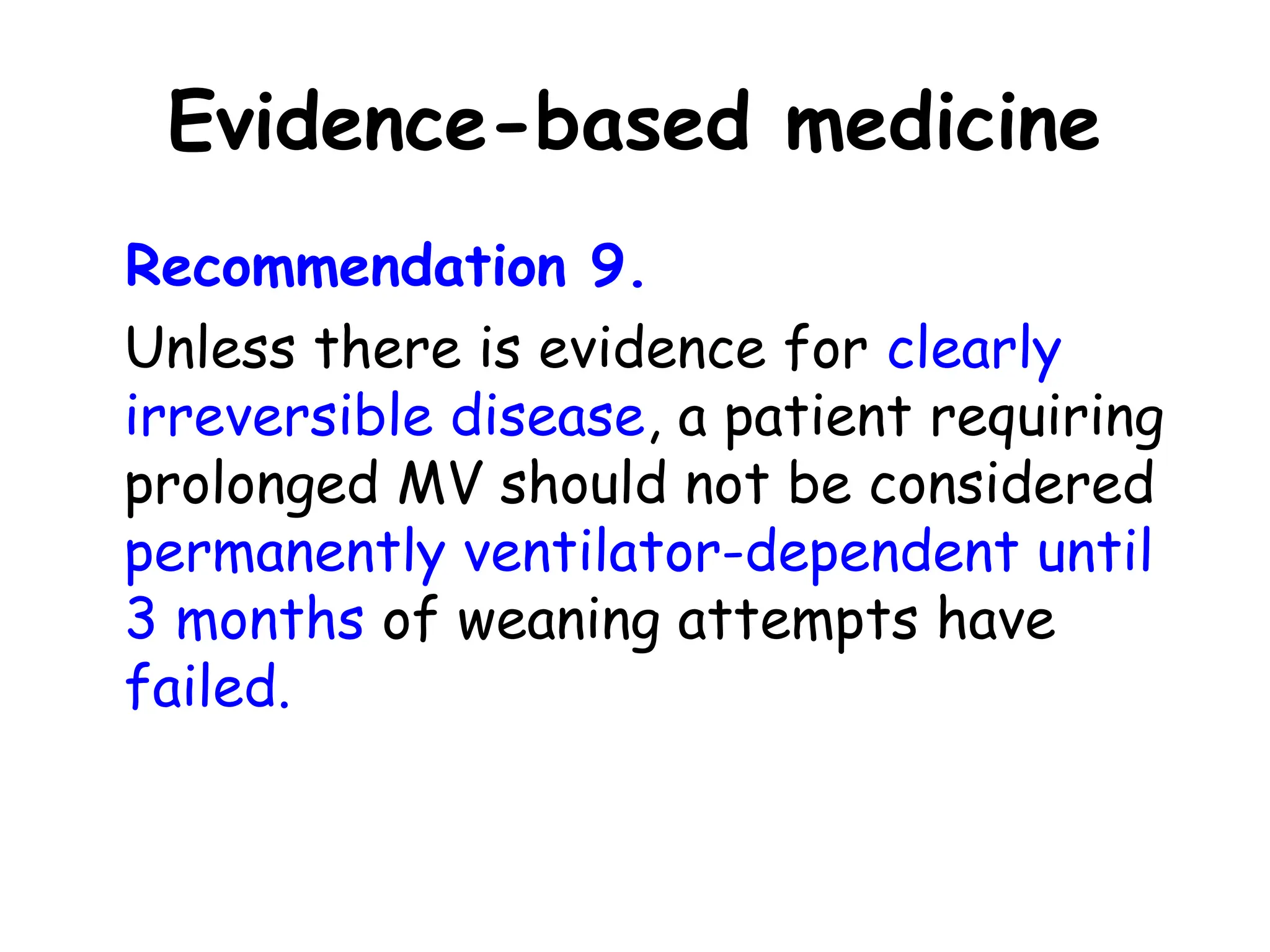

50. Evidence-based medicine
Recommendation 9.
Unless there is evidence for clearly
irreversible disease, a patient requiring
prolonged MV should not be considered
permanently ventilator-dependent until
3 months of weaning attempts have
failed.

51. Patient subgroups

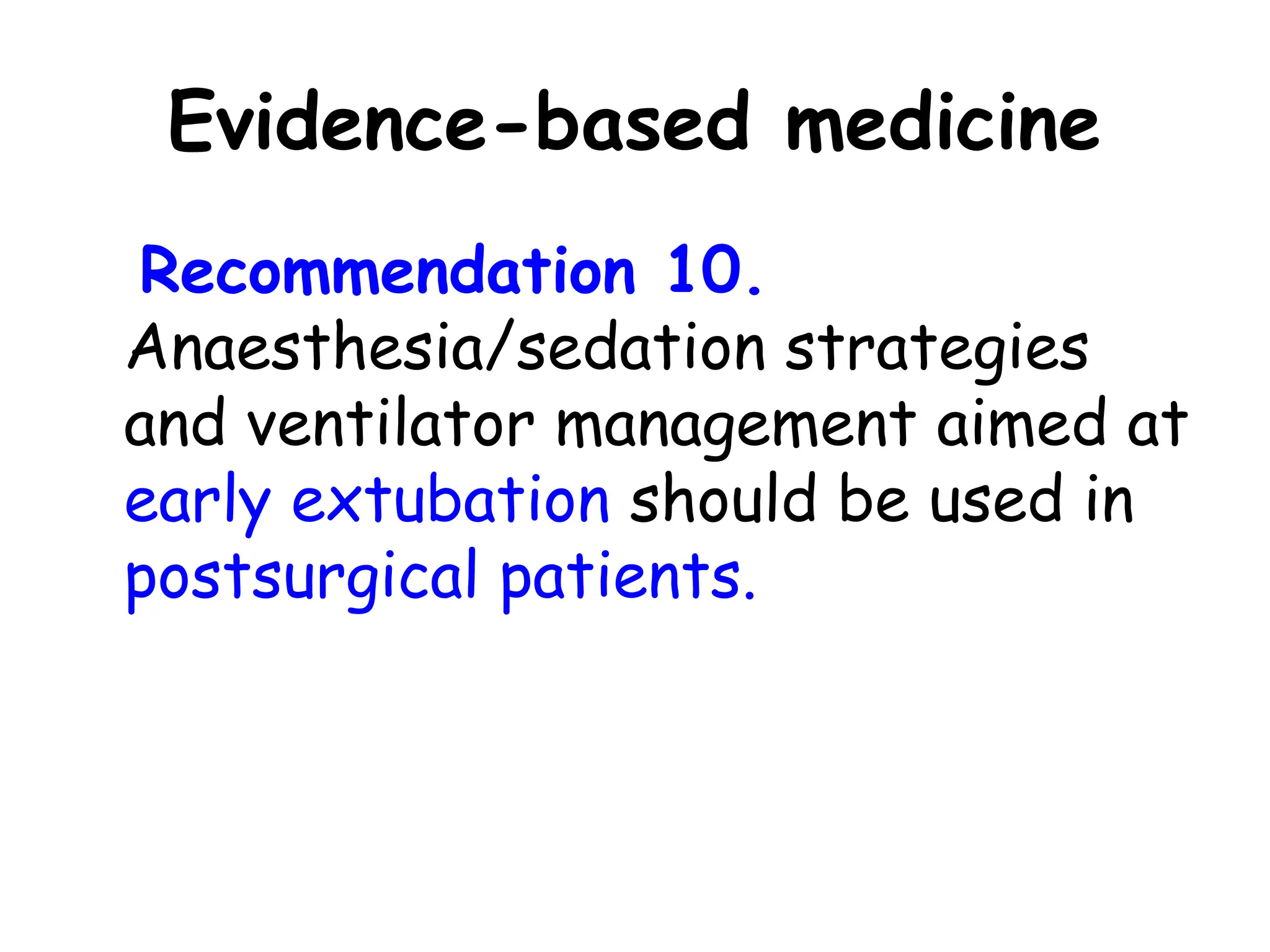

52. Evidence-based medicine
Recommendation 10.
Anaesthesia/sedation strategies
and ventilator management aimed at
early extubation should be used in
postsurgical patients.

53. SEMIQUANTITATIVE ASSESSMENT OF NEED F
OR AIRWAY CARE
Spont.
cough
Gag
Sputum
Quantity
0 Vigorou
s
0 Vigorous 0 None
1 Moderat
e
1 Moderate 1 1 pass
2 Weak 2 Weak 2 2 passes
3 None 3 None 3 > 3 passes
Sputum
Viscosity
Suctioning
Frequency
( per last 8 h)
Sputum
Character
0 Watery
0
> 3 h 0 Clear
1 Frothy 1 q 2-3 h 1 Tan
2 Thick 2 q 1-2 h 2 Yellow
3 Tenacio
us
3 < q 1 h 3 Green

54. RT role in Weaning from
mechanical ventilation
Psychological preparation

55. Nurse-led weaning
• ICCN 2001: Limited evidence suggesting
that nurse-led weaning may reduce
ventilation time; however, not clear
whether it was nurse-led aspect or the
clinical protocol that produced the effect
• Superior to doctor-led weaning, has huge
implications for intensive care practice

56. Nurse-led weaning
• ICCN 2002; Retrospective study in
patients with MV longer than 7 days,
reduced average duration of MV support
• Some delays occurred: sedation; protocol
needed, epidural analgesia, tracheostomy;
surgical vs percutaneous, some staff
lacked confidence and knowledge:
continuous education programme

57. Daily Screening
• Resolution/improvement of patient’s
underlying problem
• Adequate gas exchange (SaO2 > 90%,
PaO2/FiO2 >200)
• Respiratory rate < 35/ min
• Absence of fever, temperature < 38C
• Adequate haemoglobin concentration, > 8-
10 g/dl
• Stable cardiovascular function: heart rate
< 140/min, 180>SBP>90

58. Daily Screening (cont.)
• Indices suggesting an adequate capacity
of the ventilatory pump: respiratory rate
of less than 30/ min, Maximum
inspiratory pressure < -20 to -30 cmH2O
• Correction of metabolic and electrolyte
disorders
• Normal state of consciousness
Oriented, Mental ease, Positive attitude

59. Psychological preparation
• Knowing the patient; personal resources,
motivation levels, and styles of coping, comes
from continued and close contact with the
patient
• Oriented; understanding what will happen and
being informed of progress, able to control
negative responses
• Mental ease; absence of anxiety and fear
arising from being informed, reassured and
supported
• Positive attitude; being motivated and co-
operating
