- 1. WaterPro® Water PurificationSystems

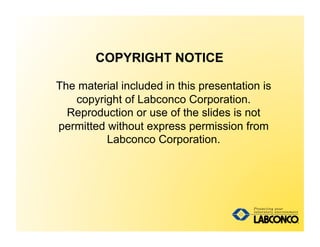

- 2. COPYRIGHT NOTICE The materialincluded in this presentation is copyright of Labconco Corporation. Reproduction or use of the slides is not permitted without express permission from Labconco Corporation.

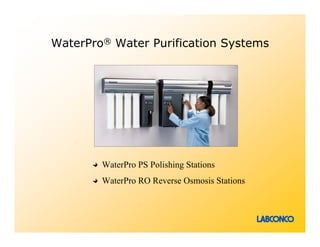

- 3. WaterPro® Water PurificationSystems WaterPro PS Polishing Stations WaterPro RO Reverse Osmosis Stations
- 4. WaterPro® Water PurificationSystems Water Contaminants Particulates include silt, plumbing pipe debris and colloids. Dissolved inorganics (solids and gases) includes calcium and magnesium ions dissolved from rock formations. Dissolved organics may include pesticides, herbicides, gasoline and decayed plant and animal tissues. Microorganisms include bacteria, protozoa and algae Pyrogens have a detrimental or lethal effect on tissue cultures.
- 5. WaterPro® Water PurificationSystems Types of Water Type I (NCCLS) Purest water achievable for analytical work Measured by electrical resistivity – lack of ion activity…16-18 megohms Uses: HPLC, Ion Chromatography, Trace Metal Analysis, Immunology, Cell Culture, SNA studies
- 6. WaterPro® Water PurificationSystems Types of Water Type II (NCCLS) Test methods in which the presence of bacteria can be tolerated General reagents without preservatives, microbiology systems Test methods for which requirements leading to the choice of Type I or Special Purpose waters do not apply Stains and dyes for histology, general reagents with preservatives and microbiology systems (to be sterilized)

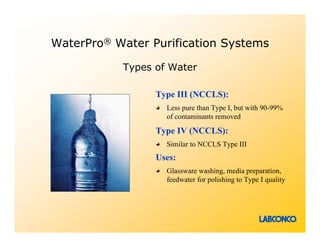

- 7. WaterPro® Water PurificationSystems Types of Water Type III (NCCLS): Less pure than Type I, but with 90-99% of contaminants removed Type IV (NCCLS): Similar to NCCLS Type III Uses: Glassware washing, media preparation, feedwater for polishing to Type I quality

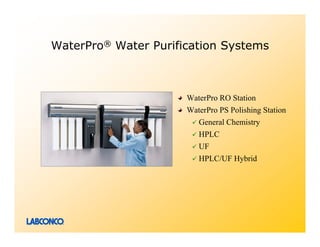

- 8. WaterPro® Water PurificationSystems WaterPro RO Station WaterPro PS Polishing Station General Chemistry HPLC UF HPLC/UF Hybrid

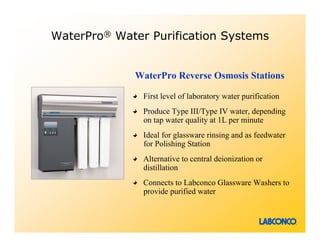

- 9. WaterPro® Water PurificationSystems WaterPro Reverse Osmosis Stations First level of laboratory water purification Produce Type III/Type IV water, depending on tap water quality at 1L per minute Ideal for glassware rinsing and as feedwater for Polishing Station Alternative to central deionization or distillation Connects to Labconco Glassware Washers to provide purified water

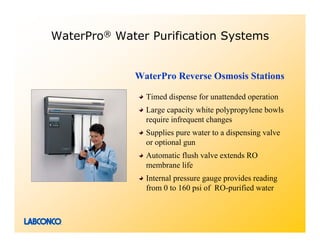

- 10. WaterPro® Water PurificationSystems WaterPro Reverse Osmosis Stations Timed dispense for unattended operation Large capacity white polypropylene bowls require infrequent changes Supplies pure water to a dispensing valve or optional gun Automatic flush valve extends RO membrane life Internal pressure gauge provides reading from 0 to 160 psi of RO-purified water

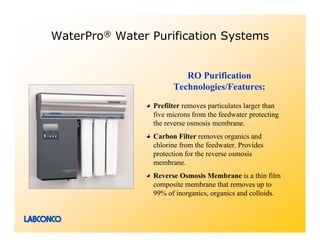

- 11. WaterPro® Water PurificationSystems RO Purification Technologies/Features: Prefilter removes particulates larger than five microns from the feedwater protecting the reverse osmosis membrane. Carbon Filter removes organics and chlorine from the feedwater. Provides protection for the reverse osmosis membrane. Reverse Osmosis Membrane is a thin film composite membrane that removes up to 99% of inorganics, organics and colloids.

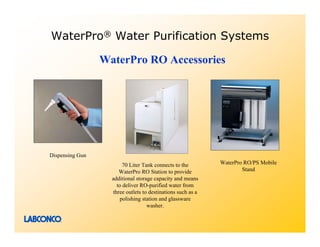

- 12. WaterPro® Water PurificationSystems WaterPro RO Accessories Dispensing Gun 70 Liter Tank connects to the WaterPro RO/PS Mobile WaterPro RO Station to provide Stand additional storage capacity and means to deliver RO-purified water from three outlets to destinations such as a polishing station and glassware washer.
- 13. WaterPro® Water PurificationSystems WaterPro PS Polishing Stations Produces Type I reagent grade water, 16-18.2 megohm resistivity Ideal for analytical instruments, life science applications Plumbs to high quality tap water or pre-treated water such as RO treated Type III/IV water Highest level of laboratory water purification

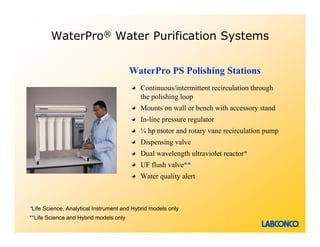

- 14. WaterPro® Water PurificationSystems WaterPro PS Polishing Stations Continuous/intermittent recirculation through the polishing loop Mounts on wall or bench with accessory stand In-line pressure regulator ¼ hp motor and rotary vane recirculation pump Dispensing valve Dual wavelength ultraviolet reactor* UF flush valve** Water quality alert *Life Science, Analytical Instrument and Hybrid models only **Life Science and Hybrid models only

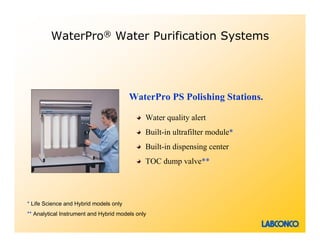

- 15. WaterPro® Water PurificationSystems WaterPro PS Polishing Stations. Water quality alert Built-in ultrafilter module* Built-in dispensing center TOC dump valve** * Life Science and Hybrid models only ** Analytical Instrument and Hybrid models only

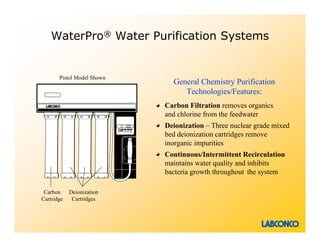

- 16. WaterPro® Water PurificationSystems Pistol Model Shown General Chemistry Purification Technologies/Features: Carbon Filtration removes organics and chlorine from the feedwater Deionization – Three nuclear grade mixed bed deionization cartridges remove inorganic impurities Continuous/Intermittent Recirculation maintains water quality and inhibits bacteria growth throughout the system Carbon Deionization Cartridge Cartridges

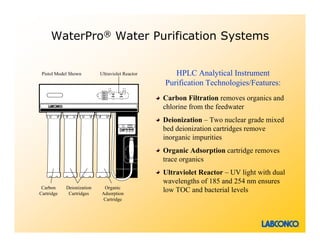

- 17. WaterPro® Water PurificationSystems Pistol Model Shown Ultraviolet Reactor HPLC Analytical Instrument Purification Technologies/Features: Carbon Filtration removes organics and chlorine from the feedwater Deionization – Two nuclear grade mixed bed deionization cartridges remove inorganic impurities Organic Adsorption cartridge removes trace organics Ultraviolet Reactor – UV light with dual wavelengths of 185 and 254 nm ensures Carbon Deionization Organic Cartridge Cartridges Adsorption low TOC and bacterial levels Cartridge

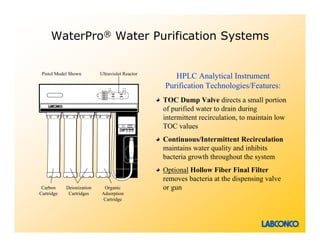

- 18. WaterPro® Water PurificationSystems Pistol Model Shown Ultraviolet Reactor HPLC Analytical Instrument Purification Technologies/Features: TOC Dump Valve directs a small portion of purified water to drain during intermittent recirculation, to maintain low TOC values Continuous/Intermittent Recirculation maintains water quality and inhibits bacteria growth throughout the system Optional Hollow Fiber Final Filter removes bacteria at the dispensing valve Carbon Deionization Organic or gun Cartridge Cartridges Adsorption Cartridge

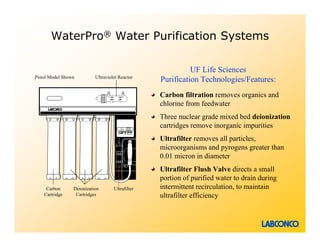

- 19. WaterPro® Water PurificationSystems UF Life Sciences Pistol Model Shown Ultraviolet Reactor Purification Technologies/Features: Carbon filtration removes organics and chlorine from feedwater Three nuclear grade mixed bed deionization cartridges remove inorganic impurities Ultrafilter removes all particles, microorganisms and pyrogens greater than 0.01 micron in diameter Ultrafilter Flush Valve directs a small portion of purified water to drain during Carbon Deionization Ultrafilter intermittent recirculation, to maintain Cartridge Cartridges ultrafilter efficiency

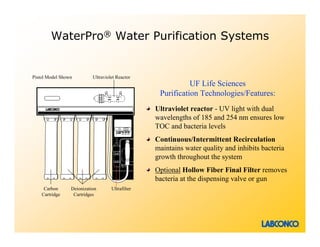

- 20. WaterPro® Water PurificationSystems Pistol Model Shown Ultraviolet Reactor UF Life Sciences Purification Technologies/Features: Ultraviolet reactor - UV light with dual wavelengths of 185 and 254 nm ensures low TOC and bacteria levels Continuous/Intermittent Recirculation maintains water quality and inhibits bacteria growth throughout the system Optional Hollow Fiber Final Filter removes bacteria at the dispensing valve or gun Carbon Deionization Ultrafilter Cartridge Cartridges

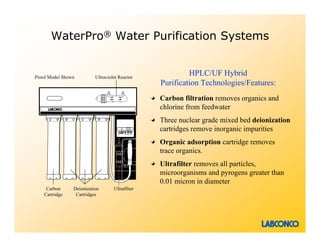

- 21. WaterPro® Water PurificationSystems Pistol Model Shown Ultraviolet Reactor HPLC/UF Hybrid Purification Technologies/Features: Carbon filtration removes organics and chlorine from feedwater Three nuclear grade mixed bed deionization cartridges remove inorganic impurities Organic adsorption cartridge removes trace organics. Ultrafilter removes all particles, microorganisms and pyrogens greater than 0.01 micron in diameter Carbon Deionization Ultrafilter Cartridge Cartridges

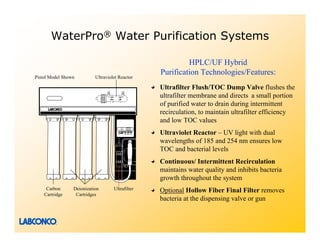

- 22. WaterPro® Water PurificationSystems HPLC/UF Hybrid Purification Technologies/Features: Pistol Model Shown Ultraviolet Reactor Ultrafilter Flush/TOC Dump Valve flushes the ultrafilter membrane and directs a small portion of purified water to drain during intermittent recirculation, to maintain ultrafilter efficiency and low TOC values Ultraviolet Reactor – UV light with dual wavelengths of 185 and 254 nm ensures low TOC and bacterial levels Continuous/ Intermittent Recirculation maintains water quality and inhibits bacteria growth throughout the system Carbon Deionization Ultrafilter Optional Hollow Fiber Final Filter removes Cartridge Cartridges bacteria at the dispensing valve or gun

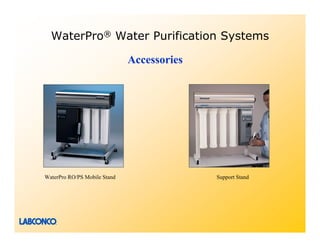

- 23. WaterPro® Water PurificationSystems Accessories WaterPro RO/PS Mobile Stand Support Stand

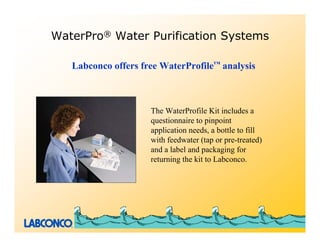

- 24. WaterPro® Water PurificationSystems Labconco offers free WaterProfile™ analysis The WaterProfile Kit includes a questionnaire to pinpoint application needs, a bottle to fill with feedwater (tap or pre-treated) and a label and packaging for returning the kit to Labconco.

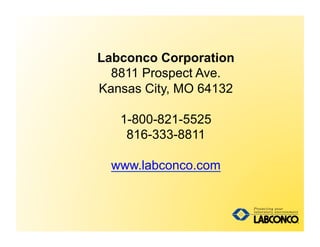

- 25. Labconco Corporation 8811 Prospect Ave. Kansas City, MO 64132 1-800-821-5525 816-333-8811 www.labconco.com
