Waterjet Cutting by KMT

•Download as PPTX, PDF•

1 like•462 views

K

Waterjet Cutting by KMT Waterjet Cutting of Machine Components Waterjet Cutting enables very smooth cutting edges even with thick and hard materials

Technology Business

Waterjet Cutting by KMT

Waterjet Cutting of
Machine Components

KMT Waterjet Systems
Auf der Laukert 11
61231 Bad Nauheim • Germany

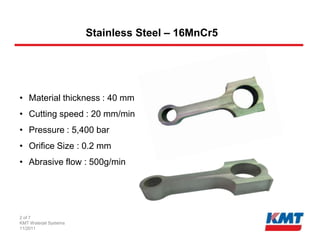

Stainless Steel – 16MnCr5

• Material thickness : 40 mm
• Cutting speed : 20 mm/min
• Pressure : 5,400 bar
• Orifice Size : 0.2 mm
• Abrasive flow : 500g/min

2 of 7
KMT Waterjet Systems
11/2011

Stainless Steel – 16MnCr5

• Material thickness : 40 mm
• Cutting speed : 20 mm/min
• Pressure : 5,400 bar
• Orifice Size : 0.2 mm
• Abrasive flow : 500g/min

3 of 7
KMT Waterjet Systems
11/2011

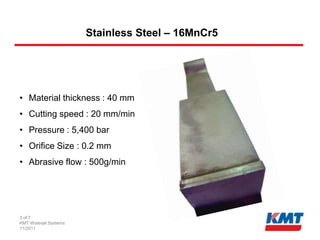

Stainless Steel – 16MnCr5

• Material thickness : 40 mm
• Cutting speed : 20 mm/min
• Pressure : 5,400 bar
• Orifice Size : 0.2 mm
• Abrasive flow : 500g/min

4 of 7
KMT Waterjet Systems
11/2011

Stainless Steel – 16MnCr5

• Material thickness : 60 mm
• Cutting speed : 10 mm/min
• Pressure : 5,400 bar
• Orifice Size : 0.2 mm
• Abrasive flow : 500g/min

5 of 7
KMT Waterjet Systems
11/2011

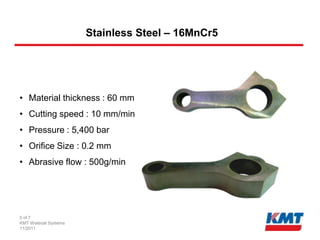

Stainless Steel – 16MnCr5

• Material thickness : 60 mm
• Cutting speed : 10 mm/min
• Pressure : 5,400 bar
• Orifice Size : 0.2 mm
• Abrasive flow : 500g/min

6 of 7
KMT Waterjet Systems
11/2011

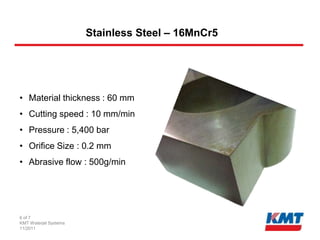

Stainless Steel – 16MnCr5

• Material thickness : 60 mm
• Cutting speed : 10 mm/min
• Pressure : 5,400 bar
• Orifice Size : 0.2 mm
• Abrasive flow : 500g/min

7 of 7
KMT Waterjet Systems
11/2011
