Abstract
The purpose of the study is to identify current issues in the building industry that lead to global
warming and addressing it by incorporating sustainable architecture for the tropical climate
extensively. The objective of the study is to achieve environmental value in Architecture through
sustainability and minimizing solar heat gains in building through passive designing in the
Walian House. The phenomenon of global warming happening can be greatly reduced if
modern day houses looked into practicing a more sustainable approach. By taking necessary
steps towards practicing sustainability in the construction industry in our tropical climate,
environmental value in architecture can be achieved. The study will look into how contemporary
houses like the Walian House which was built in the 1980’s by the architect Jimmy Lim as an
example and how it has started addressing the issues of global warming by practicing
sustainability. Passive designing strategies like the orientation of building, space planning,
vegetation, roof design and material usage are discussed as solutions to reducing the internal
heat gain for thermal comfort. The study will discuss on striking a harmonious balance with
nature, working towards achieving environmental value in architecture.

4
1.0 Introduction
This paper will investigate current issues in the building industry that lead to global warming and
addressing it by incorporating sustainable architecture for the tropical climate extensively and
achieving environmental value in Architecture through sustainability and minimizing solar heat
gains in building through passive designing in the Walian House by responding to the
subsequent research questions:
Q 1: How sustainability helps in achieving environmental value in Architecture?
Q 2: What are the features and considerations of the Walian House that makes it a sustainable
architecture?
- Orientation of the building & space planning
- Open space planning
- Gardens and vegetations
- Chengal timber
- Heat sink
- Layered roof
- Long overhanging eaves
Q 3: How can passive design strategies help in maintaining a harmonious balance between
man-made structure and nature?

5
1.1 Introduction to Issue
Figure 1: Image showing an aerial panorama shot of Kuala Lumpur
As development progress, more and more buildings are being built by the days rapidly.
Majority of the modern buildings in Malaysia uses HVAC and the uses of HVAC will continue. All
of these factors contribute to the disruption of nature. It is as if people development has drove
people to the point where they start forgetting and not being sensitive to the environment
surrounding them. However, this may not be the case, because we could not live in our modern
society comfortably without the usage and developments of current technologies. Therefore, a
balance would be what we must seek after. In the case of the impact of building a home, a lot of
consideration can be done to reduce the environmental impact. For instance, the basic
necessity of a human is a safe place to call home. Hence, humans build buildings. However, by
building a building, a more sustainable approach can be done to minimize the impact towards
the environment. With these in mind, every construction project in the construction industry
should practice sustainable architecture in order to achieve environmental value in architecture.
Due to the hot and humid climate of Malaysia, It is understandable that the people uses
HVAC frequently to achieve thermal comfort in Malaysia. However, it must be highlighted that
HVAC can still disrupt the ozone layer despite popular belief on our achievements with current
technologies. Also, the power needed to generate electricity requires a great amount of coal.
When coals are burned, Carbon Dioxide are released, resulting in global warming. Instead of
relying on HVAC, buildings can be designed passively to respond to site, our tropical
environment and at the same time achieving thermal comfort. By doing so, it would not only
respect the site, but at the same time, enhance it for the living and existence between man-
made structure and nature.

6
1.2 Site Overview

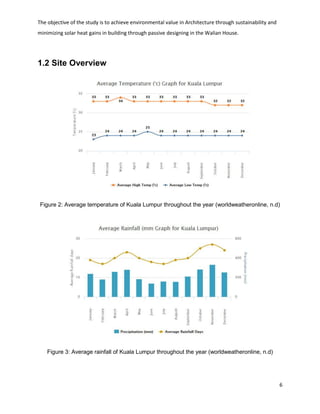

Figure 2: Average temperature of Kuala Lumpur throughout the year (worldweatheronline, n.d)
Figure 3: Average rainfall of Kuala Lumpur throughout the year (worldweatheronline, n.d)

7

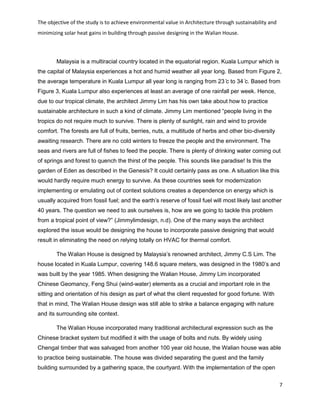

Malaysia is a multiracial country located in the equatorial region. Kuala Lumpur which is
the capital of Malaysia experiences a hot and humid weather all year long. Based from Figure 2,
the average temperature in Kuala Lumpur all year long is ranging from 23 ̊c to 34 ̊c. Based from
Figure 3, Kuala Lumpur also experiences at least an average of one rainfall per week. Hence,
due to our tropical climate, the architect Jimmy Lim has his own take about how to practice
sustainable architecture in such a kind of climate. Jimmy Lim mentioned “people living in the
tropics do not require much to survive. There is plenty of sunlight, rain and wind to provide
comfort. The forests are full of fruits, berries, nuts, a multitude of herbs and other bio-diversity
awaiting research. There are no cold winters to freeze the people and the environment. The
seas and rivers are full of fishes to feed the people. There is plenty of drinking water coming out
of springs and forest to quench the thirst of the people. This sounds like paradise! Is this the
garden of Eden as described in the Genesis? It could certainly pass as one. A situation like this
would hardly require much energy to survive. As these countries seek for modernization
implementing or emulating out of context solutions creates a dependence on energy which is
usually acquired from fossil fuel; and the earth’s reserve of fossil fuel will most likely last another
40 years. The question we need to ask ourselves is, how are we going to tackle this problem
from a tropical point of view?” (Jimmylimdesign, n.d). One of the many ways the architect
explored the issue would be designing the house to incorporate passive designing that would
result in eliminating the need on relying totally on HVAC for thermal comfort.
The Walian House is designed by Malaysia’s renowned architect, Jimmy C.S Lim. The
house located in Kuala Lumpur, covering 148.6 square meters, was designed in the 1980’s and
was built by the year 1985. When designing the Walian House, Jimmy Lim incorporated
Chinese Geomancy, Feng Shui (wind-water) elements as a crucial and important role in the
sitting and orientation of his design as part of what the client requested for good fortune. With
that in mind, The Walian House design was still able to strike a balance engaging with nature
and its surrounding site context.
The Walian House incorporated many traditional architectural expression such as the
Chinese bracket system but modified it with the usage of bolts and nuts. By widely using
Chengal timber that was salvaged from another 100 year old house, the Walian house was able
to practice being sustainable. The house was divided separating the guest and the family
building surrounded by a gathering space, the courtyard. With the implementation of the open

8
planning courtyard, the house was able to better engage with the site. The Walian house will be
used as an example in our contemporary and modern development in architecture as the
beginning of practicing sustainable architecture while achieving a balance between man-made
structure and nature.

9
2.0 How Sustainability Helps In Achieving Environmental
Value In Architecture
In recent times, people started shifting from worrying on what nature can do to us, and
more into what we have done to nature (Williamson, 2003). With the shift in mindset, many
architects started adopting sustainable architecture into their designing. The word, sustainability
means the ability to be sustained (dictionary, n.d). By practicing sustainability, environmental
value in architecture can be achieved.
Before diving in on achieving environmental value in architecture, we have to first understand
the meaning of environmental value. ‘Environmental’ the word means being related with the
impact of human activities on the natural environment (thefreedictionary, n.d). On the other
hand, the word ‘value’ means something that is of importance (thefreedictionary, n.d).
Combining the two, we get the meaning, the importance of the impact of human activities on the
natural environment. We coexist with nature, therefore the way we live will impact the
environment in one way or another.
To achieve environmental value in architecture is to practice sustainable architecture. By doing
so, we get to calculate future risk ahead of us. For instance, by practicing green, the future
generation will be able to have a cleaner, fresher air and therefore remain healthy as our
offspring. By protecting nature, we are inevitably protecting humankind as well. Therefore
striking a harmony between nature and mankind.

10
3.0 What Are The Features And Considerations of The Walian
House That Makes It A Sustainable Architecture
3.1 Orientation of The Building And Space Planning
In this case study, the Walian house practiced the application of passive designing by
the smart play of orientating the building to reduce the internal heat gain. Due to Feng Shui
beliefs, the owner wanted the kitchen and dining to be facing the west as the evening sun
signify the money plant is activated (chienergy, n.d). The architect Jimmy Lim balanced the
request of the client by orientating the kitchen and dining towards the north-west and offsetting
the areas deeper to shelter the area from direct sun exposure. With the combination of long
eaves, the area would be shaded and comfortable for long usage.

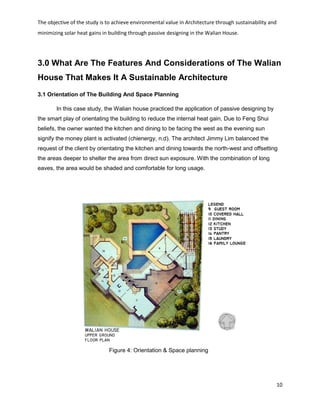

Figure 4: Orientation & Space planning

11
Figure 5: Wind Direction (weatheronline,n,d)
3.2 Open Space Planning
As the architect seeks to respond to the natural wind on site, the Walian House was
designed to incorporate a wide open planning courtyard at the center spaces between the guest
and family buildings to maximize air flow. The courtyard purpose is not only to act as a focal
point bringing people together doing activities but also to act as a wind channel directing wind
through the building for ventilation purposes.
The Walian House is orientated in such a way that the open courtyard captures the
northwest and south east wind. According to Meir, et al.(1995), the positioning has direct
influence with the ventilation or wind velocity. For example, with the correct orientation of the
courtyard, it can improve the thermal comfort greatly.
Cross ventilation takes place in the courtyard area allowing for a breezy yet well
ventilated internal gathering public spot while maintaining the indoor temperature to a
comfortable degree. By orientating the building in such manner, it can maximize airflow and thus
reducing the need for HVAC to achieve thermal comfort.

12
Although the wind direction sometimes can be unpredictable, the prevailing wind based
from Figure 5 would still be able to be directed inwards to the open courtyard with the usage of
the vegetation placements as well. The natural breezes will cool the interior spaces.
Figure 6: Open Planning & Ventilation

13
Figure 7: Garden & Vegetations
3.3 Garden and Vegetations
Right at the front of the covered courtyard hall, lush greenery of garden and vegetations
can be seen planted for a pleasant sight. The garden and vegetations not only helps in
providing a ‘close to nature’ atmosphere, but it also helps in cooling the temperature of the
surrounding site by providing shade onto the ground. This can be explained by biology, as the
plant’s excess warmth are offset by evaporative cooling from transpiration (NCStateuniversity,
2013). Hence, the temperature would be better regulated and would significantly improve the
thermal comfort of the indoor spaces. This can be confirmed by Safarzadeh & Bahadori (2005),
that garden elements can significantly affect the thermal comfort of a space.
As discussed earlier in the open space planning, the vegetations can help in directing
the wind towards the interior spaces. However, in this case, the trees planted around also
provided sound filtering and dust filtering. For instance, being in the heart of Kuala Lumpur, the
air sometimes contains more dust when compared to the rural areas. Therefore, the
surrounding vegetations helps in mitigating the dust pollutions from the vehicles providing the
family with fresher air to breath. Moreover, the sound from vehicles travelling can be greatly

14
reduced and filtered by the surrounding vegetations. Hence, a sense of enclosure, privacy and a
sound atmosphere will bring mankind closer to nature separating them from the busyness of life.
Figure 8: Garden & Vegetations Placing
Figure 9: Garden & Vegetations

15
Figure 10: Chengal Timber Structure
3.4 Chengal Timber
The objective of the architect, Jimmy Lim was to create a house that uses more of the
natural materials. Hence, Chengal timbers can be seen widely incorporated into his works. The
Walian House can be seen reusing Chengal timber that was salvaged from a 100 year old
house extensively and used as the structure in the Walian House.
Reusing a material is the better alternative when compared to other waste management
methods (Redo, n.d). For instance, whenever objects were to be put through the recycling
method, it would require more man power to sort out the object. This would not be very efficient
when compared to reusing it. Moreover, recycling an object would convert the object from one
form into another form. Hence, the recycling process would be longer and requires more
energy. Speaking from an environmental point of view, more energy input would be lost. Taking
timber for example, when timber goes through the process of being converted into mdf board, it
would require electricity to power the machineries to make the board. At the back of it all, more
and more coals are being burned in order to make mdf boards. Ultimately, we get a different
format medium of timber that can generate a lot of money, however it is all at the stake of our
environment.
In respect of the environment, the Walian House practices a sustainable approach by
reusing Chengal timber instead of purchasing newer ones. On the one hand, it saves cost and
on the other, it benefits the environment as a whole.

16
Figure 11: Chart Showing The Specific Heat Capacity of Materials (Greenspec, n.d)

17
Based from Figure 11, the chart display the specific heat capacity of the different
materials (Greenspec ,n.d). The specific heat capacity is the amount of energy (joule) needed to
heat up 1 ̊c of the temperature of that material. In it, we see that the specific heat capacity of
timber is 1200joule. Comparing timber with other materials, timber has one of the highest
specific heat capacity which would be advantageous to use it as a building material. This is
because the amount of energy needed to heat it up is comparatively higher than most of the
materials found on earth. Moreover, timber material are from a source of renewable energy.
Hence, making it a reliable and a green choice as a building material.

18
Figure 12: Swimming Pool as Heat Sink
Figure 13: Swimming Pool
3.5 Heat Sink
The implementation of a swimming pool or a pool can be seen in many of Jimmy Lim’s
work. When the swimming pool starts storing heat, it would act as a heat sink. This would allow
air from the opposite direction to be attracted inwards. Allowing cross ventilation to take place
and cooling the internal spaces to achieve thermal comfort. This process is known as the
radiative cooling. With the implementation of the swimming pool, the humidity surrounding the
area would also be higher, it can also cause discomfort especially in Malaysia which is a hot
and humid country. However, referring to Figure 6, the building is positioned to capturing the
inward wind. With the breezes constantly being drawn in like a natural fan, the heat from the
occupants can evaporate at a much faster pace (exploreit, 2012). Hence, allowing the
occupants to achieve thermal comfort in the space continuously passively.

19
Figure 14: Layered Roof Cross Ventilation
Figure 15: Ventilation Through Openings

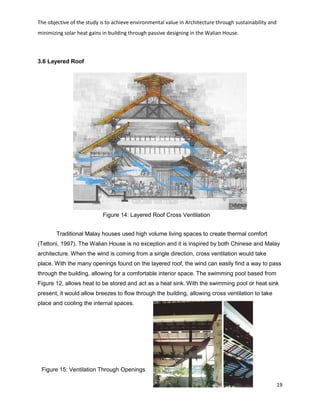

3.6 Layered Roof
Traditional Malay houses used high volume living spaces to create thermal comfort
(Tettoni, 1997). The Walian House is no exception and it is inspired by both Chinese and Malay
architecture. When the wind is coming from a single direction, cross ventilation would take
place. With the many openings found on the layered roof, the wind can easily find a way to pass
through the building, allowing for a comfortable interior space. The swimming pool based from
Figure 12, allows heat to be stored and act as a heat sink. With the swimming pool or heat sink
present, it would allow breezes to flow through the building, allowing cross ventilation to take
place and cooling the internal spaces.

20
Figure 16: Layered Roof Stacked Ventilation
Due to the unpredictable nature of wind, sometimes when cross ventilation do not occur,
the layered roof are also readily designed to allow stack ventilation to ventilate the place. Cool
breeze would enter from the bottom and hot air will rise and escape from the layering of the
roofs. The layering of the roofs in this central space allows for air movements to continuously
take place. Due to the open design of the space, air exchange takes place throughout the day.
The warm air are constantly escaping through the top and the cool breeze will keep flowing in.
At the same time, the layered roof are angled in a gabled form. This would help in
preventing rain water from entering during downpour. The rain water would flow down along the
angle of the gabled roof.

21
Figure 17: Overhanging Eaves As Shading Device
3.7 Long Overhangs Eaves
The Walian House has long overhanging eaves that act as a shading device. Based
from Figure 17, the overhanging eaves will block the sun from directly exposing the interior. By
eliminating direct sun exposure into the interior space, the internal heat gain would also be
greatly reduced. Hence, creating a comfortable and shaded interior spaces. The layered roof of
the Walian House is designed to totally shade the interior spaces, based from the cross section
in Figure 14 and Figure 16, we get to see that even during day time, the interior spaces would
be shielded from direct sun exposure. Buildings in the tropical climate should seek to follow this
example by designing a passive response to achieve sustainability. By doing so, we get to
design buildings that respond better with our type of climate.

22
4.0 How Can Passive Design Strategies Help In Maintaining A Harmonious Balance
Between Man-made Structure And Nature?
Humans and nature coexist in the same place. One of the basic necessity of a human is
shelter. Thus, houses and buildings are inevitably needed to keep humans sheltered and going.
With that in mind, we need to strife to strike a harmonious balance between man-made structure
and nature.
By practicing passive design strategies, we design building responsively and
accountable to nature by minimizing as much damage to the environment as possible by
tweaking our building to better suit the context. Passive design strategies will greatly reduce the
need for using external devices such as HVAC to achieve thermal comfort and embrace nature.
By not using external devices, energy sources would not need to be used. Hence, the burning of
fossil fuels could be reduced. For instance, by orientating and positioning the building to facing
away from the evening sun, it would benefit the internal spaces and reduce the total heat gain
internally. Therefore, the energy needed to cool the internal spaces to achieve thermal comfort
would also be lesser. Due to this reason, energy can be conserved.
Moreover, with the implementation of an open courtyard planning and the orientation of
the building, wind can be controlled and directed inwards. On the other hand, with the
implementation of a swimming pool that act as a heat sink, it would allow wing to be attracted
inwards, resulting in a cross ventilation happening. Besides that, garden and vegetations can
also greatly reduce the surrounding temperature of site. For instance, the shrubs and trees are
arranged to help in directing the wind inwards the building. Therefore, reducing the total heat
gain internally and the energy needed to cool the internal spaces to achieve thermal comfort.
Due to this reason, energy can greatly be conserved.
Furthermore, by reusing salvaged chengal timber as the building material, it would be an
act of practicing green and towards a sustainable approach. Timber materials are known for its
high specific heat capacity. Hence, the perk of using timber would be it requires more solar
energy to increase it by 1 ̊c. Resulting in a cooler internal spaces when compared to the usage
of other building materials. By reusing, it is efficient and there is no wastage in the material. Due
to this reason, energy can also be preserved.

23
Additionally, the design of the layered roof which encourages both cross ventilation and
stack ventilation diminishes the need for external devices to achieve thermal comfort in the
space. The long overhanging eaves of the layered roof are also designed to shelter the internal
spaces from the direct exposure of the sun. Hence, providing shade and a comfortable well
ventilated space. All in all, the design greatly benefited from the surrounding site context and it
is also custom designed to suit the location. Man-made structure can only truly coexist and
maintaining a harmonious balance with nature by respecting the site and responding to the site
with responsibility.

24

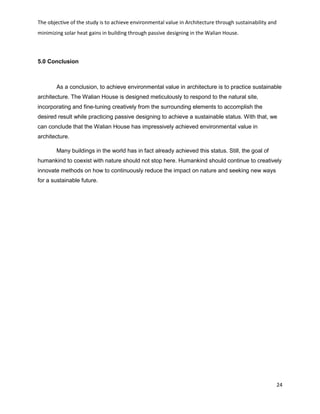

5.0 Conclusion
As a conclusion, to achieve environmental value in architecture is to practice sustainable
architecture. The Walian House is designed meticulously to respond to the natural site,
incorporating and fine-tuning creatively from the surrounding elements to accomplish the
desired result while practicing passive designing to achieve a sustainable status. With that, we
can conclude that the Walian House has impressively achieved environmental value in
architecture.
Many buildings in the world has in fact already achieved this status. Still, the goal of
humankind to coexist with nature should not stop here. Humankind should continue to creatively
innovate methods on how to continuously reduce the impact on nature and seeking new ways
for a sustainable future.

25
6.0 References
Chienergy. (n.d). The Feng Shui 8 directions. Retrieved from
http://www.chienergy.co.uk/8directions.htm
Gauzin-Müller, D. (2002). Sustainable architecture and urbanism: concepts, technologies,
examples. Springer Science & Business Media.
Ismail, H. W. (2005). Houses in Malaysia: Fusion of the East and the West. Penerbit UTM.
Jimmylimdesign. (n.d). Philosophy. Retrieved from http://www.jimmylimdesign.com/philosophy
Kamarul, S. K., Lilawati, A.W., Asmalia, C.A. (2004). Climatic design of the traditional Malay
house to meet the requirements of modern living. Retrieved from http://anzasca.net/wp-
content/uploads/2014/08/ANZAScA2004_Kamal.pdf
Lim, J. C. TROPICAL ARCHITECTURAL STUDIES TOWARDS A SUSTAINABLE FUTURE.
Mimar 26. (1987). Mimar Architecture In Development.
NCstateuniversity. (n.d). Vegetation: its role in weather and climate. Retrieved from
http://climate.ncsu.edu/edu/k12/.vegetation
Safarzadeh, H., & Bahadori, M. N. (2005). Airflow in buildings with courtyards. Iranian Journal of
Science & Technology, Transaction B, Engineering, 29(B2).
Seo, R.J, Saari,B.O. (2010). A Typology of Modern Housing in Malaysia. Retrieved from
http://www.archresearch.org/_data_store_1/JK_board/4/2013-
1/10.atypologyofmodernhousinginmalaysia_44.pdf
Tettoni, L. I. (1997). Tropical Asian Style. PeriplusEdition.
Weatheronline. (n.d). Wind direction. Retrieved from
http://www.weatheronline.co.uk/weather/maps/city?WMO=48647&CONT=asie&LAND=MM&AR
T=WDR&LEVEL=162&MOD=tab
Williamson, T. J., Radford, A., & Bennetts, H. (2003). Understanding sustainable architecture.
Taylor & Francis.
Wong, W.S. (1995). Timber structures in Malaysian architecture and buildings. Retrieved from
http://eprints.utas.edu.au/21980/1/whole_WongWai-Sung1997_thesis.pdf
Worldweatheronline. (n.d). Retrieved from http://www.worldweatheronline.com/kuala-lumpur-
weather-averages/kuala-lumpur/my.aspx

26

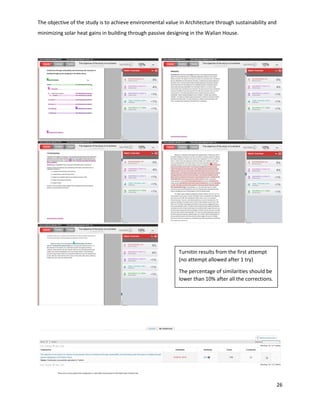

Turnitin results from the first attempt
(no attempt allowed after 1 try)
The percentage of similarities should be
lower than 10% after all the corrections.

Walian house case study

More Related Content

What's hot

Viewers also liked

Similar to Walian house case study

Recently uploaded

Walian house case study
