The document discusses the evolving role of the agile tester, emphasizing the integration of testing within the agile development process and the importance of automation. It outlines various testing practices, including unit tests and acceptance tests, and highlights the role of the whole team in quality assurance. Key strategies for effective testing, automation frameworks, and the cost of finding defects late are also covered.

1. W4
Agile Testing
5/1/2013 11:30:00 AM
Baking In Quality: The Evolving
Role of the Agile Tester
Presented by:
Dena Laterza
Agile Velocity
Brought to you by:
340 Corporate Way, Suite 300, Orange Park, FL 32073
888-268-8770 ∙ 904-278-0524 ∙ sqeinfo@sqe.com ∙ www.sqe.com

2. Dena Laterza
In software quality for seventeen years and currently a quality coach for Agile Velocity (AgileVelocity.com),
Dena Laterza became an agile enthusiast five years ago when the director of development brought in
agile coaches. The coaching succeeded - and so did the project! Dena has worked on applications in the
medical, lead management, contract management, project management, retail, and video-conferencing
domains - with both commercial and open-source test automation tools. She is continually learning and
mentoring others on automated testing tools and techniques for unit, integration, and GUI testing. Dena
lives and practices her craft in Austin, Texas.

3. BAKING QUALITY IN
The Evolving Role of the Agile Tester

4. Introduce yourself!
Talk to those around you. Introduce yourself.
What role do they play in software
development?

5. Illusion of Waterfall
80% Done??
Release
Requirements
Waterfall
Design
Development
QA

6. Working software is the primary
measure of progress
Sprint 2
Sprint 3
Sprint 4
Requirements
Requirements
Requirements
Requirements
Design
Design
Design
Design
Development
Development
Development
Development
QA
QA
QA
QA
Agile
Sprint 1
Copyright © 2013 Agile Velocity, LLC. All Rights Reserved.
Potentially Releasable
Product Increment
AGILE VELOCITY PROPRIETARY

7. Tear Down This Wall
Testers are integrated into Development
Image Source: http://www.thesniper.us
Copyright © 2013 Agile Velocity, LLC. All Rights Reserved.
AGILE VELOCITY PROPRIETARY

8. What is Testing in Agile?
Testing is embedded into the Definition of Done
Testing drives development
Test whenever possible throughout development
Agile testing is a team effort
Agile testing needs automation
http://www.agiletesting.info/what-is-agile-testing-112

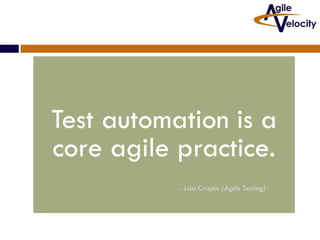

9. Test automation is a
core agile practice.
- Lisa Crispin (Agile Testing)

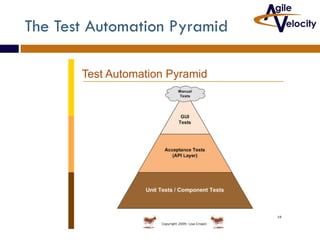

10. The Test Automation Pyramid

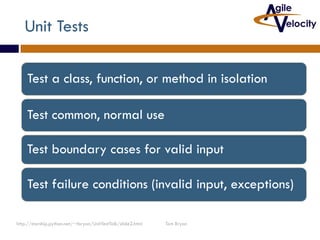

11. Unit Tests
Test a class, function, or method in isolation
Test common, normal use
Test boundary cases for valid input
Test failure conditions (invalid input, exceptions)
http://starship.python.net/~tbryan/UnitTestTalk/slide2.html
Tom Bryan

12. Acceptance Tests
Verifies User Story meets expectations of the stakeholders
Test with full stack running
Easy to understand outside of Development
Validate API, UI, persistence layer (db)
Tests the system from the user’s perspective
Copyright © 2013 Agile Velocity, LLC. All Rights Reserved.
AGILE VELOCITY PROPRIETARY

13. Acceptance Test Example
Feature: Login
Wrong way
Scenario: Tests login with invalid credentials
Given I am on the Login screen
When I enter "user1" in the username field
And I enter "mypassword" in the password field
And I click the Login button
Then I should see the error message "Username/password is invalid"
Right way
Scenario: Tests login with invalid credentials
Given I am on the Login screen
When I enter invalid credentials
Then I am not logged in and a meaningful error message is displayed

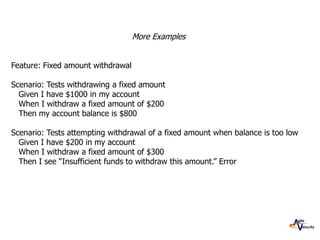

14. More Examples
Feature: Fixed amount withdrawal
Scenario: Tests withdrawing a fixed amount
Given I have $1000 in my account
When I withdraw a fixed amount of $200
Then my account balance is $800
Scenario: Tests attempting withdrawal of a fixed amount when balance is too low
Given I have $200 in my account
When I withdraw a fixed amount of $300
Then I see “Insufficient funds to withdraw this amount.” Error

15. Tests Are a Safety Net
Image Source: drawingwater.org
Copyright © 2013 Agile Velocity, LLC. All Rights Reserved.
AGILE VELOCITY PROPRIETARY

16. What is the cost of finding a
defect late?
20 Developers making 10 code changes a day
1 Day =
200 Changes
2 Weeks = 2,000
Changes
Images Source: http://wendistry.com/wp-content/uploads/2010/03/haystack.jpg
2 Months = 8,000
Changes

17. Image Source: innovativelearningdesignes.ca

18. As a user planning a trip, I want to know the last
date I can change my flight without being
charged a fee, so that I can avoid incurring a
charge.
Acceptance Criteria:
1. User must be logged in to create or edit a reservation
2. User can enter their fly date when creating or editing a
reservation
3. Last date to change flight without a fee is displayed to the
right of the fly date
4. Premium users can change their flight up to 3 days prior
5. All other users can change their flight up to two weeks prior
6. Date formats are based on language in Browser

19. Push Testing Down
• Strategize as a team on the
testing of each story/feature
Image: http://www.adp-ascensores.com/ascensores-alicante-promocion/

20. Push Testing Down
• Strategize as a team on the
testing of each story/feature
• Understand what can/cannot
be tested at each level
Image: http://www.adp-ascensores.com/ascensores-alicante-promocion/

21. Push Testing Down
• Strategize as a team on the
testing of each story/feature
• Understand what can/cannot
be tested at each level
• Ensure entire team gains
value from all automated
tests
Image: http://www.adp-ascensores.com/ascensores-alicante-promocion/

22. Push Testing Down
• Strategize as a team on the
testing of each story/feature
• Understand what can/cannot
be tested at each level
• Ensure entire team gains
value from all automated
tests
• Minimize duplication
Image: http://www.adp-ascensores.com/ascensores-alicante-promocion/

23. Test-Driven Development
Add a
test.
Run it.
See it fail.
Write
code.
Rinse, repeat
Refactor.
Run test.
See it
pass.
Image Source: http://code.dortikum.net

24. Acceptance Test-Driven
Development
Involve the • Product Owner
“Power of • Developer
• Tester
3”
Describe • Use plain words – “Tests
Application that the user cannot log in
with an invalid password”
Behavior
Copyright © 2013 Agile Velocity, LLC. All Rights Reserved.
AGILE VELOCITY PROPRIETARY

25. Automation Framework Strategy






Design for maintainability
Decide on execution frequency
Decide max execution time
Whole team owns
Whole team gets value
Make tests part of Continuous Integration
Image Source: www.cwrmobility.com

26. What Not To Automate
Everything
•On legacy systems, start with a smoke test
•Automate what gives the “most bang for your buck”
•Execution frequency is key
GUI
•Especially if the GUI is in flux
•Can tests be covered at a lower level?
Low priority functionality
•Non-mission critical
•Not frequently used
•Very little code churn

27. Baking quality in puts
YOU
in the driver’s seat!

28. Automated tests don’t find bugs, people do!

29. Thank You!
I look forward to improving this based on your
feedback.

30. Agile Velocity
Austin, TX
We provide Agile Training, Coaching, & Implementation Services
in the following areas:
Organization - Culture, Structure, Lean, Leadership, Enterprise Optimization
Product - Value Focus, Customer Needs, Prioritization, Planning, Portfolio, Strategy
Team - Scrum, Kanban, Quality, Speed to Market, Tool Selection & Implementation
Technical Practices - Test Automation, Test Driven Development (TDD), Continuous
Integration/ Delivery
Implementation - SaaS, Cloud, Architecture, Development, QA, Product Management

31. BDD Resources




http://jbehave.org/ (Java)
http://www.specflow.org/ (.NET)
http://cukes.info/ (Ruby)
The Cucumber Book: Behaviour-Driven
Development for Testers and Developers
by Matt Wynne and Aslak Hellesøy
