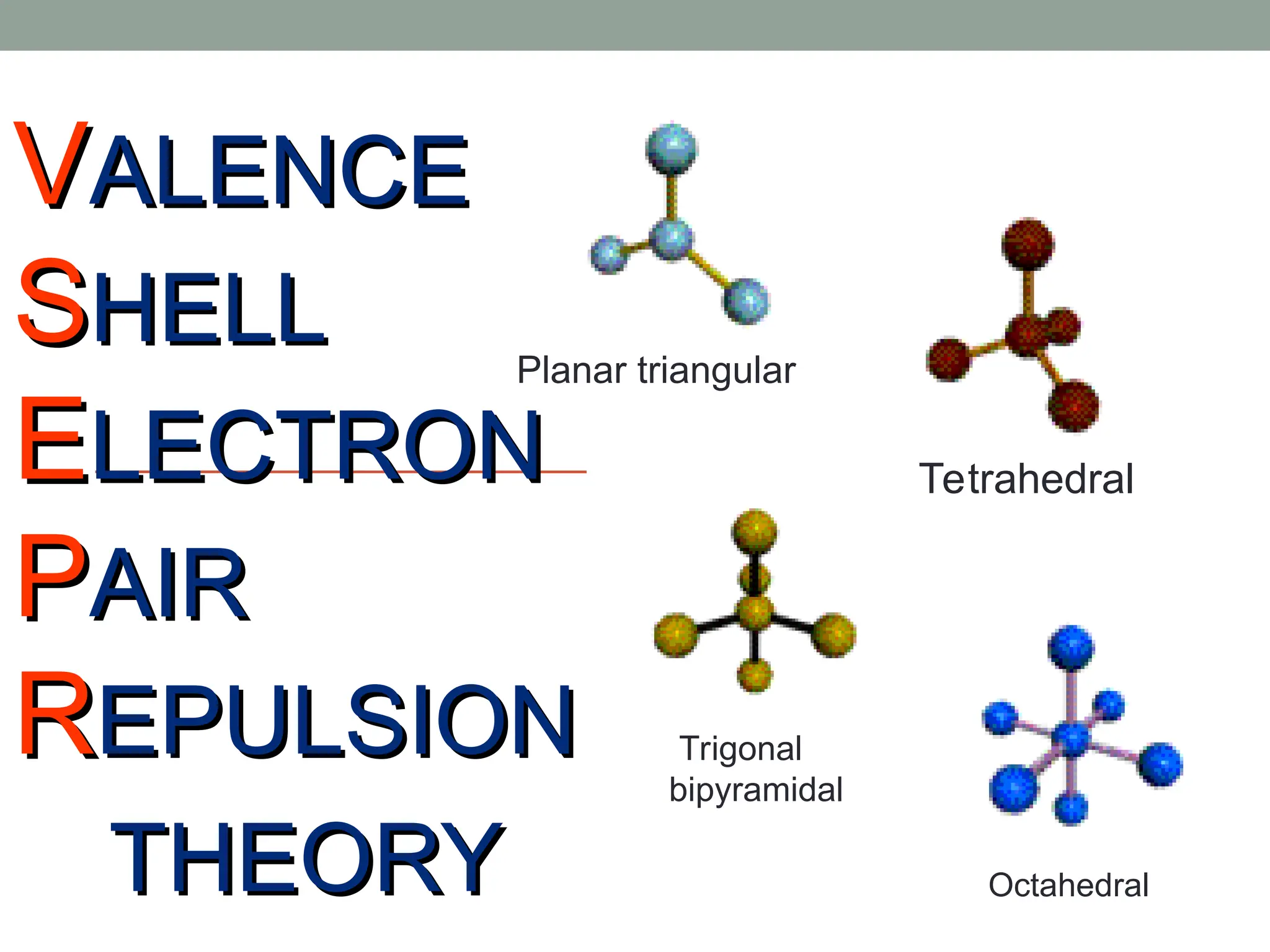

1. V
VALENCE
ALENCE
S
SHELL
HELL
E
ELECTRON
LECTRON
P
PAIR
AIR
R
REPULSION
EPULSION
THEORY
THEORY
Planar triangular
Tetrahedral
Trigonal
bipyramidal
Octahedral

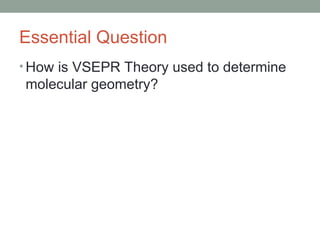

2. Essential Question
• How is VSEPR Theory used to determine
molecular geometry?

3. What is VSEPR Theory?
•Valence Shell Electron Pair Repulsion
Theory
•Predicts molecular geometry (shape)
•Only works for:
• Covalent compounds & polyatomic ions
• Compounds with central atom

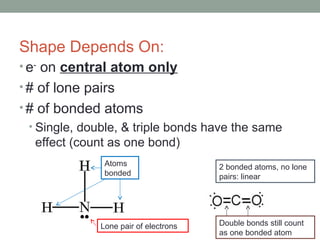

4. Shape Depends On:
• e-
on central atom only
• # of lone pairs
• # of bonded atoms
• Single, double, & triple bonds have the same
effect (count as one bond)
Atoms
bonded
Lone pair of electrons
2 bonded atoms, no lone
pairs: linear
Double bonds still count
as one bonded atom

5. Steps to Determine Shape
1. Draw Lewis Dot Structure
2. Count # of lone pairs on central atom
3. Count # of bonded atoms on central atom
4. Determine shape using the VSEPR
Shape Chart

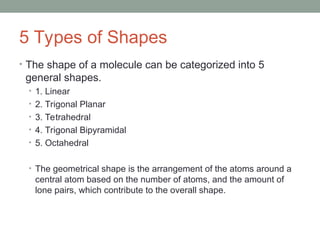

6. 5 Types of Shapes
• The shape of a molecule can be categorized into 5
general shapes.
• 1. Linear
• 2. Trigonal Planar
• 3. Tetrahedral
• 4. Trigonal Bipyramidal
• 5. Octahedral
• The geometrical shape is the arrangement of the atoms around a
central atom based on the number of atoms, and the amount of
lone pairs, which contribute to the overall shape.

7. • To represent a 3-D structure on a two dimensional surface, we use solid
lines, dashed lines, and wedges, as seen below.
Line= in the plane of the board
Wedge= coming out of the board
Dashes= going into the board
