The VSEPR (Valence Shell Electron Pair Repulsion) theory predicts molecular geometry based on electron pair repulsion. The shape is determined by drawing a Lewis diagram and counting bonding and non-bonding electron pairs. Common molecular shapes include tetrahedral for 4 electron pairs, trigonal pyramidal for 3 bonds and 1 lone pair, bent for 2 bonds and 2 lone pairs, and trigonal planar for 3 bonds. Angles vary based on number of lone pairs. Examples of molecular shapes are given for molecules like CH4, NH3, H2O, PF5 and SF6.

1. VSEPR THEORY
Valence Shell Electron Pair
-Repulsion Theory
05.12.2012

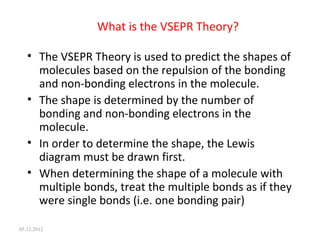

2. What is the VSEPR Theory?
• The VSEPR Theory is used to predict the shapes of
molecules based on the repulsion of the bonding
and non-bonding electrons in the molecule.
• The shape is determined by the number of
bonding and non-bonding electrons in the
molecule.
• In order to determine the shape, the Lewis
diagram must be drawn first.
• When determining the shape of a molecule with
multiple bonds, treat the multiple bonds as if they
were single bonds (i.e. one bonding pair)
05.12.2012

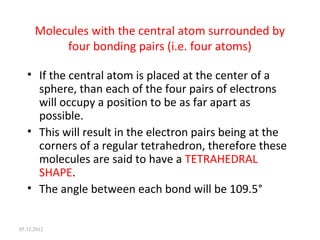

3. Molecules with the central atom surrounded by
four bonding pairs (i.e. four atoms)
• If the central atom is placed at the center of a
sphere, than each of the four pairs of electrons
will occupy a position to be as far apart as
possible.
• This will result in the electron pairs being at the
corners of a regular tetrahedron, therefore these
molecules are said to have a TETRAHEDRAL
SHAPE.
• The angle between each bond will be 109.5°
05.12.2012

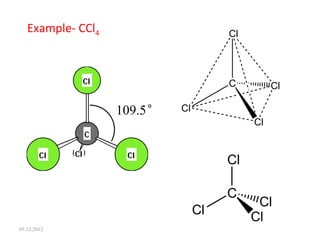

4. Example- CCl4
109.5°
Cl
C
Cl
Cl
Cl
Cl
C
Cl
Cl
Cl
05.12.2012

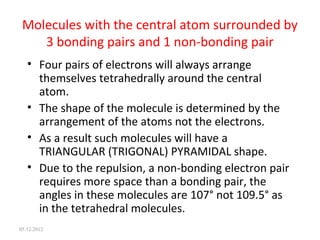

5. Molecules with the central atom surrounded by
3 bonding pairs and 1 non-bonding pair
• Four pairs of electrons will always arrange
themselves tetrahedrally around the central
atom.
• The shape of the molecule is determined by the
arrangement of the atoms not the electrons.
• As a result such molecules will have a
TRIANGULAR (TRIGONAL) PYRAMIDAL shape.
• Due to the repulsion, a non-bonding electron pair
requires more space than a bonding pair, the
angles in these molecules are 107° not 109.5° as
in the tetrahedral molecules.
05.12.2012

6. Example- NH3
107°
N
H
H
H
05.12.2012

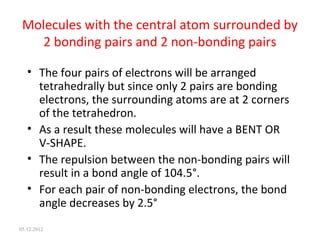

7. Molecules with the central atom surrounded by
2 bonding pairs and 2 non-bonding pairs
• The four pairs of electrons will be arranged
tetrahedrally but since only 2 pairs are bonding
electrons, the surrounding atoms are at 2 corners
of the tetrahedron.
• As a result these molecules will have a BENT OR
V-SHAPE.
• The repulsion between the non-bonding pairs will
result in a bond angle of 104.5°.
• For each pair of non-bonding electrons, the bond
angle decreases by 2.5°
05.12.2012

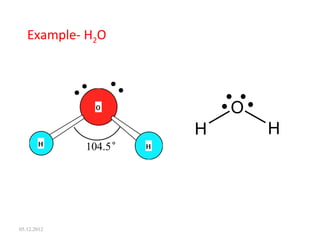

8. Example- H2O
104.5°
H
O
H
05.12.2012

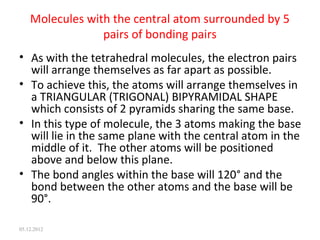

9. Molecules with the central atom surrounded by 5
pairs of bonding pairs
• As with the tetrahedral molecules, the electron pairs
will arrange themselves as far apart as possible.
• To achieve this, the atoms will arrange themselves in
a TRIANGULAR (TRIGONAL) BIPYRAMIDAL SHAPE
which consists of 2 pyramids sharing the same base.
• In this type of molecule, the 3 atoms making the base
will lie in the same plane with the central atom in the
middle of it. The other atoms will be positioned
above and below this plane.
• The bond angles within the base will 120° and the
bond between the other atoms and the base will be
90°.
05.12.2012

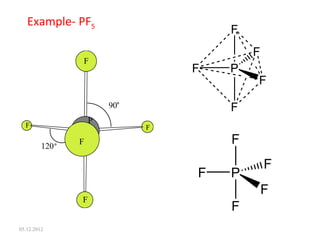

10. Example- PF5
F
F
F
F
F
P
90
120
°
°
F P
F
F
F
F
F P
F
F
F
F
05.12.2012

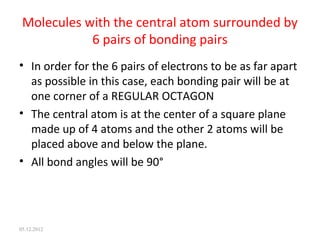

11. Molecules with the central atom surrounded by
6 pairs of bonding pairs
• In order for the 6 pairs of electrons to be as far apart
as possible in this case, each bonding pair will be at
one corner of a REGULAR OCTAGON
• The central atom is at the center of a square plane
made up of 4 atoms and the other 2 atoms will be
placed above and below the plane.
• All bond angles will be 90°
05.12.2012

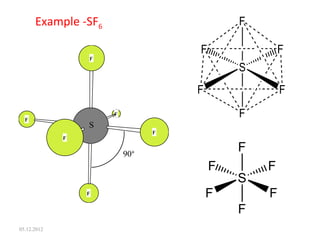

12. Example -SF6
S
90°
S
F
F F
F
F
F
S
F
F F
F
F
F
05.12.2012

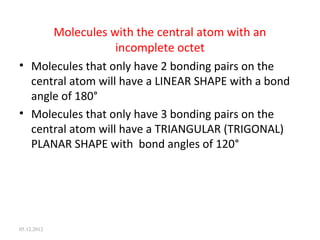

13. Molecules with the central atom with an
incomplete octet
• Molecules that only have 2 bonding pairs on the
central atom will have a LINEAR SHAPE with a bond
angle of 180°
• Molecules that only have 3 bonding pairs on the
central atom will have a TRIANGULAR (TRIGONAL)
PLANAR SHAPE with bond angles of 120°
05.12.2012

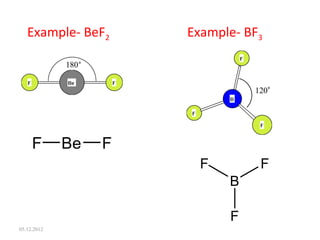

14. Example- BeF2 Example- BF3
120°
180°
Be FF
B
FF
F
05.12.2012

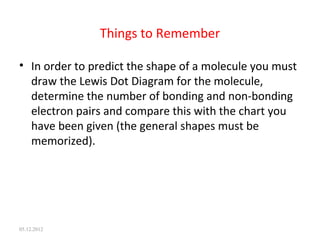

15. Things to Remember
• In order to predict the shape of a molecule you must
draw the Lewis Dot Diagram for the molecule,
determine the number of bonding and non-bonding
electron pairs and compare this with the chart you
have been given (the general shapes must be
memorized).
05.12.2012
