- 1. The Intelligent DataSharing Platform for Business Critical IoT Systems Angelo Corsaro, PhD Chief Technology Officer angelo.corsaro@prismtech.com
- 2. What’s the real“value” of Internet of Things and Industrial Internet?
- 3. CopyrightPrismTech,2014 The real valueof the Internet of Things (IoT) and the Industrial Internet (I2) are ubiquitous information availability and consequently the decisions that can be made from it, i.e. analytics.

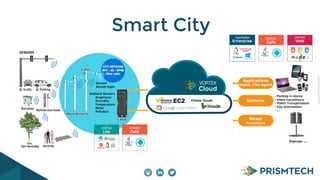

- 4. CopyrightPrismTech,2014 Real-time access toinformation about pollution, weather forecasts, traffic conditions, parking and public transportation enable smarter decisions about the policy to adopt to control traffic, such as reducing speed limits and prohibit traffic in certain areas. Likewise access to luminosity, traffic and soil humidity can help control lightning, public garden watering, etc. Example: Smart City

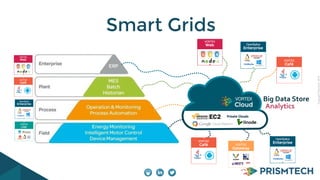

- 5. CopyrightPrismTech,2014 Real-time access toenergy production and demand can help match the production to the demand, improve the energy trading strategies, and allow micro-power generators to decide whether to sell or store their energy surplus. Example: Smart Grid
- 6.

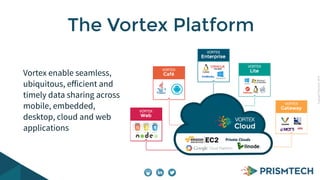

- 7. CopyrightPrismTech,2014 The Vortex Platform Vortexenable seamless, ubiquitous, efficient and timely data sharing across mobile, embedded, desktop, cloud and web applications

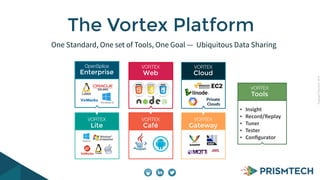

- 8. CopyrightPrismTech,2014 One Standard, Oneset of Tools, One Goal — Ubiquitous Data Sharing The Vortex Platform VORTEX Web VORTEX Lite VORTEX Gateway VORTEX Cloud Private Clouds VORTEX Tools • Insight • Record/Replay • Tuner • Tester • Configurator OpenSplice Enterprise VORTEX Café
- 9.
- 10. CopyrightPrismTech,2014 The best middlewareinfrastructure to simplify Distributed System development Reduce complexity of building, testing, integrating, and deploying high-performance, scalable, and fault-tolerant distributed systems Full DDS implementation Rich set of tools for testing, tuning and trouble-shooting OpenSplice Enterprise DDS#API Java Scala C/C++ C# DDSI/E## RT+Net TCP/IP UDP/IP

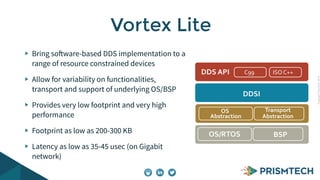

- 11. CopyrightPrismTech,2014 Bring software-based DDSimplementation to a range of resource constrained devices Allow for variability on functionalities, transport and support of underlying OS/BSP Provides very low footprint and very high performance Footprint as low as 200-300 KB Latency as low as 35-45 usec (on Gigabit network) Vortex Lite DDSI$$ DDS$API C99 ISO&C++ OS/RTOS$$ BSP Abstraction$ OS Abstraction$ Transport

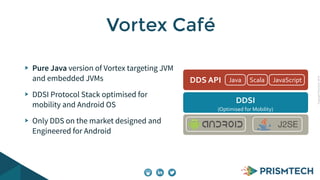

- 12. CopyrightPrismTech,2014 Pure Java versionof Vortex targeting JVM and embedded JVMs DDSI Protocol Stack optimised for mobility and Android OS Only DDS on the market designed and Engineered for Android Vortex Café J2SE DDSI$$ (Optimised*for*Mobility)* DDS$API Java Scala JavaScript

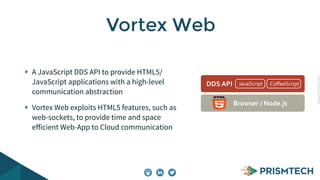

- 13. CopyrightPrismTech,2014 A JavaScript DDSAPI to provide HTML5/ JavaScript applications with a high-level communication abstraction Vortex Web exploits HTML5 features, such as web-sockets, to provide time and space efficient Web-App to Cloud communication Vortex Web DDS#API JavaScript Browser#/#Node.js CoffeeScript

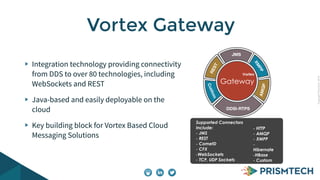

- 14. CopyrightPrismTech,2014 Integration technology providingconnectivity from DDS to over 80 technologies, including WebSockets and REST Java-based and easily deployable on the cloud Key building block for Vortex Based Cloud Messaging Solutions Vortex Gateway Supported Connectors Include: - JMS - REST - CometD - CFX -WebSockets - TCP, UDP Sockets - HTTP - AMQP - XMPP - Hibernate -HBase - Custom Vortex Gateway DDSI-RTPS CustomREST JMS XMPP AMQP
- 15.

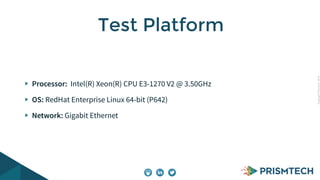

- 16. CopyrightPrismTech,2014 Processor: Intel(R) Xeon(R)CPU E3-1270 V2 @ 3.50GHz OS: RedHat Enterprise Linux 64-bit (P642) Network: Gigabit Ethernet Test Platform

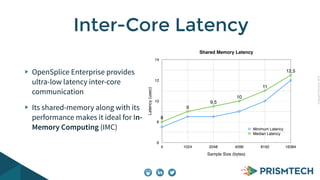

- 17. CopyrightPrismTech,2014 OpenSplice Enterprise provides ultra-lowlatency inter-core communication Its shared-memory along with its performance makes it ideal for In- Memory Computing (IMC) Inter-Core Latency Shared Memory Latency Latency(usec) 6 8 10 12 14 Sample Size (bytes) 4 1024 2048 4096 8192 16384 8 9 9,5 10 11 12,5 Minimum Latency Median Latency

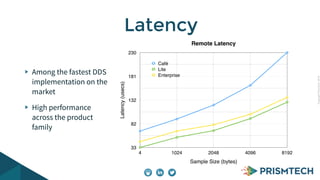

- 18. CopyrightPrismTech,2014 Among the fastestDDS implementation on the market High performance across the product family Latency Remote Latency Latency(usecs) 33 82 132 181 230 Sample Size (bytes) 4 1024 2048 4096 8192 Café Lite Enterprise

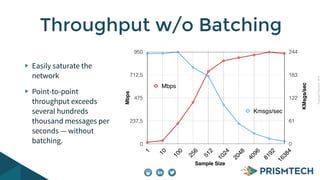

- 19. CopyrightPrismTech,2014 Easily saturate the network Point-to-point throughputexceeds several hundreds thousand messages per seconds — without batching. Throughput w/o Batching 1 10 100 256 512 1024 2048 4096 8192 16384 Kmsgs/sec Mbps 0 237,5 475 712,5 950 0 61 122 183 244 Mbps KMsgs/sec Sample Size

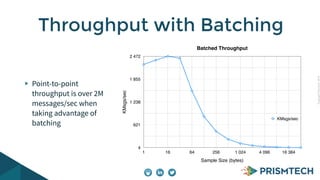

- 20. CopyrightPrismTech,2014 Point-to-point throughput is over2M messages/sec when taking advantage of batching Throughput with Batching Batched Throughput KMsgs/sec 4 621 1 238 1 855 2 472 Sample Size (bytes) 1 16 64 256 1 024 4 096 16 384 KMsgs/sec
- 21. CopyrightPrismTech,2014 Reliable Multicast Throughput increaseslinearly with number of consumers 1-to-N Throughput 1-to-N Throughput Mbps 941 5395,75 9850,5 14305,25 18760 Number of Consumers 1 2 3 4 5 6 10 20 941 1882 2823 3764 4705 5646 9390 18760 Throughput
- 22.
- 23. CopyrightPrismTech,2014 Vortex Cloud providesa universally accessible “Internet Service” for sharing data between DDS-enabled applications Vortex Cloud
- 24. CopyrightPrismTech,2014 Elastic and Fault-Tolerant Supports: -Public/Private Clouds - Unicast and Multicast Communication - Source Filtering - TLS-based security and authentication - HW Load-Balancer Vortex Cloud

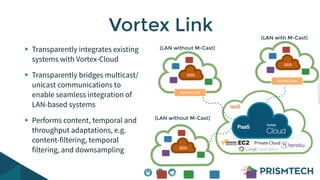

- 25. CopyrightPrismTech,2014 Transparently integrates existing systemswith Vortex-Cloud Transparently bridges multicast/ unicast communications to enable seamless integration of LAN-based systems Performs content, temporal and throughput adaptations, e.g. content-filtering, temporal filtering, and downsampling Vortex Link (LAN with M-Cast) (LAN without M-Cast) (LAN without M-Cast) Cafe EnterpriseWeb Lite Vortex!Link Vortex!Link
- 26.

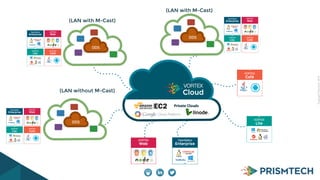

- 27. CopyrightPrismTech,2014 (LAN with M-Cast) (LANwith M-Cast) (LAN without M-Cast)

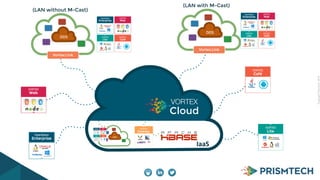

- 28. CopyrightPrismTech,2014 (LAN with M-Cast) (LANwithout M-Cast) Vortex!Link Vortex!Link VORTEX Cloud IaaS
- 29.

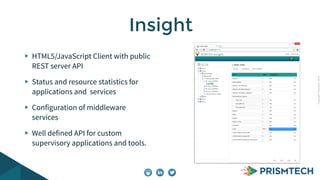

- 30. CopyrightPrismTech,2014 HTML5/JavaScript Client withpublic REST server API Status and resource statistics for applications and services Configuration of middleware services Well defined API for custom supervisory applications and tools. Insight
- 31.
- 32.
- 33.

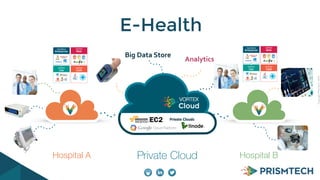

- 34. CopyrightPrismTech,2014 E-Health Hospital A PrivateCloud Analytics Big Data Store Hospital B
- 35.
- 36.
- 37.

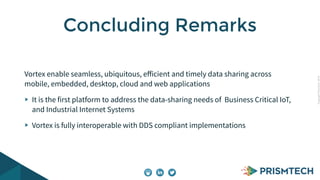

- 38. CopyrightPrismTech,2014 Vortex enable seamless,ubiquitous, efficient and timely data sharing across mobile, embedded, desktop, cloud and web applications It is the first platform to address the data-sharing needs of Business Critical IoT, and Industrial Internet Systems Vortex is fully interoperable with DDS compliant implementations Concluding Remarks
- 39. CopyrightPrismTech,2014 Vortex v1.0 willbe available in June 2014 Starting from May will be providing a series of webcasts to get you started in building IoT and I2 applications with Vortex What’s Next?
