Vortex II -- The Industrial IoT Connectivity Standard
The document discusses the evolution of IIoT architectures towards fog computing for enhanced connectivity, latency, and cost efficiency, highlighting the OMG Data Distribution Service (DDS) as a key standard in this domain. It details the capabilities of Vortex as a connectivity platform that optimizes DDS functionalities for various environments and integrates seamlessly with analytics technologies. Additionally, Vortex offers enhanced security features, improved scalability, and support for advanced data management, positioning DDS as the preferred standard for IIoT connectivity.
More Related Content
Similar to Vortex II -- The Industrial IoT Connectivity Standard
Vortex II -- The Industrial IoT Connectivity Standard
- 1.
- 2.
- 3. CopyrightPrismTech,2017 IIoT architectures areconverging toward Fog Computing to address their Connectivity, Latency, Throughput, Determinism, Security and Cost challenges From Cloud to fog computing
- 4. Horizontal, system-level architecturethat distributes computing, storage, control and networking functions closer to the users along a cloud-to-thing continuum Fog Computing | fɒg kəmˈpjuːtɪŋ|
- 5.

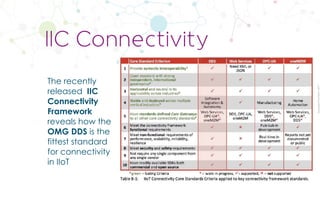

- 6. CopyrightPrismTech,2017 The recently released IIC Connectivity Framework revealshow the OMG DDS is the fittest standard for connectivity in IIoT IIC Connectivity

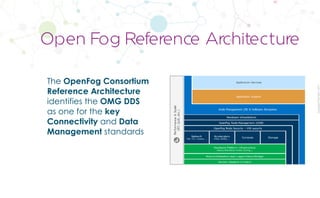

- 7. CopyrightPrismTech,2017 The OpenFog Consortium ReferenceArchitecture identifies the OMG DDS as one for the key Connectivity and Data Management standards Open Fog Reference Architecture

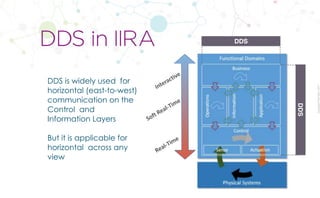

- 8. CopyrightPrismTech,2017 DDS is widelyused for horizontal (east-to-west) communication on the Control and Information Layers But it is applicable for horizontal across any view DDS in IIRA Real-Time Soft Real-Time Interactive DDS DDS

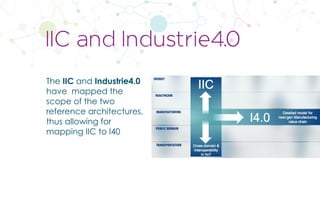

- 9. CopyrightPrismTech,2017 The IIC andIndustrie4.0 have mapped the scope of the two reference architectures, thus allowing for mapping IIC to I40 IIC and Industrie4.0

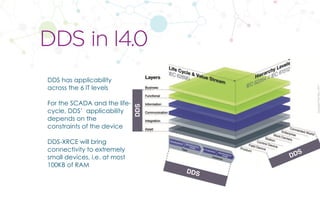

- 10. CopyrightPrismTech,2017 DDS has applicability acrossthe 6 IT levels For the SCADA and the life- cycle, DDS’ applicability depends on the constraints of the device DDS-XRCE will bring connectivity to extremely small devices, i.e. at most 100KB of RAM DDS in I4.0 DDS DDS DDS

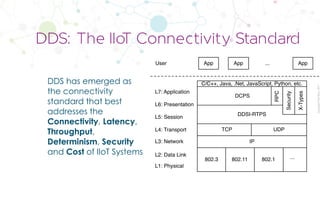

- 11. CopyrightPrismTech,2017 DDS has emergedas the connectivity standard that best addresses the Connectivity, Latency, Throughput, Determinism, Security and Cost of IIoT Systems DDS: The IIoT Connectivity Standard TCP UDP IP 802.3 802.11 DDSI-RTPS L3: Network App App App L2: Data Link L1: Physical L4: Transport L5: Session L6: Presentation User L7: Application Security X-Types DCPS RPC ... 802.1 ... C/C++, Java, .Net, JavaScript, Python, etc.
- 12.
- 13. CopyrightPrismTech,2017 Vortex builds-upon andextends DDS capabilities to provide the most efficient, ubiquitous, interoperable, secure and multi-platform connectivity and data virtualisation infrastructure for IoT / IIoT ortex
- 14.
- 15. CopyrightPrismTech,2017 Vortex provides differentDDS implementations optimised for OT, IT and consumer platforms Each of the DDS implementation optimises usability for its target environments Vortex DDS flavours VORTEX Café VORTEX Web VORTEX OpenSplice VORTEX Lite
- 16. CopyrightPrismTech,2017 The most scalable,deterministic and complete DDS implementation on the market Federated deployment and advanced traffic scheduling for total control over nodal communication resources Vortex OpenSplice VORTEX Café VORTEX Web VORTEX OpenSplice VORTEX Lite

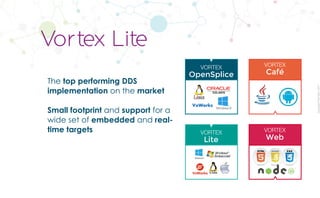

- 17. CopyrightPrismTech,2017 The top performingDDS implementation on the market Small footprint and support for a wide set of embedded and real- time targets Vortex Lite VORTEX Café VORTEX Web VORTEX OpenSplice VORTEX Lite
- 18. CopyrightPrismTech,2017 The only 100%pure Java DDS implementation on the market High performance and optimised for Android Vortex Cafe VORTEX Café VORTEX Web VORTEX OpenSplice VORTEX Lite
- 19. CopyrightPrismTech,2017 Pure JavaScript, plug-in-free, DDSimplementation Brings Real-Time connectivity to HTML5 applications Vortex Web VORTEX Café VORTEX Web VORTEX OpenSplice VORTEX Lite
- 20.
- 21. CopyrightPrismTech,2017 Vortex Fog andVortex Cloud transparently, securely and efficiently extend DDS systems to Internet Scale Vortex Infrastructure

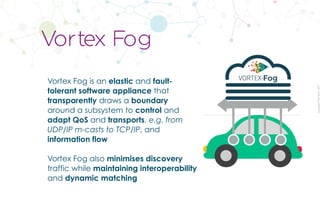

- 22. CopyrightPrismTech,2017 Vortex Fog isan elastic and fault- tolerant software appliance that transparently draws a boundary around a subsystem to control and adapt QoS and transports, e.g. from UDP/IP m-casts to TCP/IP, and information flow Vortex Fog also minimises discovery traffic while maintaining interoperability and dynamic matching Vortex Fog

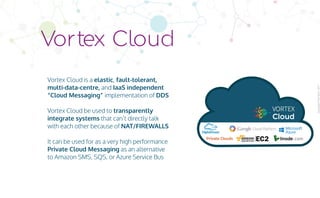

- 23. CopyrightPrismTech,2017 Vortex Cloud isa elastic, fault-tolerant, multi-data-centre, and IaaS independent “Cloud Messaging” implementation of DDS Vortex Cloud be used to transparently integrate systems that can’t directly talk with each other because of NAT/FIREWALLS It can be used for as a very high performance Private Cloud Messaging as an alternative to Amazon SMS, SQS, or Azure Service Bus Vortex Cloud

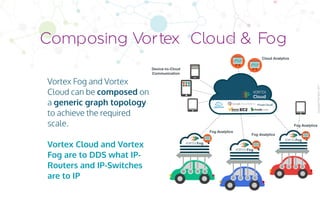

- 24. CopyrightPrismTech,2017 Vortex Fog andVortex Cloud can be composed on a generic graph topology to achieve the required scale. Vortex Cloud and Vortex Fog are to DDS what IP- Routers and IP-Switches are to IP Composing Vortex Cloud & Fog
- 25.

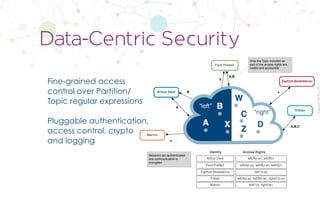

- 26. CopyrightPrismTech,2017 Fine-grained access control overPartition/ Topic regular expressions Pluggable authentication, access control, crypto and logging Data-Centric Security Arthur Dent Arthur Dent Ford Prefect Zaphod Beeblebrox Marvin Trillian left/A(r,w), left/B(r) left/A(r,w), left/B(r,w), left/X(r) left/*(r,w) left/*(r), right/(w) left/A(r,w), left/B(r,w), right/C(r,w) Ford Prefect Zaphod Beeblebrox Trillian Marvin A B A,B X * * A,B,C Identity Access Rights Sessions are authenticated and communication is encrypted Only the Topic included as part of the access rights are visible and accessible

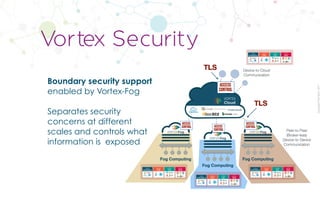

- 27. CopyrightPrismTech,2017 Boundary security support enabledby Vortex-Fog Separates security concerns at different scales and controls what information is exposed Vortex Security
- 28.
- 29. CopyrightPrismTech,2017 Vortex comes withnative integration with some of the most popular open source and commercial Analytics Technology Analytics
- 30. CopyrightPrismTech,2017 Vortex has integration towardseveral tools and technologies. For instance, it integrates with Node- Red, Apache Camel, Freeboard, etc. And Many Other.
- 31. CopyrightPrismTech,2017 What’s new inVortex 2.4
- 32.

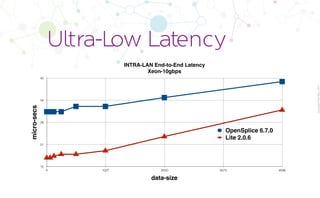

- 33. CopyrightPrismTech,2017 Ultra-Low Latency INTRA-LAN End-to-EndLatency Xeon-10gbps micro-secs 15 21 28 34 40 data-size 4 1027 2050 3073 4096 OpenSplice 6.7.0 Lite 2.0.6

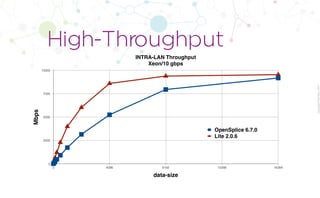

- 34. CopyrightPrismTech,2017 High-Throughput INTRA-LAN Throughput Xeon/10 gbps Mbps 0 2500 5000 7500 10000 data-size 04096 8192 12288 16384 OpenSplice 6.7.0 Lite 2.0.6

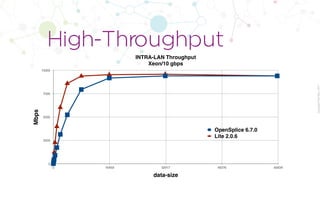

- 35. CopyrightPrismTech,2017 High-Throughput INTRA-LAN Throughput Xeon/10 gbps Mbps 0 2500 5000 7500 10000 data-size 016459 32917 49376 65834 OpenSplice 6.7.0 Lite 2.0.6
- 36.

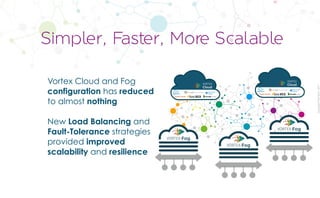

- 37. CopyrightPrismTech,2017 Vortex Cloud andFog configuration has reduced to almost nothing New Load Balancing and Fault-Tolerance strategies provided improved scalability and resilience Simpler, Faster, More Scalable
- 38.

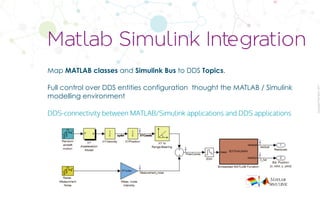

- 39. CopyrightPrismTech,2017 Matlab Simulink Integration MapMATLAB classes and Simulink Bus to DDS Topics. Full control over DDS entities configuration thought the MATLAB / Simulink modelling environment DDS-connectivity between MATLAB/Simulink applications and DDS applications
- 40.

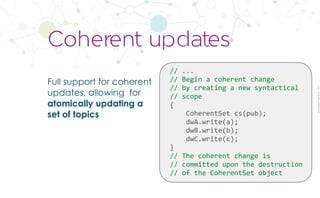

- 41. CopyrightPrismTech,2017 Full support forcoherent updates, allowing for atomically updating a set of topics Coherent updates // ... // Begin a coherent change // by creating a new syntactical // scope { CoherentSet cs(pub); dwA.write(a); dwB.write(b); dwC.write(c); } // The coherent change is // committed upon the destruction // of the CoherentSet object

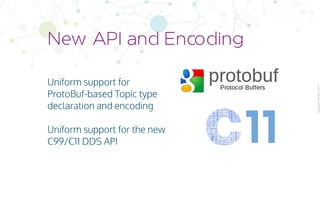

- 42. CopyrightPrismTech,2017 Uniform support for ProtoBuf-basedTopic type declaration and encoding Uniform support for the new C99/C11 DDS API New API and Encoding 11

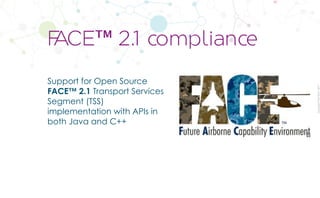

- 43. CopyrightPrismTech,2017 Support for OpenSource FACE™ 2.1 Transport Services Segment (TSS) implementation with APIs in both Java and C++ FACE™ 2.1 compliance
- 44.
- 45. CopyrightPrismTech,2017 DDS is emergingas the standard for connectivity and data management in IIoT Vortex II provides the most advanced and feature rich DDS-based connectivity and data- management platform Vortex II
- 46.
