Temperature Sensor
message TempSensor {
option (.omg.dds.type) = {name: "dds.TempSensor"};
required string sid = 1 [(.omg.dds.member).key = true];
required float temp = 2;
}
struct TempSensor {
string sid;
float temp;
};
#pragma keylist TempSensor sid
IDL Google Protocol Buffer](https://image.slidesharecdn.com/vortex-cloud-beyond-cloud-messaging-mar15-150319064259-conversion-gate01/85/Vortex-Cloud-Beyond-Cloud-Messaging-27-320.jpg)

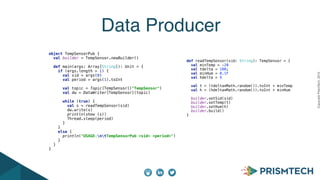

![CopyrightPrismTech,2015
Data Producer
object TempSensorPub {
val builder = TempSensor.newBuilder()
def main(args: Array[String]): Unit = {
if (args.length > 1) {
val sid = args(0)
val period = args(1).toInt
val topic = Topic[TempSensor]("TempSensor")
val dw = DataWriter[TempSensor](topic)
while (true) {
val s = readTempSensor(sid)
dw.write(s)
println(show (s))
Thread.sleep(period)
}
}
else {
println("USAGE:ntTempSensorPub <sid> <period>")
}
}
}
def readTempSensor(sid: String): TempSensor = {
val minTemp = -20
val tdelta = 100;
val minHum = 0.1F
val hdelta = 9
val t = (tdelta*Math.random()).toInt + minTemp
val h = (hdelta*Math.random()).toInt + minHum
builder.setSid(sid)
builder.setTemp(t)
builder.setHum(h)
builder.build()
}](https://image.slidesharecdn.com/vortex-cloud-beyond-cloud-messaging-mar15-150319064259-conversion-gate01/85/Vortex-Cloud-Beyond-Cloud-Messaging-28-320.jpg)

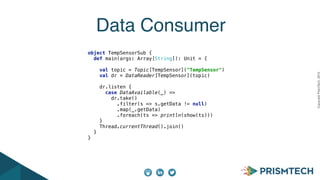

![CopyrightPrismTech,2015
Data Consumer
object TempSensorSub {
def main(args: Array[String]): Unit = {
val topic = Topic[TempSensor]("TempSensor")
val dr = DataReader[TempSensor](topic)
dr.listen {
case DataAvailable(_) =>
dr.take()
.filter(s => s.getData != null)
.map(_.getData)
.foreach(ts => println(show(ts)))
}
Thread.currentThread().join()
}
}](https://image.slidesharecdn.com/vortex-cloud-beyond-cloud-messaging-mar15-150319064259-conversion-gate01/85/Vortex-Cloud-Beyond-Cloud-Messaging-29-320.jpg)
![CopyrightPrismTech,2015
The humidity attribute is
declared optional to
allow older consumer to
match this type
At the same time, new
consumer will be able to
detect that old
temperature sensor are
not providing humidity
value
Extended Temperature Sensor Type
message TempSensor {
option (.omg.dds.type) = {name: "dds.TempSensor"};
required string sid = 1 [(.omg.dds.member).key = true];
required float temp = 2;
optional float hum = 3;
}](https://image.slidesharecdn.com/vortex-cloud-beyond-cloud-messaging-mar15-150319064259-conversion-gate01/85/Vortex-Cloud-Beyond-Cloud-Messaging-31-320.jpg)
Uploaded byADLINK Technology IoT
Vortex Cloud Beyond Cloud Messaging
The document discusses the evolution of cloud messaging, highlighting the transition from traditional cloud messaging to Vortex Cloud, which supports real-time data delivery, high data rates, and both cloud and fog computing architectures. Vortex Cloud provides a universally accessible service for data sharing among DDS-enabled applications, catering to the needs of the Internet of Things and offering features like device-to-device communication and customizable load balancing. It emphasizes the importance of reducing management layers in application development while ensuring optimal performance for various platform requirements.
More Related Content
Similar to Vortex Cloud Beyond Cloud Messaging
Vortex Cloud Beyond Cloud Messaging
- 1. Angelo Corsaro, PhD ChiefTechnology Officer angelo.corsaro@prismtech.com Beyond Cloud Messaging… Cloud
- 2. CopyrightPrismTech,2014 Infrastructure as asService (IaaS): Elastic compute fabric that you can “consume” as opposed to own and manage, e.g., Azure, Amazon EC2, Google Compute Engine, Linode, etc. Platform as a Service (PaaS): Enhances IaaS with a series of managed middleware and storage services ready to be “consumed” by your application, e.g., Azure Service Bus, Amazon Dynamo, Vortex Cloud Software as a Service (IaaS): A full application as a service available for you to be consumed, e.g., SalesForces Cloud Computing The main idea behind cloud computing incrementally reduce the number of layers that you are required to own and manage in order to build applications

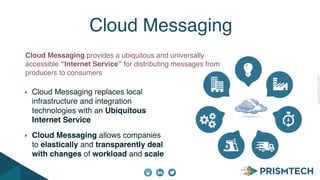

- 3. CopyrightPrismTech,2014 Cloud Messaging replaceslocal infrastructure and integration technologies with an Ubiquitous Internet Service Cloud Messaging allows companies to elastically and transparently deal with changes of workload and scale Cloud Messaging Cloud Messaging provides a ubiquitous and universally accessible “Internet Service” for distributing messages from producers to consumers

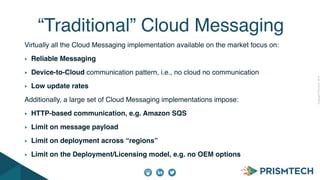

- 4. CopyrightPrismTech,2014 Virtually all theCloud Messaging implementation available on the market focus on: Reliable Messaging Device-to-Cloud communication pattern, i.e., no cloud no communication Low update rates Additionally, a large set of Cloud Messaging implementations impose: HTTP-based communication, e.g. Amazon SQS Limit on message payload Limit on deployment across “regions” Limit on the Deployment/Licensing model, e.g. no OEM options “Traditional” Cloud Messaging

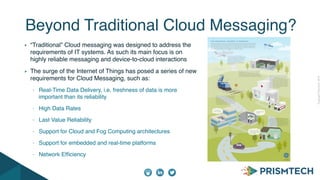

- 5. CopyrightPrismTech,2014 “Traditional” Cloud messagingwas designed to address the requirements of IT systems. As such its main focus is on highly reliable messaging and device-to-cloud interactions The surge of the Internet of Things has posed a series of new requirements for Cloud Messaging, such as: - Real-Time Data Delivery, i.e. freshness of data is more important than its reliability - High Data Rates - Last Value Reliability - Support for Cloud and Fog Computing architectures - Support for embedded and real-time platforms - Network Efficiency Beyond Traditional Cloud Messaging?
- 6.

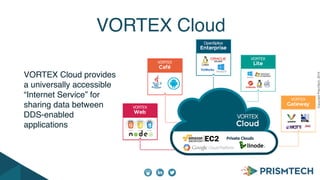

- 7. CopyrightPrismTech,2014 VORTEX Cloud provides auniversally accessible “Internet Service” for sharing data between DDS-enabled applications VORTEX Cloud
- 8. CopyrightPrismTech,2014 Elastic and Fault-Tolerant Public/PrivateClouds Deployments Reliable and Best-Effort Data Sharing Last value Reliability Unicast and Multicast Communication Support for enterprise, embedded, and mobile platforms Source Filtering Customisable Load-Balancing VORTEX Cloud

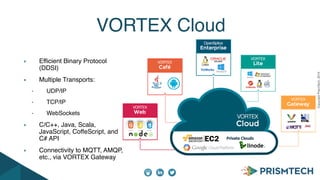

- 9. CopyrightPrismTech,2014 Efficient Binary Protocol (DDSI) MultipleTransports: - UDP/IP - TCP/IP - WebSockets C/C++, Java, Scala, JavaScript, CoffeScript, and C# API Connectivity to MQTT, AMQP, etc., via VORTEX Gateway VORTEX Cloud

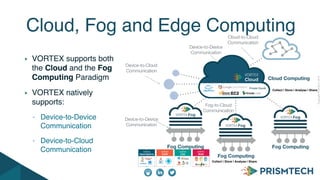

- 10. CopyrightPrismTech,2014 VORTEX supports both theCloud and the Fog Computing Paradigm VORTEX natively supports: - Device-to-Device Communication - Device-to-Cloud Communication Cloud, Fog and Edge Computing Cloud Computing Fog Computing Device-to-Cloud Communication Device-to-Device Communication Fog-to-Cloud Communication Cloud-to-Cloud Communication Device-to-Device Communication Collect | Store | Analyse | Share Collect | Store | Analyse | Share Fog Computing Fog Computing

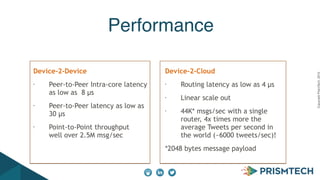

- 11. CopyrightPrismTech,2015 Performance Device-2-Device • Peer-to-Peer Intra-corelatency as low as 8 µs • Peer-to-Peer latency as low as 30 µs • Point-to-Point throughput well over 2.5M msg/sec Device-2-Cloud • Routing latency as low as 4 µs • Linear scale out • 44K* msgs/sec with a single router, 4x times more the average Tweets per second in the world (~6000 tweets/sec)! *2048 bytes message payload
- 12.
- 13. CopyrightPrismTech,2014 Cloud Computing Device-to-Cloud Communication Peer-to-Peer (Brokerless) Device-to-Device Communication Device communicate peer-to-peerwithin a fog- domain and through Cloud across fog- domains Some device concurrently communicate with peers and the cloud Device-to-Cloud Communication Device-to-Cloud Communication

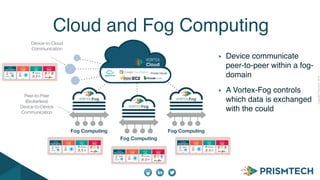

- 14. CopyrightPrismTech,2014 Cloud and FogComputing Device communicate peer-to-peer within a fog- domain A Vortex-Fog controls which data is exchanged with the could Device-to-Cloud Communication Peer-to-Peer (Brokerless) Device-to-Device Communication Fog Computing Fog Computing Fog Computing

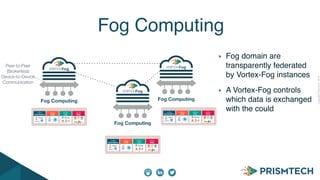

- 15. CopyrightPrismTech,2014 Fog Computing Peer-to-Peer (Brokerless) Device-to-Device Communication Fog domainare transparently federated by Vortex-Fog instances A Vortex-Fog controls which data is exchanged with the could Fog Computing Fog Computing Fog Computing
- 16.

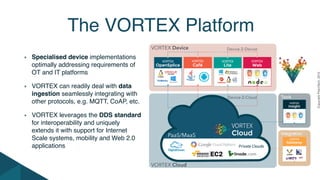

- 17. CopyrightPrismTech,2015 Specialised device implementations optimallyaddressing requirements of OT and IT platforms VORTEX can readily deal with data ingestion seamlessly integrating with other protocols, e.g. MQTT, CoAP, etc. VORTEX leverages the DDS standard for interoperability and uniquely extends it with support for Internet Scale systems, mobility and Web 2.0 applications The VORTEX Platform PaaS/MaaS
- 18.

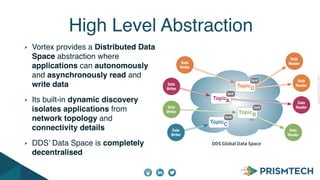

- 19. CopyrightPrismTech,2014 Vortex provides aDistributed Data Space abstraction where applications can autonomously and asynchronously read and write data Its built-in dynamic discovery isolates applications from network topology and connectivity details DDS’ Data Space is completely decentralised High Level Abstraction DDS Global Data Space ... Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Data Reader Data Writer TopicA QoS TopicB QoS TopicC QoS TopicD QoS
- 20. CopyrightPrismTech,2014 DDS supports thedefinition of Common Information Models. These data models allow to naturally represent physical and virtual entities characterising the application domain DDS types are extensible and evolvable, thus allowing incremental updates and upgrades Data Centricity

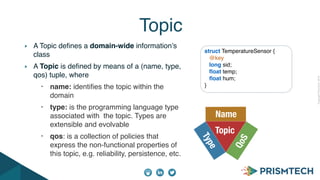

- 21. CopyrightPrismTech,2014 A Topic definesa domain-wide information’s class A Topic is defined by means of a (name, type, qos) tuple, where • name: identifies the topic within the domain • type: is the programming language type associated with the topic. Types are extensible and evolvable • qos: is a collection of policies that express the non-functional properties of this topic, e.g. reliability, persistence, etc. Topic Topic Type Name QoS struct TemperatureSensor { @key long sid; float temp; float hum; }

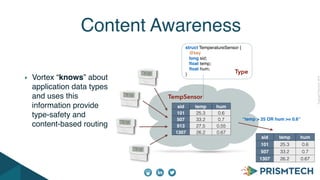

- 22. CopyrightPrismTech,2014 Vortex “knows” about applicationdata types and uses this information provide type-safety and content-based routing Content Awareness struct TemperatureSensor { @key long sid; float temp; float hum; } sid temp hum 101 25.3 0.6 507 33.2 0.7 913 27,5 0.55 1307 26.2 0.67 “temp > 25 OR hum >= 0.6” sid temp hum 101 25.3 0.6 507 33.2 0.7 1307 26.2 0.67 Type TempSensor

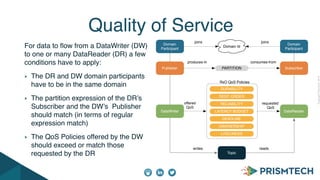

- 23. CopyrightPrismTech,2014 For data toflow from a DataWriter (DW) to one or many DataReader (DR) a few conditions have to apply: The DR and DW domain participants have to be in the same domain The partition expression of the DR’s Subscriber and the DW’s Publisher should match (in terms of regular expression match) The QoS Policies offered by the DW should exceed or match those requested by the DR Quality of Service Domain Participant DURABILITY OWENERSHIP DEADLINE LATENCY BUDGET LIVELINESS RELIABILITY DEST. ORDER Publisher DataWriter PARTITION DataReader Subscriber Domain Participant offered QoS Topic writes reads Domain Id joins joins produces-in consumes-from RxO QoS Policies requested QoS
- 24. Building App withVortex
- 25. Example1: Strong Typing andExtensibility

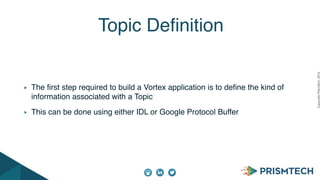

- 26. CopyrightPrismTech,2015 The first steprequired to build a Vortex application is to define the kind of information associated with a Topic This can be done using either IDL or Google Protocol Buffer Topic Definition

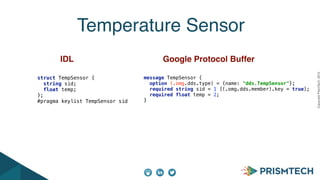

- 27. CopyrightPrismTech,2015 Temperature Sensor message TempSensor{ option (.omg.dds.type) = {name: "dds.TempSensor"}; required string sid = 1 [(.omg.dds.member).key = true]; required float temp = 2; } struct TempSensor { string sid; float temp; }; #pragma keylist TempSensor sid IDL Google Protocol Buffer
- 28. CopyrightPrismTech,2015 Data Producer object TempSensorPub{ val builder = TempSensor.newBuilder() def main(args: Array[String]): Unit = { if (args.length > 1) { val sid = args(0) val period = args(1).toInt val topic = Topic[TempSensor]("TempSensor") val dw = DataWriter[TempSensor](topic) while (true) { val s = readTempSensor(sid) dw.write(s) println(show (s)) Thread.sleep(period) } } else { println("USAGE:ntTempSensorPub <sid> <period>") } } } def readTempSensor(sid: String): TempSensor = { val minTemp = -20 val tdelta = 100; val minHum = 0.1F val hdelta = 9 val t = (tdelta*Math.random()).toInt + minTemp val h = (hdelta*Math.random()).toInt + minHum builder.setSid(sid) builder.setTemp(t) builder.setHum(h) builder.build() }
- 29. CopyrightPrismTech,2015 Data Consumer object TempSensorSub{ def main(args: Array[String]): Unit = { val topic = Topic[TempSensor]("TempSensor") val dr = DataReader[TempSensor](topic) dr.listen { case DataAvailable(_) => dr.take() .filter(s => s.getData != null) .map(_.getData) .foreach(ts => println(show(ts))) } Thread.currentThread().join() } }

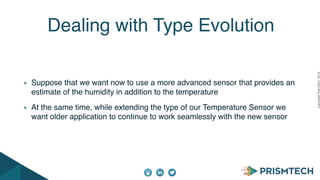

- 30. CopyrightPrismTech,2015 Suppose that wewant now to use a more advanced sensor that provides an estimate of the humidity in addition to the temperature At the same time, while extending the type of our Temperature Sensor we want older application to continue to work seamlessly with the new sensor Dealing with Type Evolution
- 31. CopyrightPrismTech,2015 The humidity attributeis declared optional to allow older consumer to match this type At the same time, new consumer will be able to detect that old temperature sensor are not providing humidity value Extended Temperature Sensor Type message TempSensor { option (.omg.dds.type) = {name: "dds.TempSensor"}; required string sid = 1 [(.omg.dds.member).key = true]; required float temp = 2; optional float hum = 3; }
- 32.

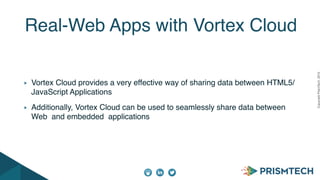

- 33. CopyrightPrismTech,2015 Vortex Cloud providesa very effective way of sharing data between HTML5/ JavaScript Applications Additionally, Vortex Cloud can be used to seamlessly share data between Web and embedded applications Real-Web Apps with Vortex Cloud

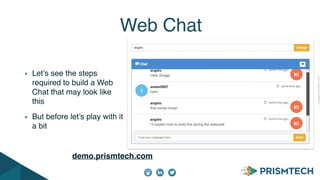

- 34. CopyrightPrismTech,2014 Let’s see thesteps required to build a Web Chat that may look like this But before let’s play with it a bit Web Chat demo.prismtech.com

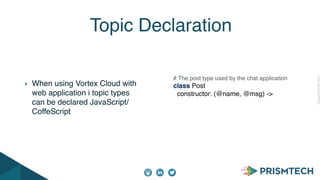

- 35. CopyrightPrismTech,2014 When using VortexCloud with web application i topic types can be declared JavaScript/ CoffeScript Topic Declaration # The post type used by the chat application class Post constructor: (@name, @msg) ->
