Getting Started with Vortex

The document discusses the Vortex technology's capabilities for data sharing in industrial IoT, emphasizing its decentralized communication via the DDS global data space. It details how applications can autonomously read and write data while allowing for dynamic discovery and adaptive connectivity, which enhances data sharing efficiency and reduces bottlenecks. Moreover, it covers the various programming languages supported and the security features ensuring secure data transmission across different devices.

Embed presentation

Download as PDF, PPTX
Data Sharing in Industrial IoT Angelo Corsaro, PhD Chief Technology Officer angelo.corsaro@prismtech.com
Vortex is a standard technology for efficient, ubiquitous, interoperable, secure and platform independent data sharing across network connected devices in151 Characters
Vortex's Coordination Model

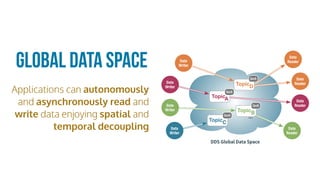

Applications can autonomously and asynchronously read and write data enjoying spatial and temporal decoupling DDS Global Data Space ... Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Data Reader Data Writer TopicA QoS TopicB QoS TopicC QoS TopicD QoS Global Data Space

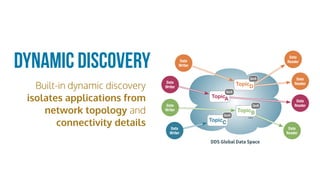

Built-in dynamic discovery isolates applications from network topology and connectivity details DDS Global Data Space ... Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Data Reader Data Writer TopicA QoS TopicB QoS TopicC QoS TopicD QoS Dynamic Discovery

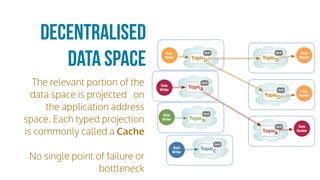

The relevant portion of the data space is projected on the application address space. Each typed projection is commonly called a Cache No single point of failure or bottleneck Decentralised Data Space Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Data Writer TopicA QoS TopicB QoS TopicC QoS TopicD QoS TopicD QoS TopicD QoS TopicA QoS

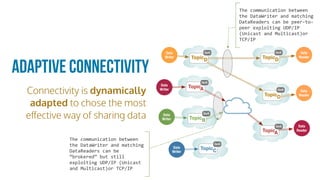

Connectivity is dynamically adapted to chose the most effective way of sharing data Adaptive Connectivity Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Data Writer TopicA QoS TopicB QoS TopicC QoS TopicD QoS TopicD QoS TopicD QoS TopicA QoS The communication between the DataWriter and matching DataReaders can be peer-to- peer exploiting UDP/IP (Unicast and Multicast)or TCP/IP The communication between the DataWriter and matching DataReaders can be “brokered” but still exploiting UDP/IP (Unicast and Multicast)or TCP/IP

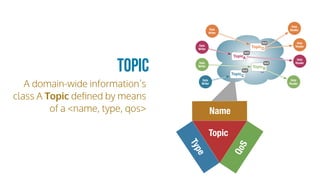

Topic
A domain-wide information’s class A Topic defined by means of a <name, type, qos> Topic DDS Global Data Space ... Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Data Reader Data Writer TopicA QoS TopicB QoS TopicC QoS TopicD QoS Topic Type Name QoS
Topic Types
Topic Types: Language Independent Definitions

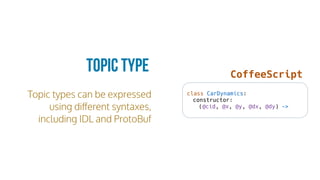

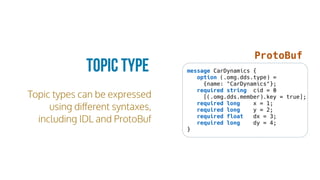

Topic types can be expressed using different syntaxes, including IDL and ProtoBuf Topic Type struct CarDynamics { string cid; long x; long y; float dx; long dy; } #pragma keylist CarDynamics cid IDL
Topic types can be expressed using different syntaxes, including IDL and ProtoBuf Topic Type message CarDynamics { option (.omg.dds.type) = {name: "CarDynamics"}; required string cid = 0 [(.omg.dds.member).key = true]; required long x = 1; required long y = 2; required float dx = 3; required long dy = 4; } ProtoBuf
Topic Types: Language Specific Definitions

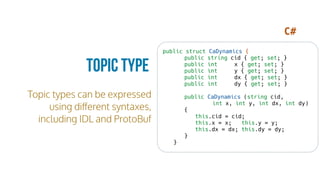

Topic types can be expressed using different syntaxes, including IDL and ProtoBuf Topic Type class CarDynamics: constructor: (@cid, @x, @y, @dx, @dy) -> CoffeeScript
Topic types can be expressed using different syntaxes, including IDL and ProtoBuf Topic Type public struct CaDynamics {
 public string cid { get; set; }
 public int x { get; set; }
 public int y { get; set; }
 public int dx { get; set; }
 public int dy { get; set; }

 public CaDynamics (string cid, int x, int y, int dx, int dy)
 {
 this.cid = cid;
 this.x = x; this.y = y;
 this.dx = dx; this.dy = dy;
 }
 }
 C#

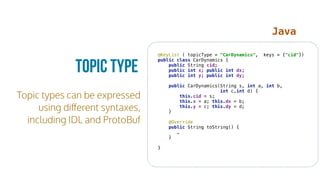

Topic types can be expressed using different syntaxes, including IDL and ProtoBuf Topic Type @KeyList ( topicType = "CarDynamics", keys = {"cid"})
 public class CarDynamics {
 public String cid;
 public int x; public int dx;
 public int y; public int dy;

 public CarDynamics(String s, int a, int b, int c,int d) {
 this.cid = s;
 this.x = a; this.dx = b;
 this.y = c; this.dy = d;
 }

 @Override
 public String toString() { …
 }

 }
 Java
Topics, Instances and Samples

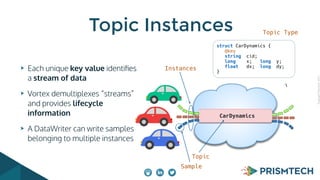

CopyrightPrismTech,2015 Each unique key value identifies a stream of data Vortex demultiplexes “streams” and provides lifecycle information A DataWriter can write samples belonging to multiple instances Topic Instances CarDynamics Instances struct CarDynamics { @key string cid; long x; long y; float dx; long dy; } Topic Topic Type Sample

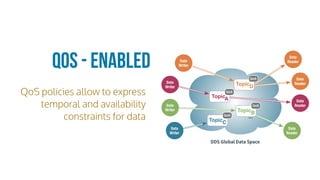

QoS policies allow to express temporal and availability constraints for data DDS Global Data Space ... Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Data Reader Data Writer TopicA QoS TopicB QoS TopicC QoS TopicD QoS QoS - Enabled
A collection of policies that control non- functional properties such as reliability, persistence, temporal constraints and priority QoS HISTORY LIFESPAN DURABILITY DEADLINE LATENCY BUDGET TRANSPORT PRIO TIME-BASED FILTER RESOURCE LIMITS USER DATA TOPIC DATA GROUP DATA OWENERSHIP OWN. STRENGTH LIVELINESS ENTITY FACTORY DW LIFECYCLE DR LIFECYCLE PRESENTATION RELIABILITY PARTITION DEST. ORDER RxO QoS Local QoS

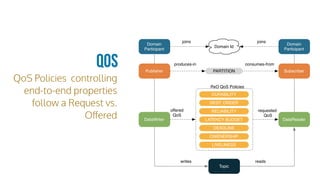

QoS Policies controlling end-to-end properties follow a Request vs. Offered QoS Domain Participant DURABILITY OWENERSHIP DEADLINE LATENCY BUDGET LIVELINESS RELIABILITY DEST. ORDER Publisher DataWriter PARTITION DataReader Subscriber Domain Participant offered QoS Topic writes reads Domain Id joins joins produces-in consumes-from RxO QoS Policies requested QoS
Interacting with the Data Cache

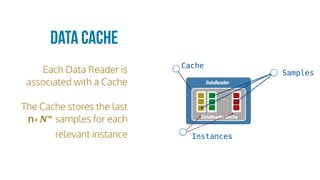

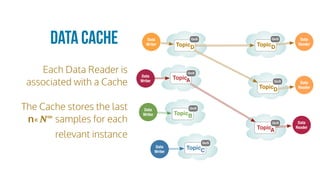

Each Data Reader is associated with a Cache The Cache stores the last n∊𝜨∞ samples for each relevant instance Data Cache Data Writer Data Writer Data Writer Data Reader Data Reader Data Reader Data Writer TopicA QoS TopicB QoS TopicC QoS TopicD QoS TopicD QoS TopicD QoS TopicA QoS
Each Data Reader is associated with a Cache The Cache stores the last n∊𝜨∞ samples for each relevant instance Data Cache DataReader Cache DataReader ... Samples Instances Cache

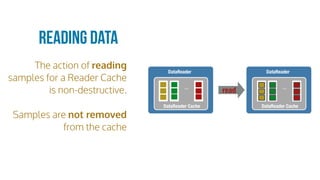

The action of reading samples for a Reader Cache is non-destructive. Samples are not removed from the cache Reading Data DataReader Cache DataReader ... DataReader Cache DataReader ...read

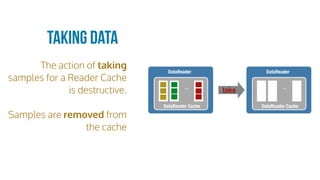

The action of taking samples for a Reader Cache is destructive. Samples are removed from the cache Taking Data DataReader Cache DataReader ... DataReader Cache DataReader ...take
Samples can be selected using composable content and status predicates Sample Selectors DataReader Cache DataReader ...

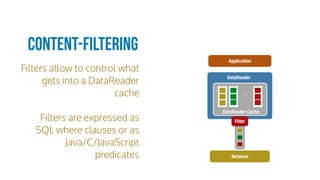

Filters allow to control what gets into a DataReader cache Filters are expressed as SQL where clauses or as Java/C/JavaScript predicates Content-Filtering DataReader Cache DataReader ... Filter Application Network

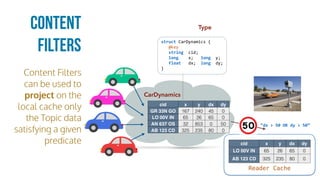

Content Filters can be used to project on the local cache only the Topic data satisfying a given predicate Content Filters struct CarDynamics { @key string cid; long x; long y; float dx; long dy; } cid x y dx dy GR 33N GO 167 240 45 0 LO 00V IN 65 26 65 0 AN 637 OS 32 853 0 50 AB 123 CD 325 235 80 0 “dx > 50 OR dy > 50” Type CarDynamics cid x y dx dy LO 00V IN 65 26 65 0 AB 123 CD 325 235 80 0 Reader Cache

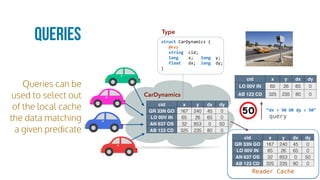

Queries allow to control what gets out of a DataReader Cache Queries are expressed as SQL where clauses or as Java/C/JavaScript predicates Content-Based Selection DataReader Cache DataReader ... Query DataReader Cache DataReader ... Application Network
Reader Cache Queries can be used to select out of the local cache the data matching a given predicate Queries struct CarDynamics { @key string cid; long x; long y; float dx; long dy; } cid x y dx dy GR 33N GO 167 240 45 0 LO 00V IN 65 26 65 0 AN 637 OS 32 853 0 50 AB 123 CD 325 235 80 0 “dx > 50 OR dy > 50” Type CarDynamics cid x y dx dy GR 33N GO 167 240 45 0 LO 00V IN 65 26 65 0 AN 637 OS 32 853 0 50 AB 123 CD 325 235 80 0 cid x y dx dy LO 00V IN 65 26 65 0 AB 123 CD 325 235 80 0 query

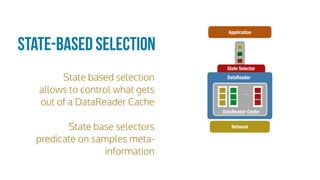

State based selection allows to control what gets out of a DataReader Cache State base selectors predicate on samples meta- information State-Based Selection DataReader Cache DataReader ... State Selector DataReader Cache DataReader ... Application Network
Sample State (READ, NOT_READ) allows to distinguish between new samples and samples that have already been read State-Based Selection DataReader Cache DataReader ... State Selector DataReader Cache DataReader ... Application Network

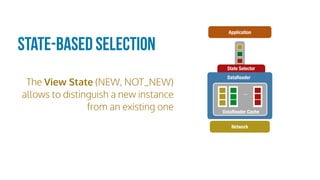

The View State (NEW, NOT_NEW) allows to distinguish a new instance from an existing one State-Based Selection DataReader Cache DataReader ... State Selector DataReader Cache DataReader ... Application Network

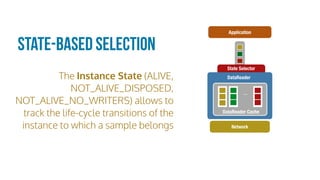

The Instance State (ALIVE, NOT_ALIVE_DISPOSED, NOT_ALIVE_NO_WRITERS) allows to track the life-cycle transitions of the instance to which a sample belongs State-Based Selection DataReader Cache DataReader ... State Selector DataReader Cache DataReader ... Application Network

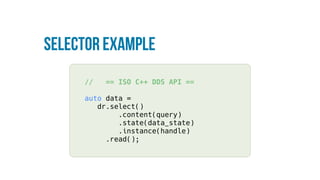

Selector Example // == ISO C++ DDS API == auto data = dr.select() .content(query) .state(data_state) .instance(handle) .read();
your first vortex app

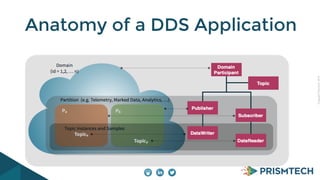

CopyrightPrismTech,2014 Anatomy of a DDS Application

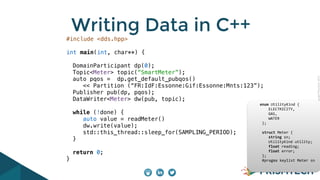

CopyrightPrismTech,2015 Writing Data in C++ #include <dds.hpp> int main(int, char**) { DomainParticipant dp(0); Topic<Meter> topic(“SmartMeter”); auto pqos = dp.get_default_pubqos() << Partition (“FR:IdF:Essonne:Gif:Essonne:Mnts:123”); Publisher pub(dp, pqos); DataWriter<Meter> dw(pub, topic); while (!done) { auto value = readMeter() dw.write(value); std::this_thread::sleep_for(SAMPLING_PERIOD); } return 0; } enum UtilityKind { ELECTRICITY, GAS, WATER }; struct Meter { string sn; UtilityKind utility; float reading; float error; }; #pragma keylist Meter sn

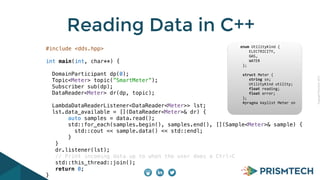

CopyrightPrismTech,2015 Reading Data in C++ #include <dds.hpp> int main(int, char**) { DomainParticipant dp(0); Topic<Meter> topic(”SmartMeter”); Subscriber sub(dp); DataReader<Meter> dr(dp, topic); LambdaDataReaderListener<DataReader<Meter>> lst; lst.data_available = [](DataReader<Meter>& dr) { auto samples = data.read(); std::for_each(samples.begin(), samples.end(), [](Sample<Meter>& sample) { std::cout << sample.data() << std::endl; } } dr.listener(lst); // Print incoming data up to when the user does a Ctrl-C std::this_thread::join(); return 0; } enum UtilityKind { ELECTRICITY, GAS, WATER }; struct Meter { string sn; UtilityKind utility; float reading; float error; }; #pragma keylist Meter sn

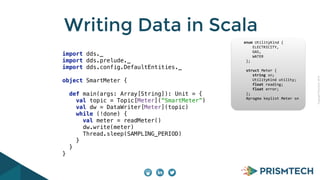

CopyrightPrismTech,2014 Writing Data in Scala import dds._
 import dds.prelude._
 import dds.config.DefaultEntities._
 object SmartMeter {

 def main(args: Array[String]): Unit = {
 val topic = Topic[Meter](“SmartMeter”)
 val dw = DataWriter[Meter](topic) while (!done) { val meter = readMeter()
 dw.write(meter) Thread.sleep(SAMPLING_PERIOD) }
 }
 } enum UtilityKind { ELECTRICITY, GAS, WATER }; struct Meter { string sn; UtilityKind utility; float reading; float error; }; #pragma keylist Meter sn

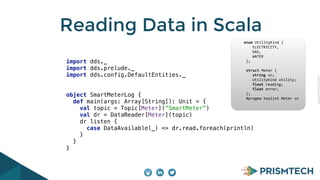

CopyrightPrismTech,2014 Reading Data in Scala import dds._
 import dds.prelude._
 import dds.config.DefaultEntities._
 object SmartMeterLog {
 def main(args: Array[String]): Unit = {
 val topic = Topic[Meter](“SmartMeter”)
 val dr = DataReader[Meter](topic)
 dr listen {
 case DataAvailable(_) => dr.read.foreach(println)
 }
 }
 } enum UtilityKind { ELECTRICITY, GAS, WATER }; struct Meter { string sn; UtilityKind utility; float reading; float error; }; #pragma keylist Meter sn
CopyrightPrismTech,2015 Writing Data in Python import dds import time

 if __name__ == '__main__':
 topic = dds.Topic("SmartMeter", "Meter")
 dw = dds.Writer(topic)

 while True:
 m = readMeter()
 dw.write(m)
 time.sleep(0.1) enum UtilityKind { ELECTRICITY, GAS, WATER }; struct Meter { string sn; UtilityKind utility; float reading; float error; }; #pragma keylist Meter sn
CopyrightPrismTech,2015 Reading Data in Python import dds
 import sys

 def readData(dr):
 samples = dds.range(dr.read())
 for s in samples:
 sys.stdout.write(str(s.getData()))

 if __name__ == '__main__':
 t = dds.Topic("SmartMeter", "Meter")
 dr = dds.Reader(t)
 dr.onDataAvailable = readData enum UtilityKind { ELECTRICITY, GAS, WATER }; struct Meter { string sn; UtilityKind utility; float reading; float error; }; #pragma keylist Meter sn
Vortex Technology Stack

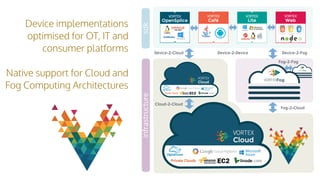

Device implementations optimised for OT, IT and consumer platforms Native support for Cloud and Fog Computing Architectures Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk
Available across IT, Consumer and OT platforms Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk

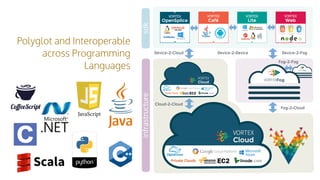

Polyglot and Interoperable across Programming Languages Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk

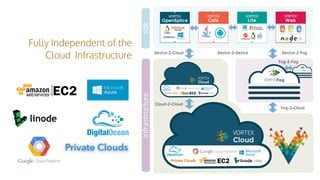

Fully Independent of the Cloud Infrastructure Private Clouds Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk

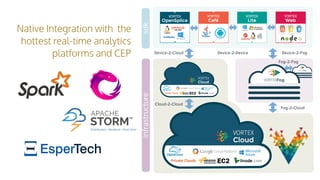

Native Integration with the hottest real-time analytics platforms and CEP Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk

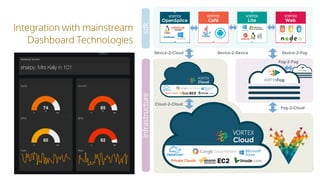

Integration with mainstream Dashboard Technologies Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk

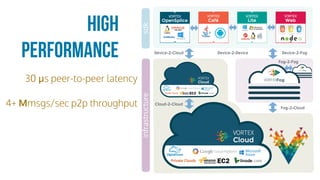

High Performance 30 μs peer-to-peer latency 4+ Mmsgs/sec p2p throughput Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk

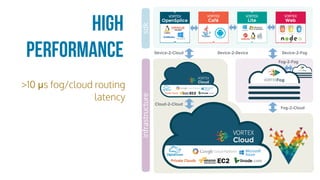

>10 μs fog/cloud routing latency High Performance Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk
Secure Data-Level security with Pluggable Authentication Access Control and Crypto Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk

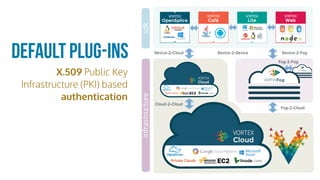

Default Plug-ins X.509 Public Key Infrastructure (PKI) based authentication Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk

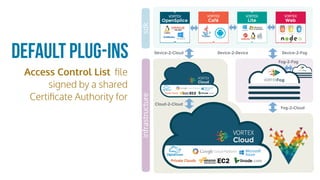

Default Plug-ins Access Control List file signed by a shared Certificate Authority for Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk
Default Plug-ins Crypto based on TLS Cipher Suite Device-2-DeviceDevice-2-Cloud Fog-2-Cloud Device-2-Fog Cloud-2-Cloud Fog-2-Fog infrastructuresdk
Secure Data-Security as opposed to simply Transport-Level security Arthur Dent Arthur Dent Ford Prefect Zaphod Beeblebrox Marvin Trillian left/A(r,w), left/B(r) left/A(r,w), left/B(r,w), left/X(r) left/*(r,w) left/*(r), right/(w) left/A(r,w), left/B(r,w), right/C(r,w) Ford Prefect Zaphod Beeblebrox Trillian Marvin A B A,B X * * A,B,C Identity Access Rights Sessions are authenticated and communication is encrypted Only the Topic included as part of the access rights are visible and accessible
Secure Fine-grained access control over Partition/Topic/ Instance regular expressions Arthur Dent Arthur Dent Ford Prefect Zaphod Beeblebrox Marvin Trillian left/A(r,w), left/B(r) left/A(r,w), left/B(r,w), left/X(r) left/*(r,w) left/*(r), right/(w) left/A(r,w), left/B(r,w), right/C(r,w) Ford Prefect Zaphod Beeblebrox Trillian Marvin A B A,B X * * A,B,C Identity Access Rights Sessions are authenticated and communication is encrypted Only the Topic included as part of the access rights are visible and accessible

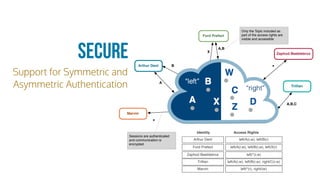

Secure Support for Symmetric and Asymmetric Authentication Arthur Dent Arthur Dent Ford Prefect Zaphod Beeblebrox Marvin Trillian left/A(r,w), left/B(r) left/A(r,w), left/B(r,w), left/X(r) left/*(r,w) left/*(r), right/(w) left/A(r,w), left/B(r,w), right/C(r,w) Ford Prefect Zaphod Beeblebrox Trillian Marvin A B A,B X * * A,B,C Identity Access Rights Sessions are authenticated and communication is encrypted Only the Topic included as part of the access rights are visible and accessible

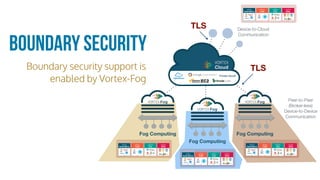

Boundary Security Boundary security support is enabled by Vortex-Fog Device-to-Cloud Communication Peer-to-Peer (Broker-less) Device-to-Device Communication Fog Computing Fog Computing Fog Computing TLS TLS

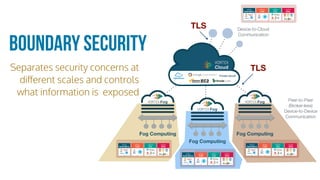

Boundary Security Separates security concerns at different scales and controls what information is exposed Device-to-Cloud Communication Peer-to-Peer (Broker-less) Device-to-Device Communication Fog Computing Fog Computing Fog Computing TLS TLS
Typical Deployment

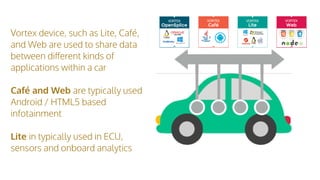

Vortex device, such as Lite, Café, and Web are used to share data between different kinds of applications within a car Café and Web are typically used Android / HTML5 based infotainment Lite in typically used in ECU, sensors and onboard analytics

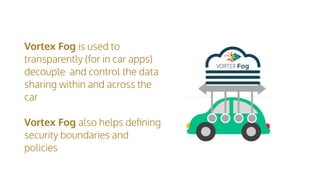

Vortex Fog is used to transparently (for in car apps) decouple and control the data sharing within and across the car Vortex Fog also helps defining security boundaries and policies

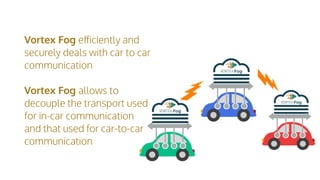

Vortex Fog efficiently and securely deals with car to car communication Vortex Fog allows to decouple the transport used for in-car communication and that used for car-to-car communication

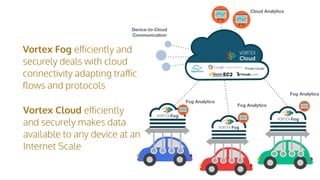

Vortex Fog efficiently and securely deals with cloud connectivity adapting traffic flows and protocols Device-to-Cloud Communication Cloud Analytics Fog Analytics Fog Analytics Fog Analytics Vortex Cloud efficiently and securely makes data available to any device at an Internet Scale

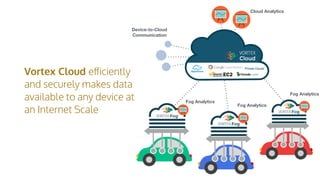

Vortex Cloud efficiently and securely makes data available to any device at an Internet Scale Device-to-Cloud Communication Cloud Analytics Fog Analytics Fog Analytics Fog Analytics
Use Cases
CopyrightPrismTech,2015 Connected Boulevard — Nice, France Vortex enables is the data sharing platform for the City Operating System Tens of thousands of devices connected by Vortex
Autonomous Vehicles coordination of fast moving autonomous vehicles intermittent connectivity dynamic pairing of devices

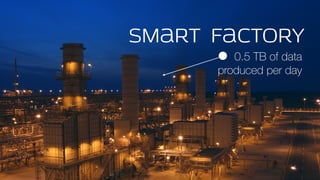

CopyrightPrismTech,2014 Smart Factory 0.5 TB of data produced per day

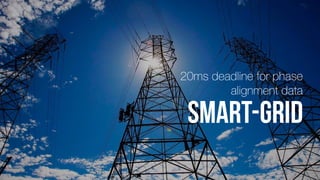

CopyrightPrismTech,2014 Smart-Grid 20ms deadline for phase alignment data

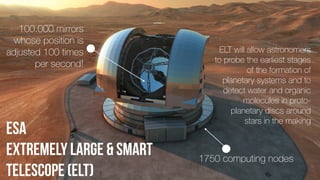

ESA Extremely Large & SMART Telescope (ELT) 1750 computing nodes 100.000 mirrors whose position is adjusted 100 times per second! ELT will allow astronomers to probe the earliest stages of the formation of planetary systems and to detect water and organic molecules in proto- planetary discs around stars in the making
Launch System 80K+ data points with aggregate updates rate of ~400K msgs/sec
Connected Aircrafts 10 TB of data every 30m of flight

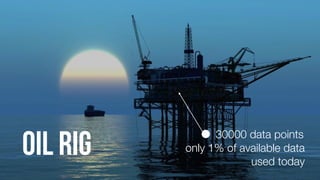

Oil Rig 30000 data points only 1% of available data used today
Smart Lightbulbs 96Kbytes Memory Connected Medical Devices 12 msec period for pleath data Peer-to-Peer connectivity
Vortex enables Smart, Secure and Efficient Data Sharing in IoT In Summary
CopyrightPrismTech,2015
