The document discusses server virtualization and its benefits. It notes that traditionally, servers have low utilization rates, with 20% running below 0.5% utilization and 75% below 5% utilization. This leads to underutilization of resources, increased costs, and management complexity. Virtualization addresses these issues by allowing multiple virtual servers to run on single physical servers, improving utilization rates and reducing costs, energy usage, and space needs. It discusses the differences between full and para-virtualization, and how virtualization provides hardware independence, isolation, and encapsulation. Common uses of virtualization include server, desktop, and application virtualization.
More Related Content
Similar to 101 Virtualization and Private Cloud
101 Virtualization and Private Cloud

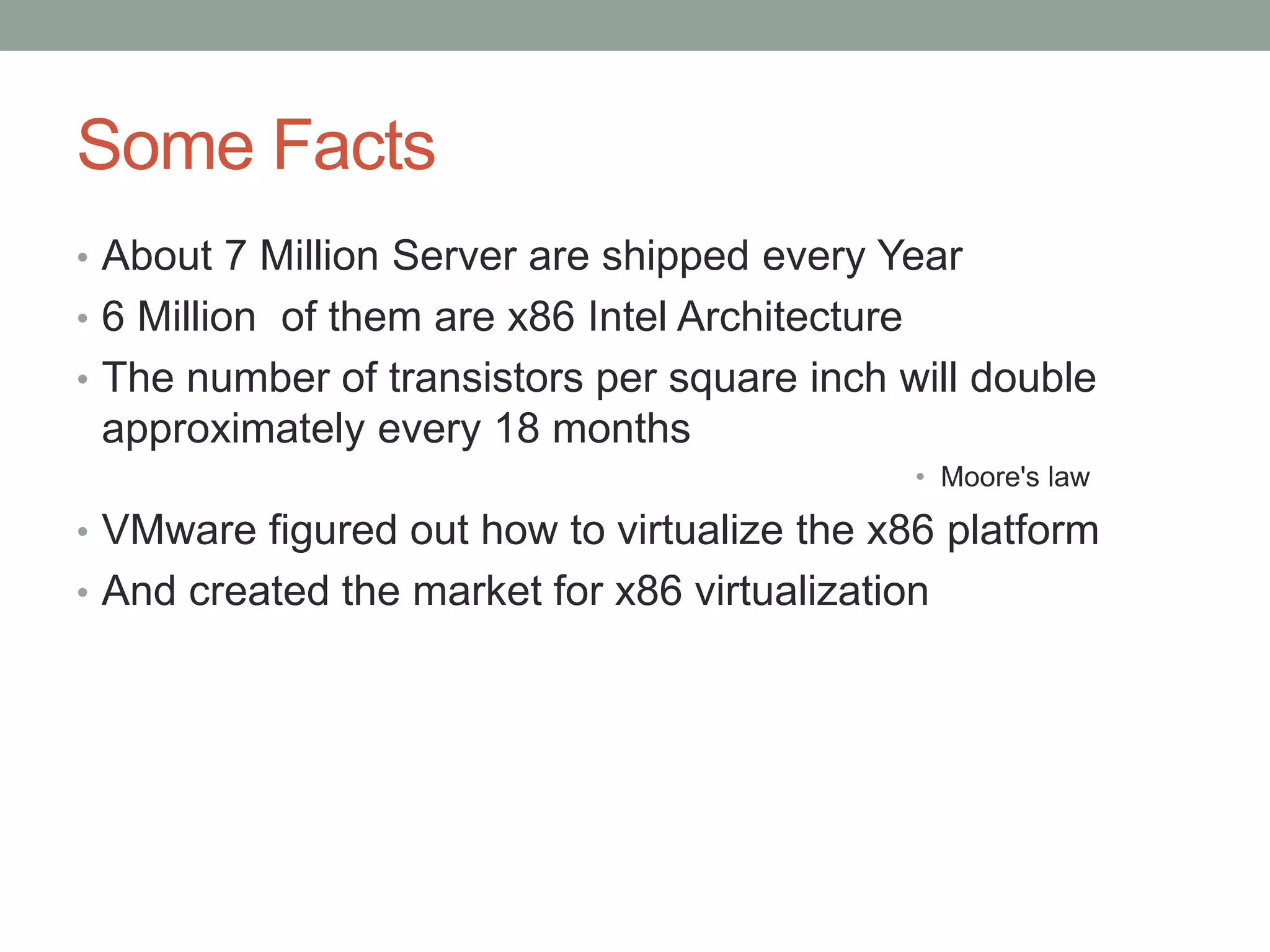

- 2. Some Facts • About7 Million Server are shipped every Year • 6 Million of them are x86 Intel Architecture • The number of transistors per square inch will double approximately every 18 months • Moore's law • VMware figured out how to virtualize the x86 platform • And created the market for x86 virtualization

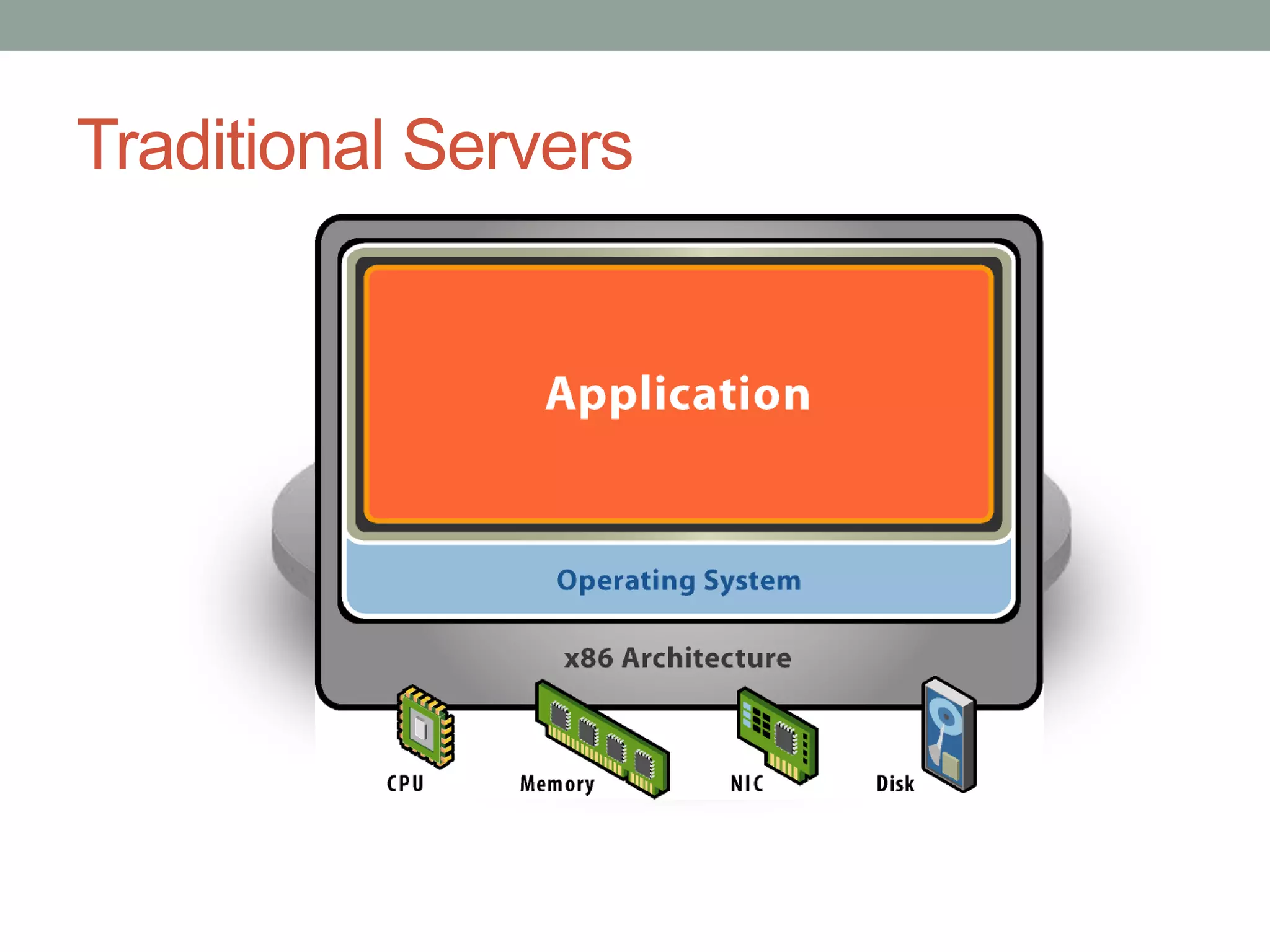

- 3.

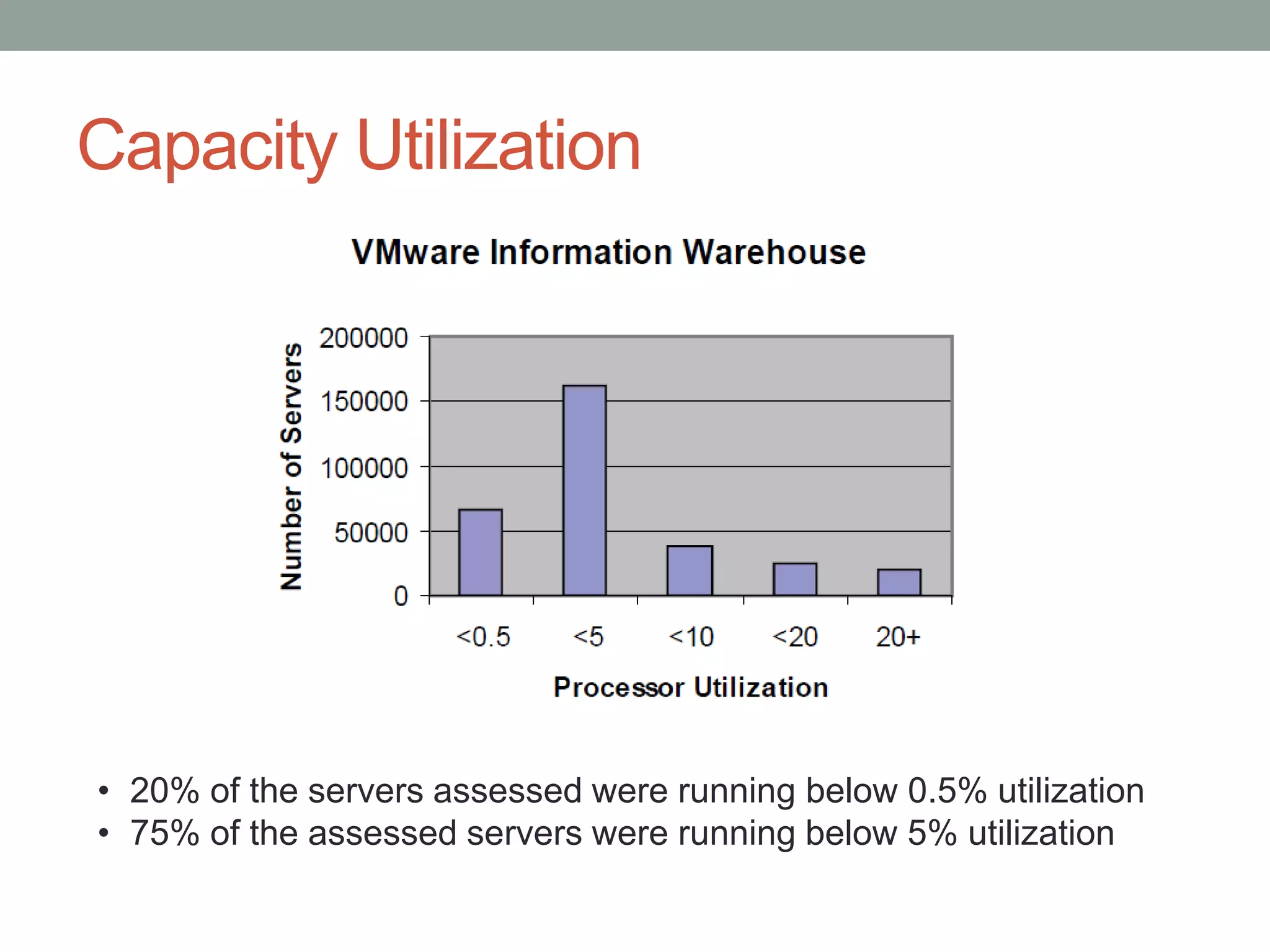

- 4. Capacity Utilization • 20%of the servers assessed were running below 0.5% utilization • 75% of the assessed servers were running below 5% utilization

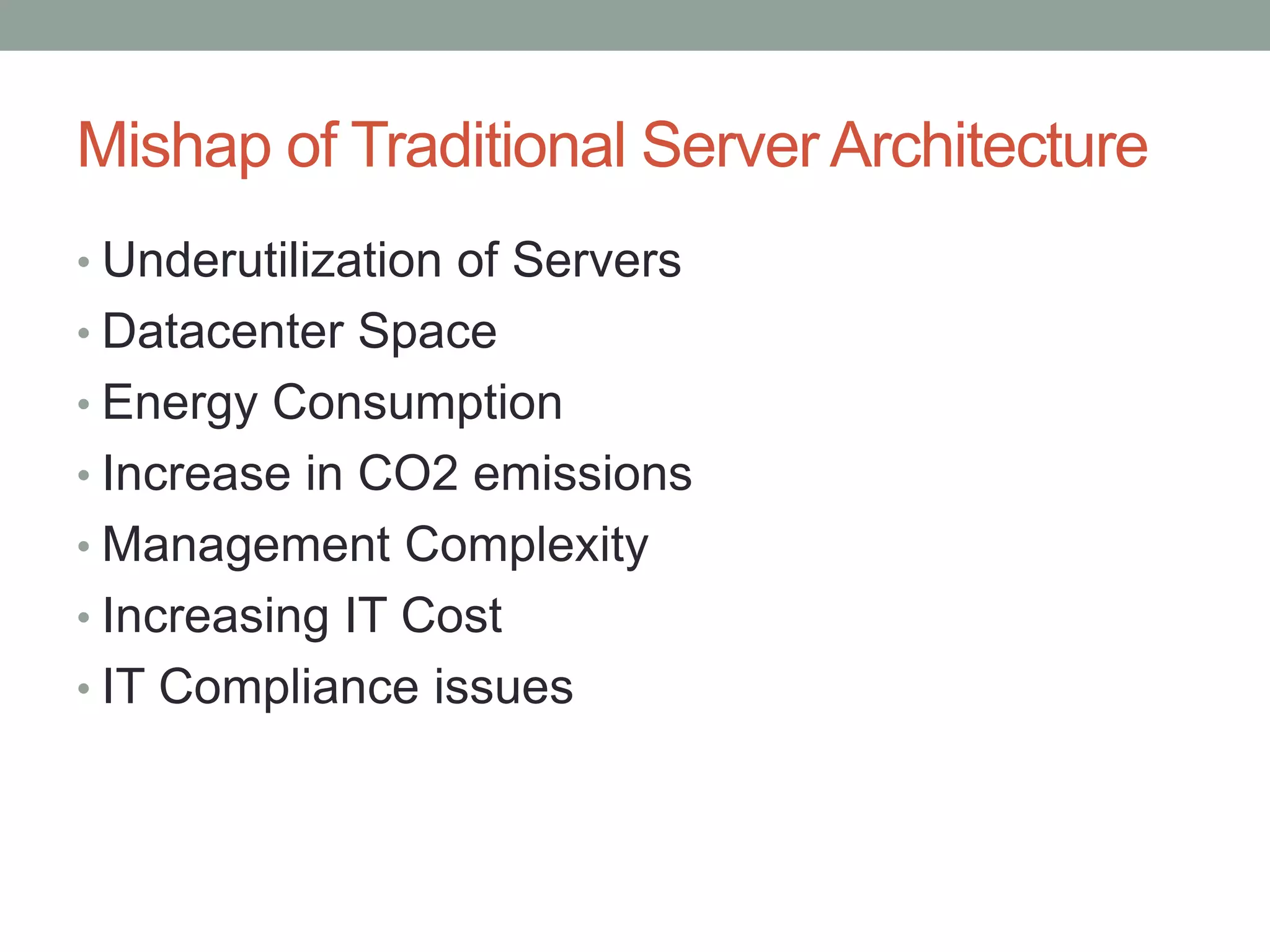

- 5. Mishap of TraditionalServer Architecture • Underutilization of Servers • Datacenter Space • Energy Consumption • Increase in CO2 emissions • Management Complexity • Increasing IT Cost • IT Compliance issues

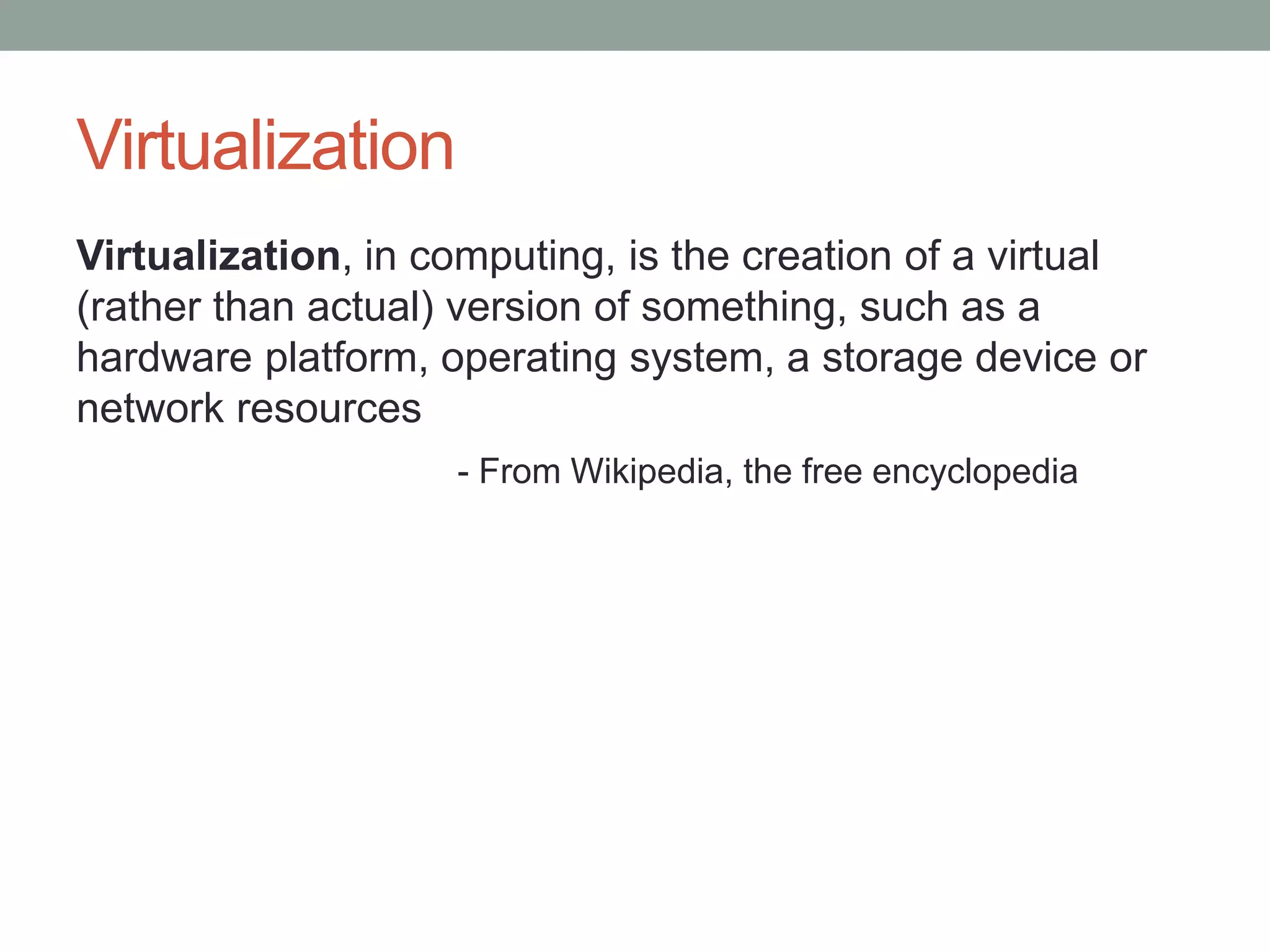

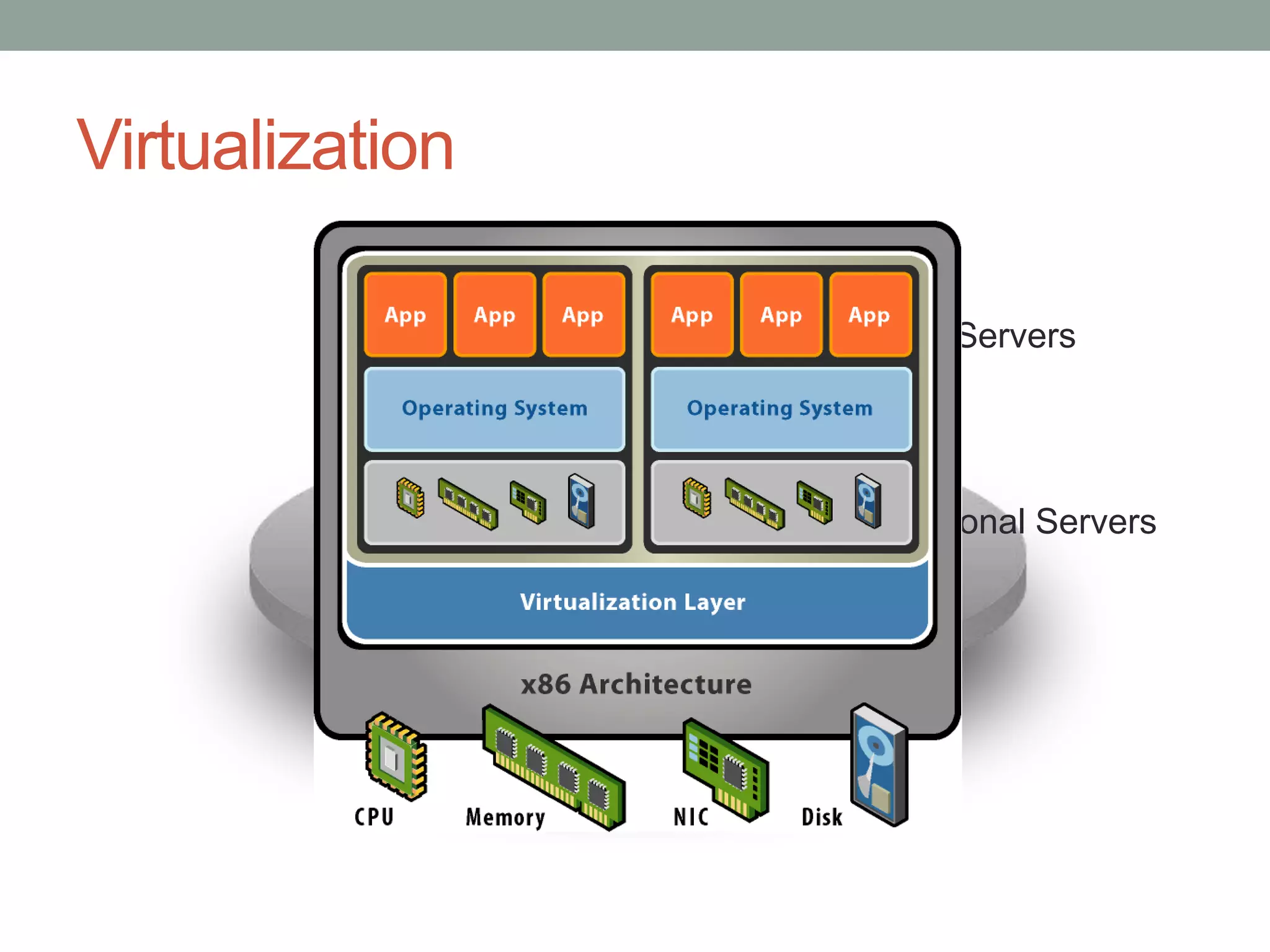

- 7. Virtualization Virtualization, in computing,is the creation of a virtual (rather than actual) version of something, such as a hardware platform, operating system, a storage device or network resources - From Wikipedia, the free encyclopedia
- 8.
- 9. 9 Virtualization…for good reasons Serverconsolidation Energy efficiency Rapid IT service deployment Non-disruptive maintenance Dynamic resource balancing Cost-effective HA/DR

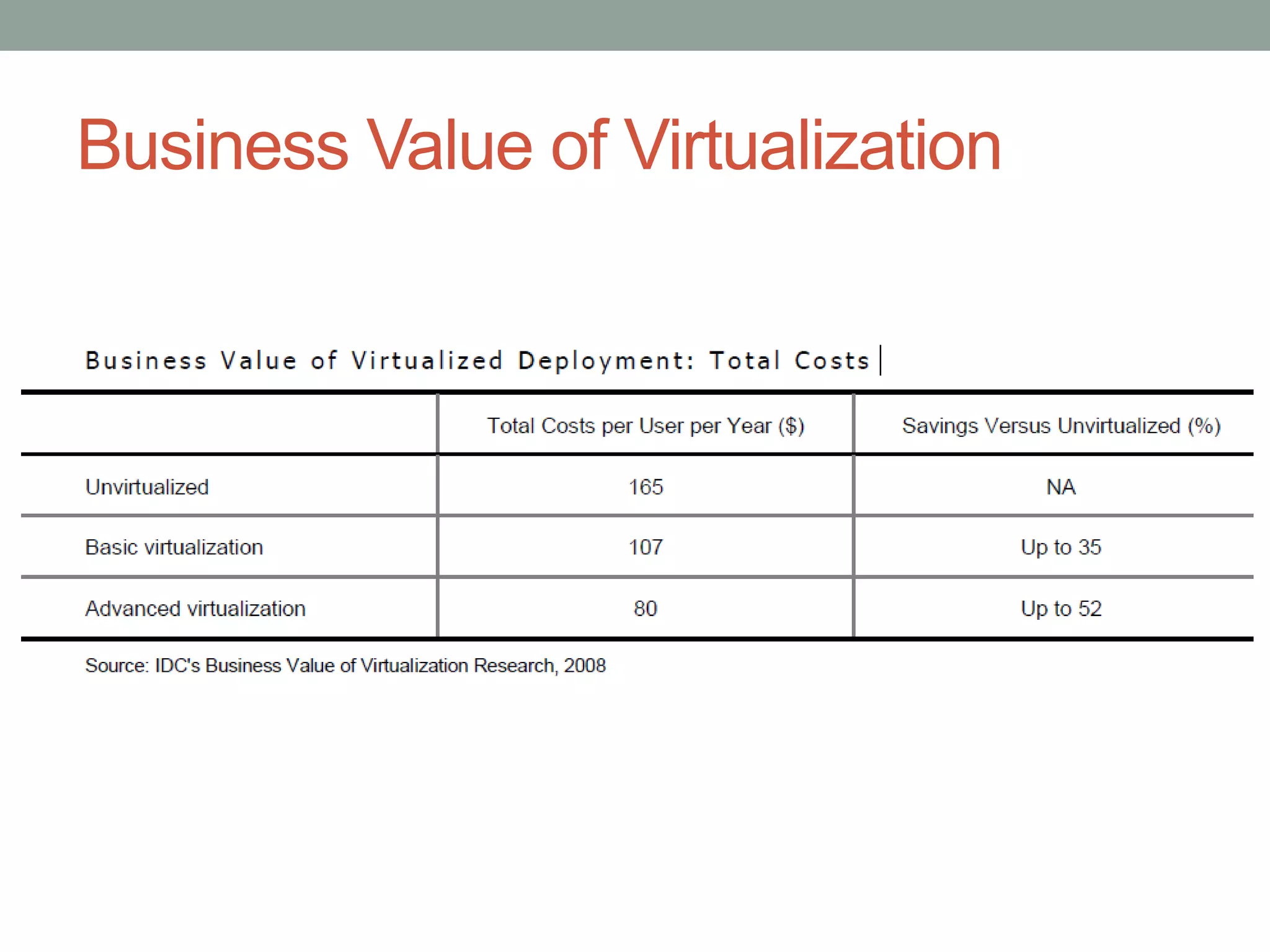

- 10. Business Value ofVirtualization

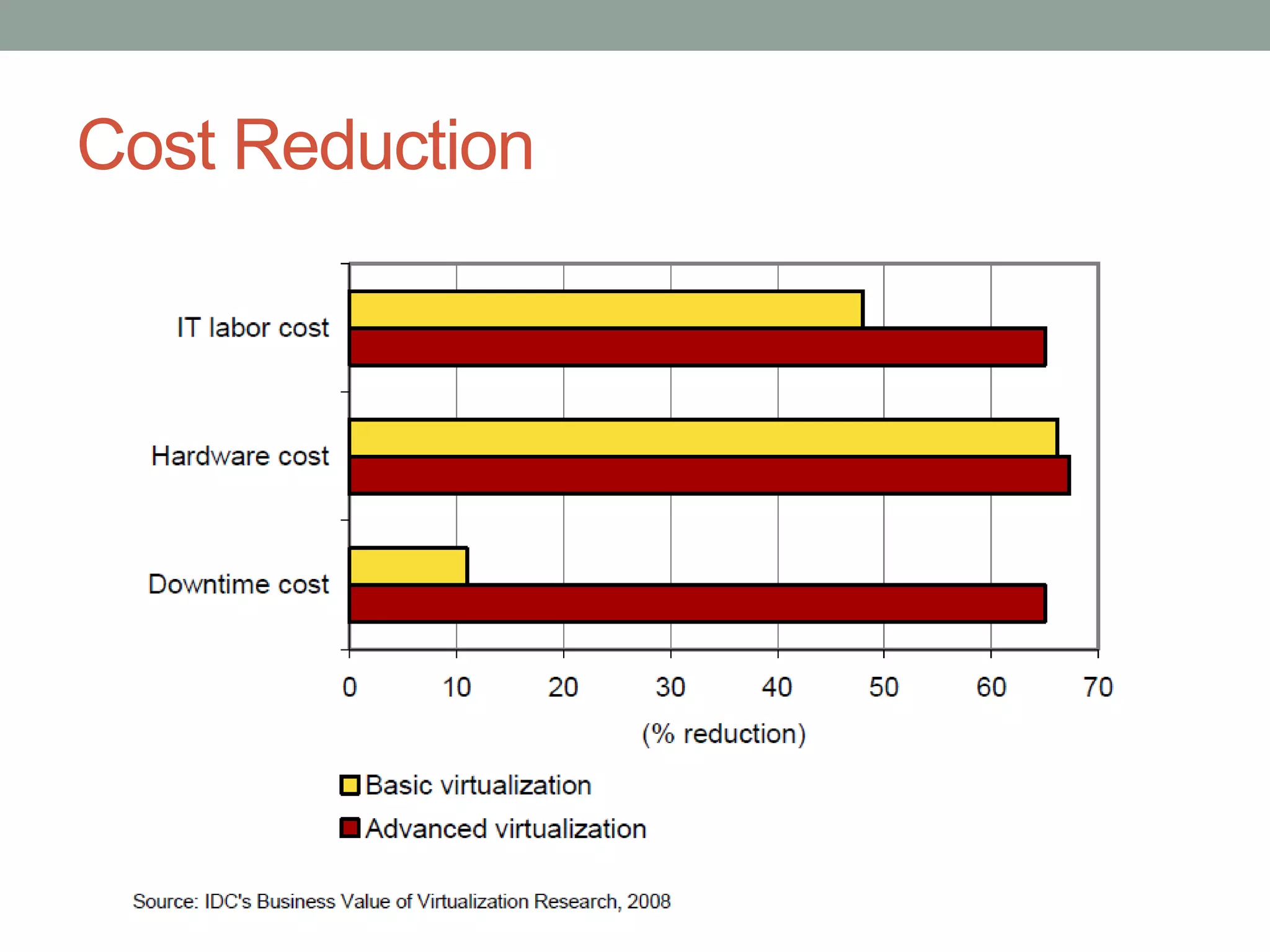

- 11.

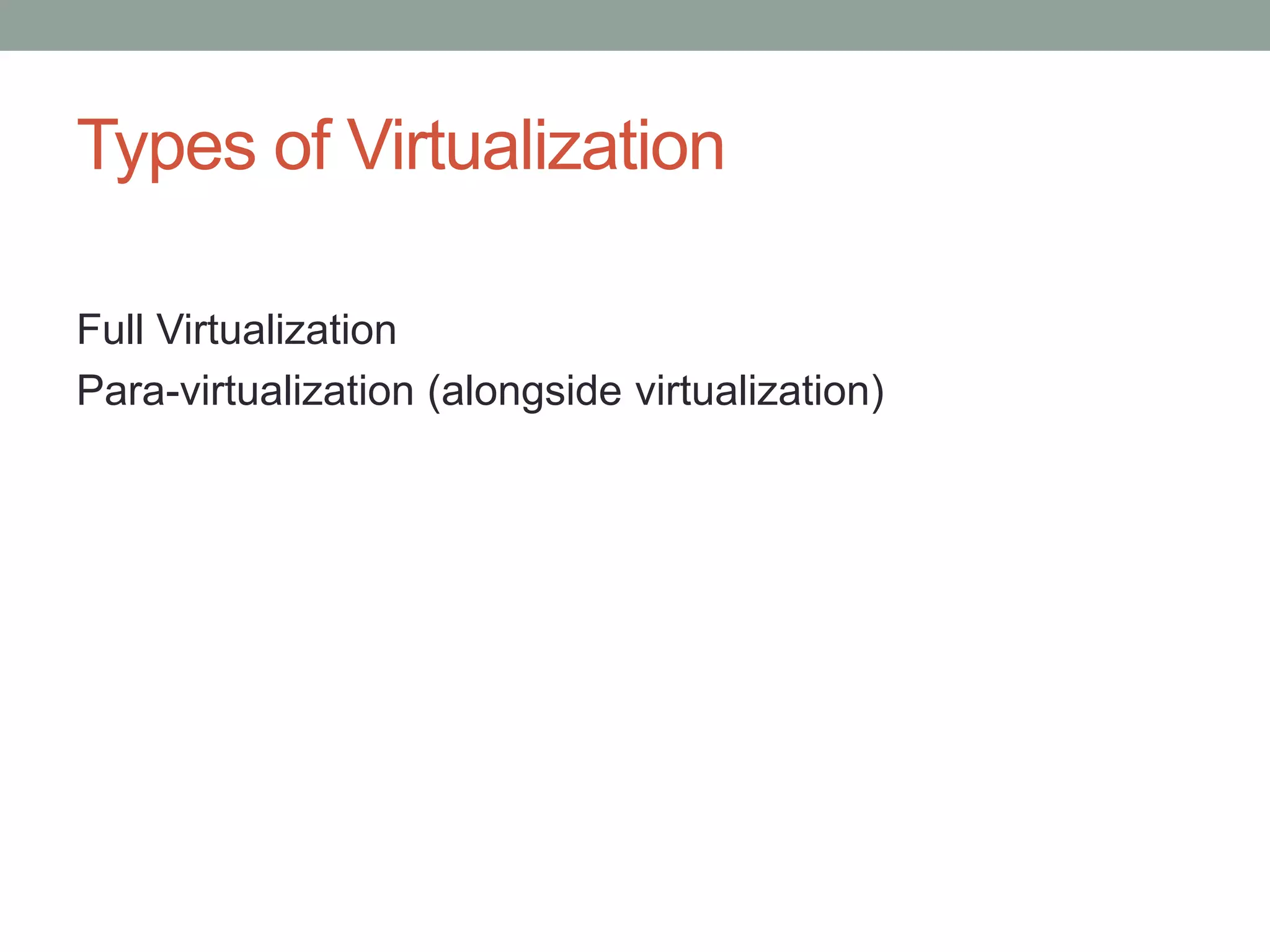

- 12. Types of Virtualization FullVirtualization Para-virtualization (alongside virtualization)

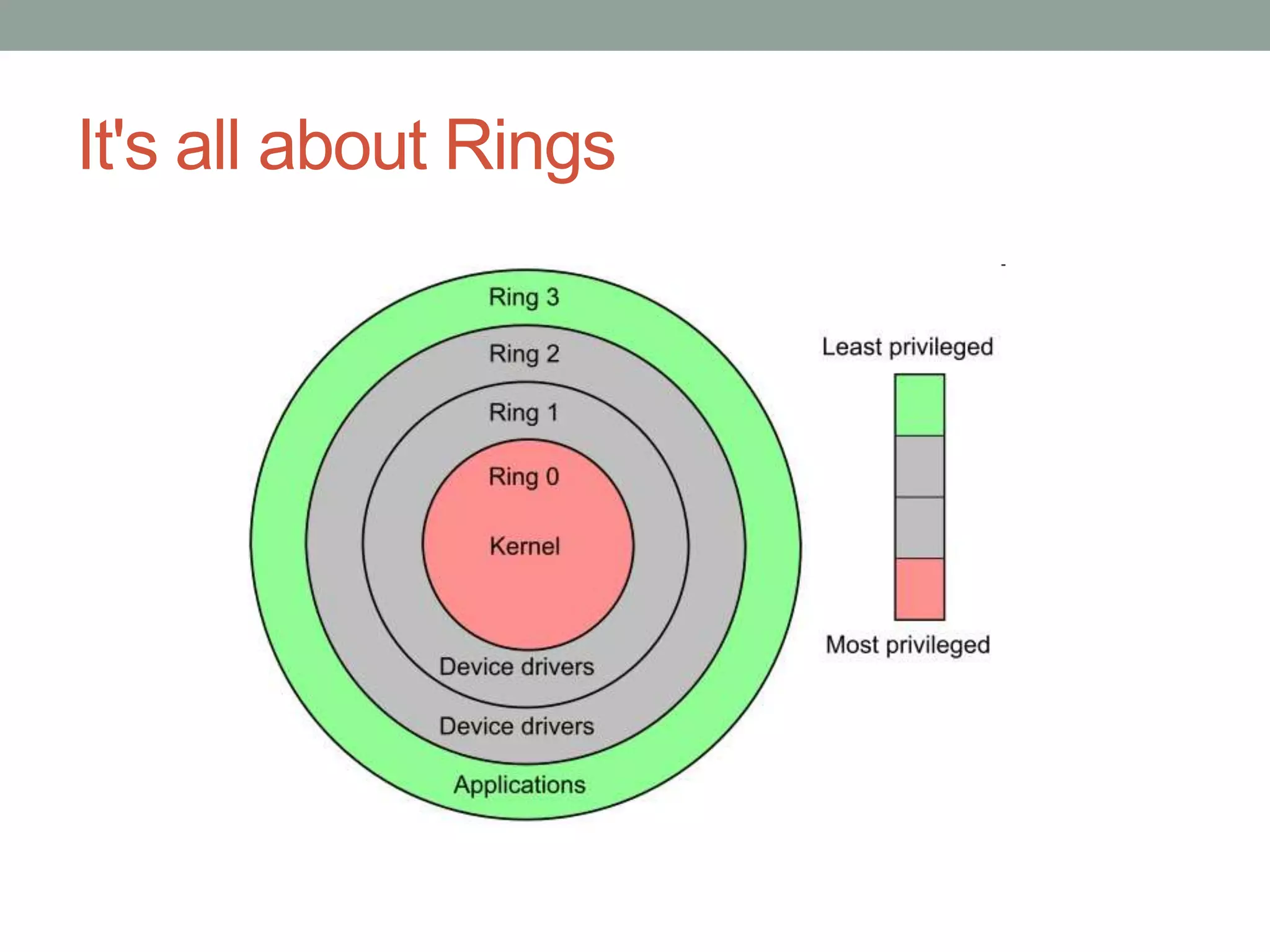

- 13. It's all aboutRings

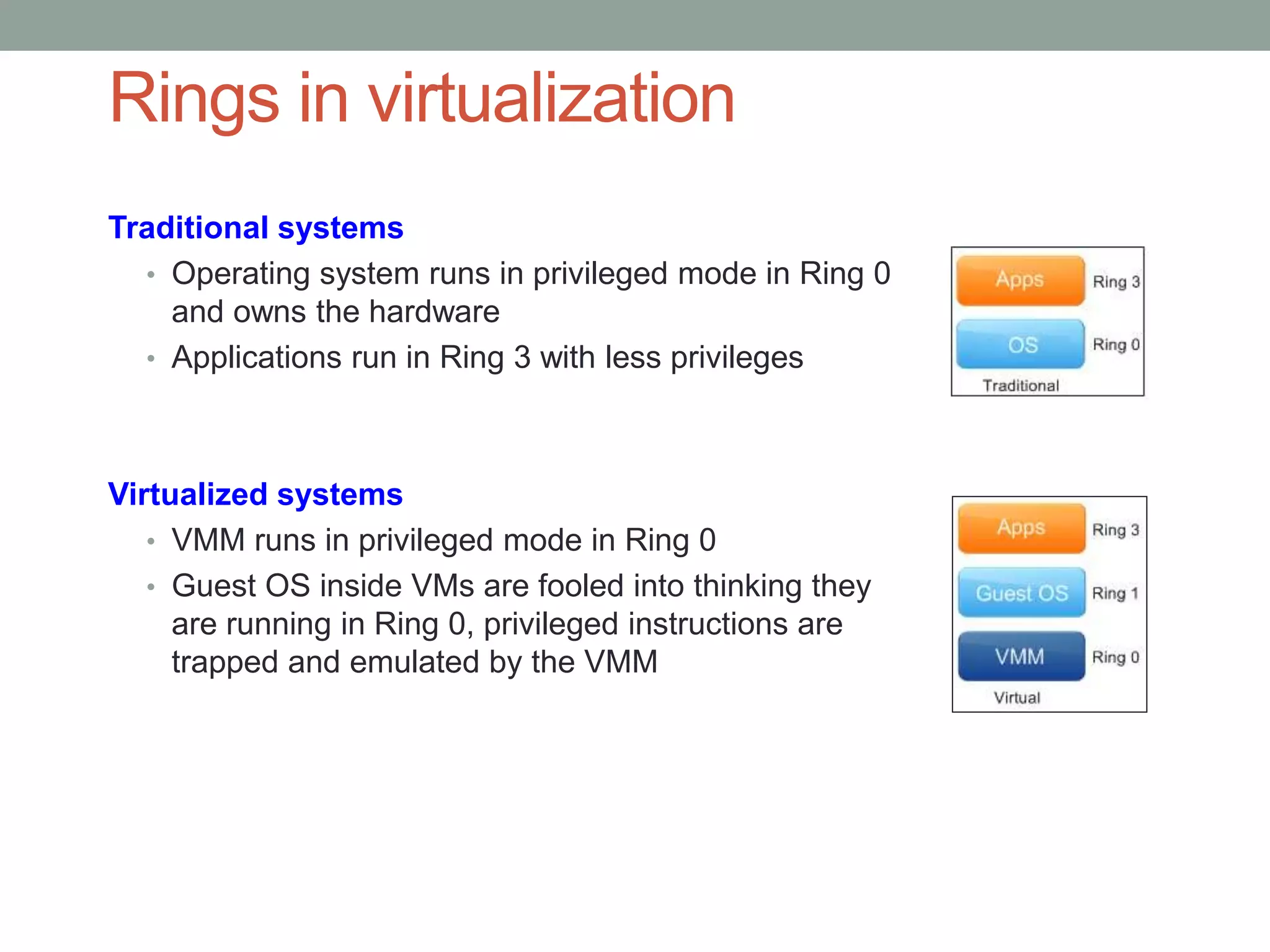

- 14. Rings in virtualization Traditionalsystems • Operating system runs in privileged mode in Ring 0 and owns the hardware • Applications run in Ring 3 with less privileges Virtualized systems • VMM runs in privileged mode in Ring 0 • Guest OS inside VMs are fooled into thinking they are running in Ring 0, privileged instructions are trapped and emulated by the VMM

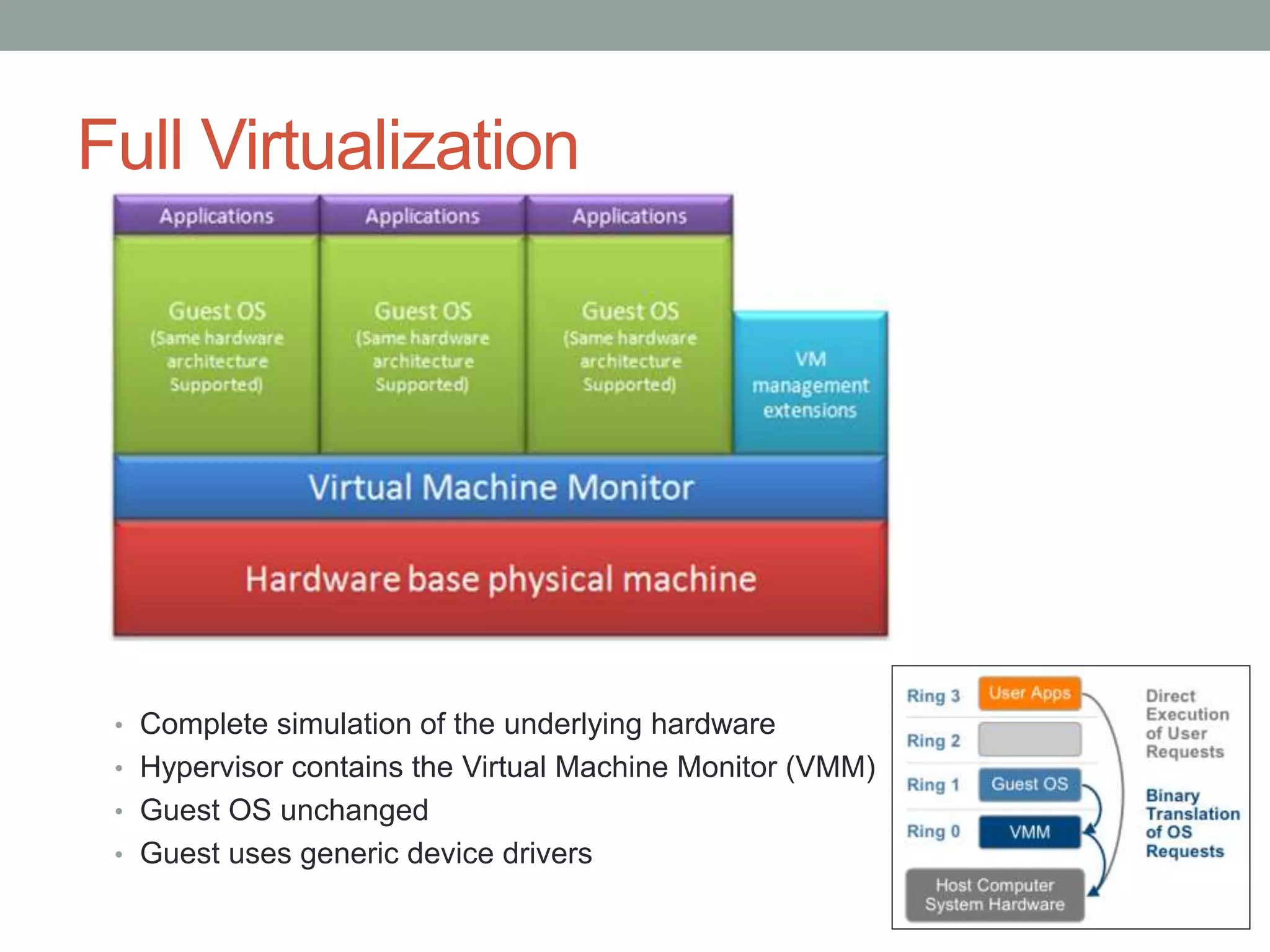

- 15. Full Virtualization • Completesimulation of the underlying hardware • Hypervisor contains the Virtual Machine Monitor (VMM) • Guest OS unchanged • Guest uses generic device drivers

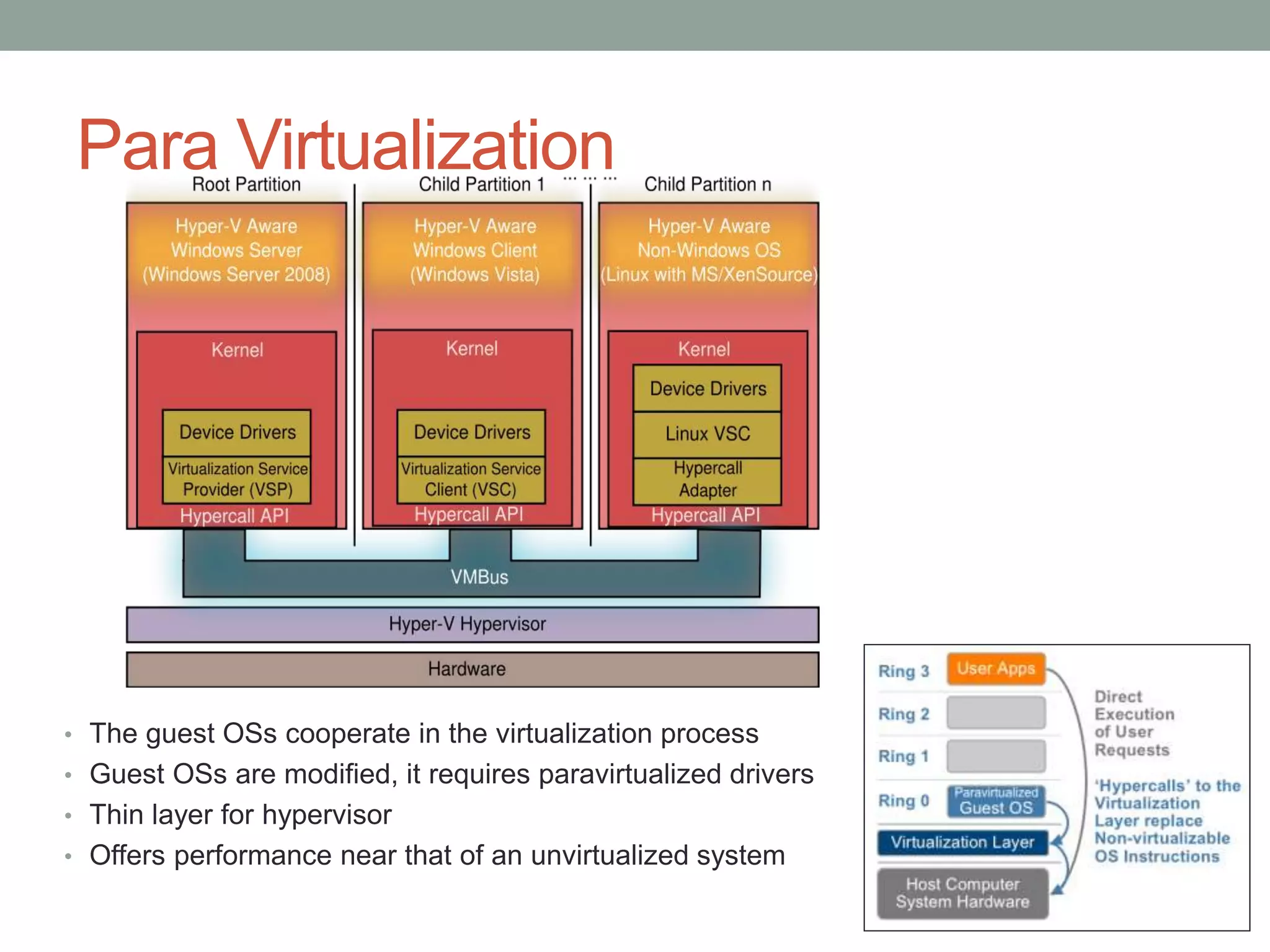

- 16. Para Virtualization • Theguest OSs cooperate in the virtualization process • Guest OSs are modified, it requires paravirtualized drivers • Thin layer for hypervisor • Offers performance near that of an unvirtualized system

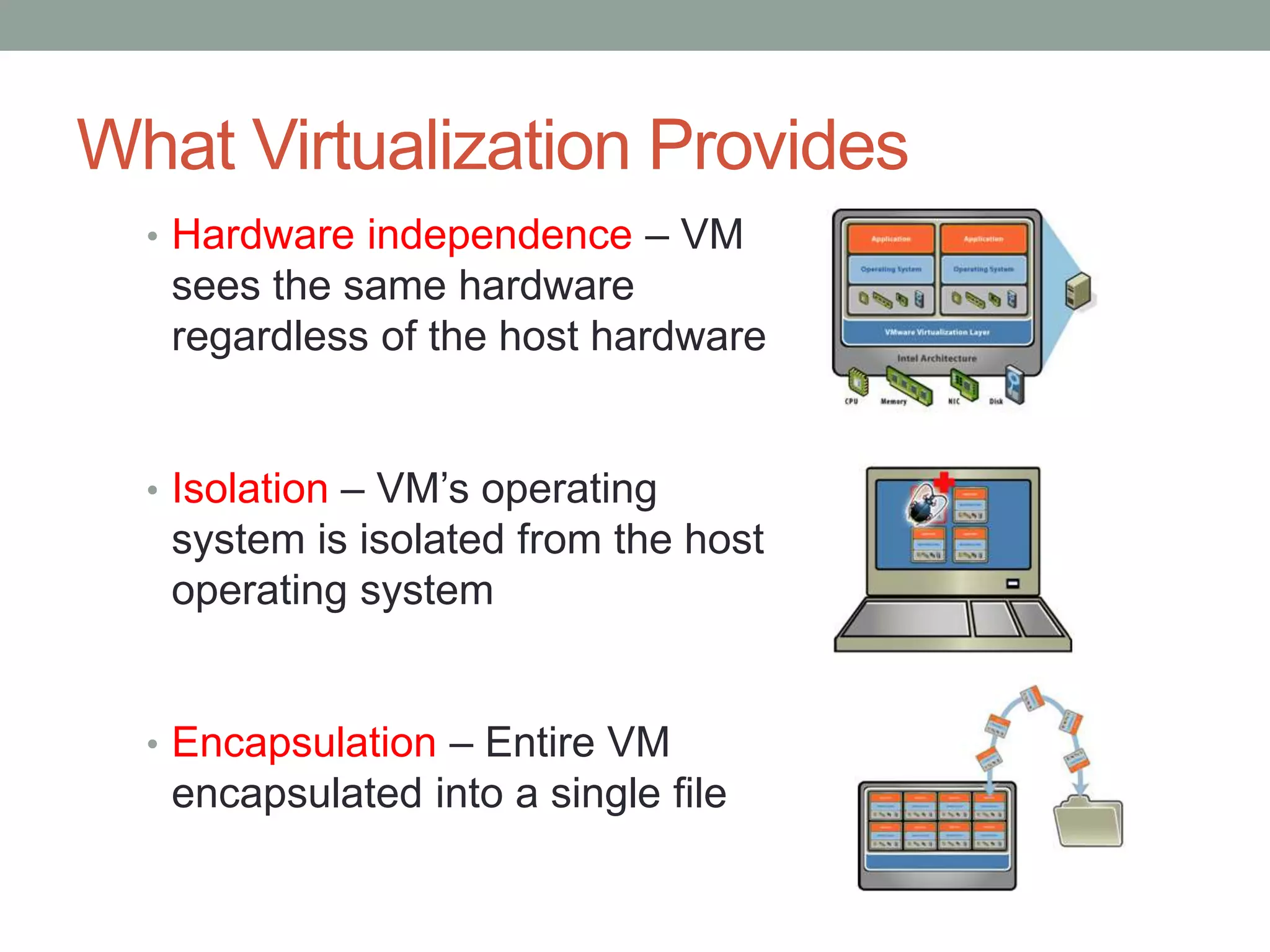

- 17. What Virtualization Provides •Hardware independence – VM sees the same hardware regardless of the host hardware • Isolation – VM’s operating system is isolated from the host operating system • Encapsulation – Entire VM encapsulated into a single file

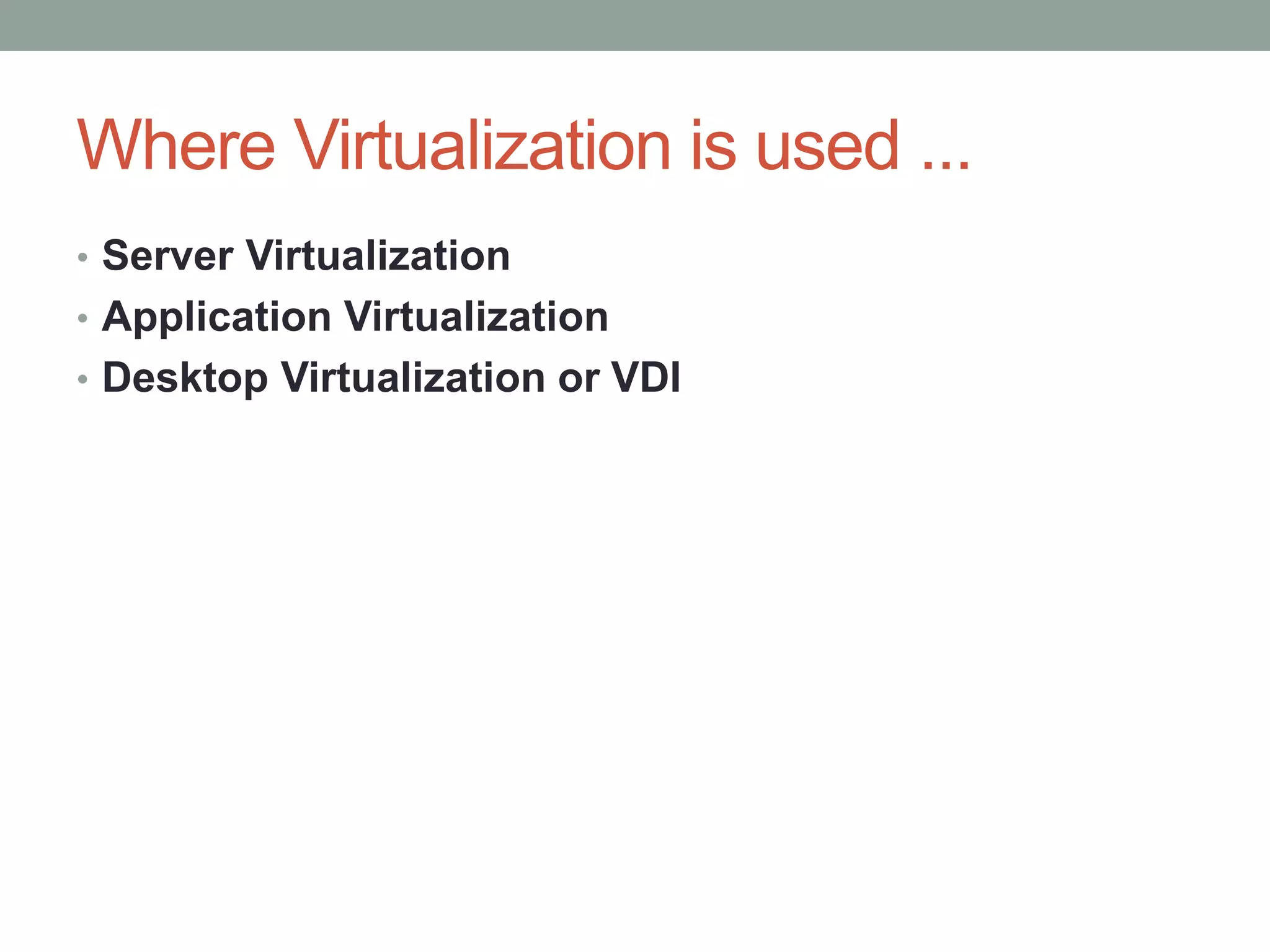

- 18. Where Virtualization isused ... • Server Virtualization • Application Virtualization • Desktop Virtualization or VDI

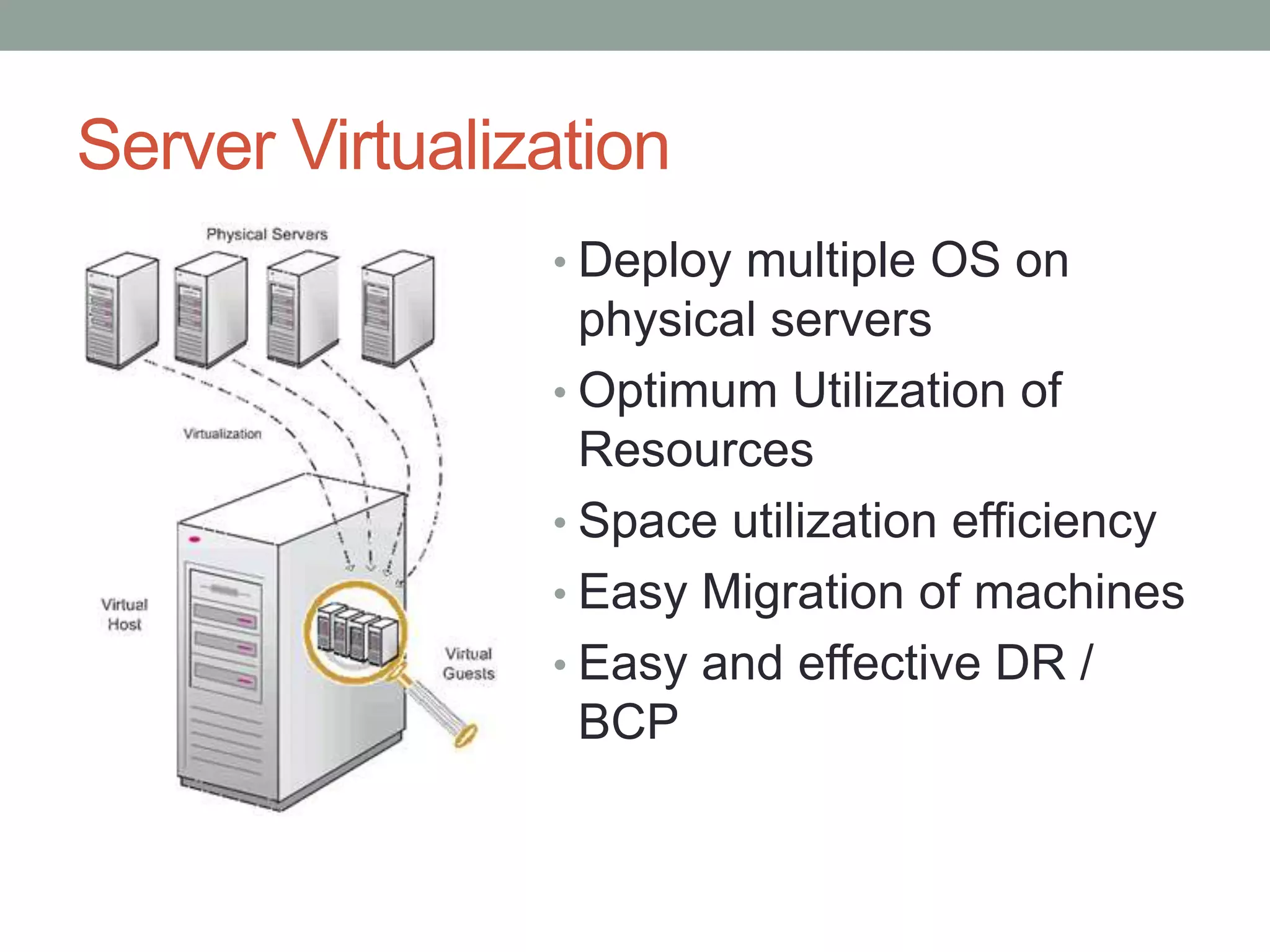

- 19. Server Virtualization • Deploymultiple OS on physical servers • Optimum Utilization of Resources • Space utilization efficiency • Easy Migration of machines • Easy and effective DR / BCP

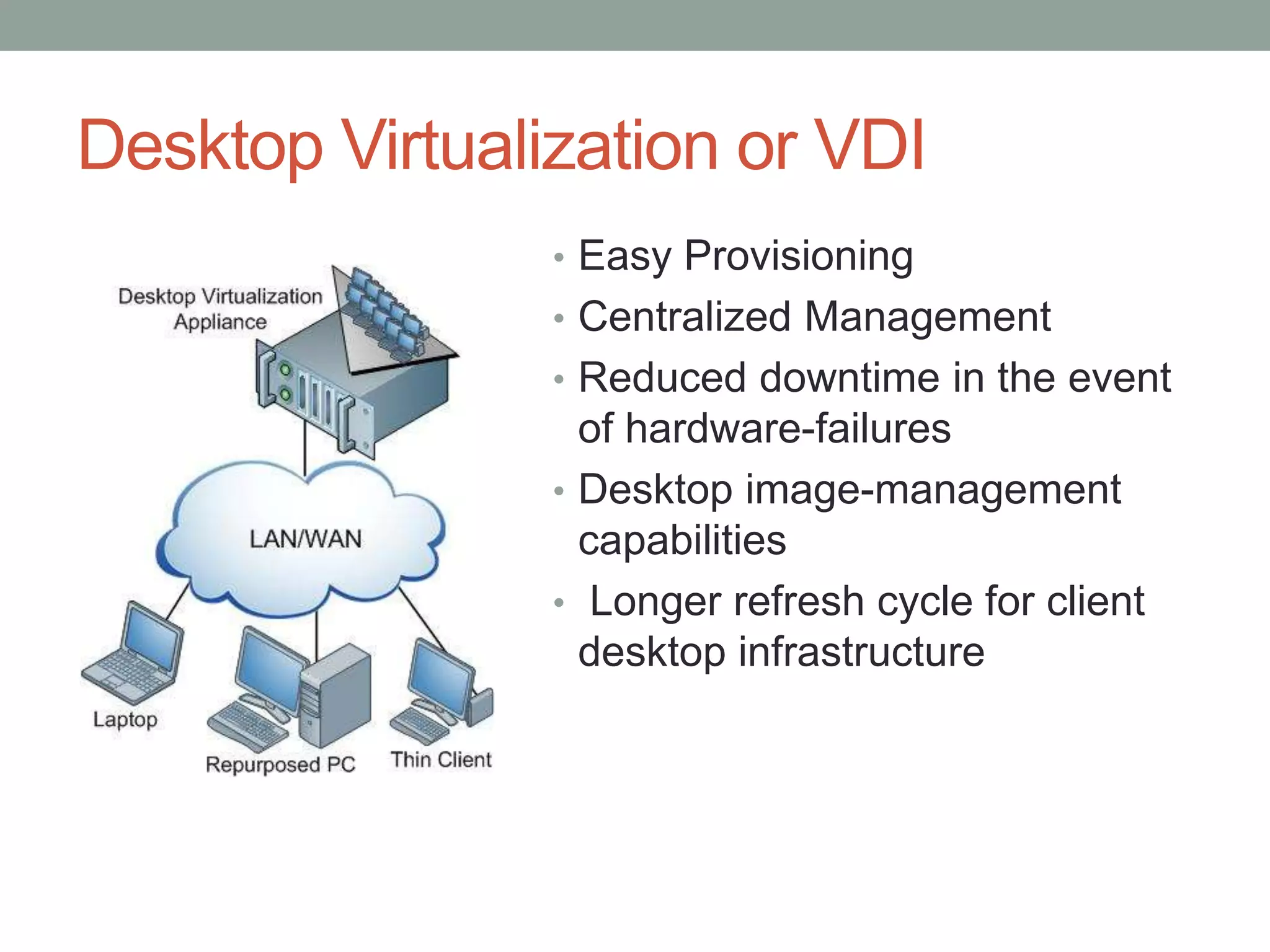

- 20. Desktop Virtualization orVDI • Easy Provisioning • Centralized Management • Reduced downtime in the event of hardware-failures • Desktop image-management capabilities • Longer refresh cycle for client desktop infrastructure

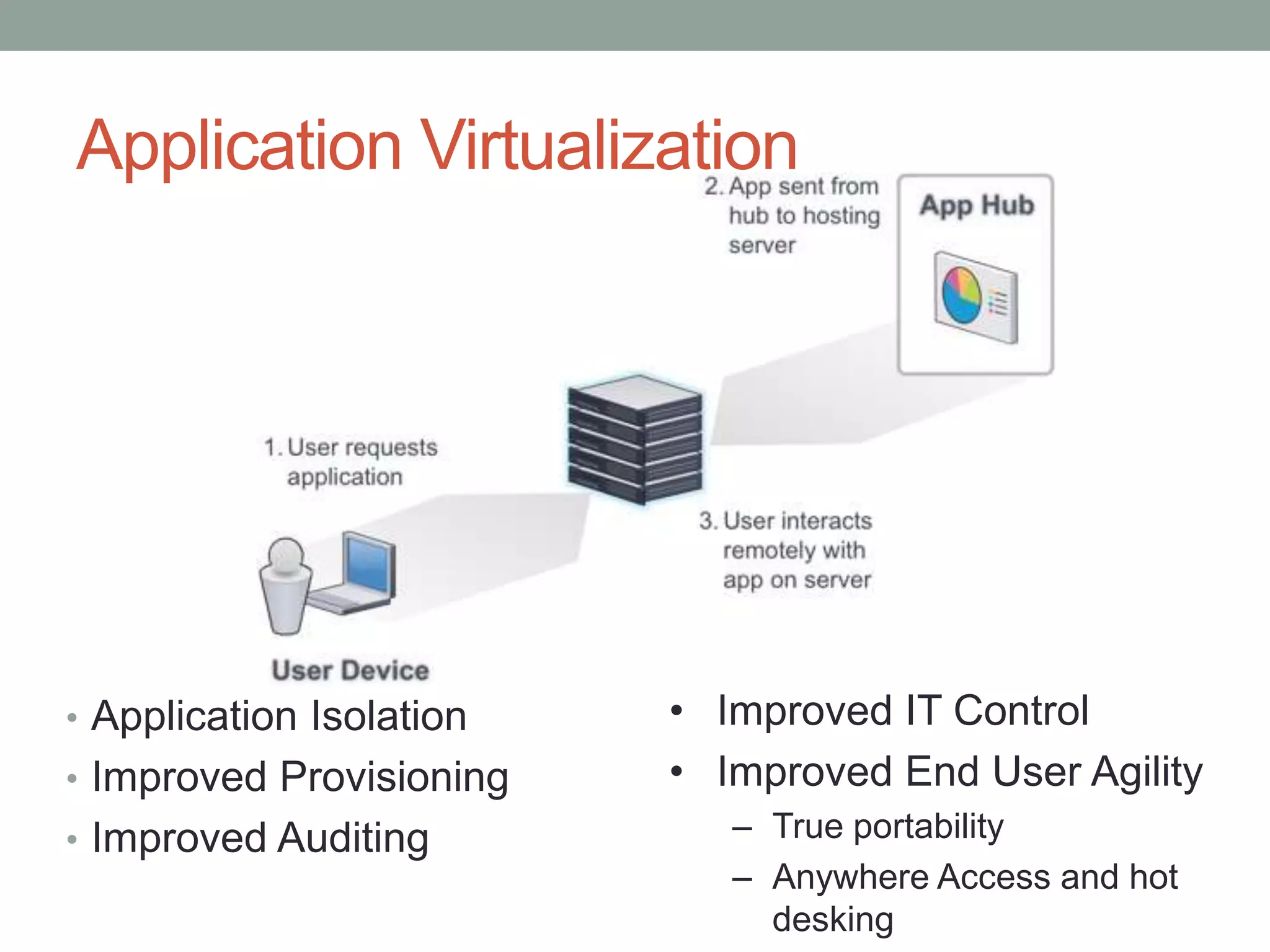

- 21. • Application Isolation •Improved Provisioning • Improved Auditing • Improved IT Control • Improved End User Agility – True portability – Anywhere Access and hot desking Application Virtualization
- 22.

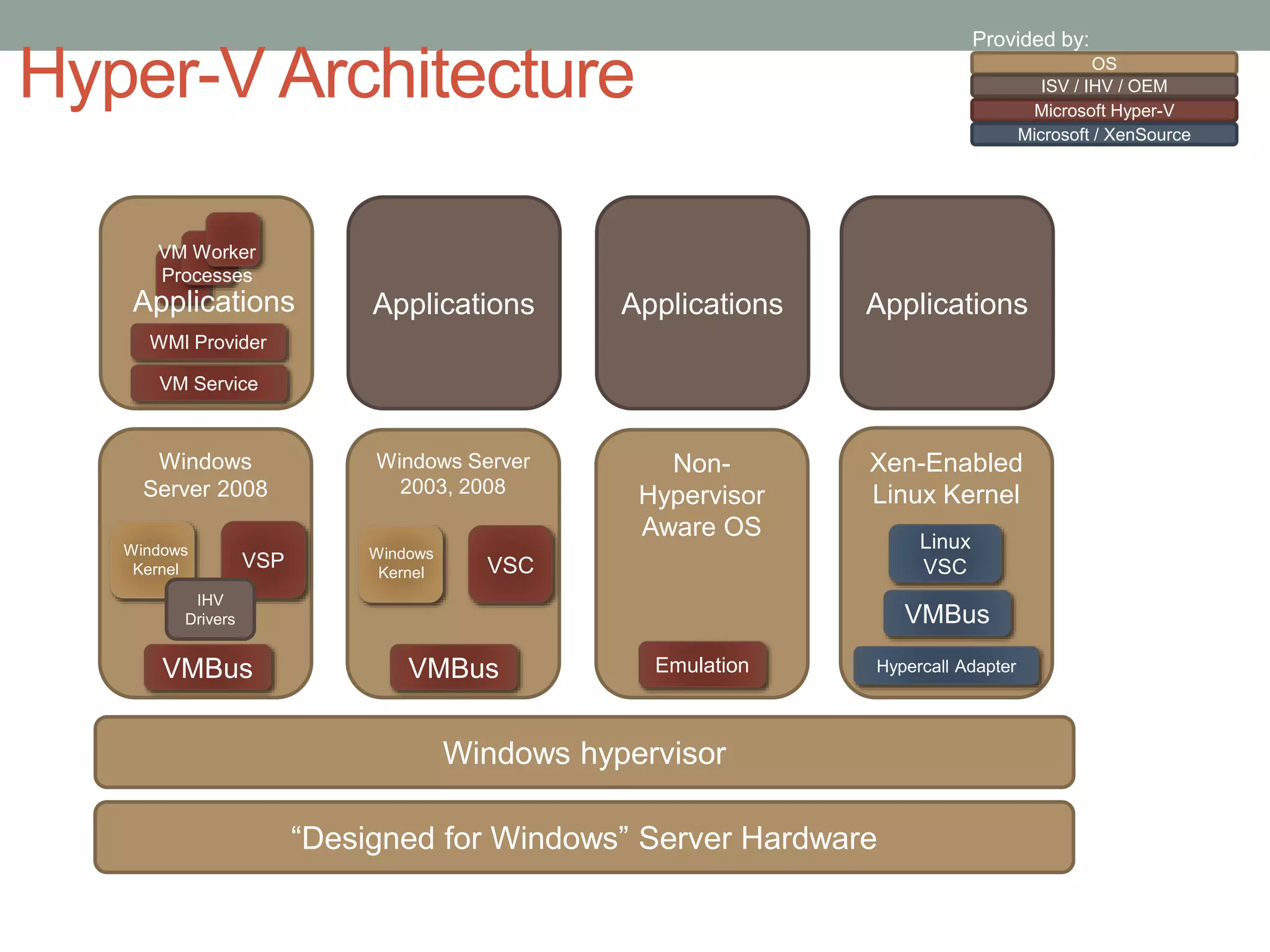

- 24. Windows Server 2008 VSP Windows Kernel Hyper-V Architecture ApplicationsApplications Applications Non- Hypervisor Aware OS Windows Server 2003, 2008 Windows Kernel VSC VMBus Emulation “Designed for Windows” Server Hardware Windows hypervisor Xen-Enabled Linux Kernel Linux VSC Hypercall Adapter Parent Partition Child Partitions VM Service WMI Provider VM Worker Processes OS ISV / IHV / OEM Microsoft Hyper-V Microsoft / XenSource User Mode Kernel Mode Provided by: Ring -1 IHV Drivers VMBus VMBus Applications
- 25.

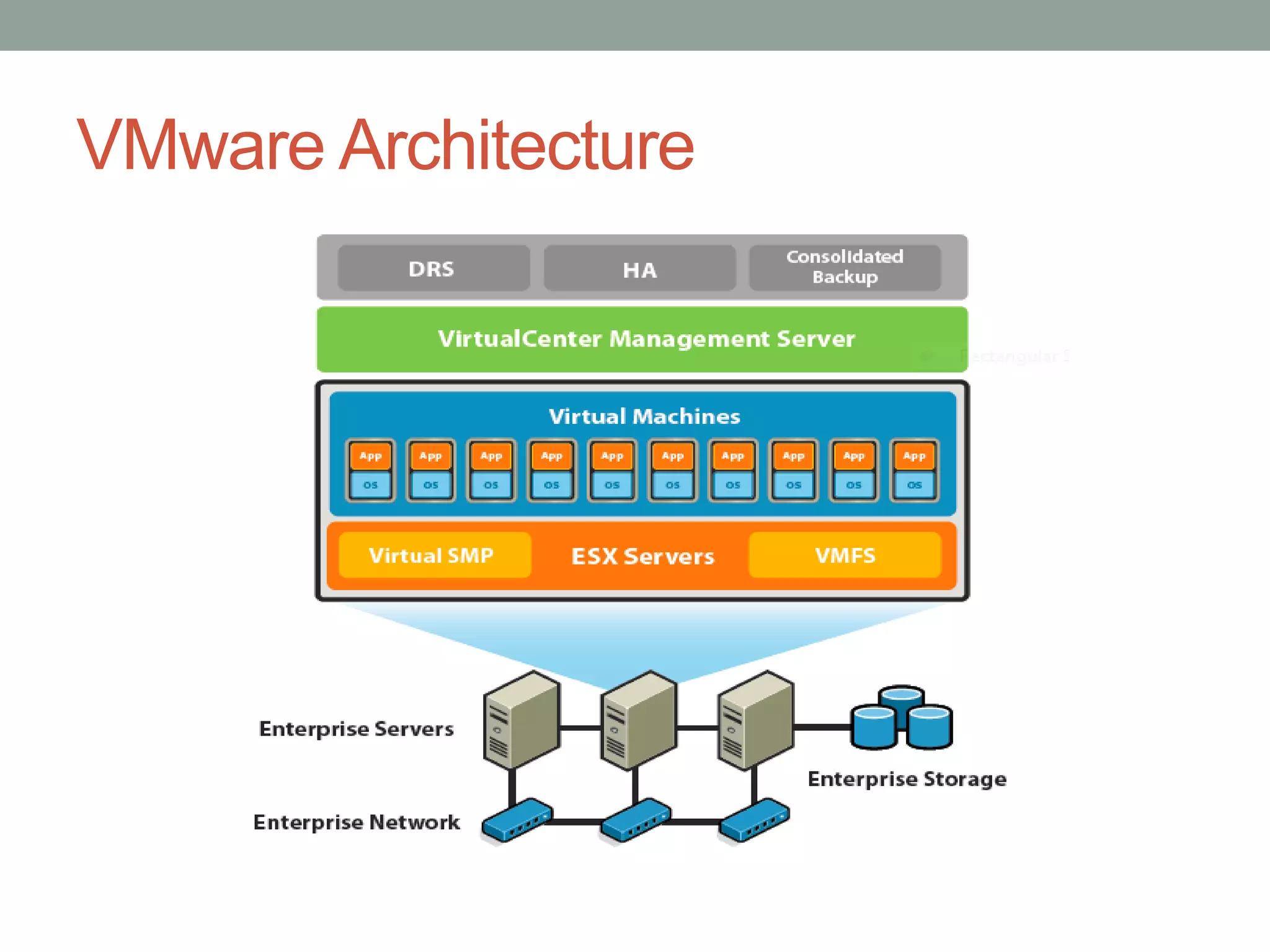

- 27.
- 28.

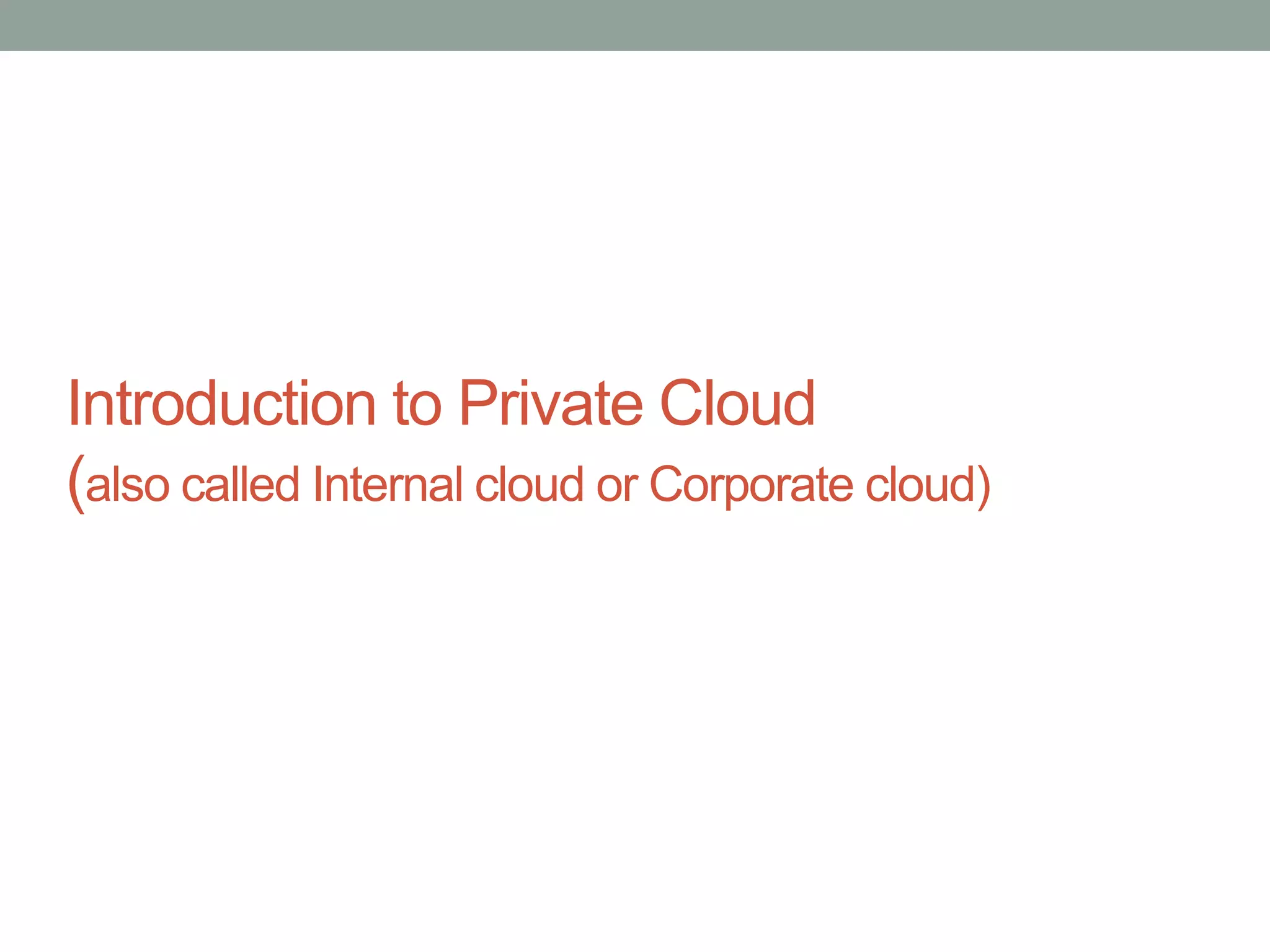

- 29. Introduction to PrivateCloud (also called Internal cloud or Corporate cloud)

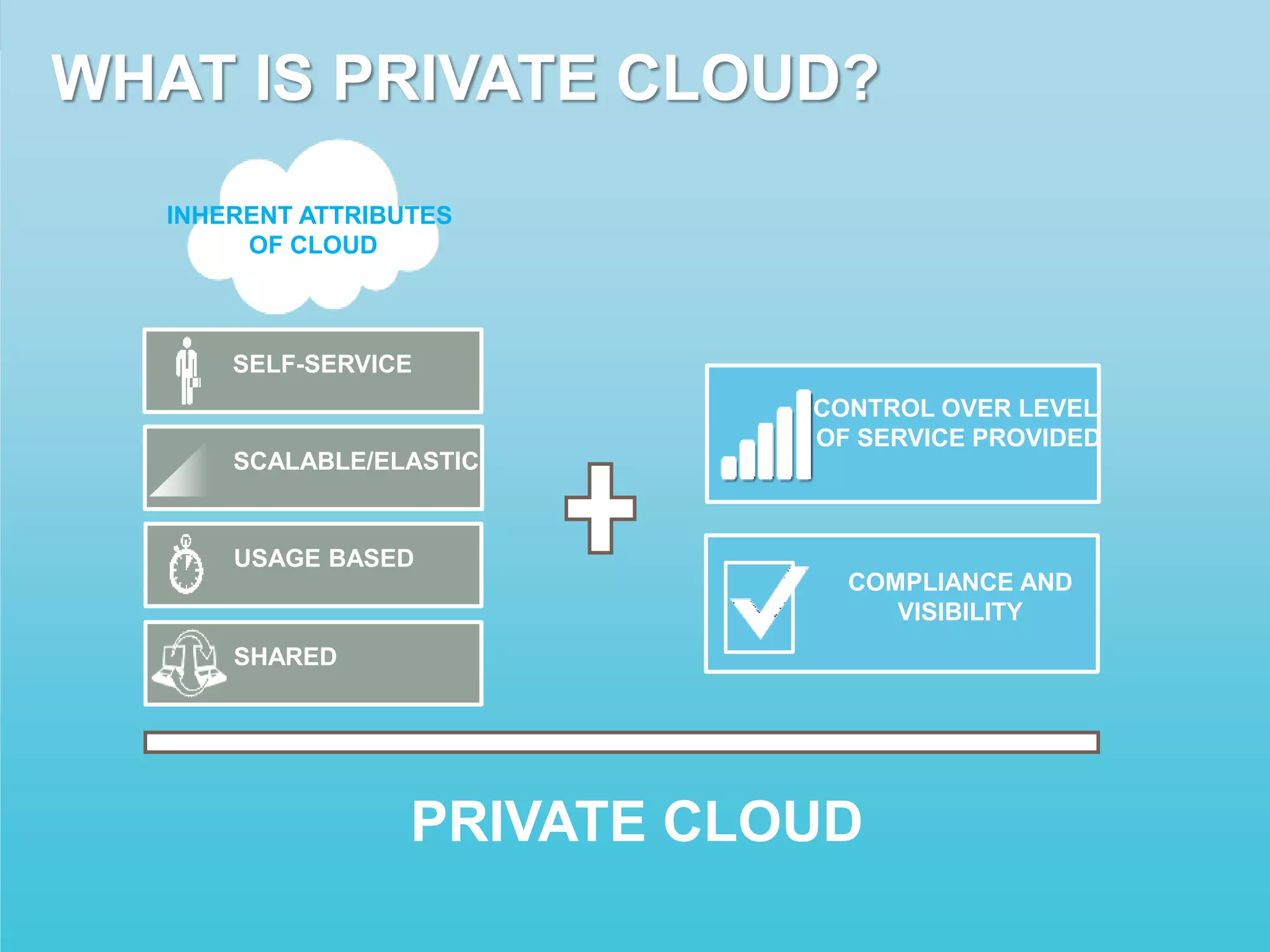

- 30. PRIVATE CLOUD SELF-SERVICE SCALABLE/ELASTIC USAGE BASED SHARED CONTROLOVER LEVEL OF SERVICE PROVIDED INHERENT ATTRIBUTES OF CLOUD COMPLIANCE AND VISIBILITY WHAT IS PRIVATE CLOUD?
- 31. Virtualization and PrivateCloud Draw a line…..

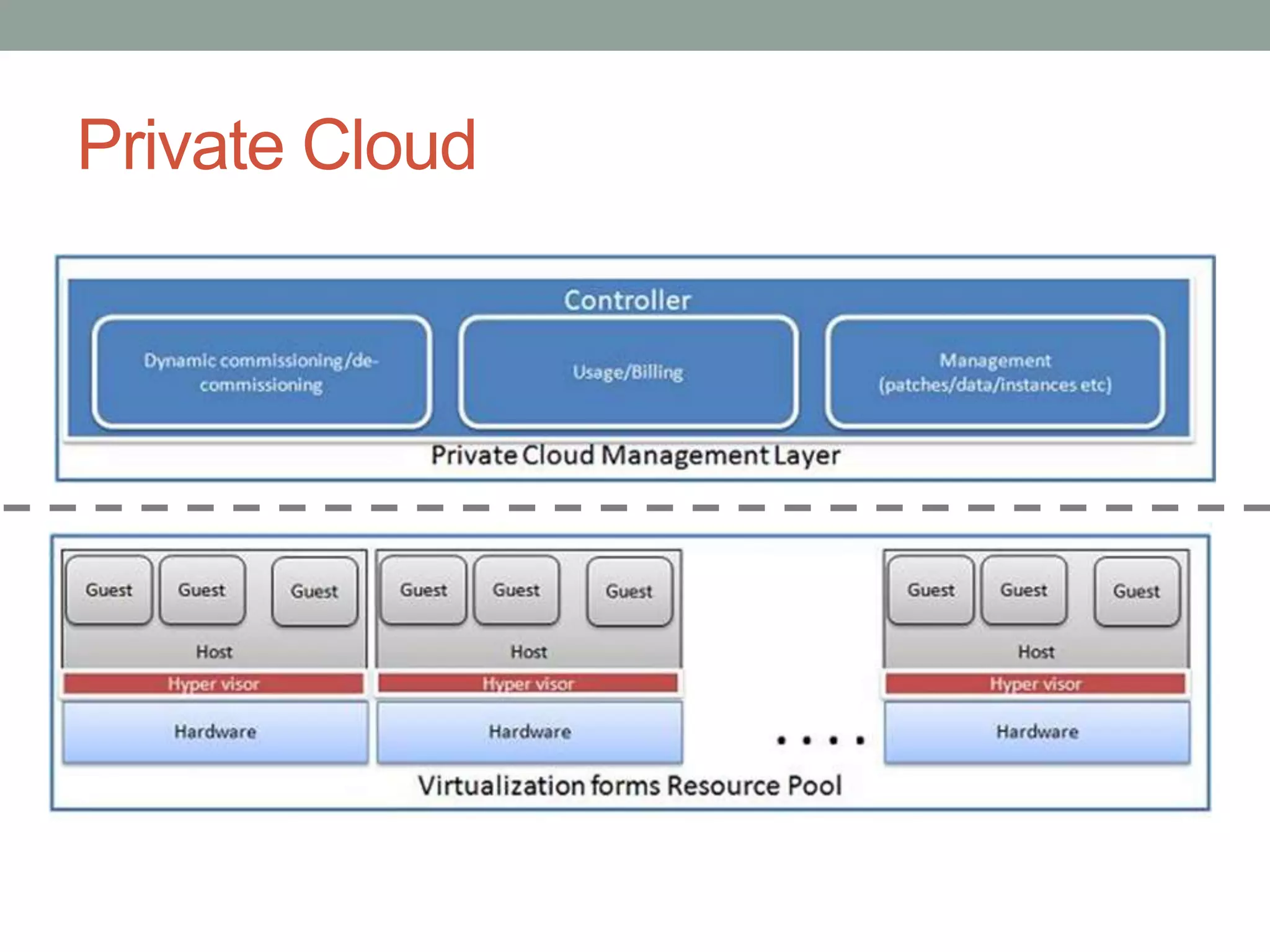

- 32.

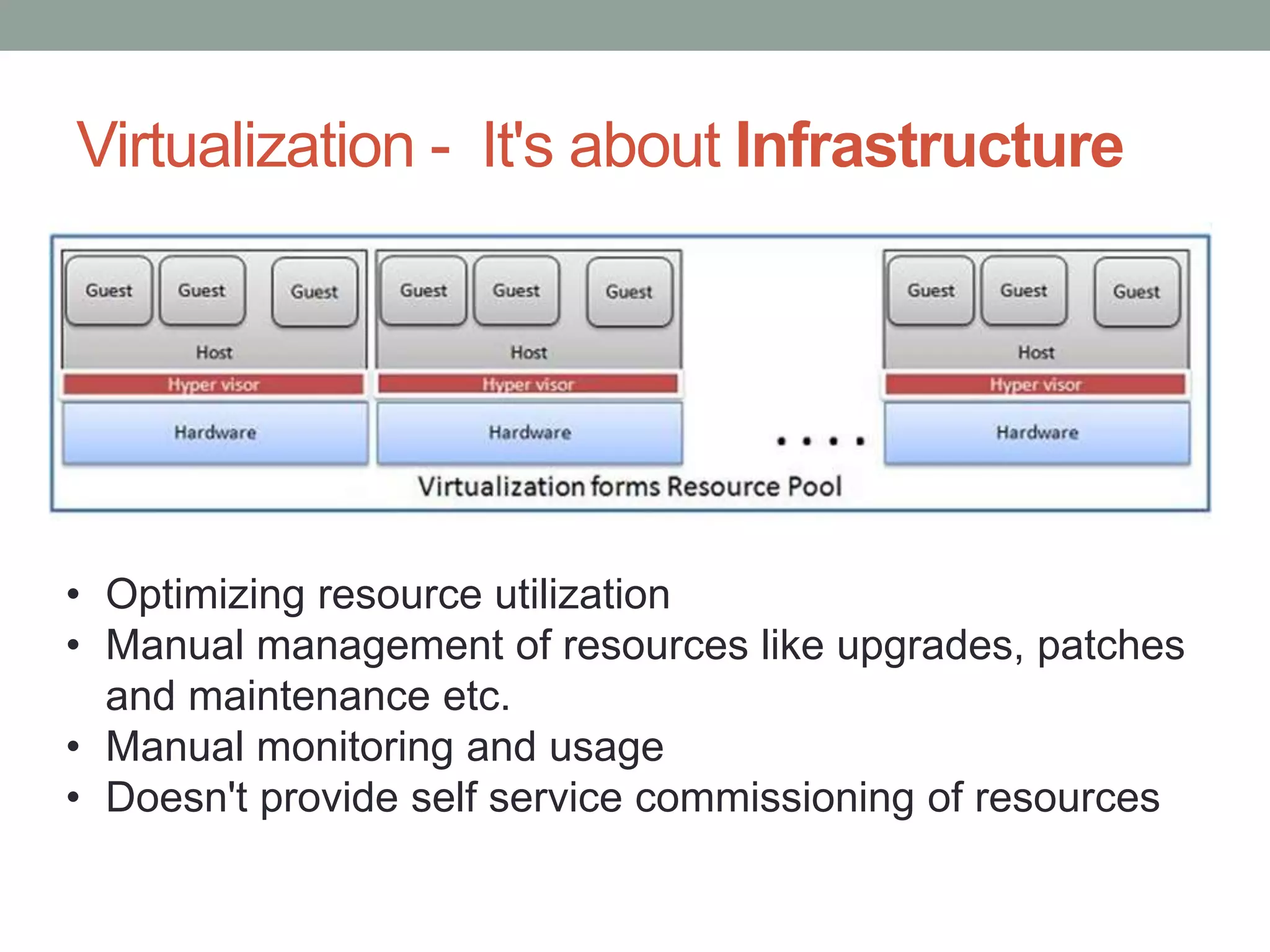

- 33. Virtualization - It'sabout Infrastructure • Optimizing resource utilization • Manual management of resources like upgrades, patches and maintenance etc. • Manual monitoring and usage • Doesn't provide self service commissioning of resources

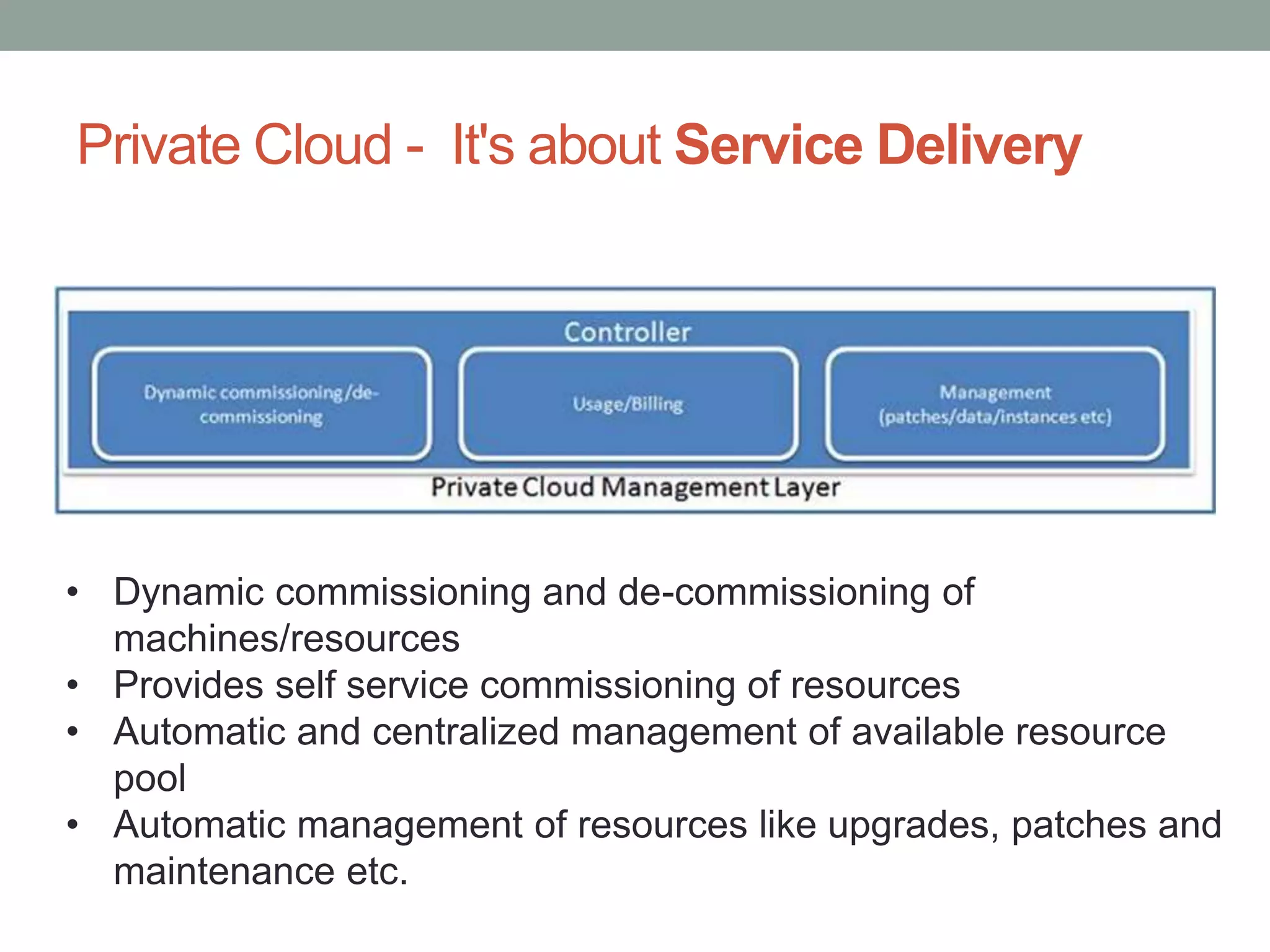

- 34. Private Cloud -It's about Service Delivery • Dynamic commissioning and de-commissioning of machines/resources • Provides self service commissioning of resources • Automatic and centralized management of available resource pool • Automatic management of resources like upgrades, patches and maintenance etc.

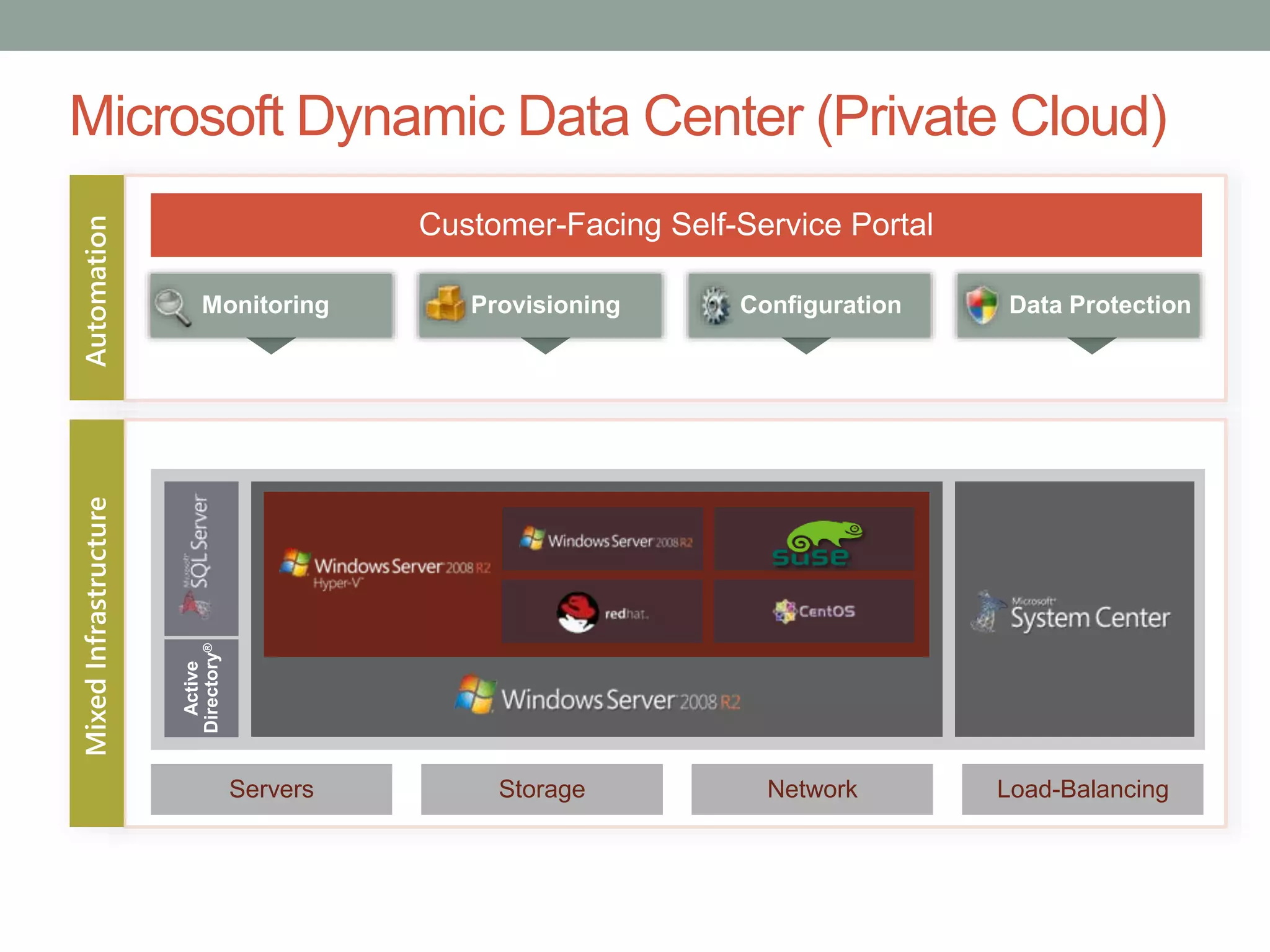

- 35. Automation Microsoft Dynamic DataCenter (Private Cloud) Servers Storage Network Load-Balancing Active Directory® MixedInfrastructure

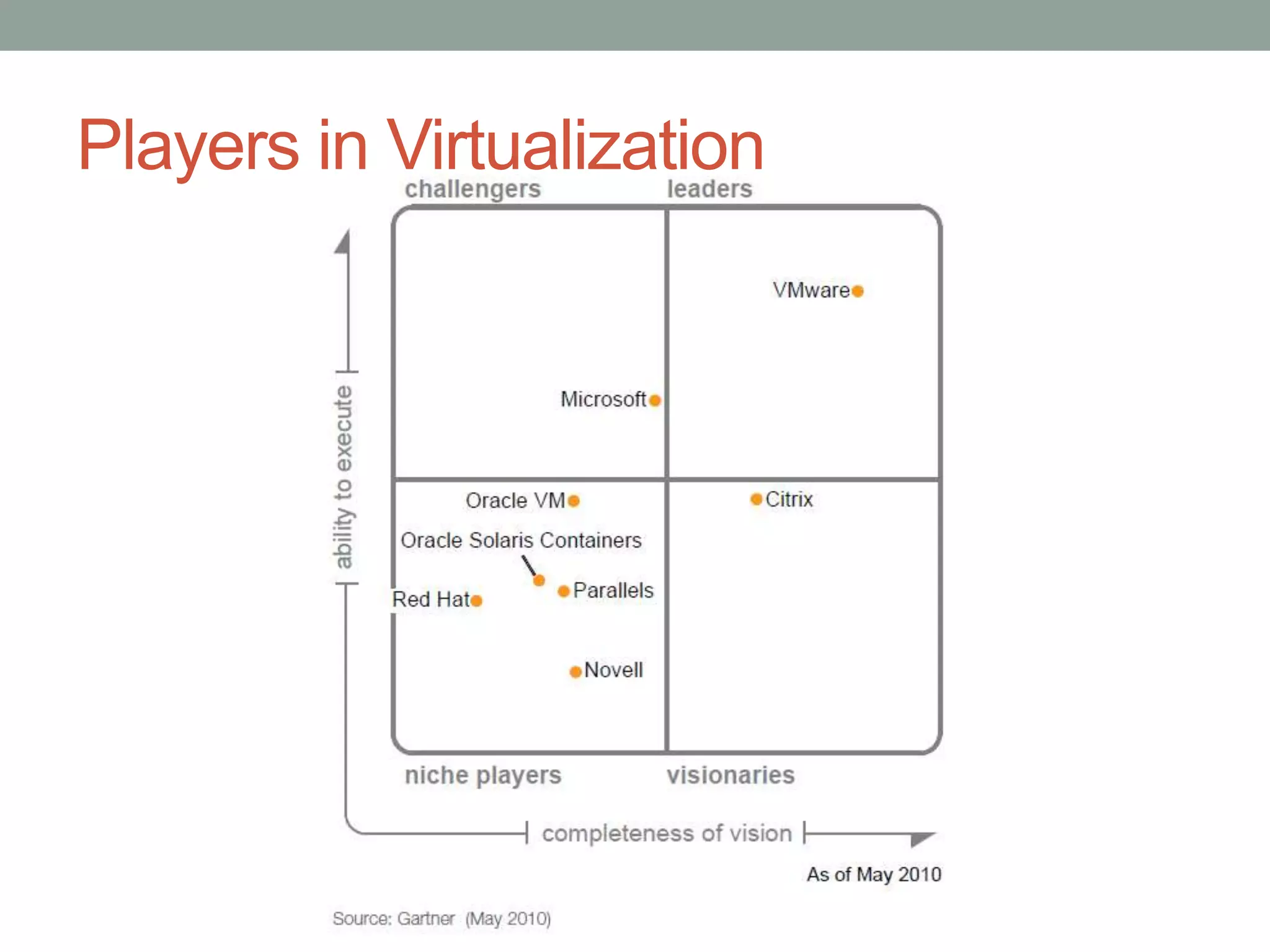

- 36.

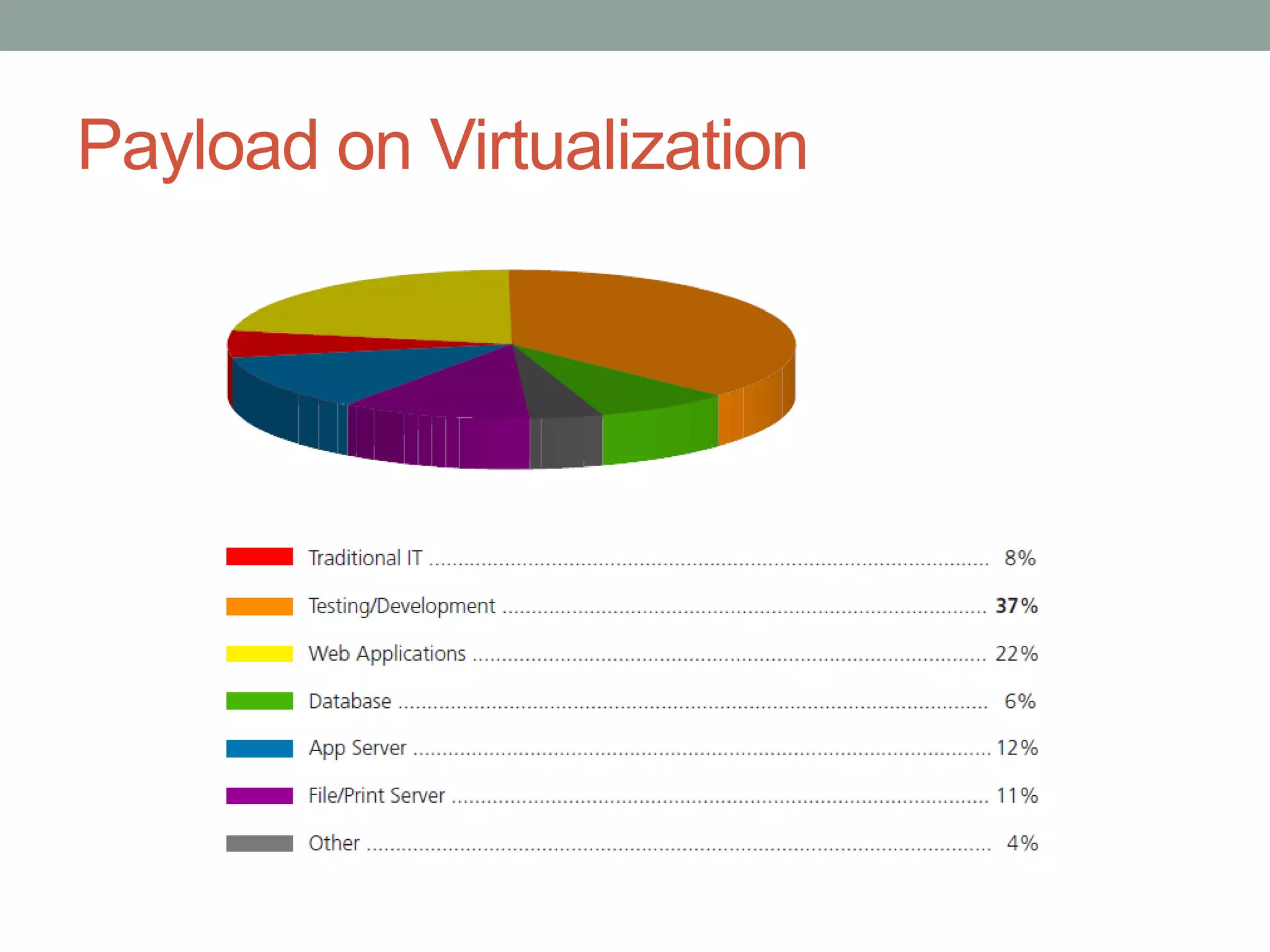

- 37.
- 39.
Editor's Notes
- #3 An observation made by Intel co-founder Gordon Moore in 1965 Read more: http://www.investopedia.com/terms/m/mooreslaw.asp#ixzz1da6MK79l
- #5 Data collected from more than 300,000 servers running in thousands of companies around the world VMware CapacityPlanner tool
- #10 The desire to virtualize results from the clear and tangible benefits for company’s of all sizes. It holds the potential to transform business by making them more cost effective, more agile, and more resilient to infrastructure failures. Server consolidation helps reduce capital outlays for server infrastructure purchases and ensures optimal asset utilization. With fewer servers per workload in the IT environment, company’s also benefit from improved power efficiency. Unlike physical servers, virtual servers do not require hardware specific device drivers nor is it necessary to interact with hardware to configure RAID levels, BIOS settings, or network setting. This means that new OS instances and applications can be deployed in a fraction of the time required for physical servers. Because of capabilities like Hyper-V live migration, it is possible to migrate virtual machines among host servers without interrupting the application. This means that server BIOS and firmware updates can occur without taking applications offline, and it is possible to more dynamically match workload demands with the existing supply of compute resources. Finally, server virtualization has brought about a revolution in high availability and disaster recovery. With server instances captured on the SAN, it is now possible to replicate those images across long distances. If a site outage occurs it is possible to rapidly restart VM’s on infrastructure in a DR site without having to have identical hardware configurations at each location.
