The document discusses VMware View and desktop virtualization. It describes how VMware View enables IT to deliver desktops as a managed service by centralizing management, providing security and compliance benefits, and reducing costs. It allows delivering desktops from templates while providing a rich user experience across different devices and locations through features like USB redirection and multimedia redirection.

2. VMware View

3. Information and data is our most important asset. We spend too much time recovering lost data from stolen laptops. What keeps you up at night? How do I maintain or improve desktop management when I ’m required to do more with less? It is difficult to respond quickly when employees are mobile and scattered across the world. Windows 7 is here, I need to prepare for it! I spend a lot of time on desktop support calls. But I really need to focus on strategic IT initiatives that really add value.

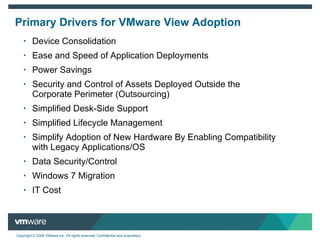

4. Primary Drivers for VMware View Adoption Device Consolidation Ease and Speed of Application Deployments Power Savings Security and Control of Assets Deployed Outside the Corporate Perimeter (Outsourcing) Simplified Desk-Side Support Simplified Lifecycle Management Simplify Adoption of New Hardware By Enabling Compatibility with Legacy Applications/OS Data Security/Control Windows 7 Migration IT Cost

5. The desktop dilemma: User Freedom vs IT control IT User Increasing IT costs Security and compliance risks Anytime, anywhere access Device, OS and apps diversity

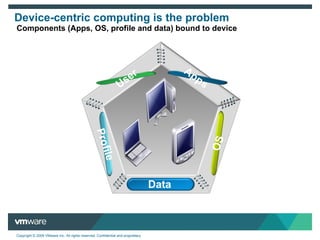

6. Device-centric computing is the problem Components (Apps, OS, profile and data) bound to device Apps OS Data Profile User

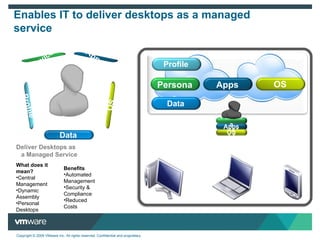

7. Enables IT to deliver desktops as a managed service Deliver Desktops as a Managed Service What does it mean? Central Management Dynamic Assembly Personal Desktops Benefits Automated Management Security & Compliance Reduced Costs OS Apps Persona OS Apps Persona OS Apps Persona OS Profile Data Persona Apps Data Profile Devices Apps OS OS Apps Persona OS Apps Persona OS Apps Persona

8. VMware View 4.5 Built for Desktops

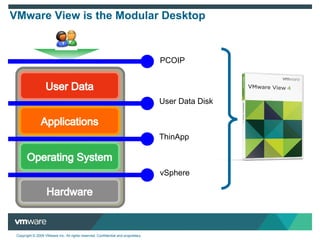

9. VMware View is the Modular Desktop vSphere User Data Disk ThinApp PCOIP

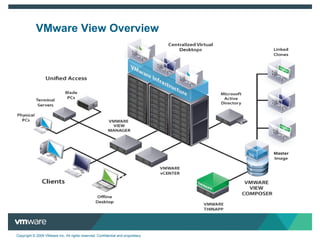

10. VMware View Overview

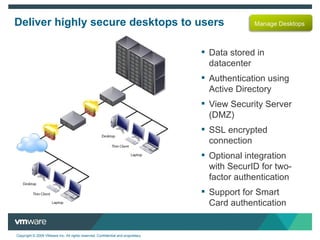

11. Deliver highly secure desktops to users Data stored in datacenter Authentication using Active Directory View Security Server (DMZ) SSL encrypted connection Optional integration with SecurID for two-factor authentication Support for Smart Card authentication Client

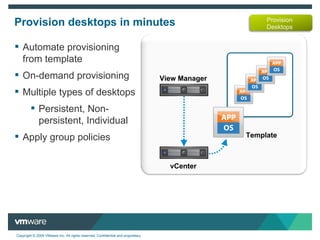

12. Provision desktops in minutes Template Automate provisioning from template On-demand provisioning Multiple types of desktops Persistent, Non-persistent, Individual Apply group policies View Manager vCenter

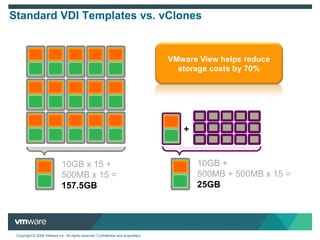

13. Standard VDI Templates vs. vClones 10GB x 15 + 500MB x 15 = 157.5GB 10GB + 500MB + 500MB x 15 = 25GB +

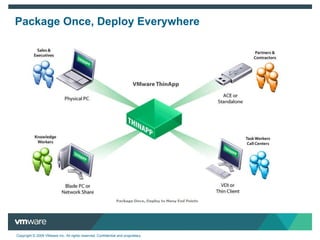

14. Package Once, Deploy Everywhere

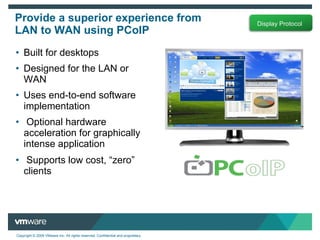

15. Built for desktops Designed for the LAN or WAN Uses end-to-end software implementation Optional hardware acceleration for graphically intense application Supports low cost, “zero” clients Provide a superior experience from LAN to WAN using PCoIP

16. Provide a seamless desktop experience Rich media and graphics Multimedia redirection Progressive build of graphics USB redirection Productivity applications

17. Wyse Cloud Client Computing for VMware View Dave Jolley Wyse Technology, Inc. Senior SE, US Northwest Region

18. VMware & Wyse Strategic Partnership Wyse Technology is the global leader in cloud client computing, offering the broadest and best-selling portfolio of thin, zero and cloud clients certified for VMware View desktop virtualization cloud infrastructure. As a joint desktop virtualization solution, Wyse cloud client computing and VMware View replaces the outdated distributed computing model of the unsecure, unreliable, energy-intensive and expensive PC, while delivering low TCO and superior user experience. Wyse has shipped more than 20 million client devices and has over 200 million people interacting with their products each day, enabling the leading private, public, hybrid and government cloud implementations worldwide.

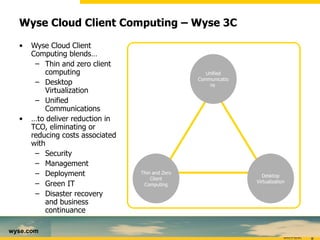

19. Wyse Cloud Client Computing – Wyse 3C Wyse Cloud Client Computing blends… Thin and zero client computing Desktop Virtualization Unified Communications … to deliver reduction in TCO, eliminating or reducing costs associated with Security Management Deployment Green IT Disaster recovery and business continuance Unified Communications Thin and Zero Client Computing Desktop Virtualization

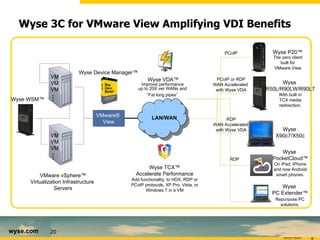

20. Wyse 3C for VMware View Amplifying VDI Benefits VMware vSphere™ Virtualization Infrastructure Servers VMware® View LAN/WAN Wyse P20™ Wyse R50L/R90LW/R90L7 Wyse PocketCloud™ PCoIP PCoIP or RDP WAN Accelerated with Wyse VDA RDP The zero client built for VMware View With built in TCX media redirection. On iPad, iPhone and now Android smart phones. RDP WAN Accelerated with Wyse VDA Wyse X90c7/X50c VM VM VM VM VM VM … … Wyse WSM™ Wyse TCX™ Accelerate Performance Add functionality, to HDX, RDP or PCoIP protocols, XP Pro, Vista, or Windows 7 in a VM Wyse VDA™ Improve performance up to 20X ver WANs and “Fat long pipes” Wyse Device Manager™ Wyse PC Extender™ Repurpose PC solutions.

21. Wyse & VMware – Better Together Why Wyse? Inventor and market leader w/30-year history Long standing VMware Partner Broadest channel and field organization focus on VMware VDI VMware uses Wyse VMware View includes Wyse TCX 20M+ devices, 200M+ users Secure and Green computing via EnergyStar/EPEAT IP/portfolio ownership: 100+ patents as of Q1/2010 Award-winning partner ecosystem Why go with Wyse when doing VDI? Wyse W3C reduce overall TCO of VDI Cost less to buy and manage than a PC Last longer Wyse W3C is green Consume 10x less energy than a PC Wyse W3C is secure Lock down environment No vulnerabilities Wyse W3C create VDI stickiness A customer using a thin client to access VDI is more likely to maintain its VDI vendor choice for a longer time

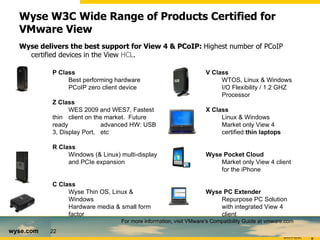

22. Wyse W3C Wide Range of Products Certified for VMware View Wyse delivers the best support for View 4 & PCoIP: Highest number of PCoIP certified devices in the View HCL . P Class Best performing hardware PCoIP zero client device Z Class WES 2009 and WES7, Fastest thin client on the market. Future ready advanced HW: USB 3, Display Port, etc R Class Windows (& Linux) multi-display and PCIe expansion C Class Wyse Thin OS, Linux & Windows Hardware media & small form factor For more information, visit VMware ’s Compatibility Guide at vmware.com V Class WTOS, Linux & Windows I/O Flexibility / 1.2 GHZ Processor X Class Linux & Windows Market only View 4 certified thin laptops Wyse Pocket Cloud Market only View 4 client for the iPhone Wyse PC Extender Repurpose PC Solution with integrated View 4 client

24. Additional Slides

25. Provisioning linked clones

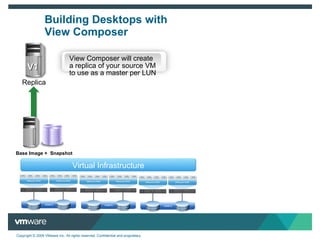

26. Building Desktops with View Composer Base Image + Snapshot View Composer will create a replica of your source VM to use as a master per LUN Replica V1 Virtual Infrastructure

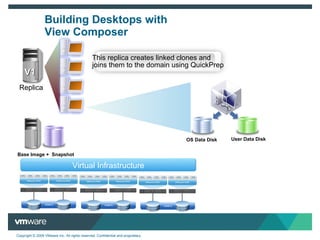

27. Building Desktops with View Composer Base Image + Snapshot OS Data Disk User Data Disk This replica creates linked clones and joins them to the domain using QuickPrep Replica V1 Virtual Infrastructure

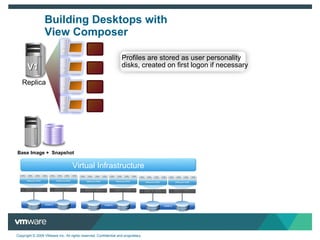

28. Building Desktops with View Composer Base Image + Snapshot Profiles are stored as user personality disks, created on first logon if necessary Replica V1 Virtual Infrastructure

29. Building Desktops with View Composer Base Image + Snapshot User data can be stored on file servers Replica V1 Virtual Infrastructure

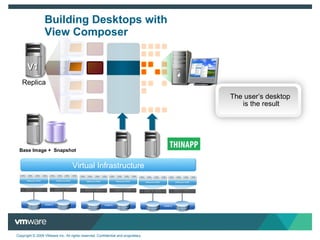

30. Building Desktops with View Composer Base Image + Snapshot The user ’s desktop is the result Replica V1 Virtual Infrastructure

31. Updating Linked Clones

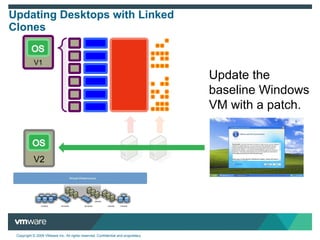

32. Updating Desktops with Linked Clones Update the baseline Windows VM with a patch. V2 V1

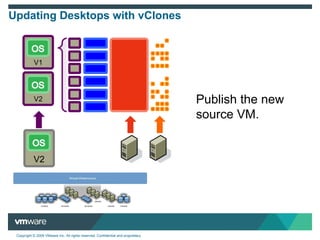

33. Updating Desktops with vClones Publish the new source VM. V2 V1 V2

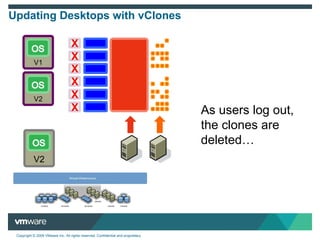

34. Updating Desktops with vClones As users log out, the clones are deleted… V2 V1 V2 X X X X X X

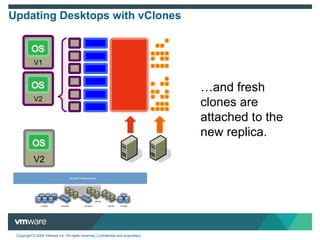

35. Updating Desktops with vClones … and fresh clones are attached to the new replica. V2 V1 V2

36. Questions Thank You!
