- 1. Programmable Virtual Networks From NetworkSlicing To Network Virtualization Ali Al-Shabibi Open Networking Laboratory

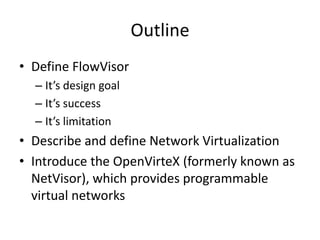

- 2. Outline • Define FlowVisor –It’s design goal – It’s success – It’s limitation • Describe and define Network Virtualization • Introduce the OpenVirteX (formerly known as NetVisor), which provides programmable virtual networks
- 3. Why FlowVisor? Good ideasrarely get deployed Also require access to real world traffic New services may require changes to switch software Experimenters want to control the behaviour of their network Evaluating new network services is hard
- 4. OK… Why isit hard?

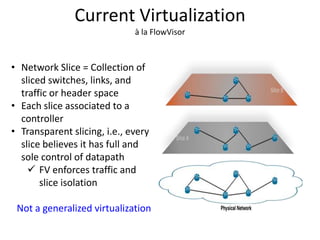

- 5. Current Virtualization à laFlowVisor • Network Slice = Collection of sliced switches, links, and traffic or header space • Each slice associated to a controller • Transparent slicing, i.e., every slice believes it has full and sole control of datapath FV enforces traffic and slice isolation Not a generalized virtualization

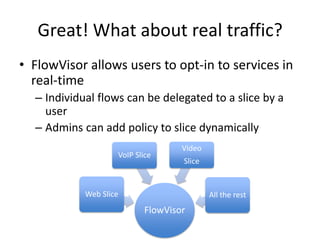

- 6. Great! What aboutreal traffic? • FlowVisor allows users to opt-in to services in real-time – Individual flows can be delegated to a slice by a user – Admins can add policy to slice dynamically FlowVisor Web Slice VoIP Slice Video Slice All the rest
- 7. Sprinkle some resourcelimits • Slicing resources includes: – Specifying the link bandwidth – Maximum number of forwarding rules – Fraction of switch CPU FlowSpace: Which slice controls which packet?

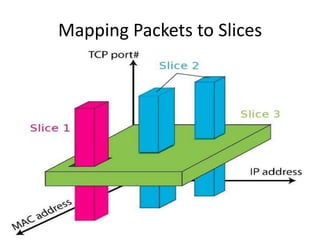

- 8. Mapping Packets toSlices

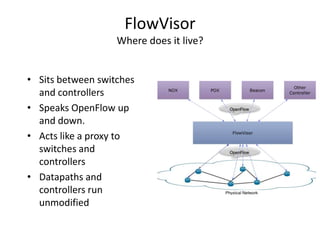

- 9. FlowVisor Where does itlive? • Sits between switches and controllers • Speaks OpenFlow up and down. • Acts like a proxy to switches and controllers • Datapaths and controllers run unmodified

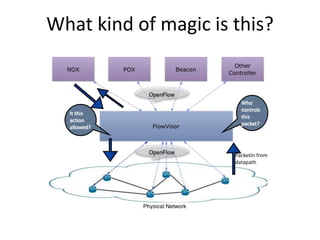

- 10. What kind ofmagic is this? PacketIn from datapath Who controls this packet? It this action allowed?

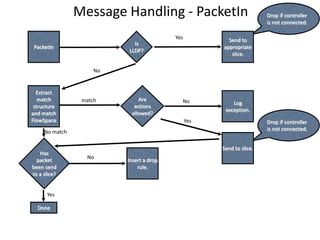

- 11. Message Handling -PacketIn PacketIn Drop if controller is not connected. Is LLDP? Send to appropriate slice. Yes Extract match structure and match FlowSpace No Done Insert a drop rule. No Yes Drop if controller is not connected. Yes Send to slice. Are actions allowed? Log exception. Nomatch Has packet been send to a slice? No match

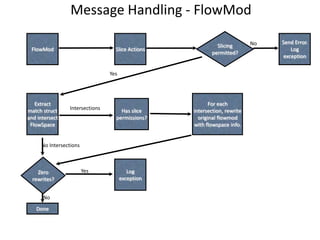

- 12. Message Handling -FlowMod FlowMod Slicing permitted? Slice Actions Send Error. Log exception No Extract match struct and intersect FlowSpace Yes For each intersection, rewrite original flowmod with flowspace info. Has slice permissions? Intersections No Intersections Zero rewrites? Log exception Done Yes No

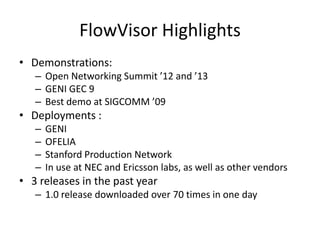

- 13. FlowVisor Highlights • Demonstrations: –Open Networking Summit ’12 and ’13 – GENI GEC 9 – Best demo at SIGCOMM ’09 • Deployments : – GENI – OFELIA – Stanford Production Network – In use at NEC and Ericsson labs, as well as other vendors • 3 releases in the past year – 1.0 release downloaded over 70 times in one day

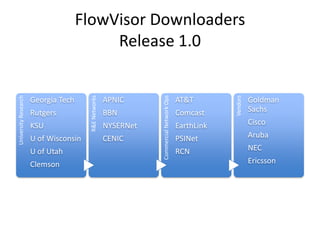

- 14. FlowVisor Downloaders Release 1.0 UniversityResearch GeorgiaTech Rutgers KSU U of Wisconsin U of Utah Clemson R&ENetworks APNIC BBN NYSERNet CENIC CommercialNetworkOps AT&T Comcast EarthLink PSINet RCN Vendors Goldman Sachs Cisco Aruba NEC Ericsson

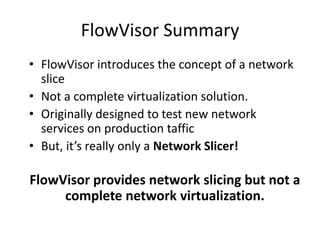

- 15. FlowVisor Summary • FlowVisorintroduces the concept of a network slice • Not a complete virtualization solution. • Originally designed to test new network services on production taffic • But, it’s really only a Network Slicer! FlowVisor provides network slicing but not a complete network virtualization.

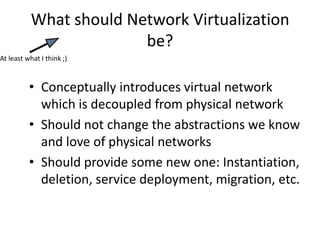

- 16. What should NetworkVirtualization be? • Conceptually introduces virtual network which is decoupled from physical network • Should not change the abstractions we know and love of physical networks • Should provide some new one: Instantiation, deletion, service deployment, migration, etc. At least what I think ;)

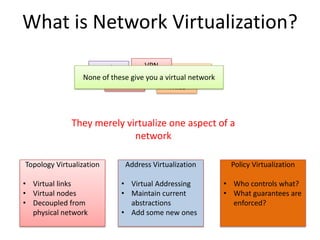

- 17. MPLS VRF Overlays TRILL VLAN VPN What is NetworkVirtualization? None of these give you a virtual network They merely virtualize one aspect of a network Topology Virtualization • Virtual links • Virtual nodes • Decoupled from physical network Address Virtualization • Virtual Addressing • Maintain current abstractions • Add some new ones Policy Virtualization • Who controls what? • What guarantees are enforced?

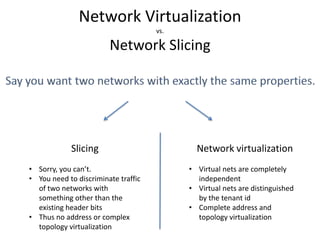

- 18. Network Virtualization vs. Network Slicing Slicing •Sorry, you can’t. • You need to discriminate traffic of two networks with something other than the existing header bits • Thus no address or complex topology virtualization Network virtualization • Virtual nets are completely independent • Virtual nets are distinguished by the tenant id • Complete address and topology virtualization

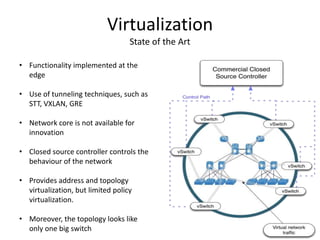

- 19. Virtualization State of theArt • Functionality implemented at the edge • Use of tunneling techniques, such as STT, VXLAN, GRE • Network core is not available for innovation • Closed source controller controls the behaviour of the network • Provides address and topology virtualization, but limited policy virtualization. • Moreover, the topology looks like only one big switch
- 20. Big Switch Abstraction E6 E2 E5 E1 E3E4 SWITCH 1E1 E3 E2 E5 SWITCH 2 E4 E6 • A single switch greatly limits the flexibility of the network controller • Cannot specify your own routing policy. • What if you want a tree topology?

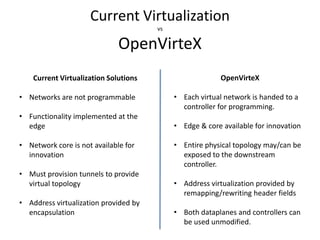

- 21. Current Virtualization vs OpenVirteX Current VirtualizationSolutions • Networks are not programmable • Functionality implemented at the edge • Network core is not available for innovation • Must provision tunnels to provide virtual topology • Address virtualization provided by encapsulation OpenVirteX • Each virtual network is handed to a controller for programming. • Edge & core available for innovation • Entire physical topology may/can be exposed to the downstream controller. • Address virtualization provided by remapping/rewriting header fields • Both dataplanes and controllers can be used unmodified.

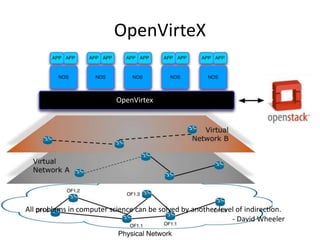

- 22. OpenVirteX All problems incomputer science can be solved by another level of indirection. - David Wheeler OpenVirtex

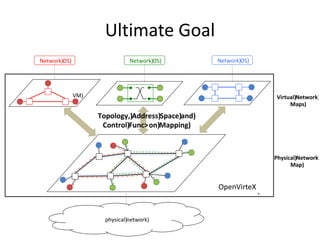

- 23.
- 24. Address Space Virtualisation source'physical'IP'des1na1on'physical'IP' tenant'ID' LSB' transformed' virtual'source'IP' transformed' virtual'des1na1on'IP' 32'bits' 32'bits' tenant'ID' MSB' NetVisor) physical)network) VM) edge) switch) virtual)IP) physical)IP) physical)IP) virtual)IP) physical)IP) virtual)IP) Network)OS) Control traffic address translation physical)IP)space) virtual)IP)space) NetVisor) Address)Space)Mapping)) Data traffic address mapping Data traffic address translation
- 25. Topology Virtualization -Abstractions • Expose physical topology to tenants • Virtual link: collapse multi-hop path into one-hop link • Approach is also valid for proactive rules OpenVirtex

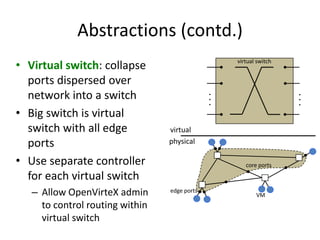

- 26. Abstractions (contd.) • Virtualswitch: collapse ports dispersed over network into a switch • Big switch is virtual switch with all edge ports • Use separate controller for each virtual switch – Allow OpenVirteX admin to control routing within virtual switch virtual physical ... ... virtual switch edge ports core ports VM

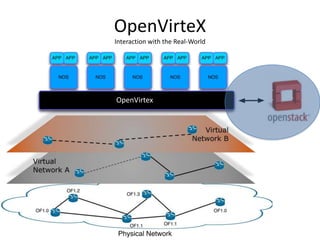

- 27. OpenVirteX Interaction with theReal-World NetVisorOpenVirtex

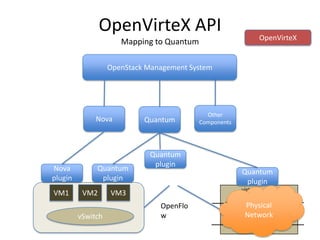

- 28. OpenVirteX API Mapping toQuantum OpenStack Management System Nova Quantum Other Components virtual switch vSwitch VM1 VM2 VM3 Nova plugin Quantum plugin Quantum plugin OpenVirteX Quantum plugin OpenFlo w Physical Network

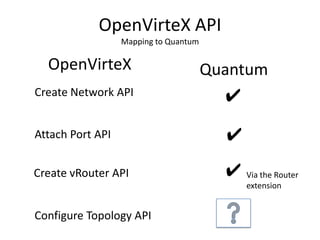

- 29. OpenVirteX API Mapping toQuantum Create Network API OpenVirteX Quantum ✔ Attach Port API ✔ Create vRouter API ✔ Configure Topology API Via the Router extension

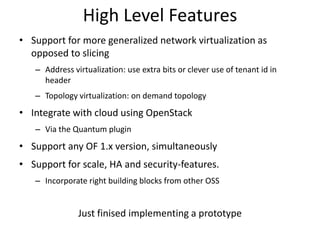

- 30. High Level Features •Support for more generalized network virtualization as opposed to slicing – Address virtualization: use extra bits or clever use of tenant id in header – Topology virtualization: on demand topology • Integrate with cloud using OpenStack – Via the Quantum plugin • Support any OF 1.x version, simultaneously • Support for scale, HA and security-features. – Incorporate right building blocks from other OSS Just finised implementing a prototype

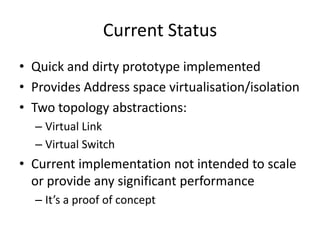

- 31. Current Status • Quickand dirty prototype implemented • Provides Address space virtualisation/isolation • Two topology abstractions: – Virtual Link – Virtual Switch • Current implementation not intended to scale or provide any significant performance – It’s a proof of concept

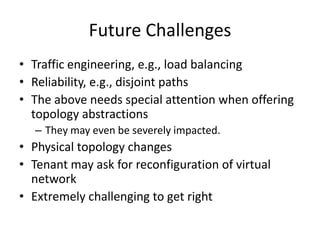

- 32. Future Challenges • Trafficengineering, e.g., load balancing • Reliability, e.g., disjoint paths • The above needs special attention when offering topology abstractions – They may even be severely impacted. • Physical topology changes • Tenant may ask for reconfiguration of virtual network • Extremely challenging to get right

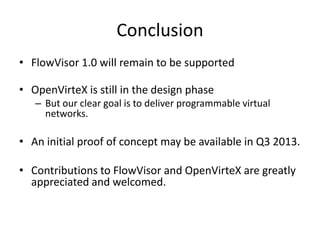

- 33. Conclusion • FlowVisor 1.0will remain to be supported • OpenVirteX is still in the design phase – But our clear goal is to deliver programmable virtual networks. • An initial proof of concept may be available in Q3 2013. • Contributions to FlowVisor and OpenVirteX are greatly appreciated and welcomed.
- 34.
