SD-WAN is a hot technology that is moving from the drawing board to production. It has changed the WAN equation forever and resulted in enterprises looking at the Connectively and Carrier Services quite differently. It is an SDN use case to connect enterprise locations over large distances. It promises to reduce enterprises’ IT expenses by using broadband connections and running managed services in the cloud. It simplifies the management and operation of a WAN by decoupling the networking hardware from its control mechanism. Panel will discuss details of use cases that standards and Operators are deploying e.g. including major multi-operator MEF reference implementation of Orchestrated L3VPN.

1. A Centrally Orchestrated SD-WAN Building a Green
Ecosystem
--ZTE-SD-WAN Solution

2. SD-WAN is on the Way
SD-WAN Solution2
1
CONTENTS Conclusion3

3. © ZTE All rights reserved
3

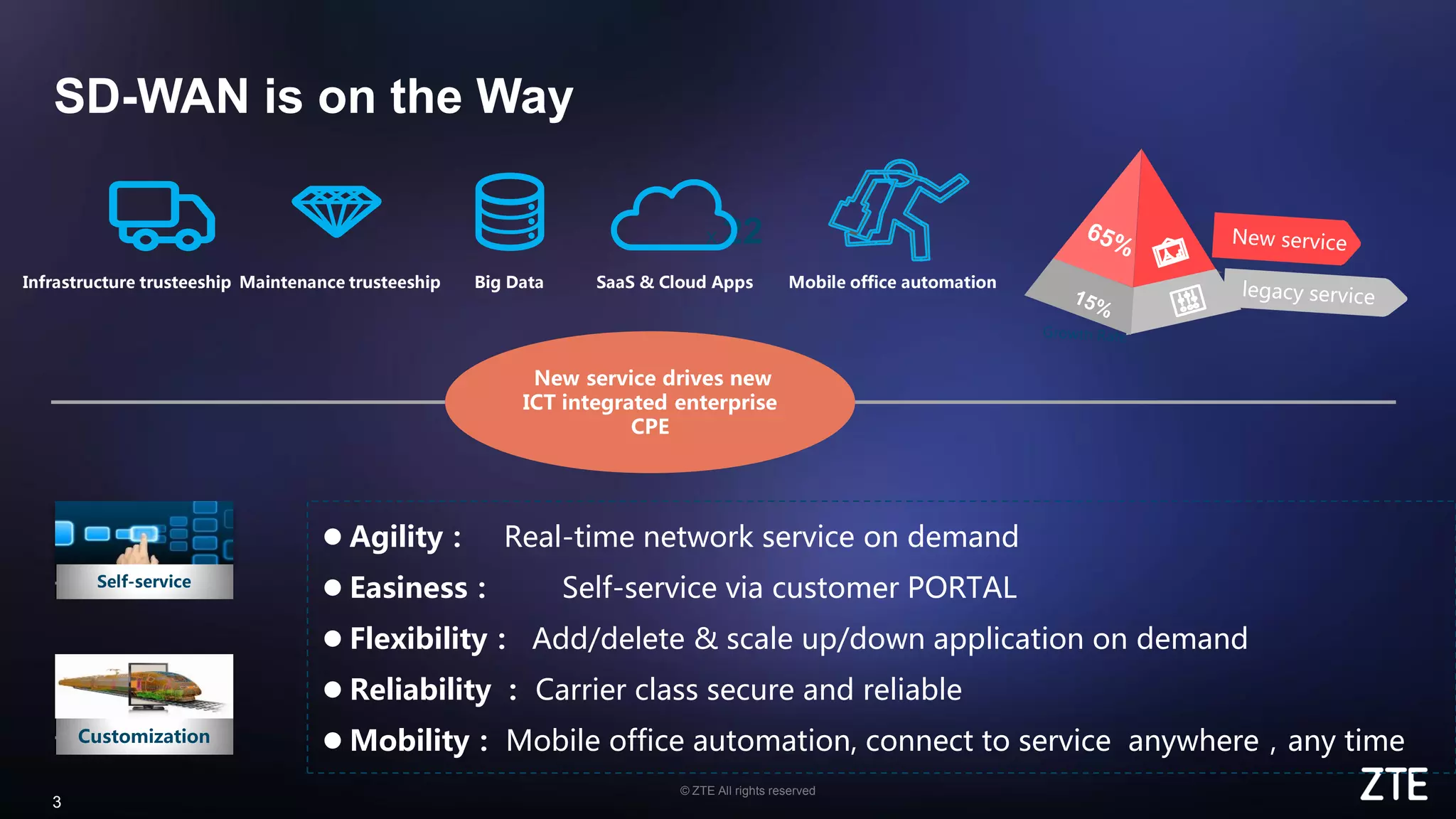

SD-WAN is on the Way
New service drives new
ICT integrated enterprise
CPE
 Agility： Real-time network service on demand
 Easiness： Self-service via customer PORTAL
 Flexibility： Add/delete & scale up/down application on demand
 Reliability ： Carrier class secure and reliable
 Mobility： Mobile office automation, connect to service anywhere，any time
Mobile office automationBig DataInfrastructure trusteeship Maintenance trusteeship
Customization
SaaS & Cloud Apps
X 22
Self-service

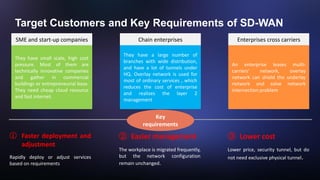

4. Key
requirements
① Faster deployment and
adjustment
Rapidly deploy or adjust services
based on requirements
② Easier management
The workplace is migrated frequently,
but the network configuration
remain unchanged.
③ Lower cost
Lower price, security tunnel, but do
not need exclusive physical tunnel.

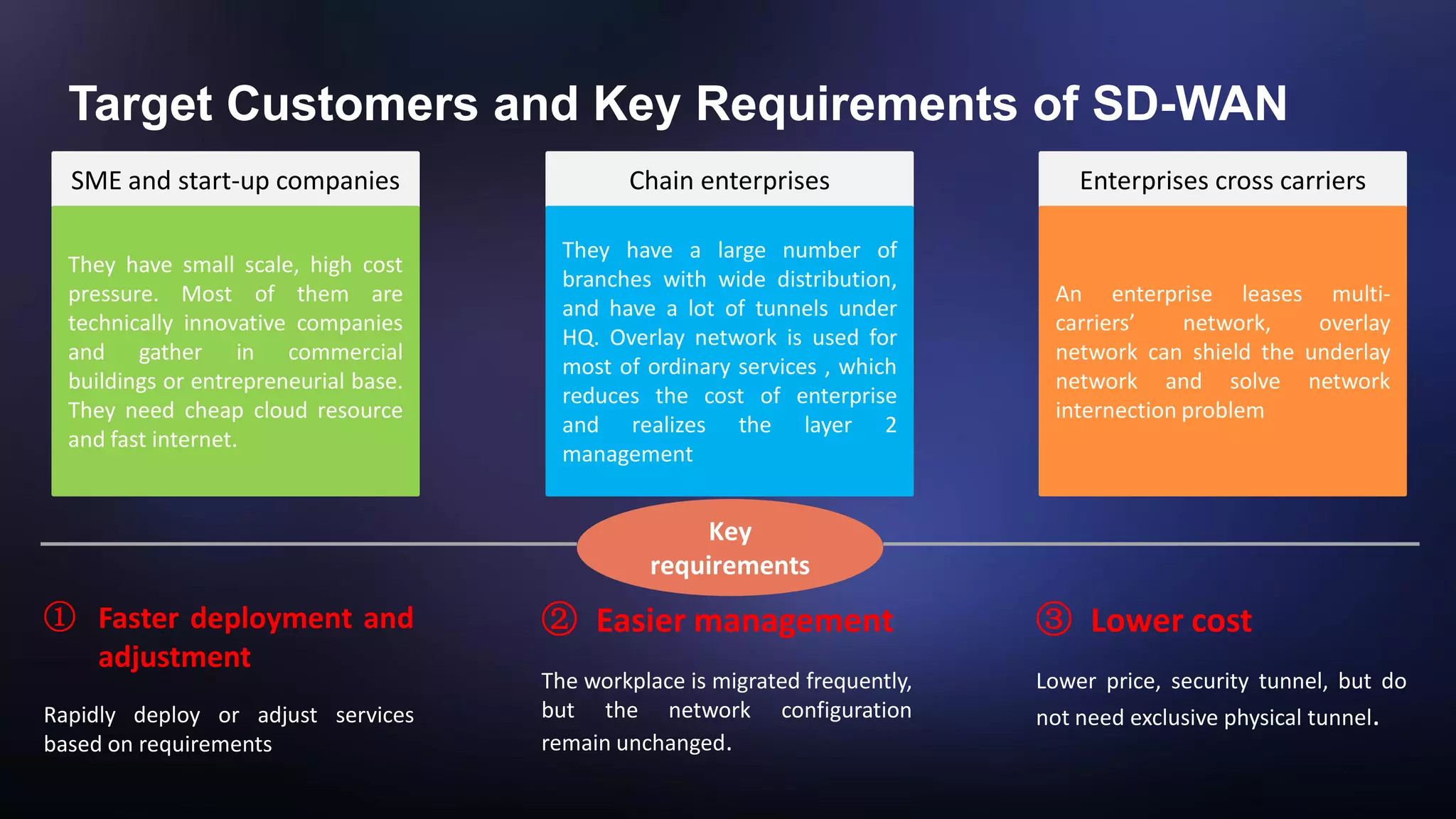

Target Customers and Key Requirements of SD-WAN
SME and start-up companies
They have small scale, high cost
pressure. Most of them are
technically innovative companies
and gather in commercial
buildings or entrepreneurial base.
They need cheap cloud resource
and fast internet.
Chain enterprises
They have a large number of
branches with wide distribution,
and have a lot of tunnels under
HQ. Overlay network is used for
most of ordinary services , which
reduces the cost of enterprise
and realizes the layer 2
management
Enterprises cross carriers
An enterprise leases multi-
carriers’ network, overlay
network can shield the underlay
network and solve network
internection problem

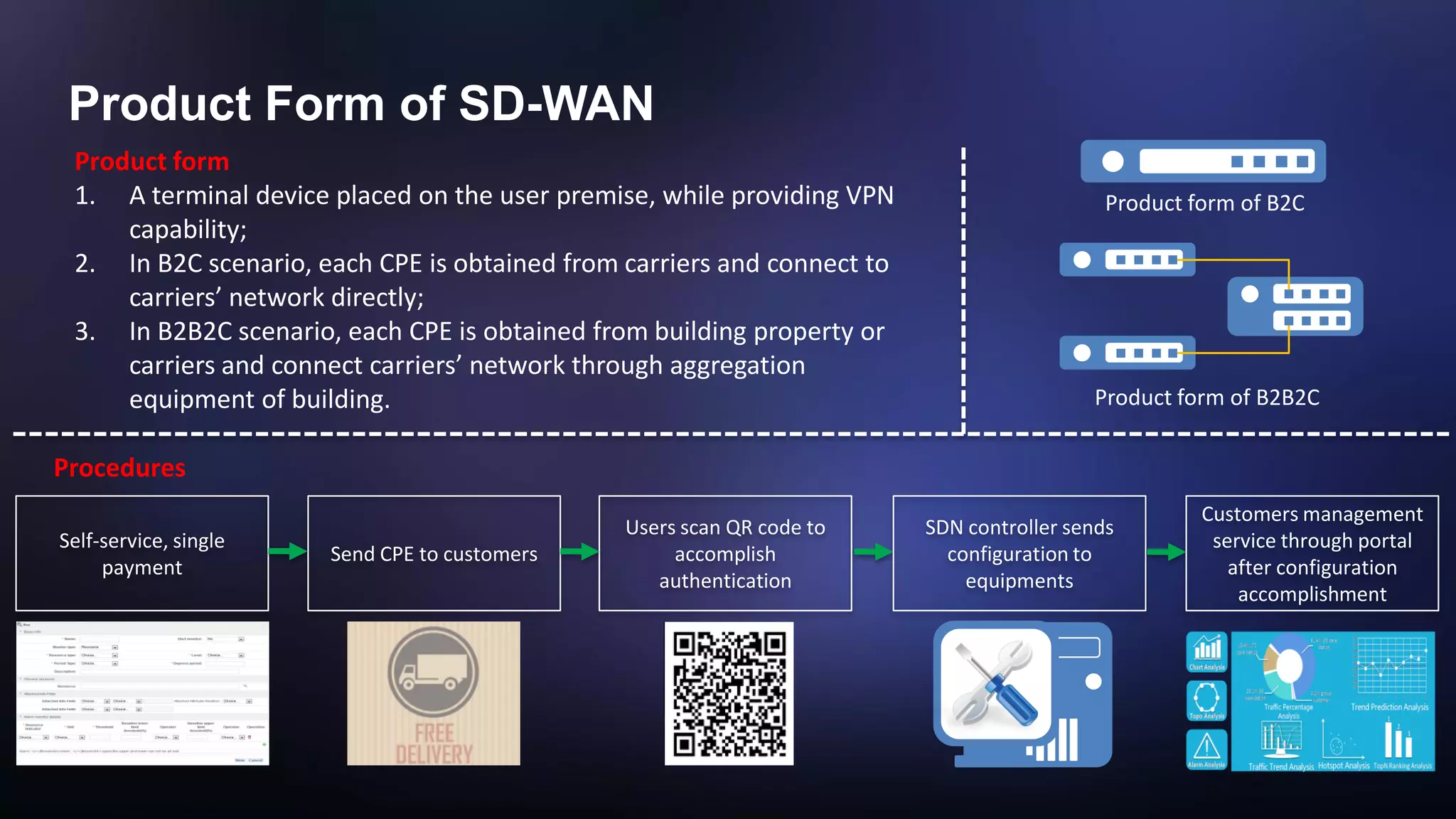

5. Product Form of SD-WAN
Product form
1. A terminal device placed on the user premise, while providing VPN
capability;
2. In B2C scenario, each CPE is obtained from carriers and connect to
carriers’ network directly;
3. In B2B2C scenario, each CPE is obtained from building property or
carriers and connect carriers’ network through aggregation
equipment of building.
Product form of B2C
Product form of B2B2C
Procedures
Self-service, single
payment
Send CPE to customers
Users scan QR code to
accomplish
authentication
SDN controller sends
configuration to
equipments
Customers management
service through portal
after configuration
accomplishment

6. SD-WAN is on the Way
SD-WAN Solution2
1
CONTENTS Conclusion3

7. © ZTE All rights reserved
7

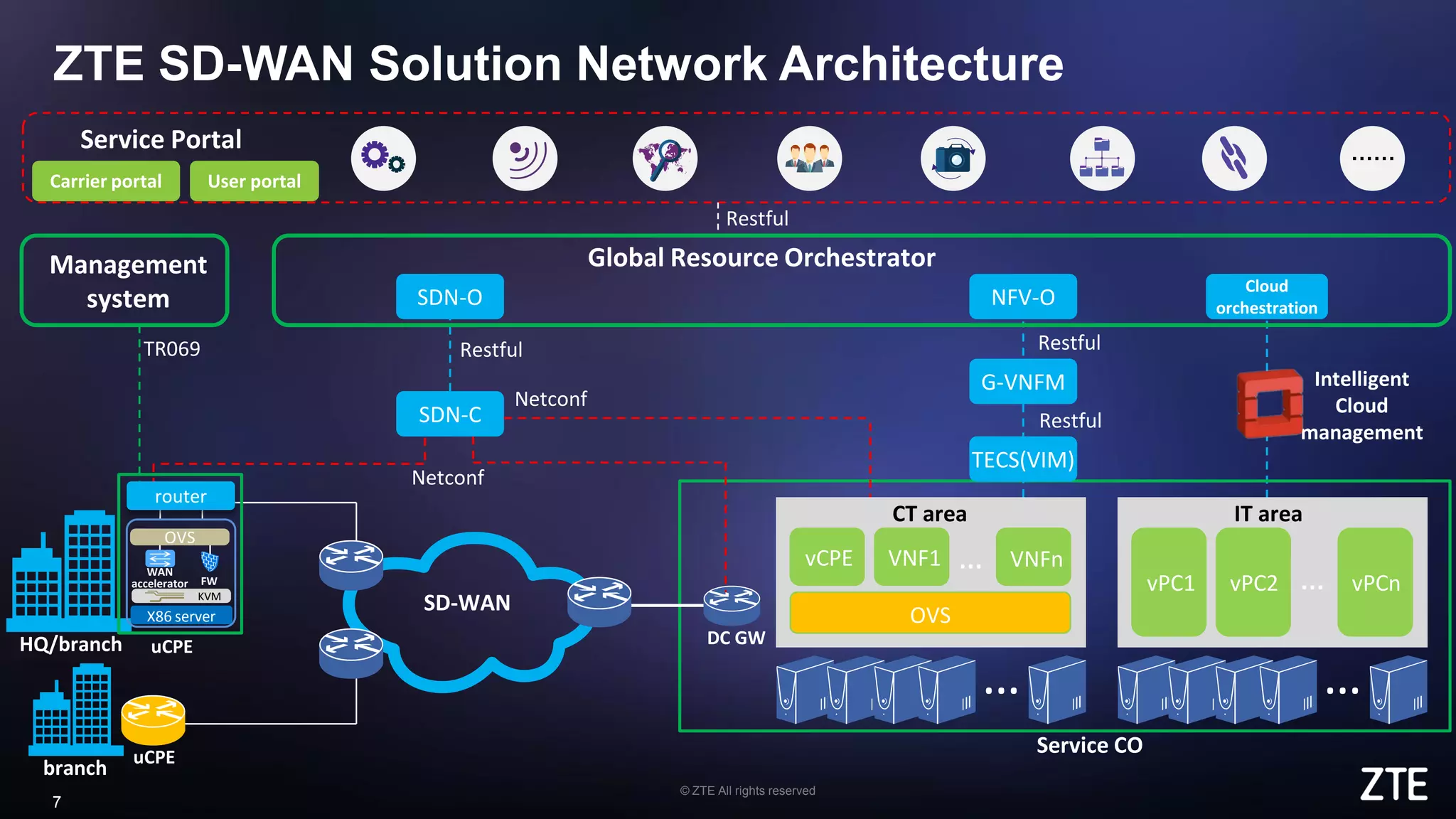

ZTE SD-WAN Solution Network Architecture
branch
uCPE
uCPE
HQ/branch
SDN-C
SDN-O NFV-O
G-VNFM
Global Resource Orchestrator
SD-WAN
TECS(VIM)
DC GW
Management
system
Restful Restful
Netconf
TR069
Restful
Service Portal ……
Carrier portal User portal
Restful
Netconf
CT area
vCPE VNF1 VNFn
OVS
…
IT area
vPC1 vPC2 vPCn…
Intelligent
Cloud
management
Cloud
orchestration
router
X86 server
WAN
accelerator FW
OVS
KVM
Service CO
… …

8. © ZTE All rights reserved
8

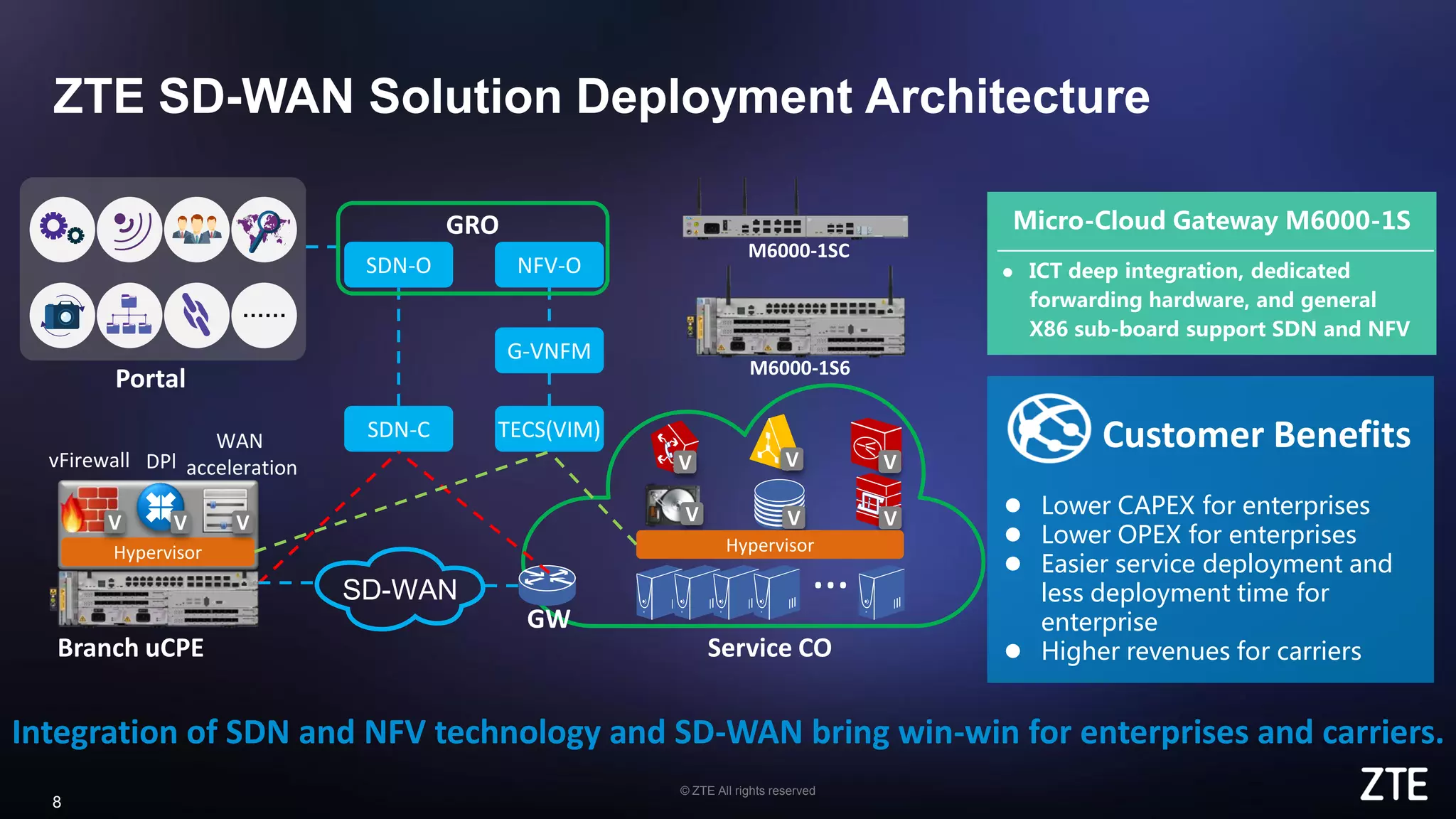

ZTE SD-WAN Solution Deployment Architecture
SD-WAN
Branch uCPE
…
Service CO
GW
vFirewall DPl
WAN
acceleration V V
V
V
V V
Hypervisor
V V V
Hypervisor
SDN-C TECS(VIM)
SDN-O NFV-O
G-VNFM
GRO
……
Portal
Micro-Cloud Gateway M6000-1S
 ICT deep integration, dedicated
forwarding hardware, and general
X86 sub-board support SDN and NFV
Customer Benefits
 Lower CAPEX for enterprises
 Lower OPEX for enterprises
 Easier service deployment and
less deployment time for
enterprise
 Higher revenues for carriers
M6000-1SC
M6000-1S6
Integration of SDN and NFV technology and SD-WAN bring win-win for enterprises and carriers.

9. © ZTE All rights reserved
9

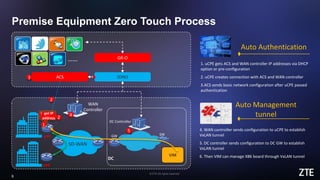

Premise Equipment Zero Touch Process
Auto Authentication
Auto Management
tunnel
……
SDNO
GR-O
uCPE
WAN
Controller
SD-WAN
DC Controller
SW
DC
VIM
ACS
Power
up!
1. uCPE gets ACS and WAN controller IP addresses via DHCP
option or pre-configuration
2. uCPE creates connection with ACS and WAN controller
3.ACS sends basic network configuration after uCPE passed
authentication
get IP
address
1
2
2
3
4
4. WAN controller sends configuration to uCPE to establish
VxLAN tunnel
5. DC controller sends configuration to DC GW to establish
VxLAN tunnel
6. Then VIM can manage X86 board through VxLAN tunnel
GW
5
uCPE

10. © ZTE All rights reserved
10

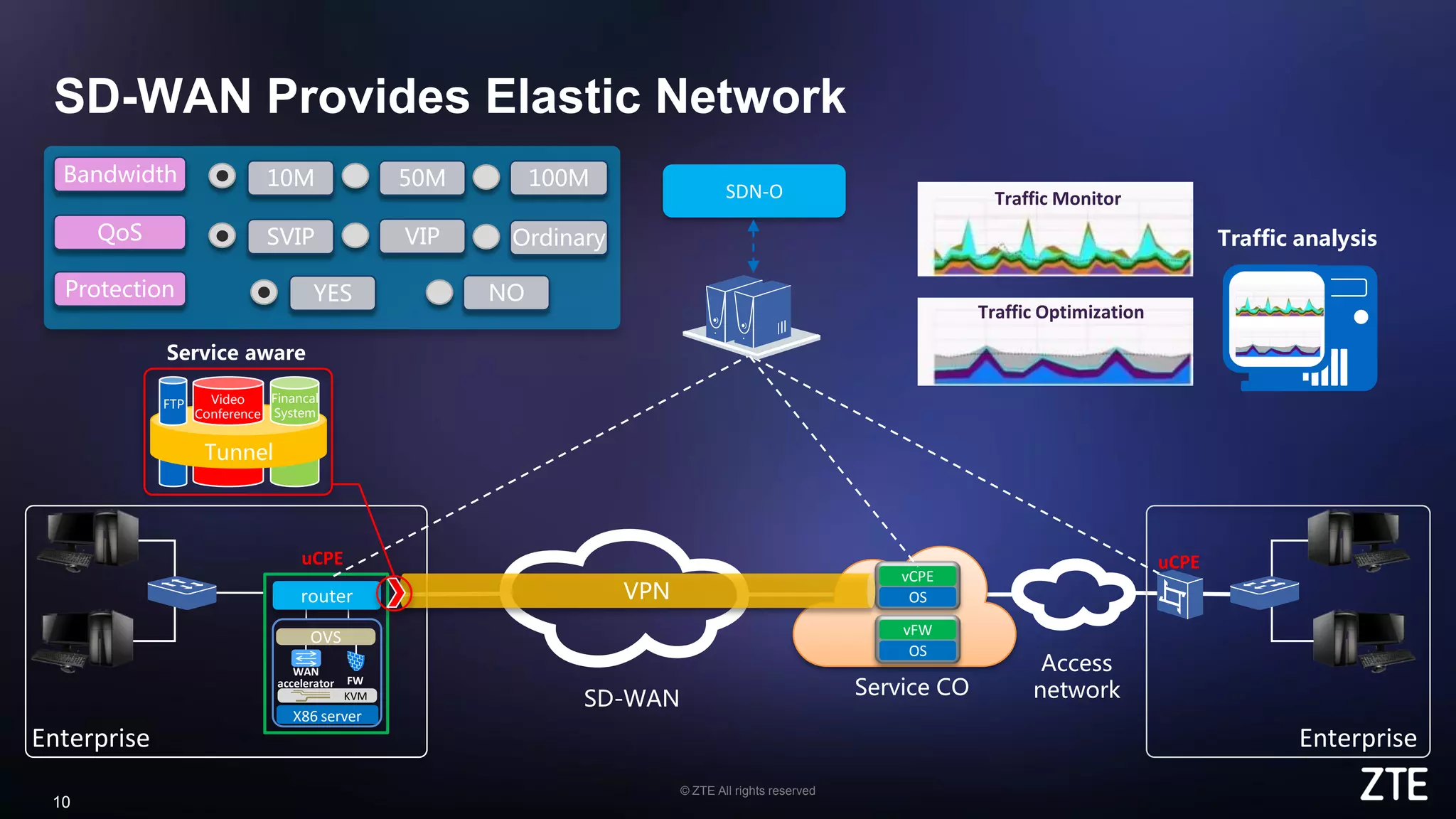

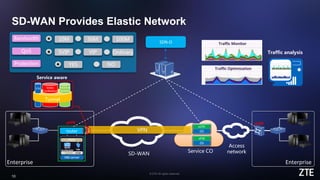

SD-WAN Provides Elastic Network
router
X86 server
WAN
accelerator FW
OVS
KVM
SDN-O
Enterprise Enterprise
Tunnel
Video
Conference
FTP Financal
System
uCPE
Bandwidth 50M 100M10M
QoS VIP OrdinarySVIP
Protection NOYES
OS
vCPE
OS
vFW
Service CO
Traffic Monitor
Traffic Optimization
VPN
Service aware
SD-WAN
Access
network
Traffic analysis
uCPE

11. © ZTE All rights reserved
11

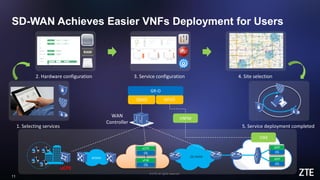

SD-WAN Achieves Easier VNFs Deployment for Users
VNFM
WAN
Controller
SDNO NFVO
GR-O
1. Selecting services
2. Hardware configuration 4. Site selection3. Service configuration
5. Service deployment completed
OS
APP
OS
APP
OS
vCPE
OS
vFW
VIM
access SD-WAN
uCPE

12. © ZTE All rights reserved
12

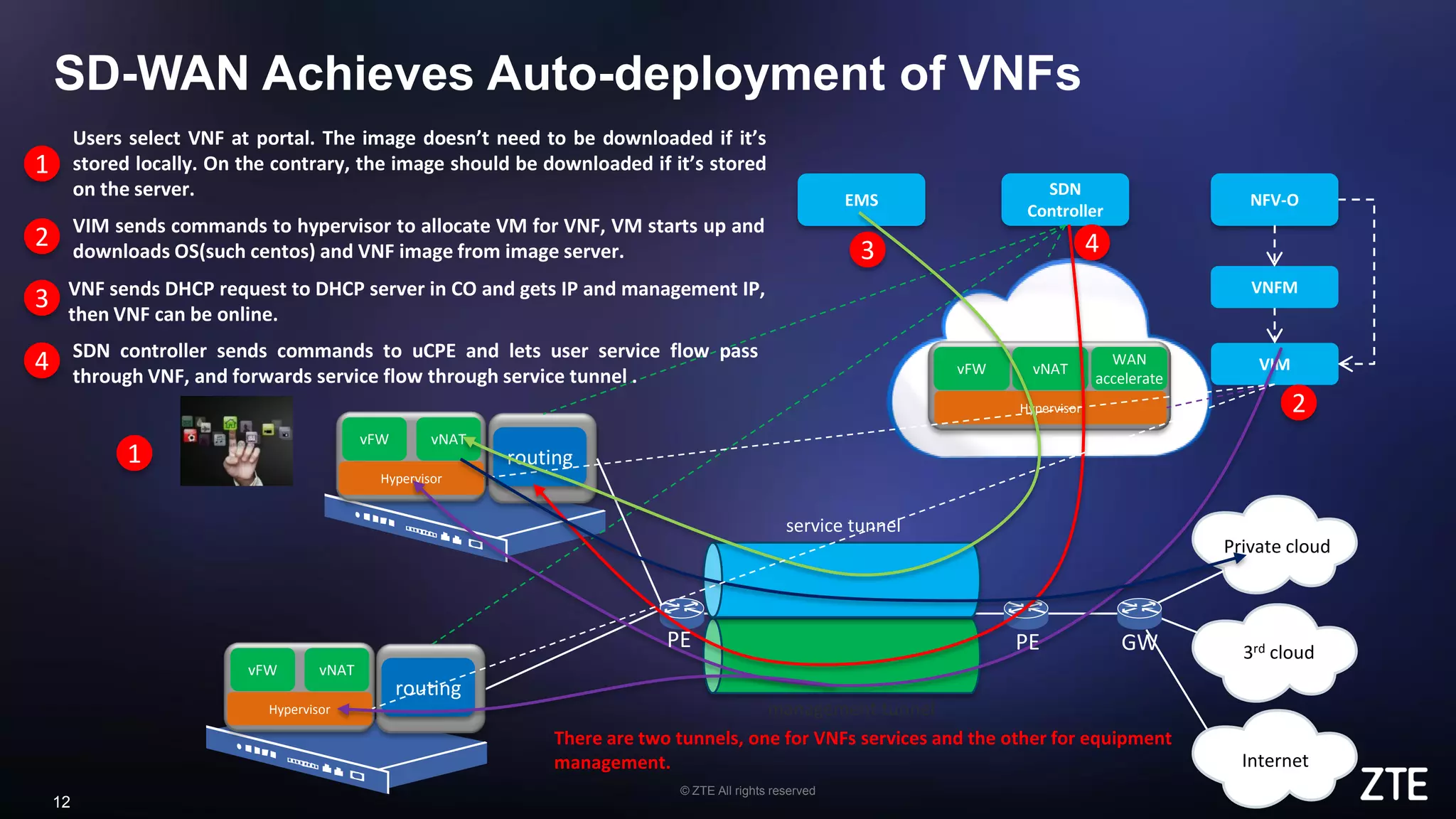

SD-WAN Achieves Auto-deployment of VNFs
Hypervisor
vFW vNAT
routing
VIM
NFV-O
VNFM
EMS
SDN
Controller
Hypervisor
vFW vNAT
WAN
accelerate
Private cloud
3rd cloud
Internet
management tunnel
service tunnel
There are two tunnels, one for VNFs services and the other for equipment
management.
1
2
3 4
1
Users select VNF at portal. The image doesn’t need to be downloaded if it’s
stored locally. On the contrary, the image should be downloaded if it’s stored
on the server.
2 VIM sends commands to hypervisor to allocate VM for VNF, VM starts up and
downloads OS(such centos) and VNF image from image server.
3 VNF sends DHCP request to DHCP server in CO and gets IP and management IP,
then VNF can be online.
4 SDN controller sends commands to uCPE and lets user service flow pass
through VNF, and forwards service flow through service tunnel .
Hypervisor
vFW vNAT
routing
PE PE GW

13. © ZTE All rights reserved
13

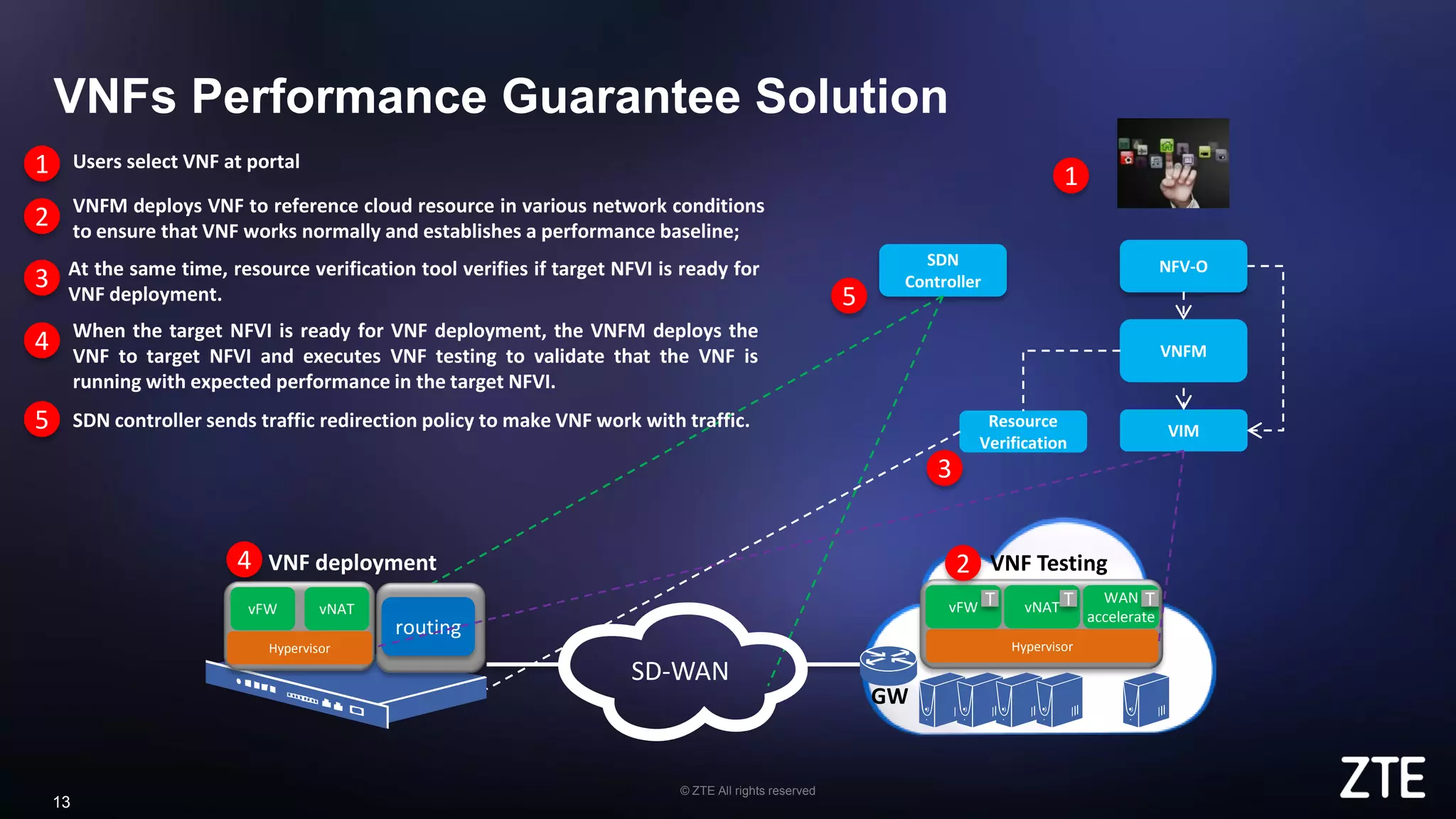

VNFs Performance Guarantee Solution
VIM
NFV-O
VNFM
SDN
Controller
Hypervisor
vFW vNAT
WAN
accelerate
2
5
1 Users select VNF at portal
2 VNFM deploys VNF to reference cloud resource in various network conditions
to ensure that VNF works normally and establishes a performance baseline;
3 At the same time, resource verification tool verifies if target NFVI is ready for
VNF deployment.
4 When the target NFVI is ready for VNF deployment, the VNFM deploys the
VNF to target NFVI and executes VNF testing to validate that the VNF is
running with expected performance in the target NFVI.
Hypervisor
vFW vNAT
routing
SD-WAN
GW
Resource
Verification
VNF Testing
3
4 VNF deployment
1
5 SDN controller sends traffic redirection policy to make VNF work with traffic.
T T T

14. © ZTE All rights reserved
14

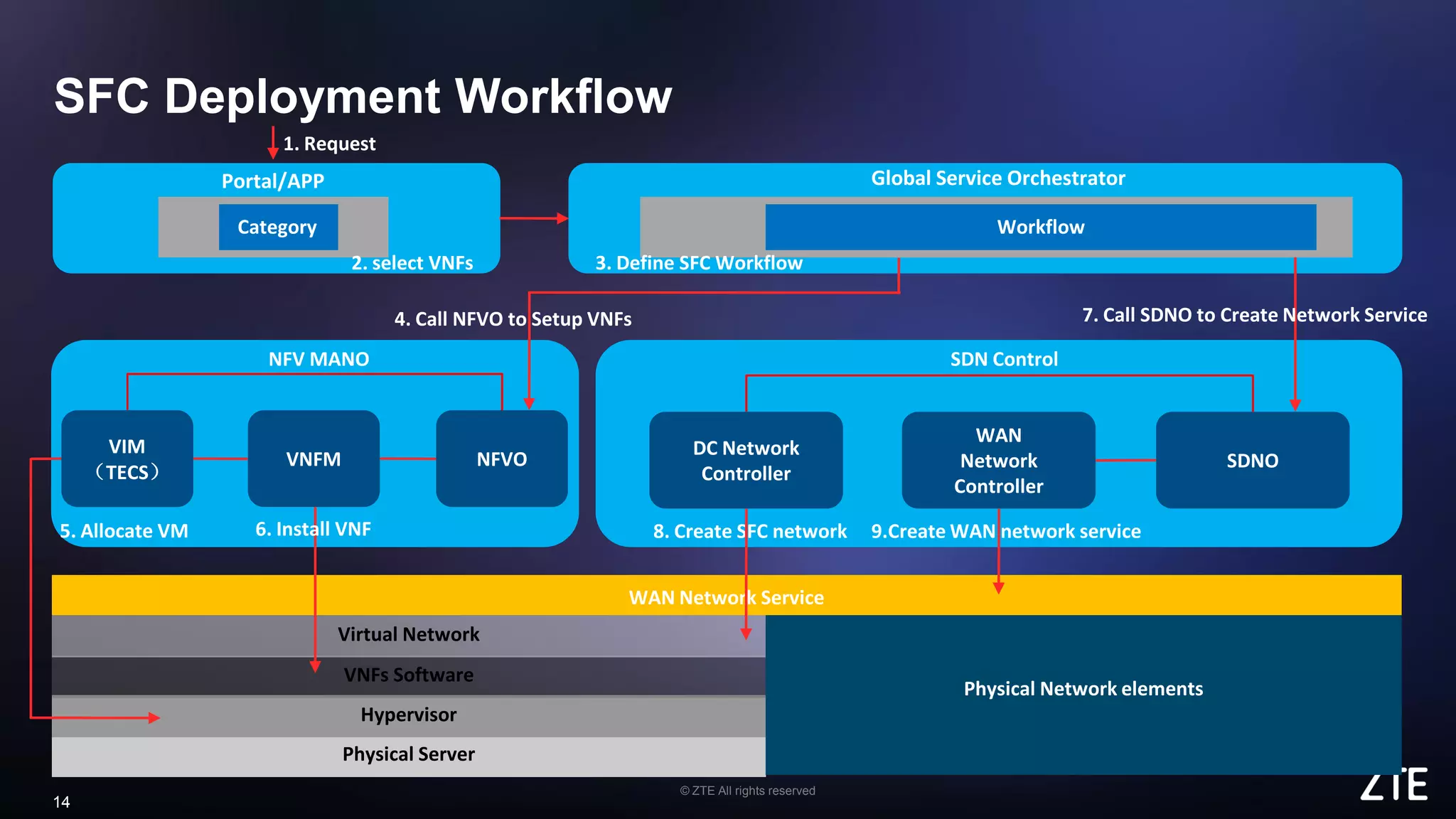

SFC Deployment Workflow
Global Service Orchestrator
Workflow
SDN Control
Physical Server
Hypervisor
VNFs Software
Virtual Network
VIM
（TECS）
DC Network
Controller
WAN
Network
Controller
SDNO
WAN Network Service
Physical Network elements
1. Request
3. Define SFC Workflow
4. Call NFVO to Setup VNFs
VNFM
8. Create SFC network 9.Create WAN network service
7. Call SDNO to Create Network Service
NFV MANO
Category
Portal/APP
2. select VNFs
NFVO
6. Install VNF5. Allocate VM

15. SD-WAN is on the Way
SD-WAN Solution2
1
CONTENTS Conclusion3

16. © ZTE All rights reserved
16

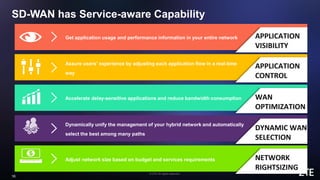

SD-WAN has Service-aware Capability
Get application usage and performance information in your entire network
Assure users’ experience by adjusting each application flow in a real-time
way
Accelerate delay-sensitive applications and reduce bandwidth consumption
Dynamically unify the management of your hybrid network and automatically
select the best among many paths
Adjust network size based on budget and services requirements
APPLICATION
VISIBILITY
APPLICATION
CONTROL
WAN
OPTIMIZATION
DYNAMIC WAN
SELECTION
NETWORK
RIGHTSIZING

17. © ZTE All rights reserved
17

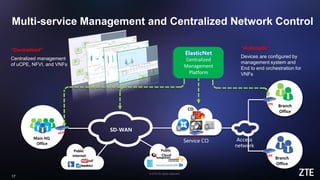

Multi-service Management and Centralized Network Control
“Centralized”
Centralized management
of uCPE, NFVI, and VNFs
“Automatic”
Devices are configured by
management system and
End to end orchestration for
VNFs
Public
Cloud
Public
internet
Public
internet
Branch
Office
Branch
Office
uCPE
uCPE
Main HQ
Office
uCPE
Branch
Office
Branch
Office
uCPE
CO
V
V
VV
CO
gateway
Service CO
SD-WAN
Access
network
ElasticNet
Centralized
Management
Platform

18. © ZTE All rights reserved
18

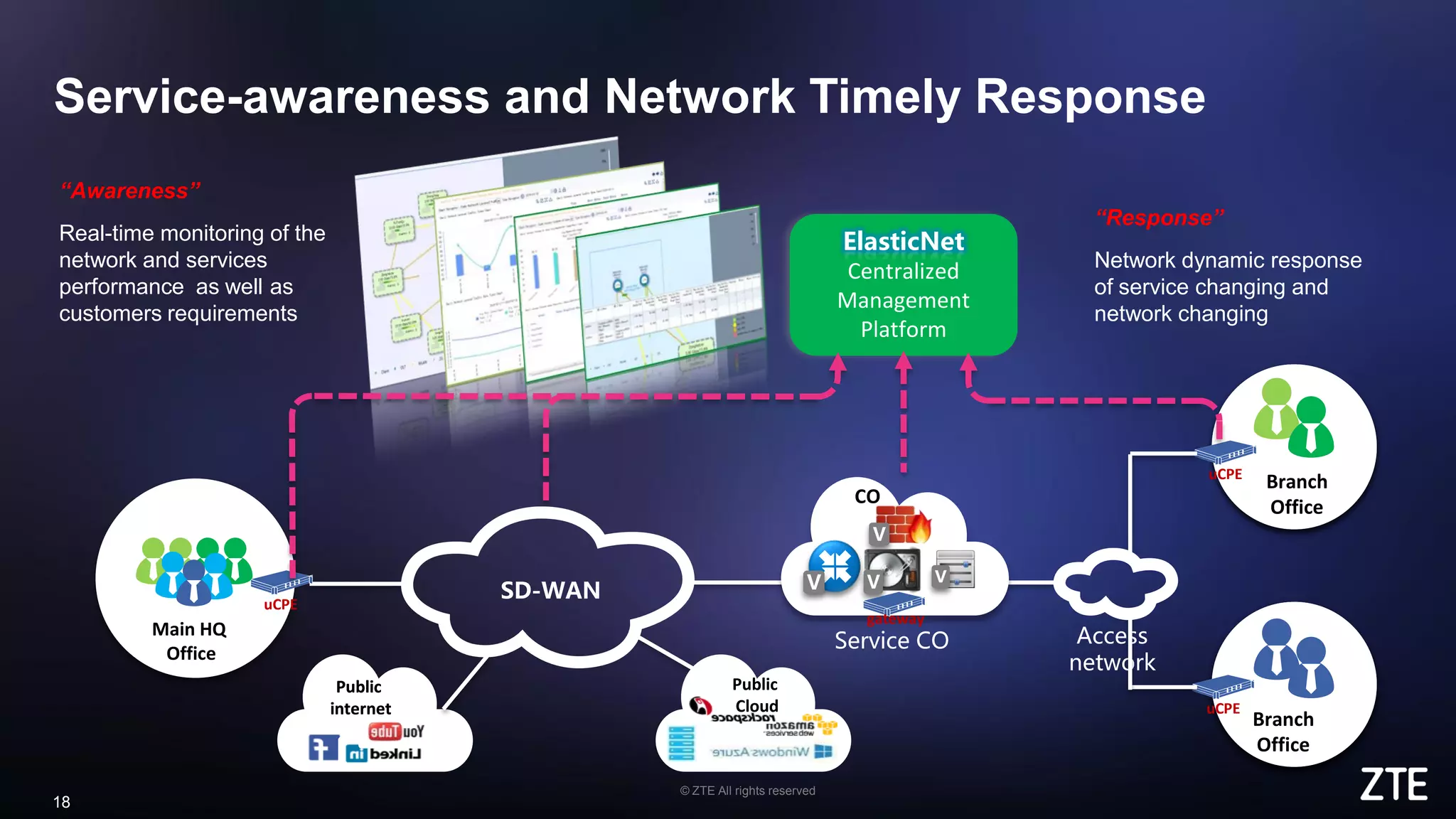

Service-awareness and Network Timely Response
“Awareness”
Real-time monitoring of the
network and services
performance as well as
customers requirements
“Response”
Network dynamic response
of service changing and
network changing
ElasticNet
Centralized
Management
Platform
Public
Cloud
Public
internet
Public
internet
Branch
Office
Branch
Office
uCPE
uCPE
Main HQ
Office
uCPE
Branch
Office
Branch
Office
uCPE
CO
V
V
VV
CO
gateway
Service CO
SD-WAN
Access
network

19. © ZTE All rights reserved
19
SD-WAN Needs an Open Ecosystem

20. © ZTE All rights reserved
20
Conclusion
SD-WAN needs an open ecosystem
SD-WAN adapts to future network development
SD-WAN adapts to the rapid development of new services
SD-WAN is introducing new changes to enterprises’ service
deployment
SD-WAN brings win-win for carriers and enterprises
