This document describes how to draw a vernier scale to measure 2.76 inches. The main scale has divisions of 0.1 inches and there are 10 divisions on the vernier scale that correspond to 9 divisions on the main scale. To read 2.76 inches, the vernier scale would align at the 6th mark on the main scale.

1. Vernier Scale
Draw a vernier scale to read 2.76 inch where one smallest main
scale division is 0.1 and N= 10 and 9 small main scale division are
equal to 10 small vernier scale division.

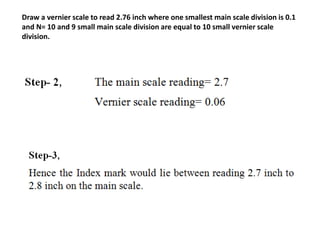

2. Draw a vernier scale to read 2.76 inch where one smallest main scale division is 0.1
and N= 10 and 9 small main scale division are equal to 10 small vernier scale
division.

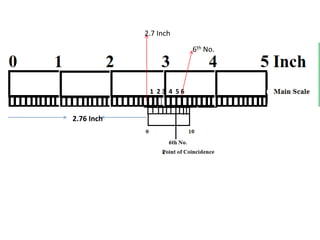

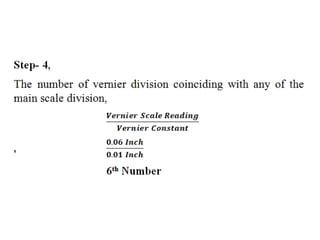

5. 2.7 Inch
1 2 3 4 5 6
6th No.
2.76 Inch
