Using Eclipse and Lua for the Internet of Things - EclipseDay Googleplex 2012

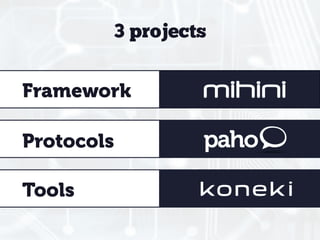

Benjamin Cabé gave a presentation on using Eclipse and Lua for Internet of Things (IoT) applications. He discussed three Eclipse projects - a framework for embedded programming using Lua, the MQTT messaging protocol, and Mihini, an application framework for machine-to-machine applications. He demonstrated developing a greenhouse monitoring application using these tools on a Raspberry Pi to collect sensor data via Modbus and publish to an MQTT broker, with a mobile app to view data and control actuators. The talk promoted these open source Eclipse projects as providing simple and portable solutions for developing IoT applications.
More Related Content
Similar to Using Eclipse and Lua for the Internet of Things - EclipseDay Googleplex 2012
![Eclipse IoT slide deck [MASTER DECK].pptx](https://cdn.slidesharecdn.com/ss_thumbnails/eclipseiotslidedeckmasterdeck-250429080117-9e09b800-thumbnail.jpg?width=640&height=640&fit=bounds)
Using Eclipse and Lua for the Internet of Things - EclipseDay Googleplex 2012
- 1. Using Eclipse & Lua forthe Internet of Things EclipseDay Googleplex Dec. 12th, 2012 Benjamin Cabé bcabe@sierrawireless.com
- 2. Who I am • Benjamin Cabé • Open Source M2M Evangelist at Sierra Wireless • Long-time Eclipse lover
- 3. M2M? IoT? Technology thatsupports wired or wireless communication between devices

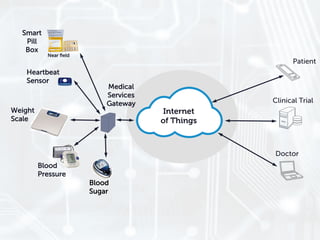

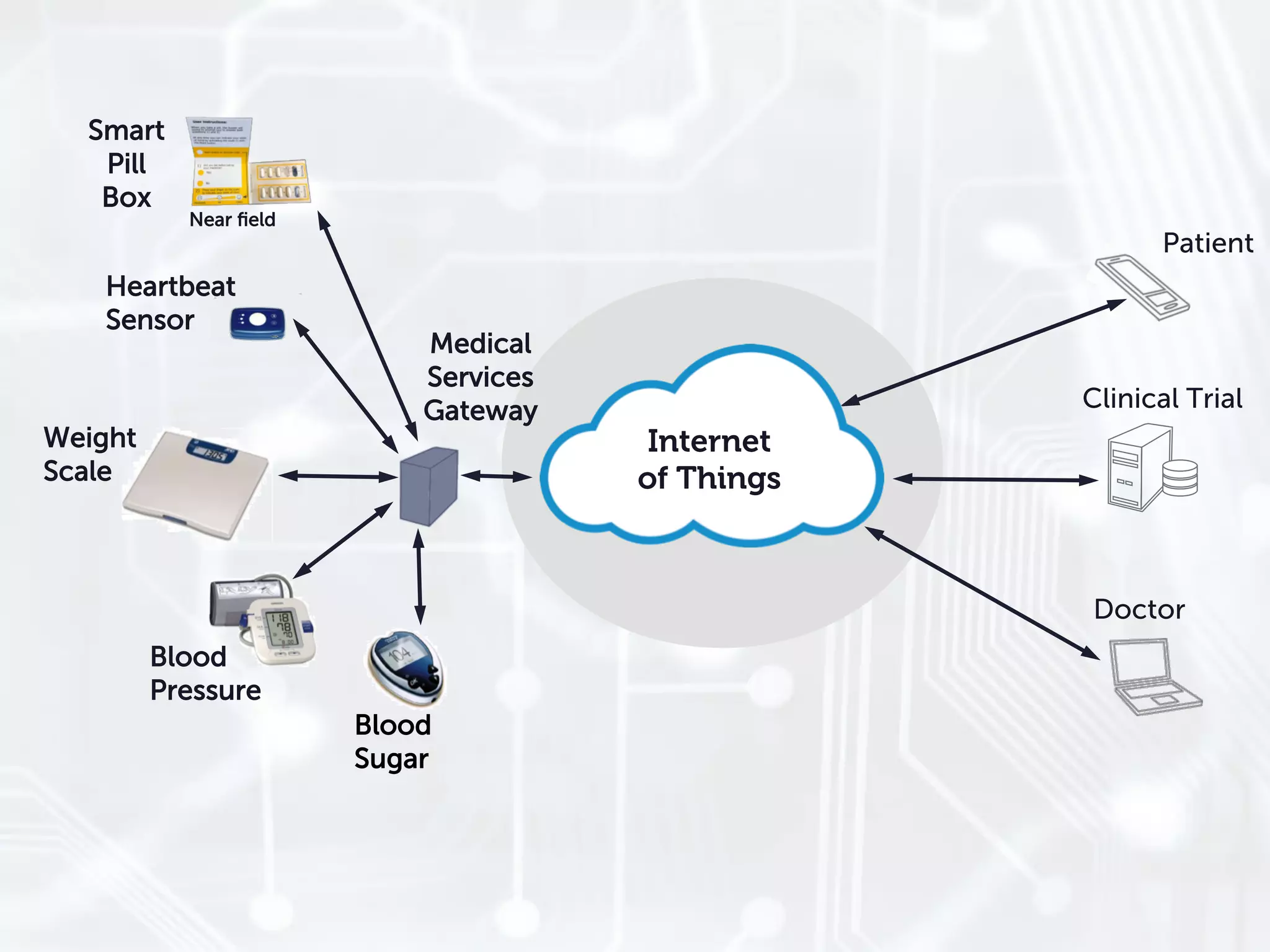

- 8. Smart Pill Box Near field Patient Heartbeat Sensor Medical Services Gateway Clinical Trial Weight Internet Scale of Things Doctor Blood Pressure Blood Sugar
- 10.
- 11. M2M embedded programming • low-level C • read sensor values • memory • control actuators management • consolidate data • multithreaded programming • communicate

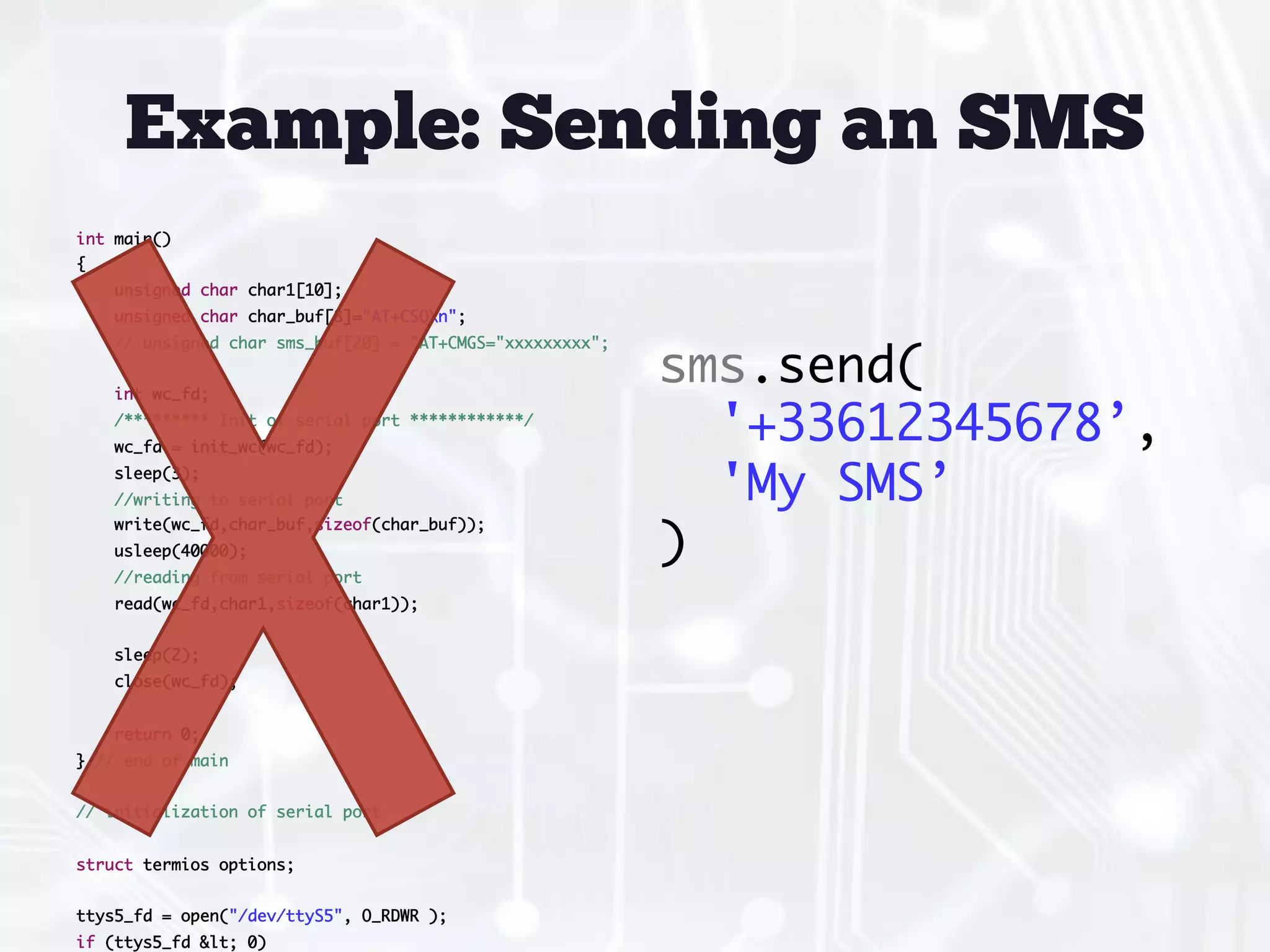

- 12. Example: Sending anSMS int main() { unsigned char char1[10]; unsigned char char_buf[8]="AT+CSQn"; // unsigned char sms_buf[20] = "AT+CMGS="xxxxxxxxx"; int wc_fd; sms.send( /********* Init of serial port ************/ wc_fd = init_wc(wc_fd); '+33612345678’, sleep(3); //writing to serial port 'My SMS’ ) write(wc_fd,char_buf,sizeof(char_buf)); usleep(40000); //reading from serial port read(wc_fd,char1,sizeof(char1)); sleep(2); close(wc_fd); return 0; } // end of main // initialization of serial port struct termios options; ttys5_fd = open("/dev/ttyS5", O_RDWR ); if (ttys5_fd < 0)
- 13.

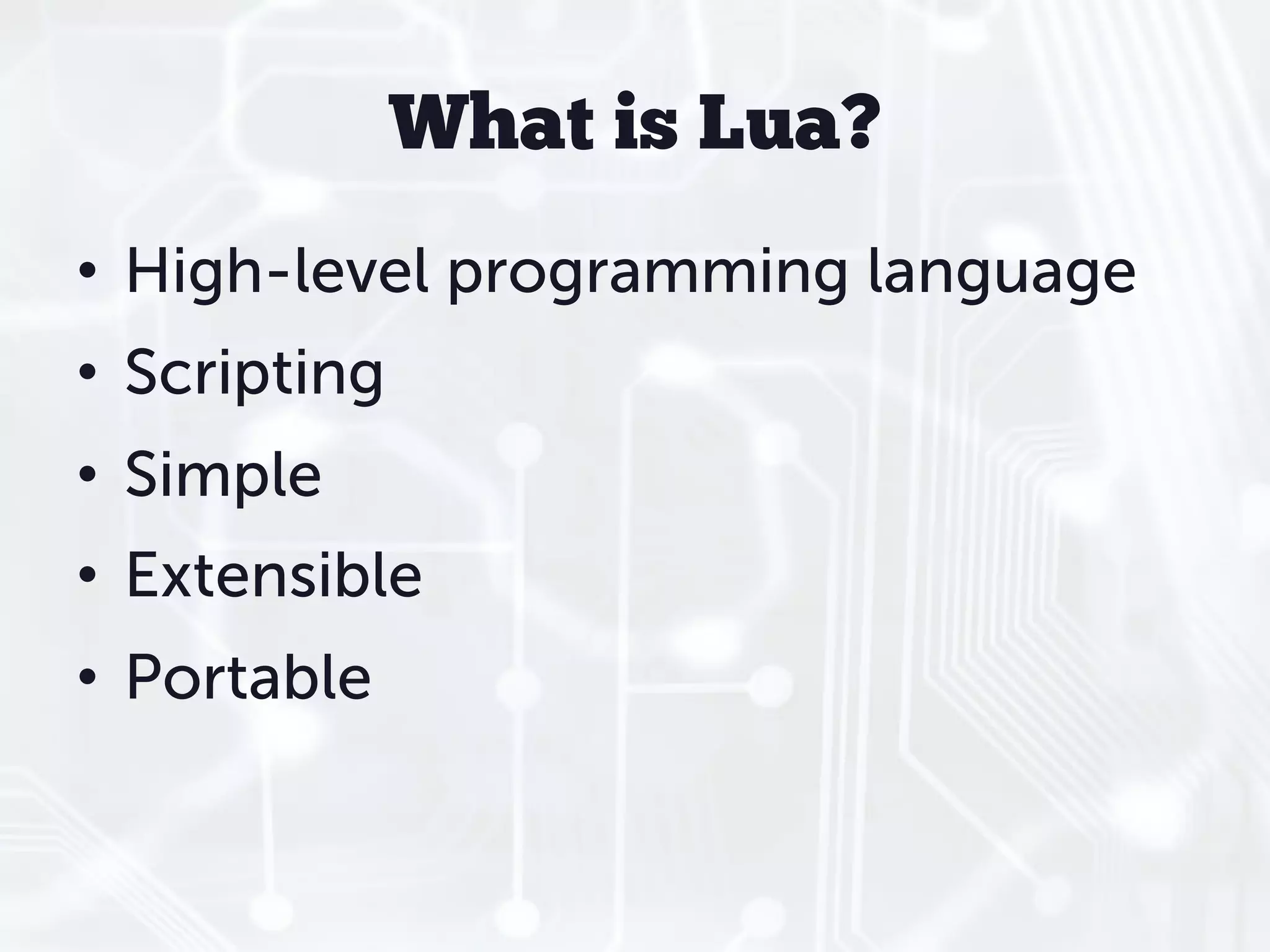

- 14. What is Lua? • High-level programming language • Scripting • Simple • Extensible • Portable

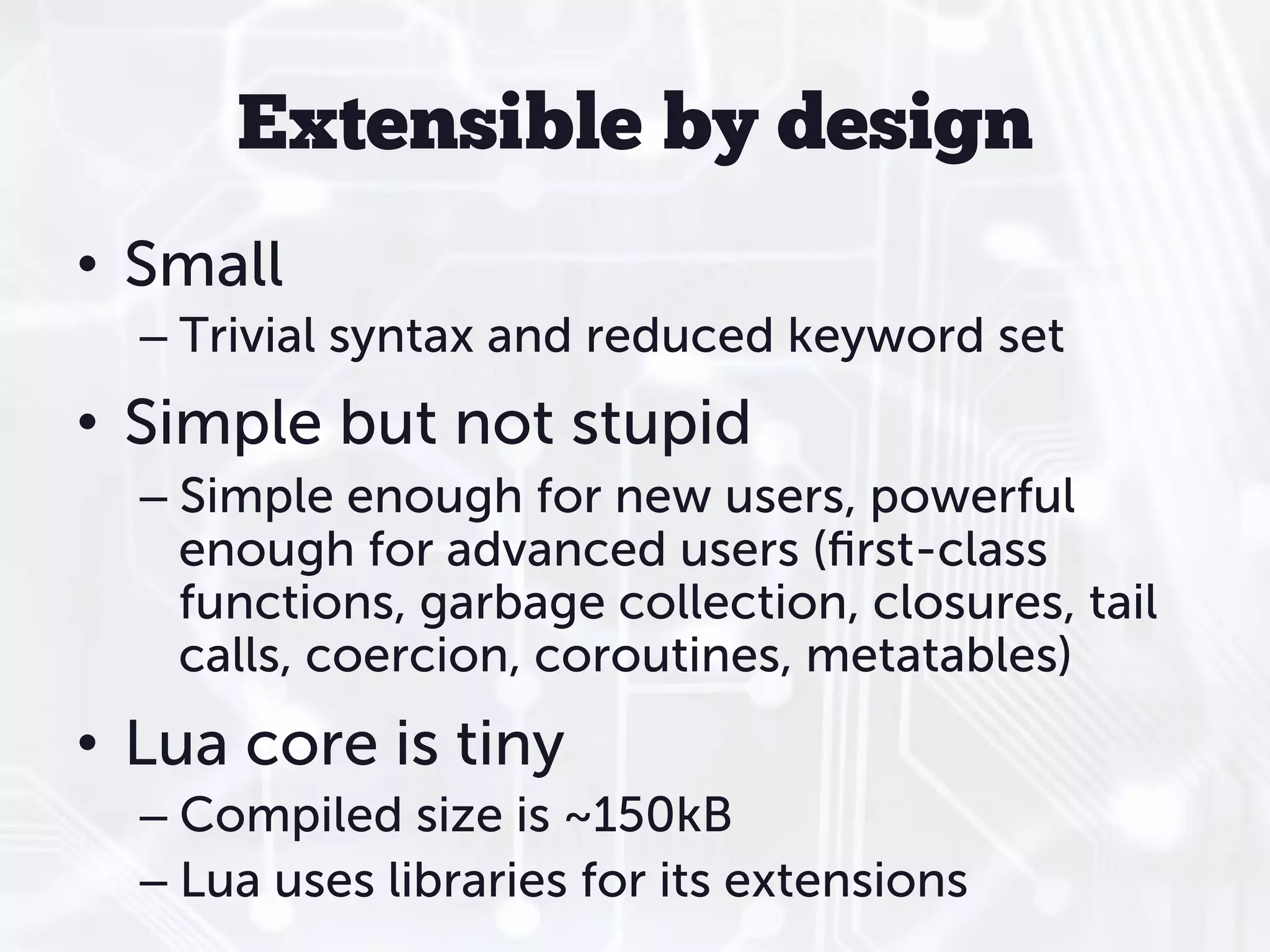

- 15. Extensible by design • Small – Trivial syntax and reduced keyword set • Simple but not stupid – Simple enough for new users, powerful enough for advanced users (first-class functions, garbage collection, closures, tail calls, coercion, coroutines, metatables) • Lua core is tiny – Compiled size is ~150kB – Lua uses libraries for its extensions

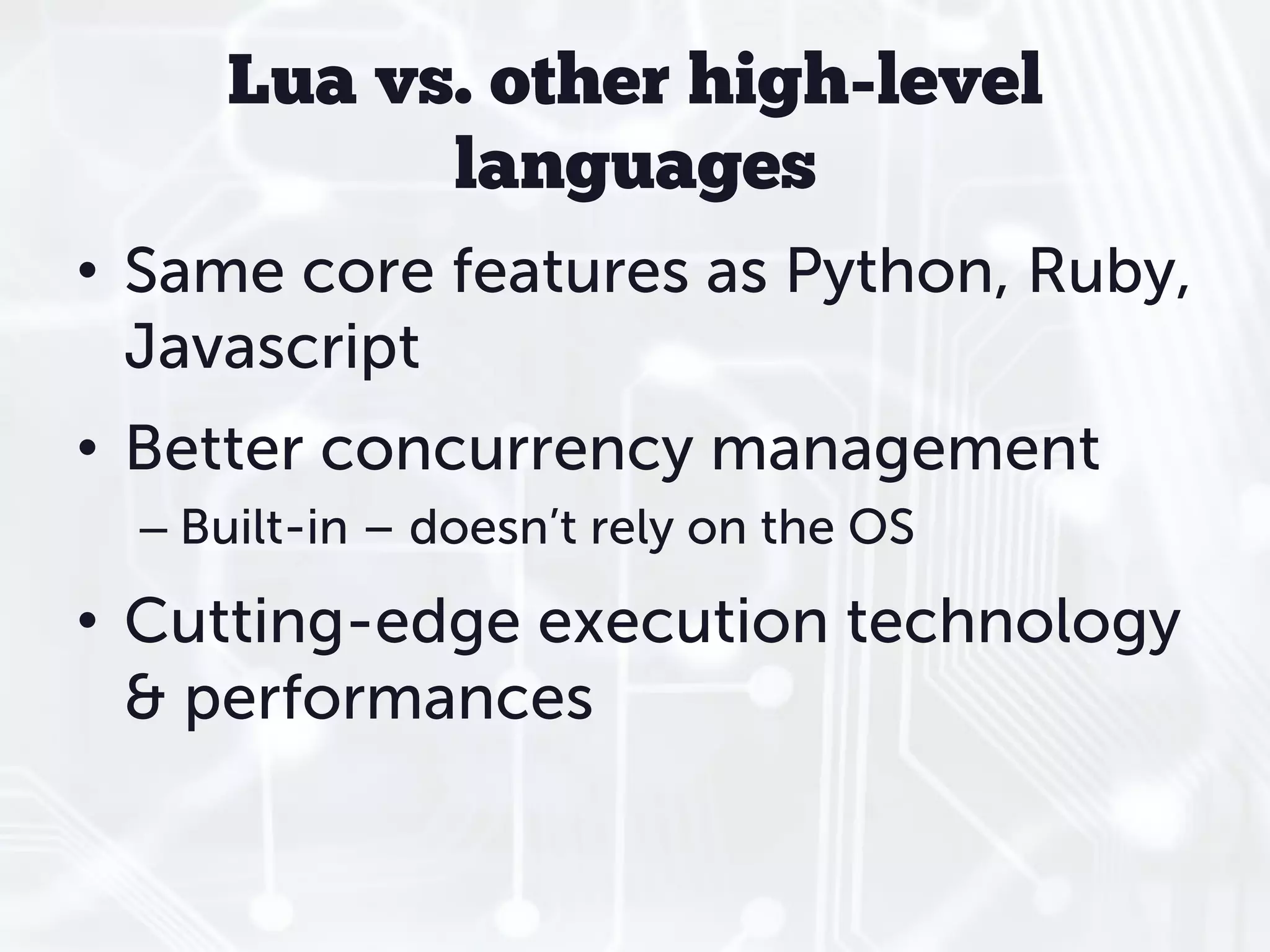

- 16. Lua vs. otherhigh-level languages • Same core features as Python, Ruby, Javascript • Better concurrency management – Built-in – doesn’t rely on the OS • Cutting-edge execution technology & performances

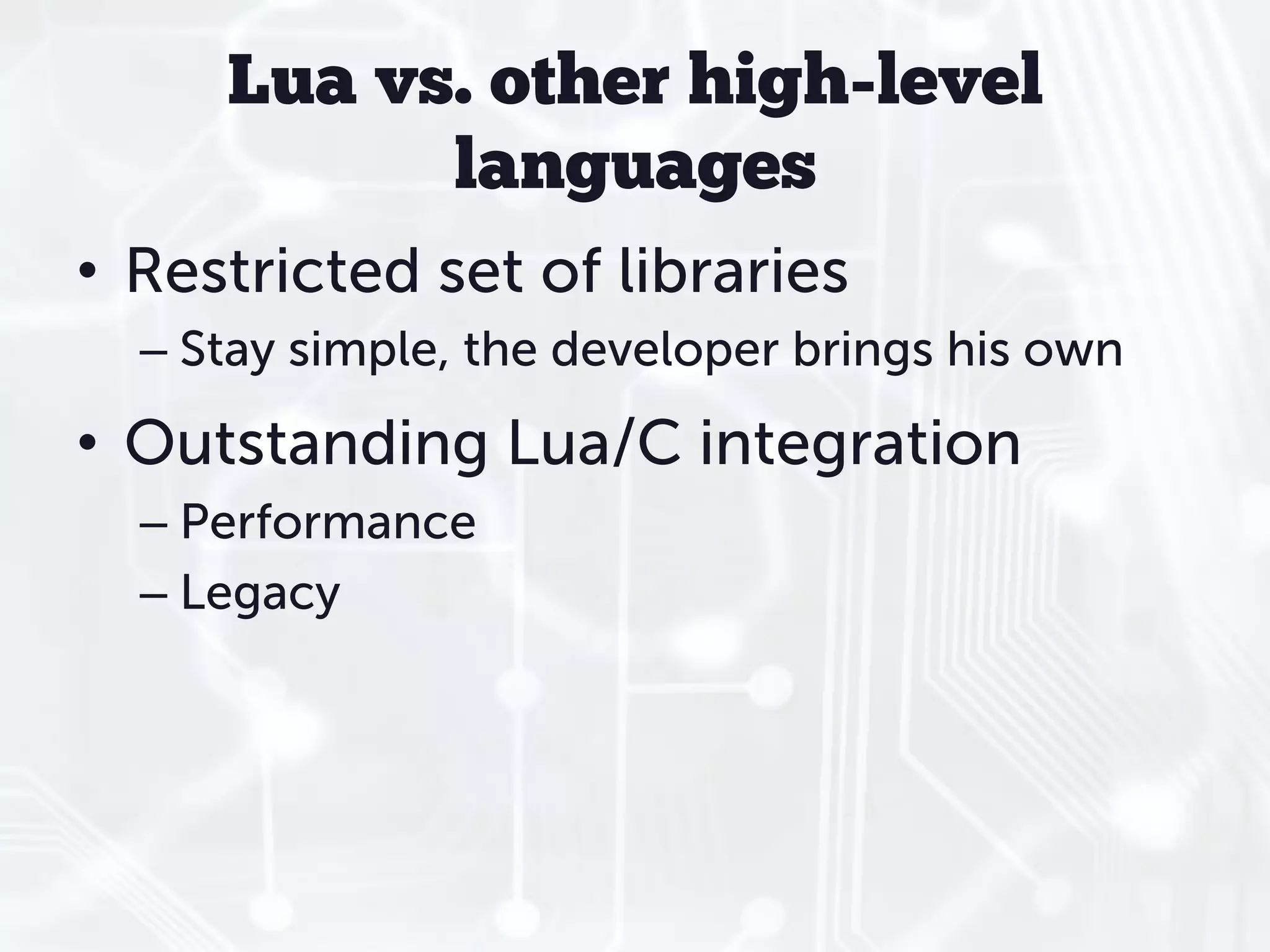

- 17. Lua vs. otherhigh-level languages • Restricted set of libraries – Stay simple, the developer brings his own • Outstanding Lua/C integration – Performance – Legacy
- 18. Lua for embeddedand M2M? • High-level languages usually trade hardware resources for development & maintenance resources Lua allows to reconcile high-level languages accomplishments with embedded constraints

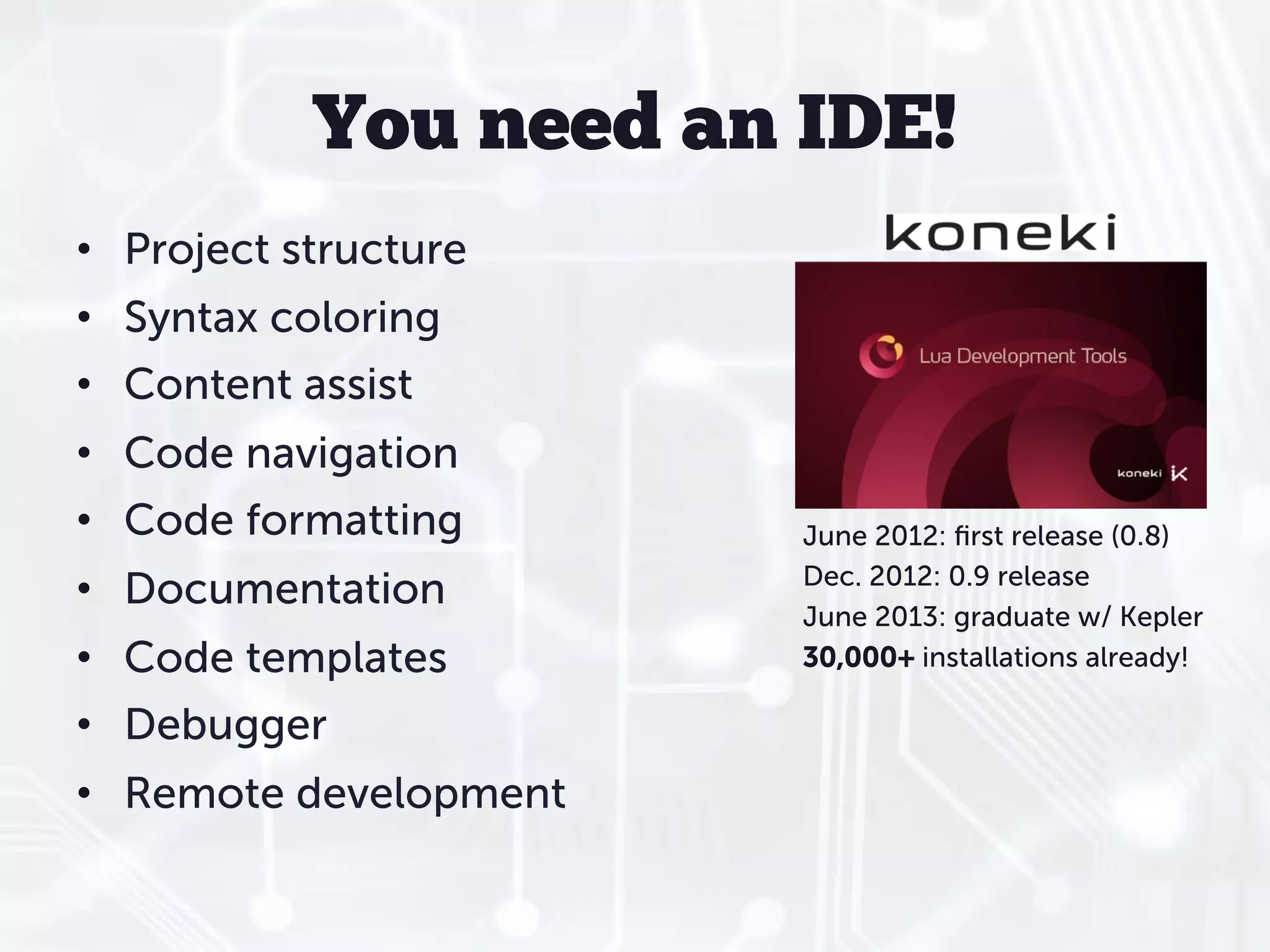

- 19. You need anIDE! • Project structure • Syntax coloring • Content assist • Code navigation • Code formatting June 2012: first release (0.8) Dec. 2012: 0.9 release • Documentation June 2013: graduate w/ Kepler • Code templates 30,000+ installations already! • Debugger • Remote development
- 20. Using Koneki LDTfor remote Lua development DEMO

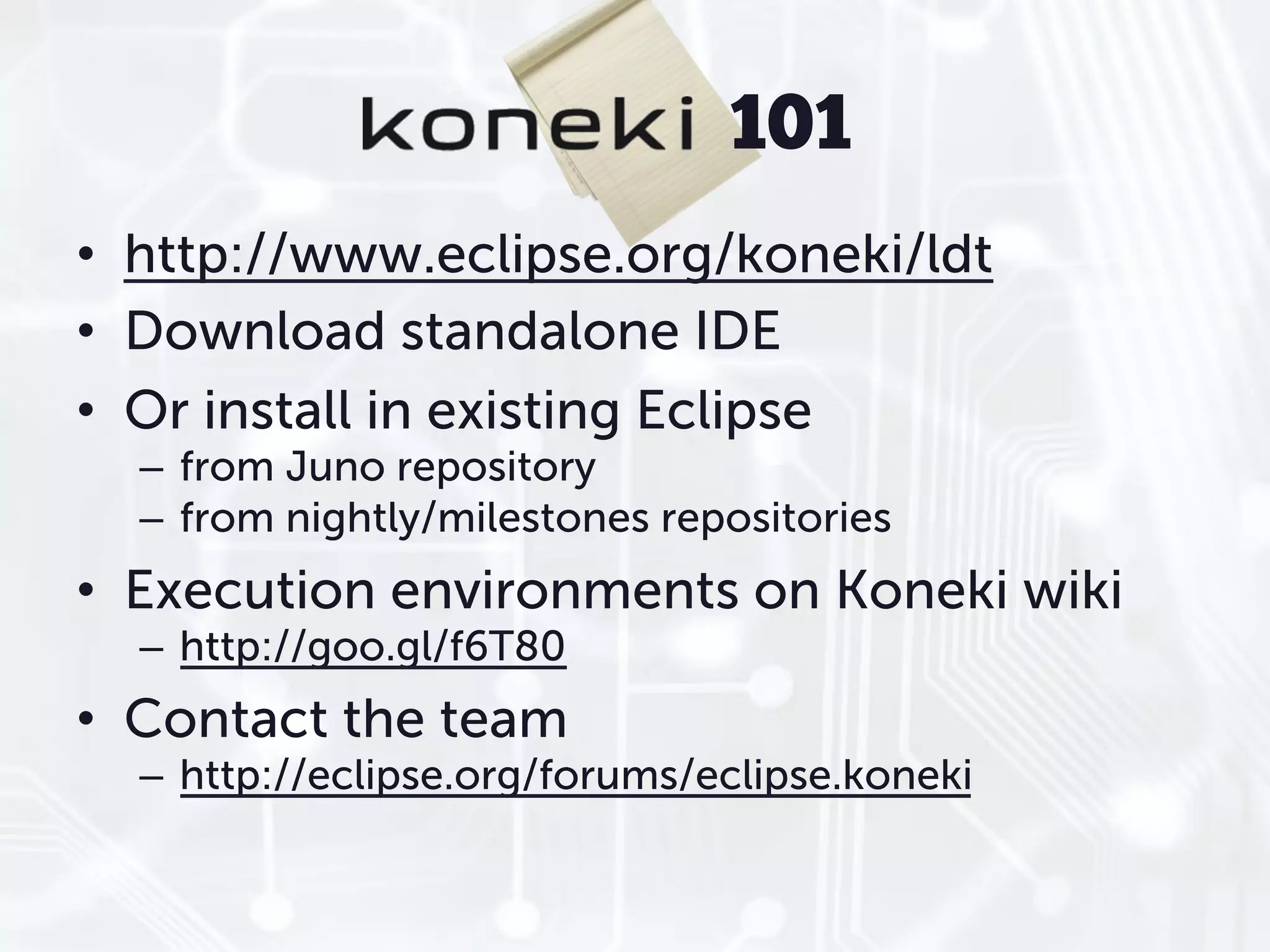

- 21. 101 • http://www.eclipse.org/koneki/ldt • Downloadstandalone IDE • Or install in existing Eclipse – from Juno repository – from nightly/milestones repositories • Execution environments on Koneki wiki – http://goo.gl/f6T80 • Contact the team – http://eclipse.org/forums/eclipse.koneki
- 22.

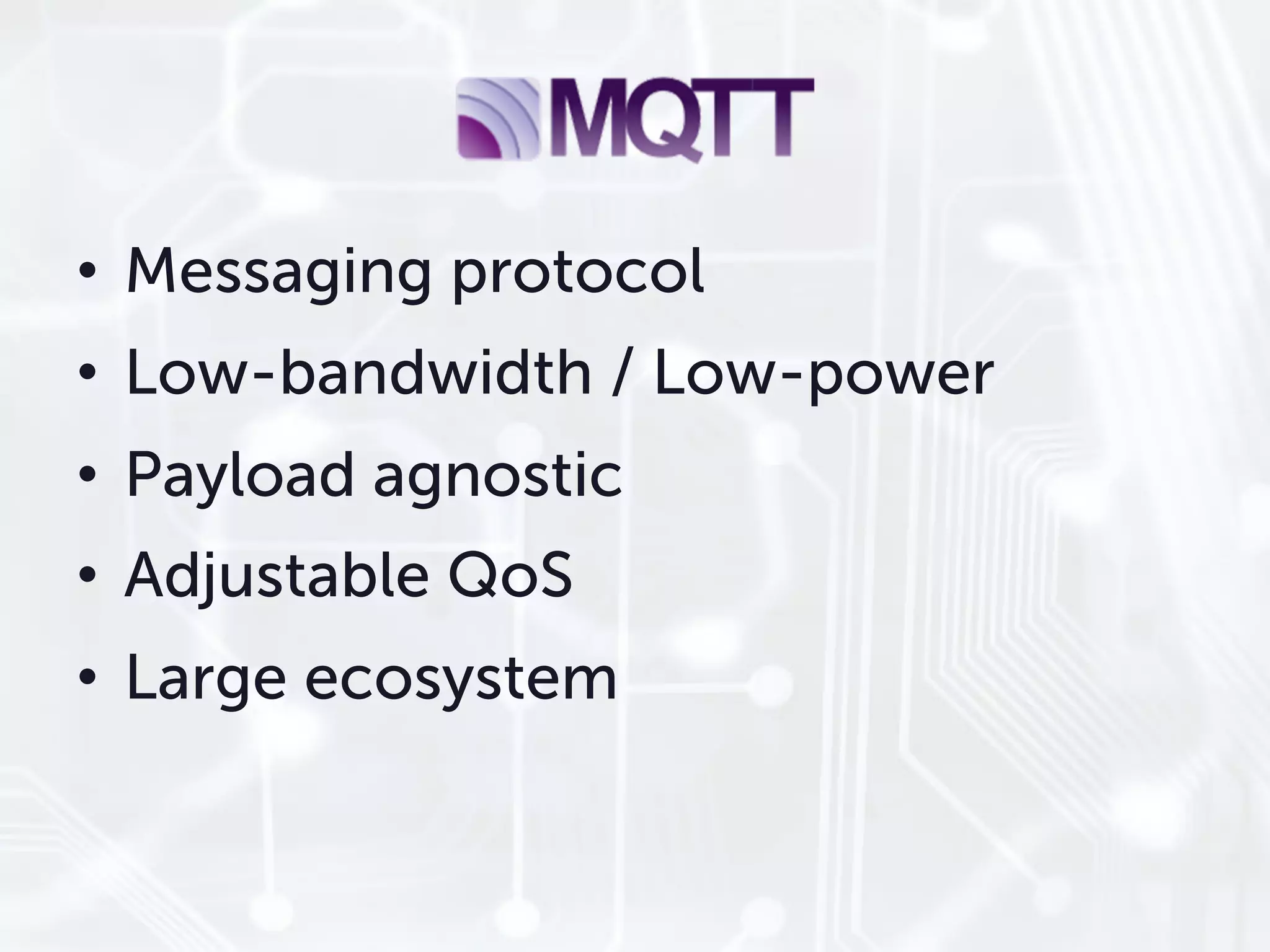

- 23. • Messaging protocol • Low-bandwidth / Low-power • Payload agnostic • Adjustable QoS • Large ecosystem

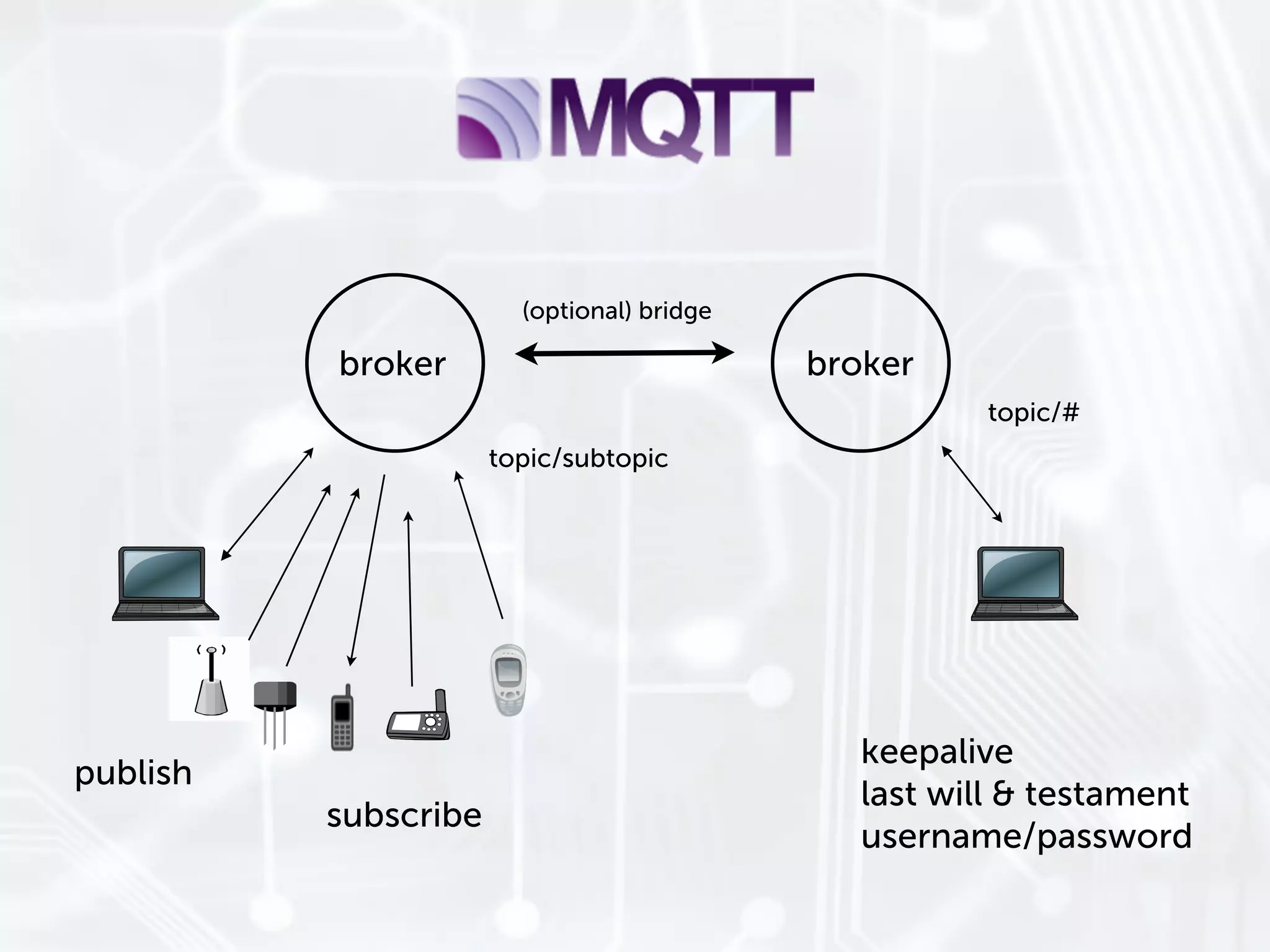

- 24. (optional) bridge broker broker topic/# topic/subtopic keepalive publish last will & testament subscribe username/password

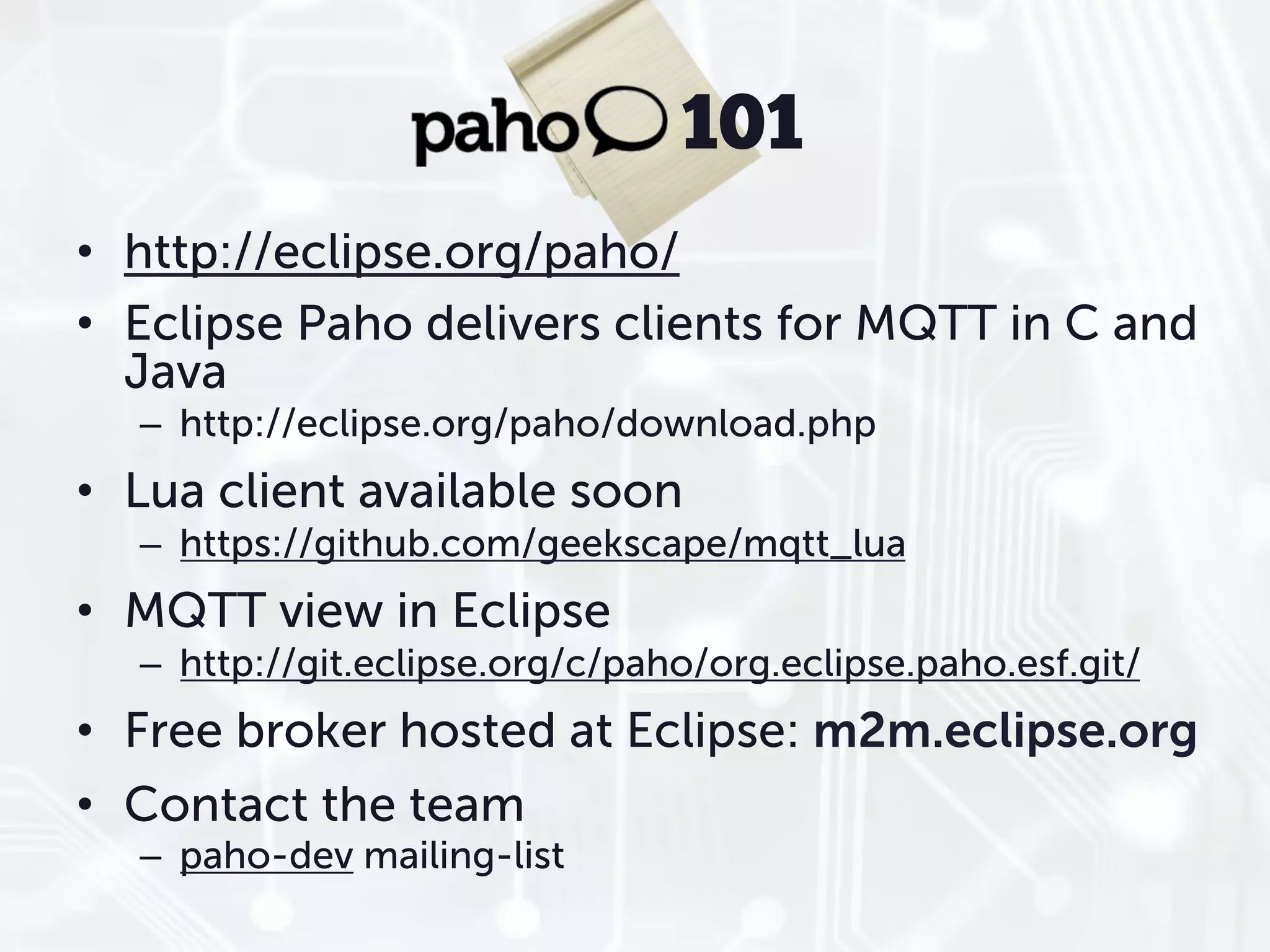

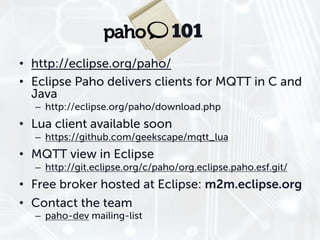

- 25. 101 • http://eclipse.org/paho/ • EclipsePaho delivers clients for MQTT in C and Java – http://eclipse.org/paho/download.php • Lua client available soon – https://github.com/geekscape/mqtt_lua • MQTT view in Eclipse – http://git.eclipse.org/c/paho/org.eclipse.paho.esf.git/ • Free broker hosted at Eclipse: m2m.eclipse.org • Contact the team – paho-dev mailing-list
- 26. Lua VM +MQTT client to go?

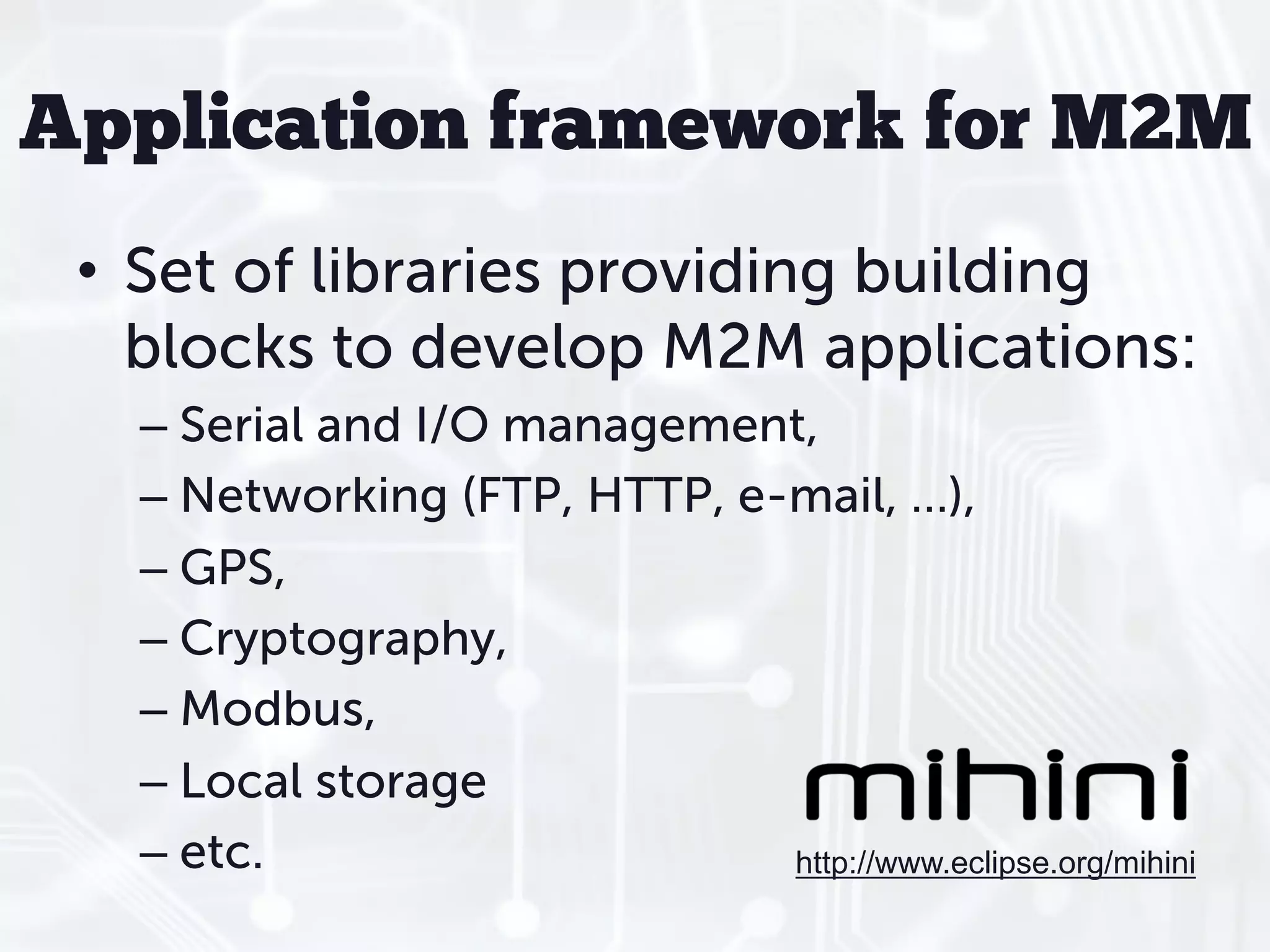

- 27. Application framework forM2M • Set of libraries providing building blocks to develop M2M applications: – Serial and I/O management, – Networking (FTP, HTTP, e-mail, …), – GPS, – Cryptography, – Modbus, – Local storage – etc. http://www.eclipse.org/mihini

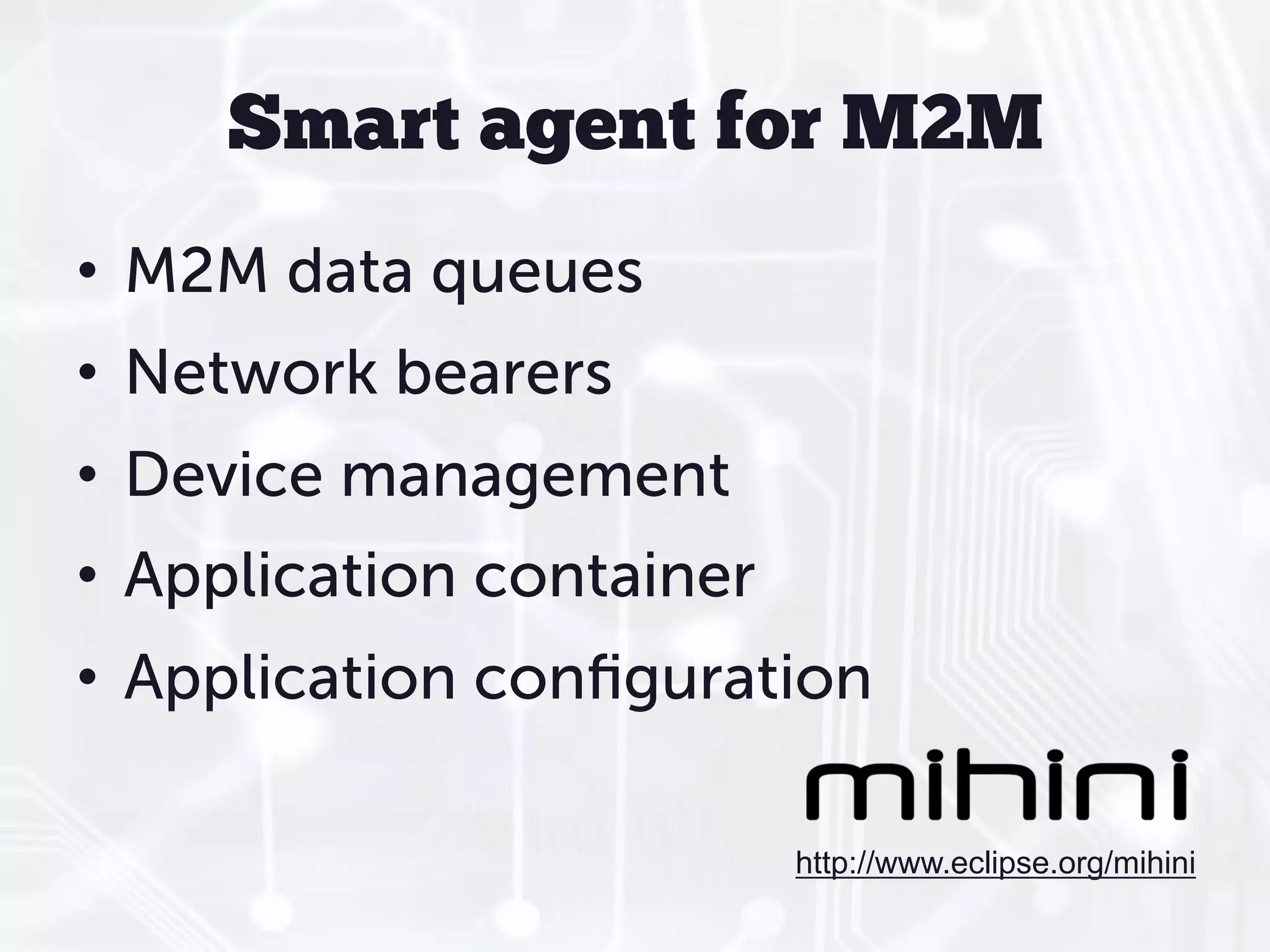

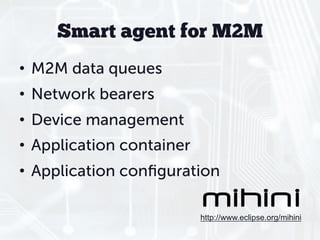

- 28. Smart agent forM2M • M2M data queues • Network bearers • Device management • Application container • Application configuration http://www.eclipse.org/mihini
- 29.

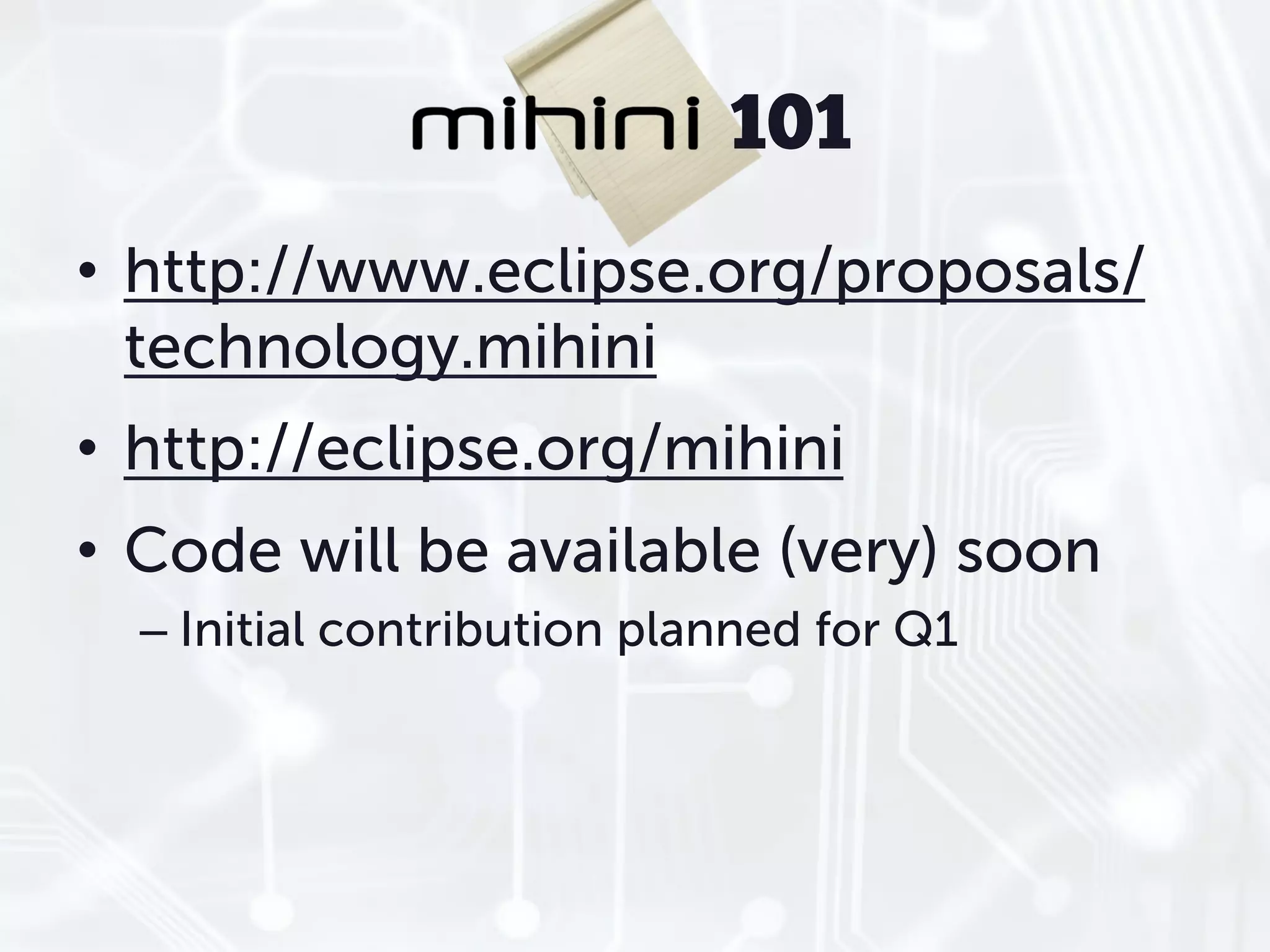

- 30. 101 • http://www.eclipse.org/proposals/ technology.mihini • http://eclipse.org/mihini • Code will be available (very) soon – Initial contribution planned for Q1
- 31.
- 32. A very commonuse case • Greenhouse business – Connect gardening equipment – Remote monitoring of sensors – Remote control • M2M Gateway not selected yet, neither is the rest of the equipment (PLCs)

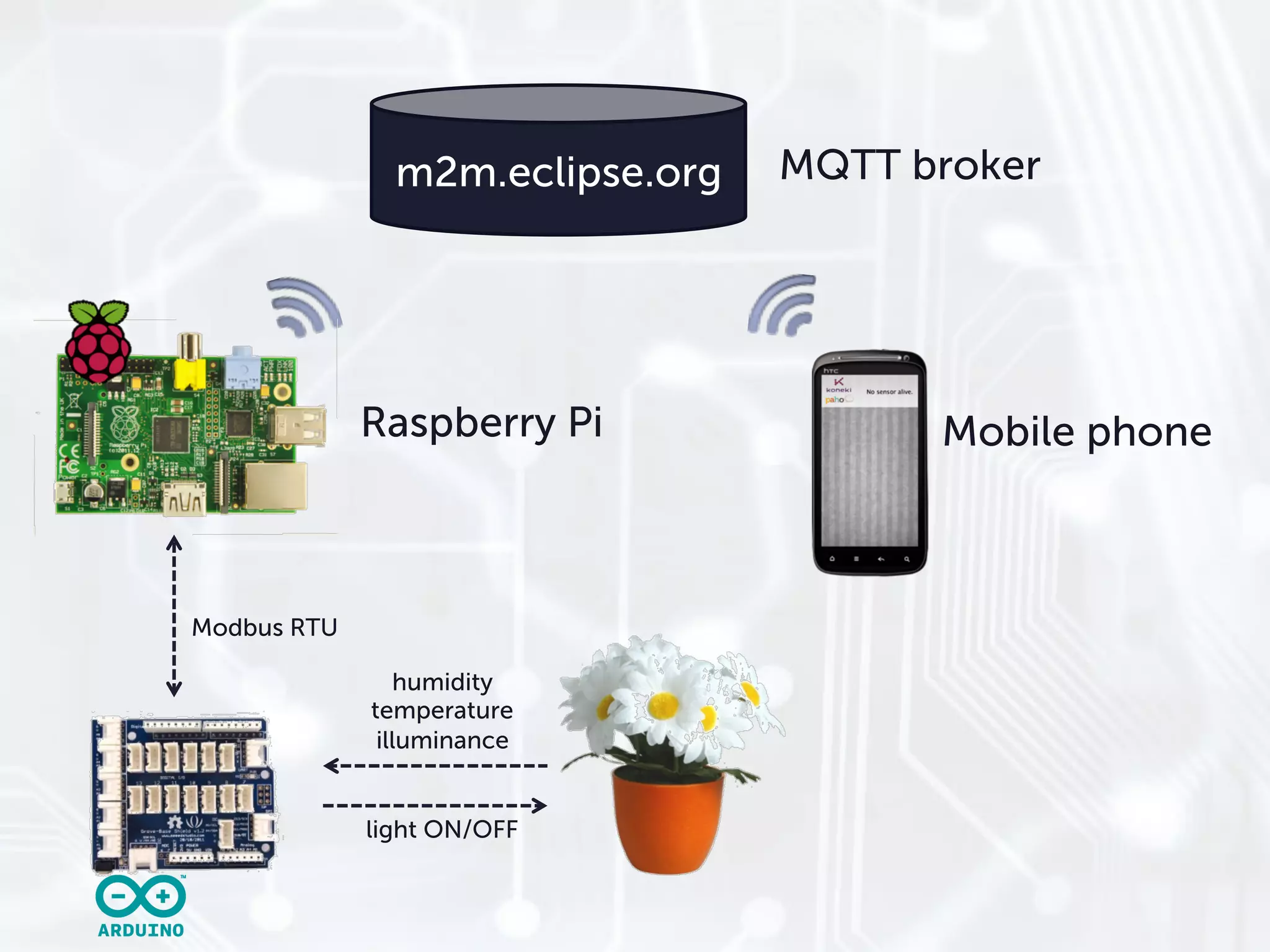

- 33. m2m.eclipse.org MQTT broker Raspberry Pi Mobile phone Modbus RTU humidity temperature illuminance light ON/OFF

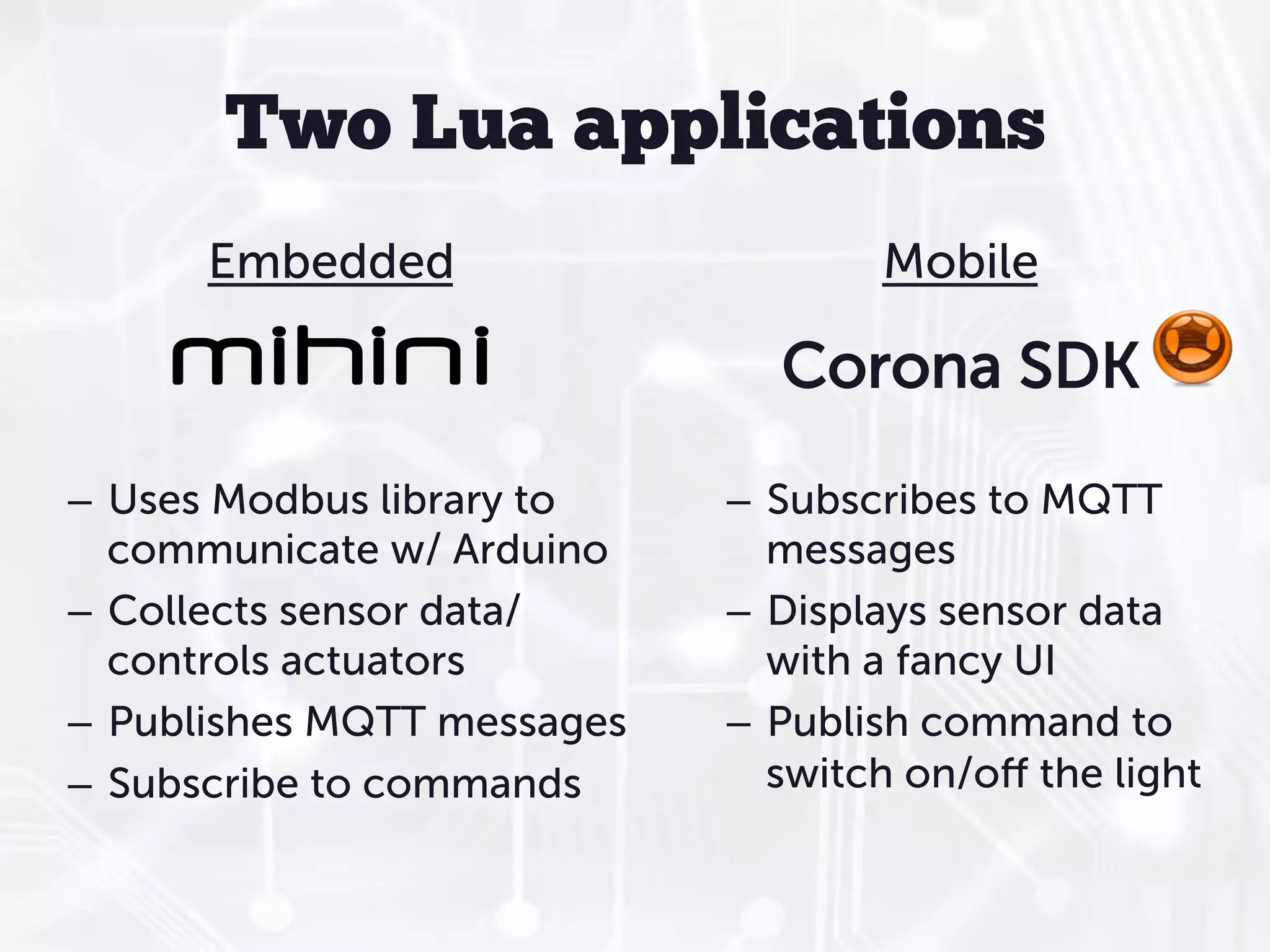

- 34. Two Lua applications Embedded Mobile Corona SDK – Uses Modbus library to – Subscribes to MQTT communicate w/ Arduino messages – Collects sensor data/ – Displays sensor data controls actuators with a fancy UI – Publishes MQTT messages – Publish command to – Subscribe to commands switch on/off the light

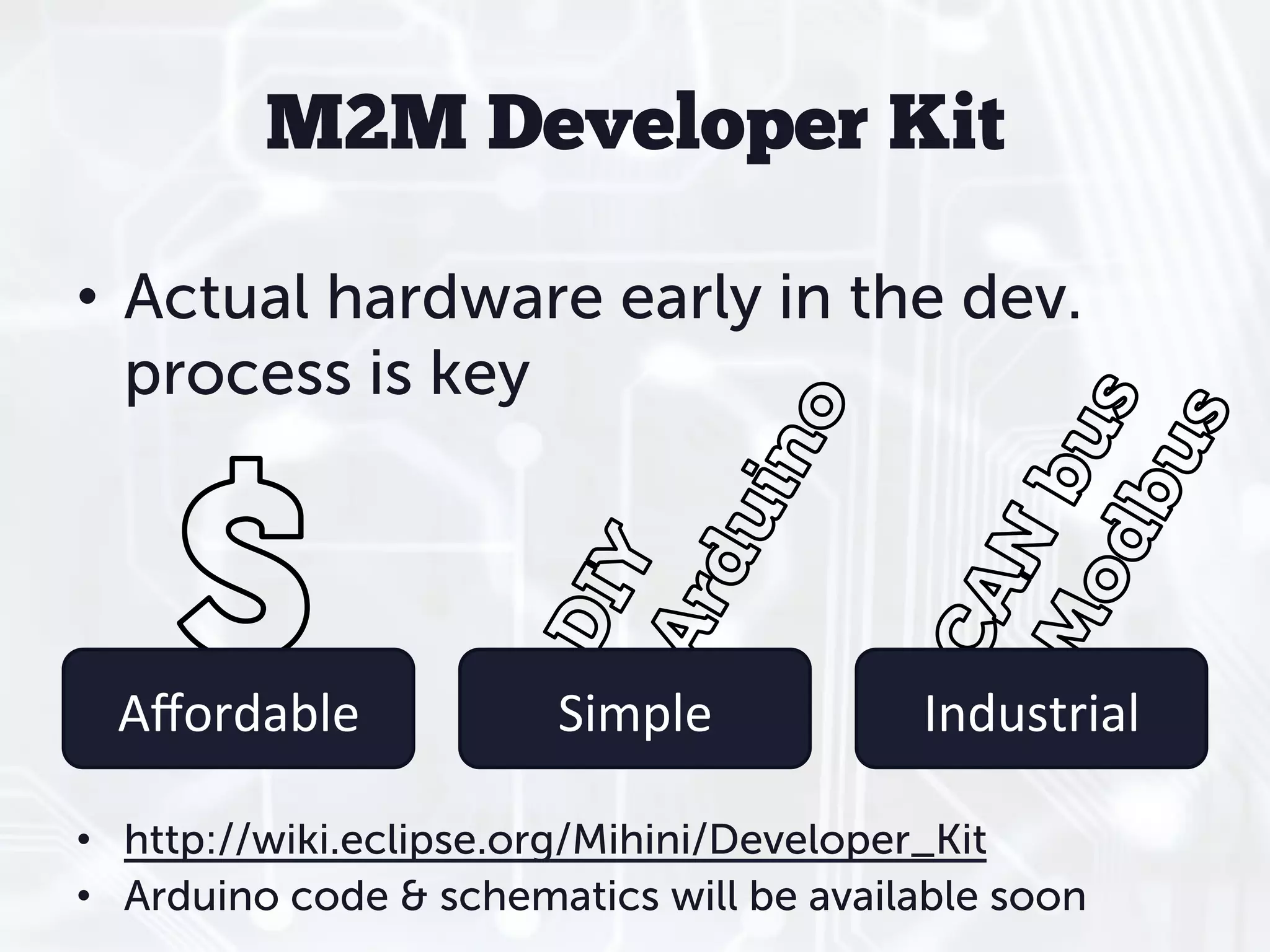

- 35. M2M Developer Kit • Actual hardware early in the dev. process is key Affordable* Simple* Industrial* • http://wiki.eclipse.org/Mihini/Developer_Kit • Arduino code & schematics will be available soon

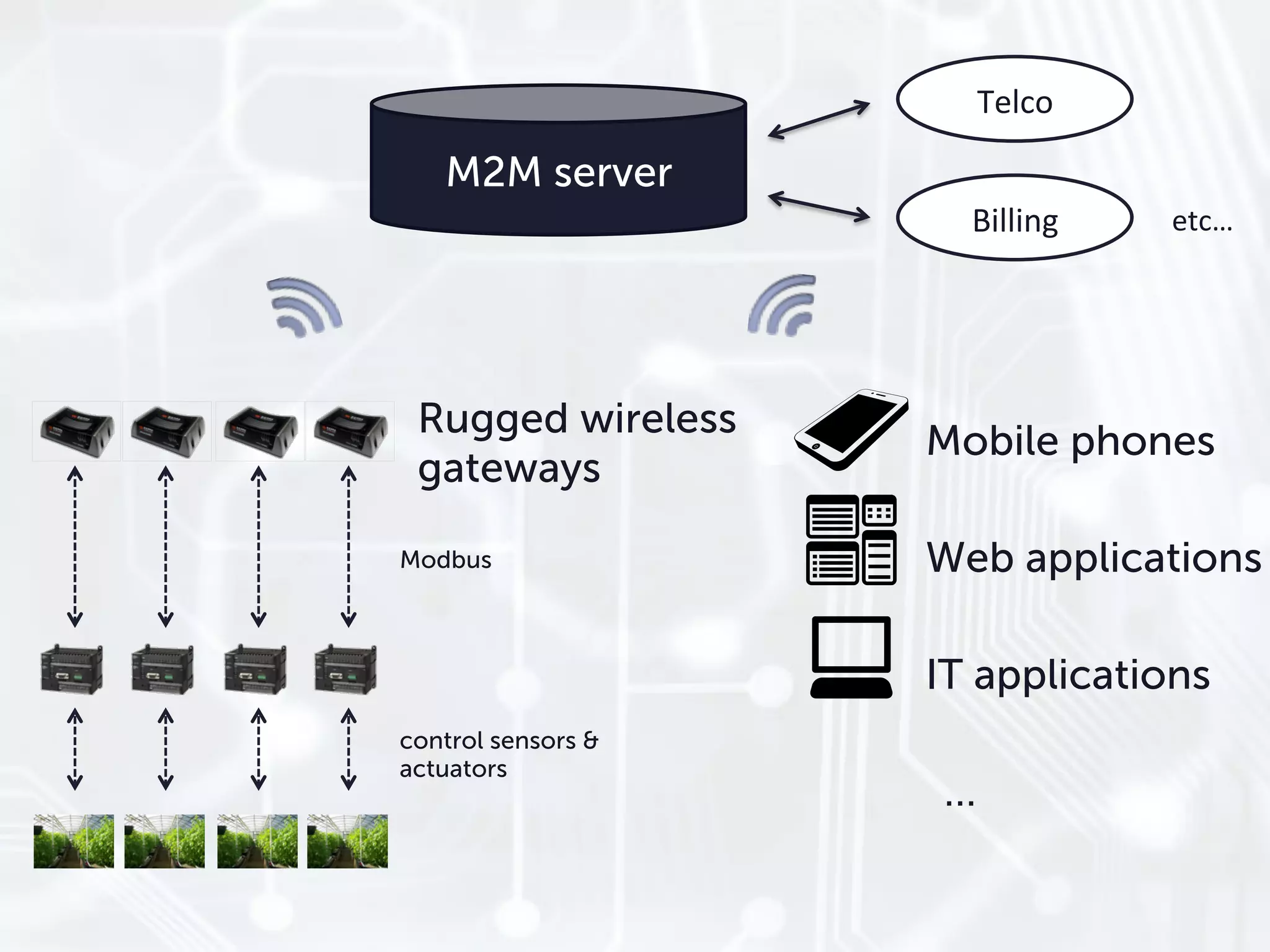

- 36. Telco* M2M server Billing* etc…* Rugged wireless Mobile phones gateways Modbus Web applications IT applications control sensors & actuators …
- 37. Wrapping up • Developingan M2M app with Mihini is simple – Demo app written in a couple of hours • Mihini apps are portable • Mihini itself is easily portable – make install ! • Koneki provides support for editing, debugging and deploying M2M apps
