MQTT is a publish-subscribe messaging protocol that is lightweight, simple, open source, and designed for constrained devices and low-bandwidth, high-latency or unreliable networks. It is useful for applications such as sensor data collection and device control and is seeing adoption in many Internet of Things areas like home automation, gardening, and more. MQTT uses publish/subscribe messaging and supports different levels of quality of service. It has small code footprint and minimal bandwidth usage, making it suitable for constrained devices.

1. MQTT: Messaging for the
Internet of (awesome) Things
Andy Piper
WebSphere Messaging Community Lead, IBM
(also, sometime UUPC presenter (when they're a person short...))

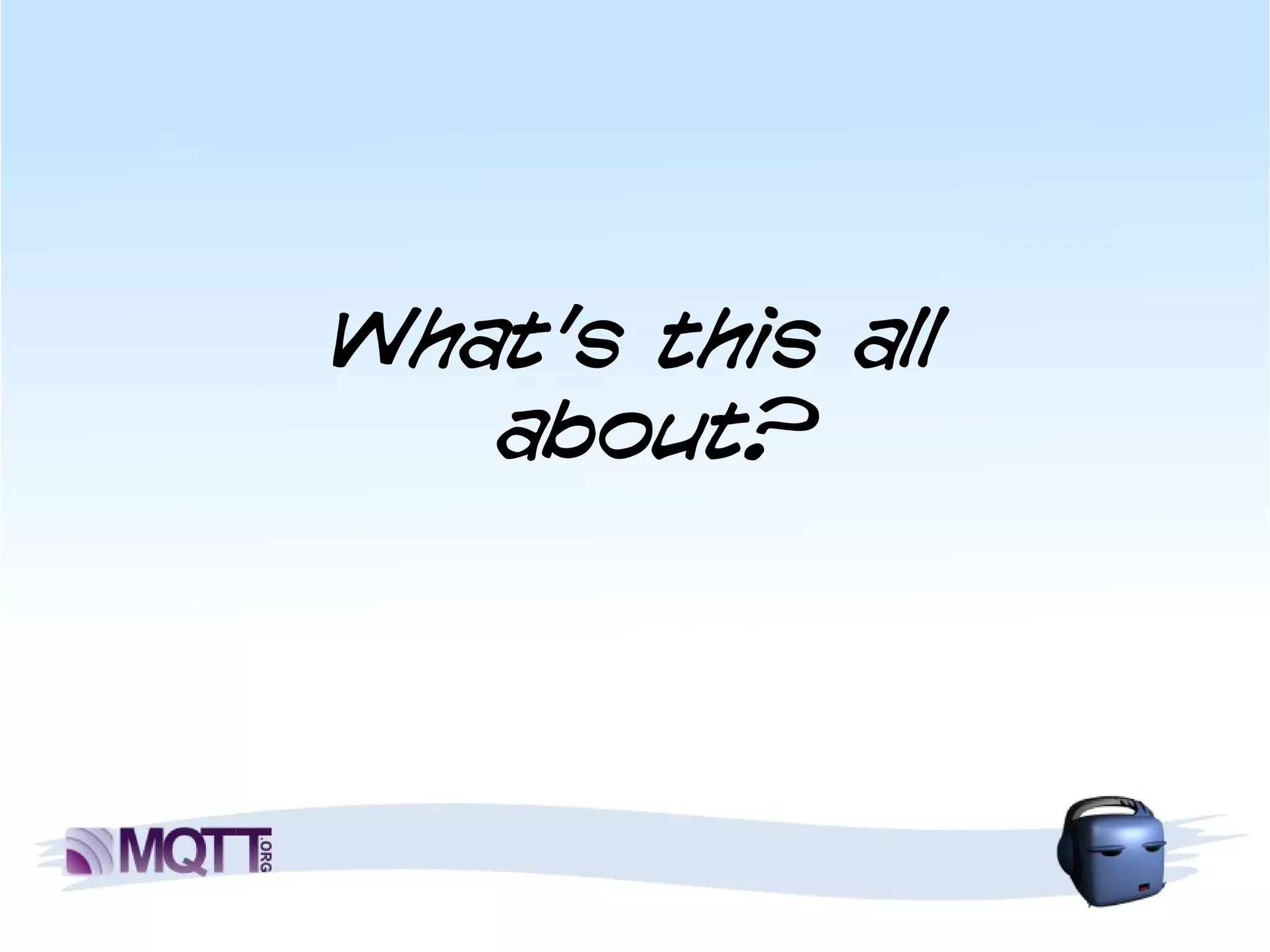

2. What's this all
about?

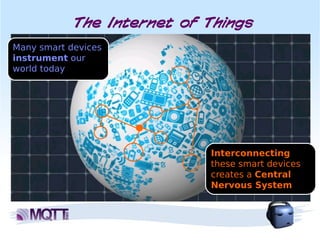

3. The Internet of Things
Many smart devices
instrument our
world today
Interconnecting
these smart devices
creates a Central
Nervous System

4. Oggcamp 1: 25th October 2009
Image by “Londoneer”, CC licensed by-nc-sa
Slidecast at http://www.slideshare.net/andysc/the-house-that-twitters

5. Oggcamp 2: 1st May 2010
Mosquitto: an Open
Source MQTT broker

6. Oggcamp 3!

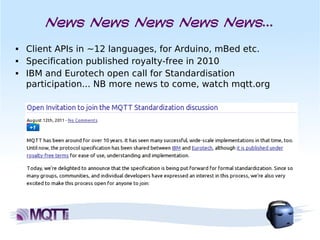

7. News News News News News...
■ Client APIs in ~12 languages, for Arduino, mBed etc.
■ Specification published royalty-free in 2010
■ IBM and Eurotech open call for Standardisation
participation... NB more news to come, watch mqtt.org

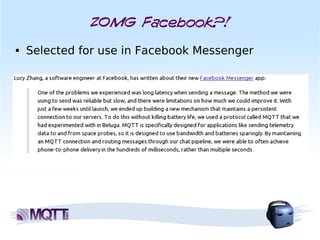

8. ZOMG Facebook?!
■ Selected for use in Facebook Messenger

9. Interested?

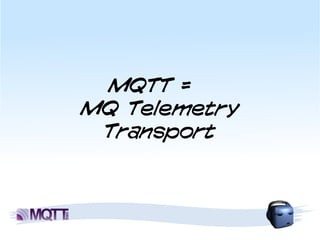

10. MQTT =
MQ Telemetry
Transport

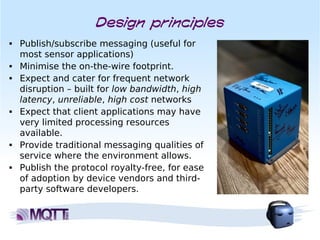

11. Design principles
■ Publish/subscribe messaging (useful for
most sensor applications)
■ Minimise the on-the-wire footprint.
■ Expect and cater for frequent network
disruption – built for low bandwidth, high
latency, unreliable, high cost networks
■ Expect that client applications may have
very limited processing resources
available.
■ Provide traditional messaging qualities of
service where the environment allows.
■ Publish the protocol royalty-free, for ease
of adoption by device vendors and third-
party software developers.

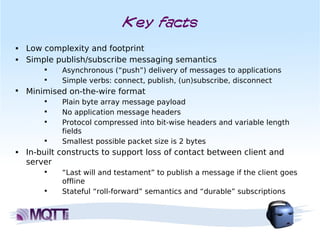

12. Key facts
■ Low complexity and footprint
■ Simple publish/subscribe messaging semantics

Asynchronous (“push”) delivery of messages to applications

Simple verbs: connect, publish, (un)subscribe, disconnect

Minimised on-the-wire format

Plain byte array message payload

No application message headers

Protocol compressed into bit-wise headers and variable length
fields

Smallest possible packet size is 2 bytes
■ In-built constructs to support loss of contact between client and
server

“Last will and testament” to publish a message if the client goes
offline

Stateful “roll-forward” semantics and “durable” subscriptions

13. What about
that HTTP thing?

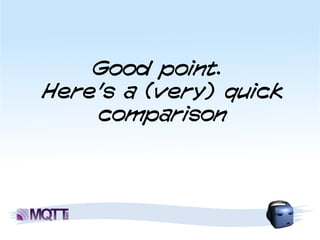

14. Good point.
Here's a (very) quick
comparison

15. Data-centricity
MQTT is agnostic of data content and transfers
simple byte arrays, making drip-feeds of
updating information trivial.
HTTP is (basically) document-centric.

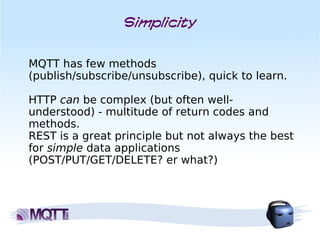

16. Simplicity
MQTT has few methods
(publish/subscribe/unsubscribe), quick to learn.
HTTP can be complex (but often well-
understood) - multitude of return codes and
methods.
REST is a great principle but not always the best
for simple data applications
(POST/PUT/GET/DELETE? er what?)

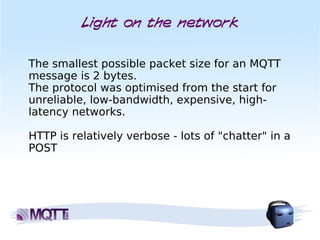

17. Light on the network
The smallest possible packet size for an MQTT
message is 2 bytes.
The protocol was optimised from the start for
unreliable, low-bandwidth, expensive, high-
latency networks.
HTTP is relatively verbose - lots of "chatter" in a
POST

18. Easy distribution of data
MQTT distributes 1-to-none, 1-to-1 or 1-to-n via
the publish/subscribe mechanism
→ very efficient
HTTP is point-to-point (can be
mediated/clustered but no distribution
mechanism). To distribute to multiple receivers
a large number of POSTs may be required.

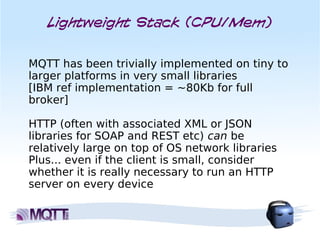

19. Lightweight Stack (CPU/Mem)
MQTT has been trivially implemented on tiny to
larger platforms in very small libraries
[IBM ref implementation = ~80Kb for full
broker]
HTTP (often with associated XML or JSON
libraries for SOAP and REST etc) can be
relatively large on top of OS network libraries
Plus... even if the client is small, consider
whether it is really necessary to run an HTTP
server on every device

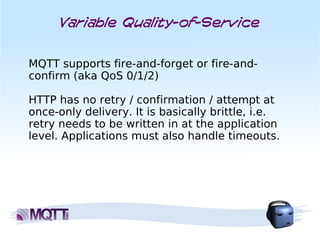

20. Variable Quality-of-Service
MQTT supports fire-and-forget or fire-and-
confirm (aka QoS 0/1/2)
HTTP has no retry / confirmation / attempt at
once-only delivery. It is basically brittle, i.e.
retry needs to be written in at the application
level. Applications must also handle timeouts.

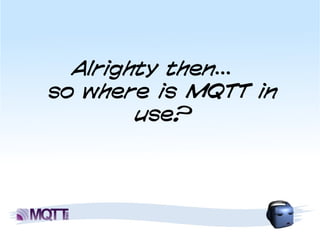

21. Alrighty then...
so where is MQTT in
use?

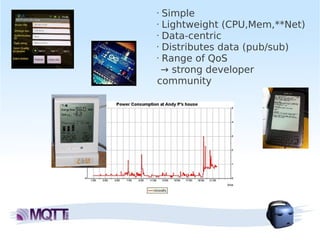

22. • Simple
• Lightweight (CPU,Mem,**Net)
• Data-centric
• Distributes data (pub/sub)
• Range of QoS
→ strong developer
community

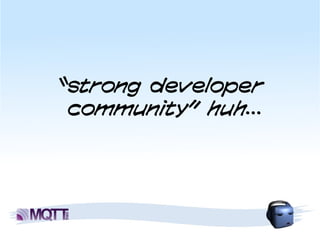

23. “strong developer
community” huh...

24. Ok, to be fair, I have
no knowledge of their
physical strength, but
they are all awesome...

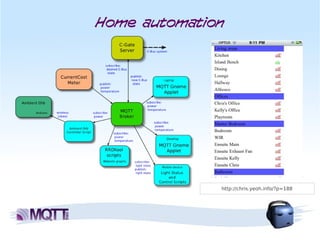

25. Home automation
http://chris.yeoh.info/?p=188

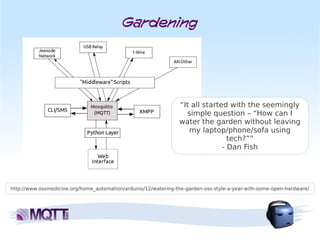

26. Gardening
“It all started with the seemingly
simple question – “How can I
water the garden without leaving
my laptop/phone/sofa using
tech?””
- Dan Fish
http://www.ossmedicine.org/home_automation/arduino/12/watering-the-garden-oss-style-a-year-with-some-open-hardware/

27. Mind-controlled Taxis
b
“Kevin already had the headset
hooked up to MQTT, so it would
be trivial to use my Arduino MQTT
library to get them all talking.”
- Nick O'Leary
http://knolleary.net/2010/04/22/how-i-got-onto-prime-time-bbc-one/

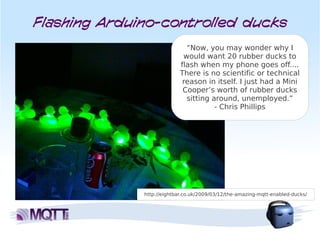

28. Flashing Arduino-controlled ducks
“Now, you may wonder why I
would want 20 rubber ducks to
flash when my phone goes off....
There is no scientific or technical
reason in itself. I just had a Mini
Cooper’s worth of rubber ducks
sitting around, unemployed.”
- Chris Phillips
http://eightbar.co.uk/2009/03/12/the-amazing-mqtt-enabled-ducks/

29. This sounds
moderately
interesting (and fun)
Lemme at it!

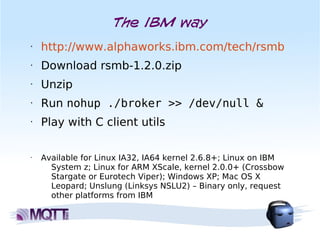

30. The IBM way
• http://www.alphaworks.ibm.com/tech/rsmb
• Download rsmb-1.2.0.zip
• Unzip
• Run nohup ./broker >> /dev/null &
• Play with C client utils
• Available for Linux IA32, IA64 kernel 2.6.8+; Linux on IBM
System z; Linux for ARM XScale, kernel 2.0.0+ (Crossbow
Stargate or Eurotech Viper); Windows XP; Mac OS X
Leopard; Unslung (Linksys NSLU2) – Binary only, request
other platforms from IBM

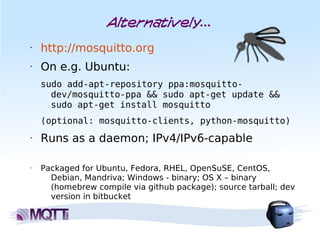

31. Alternatively...
• http://mosquitto.org
• On e.g. Ubuntu:
sudo add-apt-repository ppa:mosquitto-
dev/mosquitto-ppa && sudo apt-get update &&
sudo apt-get install mosquitto
(optional: mosquitto-clients, python-mosquitto)
• Runs as a daemon; IPv4/IPv6-capable
• Packaged for Ubuntu, Fedora, RHEL, OpenSuSE, CentOS,
Debian, Mandriva; Windows - binary; OS X – binary
(homebrew compile via github package); source tarball; dev
version in bitbucket

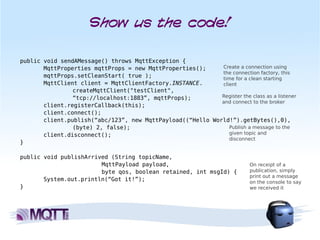

32. Show us the code!
public void sendAMessage() throws MqttException {
MqttProperties mqttProps = new MqttProperties(); Create a connection using
the connection factory, this
mqttProps.setCleanStart( true ); time for a clean starting
MqttClient client = MqttClientFactory.INSTANCE. client
createMqttClient("testClient",
“tcp://localhost:1883”, mqttProps); Register the class as a listener
and connect to the broker
client.registerCallback(this);
client.connect();
client.publish(“abc/123”, new MqttPayload((“Hello World!”).getBytes(),0),
(byte) 2, false); Publish a message to the
client.disconnect(); given topic and
disconnect
}
public void publishArrived (String topicName,
MqttPayload payload, On receipt of a
byte qos, boolean retained, int msgId) { publication, simply
print out a message
System.out.println(“Got it!”); on the console to say
} we received it

33. Moar code plz
#!/usr/bin/python
import pynotify
import mosquitto
# define what happens after connection
def on_connect(rc):
print "Connected"
# On receipt of a message create a pynotification and show it
def on_message(msg):
n = pynotify.Notification (msg.topic, msg.payload)
n.show ()
# create a broker
mqttc = mosquitto.Mosquitto("python_sub")
# define the callbacks
mqttc.on_message = on_message
mqttc.on_connect = on_connect
# connect
mqttc.connect("localhost", 1883, 60, True)
# subscribe to topic test
mqttc.subscribe("test", 2)
# keep connected to broker
while mqttc.loop() == 0:
pass
http://chemicaloliver.net/programming/first-steps-using-python-and-mqtt/

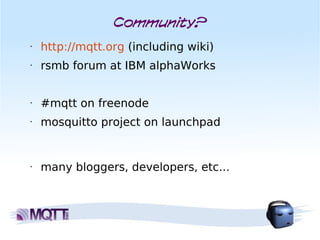

34. Community?
• http://mqtt.org (including wiki)
• rsmb forum at IBM alphaWorks
• #mqtt on freenode
• mosquitto project on launchpad
• many bloggers, developers, etc...

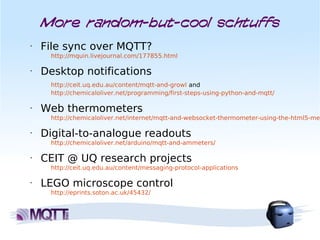

35. More random-but-cool schtuffs
• File sync over MQTT?
http://mquin.livejournal.com/177855.html
• Desktop notifications
http://ceit.uq.edu.au/content/mqtt-and-growl and
http://chemicaloliver.net/programming/first-steps-using-python-and-mqtt/
• Web thermometers
http://chemicaloliver.net/internet/mqtt-and-websocket-thermometer-using-the-html5-met
• Digital-to-analogue readouts
http://chemicaloliver.net/arduino/mqtt-and-ammeters/
• CEIT @ UQ research projects
http://ceit.uq.edu.au/content/messaging-protocol-applications
• LEGO microscope control
http://eprints.soton.ac.uk/45432/

36. KTHXBAI!
Andy Piper
@andypiper
http://andypiper.co.uk

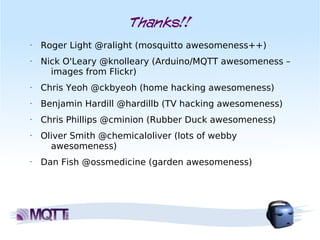

37. Thanks!!
• Roger Light @ralight (mosquitto awesomeness++)
• Nick O'Leary @knolleary (Arduino/MQTT awesomeness –
images from Flickr)
• Chris Yeoh @ckbyeoh (home hacking awesomeness)
• Benjamin Hardill @hardillb (TV hacking awesomeness)
• Chris Phillips @cminion (Rubber Duck awesomeness)
• Oliver Smith @chemicaloliver (lots of webby
awesomeness)
• Dan Fish @ossmedicine (garden awesomeness)
