This document discusses using Apache Camel with Eclipse Kura to build IoT gateways. It provides an overview of Eclipse Kura as an OSGi-based IoT gateway platform and Apache Camel as a message routing framework. It describes how Camel's connectors and integration patterns can benefit Kura by enabling communication with various protocols and providing features like throttling, load balancing, and idempotent consumption. Examples are given of Camel routes deployed on Kura that retrieve WiFi network data and sync cached data based on WiFi connectivity. The Rhiot project is also mentioned as a Kura+Camel router supported through a Eurotech partnership.

1. Brought to you by Henryk
Konsek
IoT gateway Dream Team
Eclipse Kura and Apache Camel

2. Henryk Konsek
@hekonsek
- engineer at Red Hat
- open source
contributor
- focused on the IoT
- Rhiot project founder

3. Running Apache Camel in the Eclipse Kura OSGi container.
This talk

4. ● Crash course to the IoT
● Eclipse Kura
● Apache Camel
● Why Camel+Kura?
● How Camel+Kura?
● Demo
This talk

5. Crash course to the IoT

6. Hardware. Connected. And sensors.
The Internet Of Things

7. In drones?
Where is the IoT money?

8. In hipster startups?
Where is the IoT money?

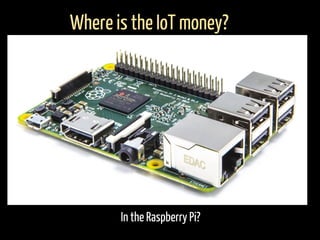

9. In the Raspberry Pi?
Where is the IoT money?

10. Industry.
IoT money

11. Automotive.
IoT money

12. Assets management.
IoT money

13. Smart cities.
IoT money

14. Military & intelligence.
IoT money

15. IoT = Data Center + Embedded
IoT consolidates data center and embedded worlds.

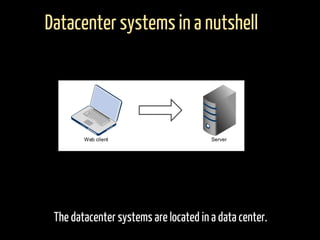

16. The datacenter systems are located in a data center.
Datacenter systems in a nutshell

17. IoT architecture is a superset of a datacenter architecture.
IoT architecture

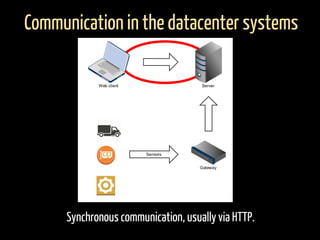

18. Synchronous communication, usually via HTTP.
Communication in the datacenter systems

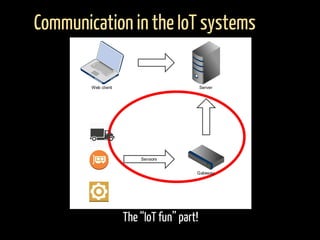

19. The “IoT fun” part!
Communication in the IoT systems

20. Eclipse Kura

21. OSGi-based IoT gateway for field devices.
What is Eclipse Kura?

22. OSGi-based IoT gateway for the field devices.
OSGi
● modularity system for Java
● provides modules classpath separation
● promotes hot runtime redeployments
What is Eclipse Kura?
OSGi Application Container (Eclipse Equinox, Concierge)
Java SE 7 / 8 (OpenJDK)

23. What is Eclipse Kura?
IoT gateway
● collects messages from the edge devices (like sensors)
● performs messages processing/aggregation/forwarding
OSGi-based IoT gateway for the field devices.
OSGi Application Container (Eclipse Equinox, Concierge)
Java SE 7 / 8 (OpenJDK)
Networking Gateway Services Web UI Remote Management

24. What is Eclipse Kura?
IoT gateway
● collects messages from the edge devices (like sensors)
● performs messages processing/aggregation/forwarding
OSGi-based IoT gateway for the field devices.
OSGi Application Container (Eclipse Equinox, Concierge)
Java SE 7 / 8 (OpenJDK)
Serial GPIO HID BLE I2C Field protocols
Networking Gateway Services Web UI Remote Management

25. What is Eclipse Kura?
IoT gateway
● collects messages from the edge devices (like sensors)
● performs messages processing/aggregation/forwarding
OSGi-based IoT gateway for the field devices.
OSGi Application Container (Eclipse Equinox, Concierge)
Java SE 7 / 8 (OpenJDK)
Serial GPIO HID BLE I2C Field protocols
Networking Gateway Services Web UI Remote Management
Cloud Services Data Services EP
Connectivity and Delivery

26. What is Eclipse Kura?
OSGi-based IoT gateway for the field devices.

27. Gateway TL;DR;
A proxy between field devices and a data center
GATEWAY

28. Eclipse. Donated by Eurotech (http://eurotech.com).
Who’s behind Kura?

29. Apache Camel

30. The message routing framework.
What is Apache Camel?

31. How to orchestrate messages flow.
What is message routing?
● Apache Camel
● Spring Integration
● Mule

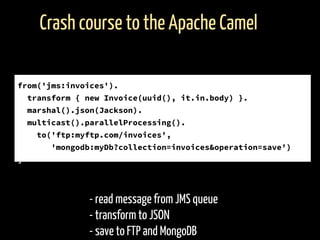

32. - read message from JMS queue
- transform to JSON
- save to FTP and MongoDB
Crash course to the Apache Camel
from('jms:invoices').
transform { new Invoice(uuid(), it.in.body) }.
marshal().json(Jackson).
multicast().parallelProcessing().
to('ftp:myftp.com/invoices',
'mongodb:myDb?collection=invoices&operation=save')
]

33. Why Camel and Kura?

34. Camel provides ~200 OSGi-ready connectors (JMS, REST, CoAP, AMQP,
MQTT…)
How can Kura benefit from Camel?

35. Enterprise Integration Patterns (EIP)
How can Kura benefit from Camel?

36. Prevents messages overflow.
EIP - throttler

37. Provides SLA for the different channels.
EIP - throttler

38. Dynamically decide where to route the message.
EIP - content based router

39. Client side load balancing. Useful for field devices connectivity.
EIP - load balancer

40. How can gateway provide transaction-like behavior
when connecting to a non-transactional service?
EIP - idempotent consumer

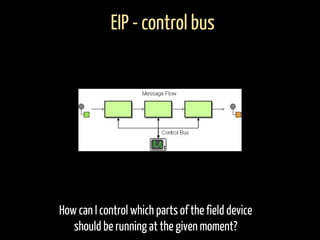

41. How can I control which parts of the field device
should be running at the given moment?
EIP - control bus

42. How Camel and Kura?

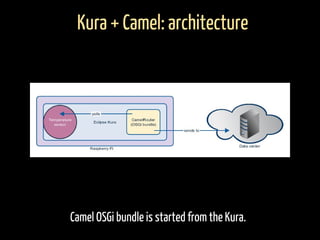

43. Camel OSGi bundle is started from the Kura.
Kura + Camel: architecture

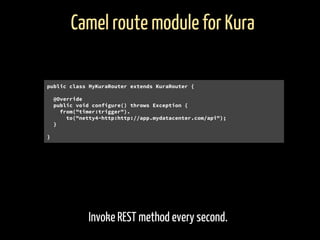

44. Invoke REST method every second.
Camel route module for Kura
public class MyKuraRouter extends KuraRouter {
@Override
public void configure() throws Exception {
from("timer:trigger").
to("netty4-http:http://app.mydatacenter.com/api");
}
}

45. Just deploy the route as the OSGi bundle and enjoy Camel running the Kura.
Concerned about the lifecycle?

46. Display WiFi networks accessible near the field device using the web
browser.
Fancy example #1
public class MyKuraRouter extends KuraRouter {
@Override
public void configure() throws Exception {
from("netty4-http:http://0.0.0.0:18080").
to("bean:org.eclipse.kura.net.NetworkService?method=getAllWifiAccessPoints");
}
}

47. Start syncing cached data only when WiFi is accessible.
Fancy example #2
public class MyKuraRouter extends KuraRouter {
@Override
public void configure() throws Exception {
from("kura-wifi:wlan0/mySSID").
to("controlbus:route?routeId=onlineSync&action=start");
from("file:///var/sensor/temperature").
routeId("onlineSync").autoStartup(false).
to("netty4-http://api.mydatacenter.com");
}
}

48. http://rhiot.io
Rhiot Kura gateway

49. - Rhiot Kura+Camel router (EuroTech partnership)
- server-side components
- on-going R&D and productization efforts
Rhiot & Red Hat?

50. Thank you!
Henryk Konsek
@hekonsek
hekonsek@gmail.com
