1. URINALYSIS

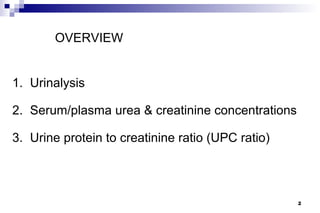

2. OVERVIEW
1. Urinalysis
2. Serum/plasma urea & creatinine concentrations
3. Urine protein to creatinine ratio (UPC ratio)
2

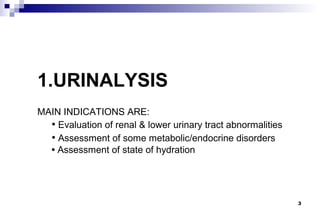

3. 1.URINALYSIS
MAIN INDICATIONS ARE:
• Evaluation of renal & lower urinary tract abnormalities
• Assessment of some metabolic/endocrine disorders
• Assessment of state of hydration
3

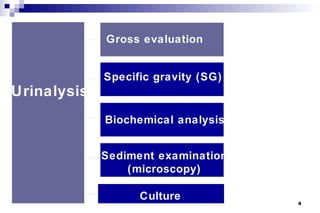

4. Gross evaluation
Specific gravity (SG)
Urinalysis
Biochemical analysis
Sediment examination
(microscopy)
Culture 4

5. GROSS EVALUATION: COLOUR
Urine from healthy animals can vary in colour Red discolouration
but is usually light, mild or dark yellow
Red discolouration may indicate haemoglobinuria, myoglobinuria or haematuria. 5

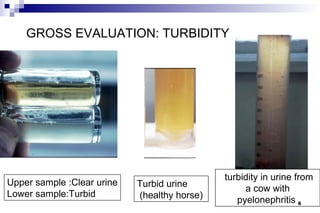

6. GROSS EVALUATION: TURBIDITY
turbidity in urine from
Upper sample :Clear urine Turbid urine a cow with
Lower sample:Turbid (healthy horse) pyelonephritis 6

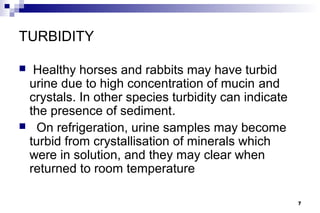

7. TURBIDITY
 Healthy horses and rabbits may have turbid
urine due to high concentration of mucin and
crystals. In other species turbidity can indicate
the presence of sediment.
 On refrigeration, urine samples may become
turbid from crystallisation of minerals which
were in solution, and they may clear when
returned to room temperature
7

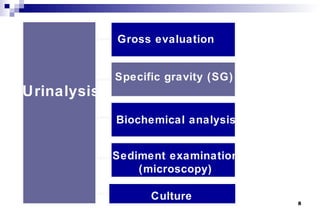

8. Gross evaluation
Specific gravity (SG)
Urinalysis
Biochemical analysis
Sediment examination
(microscopy)
Culture 8

9. SPECIFIC GRAVITY (SG)
Ratio of weight (density) of urine to that of an equal volume of water
at the same temperature. No units.
Values depend on:
- hydration status and water intake
- the kidney’s concentrating ability
It is a test of renal tubular function
Hydration status can be determined by assessing skin turgor or by
measurement of serum albumin, or PCV and total proteins. 9

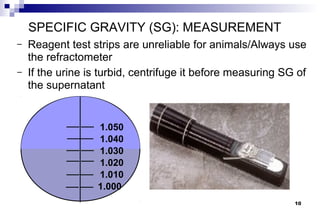

10. SPECIFIC GRAVITY (SG): MEASUREMENT
– Reagent test strips are unreliable for animals/Always use
the refractometer
– If the urine is turbid, centrifuge it before measuring SG of
the supernatant
1.050
1.040
1.030
1.020
1.010
1.000
10

11. SG: INTERPRETATION
HYPERSTHENURIA: concentrated urine
- >1.012
-urine of healthy, normally hydrated animals
ISOSTHENURIA: urine neither concentrated nor diluted
-1.007-1.012 (urine SG = plasma filtrate SG)
-persistent isosthenuria warrants further investigation
HYPOSTHENURIA: urine is more diluted than plasma
- <1.007
- persistent hyposthenuria warrants further investigation
11

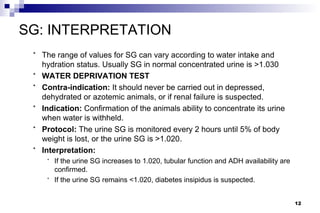

12. SG: INTERPRETATION
* The range of values for SG can vary according to water intake and
hydration status. Usually SG in normal concentrated urine is >1.030
* WATER DEPRIVATION TEST
* Contra-indication: It should never be carried out in depressed,
dehydrated or azotemic animals, or if renal failure is suspected.
* Indication: Confirmation of the animals ability to concentrate its urine
when water is withheld.
* Protocol: The urine SG is monitored every 2 hours until 5% of body
weight is lost, or the urine SG is >1.020.
* Interpretation:
* If the urine SG increases to 1.020, tubular function and ADH availability are
confirmed.
* If the urine SG remains <1.020, diabetes insipidus is suspected.
12

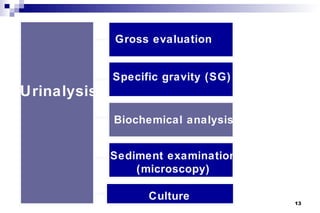

13. Gross evaluation
Specific gravity (SG)
Urinalysis
Biochemical analysis
Sediment examination
(microscopy)
Culture 13

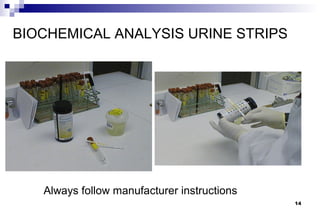

14. BIOCHEMICAL ANALYSIS URINE STRIPS
Always follow manufacturer instructions
14

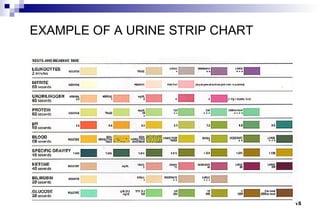

15. EXAMPLE OF A URINE STRIP CHART
15

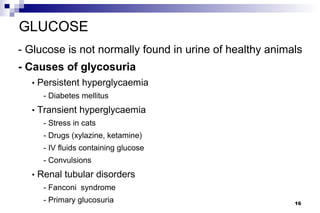

16. GLUCOSE
- Glucose is not normally found in urine of healthy animals
- Causes of glycosuria
• Persistent hyperglycaemia
- Diabetes mellitus
• Transient hyperglycaemia
- Stress in cats
- Drugs (xylazine, ketamine)
- IV fluids containing glucose
- Convulsions
• Renal tubular disorders
- Fanconi syndrome
- Primary glucosuria 16

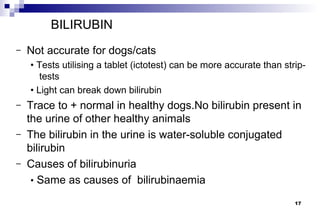

17. BILIRUBIN
– Not accurate for dogs/cats
• Tests utilising a tablet (ictotest) can be more accurate than strip-
tests
• Light can break down bilirubin
– Trace to + normal in healthy dogs.No bilirubin present in
the urine of other healthy animals
– The bilirubin in the urine is water-soluble conjugated
bilirubin
– Causes of bilirubinuria
• Same as causes of bilirubinaemia
17

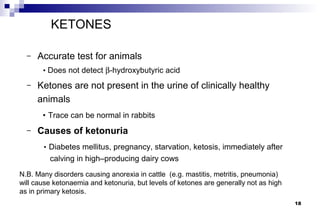

18. KETONES
– Accurate test for animals
• Does not detect β-hydroxybutyric acid
– Ketones are not present in the urine of clinically healthy
animals
• Trace can be normal in rabbits
– Causes of ketonuria
• Diabetes mellitus, pregnancy, starvation, ketosis, immediately after
calving in high–producing dairy cows
N.B. Many disorders causing anorexia in cattle (e.g. mastitis, metritis, pneumonia)
will cause ketonaemia and ketonuria, but levels of ketones are generally not as high
as in primary ketosis.
18

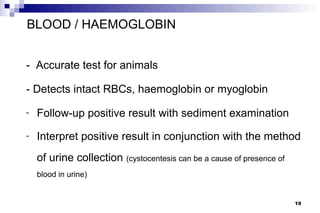

19. BLOOD / HAEMOGLOBIN
- Accurate test for animals
- Detects intact RBCs, haemoglobin or myoglobin
- Follow-up positive result with sediment examination
- Interpret positive result in conjunction with the method
of urine collection (cystocentesis can be a cause of presence of
blood in urine)
19

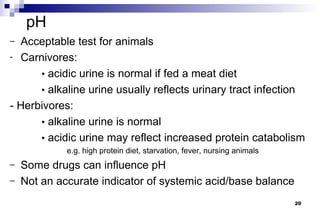

20. pH
– Acceptable test for animals
- Carnivores:
• acidic urine is normal if fed a meat diet
• alkaline urine usually reflects urinary tract infection
- Herbivores:
• alkaline urine is normal
• acidic urine may reflect increased protein catabolism
e.g. high protein diet, starvation, fever, nursing animals
– Some drugs can influence pH
– Not an accurate indicator of systemic acid/base balance
20

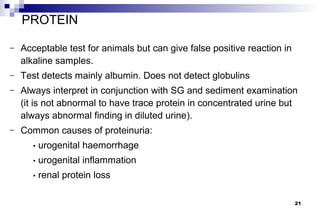

21. PROTEIN
– Acceptable test for animals but can give false positive reaction in
alkaline samples.
– Test detects mainly albumin. Does not detect globulins
– Always interpret in conjunction with SG and sediment examination
(it is not abnormal to have trace protein in concentrated urine but
always abnormal finding in diluted urine).
– Common causes of proteinuria:
• urogenital haemorrhage
• urogenital inflammation
• renal protein loss
21

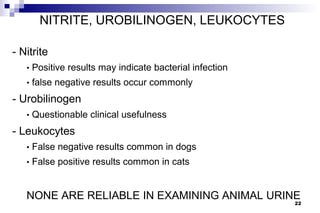

22. NITRITE, UROBILINOGEN, LEUKOCYTES
- Nitrite
• Positive results may indicate bacterial infection
• false negative results occur commonly
- Urobilinogen
• Questionable clinical usefulness
- Leukocytes
• False negative results common in dogs
• False positive results common in cats
NONE ARE RELIABLE IN EXAMINING ANIMAL URINE
22

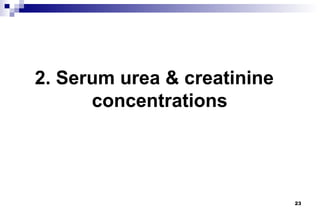

23. 2. Serum urea & creatinine
concentrations
23

24. UREA
LIVER
BLOOD
Urea cycle
Urea
TISSUES Urea
NH4+
75%
proteins NH4+ KIDNEYS
25%
Urea
Urea
Dietary Proteins
bacteria NH4+
Urea in
GASTROINTESTINAL TRACT urine
24

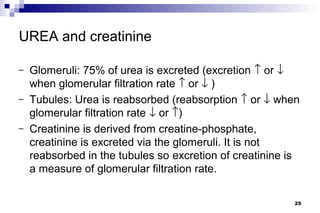

25. UREA and creatinine
– Glomeruli: 75% of urea is excreted (excretion ↑ or ↓
when glomerular filtration rate ↑ or ↓ )
– Tubules: Urea is reabsorbed (reabsorption ↑ or ↓ when
glomerular filtration rate ↓ or ↑)
– Creatinine is derived from creatine-phosphate,
creatinine is excreted via the glomeruli. It is not
reabsorbed in the tubules so excretion of creatinine is
a measure of glomerular filtration rate.
25

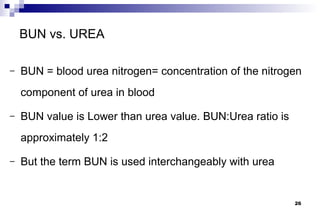

26. BUN vs. UREA
– BUN = blood urea nitrogen= concentration of the nitrogen
component of urea in blood
– BUN value is Lower than urea value. BUN:Urea ratio is
approximately 1:2
– But the term BUN is used interchangeably with urea
26

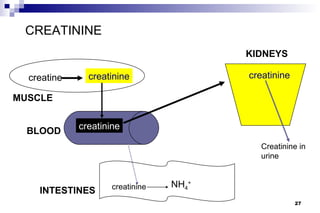

27. CREATININE
KIDNEYS
creatine creatinine creatinine
MUSCLE
creatinine
BLOOD
Creatinine in
urine
creatinine NH4+
INTESTINES
27

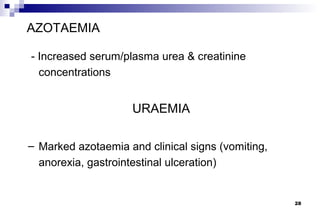

28. AZOTAEMIA
- Increased serum/plasma urea & creatinine
concentrations
URAEMIA
– Marked azotaemia and clinical signs (vomiting,
anorexia, gastrointestinal ulceration)
28

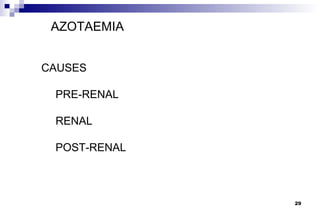

29. AZOTAEMIA
CAUSES
PRE-RENAL
RENAL
POST-RENAL
29

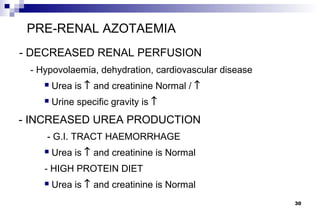

30. PRE-RENAL AZOTAEMIA
- DECREASED RENAL PERFUSION
- Hypovolaemia, dehydration, cardiovascular disease
 Urea is ↑ and creatinine Normal / ↑
 Urine specific gravity is ↑
- INCREASED UREA PRODUCTION
- G.I. TRACT HAEMORRHAGE
 Urea is ↑ and creatinine is Normal
- HIGH PROTEIN DIET
 Urea is ↑ and creatinine is Normal
30

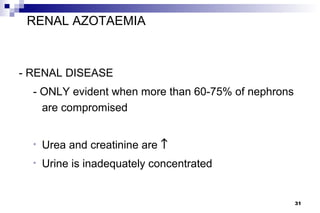

31. RENAL AZOTAEMIA
- RENAL DISEASE
- ONLY evident when more than 60-75% of nephrons
are compromised
• Urea and creatinine are ↑
• Urine is inadequately concentrated
31

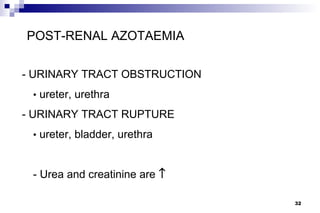

32. POST-RENAL AZOTAEMIA
- URINARY TRACT OBSTRUCTION
• ureter, urethra
- URINARY TRACT RUPTURE
• ureter, bladder, urethra
- Urea and creatinine are ↑
32

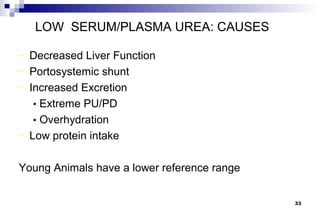

33. LOW SERUM/PLASMA UREA: CAUSES
– Decreased Liver Function
– Portosystemic shunt
– Increased Excretion
• Extreme PU/PD
• Overhydration
– Low protein intake
Young Animals have a lower reference range
33

34. RUMINANTS / HORSES
- Excrete most of urea via the gut (very little via kidneys). So
blood urea can be normal despite severe renal disease.
- Therefore blood creatinine is a more sensitive indicator of
renal disease
34

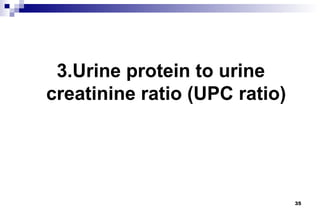

35. 3.Urine protein to urine
creatinine ratio (UPC ratio)
35

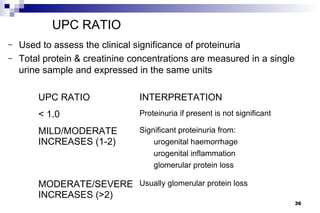

36. UPC RATIO
– Used to assess the clinical significance of proteinuria
– Total protein & creatinine concentrations are measured in a single
urine sample and expressed in the same units
UPC RATIO INTERPRETATION
< 1.0 Proteinuria if present is not significant
MILD/MODERATE Significant proteinuria from:
INCREASES (1-2) urogenital haemorrhage
urogenital inflammation
glomerular protein loss
MODERATE/SEVERE Usually glomerular protein loss
INCREASES (>2)
36

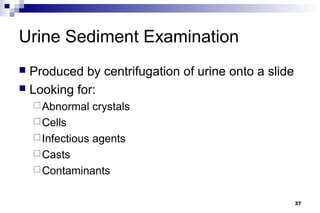

37. Urine Sediment Examination
 Produced by centrifugation of urine onto a slide
 Looking for:
 Abnormal crystals
 Cells
 Infectious agents
 Casts
 Contaminants
37

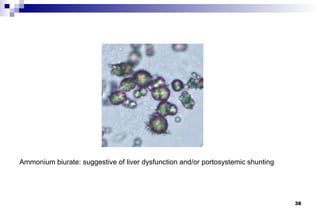

38. Ammonium biurate: suggestive of liver dysfunction and/or portosystemic shunting
38

39. Conjugated bilirubin: normal in dogs, but abnormal in other species. Suggests
conjugated bilirubinemia
39

40. Calcium oxalate: suggestive of hypercalciuria, hyperoxaluria (dietary, ethylene
glycol) or calcium oxalate uroliths
Can occur normally if urine has been stored
40

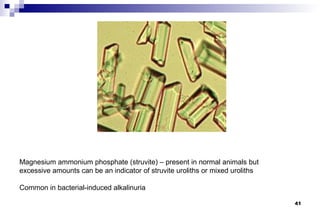

41. Magnesium ammonium phosphate (struvite) – present in normal animals but
excessive amounts can be an indicator of struvite uroliths or mixed uroliths
Common in bacterial-induced alkalinuria
41

42. Calcium oxalate monohydrate – suggestive of hypercalciuria or EG toxicity
42

43. Cysteine – indicative of disruption of cysteine metabolism/catabolism (drug induced
or inborn error in metabolism
43

44. Drug-associated - sulfonamides
44

45. Tyrosine – associated with severe liver disease
45

46. Tyrosine – associated with severe liver disease
46

47. RBCs – up to 5 RBC per high power field is normal. Increased RBCs in urine
generally indicates hemorrhage into the bladder or urethra (artifact with catheter
collection in some cases)
47

48. WBCs – up to 5 WBC per high power field is normal, higher levels suggest infection
somewhere within the urinary tract
48

49. Transitional epithelial cells from renal pelvis, ureters, urinary bladder or urethra
Morphology used for detection of neoplastic change (cytology)
49

50. Squamous epithelial cells – indicator of contamination from skin, prepuce etc
50

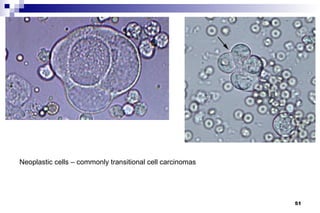

51. Neoplastic cells – commonly transitional cell carcinomas
51

52. Bacteria – bacili on the right, cocci on the left. Presence is always abnormal – either
infection or contamination (storage, collection)
52

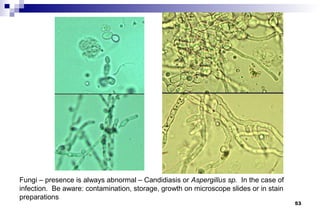

53. Fungi – presence is always abnormal – Candidiasis or Aspergillus sp. In the case of
infection. Be aware: contamination, storage, growth on microscope slides or in stain
preparations
53

54. Parasites
54

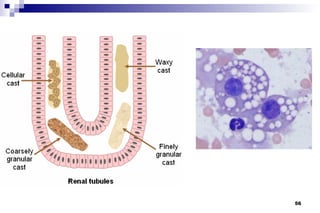

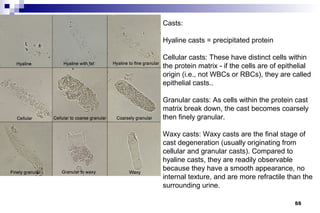

55. Casts:
Hyaline casts = precipitated protein
Cellular casts: These have distinct cells within
the protein matrix - if the cells are of epithelial
origin (i.e., not WBCs or RBCs), they are called
epithelial casts..
Granular casts: As cells within the protein cast
matrix break down, the cast becomes coarsely
then finely granular.
Waxy casts: Waxy casts are the final stage of
cast degeneration (usually originating from
cellular and granular casts). Compared to
hyaline casts, they are readily observable
because they have a smooth appearance, no
internal texture, and are more refractile than the
surrounding urine.
55

56. 56

57. 57

58. Questions?
58
