- 1. GREEN STAR COMMUNITIES ClaisebrookCove, East Perth, WA, AUS
- 2. INTRODUCTION ▸ Welcome ▸ Introduction ▸Emergency + OHS (AH) ▸ Lighting/AC ▸ Participant list ▸ Terminology ▸ Learning styles + requirements ▸ Questions? Roma Street Parkland, Brisbane, QLD, AUS
- 3. CASE STUDY Claisebrook Cove,East Perth, WA, AUS
- 4. Swanston St, Melbourne,VIC, AUS ▸ OUR AIM IS TO ENABLE YOU TO APPLY CRITERIA 4 (URBAN DESIGN) OF THE GREEN STAR COMMUNITY RATING TOOL. ▸ Upon completion you should: ▸ have consolidated your understanding of the Green Star Rating Tool and the Australian Urban Design Protocol ▸ be able to apply the principles of the Protocol at a project level ▸ be able to develop criteria to assess projects ▸ appreciate the variability in applying urban design principles and how they are open to interpretation ▸ Understand the design review process ▸ Not a ‘how to do urban design’ or ‘how to develop an urban design strategy’ OUTCOMES
- 5. INTRODUCTIONS ▸ Introduce yourselfto your colleague so they can ‘present you’ ▸ Name ▸ Training ▸ Job ▸ What would you like to get out of this module? Orion Springfield Town Centre - Springfield, QLD, AUS
- 6. Q&A - GREENSTAR COMMUNITIES Kuranda Park Way, Fitzgibbon, Brisbane, QLD, AUS
- 7. North Lakes StateCollege, Northlakes, QLD, AUS 1. Case Study (AH) + QA Green Star Communities 2. Creating Places for People - UD Protocol 3. Evaluation of Case Study (Walking Tour) 4. Design Review 5. Discussion and close PROGRAM WhatApplication
- 8. Federation Square, Melbourne,VIC, AUS CREATING PLACES FOR PEOPLE ▸ http://www.urbandesign.gov.au/ ▸ It is concerned with the arrangement, appearance and function of our suburbs, towns and cities. ▸ It is both a process and an outcome of creating localities in which people live, engage with each other, and the physical place around them. ▸ It involves many different disciplines. ▸ It operates from the macro to the micro scale. ▸ It influences economics, the physical scale and the social and cultural nature of a locality ▸ It is a long-term process that continues to evolve over time.
- 9. CREATING PLACES FORPEOPLE
- 10. CREATING PLACES FORPEOPLE PeoplePlaceLeadership
- 11. ENHANCING ▸ Triple bottomline ▸ Environmental sustainability ▸ Cultural heritage and conservation ▸ Living (green) infrastructure ▸ Design dividend (synergy) ▸ Prosperity Westwaters Hotel, Caroline Springs, Melbourne, VIC, AUS
- 12. ENHANCED? ▸ respects theneeds and aspirations of the local community who live and work there; ▸ creates opportunities for people to prosper and businesses to thrive; ▸ sustains and enhances the natural environment; ▸ enhances the built environment visually, physically, and functionally; and; ▸ celebrates the unique characteristics of the place, its heritage, culture and community, that create a sense of place and identity. Pixel Building - Queensberry Street, Carlton, VIC, AUS
- 13.
- 14. CONNECTED ▸ Connectivity ▸ Transportoptions ▸ Permeability ▸ Legibility ▸ Way‐finding ▸ Communication ▸ Agglomeration Juniper Bank Way, Subiaco, Perth, WA, AUS
- 15. CONNECTED? ▸ It isconnected to surrounding areas; ▸ You can see where you are and where you are going; ▸ There is a range of transport options; ▸ It is connected to places with jobs, schools, shops, facilities and services; ▸ It is connected with the past – the heritage of a place – and with the community and its culture; and ▸ It feels connected with the natural environment. Varsity Station Village, Gold Coast (Deicke Richards)
- 16.
- 17. DIVERSE ▸ Local characterand authenticity – expresses or reinterprets ▸ Residential density and mix ▸ Efficient use of land and infrastructure resources ▸ Mixed land use –diverse and complementary , vertically or horizontally integrated ▸ Bulk, mass and scale of buildings – to form centres appropriate to the location ▸ Bio-diversity – retention and enhancement of natural areas Marcus Clarke Street, Canberra, ACT, AUS
- 18. Town Square RouseHill Town Centre, Sydney, NSW, AUS DIVERSE? ▸ Each locality has its own character and qualities ▸ There is a rich range of experiences ▸ There is a range of facilities, services and activities ▸ Despite the diversity, there is an overall harmonious blend ▸ You can take different routes depending on your mood, or if you’re visiting different places on your way ▸ It meets different people’s needs, including a diversity of housing options ▸ There is biodiversity in the flora and fauna
- 19.
- 20. Lochiel Park –Adelaide, SA, AUS ENDURING ▸ Resilience –adverse events and built to last ▸ Mitigation and adaptation ▸ Aesthetics – relevant and attractive and functional ▸ Efficient use of resources ▸ Evolution and layering –existing fabric, character, culture, etc.
- 21. Christie Walk Eco-Village– Adelaide, SA, AUS ENDURING? ▸ Things are built to last, where appropriate – they’re made of robust materials, are designed well and there’s a sense of quality ▸ It is visually engaging as well as practical ▸ The place is well-maintained and cared for ▸ It is designed to save resources such as water, energy and materials, and minimises its impact on the environment ▸ The place can evolve and adapt over time.
- 22.
- 23. Market St, VillageCentre, Breakfast Point, NSW, AUS PEOPLE - COMFORTABLE ▸ ‘Urban identity – natural and built elements ▸ Social interaction – urban spaces ▸ Egalitarianism, equity, inclusiveness ▸ Fit for purpose ▸ Environments for all people – diverse spaces and/or elements ▸ Social inclusion
- 24. James St, Brisbane,QLD, AUS PEOPLE - COMFORTABLE? ▸ It feels comfortable to walk through, sit, stand, play, talk, read, or just relax and contemplate; ▸ It is not too exposed to unpleasant noise, wind, heat, rain, traffic or pollution; ▸ You can freely use the place, or at least part of it, without having to pay; and, ▸ You can be yourself and feel included as part of the community.
- 25.
- 26. Darwin Waterfront, Darwin,NT, AUS PEOPLE - VIBRANT ▸ Social economy – interaction between users. ▸ Activated frontages + streetscapes ▸ Streetscapes are generous and relevant ▸ Places for children and the elderly ▸ Parks + open spaces
- 27. Musk Ave -Kelvin Grove Urban Village, Brisbane QLD PEOPLE – VIBRANT? ▸ You can see that there are other people around; ▸ People are enjoying themselves and each other’s company; ▸ There are places to meet and interact, play, explore, recreate and unwind; and ▸ Overall it is a place you want to visit, experience, or live in.
- 28.
- 29. Salamanca Square -Hobart, TAS, AUS PEOPLE – SAFE ▸ Road safety – design and configuration to all users ▸ Cycling + walking infrastructure ▸ CPTED ▸ Safety + surveillance – mix of day and night uses and location
- 30. Riverside Quay Southbank,Melbourne, VIC, AUS PEOPLE – SAFE? ▸ You feel safe and secure, even at night or on your own; ▸ There aren’t signs of decay such as graffiti, rubbish, weeds or derelict places; and ▸ Roads and paths are safe for adults and children to walk or ride their bikes.
- 31.
- 32. WALKABLE ▸ Active Transport- safe for users and non-users. ▸ Access for people with disabilities ▸ Supporting infrastructure The Garage, South Bank, Brisbane, QLD, AUS
- 33. WALKABLE? Main St, PointCook, VIC, AUS ▸ Prioritises people walking or riding before vehicles; ▸ Easy to get around on foot, bike, wheelchair, pushing a pram or wheeling luggage; ▸ Buildings and streets feel like they’re the right size and type for that place; and; ▸ Encourages physical activity and social interaction, and promotes a healthy lifestyle.
- 34.
- 35. LEADERSHIP – CONTEXT ▸Works within the planning, physical + social context ▸ A good strategic planning framework ▸ Strategic policies implemented through a variety of means ▸ Respond to the National Urban Policy objectives and the principles outlined in the Urban Design Protocol. ▸ Work within the strategic policies and statutory plans of the relevant State / Territory and local authorities South Bank, Brisbane, QLD, AUS
- 36. LEADERSHIP – CONTEXT ▸It sets, or works within the strategic planning framework ▸ It integrates with the physical environment, including its topography, biodiversity, landscape and views, existing streets and buildings, and infrastructure; ▸ It incorporates the heritage, culture and historical context of surrounding communities and places; and ▸ It is compatible with the surrounding social and economic activities. KGUV – Brisbane. Google Earth
- 37.

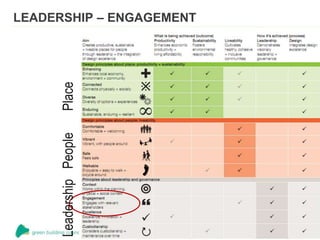

- 38. LEADERSHIP – ENGAGEMENT ▸Relevant stakeholders, including the broader community, should provide input and feedback at key stages of process. ▸ They can help to develop the vision, review design options and provide feedback during public exhibition. QUT Gardens Point, Brisbane, QLD AUS
- 39. LEADERSHIP – ENGAGEMENT ▸It acknowledges that urban design is primarily about creating places for people; ▸ It engages people in the development of their community; and ▸ It adopts a multi-disciplinary and collaborative approach to planning and design. Caroline Springs Blvd, Caroline Springs, Melbourne, VIC, AUS
- 40.
- 41. LEADERSHIP – EXCELLENCE ▸A process that embraces design excellence requires visionary leadership. ▸ Collaboration and teamwork ▸ Invest up front in quality, integrated processes ▸ Foster a culture which critically assesses urban design, celebrates its best examples and builds design literacy. Reward design excellence. Hibberson St, Gungahlin, Canberra, ACT, AUS
- 42. LEADERSHIP – EXCELLENCE ▸It prioritises best practice planning, design, engineering, procurement and maintenance; ▸ It champions universal design and accessibility; ▸ It integrates design, and design expertise, from the earliest stages of a plan or project through to completion; and ▸ It engages competent, skilled professionals to design and deliver on projects. Claisebrook Cove, East Perth, WA, AUS
- 43.
- 44. LEADERSHIP – CUSTODIANSHIP ▸Ensure that systems are in place for ongoing operations, management and upkeep so that the place is well- maintained and sustainable over the long term. Park St, Sydney Olympic Park, Sydney, NSW, AUS
- 45. LEADERSHIP – CUSTODIANSHIP ▸It recognises that communities, environments and cities are continually evolving and adapting; ▸ It considers the wider environmental, social and economic costs and benefits of development, operations, maintenance and disposal; ▸ It ensures that the design of a place is appropriate for its ongoing maintenance, operations and upkeep; and ▸ It incorporates strategies to reduce and adapt to climate change. Darling Harbour, Sydney, NSW, AUS
- 46. PROTOCOL – ROBADAMS ▸ 56:55
- 47. Carselgrove Ave, FitzgibbonChase, Brisbane, QLD, AUS 1. Case Study (AH) + QA Green Star Communities 2. Creating Places for People - UD Protocol 3. Evaluation of Case Study (Walking Tour) 4. Design Review 5. Discussion and close PROGRAM WhatApplication
- 48. CASE STUDY -MEASURE PeoplePlaceLeadership
- 49. George Street, NorthStrathfield, Sydney, NSW, AUS 1. Case Study (AH) + QA Green Star Communities 2. Creating Places for People - UD Protocol 3. Evaluation of Case Study (Walking Tour) 4. Design Review 5. Discussion and close PROGRAM WhatApplication
- 50. Joondalup, Perth, WA,AUS MOCK DESIGN REVIEW ▸ Roles – Panel, Project Team ▸ Preparation – presentation/questions ▸ Introduction (5 min) ▸ Project Presentation (10 min) ▸ Questions from the panel (15 min) ▸ Panel deliberation (20 min) ▸ Recommendations and point allocation (10 min)
- 51. Old Belvidere Prom- East Perth, WA, AUS FEEDBACK – SIX THINKING HATS 1. Process (blue) 2. What worked? (yellow) 3. What didn’t? (black) 4. What if? (green) 5. Gut feel? (red) http://www.loosetooth.com/Vis com/gf/6thinkinghats.htm
- 52. Portside Markets, HerculesStreet, Brisbane, QLD, AUS 7.0 DISCUSSION AND CLOSE 1. Green Star Communities 2. Creating Places for People - the Urban Design Protocol for Australian Cities 3. Design Review 4. Close + Feedback
