Binder is an inter-process communication system used in Android to allow processes to interact. It uses a client-server model where a client contacts a service via its binder handle. Data is packaged into a parcel and sent to the kernel binder driver via ioctl calls. The driver then delivers the transaction to the target service's thread to be processed by its stub and dispatched to the actual service code.

1. Understanding Binder in Android
Haifeng Li
2014-9-2

2. Outline
•Background
–What is Binder
–Binder Communication Model
–Terminology
–Binder Software Stack
•Client(user space)
•Binder driver (Kernel Space)
•Service(user space)

3. Background
•What is Binder?
–An Inter-process communication system for developing object-oriented OS services.
clientserverData

4. Binder Communication Model
User SpaceKernel SpaceCclientserviceBinder Driverioctl/open/...ioctl/open/... mInmOutioctl/open/... mInmOutmInmOutService Manager/system/bin/servicemanagerCGet ServiceAdd ServiceService 1 – handle 1Service 2 – handle 2...

5. Terminology
•Service Handle
•Remote Binder
•Local Binder
•Binder node
•Binder reference
•Service Manager(Context Manager)
–It’s handle is 0 in all binder client and server.
Binder DriverRemote Binder/HandleLocal BinderBinder NodeBinder ref.

6. IPC Software Stack
App1 service
Proxy(BpBinder) Stub(BnBinder)
IPCThreadState IPCThreadState
Binder Module
User Space
Kernel Space
Client Server
1
2
3 4
5
6
1. BpBinder(n) -> transact(OP, data, &reply)
2. IPCThreadState::transact(handle, OP, data, reply)
3. ioctl(binder_fd, BINDER_OPERATION, &bwr)
4. IPCThreadState::getAndExecuteCommand()
5. Bnxxx::onTransact(OP, data, reply)

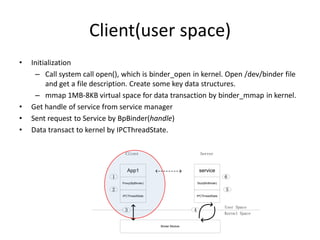

7. Client(user space)
• Initialization
– Call system call open(), which is binder_open in kernel. Open /dev/binder file
and get a file description. Create some key data structures.
– mmap 1MB-8KB virtual space for data transaction by binder_mmap in kernel.
• Get handle of service from service manager
• Sent request to Service by BpBinder(handle)
• Data transact to kernel by IPCThreadState.
App1 service
Proxy(BpBinder) Stub(BnBinder)
IPCThreadState IPCThreadState
Binder Module
User Space
Kernel Space
Client Server
1
2
3 4
5
6

8. Data Transaction in Client(1)
•Package in Client
102 virtual void Client::Foo(int32_t push_data) {
103 Parcel data, reply;
104 data.writeInterfaceToken(IDemo::getInterfaceDescriptor());
105 data.writeInt32(push_data);//writeStrongBinder(service)
109
110 remote()->transact(OP, data, &reply);
Parcel...flat_binder_objectmDataflat_binder_objectmObjectsService

9. Data Transaction in Client(2)
•Packaged to binder_transaction_data
IPCThreadState::writeTransactionData(int32_t cmd, …, int32_t handle, uint32_t code, const Parcel& data…)
•cmd will add to mData.(BC_TRANSACTION, BC_REPLY,… Binder Command)
•Target: target handle
•Cookie: will be define according to handle in binder driver
•Code: Operation of client.
•Offsets could help the binder driver to process binder object reference.
Parcel...flat_binder_objectmDataflat_binder_objectmObjectstargetcookiecode... data.ptr.bufferdata.ptr.offsets... binder_transaction_data

10. Data Transaction in Client(3)
•Binder Command(User->Driver)
–Binder Thread Support: BC_REGISTER_LOOPER, BC_ENTER LOOPER,BC_EXIT_LOOPER
–Binder Transactions: BC_TRANSACTION, BC_REPLY
–Further Mechanism: BC_INCREFS, BC_RELEASE , BC_DECREFS, BC_REQUEST_DEATH_NOTIFICIATION, BC_CLEAR_DEATH_NOTIFICATION, BC_DEAD_BINDER_DONE,…
•Binder Return Command (Driver -> User)
–Binder Thread Support: BR_SPAWN_LOOPER
–Binder Transactions: BR_TRANSACTION, BR_REPLY
–Further Mechanism: BR_INCREFS,BR_ACQUIRE, BR_RELEASE , BR_DECREFS, BR_CLEAR_DEATH_NOTIFICATION_DONE, …
ClientServerDriverBC_TRANSACTIONBR_TRANSACTIONBC_REPLYBR_REPLYBC_FREE_BUFFERBC_FREE_BUFFER

11. Data Transaction in Client(4)
•Repackage to Parcel(mOut)
•Each working thread has two parcel: mOut and mIn. mOut is for write buffer, mIn for read buffer.
Parcelcmdbinder_transactin_datamDatawrite_sizeWrite_bufferRead_sizeRead_bufferbinder_write_read

12. Outline
•Background
•Client(user space)
•Binder driver (Kernel Space)
•Service(user space) App1 service
Proxy(BpBinder) Stub(BnBinder)
IPCThreadState IPCThreadState
Binder Module
User Space
Kernel Space
Client Server
1
2
3 4
5
6

13. Binder Driver:Binder Protocol
•The protocol used for ioctl() system call.
–BINDER_WRITE_READ
–BINDER_SET_MAX_THREADS
–BINDER_SET_CONTEXT_MGR
–BINDER_THREAD_EXIT
–BINDER_VERSION
–BINDER_SET_IDLE_TIMEOUT

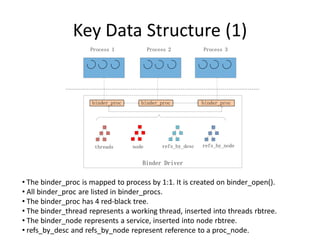

14. Key Data Structure (1)
Binder Driver
Process 1 Process 2 Process 3
binder_proc binder_proc binder_proc
threads node refs_by_desc refs_by_node
• The binder_proc is mapped to process by 1:1. It is created on binder_open().
• All binder_proc are listed in binder_procs.
• The binder_proc has 4 red-black tree.
• The binder_thread represents a working thread, inserted into threads rbtree.
• The binder_node represents a service, inserted into node rbtree.
• refs_by_desc and refs_by_node represent reference to a proc_node.

15. Key Data Structure (2)
User spaceKernel spaceBpBinderRemote BinderBBinderLocal Binderbinder_procnoderefs_by_nodebinder_procnoderefs_by_nodebinder_refbinder_node

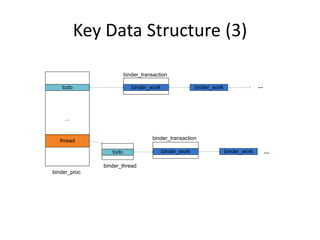

16. Key Data Structure (3)
... todothreadbinder_procbinder_threadtodobinder_workbinder_workbinder_workbinder_work... ... binder_transactionbinder_transaction

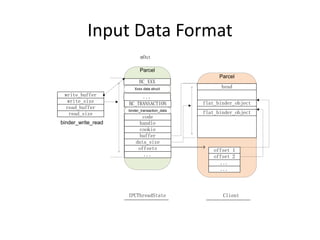

17. Input Data Format
ParcelParcelwrite_sizewrite_bufferread_sizeread_bufferbinder_write_readbufferdata_sizeoffsets... binder_transaction_datacodecookiehandleoffset 1offset 2... ... flat_binder_objectflat_binder_objectBC_TRANSACTIONBC_XXXXxxx data structmOut... headIPCThreadStateClient

18. Transaction in Binder – Client (1)
1. Copy binder_write_read from user space
2. Copy xxx data to kernel space. Iterate the items:
① Get Binder command from write_buffer(BC_XXX).
② Get target thread/proc/node by handle.
③ Allocate binder_buffer from target space, and copy effective data.
④ Build a session(build_transaction).
⑤ Mount the session to target_thread’s todo list.
⑥ Mount a BINDER_WORK_TRANSACTION_COMPLETE binder_work to source thread
⑦ Wake up corresponding thread.
Parcel
Parcel
write_size
write_buffer
read_size
read_buffer
binder_write_read
buffer
data_size
offsets
...
binder_transaction_data
code
cookie
handle
offset 1
offset 2
...
...
flat_binder_object
flat_binder_object
BC_TRANSACTION
BC_XXX
Xxxx data struct
mOut
...
head
IPCThreadState Client
1
2
①
②
③

19. Transaction in Binder –Client (2)
Target SpacedataCopyParcelParcelwrite_sizewrite_bufferread_sizeread_bufferbinder_write_readbufferdata_sizeoffsets... binder_transaction_datacodecookiehandleoffset 1offset 2... ... flat_binder_objectflat_binder_objectBC_TRANSACTIONBC_XXXXxxx data structmOut... headIPCThreadStateClientbufferpriorityoffsetssender_euidbinder_transactioncodeto_threadto_procdata... offsets_sizedata_sizetarget_nodebinder_bufferOffsets[] Copy

20. Transaction in Binder -- Server
1.Server thread wake up and get a binder_work(binder_transaction) from todo list
2.Build a binder_transaction_data from binder_transaction
3.Set priority of current thread of client.
4.The buffer and offsets will be virtual address
–Virtual address = kernel address + address offset
5.Copy binder_transaction_data to mIn
6.Return from kernel
7.IPCThreadState iternate the command and data.
–For BR_TRANSACTION, call stub’s onTransact function,
which will call server service function finally.
Target Spacedatabufferpriorityoffsetssender_euidbinder_transactioncodeto_threadto_procdata... offsets_sizedata_sizetarget_nodebinder_bufferOffsets[] bufferdata_sizeoffsets... binder_transaction_datacodecookiehandle Kernel Space write_sizewrite_bufferread_sizeread_bufferbinder_write_readParcelmInBR_NOOPDatabinder_transaction_dataBR_TRANSACTIONCopy to user User Space

21. Transaction stack(1)
•The stack is for recording transaction session.
•Commonly, to_parent and from_parent is null. But, when the transaction rely on other session, what will happen?
–The session in B will lost.
A(list_head)todoBinder_thread BBinder_thread transaction_stackwait queue... (list_head)todotransaction_stackwait queue... to_parentfrom_parent... sender_euidbinder_transaction... to_threadtodo

22. Transaction stack(2)
•For example, A -> B, B->C, C->A

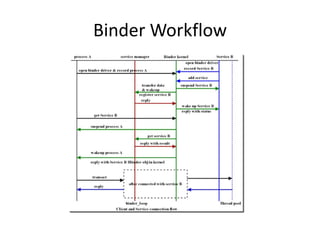

23. Binder Workflow
