Uml diagram for_hospital_management_system

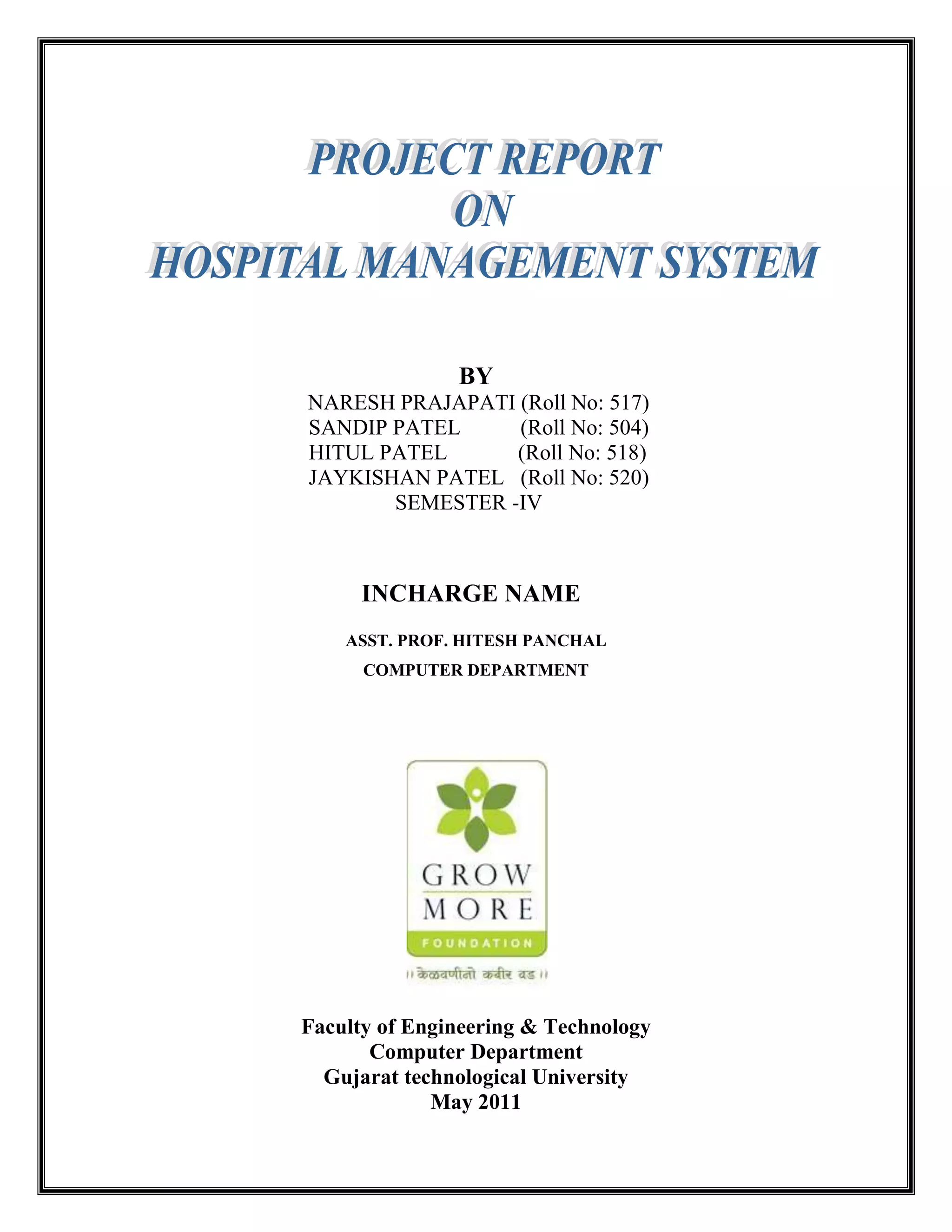

- 1. BY NARESH PRAJAPATI (RollNo: 517) SANDIP PATEL (Roll No: 504) HITUL PATEL (Roll No: 518) JAYKISHAN PATEL (Roll No: 520) SEMESTER -IV INCHARGE NAME ASST. PROF. HITESH PANCHAL COMPUTER DEPARTMENT Faculty of Engineering & Technology Computer Department Gujarat technological University May 2011

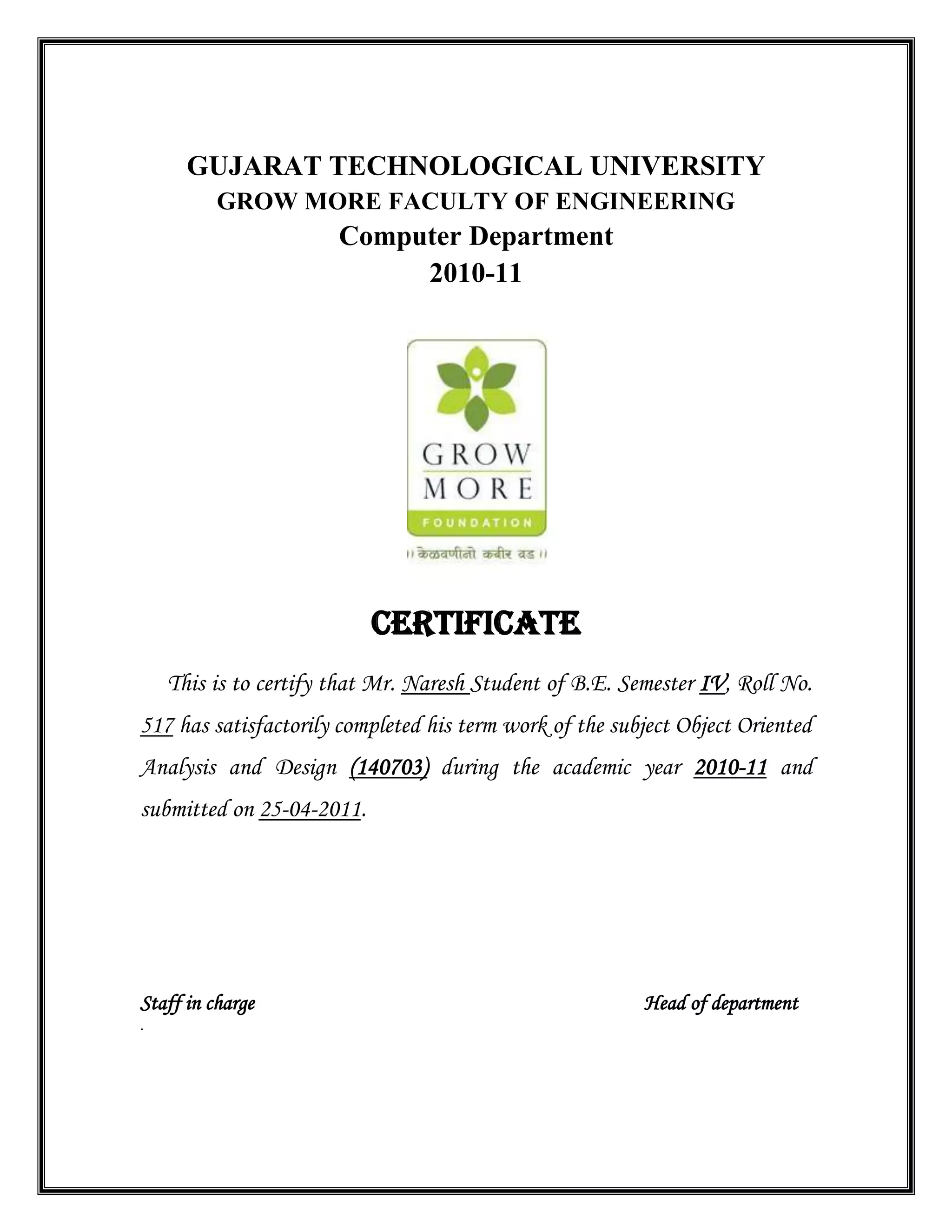

- 2. GUJARAT TECHNOLOGICAL UNIVERSITY GROWMORE FACULTY OF ENGINEERING Computer Department 2010-11 CERTIFICATE This is to certify that Mr. Naresh Student of B.E. Semester IV, Roll No. 517 has satisfactorily completed his term work of the subject Object Oriented Analysis and Design (140703) during the academic year 2010-11 and submitted on 25-04-2011. Staff in charge Head of department .
- 3. GUJARAT TECHNOLOGICAL UNIVERSITY GROWMORE FACULTY OF ENGINEERING Computer Department 2010-11 CERTIFICATE This is to certify that Mr. Sandip Student of B.E. Semester IV, Roll No. 504 has satisfactorily completed his term work of the subject Object Oriented Analysis and Design (140703) during the academic year 2010-11 and submitted on 25-04-2011. Staff in charge Head of department .
- 4. GUJARAT TECHNOLOGICAL UNIVERSITY GROWMORE FACULTY OF ENGINEERING Computer Department 2010-11 CERTIFICATE This is to certify that Mr. Hitul Student of B.E. Semester IV, Roll No. 518 has satisfactorily completed his term work of the subject Object Oriented Analysis and Design (140703) during the academic year 2010-11 and submitted on 25-04-2011. Staff in charge Head of department .

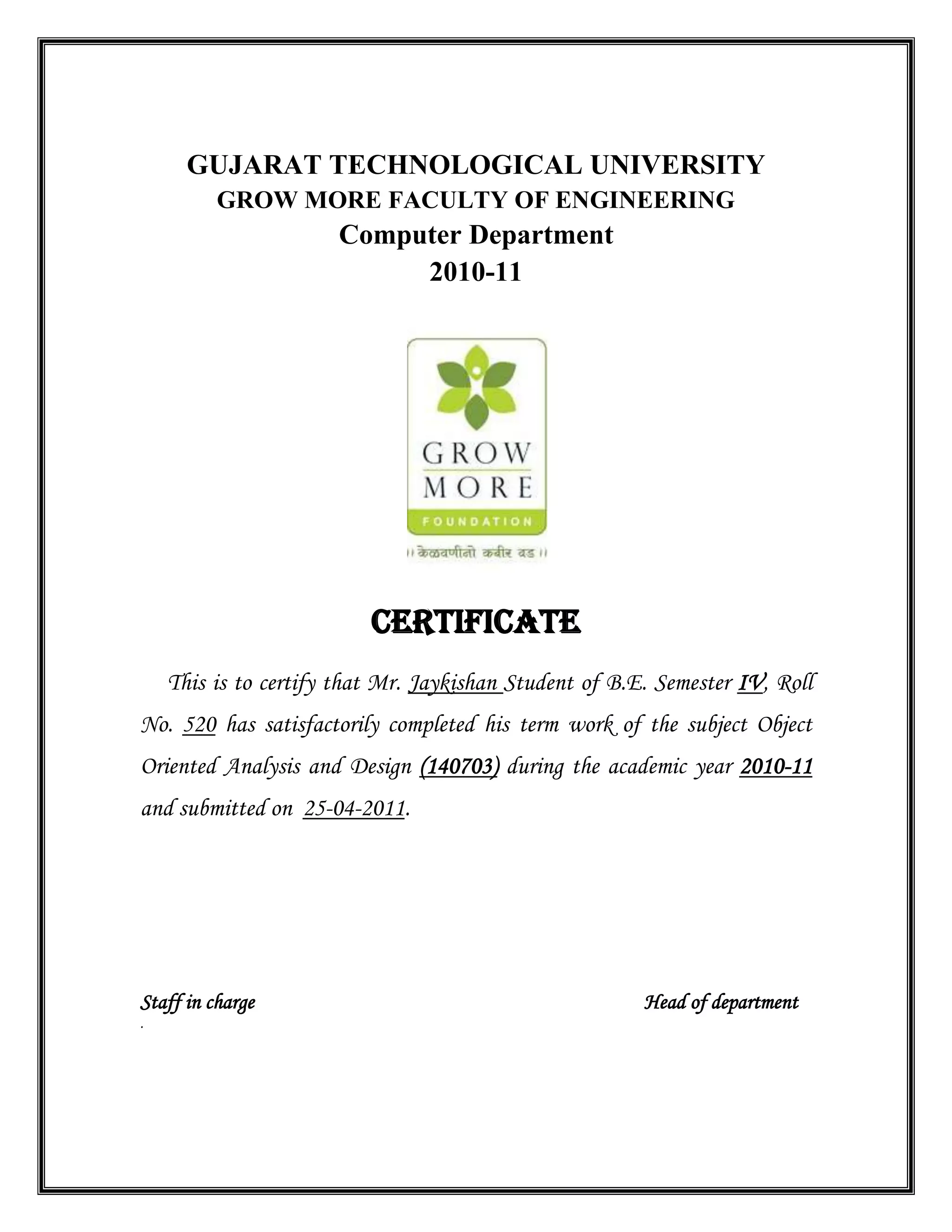

- 5. GUJARAT TECHNOLOGICAL UNIVERSITY GROWMORE FACULTY OF ENGINEERING Computer Department 2010-11 CERTIFICATE This is to certify that Mr. Jaykishan Student of B.E. Semester IV, Roll No. 520 has satisfactorily completed his term work of the subject Object Oriented Analysis and Design (140703) during the academic year 2010-11 and submitted on 25-04-2011. Staff in charge Head of department .

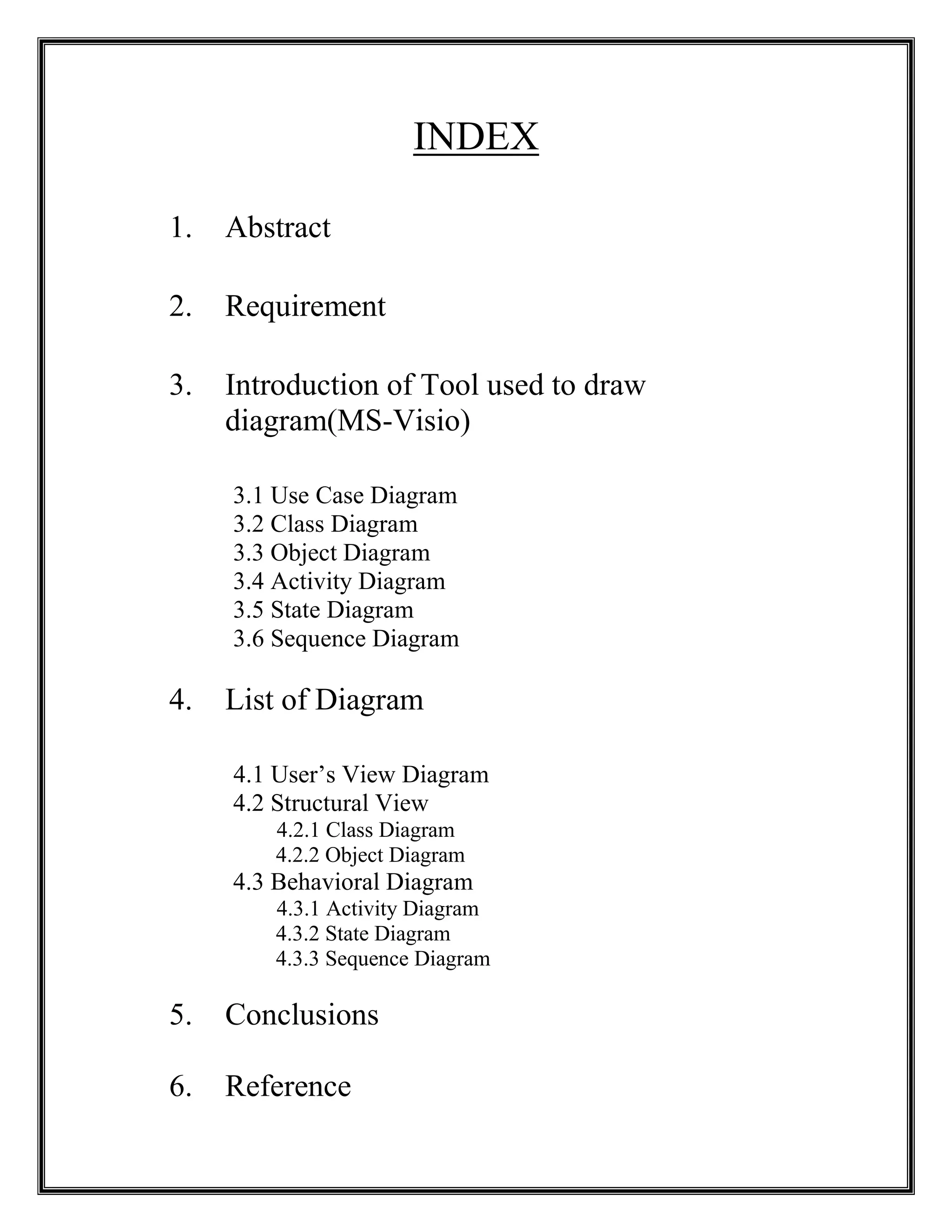

- 6. INDEX 1. Abstract 2. Requirement 3.Introduction of Tool used to draw diagram(MS-Visio) 3.1 Use Case Diagram 3.2 Class Diagram 3.3 Object Diagram 3.4 Activity Diagram 3.5 State Diagram 3.6 Sequence Diagram 4. List of Diagram 4.1 User’s View Diagram 4.2 Structural View 4.2.1 Class Diagram 4.2.2 Object Diagram 4.3 Behavioral Diagram 4.3.1 Activity Diagram 4.3.2 State Diagram 4.3.3 Sequence Diagram 5. Conclusions 6. Reference
- 7. 1. Abstract Analysis anddesign of Hospital management system is based on UML diagram. A Project of Hospital Management includes registration of patient storing their details into the system and also computerized billing in the pharmacy, and test labs. The main objectives of the system is which shows and help us to collect most of the information about Hospitality and Medical services the system is very simple in design and to implement it. At the same time, the correct use of it will reduce system complexity and improve software development efficiency and portability.
- 8. 2. Requirement 1.ADMISSIONS: This Modulehelps in registering information about patients and handles patient’s query. 2.DOCTOR APPOINTMENTS This Module deals with, when the ID is generated the Appointment time & number from the Receptionist and accordingly visit the doctor. 3.TESTS APPOINTMENTS This Module Deals with, when the ID is generated the patient receives the Appointment time & number from the Receptionist and accordingly undergoes the tests. 4.BED ALLOTMENT This Module handles with allotting the Bed to various patients by checking their ID.
- 9. 5.UNDERGO OPERATION This Modulehandling with undergoes the various operations by diagnosing the patients. 6.DRAW SALARY This Module checks whether the person is a Doctor/Staff and draws salary based on the information. 7.EDIT DOCTOR/STAFF INFORMATION This Module handles the activities such as editing (Updating) Doctor/Staff information into the database. 7.1 ADD DOCTOR/STAFF INFORMATION This Module handles the activities such as adding Doctor/Staff information into the database. 7.2 DELETE DOCTOR/STAFF INFORMATION This Module handles the activities such as deleting Doctor/Staff information into the database. 8.PRESCRIBE TESTS This Module handles various activities such as Doctor Diagnoses the patient, gives treatment & gives suggestions to the patients, & prescribes laboratory tests & medicines.

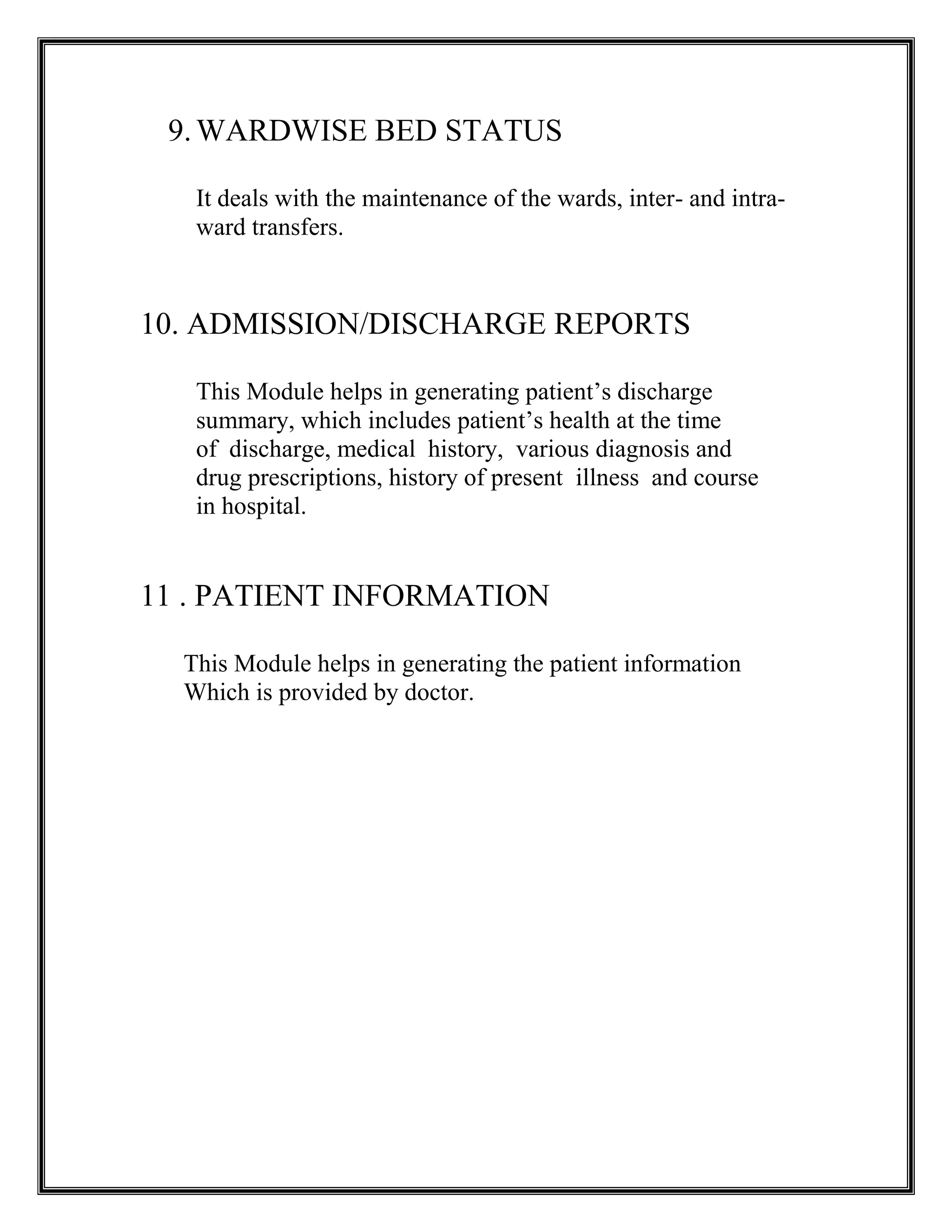

- 10. 9.WARDWISE BED STATUS Itdeals with the maintenance of the wards, inter- and intra- ward transfers. 10. ADMISSION/DISCHARGE REPORTS This Module helps in generating patient’s discharge summary, which includes patient’s health at the time of discharge, medical history, various diagnosis and drug prescriptions, history of present illness and course in hospital. 11 . PATIENT INFORMATION This Module helps in generating the patient information Which is provided by doctor.
- 11. 3. Introduction to tools 3.1 UseCase Diagram Actor An actor is a direct external user of a system, it is not part of system Actor can be person, device, & other system. Ex. Patient is an actor of hospital management system. UseCase A use case is a coherent piece of functionality that a system can provide by interacting with actors. Ex. Check up patient by doctor. System System boundary is a rectangle in which use case mentioned in & it have system name also. Ex. Hospital Management system.

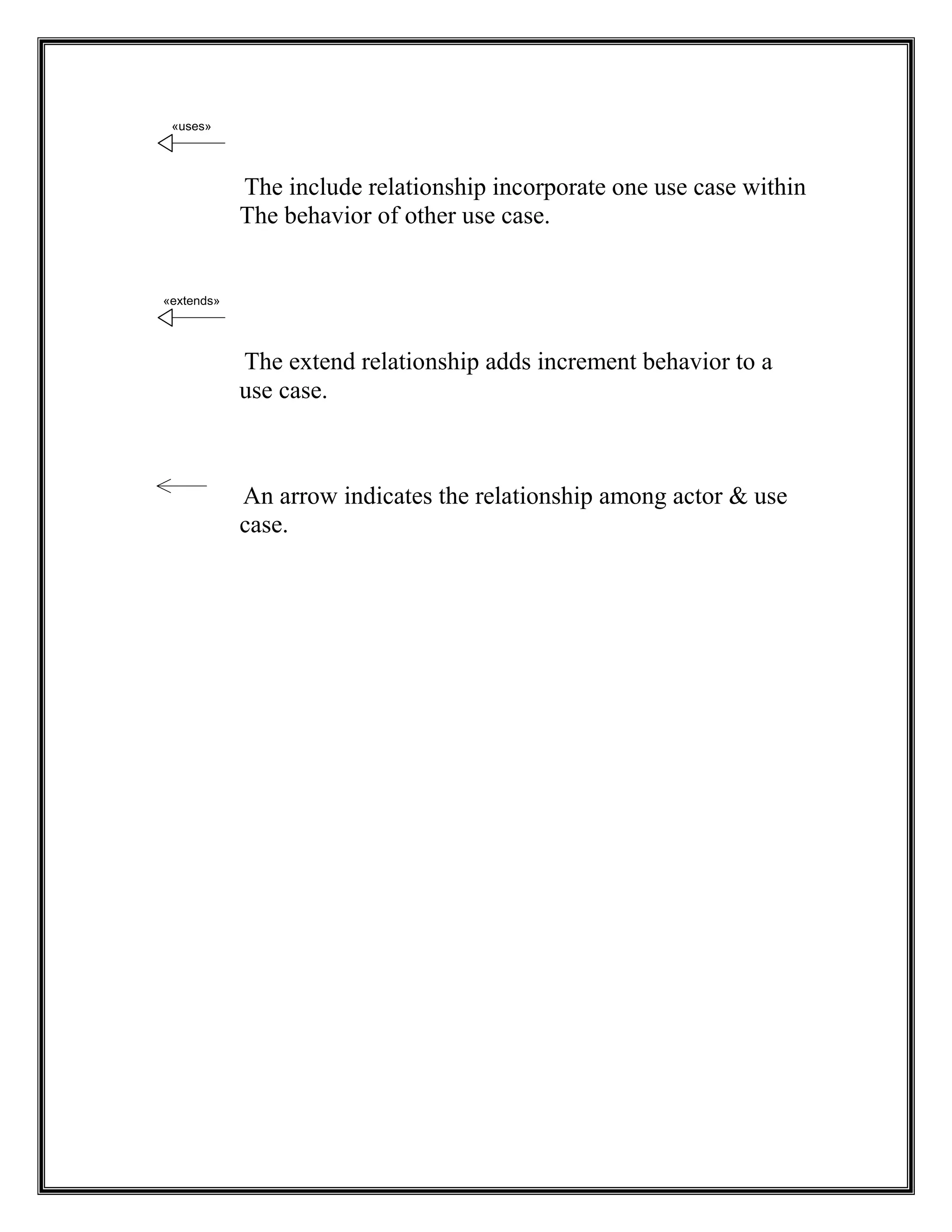

- 12. «uses» The include relationshipincorporate one use case within The behavior of other use case. «extends» The extend relationship adds increment behavior to a use case. An arrow indicates the relationship among actor & use case.
- 13. 3.2 Class Diagram Class1 Aclass describe a group of objects with the same properties (attributes), behavior(operation),kinds of relationship, Semantic. Ex. Hospital is a class. End1 End2 An association is a description of group of links with common Structure & common semantic. Ex. A person works for a company. An aggregation is a strong form of association in which an Aggregate Object is made of constituent parts. Ex. Patient use catering for meals. 1 * Composition is a form of aggregation with two additional Constrain. Ex. Hospital has Department.
- 14. A generalization isthe relationship between a class (super class) & One or more variation of the class (subclass). Ex. Patient, Doctor, & Nurse are sub class of a Person class. An N- array association is relationship among three classes Inter dependent to each other. Ex. A Patient get prescription from Doctor in Hospital.
- 15. 3.3 Object Diagram Object1 Anobject is a instant of a class. Ex. Joe:Doctor Note: In Object diagram the relations are as same as in class diagram like as association, aggregation, generalization, Composition, N- array association.

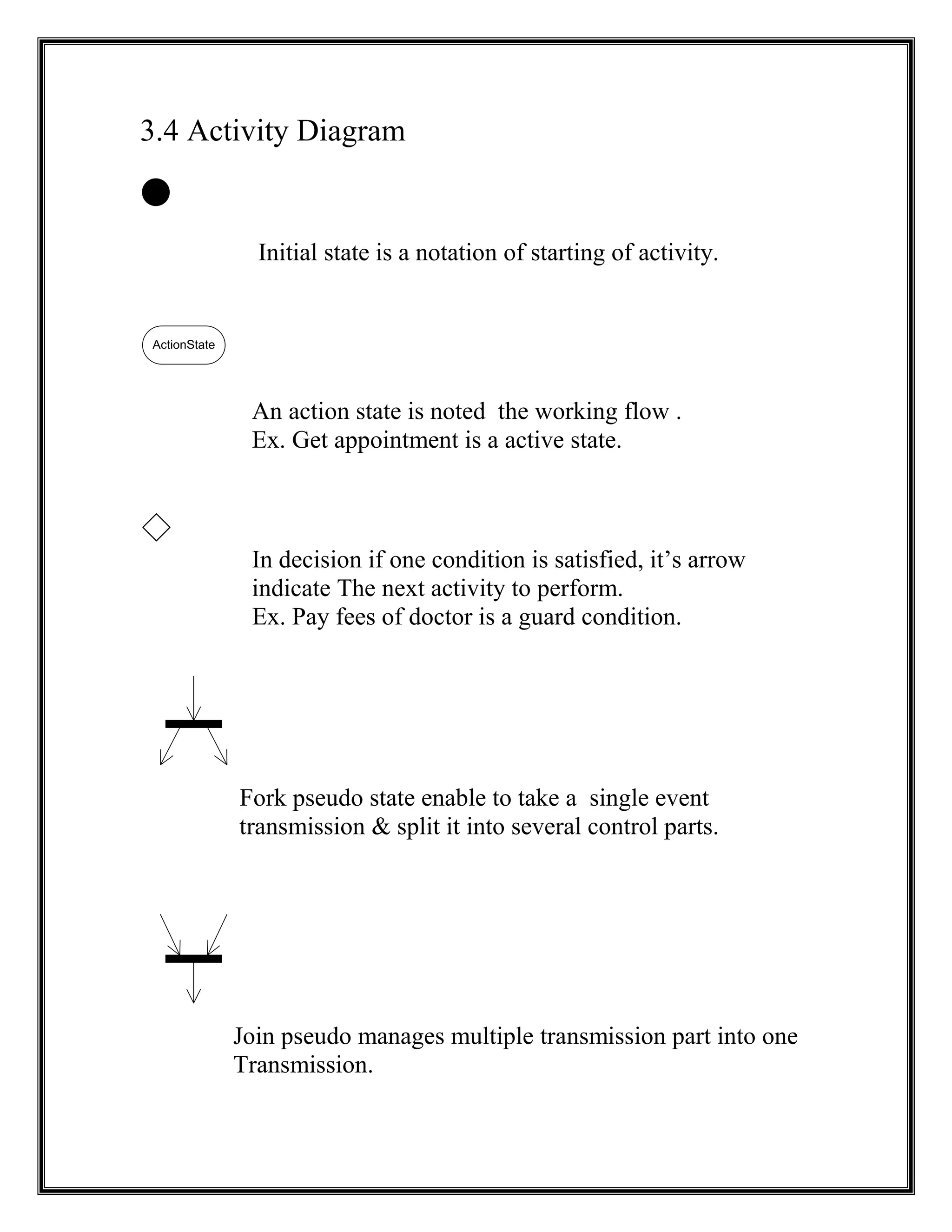

- 16. 3.4 Activity Diagram Initialstate is a notation of starting of activity. ActionState An action state is noted the working flow . Ex. Get appointment is a active state. In decision if one condition is satisfied, it’s arrow indicate The next activity to perform. Ex. Pay fees of doctor is a guard condition. Fork pseudo state enable to take a single event transmission & split it into several control parts. Join pseudo manages multiple transmission part into one Transmission.

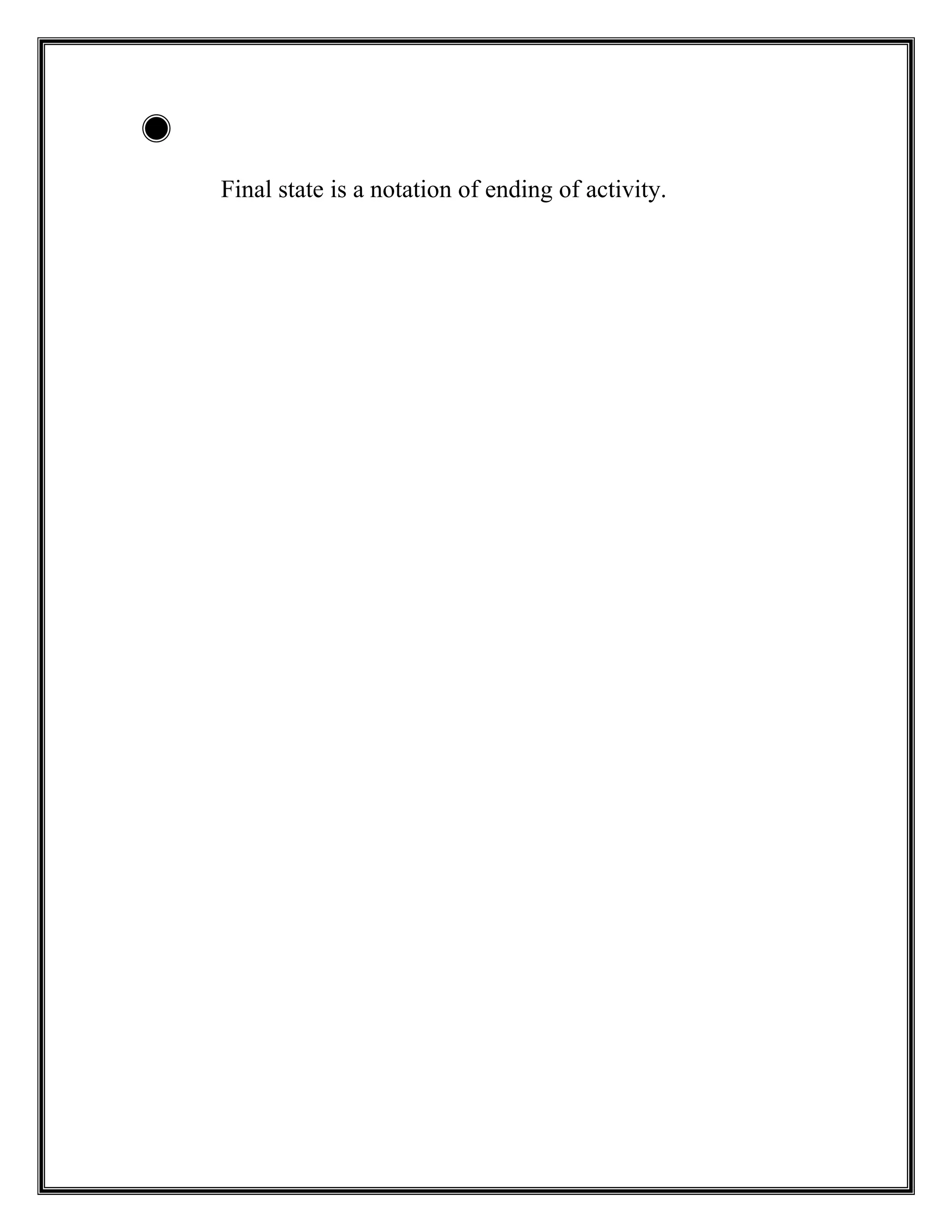

- 17. Final state isa notation of ending of activity.

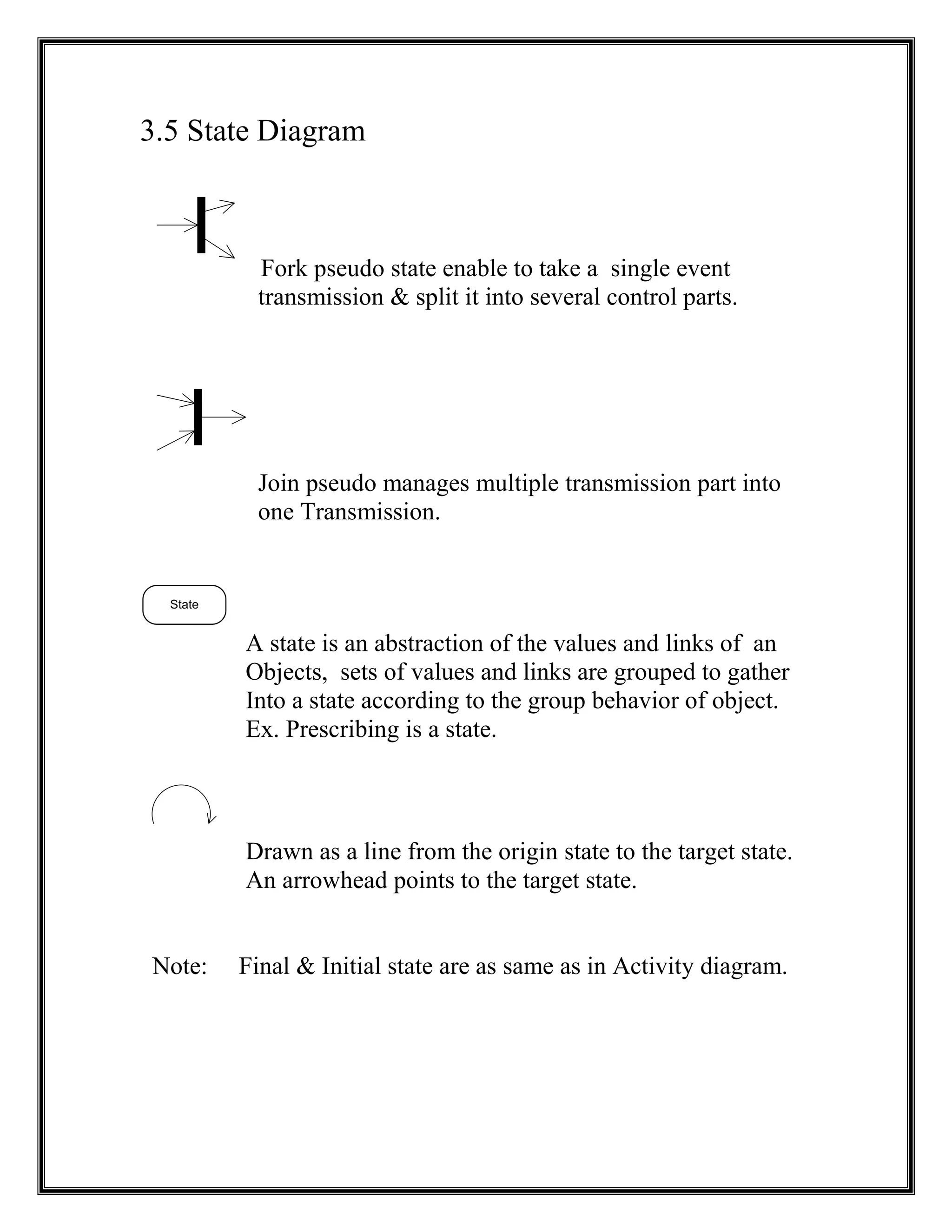

- 18. 3.5 State Diagram Forkpseudo state enable to take a single event transmission & split it into several control parts. Join pseudo manages multiple transmission part into one Transmission. State A state is an abstraction of the values and links of an Objects, sets of values and links are grouped to gather Into a state according to the group behavior of object. Ex. Prescribing is a state. Drawn as a line from the origin state to the target state. An arrowhead points to the target state. Note: Final & Initial state are as same as in Activity diagram.
- 19. 3.6 Sequence Diagram Object InSequence diagram each actor, object or system is represent by vertical line called object life line. An Activation describe that the system is in process by means system in use. Message Message Messages extend from the lifeline of one object to the lifeline of another except in the case of a message from an object to itself, in which case the message begins and ends on the same lifeline.
- 20. 4. List ofdiagram 4.1.1. Use Case Diagram(user’s view diagram) Use case Diagram is a visual representation of actor and use case together with any additional definition and specification. It has use cases(requirement) & Actor(person or system) There may be some use cases that do not directly interact with actors. In many instance, a function requirement maps directly to a use case. In Use case diagram of hospital management system there are an actors patient, doctor, nurse, technologist, technician& employee. An employee are generalized as receptionist, administration, Cleaner & cooker.
- 21. HOSPITAL MANAGEMENT SYSTEM Doctorappoinment info. Check up Tests appoinment Under go operation Prescribstion Addmit /Discharge Patient information Ward wise bed status Edit doctor/staff Cleaning Opn.machinary application Opn.machinary repair Meals/breakfast Nurse Doctor Employee Technistion Technologist Patient «extends» «uses» «extends» «extends» «uses» A use case diagram of hospital management system

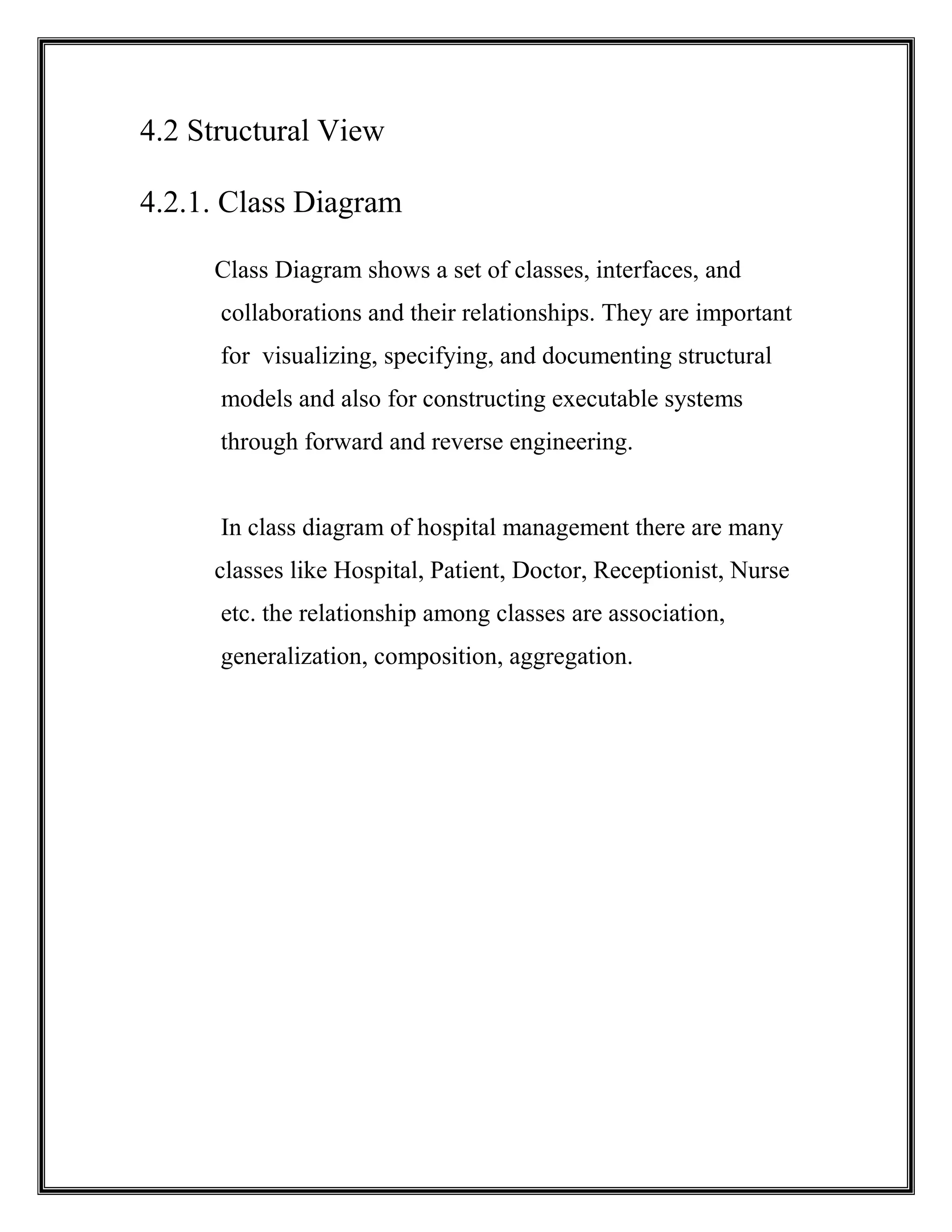

- 22. 4.2 Structural View 4.2.1.Class Diagram Class Diagram shows a set of classes, interfaces, and collaborations and their relationships. They are important for visualizing, specifying, and documenting structural models and also for constructing executable systems through forward and reverse engineering. In class diagram of hospital management there are many classes like Hospital, Patient, Doctor, Receptionist, Nurse etc. the relationship among classes are association, generalization, composition, aggregation.
- 23. +add/delete doctor() +draw salary() +patient-info() +manegment() -name:string -add:Address -phone:Phone Hospital +treatment() +cleaningthe hospital() -d.name:string -d.staff:string -d.staff member:Member Department +visit() +addmit() +write prscription() -name:string -title:string -gender:Gender -b.date:Date Person +make meal() +make tea/breakfast() +sale meal/tea/brakfast() -c.name:string -c.add:Address -contect.no:Number -facility:Facylity type Catring +appoinment() +addmit() +leave() +under go opretion() -accepted:Date -sikness:History -presciption:string -allergies:string Patient +check up() -e.type:string -e.name:string Examination +advice() +check up() -d.name:string -d.specialist:string Diagonosis +surgery() +theory() -t.type:string -t.name:string -t.cost:Cost Tretment +sale drug() +buy drug() +account() -m.name:string -m.liesenceno:Liesence -stock of drug:Stock Medical +apply to patient() -t.name:string -t.cost:Cost Theory +apply to patient() -s.name:string -s.type:Type -s.cost:Cost Surgery +give madicine(drug)() +cencle medicine() -p.type:string -p.number:P number -p.name:string Prescription +patient-info() +mainten machinary() +treatment() -s.name:string -s.member:Member -staff specialityt:string Staff +check up() +write priscription() +advice() -name:string -add:Address -speciality:string Operation staff +login() +accont() +patint billing -info() +doctor-info() +cash collection() -name:string -post:Post -accountent:Accountent -reciptionist:Reciptionist Addministration staff +mainten machinary() +order machinary() +use machinary() -name:string -post:Post Technical staff +give advice() +write prescription() +treatment() +sergery() -d.name:string -d.add:Address -phone:Phone -d.speciality:string Doctor +set warding() +check up() -n.name:string -n.degree:string -vard .no:ward number Nurse +opretion() -surgeon name:string -surgeon speciality:string Surgeon +detail of patient() +all detail doctor&nurse() -front desk name:string -staff member:Member Front desc staff +account () +login() -r.name:string -r.post:Post Receptionists +repairing of machinary() -t.name:string Technician +use of machinary() -t.name:string Technologist +surgery() -s.name:string -s.type:string Surgical technologhist * * 1 1 * * * * * * -* 1 -* * -1 1 -1 * 1 * 1 * 1 * A class diagram of hospital management system

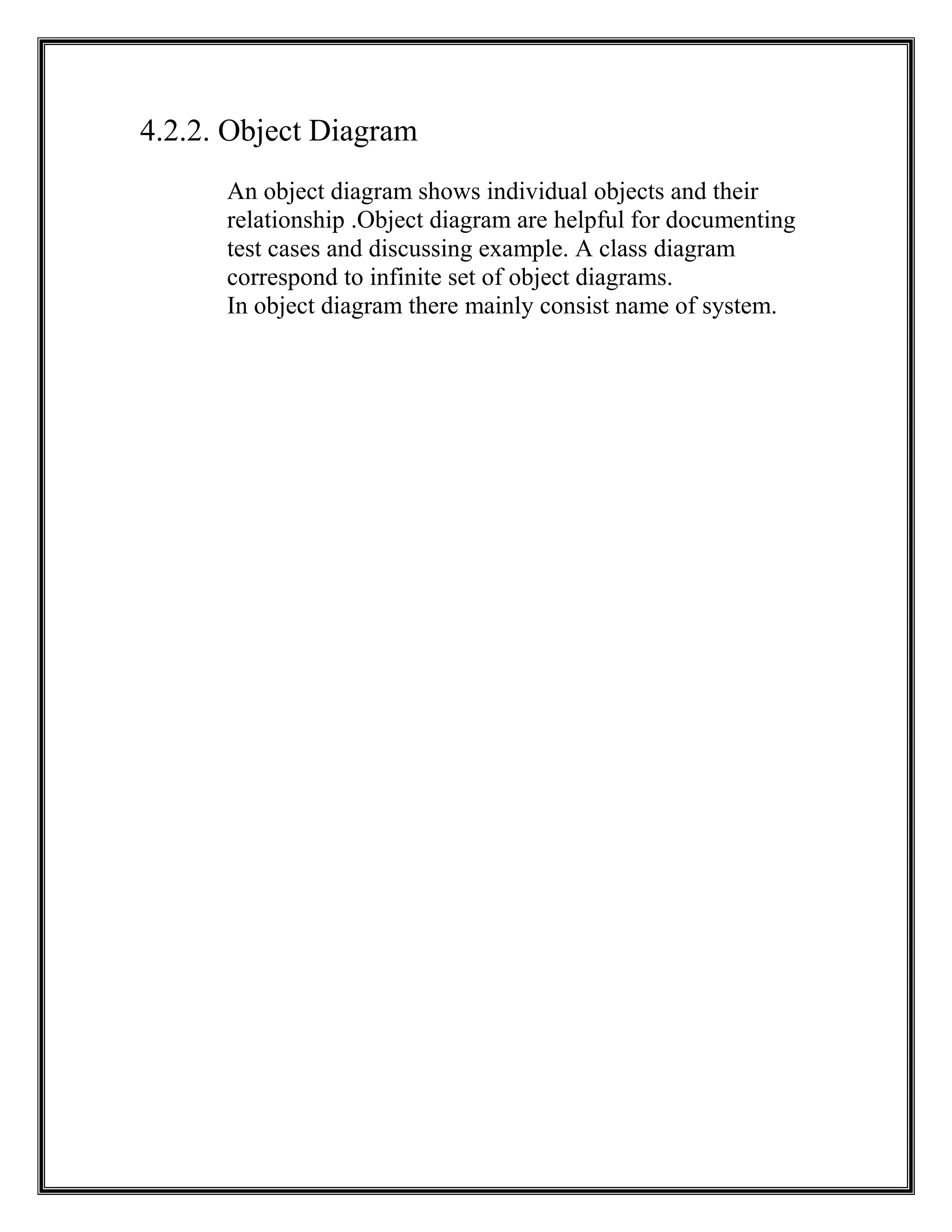

- 24. 4.2.2. Object Diagram Anobject diagram shows individual objects and their relationship .Object diagram are helpful for documenting test cases and discussing example. A class diagram correspond to infinite set of object diagrams. In object diagram there mainly consist name of system.
- 25. : Person Strling :Hospital Ortopadic : Department : Staff Michel's cantin : Catring : Administretive staffJohn : Patient Joe : Doctor: Examination : Technical staff: Operation staff : Front desk staffMery : Nurse Martin : TechnoligistAlis : Technician : Diagonosis William : Surgeon Mike : Surgical technologistKarl : Receptionist : Prescription : Tretment James pharma : Medical : Theory : Surgery 1 * * * 1 * 1 * * * -* 1 -* * -1 1 -1 * * * 1 1 * * An object diagram for hospital management system

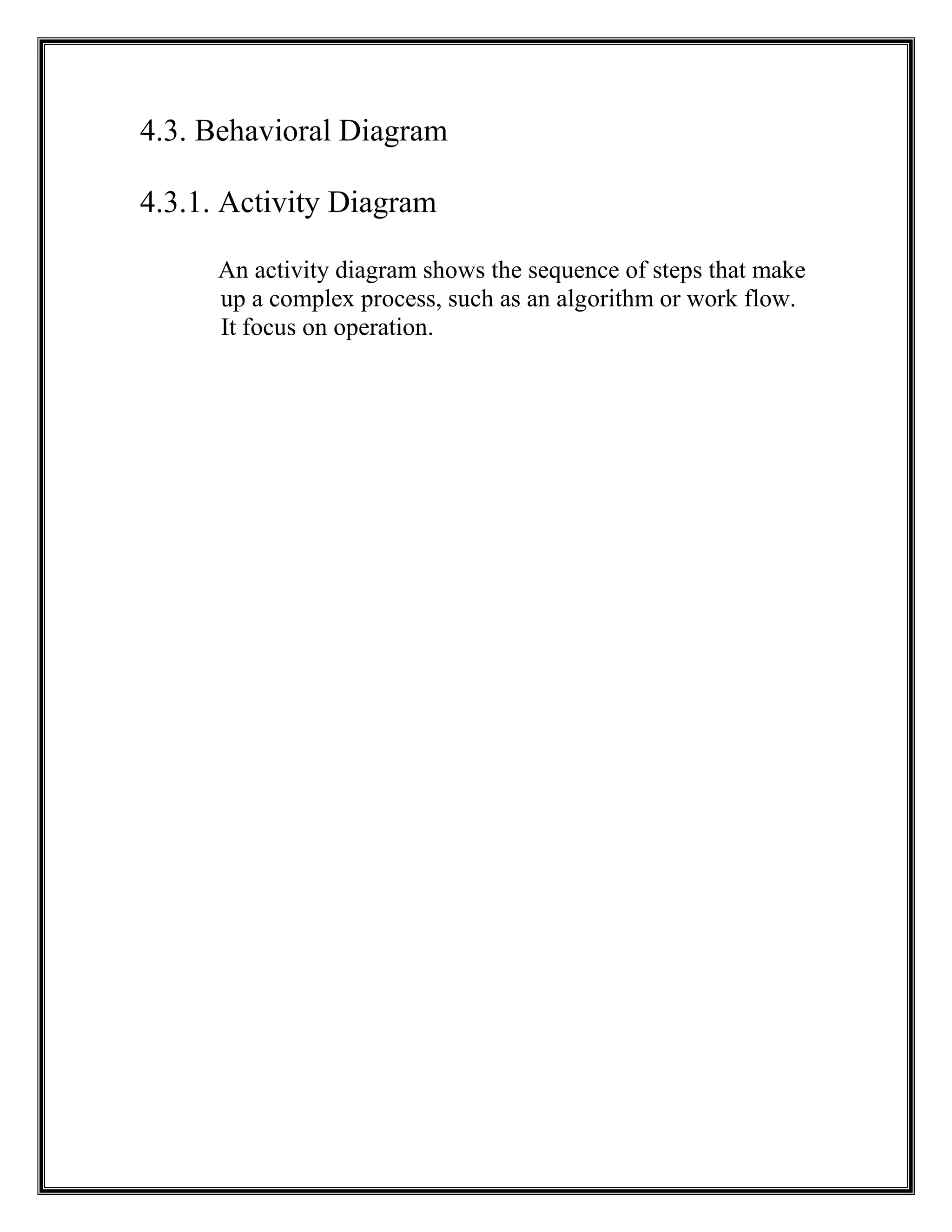

- 26. 4.3. Behavioral Diagram 4.3.1.Activity Diagram An activity diagram shows the sequence of steps that make up a complex process, such as an algorithm or work flow. It focus on operation.
- 27. Go to Reception Checkup Admit Tests or Under go opn. Prescription Go to medical Buy drug Buy [normal disease] Get appoinment for doctor Waiting for turn Discharge [If patient good] [Pay money] [Pay fees of docyor] An activity diagram for hospital management system

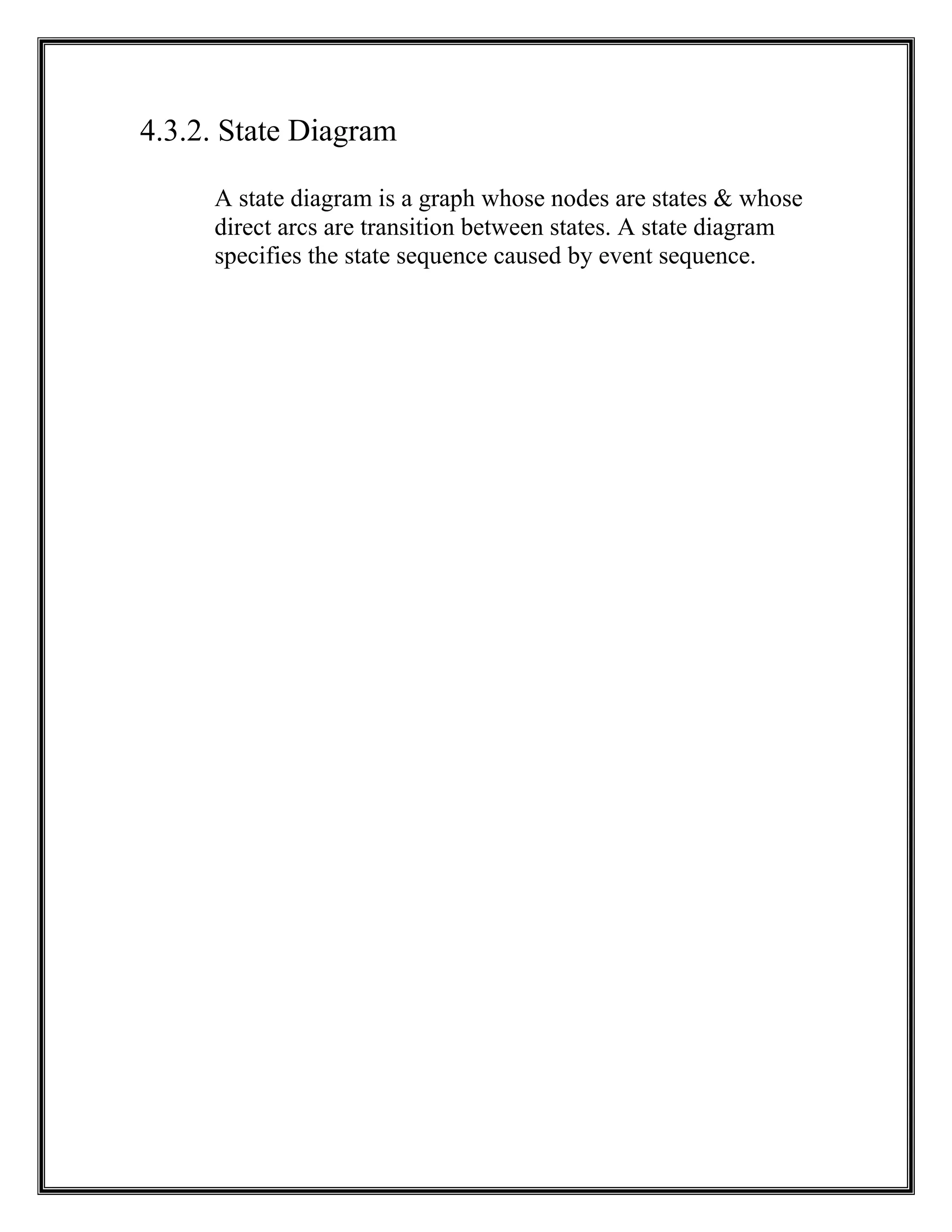

- 28. 4.3.2. State Diagram Astate diagram is a graph whose nodes are states & whose direct arcs are transition between states. A state diagram specifies the state sequence caused by event sequence.
- 29. Go to Reception Gettingappoinment Wait for turn Cheking Prescribing Admiting Tests or under go opn. Discharging Go to madical Buying drug Buyed Paying fees pay fees first Discharged [Not paying] [If patint good] A state diagram for hospital management system
- 30. 4.3.3. Sequence Diagram Asequence diagram shows the participants in an interaction and the sequence of messages among them. It is not attempt to be general.

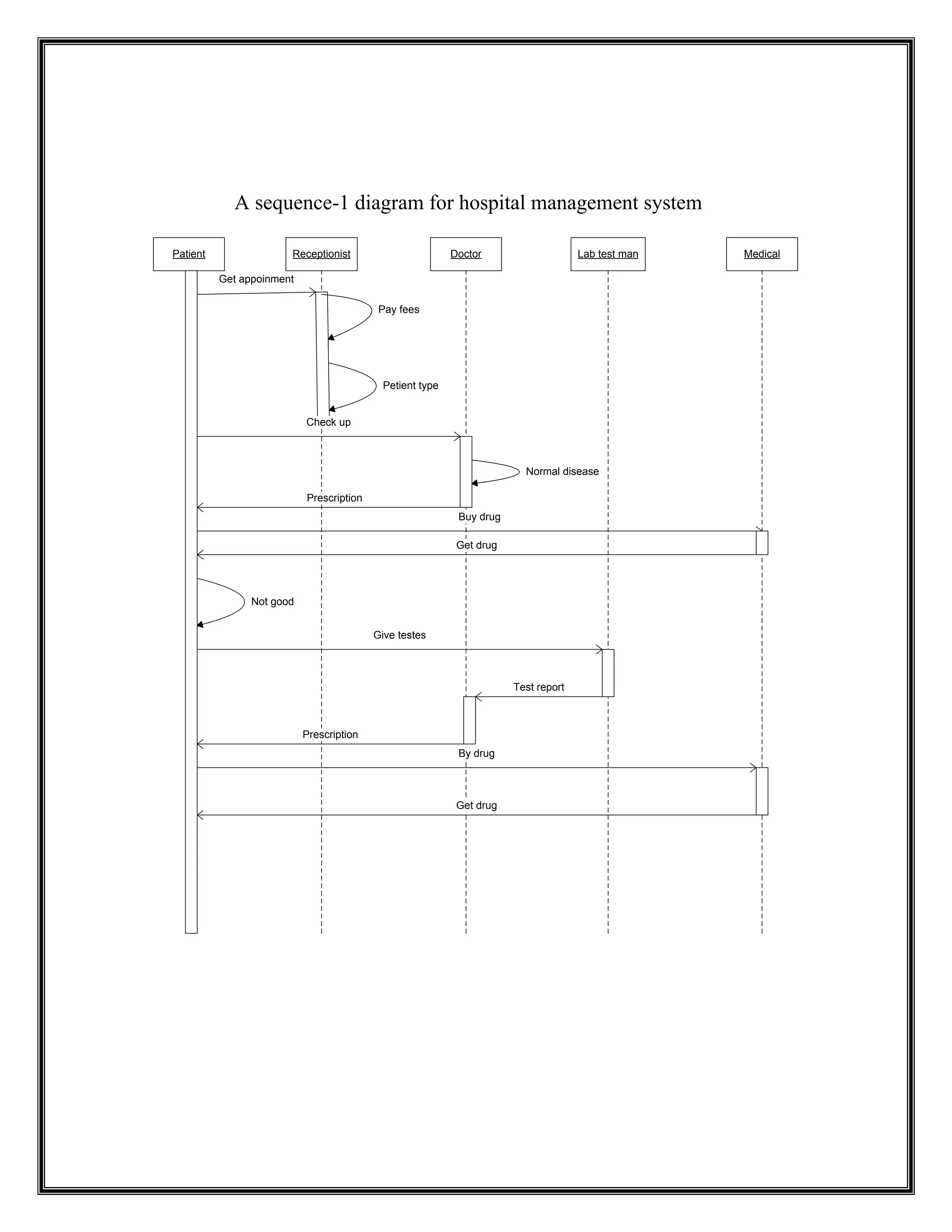

- 31. Patient Receptionist Pay fees Petienttype Doctor Get appoinment Check up Lab test man Normal disease Medical Prescription Not good Buy drug Get drug Give testes Test report Prescription By drug Get drug A sequence-1 diagram for hospital management system

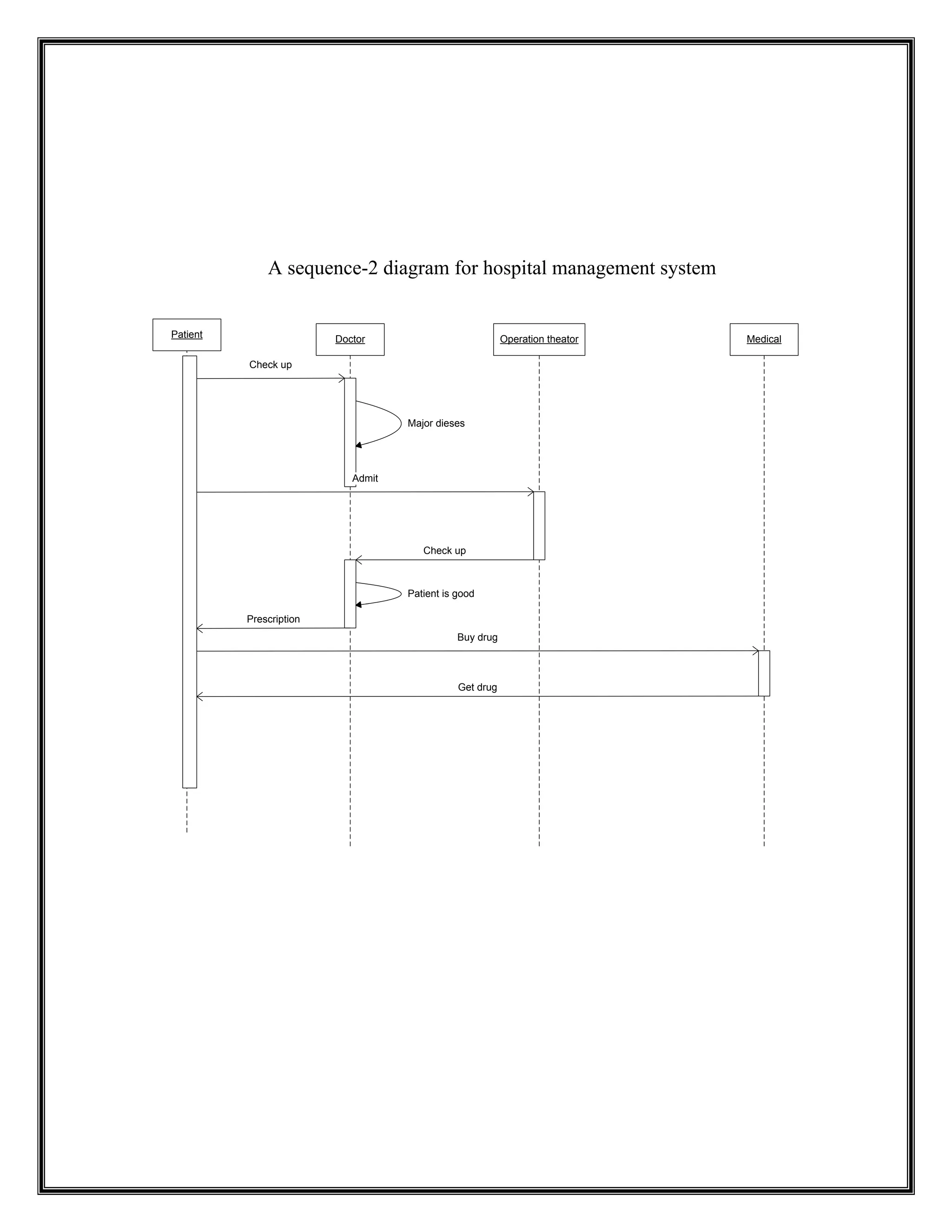

- 32. Patient Doctor Operationtheator Medical Major dieses Check up Admit Check up Patient is good Prescription Buy drug Get drug A sequence-2 diagram for hospital management system
- 33. 5. Conclusion According toUnified Modeling Language, we use UML diagram For represent the complex system in simplest and compact form. In short time we describe the flow of system. It is easily understandable by user.
- 34. 6. References Michael RBlaha, James R Rumbaugh. The Object-Oriented Modeling and Design with UML, Second Edition. Dorling Kindersley, India: Pearson Prentice Hall, 2010.
