The document discusses various UML constructs including generalization, specialization, categories, aggregation, association, realization, and dependency. It defines each construct and provides examples. Generalization extracts common characteristics from classes into a superclass. Specialization creates subclasses from an existing class. Aggregation represents a "has-a" relationship where objects have their own lifetimes, while composition represents a stronger ownership where child objects rely on the parent object. The document compares different relationship types using examples.

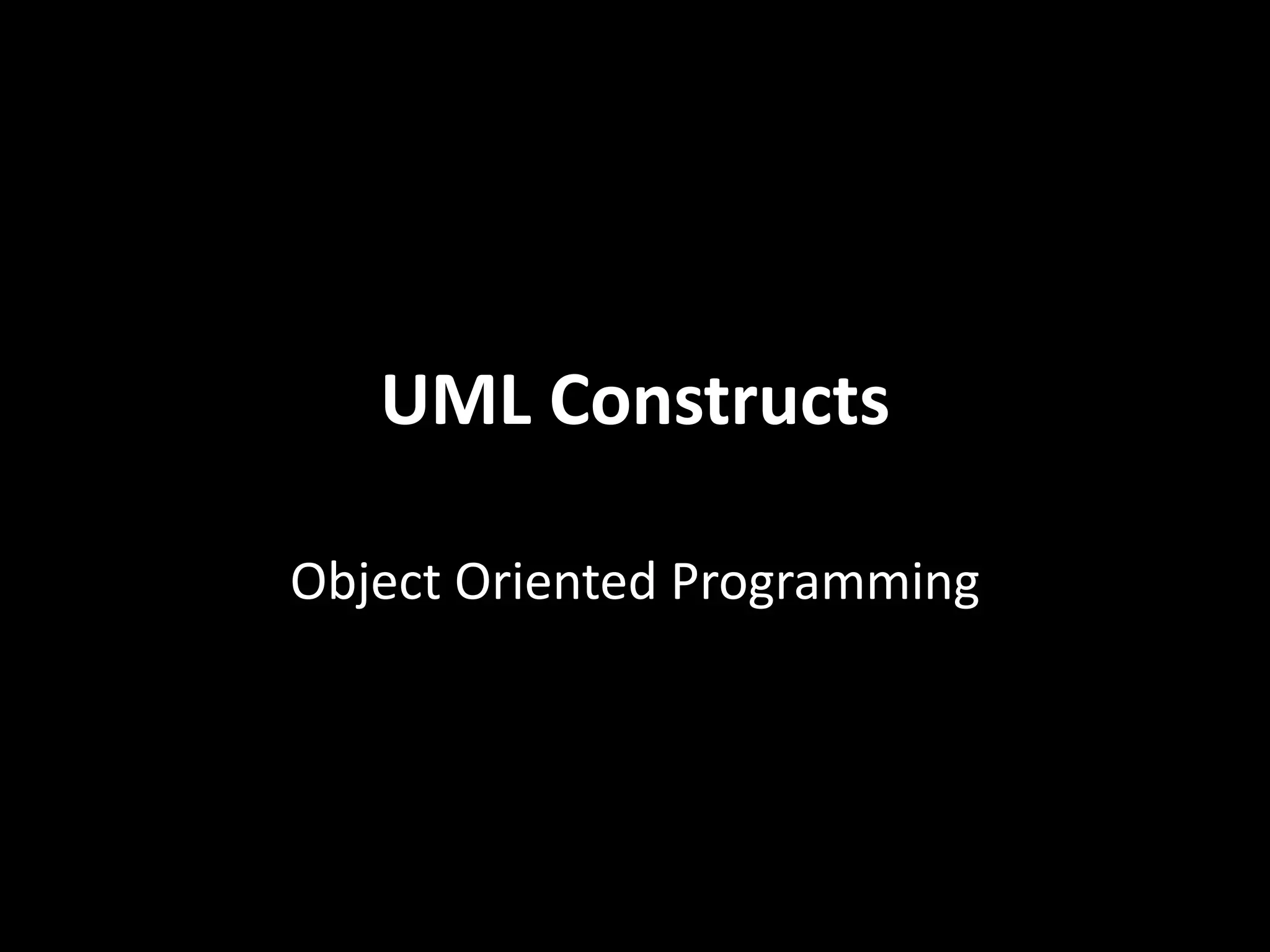

1. UML Constructs
Object Oriented Programming

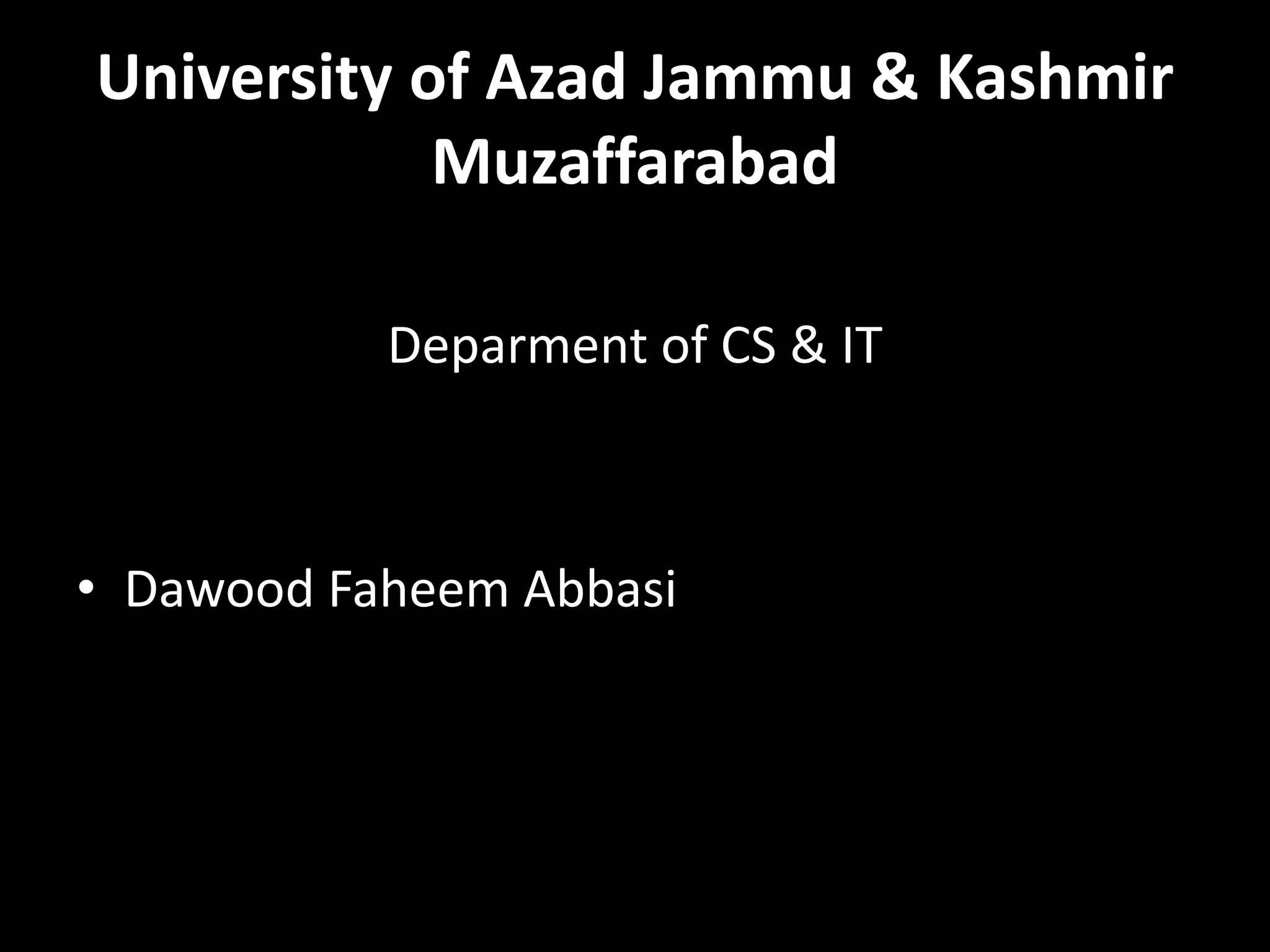

2. University of Azad Jammu & Kashmir
Muzaffarabad
Deparment of CS & IT
• Dawood Faheem Abbasi

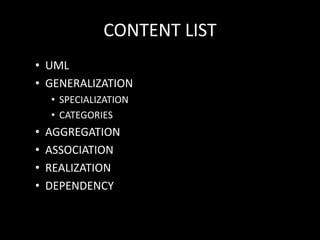

3. CONTENT LIST
• UML
• GENERALIZATION
• SPECIALIZATION
• CATEGORIES
• AGGREGATION
• ASSOCIATION
• REALIZATION
• DEPENDENCY

4. UML(Unified Modeling Language)
• The UML is a graphical language for modeling
computer programs. Modeling means to create a
simplified representation of something, as a
blueprint models a house. The UML provides a
way to visualize the higher level organization of
programs without getting mired down in the
detail of actual code.
• The blueprint of a system is written in it.
• UML is a notation system though which we can
visualize a model of a system
• It describe only design or structure of system

5. Generalization
• The process of extracting common characteristics
from two or more classes and combining them into
a generalized superclass, is called Generalization.
• The common characteristics can be attributes or
methods.
• Generalization is represented by a triangle followed
by a line.

6. Specialization
• Specialization is the reverse process of
Generalization means creating new sub
classes from an existing class.

7. Example
• Let’s take an example of Bank
Account;
• A Bank Account is of two
types –
• Current Account and Saving
Account.
• Current Account and Saving
Account inherits the common/
generalized properties like
Account Number, Account
Balance etc. from a Bank
Account and also have their
own specialized properties like
interest rate etc.

8. Advantages of specialization
• Reusability:
It allows the developer to reuse the existing
code in many situations. Single class can be used
many times.
• Saves time and effort:
It allow a developer to save a lot of time to
rewrite the same classes again.
• Increase program structure and reliability:
Super class is already compiled and tested
properly. This can be used again without compiling
again. It increases reliability of program or software.

9. Syntax
#include<iostream.h>
#include<conio.h>
Class parent
{
};
Class child: public parent
{
};

10. Categories
• Single:
• The modeling in which a child class is derived from
a single parent class.
• This child class inherits all data members and
member functions of parent class.
• Multiple:
• The type of modeling in which child class is
derived from the multiple parents.
• The child class inherits all data members and
member functions of all the parent class.

11. Access level
Access specifier Accessible from
own class
Accessible from
derived class
Accessible from
objects outside
class
public Yes Yes Yes
protected Yes Yes No
private Yes No No

12. Single parent class
• Class A
• {
• };
• Class B: public A
• {
• };
• Class C: public A
• {
• };
A
B C

13. Multiple parent classes
Class A
{
};
Class B
{
};
Class C: public A, public B
{
};
A B
C

14. Association
• Association is a relationship between two
objects. In other words, association defines
the multiplicity between objects.
• Association is basically a set of links that
connects elements of an UML model. It also
describes how many objects are taking part in
that relationship.

15. A bidirectional association Unidirectional association.

16. Realization
• Realization can be defined as a relationship in
which two elements are connected. One
element describes some responsibility which
is not implemented and the other one
implements them. This relationship exists in
case of interfaces.

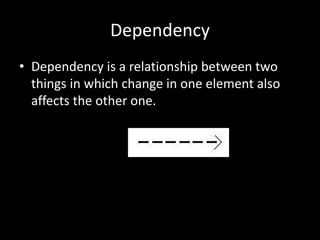

17. Dependency
• Dependency is a relationship between two
things in which change in one element also
affects the other one.

18. Aggregation
• Aggregation is a special case of association. A
directional association between objects.
When an object ‘has-a’ another object, then
you have got an aggregation between them.
Direction between them specified which
object contains the other object. Aggregation
is also called a “Has-a” relationship.

19. Composition
• Composition is a special case of aggregation.
In a more specific manner, a restricted
aggregation is called composition. When an
object contains the other object, if the
contained object cannot exist without the
existence of container object, then it is called
composition.

20. Difference between aggregation and
composition
• Composition is more restrictive.
• When there is a composition between two objects, the
composed object cannot exist without the other object.
• This restriction is not there in aggregation.
• Though one object can contain the other object, there is no
condition that the composed object must exist.
• The existence of the composed object is entirely optional.
• In both aggregation and composition, direction is must.
• The direction specifies, which object contains the other
object.

21. Understanding Association, Aggregation and
Composition
1. Manager is an employee of XYZ limited corporation.
2. Manager uses a swipe card to enter XYZ premises.
3. Manager has workers who work under him.
4. Manager has the responsibility of ensuring that the project
is successful.
5. Manager's salary will be judged based on project success.
If you flesh out the above 5 point requirement we can easily
visualize 4 relationships:-
– Inheritance
– Aggregation
– Association
– Composition
• Let's understand them one by one.

22. Requirement 1 (The IS A relationship)
• If you see the first requirement (Manager is an
employee of XYZ limited corporation) it's a
parent child relationship or inheritance
relationship. The sentence above specifies
that Manager is a type of employee, in other
words we will have two classes one the parent
class "Employee" and the other a child class
"Manager" which will inherit from "Employee"
class.

23. Requirement 2 (The Using relationship: - Association)
• The requirement 2 is an
interesting requirement
(Manager uses a swipe card to
enter XYZ premises).
• In this requirement the
manager object and swipe
card object use each other but
they have their own object life
time. In other words they can
exist without each other.
• The most important point in
this relationship is that there is
no single owner.

24. • The above diagram shows how the "Swipe
Card" class uses the "Manager" class and the
"Manager" class uses the "Swipe Card" class.
You can also see how we can create the object
of the "Manager" class and "Swipe Card"
independently and they can have their own
object life time.
• This relationship is called as the "Association"
relationship.

25. Requirement 3 (The Using relationship with Parent: -
Aggregation)
• The third requirement from our list
(Manager has workers who work
under him) denotes the same type of
relationship like association but with
a difference that one of them is an
owner. So as per the requirement the
"Manager" object will own "Workers"
object.
• The child "Worker" objects can not
belong to any other objects. For
instance the "Worker" object cannot
belong to the "Swipe Card" object.
• But But....the "Worker" object can
have his own life time which is
completely disconnected from the
"Manager" object. Looking from a
different perspective it means that if
the "Manager" object is deleted the
"Worker" object does not die.
• This relationship is termed as the
"Aggregation" relationship.

26. Requirement 4 and 5 (The Death relationship: -
Composition)
• The last two requirements are actually
logically one. If you read closely both the
requirements which are as follows:-
• Manager has the responsibility of
ensuring that the project is successful.
• Manager's salary will be judged based on
project success.
• Below is the conclusion from analyzing the
above requirements:-
• Manager and the project objects are
dependent on each other.
• The lifetimes of both the objects are
same. In other words the project will not
be successful if the manager is not good
and manager will not get good increments
if project has issues.
• Below is how the class formation will look
like. You can also see when I go to create
the project object it needs the manager
object.

27. Putting all things together

28. Summary
To avoid confusion hence forth in these 3 terms I have put forward a table below
which will help you compare them from 3 angles owner , life time and child object.
Association Aggregation composition
Owner No owner Single owner Single owner
Life time Have their own life
time
Have their own life
time
Owner’s life
Child object No child objects, all
are independent
Child objects
belong to single
parent
Child objects
belong to single
parent
