The document provides product information for the Fieldking Ultra Series Hydraulic Harrow. It has a heavy-duty frame design with optimized construction for easy lifting. Key features include heat treated discs for long life, hydraulic depth adjustment, strong bearings and seals, and compatibility with accessories like extra weights. The harrows provide high output while effectively breaking up clods and mixing crop residues into the soil.

1. Fieldking Ultra Series Hydraulic Harrow
Product Information 2015
Presented By-:
Training & Development

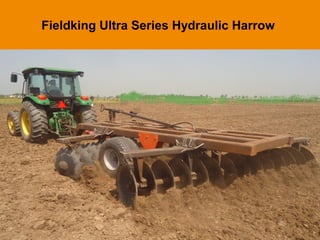

2. Fieldking Ultra Series Hydraulic Harrow

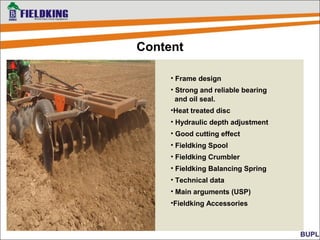

3. • Frame design
• Strong and reliable bearing
and oil seal.
•Heat treated disc
• Hydraulic depth adjustment
• Good cutting effect
• Fieldking Spool
• Fieldking Crumbler
• Fieldking Balancing Spring
• Technical data
• Main arguments (USP)
•Fieldking Accessories
Content

4. Frame design
 Heavy optimized frame design having
150x150 in 8 mm thickness square pipe.
Strong headstock with bolted concept
Short roller arm
Hydraulic cylinder capacity
Double bolt bracket gang attachment is
gives more strength to frame assembly.
It will easily cut and mix the maize stables
in soil to form organic manures.
Due to heavy weight will easily penetrate
the hard soil and will take maximum depth
even in tough condition.
Heavy weight capable to work in any tough
condition.

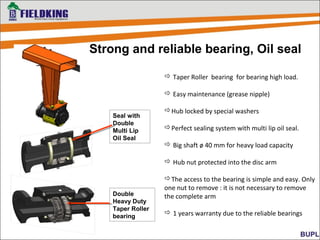

5. Strong and reliable bearing, Oil seal
 Taper Roller bearing for bearing high load.
 Easy maintenance (grease nipple)
Hub locked by special washers
Perfect sealing system with multi lip oil seal.
 Big shaft ø 40 mm for heavy load capacity
 Hub nut protected into the disc arm
The access to the bearing is simple and easy. Only
one nut to remove : it is not necessary to remove
the complete arm
 1 years warranty due to the reliable bearings
Double
Heavy Duty
Taper Roller
bearing
Seal with
Double
Multi Lip
Oil Seal

6. Fieldking Heat Treated Disc
Conical disc for keeping a constant cutting angle
whatever the depth and the disc diameter are.
Good cutting quality even with shallow work (10 to
15 cm).
Good penetration of the disc thanks to the
aggressive angles (with help of extra weights)
Can work with high stubble (maize, rape, sunflower,
sugarcane etc.), whether ploughed or virgin lands.
Small notched on the disc to ensure good
penetration, good cutting effect on the whole working
width.
The Thickness/Weight of the disc, 28” disc has to be
7 mm thickness otherwise the wear would be
considerably much more plus breakage is quite
possible.
 Disc studied for long life time
- Heat treated discs : very high hardness (48 to
50 HRC)
- Big diameter disc 28’’x7 mm thickness

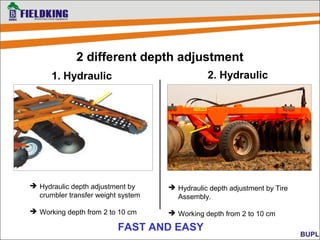

7. 2 different depth adjustment
1. Hydraulic 2. Hydraulic
 Hydraulic depth adjustment by
crumbler transfer weight system
 Working depth from 2 to 10 cm
 Hydraulic depth adjustment by Tire
Assembly.
 Working depth from 2 to 10 cm
FAST AND EASY

8. Good cutting effect
The disc can not move sideways in cutting position: the disc has always the same cutting
angle
If the disc encounter with an obstacle, the disc arm is able to remove it sideways and
the safety system works to protect it during such tough condition.
Strong torque of the safety system for high disc diameter

9. FK Spool Size
 Capable to work in hard soil condition.
 It’s compatible weight put less load on tractor engine.
 Cutting width and disc spacing will be more.
 Compatible weight and design capable to take more depth even in hard soil.
 Due to heavy weight will cut and mix the residues and stables of maize crop.
 The material grade of ductile iron is 500/7.
270 mm

10.  Maintenance
free bearings for
long time.

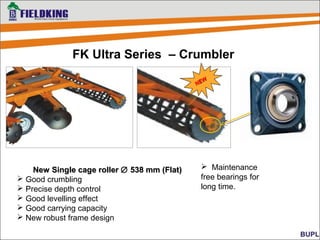

FK Ultra Series – Crumbler
New Single cage rollerNew Single cage roller ∅∅ 538 mm (Flat)538 mm (Flat)
 Good crumbling
 Precise depth control
 Good levelling effect
 Good carrying capacity
 New robust frame design
NEW
NEW

11. Fieldking Balancing Spring
 Fieldking Ultra Series design of coil type balancing spring is very much
convenient during transportation and operation.
 It’s dual spring is provides better balance and flexibility to the implement.
 Ultra Series Drawbar Tow Hook design is capable to trail the heavy weight
and it’s robust.
NEW
NEW

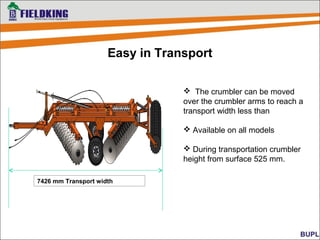

12.  The crumbler can be moved
over the crumbler arms to reach a
transport width less than
 Available on all models
 During transportation crumbler
height from surface 525 mm.
Easy in Transport
7426 mm Transport width

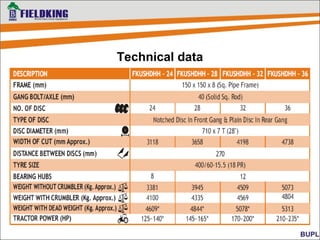

13. Technical data

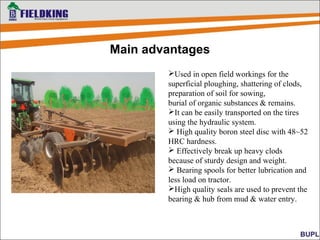

14. Main advantages
Used in open field workings for the
superficial ploughing, shattering of clods,
preparation of soil for sowing,
burial of organic substances & remains.
It can be easily transported on the tires
using the hydraulic system.
 High quality boron steel disc with 48~52
HRC hardness.
 Effectively break up heavy clods
because of sturdy design and weight.
 Bearing spools for better lubrication and
less load on tractor.
High quality seals are used to prevent the
bearing & hub from mud & water entry.

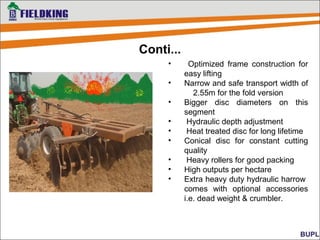

15. • Optimized frame construction for
easy lifting
• Narrow and safe transport width of
2.55m for the fold version
• Bigger disc diameters on this
segment
• Hydraulic depth adjustment
• Heat treated disc for long lifetime
• Conical disc for constant cutting
quality
• Heavy rollers for good packing
• High outputs per hectare
• Extra heavy duty hydraulic harrow
comes with optional accessories
i.e. dead weight & crumbler.
Conti...

16. .

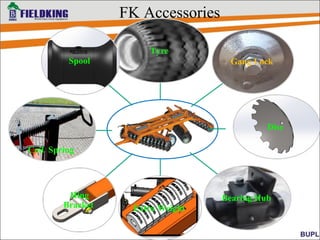

Tyre
Gang Lock
Disc
Bearing Hub
Extra Weight
Hing
Bracket
Coil Spring
Spool
FK Accessories

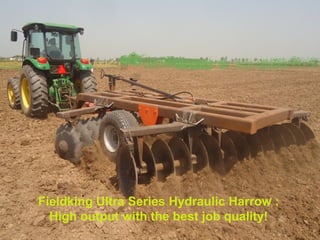

17. Fieldking Ultra Series Hydraulic Harrow :
High output with the best job quality!

18. See our
Machines
at work
on
YouTube
www.fieldking.com
visit us at www.fieldking.com
