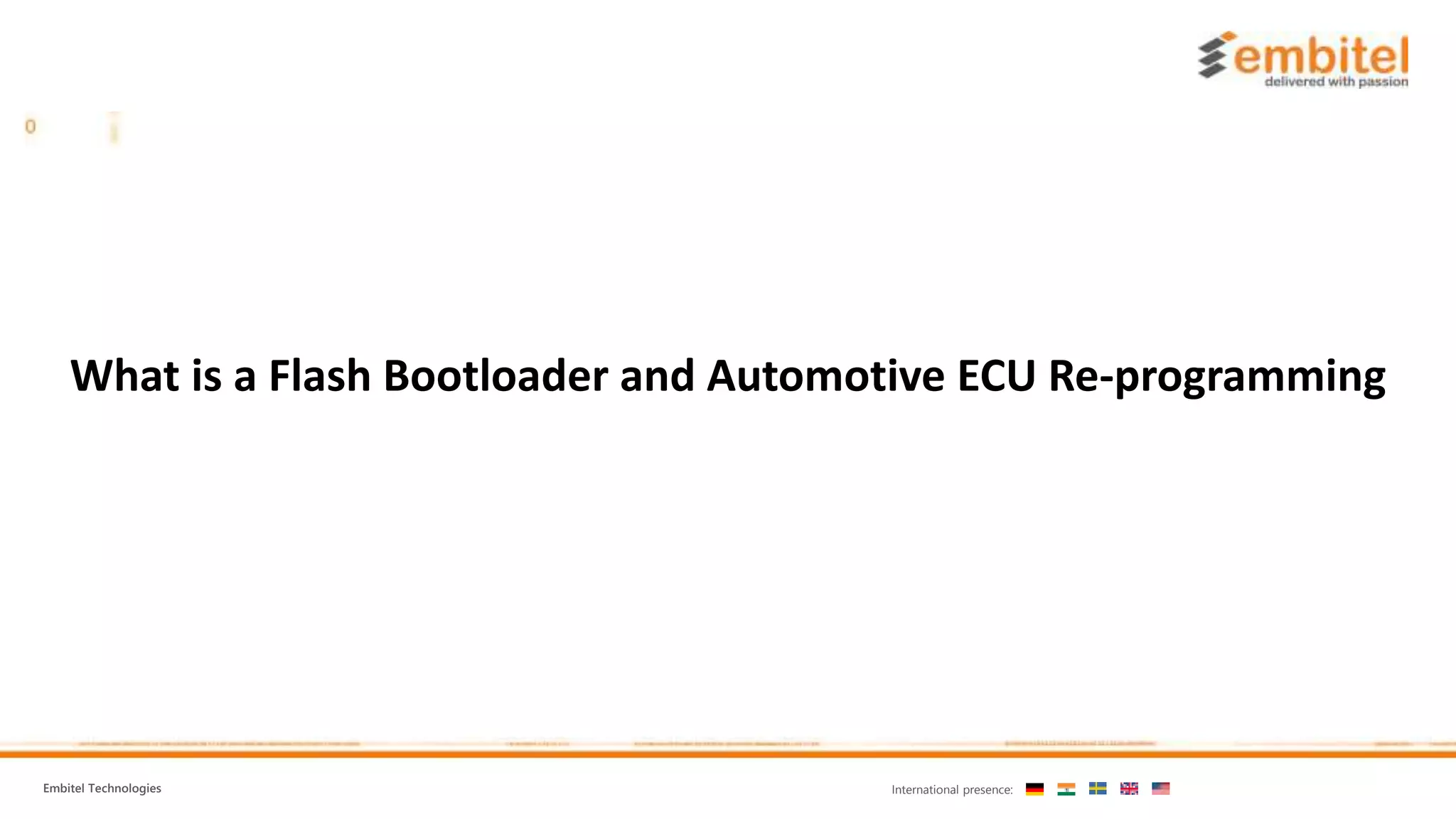

What is a Flash Bootloader and Automotive ECU Re-programming

2. Embitel Technologies International presence:

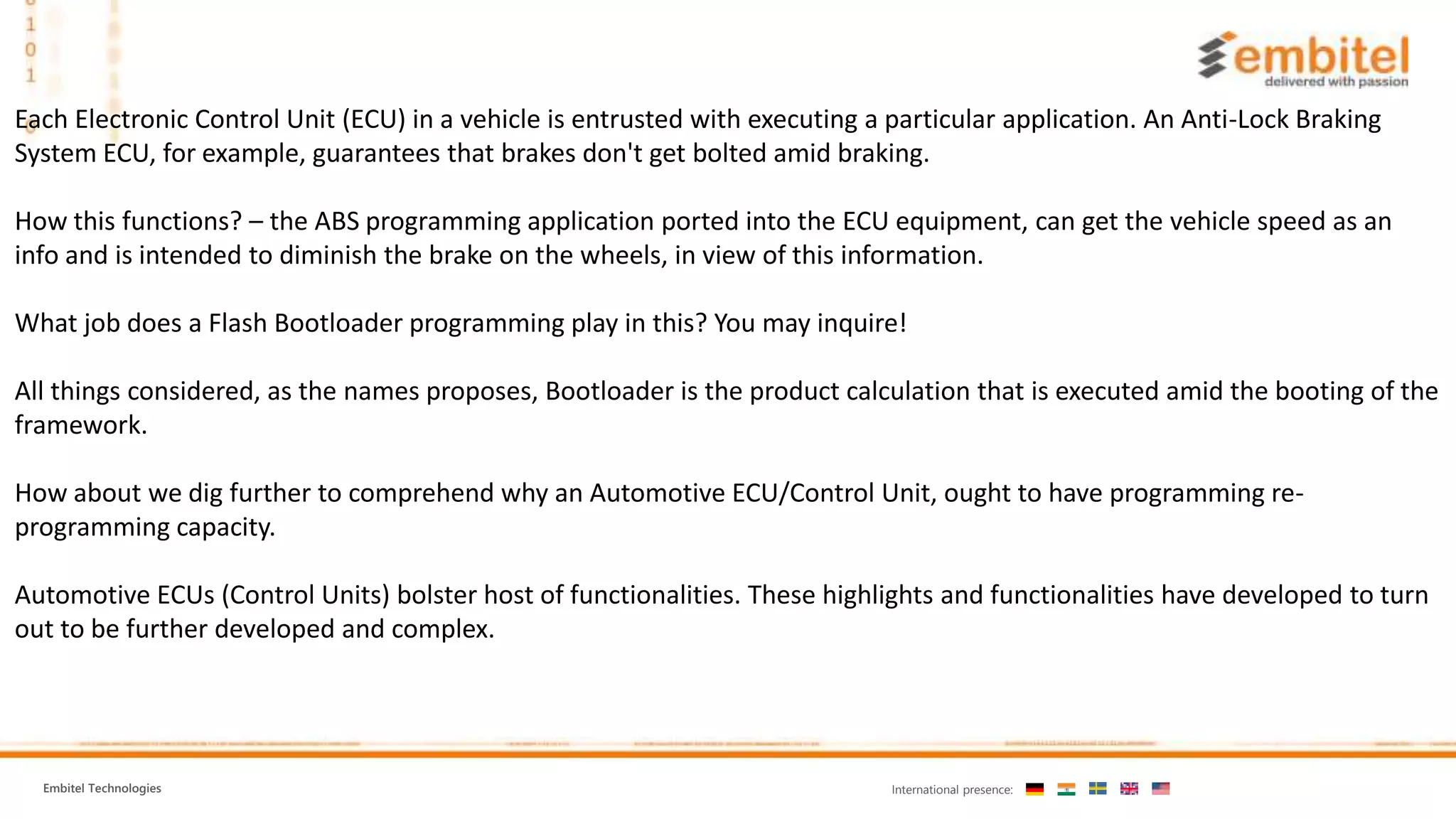

Each Electronic Control Unit (ECU) in a vehicle is entrusted with executing a particular application. An Anti-Lock Braking
System ECU, for example, guarantees that brakes don't get bolted amid braking.
How this functions? – the ABS programming application ported into the ECU equipment, can get the vehicle speed as an
info and is intended to diminish the brake on the wheels, in view of this information.
What job does a Flash Bootloader programming play in this? You may inquire!
All things considered, as the names proposes, Bootloader is the product calculation that is executed amid the booting of the
framework.
How about we dig further to comprehend why an Automotive ECU/Control Unit, ought to have programming re-
programming capacity.
Automotive ECUs (Control Units) bolster host of functionalities. These highlights and functionalities have developed to turn
out to be further developed and complex.

3. Embitel Technologies International presence:
It has turned out to be basic for the Automotive OEMs' and Suppliers to guarantee that these product driven control
units are continually working in a safe and effective condition.
This can be guaranteed just if the ECUs' (control units), inside your vehicle, have the most recent and refreshed rendition
of the product and security patches.
Consequently, the application programming planned and ported on the MCU stage should be refreshed as often as
possible, either through a remote area or at the administration station.
The Bootloader software, which involves the ROM of the Electronic Control Unit, has been depended with this duty of
encouraging the ECU programming update.
The accompanying programming design of a Bootloader Software will enable you to see better,

4. Embitel Technologies International presence:

5. Embitel Technologies International presence:
A F-35 warrior air ship has roughly 5.7 million lines of code and a Boeing 787 stands at somewhat higher than 6.5 million
lines of code.
In any case, when on looking at an extravagance vehicle, one would see that it has near 100 million lines of programming
code.
Along these lines, the firmware update of an Automotive ECU (Electronic Control Unit) turns into a repetitive
employment, because of such immense volumes of programming code.
A Bootloader Software is intended to robotize this procedure of glimmer re-programming and dealing with the firmware
update.
At each Boot-up of the System, the Bootloader programming checks if the most recent/refreshed variant of the ECU
programming is accessible.
On the off chance that indeed, at that point before the booting of the framework, Bootloader software downloads and
stores the new refreshed adaptation of the firmware. Post this the framework boot-up is executed and framework
presently keeps running on the new form of the product in a totally secure condition.
How Bootloader Software Makes Re-programming of an Automotive ECU?

6. Embitel Technologies International presence:
Following is the flowchart of the steps involved in ECU reprogramming using Flash Bootloader:
• The Flash Bootloader module is the first software module that gets activated during the booting of the system (after
the power supply of the device is switched on).
• The control is transferred to the Flash Bootloader, which checks for the updated version of the firmware. If a new
version is available, Flash Bootloader analyzes the update to authenticate the source and cross-check all the pre-
defined system security parameters.
• Next, the updated program is again verified to check the integrity and fidelity of the software .If no anomaly is found,
the control is transferred from the Flash Bootloader to the Application.
All these steps, involved in the process of an ECU reprogramming, are performed by two different parts of the
Bootloader- the Primary and the Secondary Bootloader.
Understanding how Firmware is Updated, using a Flash Bootloader

7. Embitel Technologies International presence:
Following are the key responsibilities of UDS in an ECU flashing operation:
• UDS sets the server into a reprogramming mode and start the reprogramming sequence
• It handles the initiation and termination of the data transfer
• UDS takes care of size and order of data blocks to be sent/received and memory blocks where the data will be stored
• The UDS services allow the client to start or stop a routine, which may be running on the server
• It allows the client to initiate a software reset event on the server
Role of UDS Software Stack in an Automotive ECU Reprogramming

8. Embitel Technologies International presence:
