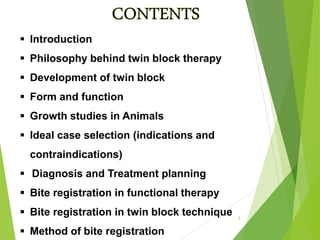

Twin block appliance.

 Introduction
 Philosophy behind twin block therapy
 Development of twin block
 Form and function
 Growth studies in Animals
 Ideal case selection (indications and
contraindications)
 Diagnosis and Treatment planning
 Bite registration in functional therapy
 Bite registration in twin block technique

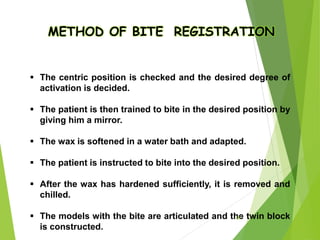

 Method of bite registration
2

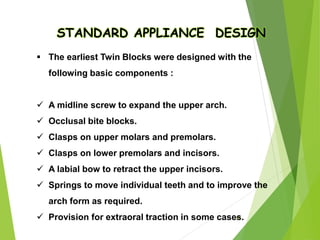

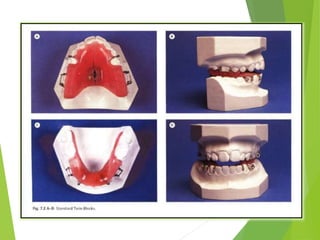

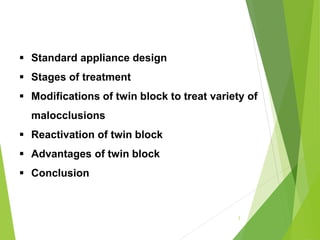

 Standard appliance design

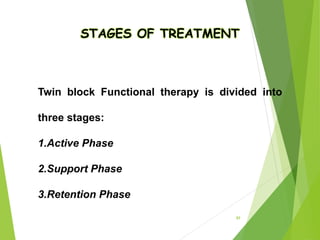

 Stages of treatment

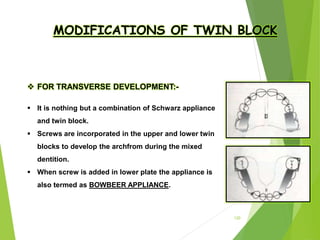

 Modifications of twin block to treat variety of
malocclusions

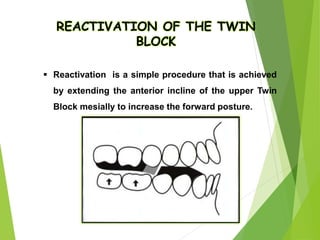

 Reactivation of twin block

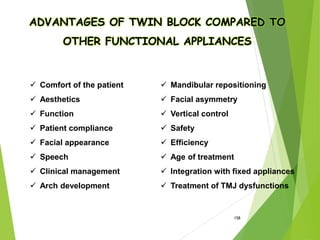

 Advantages of twin block

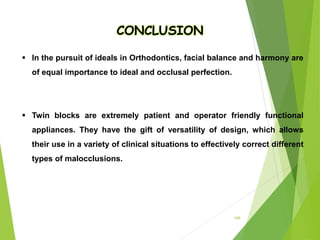

 Conclusion
3

MYOFUNCTIONAL APPLIANCES
INTRODUCTION
4

 On 7th September 1977, Dr. William J. Clark
developed Twin block.
5

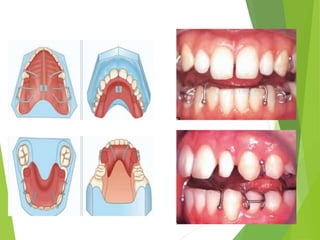

PHILOSOPHY BEHIND TWIN BLOCK THERAPY
THE OCCLUSAL INCLINED PLANE :
7

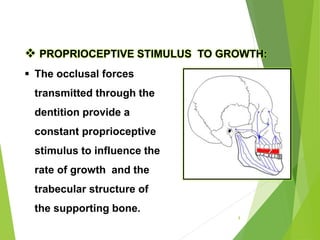

 The occlusal forces
transmitted through the
dentition provide a
constant proprioceptive
stimulus to influence the
rate of growth and the
trabecular structure of
the supporting bone.
8
 PROPRIOCEPTIVE STIMULUS TO GROWTH:

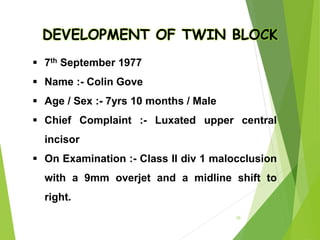

DEVELOPMENT OF TWIN BLOCK
 7th September 1977
 Name :- Colin Gove
 Age / Sex :- 7yrs 10 months / Male
 Chief Complaint :- Luxated upper central
incisor
 On Examination :- Class II div 1 malocclusion
with a 9mm overjet and a midline shift to
right.
10

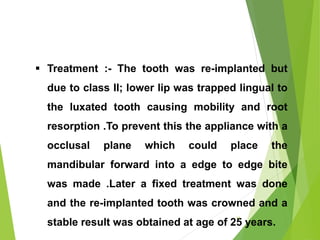

 Treatment :- The tooth was re-implanted but
due to class II; lower lip was trapped lingual to
the luxated tooth causing mobility and root
resorption .To prevent this the appliance with a
occlusal plane which could place the
mandibular forward into a edge to edge bite
was made .Later a fixed treatment was done
and the re-implanted tooth was crowned and a
stable result was obtained at age of 25 years.
11

Before treatment
IOPA showing
luxated 11
Post Treatment IOPA
showing an
endodontic pin To
stabilize 11
Different stages of treatment using twin block
combination therapy with fixed appliance in later
stage
12

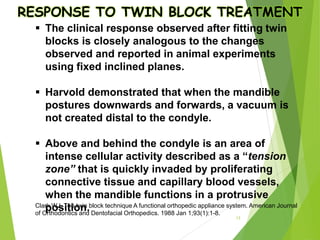

RESPONSE TO TWIN BLOCK TREATMENT
 The clinical response observed after fitting twin
blocks is closely analogous to the changes
observed and reported in animal experiments
using fixed inclined planes.
 Harvold demonstrated that when the mandible
postures downwards and forwards, a vacuum is
not created distal to the condyle.
 Above and behind the condyle is an area of
intense cellular activity described as a “tension
zone” that is quickly invaded by proliferating
connective tissue and capillary blood vessels,
when the mandible functions in a protrusive
position.
13
Clark WJ. The twin block technique A functional orthopedic appliance system. American Journal
of Orthodontics and Dentofacial Orthopedics. 1988 Jan 1;93(1):1-8.

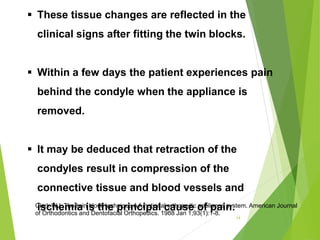

 These tissue changes are reflected in the
clinical signs after fitting the twin blocks.
 Within a few days the patient experiences pain
behind the condyle when the appliance is
removed.
 It may be deduced that retraction of the
condyles result in compression of the
connective tissue and blood vessels and
ischemia is the principal cause of pain.
14

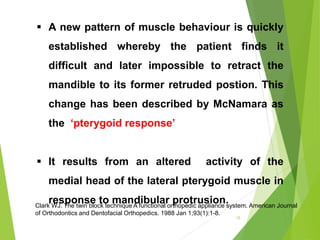

 A new pattern of muscle behaviour is quickly
established whereby the patient finds it
difficult and later impossible to retract the
mandible to its former retruded postion. This
change has been described by McNamara as
the ‘pterygoid response’
 It results from an altered activity of the
medial head of the lateral pterygoid muscle in
response to mandibular protrusion.
15

 The muscles are the prime movers in growth,
followed by bone remodelling as a secondary
response to altered muscle function.
 Muscle function must be altered over a
sufficient period of time to allow adaptive bone
remodelling changes to occur in order to
reposition the condyle in the glenoid fossa.
16

17

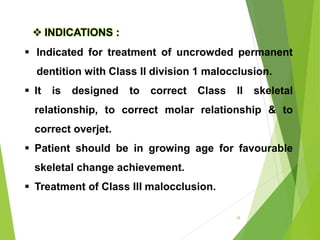

INDICATIONS AND CONTRAINDICATIONS

18
 Indicated for treatment of uncrowded permanent
dentition with Class II division 1 malocclusion.
 It is designed to correct Class II skeletal
relationship, to correct molar relationship & to
correct overjet.
 Patient should be in growing age for favourable
skeletal change achievement.
 Treatment of Class III malocclusion.
 INDICATIONS :

19
 CONTRAINDICATIONS :
 Cases with vertical growth
pattern.
 Crowding that may require
extraction.
 When VTO is not positive

20
DIAGNOSIS AND TREATMENT
PLANNING

21

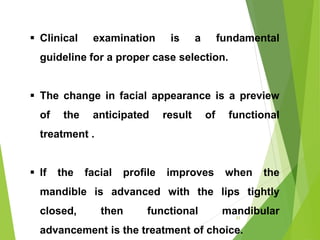

 Clinical examination is a fundamental
guideline for a proper case selection.
 The change in facial appearance is a preview
of the anticipated result of functional
treatment .
 If the facial profile improves when the
mandible is advanced with the lips tightly
closed, then functional mandibular
advancement is the treatment of choice.

22

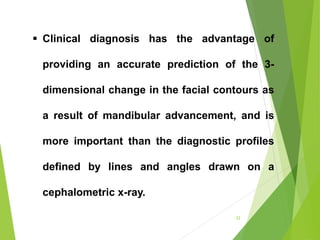

 Clinical diagnosis has the advantage of
providing an accurate prediction of the 3-
dimensional change in the facial contours as
a result of mandibular advancement, and is
more important than the diagnostic profiles
defined by lines and angles drawn on a
cephalometric x-ray.

23
PHOTOGRAPHS :
 Profile and frontal photographs with the mandible
in retrusive and advanced position, are used to
assess the changes that can occur during
treatment.

24

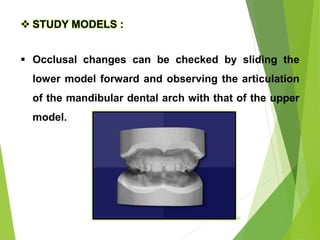

 STUDY MODELS :
 Occlusal changes can be checked by sliding the
lower model forward and observing the articulation
of the mandibular dental arch with that of the upper
model.

25
 RADIOGRAPHS :
 OPG is vital to study the dentition and condition
of alveolar bone.
 Lateral cephalograms to support and confirm
the clinical diagnosis.
 TMJ X-rays may also be required to assess the
joint condition before treatment.
 Hand wrist film may be taken to assess the
developmental status of the patient.

26

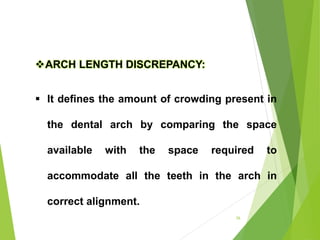

ARCH LENGTH DISCREPANCY:
 It defines the amount of crowding present in
the dental arch by comparing the space
available with the space required to
accommodate all the teeth in the arch in
correct alignment.

27
 THE “RICHTER SCALE” :
 It is helpful in treatment planning to classify the
degree of difficulty of the malocclusion as mild,
moderate or severe. In arch length discrepancy:
1. Mild crowding is in the range of 1-3mm.
2. Moderate crowding is in the range of 4-5mm.
3. Severe crowding is in the range of 6mm or more.

28

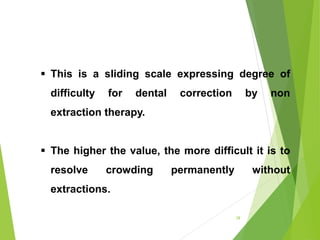

 This is a sliding scale expressing degree of
difficulty for dental correction by non
extraction therapy.
 The higher the value, the more difficult it is to
resolve crowding permanently without
extractions.

29

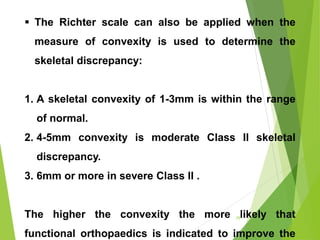

 The Richter scale can also be applied when the
measure of convexity is used to determine the
skeletal discrepancy:
1. A skeletal convexity of 1-3mm is within the range
of normal.
2. 4-5mm convexity is moderate Class II skeletal
discrepancy.
3. 6mm or more in severe Class II .
The higher the convexity the more likely that
functional orthopaedics is indicated to improve the

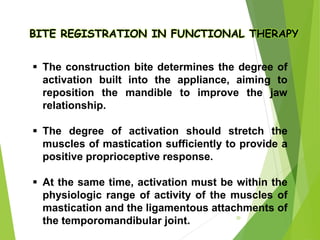

BITE REGISTRATION IN FUNCTIONAL THERAPY
 The construction bite determines the degree of
activation built into the appliance, aiming to
reposition the mandible to improve the jaw
relationship.
 The degree of activation should stretch the
muscles of mastication sufficiently to provide a
positive proprioceptive response.
 At the same time, activation must be within the
physiologic range of activity of the muscles of
mastication and the ligamentous attachments of
the temporomandibular joint. 30

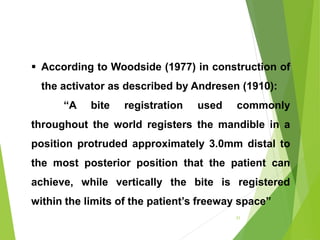

 According to Woodside (1977) in construction of
the activator as described by Andresen (1910):
“A bite registration used commonly
throughout the world registers the mandible in a
position protruded approximately 3.0mm distal to
the most posterior position that the patient can
achieve, while vertically the bite is registered
within the limits of the patient’s freeway space”
31

 In North America, a similar protrusive bite
registration is made, except that the vertical
activation is 4mm beyond rest position.
 Roccabado quantifies normal physiological TMJ
movement as 70% of total joint displacement. Hence,
the maximal forward positioning of the mandible
should not exceed 70% of the total protrusive path of
the patient.
 Beyond this position, the medial capsular ligament
begins to displace the disc by pulling the disc
medially & distally off the condyle.
32

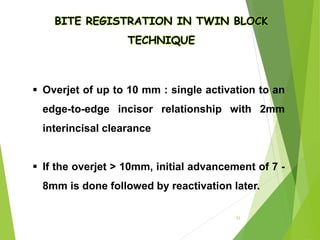

BITE REGISTRATION IN TWIN BLOCK
TECHNIQUE
 Overjet of up to 10 mm : single activation to an
edge-to-edge incisor relationship with 2mm
interincisal clearance
 If the overjet > 10mm, initial advancement of 7 -
8mm is done followed by reactivation later.
33

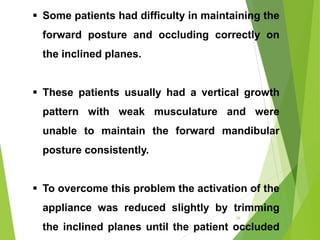

 Some patients had difficulty in maintaining the
forward posture and occluding correctly on
the inclined planes.
 These patients usually had a vertical growth
pattern with weak musculature and were
unable to maintain the forward mandibular
posture consistently.
 To overcome this problem the activation of the
appliance was reduced slightly by trimming
the inclined planes until the patient occluded
34

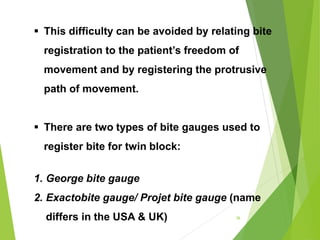

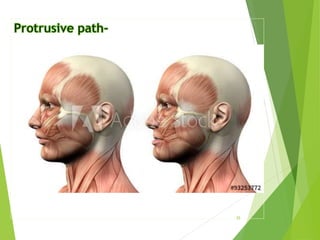

 This difficulty can be avoided by relating bite
registration to the patient’s freedom of
movement and by registering the protrusive
path of movement.
 There are two types of bite gauges used to
register bite for twin block:
1. George bite gauge
2. Exactobite gauge/ Projet bite gauge (name
differs in the USA & UK) 36

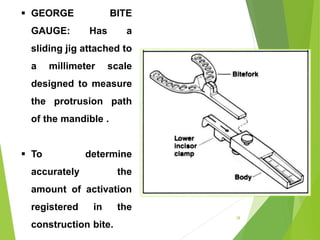

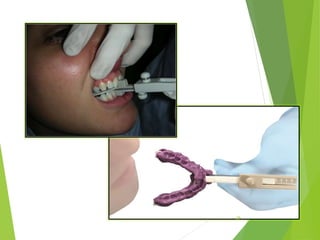

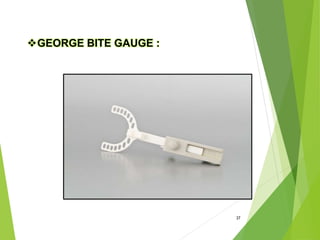

 GEORGE BITE
GAUGE: Has a
sliding jig attached to
a millimeter scale
designed to measure
the protrusion path
of the mandible .
 To determine
accurately the
amount of activation
registered in the
construction bite.
38

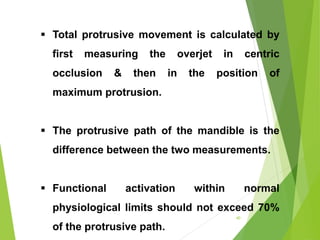

 Total protrusive movement is calculated by
first measuring the overjet in centric
occlusion & then in the position of
maximum protrusion.
 The protrusive path of the mandible is the
difference between the two measurements.
 Functional activation within normal
physiological limits should not exceed 70%
of the protrusive path.
40

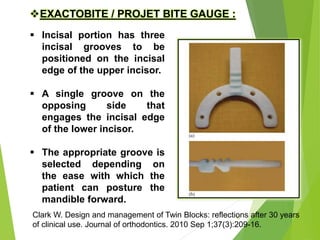

EXACTOBITE / PROJET BITE GAUGE :
 Incisal portion has three
incisal grooves to be
positioned on the incisal
edge of the upper incisor.
 A single groove on the
opposing side that
engages the incisal edge
of the lower incisor.
 The appropriate groove is
selected depending on
the ease with which the
patient can posture the
mandible forward.
41
Clark W. Design and management of Twin Blocks: reflections after 30 years
of clinical use. Journal of orthodontics. 2010 Sep 1;37(3):209-16.

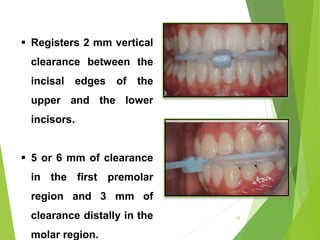

 Registers 2 mm vertical
clearance between the
incisal edges of the
upper and the lower
incisors.
 5 or 6 mm of clearance
in the first premolar
region and 3 mm of
clearance distally in the
molar region.
42

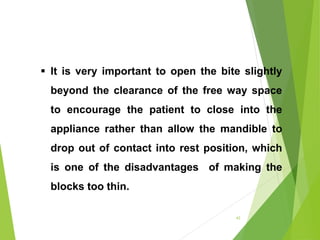

 It is very important to open the bite slightly
beyond the clearance of the free way space
to encourage the patient to close into the
appliance rather than allow the mandible to
drop out of contact into rest position, which
is one of the disadvantages of making the
blocks too thin.
43

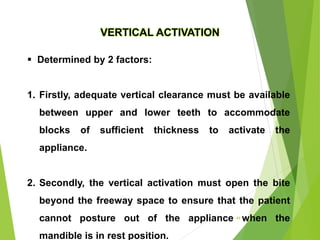

VERTICAL ACTIVATION
 Determined by 2 factors:
1. Firstly, adequate vertical clearance must be available
between upper and lower teeth to accommodate
blocks of sufficient thickness to activate the
appliance.
2. Secondly, the vertical activation must open the bite
beyond the freeway space to ensure that the patient
cannot posture out of the appliance when the
mandible is in rest position.
44

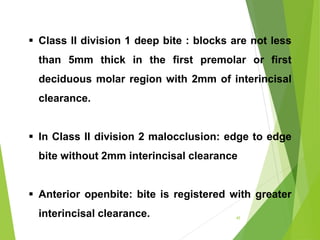

 Class II division 1 deep bite : blocks are not less
than 5mm thick in the first premolar or first
deciduous molar region with 2mm of interincisal
clearance.
 In CIass II division 2 malocclusion: edge to edge
bite without 2mm interincisal clearance
 Anterior openbite: bite is registered with greater
interincisal clearance. 45

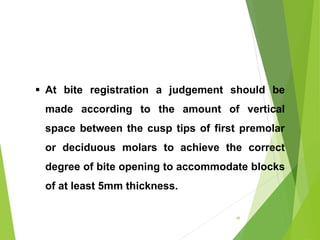

 At bite registration a judgement should be
made according to the amount of vertical
space between the cusp tips of first premolar
or deciduous molars to achieve the correct
degree of bite opening to accommodate blocks
of at least 5mm thickness.
46

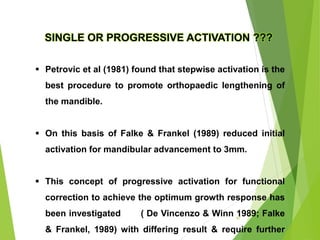

SINGLE OR PROGRESSIVE ACTIVATION ???
 Petrovic et al (1981) found that stepwise activation is the
best procedure to promote orthopaedic lengthening of
the mandible.
 On this basis of Falke & Frankel (1989) reduced initial
activation for mandibular advancement to 3mm.
 This concept of progressive activation for functional
correction to achieve the optimum growth response has
been investigated ( De Vincenzo & Winn 1989; Falke
& Frankel, 1989) with differing result & require further
47

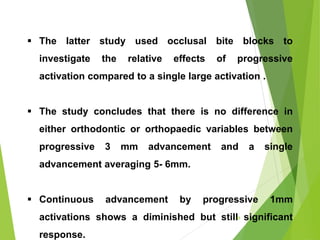

 The latter study used occlusal bite blocks to
investigate the relative effects of progressive
activation compared to a single large activation .
 The study concludes that there is no difference in
either orthodontic or orthopaedic variables between
progressive 3 mm advancement and a single
advancement averaging 5- 6mm.
 Continuous advancement by progressive 1mm
activations shows a diminished but still significant
response.
48

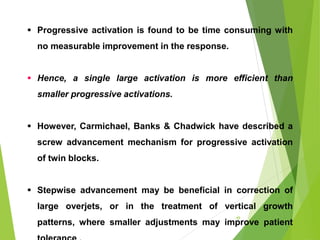

 Progressive activation is found to be time consuming with
no measurable improvement in the response.
 Hence, a single large activation is more efficient than
smaller progressive activations.
 However, Carmichael, Banks & Chadwick have described a
screw advancement mechanism for progressive activation
of twin blocks.
 Stepwise advancement may be beneficial in correction of
large overjets, or in the treatment of vertical growth
patterns, where smaller adjustments may improve patient
49

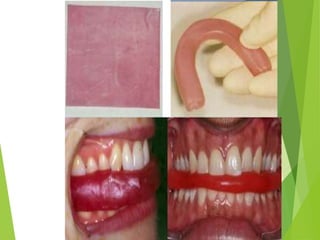

METHOD OF BITE REGISTRATION
 The centric position is checked and the desired degree of
activation is decided.
 The patient is then trained to bite in the desired position by
giving him a mirror.
 The wax is softened in a water bath and adapted.
 The patient is instructed to bite into the desired position.
 After the wax has hardened sufficiently, it is removed and
chilled.
 The models with the bite are articulated and the twin block
is constructed.
50

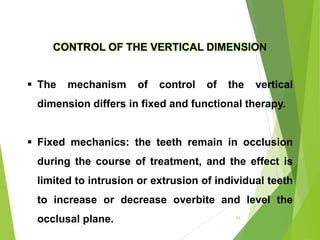

CONTROL OF THE VERTICAL DIMENSION
 The mechanism of control of the vertical
dimension differs in fixed and functional therapy.
 Fixed mechanics: the teeth remain in occlusion
during the course of treatment, and the effect is
limited to intrusion or extrusion of individual teeth
to increase or decrease overbite and level the
occlusal plane. 53

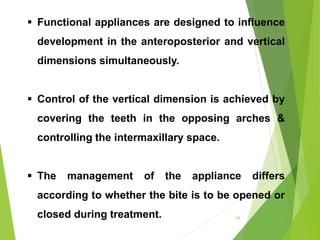

 Functional appliances are designed to influence
development in the anteroposterior and vertical
dimensions simultaneously.
 Control of the vertical dimension is achieved by
covering the teeth in the opposing arches &
controlling the intermaxillary space.
 The management of the appliance differs
according to whether the bite is to be opened or
closed during treatment. 54

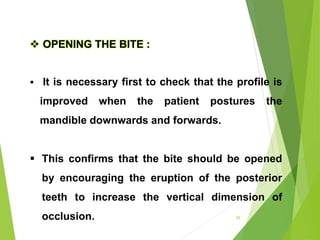

 OPENING THE BITE :
 It is necessary first to check that the profile is
improved when the patient postures the
mandible downwards and forwards.
 This confirms that the bite should be opened
by encouraging the eruption of the posterior
teeth to increase the vertical dimension of
occlusion. 55

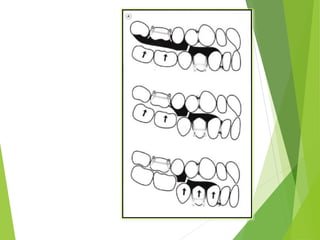

 The occlusion is freed
between the posterior
teeth to encourage
selective eruption of
posterior tooth to
increase the vertical
dimension of
occlusion in the
posterior quadrants.
56

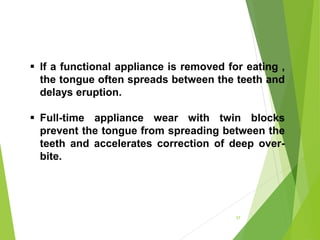

 If a functional appliance is removed for eating ,
the tongue often spreads between the teeth and
delays eruption.
 Full-time appliance wear with twin blocks
prevent the tongue from spreading between the
teeth and accelerates correction of deep over-
bite.
57

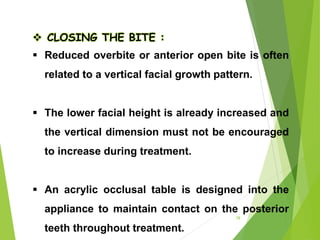

 CLOSING THE BITE :
 Reduced overbite or anterior open bite is often
related to a vertical facial growth pattern.
 The lower facial height is already increased and
the vertical dimension must not be encouraged
to increase during treatment.
 An acrylic occlusal table is designed into the
appliance to maintain contact on the posterior
teeth throughout treatment.
58

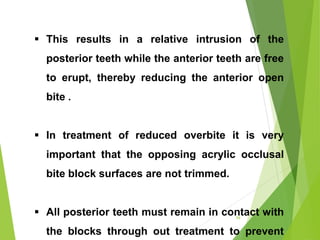

 This results in a relative intrusion of the
posterior teeth while the anterior teeth are free
to erupt, thereby reducing the anterior open
bite .
 In treatment of reduced overbite it is very
important that the opposing acrylic occlusal
bite block surfaces are not trimmed.
 All posterior teeth must remain in contact with
the blocks through out treatment to prevent
59

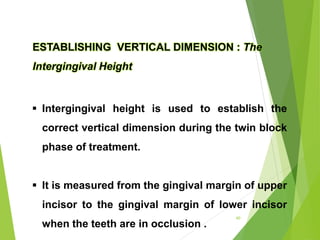

ESTABLISHING VERTICAL DIMENSION : The
Intergingival Height
 Intergingival height is used to establish the
correct vertical dimension during the twin block
phase of treatment.
 It is measured from the gingival margin of upper
incisor to the gingival margin of lower incisor
when the teeth are in occlusion .
60

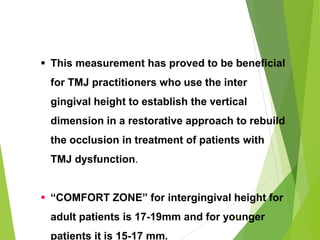

 This measurement has proved to be beneficial
for TMJ practitioners who use the inter
gingival height to establish the vertical
dimension in a restorative approach to rebuild
the occlusion in treatment of patients with
TMJ dysfunction.
 “COMFORT ZONE” for intergingival height for
adult patients is 17-19mm and for younger
patients it is 15-17 mm.
61

 Measurment of intergingival height is made by
using a millimeter ruler or dividers with a vernier
scale .
62

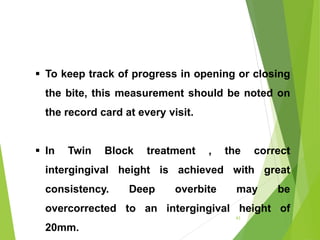

 To keep track of progress in opening or closing
the bite, this measurement should be noted on
the record card at every visit.
 In Twin Block treatment , the correct
intergingival height is achieved with great
consistency. Deep overbite may be
overcorrected to an intergingival height of
20mm.
63

64

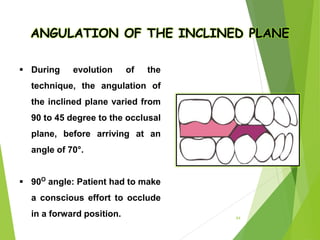

ANGULATION OF THE INCLINED PLANE
 During evolution of the
technique, the angulation of
the inclined plane varied from
90 to 45 degree to the occlusal
plane, before arriving at an
angle of 70°.
 90O
angle: Patient had to make
a conscious effort to occlude
in a forward position.

65

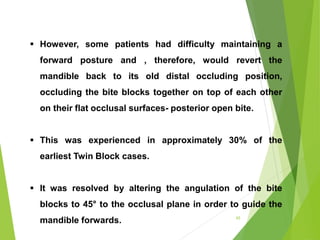

 However, some patients had difficulty maintaining a
forward posture and , therefore, would revert the
mandible back to its old distal occluding position,
occluding the bite blocks together on top of each other
on their flat occlusal surfaces- posterior open bite.
 This was experienced in approximately 30% of the
earliest Twin Block cases.
 It was resolved by altering the angulation of the bite
blocks to 45° to the occlusal plane in order to guide the
mandible forwards.

66

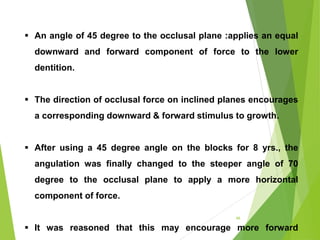

 An angle of 45 degree to the occlusal plane :applies an equal
downward and forward component of force to the lower
dentition.
 The direction of occlusal force on inclined planes encourages
a corresponding downward & forward stimulus to growth.
 After using a 45 degree angle on the blocks for 8 yrs., the
angulation was finally changed to the steeper angle of 70
degree to the occlusal plane to apply a more horizontal
component of force.
 It was reasoned that this may encourage more forward

67
STANDARD APPLIANCE DESIGN
 The earliest Twin Blocks were designed with the
following basic components :
 A midline screw to expand the upper arch.
 Occlusal bite blocks.
 Clasps on upper molars and premolars.
 Clasps on lower premolars and incisors.
 A labial bow to retract the upper incisors.
 Springs to move individual teeth and to improve the
arch form as required.
 Provision for extraoral traction in some cases.

68

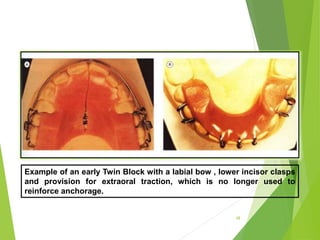

Example of an early Twin Block with a labial bow , lower incisor clasps
and provision for extraoral traction, which is no longer used to
reinforce anchorage.

70

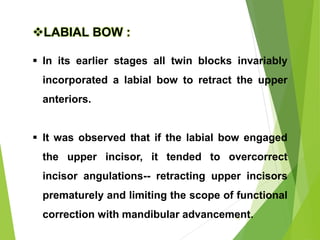

LABIAL BOW :
 In its earlier stages all twin blocks invariably
incorporated a labial bow to retract the upper
anteriors.
 It was observed that if the labial bow engaged
the upper incisor, it tended to overcorrect
incisor angulations-- retracting upper incisors
prematurely and limiting the scope of functional
correction with mandibular advancement.

71

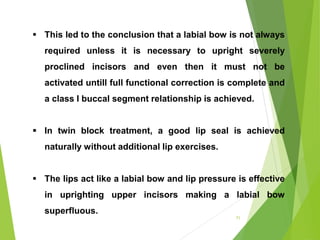

 This led to the conclusion that a labial bow is not always
required unless it is necessary to upright severely
proclined incisors and even then it must not be
activated untill full functional correction is complete and
a class I buccal segment relationship is achieved.
 In twin block treatment, a good lip seal is achieved
naturally without additional lip exercises.
 The lips act like a labial bow and lip pressure is effective
in uprighting upper incisors making a labial bow
superfluous.

72

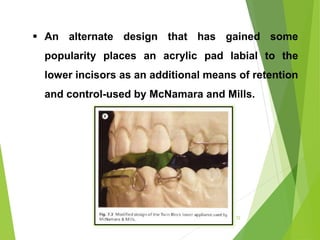

 An alternate design that has gained some
popularity places an acrylic pad labial to the
lower incisors as an additional means of retention
and control-used by McNamara and Mills.

73

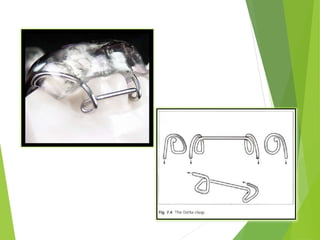

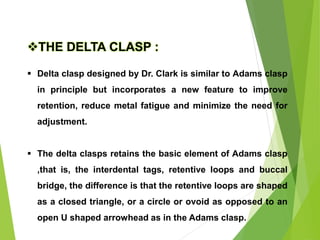

THE DELTA CLASP :
 Delta clasp designed by Dr. Clark is similar to Adams clasp
in principle but incorporates a new feature to improve
retention, reduce metal fatigue and minimize the need for
adjustment.
 The delta clasps retains the basic element of Adams clasp
,that is, the interdental tags, retentive loops and buccal
bridge, the difference is that the retentive loops are shaped
as a closed triangle, or a circle or ovoid as opposed to an
open U shaped arrowhead as in the Adams clasp.

75

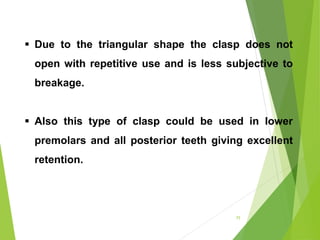

 Due to the triangular shape the clasp does not
open with repetitive use and is less subjective to
breakage.
 Also this type of clasp could be used in lower
premolars and all posterior teeth giving excellent
retention.

76

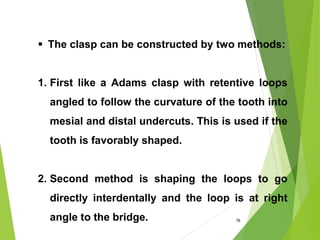

 The clasp can be constructed by two methods:
1. First like a Adams clasp with retentive loops
angled to follow the curvature of the tooth into
mesial and distal undercuts. This is used if the
tooth is favorably shaped.
2. Second method is shaping the loops to go
directly interdentally and the loop is at right
angle to the bridge.

77

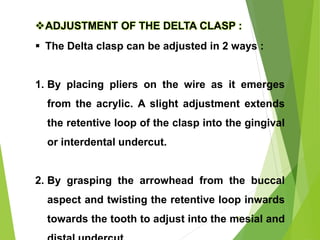

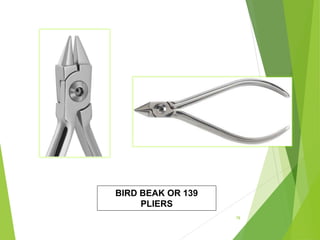

ADJUSTMENT OF THE DELTA CLASP :
 The Delta clasp can be adjusted in 2 ways :
1. By placing pliers on the wire as it emerges
from the acrylic. A slight adjustment extends
the retentive loop of the clasp into the gingival
or interdental undercut.
2. By grasping the arrowhead from the buccal
aspect and twisting the retentive loop inwards
towards the tooth to adjust into the mesial and

79

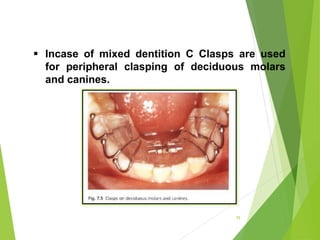

 Incase of mixed dentition C Clasps are used
for peripheral clasping of deciduous molars
and canines.

80

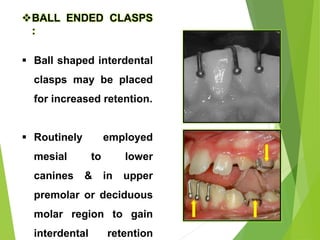

BALL ENDED CLASPS
:
 Ball shaped interdental
clasps may be placed
for increased retention.
 Routinely employed
mesial to lower
canines & in upper
premolar or deciduous
molar region to gain
interdental retention

81

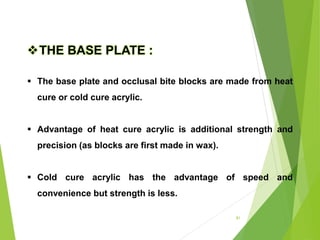

THE BASE PLATE :
 The base plate and occlusal bite blocks are made from heat
cure or cold cure acrylic.
 Advantage of heat cure acrylic is additional strength and
precision (as blocks are first made in wax).
 Cold cure acrylic has the advantage of speed and
convenience but strength is less.

82

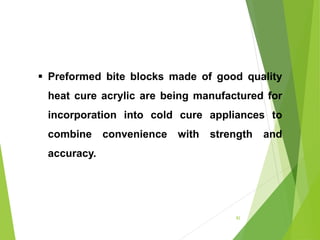

 Preformed bite blocks made of good quality
heat cure acrylic are being manufactured for
incorporation into cold cure appliances to
combine convenience with strength and
accuracy.

83

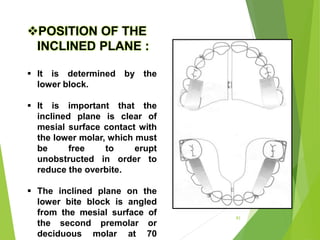

POSITION OF THE
INCLINED PLANE :
 It is determined by the
lower block.
 It is important that the
inclined plane is clear of
mesial surface contact with
the lower molar, which must
be free to erupt
unobstructed in order to
reduce the overbite.
 The inclined plane on the
lower bite block is angled
from the mesial surface of
the second premolar or
deciduous molar at 70

84

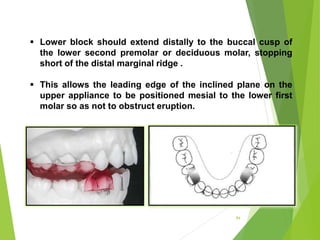

 Lower block should extend distally to the buccal cusp of
the lower second premolar or deciduous molar, stopping
short of the distal marginal ridge .
 This allows the leading edge of the inclined plane on the
upper appliance to be positioned mesial to the lower first
molar so as not to obstruct eruption.

85

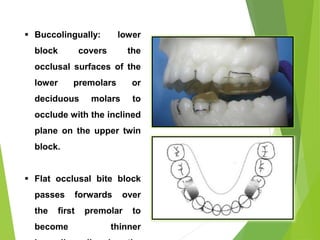

 Buccolingually: lower
block covers the
occlusal surfaces of the
lower premolars or
deciduous molars to
occlude with the inclined
plane on the upper twin
block.
 Flat occlusal bite block
passes forwards over
the first premolar to
become thinner

86

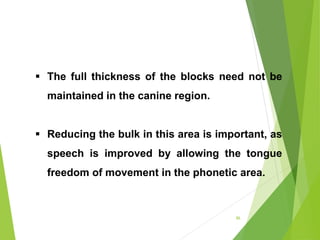

 The full thickness of the blocks need not be
maintained in the canine region.
 Reducing the bulk in this area is important, as
speech is improved by allowing the tongue
freedom of movement in the phonetic area.

87

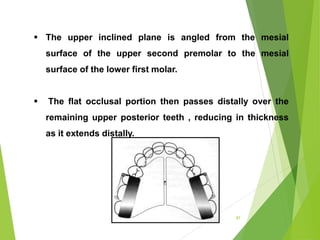

 The upper inclined plane is angled from the mesial
surface of the upper second premolar to the mesial
surface of the lower first molar.
 The flat occlusal portion then passes distally over the
remaining upper posterior teeth , reducing in thickness
as it extends distally.

88

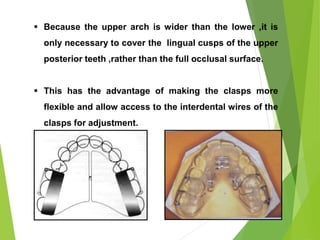

 Because the upper arch is wider than the lower ,it is
only necessary to cover the lingual cusps of the upper
posterior teeth ,rather than the full occlusal surface.
 This has the advantage of making the clasps more
flexible and allow access to the interdental wires of the
clasps for adjustment.

89
STAGES OF TREATMENT
Twin block Functional therapy is divided into
three stages:
1.Active Phase
2.Support Phase
3.Retention Phase

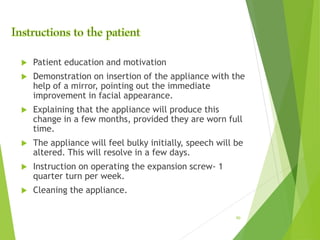

 Patient education and motivation
 Demonstration on insertion of the appliance with the
help of a mirror, pointing out the immediate
improvement in facial appearance.
 Explaining that the appliance will produce this
change in a few months, provided they are worn full
time.
 The appliance will feel bulky initially, speech will be
altered. This will resolve in a few days.
 Instruction on operating the expansion screw- 1
quarter turn per week.
 Cleaning the appliance.
90

91

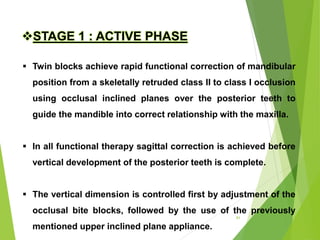

STAGE 1 : ACTIVE PHASE
 Twin blocks achieve rapid functional correction of mandibular
position from a skeletally retruded class II to class I occlusion
using occlusal inclined planes over the posterior teeth to
guide the mandible into correct relationship with the maxilla.
 In all functional therapy sagittal correction is achieved before
vertical development of the posterior teeth is complete.
 The vertical dimension is controlled first by adjustment of the
occlusal bite blocks, followed by the use of the previously
mentioned upper inclined plane appliance.

92

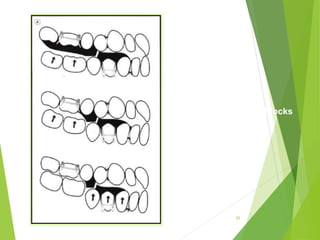

Sequence of trimming blocks

93

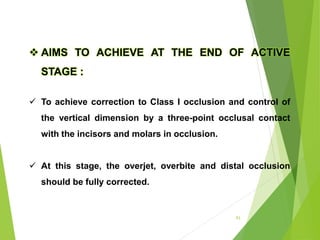

 AIMS TO ACHIEVE AT THE END OF ACTIVE
STAGE :
 To achieve correction to Class I occlusion and control of
the vertical dimension by a three-point occlusal contact
with the incisors and molars in occlusion.
 At this stage, the overjet, overbite and distal occlusion
should be fully corrected.

94

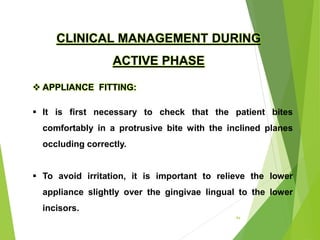

CLINICAL MANAGEMENT DURING
ACTIVE PHASE
 APPLIANCE FITTING:
 It is first necessary to check that the patient bites
comfortably in a protrusive bite with the inclined planes
occluding correctly.
 To avoid irritation, it is important to relieve the lower
appliance slightly over the gingivae lingual to the lower
incisors.

95

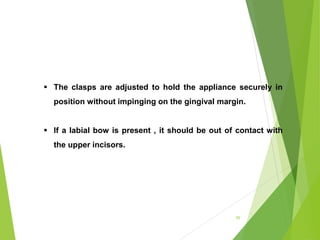

 The clasps are adjusted to hold the appliance securely in
position without impinging on the gingival margin.
 If a labial bow is present , it should be out of contact with
the upper incisors.

96

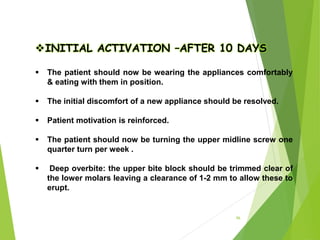

INITIAL ACTIVATION –AFTER 10 DAYS
 The patient should now be wearing the appliances comfortably
& eating with them in position.
 The initial discomfort of a new appliance should be resolved.
 Patient motivation is reinforced.
 The patient should now be turning the upper midline screw one
quarter turn per week .
 Deep overbite: the upper bite block should be trimmed clear of
the lower molars leaving a clearance of 1-2 mm to allow these to
erupt.

97

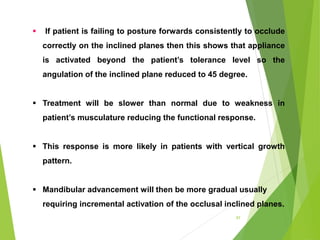

 If patient is failing to posture forwards consistently to occlude
correctly on the inclined planes then this shows that appliance
is activated beyond the patient’s tolerance level so the
angulation of the inclined plane reduced to 45 degree.
 Treatment will be slower than normal due to weakness in
patient’s musculature reducing the functional response.
 This response is more likely in patients with vertical growth
pattern.
 Mandibular advancement will then be more gradual usually
requiring incremental activation of the occlusal inclined planes.

98

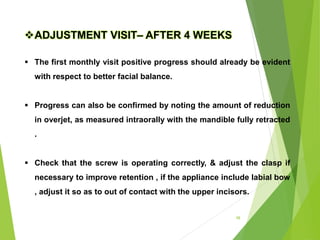

ADJUSTMENT VISIT– AFTER 4 WEEKS
 The first monthly visit positive progress should already be evident
with respect to better facial balance.
 Progress can also be confirmed by noting the amount of reduction
in overjet, as measured intraorally with the mandible fully retracted
.
 Check that the screw is operating correctly, & adjust the clasp if
necessary to improve retention , if the appliance include labial bow
, adjust it so as to out of contact with the upper incisors.

99

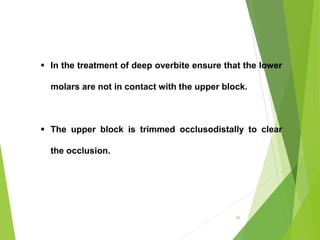

 In the treatment of deep overbite ensure that the lower
molars are not in contact with the upper block.
 The upper block is trimmed occlusodistally to clear
the occlusion.

100

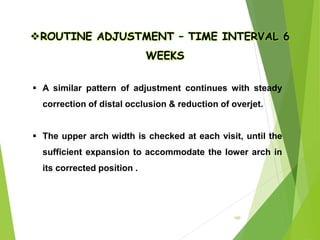

ROUTINE ADJUSTMENT – TIME INTERVAL 6
WEEKS
 A similar pattern of adjustment continues with steady
correction of distal occlusion & reduction of overjet.
 The upper arch width is checked at each visit, until the
sufficient expansion to accommodate the lower arch in
its corrected position .

101

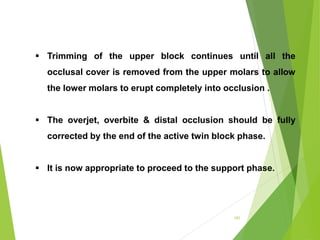

 Trimming of the upper block continues until all the
occlusal cover is removed from the upper molars to allow
the lower molars to erupt completely into occlusion .
 The overjet, overbite & distal occlusion should be fully
corrected by the end of the active twin block phase.
 It is now appropriate to proceed to the support phase.

102

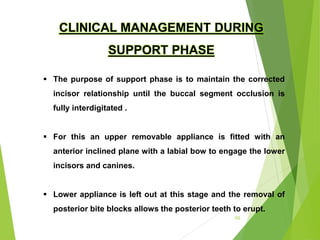

 The purpose of support phase is to maintain the corrected
incisor relationship until the buccal segment occlusion is
fully interdigitated .
 For this an upper removable appliance is fitted with an
anterior inclined plane with a labial bow to engage the lower
incisors and canines.
 Lower appliance is left out at this stage and the removal of
posterior bite blocks allows the posterior teeth to erupt.
CLINICAL MANAGEMENT DURING
SUPPORT PHASE

103

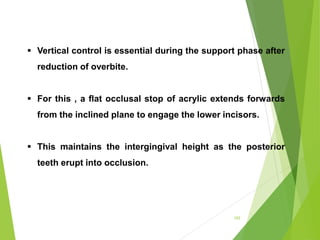

 Vertical control is essential during the support phase after
reduction of overbite.
 For this , a flat occlusal stop of acrylic extends forwards
from the inclined plane to engage the lower incisors.
 This maintains the intergingival height as the posterior
teeth erupt into occlusion.

104

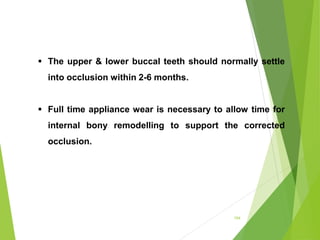

 The upper & lower buccal teeth should normally settle
into occlusion within 2-6 months.
 Full time appliance wear is necessary to allow time for
internal bony remodelling to support the corrected
occlusion.

105

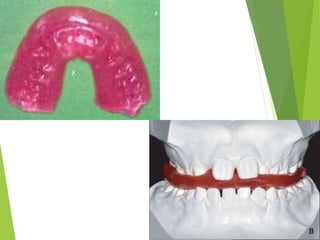

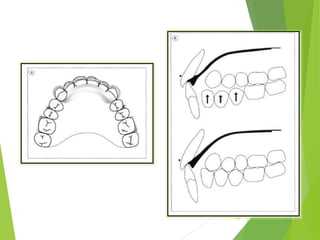

A,B Support phase-anterior
inclined plane

106
RETENTION PHASE
 Treatment is followed by retention with the upper
anterior inclined plane appliance.
 A good buccal segment occlusion is important for
stability after correction of arch –to- arch relationship.
 Appliance wear is reduced to night time only when the
occlusion is fully established.

107

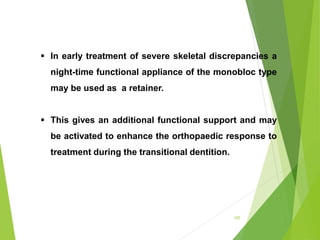

 In early treatment of severe skeletal discrepancies a
night-time functional appliance of the monobloc type
may be used as a retainer.
 This gives an additional functional support and may
be activated to enhance the orthopaedic response to
treatment during the transitional dentition.

108
 An excellent alternative is the occluso-guide which is a
preformed appliance resembling a mini-positioner.

109

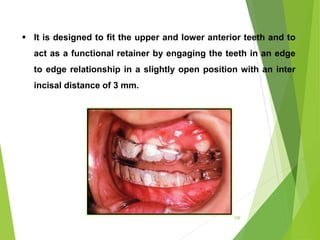

 It is designed to fit the upper and lower anterior teeth and to
act as a functional retainer by engaging the teeth in an edge
to edge relationship in a slightly open position with an inter
incisal distance of 3 mm.

110

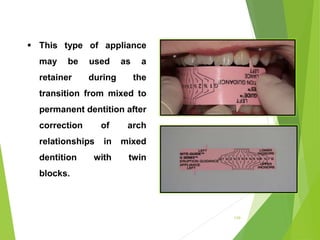

 This type of appliance
may be used as a
retainer during the
transition from mixed to
permanent dentition after
correction of arch
relationships in mixed
dentition with twin
blocks.

111

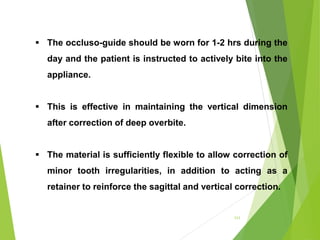

 The occluso-guide should be worn for 1-2 hrs during the
day and the patient is instructed to actively bite into the
appliance.
 This is effective in maintaining the vertical dimension
after correction of deep overbite.
 The material is sufficiently flexible to allow correction of
minor tooth irregularities, in addition to acting as a
retainer to reinforce the sagittal and vertical correction.

112

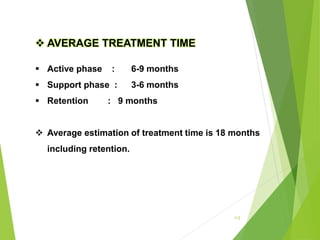

 AVERAGE TREATMENT TIME
 Active phase : 6-9 months
 Support phase : 3-6 months
 Retention : 9 months
 Average estimation of treatment time is 18 months
including retention.

113

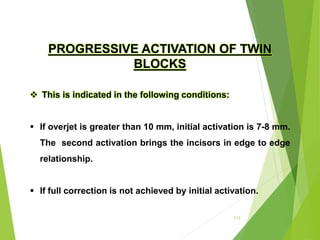

PROGRESSIVE ACTIVATION OF TWIN
BLOCKS
 This is indicated in the following conditions:
 If overjet is greater than 10 mm, initial activation is 7-8 mm.
The second activation brings the incisors in edge to edge
relationship.
 If full correction is not achieved by initial activation.

114

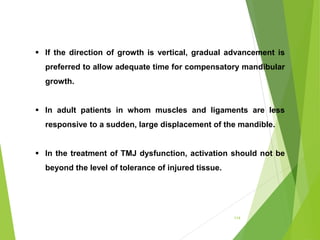

 If the direction of growth is vertical, gradual advancement is
preferred to allow adequate time for compensatory mandibular
growth.
 In adult patients in whom muscles and ligaments are less
responsive to a sudden, large displacement of the mandible.
 In the treatment of TMJ dysfunction, activation should not be
beyond the level of tolerance of injured tissue.

115
REACTIVATION OF THE TWIN
BLOCK
 Reactivation is a simple procedure that is achieved
by extending the anterior incline of the upper Twin
Block mesially to increase the forward posture.

116

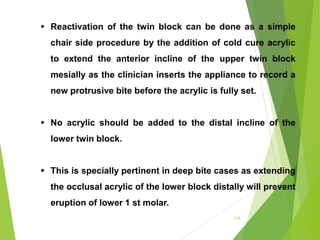

 Reactivation of the twin block can be done as a simple
chair side procedure by the addition of cold cure acrylic
to extend the anterior incline of the upper twin block
mesially as the clinician inserts the appliance to record a
new protrusive bite before the acrylic is fully set.
 No acrylic should be added to the distal incline of the
lower twin block.
 This is specially pertinent in deep bite cases as extending
the occlusal acrylic of the lower block distally will prevent
eruption of lower 1 st molar.

117

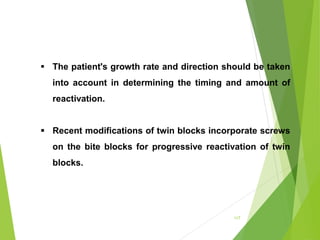

 The patient's growth rate and direction should be taken
into account in determining the timing and amount of
reactivation.
 Recent modifications of twin blocks incorporate screws
on the bite blocks for progressive reactivation of twin
blocks.

118

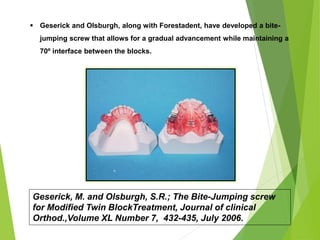

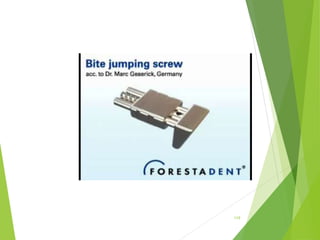

 Geserick and Olsburgh, along with Forestadent, have developed a bite-
jumping screw that allows for a gradual advancement while maintaining a
70º interface between the blocks.
Geserick, M. and Olsburgh, S.R.; The Bite-Jumping screw
for Modified Twin BlockTreatment, Journal of clinical
Orthod.,Volume XL Number 7, 432-435, July 2006.

120
MODIFICATIONS OF TWIN BLOCK
 FOR TRANSVERSE DEVELOPMENT:-
 It is nothing but a combination of Schwarz appliance
and twin block.
 Screws are incorporated in the upper and lower twin
blocks to develop the archfrom during the mixed
dentition.
 When screw is added in lower plate the appliance is
also termed as BOWBEER APPLIANCE.

121

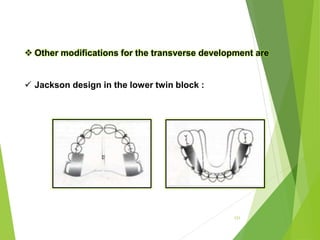

 Other modifications for the transverse development are
 Jackson design in the lower twin block :

122

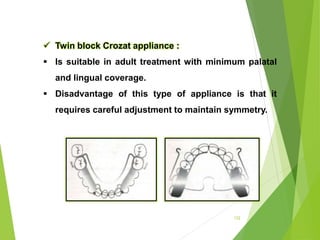

 Twin block Crozat appliance :
 Is suitable in adult treatment with minimum palatal
and lingual coverage.
 Disadvantage of this type of appliance is that it
requires careful adjustment to maintain symmetry.

123

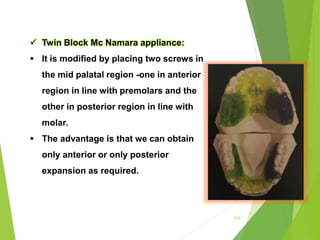

 Twin Block Mc Namara appliance:
 It is modified by placing two screws in
the mid palatal region -one in anterior
region in line with premolars and the
other in posterior region in line with
molar.
 The advantage is that we can obtain
only anterior or only posterior
expansion as required.

124

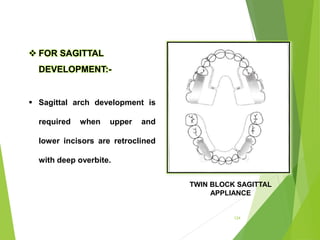

 FOR SAGITTAL
DEVELOPMENT:-
 Sagittal arch development is
required when upper and
lower incisors are retroclined
with deep overbite.
TWIN BLOCK SAGITTAL
APPLIANCE

125

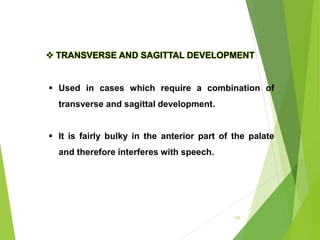

 TRANSVERSE AND SAGITTAL DEVELOPMENT
 Used in cases which require a combination of
transverse and sagittal development.
 It is fairly bulky in the anterior part of the palate
and therefore interferes with speech.

126

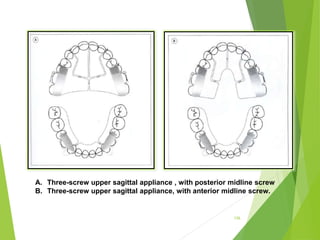

A. Three-screw upper sagittal appliance , with posterior midline screw
B. Three-screw upper sagittal appliance, with anterior midline screw.

127
TWIN BLOCKS TO CLOSE ANTERIOR OPEN BITE
 The treatment of anterior open bite demands applying an intrusive
force on the posterior teeth.
 Occlusal contact on the bite blocks on all the posterior teeth is
essential to prevent eruption, which would otherwise open the
bite; also it causes favorable mandibular rotation.
 For the bite registration in case of an open bite the vertical
clearance is kept beyond the freeway space so as to intrude the
posterior teeth.

128

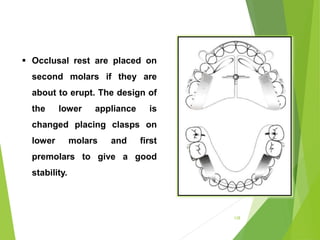

 Occlusal rest are placed on
second molars if they are
about to erupt. The design of
the lower appliance is
changed placing clasps on
lower molars and first
premolars to give a good
stability.

129

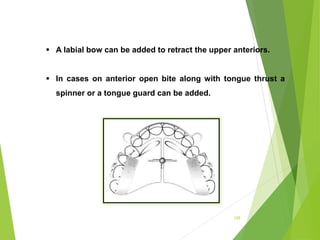

 A labial bow can be added to retract the upper anteriors.
 In cases on anterior open bite along with tongue thrust a
spinner or a tongue guard can be added.

130

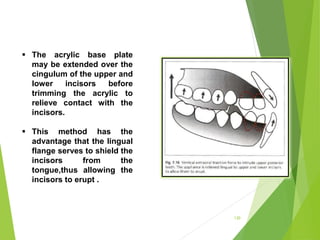

 The acrylic base plate
may be extended over the
cingulum of the upper and
lower incisors before
trimming the acrylic to
relieve contact with the
incisors.
 This method has the
advantage that the lingual
flange serves to shield the
incisors from the
tongue,thus allowing the
incisors to erupt .

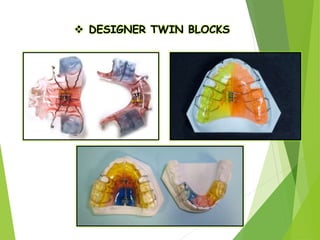

132

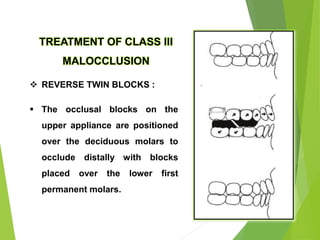

TREATMENT OF CLASS III
MALOCCLUSION
 REVERSE TWIN BLOCKS :
 The occlusal blocks on the
upper appliance are positioned
over the deciduous molars to
occlude distally with blocks
placed over the lower first
permanent molars.

133
 The addition of two sagittal
screws in the palate
provides a means of
activation to advance the
upper incisors, and the
reciprocal force on the
inclined planes uses
anchorage in the lower
arch to drive the upper
arch labially.

134
 A contracted maxillary arch requires three-way expansion.
 This is achieved by a three-screw sagittal design or the
three-way screw to combine transverse and sagittal arch
development.

135

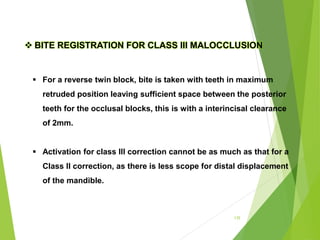

 For a reverse twin block, bite is taken with teeth in maximum
retruded position leaving sufficient space between the posterior
teeth for the occlusal blocks, this is with a interincisal clearance
of 2mm.
 Activation for class III correction cannot be as much as that for a
Class II correction, as there is less scope for distal displacement
of the mandible.
 BITE REGISTRATION FOR CLASS III MALOCCLUSION

136

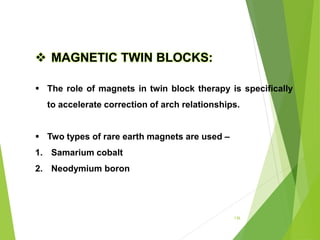

 MAGNETIC TWIN BLOCKS:
 The role of magnets in twin block therapy is specifically
to accelerate correction of arch relationships.
 Two types of rare earth magnets are used –
1. Samarium cobalt
2. Neodymium boron

137

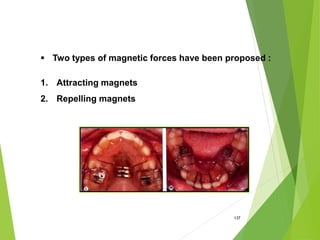

 Two types of magnetic forces have been proposed :
1. Attracting magnets
2. Repelling magnets

138

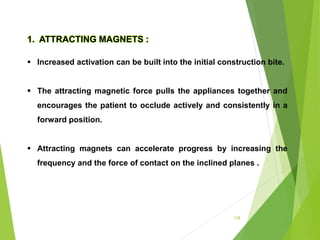

1. ATTRACTING MAGNETS :
 Increased activation can be built into the initial construction bite.
 The attracting magnetic force pulls the appliances together and
encourages the patient to occlude actively and consistently in a
forward position.
 Attracting magnets can accelerate progress by increasing the
frequency and the force of contact on the inclined planes .

139

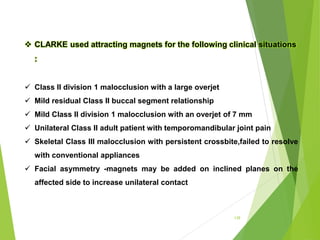

 CLARKE used attracting magnets for the following clinical situations
:
 Class II division 1 malocclusion with a large overjet
 Mild residual Class II buccal segment relationship
 Mild Class II division 1 malocclusion with an overjet of 7 mm
 Unilateral Class II adult patient with temporomandibular joint pain
 Skeletal Class III malocclusion with persistent crossbite,failed to resolve
with conventional appliances
 Facial asymmetry -magnets may be added on inclined planes on the
affected side to increase unilateral contact

140

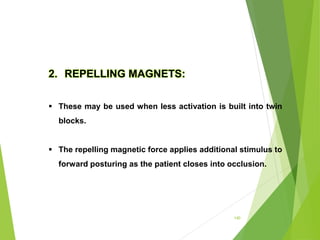

2. REPELLING MAGNETS:
 These may be used when less activation is built into twin
blocks.
 The repelling magnetic force applies additional stimulus to
forward posturing as the patient closes into occlusion.

141

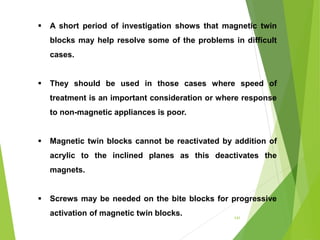

 A short period of investigation shows that magnetic twin
blocks may help resolve some of the problems in difficult
cases.
 They should be used in those cases where speed of
treatment is an important consideration or where response
to non-magnetic appliances is poor.
 Magnetic twin blocks cannot be reactivated by addition of
acrylic to the inclined planes as this deactivates the
magnets.
 Screws may be needed on the bite blocks for progressive
activation of magnetic twin blocks.

142

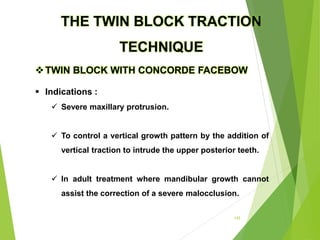

TWIN BLOCK WITH CONCORDE FACEBOW
 Indications :
 Severe maxillary protrusion.
 To control a vertical growth pattern by the addition of
vertical traction to intrude the upper posterior teeth.
 In adult treatment where mandibular growth cannot
assist the correction of a severe malocclusion.
THE TWIN BLOCK TRACTION
TECHNIQUE

143

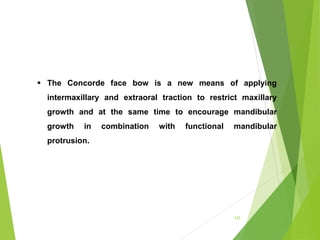

 The Concorde face bow is a new means of applying
intermaxillary and extraoral traction to restrict maxillary
growth and at the same time to encourage mandibular
growth in combination with functional mandibular
protrusion.

144

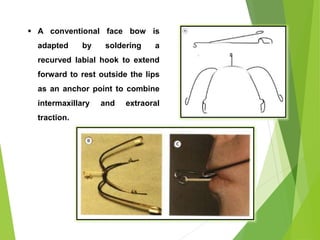

 A conventional face bow is
adapted by soldering a
recurved labial hook to extend
forward to rest outside the lips
as an anchor point to combine
intermaxillary and extraoral
traction.

145

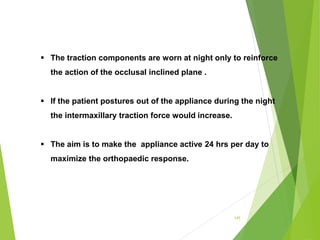

 The traction components are worn at night only to reinforce
the action of the occlusal inclined plane .
 If the patient postures out of the appliance during the night
the intermaxillary traction force would increase.
 The aim is to make the appliance active 24 hrs per day to
maximize the orthopaedic response.

146

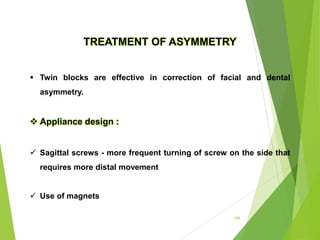

TREATMENT OF ASYMMETRY
 Twin blocks are effective in correction of facial and dental
asymmetry.
 Appliance design :
 Sagittal screws - more frequent turning of screw on the side that
requires more distal movement
 Use of magnets

147

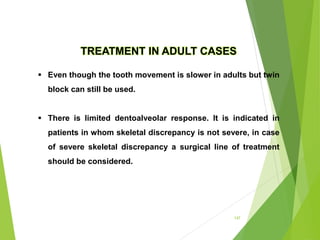

TREATMENT IN ADULT CASES
 Even though the tooth movement is slower in adults but twin
block can still be used.
 There is limited dentoalveolar response. It is indicated in
patients in whom skeletal discrepancy is not severe, in case
of severe skeletal discrepancy a surgical line of treatment
should be considered.

148

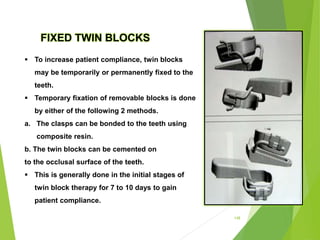

FIXED TWIN BLOCKS
 To increase patient compliance, twin blocks
may be temporarily or permanently fixed to the
teeth.
 Temporary fixation of removable blocks is done
by either of the following 2 methods.
a. The clasps can be bonded to the teeth using
composite resin.
b. The twin blocks can be cemented on
to the occlusal surface of the teeth.
 This is generally done in the initial stages of
twin block therapy for 7 to 10 days to gain
patient compliance.

149

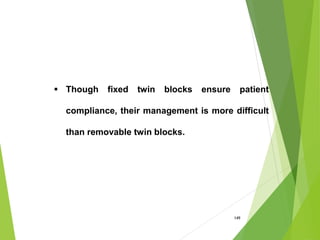

 Though fixed twin blocks ensure patient
compliance, their management is more difficult
than removable twin blocks.

150

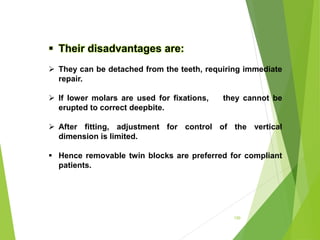

 Their disadvantages are:
 They can be detached from the teeth, requiring immediate
repair.
 If lower molars are used for fixations, they cannot be
erupted to correct deepbite.
 After fitting, adjustment for control of the vertical
dimension is limited.
 Hence removable twin blocks are preferred for compliant
patients.

151

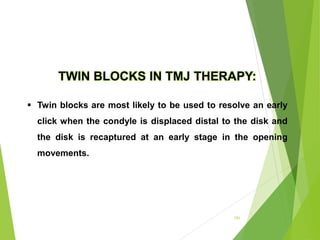

TWIN BLOCKS IN TMJ THERAPY:
 Twin blocks are most likely to be used to resolve an early
click when the condyle is displaced distal to the disk and
the disk is recaptured at an early stage in the opening
movements.

152

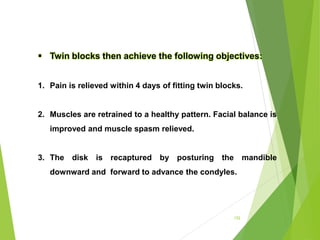

 Twin blocks then achieve the following objectives:
1. Pain is relieved within 4 days of fitting twin blocks.
2. Muscles are retrained to a healthy pattern. Facial balance is
improved and muscle spasm relieved.
3. The disk is recaptured by posturing the mandible
downward and forward to advance the condyles.

153

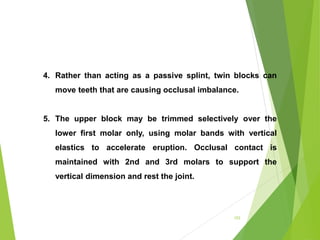

4. Rather than acting as a passive splint, twin blocks can
move teeth that are causing occlusal imbalance.
5. The upper block may be trimmed selectively over the
lower first molar only, using molar bands with vertical
elastics to accelerate eruption. Occlusal contact is
maintained with 2nd and 3rd molars to support the
vertical dimension and rest the joint.

154

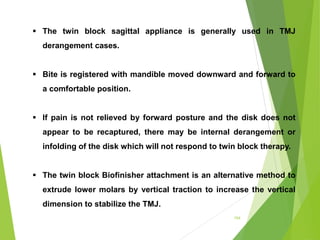

 The twin block sagittal appliance is generally used in TMJ
derangement cases.
 Bite is registered with mandible moved downward and forward to
a comfortable position.
 If pain is not relieved by forward posture and the disk does not
appear to be recaptured, there may be internal derangement or
infolding of the disk which will not respond to twin block therapy.
 The twin block Biofinisher attachment is an alternative method to
extrude lower molars by vertical traction to increase the vertical
dimension to stabilize the TMJ.

155

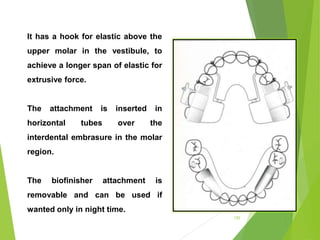

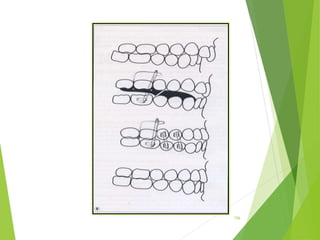

It has a hook for elastic above the
upper molar in the vestibule, to
achieve a longer span of elastic for
extrusive force.
The attachment is inserted in
horizontal tubes over the
interdental embrasure in the molar
region.
The biofinisher attachment is
removable and can be used if
wanted only in night time.

157

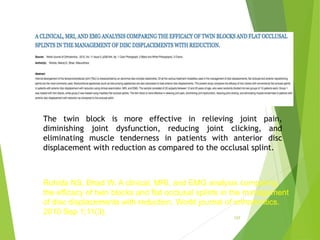

The twin block is more effective in relieving joint pain,
diminishing joint dysfunction, reducing joint clicking, and
eliminating muscle tenderness in patients with anterior disc
displacement with reduction as compared to the occlusal splint.
Rohida NS, Bhad W. A clinical, MRI, and EMG analysis comparing
the efficacy of twin blocks and flat occlusal splints in the management
of disc displacements with reduction. World journal of orthodontics.
2010 Sep 1;11(3).

158
ADVANTAGES OF TWIN BLOCK COMPARED TO
OTHER FUNCTIONAL APPLIANCES
 Comfort of the patient
 Aesthetics
 Function
 Patient compliance
 Facial appearance
 Speech
 Clinical management
 Arch development
 Mandibular repositioning
 Facial asymmetry
 Vertical control
 Safety
 Efficiency
 Age of treatment
 Integration with fixed appliances
 Treatment of TMJ dysfunctions

164

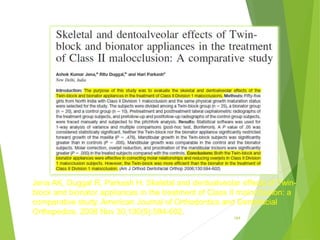

Jena AK, Duggal R, Parkash H. Skeletal and dentoalveolar effects of Twin-
block and bionator appliances in the treatment of Class II malocclusion: a
comparative study. American Journal of Orthodontics and Dentofacial
Orthopedics. 2006 Nov 30;130(5):594-602.

165

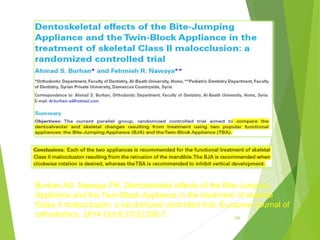

Burhan AS, Nawaya FR. Dentoskeletal effects of the Bite-Jumping
Appliance and the Twin-Block Appliance in the treatment of skeletal
Class II malocclusion: a randomized controlled trial. European journal of
orthodontics. 2014 Oct 8;37(3):330-7.

166

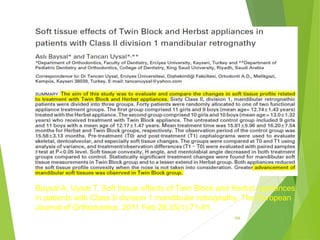

Baysal A, Uysal T. Soft tissue effects of Twin Block and Herbst appliances
in patients with Class II division 1 mandibular retrognathy. The European
Journal of Orthodontics. 2011 Feb 28;35(1):71-81.

167

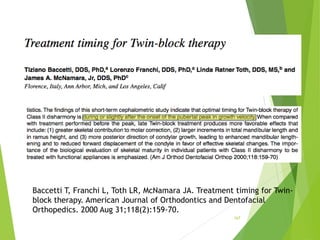

Baccetti T, Franchi L, Toth LR, McNamara JA. Treatment timing for Twin-
block therapy. American Journal of Orthodontics and Dentofacial
Orthopedics. 2000 Aug 31;118(2):159-70.

168

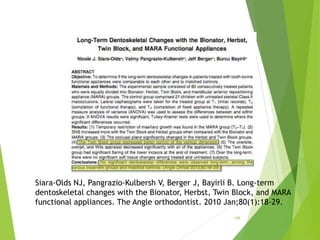

Siara-Olds NJ, Pangrazio-Kulbersh V, Berger J, Bayirli B. Long-term
dentoskeletal changes with the Bionator, Herbst, Twin Block, and MARA
functional appliances. The Angle orthodontist. 2010 Jan;80(1):18-29.

169
 In the pursuit of ideals in Orthodontics, facial balance and harmony are
of equal importance to ideal and occlusal perfection.
 Twin blocks are extremely patient and operator friendly functional
appliances. They have the gift of versatility of design, which allows
their use in a variety of clinical situations to effectively correct different
types of malocclusions.
CONCLUSION

Twin block appliance.

More Related Content

What's hot

Similar to Twin block appliance.

Recently uploaded

Twin block appliance.

Editor's Notes
