LOOPS
CONTENTS
• Introduction
• History
• Orthodontic Forces
• Force Control
• Wire-Clinical Consideration
• Loop activation for force control
• Loop Design
• Bauschinger Effect
• Classification Of Loops
• Vertical Loops
• Horizontal Loops
• Transverse Loops
• Anchorage consideration
• conclusion
INTRODUCTION
• Optimum control of tooth movement requires
the application of a specific orthodontic force
system.
• So we need to have a clear idea about the
mechanics of the orthodontic appliances to
achieve a predictable and desirable result.

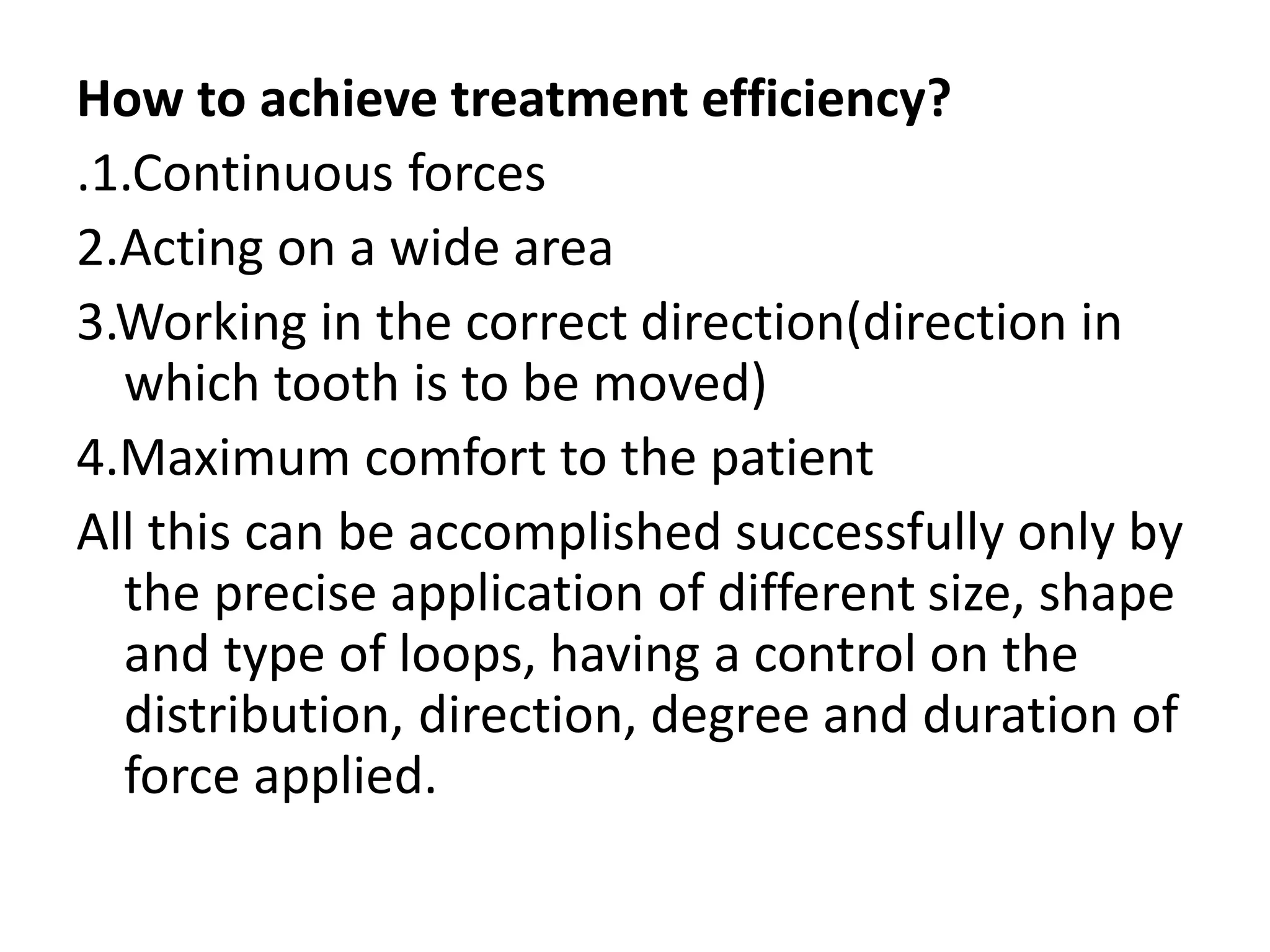

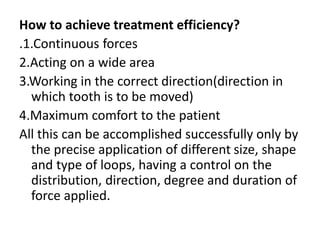

How to achieve treatment efficiency?
.1.Continuous forces
2.Acting on a wide area
3.Working in the correct direction(direction in
which tooth is to be moved)
4.Maximum comfort to the patient
All this can be accomplished successfully only by
the precise application of different size, shape
and type of loops, having a control on the
distribution, direction, degree and duration of
force applied.
HISTORY
The principles and uses of vertical loops was first described
by RAY ROBINSON in 1915 who was an early advocate of
light wires and light continuous forces by means of loops.
He summarized that except the force of gravity, there is
probably no force so constant in its operation as that of a
coil spring as even as the pressure of the atmosphere
varies with temperature change.
STRANG was the first to introduce loops into this edgewise
technique.
BEGG IN 1956 explained the advantages of different loop
configuration in arch wire design and activation.

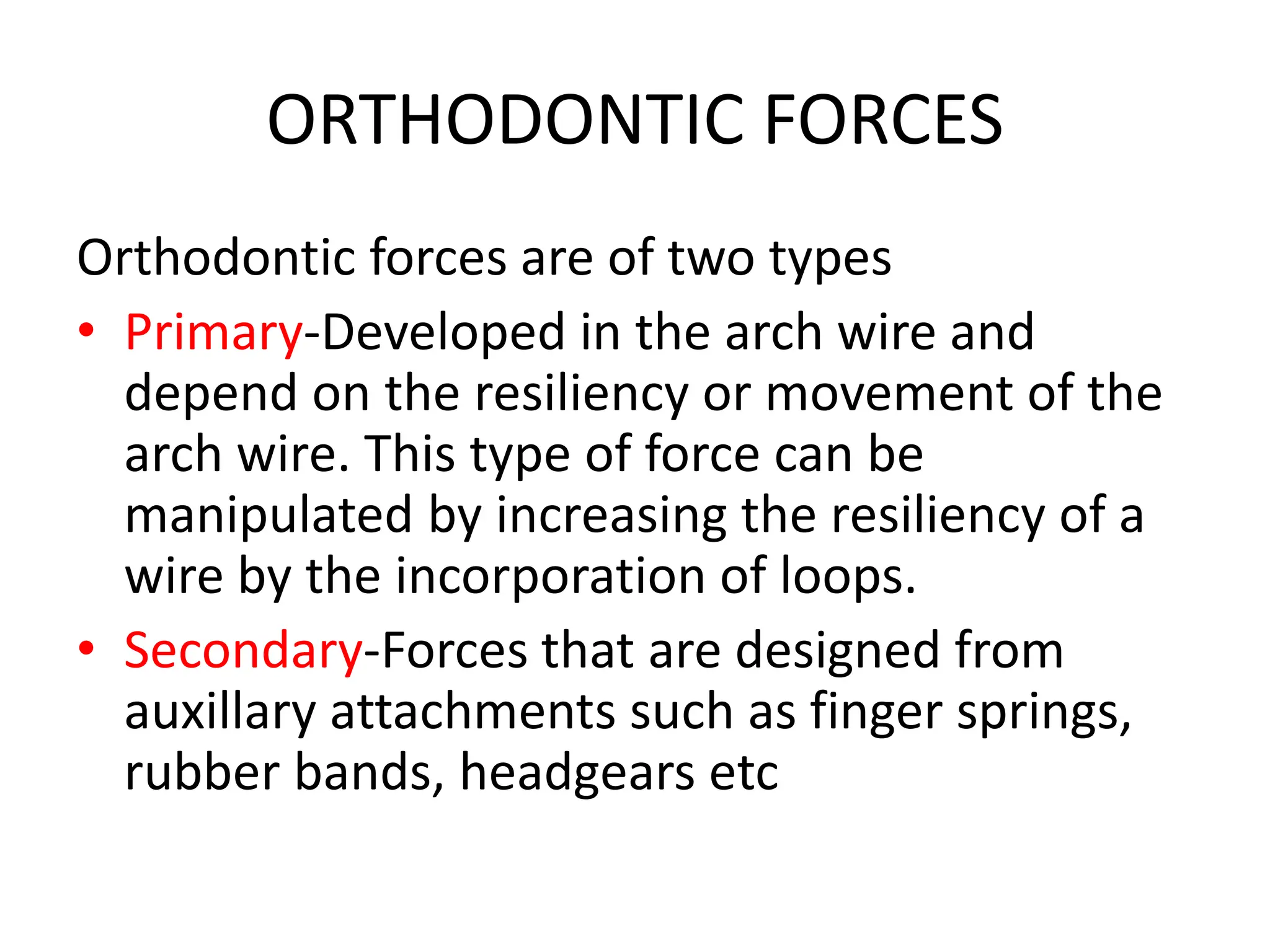

ORTHODONTIC FORCES
Orthodontic forces are of two types
• Primary-Developed in the arch wire and
depend on the resiliency or movement of the
arch wire. This type of force can be
manipulated by increasing the resiliency of a
wire by the incorporation of loops.
• Secondary-Forces that are designed from
auxillary attachments such as finger springs,
rubber bands, headgears etc

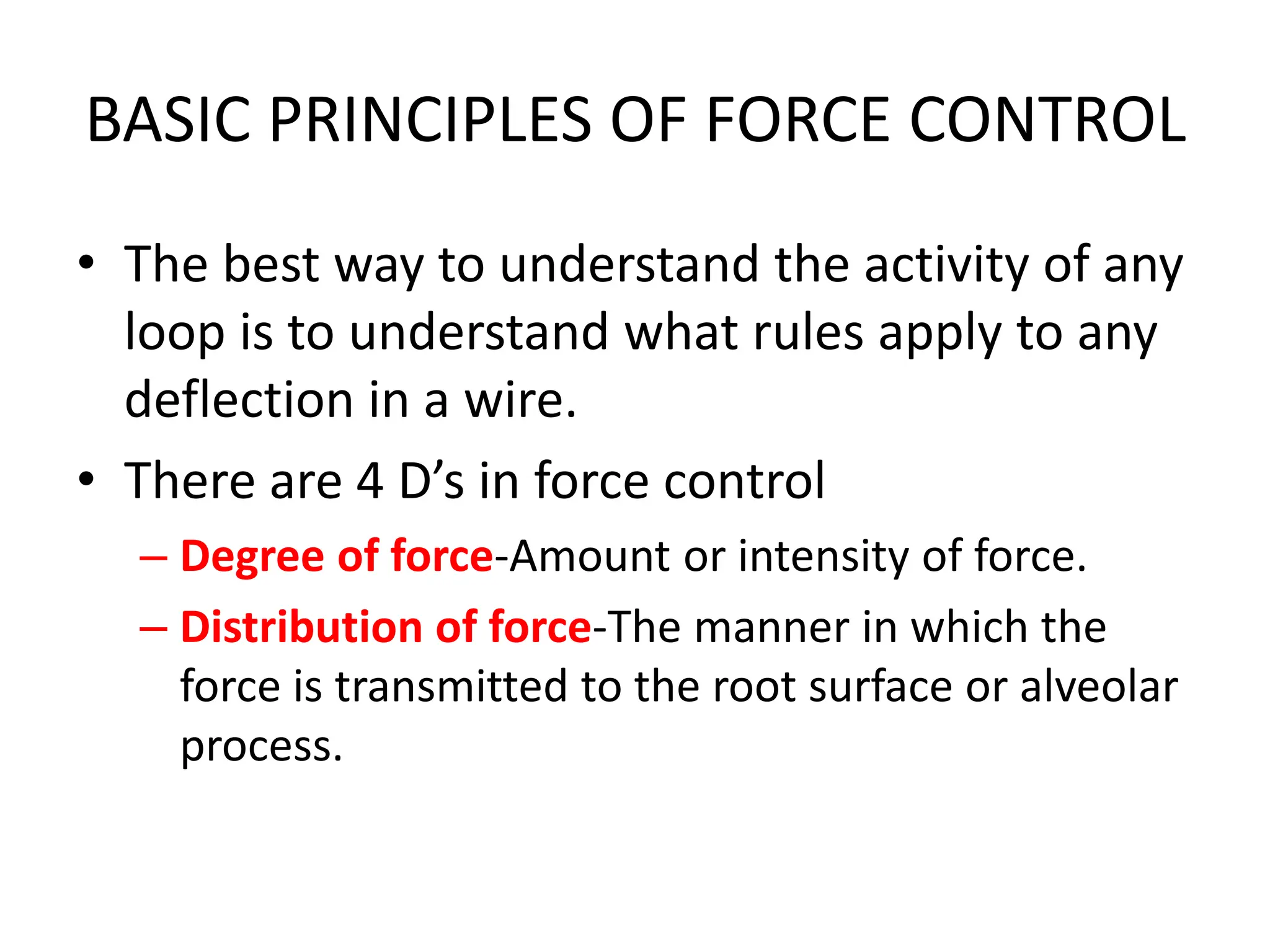

BASIC PRINCIPLES OF FORCE CONTROL
• The best way to understand the activity of any
loop is to understand what rules apply to any
deflection in a wire.
• There are 4 D’s in force control
– Degree of force-Amount or intensity of force.
– Distribution of force-The manner in which the
force is transmitted to the root surface or alveolar
process.

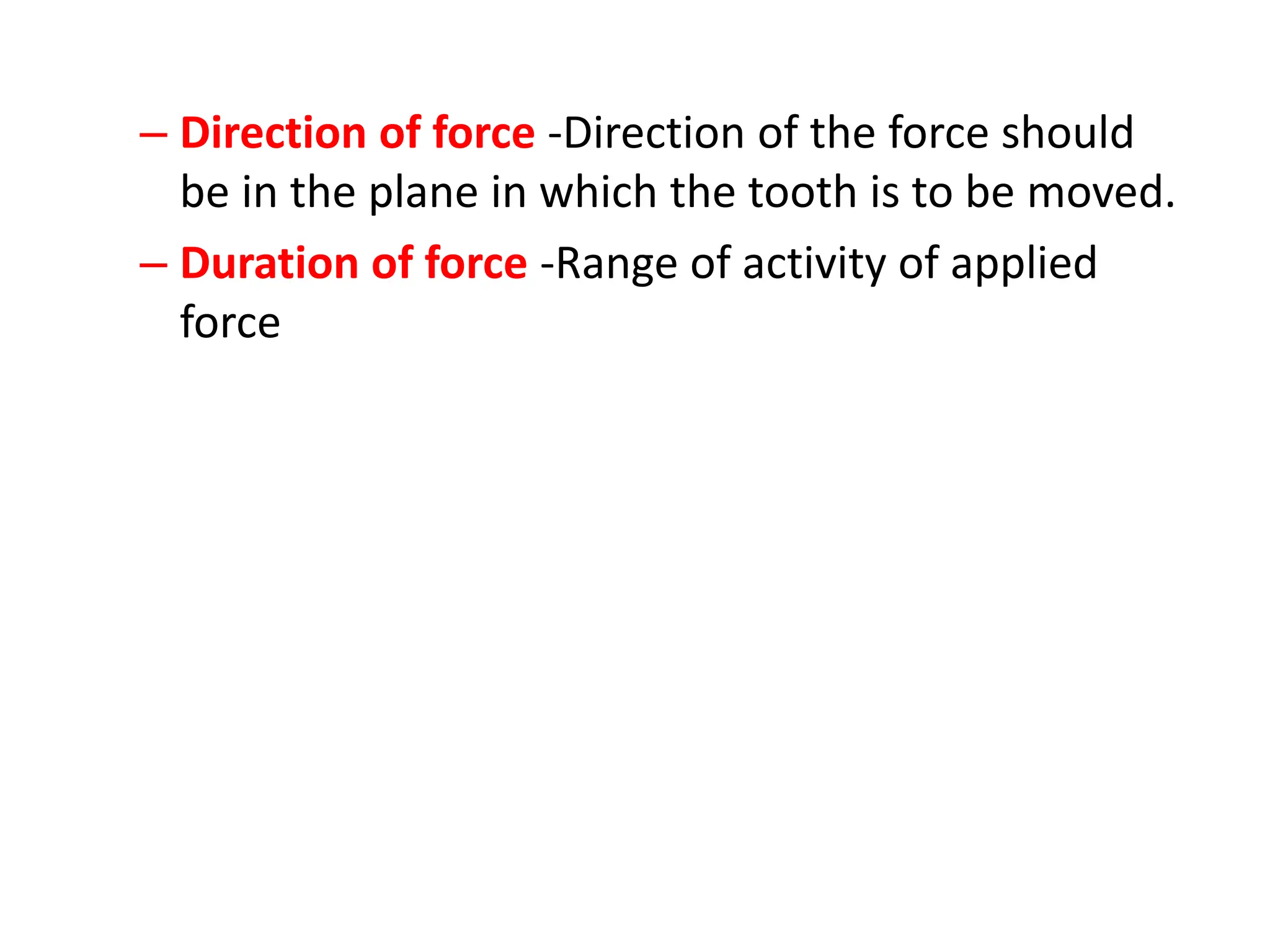

– Direction of force -Direction of the force should
be in the plane in which the tooth is to be moved.
– Duration of force -Range of activity of applied
force
CLINICAL CONSIDERATION

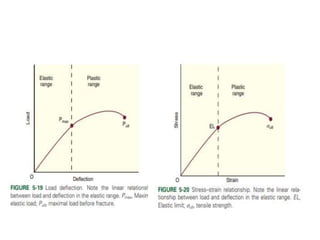

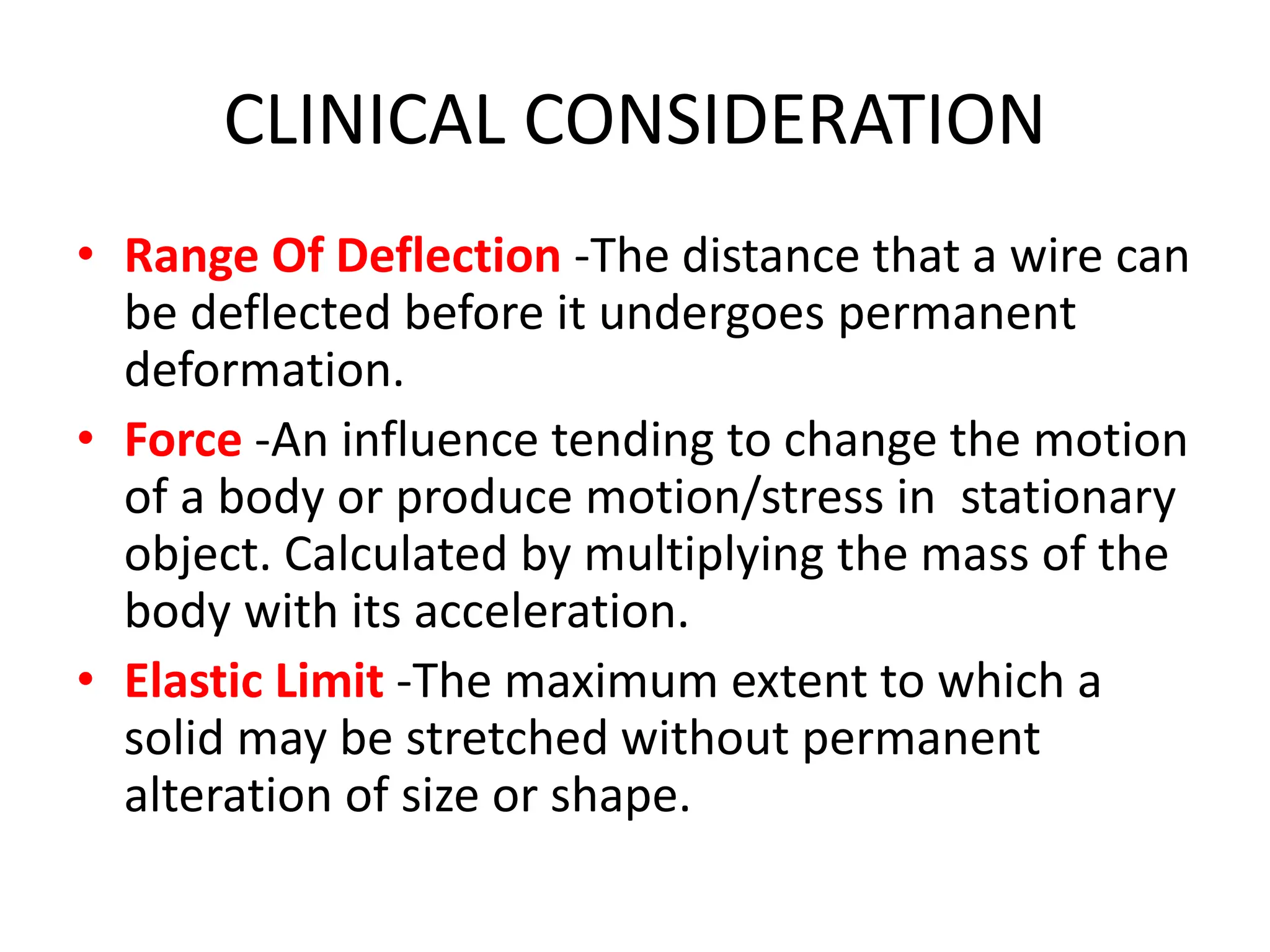

• Range Of Deflection -The distance that a wire can
be deflected before it undergoes permanent
deformation.
• Force -An influence tending to change the motion
of a body or produce motion/stress in stationary
object. Calculated by multiplying the mass of the
body with its acceleration.
• Elastic Limit -The maximum extent to which a
solid may be stretched without permanent
alteration of size or shape.
LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop

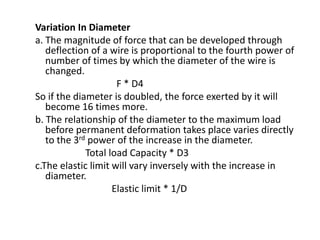

Variation In Diameter
a. The magnitude of force that can be developed through
deflection of a wire is proportional to the fourth power of
number of times by which the diameter of the wire is
changed.
F * D4
So if the diameter is doubled, the force exerted by it will
become 16 times more.
b. The relationship of the diameter to the maximum load
before permanent deformation takes place varies directly
to the 3rd power of the increase in the diameter.
Total load Capacity * D3
c.The elastic limit will vary inversely with the increase in
diameter.
Elastic limit * 1/D
Variation In Length
• Magnitude of force value per unit of deflection
will decrease in proportion to the cube of the
difference in length.
F * 1/L3
• The force that can be developed, decreases 1/8th
when the length of the wire is doubled.
• Increase in length will proportionally decrease
the maximum load.
• Twice the length allows half the maximum load.
• Elastic limit increases proportionally according to
the square of difference in length.
• Elastic limit * L2

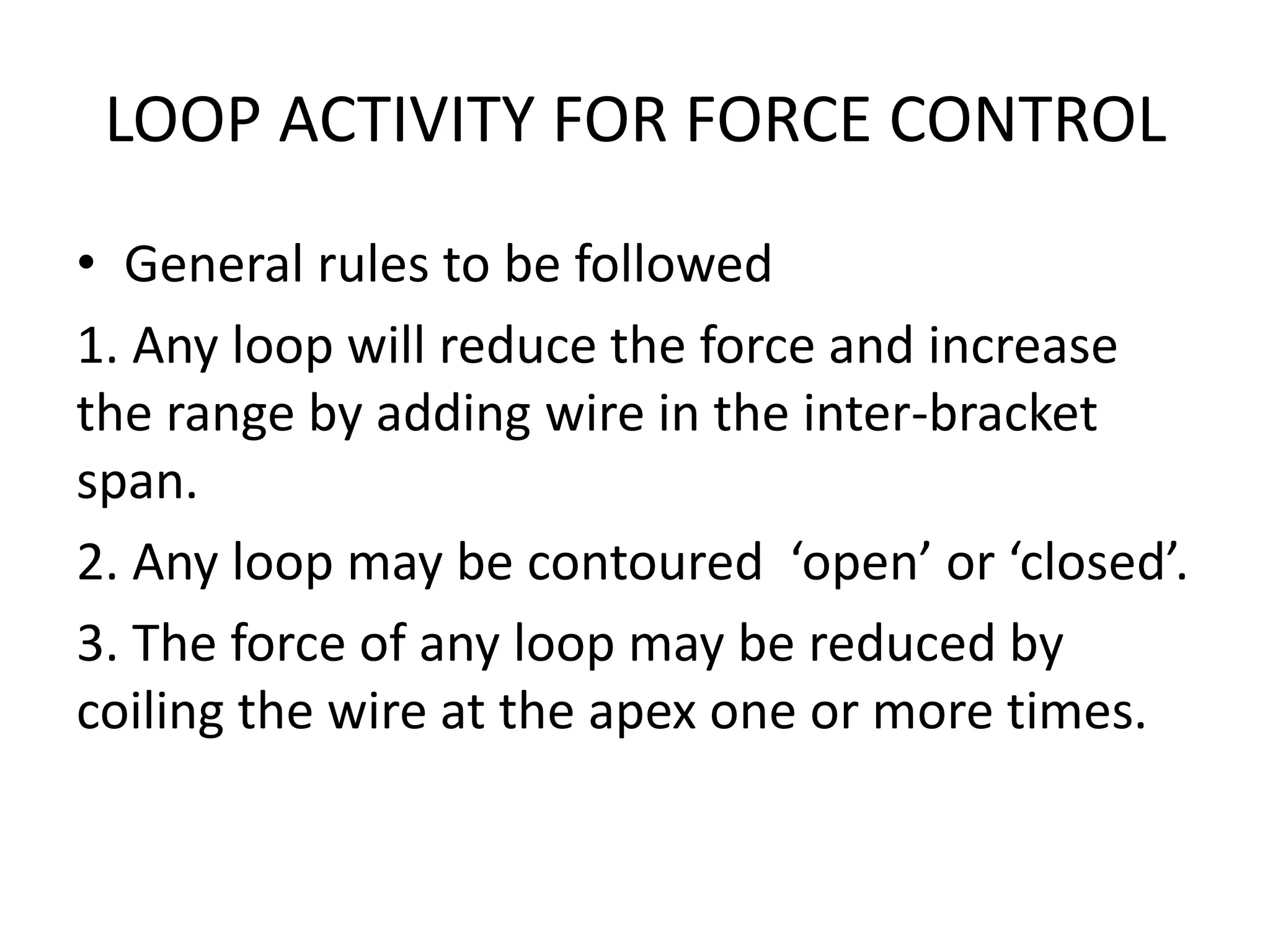

LOOP ACTIVITY FOR FORCE CONTROL
• General rules to be followed
1. Any loop will reduce the force and increase
the range by adding wire in the inter-bracket
span.
2. Any loop may be contoured ‘open’ or ‘closed’.
3. The force of any loop may be reduced by
coiling the wire at the apex one or more times.

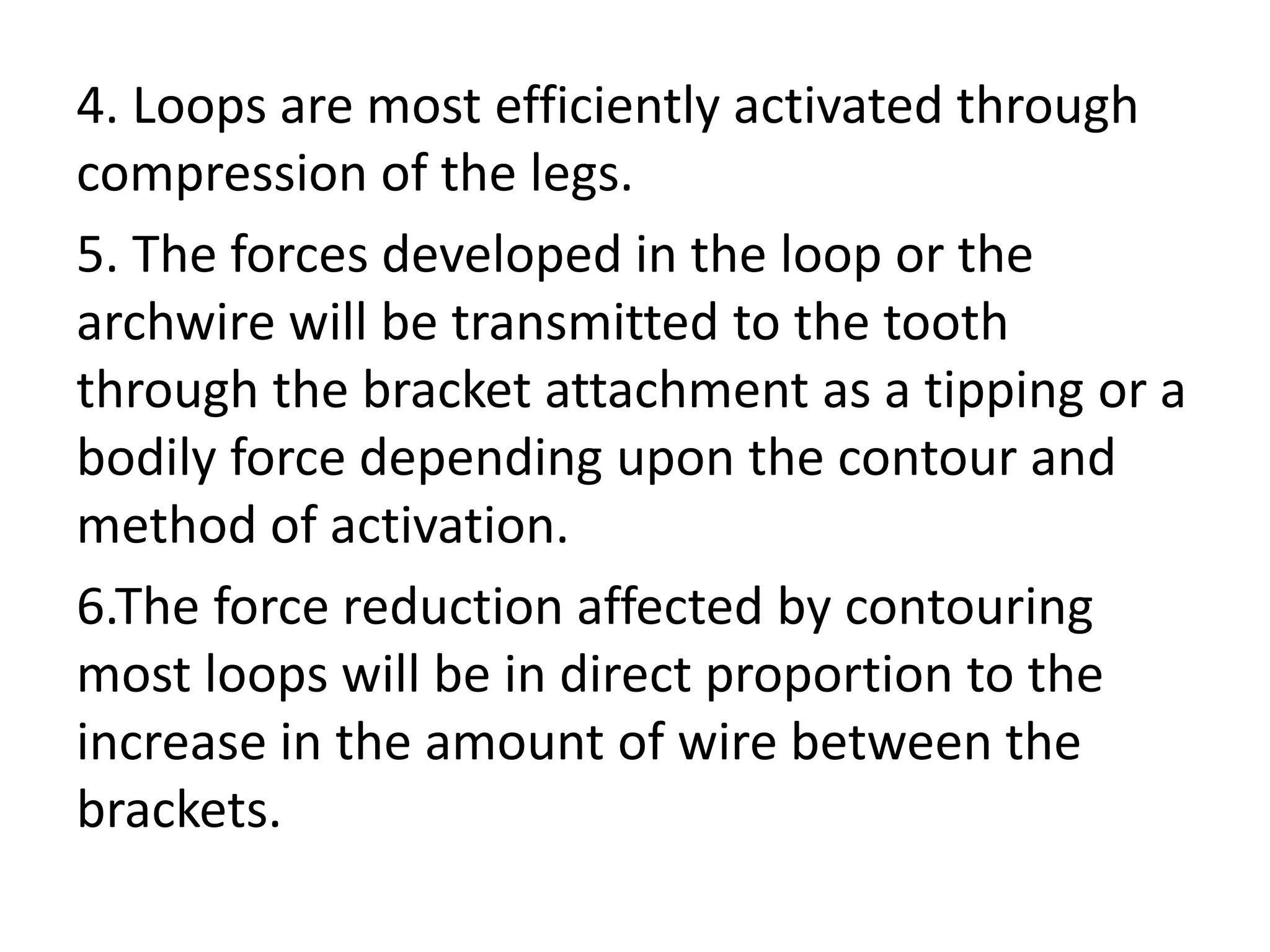

4. Loops are most efficiently activated through
compression of the legs.
5. The forces developed in the loop or the
archwire will be transmitted to the tooth
through the bracket attachment as a tipping or a
bodily force depending upon the contour and
method of activation.
6.The force reduction affected by contouring
most loops will be in direct proportion to the
increase in the amount of wire between the
brackets.

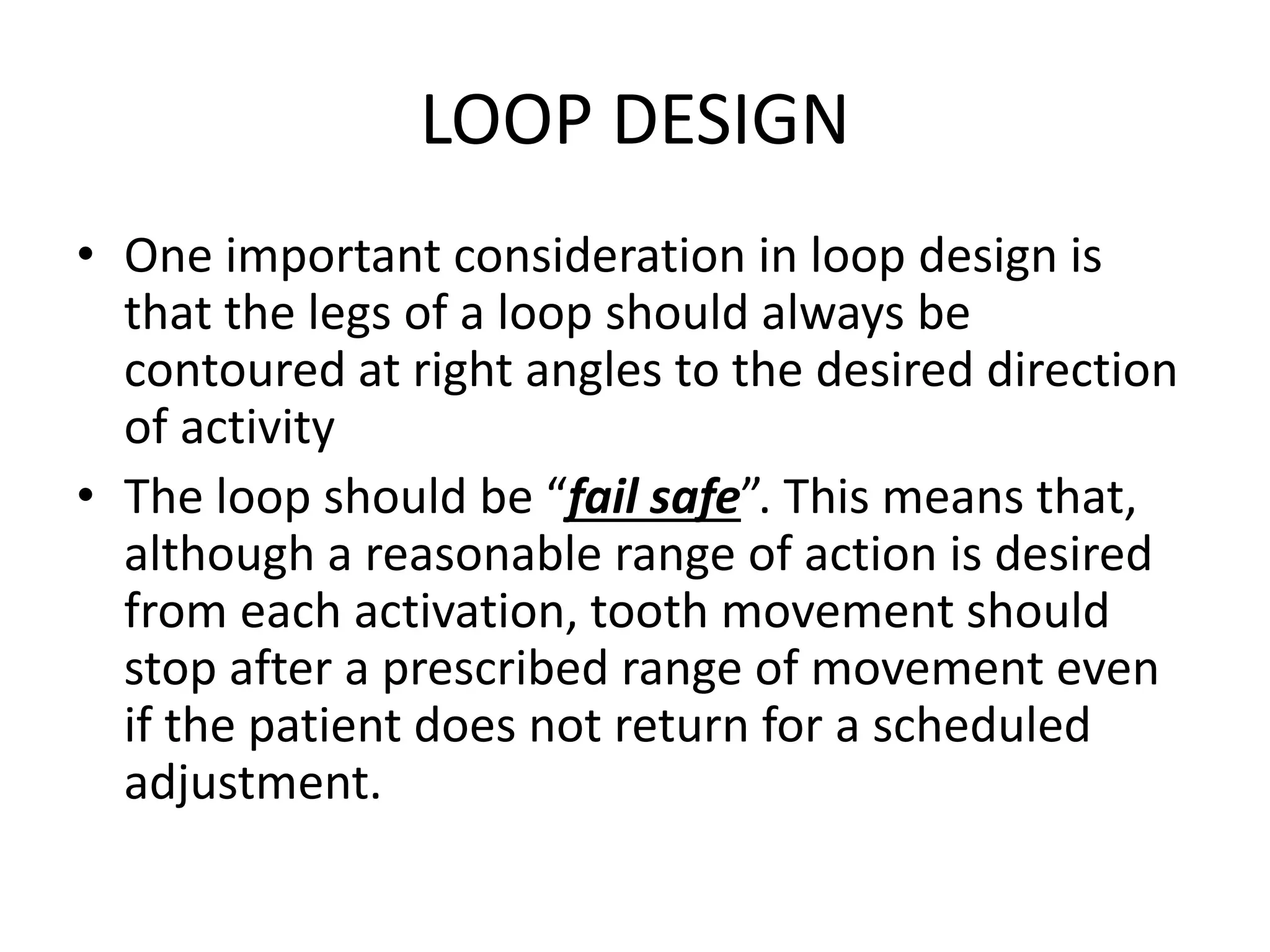

LOOP DESIGN
• One important consideration in loop design is
that the legs of a loop should always be
contoured at right angles to the desired direction
of activity
• The loop should be “fail safe”. This means that,
although a reasonable range of action is desired
from each activation, tooth movement should
stop after a prescribed range of movement even
if the patient does not return for a scheduled
adjustment.

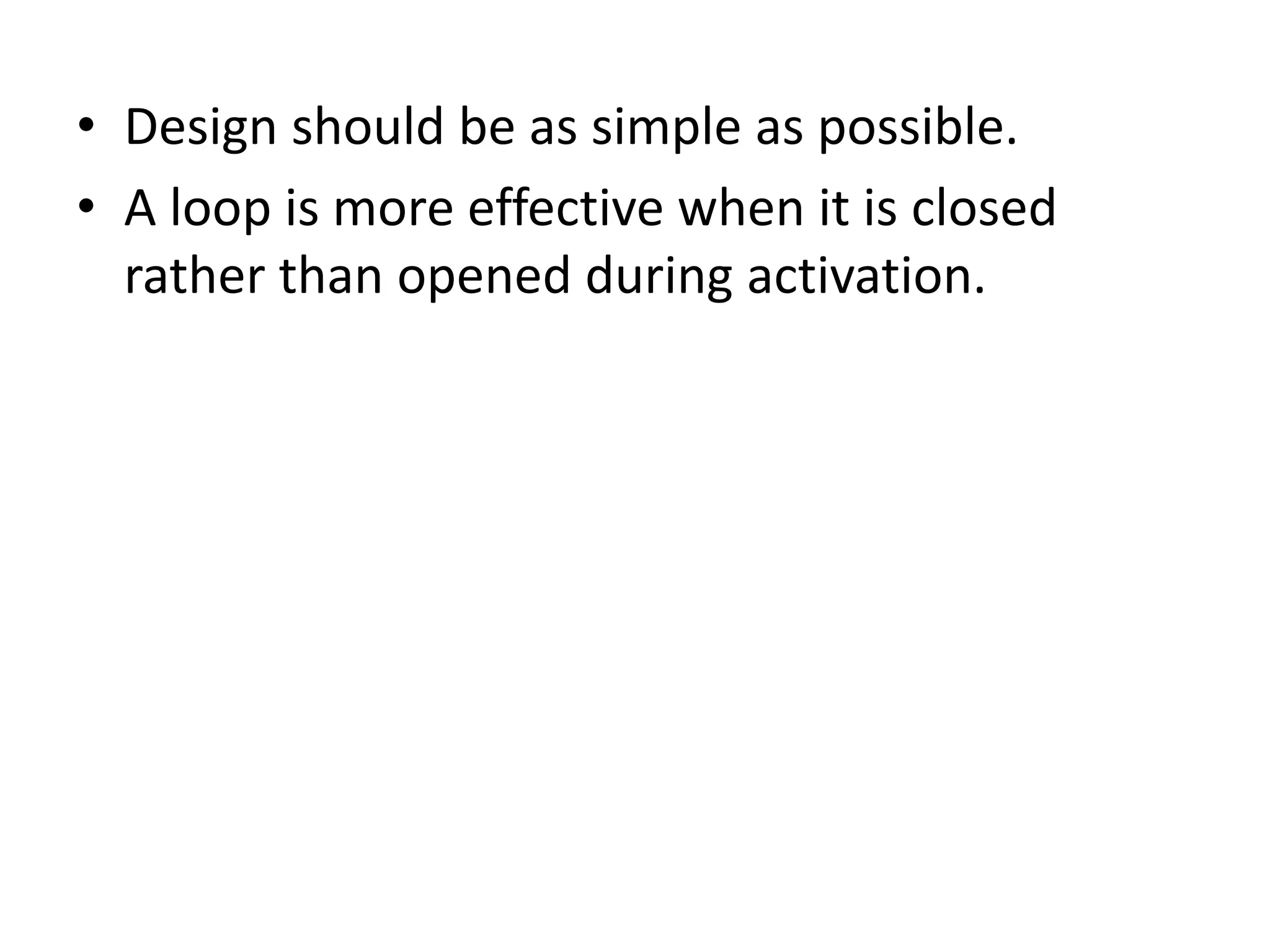

• Design should be as simple as possible.
• A loop is more effective when it is closed
rather than opened during activation.

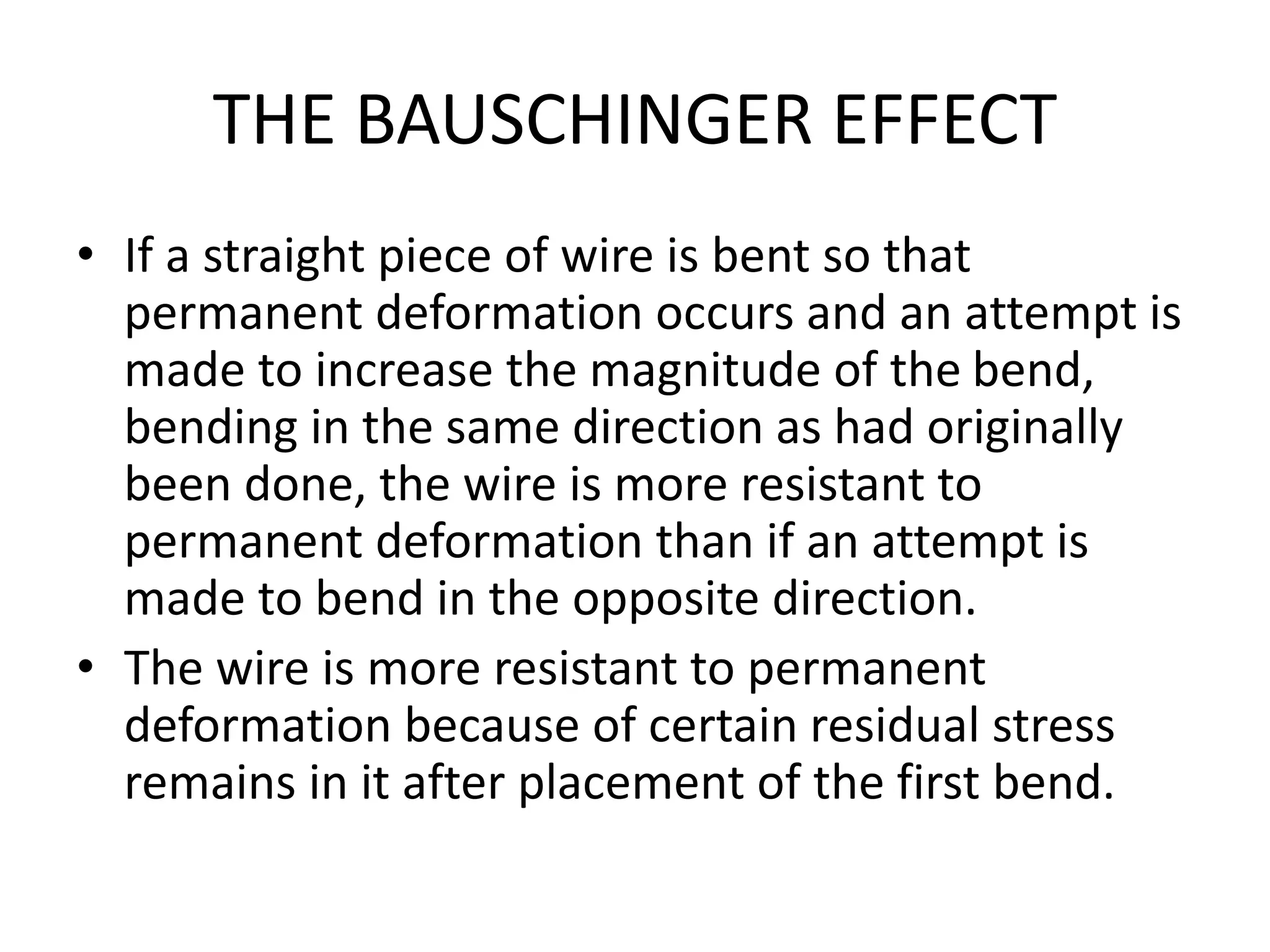

THE BAUSCHINGER EFFECT
• If a straight piece of wire is bent so that
permanent deformation occurs and an attempt is
made to increase the magnitude of the bend,
bending in the same direction as had originally
been done, the wire is more resistant to
permanent deformation than if an attempt is
made to bend in the opposite direction.
• The wire is more resistant to permanent
deformation because of certain residual stress
remains in it after placement of the first bend.

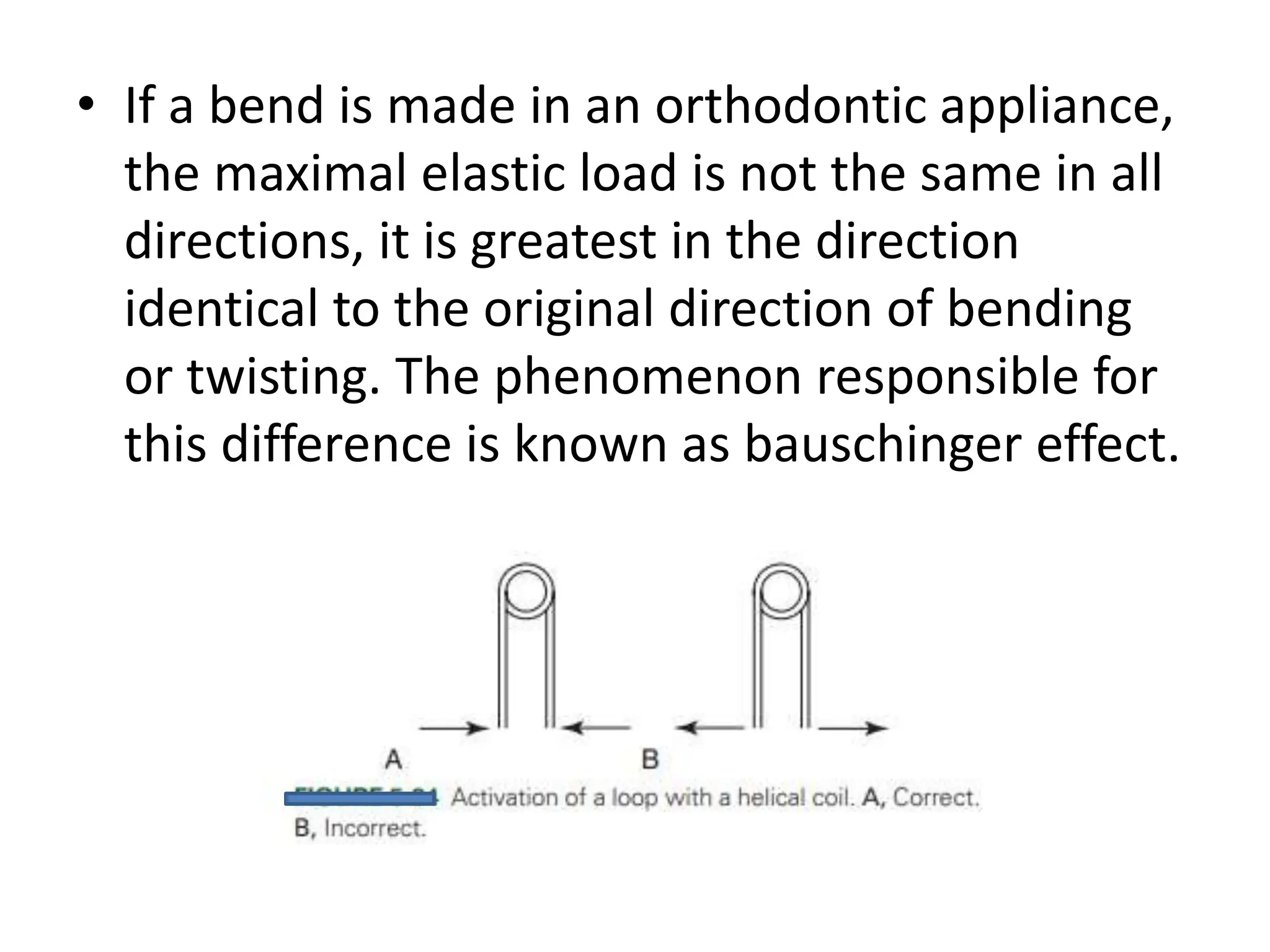

• If a bend is made in an orthodontic appliance,
the maximal elastic load is not the same in all
directions, it is greatest in the direction
identical to the original direction of bending
or twisting. The phenomenon responsible for
this difference is known as bauschinger effect.
LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop
CLASSIFICATION OF LOOPS
• According to function(jarabak 1963)
• 1. Vertical : Vertical loop is most efficient in
moving the teeth in antero-posterior
direction.
• 2. Horizontal : moves teeth in vt direction
• 3. Transverse : moves teeth most efficiently in
mediolateral direction.
2. Based on purpose of the loop
(a) Leveling and Aligning
(b) Retraction
(c) Multipurpose
3. Based on presence of helix
(a) Loops without helix(e.g. vertical loop)
(b) Loops with helix(e.g. Helical bulbous loop)
4. Based on function
(a) Opening loops
(b) Closing loops
VERTICAL LOOPS
• Used for first order discrepancies(Labio-Lingual or
mesiodistal)
• The vertical loop has two vertical components and
may be activated in any plane perpendicular to these
components.
• Two types-
• 1. Open-
A. Efficient in opening space
B. Used to rotate a tooth
C. Average rate of decrease of force is 60.5gm/mm
• 2. Closed-
A. Primarily used to close space
Average rate of decrease of force is 41.4gm/mm

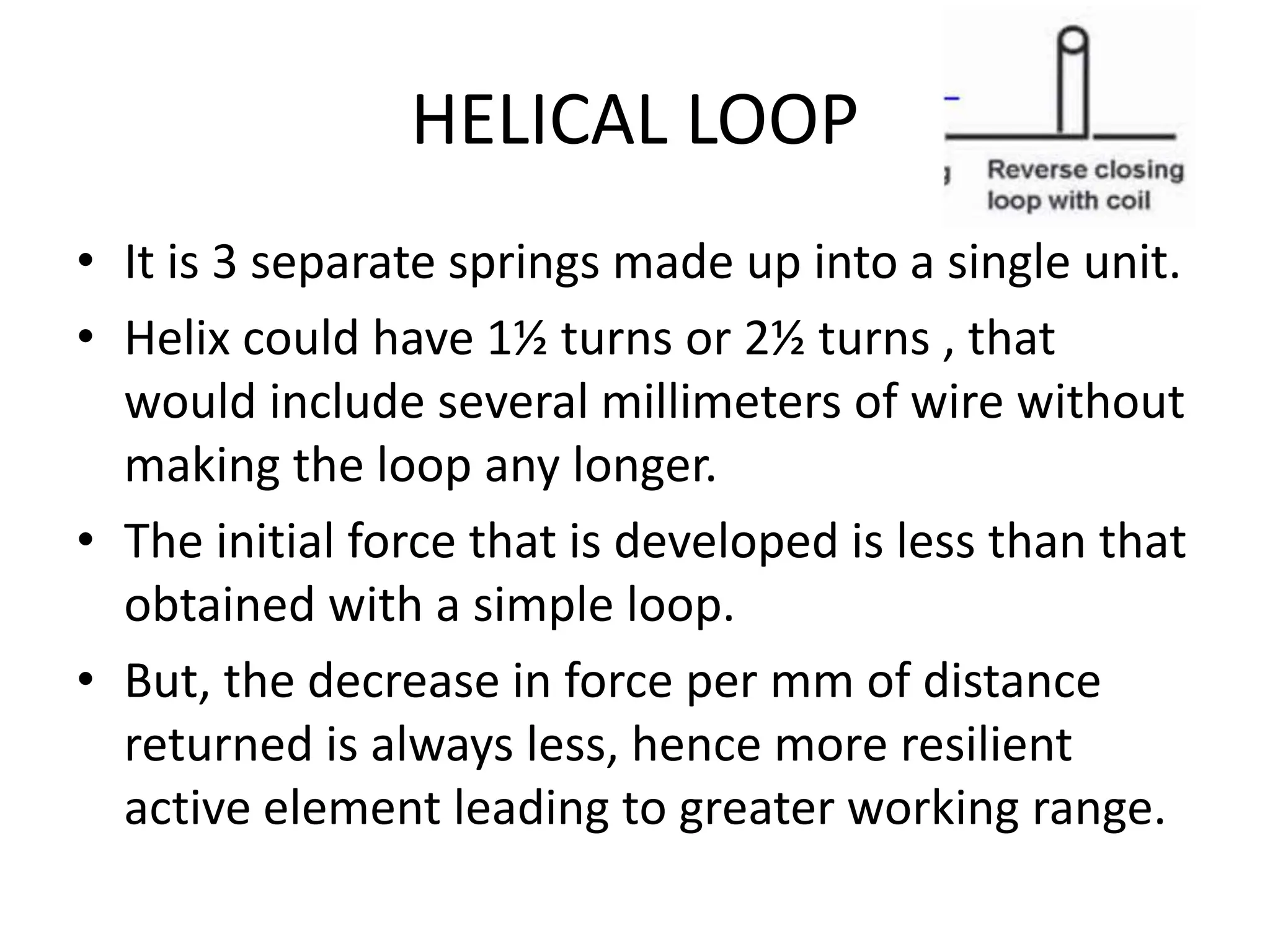

HELICAL LOOP
• It is 3 separate springs made up into a single unit.
• Helix could have 1½ turns or 2½ turns , that
would include several millimeters of wire without
making the loop any longer.
• The initial force that is developed is less than that
obtained with a simple loop.
• But, the decrease in force per mm of distance
returned is always less, hence more resilient
active element leading to greater working range.

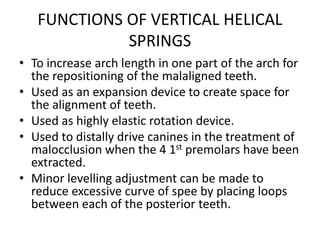

FUNCTIONS OF VERTICAL HELICAL
SPRINGS
• To increase arch length in one part of the arch for
the repositioning of the malaligned teeth.
• Used as an expansion device to create space for
the alignment of teeth.
• Used as highly elastic rotation device.
• Used to distally drive canines in the treatment of
malocclusion when the 4 1st premolars have been
extracted.
• Minor levelling adjustment can be made to
reduce excessive curve of spee by placing loops
between each of the posterior teeth.

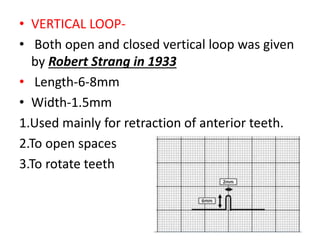

• VERTICAL LOOP-
• Both open and closed vertical loop was given
by Robert Strang in 1933
• Length-6-8mm
• Width-1.5mm
1.Used mainly for retraction of anterior teeth.
2.To open spaces
3.To rotate teeth
• In Beggs mechanotherapy, anterior tooth
alignment is accomplished with archwires
incorporated with vertical loops. The loops
increase the wire span between the teeth and
produce a gentler pressure during movement
• The loops are then activated to produce
overcorrection of rotations, labio-lingual or
mesio-distal movement
• BULL LOOP-
Was given by Harry Bull in 1951
Also known as Squashed Vertical Loop
• USED FOR:
a) Retract the anteriors
b) Closing of spaces
• It is activated by opening the loop
• An advantage of the use of this loop when
used for class II correction in conjunction with
class II elastics is that they do not procline the
mandibular anteriors since the closing loops
restrain this effect
• VERTICAL LOOP WITH HELIX-
Given by Dr Moris Stoner in 1960
Loop incorporated to increase the working range

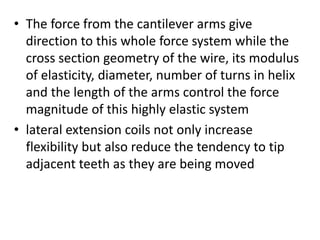

• The force from the cantilever arms give
direction to this whole force system while the
cross section geometry of the wire, its modulus
of elasticity, diameter, number of turns in helix
and the length of the arms control the force
magnitude of this highly elastic system
• lateral extension coils not only increase
flexibility but also reduce the tendency to tip
adjacent teeth as they are being moved
Stop loop
LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop
LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop
LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop
LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop

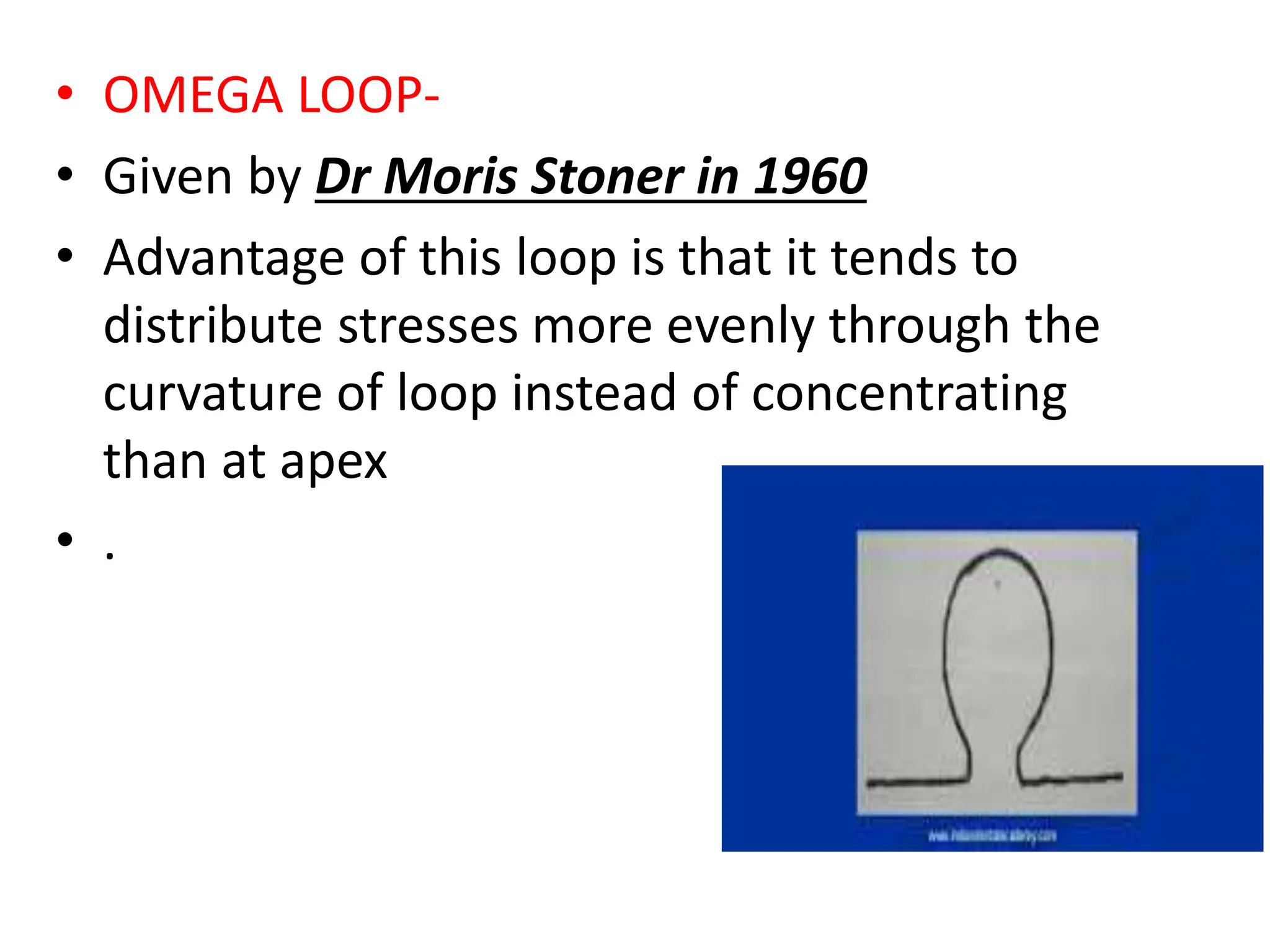

• OMEGA LOOP-
• Given by Dr Moris Stoner in 1960
• Advantage of this loop is that it tends to
distribute stresses more evenly through the
curvature of loop instead of concentrating
than at apex
• .
• Selected to apply moment to last tooth in arch
• It causes bodily movement of root
• This loop can also be used as a stop loop
• TEAR LOOP
• The ideal force applied to achieve movement
of the mandibular incisors

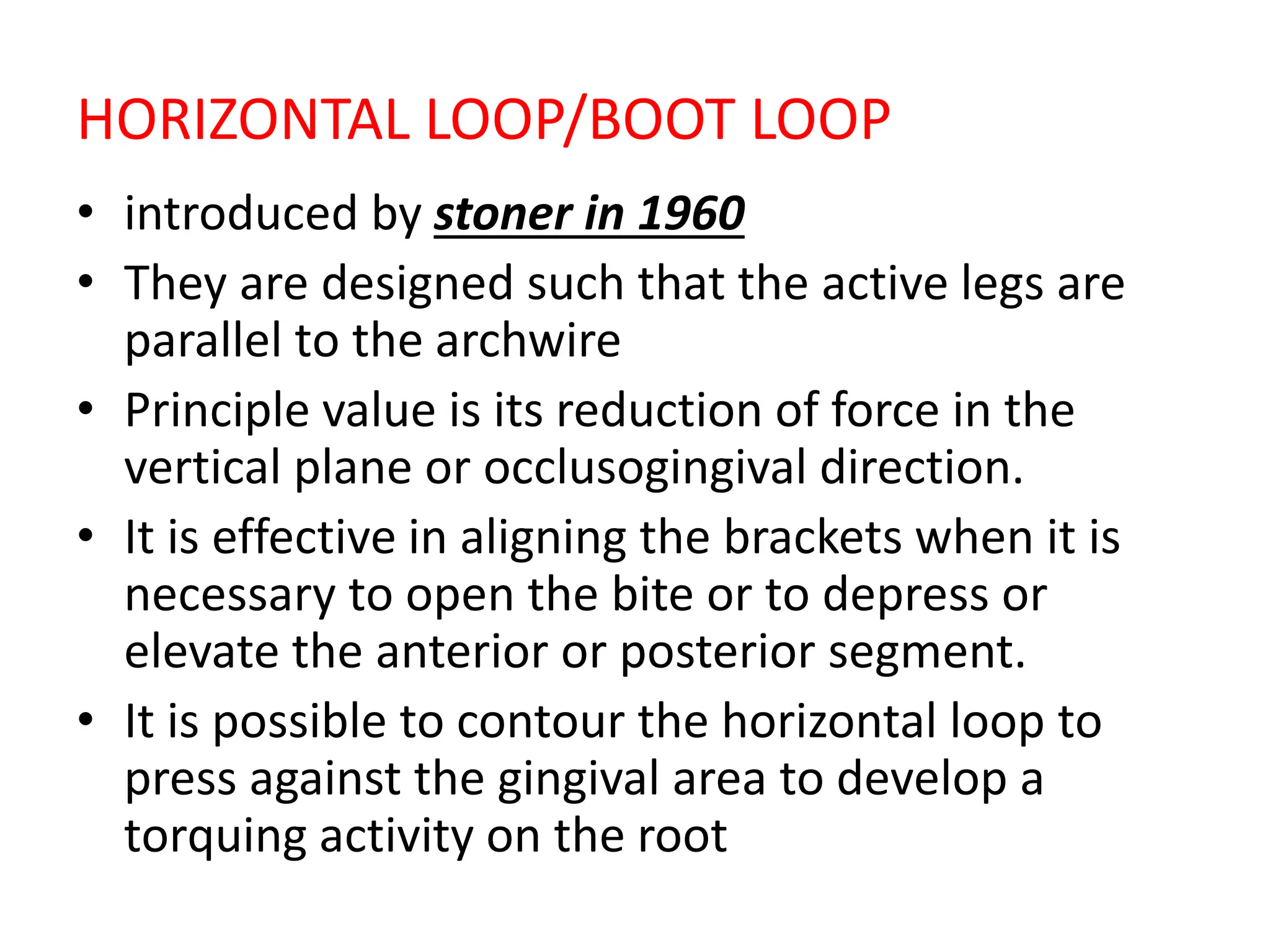

HORIZONTAL LOOP/BOOT LOOP
• introduced by stoner in 1960
• They are designed such that the active legs are
parallel to the archwire
• Principle value is its reduction of force in the
vertical plane or occlusogingival direction.
• It is effective in aligning the brackets when it is
necessary to open the bite or to depress or
elevate the anterior or posterior segment.
• It is possible to contour the horizontal loop to
press against the gingival area to develop a
torquing activity on the root

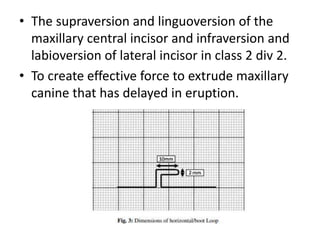

• The supraversion and linguoversion of the
maxillary central incisor and infraversion and
labioversion of lateral incisor in class 2 div 2.
• To create effective force to extrude maxillary
canine that has delayed in eruption.

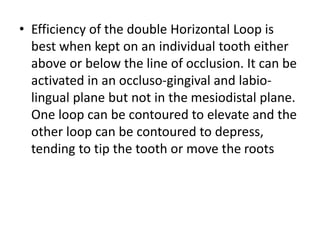

• Efficiency of the double Horizontal Loop is
best when kept on an individual tooth either
above or below the line of occlusion. It can be
activated in an occluso-gingival and labio-
lingual plane but not in the mesiodistal plane.
One loop can be contoured to elevate and the
other loop can be contoured to depress,
tending to tip the tooth or move the roots
• T LOOP-
• Given by Dr Charles J Burstone in 1972
• Can be segmented or unsegmented.
• Helps in closing of spaces.
• Helps in opening of bite.
• When this loop is used with a rectangular wire the
range of torque action is increased,because of the
greater amount of wire in the horizontal plane.So,this
loop eliminates the undesirable occlusal or gingival
deflection of the arch-wire when activated, which may
produce a tipping movement.
• So this loop causes elevation or depression in the true
vertical plane.
Segmented t loop T loop in continuous arch

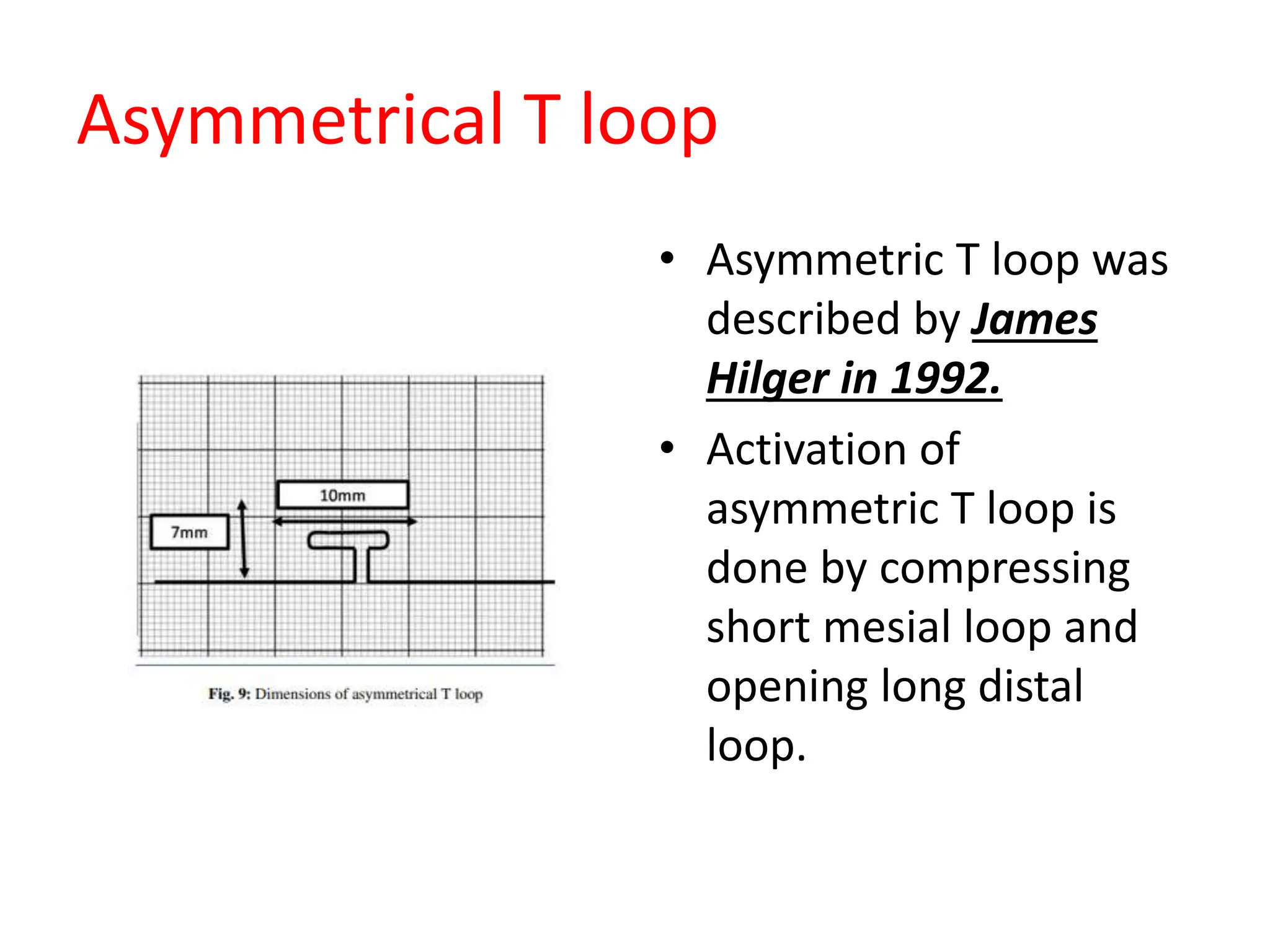

Asymmetrical T loop
• Asymmetric T loop was
described by James
Hilger in 1992.
• Activation of
asymmetric T loop is
done by compressing
short mesial loop and
opening long distal
loop.

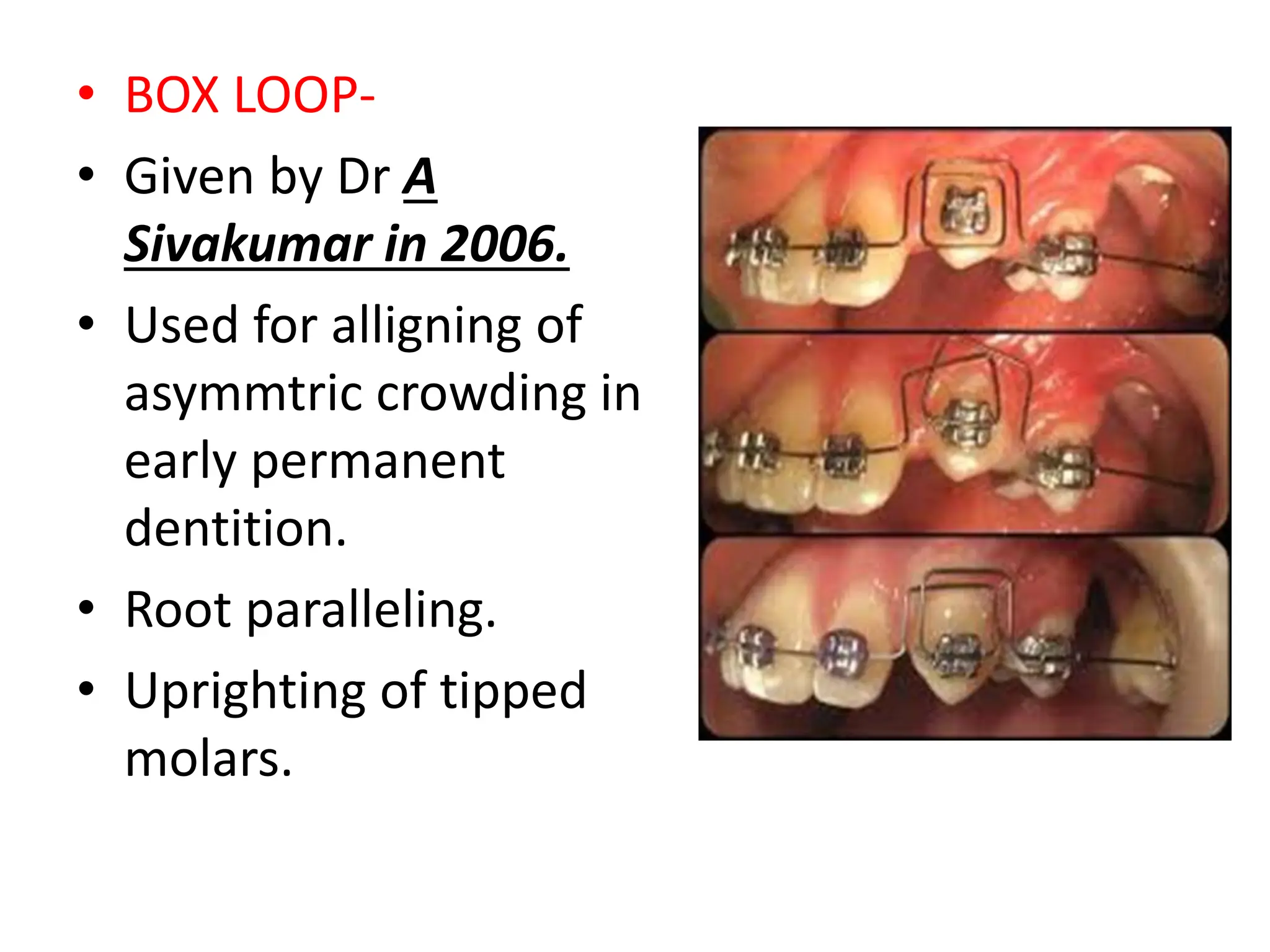

• BOX LOOP-
• Given by Dr A
Sivakumar in 2006.
• Used for alligning of
asymmtric crowding in
early permanent
dentition.
• Root paralleling.
• Uprighting of tipped
molars.

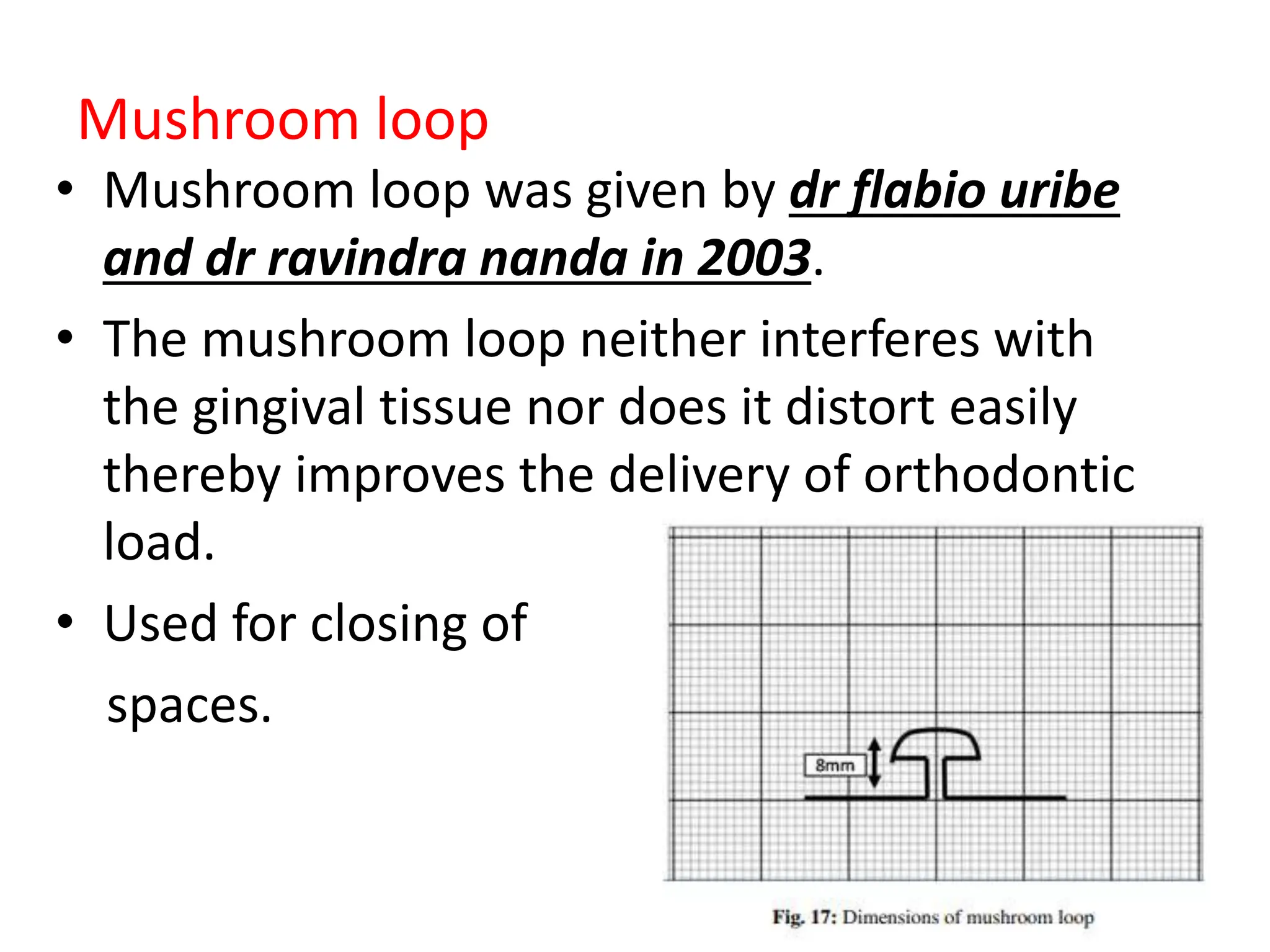

Mushroom loop
• Mushroom loop was given by dr flabio uribe
and dr ravindra nanda in 2003.
• The mushroom loop neither interferes with
the gingival tissue nor does it distort easily
thereby improves the delivery of orthodontic
load.
• Used for closing of
spaces.

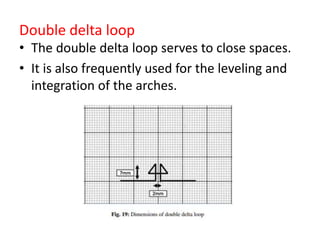

Double delta loop
• The double delta loop serves to close spaces.
• It is also frequently used for the leveling and
integration of the arches.

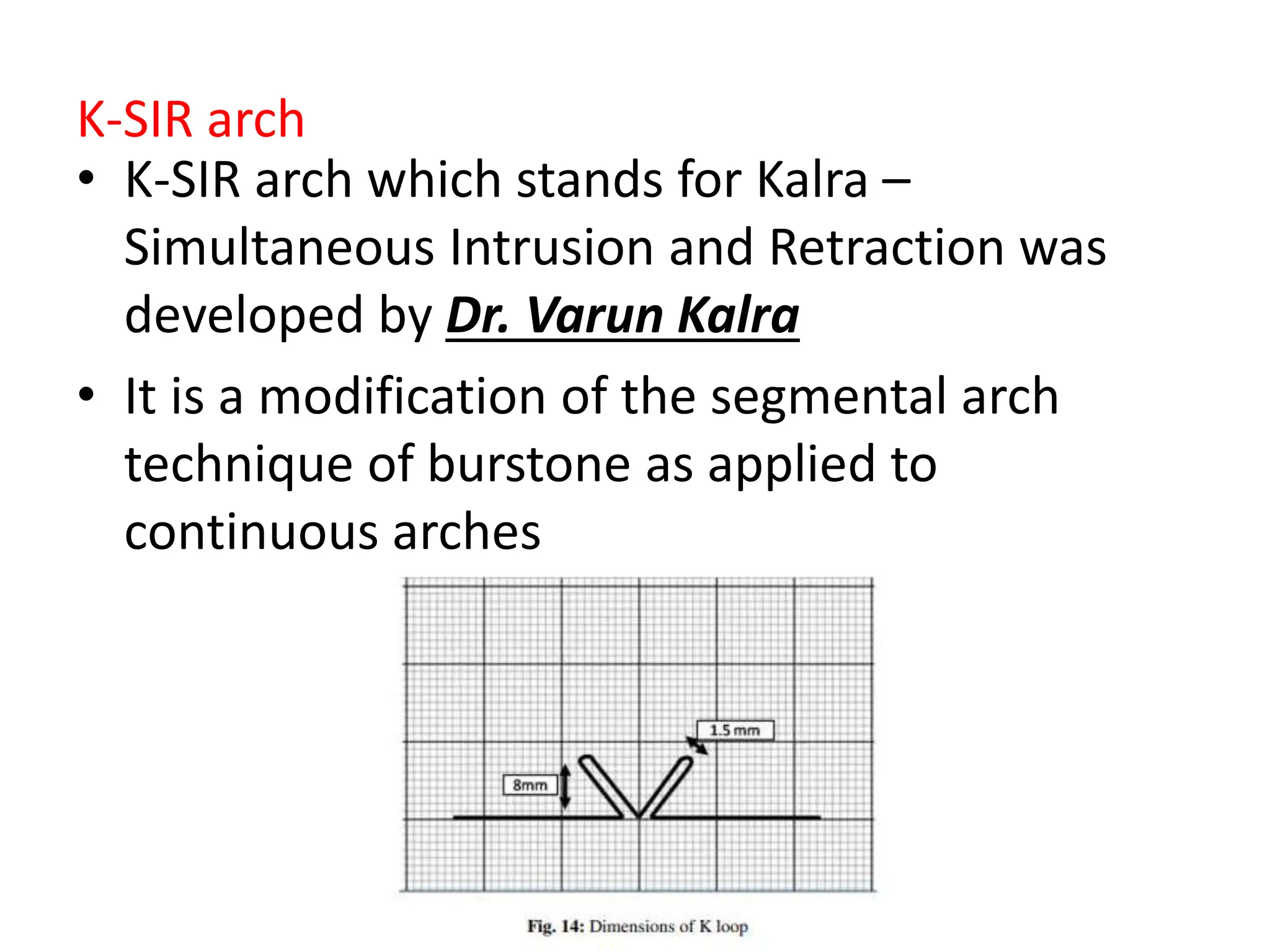

K-SIR arch
• K-SIR arch which stands for Kalra –
Simultaneous Intrusion and Retraction was
developed by Dr. Varun Kalra
• It is a modification of the segmental arch
technique of burstone as applied to
continuous arches
LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop

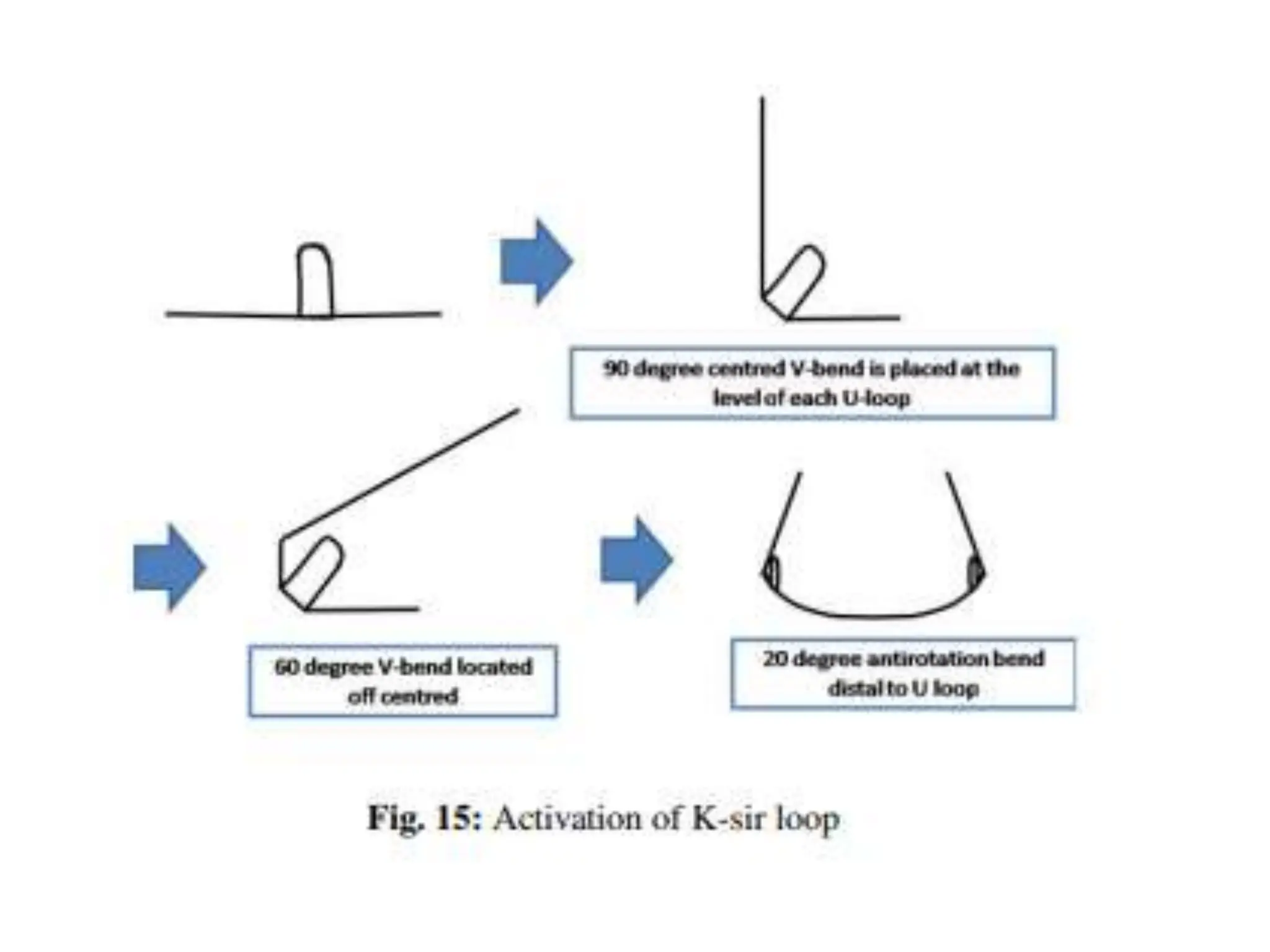

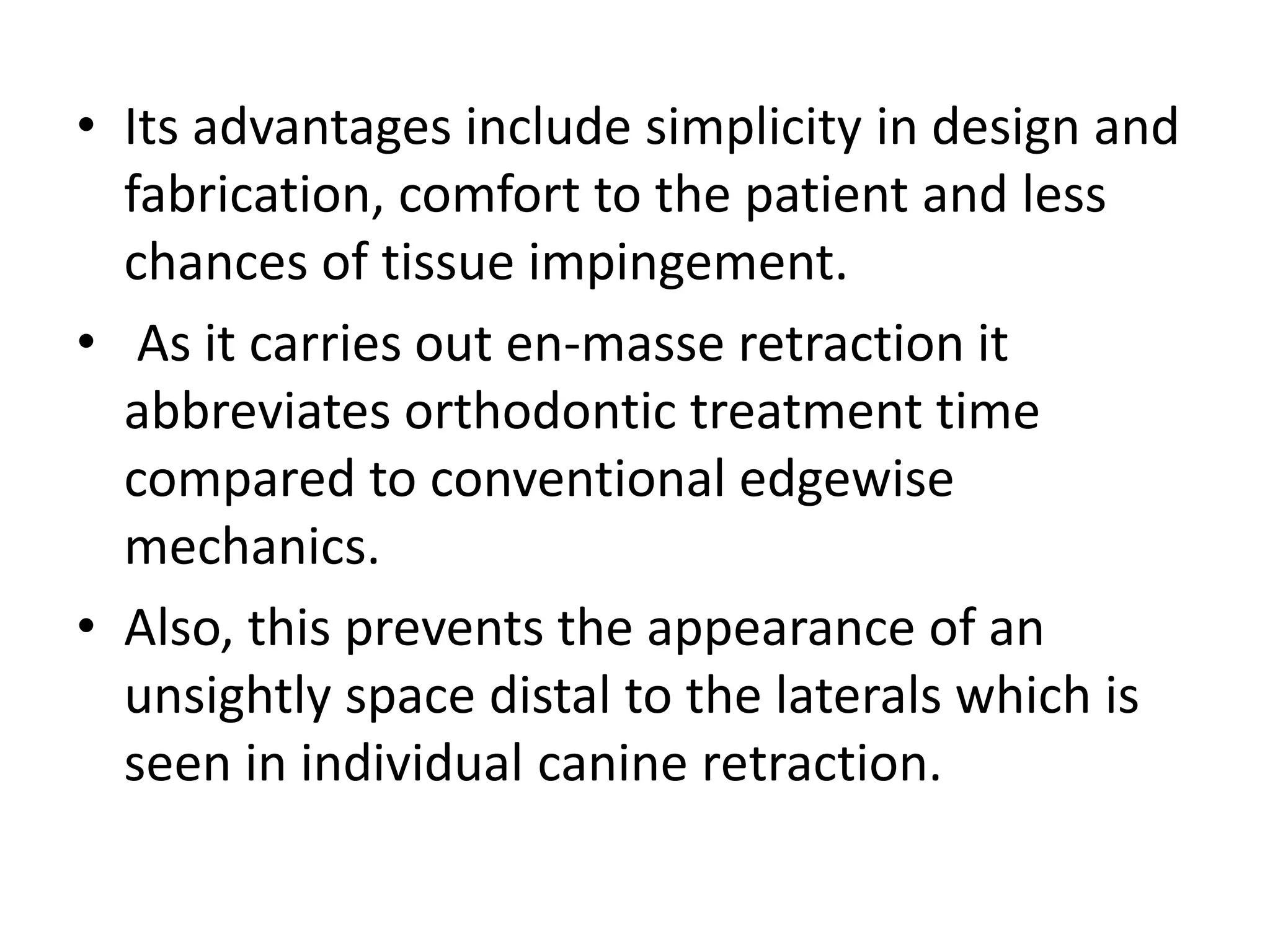

• Its advantages include simplicity in design and
fabrication, comfort to the patient and less
chances of tissue impingement.
• As it carries out en-masse retraction it
abbreviates orthodontic treatment time
compared to conventional edgewise
mechanics.
• Also, this prevents the appearance of an
unsightly space distal to the laterals which is
seen in individual canine retraction.

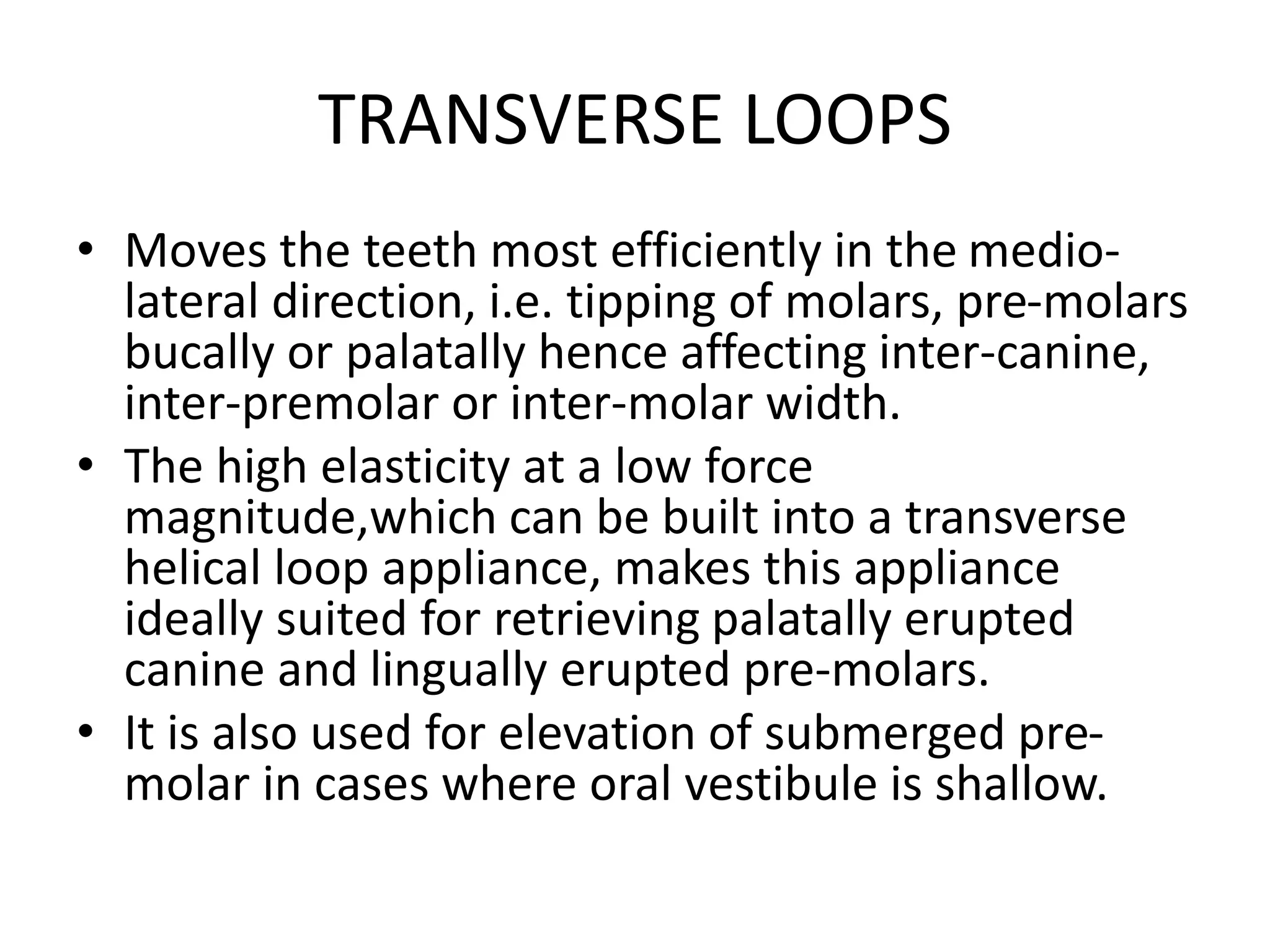

TRANSVERSE LOOPS
• Moves the teeth most efficiently in the medio-
lateral direction, i.e. tipping of molars, pre-molars
bucally or palatally hence affecting inter-canine,
inter-premolar or inter-molar width.
• The high elasticity at a low force
magnitude,which can be built into a transverse
helical loop appliance, makes this appliance
ideally suited for retrieving palatally erupted
canine and lingually erupted pre-molars.
• It is also used for elevation of submerged pre-
molar in cases where oral vestibule is shallow.

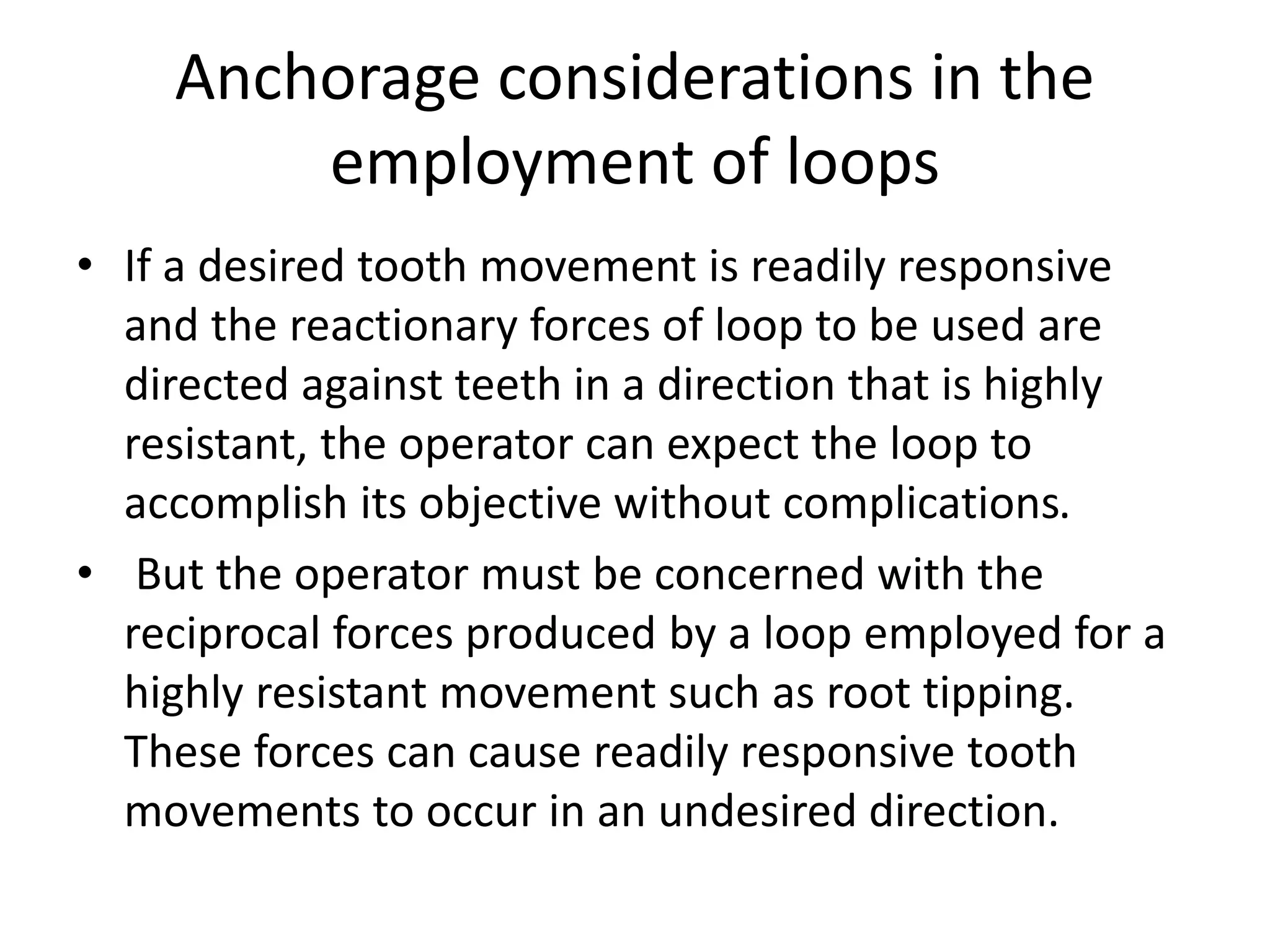

Anchorage considerations in the
employment of loops
• If a desired tooth movement is readily responsive
and the reactionary forces of loop to be used are
directed against teeth in a direction that is highly
resistant, the operator can expect the loop to
accomplish its objective without complications.
• But the operator must be concerned with the
reciprocal forces produced by a loop employed for a
highly resistant movement such as root tipping.
These forces can cause readily responsive tooth
movements to occur in an undesired direction.

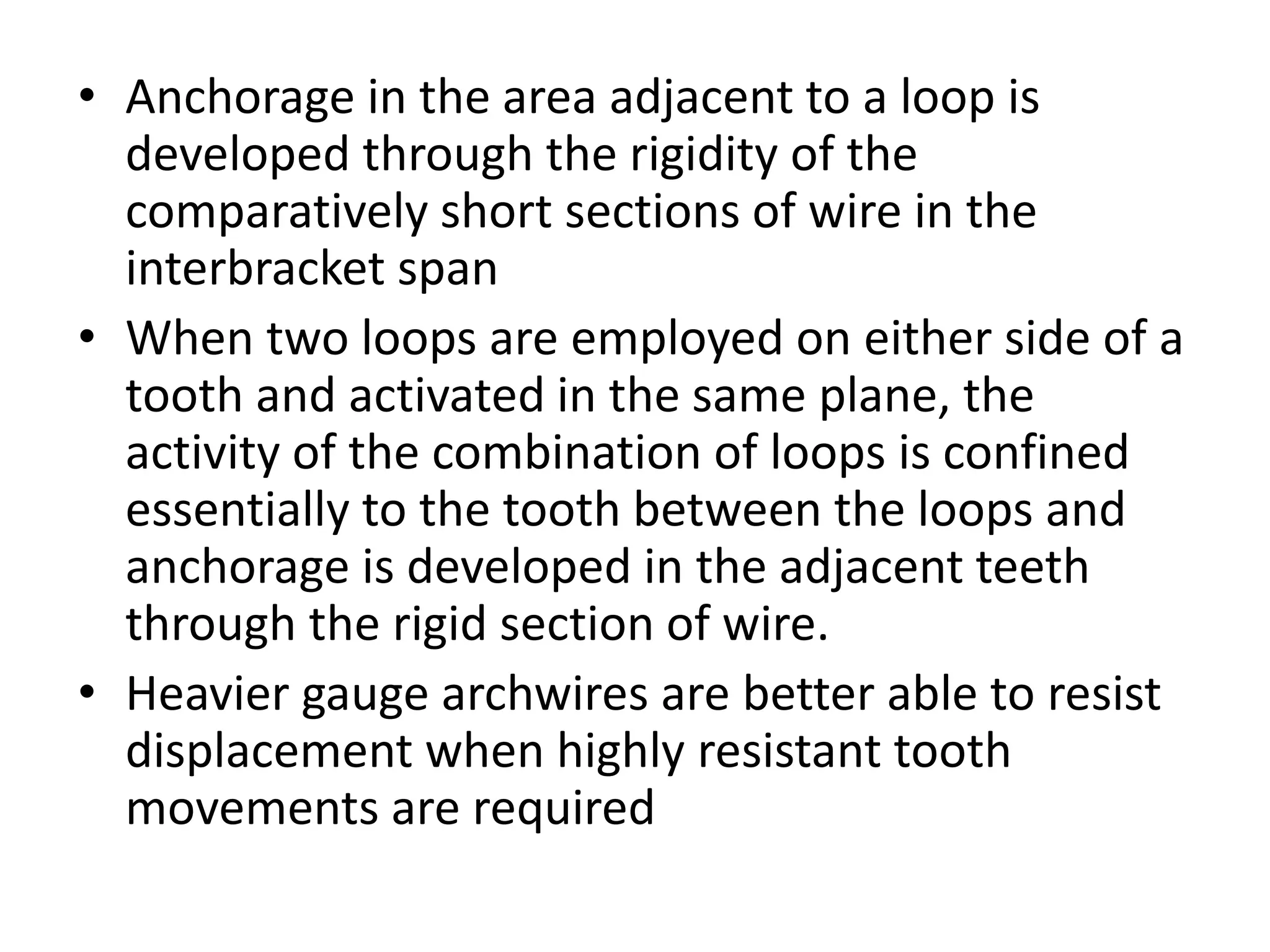

• Anchorage in the area adjacent to a loop is
developed through the rigidity of the
comparatively short sections of wire in the
interbracket span
• When two loops are employed on either side of a
tooth and activated in the same plane, the
activity of the combination of loops is confined
essentially to the tooth between the loops and
anchorage is developed in the adjacent teeth
through the rigid section of wire.
• Heavier gauge archwires are better able to resist
displacement when highly resistant tooth
movements are required

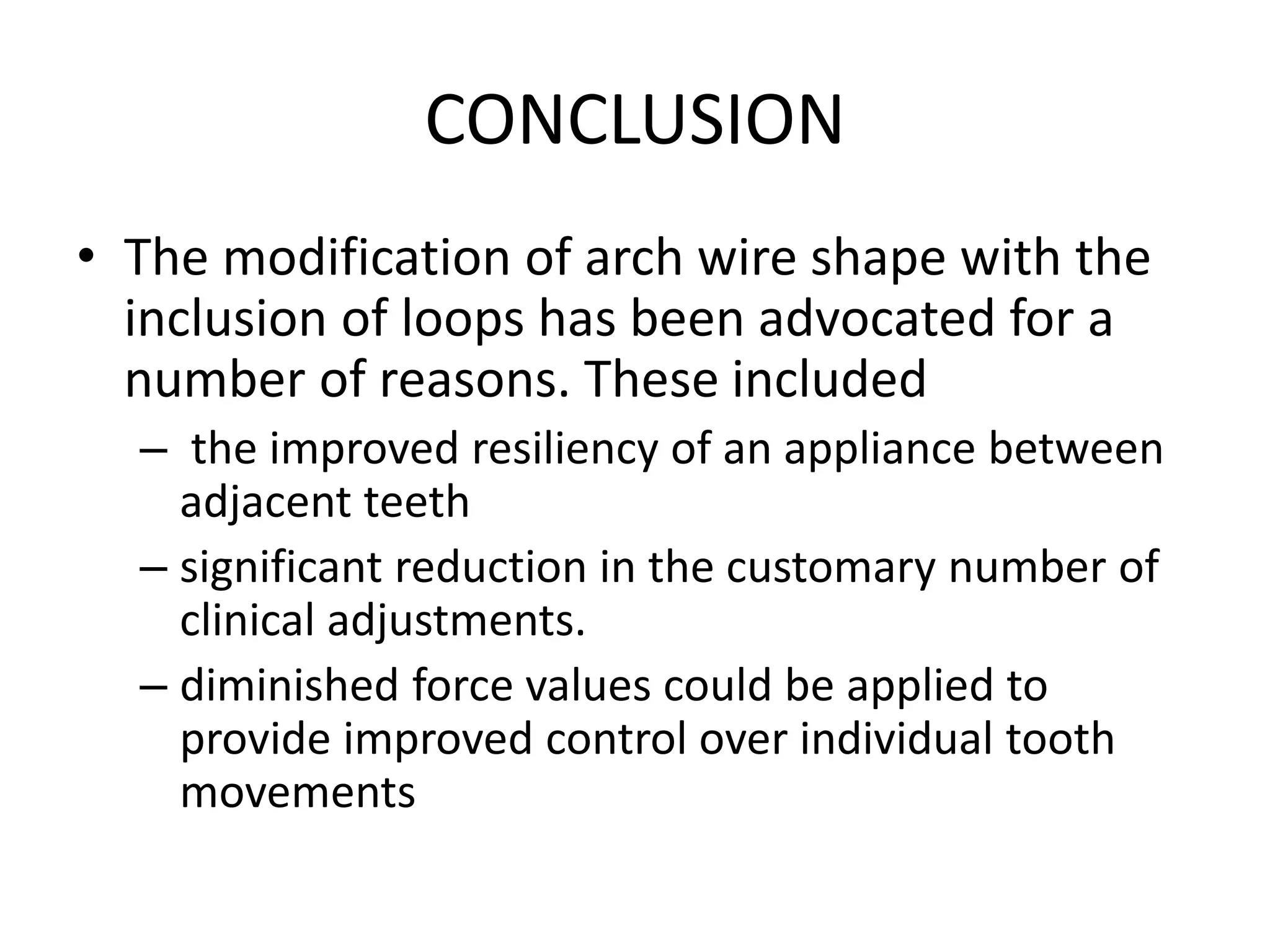

CONCLUSION
• The modification of arch wire shape with the
inclusion of loops has been advocated for a
number of reasons. These included
– the improved resiliency of an appliance between
adjacent teeth
– significant reduction in the customary number of
clinical adjustments.
– diminished force values could be applied to
provide improved control over individual tooth
movements

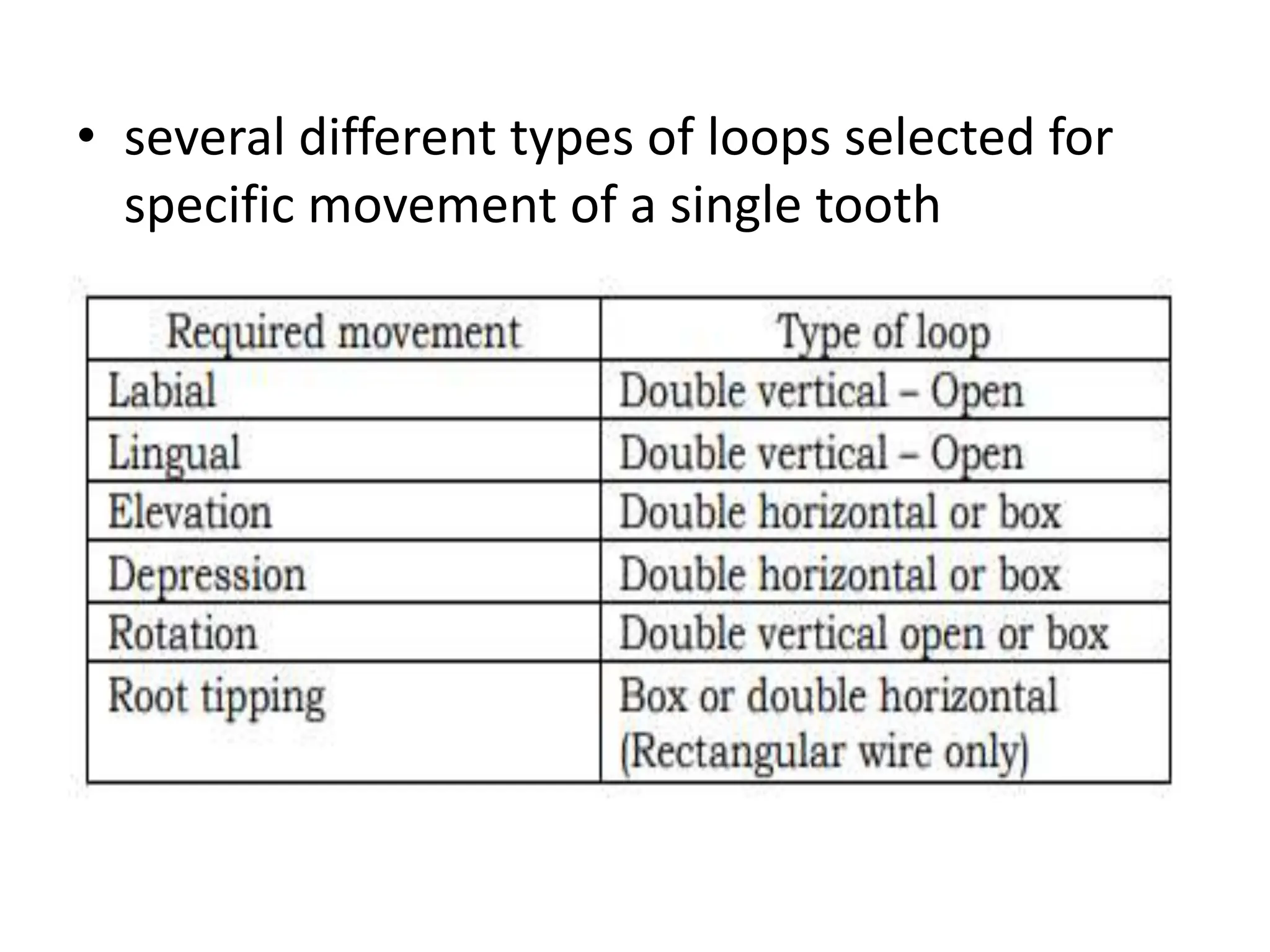

• several different types of loops selected for
specific movement of a single tooth

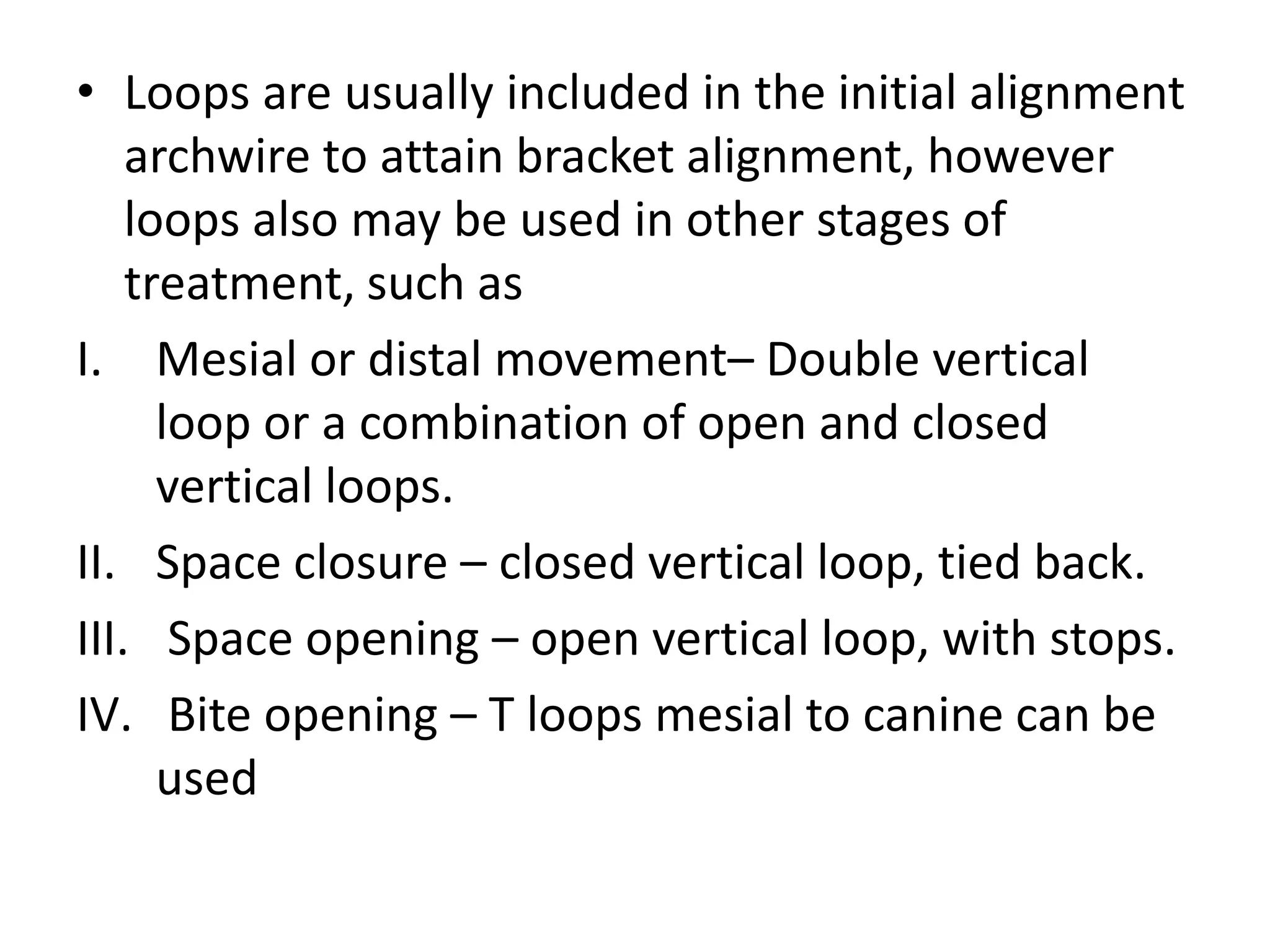

• Loops are usually included in the initial alignment
archwire to attain bracket alignment, however
loops also may be used in other stages of
treatment, such as
I. Mesial or distal movement– Double vertical
loop or a combination of open and closed
vertical loops.
II. Space closure – closed vertical loop, tied back.
III. Space opening – open vertical loop, with stops.
IV. Bite opening – T loops mesial to canine can be
used
THANK YOU

More Related Content

What's hot

An overview of class 2 & class 3 treatment plan
An overview of class 2 & class 3 treatment planAn overview of class 2 & class 3 treatment plan
An overview of class 2 & class 3 treatment plan
Indian dental academy

Smile arc Protection A new table to guide bracket placement based on the conc...
Smile arc Protection A new table to guide bracket placement based on the conc...Smile arc Protection A new table to guide bracket placement based on the conc...
Smile arc Protection A new table to guide bracket placement based on the conc...
Manuel Estuardo Bravo Calderon

Biomechanics of loop mechanics in enmasse space closure
Biomechanics of loop mechanics in enmasse space closureBiomechanics of loop mechanics in enmasse space closure
Biomechanics of loop mechanics in enmasse space closure
Indian dental academy

PG Retraction Spring for Canine & Incisor /certified fixed orthodontic cours...
PG Retraction Spring for Canine & Incisor  /certified fixed orthodontic cours...PG Retraction Spring for Canine & Incisor  /certified fixed orthodontic cours...
PG Retraction Spring for Canine & Incisor /certified fixed orthodontic cours...
Indian dental academy

Friction less mechanics in orthodontics /certified fixed orthodontic course...
Friction less mechanics in orthodontics   /certified fixed orthodontic course...Friction less mechanics in orthodontics   /certified fixed orthodontic course...
Friction less mechanics in orthodontics /certified fixed orthodontic course...
Indian dental academy

Andrew’s straight wire appliance /certified fixed orthodontic courses by Indi...
Andrew’s straight wire appliance /certified fixed orthodontic courses by Indi...Andrew’s straight wire appliance /certified fixed orthodontic courses by Indi...
Andrew’s straight wire appliance /certified fixed orthodontic courses by Indi...
Indian dental academy

K- Sir loop /certified fixed orthodontic courses by Indian dental academy
K- Sir loop /certified fixed orthodontic courses by Indian dental academy K- Sir loop /certified fixed orthodontic courses by Indian dental academy
K- Sir loop /certified fixed orthodontic courses by Indian dental academy
Indian dental academy

pg spring.pptx
pg spring.pptxpg spring.pptx
pg spring.pptx
MonicaRajput12

The stage iii of begg technique /certified fixed orthodontic courses by Ind...
The stage iii of begg technique   /certified fixed orthodontic courses by Ind...The stage iii of begg technique   /certified fixed orthodontic courses by Ind...
The stage iii of begg technique /certified fixed orthodontic courses by Ind...
Indian dental academy

bracket positioning for smile arc protection
 bracket positioning for smile arc protection bracket positioning for smile arc protection
bracket positioning for smile arc protection
MaherFouda1

Bends
BendsBends
PG retraction spring for canine & incisor /certified fixed orthodontic cou...
 PG retraction spring for canine & incisor   /certified fixed orthodontic cou... PG retraction spring for canine & incisor   /certified fixed orthodontic cou...
PG retraction spring for canine & incisor /certified fixed orthodontic cou...
Indian dental academy

orthodontic correction of occlusal plane canting PART 3
orthodontic correction of occlusal plane canting PART 3orthodontic correction of occlusal plane canting PART 3
orthodontic correction of occlusal plane canting PART 3
Maher Fouda

Edgewise appliance- evolution and technique
Edgewise appliance- evolution and techniqueEdgewise appliance- evolution and technique
Edgewise appliance- evolution and technique
Indian dental academy

Arch Form in orthodontics /certified fixed orthodontic courses by Indian dent...
Arch Form in orthodontics /certified fixed orthodontic courses by Indian dent...Arch Form in orthodontics /certified fixed orthodontic courses by Indian dent...
Arch Form in orthodontics /certified fixed orthodontic courses by Indian dent...
Indian dental academy

Frictionless mechanics
Frictionless mechanicsFrictionless mechanics
Frictionless mechanics
Dr. Arun Bosco Jerald

Cephalometric superimposition methods
Cephalometric superimposition methodsCephalometric superimposition methods
Cephalometric superimposition methods
Indian dental academy

Modified beggs /certified fixed orthodontic courses by Indian dental academy
Modified beggs /certified fixed orthodontic courses by Indian dental academy Modified beggs /certified fixed orthodontic courses by Indian dental academy
Modified beggs /certified fixed orthodontic courses by Indian dental academy
Indian dental academy

orthodontic initial alignmen.pptx
orthodontic initial alignmen.pptxorthodontic initial alignmen.pptx
orthodontic initial alignmen.pptx
Maher Fouda

Torque in pre adjusted e.w.a /certified fixed orthodontic courses by Indian...
Torque in pre adjusted e.w.a   /certified fixed orthodontic courses by Indian...Torque in pre adjusted e.w.a   /certified fixed orthodontic courses by Indian...
Torque in pre adjusted e.w.a /certified fixed orthodontic courses by Indian...
Indian dental academy


What's hot (20)

An overview of class 2 & class 3 treatment plan
An overview of class 2 & class 3 treatment planAn overview of class 2 & class 3 treatment plan
An overview of class 2 & class 3 treatment plan

Smile arc Protection A new table to guide bracket placement based on the conc...
Smile arc Protection A new table to guide bracket placement based on the conc...Smile arc Protection A new table to guide bracket placement based on the conc...
Smile arc Protection A new table to guide bracket placement based on the conc...

Biomechanics of loop mechanics in enmasse space closure
Biomechanics of loop mechanics in enmasse space closureBiomechanics of loop mechanics in enmasse space closure
Biomechanics of loop mechanics in enmasse space closure

PG Retraction Spring for Canine & Incisor /certified fixed orthodontic cours...
PG Retraction Spring for Canine & Incisor  /certified fixed orthodontic cours...PG Retraction Spring for Canine & Incisor  /certified fixed orthodontic cours...
PG Retraction Spring for Canine & Incisor /certified fixed orthodontic cours...

Friction less mechanics in orthodontics /certified fixed orthodontic course...
Friction less mechanics in orthodontics   /certified fixed orthodontic course...Friction less mechanics in orthodontics   /certified fixed orthodontic course...
Friction less mechanics in orthodontics /certified fixed orthodontic course...

Andrew’s straight wire appliance /certified fixed orthodontic courses by Indi...
Andrew’s straight wire appliance /certified fixed orthodontic courses by Indi...Andrew’s straight wire appliance /certified fixed orthodontic courses by Indi...
Andrew’s straight wire appliance /certified fixed orthodontic courses by Indi...

K- Sir loop /certified fixed orthodontic courses by Indian dental academy
K- Sir loop /certified fixed orthodontic courses by Indian dental academy K- Sir loop /certified fixed orthodontic courses by Indian dental academy
K- Sir loop /certified fixed orthodontic courses by Indian dental academy

pg spring.pptx
pg spring.pptxpg spring.pptx
pg spring.pptx

The stage iii of begg technique /certified fixed orthodontic courses by Ind...
The stage iii of begg technique   /certified fixed orthodontic courses by Ind...The stage iii of begg technique   /certified fixed orthodontic courses by Ind...
The stage iii of begg technique /certified fixed orthodontic courses by Ind...

bracket positioning for smile arc protection
 bracket positioning for smile arc protection bracket positioning for smile arc protection
bracket positioning for smile arc protection

Bends
BendsBends
Bends

PG retraction spring for canine & incisor /certified fixed orthodontic cou...
 PG retraction spring for canine & incisor   /certified fixed orthodontic cou... PG retraction spring for canine & incisor   /certified fixed orthodontic cou...
PG retraction spring for canine & incisor /certified fixed orthodontic cou...

orthodontic correction of occlusal plane canting PART 3
orthodontic correction of occlusal plane canting PART 3orthodontic correction of occlusal plane canting PART 3
orthodontic correction of occlusal plane canting PART 3

Edgewise appliance- evolution and technique
Edgewise appliance- evolution and techniqueEdgewise appliance- evolution and technique
Edgewise appliance- evolution and technique

Arch Form in orthodontics /certified fixed orthodontic courses by Indian dent...
Arch Form in orthodontics /certified fixed orthodontic courses by Indian dent...Arch Form in orthodontics /certified fixed orthodontic courses by Indian dent...
Arch Form in orthodontics /certified fixed orthodontic courses by Indian dent...

Frictionless mechanics
Frictionless mechanicsFrictionless mechanics
Frictionless mechanics

Cephalometric superimposition methods
Cephalometric superimposition methodsCephalometric superimposition methods
Cephalometric superimposition methods

Modified beggs /certified fixed orthodontic courses by Indian dental academy
Modified beggs /certified fixed orthodontic courses by Indian dental academy Modified beggs /certified fixed orthodontic courses by Indian dental academy
Modified beggs /certified fixed orthodontic courses by Indian dental academy

orthodontic initial alignmen.pptx
orthodontic initial alignmen.pptxorthodontic initial alignmen.pptx
orthodontic initial alignmen.pptx

Torque in pre adjusted e.w.a /certified fixed orthodontic courses by Indian...
Torque in pre adjusted e.w.a   /certified fixed orthodontic courses by Indian...Torque in pre adjusted e.w.a   /certified fixed orthodontic courses by Indian...
Torque in pre adjusted e.w.a /certified fixed orthodontic courses by Indian...


Similar to LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop

tip edge.pptx
tip edge.pptxtip edge.pptx
tip edge.pptx
IRONMASTER96

Space closure
Space closureSpace closure
Space closure
Indian dental academy

Opus loop
Opus loopOpus loop
Opus loop
Parag Deshmukh

Space closure /certified fixed orthodontic courses by Indian dental academy
Space closure /certified fixed orthodontic courses by Indian dental academy Space closure /certified fixed orthodontic courses by Indian dental academy
Space closure /certified fixed orthodontic courses by Indian dental academy
Indian dental academy

Torquing in orthodontics /certified fixed orthodontic courses by Indian dent...
Torquing in orthodontics  /certified fixed orthodontic courses by Indian dent...Torquing in orthodontics  /certified fixed orthodontic courses by Indian dent...
Torquing in orthodontics /certified fixed orthodontic courses by Indian dent...
Indian dental academy

Loop mechanics by dr maryam ghazal in akhtar saeed dental college.pptx
Loop mechanics by dr maryam ghazal in akhtar saeed dental college.pptxLoop mechanics by dr maryam ghazal in akhtar saeed dental college.pptx
Loop mechanics by dr maryam ghazal in akhtar saeed dental college.pptx
ravenrayes2714

The Root Torqueing Auxiliaries in Orthodontics
The Root Torqueing Auxiliaries in OrthodonticsThe Root Torqueing Auxiliaries in Orthodontics
The Root Torqueing Auxiliaries in Orthodontics
Dr. Arun Bosco Jerald

Maeen lecture corrected
Maeen lecture correctedMaeen lecture corrected
Maeen lecture corrected
Royal medical services - JOS

Space closure for orthodontists by Almuzian
Space closure for orthodontists by AlmuzianSpace closure for orthodontists by Almuzian
Space closure for orthodontists by Almuzian
University of Sydney and Edinbugh

max anchorage 2.pptx fdbghgrrgegreergrgger
max anchorage 2.pptx fdbghgrrgegreergrggermax anchorage 2.pptx fdbghgrrgegreergrgger
max anchorage 2.pptx fdbghgrrgegreergrgger
anweshagarg49

prp.pptxbiomechanics
prp.pptxbiomechanicsprp.pptxbiomechanics
prp.pptxbiomechanics
AbdallahOmer9

Intramedullary nailing.pptx
Intramedullary nailing.pptxIntramedullary nailing.pptx
Intramedullary nailing.pptx
AbdallahOmer9

The Mechanics of tooth movement in orthodontic practice
The Mechanics of tooth movement in orthodontic practiceThe Mechanics of tooth movement in orthodontic practice
The Mechanics of tooth movement in orthodontic practice
Shweta Dhope

ACTION AND REACTION in orthodontic movements.pptx
ACTION AND REACTION  in orthodontic movements.pptxACTION AND REACTION  in orthodontic movements.pptx
ACTION AND REACTION in orthodontic movements.pptx
Maen Dawodi

Orthodontics Removable appliances ch17
Orthodontics Removable appliances ch17Orthodontics Removable appliances ch17
Orthodontics Removable appliances ch17
Cezar Edward Lahham

TENDON REPAIR – PRINCIPLES ^0 TYPES-1.pptx
TENDON REPAIR – PRINCIPLES ^0 TYPES-1.pptxTENDON REPAIR – PRINCIPLES ^0 TYPES-1.pptx
TENDON REPAIR – PRINCIPLES ^0 TYPES-1.pptx
DrGeenaGeorge

Tip edge appliance
Tip edge applianceTip edge appliance
Tip edge appliance
Tanvi Andrade

ILIZAROV EXTERNAL FIXATOR
ILIZAROV  EXTERNAL FIXATORILIZAROV  EXTERNAL FIXATOR
ILIZAROV EXTERNAL FIXATOR
Dr. Pratik Agarwal

ortho seminar biomechanics of tooth movement
ortho seminar biomechanics of tooth movementortho seminar biomechanics of tooth movement
ortho seminar biomechanics of tooth movement
SnehaMS22

13. Begg's Philosophy.pptx
13. Begg's Philosophy.pptx13. Begg's Philosophy.pptx
13. Begg's Philosophy.pptx
Manasa Penumatsa


Similar to LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop (20)

tip edge.pptx
tip edge.pptxtip edge.pptx
tip edge.pptx

Space closure
Space closureSpace closure
Space closure

Opus loop
Opus loopOpus loop
Opus loop

Space closure /certified fixed orthodontic courses by Indian dental academy
Space closure /certified fixed orthodontic courses by Indian dental academy Space closure /certified fixed orthodontic courses by Indian dental academy
Space closure /certified fixed orthodontic courses by Indian dental academy

Torquing in orthodontics /certified fixed orthodontic courses by Indian dent...
Torquing in orthodontics  /certified fixed orthodontic courses by Indian dent...Torquing in orthodontics  /certified fixed orthodontic courses by Indian dent...
Torquing in orthodontics /certified fixed orthodontic courses by Indian dent...

Loop mechanics by dr maryam ghazal in akhtar saeed dental college.pptx
Loop mechanics by dr maryam ghazal in akhtar saeed dental college.pptxLoop mechanics by dr maryam ghazal in akhtar saeed dental college.pptx
Loop mechanics by dr maryam ghazal in akhtar saeed dental college.pptx

The Root Torqueing Auxiliaries in Orthodontics
The Root Torqueing Auxiliaries in OrthodonticsThe Root Torqueing Auxiliaries in Orthodontics
The Root Torqueing Auxiliaries in Orthodontics

Maeen lecture corrected
Maeen lecture correctedMaeen lecture corrected
Maeen lecture corrected

Space closure for orthodontists by Almuzian
Space closure for orthodontists by AlmuzianSpace closure for orthodontists by Almuzian
Space closure for orthodontists by Almuzian

max anchorage 2.pptx fdbghgrrgegreergrgger
max anchorage 2.pptx fdbghgrrgegreergrggermax anchorage 2.pptx fdbghgrrgegreergrgger
max anchorage 2.pptx fdbghgrrgegreergrgger

prp.pptxbiomechanics
prp.pptxbiomechanicsprp.pptxbiomechanics
prp.pptxbiomechanics

Intramedullary nailing.pptx
Intramedullary nailing.pptxIntramedullary nailing.pptx
Intramedullary nailing.pptx

The Mechanics of tooth movement in orthodontic practice
The Mechanics of tooth movement in orthodontic practiceThe Mechanics of tooth movement in orthodontic practice
The Mechanics of tooth movement in orthodontic practice

ACTION AND REACTION in orthodontic movements.pptx
ACTION AND REACTION  in orthodontic movements.pptxACTION AND REACTION  in orthodontic movements.pptx
ACTION AND REACTION in orthodontic movements.pptx

Orthodontics Removable appliances ch17
Orthodontics Removable appliances ch17Orthodontics Removable appliances ch17
Orthodontics Removable appliances ch17

TENDON REPAIR – PRINCIPLES ^0 TYPES-1.pptx
TENDON REPAIR – PRINCIPLES ^0 TYPES-1.pptxTENDON REPAIR – PRINCIPLES ^0 TYPES-1.pptx
TENDON REPAIR – PRINCIPLES ^0 TYPES-1.pptx

Tip edge appliance
Tip edge applianceTip edge appliance
Tip edge appliance

ILIZAROV EXTERNAL FIXATOR
ILIZAROV  EXTERNAL FIXATORILIZAROV  EXTERNAL FIXATOR
ILIZAROV EXTERNAL FIXATOR

ortho seminar biomechanics of tooth movement
ortho seminar biomechanics of tooth movementortho seminar biomechanics of tooth movement
ortho seminar biomechanics of tooth movement

13. Begg's Philosophy.pptx
13. Begg's Philosophy.pptx13. Begg's Philosophy.pptx
13. Begg's Philosophy.pptx


Recently uploaded

Definition of Radiotherapy Treatment Planning.pptx
Definition of Radiotherapy Treatment Planning.pptxDefinition of Radiotherapy Treatment Planning.pptx
Definition of Radiotherapy Treatment Planning.pptx
Dr. Dheeraj Kumar

MEDICAL PROFESSIONALISM Class of compassionate care
MEDICAL PROFESSIONALISM Class of compassionate careMEDICAL PROFESSIONALISM Class of compassionate care
MEDICAL PROFESSIONALISM Class of compassionate care
Debre Berhan University

TEST BANK For Katzung's Basic and Clinical Pharmacology, 16th Edition.docx
TEST BANK For Katzung's Basic and Clinical Pharmacology, 16th Edition.docxTEST BANK For Katzung's Basic and Clinical Pharmacology, 16th Edition.docx
TEST BANK For Katzung's Basic and Clinical Pharmacology, 16th Edition.docx
kevinkariuki227

Overcoming Erectile Dysfunction Lifestyle Changes and the Role of Sildigra 25...
Overcoming Erectile Dysfunction Lifestyle Changes and the Role of Sildigra 25...Overcoming Erectile Dysfunction Lifestyle Changes and the Role of Sildigra 25...
Overcoming Erectile Dysfunction Lifestyle Changes and the Role of Sildigra 25...
ED PIllsForever

Subcutaneous nodules in rheumatic diseases Ahmed Yehia Assistant Professor of...
Subcutaneous nodules in rheumatic diseases Ahmed Yehia Assistant Professor of...Subcutaneous nodules in rheumatic diseases Ahmed Yehia Assistant Professor of...
Subcutaneous nodules in rheumatic diseases Ahmed Yehia Assistant Professor of...
Internal medicine department, faculty of Medicine Beni-Suef University Egypt

World Population Day 2024_Overview_Dr Bijan Das
World Population Day 2024_Overview_Dr Bijan DasWorld Population Day 2024_Overview_Dr Bijan Das
World Population Day 2024_Overview_Dr Bijan Das
srmnchatripura

STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
Niranjan Chavan

Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
Stepping Forward to Transform MCL Management: Guidance on the Selection and U...Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
PVI, PeerView Institute for Medical Education

High Class Girls Call Delhi 9711199171 Provide Best And Top Girl Service And ...
High Class Girls Call Delhi 9711199171 Provide Best And Top Girl Service And ...High Class Girls Call Delhi 9711199171 Provide Best And Top Girl Service And ...
High Class Girls Call Delhi 9711199171 Provide Best And Top Girl Service And ...
sonamrawat5631

OBSTETRICS SEPSIS - BUNDLE APPROACH.pptx
OBSTETRICS SEPSIS - BUNDLE APPROACH.pptxOBSTETRICS SEPSIS - BUNDLE APPROACH.pptx
OBSTETRICS SEPSIS - BUNDLE APPROACH.pptx
Niranjan Chavan

Safeguarding Reproductive Health- Preventing Fallopian Tube Blockage After a ...
Safeguarding Reproductive Health- Preventing Fallopian Tube Blockage After a ...Safeguarding Reproductive Health- Preventing Fallopian Tube Blockage After a ...
Safeguarding Reproductive Health- Preventing Fallopian Tube Blockage After a ...
FFragrant

How to Relieve Prostate Congestion- Here are some Effective Strategies.pptx
How to Relieve Prostate Congestion- Here are some Effective Strategies.pptxHow to Relieve Prostate Congestion- Here are some Effective Strategies.pptx
How to Relieve Prostate Congestion- Here are some Effective Strategies.pptx
AmandaChou9

Hypothyroidism / Underactive thyroid gland presentation
Hypothyroidism / Underactive thyroid gland presentationHypothyroidism / Underactive thyroid gland presentation
Hypothyroidism / Underactive thyroid gland presentation
riyaramesh2003

PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptxPICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
Aloy Okechukwu Ugwu

Yoga talk & yoga slides by Flametree Yoga 11 July 2024.pdf
Yoga talk & yoga slides by Flametree Yoga 11 July 2024.pdfYoga talk & yoga slides by Flametree Yoga 11 July 2024.pdf
Yoga talk & yoga slides by Flametree Yoga 11 July 2024.pdf
Stuart McGill

2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
CarriePoppy

anthelmintic-drugs.pptx pharmacology dep
anthelmintic-drugs.pptx pharmacology depanthelmintic-drugs.pptx pharmacology dep
anthelmintic-drugs.pptx pharmacology dep
sapnasirswal

Introduction to Interventional Radiology.pptx
Introduction to Interventional Radiology.pptxIntroduction to Interventional Radiology.pptx
Introduction to Interventional Radiology.pptx
Dr. Dheeraj Kumar

Amygdala Medi-Trivia Quiz (Prelims) | FAQ 2024
Amygdala Medi-Trivia Quiz (Prelims) | FAQ 2024Amygdala Medi-Trivia Quiz (Prelims) | FAQ 2024
Amygdala Medi-Trivia Quiz (Prelims) | FAQ 2024
Anindya Das Adhikary

PCD Pharma Franchise For Gynae Products | Infertility Range - Sarthi Life Sci...
PCD Pharma Franchise For Gynae Products | Infertility Range - Sarthi Life Sci...PCD Pharma Franchise For Gynae Products | Infertility Range - Sarthi Life Sci...
PCD Pharma Franchise For Gynae Products | Infertility Range - Sarthi Life Sci...
Sarthi Life Sciences


Recently uploaded (20)

Definition of Radiotherapy Treatment Planning.pptx
Definition of Radiotherapy Treatment Planning.pptxDefinition of Radiotherapy Treatment Planning.pptx
Definition of Radiotherapy Treatment Planning.pptx

MEDICAL PROFESSIONALISM Class of compassionate care
MEDICAL PROFESSIONALISM Class of compassionate careMEDICAL PROFESSIONALISM Class of compassionate care
MEDICAL PROFESSIONALISM Class of compassionate care

TEST BANK For Katzung's Basic and Clinical Pharmacology, 16th Edition.docx
TEST BANK For Katzung's Basic and Clinical Pharmacology, 16th Edition.docxTEST BANK For Katzung's Basic and Clinical Pharmacology, 16th Edition.docx
TEST BANK For Katzung's Basic and Clinical Pharmacology, 16th Edition.docx

Overcoming Erectile Dysfunction Lifestyle Changes and the Role of Sildigra 25...
Overcoming Erectile Dysfunction Lifestyle Changes and the Role of Sildigra 25...Overcoming Erectile Dysfunction Lifestyle Changes and the Role of Sildigra 25...
Overcoming Erectile Dysfunction Lifestyle Changes and the Role of Sildigra 25...

Subcutaneous nodules in rheumatic diseases Ahmed Yehia Assistant Professor of...
Subcutaneous nodules in rheumatic diseases Ahmed Yehia Assistant Professor of...Subcutaneous nodules in rheumatic diseases Ahmed Yehia Assistant Professor of...
Subcutaneous nodules in rheumatic diseases Ahmed Yehia Assistant Professor of...

World Population Day 2024_Overview_Dr Bijan Das
World Population Day 2024_Overview_Dr Bijan DasWorld Population Day 2024_Overview_Dr Bijan Das
World Population Day 2024_Overview_Dr Bijan Das

STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...
STRATEGIES FOR RATIONALISING/REDUCING CAESAREAN SECTION RATE BY USE OF "SION ...

Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
Stepping Forward to Transform MCL Management: Guidance on the Selection and U...Stepping Forward to Transform MCL Management: Guidance on the Selection and U...
Stepping Forward to Transform MCL Management: Guidance on the Selection and U...

High Class Girls Call Delhi 9711199171 Provide Best And Top Girl Service And ...
High Class Girls Call Delhi 9711199171 Provide Best And Top Girl Service And ...High Class Girls Call Delhi 9711199171 Provide Best And Top Girl Service And ...
High Class Girls Call Delhi 9711199171 Provide Best And Top Girl Service And ...

OBSTETRICS SEPSIS - BUNDLE APPROACH.pptx
OBSTETRICS SEPSIS - BUNDLE APPROACH.pptxOBSTETRICS SEPSIS - BUNDLE APPROACH.pptx
OBSTETRICS SEPSIS - BUNDLE APPROACH.pptx

Safeguarding Reproductive Health- Preventing Fallopian Tube Blockage After a ...
Safeguarding Reproductive Health- Preventing Fallopian Tube Blockage After a ...Safeguarding Reproductive Health- Preventing Fallopian Tube Blockage After a ...
Safeguarding Reproductive Health- Preventing Fallopian Tube Blockage After a ...

How to Relieve Prostate Congestion- Here are some Effective Strategies.pptx
How to Relieve Prostate Congestion- Here are some Effective Strategies.pptxHow to Relieve Prostate Congestion- Here are some Effective Strategies.pptx
How to Relieve Prostate Congestion- Here are some Effective Strategies.pptx

Hypothyroidism / Underactive thyroid gland presentation
Hypothyroidism / Underactive thyroid gland presentationHypothyroidism / Underactive thyroid gland presentation
Hypothyroidism / Underactive thyroid gland presentation

PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptxPICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx
PICTURE TEST IN OBSTETRICS AND GYNAECOLOGY-Aloy Okechukwu Ugwu.pptx

Yoga talk & yoga slides by Flametree Yoga 11 July 2024.pdf
Yoga talk & yoga slides by Flametree Yoga 11 July 2024.pdfYoga talk & yoga slides by Flametree Yoga 11 July 2024.pdf
Yoga talk & yoga slides by Flametree Yoga 11 July 2024.pdf

2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf
2024 07 12 Do you share my autistic traits_ - Google Sheets.pdf

anthelmintic-drugs.pptx pharmacology dep
anthelmintic-drugs.pptx pharmacology depanthelmintic-drugs.pptx pharmacology dep
anthelmintic-drugs.pptx pharmacology dep

Introduction to Interventional Radiology.pptx
Introduction to Interventional Radiology.pptxIntroduction to Interventional Radiology.pptx
Introduction to Interventional Radiology.pptx

Amygdala Medi-Trivia Quiz (Prelims) | FAQ 2024
Amygdala Medi-Trivia Quiz (Prelims) | FAQ 2024Amygdala Medi-Trivia Quiz (Prelims) | FAQ 2024
Amygdala Medi-Trivia Quiz (Prelims) | FAQ 2024

PCD Pharma Franchise For Gynae Products | Infertility Range - Sarthi Life Sci...
PCD Pharma Franchise For Gynae Products | Infertility Range - Sarthi Life Sci...PCD Pharma Franchise For Gynae Products | Infertility Range - Sarthi Life Sci...
PCD Pharma Franchise For Gynae Products | Infertility Range - Sarthi Life Sci...


LOOPS in orthodontics t loop bull loop vertical loop mushroom loop stop loop

  • 2. CONTENTS • Introduction • History • Orthodontic Forces • Force Control • Wire-Clinical Consideration • Loop activation for force control • Loop Design • Bauschinger Effect • Classification Of Loops • Vertical Loops • Horizontal Loops • Transverse Loops • Anchorage consideration • conclusion
  • 3. INTRODUCTION • Optimum control of tooth movement requires the application of a specific orthodontic force system. • So we need to have a clear idea about the mechanics of the orthodontic appliances to achieve a predictable and desirable result.
  • 4. How to achieve treatment efficiency? .1.Continuous forces 2.Acting on a wide area 3.Working in the correct direction(direction in which tooth is to be moved) 4.Maximum comfort to the patient All this can be accomplished successfully only by the precise application of different size, shape and type of loops, having a control on the distribution, direction, degree and duration of force applied.
  • 5. HISTORY The principles and uses of vertical loops was first described by RAY ROBINSON in 1915 who was an early advocate of light wires and light continuous forces by means of loops. He summarized that except the force of gravity, there is probably no force so constant in its operation as that of a coil spring as even as the pressure of the atmosphere varies with temperature change. STRANG was the first to introduce loops into this edgewise technique. BEGG IN 1956 explained the advantages of different loop configuration in arch wire design and activation.
  • 6. ORTHODONTIC FORCES Orthodontic forces are of two types • Primary-Developed in the arch wire and depend on the resiliency or movement of the arch wire. This type of force can be manipulated by increasing the resiliency of a wire by the incorporation of loops. • Secondary-Forces that are designed from auxillary attachments such as finger springs, rubber bands, headgears etc
  • 7. BASIC PRINCIPLES OF FORCE CONTROL • The best way to understand the activity of any loop is to understand what rules apply to any deflection in a wire. • There are 4 D’s in force control – Degree of force-Amount or intensity of force. – Distribution of force-The manner in which the force is transmitted to the root surface or alveolar process.
  • 8. – Direction of force -Direction of the force should be in the plane in which the tooth is to be moved. – Duration of force -Range of activity of applied force
  • 9. CLINICAL CONSIDERATION • Range Of Deflection -The distance that a wire can be deflected before it undergoes permanent deformation. • Force -An influence tending to change the motion of a body or produce motion/stress in stationary object. Calculated by multiplying the mass of the body with its acceleration. • Elastic Limit -The maximum extent to which a solid may be stretched without permanent alteration of size or shape.
  • 11. Variation In Diameter a. The magnitude of force that can be developed through deflection of a wire is proportional to the fourth power of number of times by which the diameter of the wire is changed. F * D4 So if the diameter is doubled, the force exerted by it will become 16 times more. b. The relationship of the diameter to the maximum load before permanent deformation takes place varies directly to the 3rd power of the increase in the diameter. Total load Capacity * D3 c.The elastic limit will vary inversely with the increase in diameter. Elastic limit * 1/D
  • 12. Variation In Length • Magnitude of force value per unit of deflection will decrease in proportion to the cube of the difference in length. F * 1/L3 • The force that can be developed, decreases 1/8th when the length of the wire is doubled. • Increase in length will proportionally decrease the maximum load. • Twice the length allows half the maximum load. • Elastic limit increases proportionally according to the square of difference in length. • Elastic limit * L2
  • 13. LOOP ACTIVITY FOR FORCE CONTROL • General rules to be followed 1. Any loop will reduce the force and increase the range by adding wire in the inter-bracket span. 2. Any loop may be contoured ‘open’ or ‘closed’. 3. The force of any loop may be reduced by coiling the wire at the apex one or more times.
  • 14. 4. Loops are most efficiently activated through compression of the legs. 5. The forces developed in the loop or the archwire will be transmitted to the tooth through the bracket attachment as a tipping or a bodily force depending upon the contour and method of activation. 6.The force reduction affected by contouring most loops will be in direct proportion to the increase in the amount of wire between the brackets.
  • 15. LOOP DESIGN • One important consideration in loop design is that the legs of a loop should always be contoured at right angles to the desired direction of activity • The loop should be “fail safe”. This means that, although a reasonable range of action is desired from each activation, tooth movement should stop after a prescribed range of movement even if the patient does not return for a scheduled adjustment.
  • 16. • Design should be as simple as possible. • A loop is more effective when it is closed rather than opened during activation.
  • 17. THE BAUSCHINGER EFFECT • If a straight piece of wire is bent so that permanent deformation occurs and an attempt is made to increase the magnitude of the bend, bending in the same direction as had originally been done, the wire is more resistant to permanent deformation than if an attempt is made to bend in the opposite direction. • The wire is more resistant to permanent deformation because of certain residual stress remains in it after placement of the first bend.
  • 18. • If a bend is made in an orthodontic appliance, the maximal elastic load is not the same in all directions, it is greatest in the direction identical to the original direction of bending or twisting. The phenomenon responsible for this difference is known as bauschinger effect.
  • 20. CLASSIFICATION OF LOOPS • According to function(jarabak 1963) • 1. Vertical : Vertical loop is most efficient in moving the teeth in antero-posterior direction. • 2. Horizontal : moves teeth in vt direction • 3. Transverse : moves teeth most efficiently in mediolateral direction.
  • 21. 2. Based on purpose of the loop (a) Leveling and Aligning (b) Retraction (c) Multipurpose 3. Based on presence of helix (a) Loops without helix(e.g. vertical loop) (b) Loops with helix(e.g. Helical bulbous loop) 4. Based on function (a) Opening loops (b) Closing loops
  • 22. VERTICAL LOOPS • Used for first order discrepancies(Labio-Lingual or mesiodistal) • The vertical loop has two vertical components and may be activated in any plane perpendicular to these components. • Two types- • 1. Open- A. Efficient in opening space B. Used to rotate a tooth C. Average rate of decrease of force is 60.5gm/mm
  • 23. • 2. Closed- A. Primarily used to close space Average rate of decrease of force is 41.4gm/mm
  • 24. HELICAL LOOP • It is 3 separate springs made up into a single unit. • Helix could have 1½ turns or 2½ turns , that would include several millimeters of wire without making the loop any longer. • The initial force that is developed is less than that obtained with a simple loop. • But, the decrease in force per mm of distance returned is always less, hence more resilient active element leading to greater working range.
  • 25. FUNCTIONS OF VERTICAL HELICAL SPRINGS • To increase arch length in one part of the arch for the repositioning of the malaligned teeth. • Used as an expansion device to create space for the alignment of teeth. • Used as highly elastic rotation device. • Used to distally drive canines in the treatment of malocclusion when the 4 1st premolars have been extracted. • Minor levelling adjustment can be made to reduce excessive curve of spee by placing loops between each of the posterior teeth.
  • 26. • VERTICAL LOOP- • Both open and closed vertical loop was given by Robert Strang in 1933 • Length-6-8mm • Width-1.5mm 1.Used mainly for retraction of anterior teeth. 2.To open spaces 3.To rotate teeth
  • 27. • In Beggs mechanotherapy, anterior tooth alignment is accomplished with archwires incorporated with vertical loops. The loops increase the wire span between the teeth and produce a gentler pressure during movement • The loops are then activated to produce overcorrection of rotations, labio-lingual or mesio-distal movement

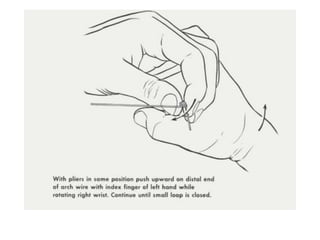

  • 28. • BULL LOOP- Was given by Harry Bull in 1951 Also known as Squashed Vertical Loop
  • 29. • USED FOR: a) Retract the anteriors b) Closing of spaces • It is activated by opening the loop • An advantage of the use of this loop when used for class II correction in conjunction with class II elastics is that they do not procline the mandibular anteriors since the closing loops restrain this effect
  • 30. • VERTICAL LOOP WITH HELIX- Given by Dr Moris Stoner in 1960 Loop incorporated to increase the working range
  • 31. • The force from the cantilever arms give direction to this whole force system while the cross section geometry of the wire, its modulus of elasticity, diameter, number of turns in helix and the length of the arms control the force magnitude of this highly elastic system • lateral extension coils not only increase flexibility but also reduce the tendency to tip adjacent teeth as they are being moved
  • 37. • OMEGA LOOP- • Given by Dr Moris Stoner in 1960 • Advantage of this loop is that it tends to distribute stresses more evenly through the curvature of loop instead of concentrating than at apex • .
  • 38. • Selected to apply moment to last tooth in arch • It causes bodily movement of root • This loop can also be used as a stop loop
  • 39. • TEAR LOOP • The ideal force applied to achieve movement of the mandibular incisors
  • 40. HORIZONTAL LOOP/BOOT LOOP • introduced by stoner in 1960 • They are designed such that the active legs are parallel to the archwire • Principle value is its reduction of force in the vertical plane or occlusogingival direction. • It is effective in aligning the brackets when it is necessary to open the bite or to depress or elevate the anterior or posterior segment. • It is possible to contour the horizontal loop to press against the gingival area to develop a torquing activity on the root
  • 41. • The supraversion and linguoversion of the maxillary central incisor and infraversion and labioversion of lateral incisor in class 2 div 2. • To create effective force to extrude maxillary canine that has delayed in eruption.
  • 42. • Efficiency of the double Horizontal Loop is best when kept on an individual tooth either above or below the line of occlusion. It can be activated in an occluso-gingival and labio- lingual plane but not in the mesiodistal plane. One loop can be contoured to elevate and the other loop can be contoured to depress, tending to tip the tooth or move the roots
  • 43. • T LOOP- • Given by Dr Charles J Burstone in 1972 • Can be segmented or unsegmented. • Helps in closing of spaces. • Helps in opening of bite. • When this loop is used with a rectangular wire the range of torque action is increased,because of the greater amount of wire in the horizontal plane.So,this loop eliminates the undesirable occlusal or gingival deflection of the arch-wire when activated, which may produce a tipping movement. • So this loop causes elevation or depression in the true vertical plane.
  • 44. Segmented t loop T loop in continuous arch
  • 45. Asymmetrical T loop • Asymmetric T loop was described by James Hilger in 1992. • Activation of asymmetric T loop is done by compressing short mesial loop and opening long distal loop.
  • 46. • BOX LOOP- • Given by Dr A Sivakumar in 2006. • Used for alligning of asymmtric crowding in early permanent dentition. • Root paralleling. • Uprighting of tipped molars.
  • 47. Mushroom loop • Mushroom loop was given by dr flabio uribe and dr ravindra nanda in 2003. • The mushroom loop neither interferes with the gingival tissue nor does it distort easily thereby improves the delivery of orthodontic load. • Used for closing of spaces.
  • 48. Double delta loop • The double delta loop serves to close spaces. • It is also frequently used for the leveling and integration of the arches.
  • 49. K-SIR arch • K-SIR arch which stands for Kalra – Simultaneous Intrusion and Retraction was developed by Dr. Varun Kalra • It is a modification of the segmental arch technique of burstone as applied to continuous arches
  • 51. • Its advantages include simplicity in design and fabrication, comfort to the patient and less chances of tissue impingement. • As it carries out en-masse retraction it abbreviates orthodontic treatment time compared to conventional edgewise mechanics. • Also, this prevents the appearance of an unsightly space distal to the laterals which is seen in individual canine retraction.
  • 52. TRANSVERSE LOOPS • Moves the teeth most efficiently in the medio- lateral direction, i.e. tipping of molars, pre-molars bucally or palatally hence affecting inter-canine, inter-premolar or inter-molar width. • The high elasticity at a low force magnitude,which can be built into a transverse helical loop appliance, makes this appliance ideally suited for retrieving palatally erupted canine and lingually erupted pre-molars. • It is also used for elevation of submerged pre- molar in cases where oral vestibule is shallow.
  • 53. Anchorage considerations in the employment of loops • If a desired tooth movement is readily responsive and the reactionary forces of loop to be used are directed against teeth in a direction that is highly resistant, the operator can expect the loop to accomplish its objective without complications. • But the operator must be concerned with the reciprocal forces produced by a loop employed for a highly resistant movement such as root tipping. These forces can cause readily responsive tooth movements to occur in an undesired direction.
  • 54. • Anchorage in the area adjacent to a loop is developed through the rigidity of the comparatively short sections of wire in the interbracket span • When two loops are employed on either side of a tooth and activated in the same plane, the activity of the combination of loops is confined essentially to the tooth between the loops and anchorage is developed in the adjacent teeth through the rigid section of wire. • Heavier gauge archwires are better able to resist displacement when highly resistant tooth movements are required
  • 55. CONCLUSION • The modification of arch wire shape with the inclusion of loops has been advocated for a number of reasons. These included – the improved resiliency of an appliance between adjacent teeth – significant reduction in the customary number of clinical adjustments. – diminished force values could be applied to provide improved control over individual tooth movements
  • 56. • several different types of loops selected for specific movement of a single tooth
  • 57. • Loops are usually included in the initial alignment archwire to attain bracket alignment, however loops also may be used in other stages of treatment, such as I. Mesial or distal movement– Double vertical loop or a combination of open and closed vertical loops. II. Space closure – closed vertical loop, tied back. III. Space opening – open vertical loop, with stops. IV. Bite opening – T loops mesial to canine can be used

Editor's Notes

  1. We will be covering the topic under the following headings
  2. Now we need to understand certain clinical considerations before we move on furter Elastic limit can be influenced by the variations in length or diameter
  3. So as the diameter increases the elastic limit decreases and vice versa So for example If diameter is halved the elastic limit is doubled while the force reduces 16times
  4. Length is doubled elastic limit increases 4 times and force decreases 8 times So it is much better to increases the length of the wire than reduce the diameter of the wire if we compare the change in force Also if the diameter of the wire is reduced its resistance to the forces of occlusion is reduced and the possibility of distortion and breakage in the mouth is increased But the amount of space available for placement of appliance limits the length of wire that can be used . hence comes the role of loops which can be simple or helical.
  5. Closed loop means hz extensions of the arch wire at the base of the loop are crossed. So when the loop is activated by compression it will tend to draw the attached extensions of the wire towards each other Open loop : when activated by compression of legs it will tend to thrust the attached hz extensions of the archwire away from each other
  6. Too long a range of action with too much flexibility could produce disastrous effects if a distorted spring were combined with a series of broken appointments.
  7. Shows a vertical loop with a coil at the apex and a number of turns in the coil under different directions of loading . The type of loading in A tends to wind the coil, increasing the number of turns in the helix and shortening the length . The type of loading in B tends to unwind the helix, reducing the number of coils and lengthening the spring. The loading in FIGURE , A, tends to activate the spring in the same direction as it originally was wound and thus is the correct method of activation
  8. For example, if a reverse curve of Spee is to be placed in an archwire, the curve first should be overbent and then partly removed; only then will activation of the archwire occur in the same direction as the last bend
  9. AS DISCUSSED EARLIER Open vertical loops are activated by compressing the legs and as the loop returns to its original position the teeth moves apart
  10. It is activated by compressing the legs and as the loop expends it draws the hz extensions together The ht of vt loops is limited by anatomical restrictions. it must not impinge on gingival or alveolar tissue therefore It is rarely possible to use vt loops longer than 6-8mm. This is why we need to encorporate helix
  11. Each of the cantilever arms, by virtue of their bracket attachments are a part of this force system. The coil is the third part
  12. the v bend when centered between the molar and canine during space closure creates two equal and opposite moment to counter the moments caused by the activation of closing loops therefore obtains bodily movement rather than tipping of the teeth into the extraction site Tis bend is posterior to the center of the interbracket distance and increases moment on the first molar which augments molar anchorage and intrusion of ant teeth This bend prevents the buccal segment from rolling mediolingually The k loop initially causes controlled tipping of the teeth into the extraction spaces As the loop deactivate anf the force decreases the moment to force ratio increases and causes first bodily and then root movement of the teeth Te archeire therefore should not be reactivated at short intervals but only after 6-8 weeks until space is closed
  13. . For example, a moment directed to the bracket of a canine, tending to tip the root distally, would also tend to move the crown mesially because crown tipping in mesial direction is much more readily responsive than root tipping. Thus to cope with this situation, an effort must be made to prevent the undesirable mesial crown tipping
  14. This rigidity is lost when several adjacent loops are employed. But loops working in different directions will not appreciably reduce the anchorage value of the wire, e.g. adjacent vertical and horizontal loops
