At True Power by Jio Things, we've created an innovative way to charge your electric vehicle. We provide fast, reliable and affordable solutions tailored to your specific charging needs. Our team is comprised of experts in the field of technology, engineering and sustainability. We are committed to providing our customers with safe, clean and convenient EV charging options while helping them make smarter energy choices. With our superior customer service and quality products, you can rest assured that you're getting the best possible solution for your needs! Take advantage of our trusted services today – join us on this journey towards sustainable transportation with True Power by Jio Things!

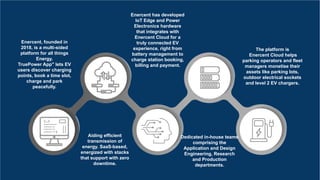

2. Enercent, founded in
2018, is a multi-sided
platform for all things
Energy.
TruePower App" lets EV
users discover charging
points, book a time slot,
charge and park
peacefully.
Enercent has developed
IoT Edge and Power
Electronics hardware
that integrates with
Enercent Cloud for a
truly connected EV
experience, right from
battery management to
charge station booking,
billing and payment.
Dedicated in-house teams
comprising the
Application and Design
Engineering, Research
and Production
departments.
The platform is
Enercent Cloud helps
parking operators and fleet
managers monetise their
assets like parking lots,
outdoor electrical sockets
and level 2 EV chargers.
Aiding efficient
transmission of
energy. SaaS-based,
energized with stacks
that support with zero
downtime.

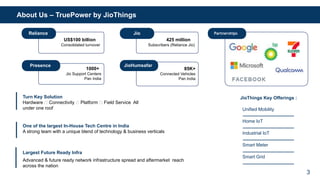

3. Turn Key Solution
Hardware 🡪 Connectivity 🡪 Platform 🡪 Field Service All
under one roof
One of the largest In-House Tech Centre in India
A strong team with a unique blend of technology & business verticals
Largest Future Ready Infra
Advanced & future ready network infrastructure spread and aftermarket reach
across the nation
Unified Mobility
Home IoT
Industrial IoT
Smart Meter
Smart Grid
JioThings Key Offerings :
US$100 billion
Consolidated turnover
425 million
Subscribers (Reliance Jio)
1000+
Jio Support Centers
Pan India
Reliance Jio
85K+
Connected Vehicles
Pan India
Presence JioHumsafar
Partnerships
3
About Us – TruePower by JioThings
4. CREDITS: This presentation template was created by
Slidesgo, including icons by Flaticon, and infographics &
images by Freepik.

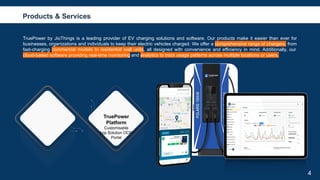

TruePower by JioThings is a leading provider of EV charging solutions and software. Our products make it easier than ever for
businesses, organizations and individuals to keep their electric vehicles charged. We offer a comprehensive range of chargers, from
fast-charging commercial models to residential wall units, all designed with convenience and efficiency in mind. Additionally, our
cloud-based software providing real-time monitoring and analytics to track usage patterns across multiple locations or users.
4
Products & Services
TruePower
Platform
Customisable
App Solution OCPI
Portal

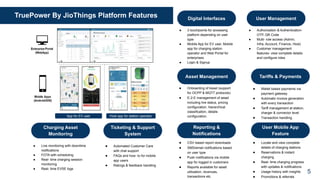

5. TruePower By JioThings Platform Features
App for EV user Host app for station operator
Charging Asset
Monitoring
● Live monitoring with downtime
notifications
● FOTA with scheduling
● Real- time charging session
monitoring
● Real- time EVSE logs
Ticketing & Support
System
● Automated Customer Care
with chat support
● FAQs and how- to for mobile
app users
● Ratings & feedback handling
Digital Interfaces
● 3 touchpoints for accessing
platform depending on user
type
● Mobile App for EV user, Mobile
app for charging station
operator and Web Portal for
enterprises
● Login & Signup
User Management
● Authorization & Authentication-
OTP, QR Code
● Multi- role access (Admin,
Infra, Account, Finance, Host)
● Customer management
features- view complete details
and configure roles
Asset Management
● Onboarding of Asset (support
for OCPP & MQTT protocols)
● E-2-E management of asset
including live status, pricing
configuration, hierarchical
classification, details
configuration.
Tariffs & Payments
● Wallet based payments via
payment gateway.
● Automatic invoice generation
with every transaction
● Tariff management at station,
charger & connector level
● Transaction handling.
Reporting &
Notifications
● CSV based report downloads
● SMS/email notifications based
on user type
● Push notifications via mobile
app for logged in customers
● Reports available for asset
utilization, revenues,
transactions etc.
User Mobile App
Feature
● Locate and view complete
details of charging stations
● Reservations & instant
charging
● Real- time charging progress
with updates & notifications
● Usage history with insights
● Promotions & referrals
5

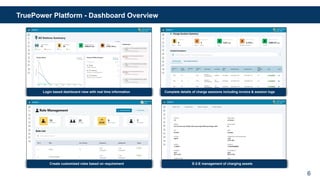

6. TruePower Platform - Dashboard Overview
Login based dashboard view with real time information Complete details of charge sessions including invoice & session logs
Create customized roles based on requirement E-2-E management of charging assets
6

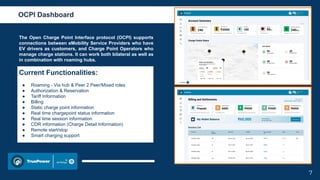

7. The Open Charge Point Interface protocol (OCPI) supports
connections between eMobility Service Providers who have
EV drivers as customers, and Charge Point Operators who
manage charge stations. It can work both bilateral as well as
in combination with roaming hubs.
Current Functionalities:
● Roaming - Via hub & Peer 2 Peer/Mixed roles
● Authorization & Reservation
● Tariff Information
● Billing
● Static charge point information
● Real time chargepoint status information
● Real time session information
● CDR information (Charge Detail Information)
● Remote start/stop
● Smart charging support
7
OCPI Dashboard

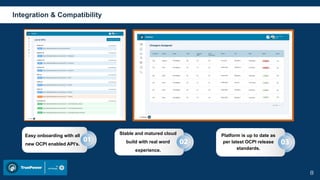

8. Easy onboarding with all
new OCPI enabled API’s.
Stable and matured cloud
build with real word
experience.
Platform is up to date as
per latest OCPI release
standards.
8
Integration & Compatibility

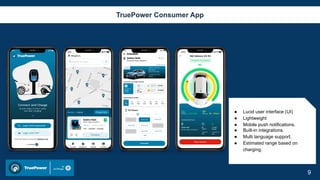

9. TruePower Consumer App
9
● Lucid user interface (UI)
● Lightweight
● Mobile push notifications.
● Built-in integrations.
● Multi language support.
● Estimated range based on
charging.
10. ● Real-time interactions and
personalization.
● Configurable auto
settlements.
● Detailed analytics to analyze
user behavior.
● Public-private configuration
and rates.
● Revenue model integration
10
TruePower Host App

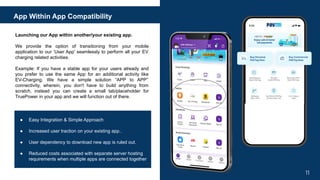

11. App Within App Compatibility
● Easy Integration & Simple Approach
● Increased user traction on your existing app..
● User dependency to download new app is ruled out.
● Reduced costs associated with separate server hosting
requirements when multiple apps are connected together
11
Launching our App within another/your existing app.
We provide the option of transitioning from your mobile
application to our ‘User App’ seamlessly to perform all your EV
charging related activities.
Example: If you have a stable app for your users already and
you prefer to use the same App for an additional activity like
EV-Charging. We have a simple solution “APP to APP”
connectivity, wherein, you don't have to build anything from
scratch, instead you can create a small tab/placeholder for
TruePower in your app and we will function out of there.

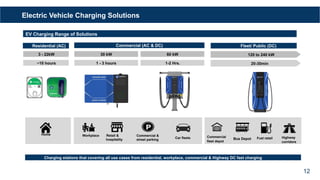

12. EV Charging Range of Solutions
Residential (AC) Commercial (AC & DC) Fleet/ Public (DC)
Charging stations that covering all use cases from residential, workplace, commercial & Highway DC fast charging
Home Workplace Retail &
hospitality
Commercial &
street parking
Car fleets Commercial
fleet depot
Fuel retail Highway
corridors
Electric Vehicle Charging Solutions
3 - 22kW
~10 hours
30 kW
1 - 3 hours
60 kW
1-2 Hrs.
120 to 240 kW
20-30min
12
Bus Depot

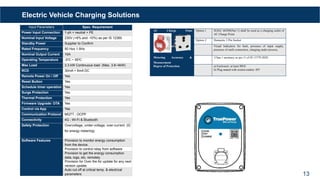

13. Electric Vehicle Charging Solutions
Input Parameters Spec. Requirement
Power Input Connection 1-ph + neutral + PE
Nominal Input Voltage 230V (+6% and -10%) as per IS 12360
Standby Power Supplier to Confirm
Rated Frequency 50 Hz± 1.5Hz
Nominal Output Current 16A
Operating Temperature -5⁰C ~ 55⁰C
Max Load 3.3 kW Continuous load (Max. 3.6~4kW)
RCD 30mA + 6mA DC
Remote Power On / Off Yes
Reset Button Yes
Schedule timer operation Yes
Surge Protection Yes
Thermal Protection Yes
Firmware Upgrade: OTA Yes
Control via App Yes
Communication Protocol MQTT ; OCPP
Connectivity 4G ; Wi-Fi & Bluetooth
Safety Protection Overvoltage, under-voltage, over-current (IC
for energy metering)
Software Features Provision to monitor energy consumption
from the device.
Provision to control relay from software
Provision to get the energy consumption
data, logs, etc. remotely
Provision for Over the Air update for any next
version update
Auto cut off at critical temp. & electrical
parameters
AC Charge Point
Socket-Outlet
Option 1 IS/IEC 60309(Part 1) shall be used as a charging outlet of
AC Charge Point.
Option 2 Domestic 3 Pin Socket
Visual Indicators Visual Indicators for fault, presence of input supply,
presence of earth connection, charging under process,
Metering Accuracy &
Measurement
Class 1 accuracy as per 11 of IS 13779:2020.
Degree of Protection a) Enclosure: at least IP6X
b) Plug mated with socket-outlets: IP5
13

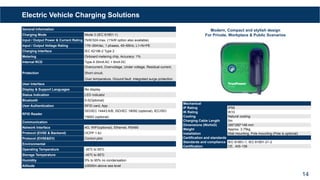

14. Electric Vehicle Charging Solutions
General Information
Charging Mode Mode 3 (IEC 61851-1)
Input / Output Power & Current Rating 7kW/32A max. (11kW option also available)
Input / Output Voltage Rating 176~264Vac, 1 phases, 45~65Hz, L1+N+PE
Charging Interface IEC 62196-2 Type 2
Metering Onboard metering chip, Accuracy: 1%
Internal RCD Type A 30mA AC + 6mA DC
Protection
Overcurrent, Overvoltage, Under voltage, Residual current,
Short circuit,
Over temperature, Ground fault, Integrated surge protection
User Interface
Display & Support Languages No display
Status Indication LED indicator
Bluetooth 5.0(Optional)
User Authentication RFID card, App
RFID Reader
ISO/IEC 14443 A/B, ISO/IEC 18092 (optional), IEC/ISO
15693 (optional)
Communication
Network Interface 4G, WIFI(optional), Ethernet, RS485
Protocol (EVSE & Backend) OCPP 1.6J
Protocol (EVSE&EV) Control pilot
Environmental
Operating Temperature -30℃ to 55℃
Storage Temperature -40℃ to 85℃
Humidity 5% to 95% no condensation
Altitude ≤3000m above sea level
Modern, Compact and stylish design
For Private, Workplace & Public Scenarios
Mechanical
IP Rating IP55
IK Rating IK10
Cooling Natural cooling
Charging Cable Length 5m
Dimensions (WxHxD) 280*280*148 mm
Weight Approx. 3.75kg
Installation Wall mounting, Pole mounting (Pole is optional)
Certification and standards
Standards and compliance IEC 61851-1, IEC 61851-21-2
Certification CE, AIS-138
14

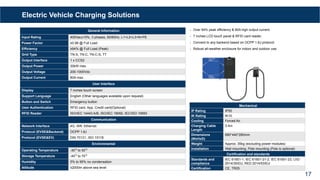

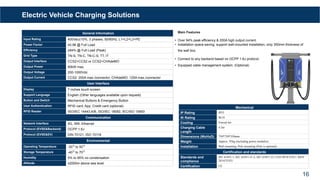

15. Electric Vehicle Charging Solutions
General Information
Input Rating 400Vac±10%, 3 phases, 50/60Hz, L1+L2+L3+N+PE
Power Factor ≥0.98 @ Full Load
Efficiency ≥94% @ Full Load (Peak)
Grid Type TN-S, TN-C, TN-C-S, TT
Output Interface 1 x CCS2
Output Power 30kW max.
Output Voltage 200-1000Vdc
Output Current 80A max.
User Interface
Display 7 inches touch screen
Support Language English (Other languages available upon request)
Button and Switch Emergency button
User Authentication RFID card, App, Credit card(Optional)
RFID Reader ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Communication
Network Interface 4G, Wifi, Ethernet
Protocol (EVSE&Backend) OCPP 1.6J
Protocol (EVSE&EV) DIN 70121, ISO 15118
Environmental
Operating Temperature -30℃
to 50℃
Storage Temperature -40℃
to 70℃
Humidity 5% to 95% no condensation
Altitude ≤2000m above sea level
• Over 94% peak efficiency & 80A high output current.
• 7 inches LCD touch panel & RFID card reader.
• Connect to any backend based on OCPP 1.6J protocol.
• Robust all-weather enclosure for indoor and outdoor use.
Mechanical
IP Rating IP55
IK Rating IK10
Cooling Forced Air
Charging Cable
Length
3.4m
Dimensions
(WxHxD)
680*440*280mm
Weight Approx. 35kg (excluding power modules)
Installation Wall mounting, Pole mounting (Pole is optional)
Certification and standards
Standards and
compliance
IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD
2014/35/EU, RED 2014/53/EU
Certification CE, TR25
17
16. Electric Vehicle Charging Solutions
General Information
Input Rating 400Vac±10%, 3 phases, 50/60Hz, L1+L2+L3+PE
Power Factor ≥0.98 @ Full Load
Efficiency ≥94% @ Full Load (Peak)
Grid Type TN-S, TN-C, TN-C-S, TT, IT
Output Interface CCS2+CCS2 or CCS2+CHAdeMO
Output Power 60kW max.
Output Voltage 200-1000Vdc
Output Current CCS2: 200A max./connector, CHAdeMO: 125A max./connector
User Interface
Display 7 inches touch screen
Support Language English (Other languages available upon request)
Button and Switch Mechanical Buttons & Emergency Button
User Authentication RFID card, App, Credit card (optional)
RFID Reader ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Communication
Network Interface 4G, Wifi, Ethernet
Protocol (EVSE&Backend) OCPP 1.6J
Protocol (EVSE&EV) DIN 70121, ISO 15118
Environmental
Operating Temperature -30℃
to 50℃
Storage Temperature -40℃
to 70℃
Humidity 5% to 95% no condensation
Altitude ≤2000m above sea level
Main Features
• Over 94% peak efficiency & 200A high output current.
• Installation space-saving: support wall-mounted installation, only 350mm thickness of
the wall box.
• Connect to any backend based on OCPP 1.6J protocol.
• Equipped cable management system. (Optional)
Mechanical
IP Rating IP55
IK Rating IK10
Cooling Forced Air
Charging Cable
Length
4.5m
Dimensions (WxHxD) 750*750*350mm
Weight Approx. 95kg (including power modules)
Installation Wall mounting, Pole mounting (Pole is optional)
Certification and standards
Standards and
compliance
IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD 2014/35/EU, RED
2014/53/EU
Certification CE
16
17. Electric Vehicle Charging Solutions (120~180 kW)
General Information
Input Rating 400Vac±10%, 3 phases, 50/60Hz, L1+L2+L3+N+PE
Power Factor ≥0.98 @ Full Load
Efficiency ≥94% @ Full Load (Peak)
Grid Type TN-S, TN-C, TN-C-S, TT
Output Interface CCS2+CCS2 or CCS2+CHAdeMO
Output Power CCS2: 180kW max. (150kW max. &
120kW max. are optional)
CHAdeMO: 62.5kW max.
Output Voltage CCS2: 200-1000Vdc, CHAdeMO: 200-500Vdc
Output Current CCS2: 200A max., CHAdeMO: 125A max.
User Interface
Display 10.4 inches touch screen
Support Language Simplified Chinese, English (Other languages available upon request)
Button and Switch Emergency button
RFID Reader ISO/IEC 14443 A/B, ISO/IEC 18092, IEC/ISO 15693
Communication
Network Interface 4G, Wifi, Ethernet
Protocol
(EVSE&Backend)
OCPP 1.6J
Protocol (EVSE&EV) DIN 70121, ISO 15118, CHAdeMO 1.0
Environmental
Operating Temperature -30℃
to 50℃
Storage Temperature -40℃
to 70℃
Humidity 5% to 95% no condensation
Altitude ≤2000m above sea level
Main Features
• Over 94% peak efficiency.
• 200-1000Vdc wide output voltage range.
• Flexible configuration, CCS2 and CHAdeMO optional.
• Smart load management.
• Connect to any backend based on OCPP 1.6J protocol.
Mechanical
IP Rating IP55
IK Rating IK10
Cooling Forced Air
Charging Cable Length CCS2+CCS2 Version: 5m or 7m(optional). CCS2+CHAdeMO
Version: 5m
Dimensions (WxHxD) 800*2050*750mm (depth without connector holder)
Weight Approx. 320kg (excluding power modules)
Installation Ground mounting
Certification and standards
Standards and
compliance
IEC 61851-1, IEC 61851-21-2, IEC 61851-23, LVD
2014/35/EU, RED 2014/53/EU
Certification CE, TR25
17

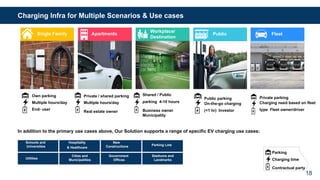

18. Single Family Apartments
Workplace/
Destination
Public Fleet
Schools and
Universities
Hospitality
& Healthcare
New
Constructions Parking Lots
Utilities
Cities and
Municipalities
Government
Offices
Stadiums and
Landmarks
In addition to the primary use cases above, Our Solution supports a range of specific EV charging use cases:
Charging Infra for Multiple Scenarios & Use cases
Own parking
Multiple hours/day
End- user
Private / shared parking
Multiple hours/day
Real estate owner
Shared / Public
parking 4-10 hours
Business owner
Municipality
Public parking
On-the-go charging
(<1 hr) Investor
Private parking
Charging need based on fleet
type Fleet owner/driver
Parking
Charging time
Contractual party
18

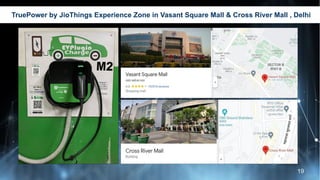

19. TruePower by JioThings Experience Zone in Vasant Square Mall & Cross River Mall , Delhi
19

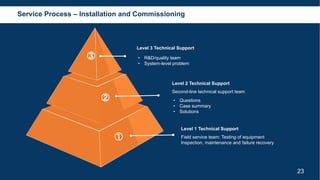

23. Service Process – Installation and Commissioning
Level 3 Technical Support
• R&D/quality team
• System-level problem
Level 2 Technical Support
Second-line technical support team
• Questions
• Case summary
• Solutions
Level 1 Technical Support
Field service team: Testing of equipment
Inspection, maintenance and failure recovery
①
②
③
23
24. Sr. No. Service Type SLA
1. Appointment for site survey/I&C Within 24 hours from receipt of request
2. Site survey Within 48 hours from site survey appointment
3. Submission of site survey report Within 24 Hours from site survey
4. Installation and Commissioning Within 72 Hours from I&C appointment
5.
Service / Troubleshooting
Response Time Within 8 Hours
Resolution Time (Minor) Within 48 Hours
Resolution Time (Major) Within 72 Hours
Service SLA’s
*Minor – FW, SW, Wiring
**Major – Replacement of Spares
SLA is defined considering Tier1 and Tier2 cities. For remote locations time will
change accordingly.
Tier 1 Cities – Metros
Tier 2 Cities – State Capital and major cities in state
24

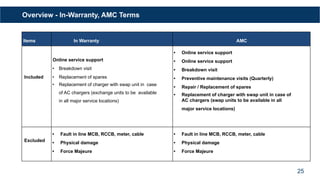

25. Overview - In-Warranty, AMC Terms
Items In Warranty AMC
Included
Online service support
• Breakdown visit
• Replacement of spares
• Replacement of charger with swap unit in case
of AC chargers (exchange units to be available
in all major service locations)
• Online service support
• Online service support
• Breakdown visit
• Preventive maintenance visits (Quarterly)
• Repair / Replacement of spares
• Replacement of charger with swap unit in case of
AC chargers (swap units to be available in all
major service locations)
Excluded
• Fault in line MCB, RCCB, meter, cable
• Physical damage
• Force Majeure
• Fault in line MCB, RCCB, meter, cable
• Physical damage
• Force Majeure
25
