TRT - Plate Spin Presentation
- 1. Rethink Your DisasterRecoveryRethink Your Disaster Recovery JOESEL BIYOYO Consulting Engineer Total RISC Technology Singapore Pte Ltd Version 1.3

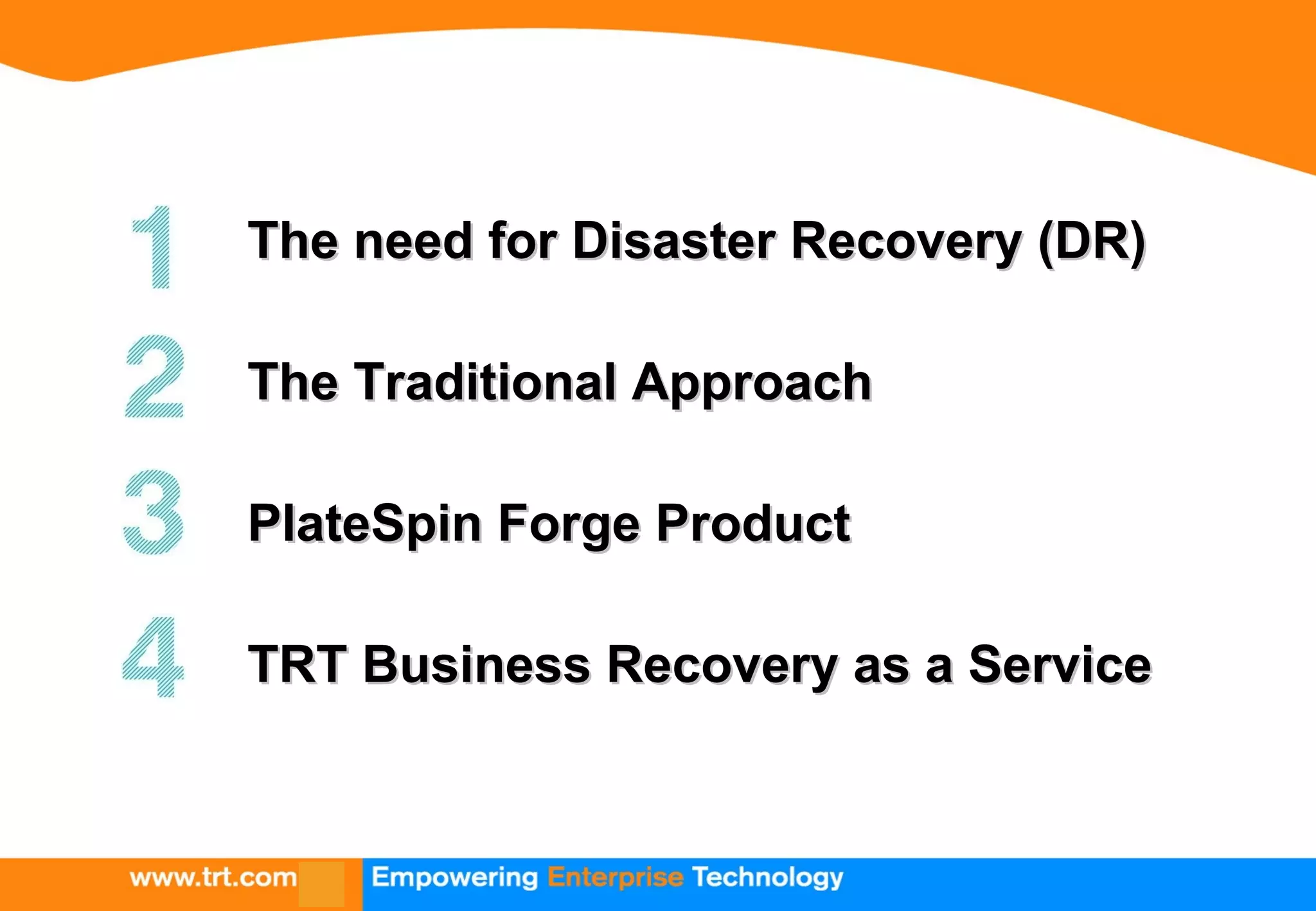

- 2. The need forDisaster Recovery (DR)The need for Disaster Recovery (DR) The Traditional ApproachThe Traditional Approach PlateSpin Forge ProductPlateSpin Forge Product TRT Business Recovery as a ServiceTRT Business Recovery as a Service

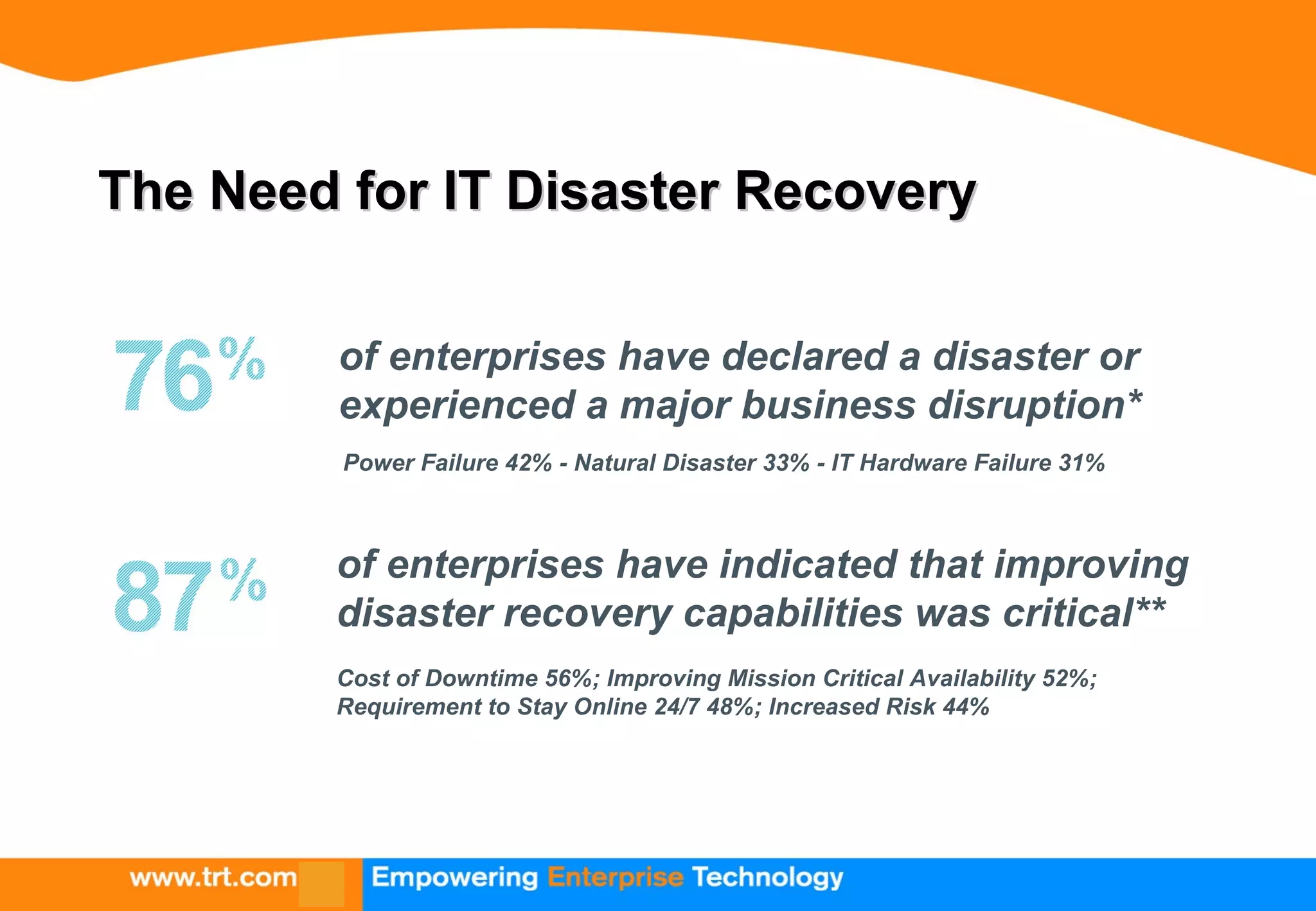

- 3. The Need forIT Disaster RecoveryThe Need for IT Disaster Recovery of enterprises have declared a disaster or experienced a major business disruption* of enterprises have indicated that improving disaster recovery capabilities was critical** Power Failure 42% - Natural Disaster 33% - IT Hardware Failure 31% Cost of Downtime 56%; Improving Mission Critical Availability 52%; Requirement to Stay Online 24/7 48%; Increased Risk 44%

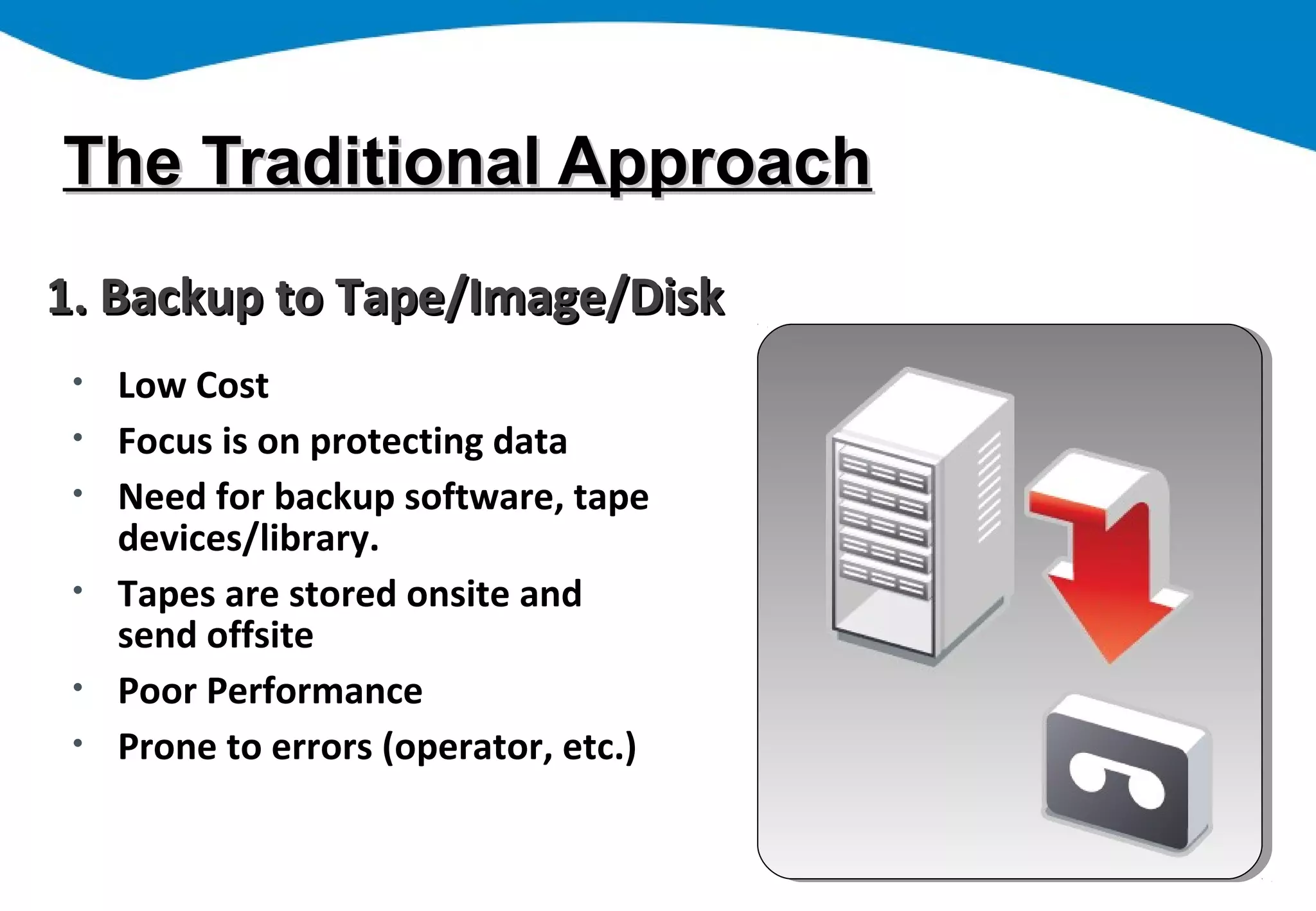

- 4. The Traditional ApproachTheTraditional Approach • Low Cost • Focus is on protecting data • Need for backup software, tape devices/library. • Tapes are stored onsite and send offsite • Poor Performance • Prone to errors (operator, etc.) 1. Backup to Tape/Image/Disk1. Backup to Tape/Image/Disk

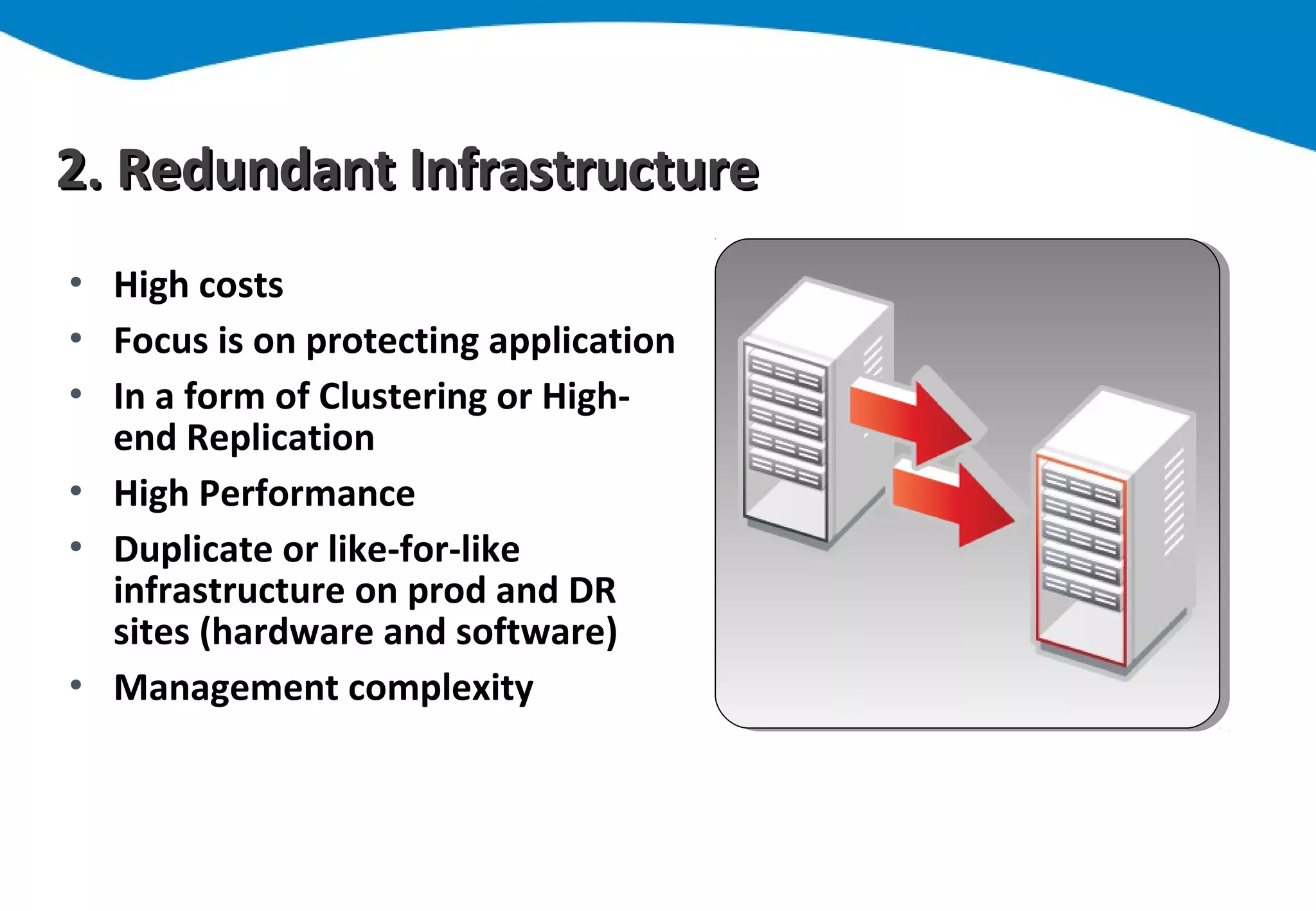

- 5. 2. Redundant Infrastructure2.Redundant Infrastructure • High costs • Focus is on protecting application • In a form of Clustering or High- end Replication • High Performance • Duplicate or like-for-like infrastructure on prod and DR sites (hardware and software) • Management complexity

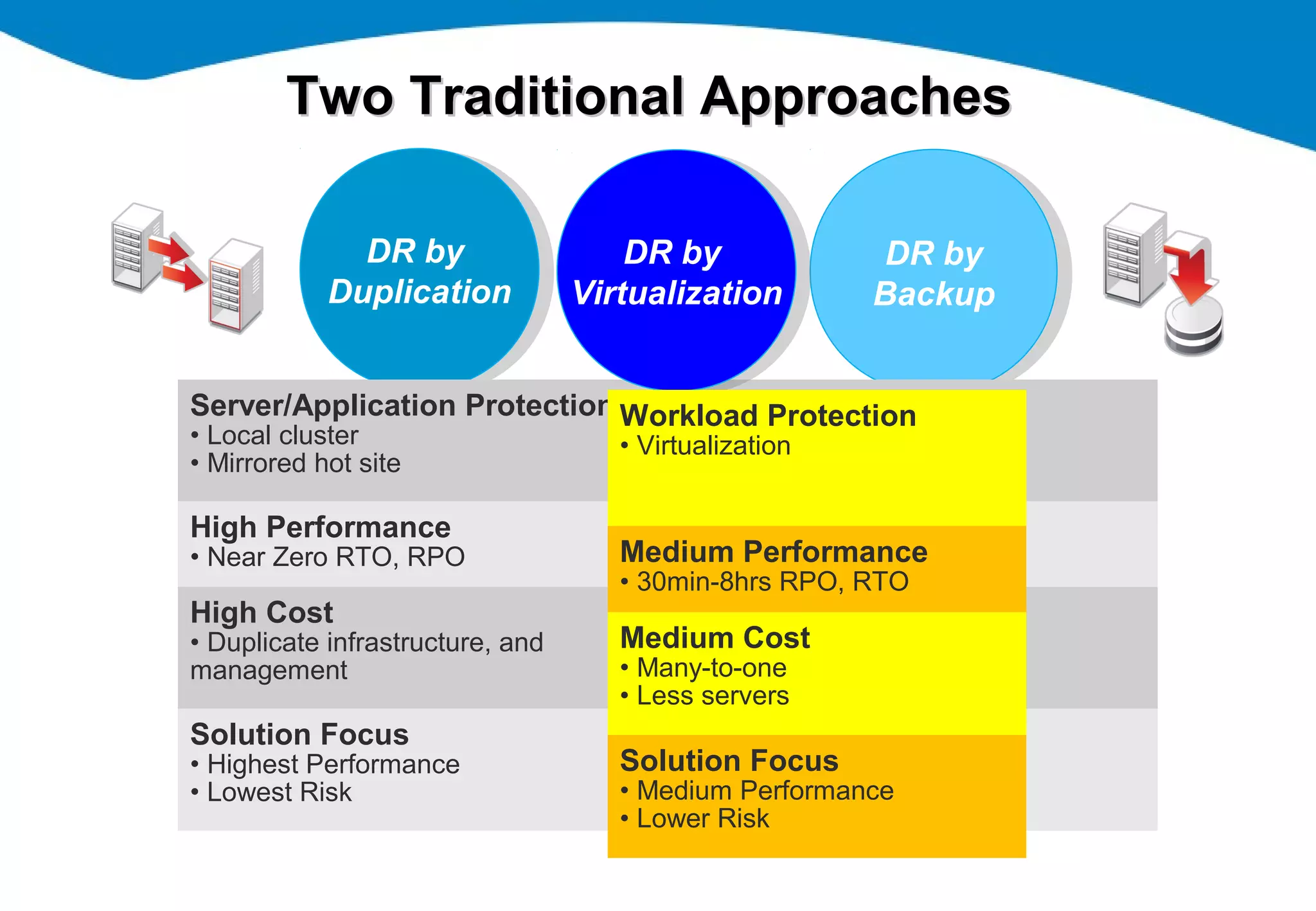

- 6. Two Traditional ApproachesTwoTraditional Approaches DR by Duplication DR by Duplication DR by Backup DR by Backup Server/Application Protection • Local cluster • Mirrored hot site Data Protection • Tape Back-up • Imaging High Performance • Near Zero RTO, RPO Poor Performance • Slow RTO, RPO (days) High Cost • Duplicate infrastructure, and management Low Cost (not practical) • Days to rebuild Solution Focus • Highest Performance • Lowest Risk Solution Focus • Cost DR by Virtualization DR by Virtualization Workload Protection • Virtualization Medium Performance • 30min-8hrs RPO, RTO Medium Cost • Many-to-one • Less servers Solution Focus • Medium Performance • Lower Risk

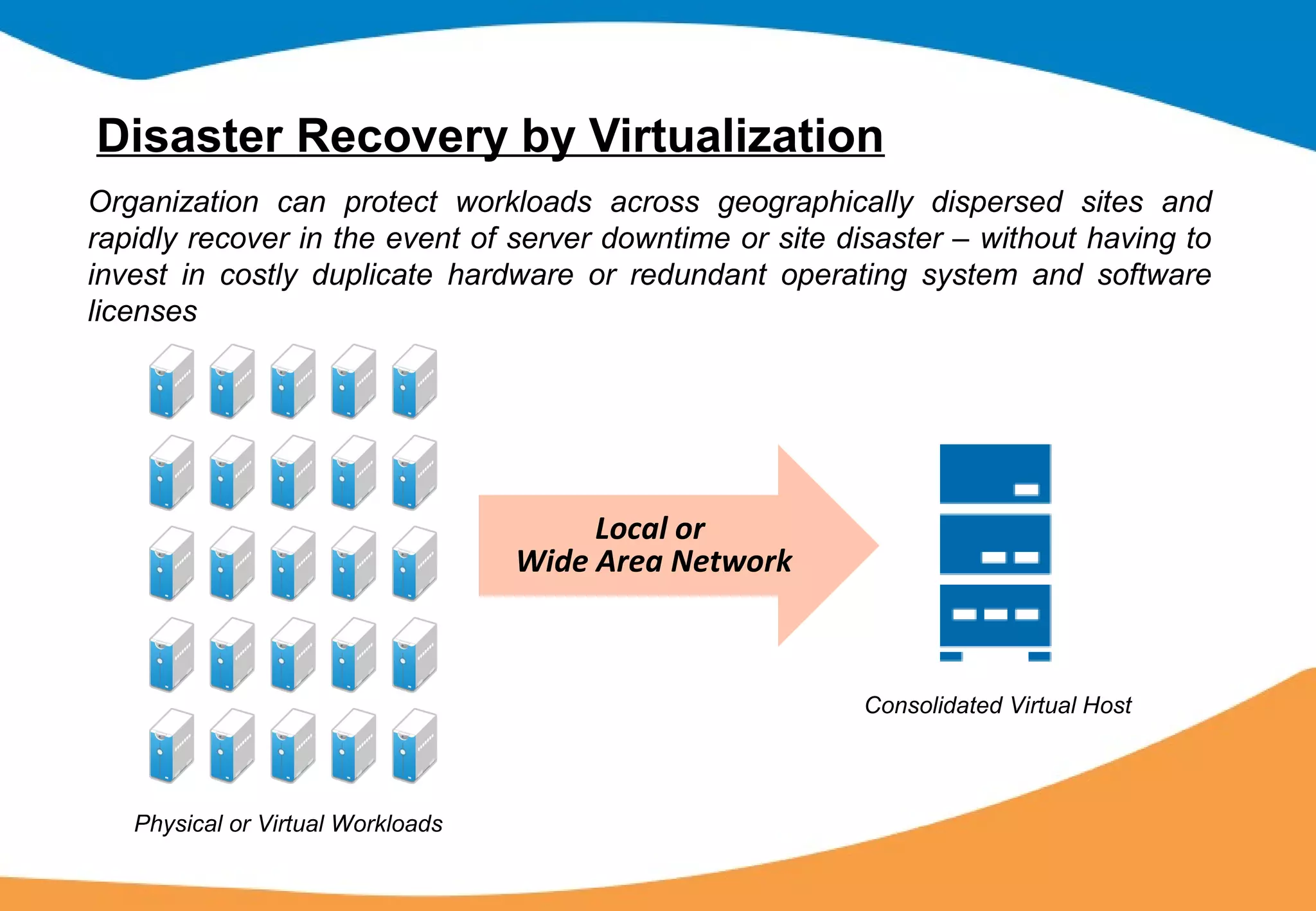

- 7. Disaster Recovery byVirtualization Local or Wide Area Network Consolidated Virtual Host Physical or Virtual Workloads Organization can protect workloads across geographically dispersed sites and rapidly recover in the event of server downtime or site disaster – without having to invest in costly duplicate hardware or redundant operating system and software licenses
- 8.

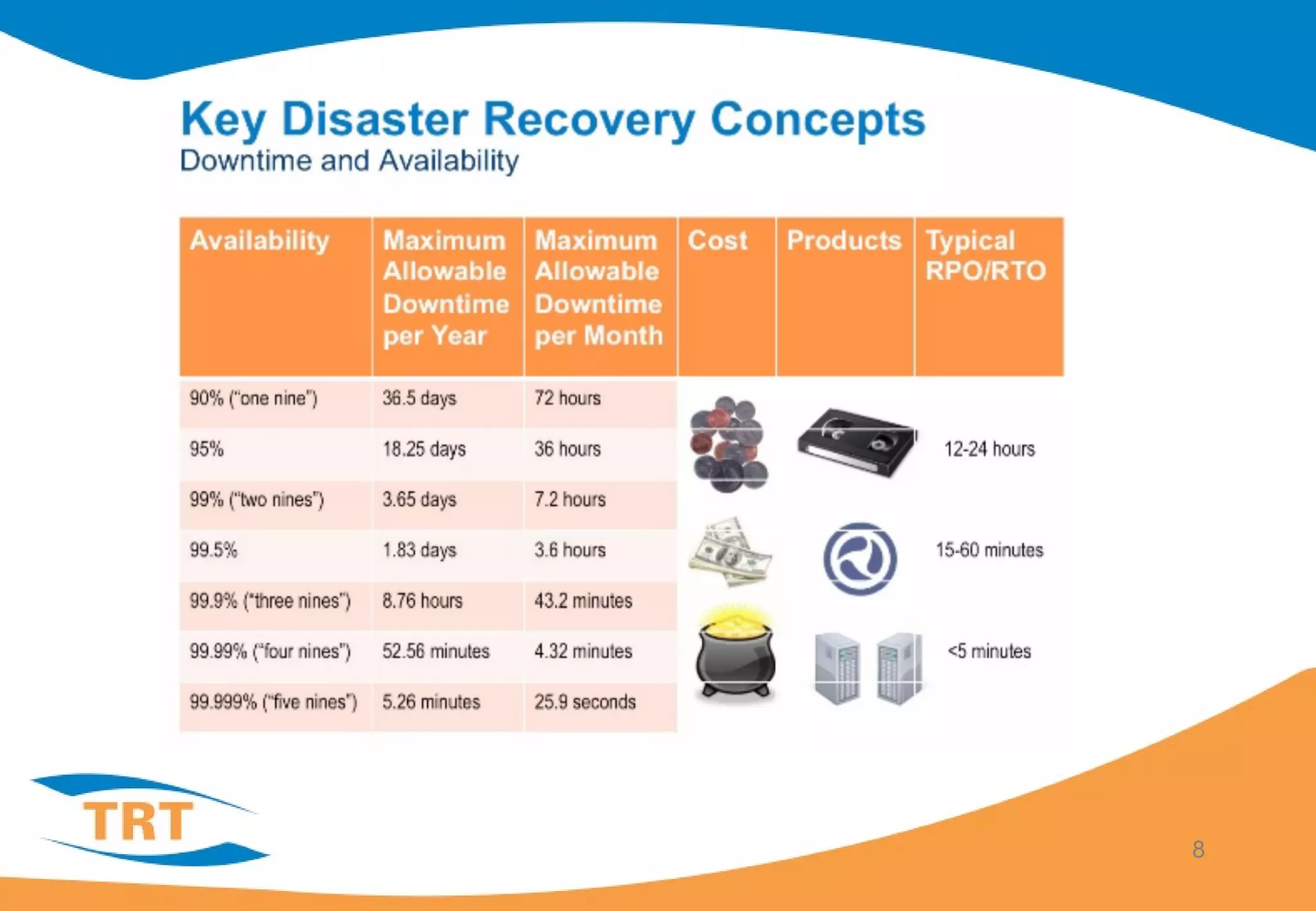

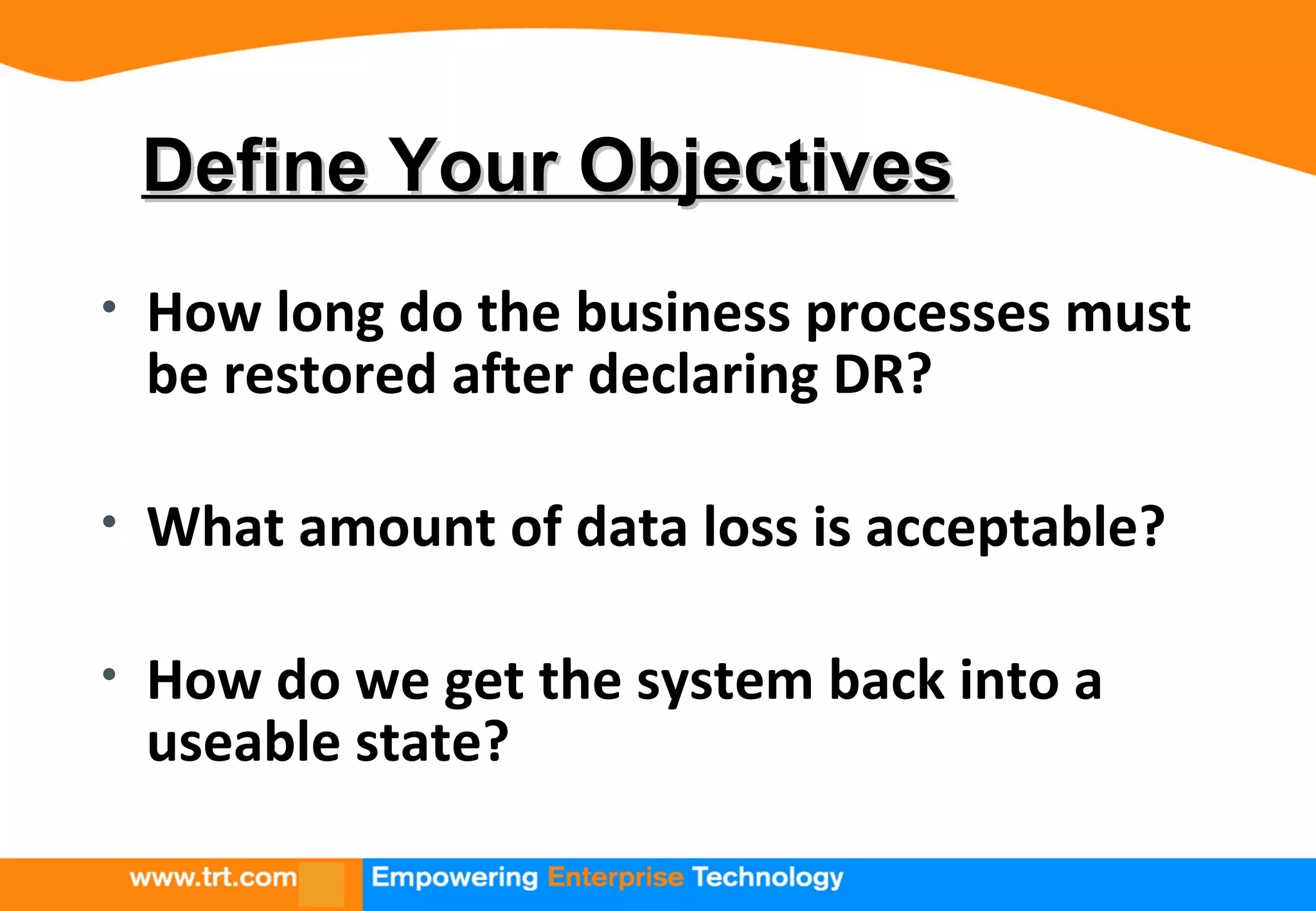

- 9. Define Your ObjectivesDefineYour Objectives • How long do the business processes must be restored after declaring DR? • What amount of data loss is acceptable? • How do we get the system back into a useable state?

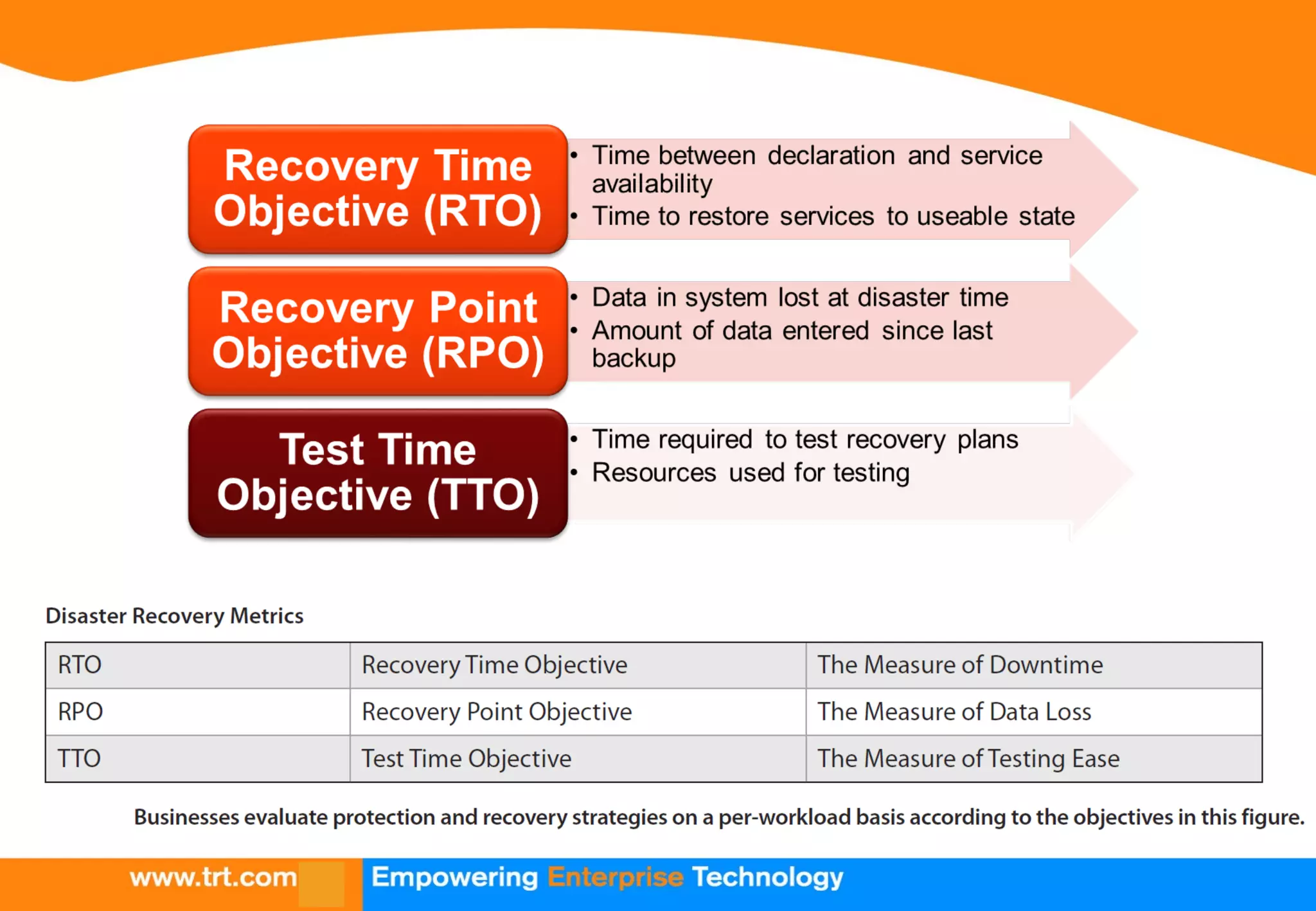

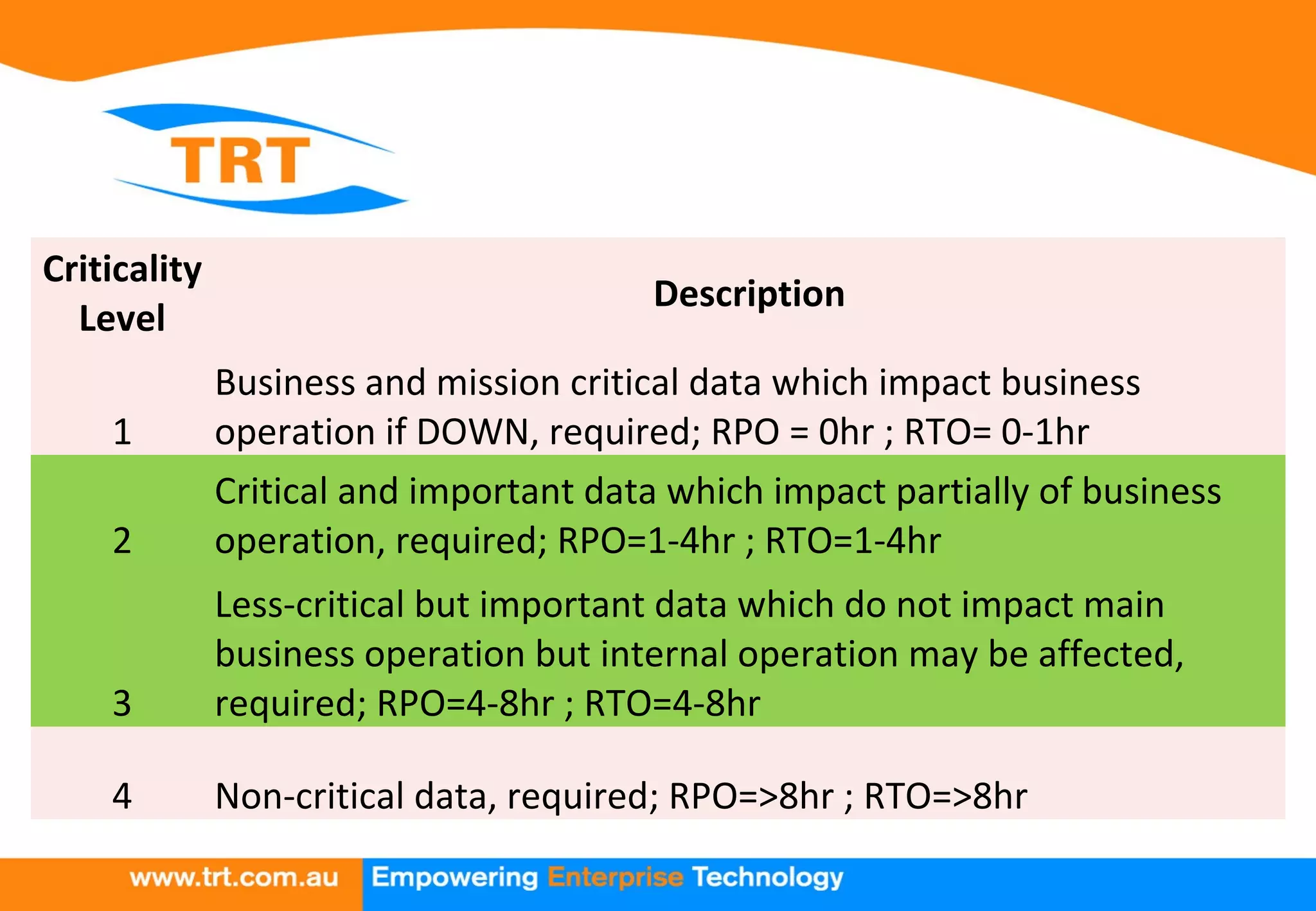

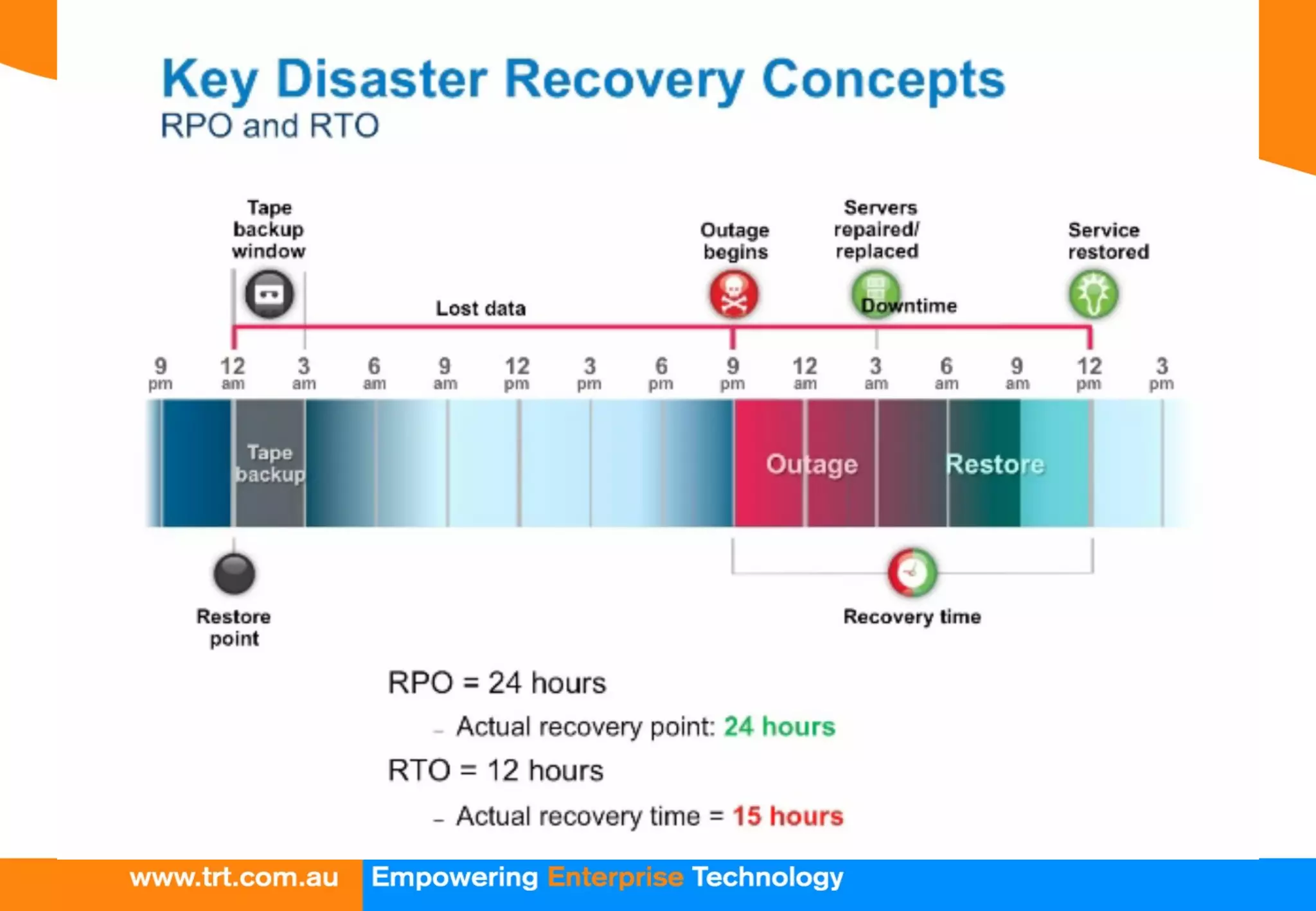

- 12. Criticality Level Description 1 Business and missioncritical data which impact business operation if DOWN, required; RPO = 0hr ; RTO= 0-1hr 2 Critical and important data which impact partially of business operation, required; RPO=1-4hr ; RTO=1-4hr 3 Less-critical but important data which do not impact main business operation but internal operation may be affected, required; RPO=4-8hr ; RTO=4-8hr 4 Non-critical data, required; RPO=>8hr ; RTO=>8hr
- 13. PlateSpinPlateSpin Disaster Recovery ProductsDisasterRecovery Products

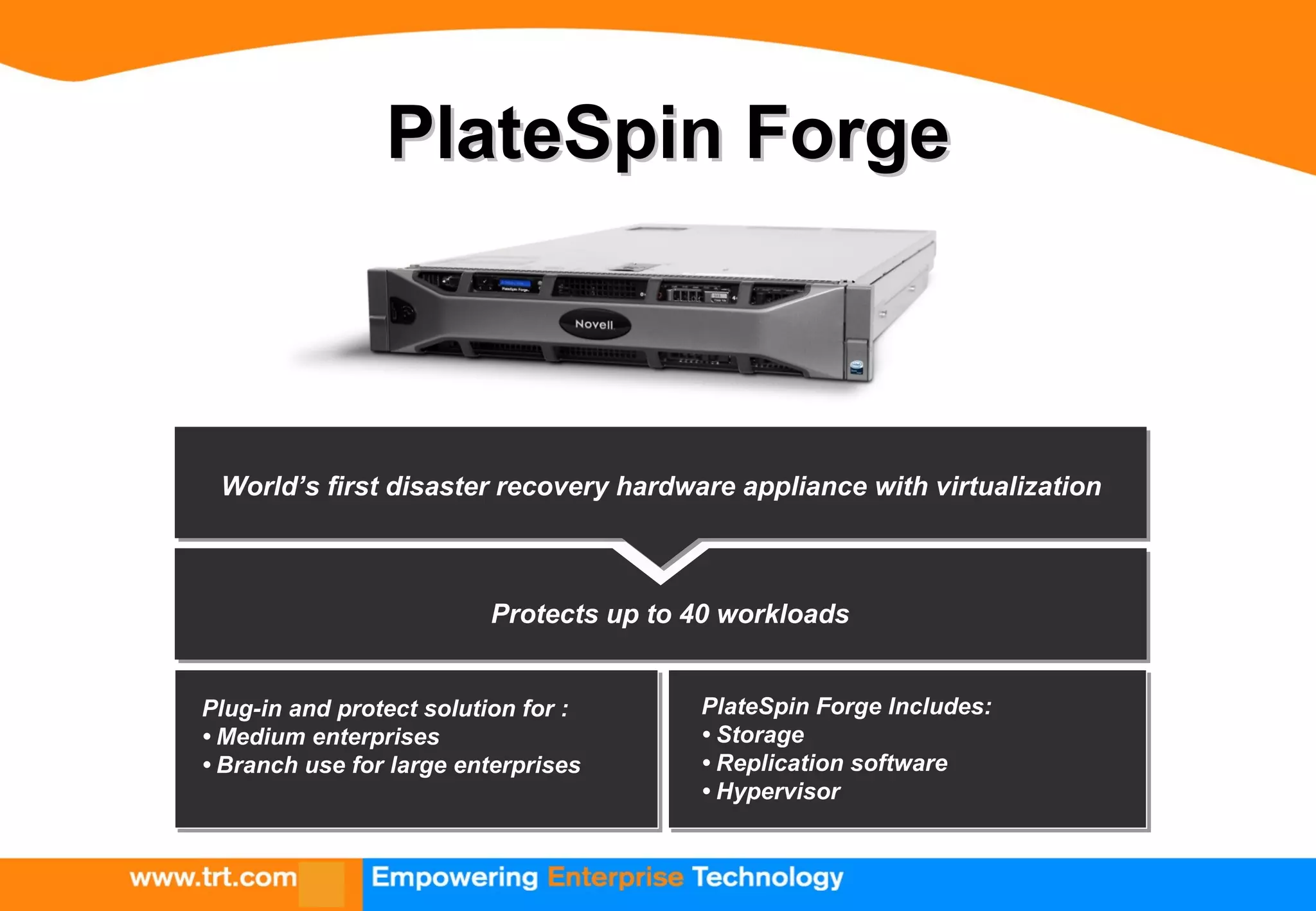

- 14. PlateSpin ForgePlateSpin Forge Protectsup to 40 workloads PlateSpin Forge Includes: • Storage • Replication software • Hypervisor Plug-in and protect solution for : • Medium enterprises • Branch use for large enterprises World’s first disaster recovery hardware appliance with virtualization

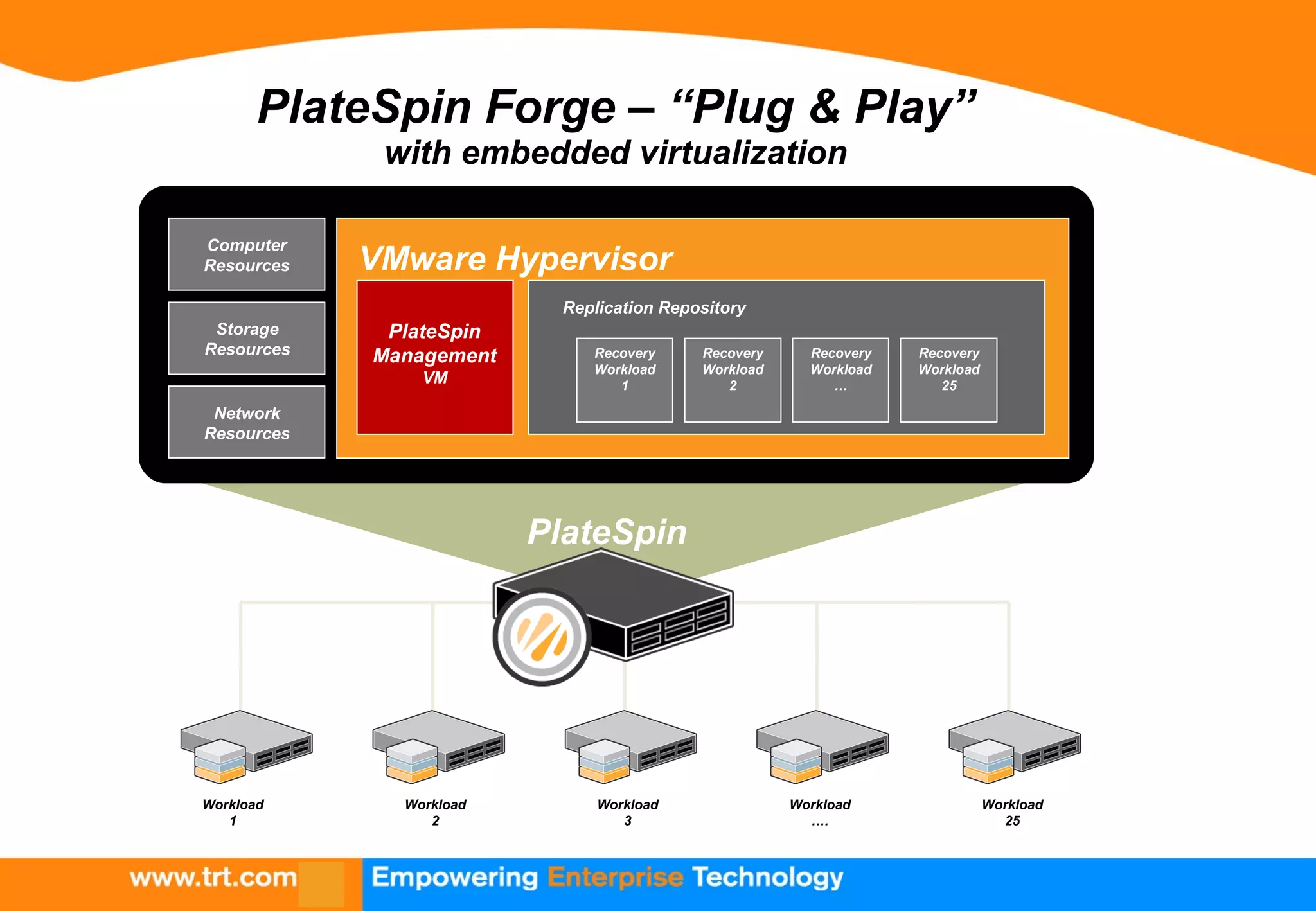

- 15. Computer Resources Storage Resources Network Resources VMware Hypervisor PlateSpin Management VM Replication Repository Recovery Workload 1 Recovery Workload 2 Recovery Workload … Recovery Workload 25 PlateSpinForge – “Plug & Play” with embedded virtualization PlateSpin Workload 1 Workload 2 Workload 25 Workload 3 Workload ….
- 16. Workload ProtectionWorkload Protection •Backing up entire server workloads - the contents of a server, including the operating system, applications and data. • Recovering workloads during an outage • Restoring workloads to their original production locations after the outage.

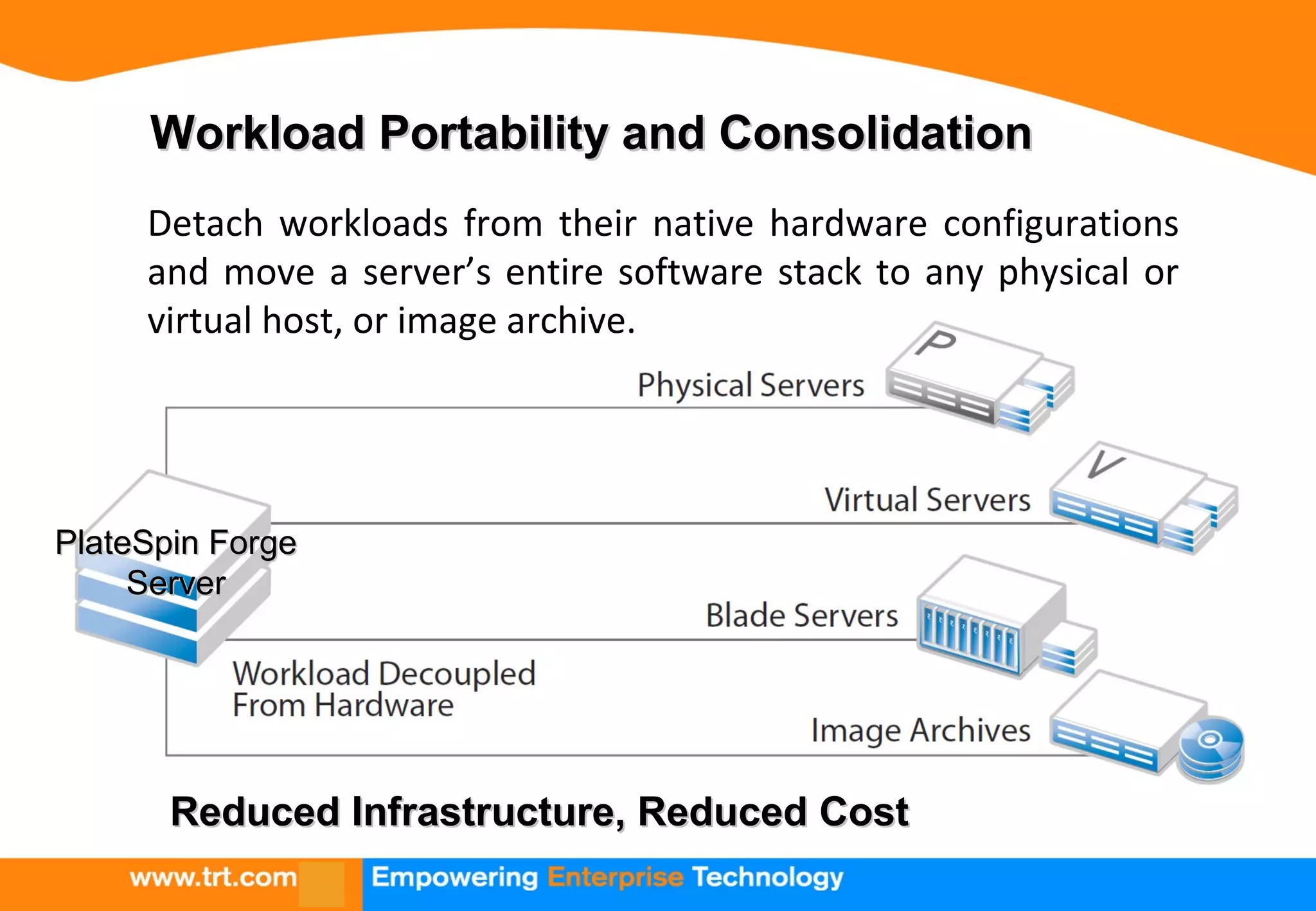

- 17. Workload Portability andConsolidationWorkload Portability and Consolidation Detach workloads from their native hardware configurations and move a server’s entire software stack to any physical or virtual host, or image archive. Reduced Infrastructure, Reduced CostReduced Infrastructure, Reduced Cost PlateSpin ForgePlateSpin Forge ServerServer

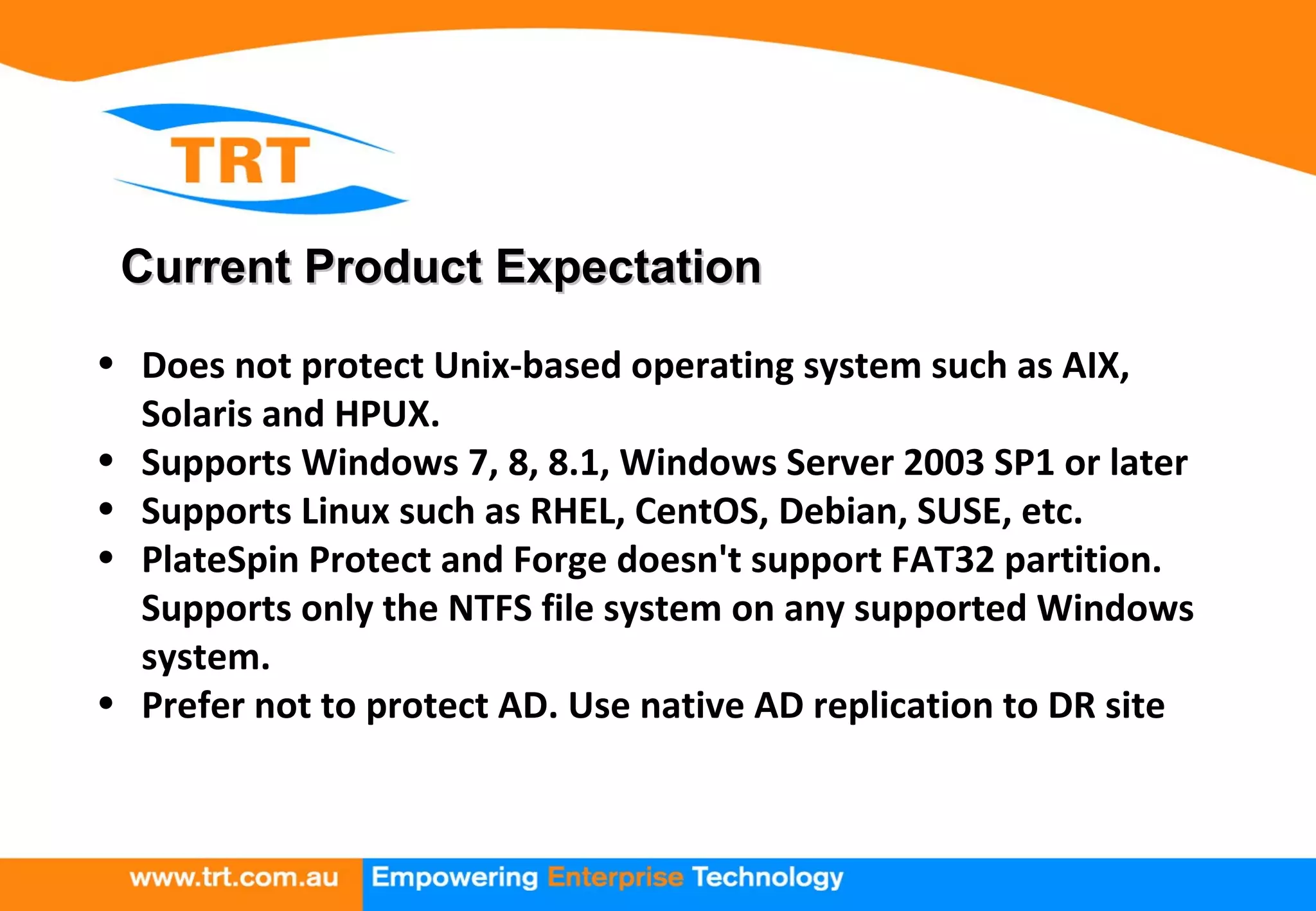

- 18. Current Product ExpectationCurrentProduct Expectation • Does not protect Unix-based operating system such as AIX, Solaris and HPUX. • Supports Windows 7, 8, 8.1, Windows Server 2003 SP1 or later • Supports Linux such as RHEL, CentOS, Debian, SUSE, etc. • PlateSpin Protect and Forge doesn't support FAT32 partition. Supports only the NTFS file system on any supported Windows system. • Prefer not to protect AD. Use native AD replication to DR site
- 19.

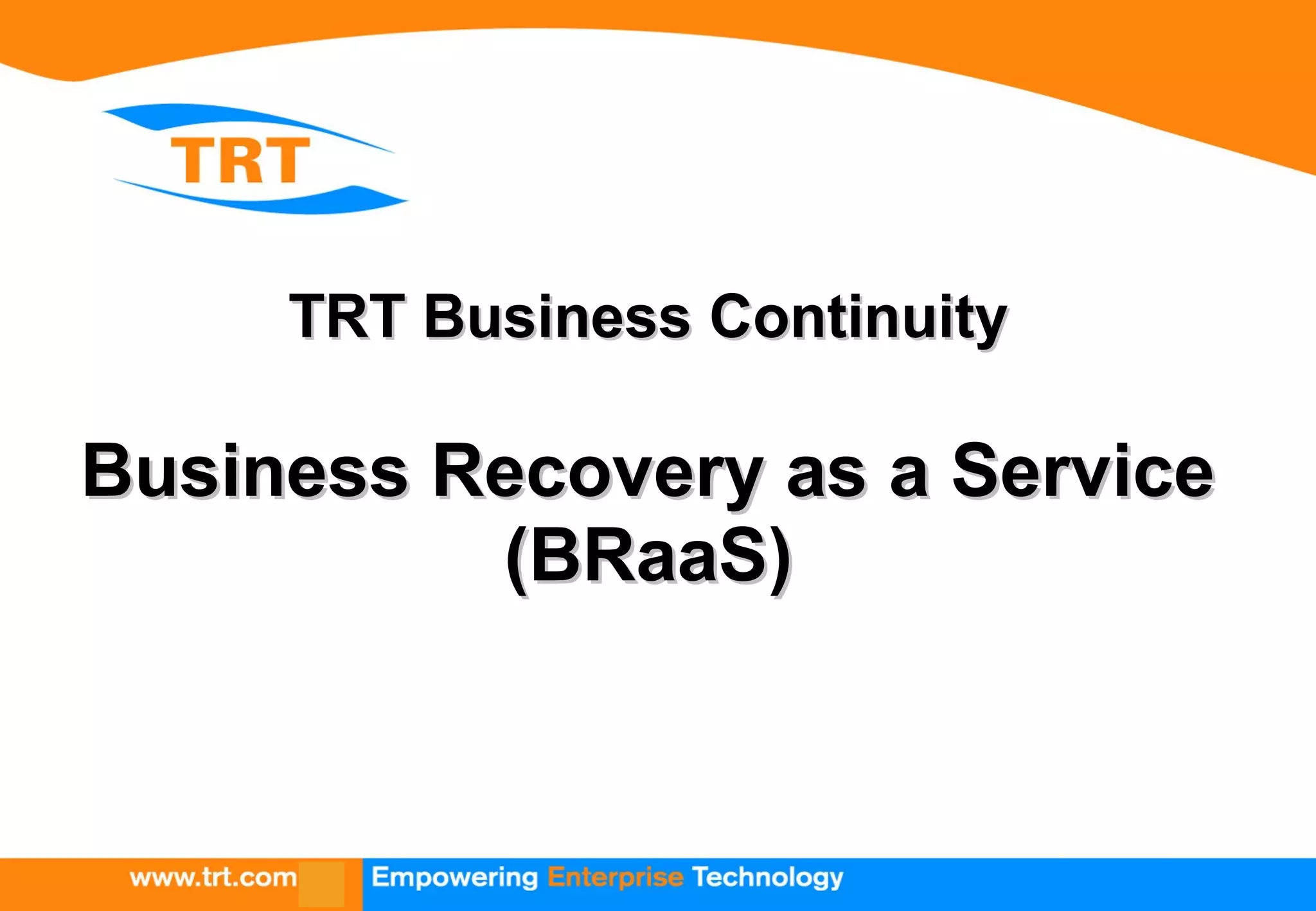

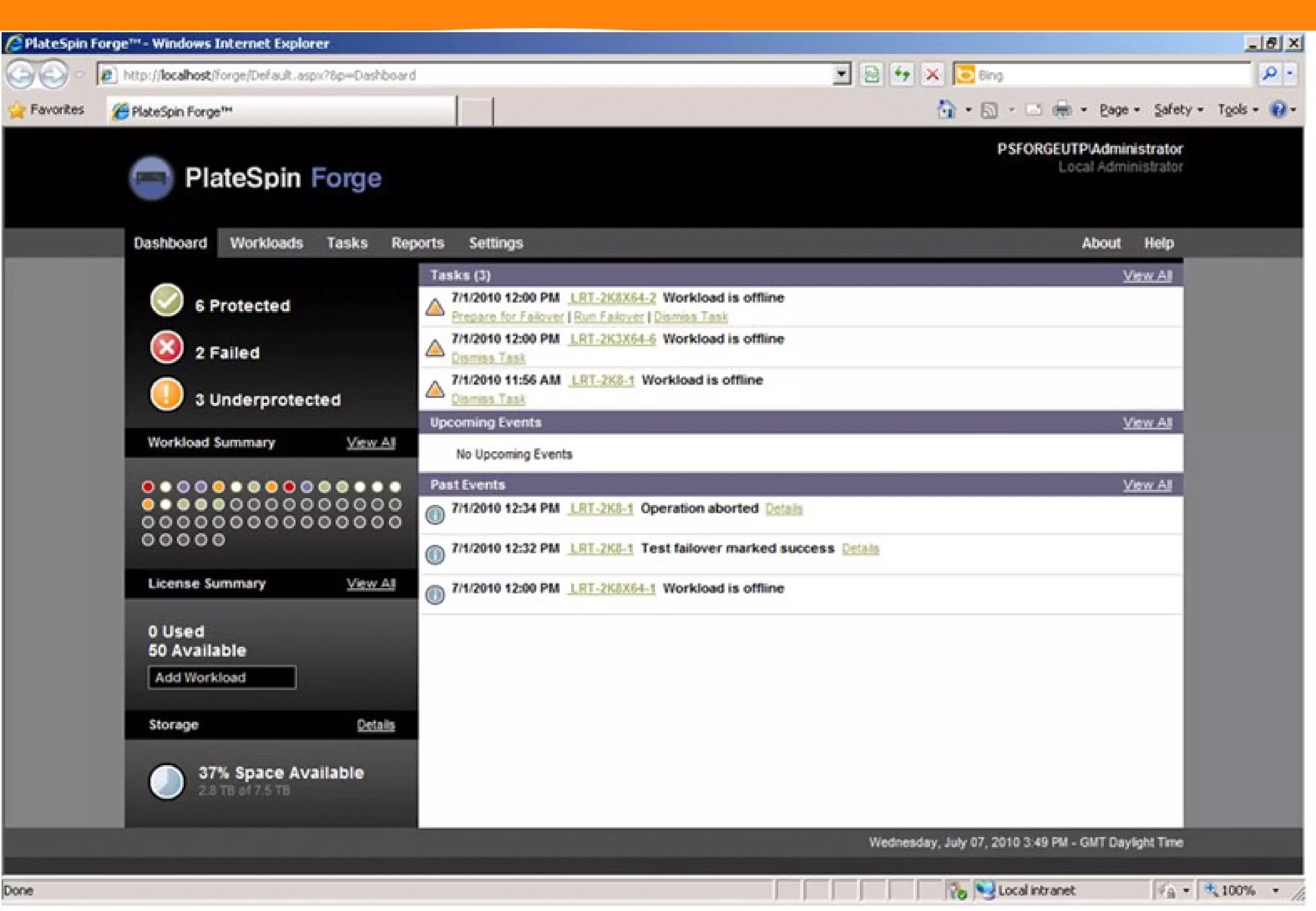

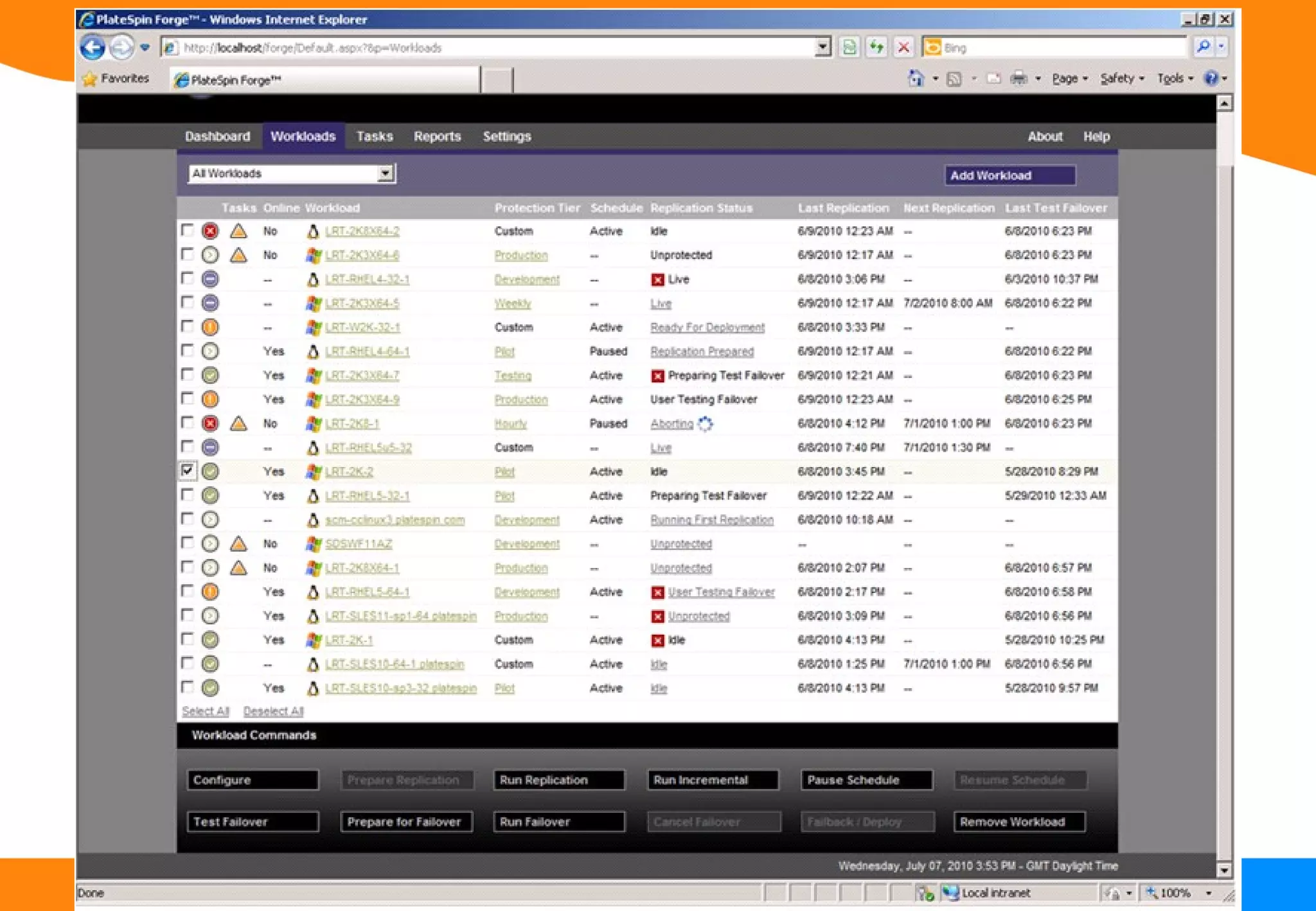

- 22. TRT Business ContinuityTRTBusiness Continuity Business Recovery as a ServiceBusiness Recovery as a Service (BRaaS)(BRaaS)

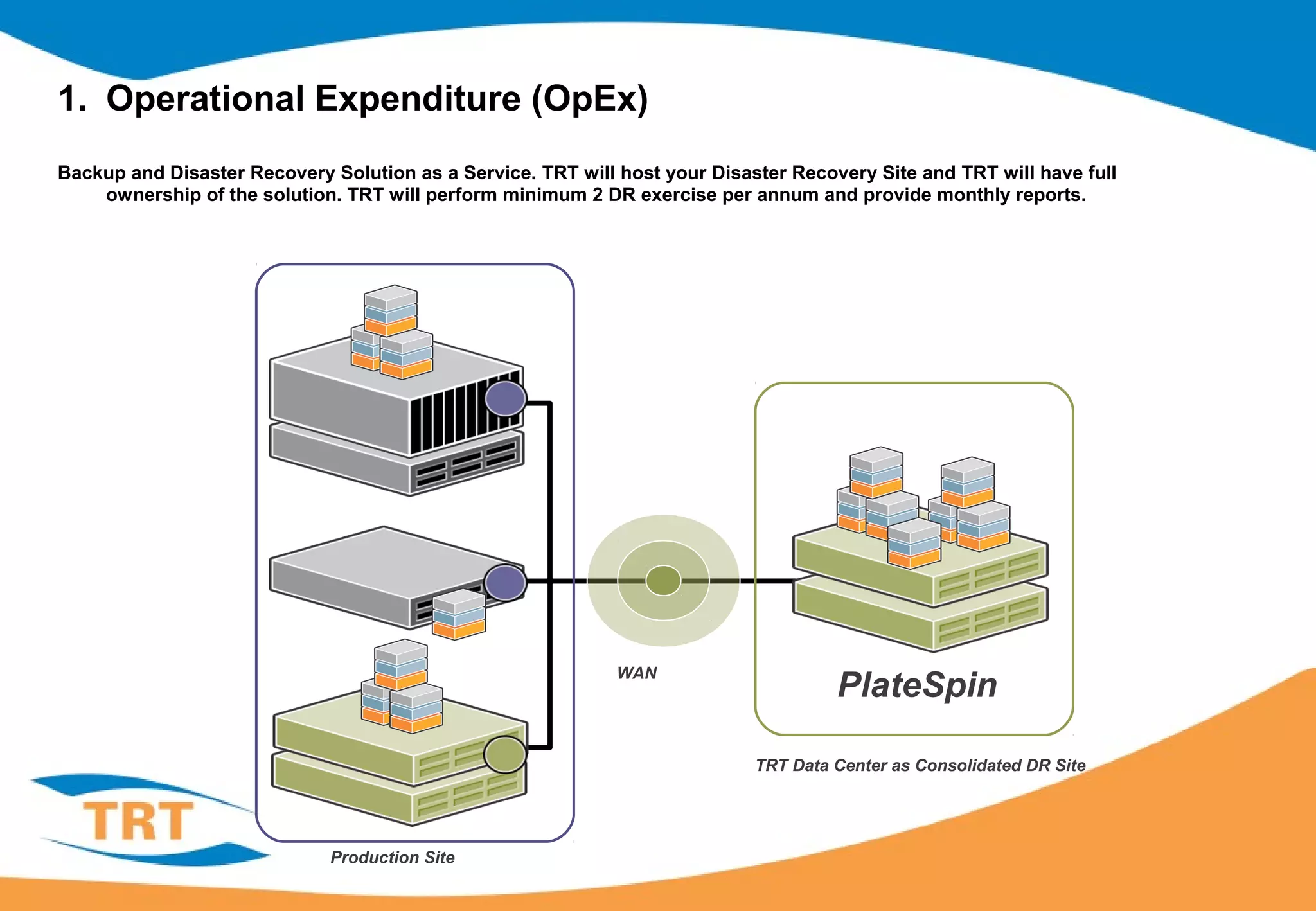

- 23. 1. Operational Expenditure(OpEx) Backup and Disaster Recovery Solution as a Service. TRT will host your Disaster Recovery Site and TRT will have full ownership of the solution. TRT will perform minimum 2 DR exercise per annum and provide monthly reports. WAN Production Site TRT Data Center as Consolidated DR Site PlateSpin

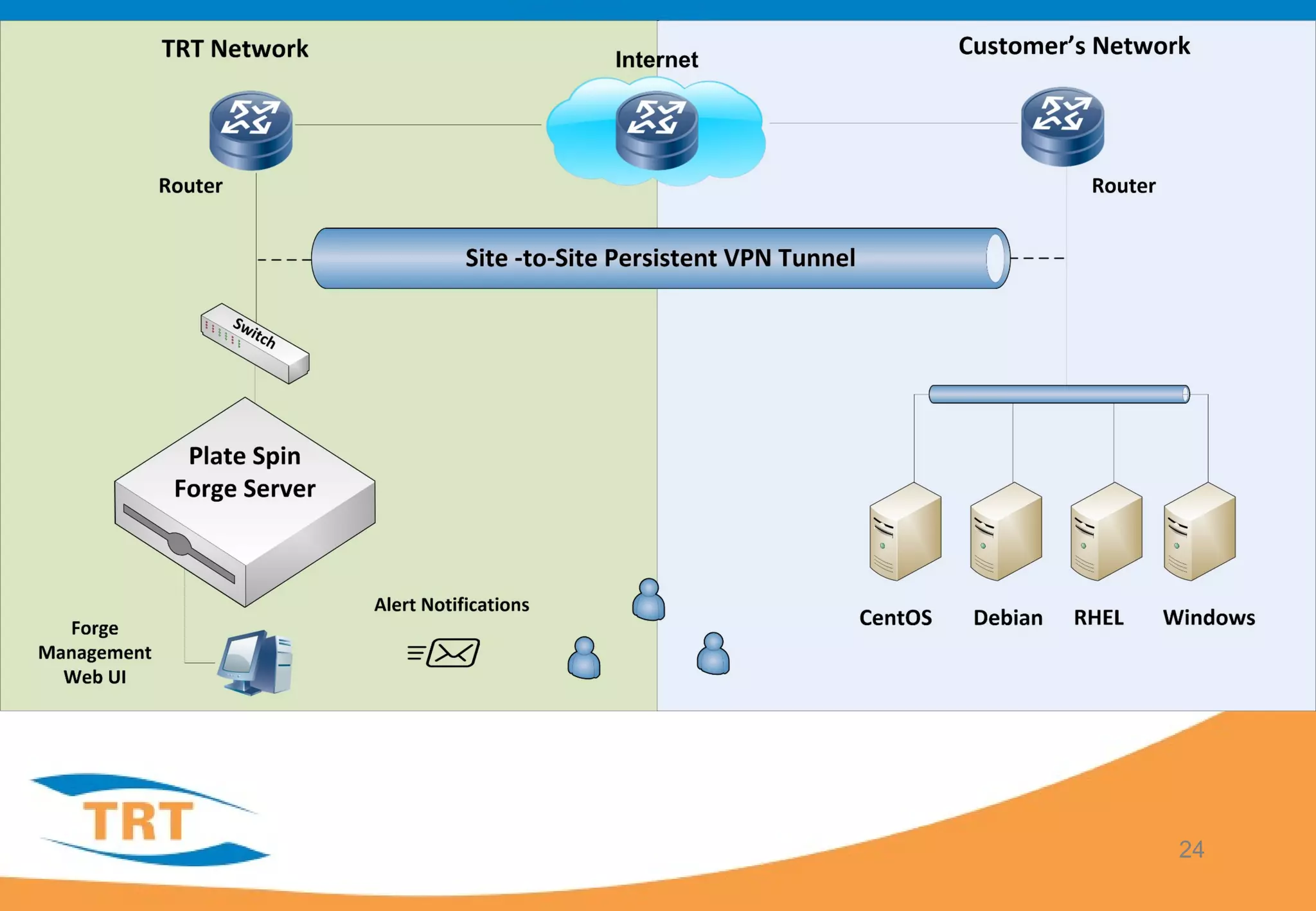

- 24.

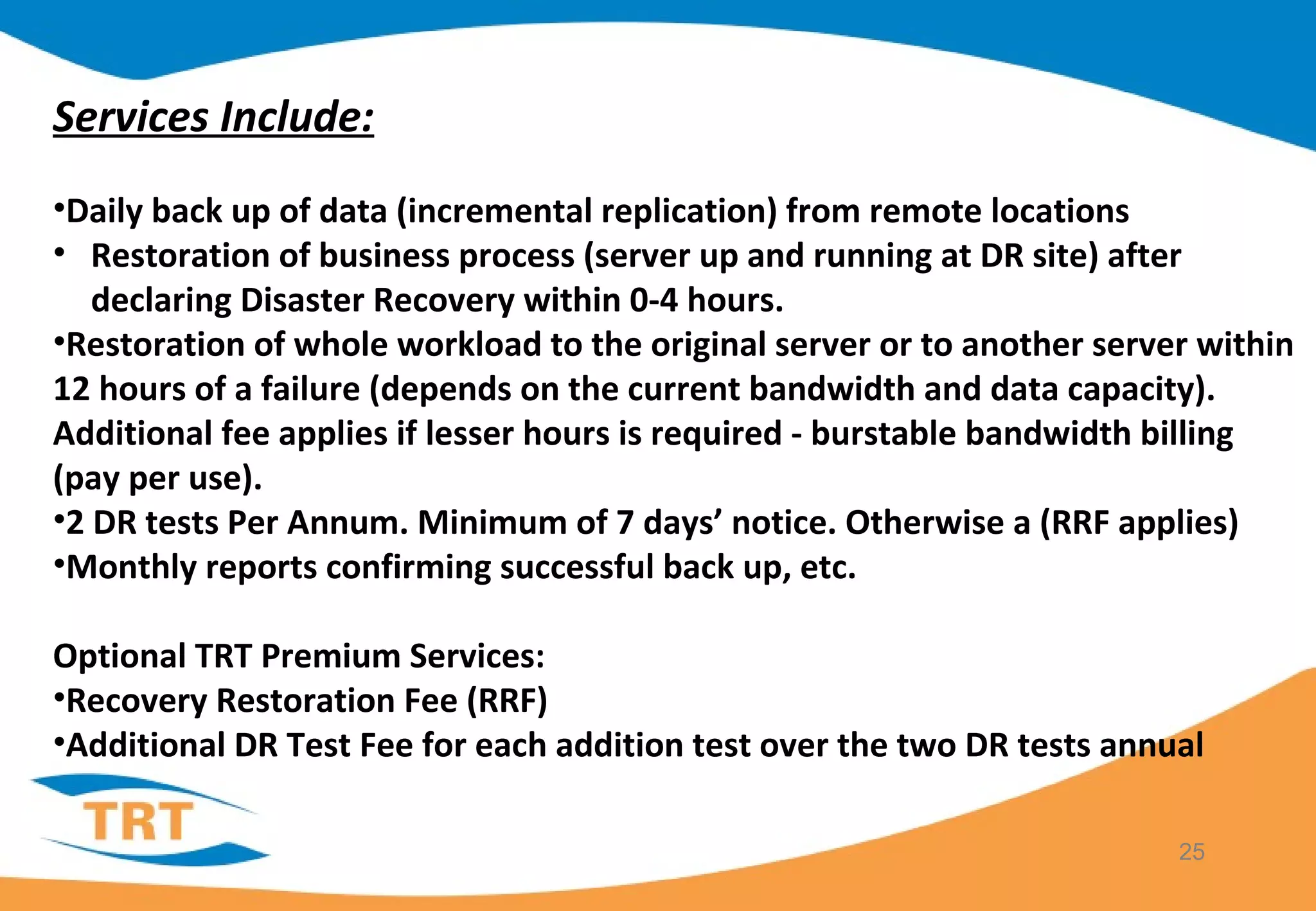

- 25. 25 Services Include: •Daily backup of data (incremental replication) from remote locations • Restoration of business process (server up and running at DR site) after declaring Disaster Recovery within 0-4 hours. •Restoration of whole workload to the original server or to another server within 12 hours of a failure (depends on the current bandwidth and data capacity). Additional fee applies if lesser hours is required - burstable bandwidth billing (pay per use). •2 DR tests Per Annum. Minimum of 7 days’ notice. Otherwise a (RRF applies) •Monthly reports confirming successful back up, etc. Optional TRT Premium Services: •Recovery Restoration Fee (RRF) •Additional DR Test Fee for each addition test over the two DR tests annual

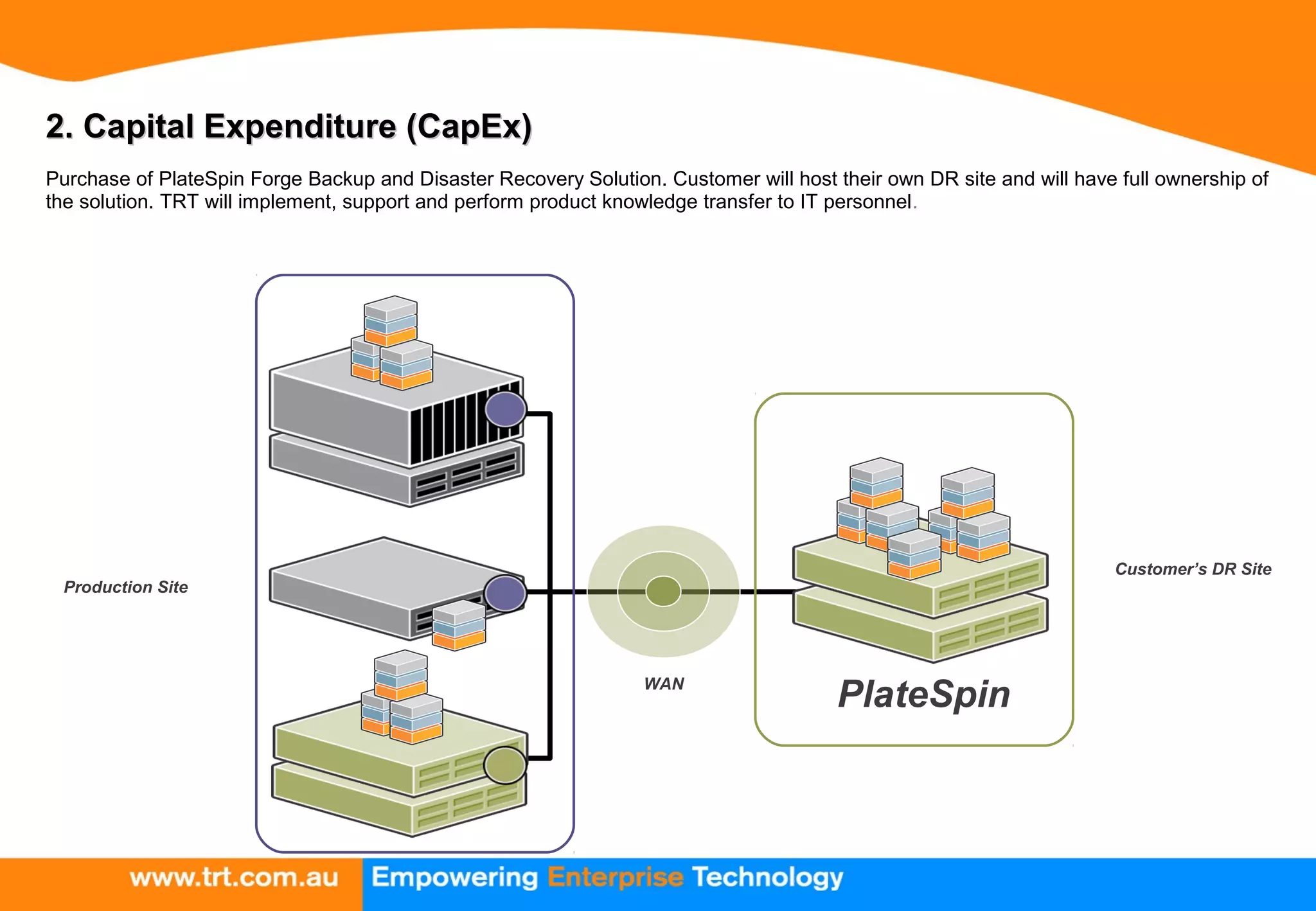

- 26. 2. Capital Expenditure(CapEx)2. Capital Expenditure (CapEx) Purchase of PlateSpin Forge Backup and Disaster Recovery Solution. Customer will host their own DR site and will have full ownership of the solution. TRT will implement, support and perform product knowledge transfer to IT personnel. WAN Production Site Customer’s DR Site PlateSpin

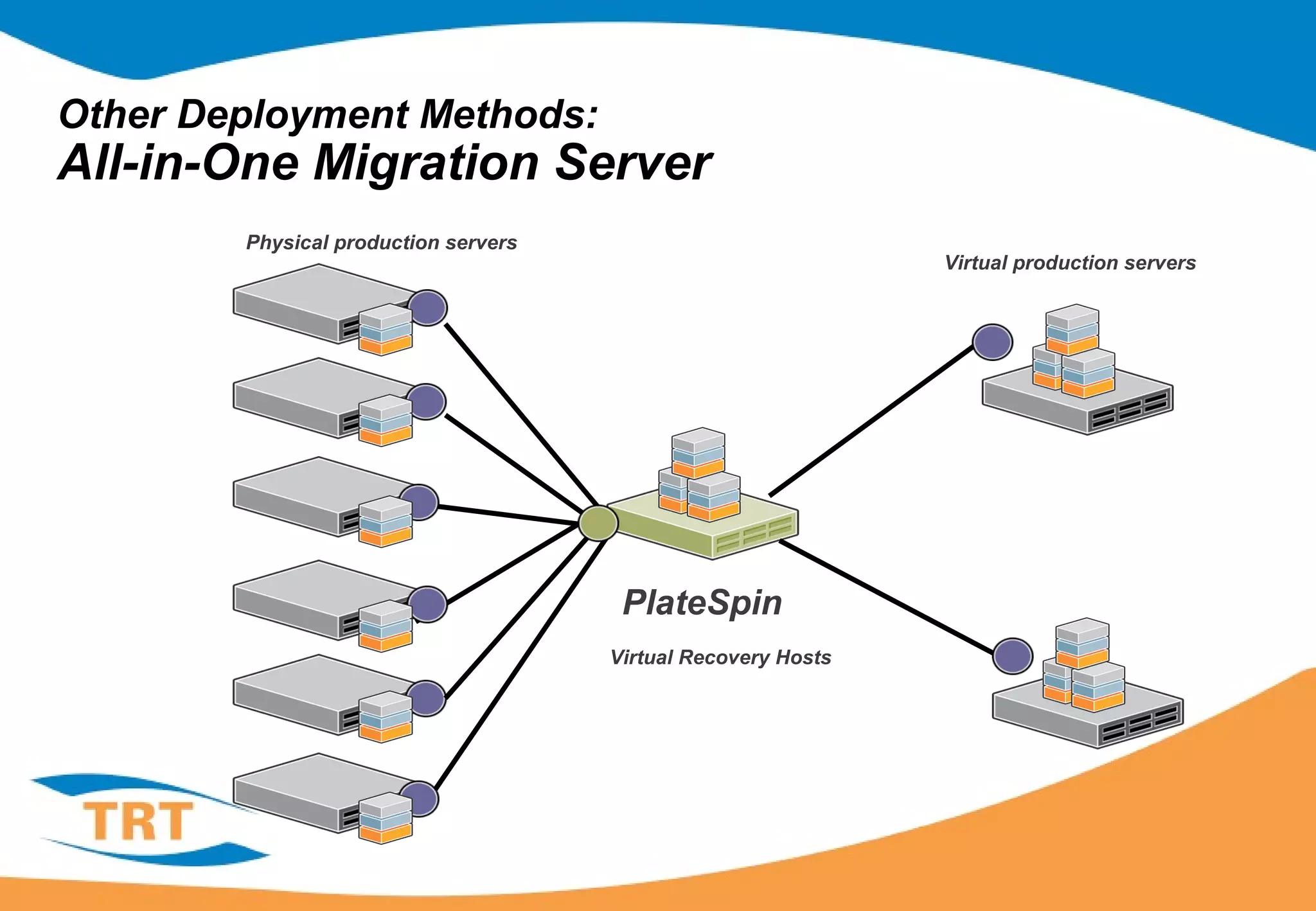

- 27. Other Deployment Methods: All-in-OneMigration Server Physical production servers Virtual production servers Virtual Recovery Hosts PlateSpin
- 28.
Editor's Notes
- #4 Other reasons are for audit compliance.
- #5 Tape backups are the workhorses of most disaster recovery plans. Organizations use magnetic tape to store duplicate copies of hard disk files, not whole server workloads. They typically copy server and desktop-based files to the tapes WHITE PAPER: Consolidated Disaster Recovery | 4 using an automated backup utility that updates on a periodic schedule, typically overnight. Many organizations use magnetic tape in combination with magnetic disks and optical disks in a backup management program that automatically moves data from one storage medium to another. They usually store tape archives offsite for recovery purposes; a third-party provider may pick up and store these backup tapes. Because of its low cost per gigabyte, tape backup is the most economically prudent recovery alternative; however, backup utilities and processes can be difficult to administer, as can the logistics of transporting, storing and retrieving tape archives in the event of an outage. It can take hours to restore a system from a backup tape, and days if multiple systems are involved. You must manually rebuild systems (reinstall the operating systems, applications and patch levels) before you can restore the application data.
- #6 Server clustering generally refers to multiple servers that are linked together to provide fault tolerance balancing distributes workloads over multiple systems. Clustering achieves near-zero recovery time and point objectives but at a very high cost. Because it can be prohibitively expensive and complicated to implement and maintain, clustering is typically a viable disaster recovery option for only the most mission-critical server environments.
- #7 There are two common approaches available in the market today when implementing a business continuity solution… disaster through duplication and disaster recovery through back-up… Let’s take a closer at these two solutions to see how they compare… Duplicating the entire datacenter infrastructure is used primarily for application protection – examples are server clustering technology and remote mirrored hot sites to ensure near real-time recovery and availability Disaster Recovery by back-up is the more traditional approach, primarily focused on data protection; magnetic tapes and imaging technologies are used to store data either locally or offsite in the event of downtime Duplication provides exceptional performance with near zero “recovery time objectives” (which measures downtime) and “recovery point objectives” (which measures Data Loss). These are two very important metrics when gauging the effectiveness of a high availability solution. The problem is that high performance comes at a high price, due to the redundant hardware and software that is required for this exceptionally high performance. Back-ups deliver poor performance with extremely poor “recovery time objectives” and “recovery point objectives” taking in some cases up to a week to successfully recover and rebuild lost data onto new bare metal servers. Considering the three main challenge areas data centers face today – cost, performance and risk – High cost duplication easily addresses “performance” and “risk” but falls far short on cost Back-up technologies are a price leader – but fall short in performance and risk – it is simply not a practical and efficient way to protect the most important pieces of your customer’s business
- #10 How long can we afford downtime?
- #13 PlateSpin coverage is Criticality 2 and 3
- #19 PlateSpin Protect and Forge doesn't support FAT32 partition. PlateSpin Forge supports only the NTFS file system on any supported Windows system. Prefer not to protect AD. Use native AD replication to DR site Windows Network Load Balancing (NLB) support required additional manual configuration Currently it is not GPT cluster-aware. Only MBR cluster-aware Windows Cluster (MBR only) support with specific steps performed Total RTO can only be determined via Total TEST FAILOVER activity
- #24 Requirement: Good WAN connection WAN bandwidth needed for disaster recovery is the amount of data that needs to be moved divided by the time available to move it
- #28 By leveraging Profiling and Portability, PlateSpin is able to deliver a unique solution we call “Consolidated Recovery” Consolidated Recovery leverages our ability to Inventory and monitor a workload environment to plan out a feasible Recovery plan We take this further by using Portability to replicate these workloads in to offline Virtual Machine Archives, which offer the flexibility of one-click test restore and failover This approach to DR allows organizations to drastically reduce Total Cost of Ownership and Recovery Time objective while achieving Whole Workload protection We are able to offer very compelling Recovery Point Objectives by leveraging our incremental synchronization, and simplify testing by having easily bootable backup archives
