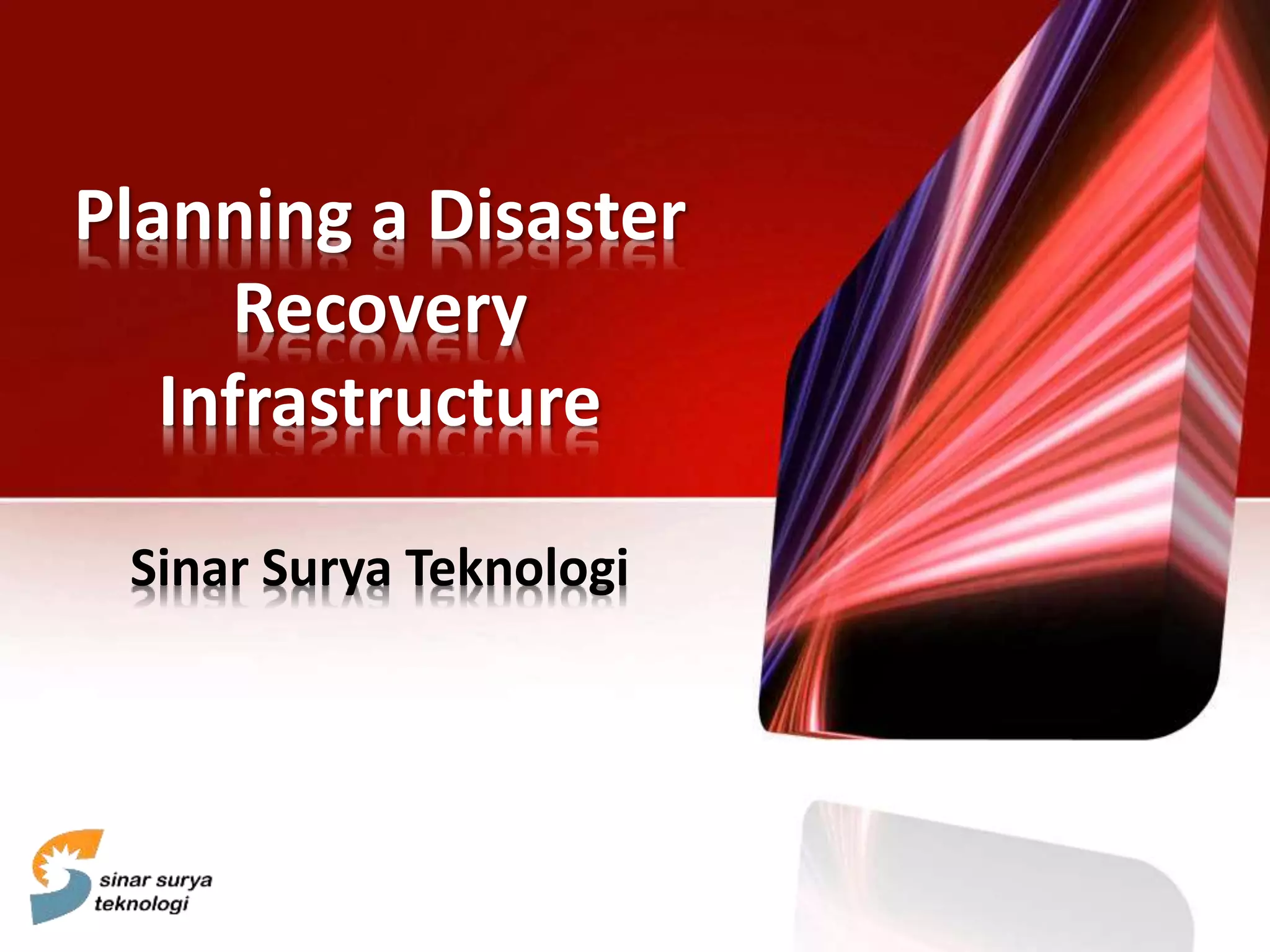

1. Planning a Disaster
Recovery
Infrastructure
Sinar Surya Teknologi

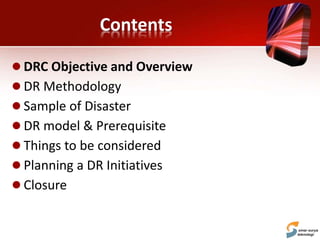

2. Contents
 DRC Objective and Overview
 DR Methodology
 Sample of Disaster
 DR model & Prerequisite
 Things to be considered
 Planning a DR Initiatives
 Closure

3. DRC Objective
 To minimize business loss in the event of IT
disaster
 To protect business process and continuity when
disaster happen

4. DR Terminology
The process, policies and procedures related to
preparing for recovery or continuation of
technology infrastructure critical to an
organization after a natural or human-induced
disaster
Subset of Business Continuity

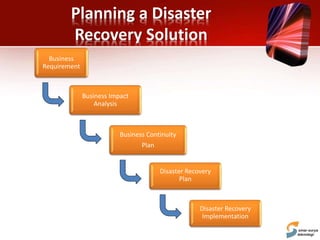

5. Planning a Disaster
Recovery Solution
Business Impact
Analysis
Business Continuity
Plan
Disaster Recovery
Implementation
Business
Requirement
Disaster Recovery
Plan

6. Methodology
Risk
Assessment
Business
Impact
Analysis
Strategy &
Procedure
Formulation
DRC Planning
Testing &
Training
• Disaster Risk Priority
• Risk Control
Recommendation
• Disaster Scenario
• Vital Business
Functions, Activities &
System
• Recovery Objectives
• Minimum Users
• Availability Strategies
• Recovery Procedures
• Recovery Team
Organization
• DRC Type
• Minimum Hardware
Specification
• Replication Bandwidth
• Test Plan
• Awareness
Training

7. Disaster Categories
 Natural disaster
Flood
Fire & ExplosionEarthquake
Hurricane

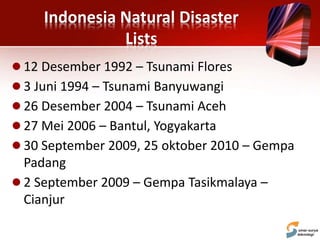

8. Indonesia Natural Disaster
Lists
 12 Desember 1992 – Tsunami Flores
 3 Juni 1994 – Tsunami Banyuwangi
 26 Desember 2004 – Tsunami Aceh
 27 Mei 2006 – Bantul, Yogyakarta
 30 September 2009, 25 oktober 2010 – Gempa
Padang
 2 September 2009 – Gempa Tasikmalaya –
Cianjur

9. Indonesia Geology

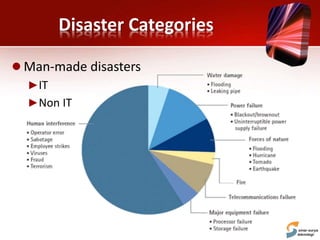

10. Disaster Categories
 Man-made disasters
►IT
►Non IT

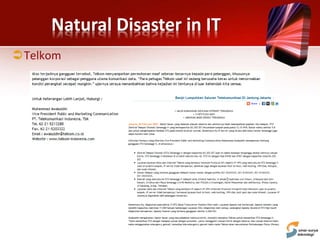

11. Natural Disaster in IT
Telkom

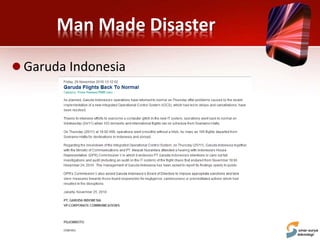

12. Man Made Disaster
 Garuda Indonesia

13. Disaster non TI

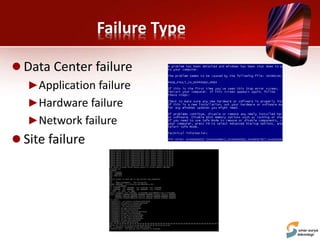

14. Failure Type
 Data Center failure
►Application failure
►Hardware failure
►Network failure
 Site failure

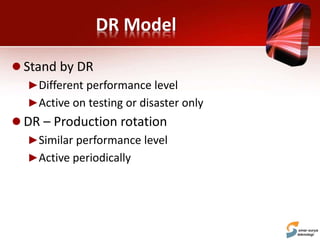

15. DR Model
 Stand by DR
►Different performance level
►Active on testing or disaster only
 DR – Production rotation
►Similar performance level
►Active periodically

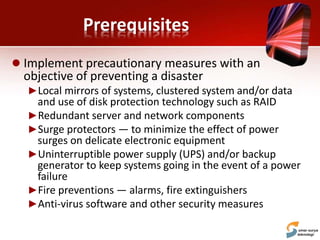

16. Prerequisites
 Implement precautionary measures with an
objective of preventing a disaster
►Local mirrors of systems, clustered system and/or data
and use of disk protection technology such as RAID
►Redundant server and network components
►Surge protectors — to minimize the effect of power
surges on delicate electronic equipment
►Uninterruptible power supply (UPS) and/or backup
generator to keep systems going in the event of a power
failure
►Fire preventions — alarms, fire extinguishers
►Anti-virus software and other security measures

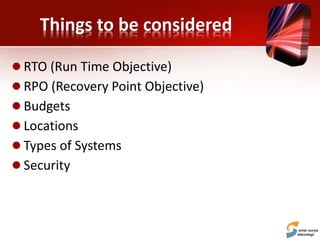

17. Things to be considered
 RTO (Run Time Objective)
 RPO (Recovery Point Objective)
 Budgets
 Locations
 Types of Systems
 Security

18. Recovery Time Objectives
 RTO is how long you can be offline before the
business cannot recovery effectively
►Single Server Failure
►Multiple Server Failure
►Datacenter Failure
 RTO Metrics change over time
 RTO changes with new applications

19. Recovery Point Objectives
 RPO is the amount of data the system can lose
without endangering recovery
►Zero-byte RPO is nearly impossible
►Can be rated in milliseconds
►May be rated in min/hours
 Directly impacts infrastructure
 Most applications are designed to handle small
amounts of data loss without faulting

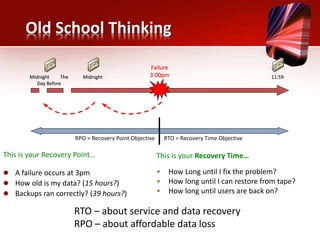

20. Old School Thinking
This is your Recovery Point…
 A failure occurs at 3pm
 How old is my data? (15 hours?)
 Backups ran correctly? (39 hours?)
Midnight The
Day Before
Midnight
Failure
3:00pm 11:59
RPO = Recovery Point Objective RTO = Recovery Time Objective
This is your Recovery Time…
• How Long until I fix the problem?
• How long until I can restore from tape?
• How long until users are back on?
RTO – about service and data recovery
RPO – about affordable data loss

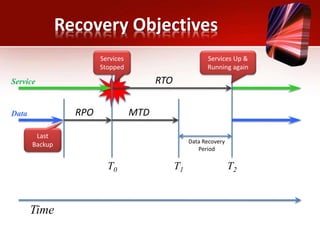

21. Time
Service RTO
Data MTDRPO
Services
Stopped
Services Up &
Running again
Last
Backup Data Recovery
Period
T0 T1 T2
Recovery Objectives

22. Budgets
 Budget pressure on IT is nothing new
 Budgets have gotten more attention
 Trade-offs between RTO/RPO and budget
 Can be re-evaluated over time
 Workload Optimization can save money

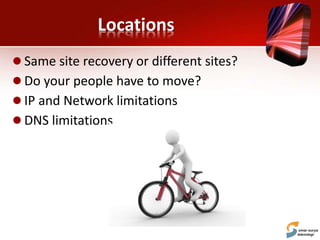

23. Locations
 Same site recovery or different sites?
 Do your people have to move?
 IP and Network limitations
 DNS limitations

24. Types of Systems
 Operating Systems
 Servers that must act as groups
 Distributed systems
 Virtual versus Physical versus Both

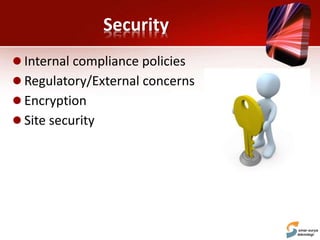

25. Security
 Internal compliance policies
 Regulatory/External concerns
 Encryption
 Site security

26. Disaster Recovery Standard
Operating Procedure
 DR Standard Operating Procedure
►Key Person
►Application Documentation
►Network Documentation
►Hardware Documentation

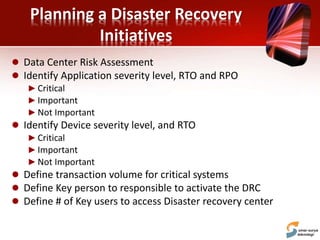

27. Planning a Disaster Recovery
Initiatives
 Data Center Risk Assessment
 Identify Application severity level, RTO and RPO
►Critical
►Important
►Not Important
 Identify Device severity level, and RTO
►Critical
►Important
►Not Important
 Define transaction volume for critical systems
 Define Key person to responsible to activate the DRC
 Define # of Key users to access Disaster recovery center

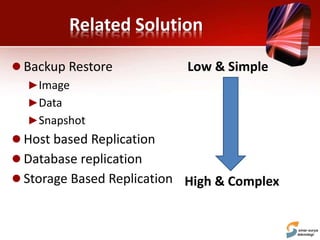

28. Related Solution
 Backup Restore
►Image
►Data
►Snapshot
 Host based Replication
 Database replication
 Storage Based Replication
Low & Simple
High & Complex

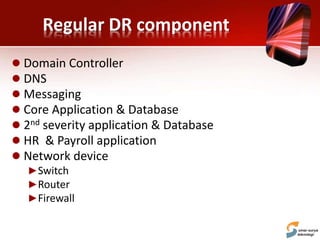

29. Regular DR component
 Domain Controller
 DNS
 Messaging
 Core Application & Database
 2nd severity application & Database
 HR & Payroll application
 Network device
►Switch
►Router
►Firewall

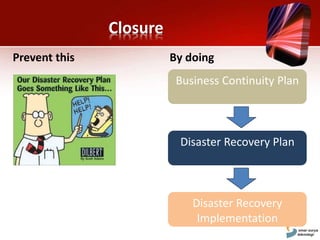

30. Closure
Business Continuity Plan
Disaster Recovery Plan
Disaster Recovery
Implementation
Prevent this By doing

31. Discussion

32. DRC: Sample Case

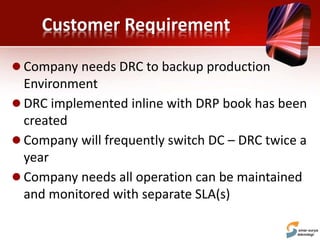

33. Customer Requirement
 Company needs DRC to backup production
Environment
 DRC implemented inline with DRP book has been
created
 Company will frequently switch DC – DRC twice a
year
 Company needs all operation can be maintained
and monitored with separate SLA(s)

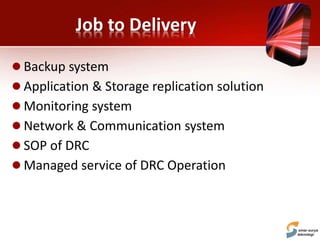

34. Job to Delivery
 Backup system
 Application & Storage replication solution
 Monitoring system
 Network & Communication system
 SOP of DRC
 Managed service of DRC Operation

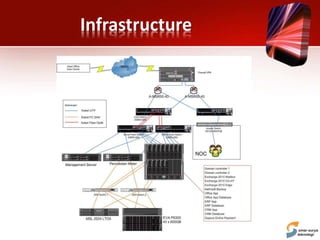

35. Infrastructure

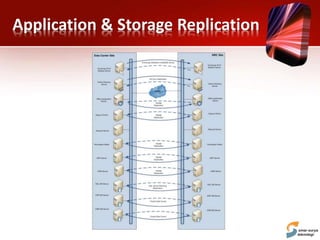

36. Application & Storage Replication
