1. DAR ES SALAAM INSTITUTE OF
TECHNOLOGY
SIGNAL AND DATA PROCESSING
CIRCUIT
ASSIGNMENT OD 014CO
1. ERICK KASHOMA 130222433439
2. MARSEL COSTANTINE 130222421203

2. What is Transmission media
• Sending of data from one device to another
called Transmission of data.
• Medium used to transmit data call media
• So transmission of data through medium
called Transmission media.its the pathway
that carries the information from sender to
receiver.
• Transmission media are located below physical
layer

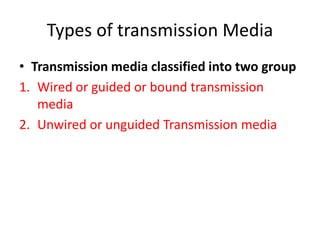

3. Types of transmission Media
• Transmission media classified into two group
1. Wired or guided or bound transmission
media
2. Unwired or unguided Transmission media

4. Transmission Media
Wired/guided Wireless/unguided

5. Wired or guided transmission media
• Wired transmission media are the cables that are
tangible or have physical existence
Examples of wired transmission are
Fiber optical cables
Co axial cable
Twisted cable

6. Advantage of wired transmission
media
• It possible to connect more devices to one
another using wired network
• Some of wired transmission media for
instance DLS:internet access will transmit data
far faster than wireless
• Its compatible with both order cell phone and
computers using everything from phone line
to usb or Ethernet

7. Disadvantage of wired transmission
media
• It has limited by the physical geography
• Some of cables affected by external
electromagnetic field eg UTP
• Some of cables needs expert during the
maintenance and installation process
• Its expensive

8. Application of wired or guided
transmission
• They are used in telecommunication company
• Highly bandwidth capability with unshielded
twisted pair cables is used in LAN
• The DSL(digital subscribe line) line that are
used in telephone companies to provide high
data rate connection

9. Wireless or unguided transmission
media
• This is away of transmitting data without using
cables
• Some of popular examples of unguided
transmission media are
Microwave
Radio wave
Infra red

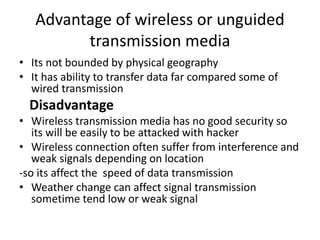

10. Advantage of wireless or unguided
transmission media
• Its not bounded by physical geography
• It has ability to transfer data far compared some of
wired transmission
Disadvantage
• Wireless transmission media has no good security so
its will be easily to be attacked with hacker
• Wireless connection often suffer from interference and
weak signals depending on location
-so its affect the speed of data transmission
• Weather change can affect signal transmission
sometime tend low or weak signal

11. Application of wireless or unguided
media
They are used in satellite network
They are used in cellular phone
They are used in wireless LANs
