Transformer oil filtration process:-
Electrical transformers work to change over the high voltage vitality created at power plants and
change this vitality to usable lower voltage vitality, which runs customer and business control needs.
These transformers are an indispensable bit of the power framework, which by definition comprises of
The power era and transmission lines which flawlessly give a persistent supply of dependable,
Predictable vitality paying little heeds to the end client control necessities.
Transformers contain paper-oil protection frameworks intended to avert overheating. After some time,
water may collect in transformers because of holes in gaskets and welds, ill-advised fixing, poor
support, lacking drying at the season of generation, and normal maturing of protection materials
inside the transformer.
Collected moisture and other byproducts of insulation degradation lead to reduced effectiveness in
energy transmission and eventually dielectric breakdown, resulting in power outages. According to the
U.S. Department of Energy, power outages and other interruptions in the electricity

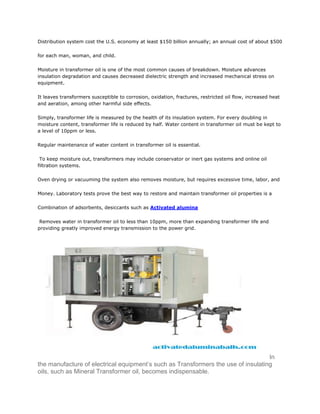

Distribution system cost the U.S. economy at least $150 billion annually; an annual cost of about $500
for each man, woman, and child.
Moisture in transformer oil is one of the most common causes of breakdown. Moisture advances
insulation degradation and causes decreased dielectric strength and increased mechanical stress on
equipment.
It leaves transformers susceptible to corrosion, oxidation, fractures, restricted oil flow, increased heat
and aeration, among other harmful side effects.
Simply, transformer life is measured by the health of its insulation system. For every doubling in
moisture content, transformer life is reduced by half. Water content in transformer oil must be kept to
a level of 10ppm or less.
Regular maintenance of water content in transformer oil is essential.
To keep moisture out, transformers may include conservator or inert gas systems and online oil
filtration systems.
Oven drying or vacuuming the system also removes moisture, but requires excessive time, labor, and
Money. Laboratory tests prove the best way to restore and maintain transformer oil properties is a
Combination of adsorbents, desiccants such as Activated alumina
Removes water in transformer oil to less than 10ppm, more than expanding transformer life and
providing greatly improved energy transmission to the power grid.
In
the manufacture of electrical equipment’s such as Transformers the use of insulating
oils, such as Mineral Transformer oil, becomes indispensable.

The Dialectical properties of this oil may vary depending on the content of the Gas,
Moisture, Suspended Particles, and other contaminants.
Even new oil absorbs gas and moisture while in storage. Prior to its use, therefore, it
has to be reconditioned.
Tuning and purification of the oil is also necessary due to captivation of gas and
moisture during service and due to development of ageing products.
These plants of various design and capacities carry out the following operations:
 Removal of suspended particles by filtering,
 Degassing and dehumidification,
 Flushing and cleaning of transformers,
 De-acidification orem.com
How Activated Alumina Deal with Moisture Problems in Transformer oil filtration plant.
Activated Alumina –

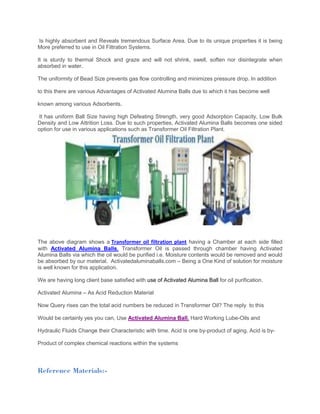

Is highly absorbent and Reveals tremendous Surface Area. Due to its unique properties it is being
More preferred to use in Oil Filtration Systems.
It is sturdy to thermal Shock and graze and will not shrink, swell, soften nor disintegrate when
absorbed in water.
The uniformity of Bead Size prevents gas flow controlling and minimizes pressure drop. In addition
to this there are various Advantages of Activated Alumina Balls due to which it has become well
known among various Adsorbents.
It has uniform Ball Size having high Defeating Strength, very good Adsorption Capacity, Low Bulk
Density and Low Attrition Loss. Due to such properties, Activated Alumina Balls becomes one sided
option for use in various applications such as Transformer Oil Filtration Plant.
The above diagram shows a Transformer oil filtration plant having a Chamber at each side filled
with Activated Alumina Balls. Transformer Oil is passed through chamber having Activated
Alumina Balls via which the oil would be purified i.e. Moisture contents would be removed and would
be absorbed by our material. Activatedaluminaballs.com – Being a One Kind of solution for moisture
is well known for this application.
We are having long client base satisfied with use of Activated Alumina Ball for oil purification.
Activated Alumina – As Acid Reduction Material
Now Query rises can the total acid numbers be reduced in Transformer Oil? The reply to this
Would be certainly yes you can, Use Activated Alumina Ball. Hard Working Lube-Oils and
Hydraulic Fluids Change their Characteristic with time. Acid is one by-product of aging. Acid is by-
Product of complex chemical reactions within the systems
Reference Materials:-

1. http://www.activatedaluminaballs.com/activated-alumina/
2. http://www.activatedaluminaballs.com/activated-alumina-balls/
3. http://www.activatedaluminaballs.com/air-drying-desiccants/
4. http://www.activatedaluminaballs.com/alumina-balls-for-arsenic-fluoride-removal/
5. http://www.activatedaluminaballs.com/activated-alumina-balls-for-heatless-air-dryers/
6. http://www.activatedaluminaballs.com/applications-of-activated-alumina-balls/
7. http://www.activatedaluminaballs.com/how-activated-alumina-deal-with-moisture-
problems-in-transformer-oils/
For more Information About our product please contact us Via:-
http://www.activatedaluminaballs.com/inquiry/
