1. TRANSACTIONS OVER HBASE
Alex Baranau @abaranau
Gary Helmling @gario
Continuuity

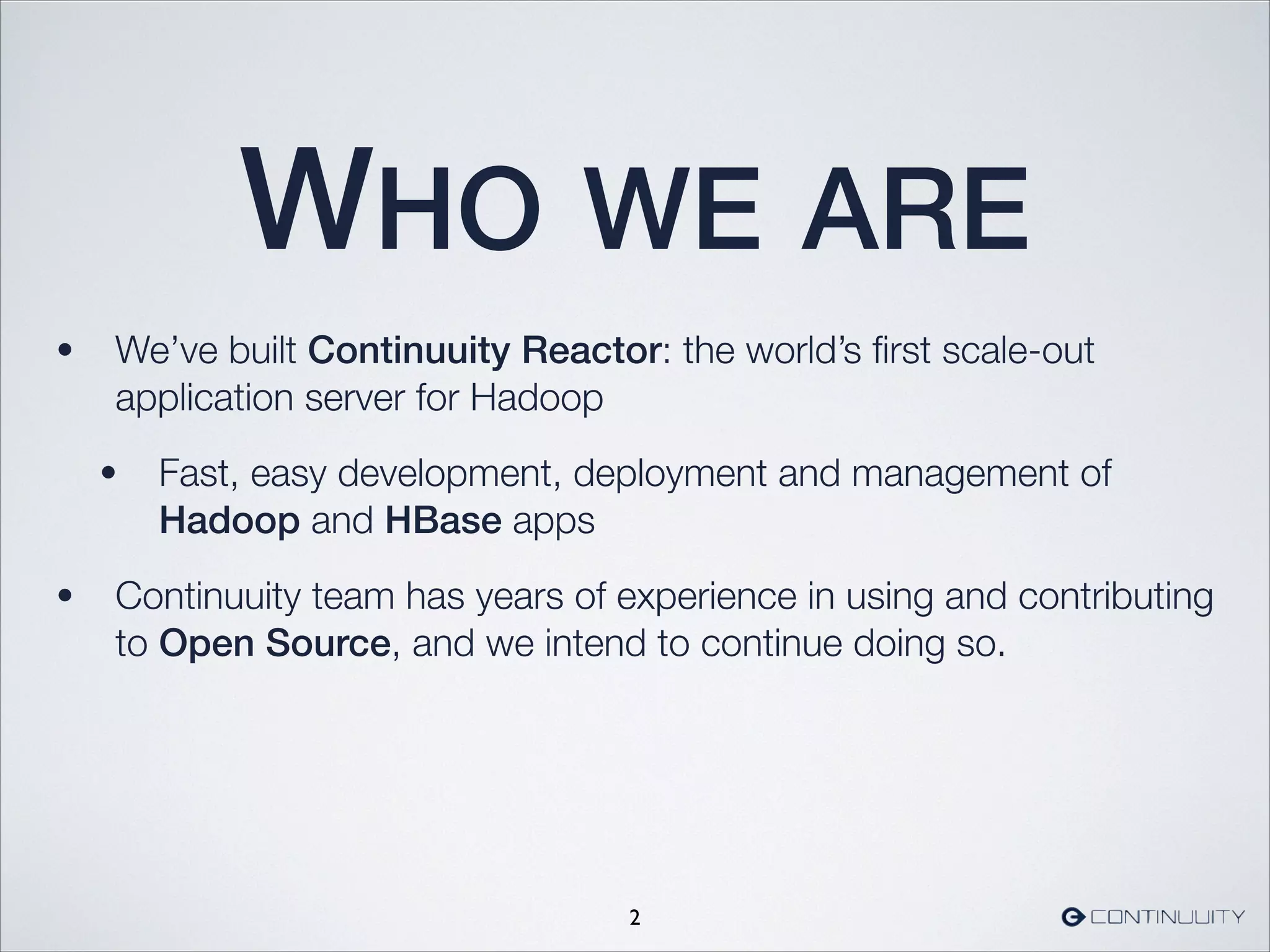

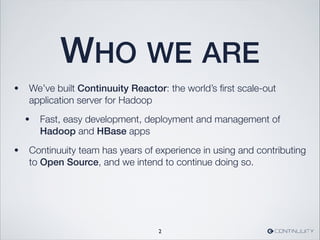

2. WHO WE ARE
• We’ve built Continuuity Reactor: the world’s first scale-out
application server for Hadoop
• Fast, easy development, deployment and management of
Hadoop and HBase apps
• Continuuity team has years of experience in using and contributing
to Open Source, and we intend to continue doing so.
2

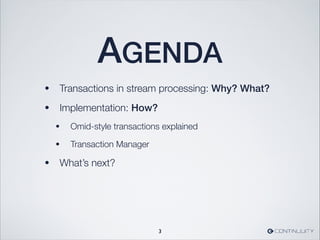

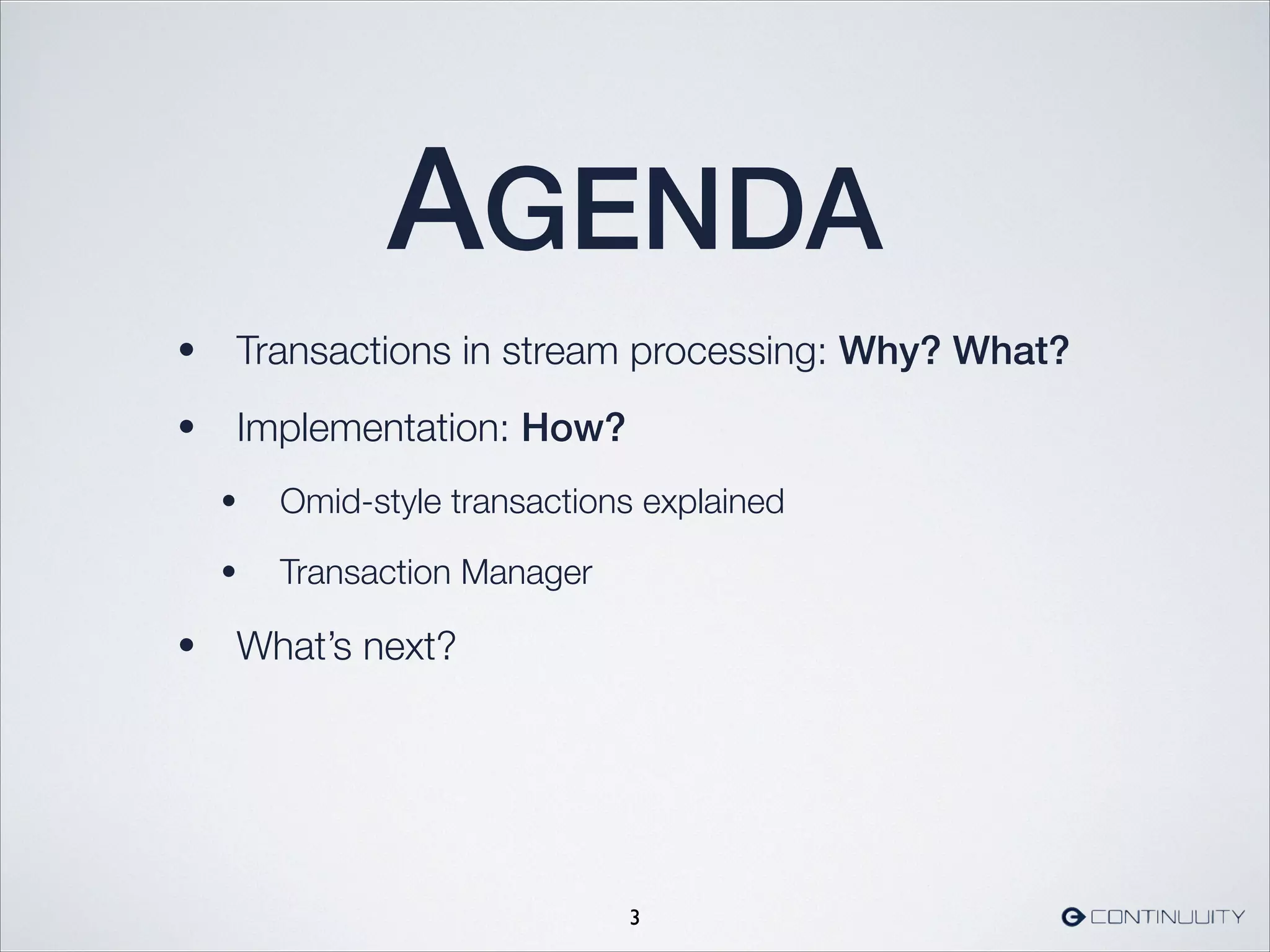

3. AGENDA
• Transactions in stream processing: Why? What?
• Implementation: How?
• Omid-style transactions explained
• Transaction Manager
• What’s next?
3

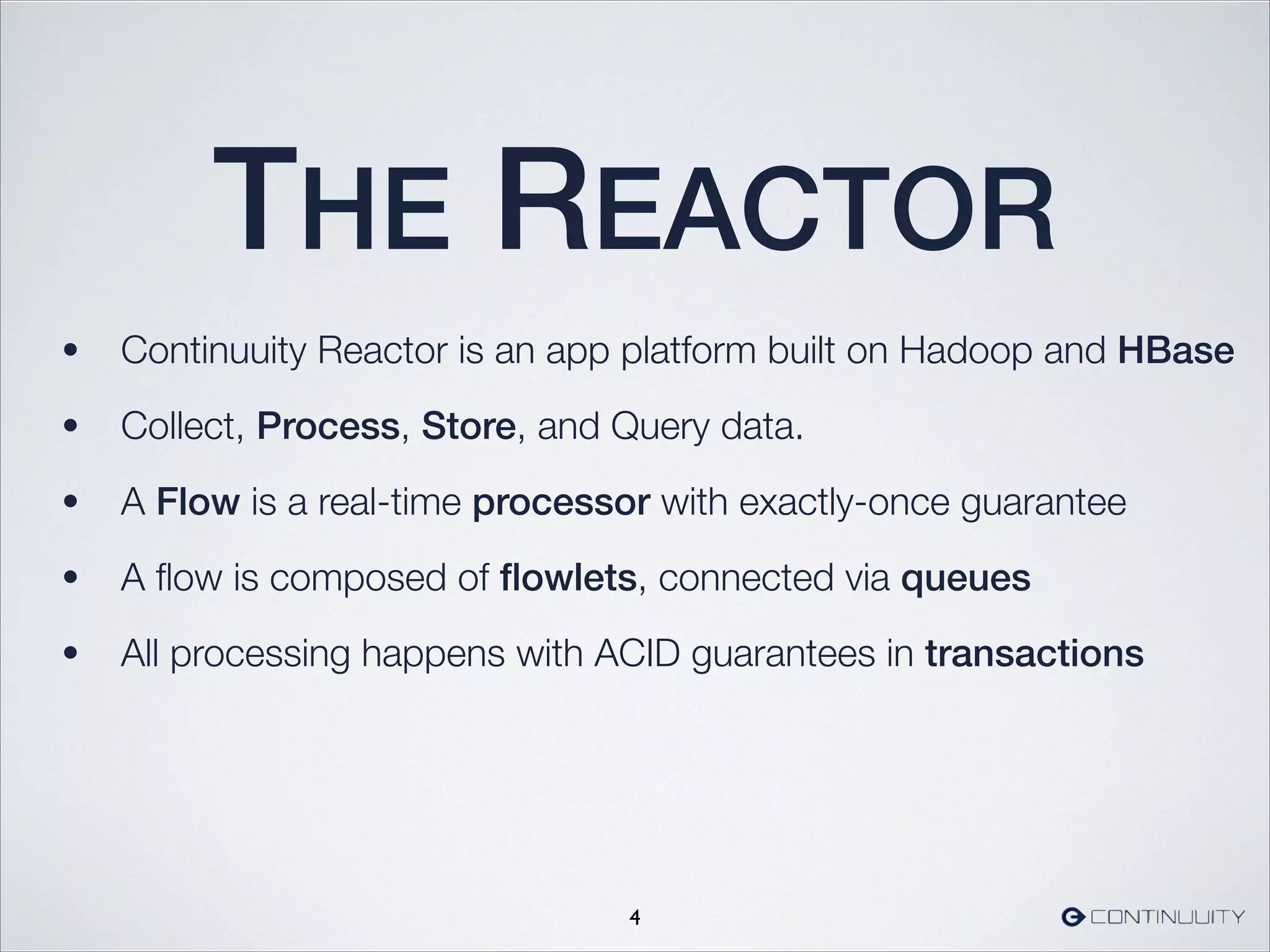

4. THE REACTOR
• Continuuity Reactor is an app platform built on Hadoop and HBase
• Collect, Process, Store, and Query data.
• A Flow is a real-time processor with exactly-once guarantee
• A flow is composed of flowlets, connected via queues
• All processing happens with ACID guarantees in transactions
4

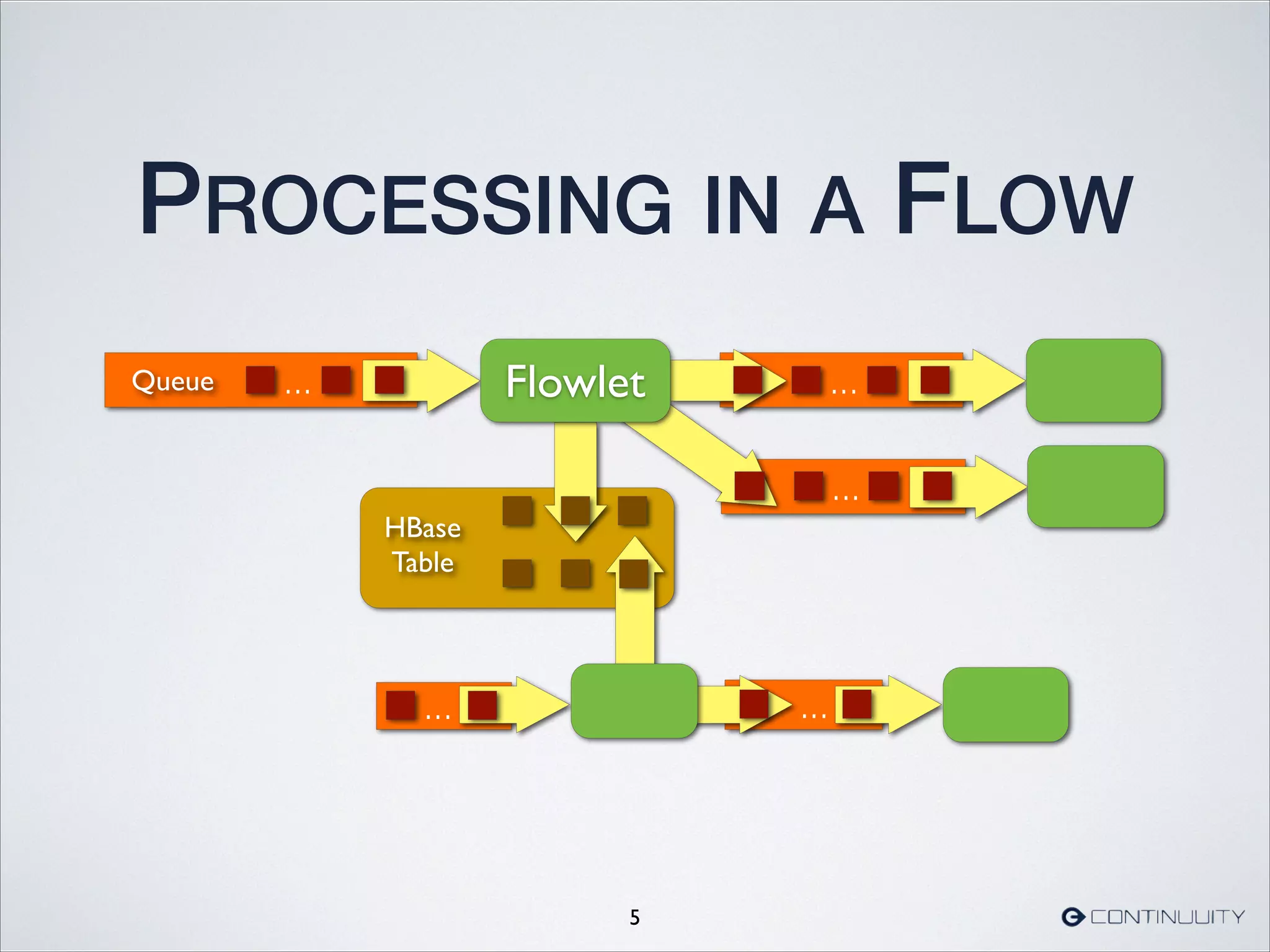

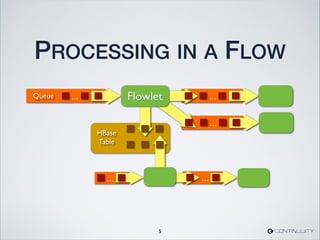

5. HBase
Table
PROCESSING IN A FLOW
5
...Queue ...
...
Flowlet
... ...

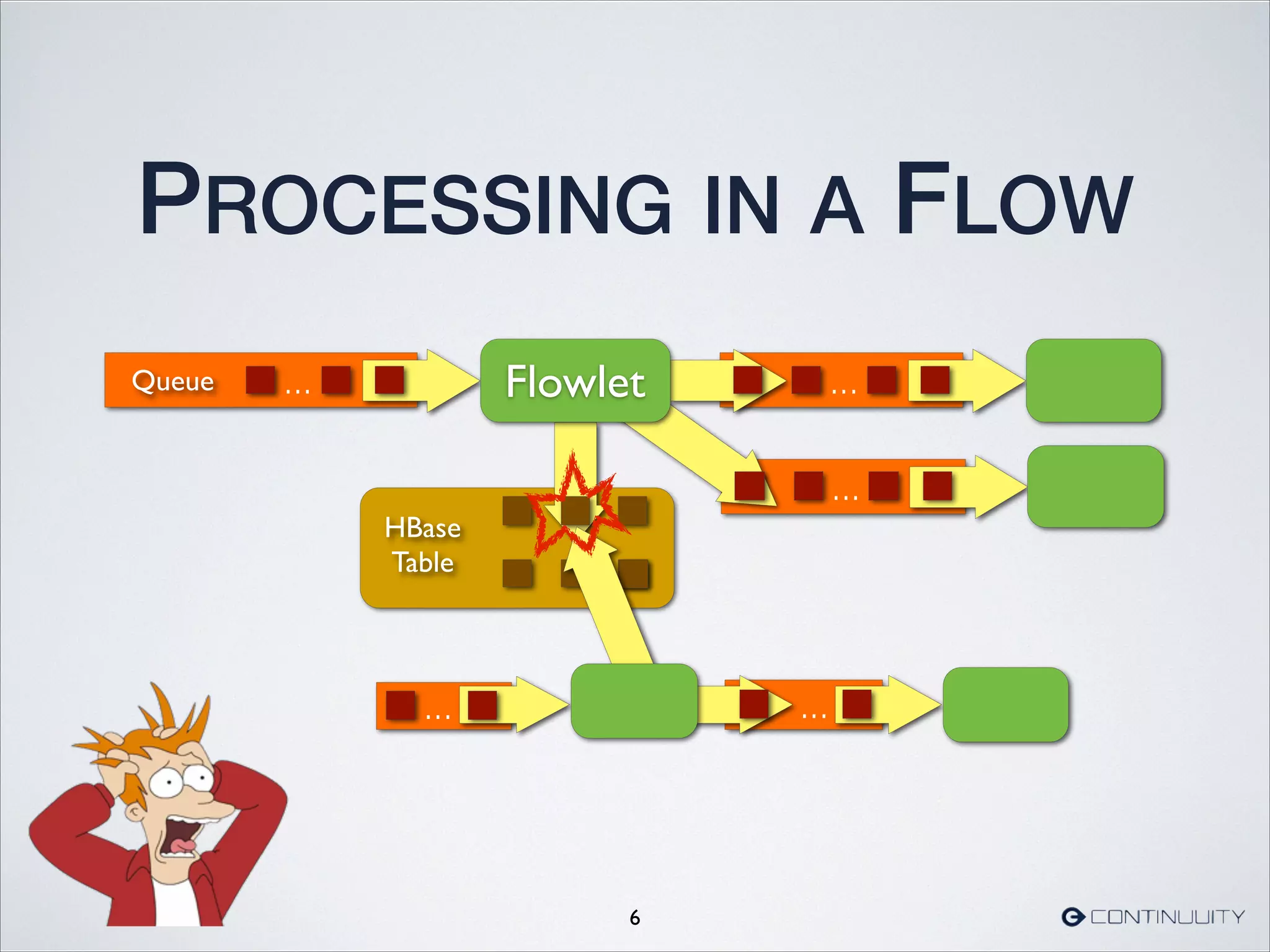

6. HBase
Table
PROCESSING IN A FLOW
6
...Queue ...
...
Flowlet
... ...

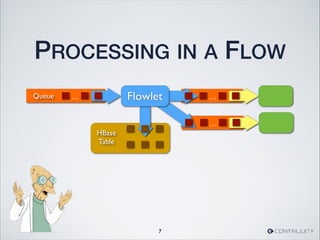

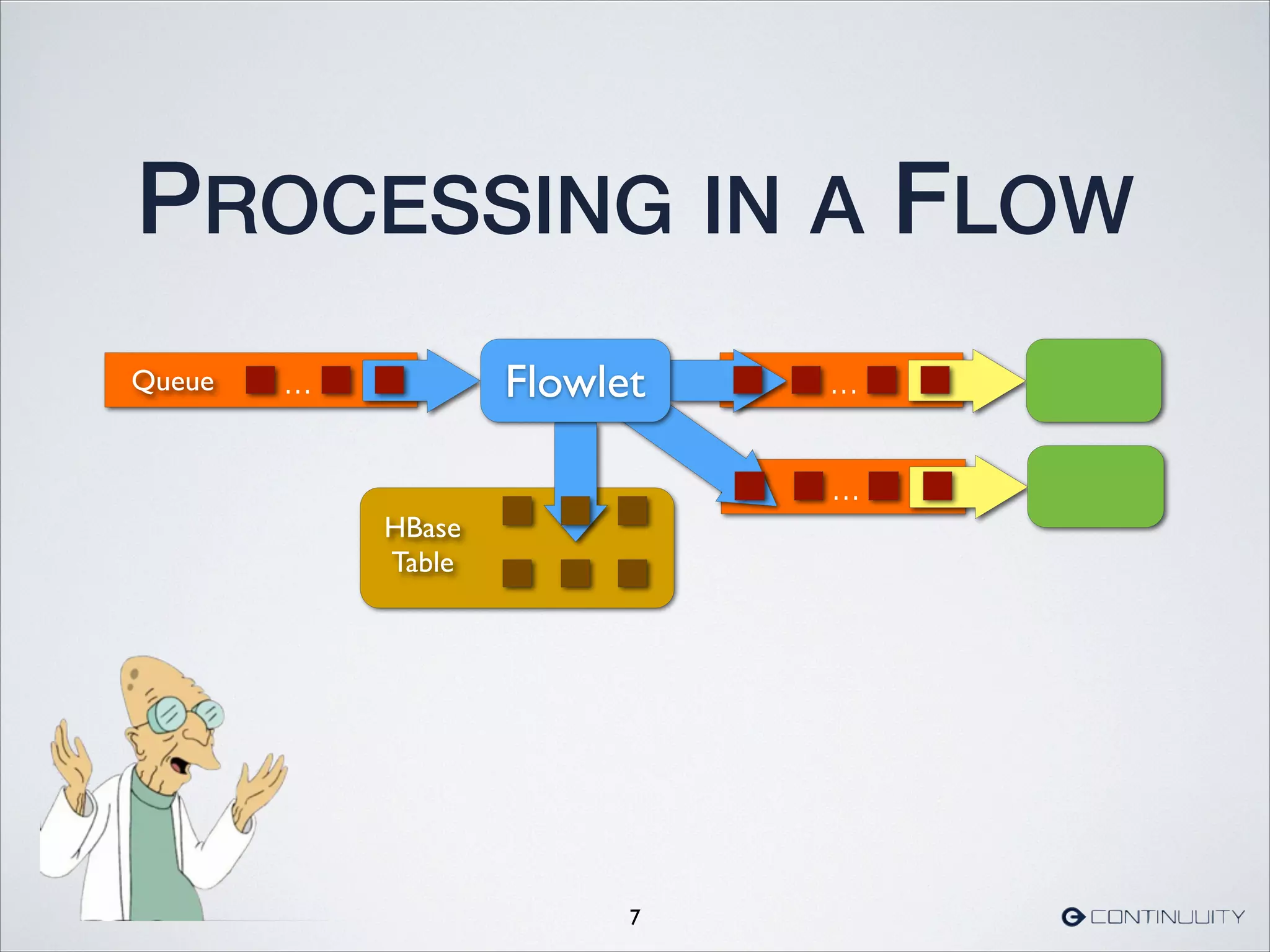

7. HBase
Table
PROCESSING IN A FLOW
7
...Queue ...
...
Flowlet

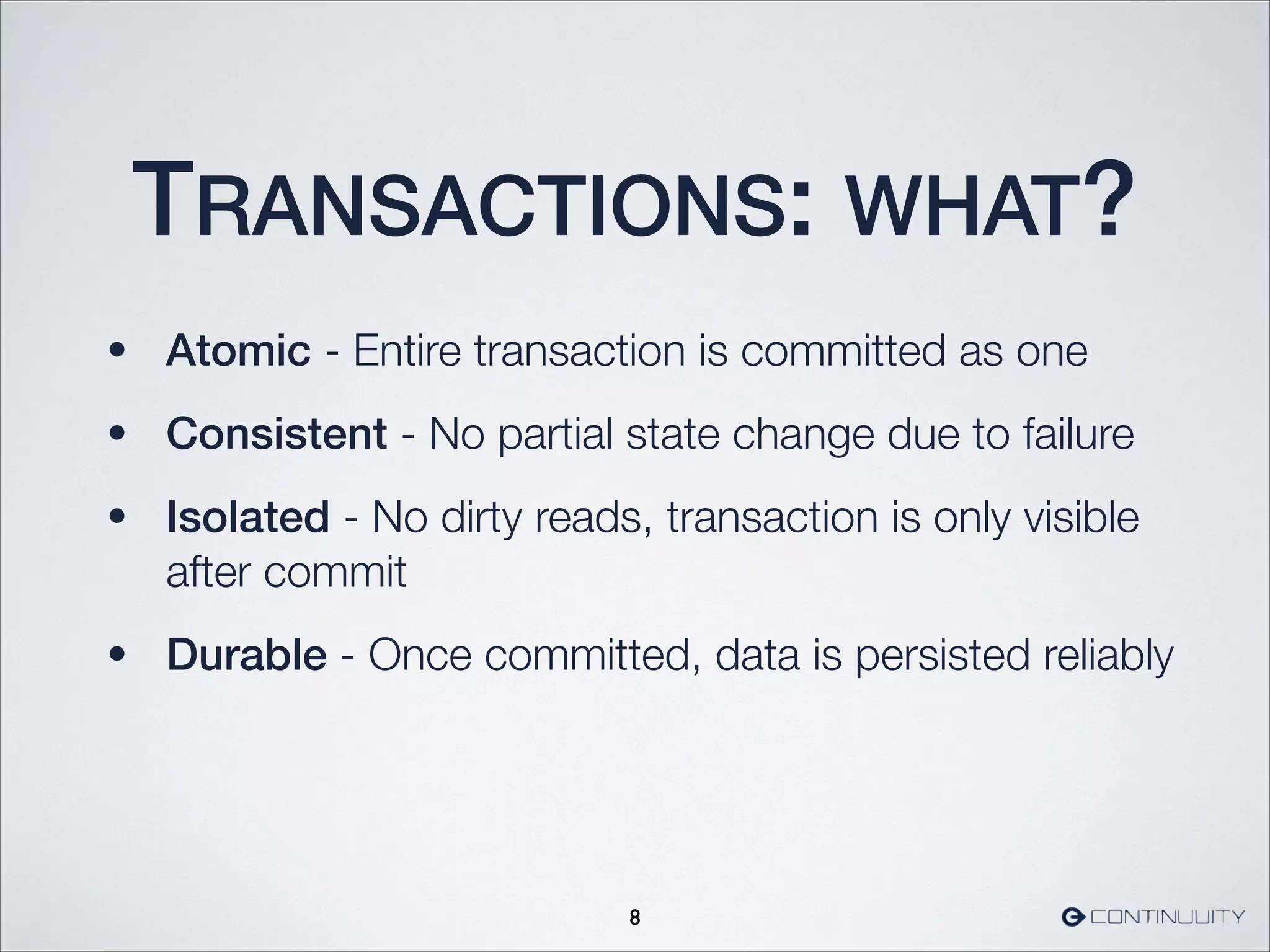

8. TRANSACTIONS: WHAT?
• Atomic - Entire transaction is committed as one
• Consistent - No partial state change due to failure
• Isolated - No dirty reads, transaction is only visible
after commit
• Durable - Once committed, data is persisted reliably
8

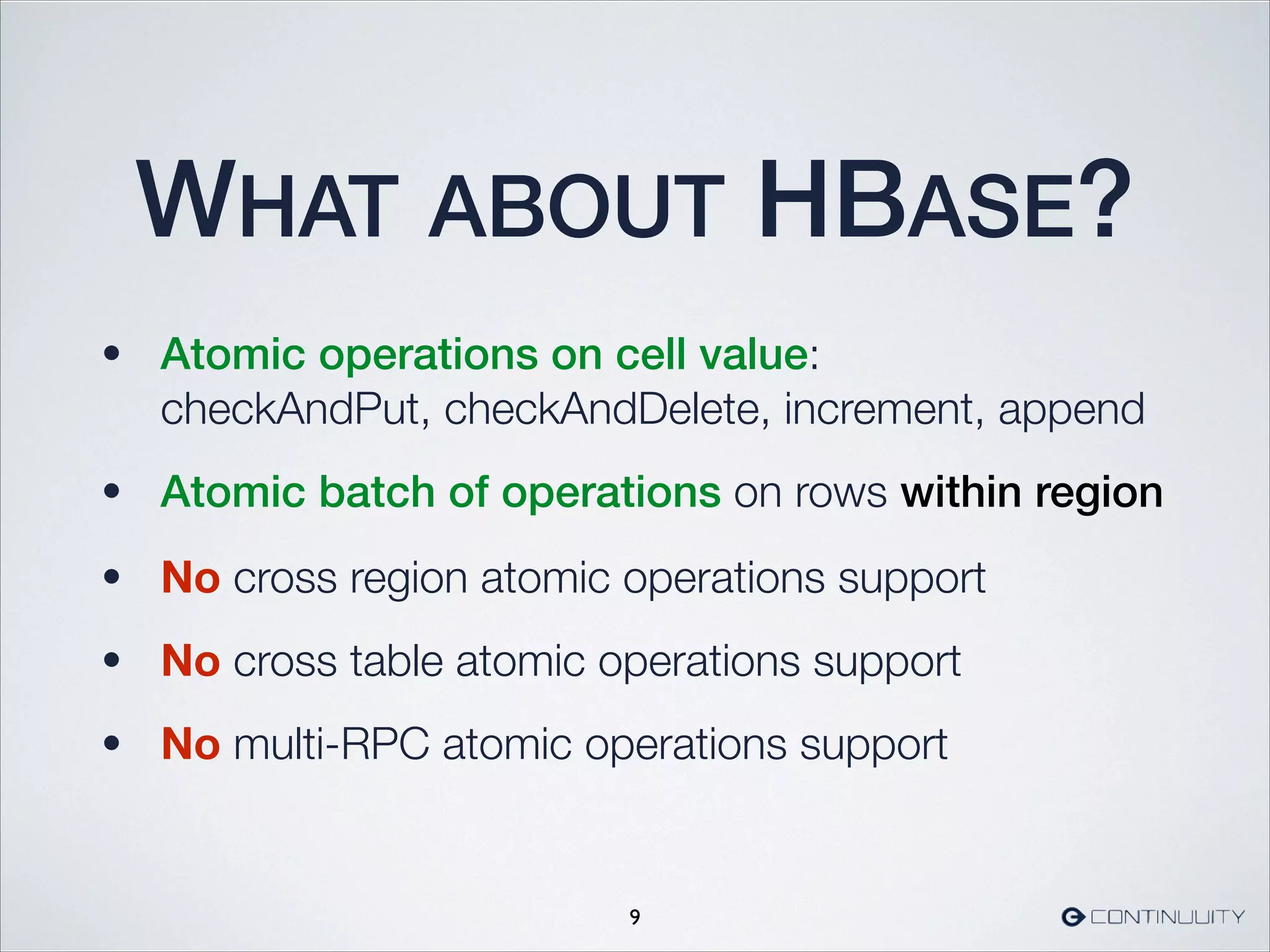

9. WHAT ABOUT HBASE?
• Atomic operations on cell value:
checkAndPut, checkAndDelete, increment, append
• Atomic batch of operations on rows within region
9
• No cross region atomic operations support
• No cross table atomic operations support
• No multi-RPC atomic operations support

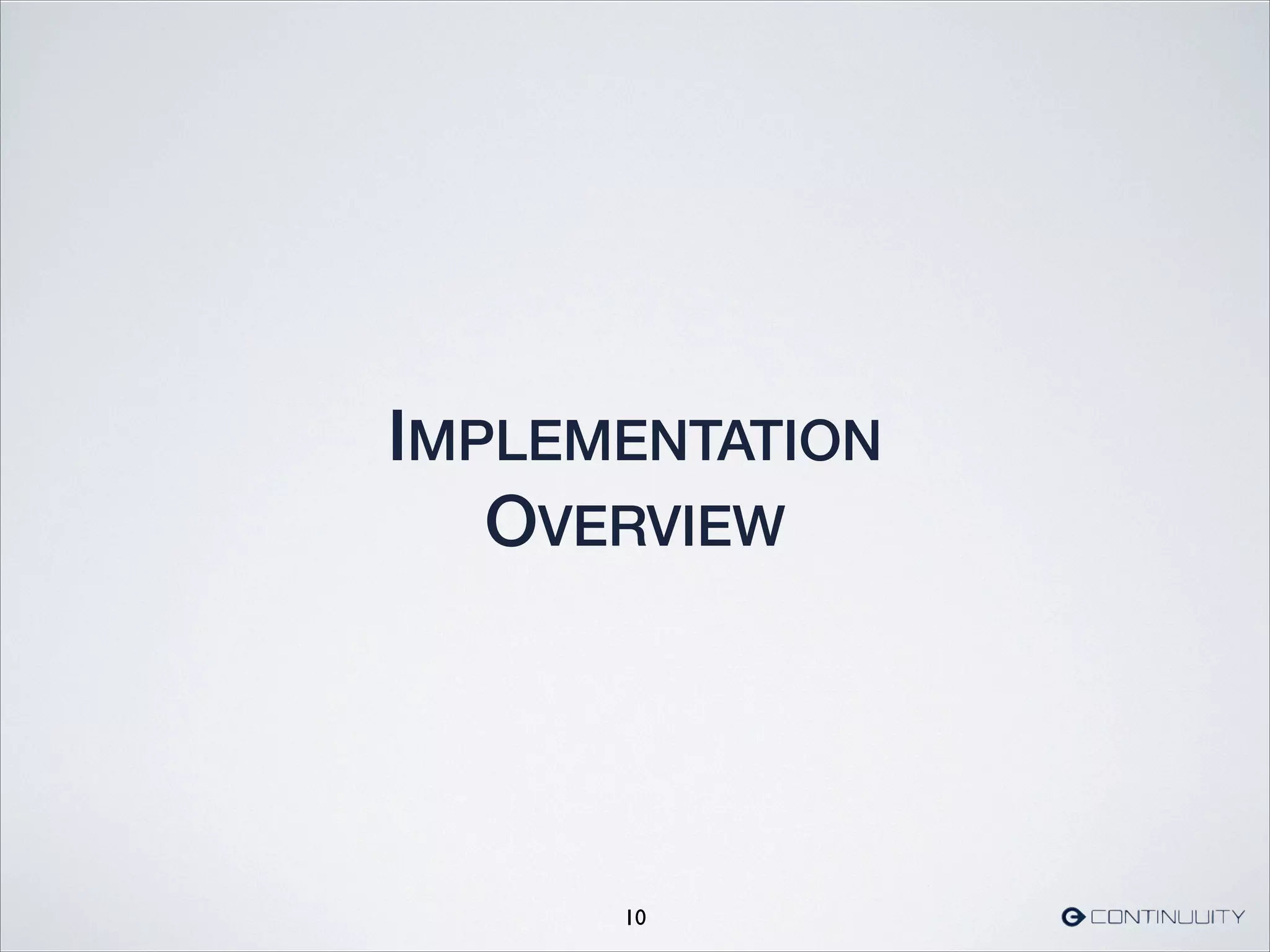

10. IMPLEMENTATION
OVERVIEW
10

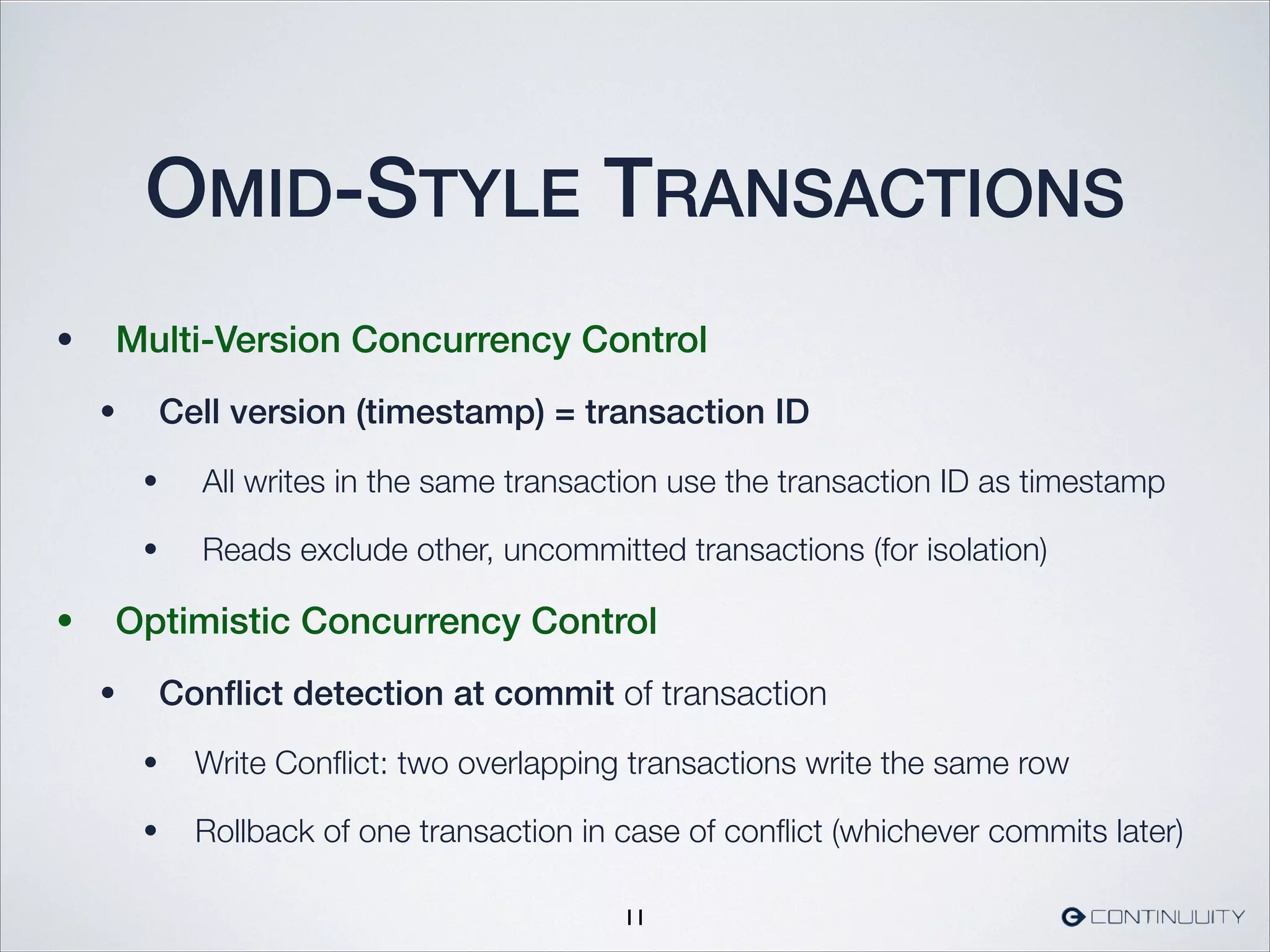

11. OMID-STYLE TRANSACTIONS
• Multi-Version Concurrency Control
• Cell version (timestamp) = transaction ID
• All writes in the same transaction use the transaction ID as timestamp
• Reads exclude other, uncommitted transactions (for isolation)
• Optimistic Concurrency Control
• Conflict detection at commit of transaction
• Write Conflict: two overlapping transactions write the same row
• Rollback of one transaction in case of conflict (whichever commits later)
11

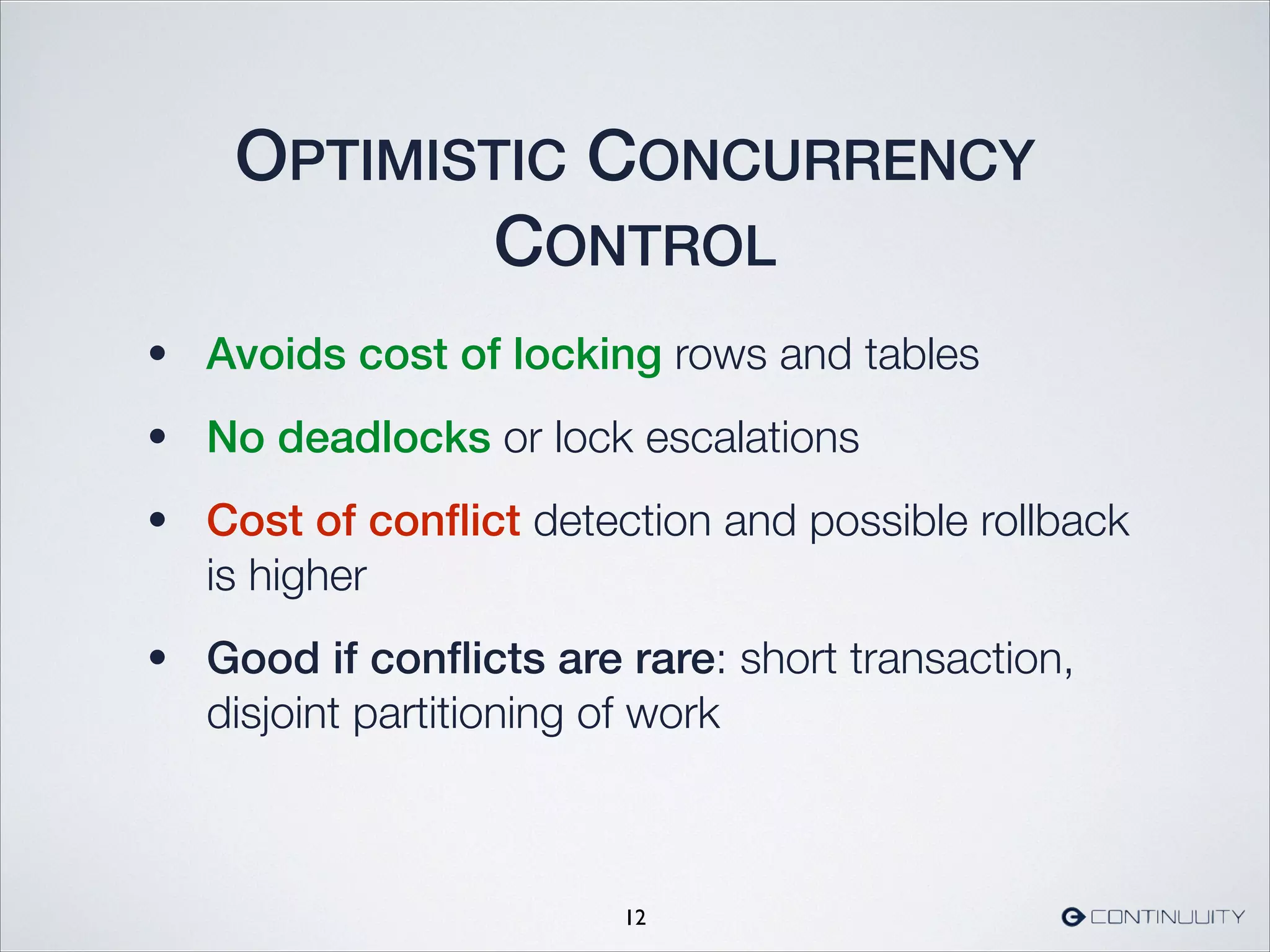

12. OPTIMISTIC CONCURRENCY
CONTROL
• Avoids cost of locking rows and tables
• No deadlocks or lock escalations
• Cost of conflict detection and possible rollback
is higher
• Good if conflicts are rare: short transaction,
disjoint partitioning of work
12

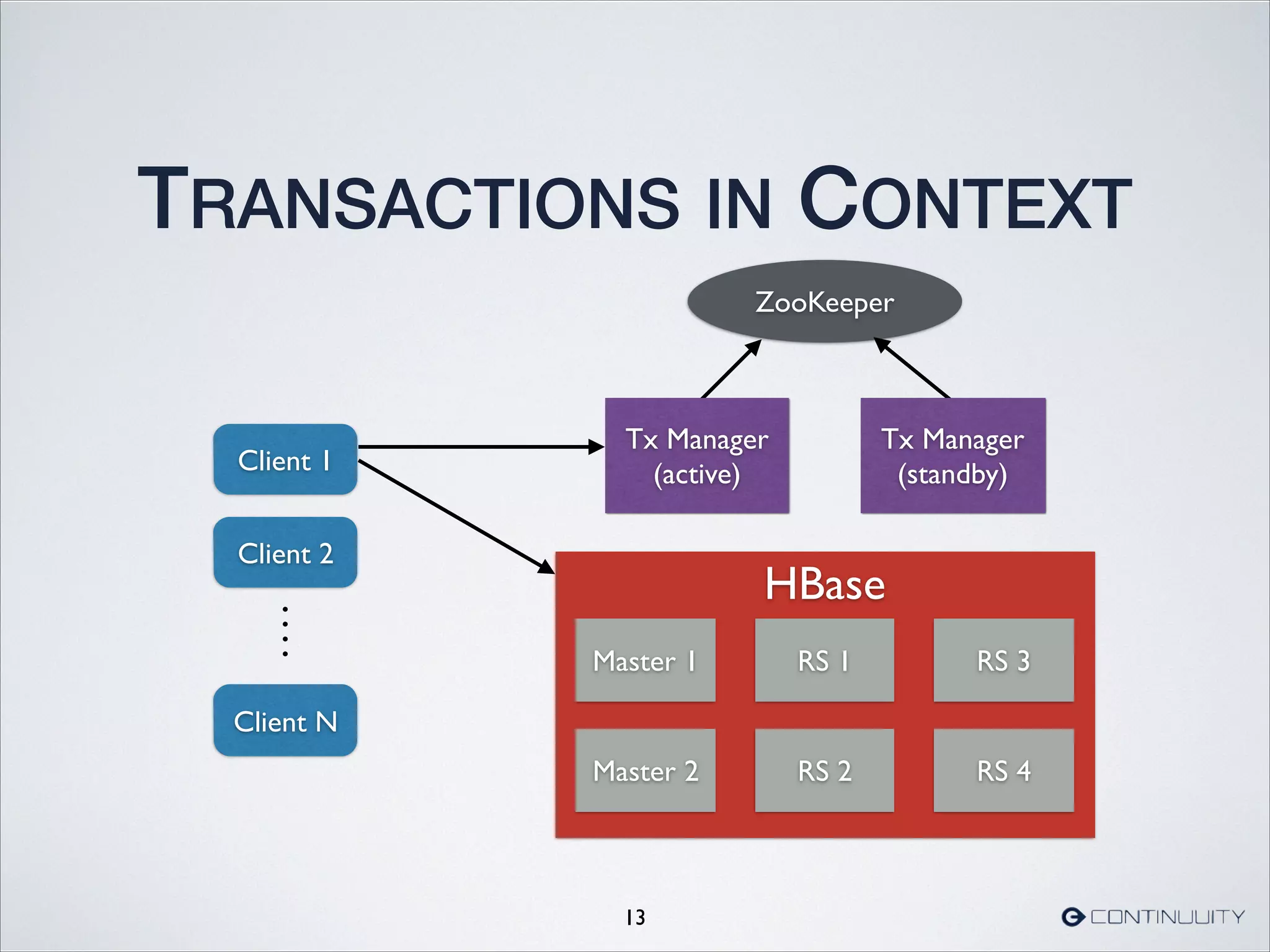

13. ZooKeeper
TRANSACTIONS IN CONTEXT
13
Tx Manager
(standby)
HBase
Master 1
Master 2
RS 1
RS 2 RS 4
RS 3
Client 1
Client 2
Client N
Tx Manager
(active)

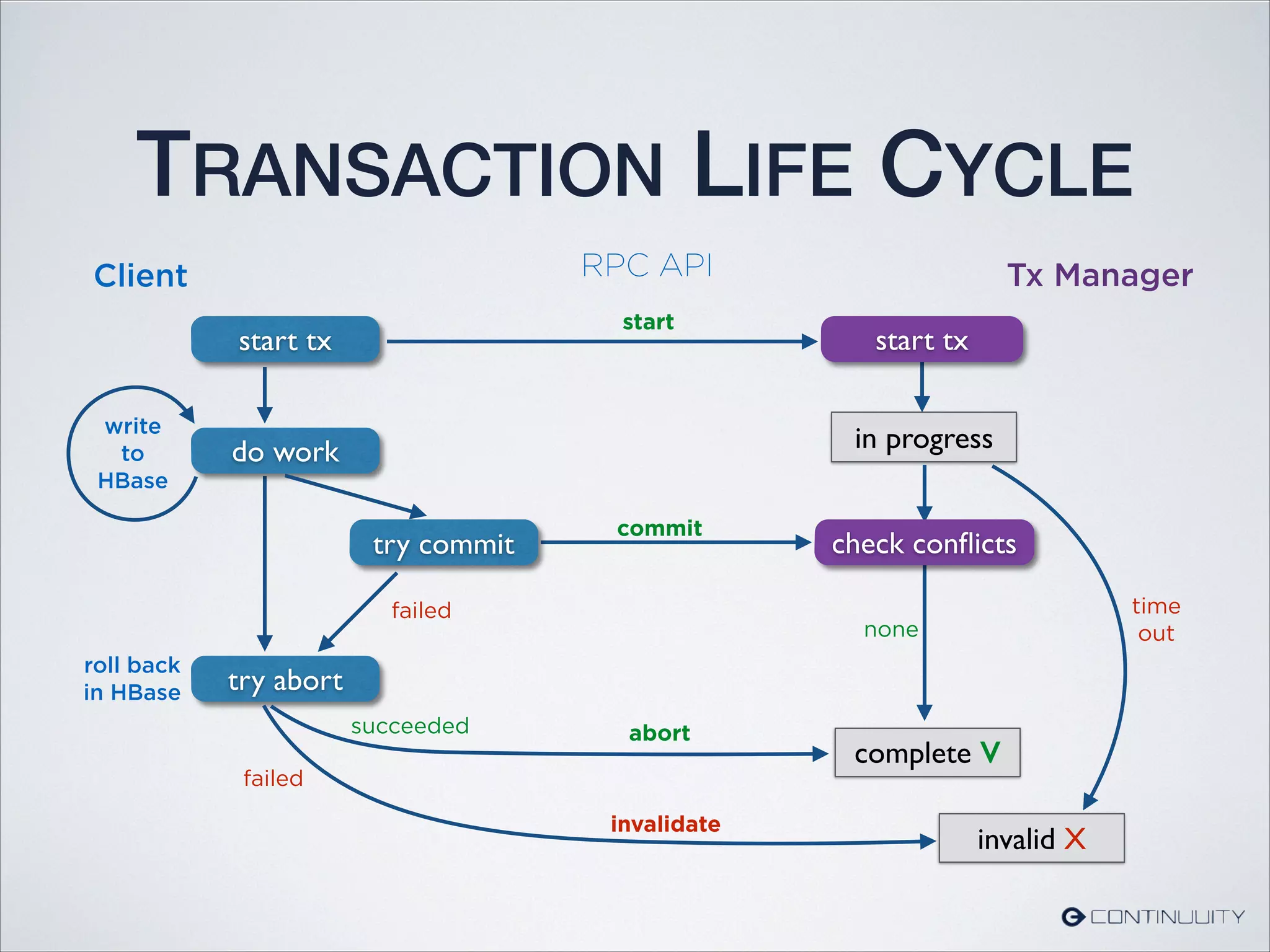

14. TRANSACTION LIFE CYCLE
time
out
try abort
failed
roll back
in HBase
write
to
HBase
do work
Client Tx Manager
none
complete V
abortsucceeded
in progress
start tx
start
start tx
commit
try commit check conflicts
RPC API
invalid X
invalidate
failed

15. HBase
CLIENT SIDE: TX AWARE
15
Cell TS Value
row1:col1 1001 10
Tx Manager
Client 1
Client 2
write = 1002
read = 1001

16. HBase
CLIENT SIDE: TX AWARE
16
Cell TS Value
row1:col1 1001 10
Tx Manager
Client 1
start
write = 1002
read = 1001
Client 2
write = 1002
read = 1001

17. HBase
CLIENT SIDE: TX AWARE
17
Cell TS Value
row1:col1 1001 10
Tx Manager
Client 1
start
write = 1002
read = 1001
Client 2
write = 1003
read = 1001
inprogress=[1002]

18. HBase
CLIENT SIDE: TX AWARE
18
Cell TS Value
row1:col1 1001 10
Tx Manager
Client 1
increment
write = 1002
read = 1001
Client 2
write = 1003
read = 1001
inprogress=[1002]

19. HBase
CLIENT SIDE: TX AWARE
19
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
Tx Manager
Client 1
increment
write = 1002
read = 1001
Client 2
write = 1003
read = 1001
inprogress=[1002]

20. HBase
CLIENT SIDE: TX AWARE
20
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
Tx Manager
Client 1 start
write = 1002
read = 1001
Client 2
write = 1003
read = 1001
inprogress=[1002]
write = 1003
read = 1001
excluded=[1002]

21. HBase
CLIENT SIDE: TX AWARE
21
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
Tx Manager
Client 1 start
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002, 1003]
write = 1003
read = 1001
excluded=[1002]

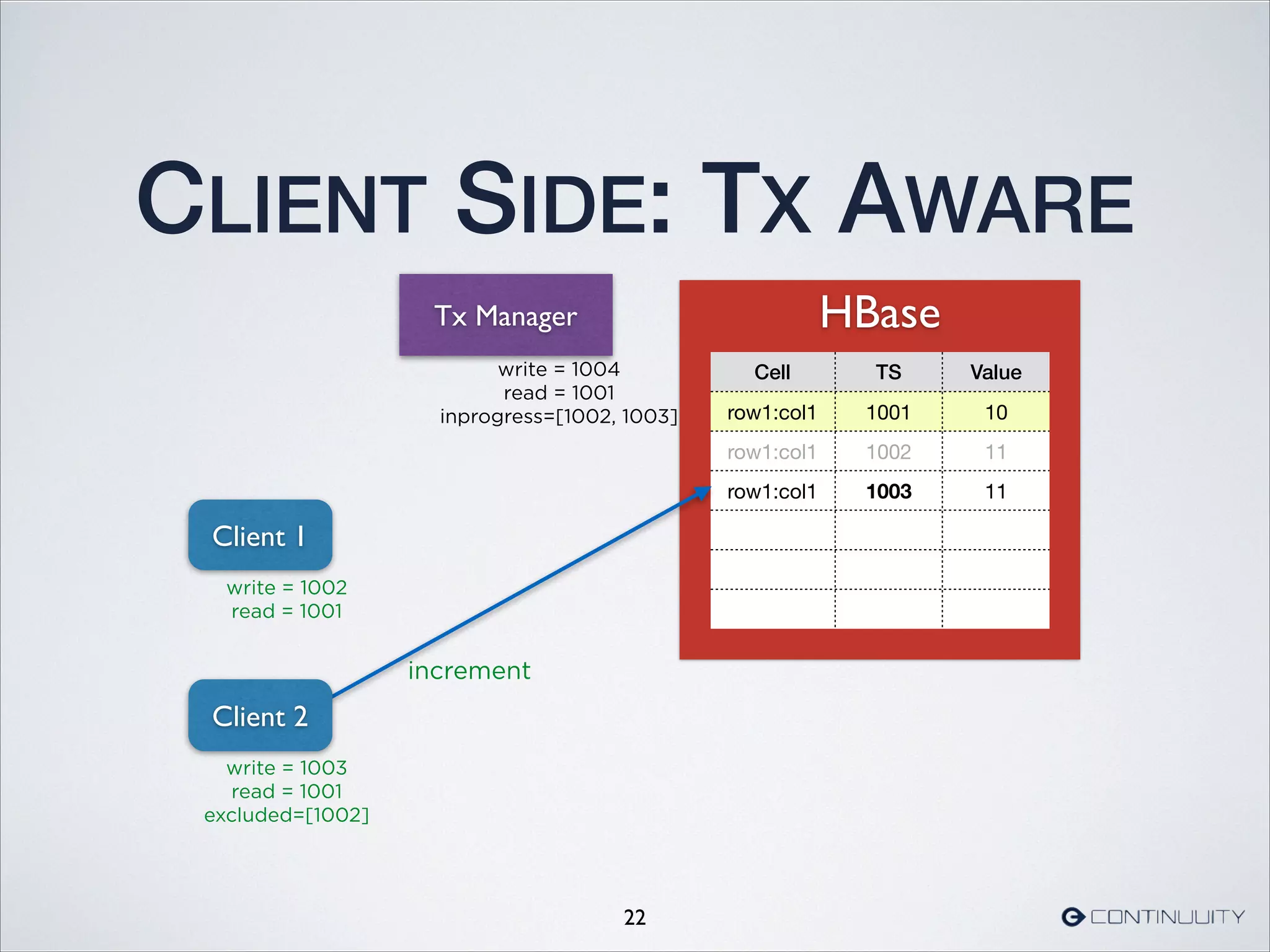

22. HBase
CLIENT SIDE: TX AWARE
22
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
increment
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002, 1003]
write = 1003
read = 1001
excluded=[1002]

23. HBase
CLIENT SIDE: TX AWARE
23
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
commit
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002, 1003]
write = 1003
read = 1001
excluded=[1002]

24. HBase
CLIENT SIDE: TX AWARE
24
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
commit
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]
write = 1003
read = 1001
excluded=[1002]

25. HBase
CLIENT SIDE: TX AWARE
25
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
commit
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

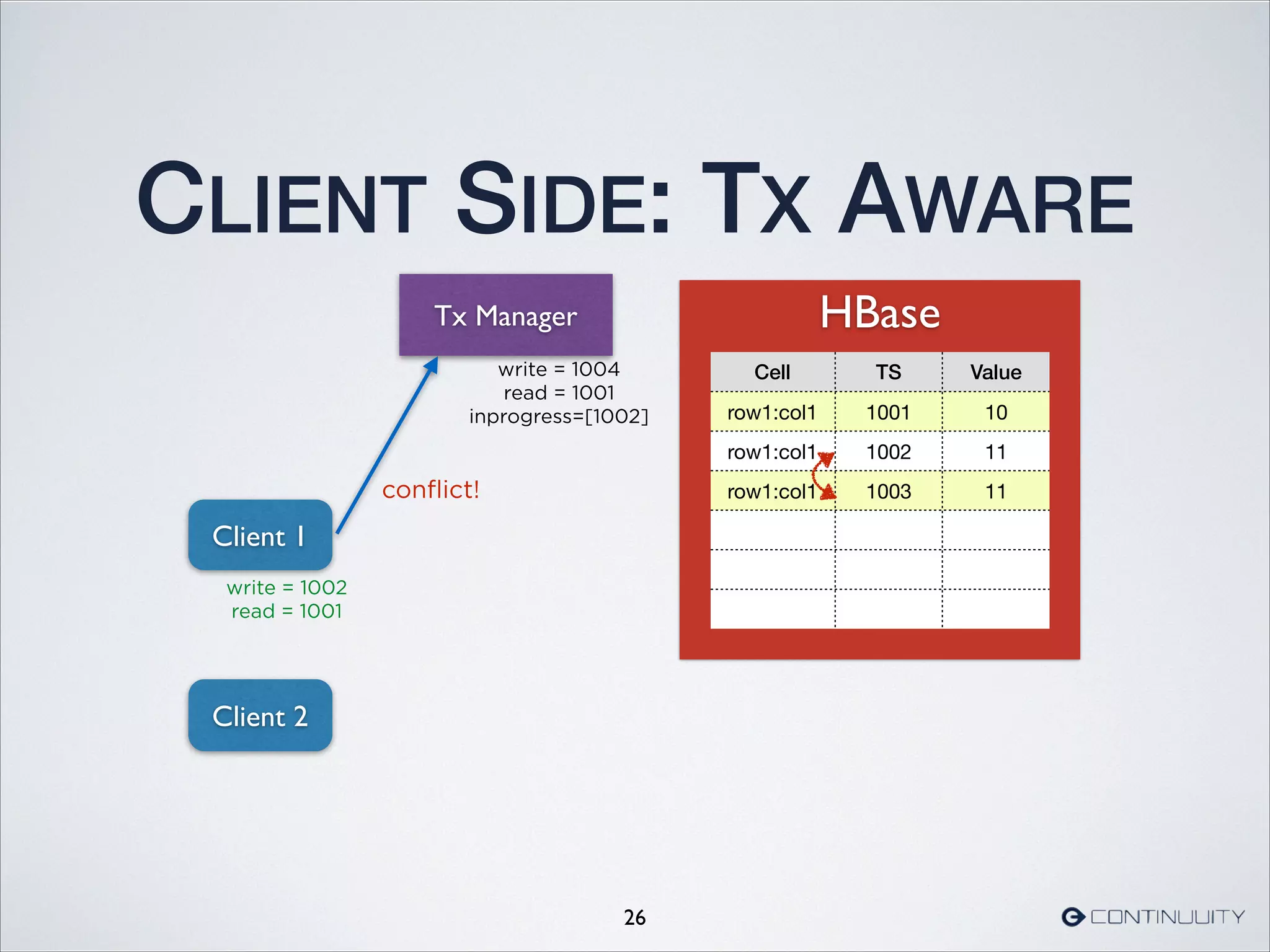

26. HBase
CLIENT SIDE: TX AWARE
26
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
conflict!
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

27. HBase
CLIENT SIDE: TX AWARE
27
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1 rollback
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

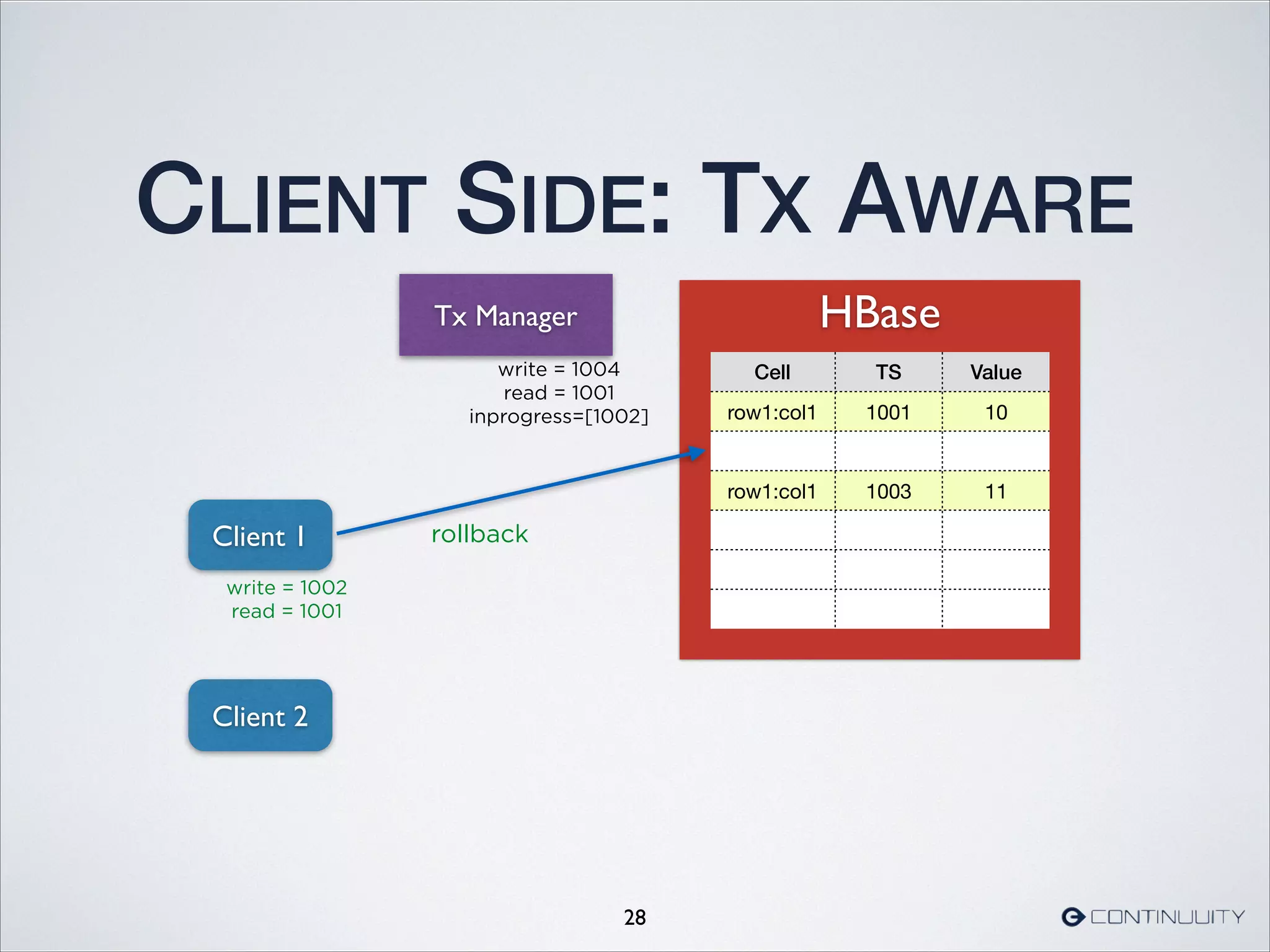

28. HBase
CLIENT SIDE: TX AWARE
28
Cell TS Value
row1:col1 1001 10
row1:col1 1003 11
Tx Manager
Client 1 rollback
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

29. HBase
CLIENT SIDE: TX AWARE
29
Cell TS Value
row1:col1 1001 10
row1:col1 1003 11
Tx Manager
Client 1
abort
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

30. HBase
CLIENT SIDE: TX AWARE
30
Cell TS Value
row1:col1 1001 10
row1:col1 1003 11
Tx Manager
Client 1
abort
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[]

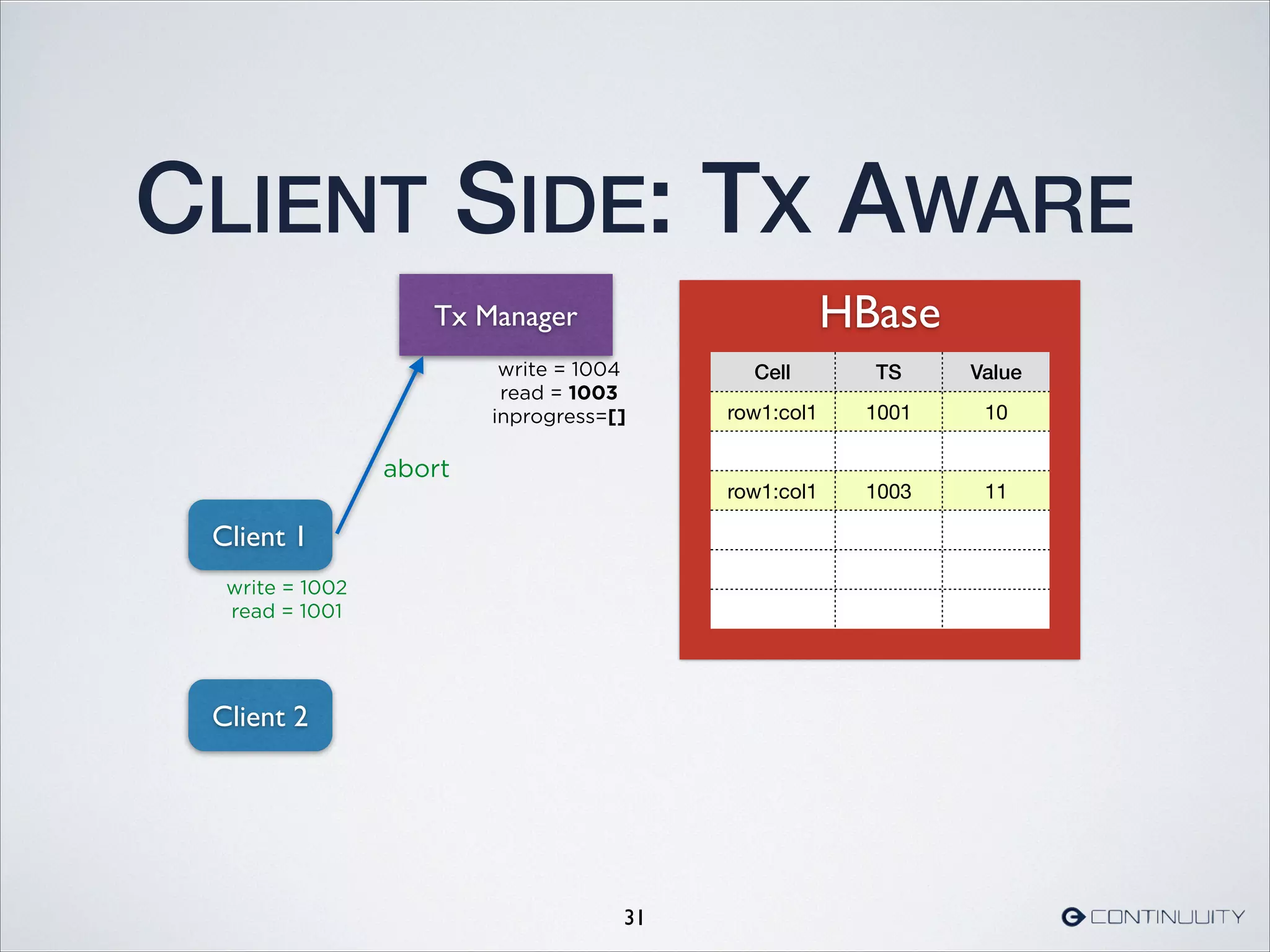

31. HBase
CLIENT SIDE: TX AWARE
31
Cell TS Value
row1:col1 1001 10
row1:col1 1003 11
Tx Manager
Client 1
abort
write = 1002
read = 1001
Client 2
write = 1004
read = 1003
inprogress=[]

32. HBase
CLIENT SIDE: TX AWARE
32
Cell TS Value
row1:col1 1001 10
row1:col1 1003 11
Tx Manager
Client 1 start
Client 2
write = 1005
read = 1003
inprogress=[]
write = 1004
read = 1003

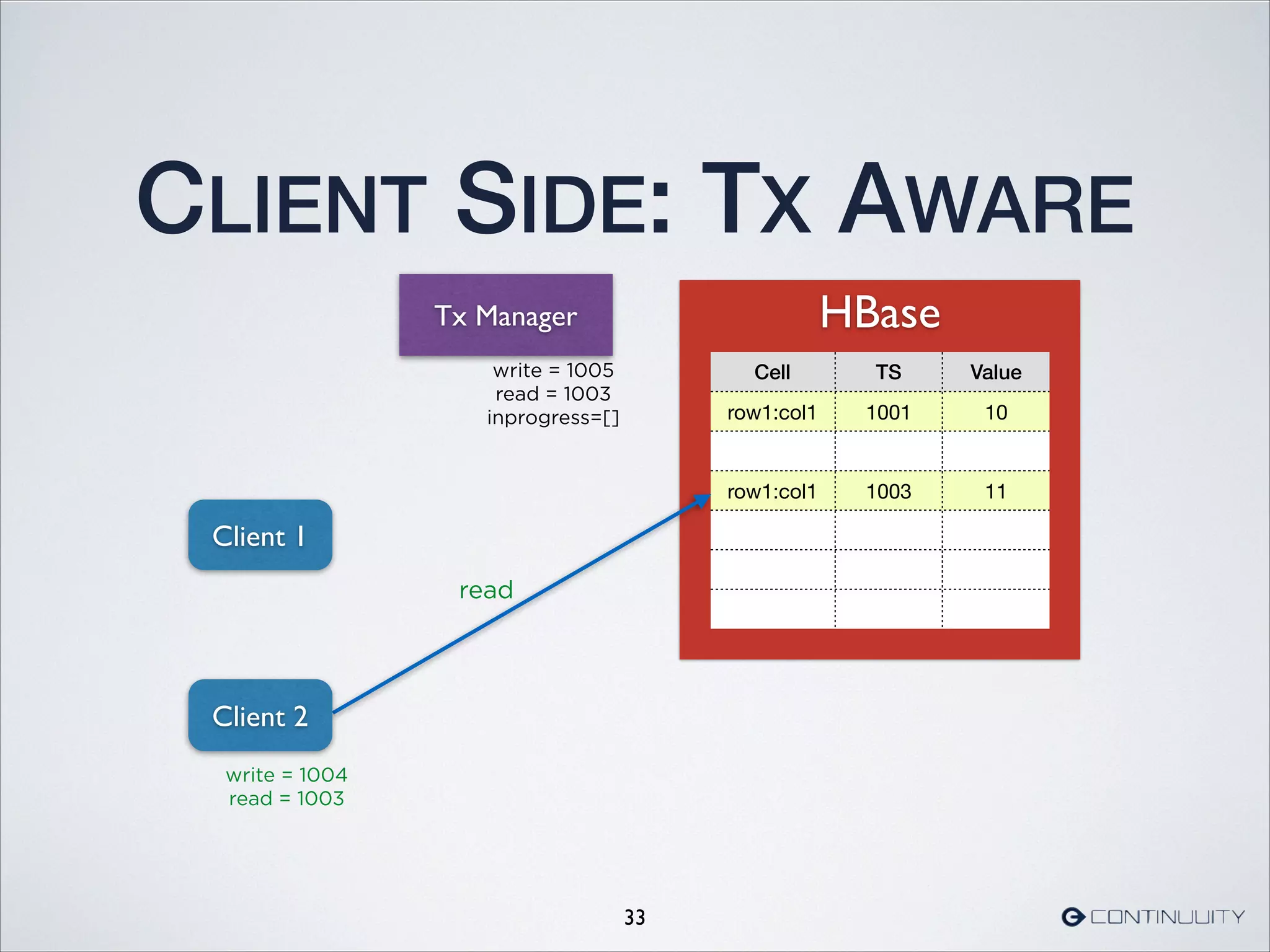

33. HBase
CLIENT SIDE: TX AWARE
33
Cell TS Value
row1:col1 1001 10
row1:col1 1003 11
Tx Manager
Client 1
read
Client 2
write = 1005
read = 1003
inprogress=[]
write = 1004
read = 1003

34. HBase
CLIENT SIDE: TX AWARE
34
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
conflict!
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

35. HBase
CLIENT SIDE: TX AWARE
35
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1 rollback
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

36. HBase
CLIENT SIDE: TX AWARE
36
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1 rollback failed
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

37. HBase
CLIENT SIDE: TX AWARE
37
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
invalidate
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

38. HBase
CLIENT SIDE: TX AWARE
38
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
invalidate
write = 1002
read = 1001
Client 2
write = 1004
read = 1003
inprogress=[]
invalid=[1002]

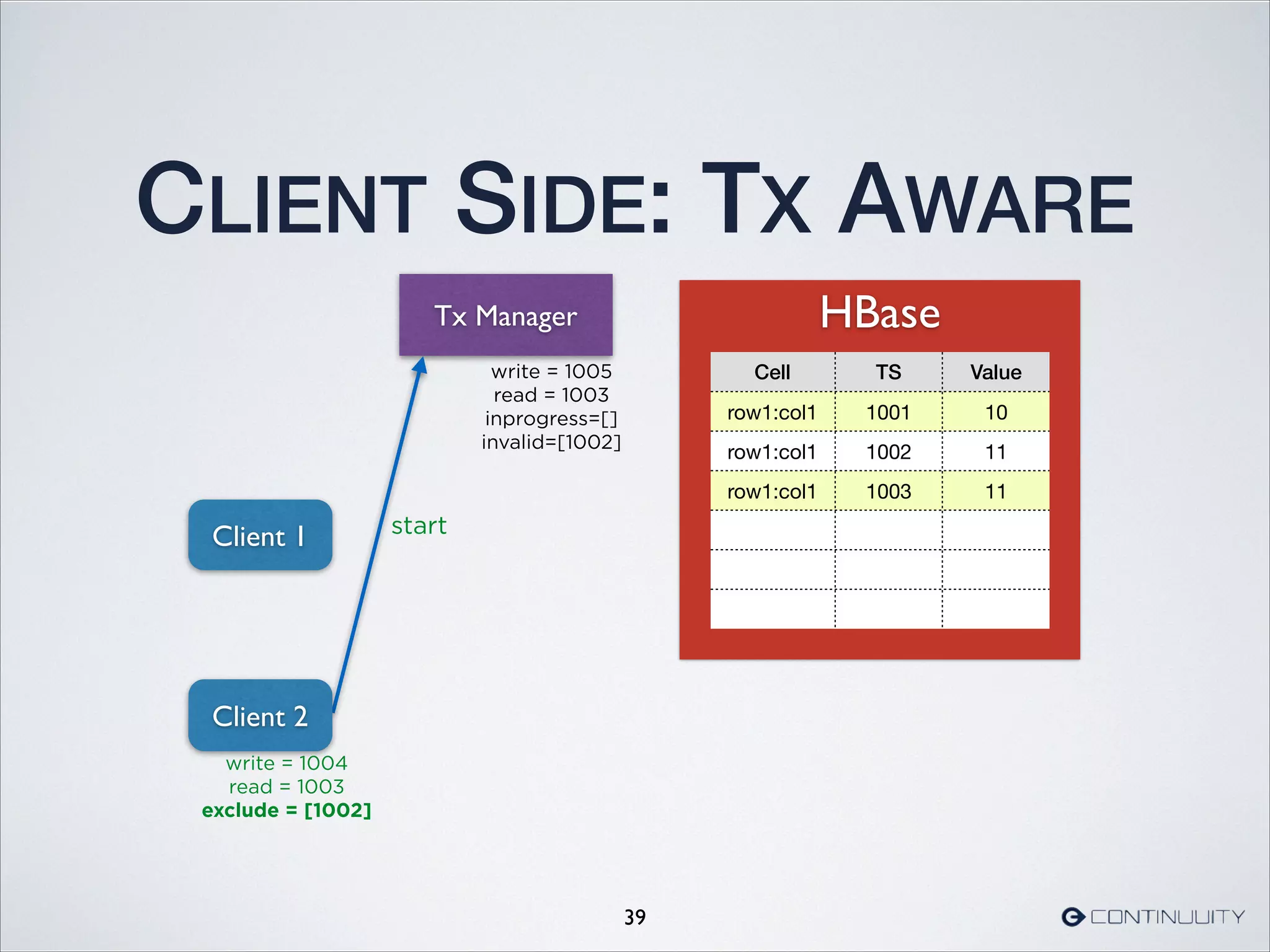

39. HBase
CLIENT SIDE: TX AWARE
39
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1 start
Client 2
write = 1005
read = 1003
inprogress=[]
invalid=[1002]
write = 1004
read = 1003
exclude = [1002]

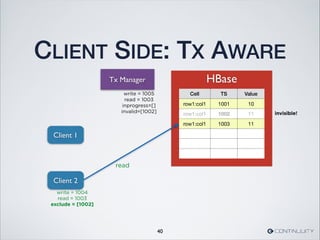

40. HBase
CLIENT SIDE: TX AWARE
40
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1
read
Client 2
write = 1005
read = 1003
inprogress=[]
invalid=[1002]
write = 1004
read = 1003
exclude = [1002]
invisible!

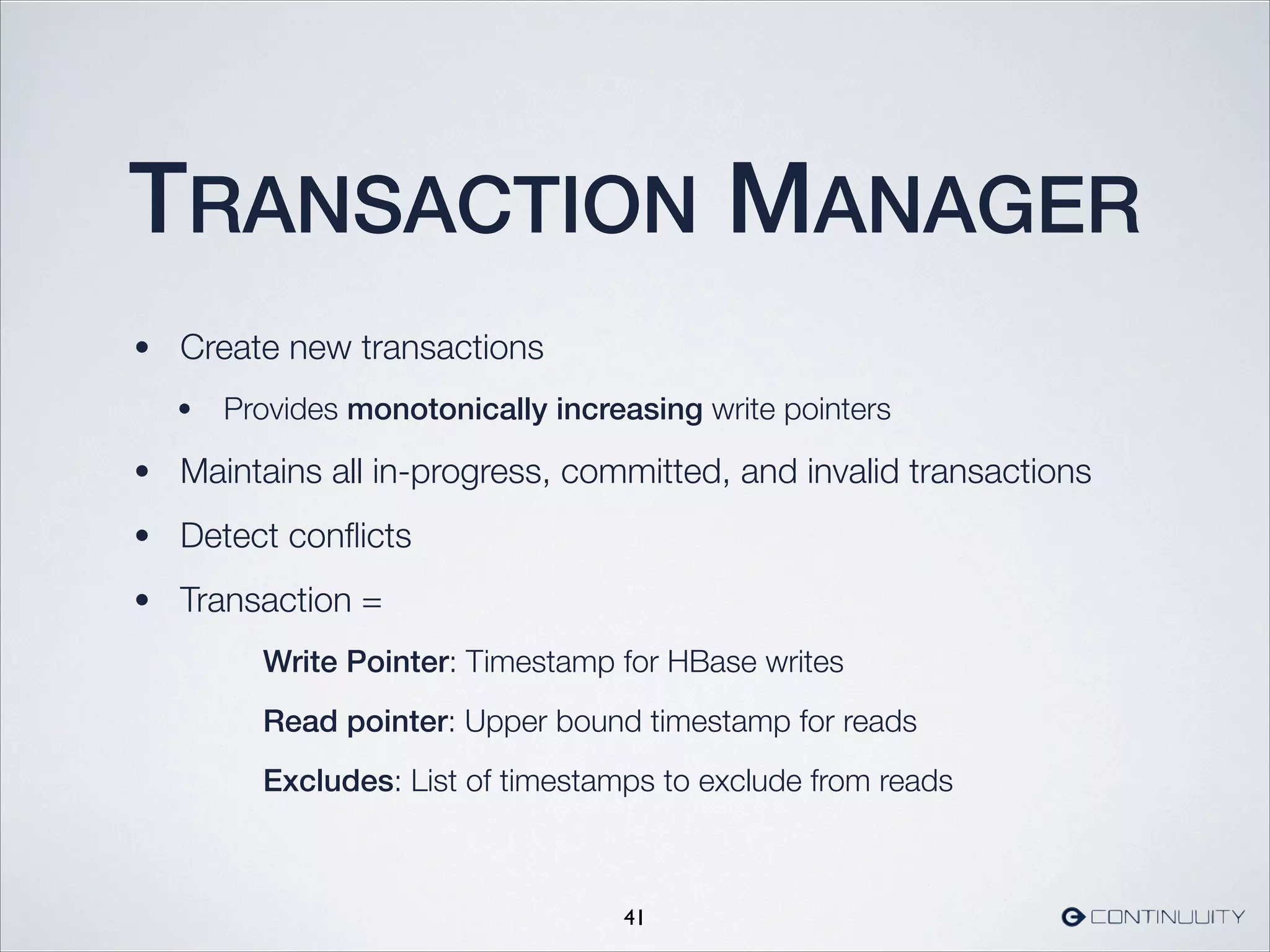

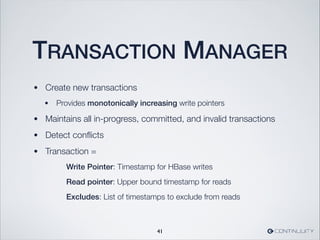

41. TRANSACTION MANAGER
• Create new transactions
• Provides monotonically increasing write pointers
• Maintains all in-progress, committed, and invalid transactions
• Detect conflicts
• Transaction =
Write Pointer: Timestamp for HBase writes
Read pointer: Upper bound timestamp for reads
Excludes: List of timestamps to exclude from reads
41

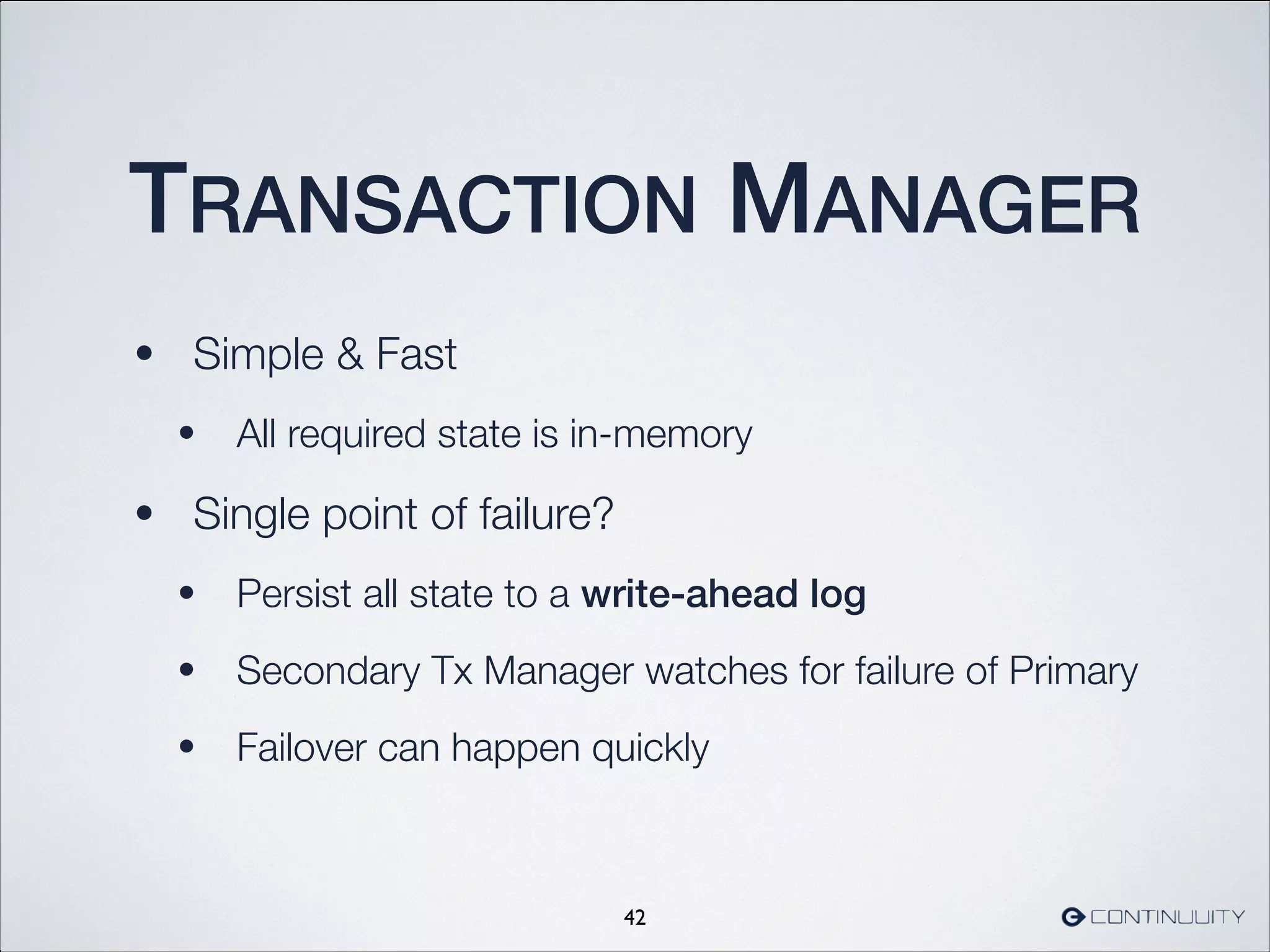

42. TRANSACTION MANAGER
• Simple Fast
• All required state is in-memory
• Single point of failure?
• Persist all state to a write-ahead log
• Secondary Tx Manager watches for failure of Primary
• Failover can happen quickly
42

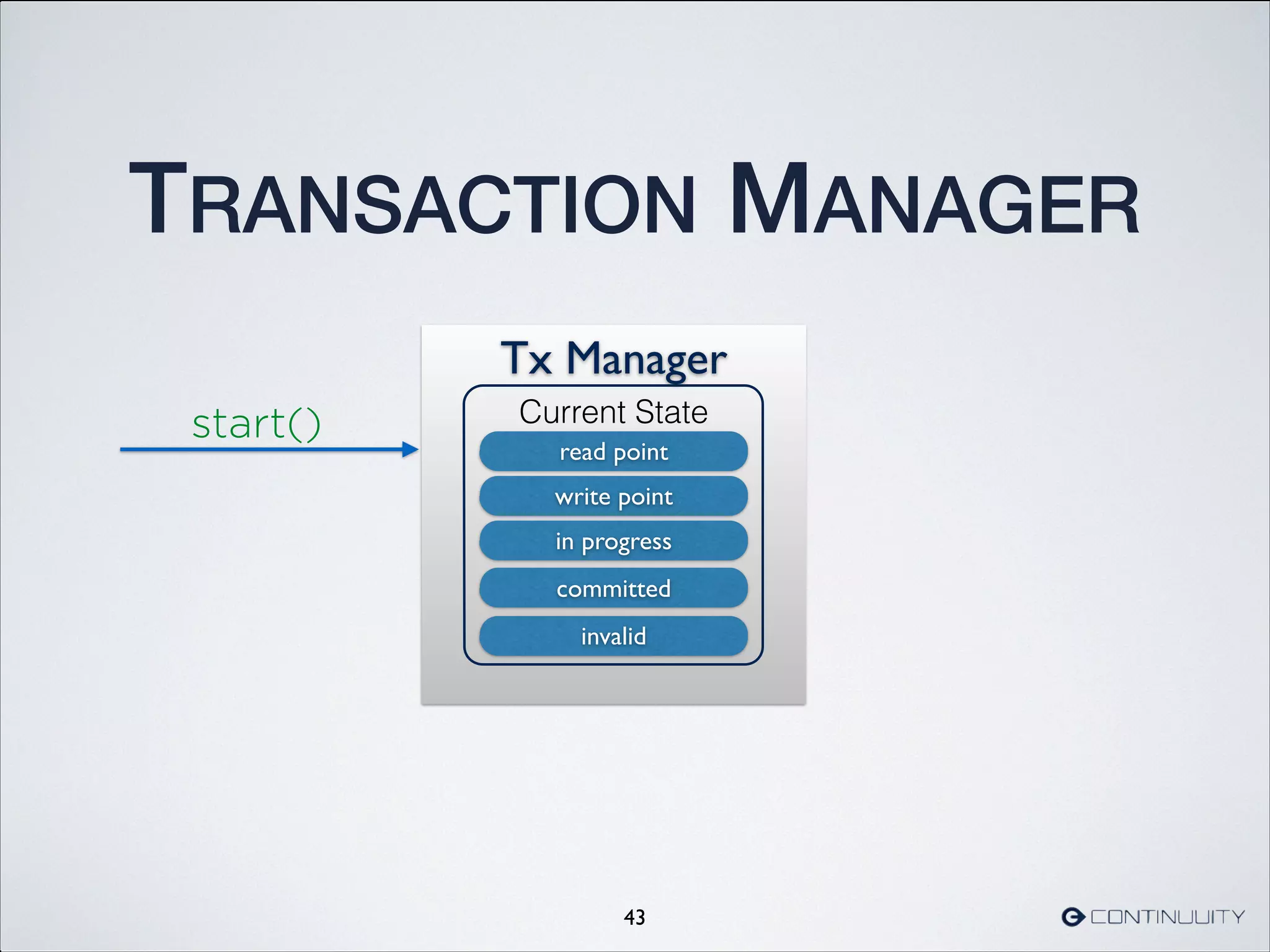

43. TRANSACTION MANAGER
43
Tx Manager
Current State
in progress
committed
invalid
read point
write point
start()

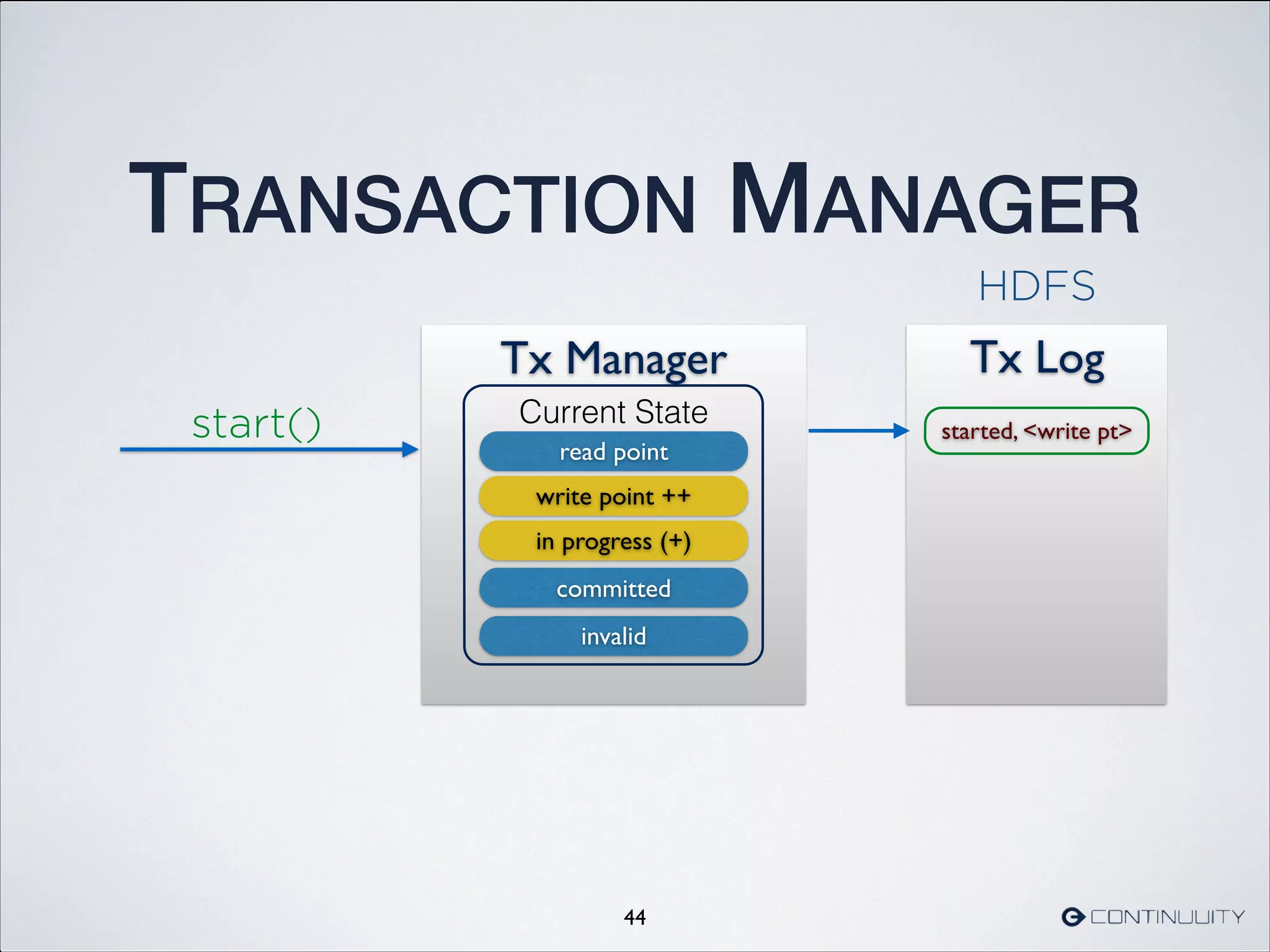

44. TRANSACTION MANAGER
44
Tx Manager
Current State
in progress (+)
committed
invalid
read point
write point ++
start()
Tx Log
started, write pt
HDFS

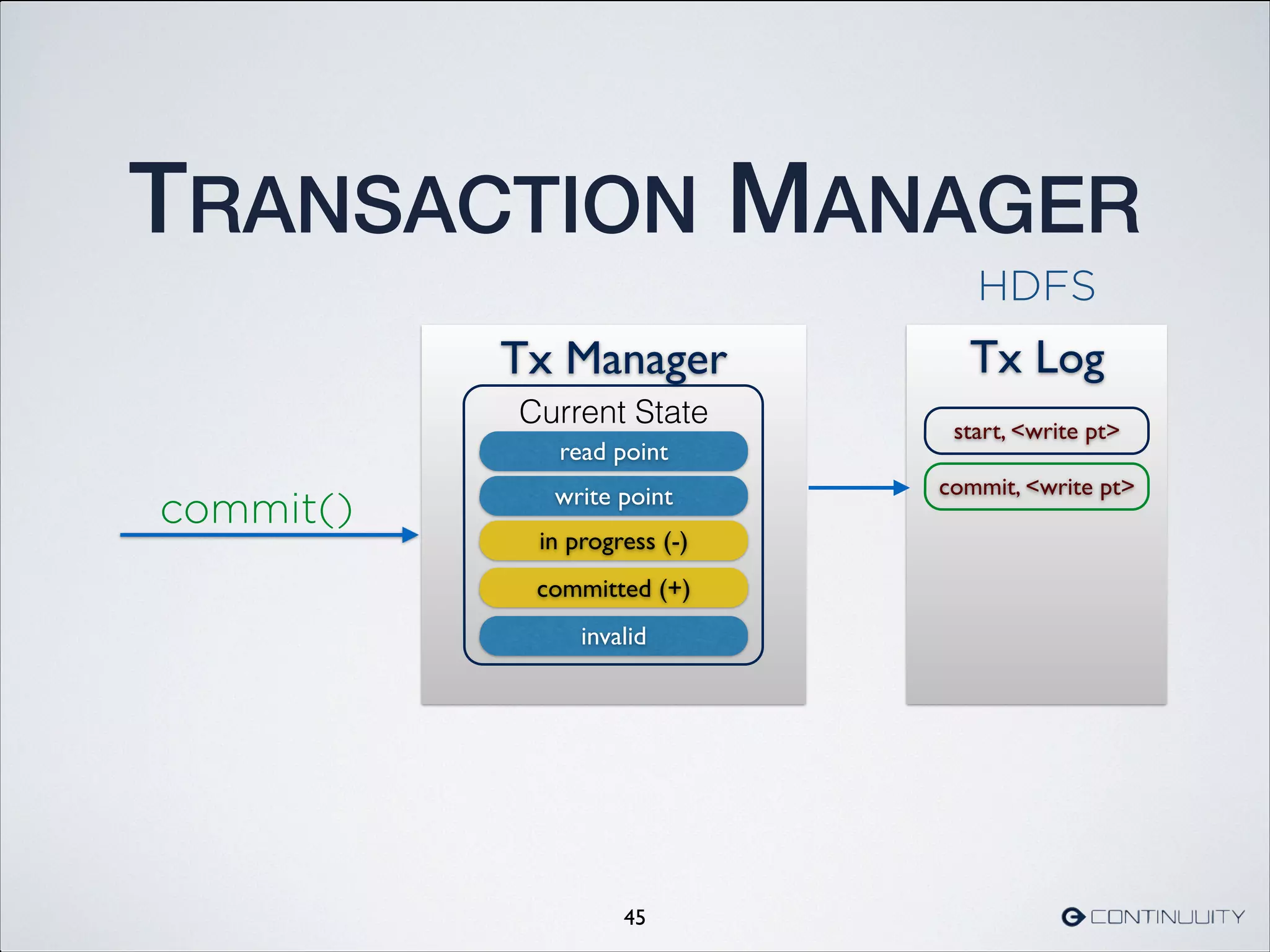

45. TRANSACTION MANAGER
45
Tx Manager
Current State
in progress (-)
committed (+)
invalid
read point
write point
commit()
Tx Log
start, write pt
commit, write pt
HDFS

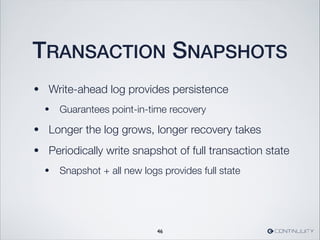

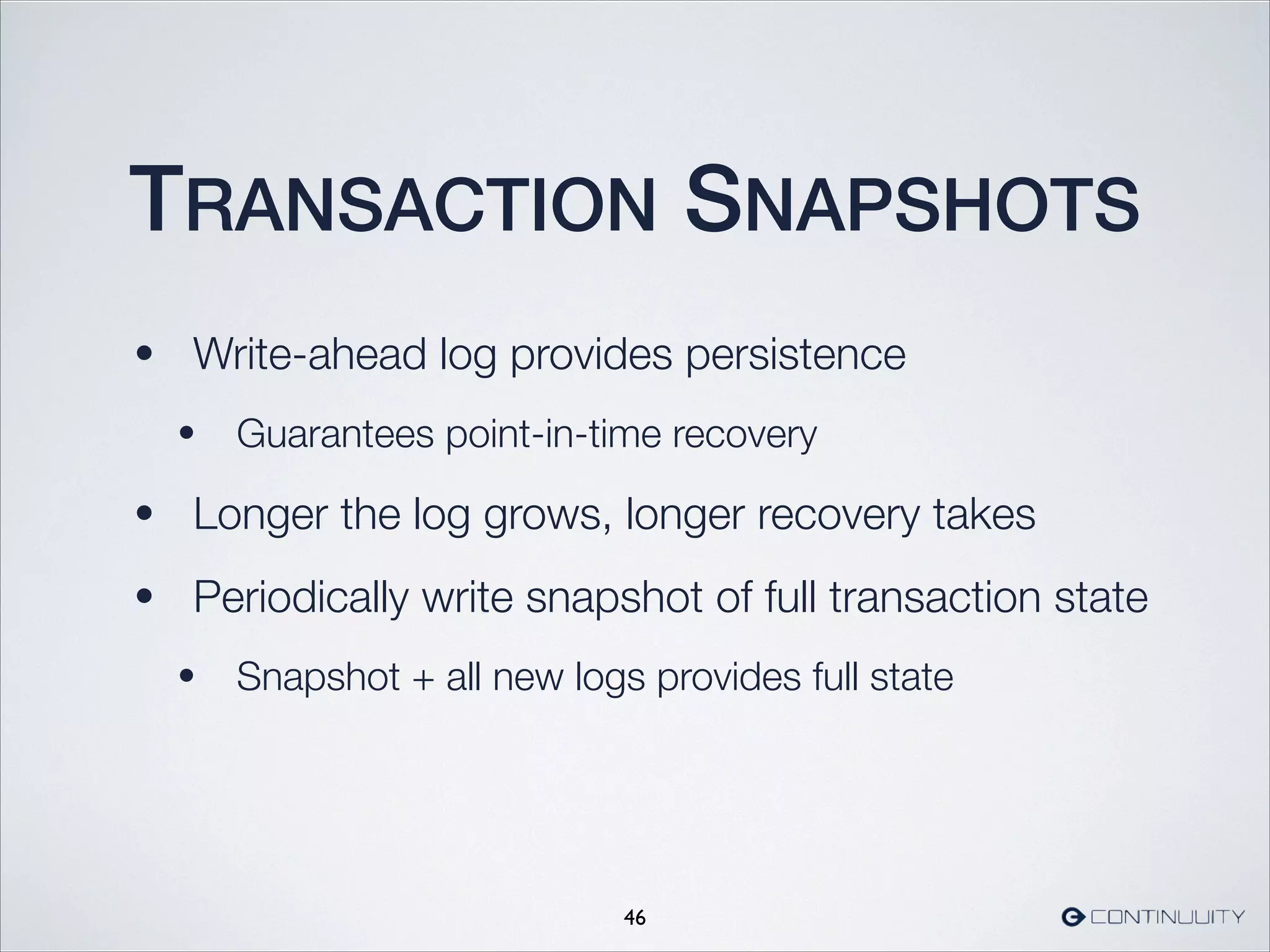

46. TRANSACTION SNAPSHOTS
• Write-ahead log provides persistence
• Guarantees point-in-time recovery
• Longer the log grows, longer recovery takes
• Periodically write snapshot of full transaction state
• Snapshot + all new logs provides full state
46

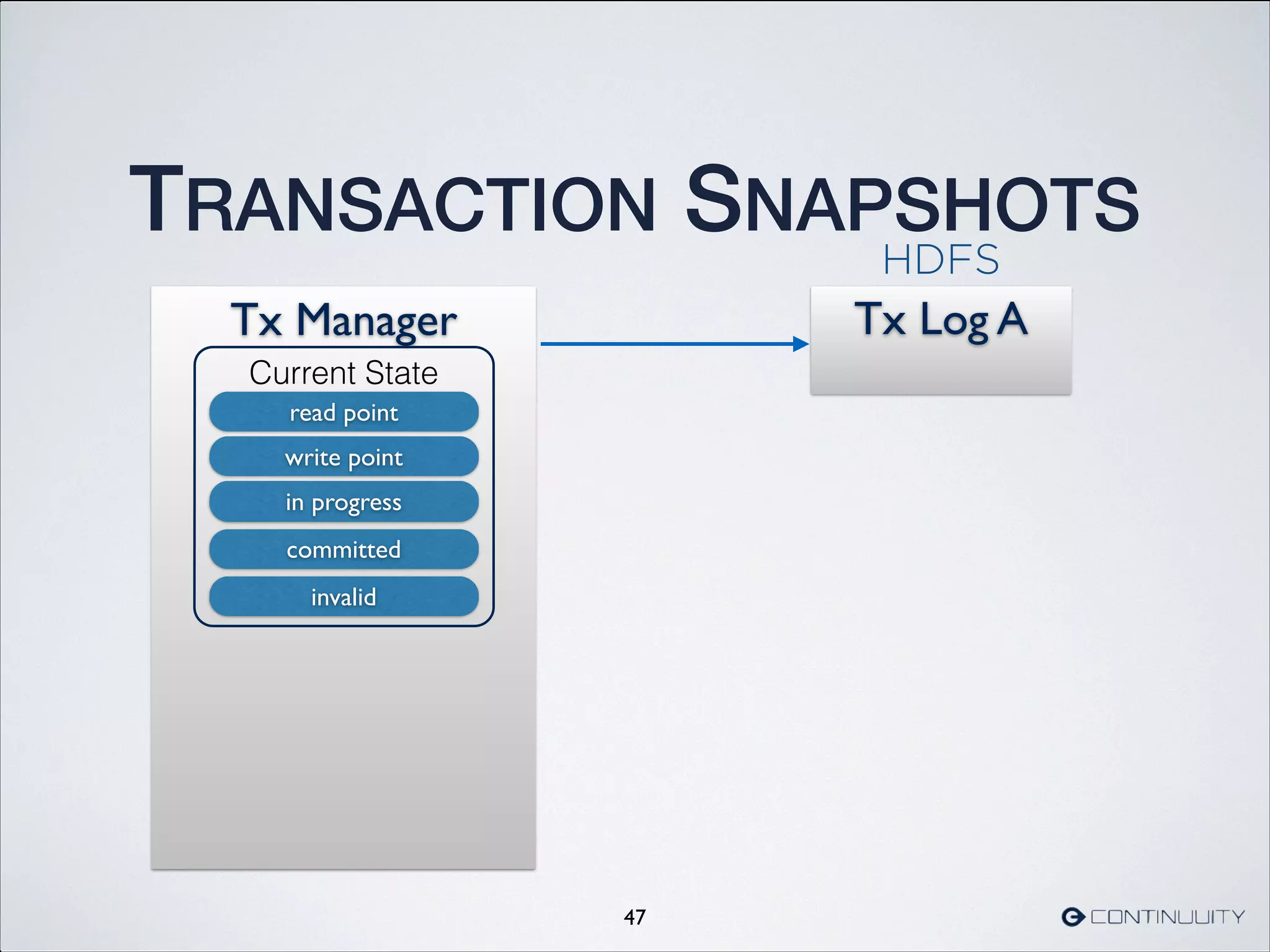

47. Tx Manager
Current State
TRANSACTION SNAPSHOTS
47
Tx Log A
in progress
committed
invalid
read point
write point
HDFS

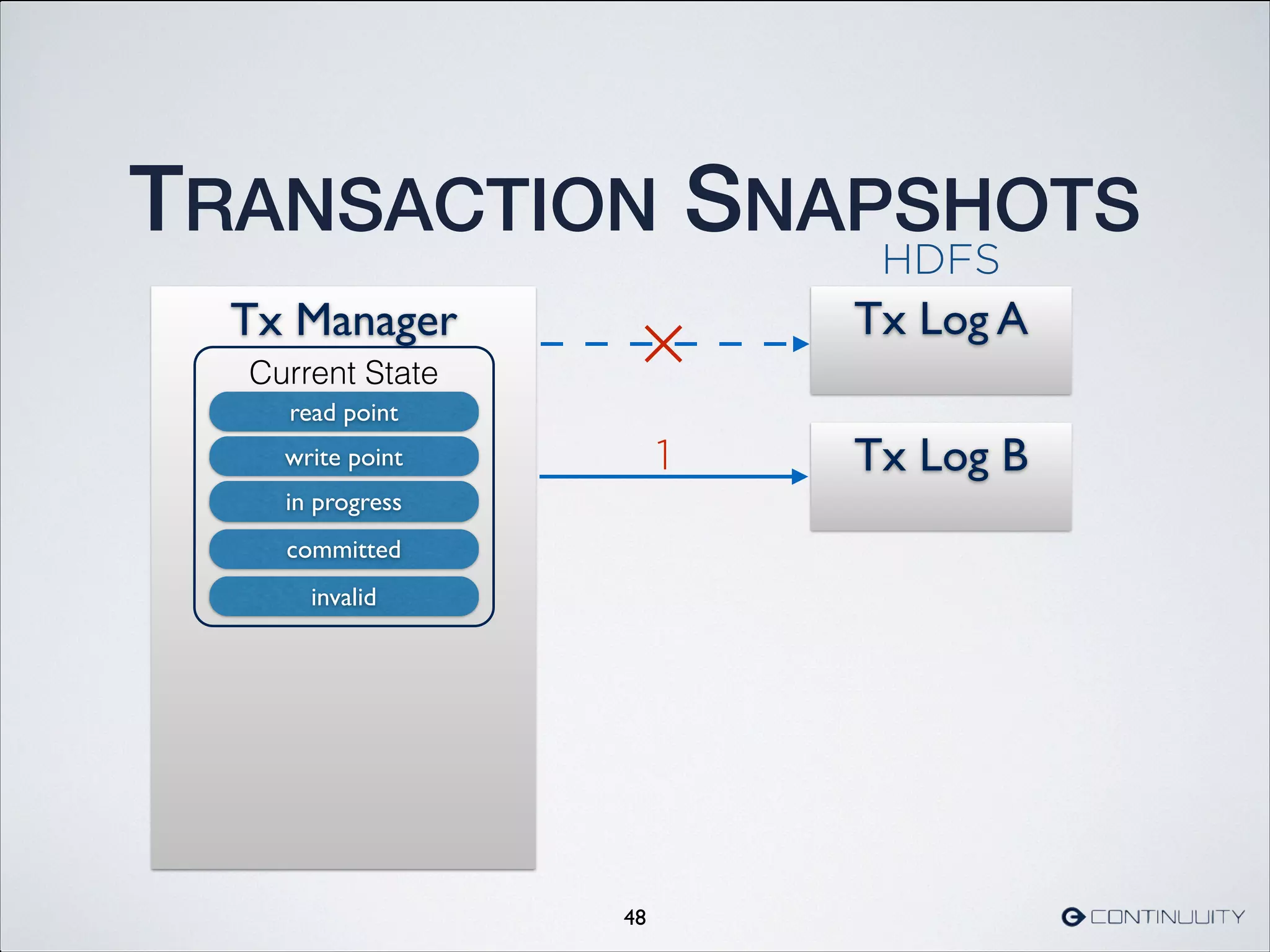

48. Tx Manager
Current State
TRANSACTION SNAPSHOTS
48
Tx Log A
in progress
committed
invalid
read point
write point Tx Log B1
HDFS

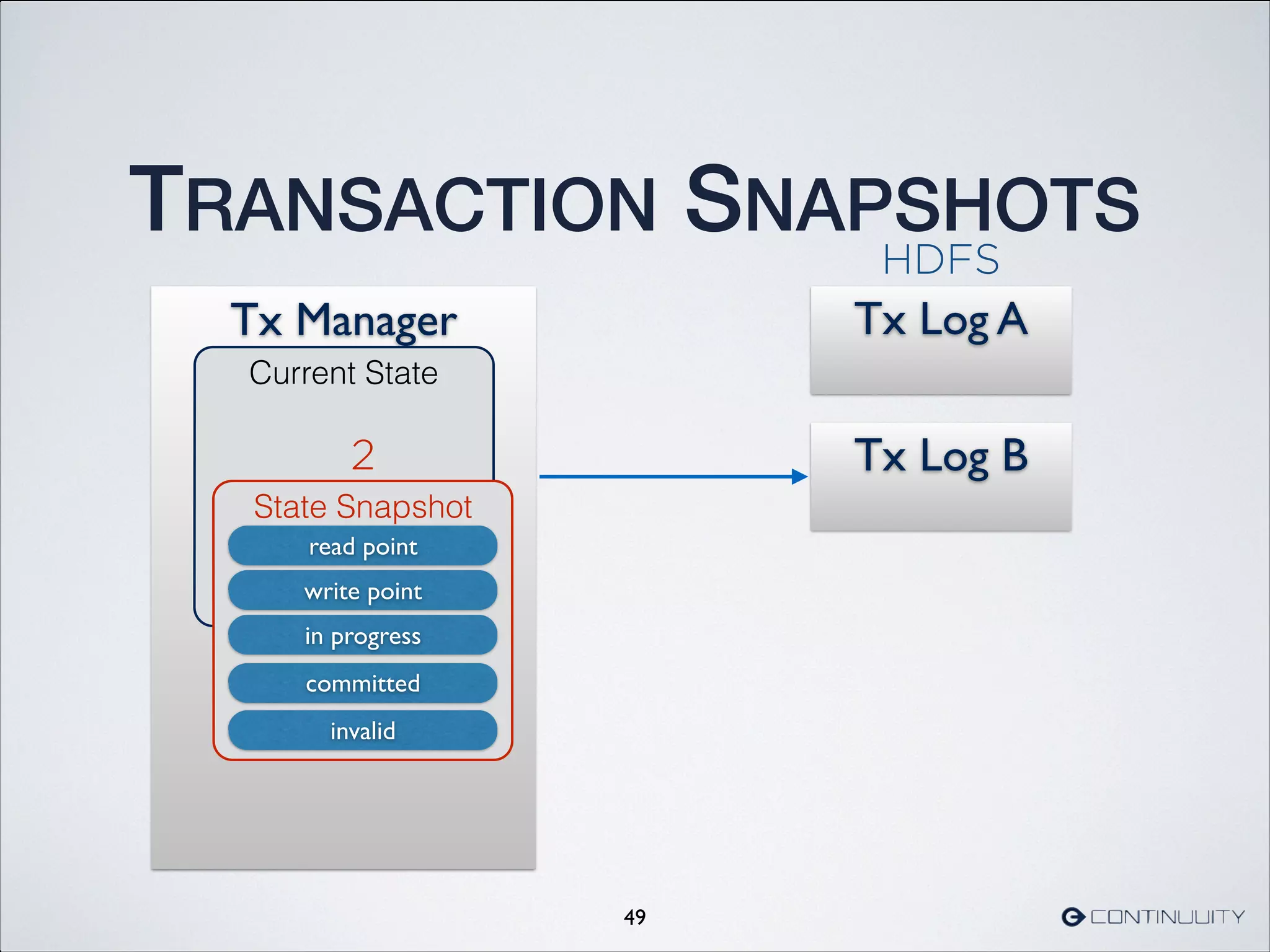

49. TRANSACTION SNAPSHOTS
49
Tx Log ATx Manager
in progress
committed
invalid
read point
write point
Current State
State Snapshot
in progress
committed
invalid
read point
write point
Tx Log B2
HDFS

50. TRANSACTION SNAPSHOTS
50
Tx Log ATx Manager
in progress
committed
invalid
read point
write point
Current State
State Snapshot
in progress
committed
invalid
read point
write point
Tx Log B
Tx Snapshot
in progress
committed
invalid
read point
write point
3
HDFS

51. TRANSACTION SNAPSHOTS
51
Tx Log ATx Manager
in progress
committed
invalid
read point
write point
Current State
State Snapshot
in progress
committed
invalid
read point
write point
Tx Log B
Tx Snapshot
in progress
committed
invalid
read point
write point
4
HDFS

52. HBase
TRANSACTION CLEANUP
52
Cell TS Value
row1:col1 1001 10
row1:col1 1002 11
row1:col1 1003 11
Tx Manager
Client 1 rollback failed
write = 1002
read = 1001
Client 2
write = 1004
read = 1001
inprogress=[1002]

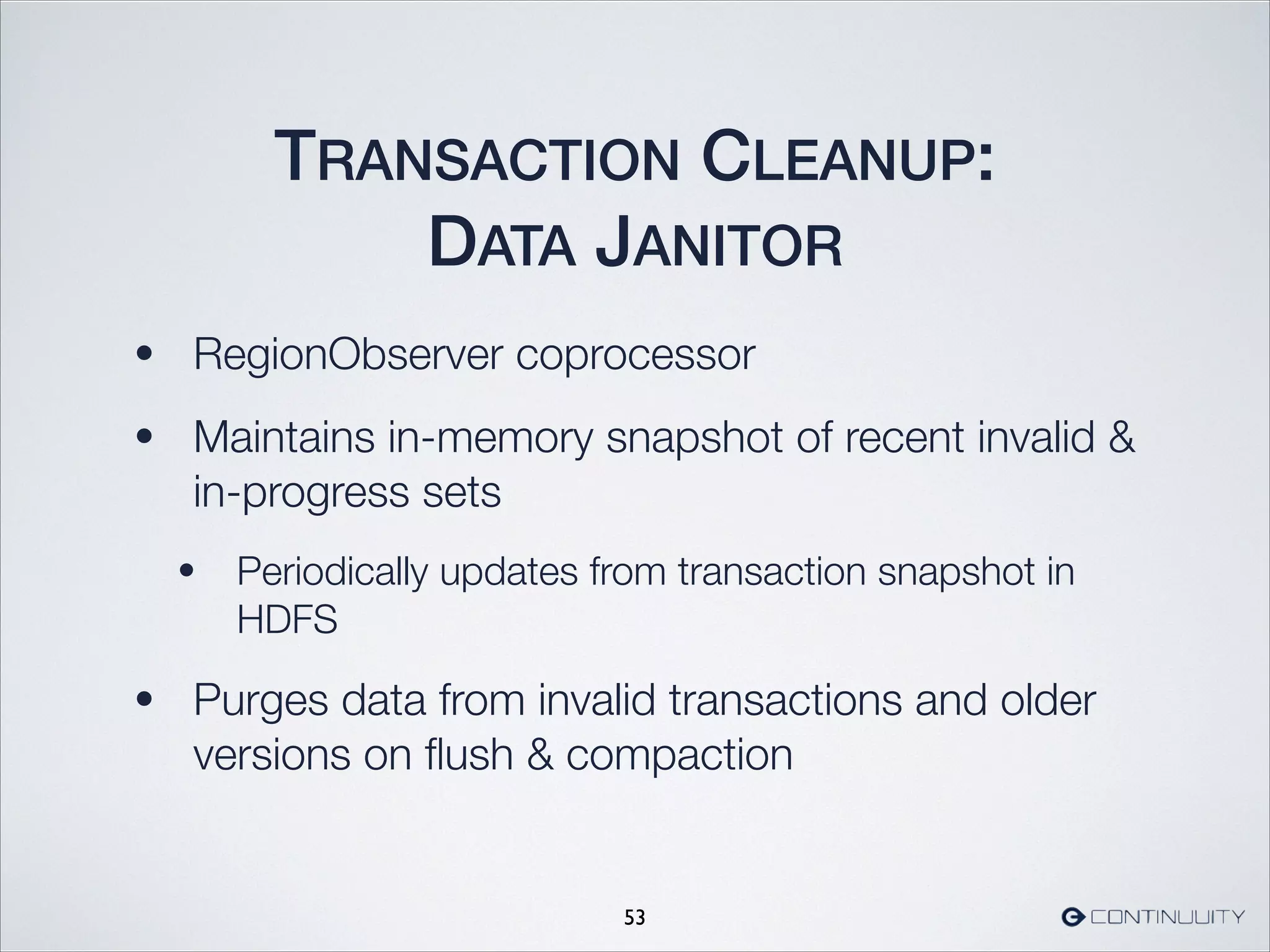

53. TRANSACTION CLEANUP:
DATA JANITOR
• RegionObserver coprocessor
• Maintains in-memory snapshot of recent invalid
in-progress sets
• Periodically updates from transaction snapshot in
HDFS
• Purges data from invalid transactions and older
versions on flush compaction
53

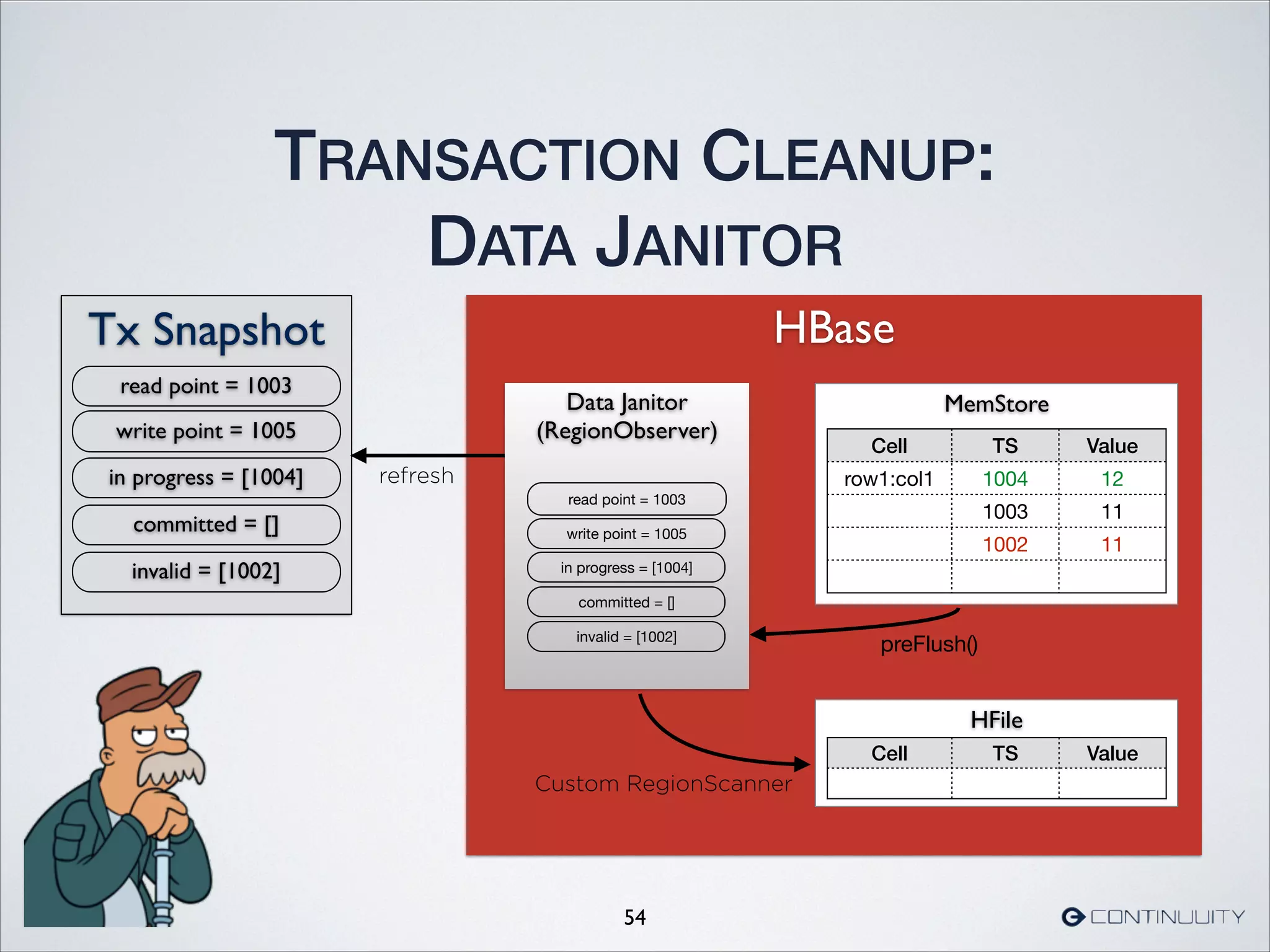

54. HBase
TRANSACTION CLEANUP:
DATA JANITOR
54
Tx Snapshot
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
refresh
Data Janitor
(RegionObserver)
MemStore
preFlush()
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
Cell TS Value
row1:col1 1004 12
1003 11
1002 11
Custom RegionScanner
HFile
Cell TS Value

55. HBase
TRANSACTION CLEANUP:
DATA JANITOR
55
Data Janitor
(RegionObserver)
HFile
Cell TS Value
Custom RegionScanner
MemStore
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
Tx Snapshot
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
preFlush()
Cell TS Value
row1:col1 1004 12
1003 11
1002 11

56. HBase
TRANSACTION CLEANUP:
DATA JANITOR
56
Data Janitor
(RegionObserver)
HFile
Cell TS Value
row1:col1 1004 12Custom RegionScanner
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
Tx Snapshot
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
MemStore
preFlush()
Cell TS Value
row1:col1 1004 12
1003 11
1002 11

57. HBase
TRANSACTION CLEANUP:
DATA JANITOR
57
Data Janitor
(RegionObserver)
Custom RegionScanner
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
Tx Snapshot
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
MemStore
preFlush()
Cell TS Value
row1:col1 1004 12
1003 11
1002 11
HFile
Cell TS Value
row1:col1 1004 12

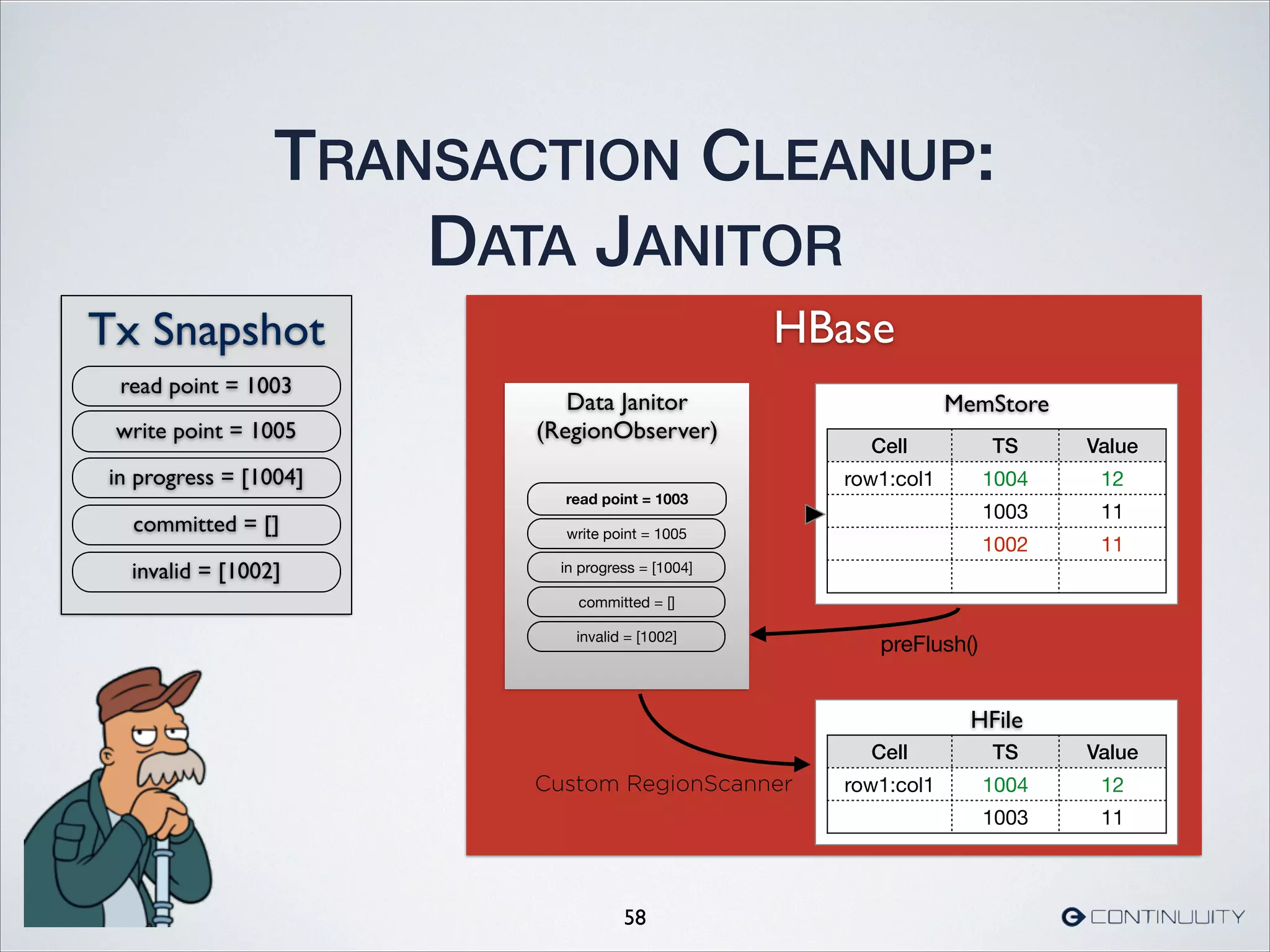

58. HBase
TRANSACTION CLEANUP:
DATA JANITOR
58
Data Janitor
(RegionObserver)
Custom RegionScanner
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
Tx Snapshot
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
MemStore
preFlush()
Cell TS Value
row1:col1 1004 12
1003 11
1002 11
HFile
Cell TS Value
row1:col1 1004 12
1003 11

59. HBase
TRANSACTION CLEANUP:
DATA JANITOR
59
Data Janitor
(RegionObserver)
Custom RegionScanner
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
Tx Snapshot
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
MemStore
preFlush()
Cell TS Value
row1:col1 1004 12
1003 11
1002 11
HFile
Cell TS Value
row1:col1 1004 12
1003 11

60. HBase
TRANSACTION CLEANUP:
DATA JANITOR
60
Data Janitor
(RegionObserver)
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
Tx Snapshot
read point = 1003
write point = 1005
in progress = [1004]
committed = []
invalid = [1002]
Custom RegionScanner
preFlush()
MemStore
Cell TS Value
row1:col1 1004 12
1003 11
1002 11
HFile
Cell TS Value
row1:col1 1004 12
1003 11

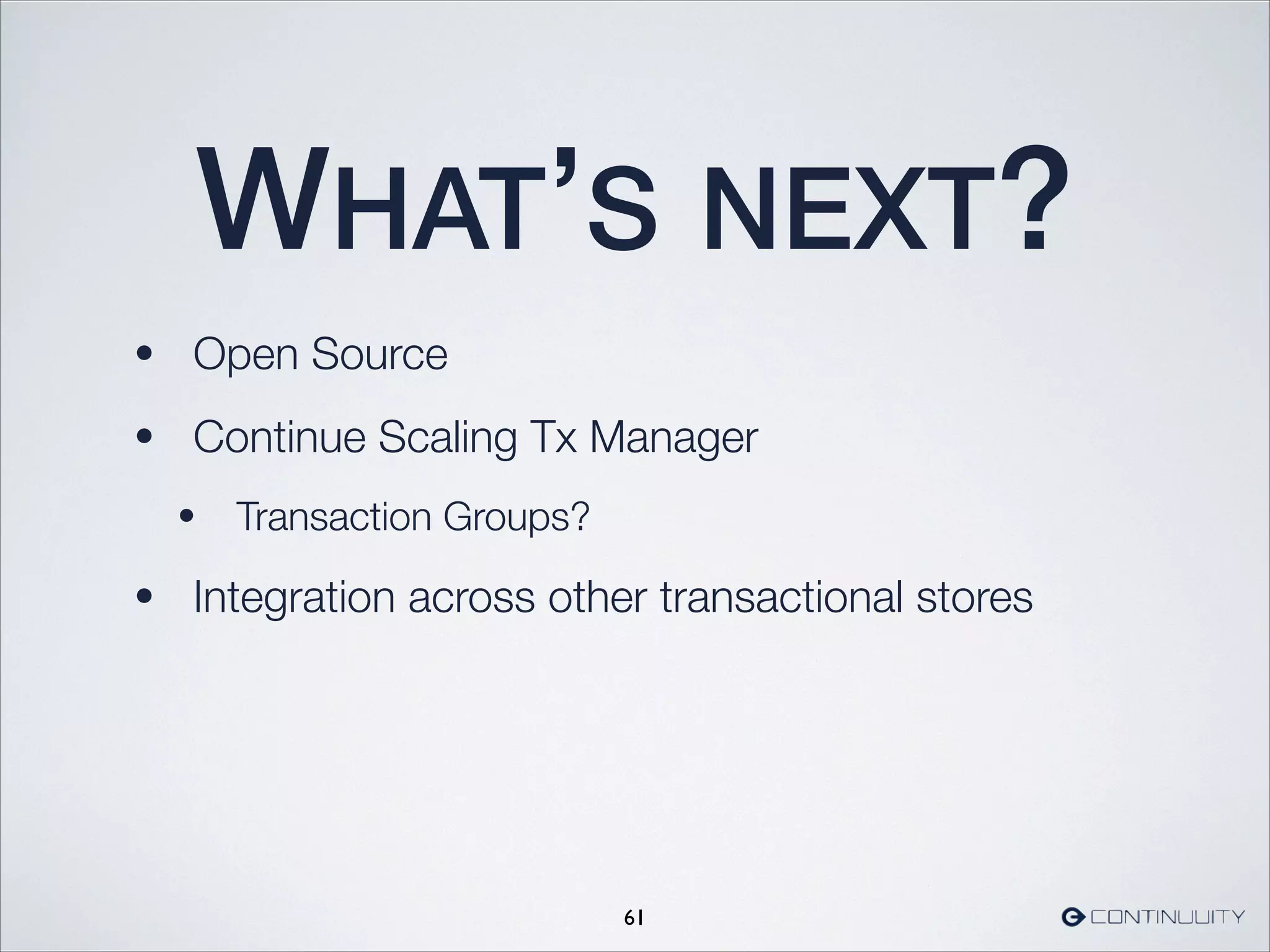

61. WHAT’S NEXT?
• Open Source
• Continue Scaling Tx Manager
• Transaction Groups?
• Integration across other transactional stores
61

62. QS?
Looking for the chance to work with a team that is
defining a new category within Big Data?
!
We are hiring!
http://continuuity.com/careers
careers@continuuity.com
62
