Introducing Athena: 08/19 Big Data Application Meetup, Talk #3
Athena is Uber's platform for stream processing built on Apache Samza. It uses Kafka as the messaging system and allows for near real-time computation of data streams. Some current uses at Uber include pricing calculations, event processing, and driver status updates. Athena provides tooling like a job manager, configuration files, testing frameworks, and integration with services like Graphite. Ongoing work includes improving upgrades, adding more metrics, and enhancing configuration validation.
More Related Content
![[Kotlin Serverless 工作坊] 單元 3 - 實作 JSON API](https://cdn.slidesharecdn.com/ss_thumbnails/kotlin-serverless-ep3-json-handling-210423105249-thumbnail.jpg?width=640&height=640&fit=bounds)
Introducing Athena: 08/19 Big Data Application Meetup, Talk #3
- 1. Athena Streaming withSamza Goddess of Wisdom
- 2.

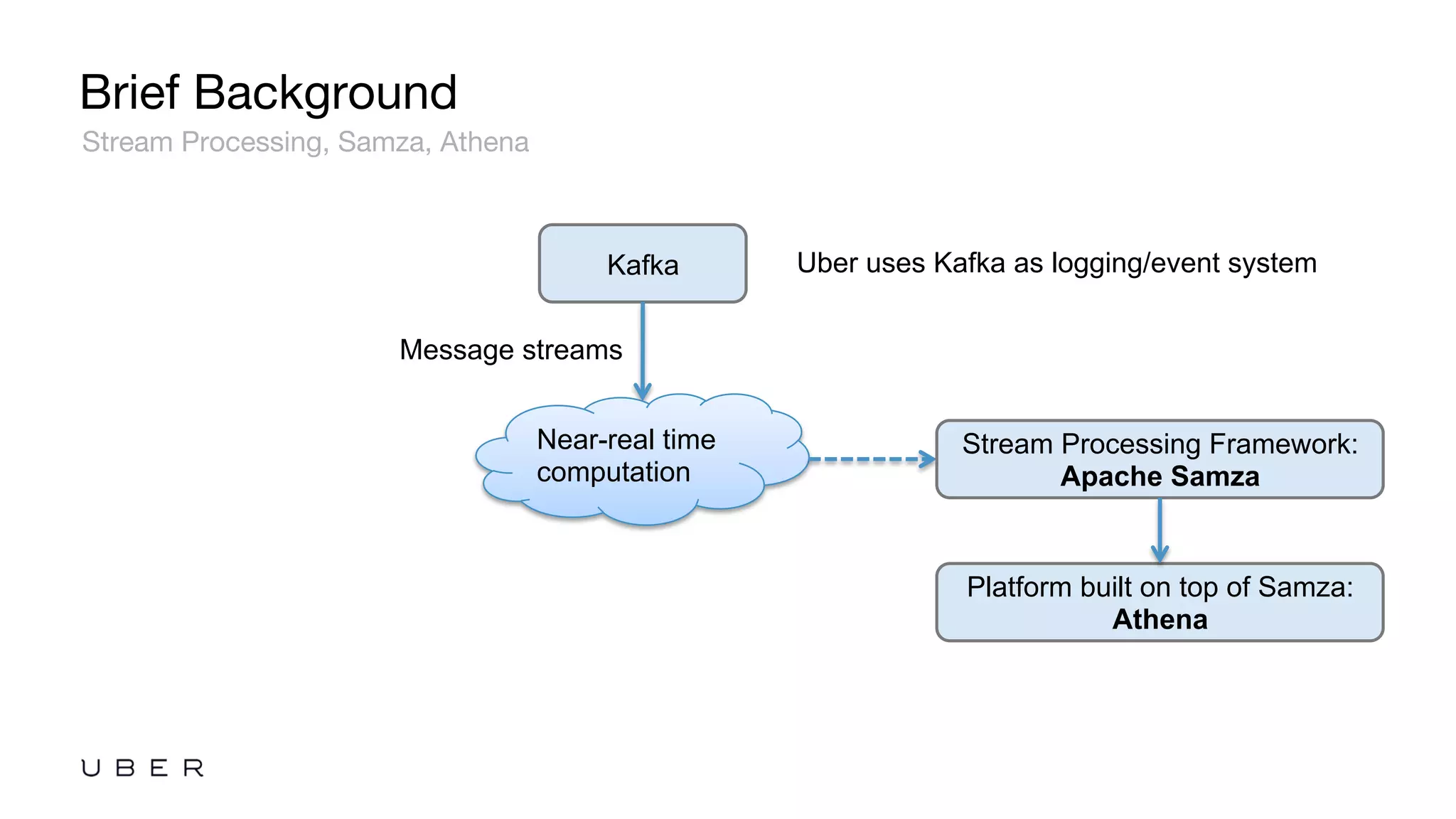

- 3. Brief Background Stream Processing,Samza, Athena Kafka Uber uses Kafka as logging/event system Message streams Near-real time computation Stream Processing Framework: Apache Samza Platform built on top of Samza: Athena
- 4.
- 5.

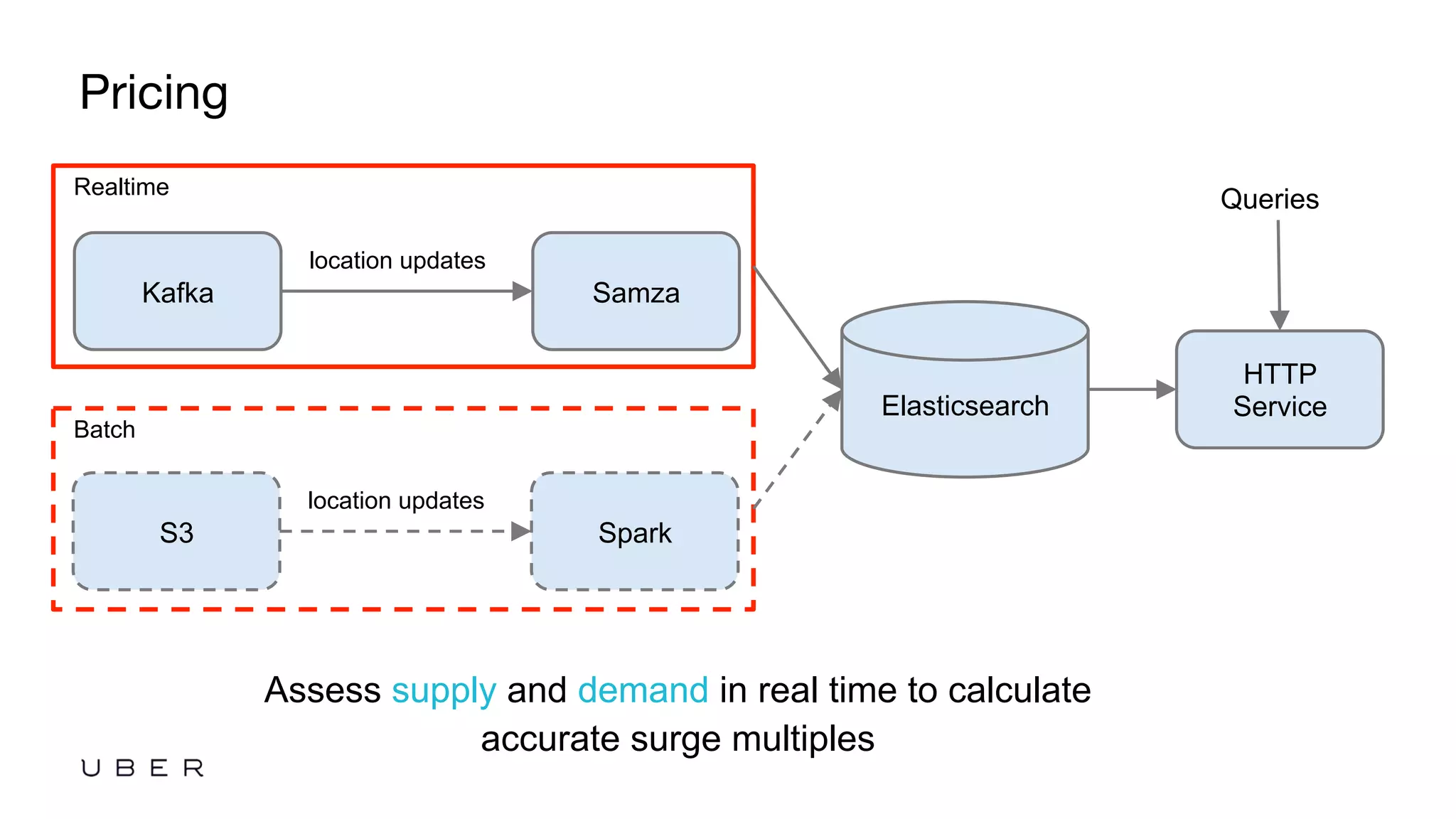

- 6. Pricing Assess supply anddemand in real time to calculate accurate surge multiples Kafka Samza location updates Elasticsearch S3 Spark location updates HTTP Service Realtime Batch Queries

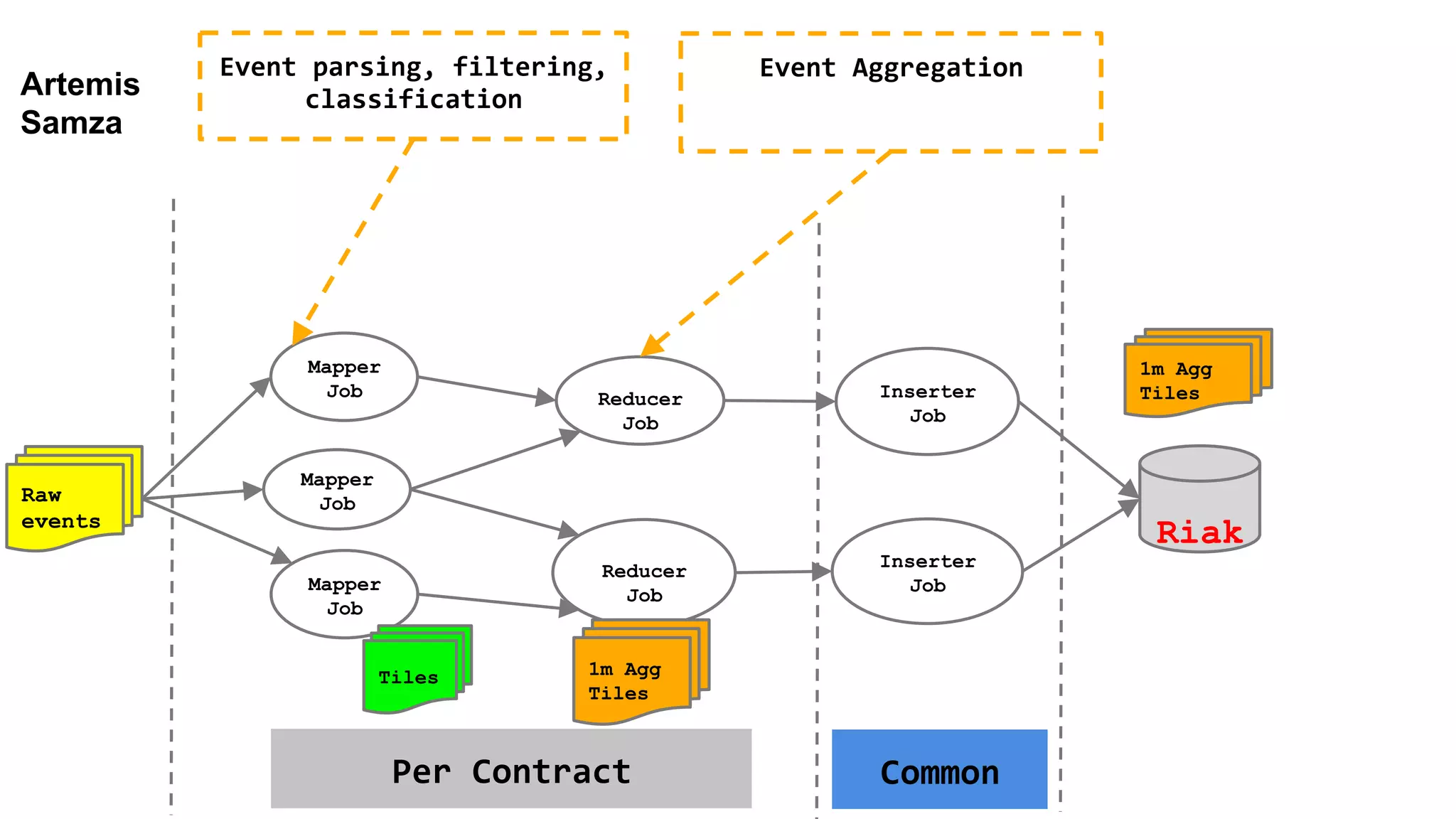

- 7. Mapper Job Mapper Job Mapper Job Event parsing, filtering, classification Event Aggregation Raw events Riak Inserter Job Inserter Job Tiles 1m Agg TilesReducer Job Reducer Job 1m Agg Tiles Per Contract Common Artemis Samza
- 8. Current use cases Eventdriven update engine

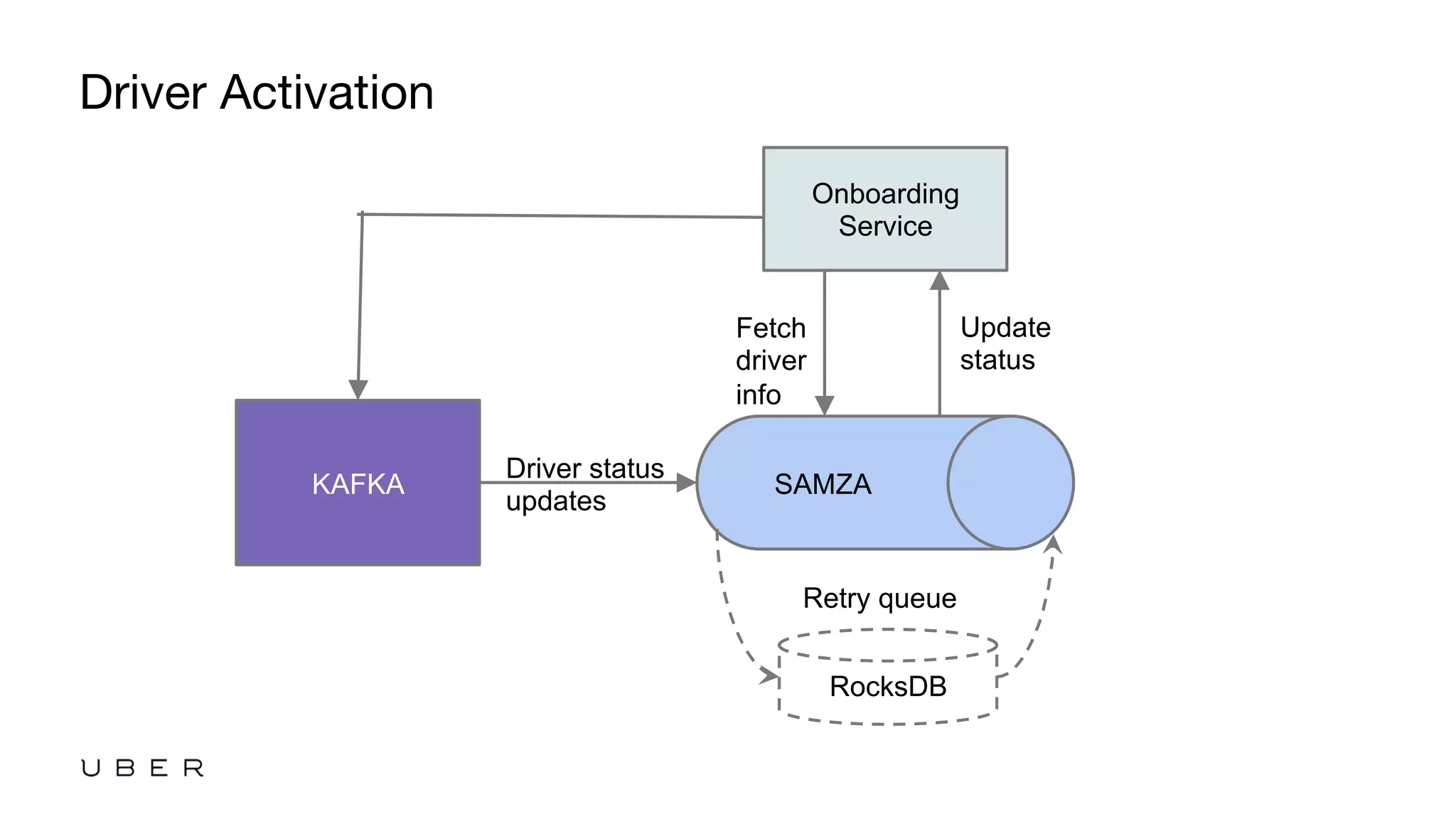

- 9. Driver Activation KAFKA SAMZA Driverstatus updates Onboarding Service Fetch driver info RocksDB Retry queue Update status
- 10.

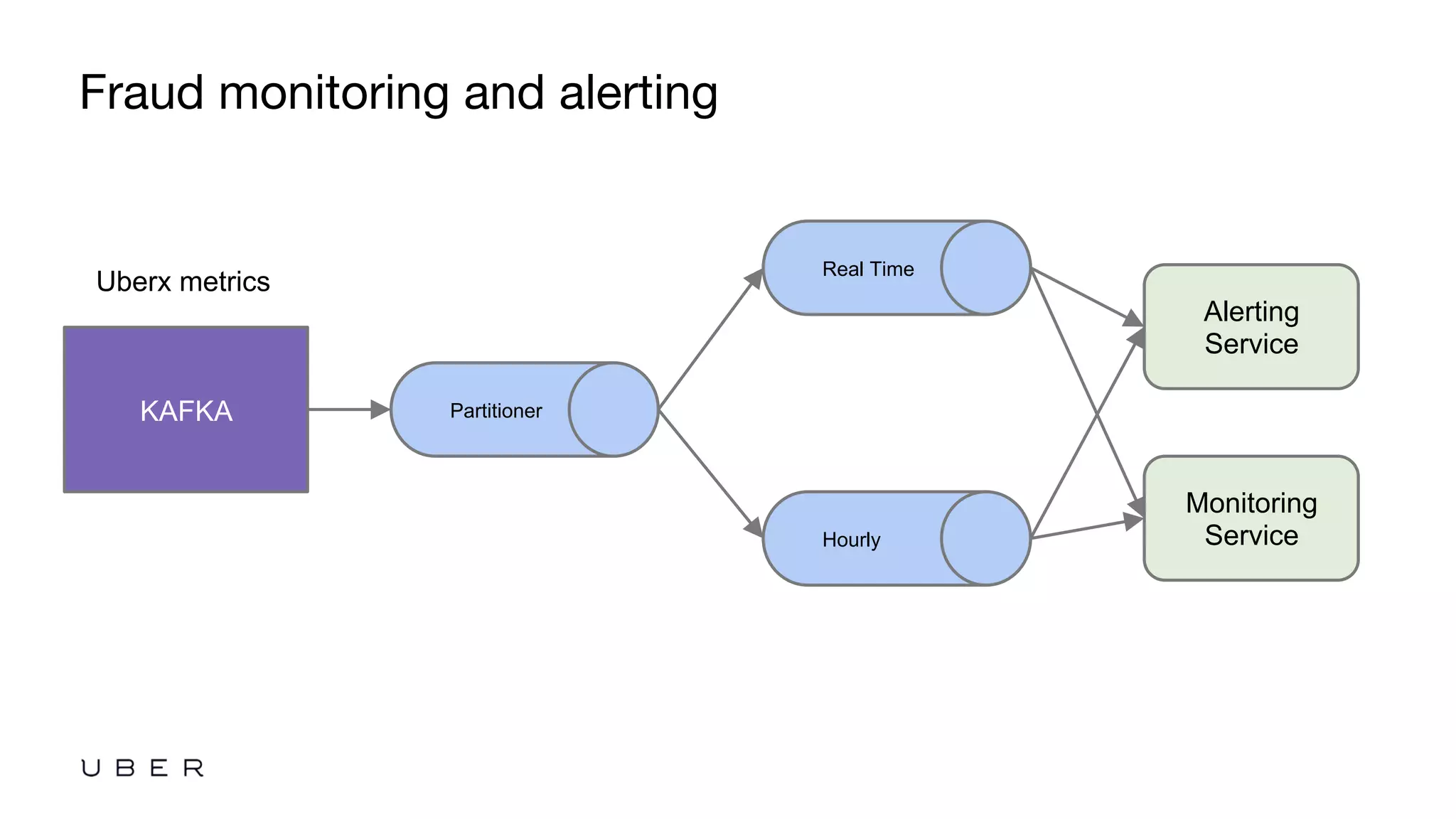

- 11. Fraud monitoring andalerting KAFKA Partitioner Real Time Hourly Alerting Service Monitoring Service Uberx metrics

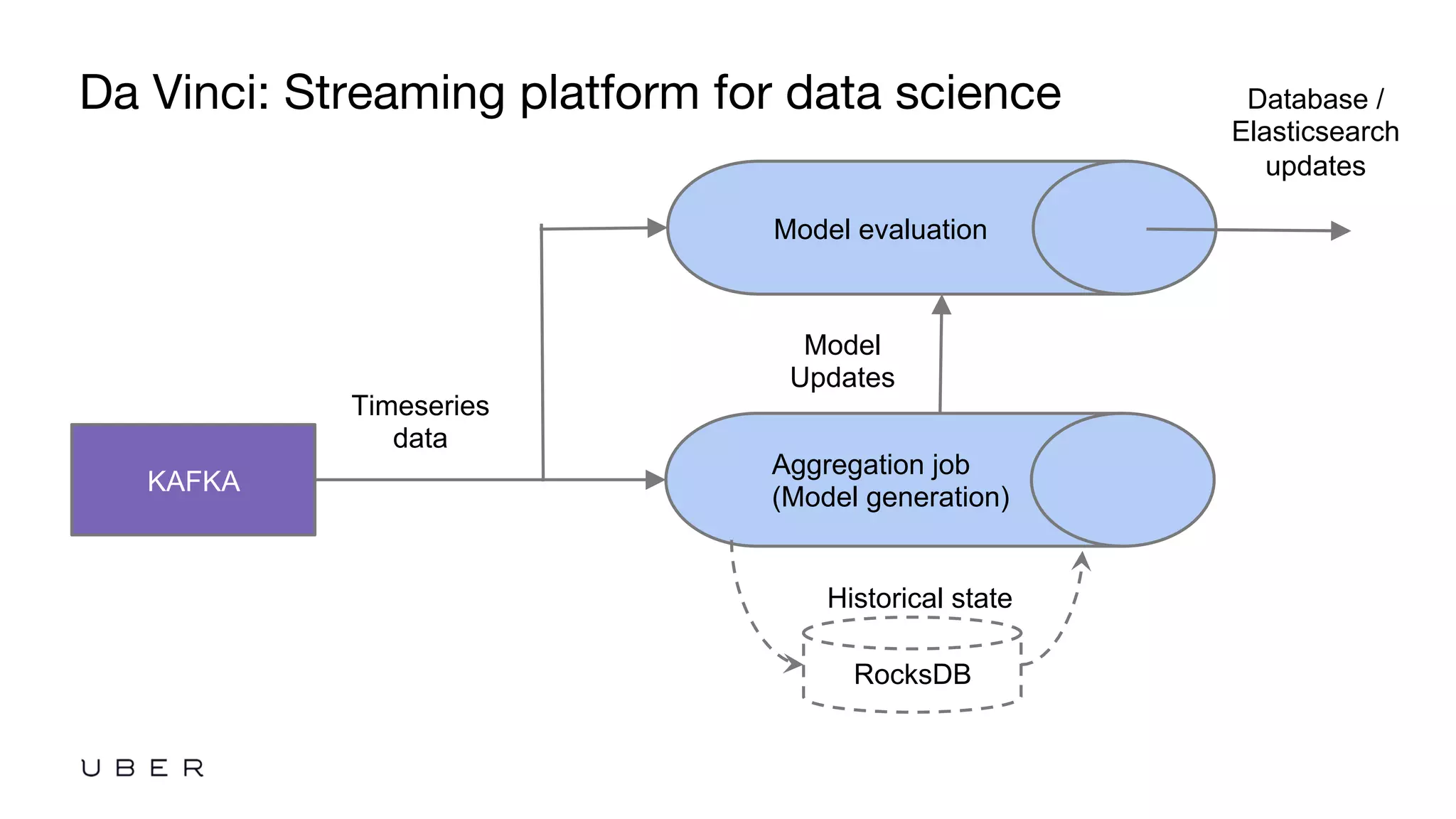

- 12. Da Vinci: Streamingplatform for data science KAFKA Aggregation job (Model generation) RocksDB Historical state Timeseries data Model evaluation Database / Elasticsearch updates Model Updates
- 13.
- 14.

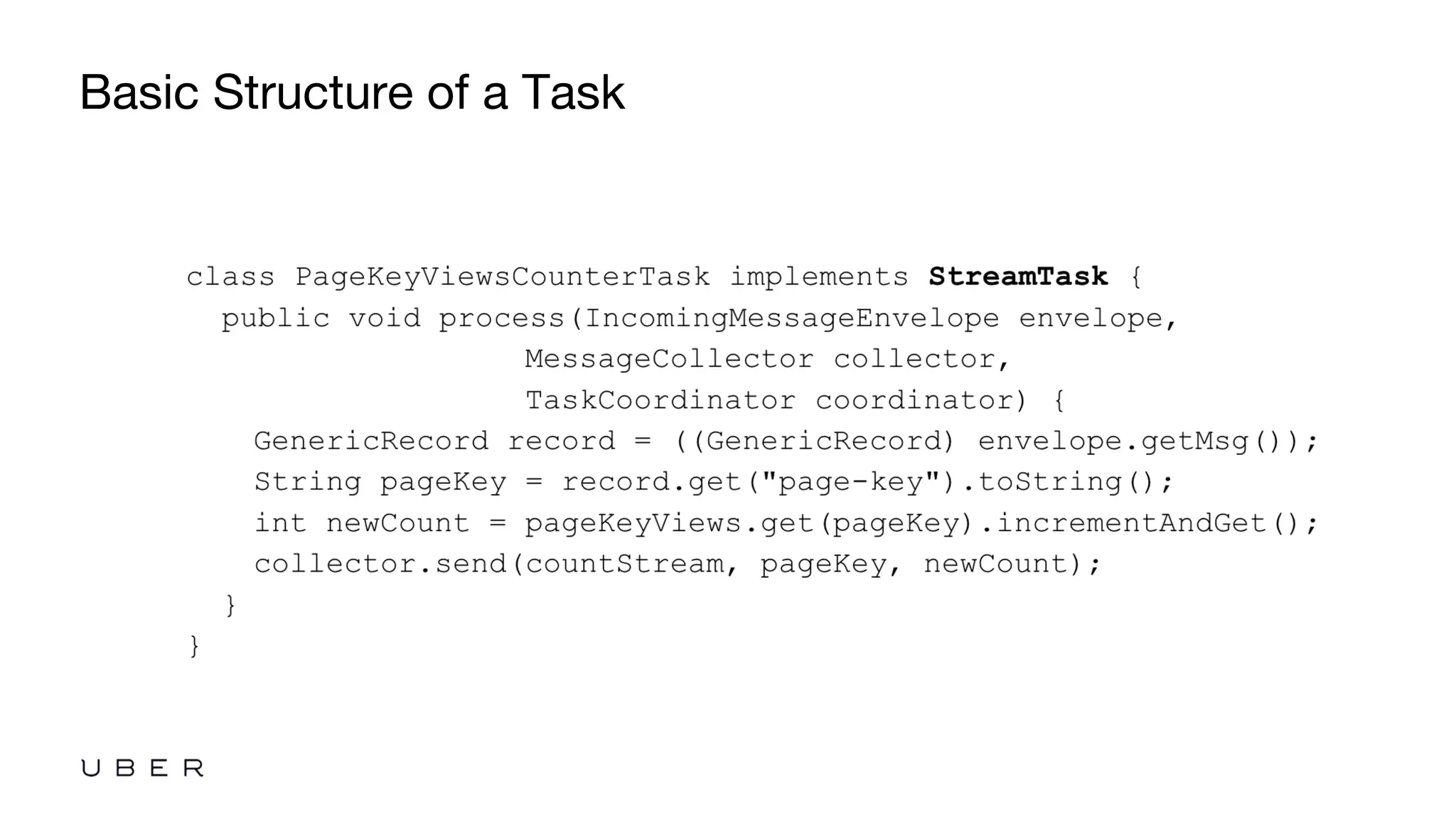

- 15. Basic Structure ofa Task
- 16.
- 17.
- 19.

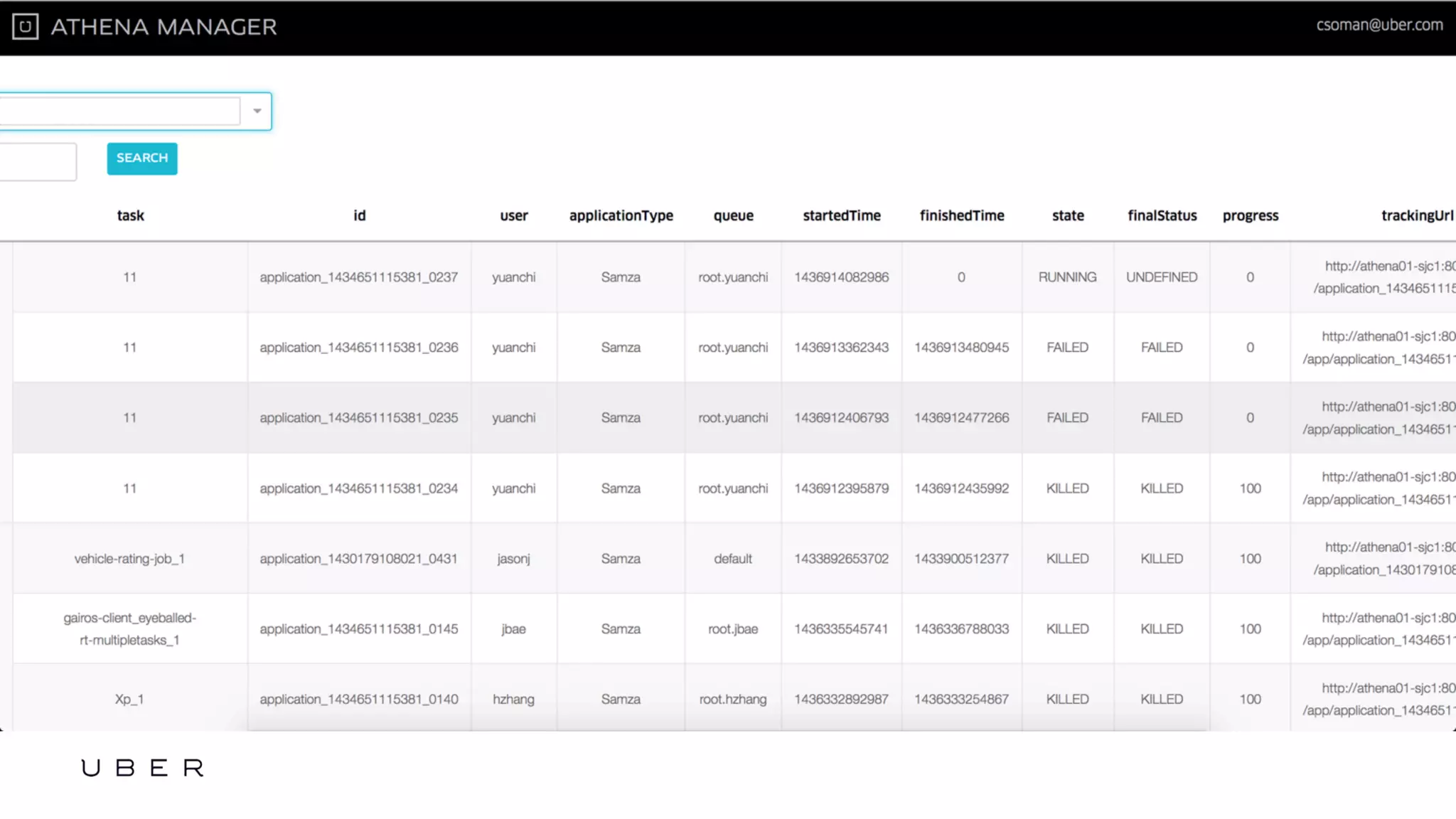

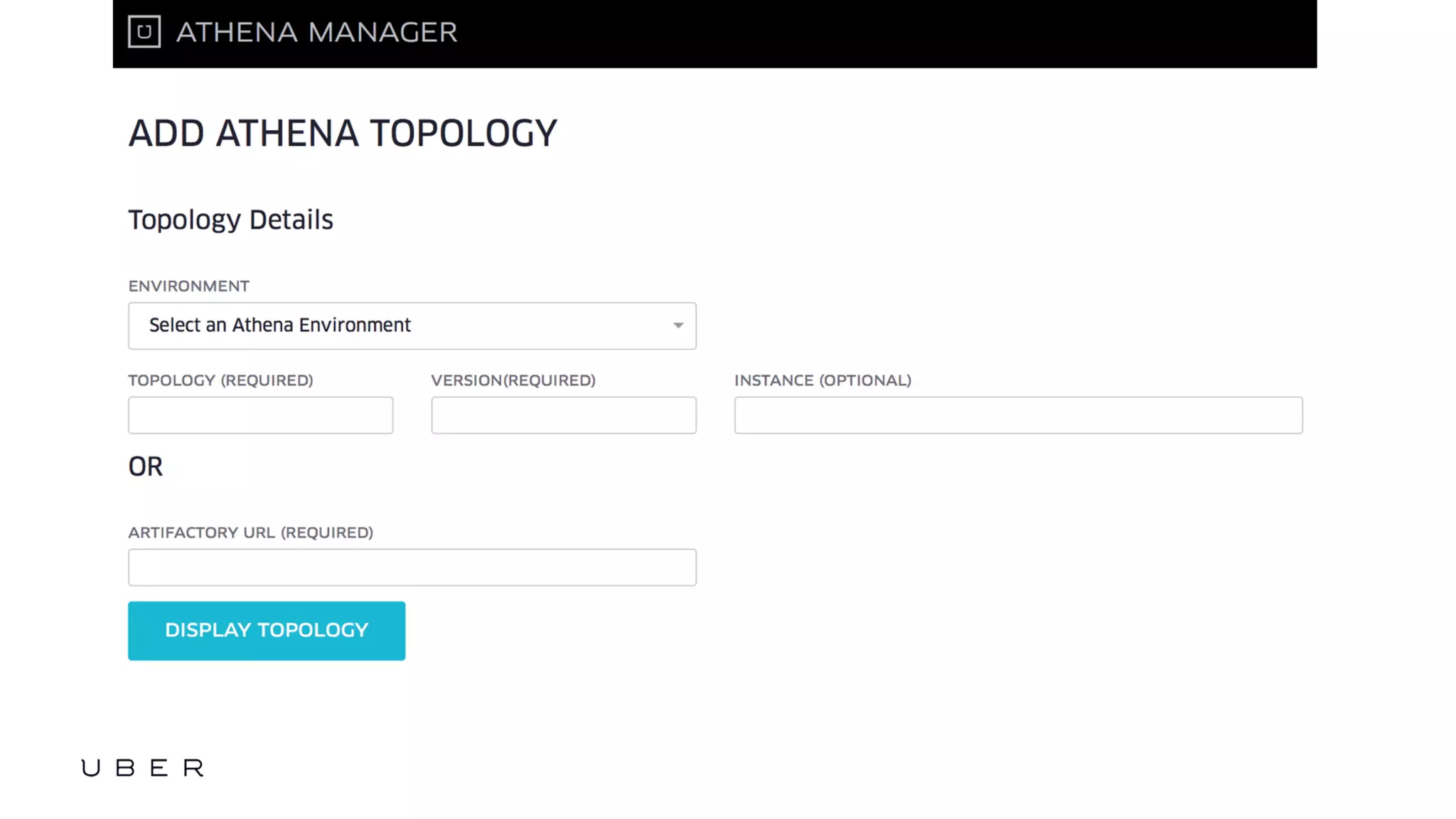

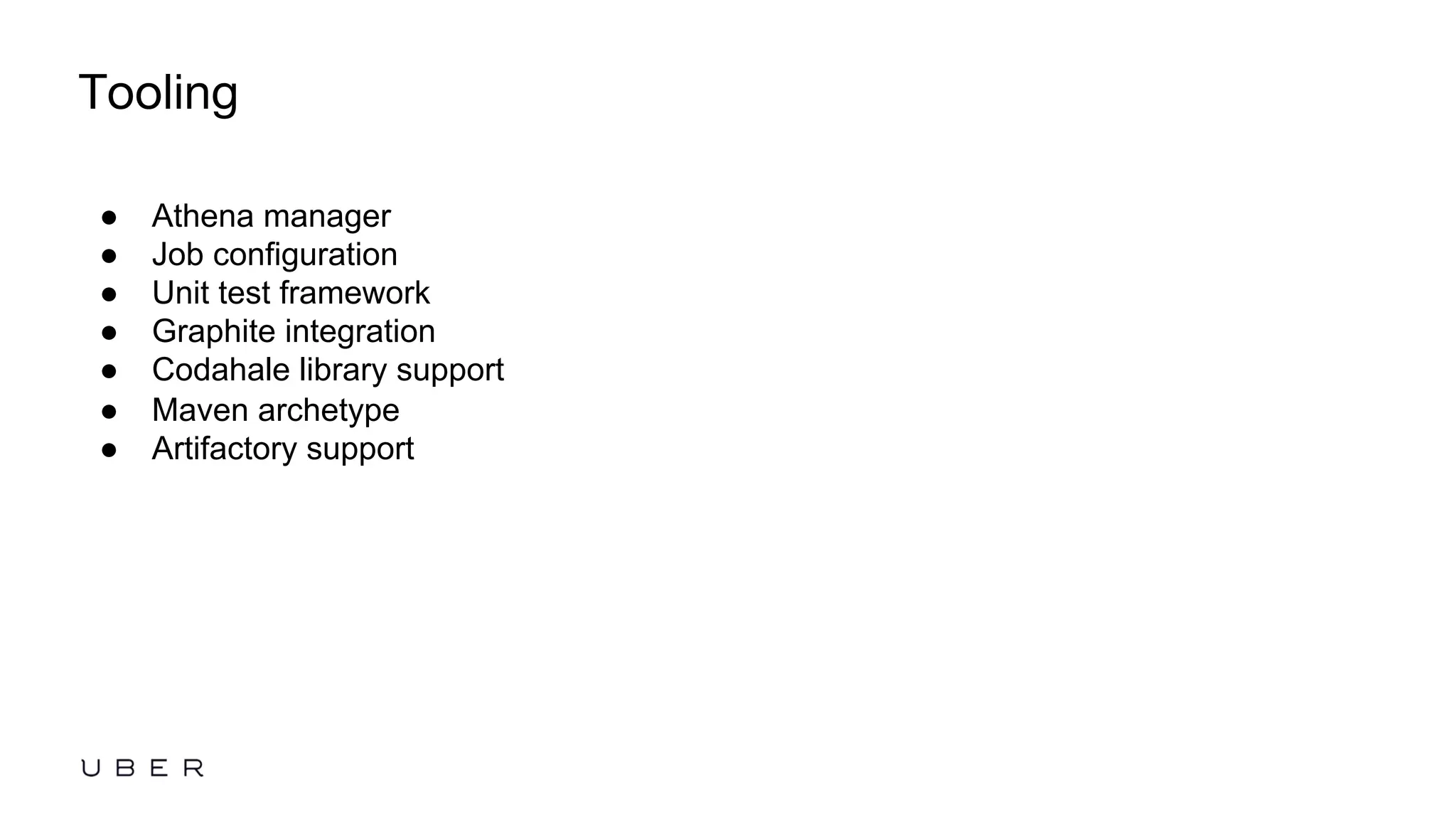

- 20. Tooling ● Athena manager ● Job configuration ● Unit test framework ● Graphite integration ● Codahale library support ● Maven archetype ● Artifactory support
- 21.

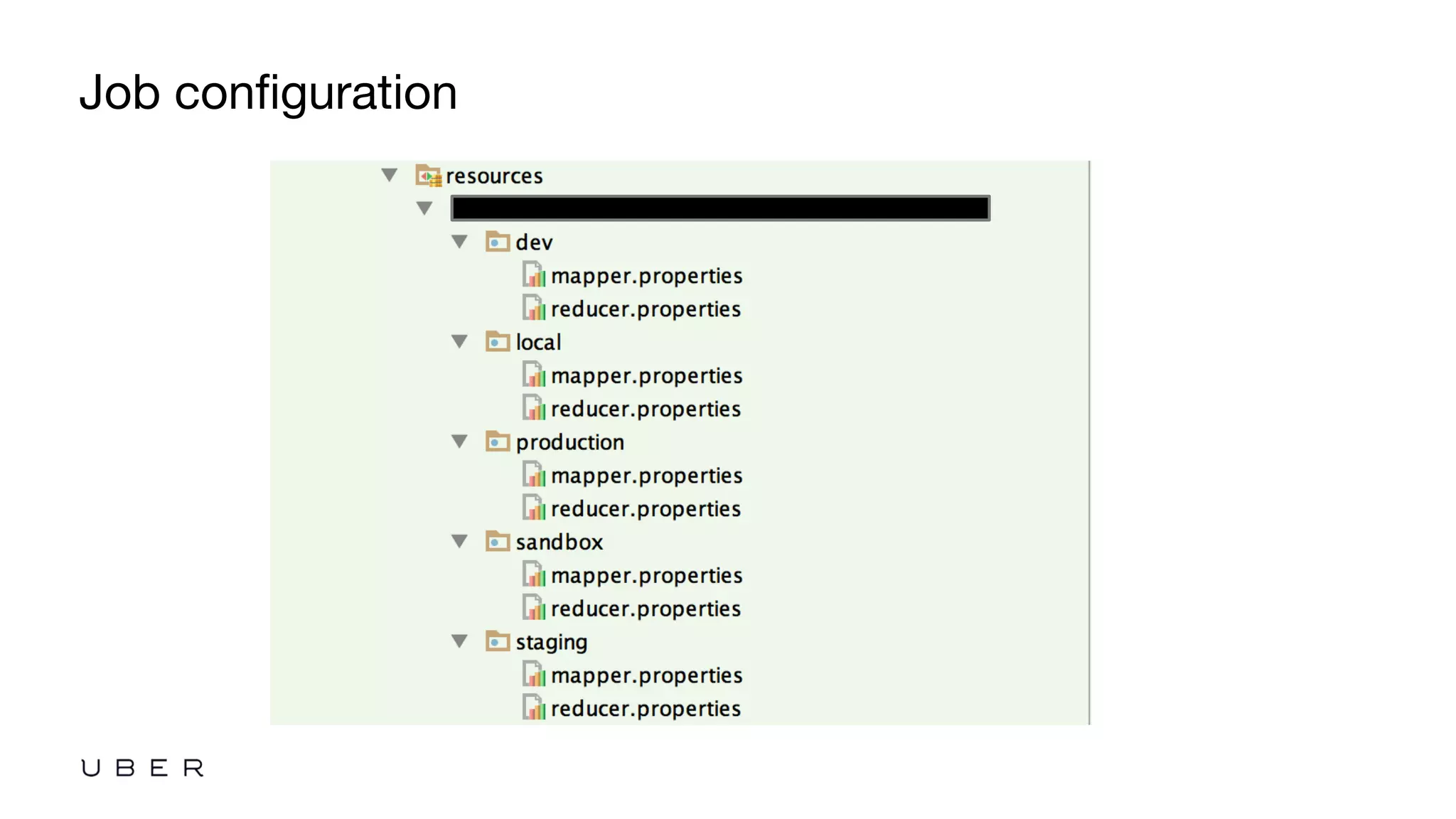

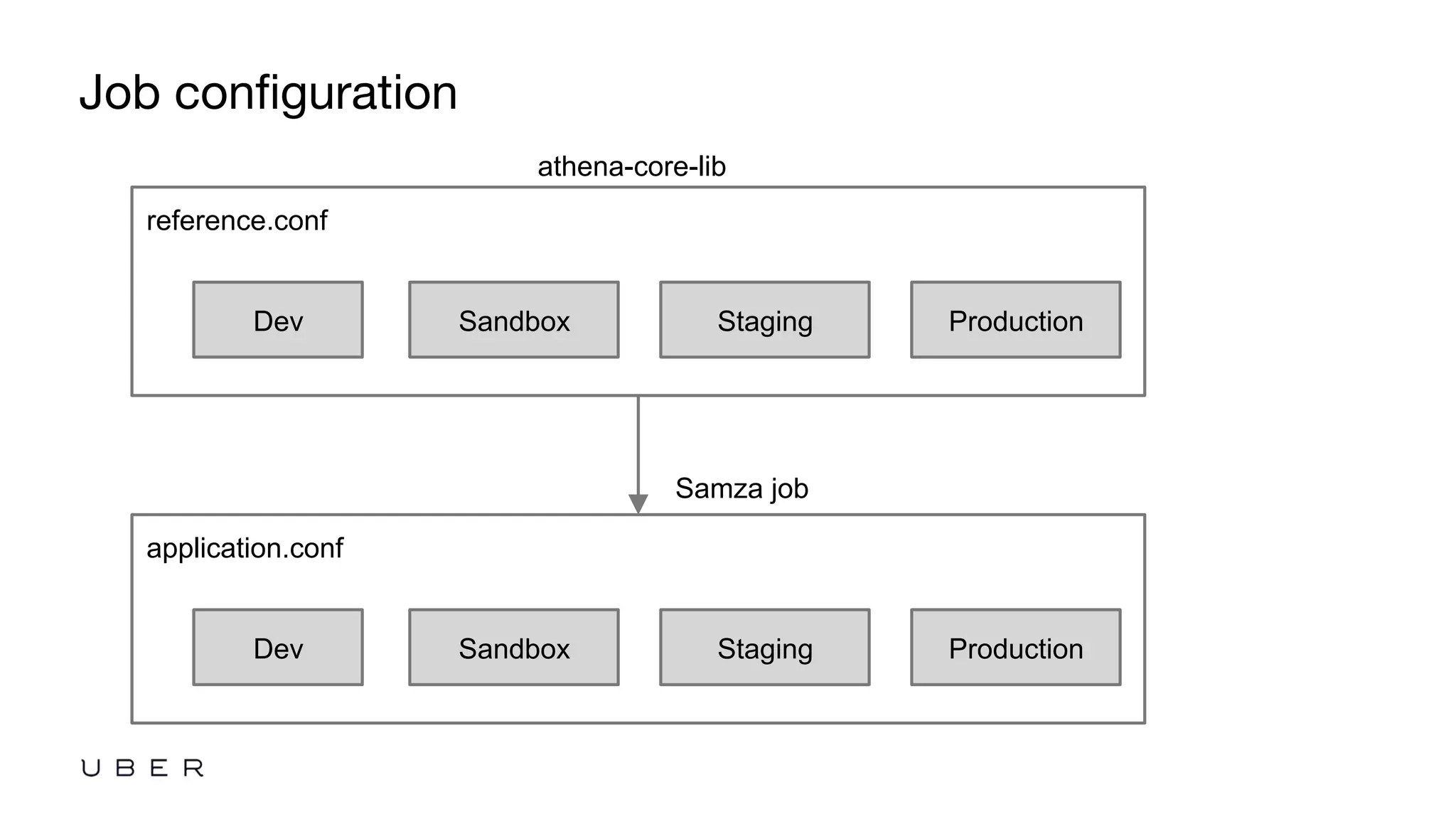

- 24. Job configuration reference.conf Sandbox StagingProductionDev athena-core-lib application.conf Sandbox Staging ProductionDev Samza job

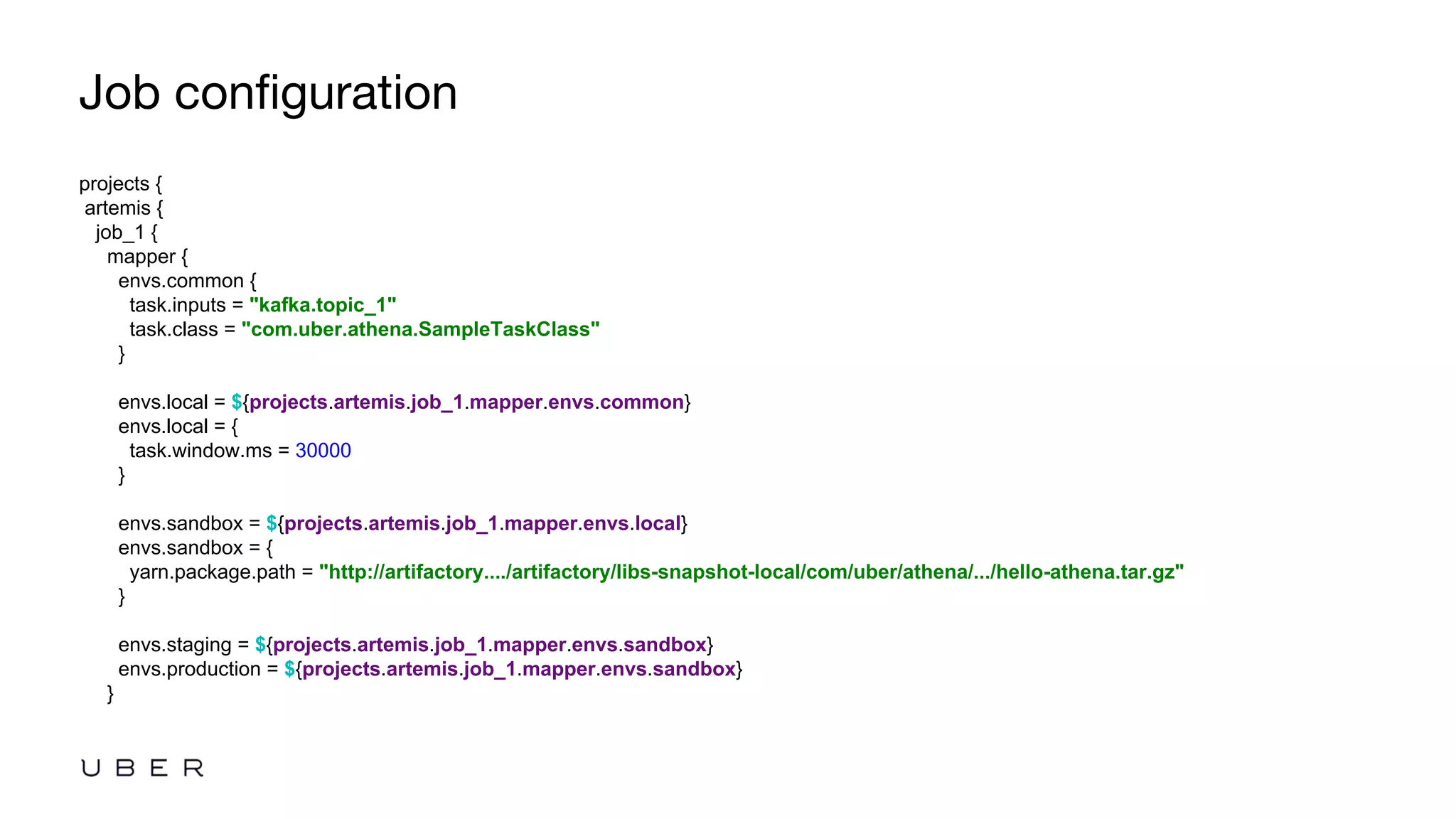

- 25. Job configuration projects { artemis{ job_1 { mapper { envs.common { task.inputs = "kafka.topic_1" task.class = "com.uber.athena.SampleTaskClass" } envs.local = ${projects.artemis.job_1.mapper.envs.common} envs.local = { task.window.ms = 30000 } envs.sandbox = ${projects.artemis.job_1.mapper.envs.local} envs.sandbox = { yarn.package.path = "http://artifactory..../artifactory/libs-snapshot-local/com/uber/athena/.../hello-athena.tar.gz" } envs.staging = ${projects.artemis.job_1.mapper.envs.sandbox} envs.production = ${projects.artemis.job_1.mapper.envs.sandbox} }
- 26.

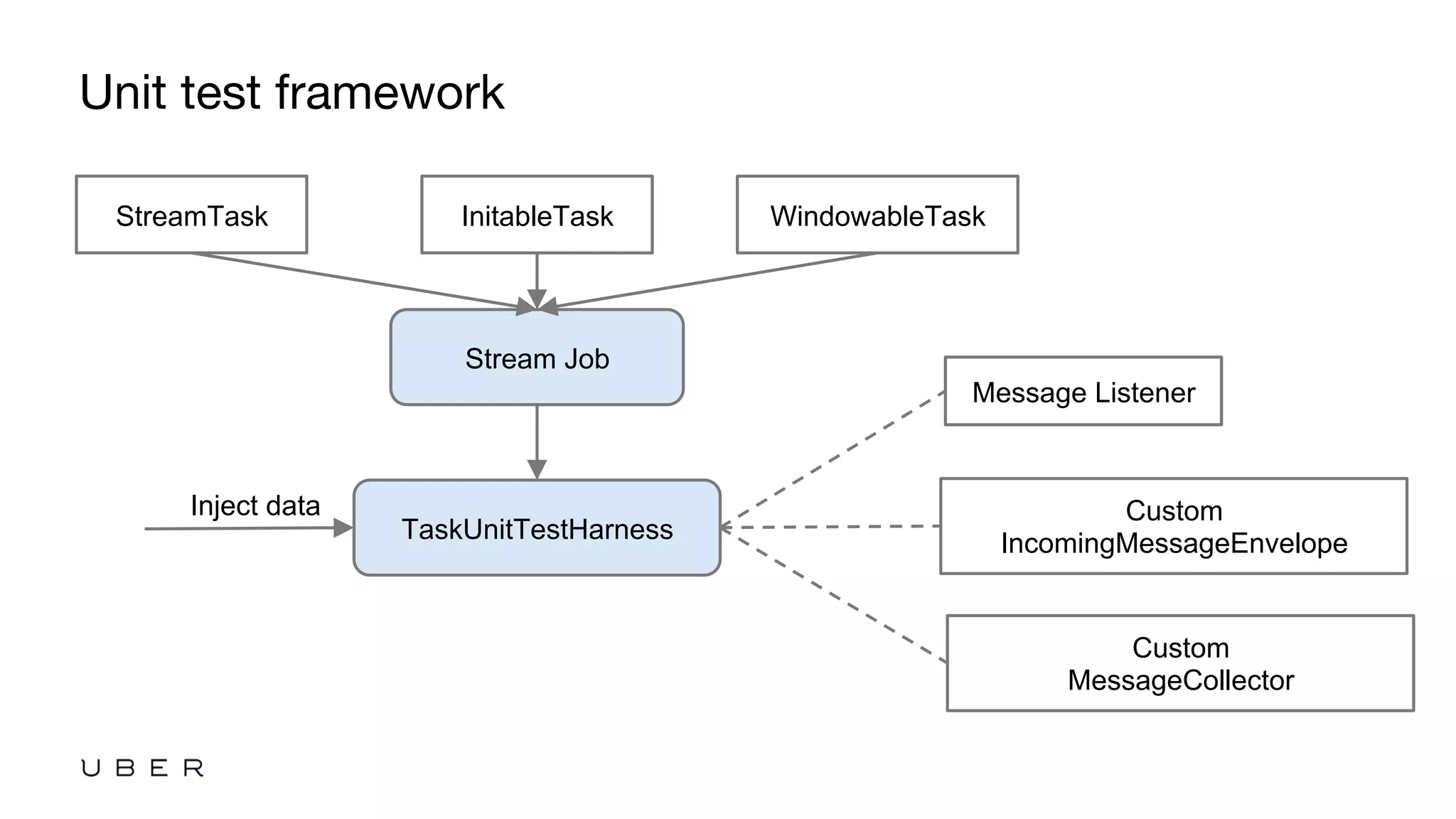

- 27. Unit test framework StreamJob StreamTask InitableTask WindowableTask TaskUnitTestHarness Message Listener Inject data Custom IncomingMessageEnvelope Custom MessageCollector

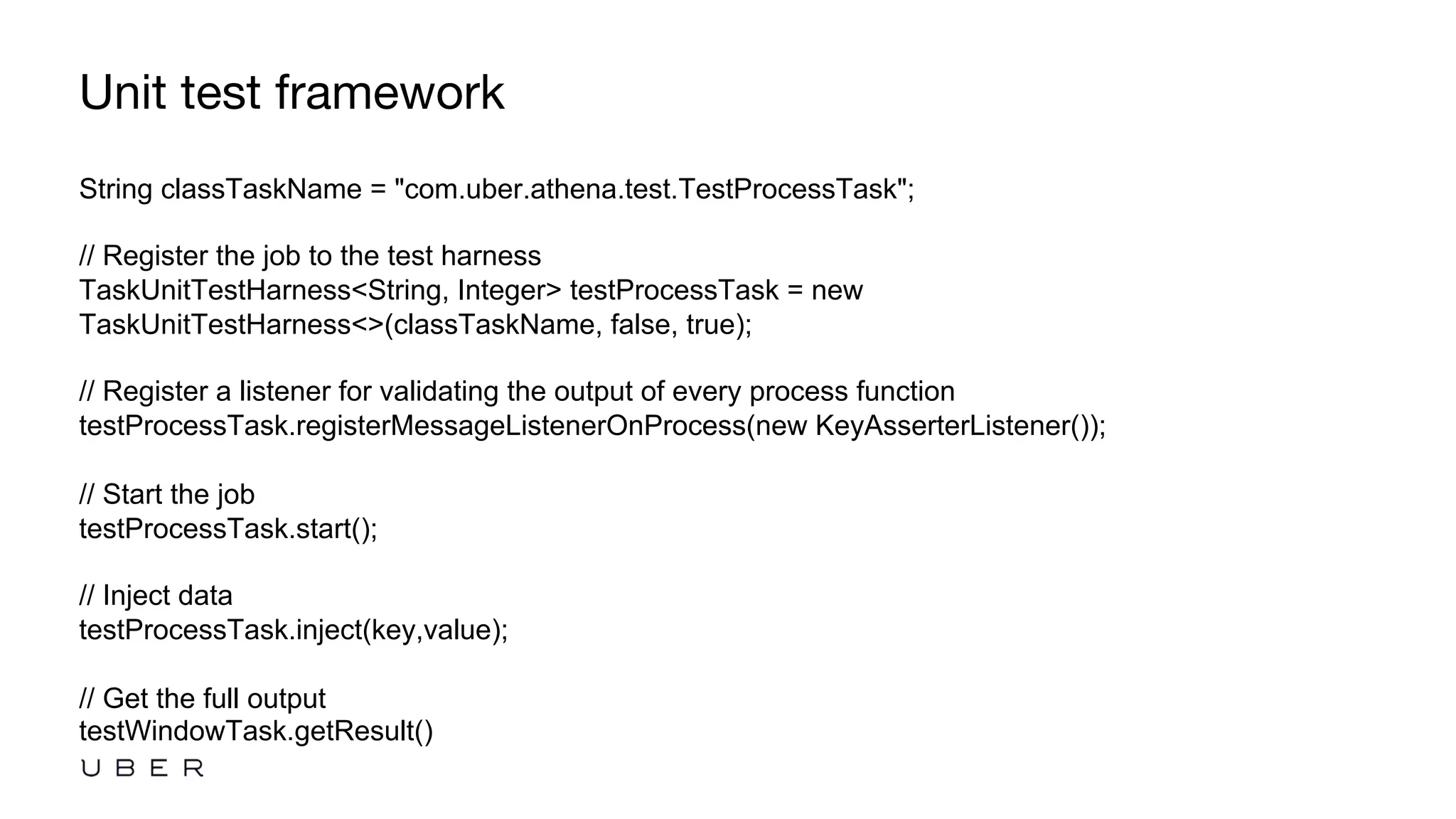

- 28. Unit test framework StringclassTaskName = "com.uber.athena.test.TestProcessTask"; // Register the job to the test harness TaskUnitTestHarness<String, Integer> testProcessTask = new TaskUnitTestHarness<>(classTaskName, false, true); // Register a listener for validating the output of every process function testProcessTask.registerMessageListenerOnProcess(new KeyAsserterListener()); // Start the job testProcessTask.start(); // Inject data testProcessTask.inject(key,value); // Get the full output testWindowTask.getResult()

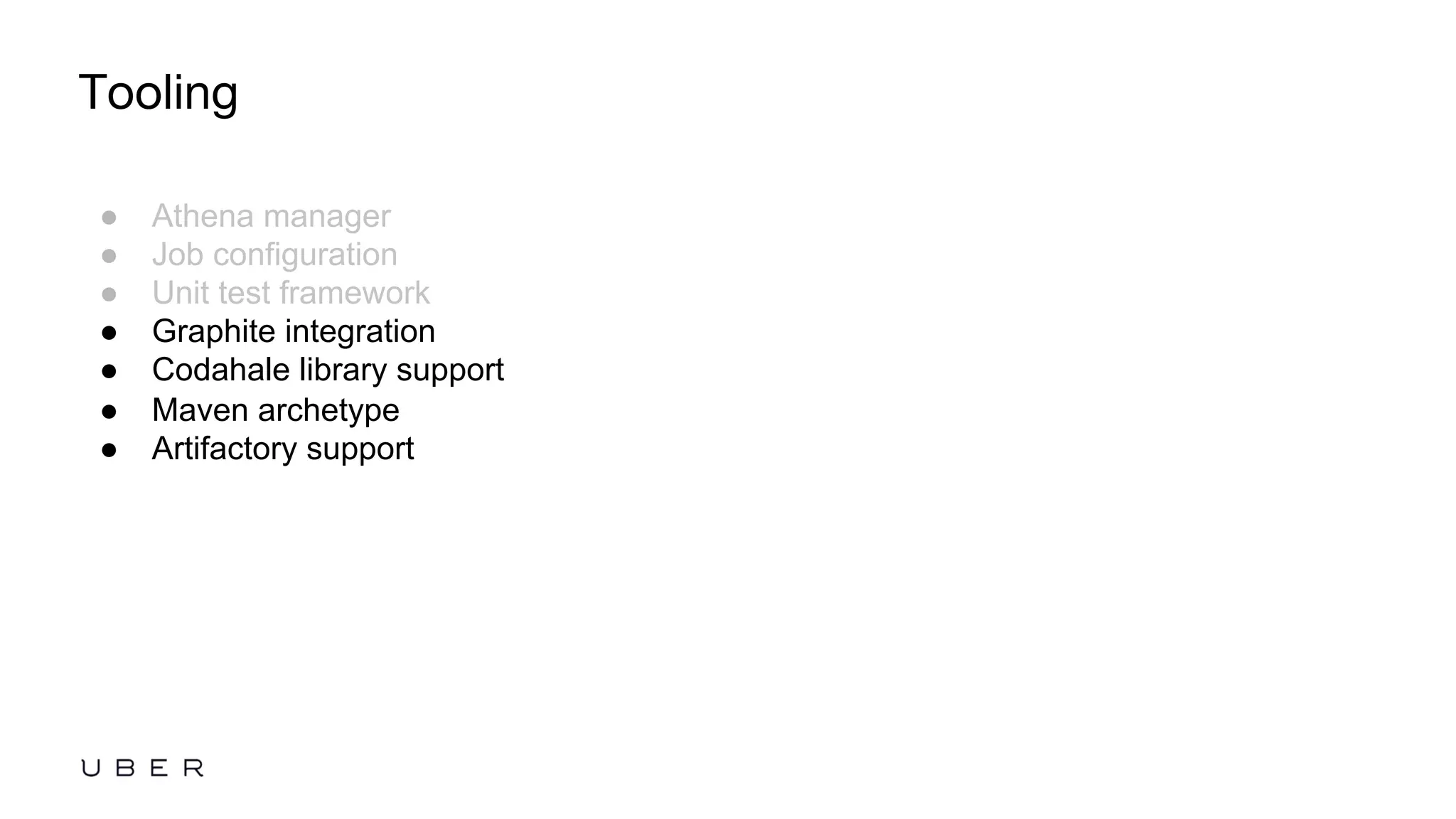

- 29. Tooling ● Athena manager ● Job configuration ● Unit test framework ● Graphite integration ● Codahale library support ● Maven archetype ● Artifactory support
- 30.

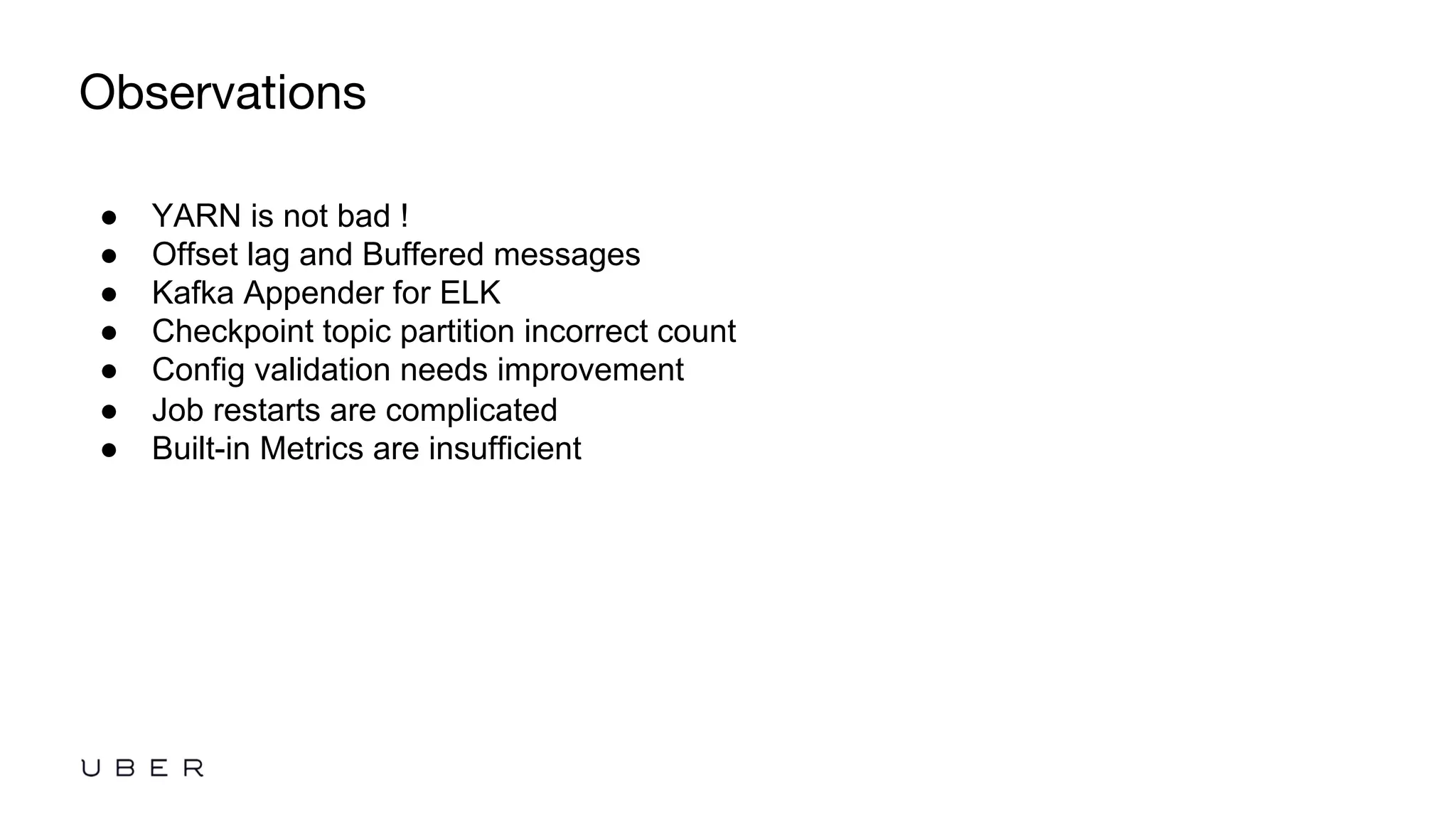

- 31. Observations ● YARN isnot bad ! ● Offset lag and Buffered messages ● Kafka Appender for ELK ● Checkpoint topic partition incorrect count ● Config validation needs improvement ● Job restarts are complicated ● Built-in Metrics are insufficient

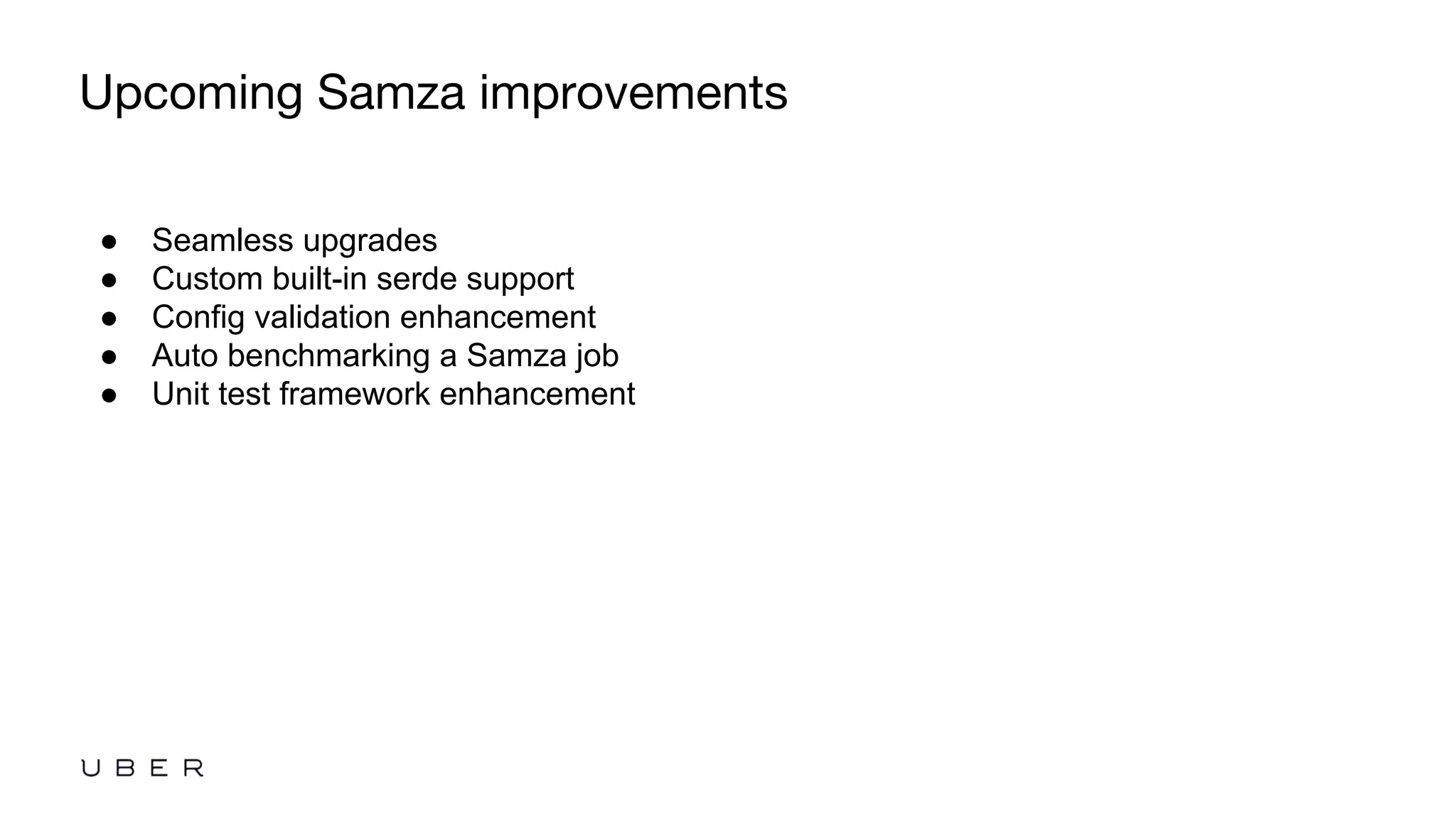

- 32. ● Seamless upgrades ● Custom built-in serde support ● Config validation enhancement ● Auto benchmarking a Samza job ● Unit test framework enhancement Upcoming Samza improvements
- 33.
