Build a minial DBMS from scratch by Rust
- 1. Build a minimalDBMS from scratch by Rust Liu, An-Chi 2019/6/15 at HKOSCon !11
- 2. About Me • Liu,An-Chi 劉劉安⿑齊 • @tigercosmos • Rust Taiwan Community • “Everything in Rust” track in COSCUP !2
- 3. What is Rust? “Rust isa systems programming language that runs blazingly fast, prevents nearly all segmentation faults, and guarantees thread safety. ” !3

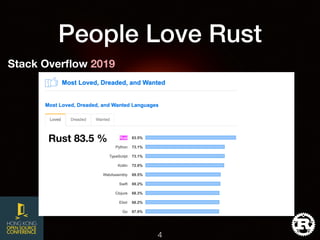

- 4. People Love Rust StackOverflow 2019 Rust 83.5 % !4
- 5.
- 6. Why I dothis? !6

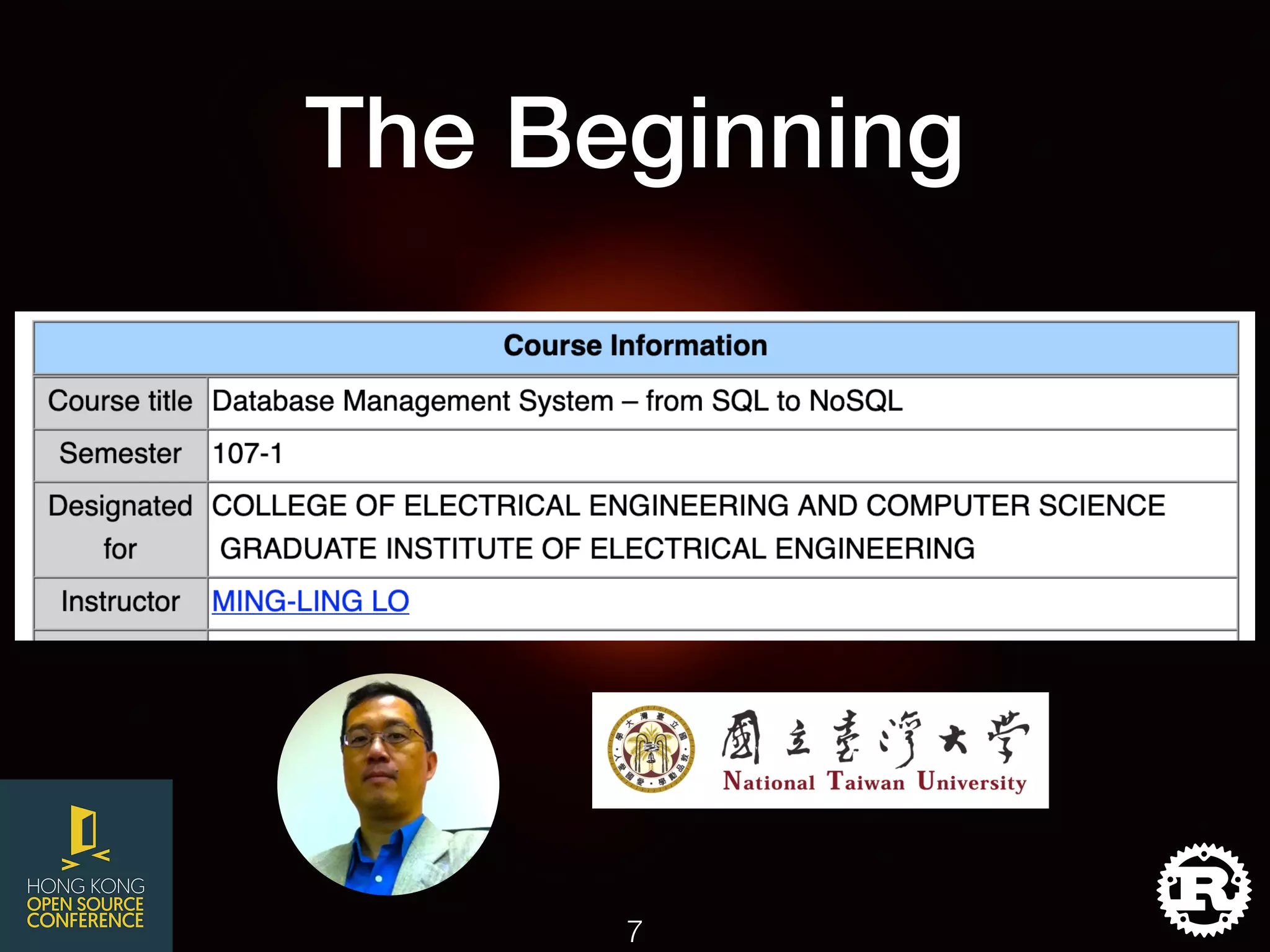

- 7.
- 8.

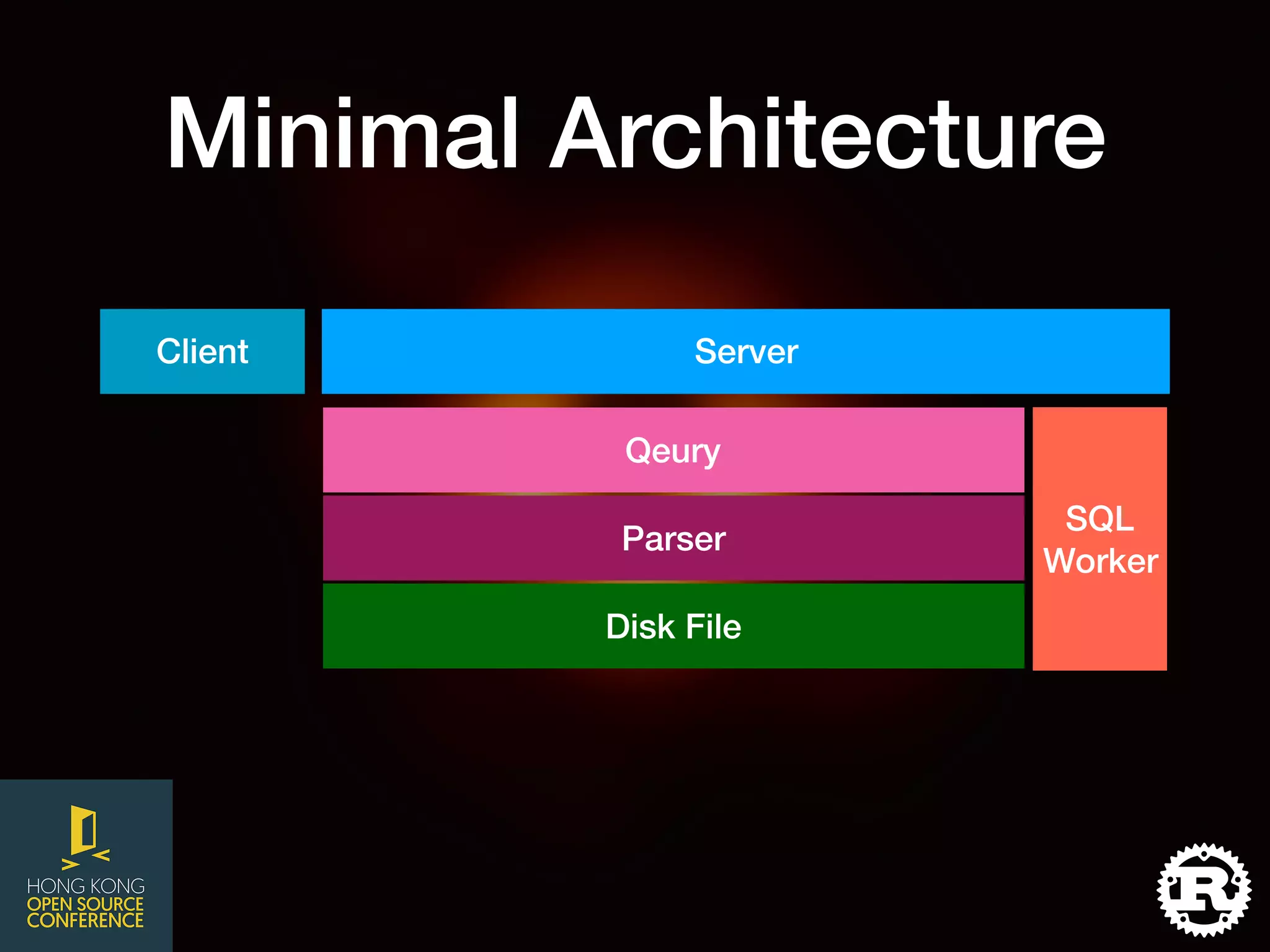

- 9.

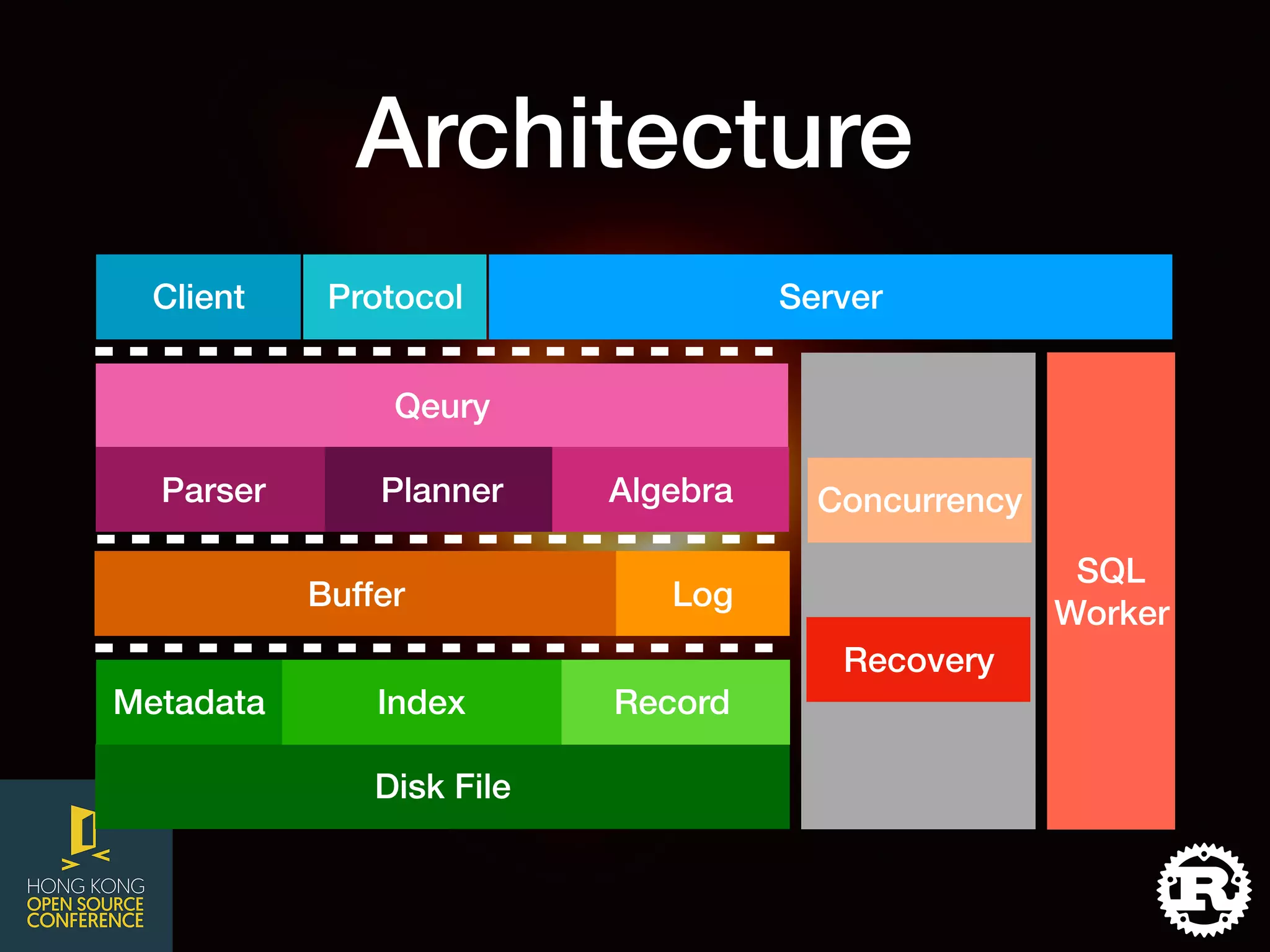

- 10. Architecture Qeury Parser Planner Algebra DiskFile Metadata RecordIndex Buffer Log ServerClient Protocol SQL Worker Recovery Concurrency

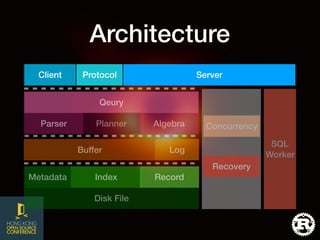

- 11. Architecture Qeury Parser Planner Algebra DiskFile Metadata RecordIndex Buffer Log ServerClient Protocol SQL Worker Recovery Concurrency
- 12.

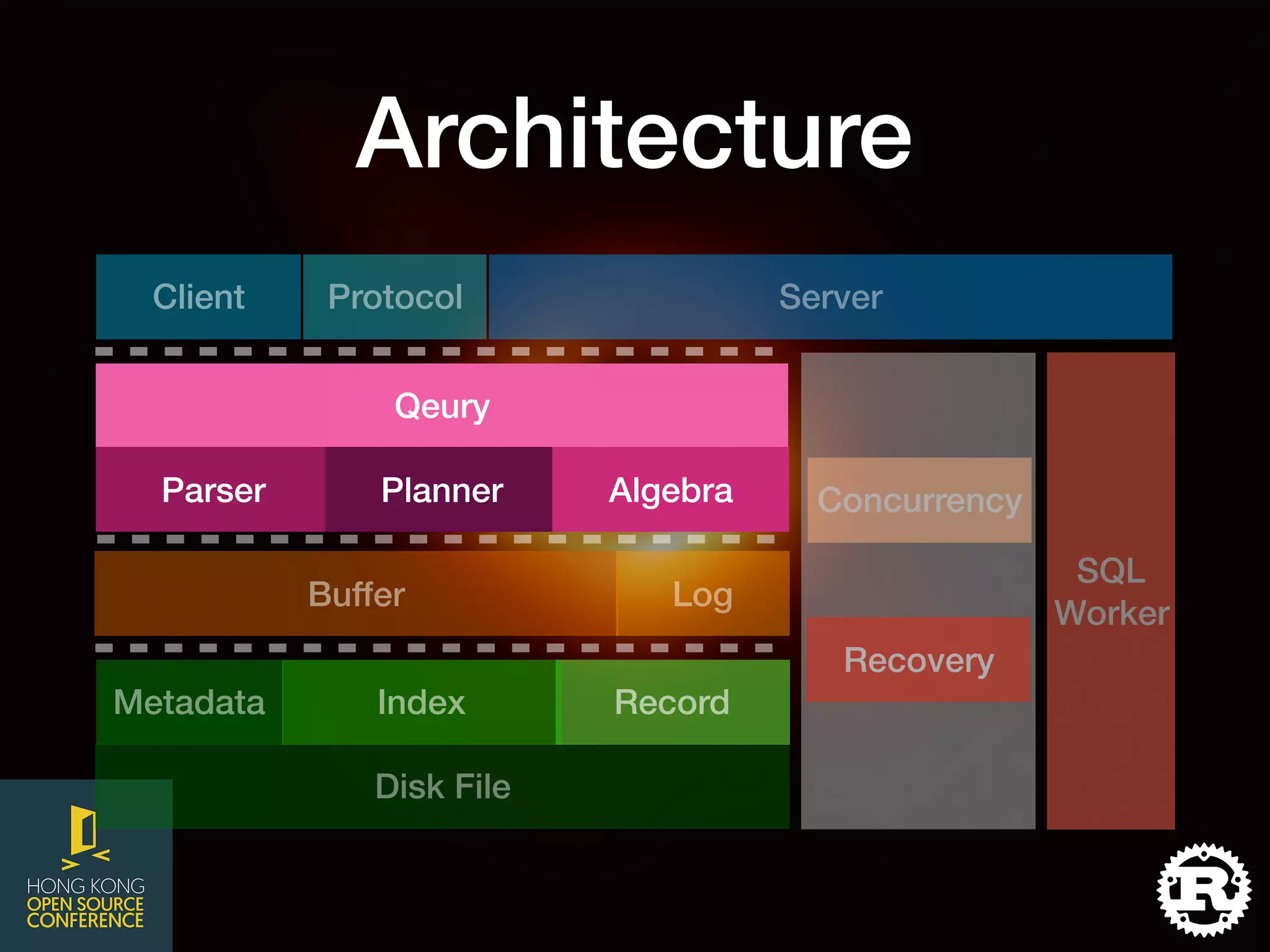

- 13. Architecture Qeury Parser Planner Algebra DiskFile Metadata RecordIndex Buffer Log ServerClient Protocol SQL Worker Recovery Concurrency

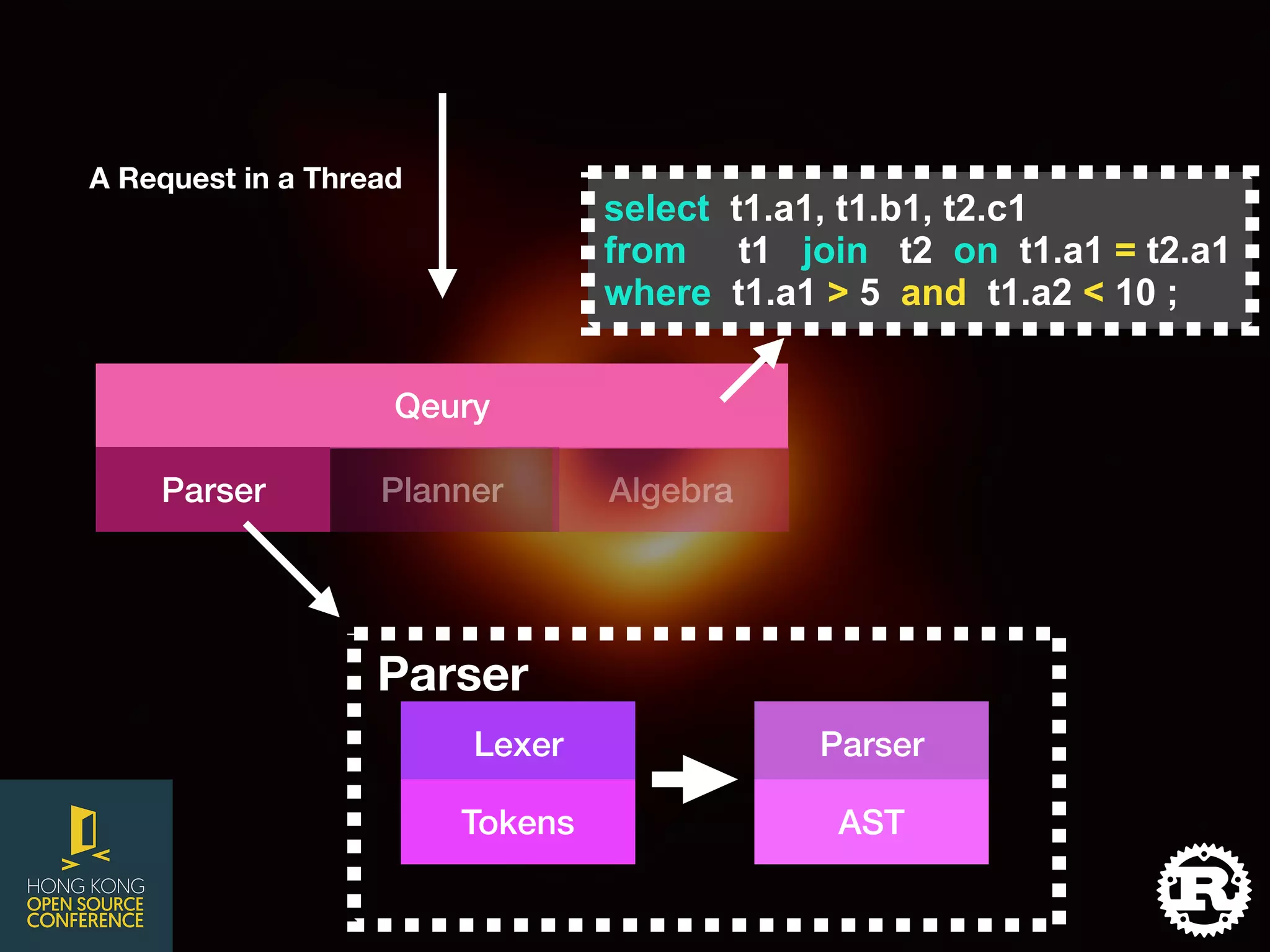

- 14. Qeury Parser Planner AlgebraParser Lexer ARequest in a Thread select t1.a1, t1.b1, t2.c1 from t1 join t2 on t1.a1 = t2.a1 where t1.a1 > 5 and t1.a2 < 10 ; Tokens Parser AST Parser

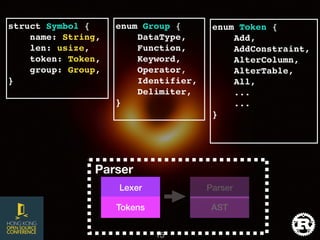

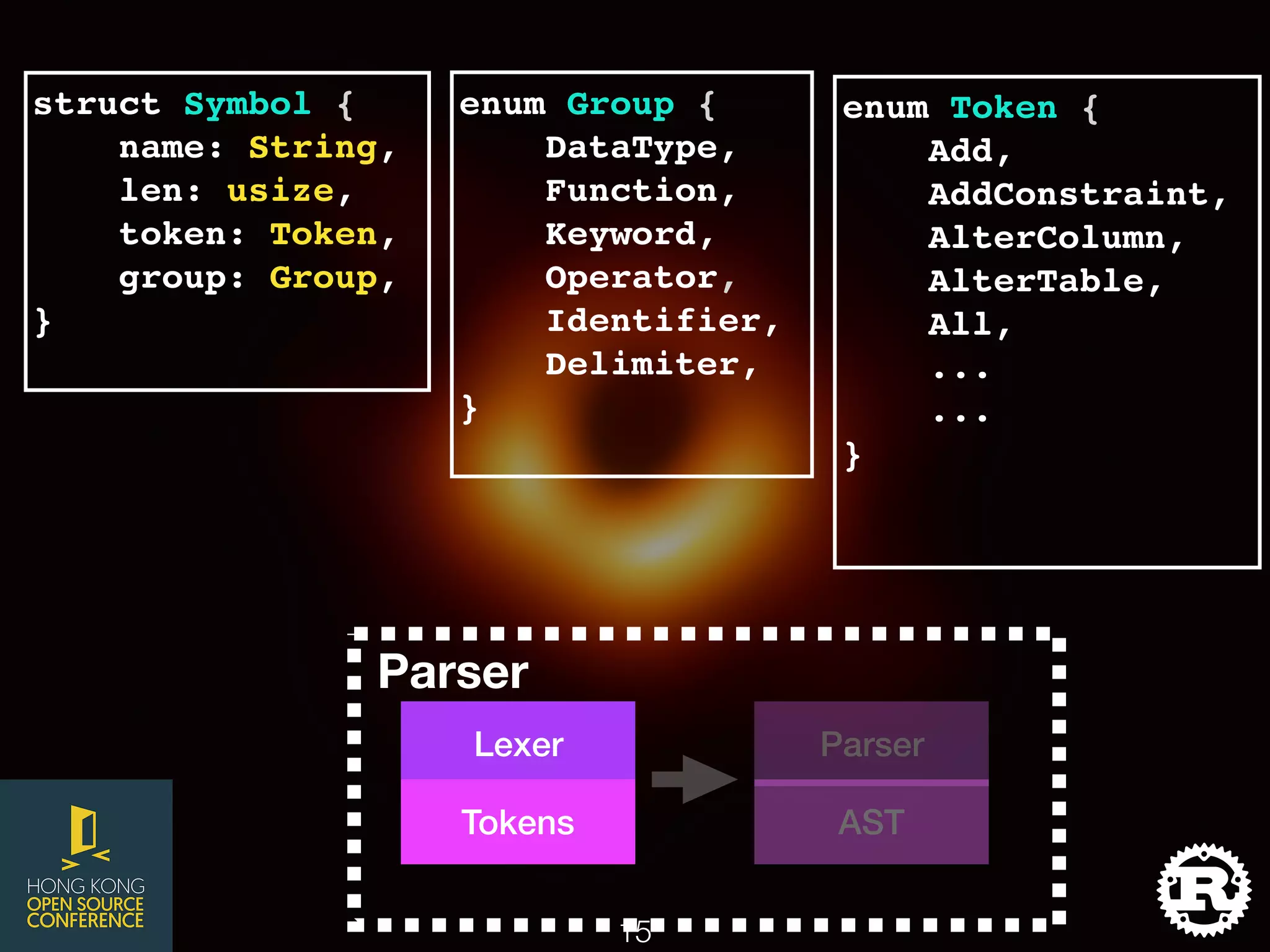

- 15. !15 Lexer Tokens Parser AST Parser struct Symbol { name:String, len: usize, token: Token, group: Group, } enum Token { Add, AddConstraint, AlterColumn, AlterTable, All, ... ... } enum Group { DataType, Function, Keyword, Operator, Identifier, Delimiter, }

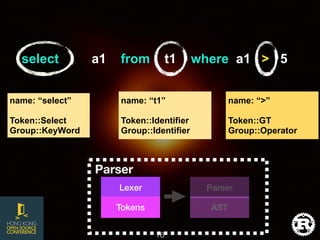

- 16. !16 select a1 fromt1 where a1 > 5 name: “select” Token::Select Group::KeyWord name: “>” Token::GT Group::Operator name: “t1” Token::Identifier Group::Identifier Lexer Tokens Parser AST Parser

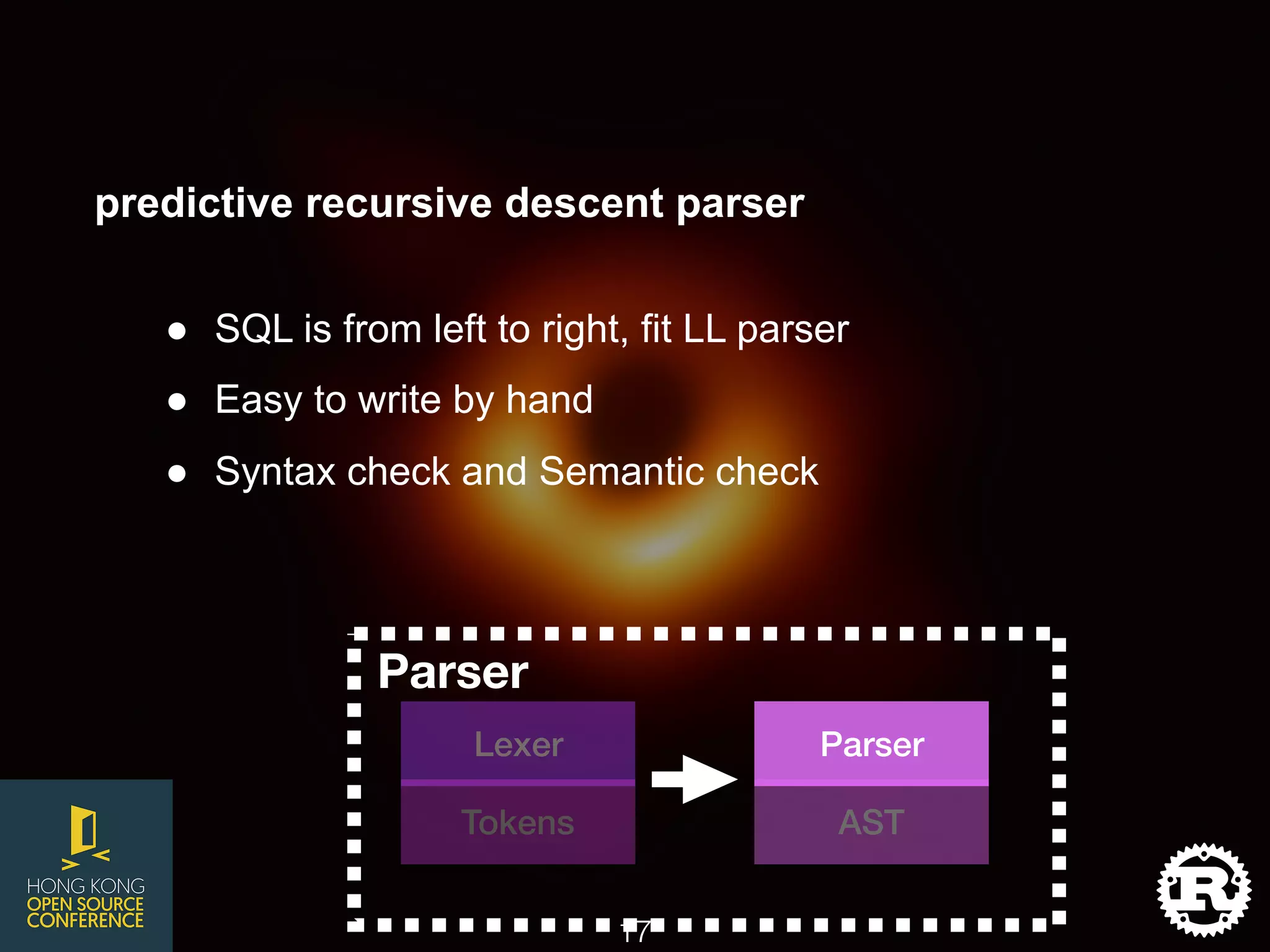

- 17. !17 Lexer Tokens Parser AST !17 ● SQL isfrom left to right, fit LL parser ● Easy to write by hand ● Syntax check and Semantic check predictive recursive descent parser Parser

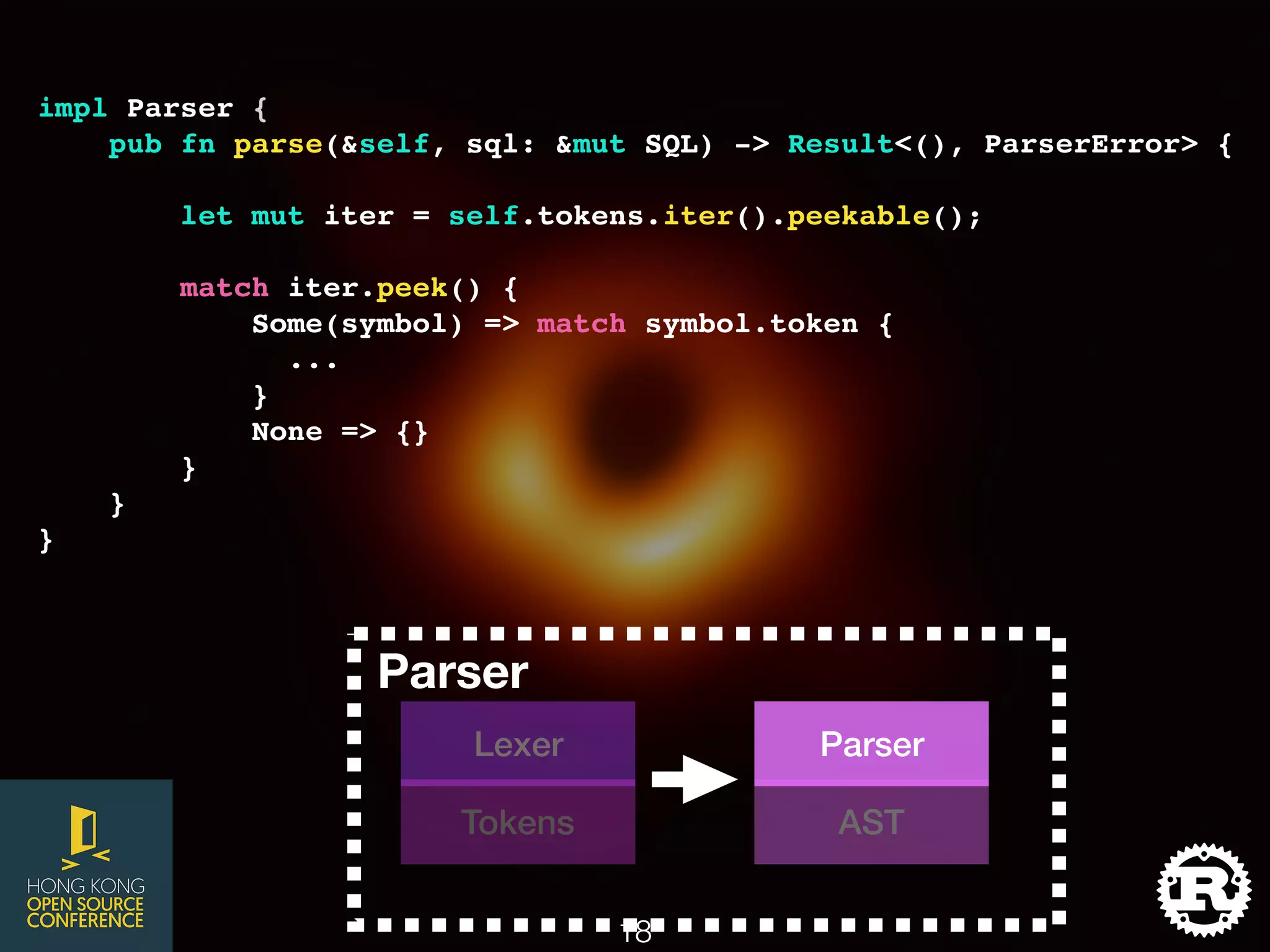

- 18. !18 Lexer Tokens Parser !18 Parser !18 impl Parser { pubfn parse(&self, sql: &mut SQL) -> Result<(), ParserError> { let mut iter = self.tokens.iter().peekable(); match iter.peek() { Some(symbol) => match symbol.token { ... } None => {} } } } AST

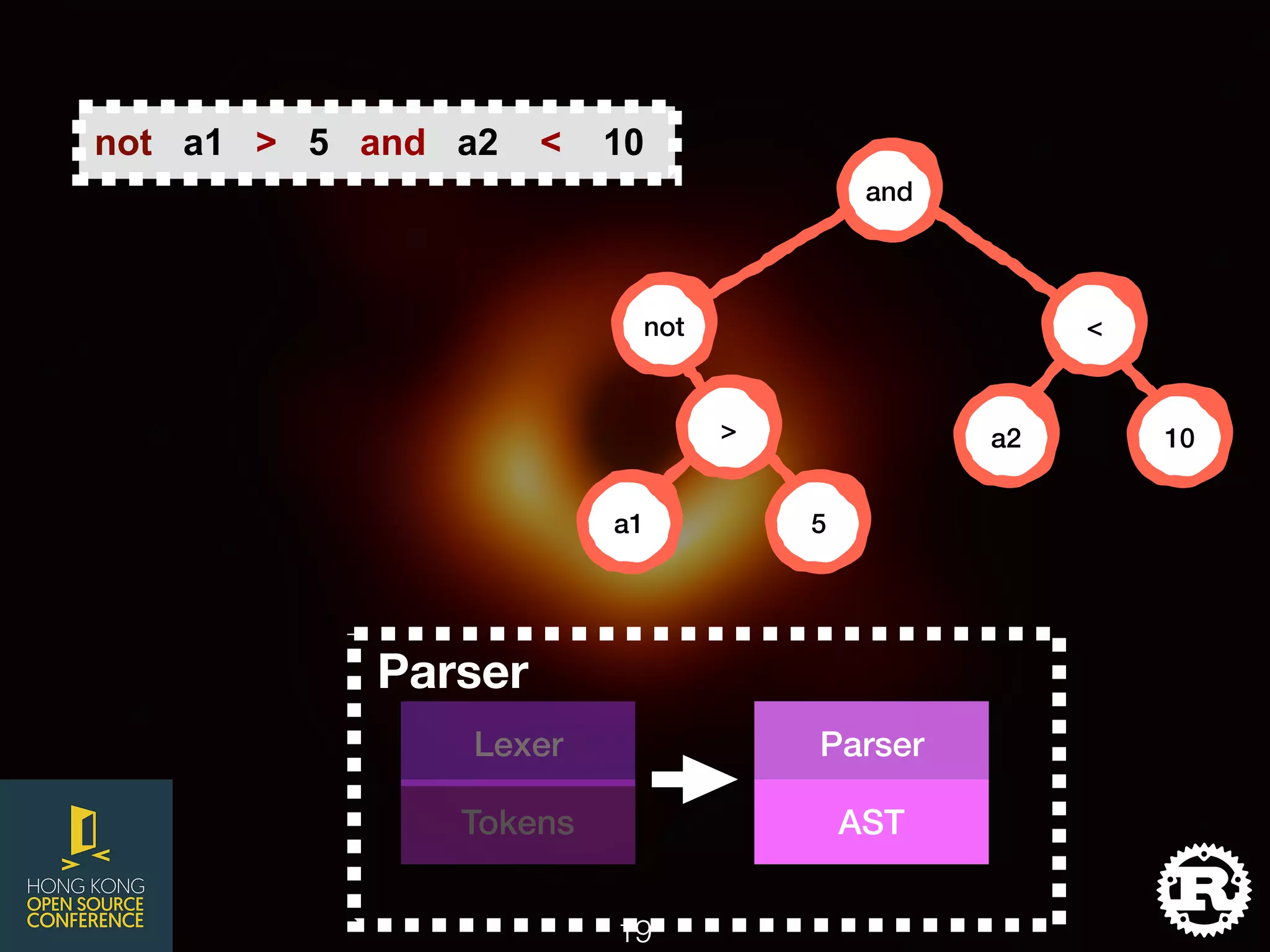

- 19. !19 Lexer Tokens Parser AST !19 Parser !19 not a1 >5 and a2 < 10 a1 5 > not a2 10 < and

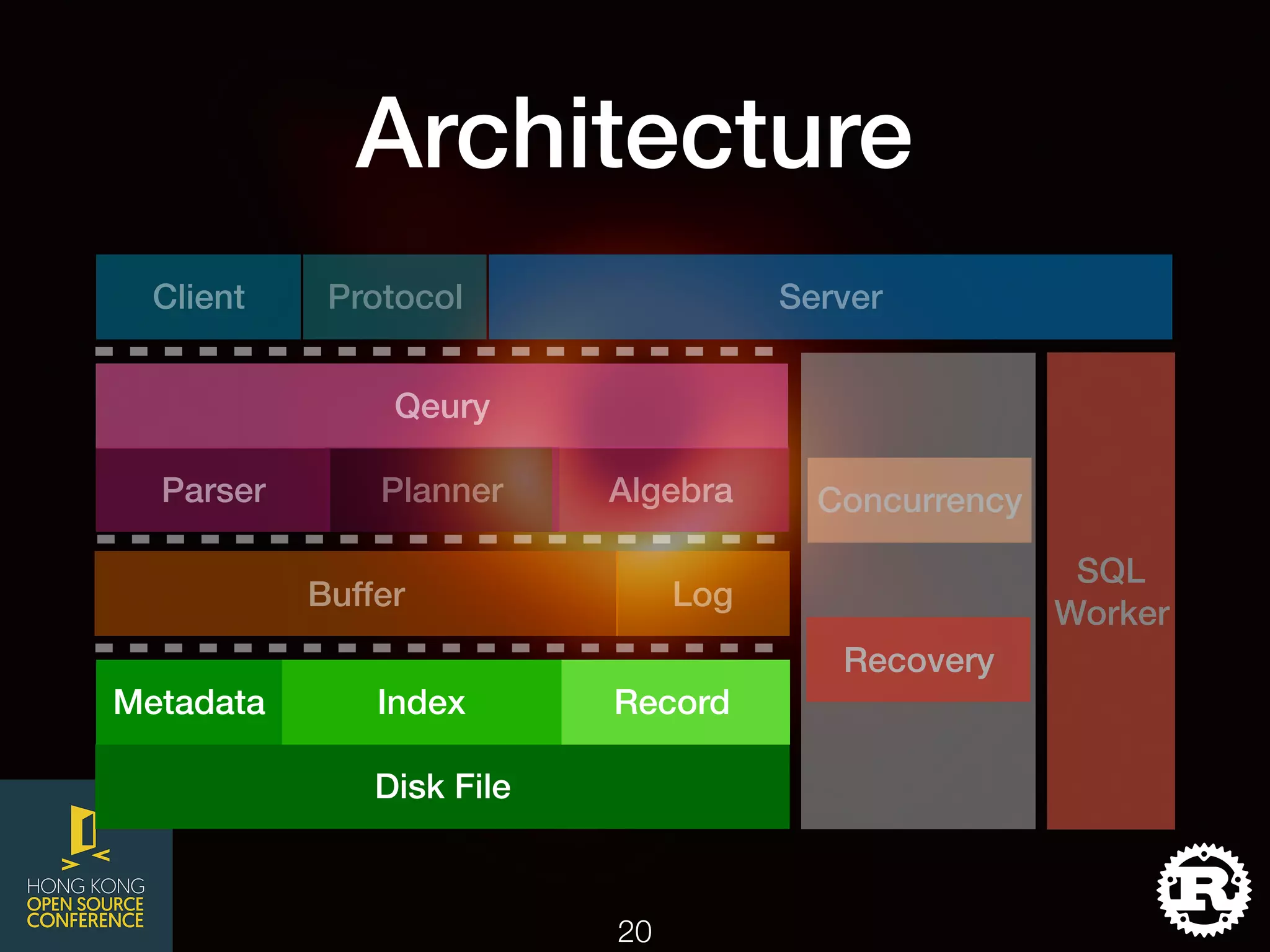

- 20. Architecture Qeury Parser Planner Algebra DiskFile Metadata RecordIndex Buffer Log ServerClient Protocol SQL Worker Recovery Concurrency !20

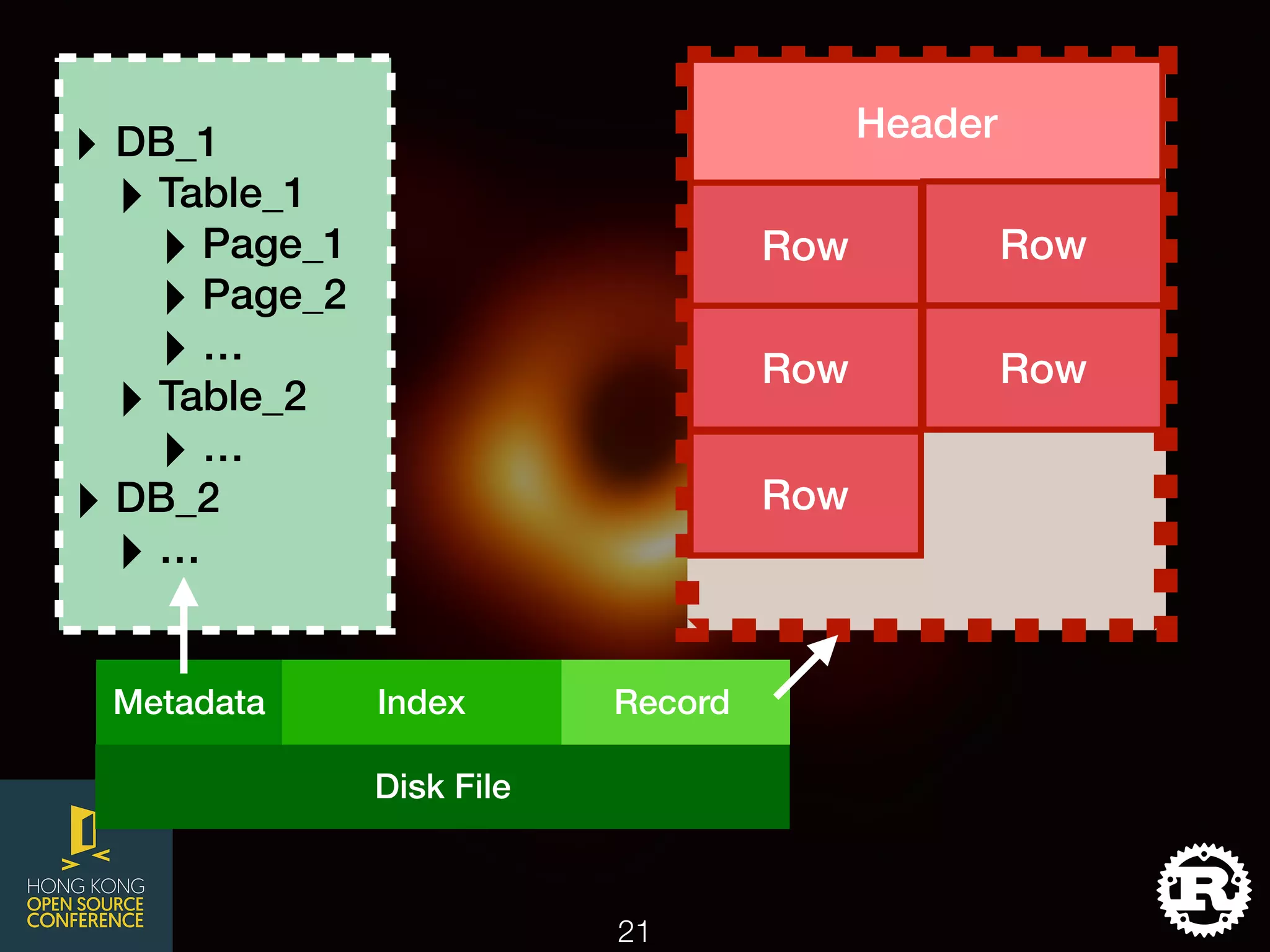

- 21. Disk File Metadata RecordIndex ‣DB_1 ‣ Table_1 ‣ Page_1 ‣ Page_2 ‣ … ‣ Table_2 ‣ … ‣ DB_2 ‣ … Header Row Row Row Row Row !21

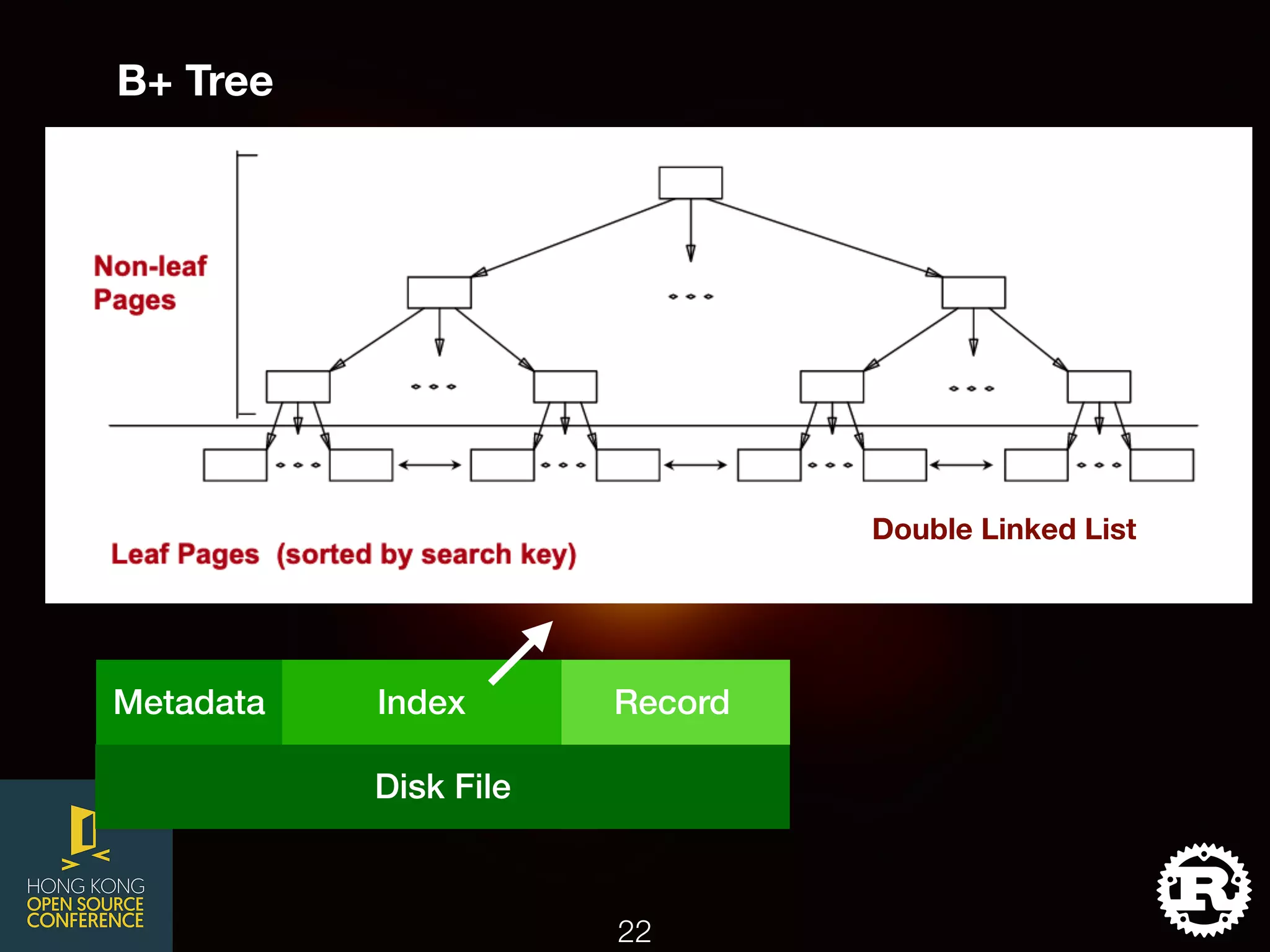

- 22. !22 Disk File Metadata RecordIndex B+Tree Double Linked List

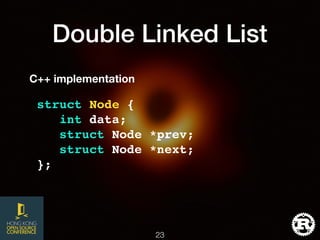

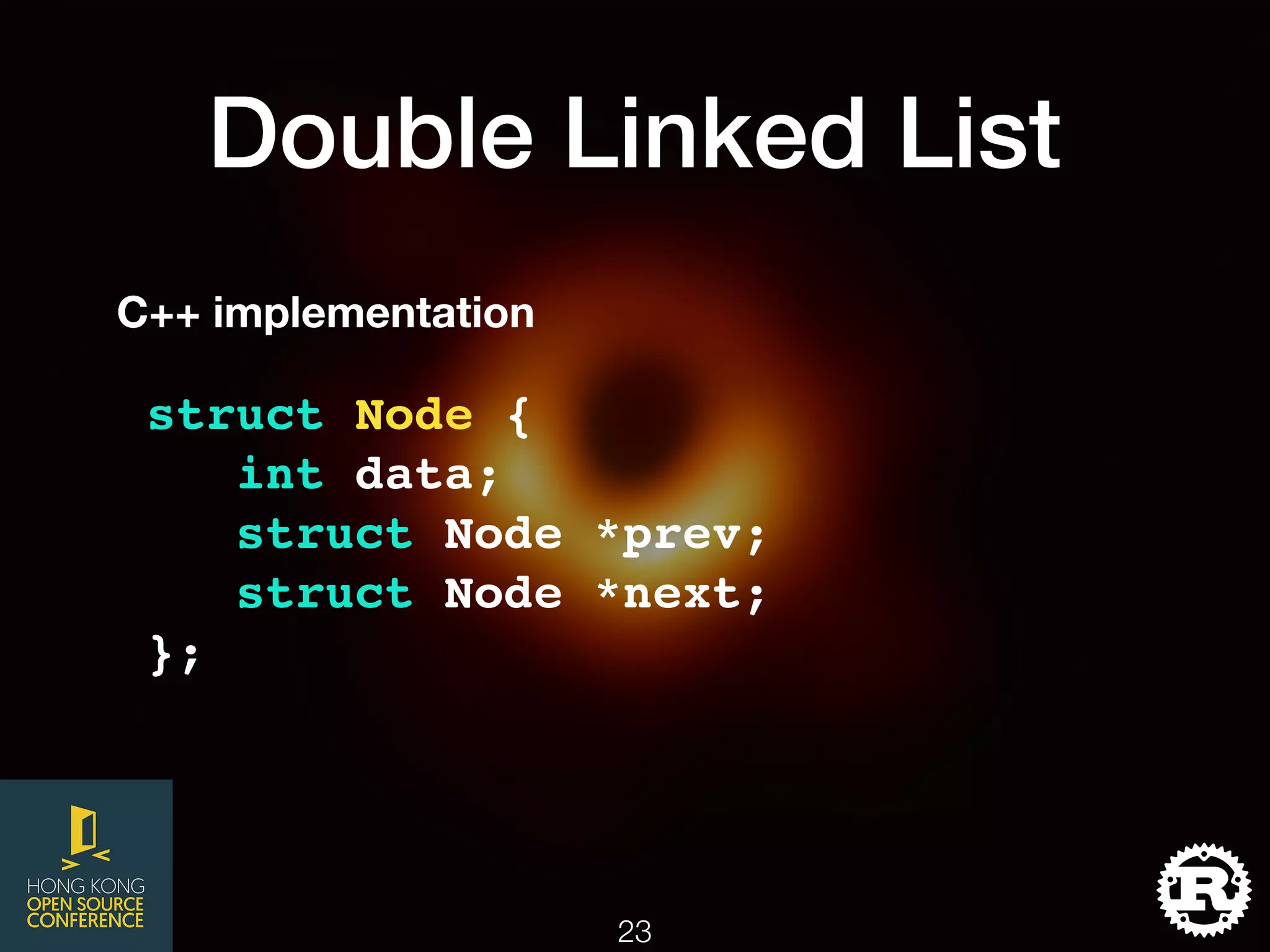

- 23. Double Linked List !23 structNode { int data; struct Node *prev; struct Node *next; }; C++ implementation

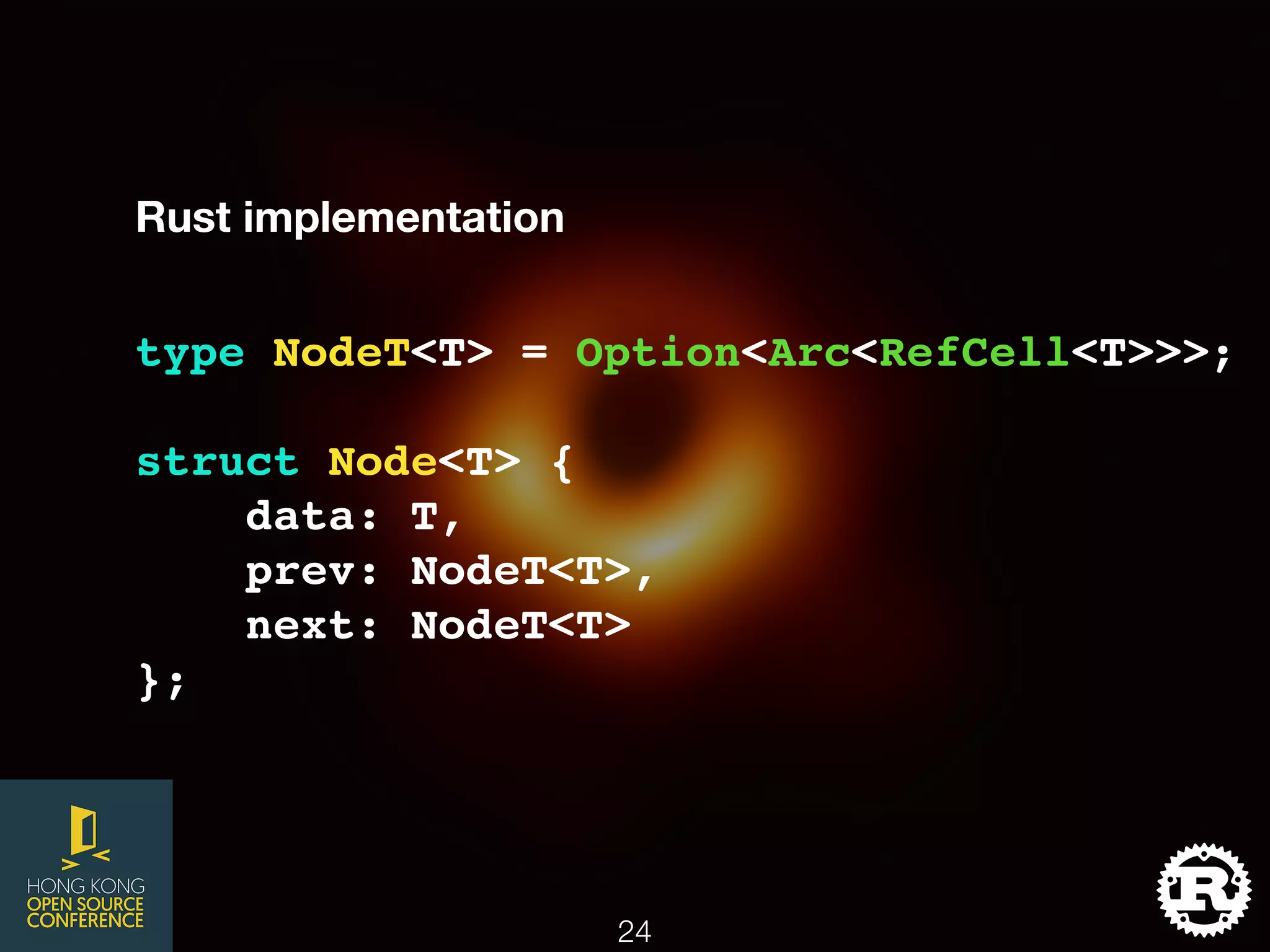

- 24. !24 Rust implementation type NodeT<T>= Option<Arc<RefCell<T>>>; struct Node<T> { data: T, prev: NodeT<T>, next: NodeT<T> };

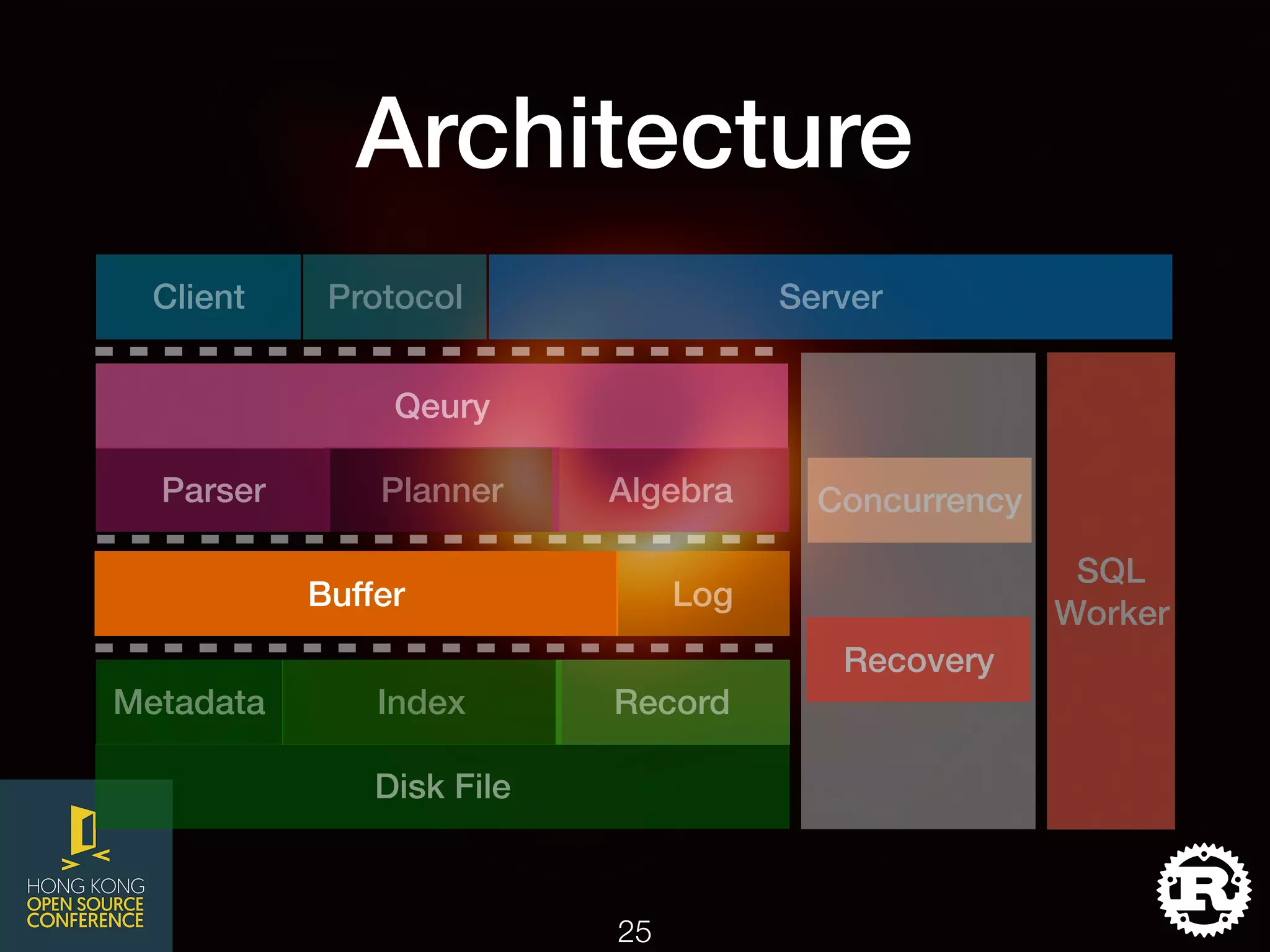

- 25. Architecture Qeury Parser Planner Algebra DiskFile Metadata RecordIndex Buffer Log ServerClient Protocol SQL Worker Recovery Concurrency !25

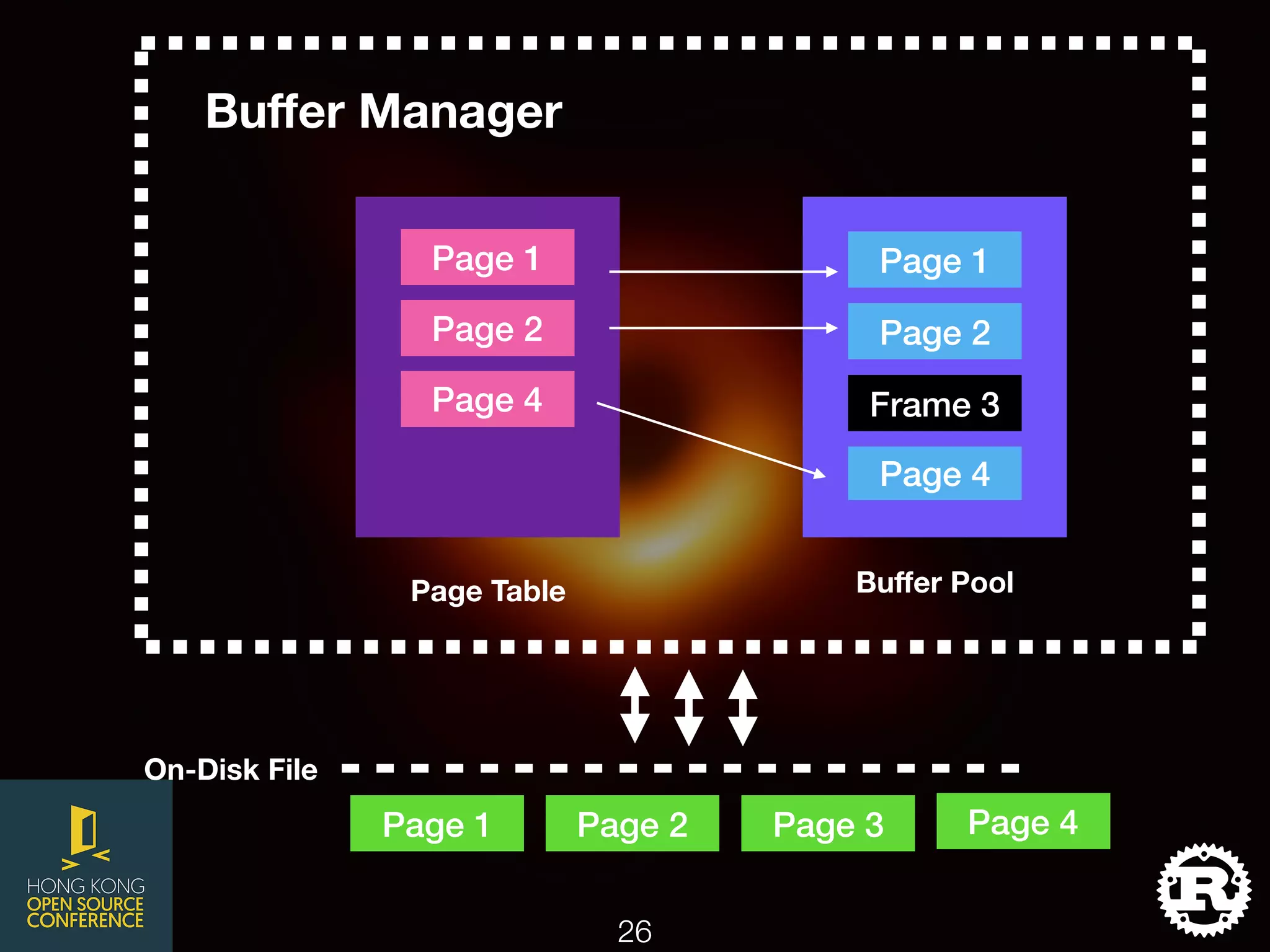

- 26. !26 Page 1 Buffer Manager !26 Page2 Page 4 Page 1 Page 2 Frame 3 Page Table Buffer Pool Page 1 Page 2 Page 3 Page 4 On-Disk File Page 4

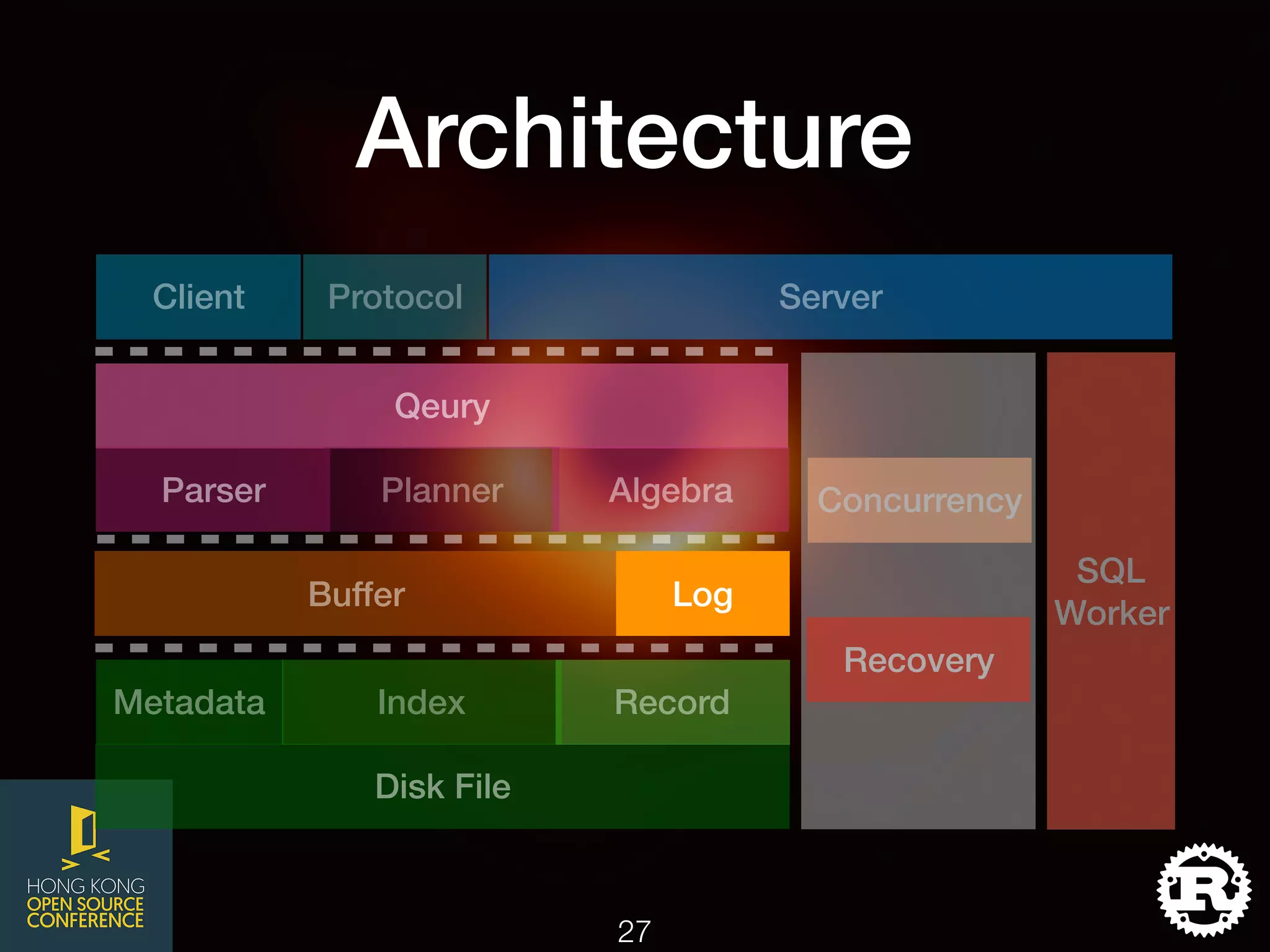

- 27. Architecture Qeury Parser Planner Algebra DiskFile Metadata RecordIndex Buffer Log ServerClient Protocol SQL Worker Recovery Concurrency !27

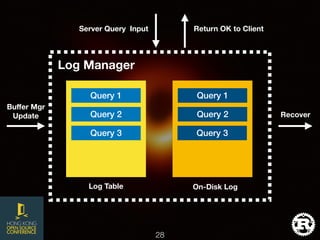

- 28. !28 Query 1 Log Manager ServerQuery Input Return OK to Client Buffer Mgr Update Recover On-Disk Log Query 2 Query 3 Log Table Query 1 Query 2 Query 3

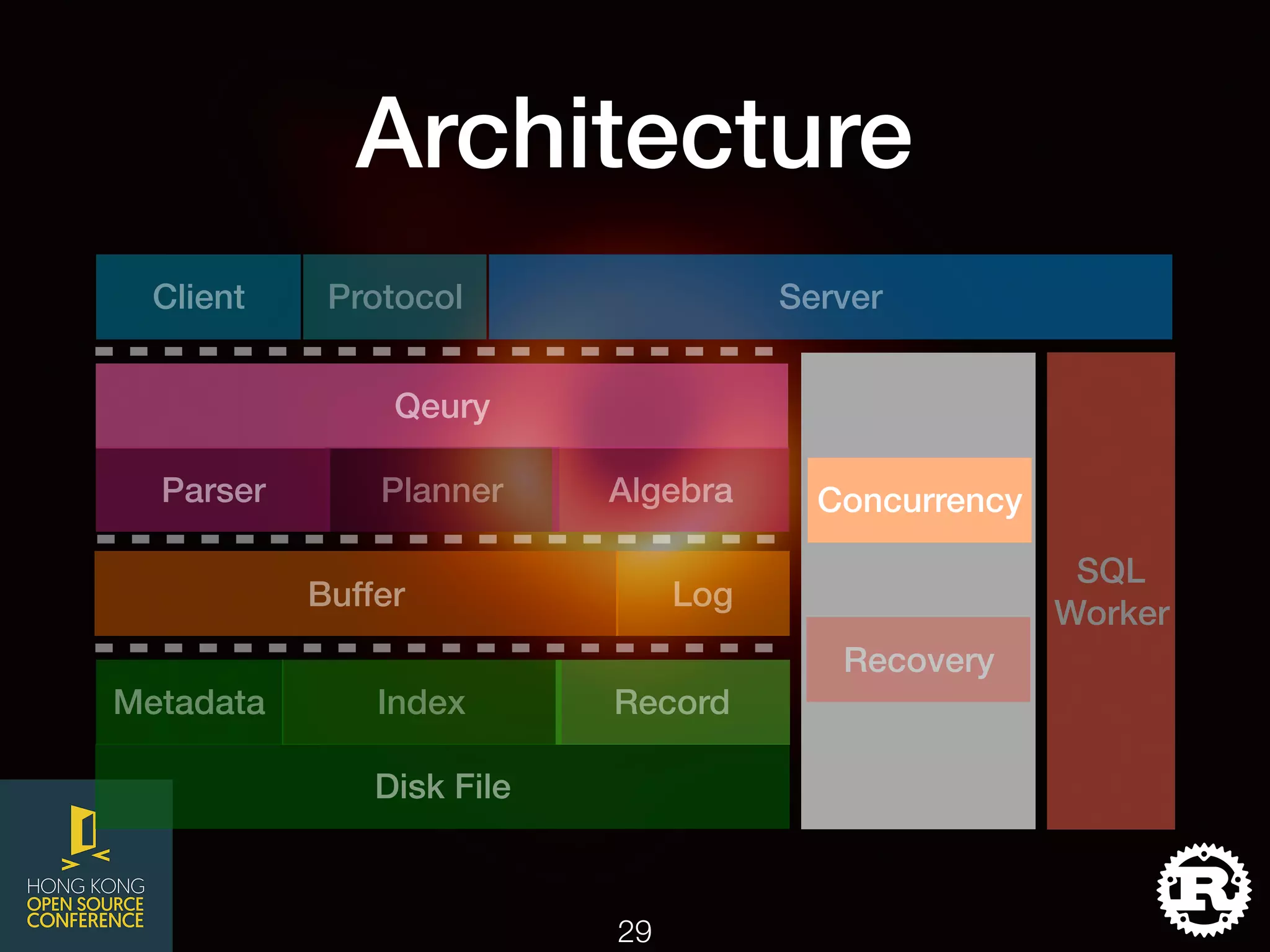

- 29. Architecture Qeury Parser Planner Algebra DiskFile Metadata RecordIndex Buffer Log ServerClient Protocol SQL Worker Recovery Concurrency !29

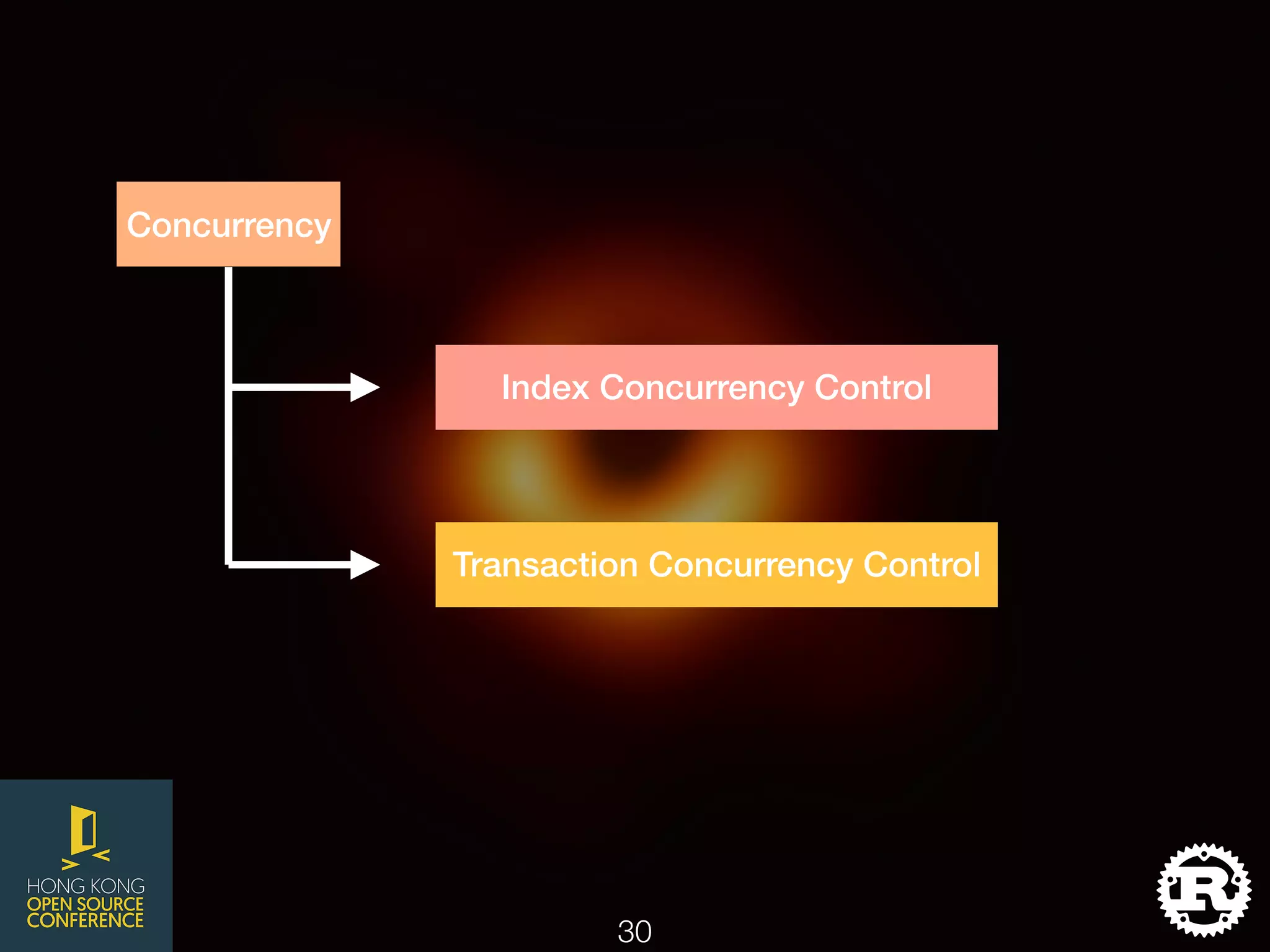

- 30. !30 Index Concurrency Control TransactionConcurrency Control Concurrency

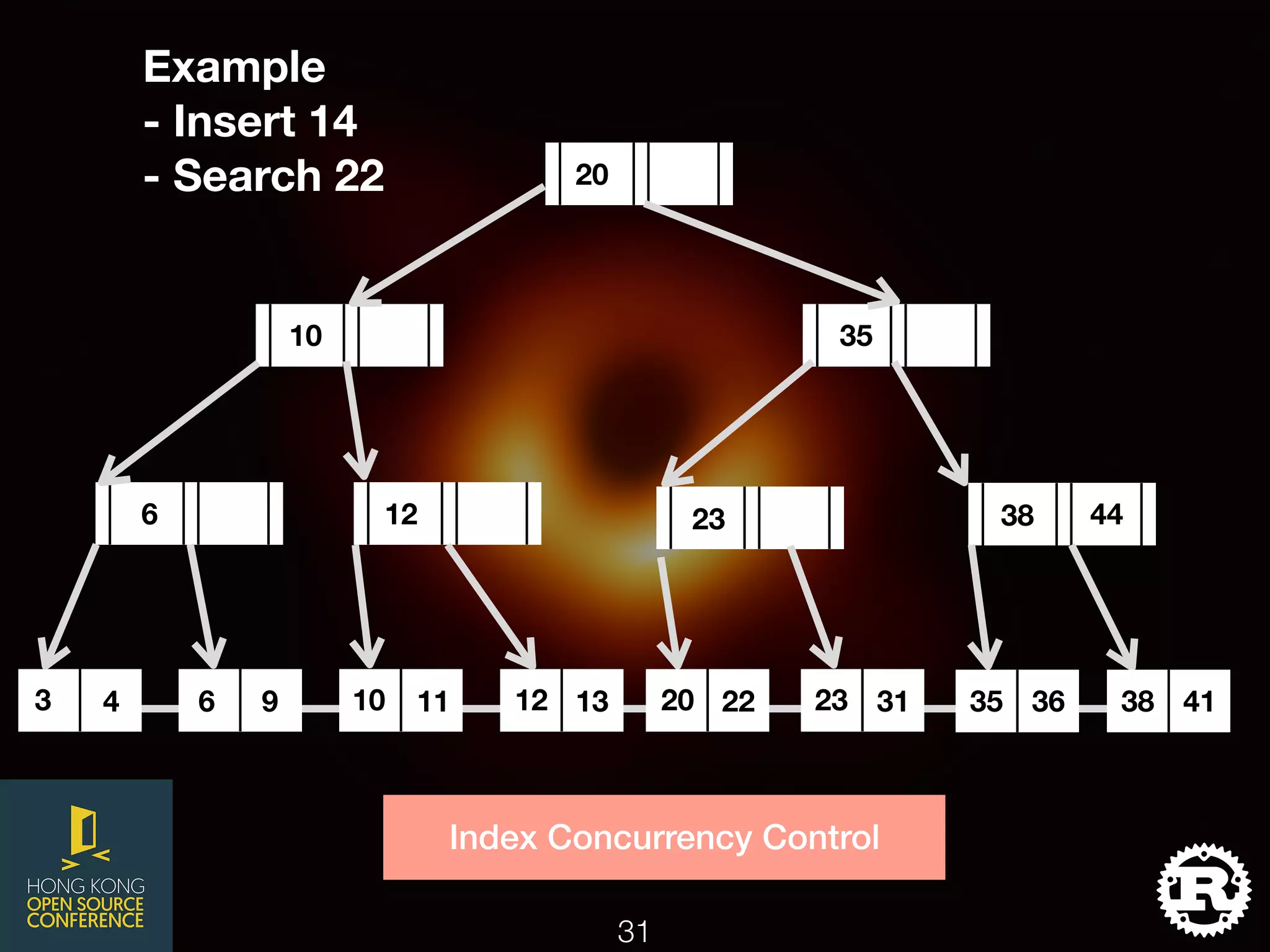

- 31. !31 20 10 35 6 12 34 6 9 10 11 12 13 20 22 23 31 35 36 38 41 23 38 44 Index Concurrency Control Example - Insert 14 - Search 22

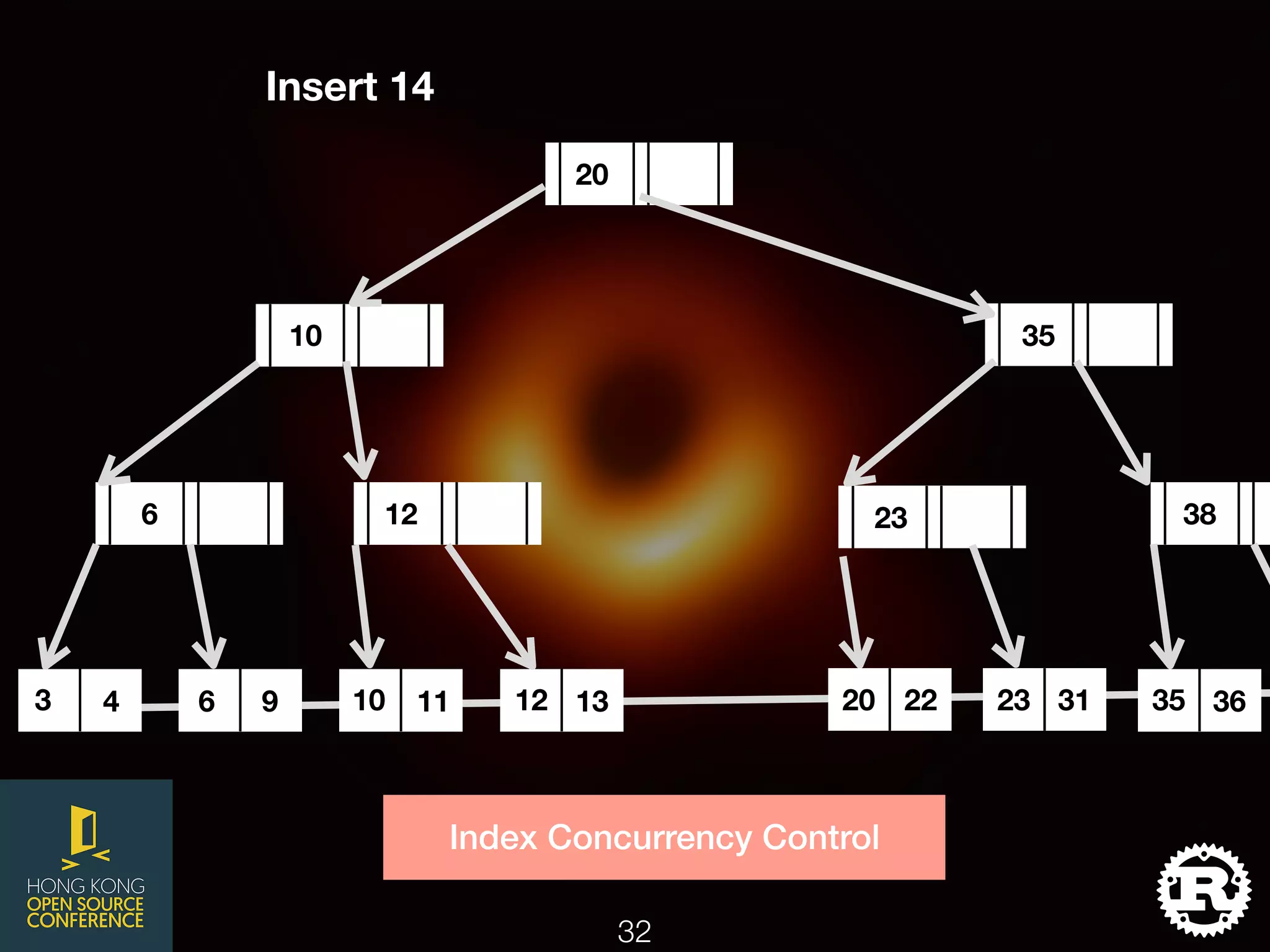

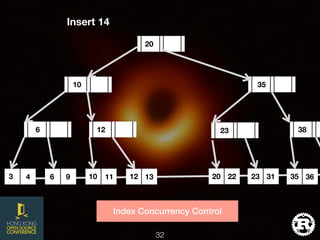

- 32. !32 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 Insert 14 3 Index Concurrency Control

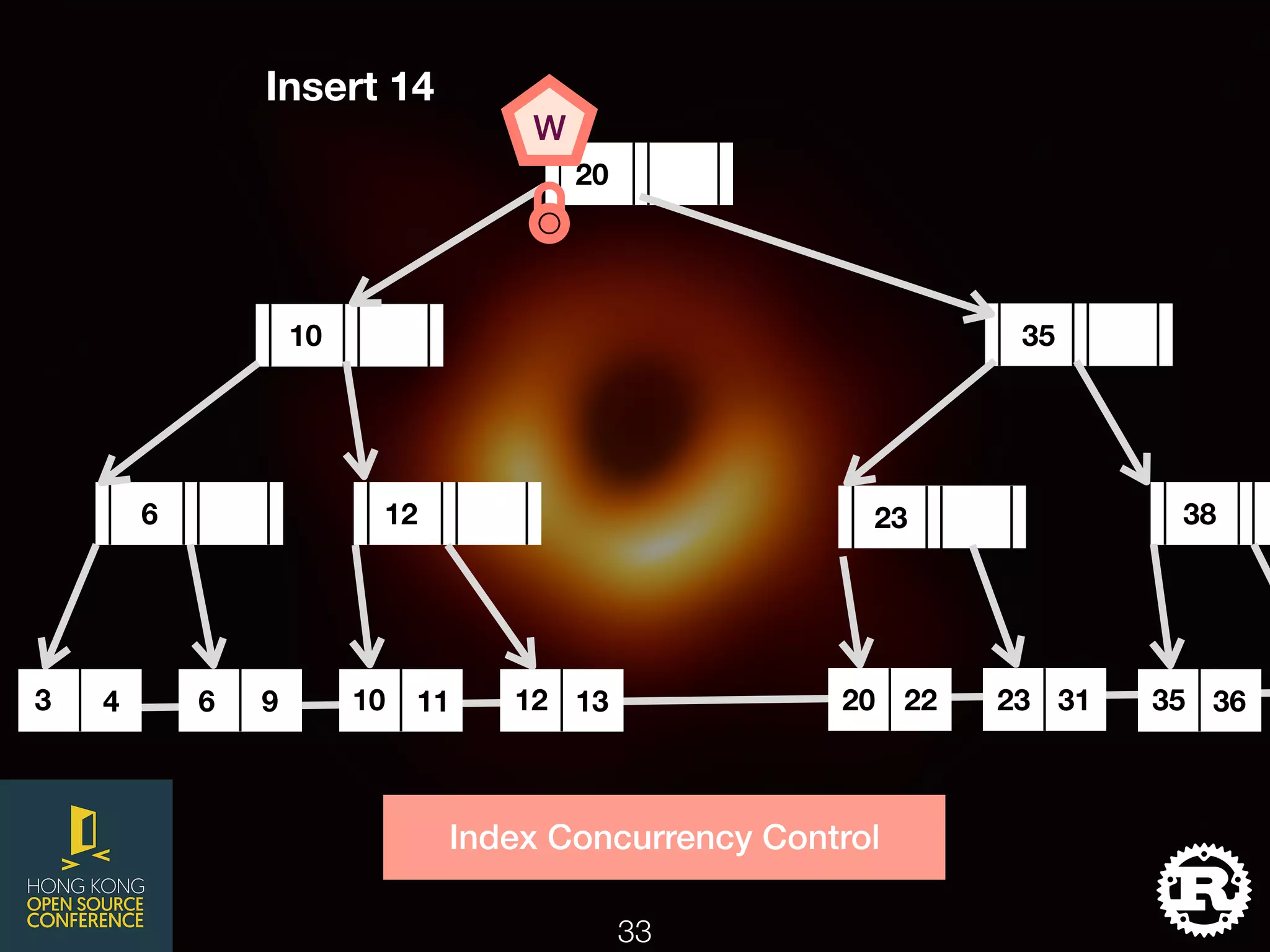

- 33. !33 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 Insert 14 3 W Index Concurrency Control

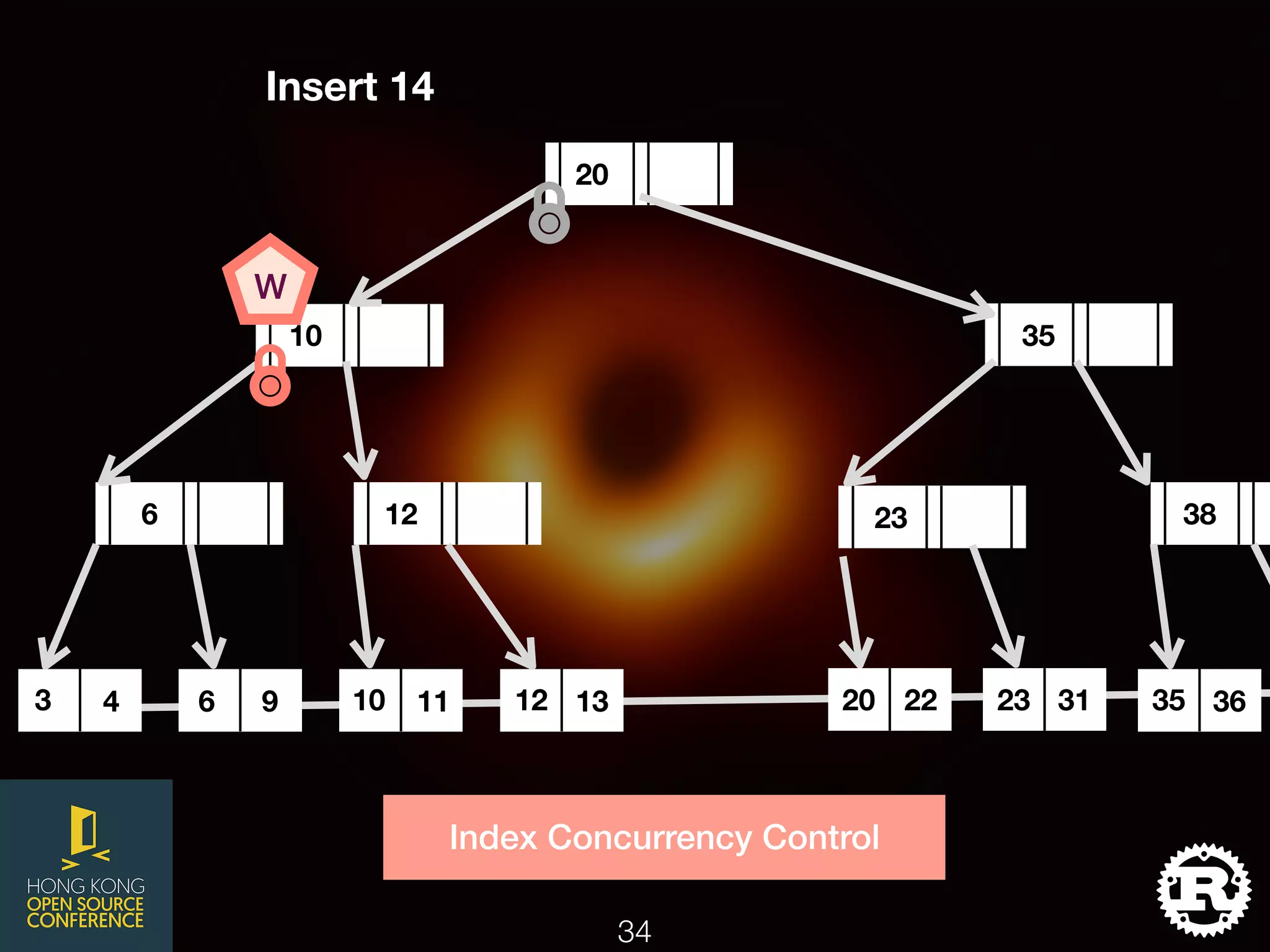

- 34. !34 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 Insert 14 3 W Index Concurrency Control

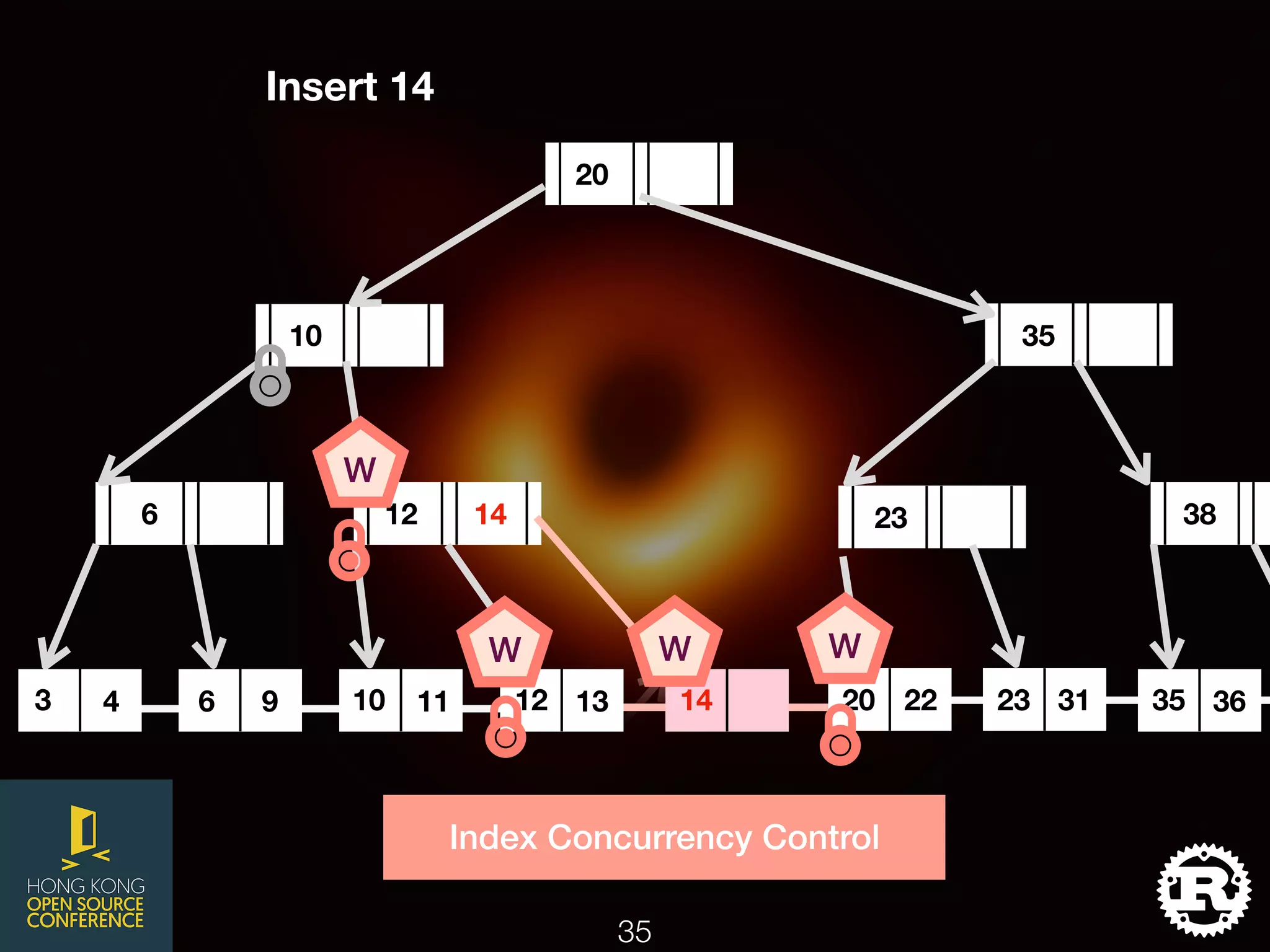

- 35. !35 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 Insert 14 3 14 14 W WW W Index Concurrency Control

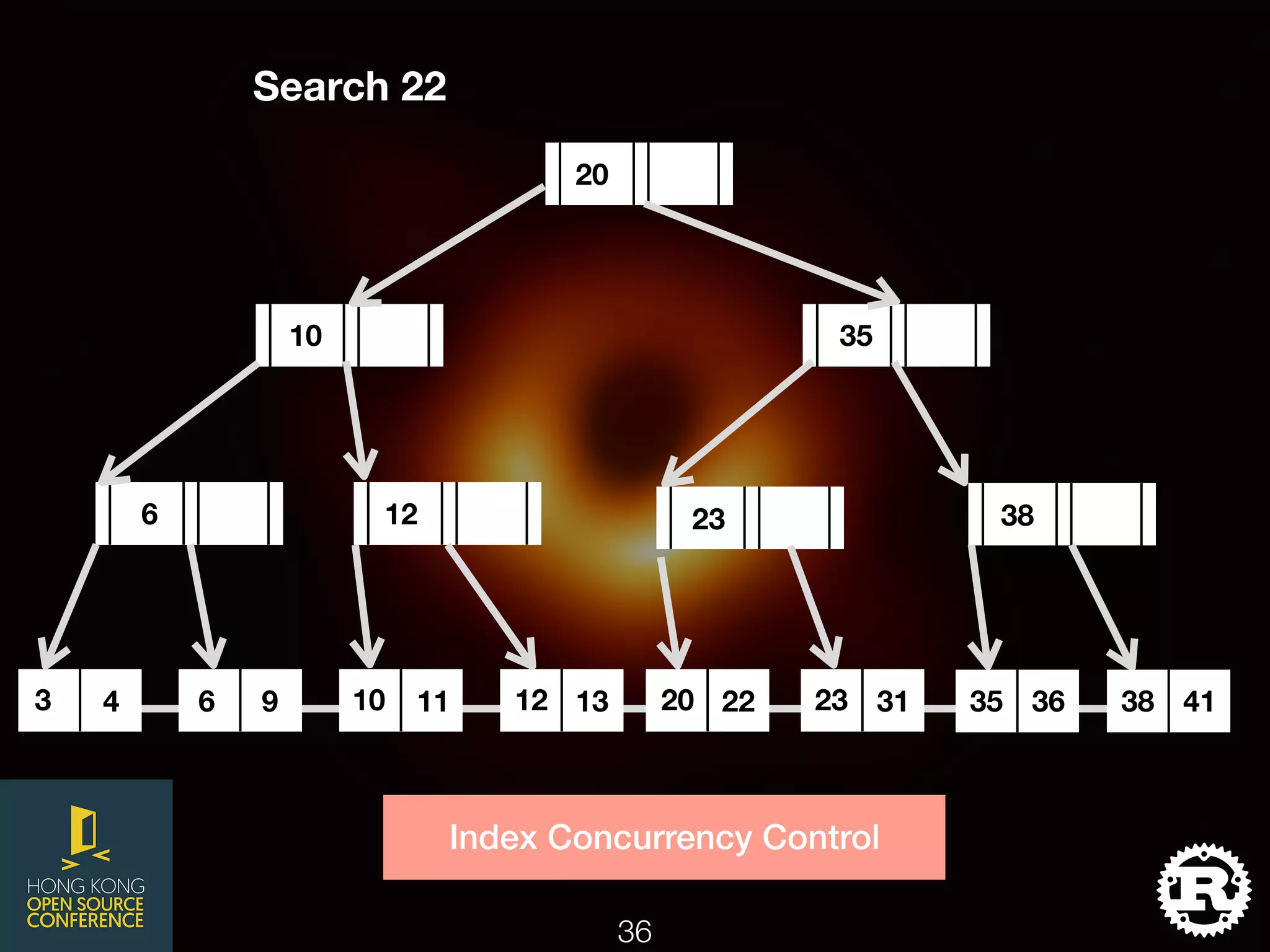

- 36. !36 20 10 35 6 12 34 6 9 10 11 12 13 20 22 23 31 35 36 38 41 23 38 Search 22 Index Concurrency Control

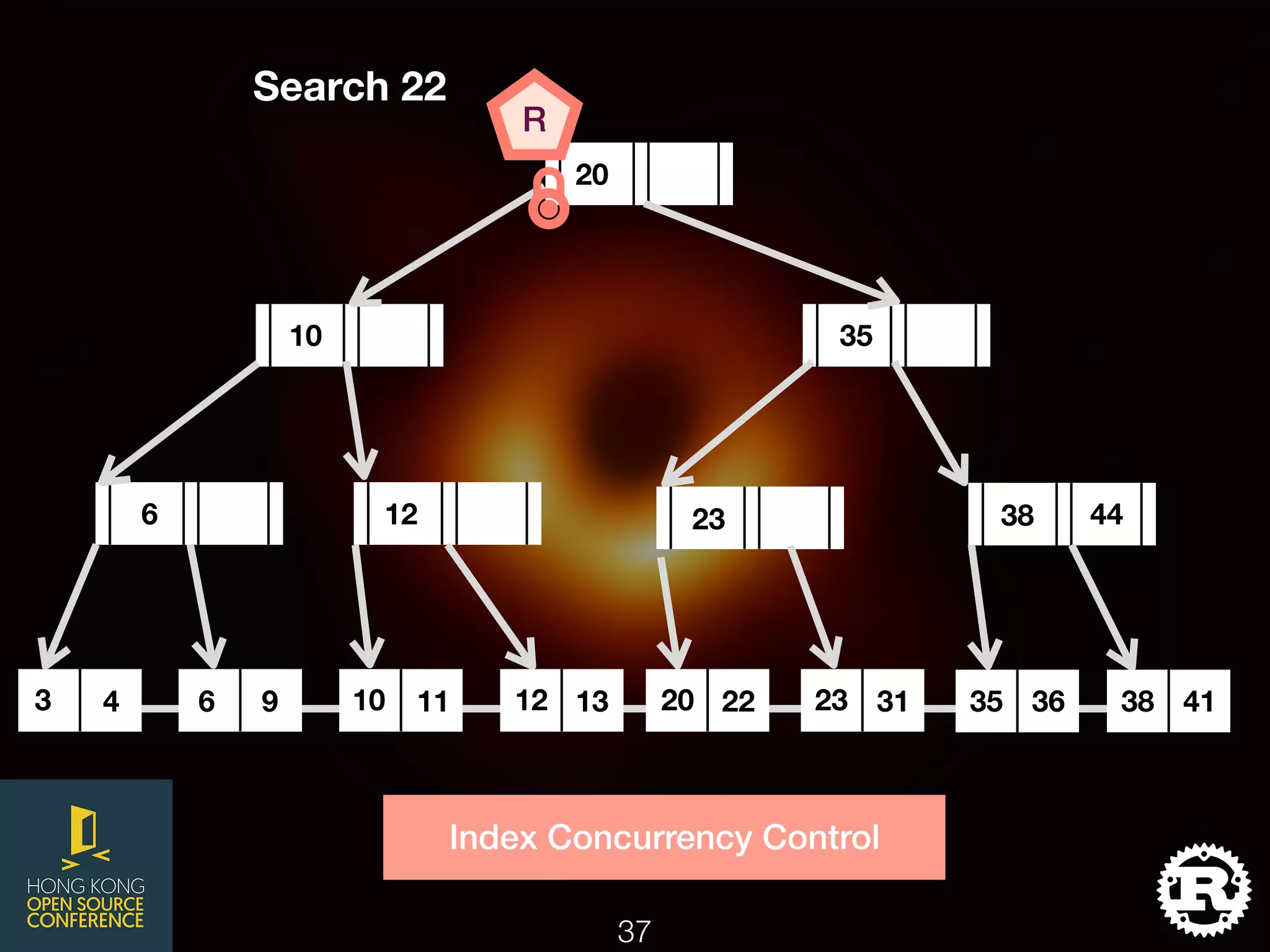

- 37. !37 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 44 Search 22 R 3 38 41 Index Concurrency Control

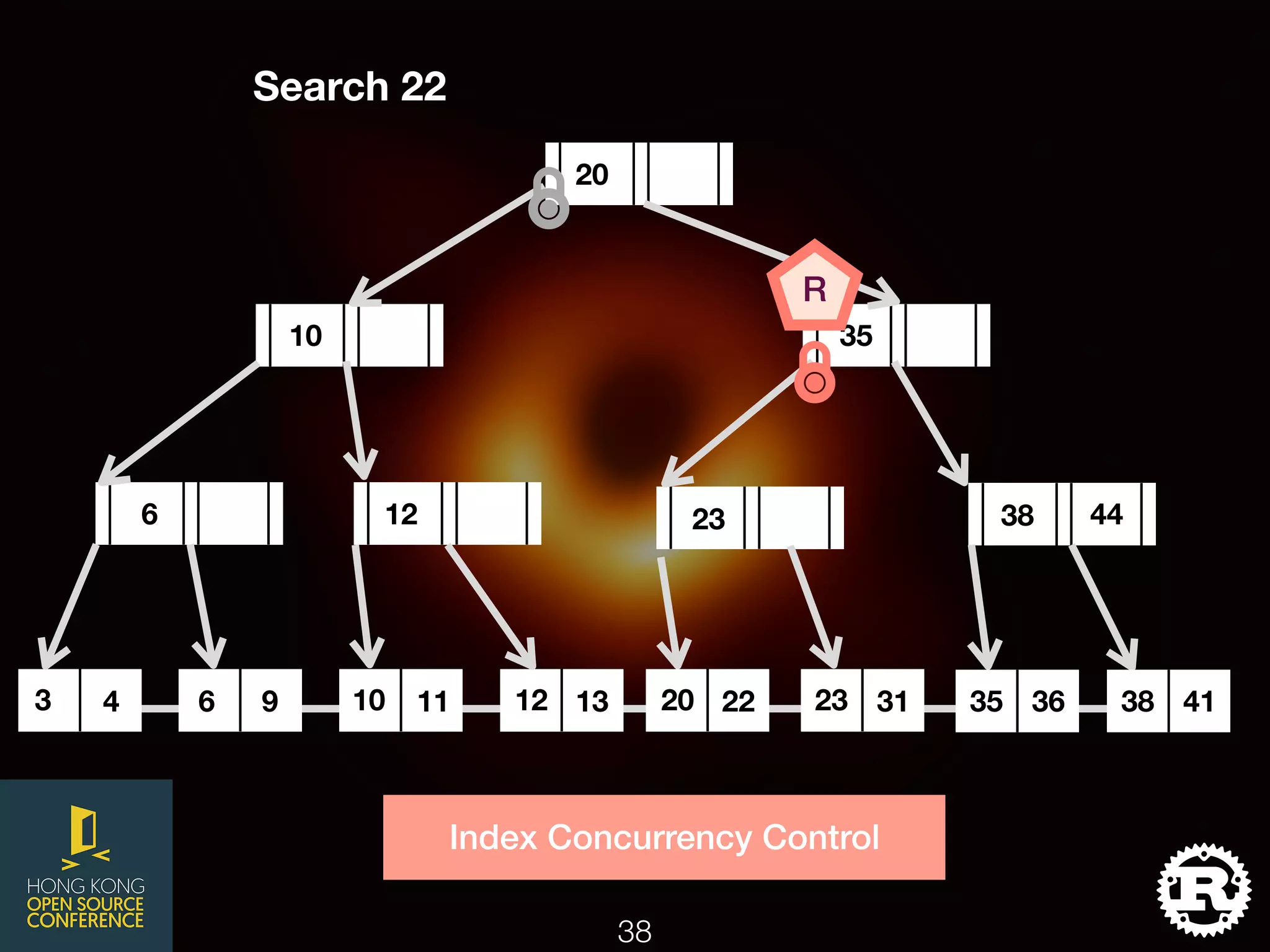

- 38. !38 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 44 Search 22 R 3 38 41 Index Concurrency Control
- 39. !39 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 Search 22 R 3 38 41 Index Concurrency Control

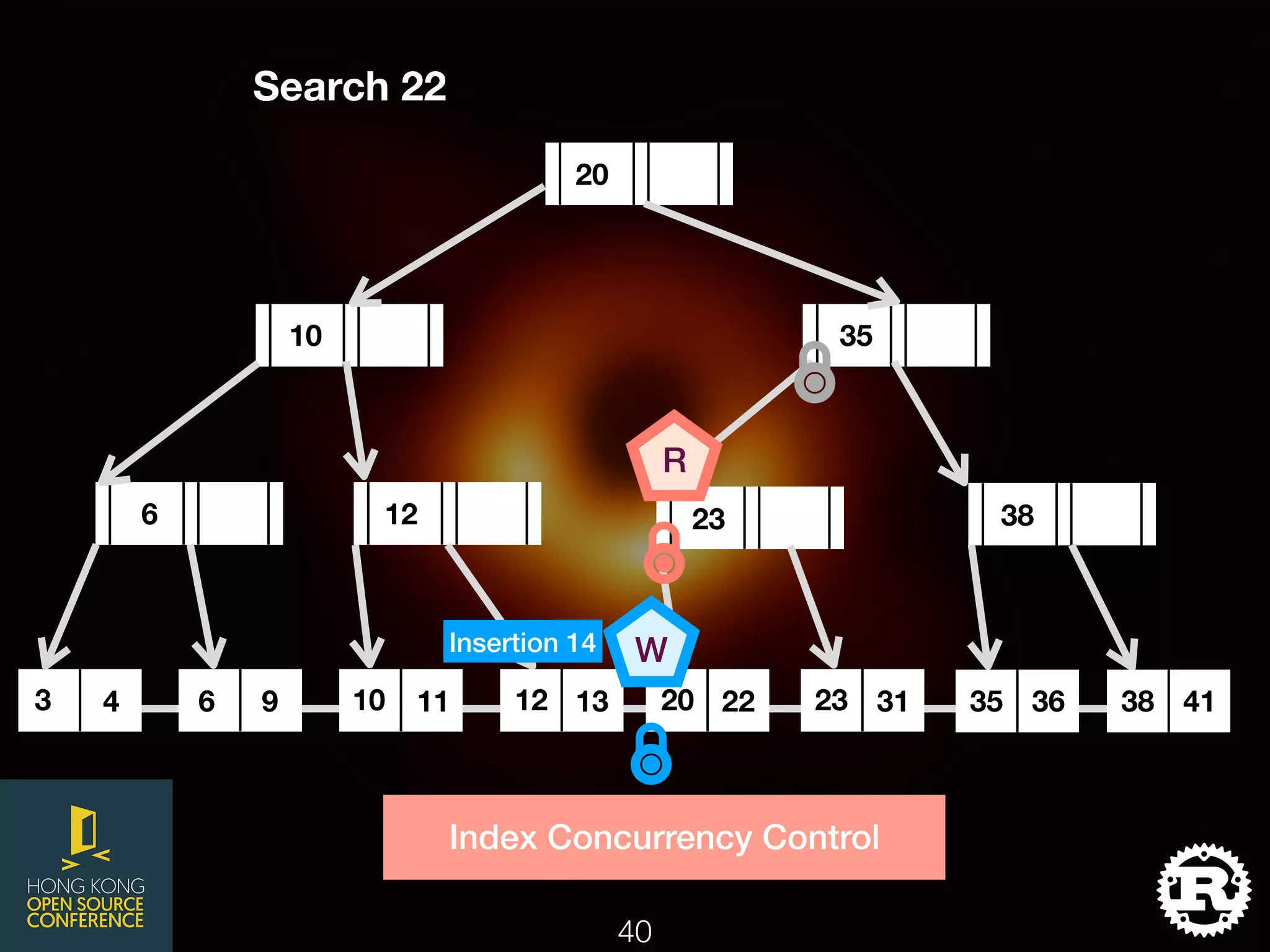

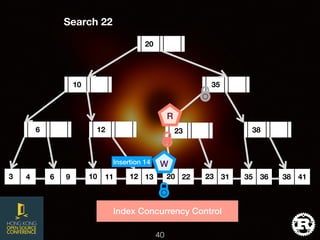

- 40. !40 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 Search 22 R 3 38 41 Index Concurrency Control WInsertion 14

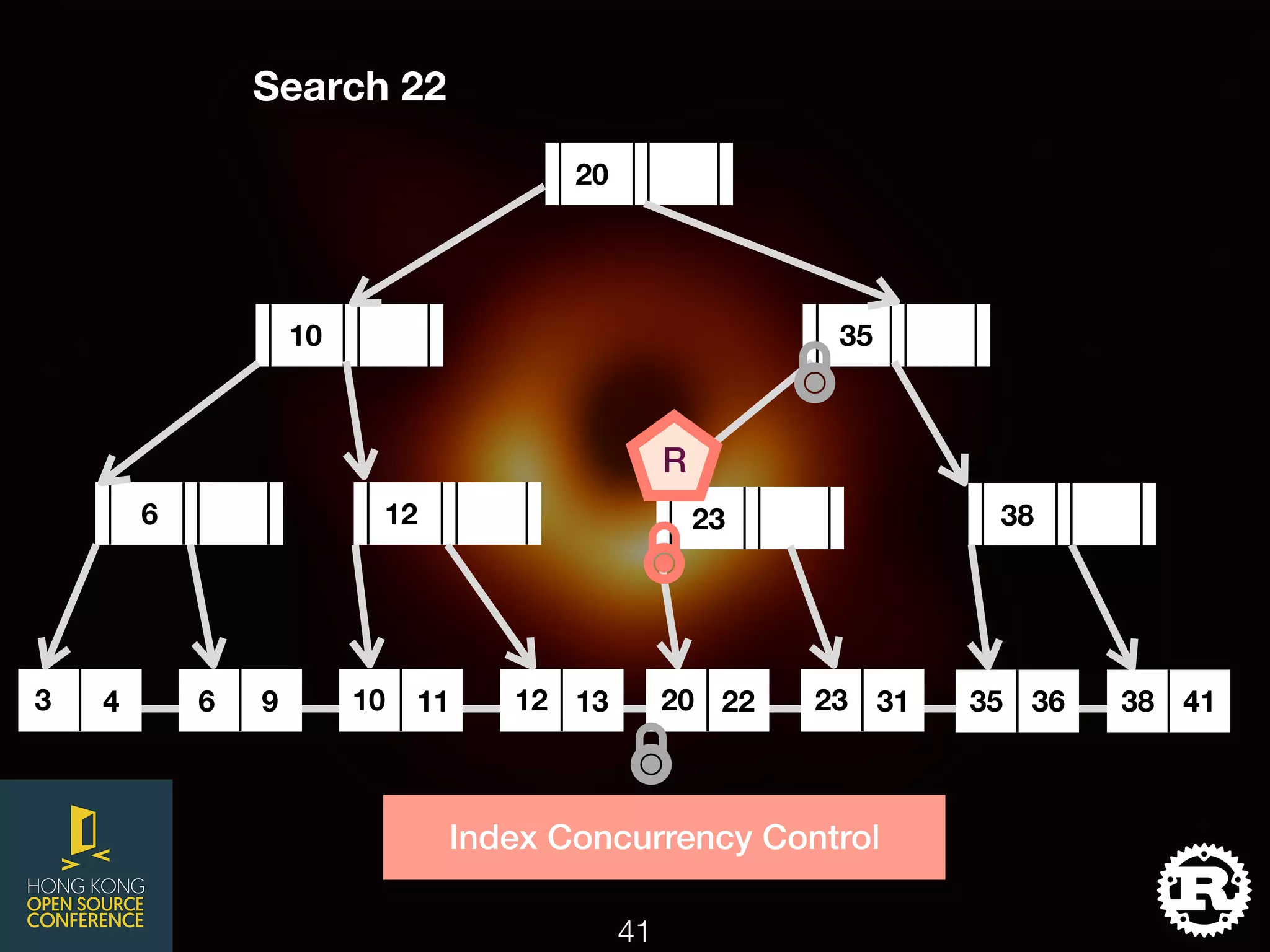

- 41. !41 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 Search 22 R 3 38 41 Index Concurrency Control

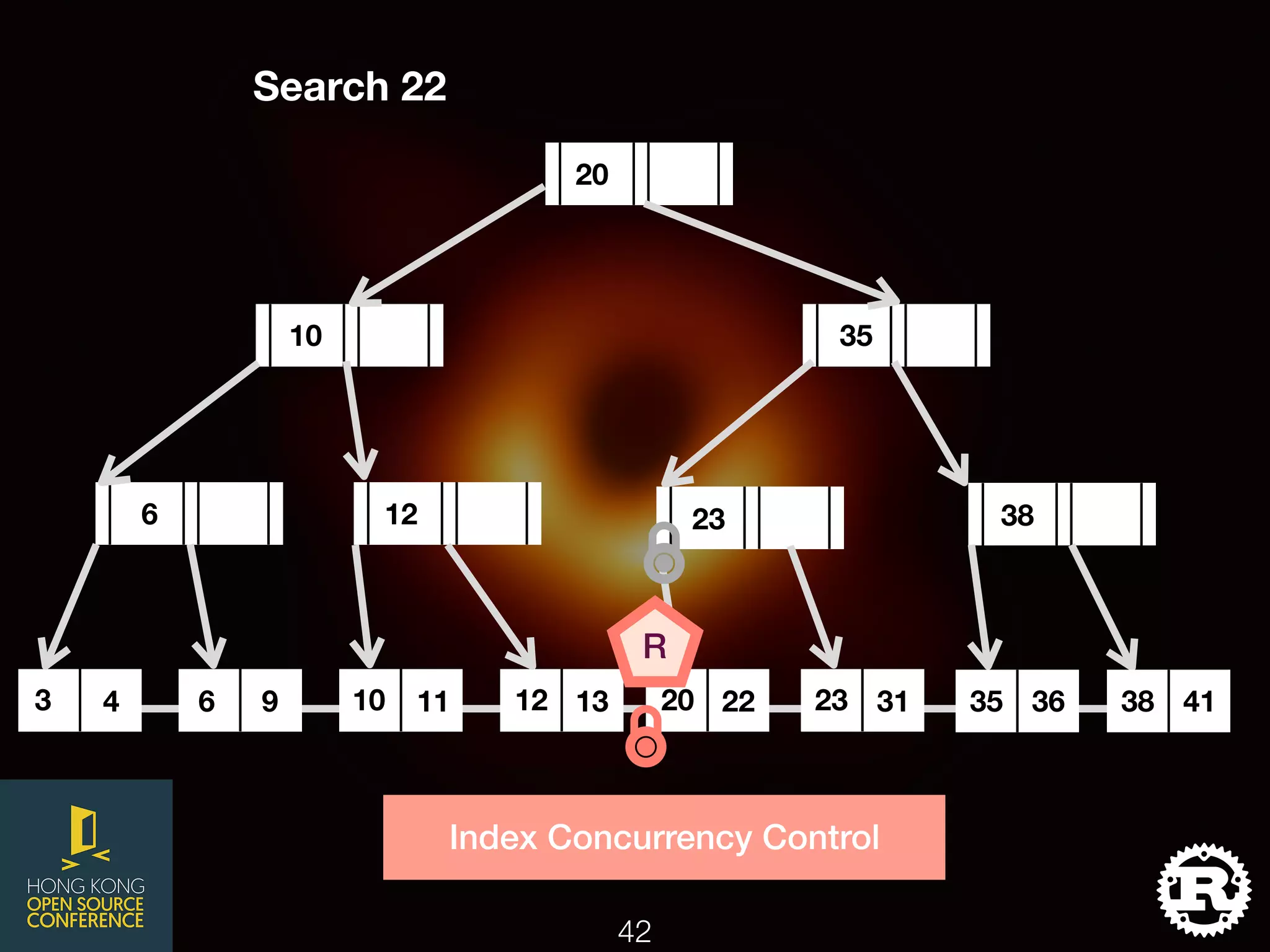

- 42. !42 20 10 35 6 12 46 9 10 11 12 13 20 22 23 31 35 36 23 38 Search 22 3 38 41 R Index Concurrency Control
- 43.

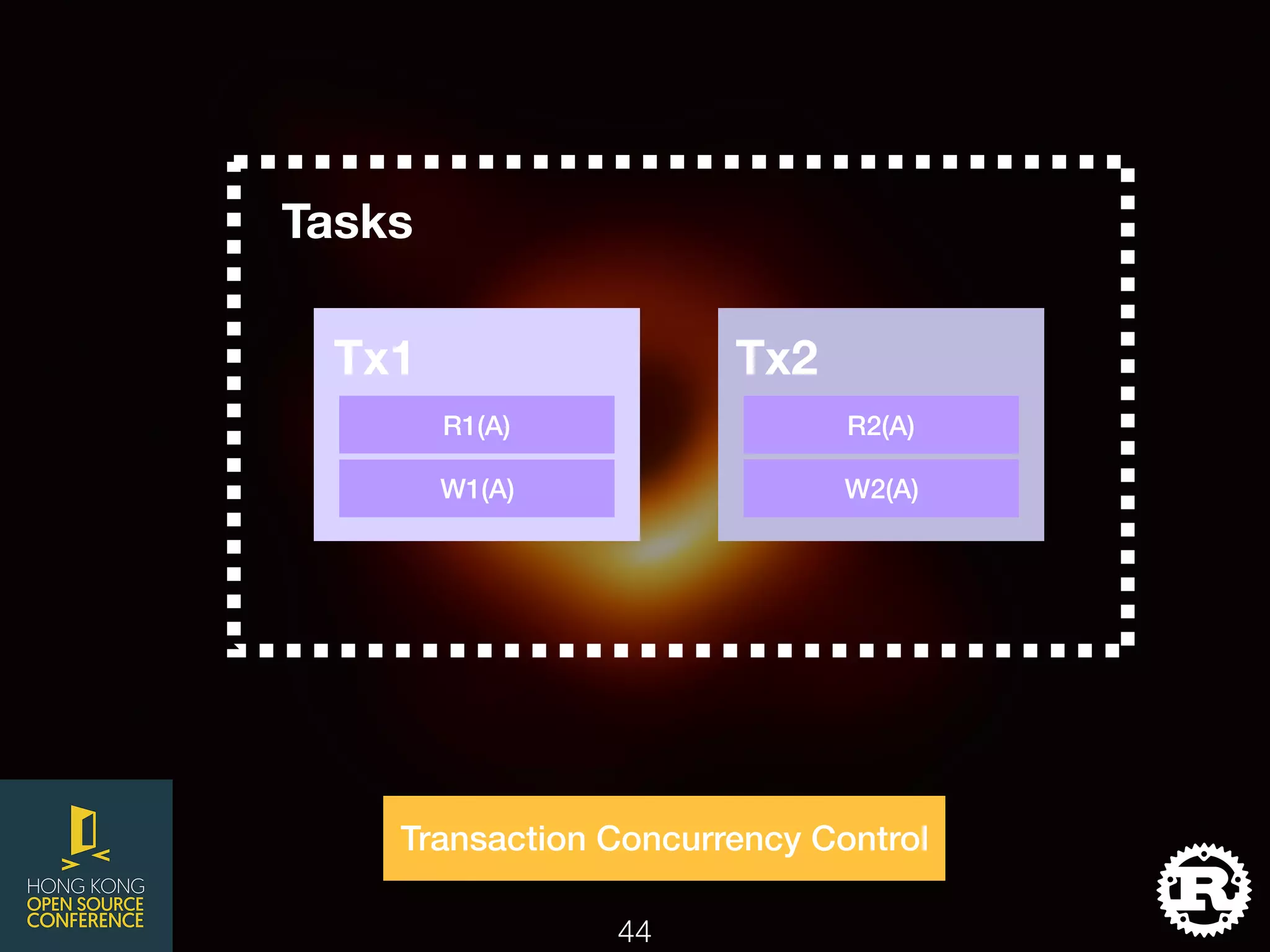

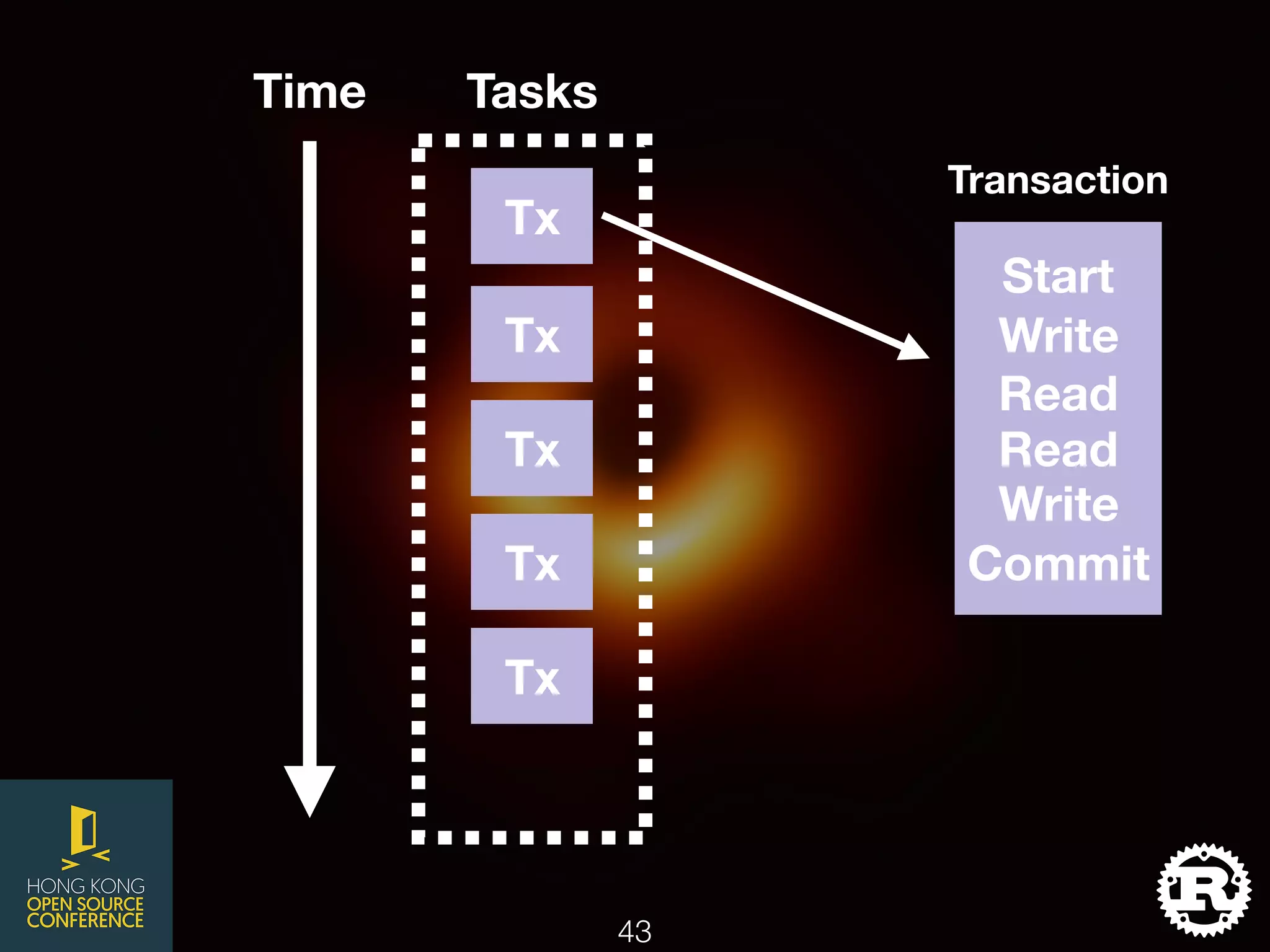

- 44.

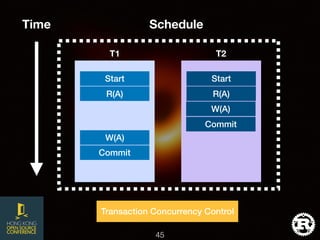

- 45. !45 W(A) T1 R(A) Time Schedule T2 Transaction ConcurrencyControl Start W(A) Start Commit Commit R(A)

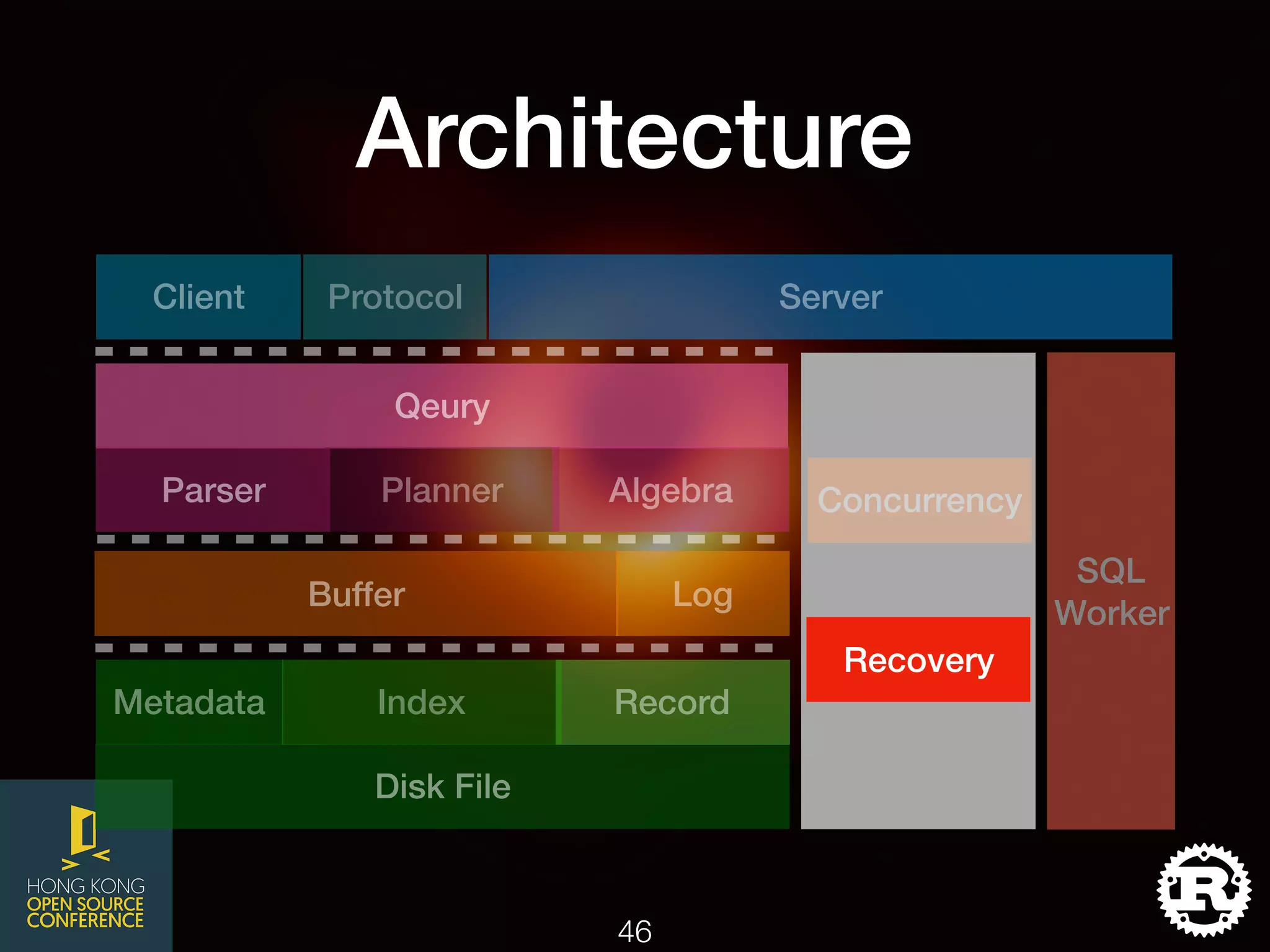

- 46. Architecture Qeury Parser Planner Algebra DiskFile Metadata RecordIndex Buffer Log ServerClient Protocol SQL Worker Recovery Concurrency !46
- 47.
- 48.
- 49.

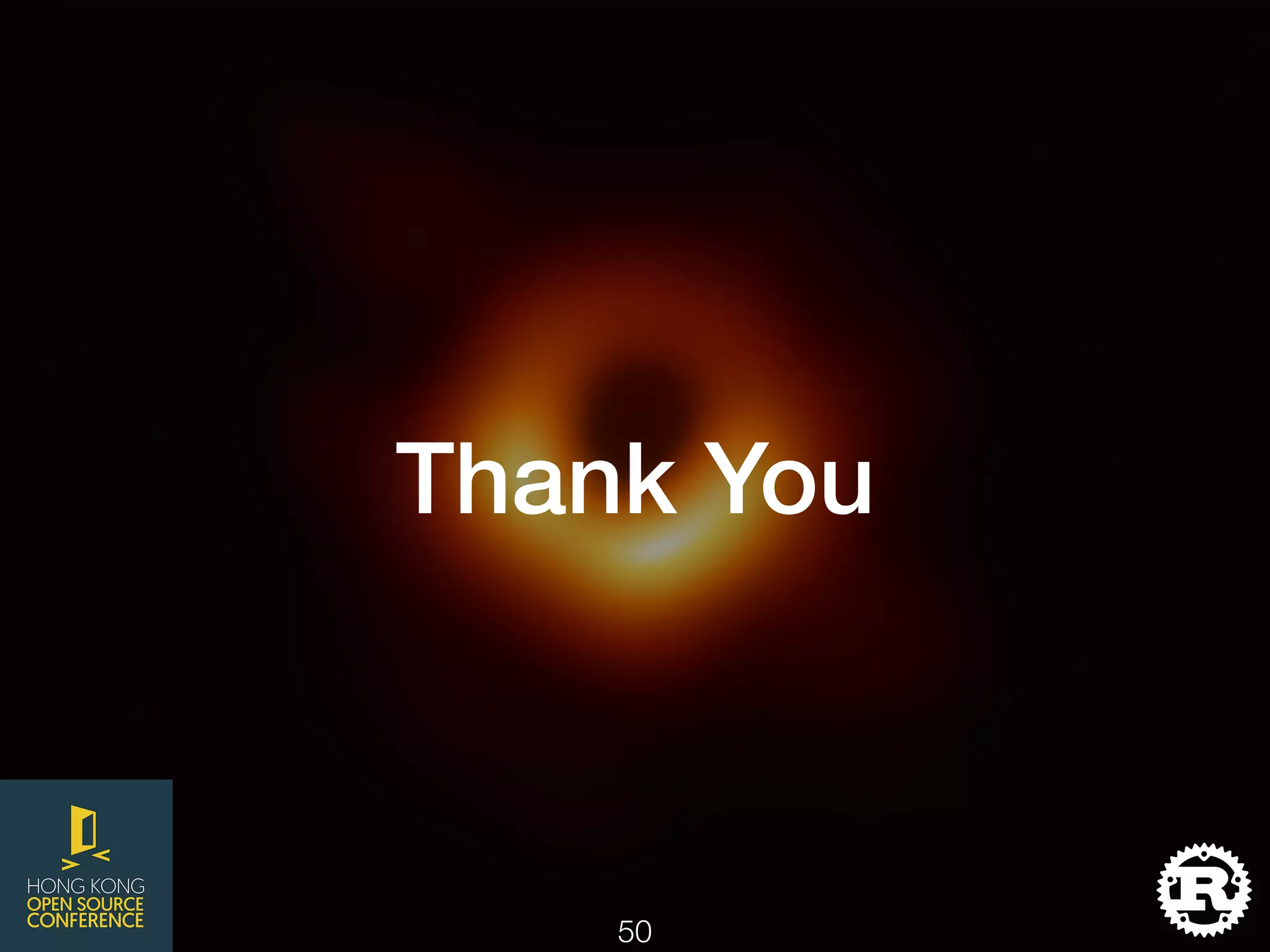

- 50.
