This workshop is a deliverable of TRAC project which has received funding from the European Union's Horizon 2020 research and innovation programme under grant agreement Nº777823. Presentation 6: Research on Green Concrete by utilizing FA and Slags Aissa Bouaissi, University of Plymouth, United Kingdom Dr. Aissa Bouaissi holds an MSc Cert in Chemical Engineering and PhD in Civil Engineering, Material from the University of Plymouth, UK. His research interests cover the fields of OPC-free cement and concrete and eco-friendly materials, applications of chemical and physical processes in industrial wastes and by-products. Previously he worked as a senior process engineer in national and multinational companies in Algeria, where he built his expertise in well-cementing services and the Oil and Gas industry. Dr Bouaissi is a member of the editorial board of Journal of Knowledge-based engineering and sciences (KBES) and a guest reviewer with several journals including Construction and Building Materials (CBM), Hazardous Materials, Journal of Building and Engineering, Engineering with Computers. Dr Bouaissi’s last publication was a chapter in a book titled: "Zero-Energy Buildings - New Approaches and Technologies".

1. Research on Green Concrete by
utilizing FA and Slags
DR. Aissa BOUAISSI
School of Engineering, Computing and
Mathematics (SECAM
University of Plymouth

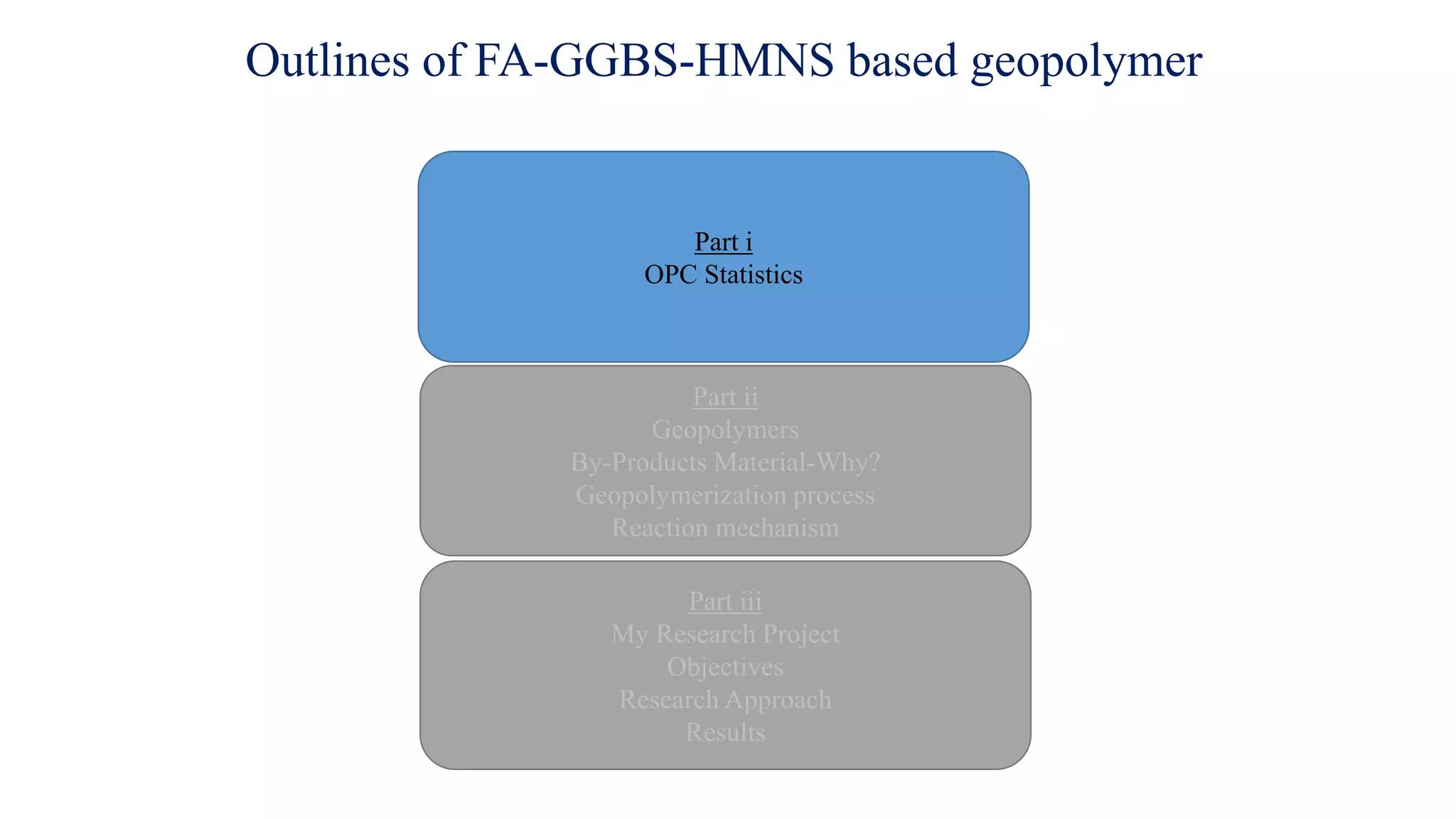

2. Outlines of FA-GGBS-HMNS based geopolymer
Part i
OPC Statistics
Part ii
Geopolymers
By-Products Material-Why?
Geopolymerization process
Reaction mechanism
Part iii
My Research Project
Objectives
Research Approach
Results

3. Outlines of FA-GGBS-HMNS based geopolymer
Part i
OPC Statistics
Part ii
Geopolymers
By-Products Material-Why?
Geopolymerization process
Part iii
My Research Project
Objectives
Research Approach
Results

4. Outlines of FA-GGBS-HMNS based geopolymer
Part i
OPC statistics
Part ii
Geopolymers
By-Products Material-Why?
Geopolymerization process
Part iii
Research Project
Objectives
Research Approach
Results

5. OPC Statistics!

6. OPC issues!
• Consumption of natural materials
which need quarrying
• Very energy intensive (125 L of
fuel, 118 kwh for 1 tonne of OPC)
• 8% worlds CO2 from concrete
production, 6 Billion tonnes of CO2
in 2015 (3x more than global
aviation)
• Poor immobilization of
contaminants
• Low chemical resistance

7. Part ii. Geopolymers
• It is a family of mineral binders with chemical composition similar
to zeolites but with an amorphous microstructure.
3D structure of Zeolite (*)

8. Geopolymer concrete (GPC)

9. Microstructural development of GP binder
C.J. Shi et al. (2011): Cement and Concrete Research 41, 750-763.

10. By-products material-why?
Fly ash HMNSGGBS
Kaolin Clay

11. …By-products production
(*)Back to Reference page for more details

12. Disposal
• In the past fly ash produced from power plants was simply entrained in
flue gasses and released into the atmosphere. Now in the U.S
regulations requires more than 99% of total fly ash produced in a plant
to be captured and either stored, recycled, or disposed.
• More than 65% of fly ash produced in the world is disposed of in
landfills or ash ponds.
• In India alone more than 40,000 acres of land is transferred to fly ash
landfills.

13. Research approach

14. Compressive strength of GP paste
0
10
20
30
40
50
60
70
80
5 10 20 30 40 100 FA
43.58
48.01
76.57
41.73
23.23
73.86
Compressivestrength(MPa)
GGBS % by mass of FA
7 days 14 days 28 days

15. Fresh GP concrete test

16. ...Testing of fresh GP concrete

17. Compressive strength test
10 cm cube
15 cm cube

18. Tensile strength test
Split strength test
ASTM C496 (2011)
(D=150 mm, L=300 mm)
Flexural strength test
ASTM c78 (2010)
(150x150x500 mm size)
2
bd
PL
fr =
LD
P
fct

2
=

19. Testing of hardened GP concrete

20. …Testing of hardened GP concrete
Compressive strength Split-tensile strength
0
10
20
30
40
50
60
27.17
43.43
55.6
50 46 45.9548.14 47.49
Compressivestrength(MPa)
A B C D
7 14 28 90
B,C and D= Ref

21. Rapid chloride migration test (RCM)
Cylinders 100/200mm
Discs 100/50mm
Vacuum desiccator
system
(a) Saturated Ca(OH)2
(b) RCM montage

22. Chloride migration test (RCM) (cont.)

23. Residual strength after elevated temperature exposure

24. Residual strength test

25. Impact strength test machine

26. 5 m 5 m

28. Preparation of disk specimens (~f35x18)
Preparation of specimens
Specimen diameters (33, 36 and
37 mm, with 18mm thickness
Group a = 2 m/s
Group b = 4 m/s
Group c = 6 m/s

29. Data capture before and after filtering

30. Dynamic s-e curves (FA-GGBS-HMNS based GP paste )

31. Failure Patterns

32. Strain energy absorbed in impact

33. Microstructural analysis (SEM)

34. Material characteristic analysis (EDX)

35. Conclusions
- The future trend of geopolymers research shall focus on the understanding of
polymerization mechanisms and this will standardize geopolymers for
commercial production.
- This might include the route of geopolymer synthesis with designable strength
and properties, for example, the material with suitable activators and curing
conditions, etc.

36. References
• Bapat .J . D.(2012) ‘Mineral Admixtures in Cement and Concrete’CRC Press, Taylor & Francis Group, LLC,US
• Davidovits .J.(2005) ‘Geopolymer Green Chemistry and Sustainable Development Solutions’ : Geopolymer institute ,
Saint Quentin, France.
• Taylor .H.F.W. (1990) ‘Cement Chemistry’, ACADEMIC PRESS, London NW I 7DX.
• Yahya, Z. et al. (2013) ‘Chemical and Physical Characterization of Boiler Ash from Palm Oil Industry Waste for
Geopolymer Composite’, Revista de Chimie, (12), pp. 32–34
• Yang, T., Yao, X. and Zhang, Z. (2014) ‘Geopolymer prepared with high-magnesium nickel slag: Characterization of
properties and microstructure’, Construction and Building Materials, 59, pp. 188–194. doi:
10.1016/j.conbuildmat.2014.01.038
• Zhang, Z. et al. (2017) ‘Conversion of local industrial wastes into greener cement through geopolymer technology : A case
study of high-magnesium nickel slag’, Journal of Cleaner Production. Elsevier Ltd, 141, pp. 463–471. doi:
10.1016/j.jclepro.2016.09.147.
• Wallah, S.E, Rangan, B.V. (2006) ‘Low-Calcium fly ash-based geopolymer concrete’: Long-term properties. Curtin
University of Technology, Australia
