Designing for
(and with)
New Technology
Dan Saffer, Kicker Studio
@odannyboy @kickerstudio

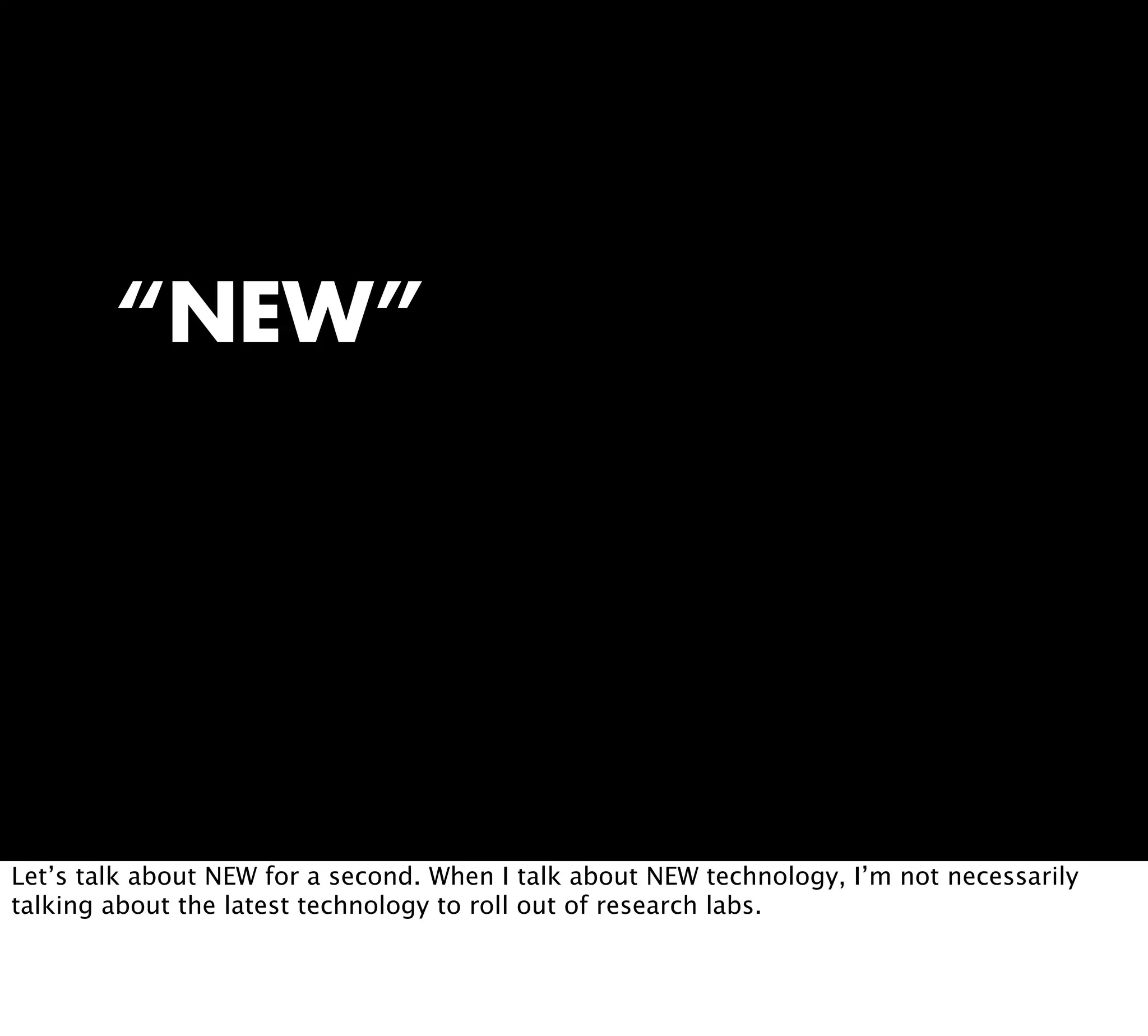

“NEW”
Let’s talk about NEW for a second. When I talk about NEW technology, I’m not necessarily
talking about the latest technology to roll out of research labs.
The bulk of innovation behind the latest
"wow" moment is also low-amplitude
and takes place over a long period—
but well before the "new" idea has
become generally known, much less
reached the tipping point.
Bill Buxton
In fact, as Bill Buxton points out, most of the time this isn’t true anyway.

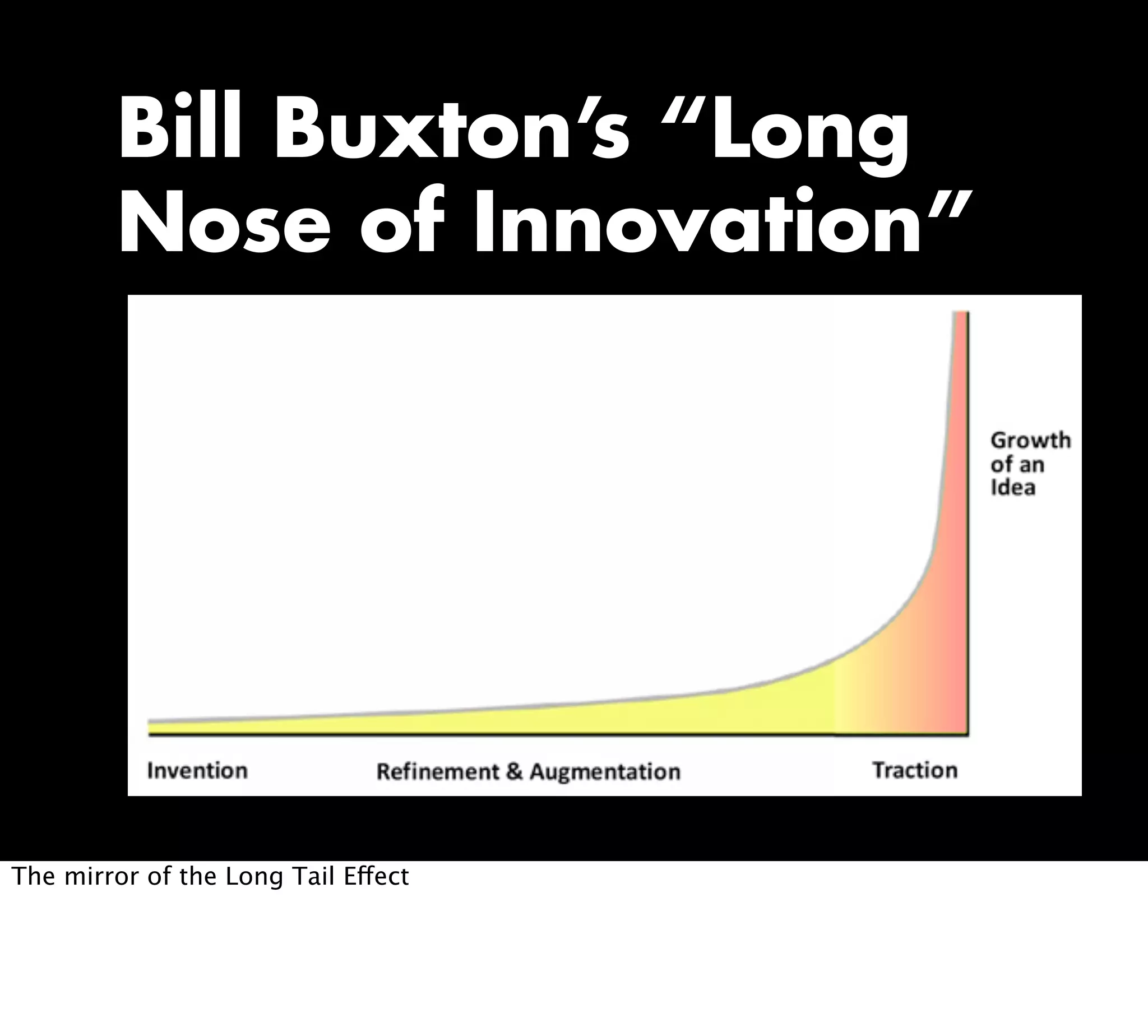

Bill Buxton’s “Long
Nose of Innovation”
The mirror of the Long Tail Effect

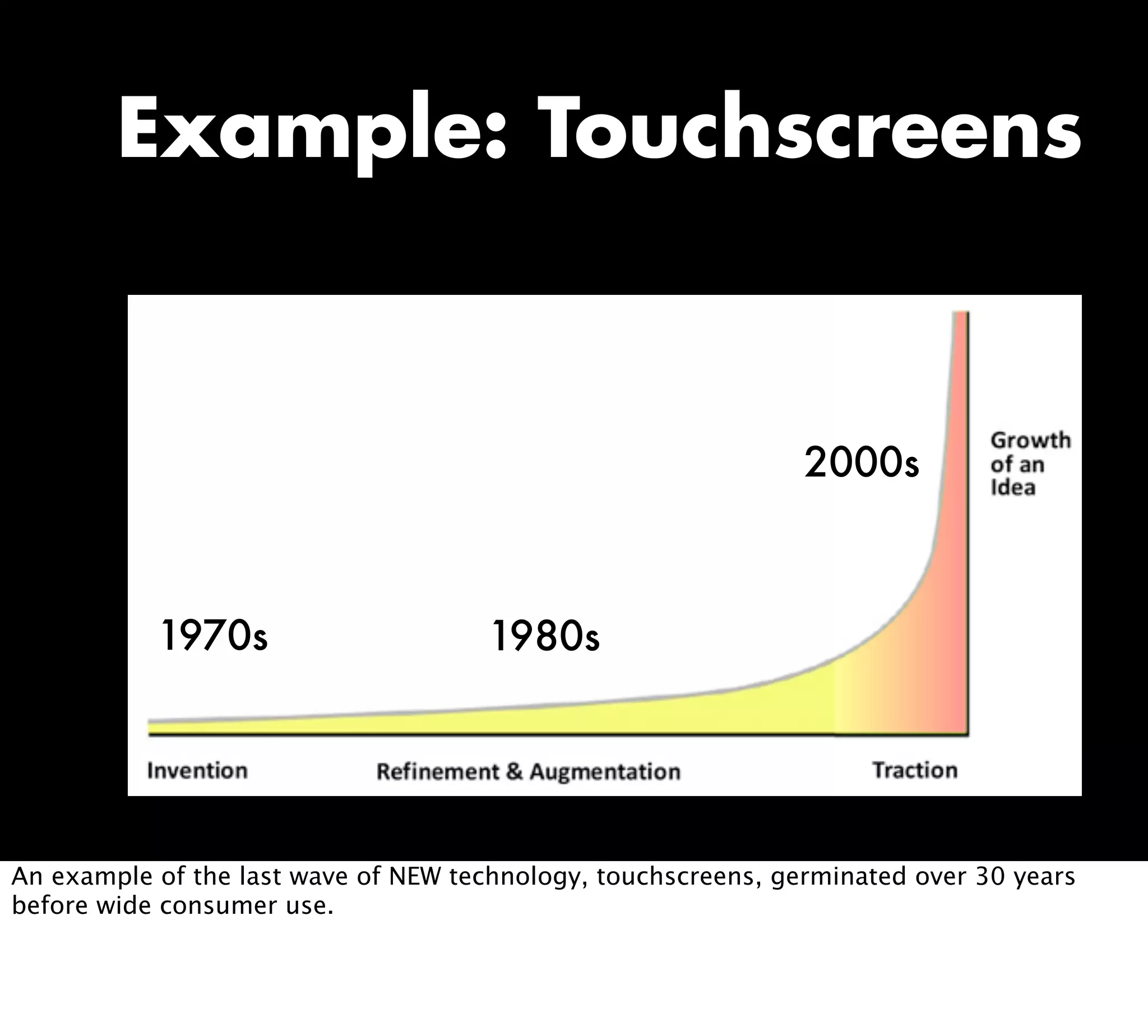

Example: Touchscreens
1970s 1980s
2000s
An example of the last wave of NEW technology, touchscreens, germinated over 30 years
before wide consumer use.
New...
to the world
to the market
to an industry
to a company
to...you?
So when I say NEW technology, it could mean all these different kinds of new. At some point
in your career, you’ll be work with a piece of technology you’ve never worked with before.
Technology
I’m also not going to talk about any one specific technology. This talk is specifically
technology-agnostic. I’m going to reference some technology that is fairly “new” but this talk
isn’t only about today’s new technology, but about tomorrow’s, the one you’re going to
encounter out in the field one day when someone hands you it.

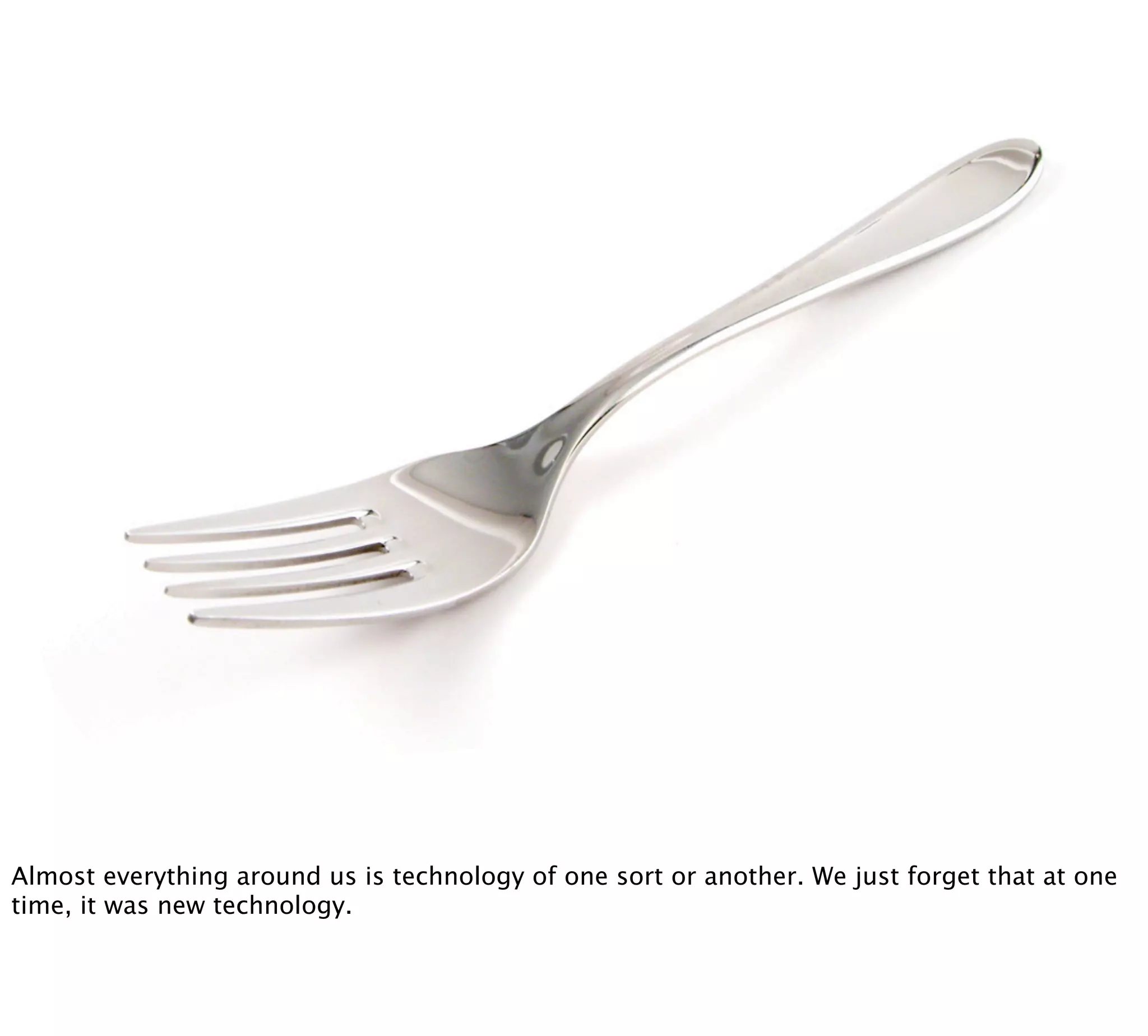

Almost everything around us is technology of one sort or another. We just forget that at one
time, it was new technology.

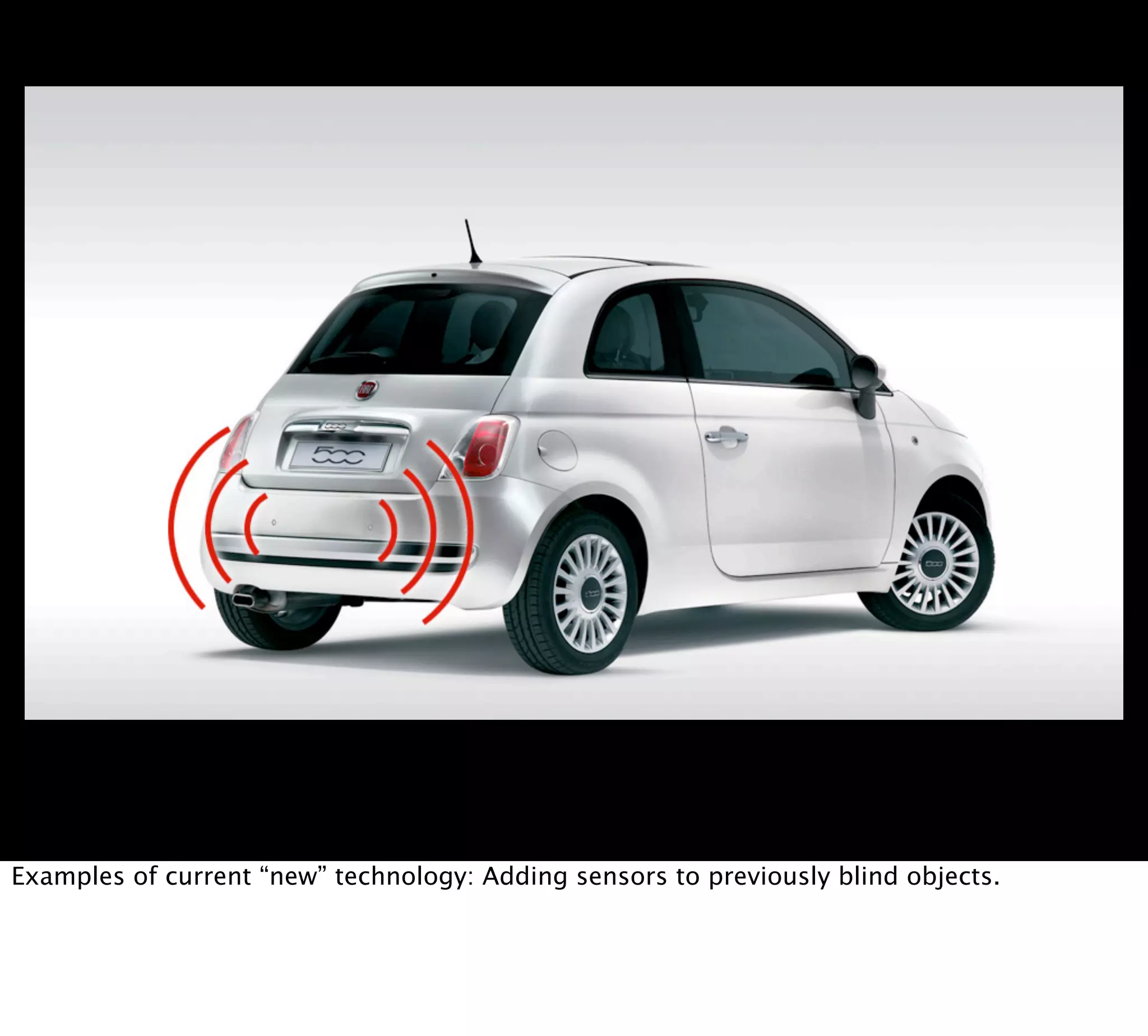

Examples of current “new” technology: Adding sensors to previously blind objects.

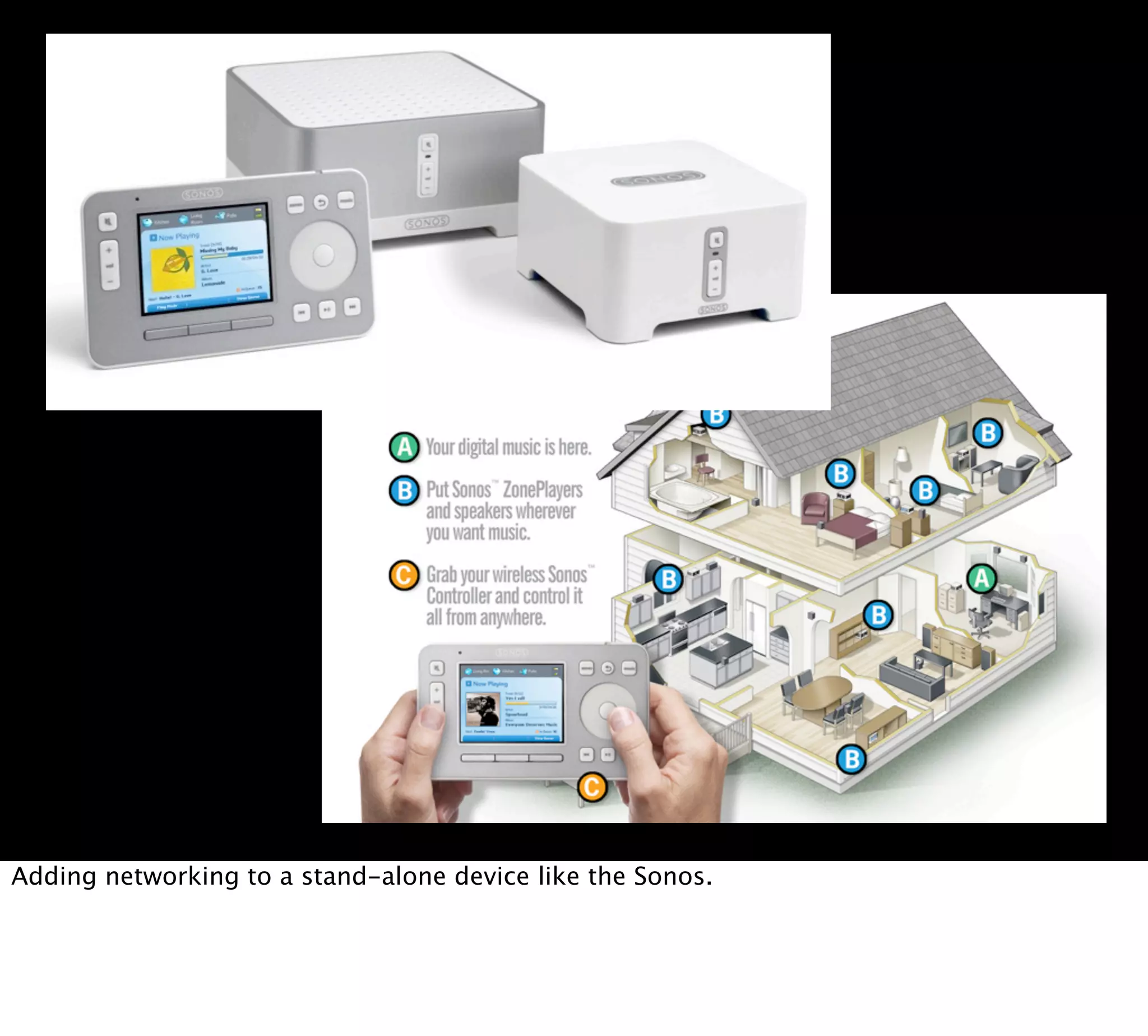

Adding networking to a stand-alone device like the Sonos.

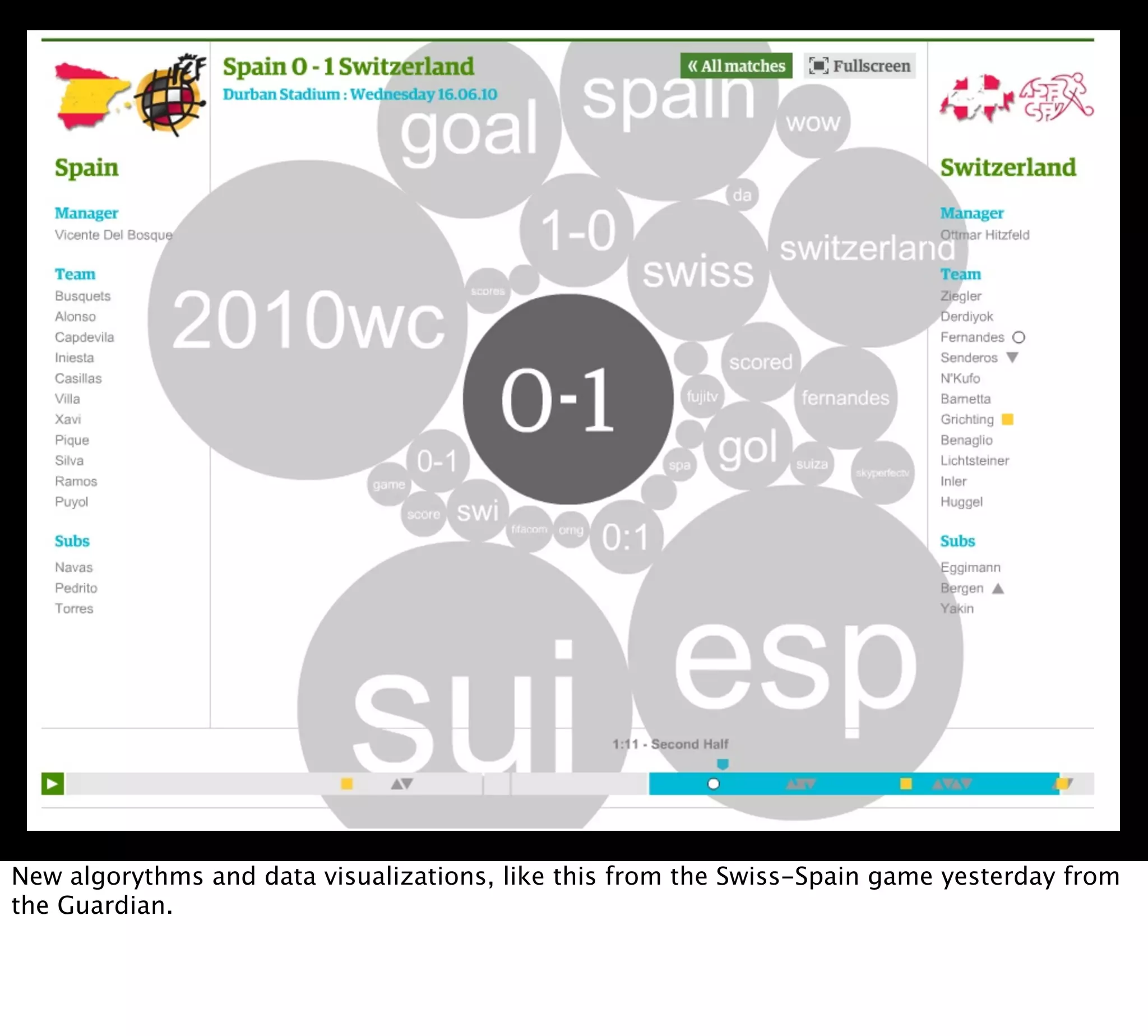

New algorythms and data visualizations, like this from the Swiss-Spain game yesterday from
the Guardian.

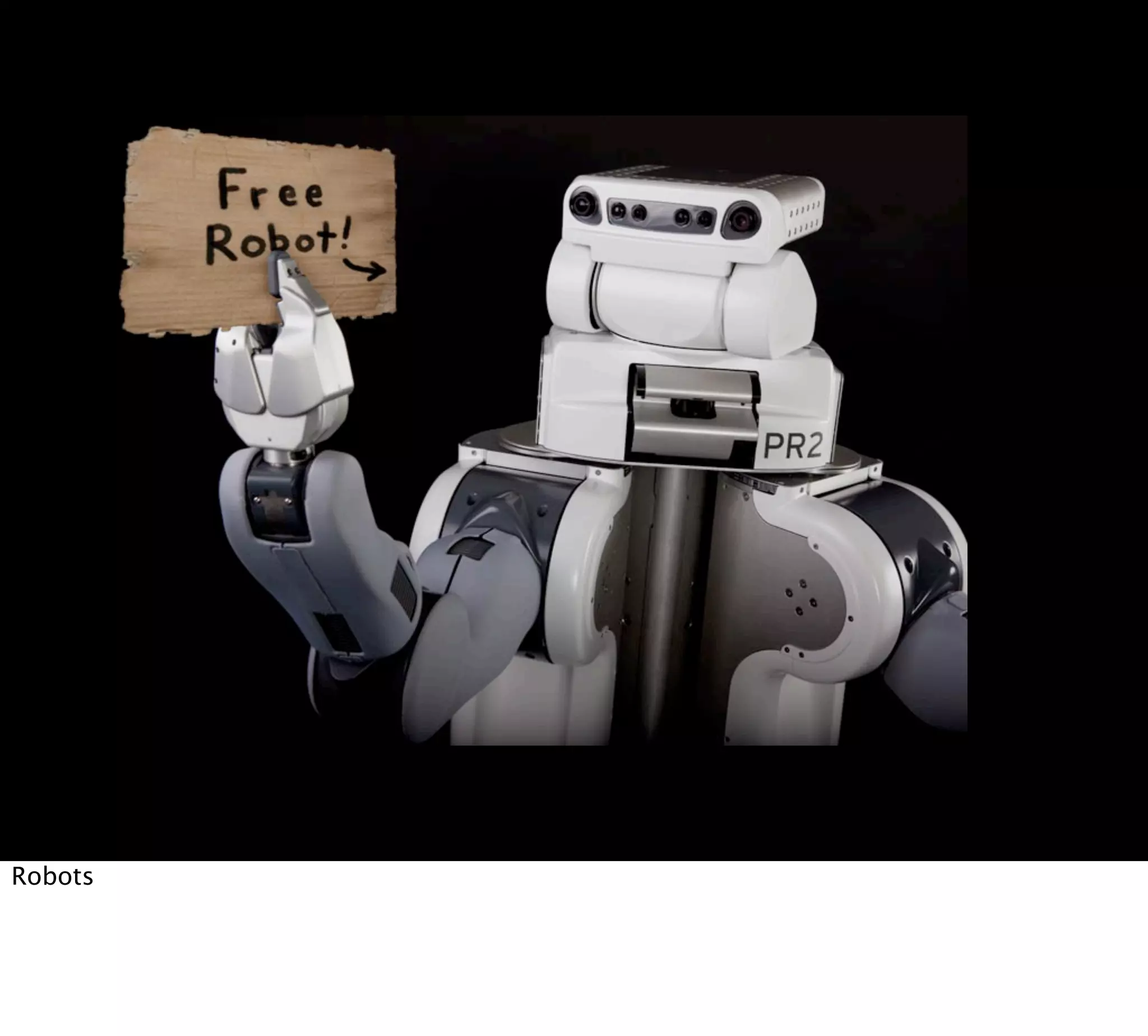

Robots

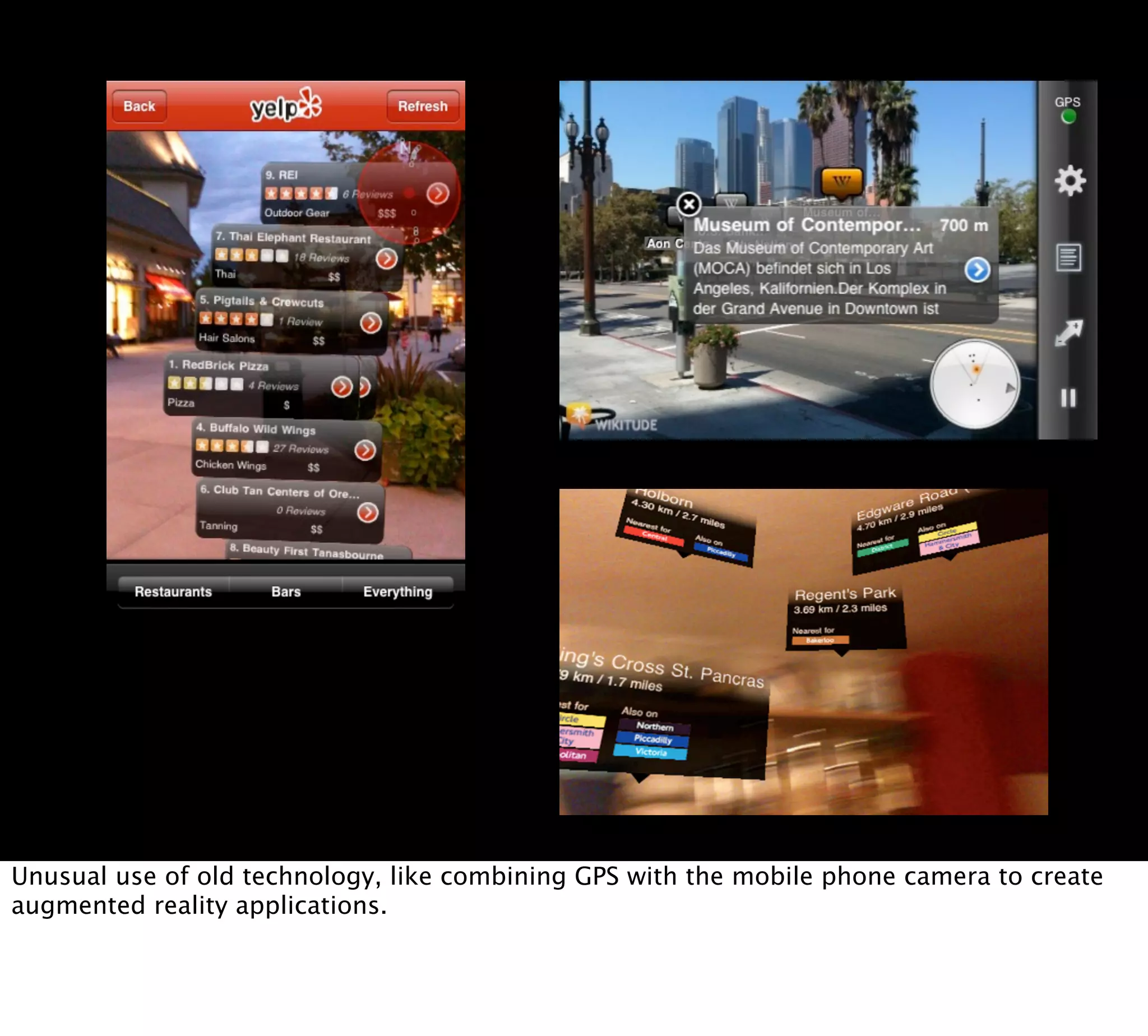

Unusual use of old technology, like combining GPS with the mobile phone camera to create
augmented reality applications.

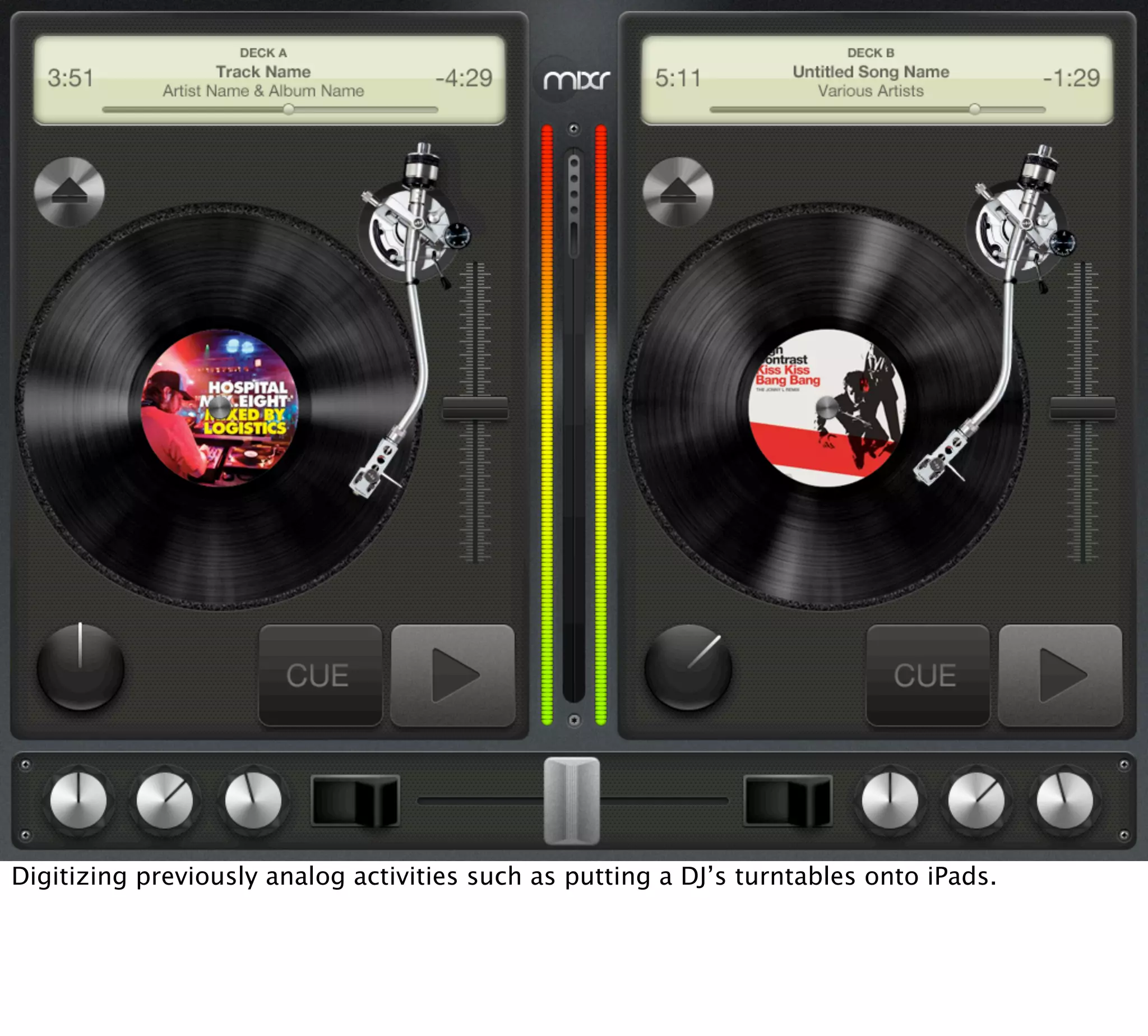

Digitizing previously analog activities such as putting a DJ’s turntables onto iPads.

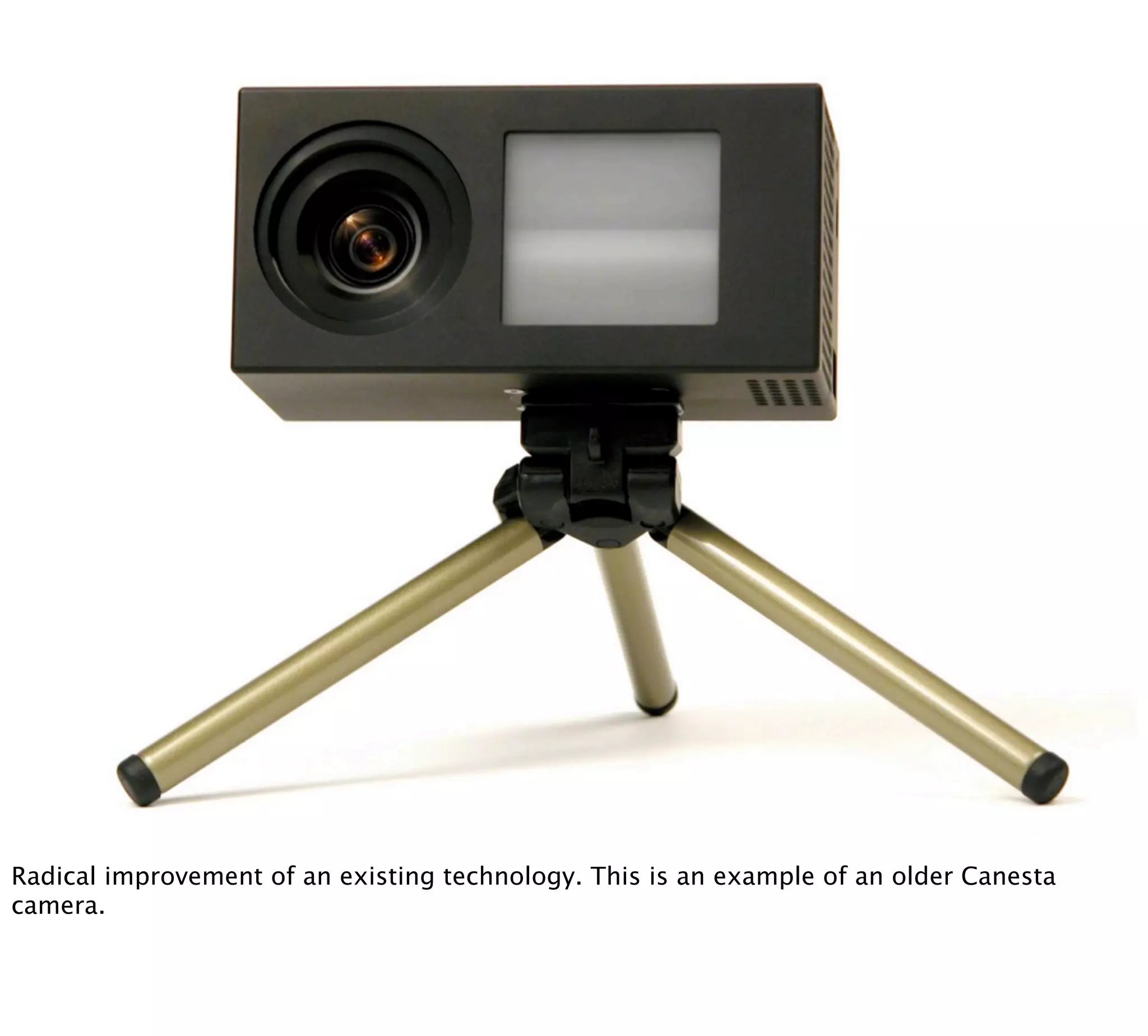

Radical improvement of an existing technology. This is an example of an older Canesta
camera.

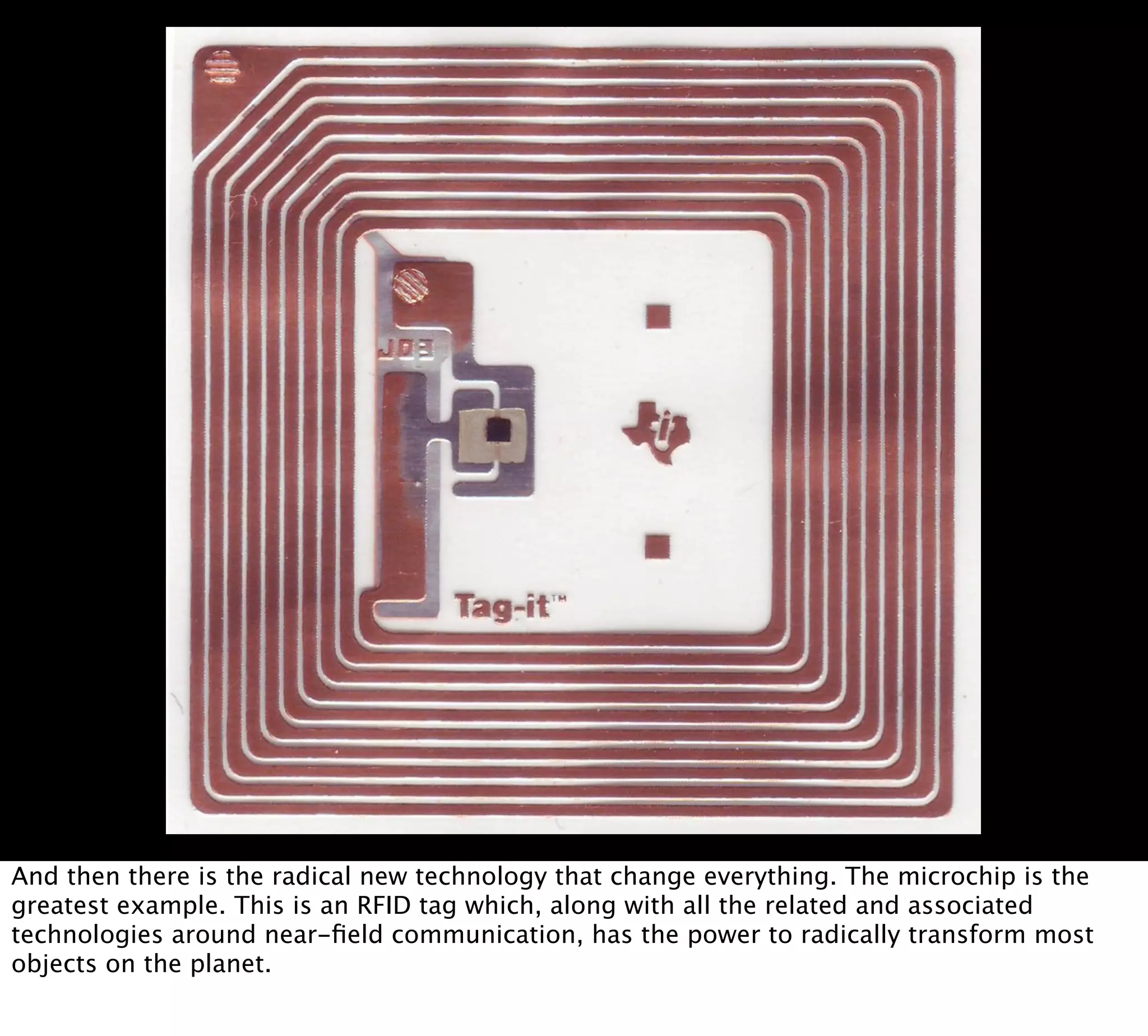

And then there is the radical new technology that change everything. The microchip is the
greatest example. This is an RFID tag which, along with all the related and associated
technologies around near-field communication, has the power to radically transform most
objects on the planet.

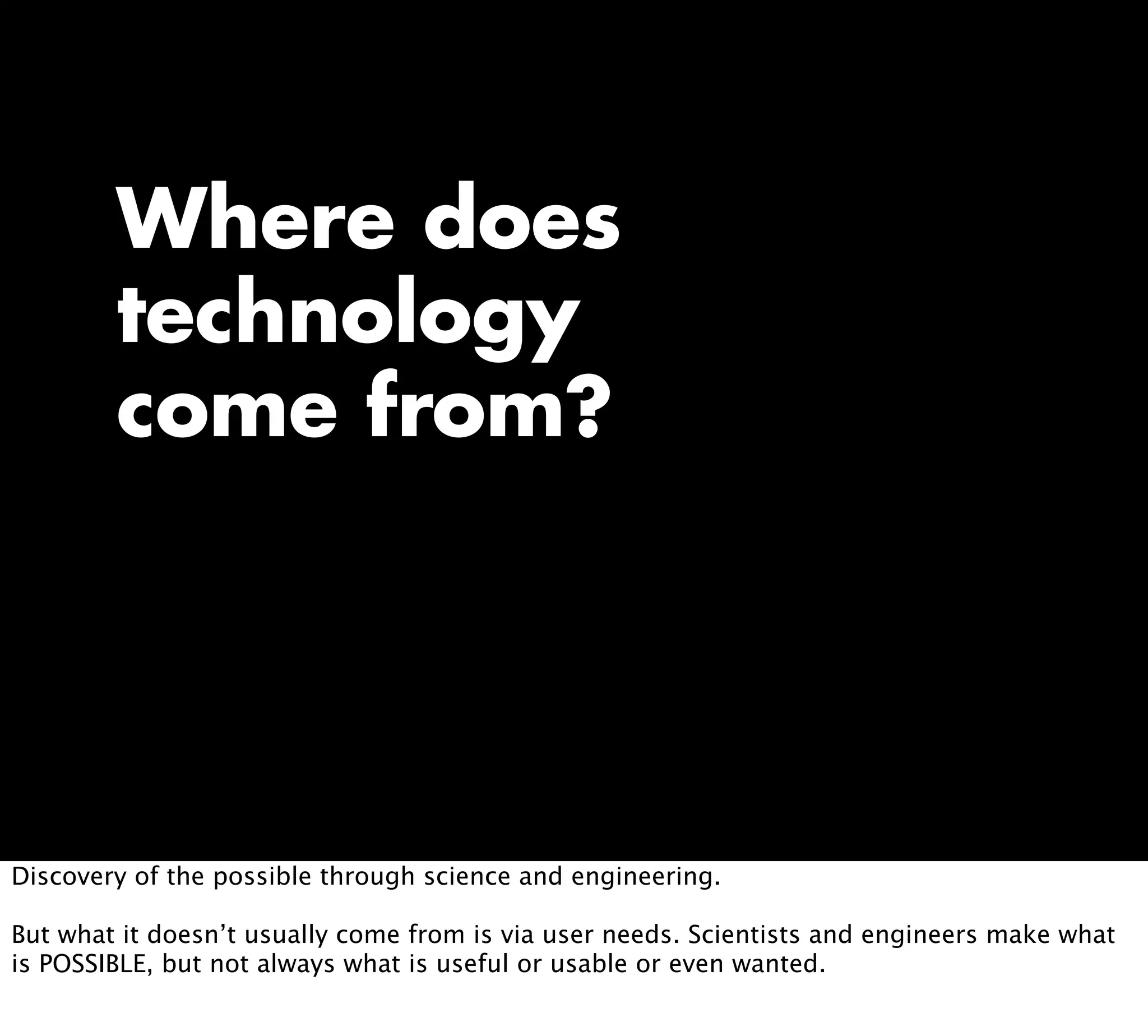

Where does
technology
come from?
Discovery of the possible through science and engineering.
But what it doesn’t usually come from is via user needs. Scientists and engineers make what
is POSSIBLE, but not always what is useful or usable or even wanted.
Although we would prefer to believe
that conceptual breakthroughs occur
because of a detailed consideration of
human needs, especially fundamental
but unspoken hidden needs so beloved
by the design research community, the
fact is that it simply doesn't happen.
Don Norman
Don says, rightly I think, that the technology comes first, then the need for it comes later.
That’s where we come in. Designers help give the technology meaning. People will rightly ask
What does it do? How should I use this? And most importantly WHY should I use this? As
designers, it’s our job to help answer those questions.

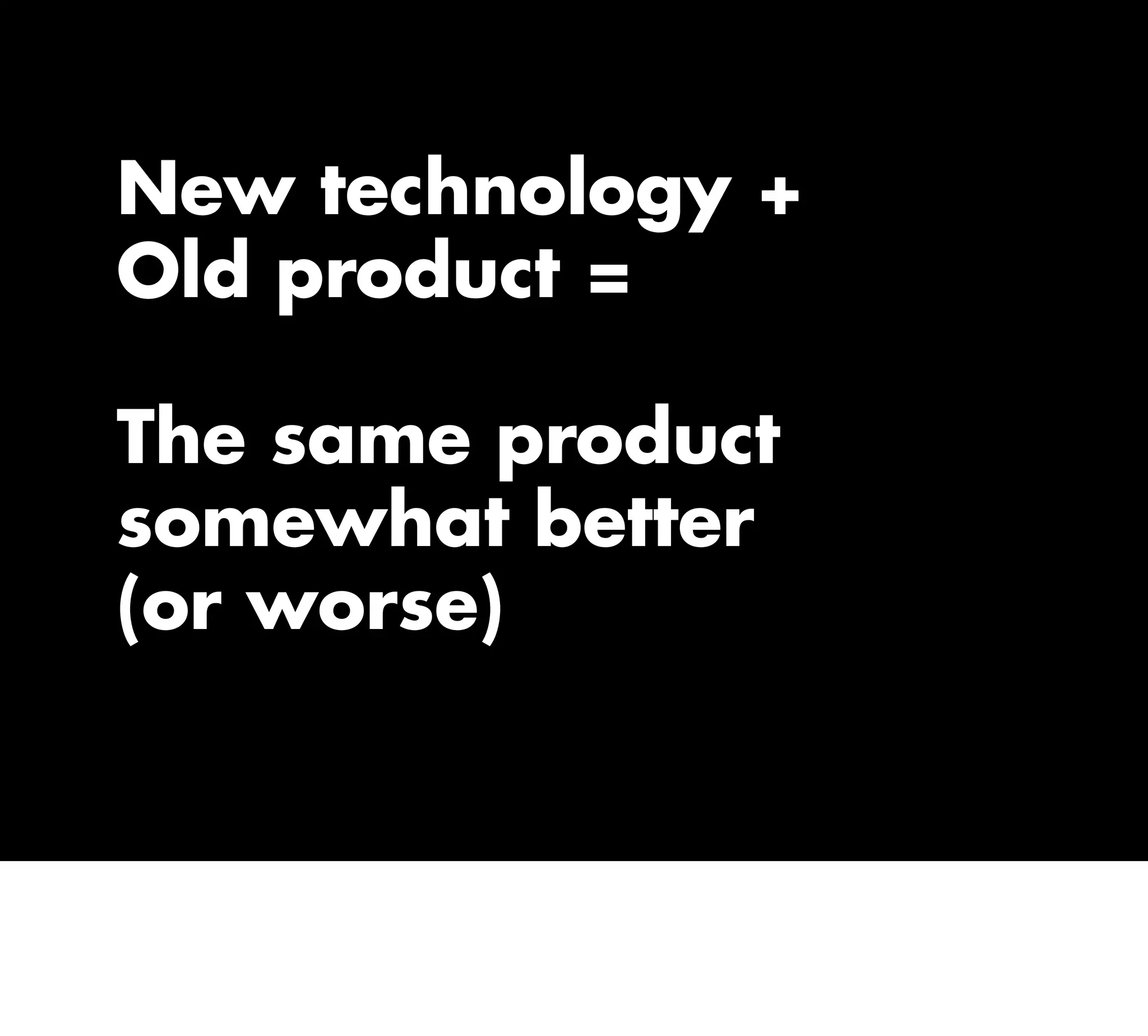

New technology +
Old product =
The same product
somewhat better
(or worse)

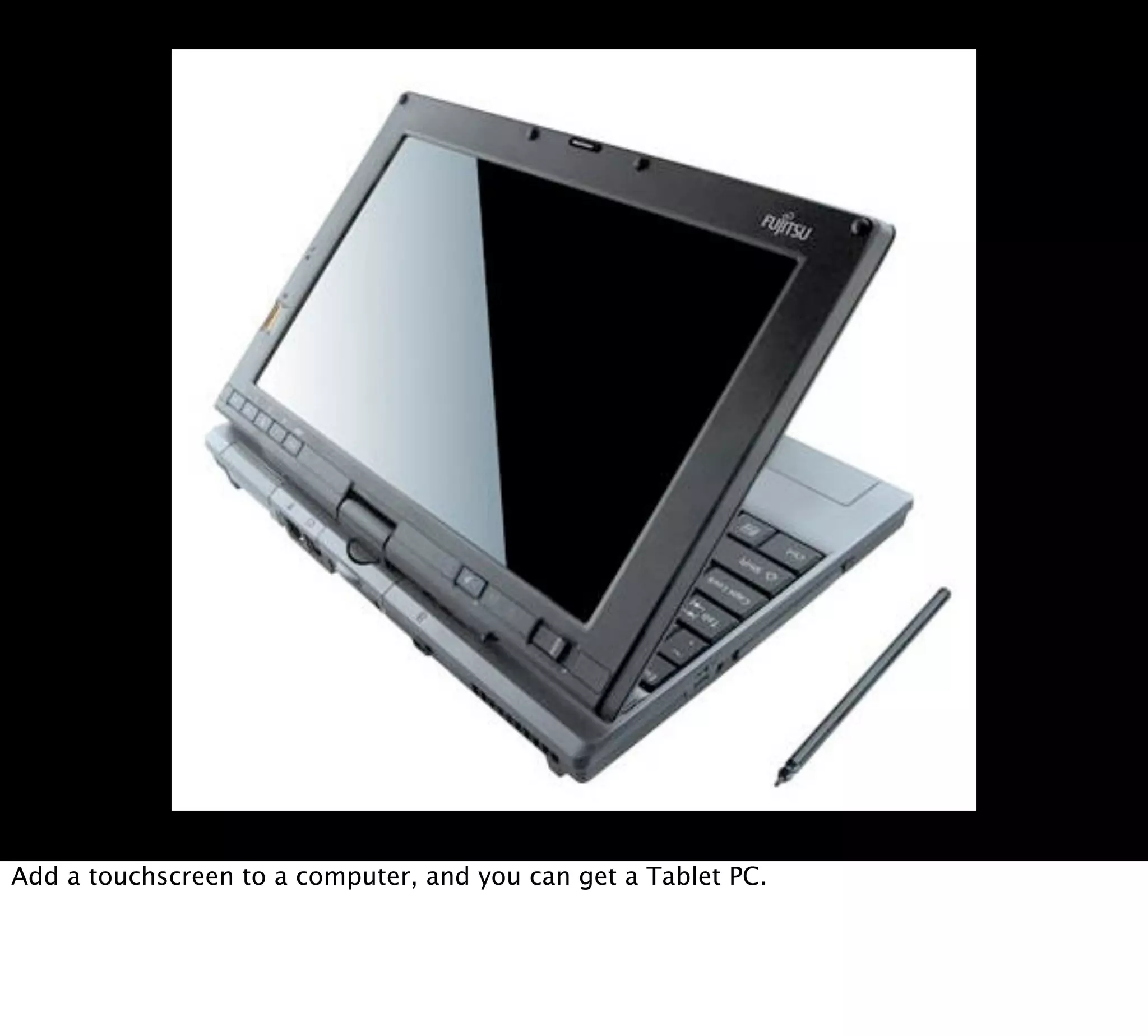

Add a touchscreen to a computer, and you can get a Tablet PC.

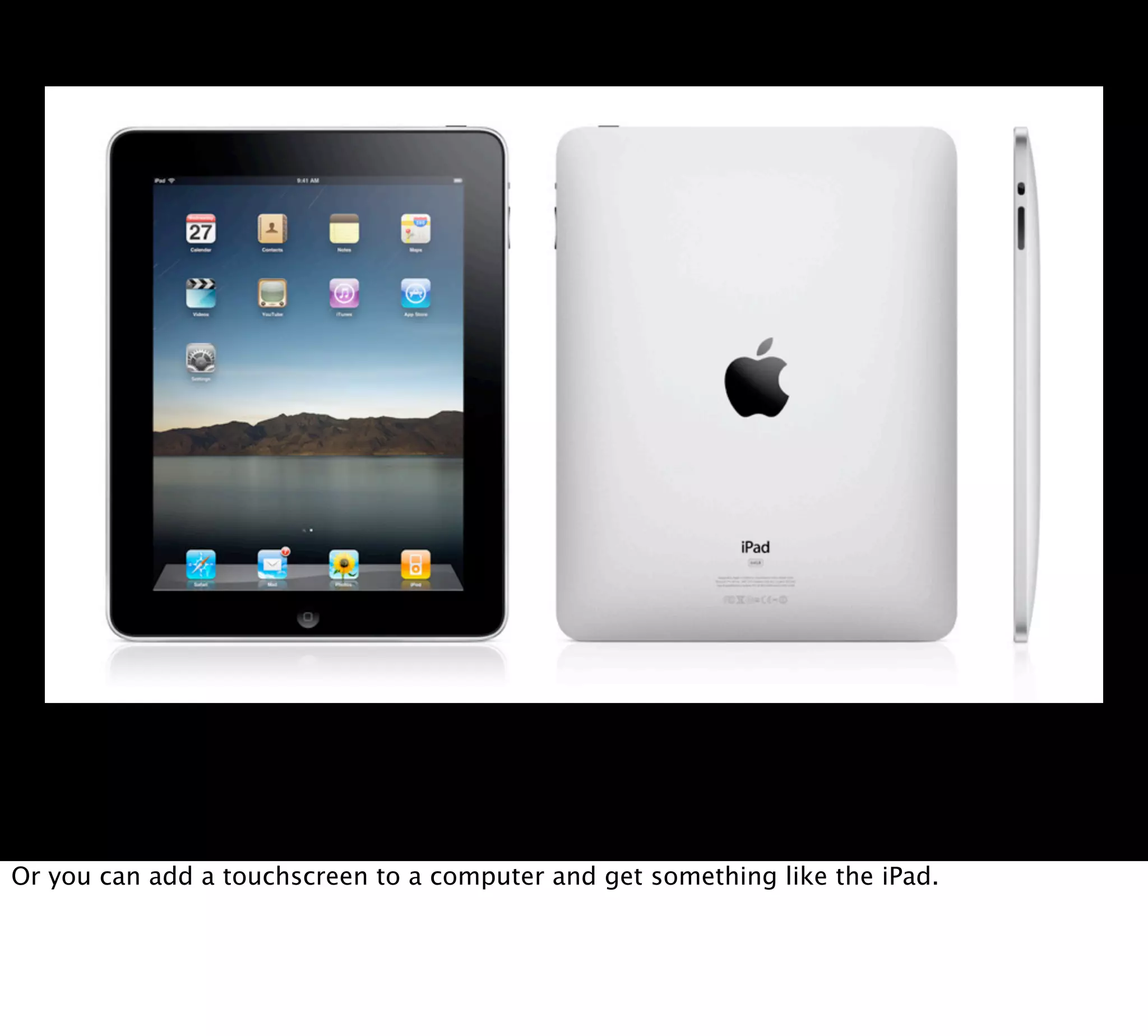

Or you can add a touchscreen to a computer and get something like the iPad.
New technology +
Old product =
A different product
What you decide is up to you and your strategic goals. In some cases, it makes sense to not
change the meaning of the product.
but creating a new product that redefines what the product is is a very powerful product
differentiator.
Practical Considerations
Expectations
Personality

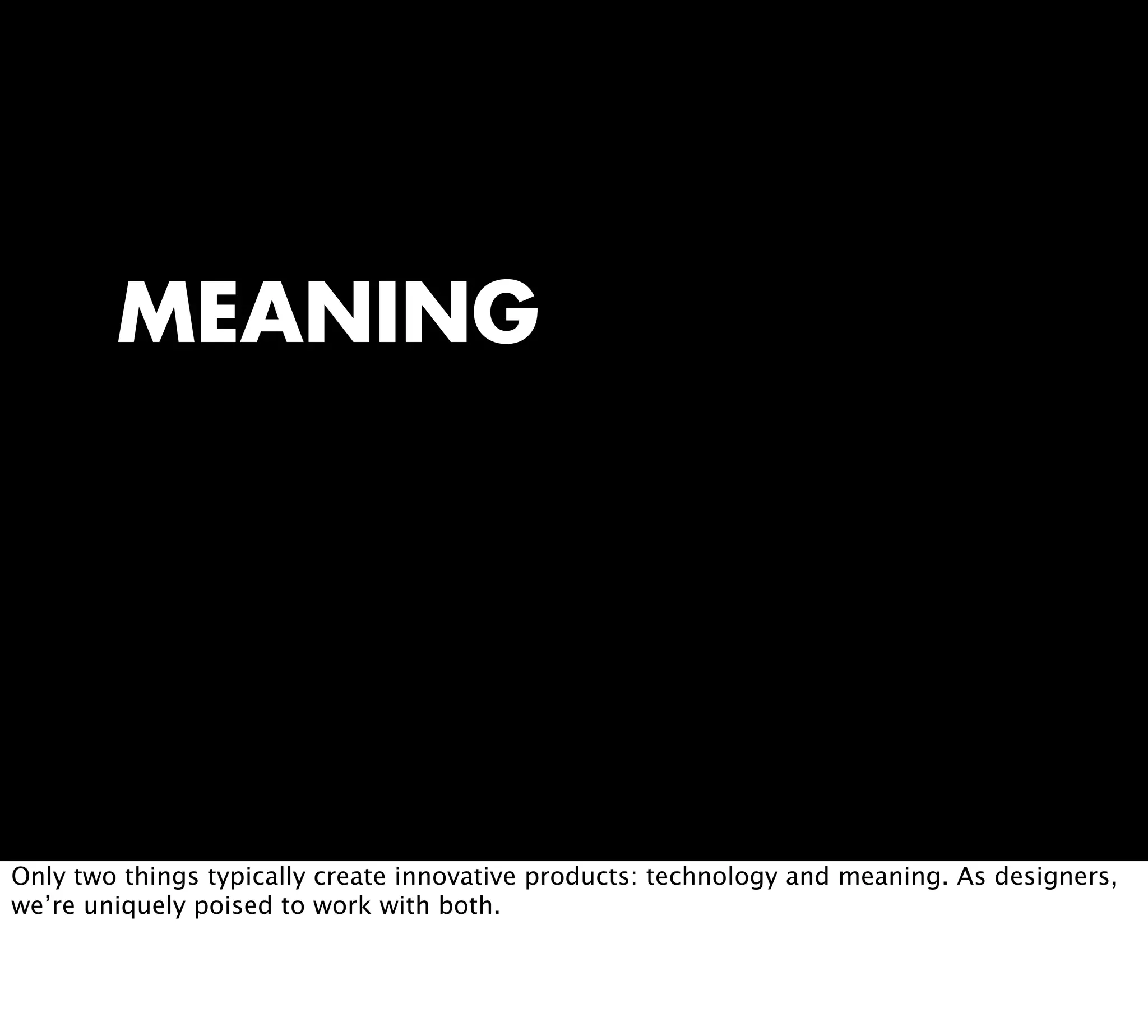

Meaning
Here’s what this talk is going to cover.

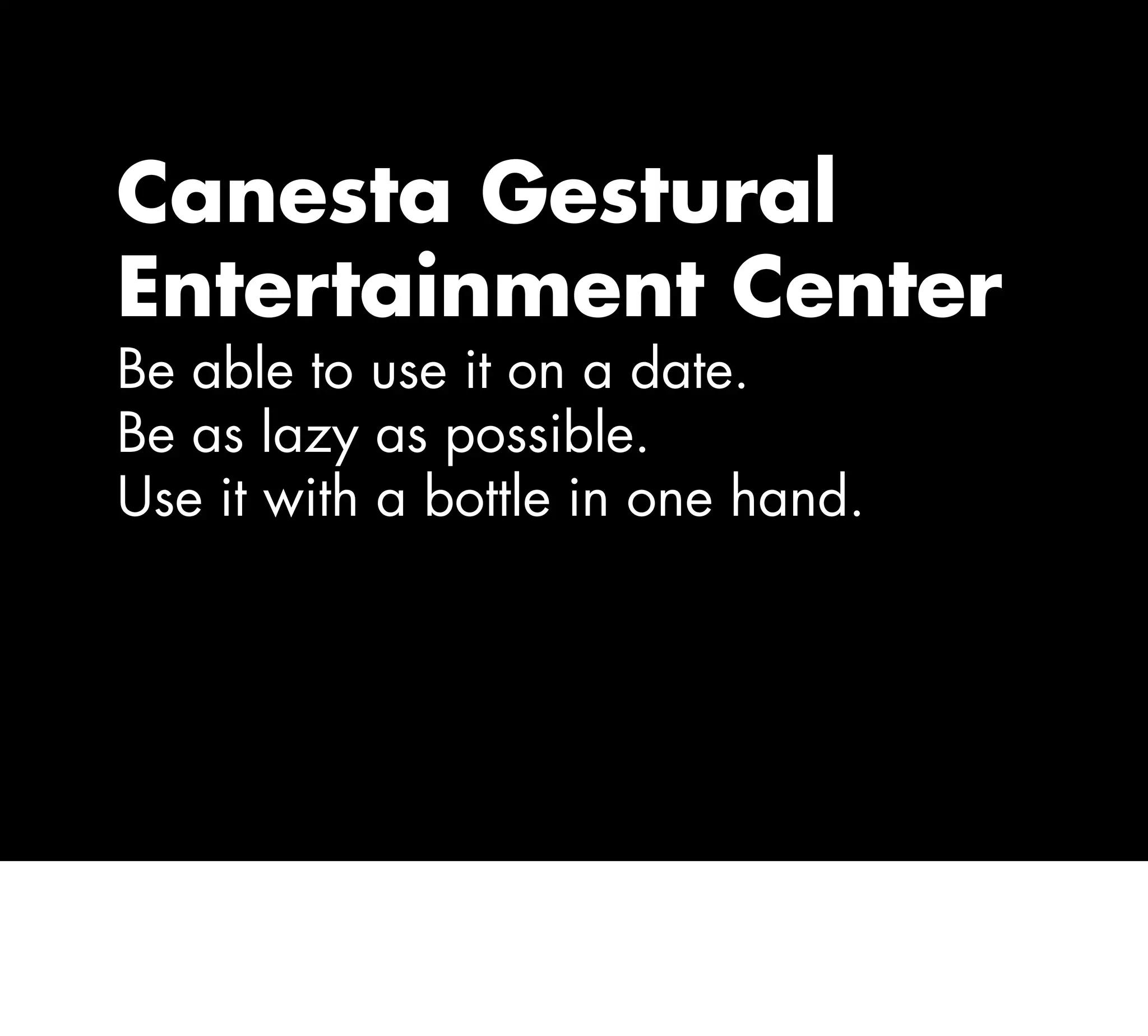

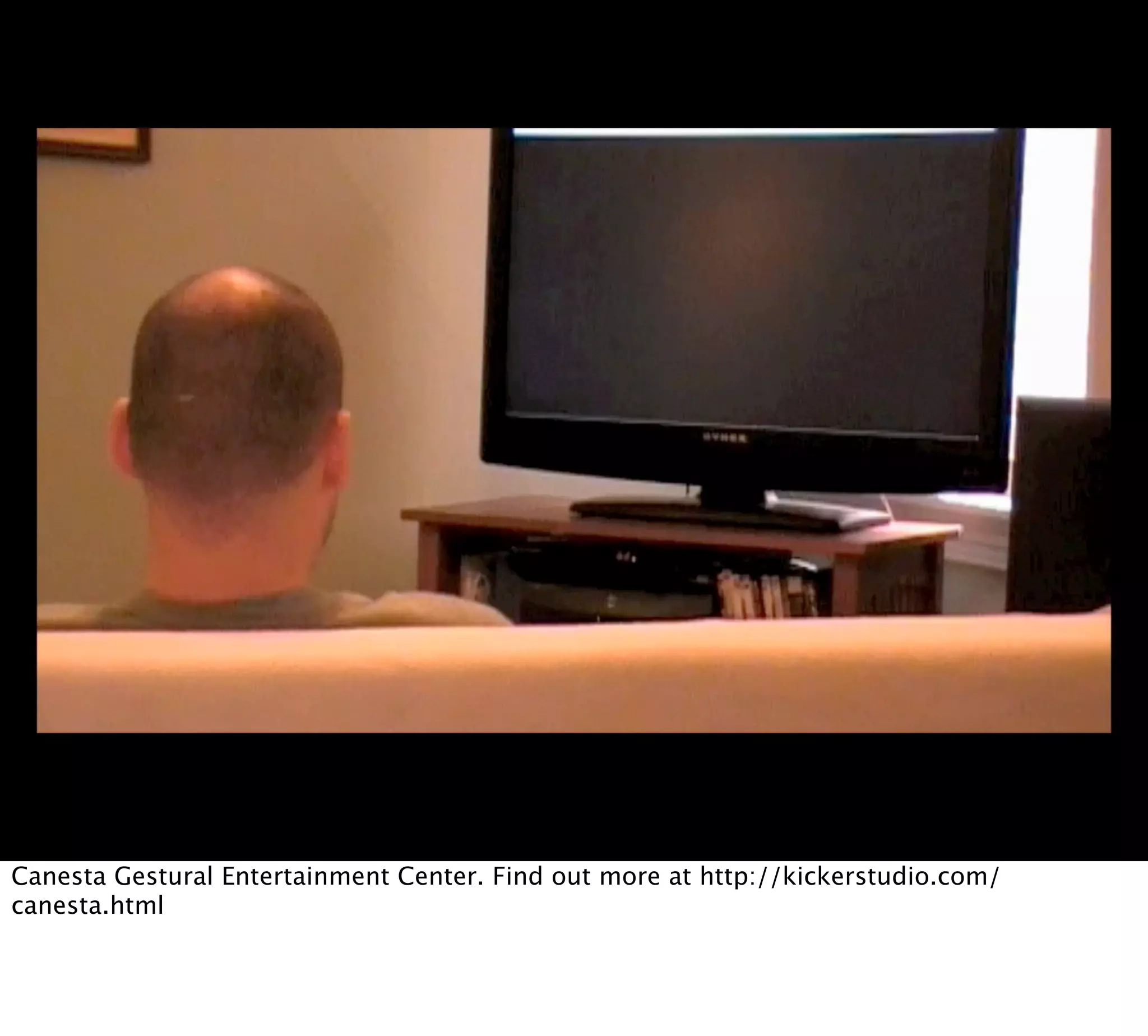

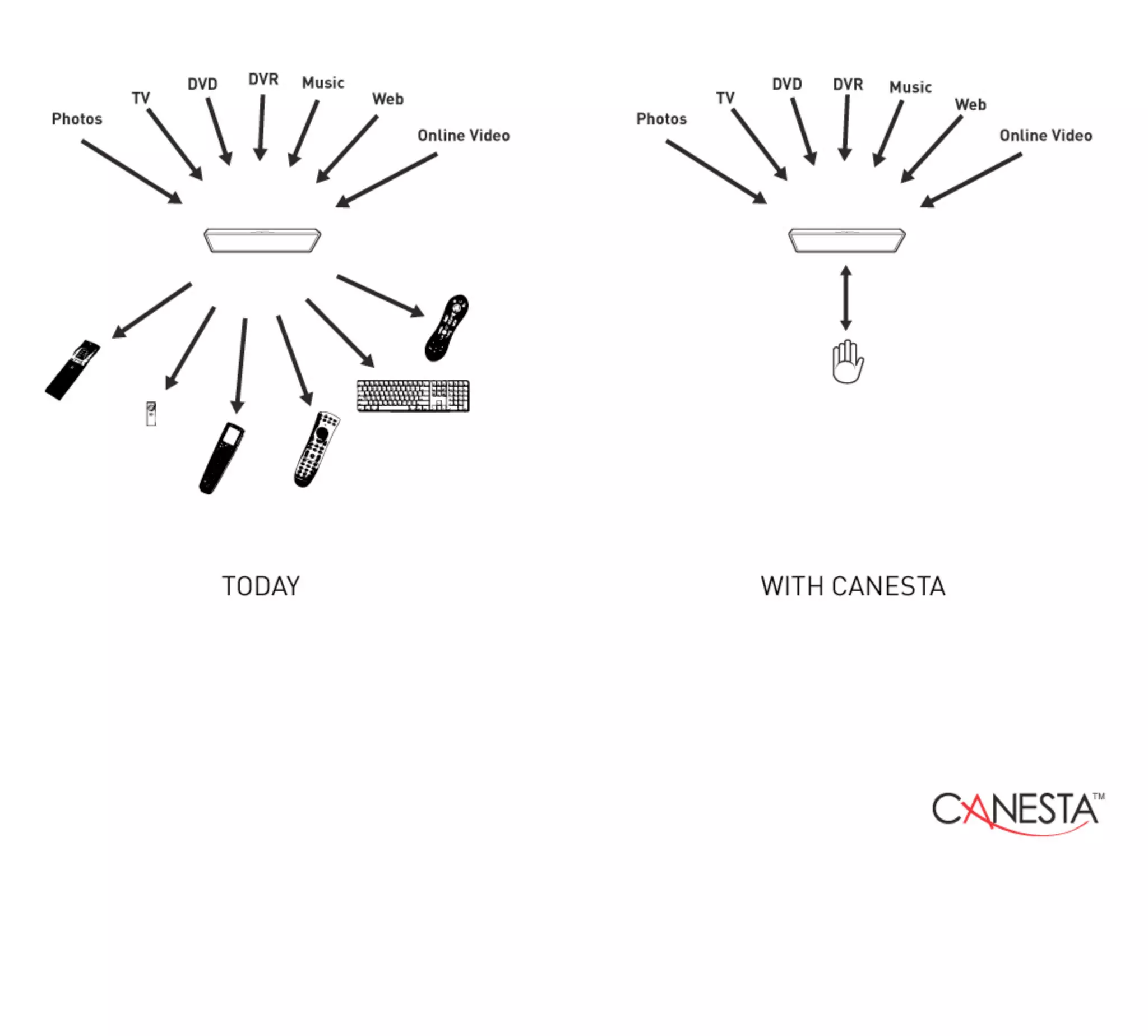

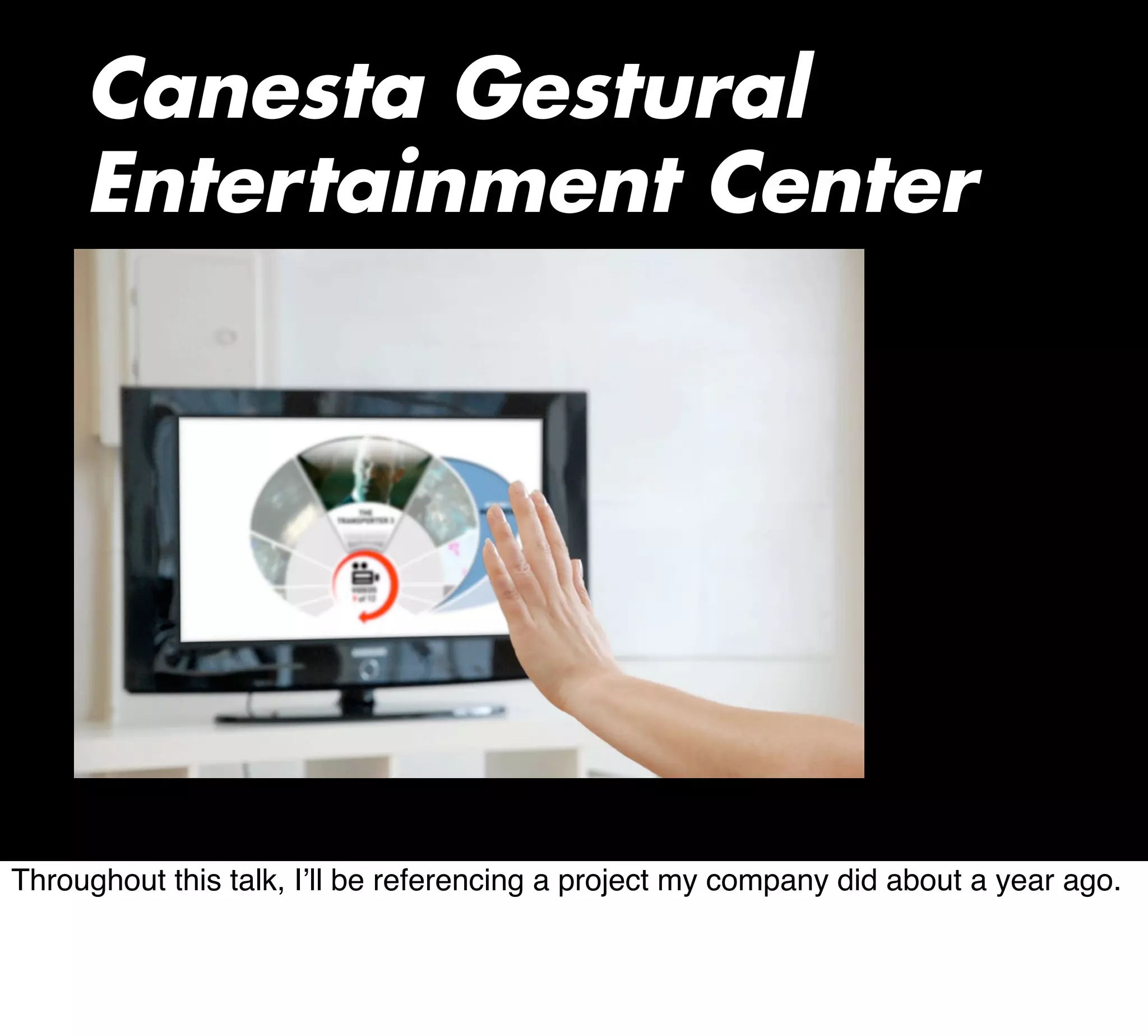

Canesta Gestural
Entertainment Center
Throughout this talk, I’ll be referencing a project my company did about a year ago.
Canesta Gestural Entertainment Center. Find out more at http://kickerstudio.com/
canesta.html
PRACTICAL
CONSIDERATIONS
Before we dive into the more theoretical topics, let’s talk about some things to keep in mind.

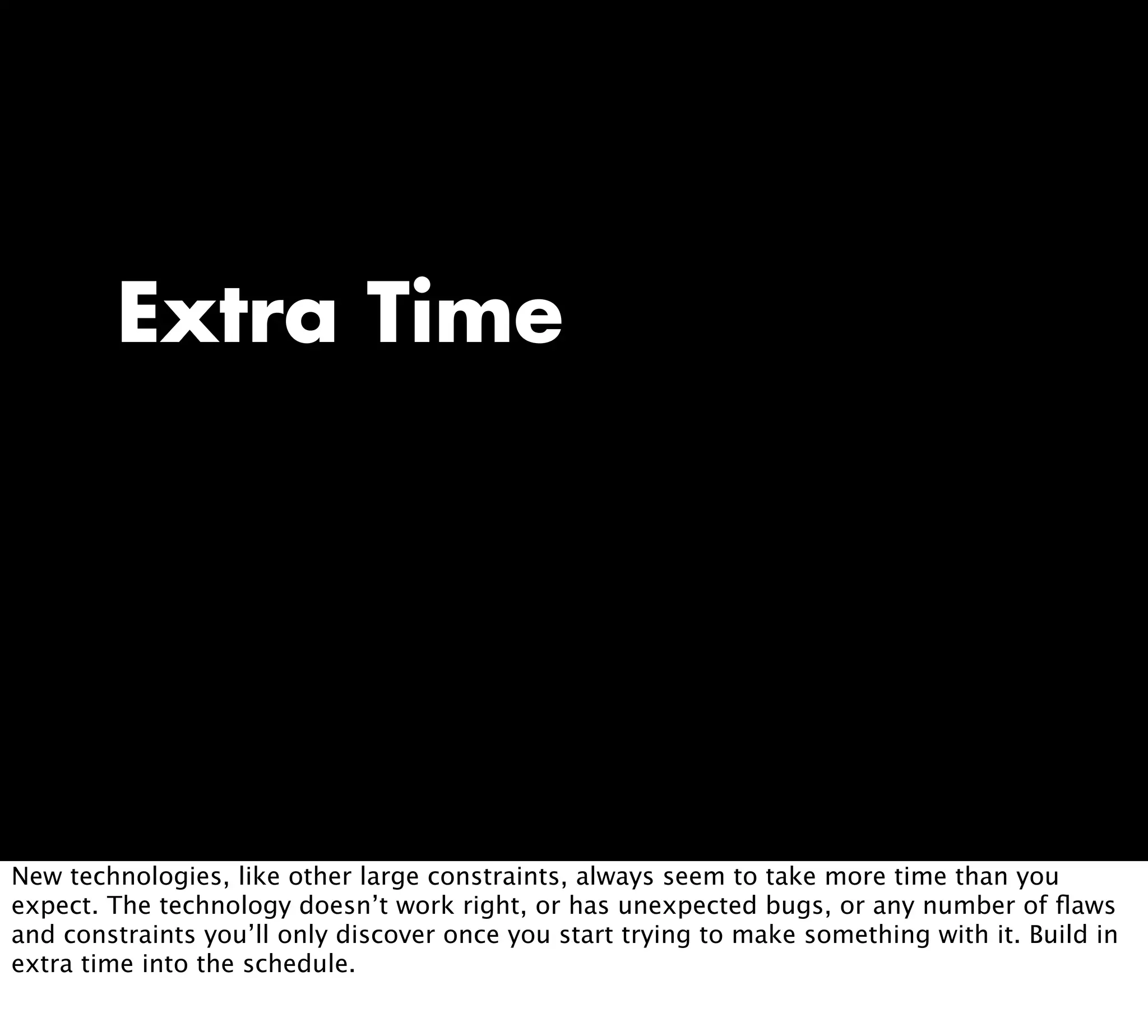

Extra Time
New technologies, like other large constraints, always seem to take more time than you
expect. The technology doesn’t work right, or has unexpected bugs, or any number of flaws
and constraints you’ll only discover once you start trying to make something with it. Build in
extra time into the schedule.
Limitations of the
Technology + Context
You’re going to be wrestling with two things during the course of the project: the limitations
of the technology (what it CAN’T do) and where the technology is going to be deployed. By
context, I mean the physical or digital space where the technology is likely to be used. (With a
mobile technology, this is obviously a harder challenge.)
When we did the Canesta TV project, we observed people and ourselves watching TV to see what we
did. This definitely changed the kinds of gestures we were going to choose. [Mute story] This is
Jennifer Bove, another Kicker principal. She’s wearing gloves because the camera couldn’t see fingers
at the time.
Understand what’s
already there...
When you’re introducing a new technology into an existing environment, you want to make
sure that you understand you understand that environment, even if your technology is going
to disrupt that environment.
...because you could
disrupt it.
When you’re introducing a new technology into an existing environment, you want to make
sure that you understand you understand that environment, even if your technology is going
to disrupt that environment. You want to be able to predict HOW the disruption is going to
happen, so that it doesn’t negatively affect the environment.

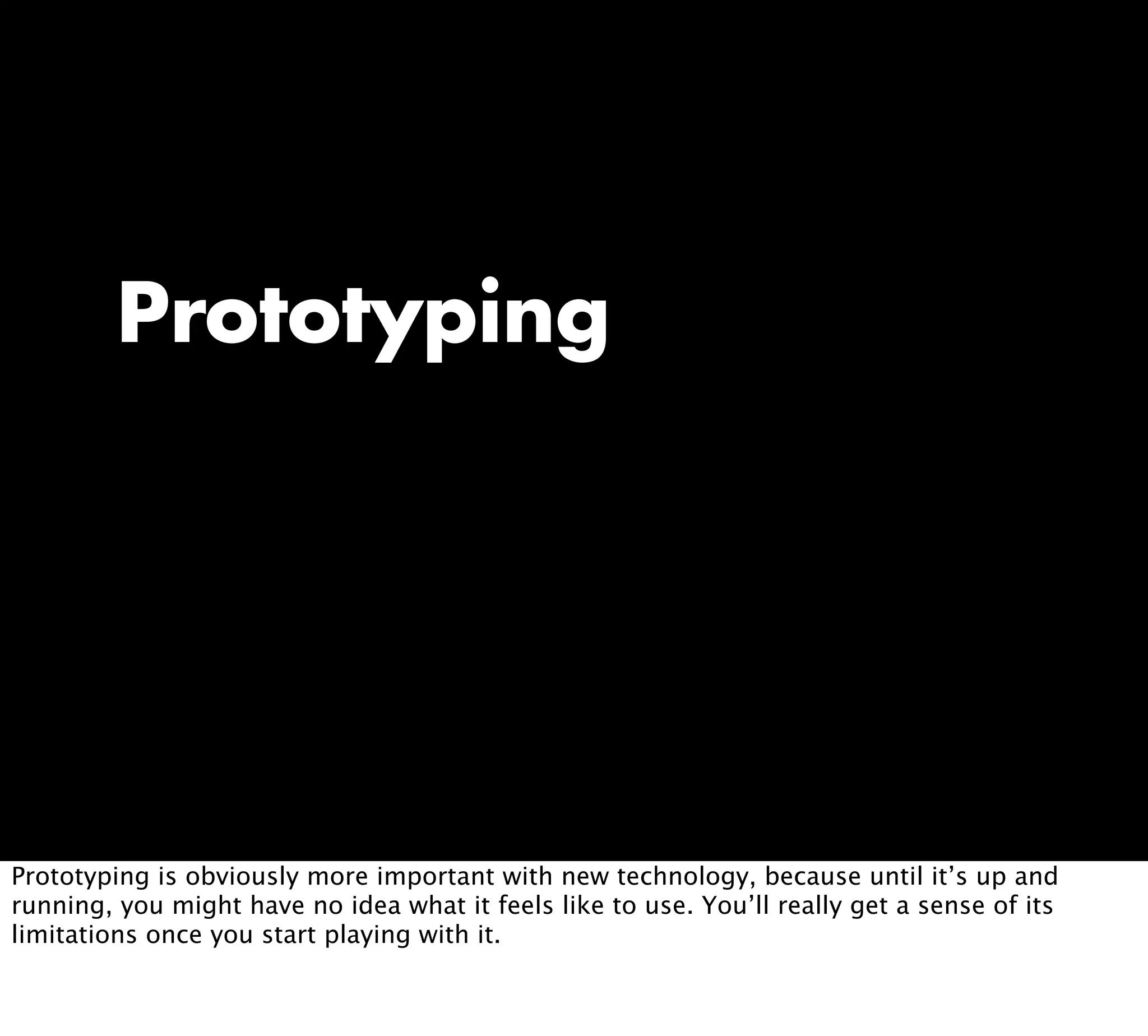

Prototyping
Prototyping is obviously more important with new technology, because until it’s up and
running, you might have no idea what it feels like to use. You’ll really get a sense of its
limitations once you start playing with it.

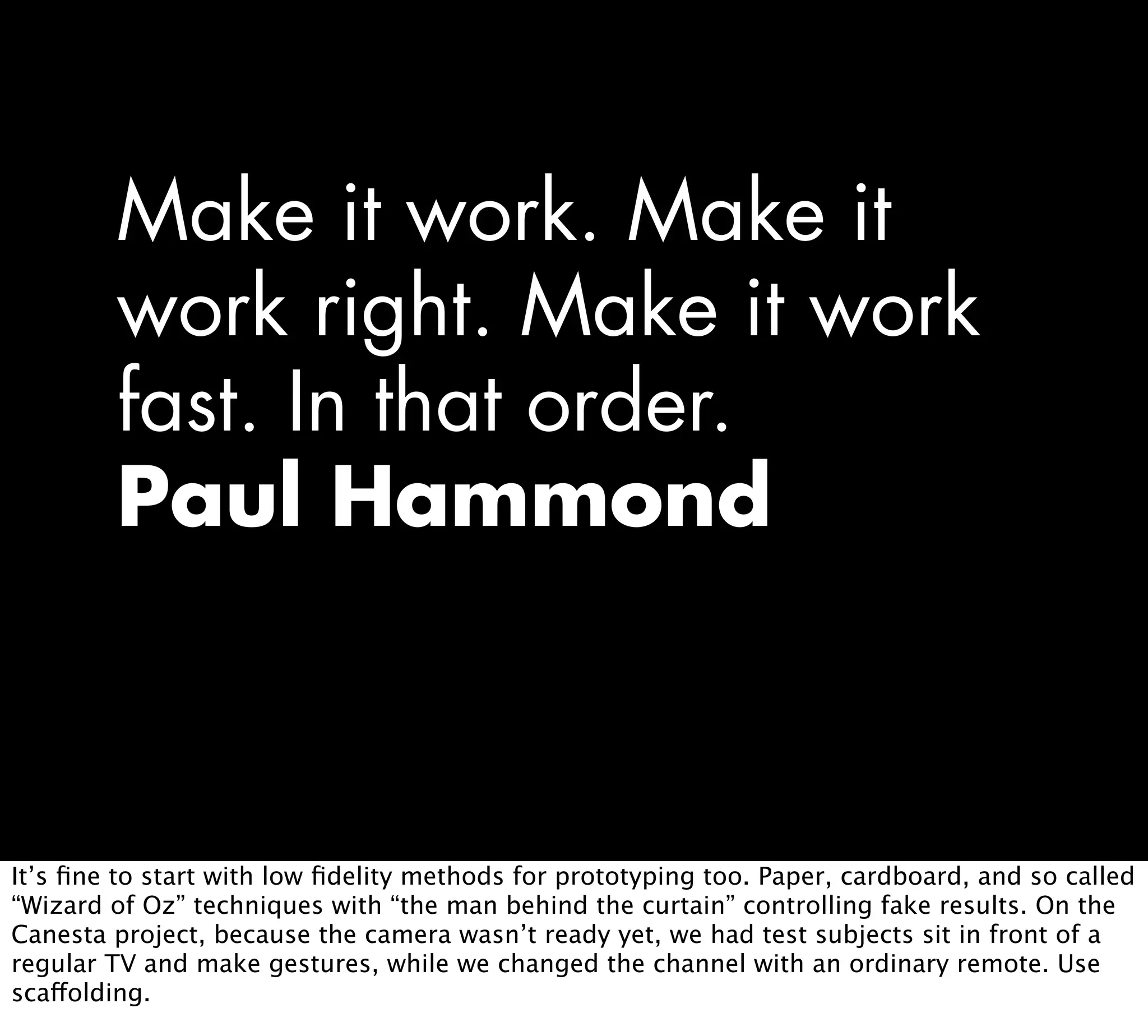

Make it work. Make it
work right. Make it work
fast. In that order.
Paul Hammond
It’s fine to start with low fidelity methods for prototyping too. Paper, cardboard, and so called
“Wizard of Oz” techniques with “the man behind the curtain” controlling fake results. On the
Canesta project, because the camera wasn’t ready yet, we had test subjects sit in front of a
regular TV and make gestures, while we changed the channel with an ordinary remote. Use
scaffolding.

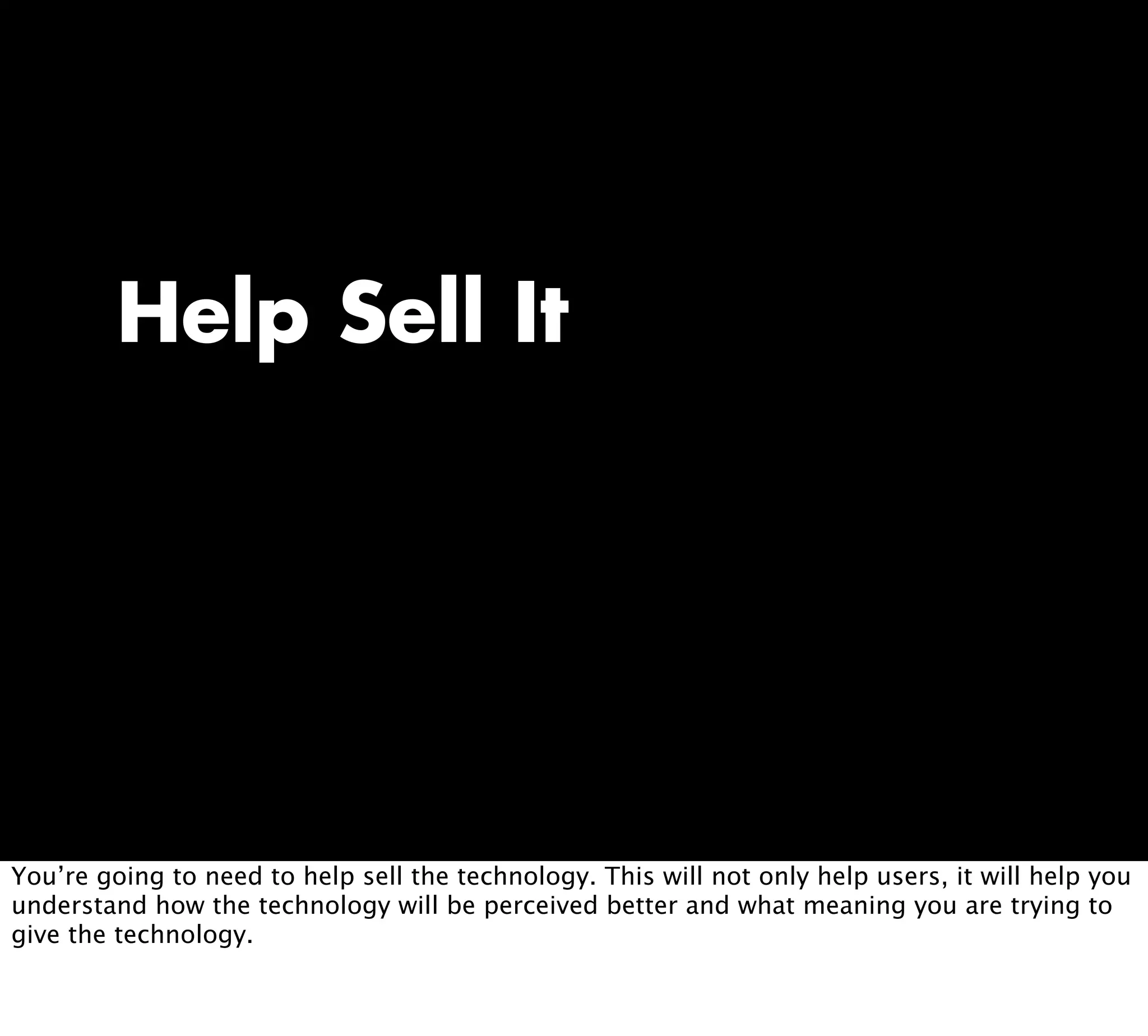

Help Sell It
You’re going to need to help sell the technology. This will not only help users, it will help you
understand how the technology will be perceived better and what meaning you are trying to
give the technology.
For Canesta, we produced a series of marketing images to help make the technology more
appealing and better understood.
Words matter.
What you call the technology and HOW you explain it is extremely important for potential
users’ comprehension of what it is.

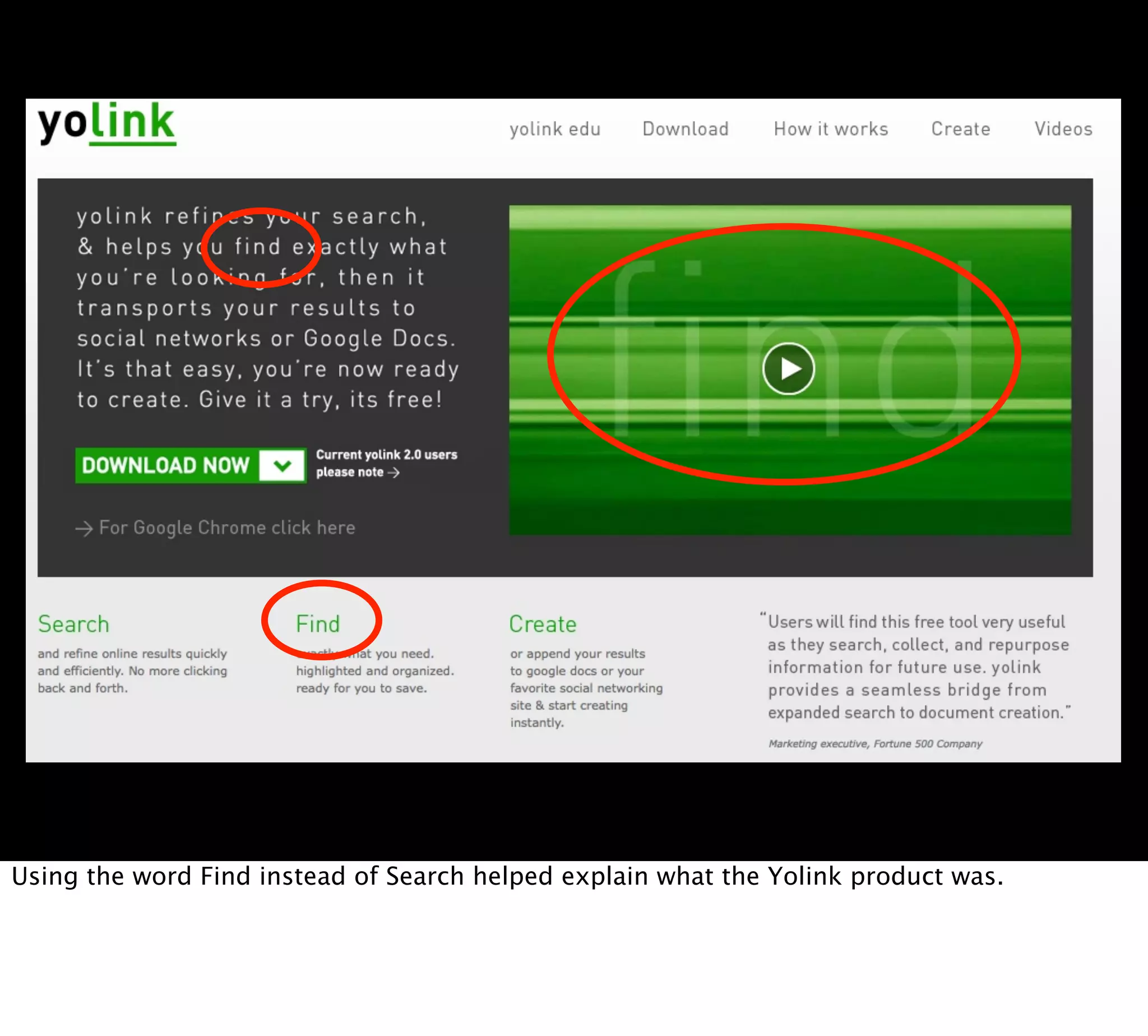

Using the word Find instead of Search helped explain what the Yolink product was.
Testing
As with anything new, testing prototypes with users is recommended, with one caveat:

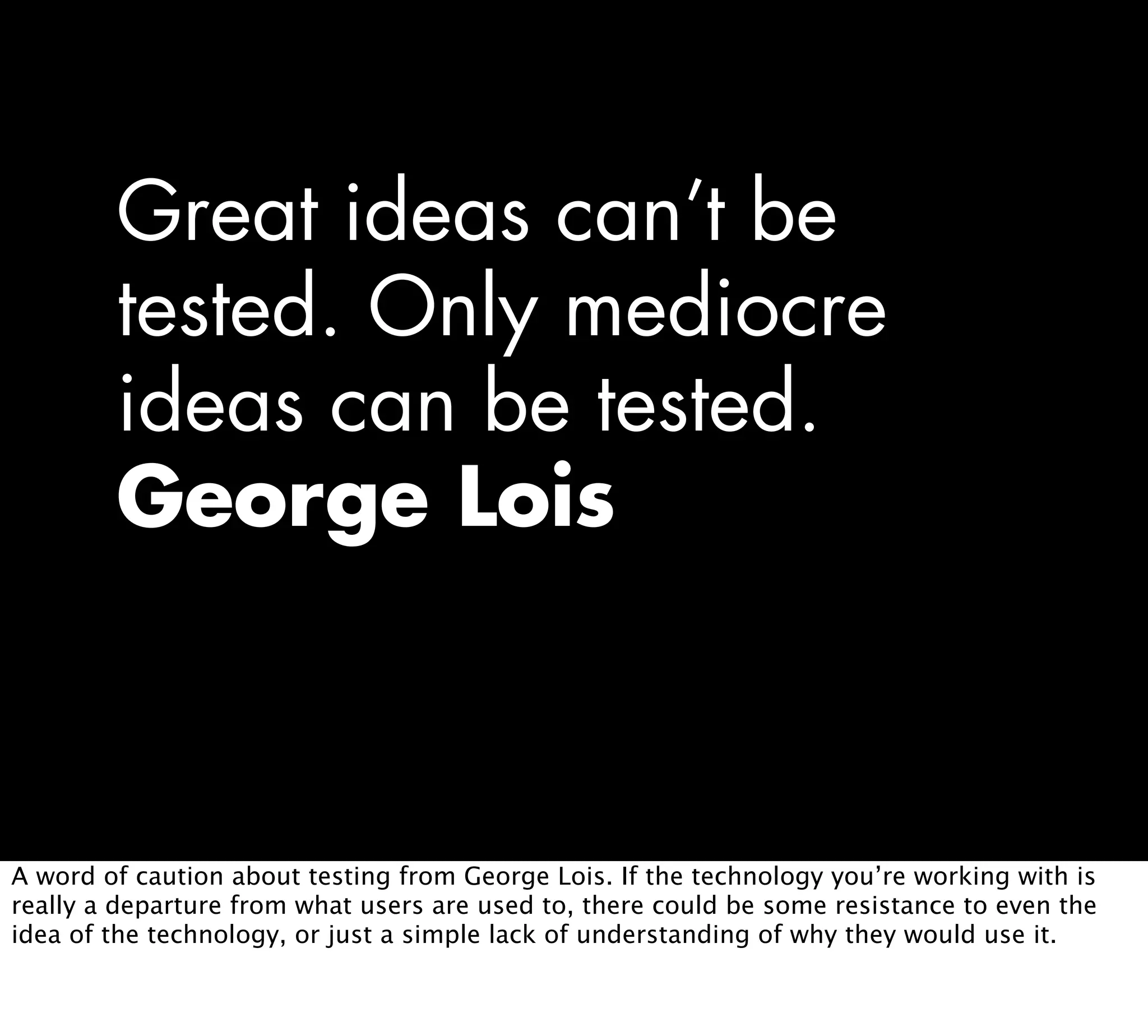

Great ideas can’t be
tested. Only mediocre
ideas can be tested.
George Lois
A word of caution about testing from George Lois. If the technology you’re working with is
really a departure from what users are used to, there could be some resistance to even the
idea of the technology, or just a simple lack of understanding of why they would use it.

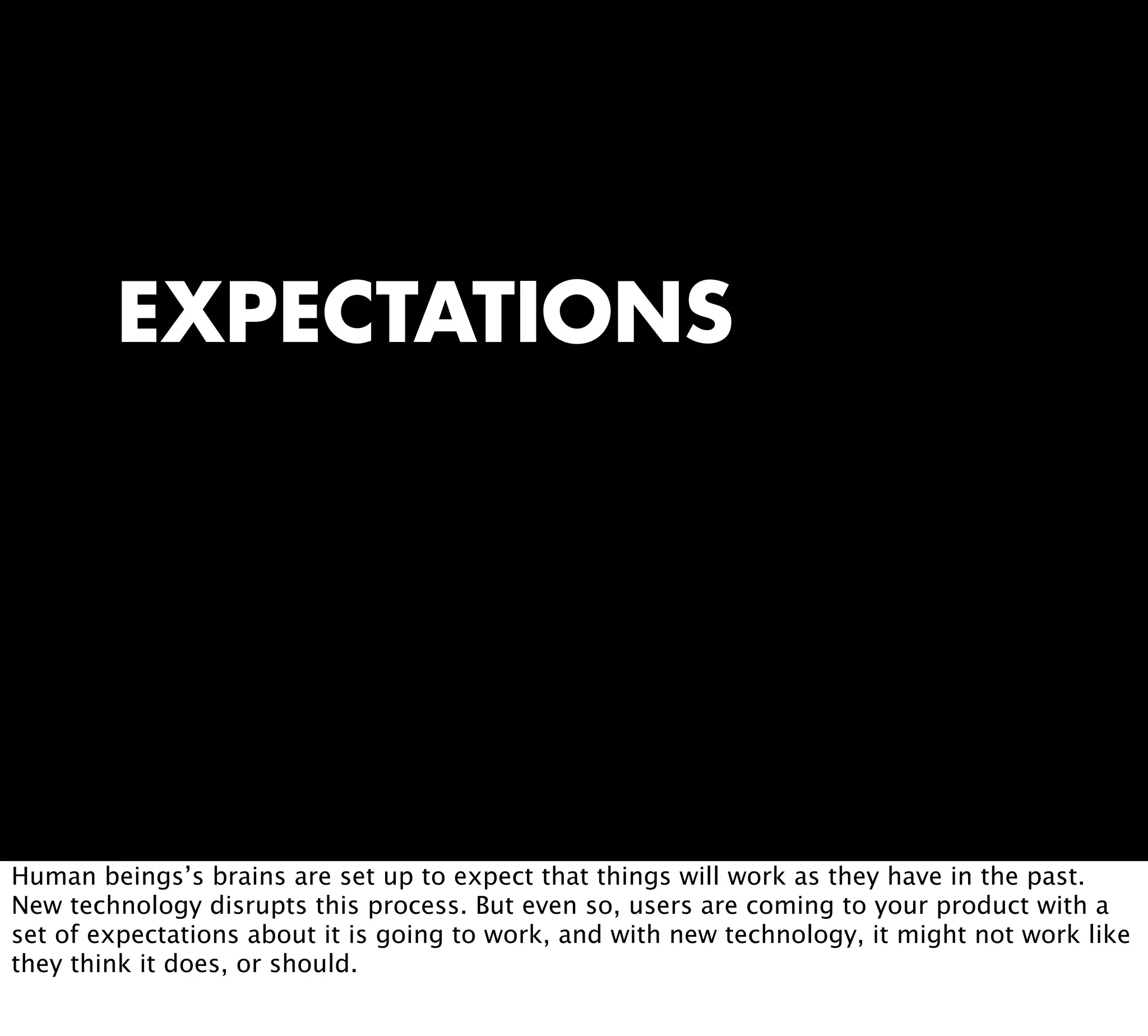

EXPECTATIONS
Human beings’s brains are set up to expect that things will work as they have in the past.
New technology disrupts this process. But even so, users are coming to your product with a
set of expectations about it is going to work, and with new technology, it might not work like
they think it does, or should.
We have high expectations for our devices now. And users get used to a level of technology
speed, power, and execution.
M A Y A
It’s good to keep this acronym in mind, invented by this guy, Raymond Loewy, a famous
French-American industrial designer from the mid-20th century. He coined the term MAYA:
Most Advanced, Yet Acceptable. You don’t want your design to be SO radically new that users
have no idea where to even start with it. You need to keep the YA Yet Acceptable in mind.

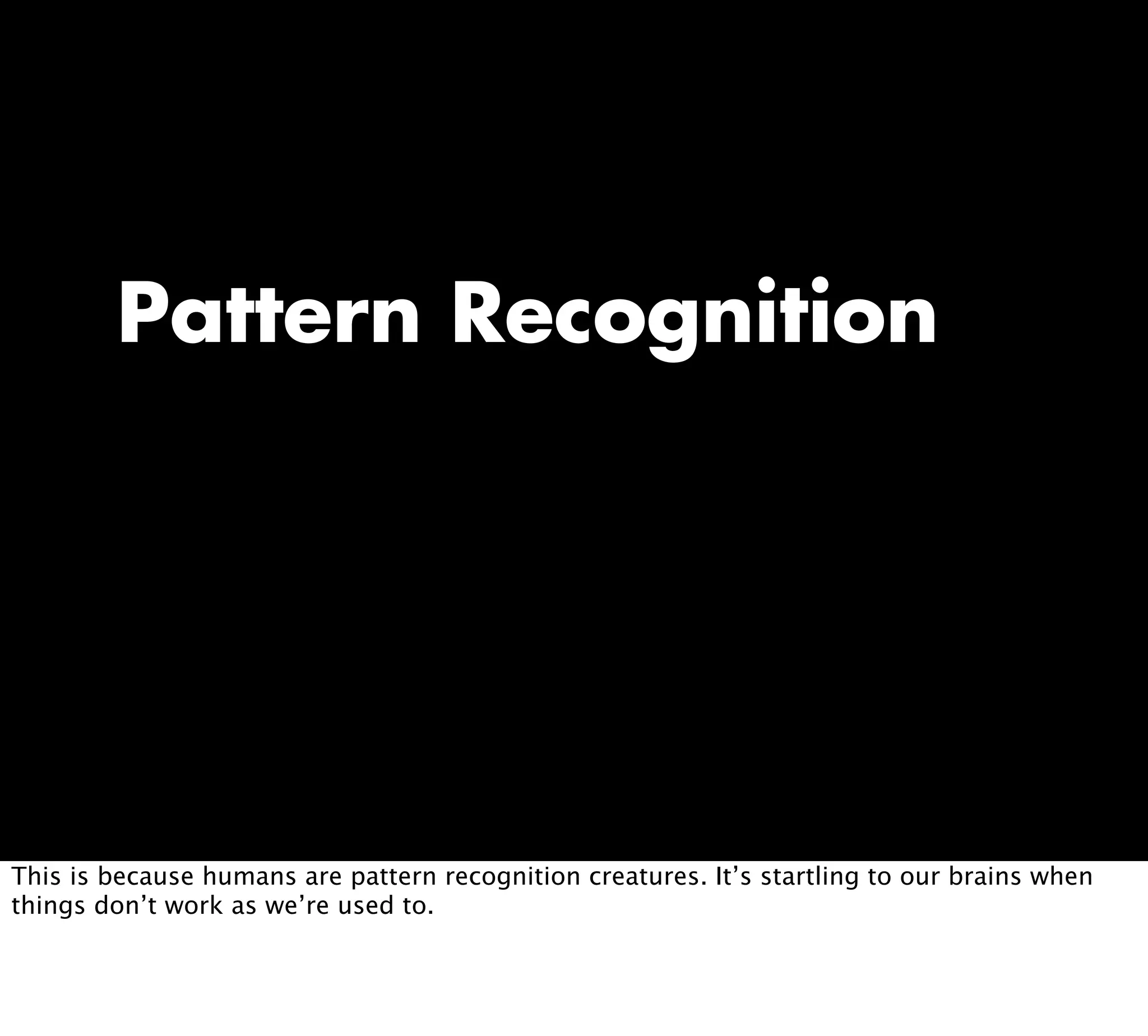

Pattern Recognition
This is because humans are pattern recognition creatures. It’s startling to our brains when
things don’t work as we’re used to.
Predictability...is so
profoundly soothing...it
gives you a sense of
order, that everything’s
going to be all right.
David Foster Wallace
Creating discernible patterns quickly is incredibly important with new technology. You want
the product, although new and exciting, to seem PREDICTABLE.
Once our brains find
a pattern, we make
predictions based on
that pattern.
And if we discover the pattern isn’t there, we feel robbed or cheated or wronged. It’s
dissonance for the brain. It causes tension because we don’t know what’s coming next. We
don’t know how the pattern will resolve.
Follow conventions unless
the new alternative is
measurably better.
Alan Cooper
If you can surround your new technology with conventions users understand, the technology
itself stands a better chance of being adopted.

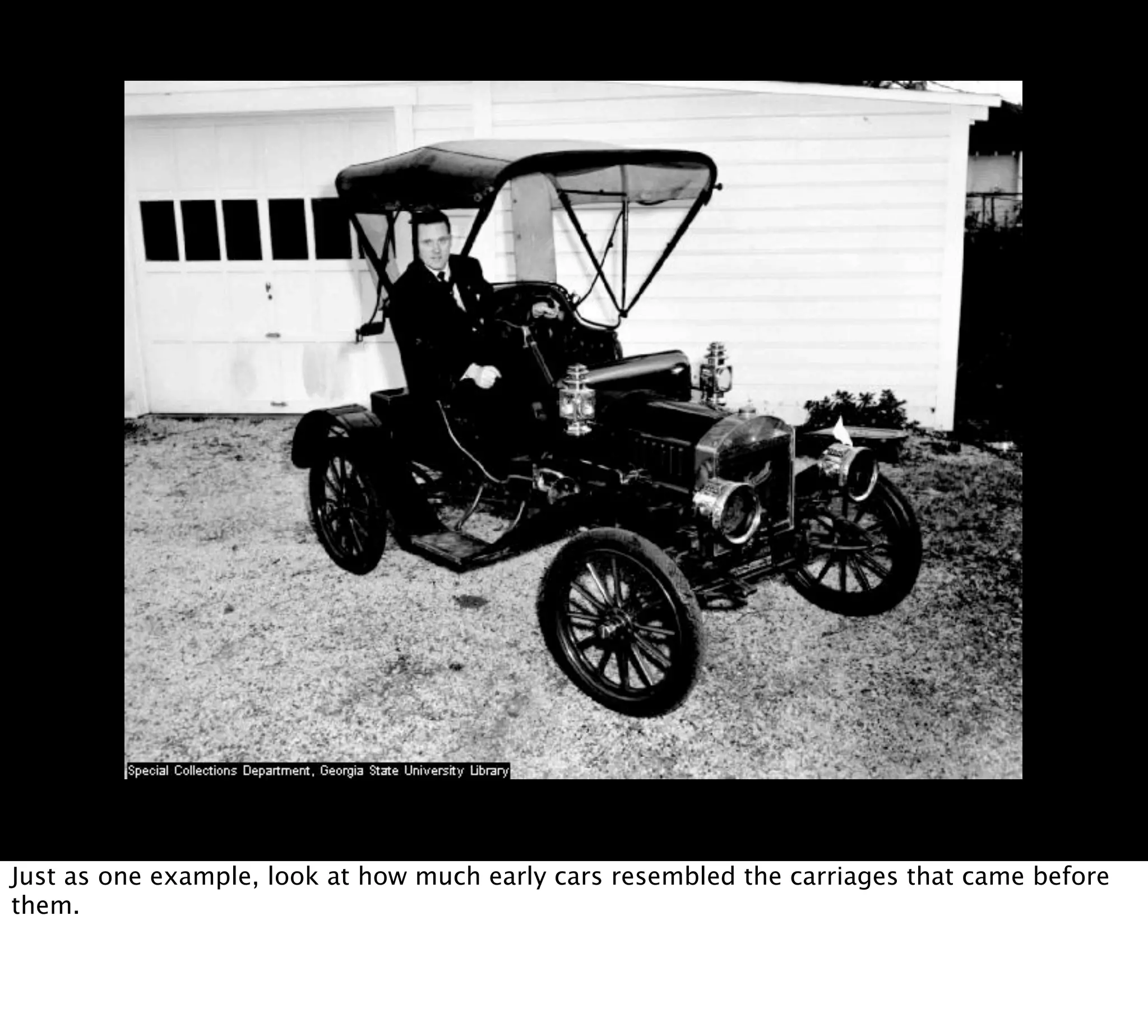

Just as one example, look at how much early cars resembled the carriages that came before
them.
New patterns
eventually become
old patterns.
Luckily, we adapt quickly.
The Of Course Factor
What we should be striving for when working with new technology is this near-immediate
creation of the Of Course factor.
Most companies are
looking to “wow” with
their products, when in
reality what they should
be looking for is an “of
course” reaction.
Christian Lindholm
Done right, the new technology itself will provide the wow factor. So we don’t need to worry
about that. What we need to concern ourselves with is the making the use of the new
technology seem OBVIOUS and PREDICTABLE.

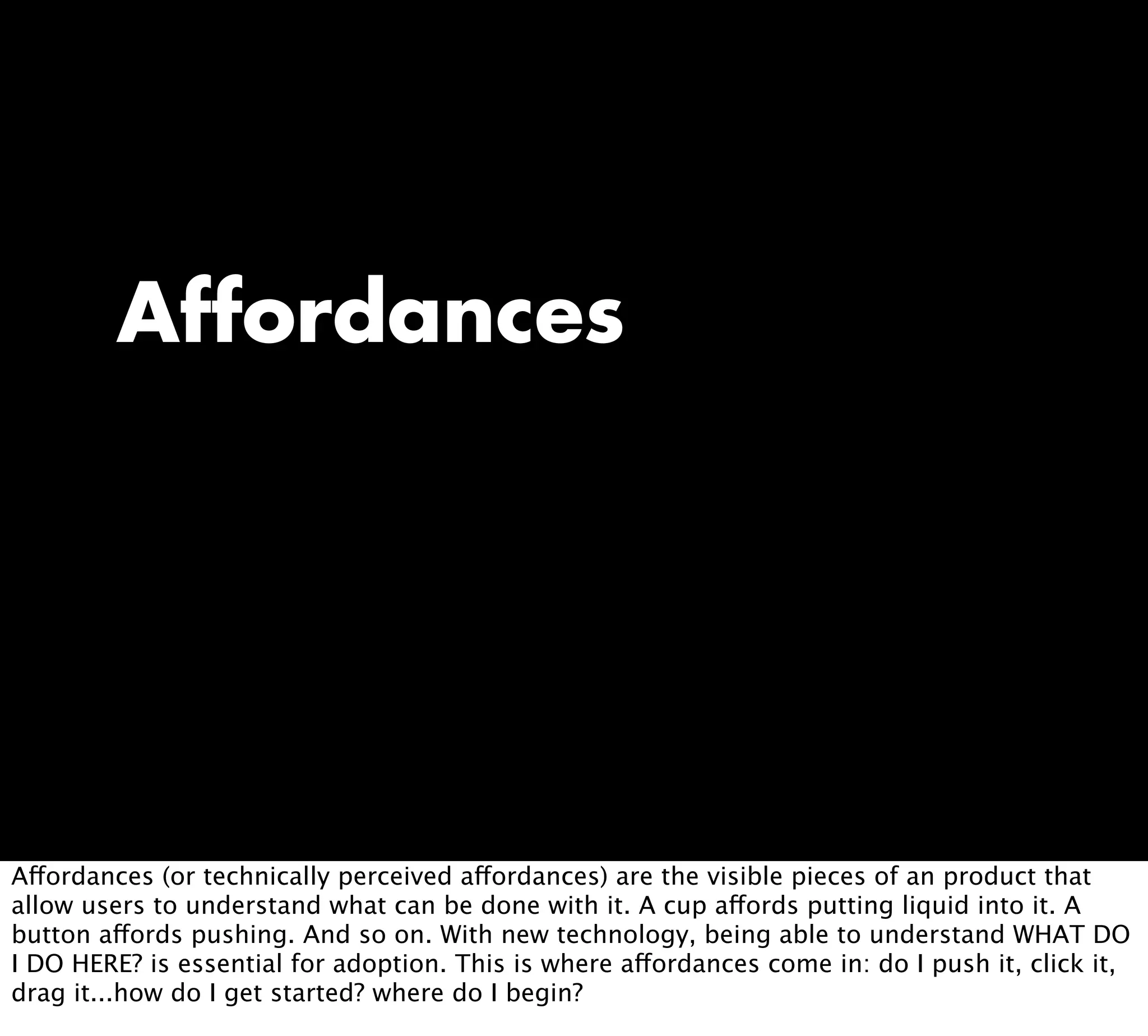

Affordances
Affordances (or technically perceived affordances) are the visible pieces of an product that
allow users to understand what can be done with it. A cup affords putting liquid into it. A
button affords pushing. And so on. With new technology, being able to understand WHAT DO
I DO HERE? is essential for adoption. This is where affordances come in: do I push it, click it,
drag it...how do I get started? where do I begin?

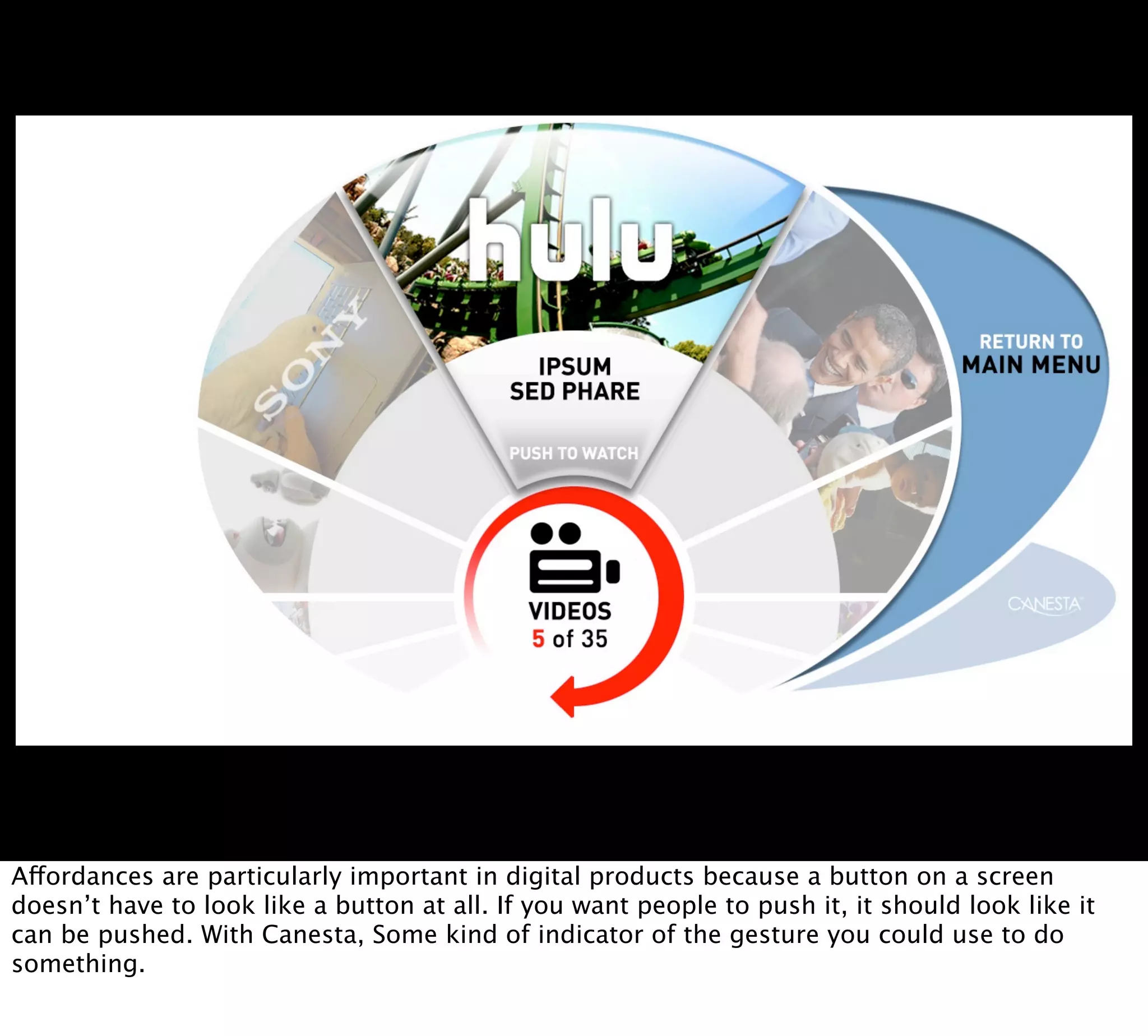

Affordances are particularly important in digital products because a button on a screen
doesn’t have to look like a button at all. If you want people to push it, it should look like it

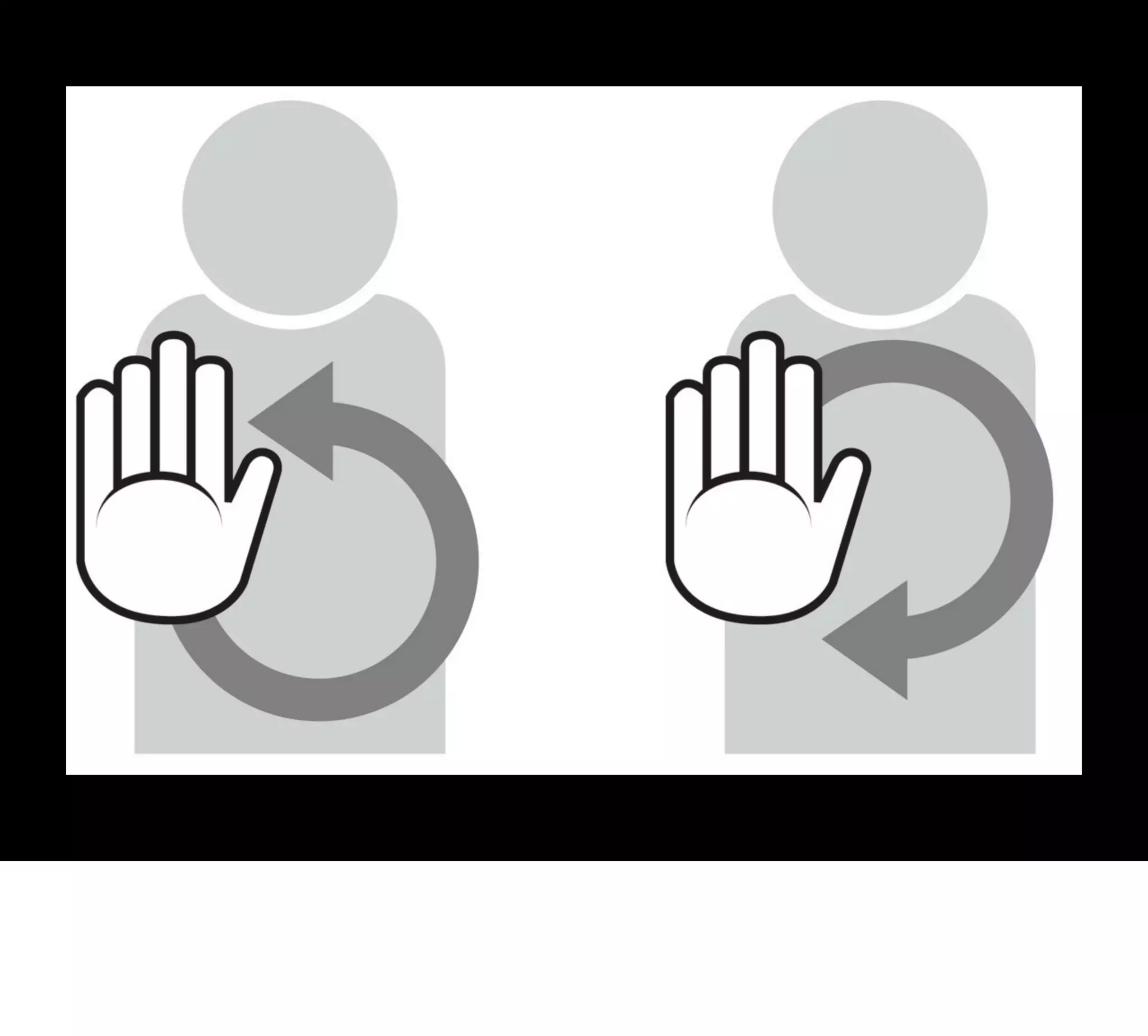

can be pushed. With Canesta, Some kind of indicator of the gesture you could use to do
something.

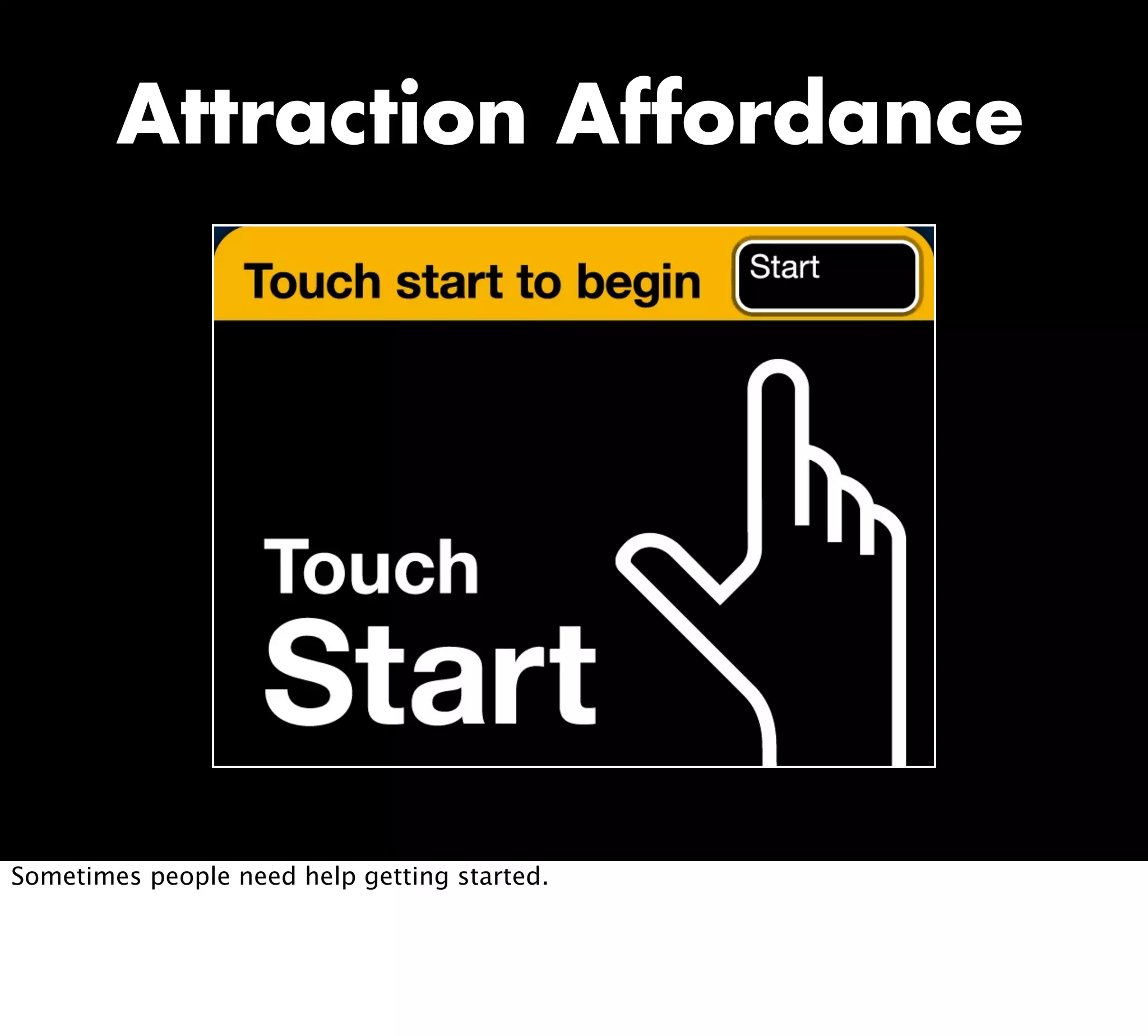

Attraction Affordance
Sometimes people need help getting started.

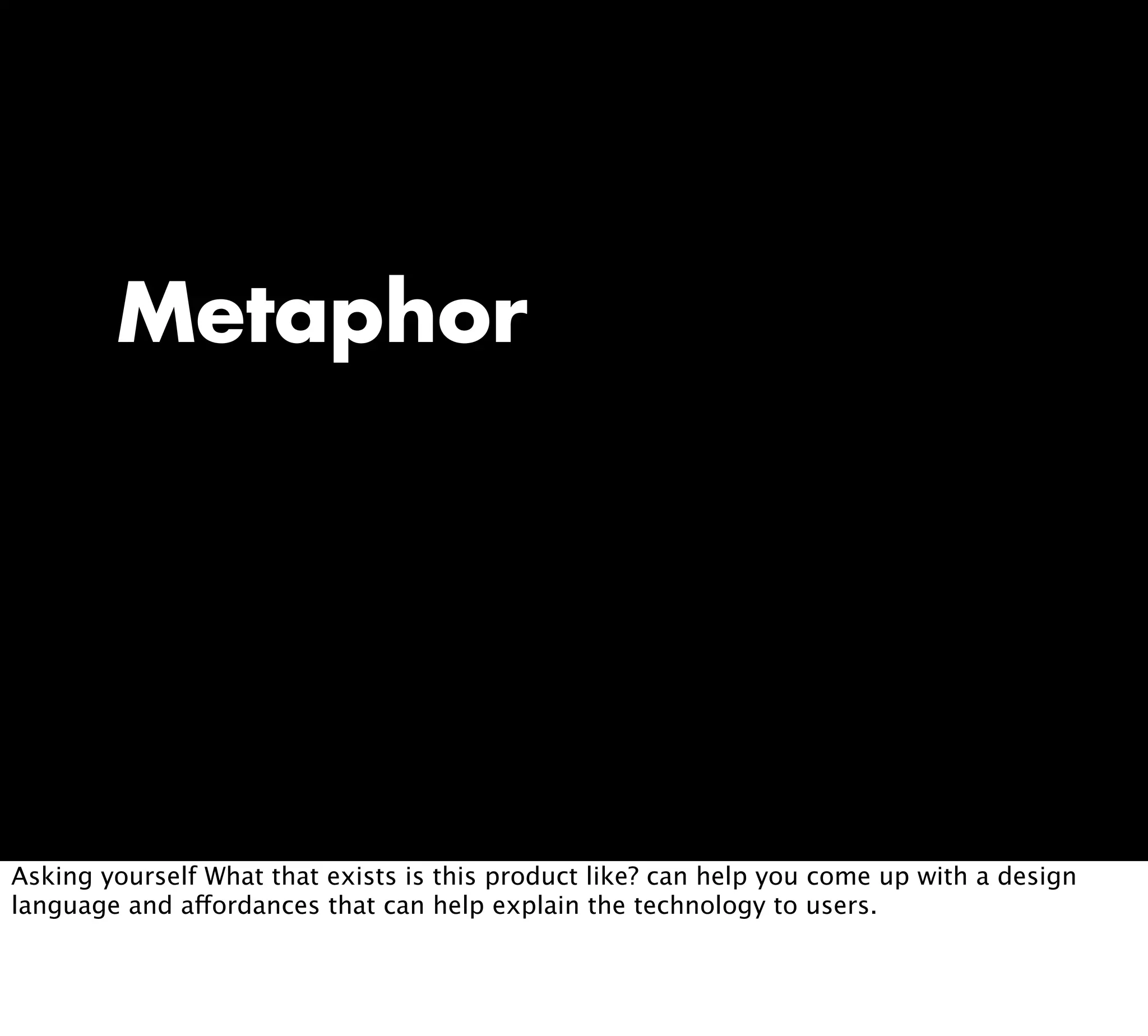

Metaphor
Asking yourself What that exists is this product like? can help you come up with a design
language and affordances that can help explain the technology to users.
Metaphor allows us
to understand the
abstract.

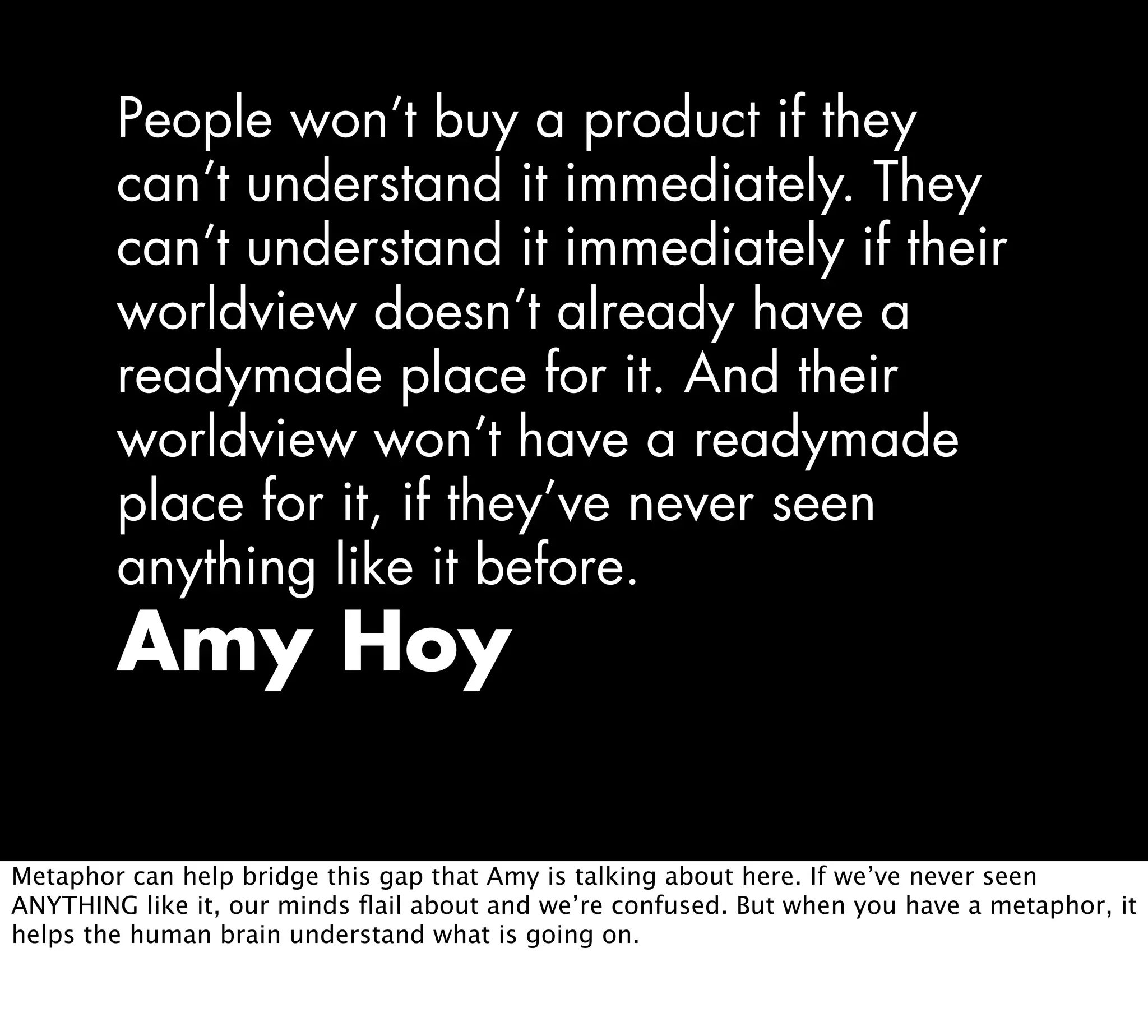

People won’t buy a product if they
can’t understand it immediately. They
can’t understand it immediately if their
worldview doesn’t already have a
readymade place for it. And their
worldview won’t have a readymade
place for it, if they’ve never seen
anything like it before.
Amy Hoy
Metaphor can help bridge this gap that Amy is talking about here. If we’ve never seen
ANYTHING like it, our minds flail about and we’re confused. But when you have a metaphor, it
helps the human brain understand what is going on.
Metaphor is something the brain does
when complexity renders it incapable
of thinking straight.
Gary Greenberg
The brain can’t stand a pattern it doesn’t recognize. If your users don’t understand what is
going on, they will make up a reason for why something is happening (or not happening). And
that reason could be the wrong one and the user will get the wrong mental model of how the
product works.

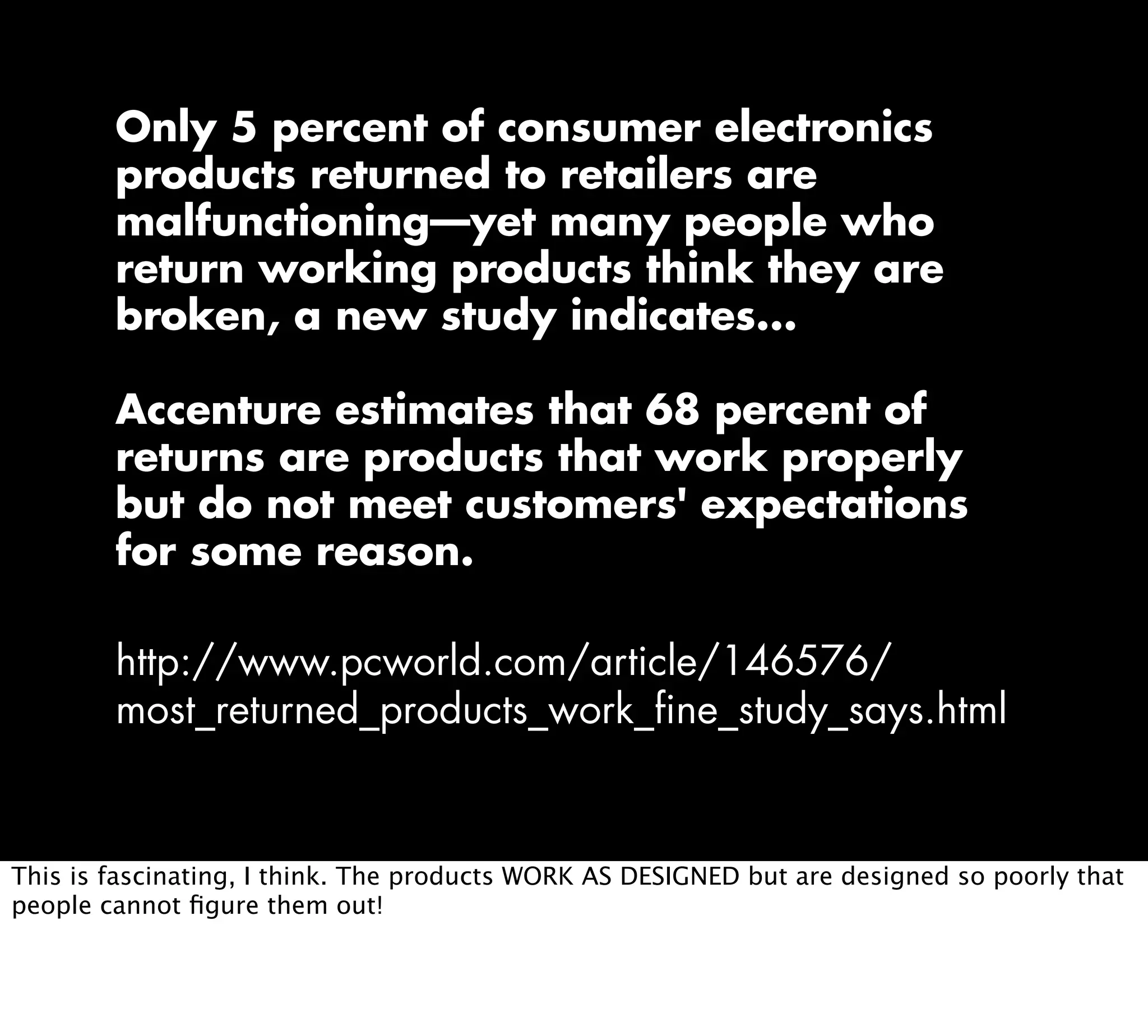

Only 5 percent of consumer electronics
products returned to retailers are
malfunctioning—yet many people who
return working products think they are
broken, a new study indicates...
Accenture estimates that 68 percent of
returns are products that work properly
but do not meet customers' expectations
for some reason.
http://www.pcworld.com/article/146576/
most_returned_products_work_fine_study_says.html
This is fascinating, I think. The products WORK AS DESIGNED but are designed so poorly that
people cannot figure them out!
The average consumer in the US will
struggle for 20 minutes to get a device
working before giving up.
Elke den Ouden
Make it a Toy
Few people are afraid of toys, or experimenting with a toy or playing with one. It is a good
go-to metaphor, one we used for Canesta too.
Don't be discouraged if what you
produce initially is something other
people dismiss as a toy. In fact, that's
a good sign. That's probably why
everyone else has been overlooking
the idea. The first microcomputers
were dismissed as toys. And the first
planes, and the first cars.
Paul Graham
People might dismiss what you’ve made as a toy anyway. Add Facebook and Twitter to Paul
Graham’s list here as well.
Design Languages
from Other Areas
One powerful thing about metaphor is that it allows you to bring in thinking from other
design areas.

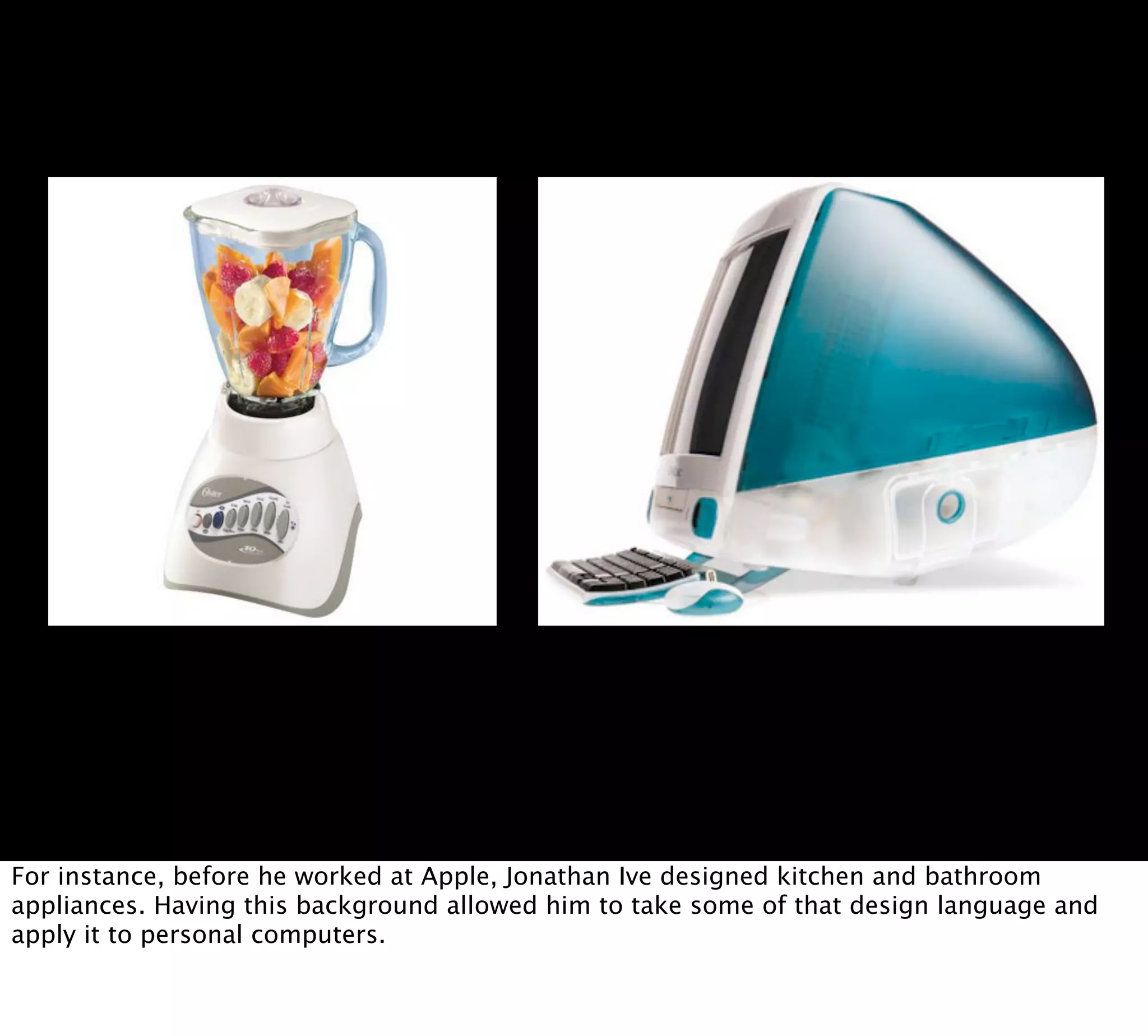

For instance, before he worked at Apple, Jonathan Ive designed kitchen and bathroom
appliances. Having this background allowed him to take some of that design language and
apply it to personal computers.
PERSONALITY
One benefit of this, was giving personal computers a different personality. If you give your
product a personality, not only will users be more forgiving and interested in it, but they’ll
become more attached to it as well.
What is the voice of
this technology?
Ask yourself: how does it speak to the user? What positive emotion does it make them feel?
Failure is an area to
show personality.
When you are designing with more established technology, it is easy to forget about things
like error messages and use cases when something bad happens. With new technology you
can’t do that because it’s guaranteed not to work as expected quite often. Luckily, this is a
time when the product can show off its personality.

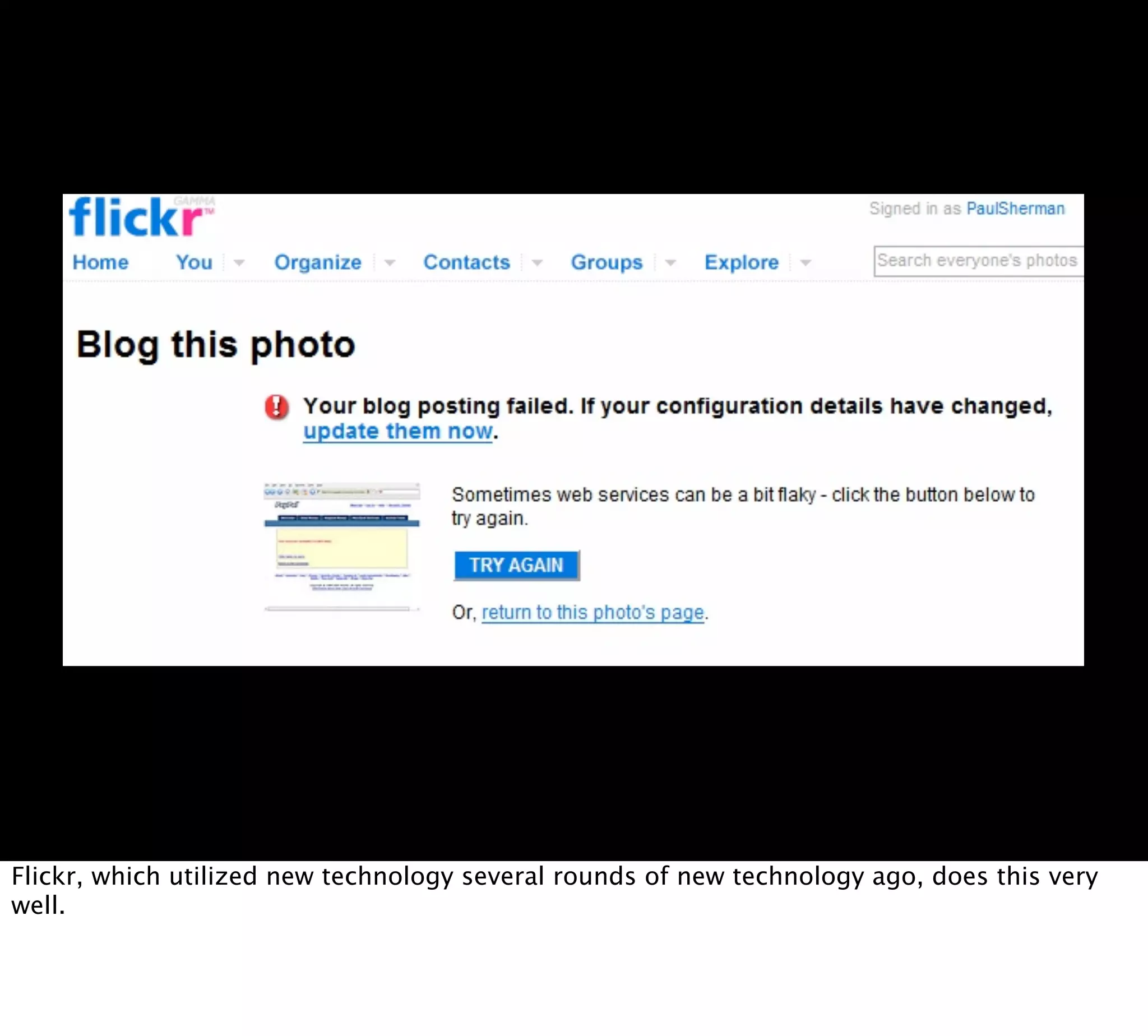

Flickr, which utilized new technology several rounds of new technology ago, does this very
well.
Emotion
Of course, what I’m really talking about here is emotion. If we have an emotional connection
to something, we’re more willing to forgive its faults and experiment with it more.

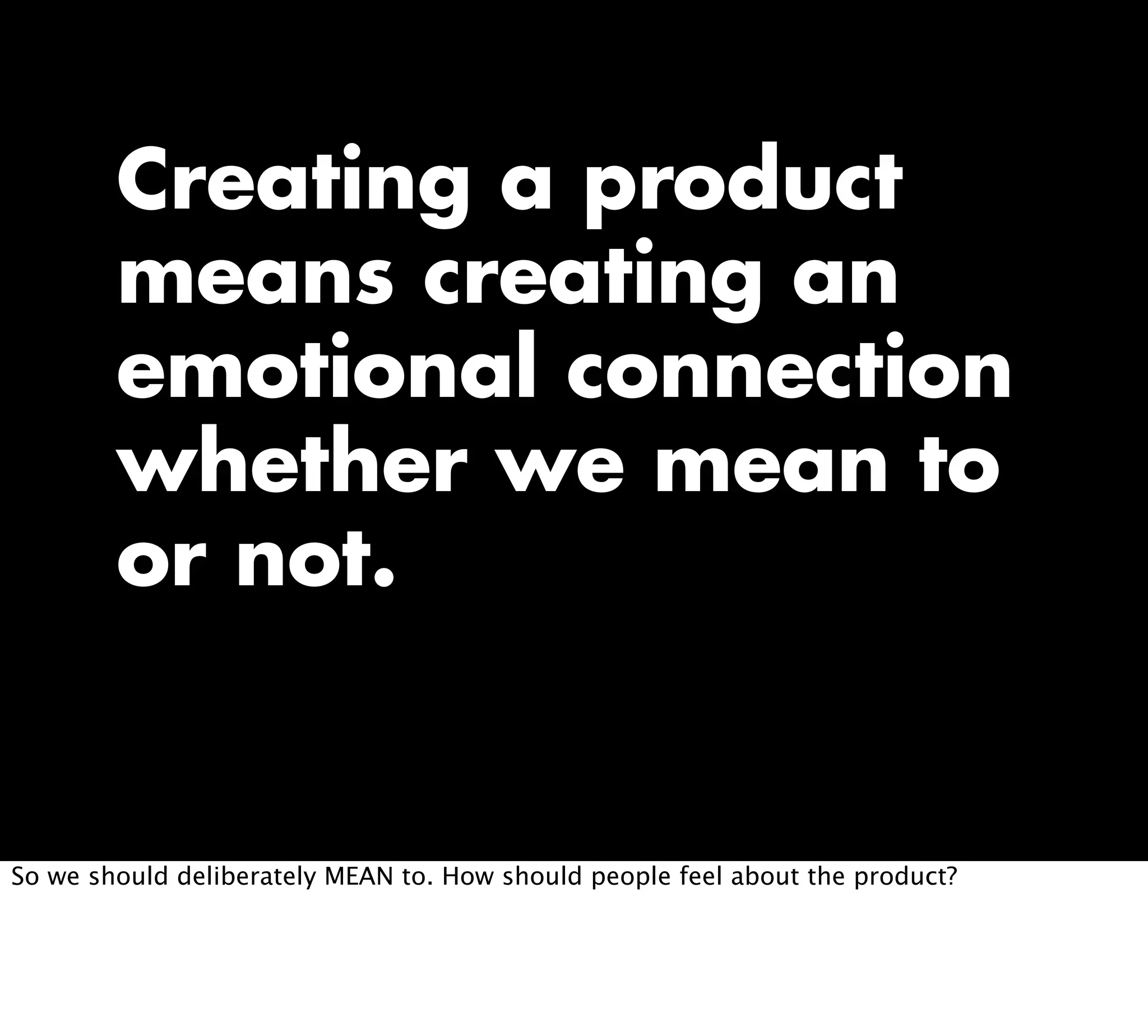

Creating a product
means creating an
emotional connection
whether we mean to
or not.
So we should deliberately MEAN to. How should people feel about the product?

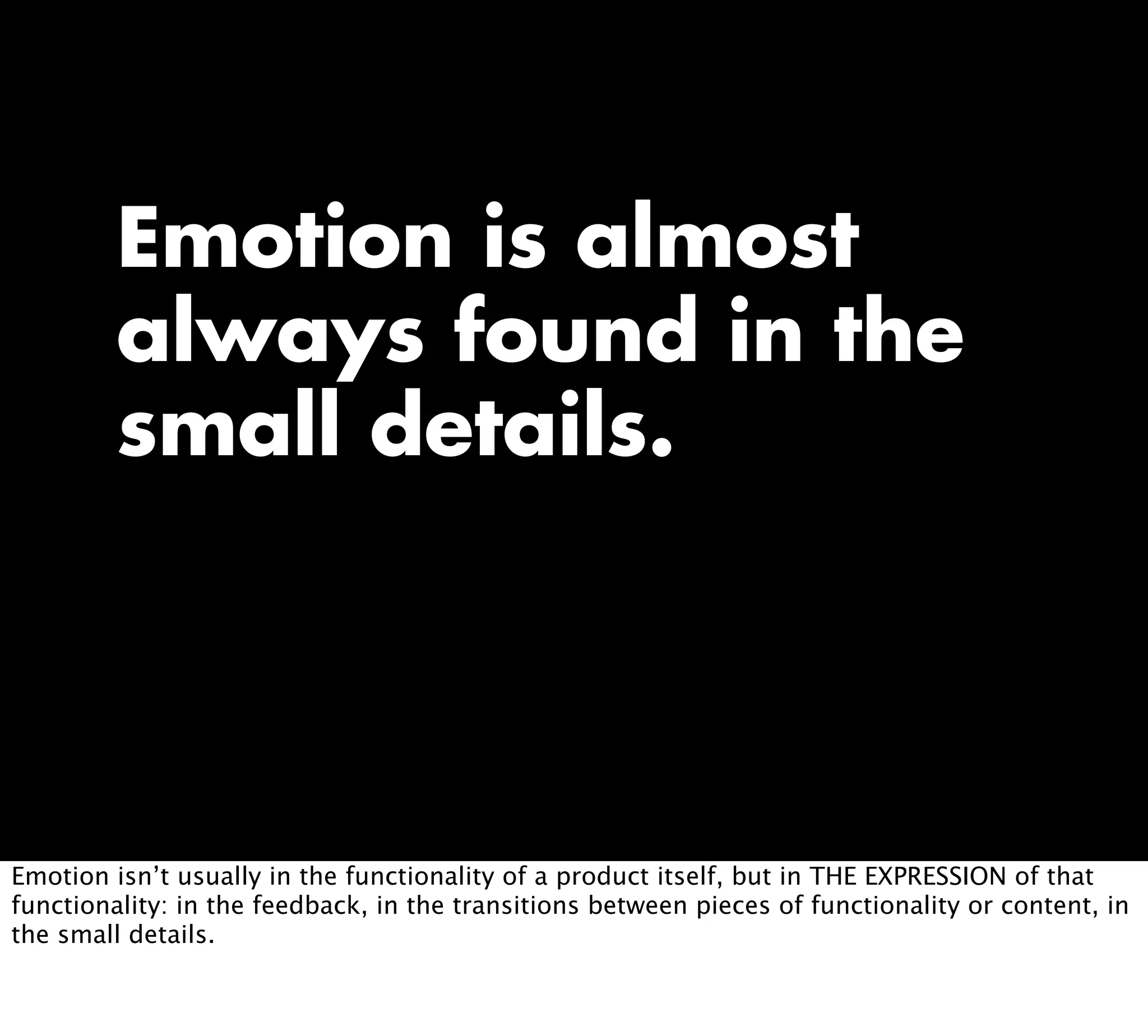

Emotion is almost
always found in the
small details.
Emotion isn’t usually in the functionality of a product itself, but in THE EXPRESSION of that
functionality: in the feedback, in the transitions between pieces of functionality or content, in
the small details.

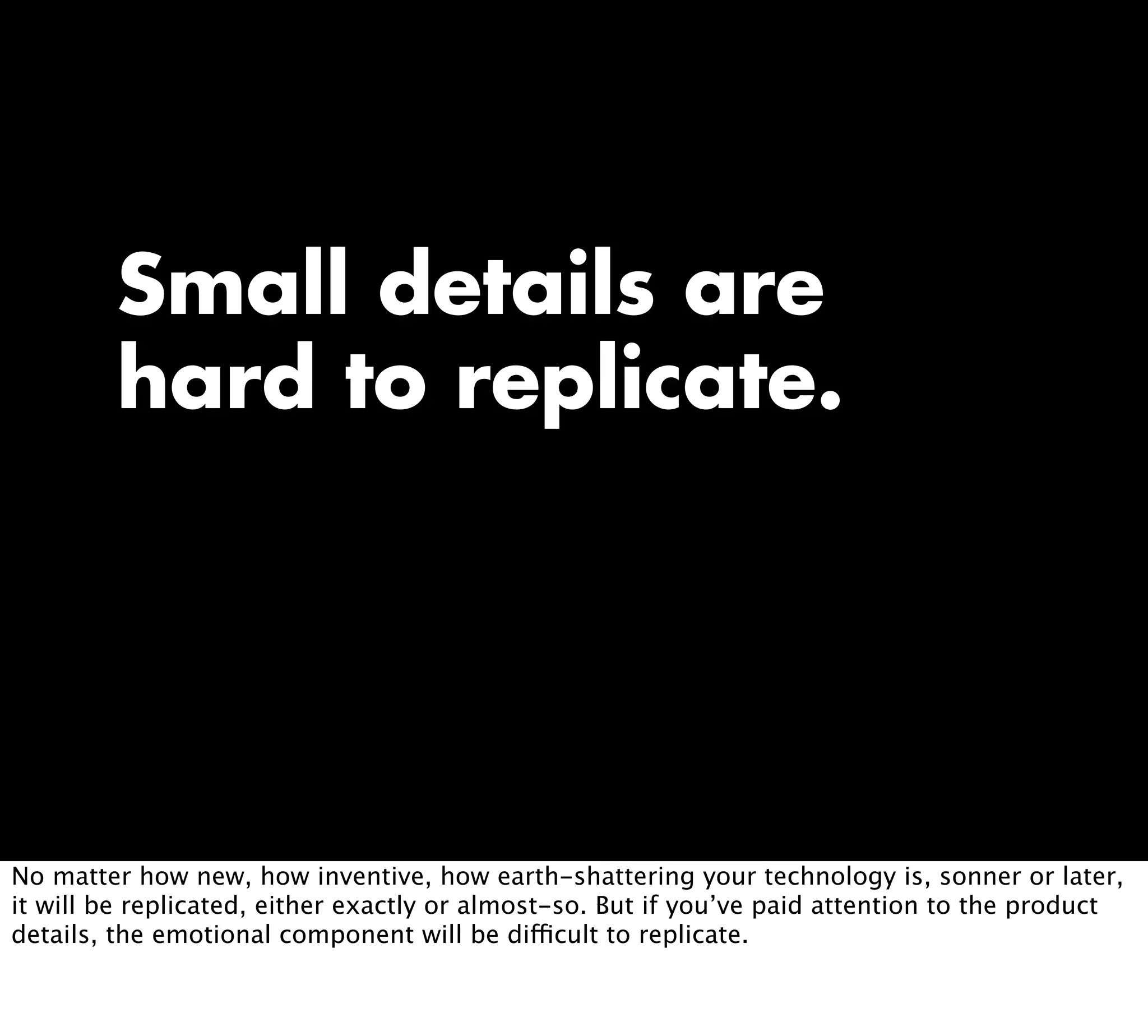

Small details are
hard to replicate.
No matter how new, how inventive, how earth-shattering your technology is, sonner or later,
it will be replicated, either exactly or almost-so. But if you’ve paid attention to the product
details, the emotional component will be difficult to replicate.
How does using this
technology make
users feel?
Technologies (and their context of use) have their own emotional weight.
Sound Design
I just want to put a plug in here for the importance of sound design. The Web almost ruined
sound design with too many horrible sites blaring music at you. But sound can really give a
lot of character to a product.
MEANING
Only two things typically create innovative products: technology and meaning. As designers,
we’re uniquely poised to work with both.
Any time you have a new
device...it also doesn't make
a lot of sense. It simply
doesn't fit with anything that
we're currently used to.
Ben Fry
In other words, it doesn’t have meaning. What Ben is saying applies equally to new kinds of
websites and software too. As designers we have to help make MEANING of new technology.
Meaning starts by asking this:
What is the deepest
reason people would
use this technology?

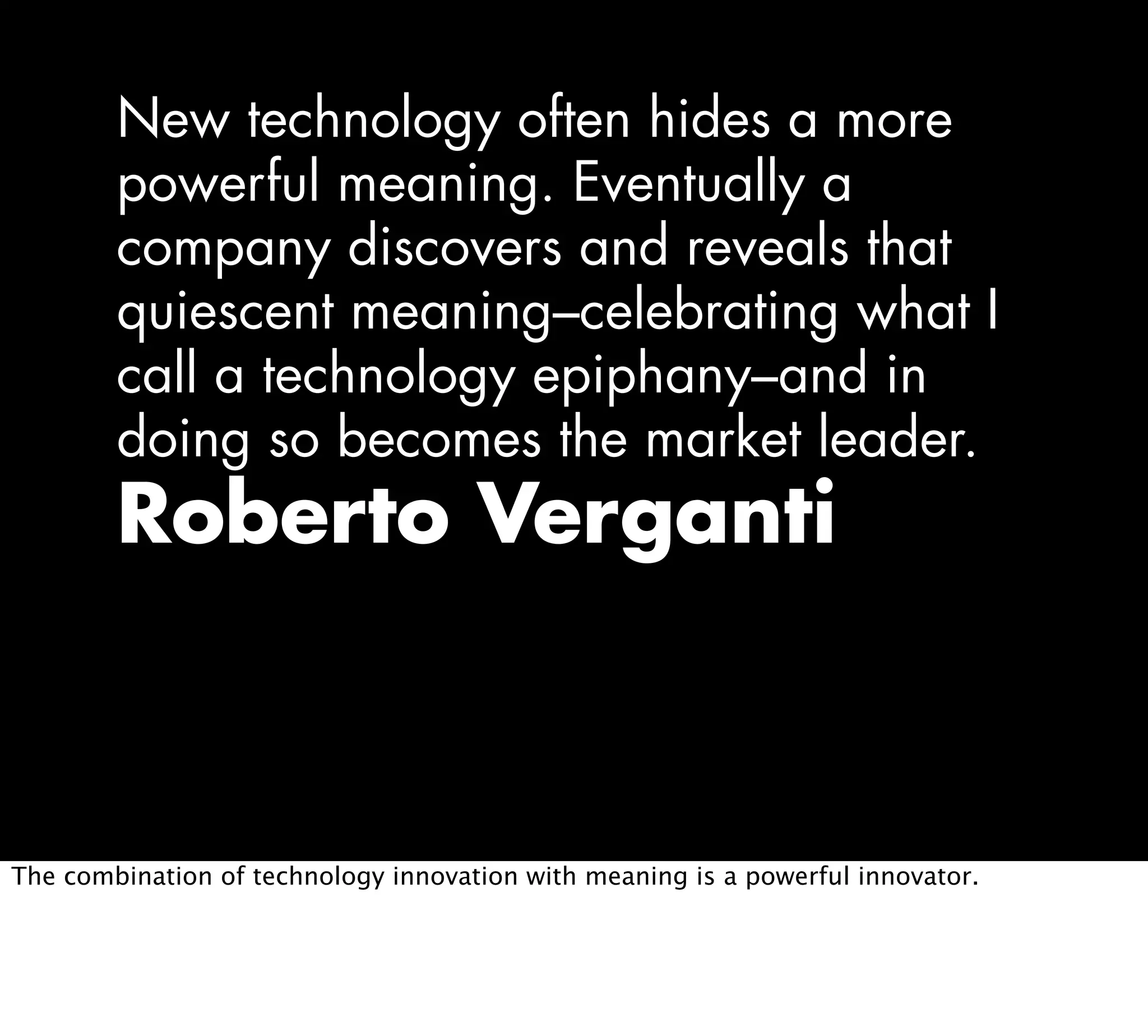

New technology often hides a more
powerful meaning. Eventually a
company discovers and reveals that
quiescent meaning–celebrating what I
call a technology epiphany–and in
doing so becomes the market leader.
Roberto Verganti
The combination of technology innovation with meaning is a powerful innovator.

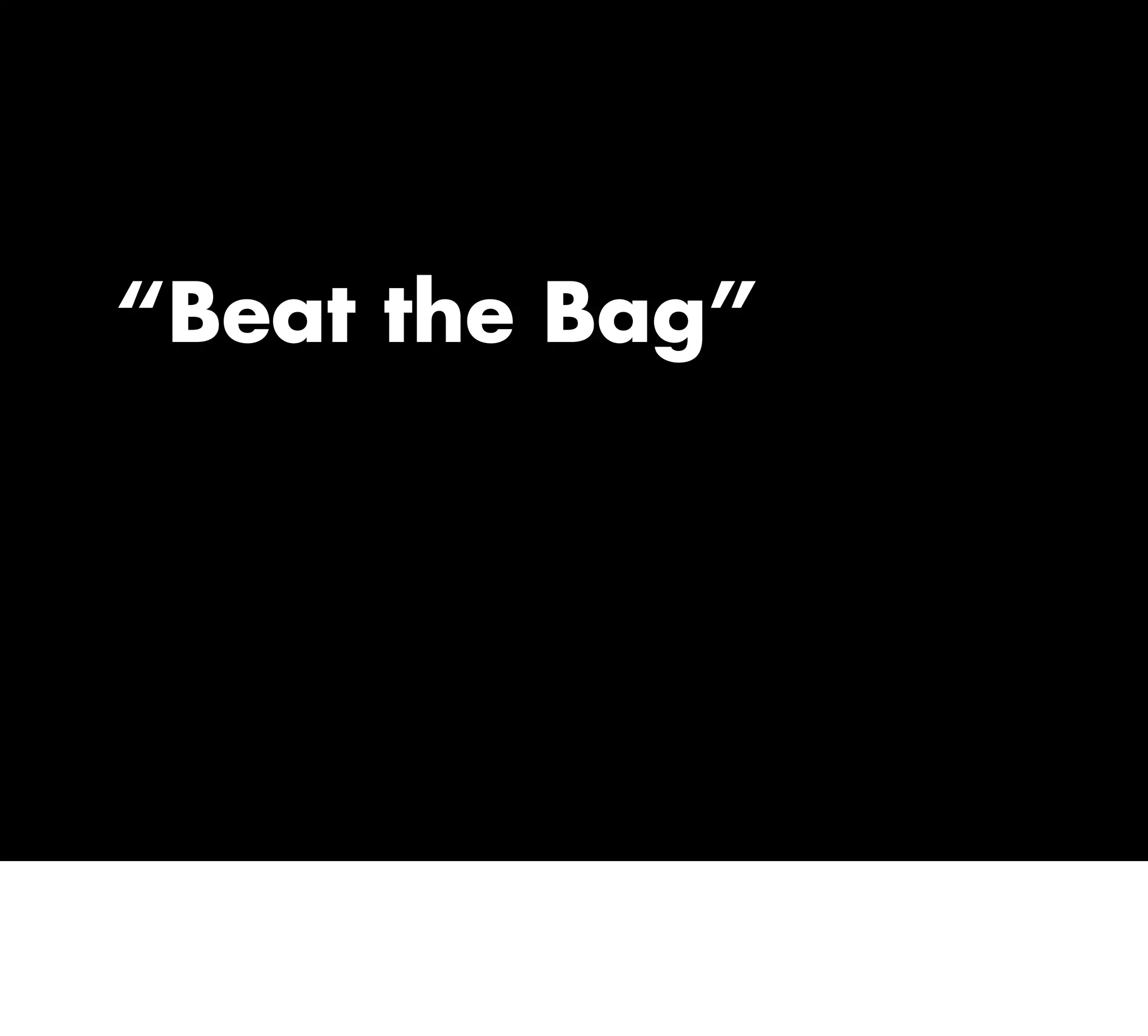

“Beat the Bag”
What does this technology do that is BETTER (not just different) from what currently exists?
Capture Meaning
in Design Principles
Canesta Gestural
Entertainment Center
Be able to use it on a date.
Be as lazy as possible.
Use it with a bottle in one hand.
Practical Considerations
Expectations
Personality
Meaning
Some people (they are
wrong) say design is about
solving problems.
Obviously designers do solve
problems, but then so do
dentists. Design is about
cultural invention.
Jack Schulze
I want to end with this bit by Jack. Yes, Jack, Yes! New technologies offer us the opportunity
to be inventors of culture, and I hope when the chance comes to do so, you will seize it.
Good products
change the way we
think about that type
of product. Great
products change the
way we think about
the world.
Because after all...
I hope you all go out and make great products.
Thanks.
dan@kickerstudio.com
@odannyboy on Twitter
http://kickerstudio.com

More Related Content

What's hot

Microinteractions in web and mobile design
Microinteractions in web and mobile designMicrointeractions in web and mobile design
Microinteractions in web and mobile design
Pablo Peinó Ardura

Psychology of Design (UX Intensive for MySkills4Afrika)
Psychology of Design (UX Intensive for MySkills4Afrika)Psychology of Design (UX Intensive for MySkills4Afrika)
Psychology of Design (UX Intensive for MySkills4Afrika)
Cheryl Platz

Storytelling & The Human Form (UX Intensive for MySkills4Afrika)
Storytelling & The Human Form (UX Intensive for MySkills4Afrika)Storytelling & The Human Form (UX Intensive for MySkills4Afrika)
Storytelling & The Human Form (UX Intensive for MySkills4Afrika)
Cheryl Platz

Microinteraction
MicrointeractionMicrointeraction
Microinteraction
Meridian Impactive Digital

Rapid video prototyping for connected products
Rapid video prototyping for connected productsRapid video prototyping for connected products
Rapid video prototyping for connected products
Martin Charlier

IoT Meetup Stockholm - Designing Connected Products
IoT Meetup Stockholm - Designing Connected ProductsIoT Meetup Stockholm - Designing Connected Products
IoT Meetup Stockholm - Designing Connected Products
Martin Charlier

Human Factors in Innovation: Designing for Adoption
Human Factors in Innovation: Designing for AdoptionHuman Factors in Innovation: Designing for Adoption
Human Factors in Innovation: Designing for Adoption
Jim Kalbach

Understanding the Touch Interface
Understanding the Touch InterfaceUnderstanding the Touch Interface
Understanding the Touch Interface
Navin Kabra

From Zero to Hero
From Zero to HeroFrom Zero to Hero
From Zero to Hero
Andy Marshall

Designing Connected Products - Web Directions 2015 Sydney
Designing Connected Products - Web Directions 2015 SydneyDesigning Connected Products - Web Directions 2015 Sydney
Designing Connected Products - Web Directions 2015 Sydney
Martin Charlier

The Complexity Curve: How to Design for Simplicity (SXSW, March 2012)
The Complexity Curve: How to Design for Simplicity (SXSW, March 2012)The Complexity Curve: How to Design for Simplicity (SXSW, March 2012)
The Complexity Curve: How to Design for Simplicity (SXSW, March 2012)
Dave Hogue

Designing the User Experience
Designing the User ExperienceDesigning the User Experience
Designing the User Experience
Marc Escobosa

Prototyping Experiences for Connected Products
Prototyping Experiences for Connected ProductsPrototyping Experiences for Connected Products
Prototyping Experiences for Connected Products
Martin Charlier

Digital Wellbeing: Meaningful Daily Actions for Parents - COVID
Digital Wellbeing: Meaningful Daily Actions for Parents - COVIDDigital Wellbeing: Meaningful Daily Actions for Parents - COVID
Digital Wellbeing: Meaningful Daily Actions for Parents - COVID
Max Stossel

Digital Wellness: Meaningful Daily Actions for Students - COVID
Digital Wellness: Meaningful Daily Actions for Students - COVIDDigital Wellness: Meaningful Daily Actions for Students - COVID
Digital Wellness: Meaningful Daily Actions for Students - COVID
Max Stossel

User Story Mapping 101
User Story Mapping 101User Story Mapping 101
User Story Mapping 101
Martin Etmajer

Ig agile roots-2010
Ig agile roots-2010Ig agile roots-2010
Ig agile roots-2010
Luke Hohmann

Use Lean Startup Techniques on a Remote Team by William Donnell - The Lean St...
Use Lean Startup Techniques on a Remote Team by William Donnell - The Lean St...Use Lean Startup Techniques on a Remote Team by William Donnell - The Lean St...
Use Lean Startup Techniques on a Remote Team by William Donnell - The Lean St...
Lean Startup Co.

Mobile Prototyping Essentials
Mobile Prototyping EssentialsMobile Prototyping Essentials
Mobile Prototyping Essentials
Rachel Hinman

Portfolio
PortfolioPortfolio
Portfolio
Arjun Goel


What's hot (20)

Microinteractions in web and mobile design
Microinteractions in web and mobile designMicrointeractions in web and mobile design
Microinteractions in web and mobile design

Psychology of Design (UX Intensive for MySkills4Afrika)
Psychology of Design (UX Intensive for MySkills4Afrika)Psychology of Design (UX Intensive for MySkills4Afrika)
Psychology of Design (UX Intensive for MySkills4Afrika)

Storytelling & The Human Form (UX Intensive for MySkills4Afrika)
Storytelling & The Human Form (UX Intensive for MySkills4Afrika)Storytelling & The Human Form (UX Intensive for MySkills4Afrika)
Storytelling & The Human Form (UX Intensive for MySkills4Afrika)

Microinteraction
MicrointeractionMicrointeraction
Microinteraction

Rapid video prototyping for connected products
Rapid video prototyping for connected productsRapid video prototyping for connected products
Rapid video prototyping for connected products

IoT Meetup Stockholm - Designing Connected Products
IoT Meetup Stockholm - Designing Connected ProductsIoT Meetup Stockholm - Designing Connected Products
IoT Meetup Stockholm - Designing Connected Products

Human Factors in Innovation: Designing for Adoption
Human Factors in Innovation: Designing for AdoptionHuman Factors in Innovation: Designing for Adoption
Human Factors in Innovation: Designing for Adoption

Understanding the Touch Interface
Understanding the Touch InterfaceUnderstanding the Touch Interface
Understanding the Touch Interface

From Zero to Hero
From Zero to HeroFrom Zero to Hero
From Zero to Hero

Designing Connected Products - Web Directions 2015 Sydney
Designing Connected Products - Web Directions 2015 SydneyDesigning Connected Products - Web Directions 2015 Sydney
Designing Connected Products - Web Directions 2015 Sydney

The Complexity Curve: How to Design for Simplicity (SXSW, March 2012)
The Complexity Curve: How to Design for Simplicity (SXSW, March 2012)The Complexity Curve: How to Design for Simplicity (SXSW, March 2012)
The Complexity Curve: How to Design for Simplicity (SXSW, March 2012)

Designing the User Experience
Designing the User ExperienceDesigning the User Experience
Designing the User Experience

Prototyping Experiences for Connected Products
Prototyping Experiences for Connected ProductsPrototyping Experiences for Connected Products
Prototyping Experiences for Connected Products

Digital Wellbeing: Meaningful Daily Actions for Parents - COVID
Digital Wellbeing: Meaningful Daily Actions for Parents - COVIDDigital Wellbeing: Meaningful Daily Actions for Parents - COVID
Digital Wellbeing: Meaningful Daily Actions for Parents - COVID

Digital Wellness: Meaningful Daily Actions for Students - COVID
Digital Wellness: Meaningful Daily Actions for Students - COVIDDigital Wellness: Meaningful Daily Actions for Students - COVID
Digital Wellness: Meaningful Daily Actions for Students - COVID

User Story Mapping 101
User Story Mapping 101User Story Mapping 101
User Story Mapping 101

Ig agile roots-2010
Ig agile roots-2010Ig agile roots-2010
Ig agile roots-2010

Use Lean Startup Techniques on a Remote Team by William Donnell - The Lean St...
Use Lean Startup Techniques on a Remote Team by William Donnell - The Lean St...Use Lean Startup Techniques on a Remote Team by William Donnell - The Lean St...
Use Lean Startup Techniques on a Remote Team by William Donnell - The Lean St...

Mobile Prototyping Essentials
Mobile Prototyping EssentialsMobile Prototyping Essentials
Mobile Prototyping Essentials

Portfolio
PortfolioPortfolio
Portfolio


Viewers also liked

New technology - the threat to our information
New technology - the threat to our informationNew technology - the threat to our information
New technology - the threat to our information
normanlamont

New Technology 2017 L01 introduction
New Technology 2017 L01 introductionNew Technology 2017 L01 introduction
New Technology 2017 L01 introduction
Ólafur Andri Ragnarsson

Silent sound technology NEW
Silent sound technology NEW Silent sound technology NEW
Silent sound technology NEW
Neha Tyagi

Technology and Health Promotion: Implications for Clinical Psychology Practice
Technology and Health Promotion: Implications for Clinical Psychology PracticeTechnology and Health Promotion: Implications for Clinical Psychology Practice
Technology and Health Promotion: Implications for Clinical Psychology Practice
Designing Health Lab, Arizona State University

6000 Years of Device Design
6000 Years of Device Design6000 Years of Device Design
6000 Years of Device Design
Dan Saffer

Interaction as a Material
Interaction as a MaterialInteraction as a Material
Interaction as a Material
Dan Saffer

Gadgets and gizmos 2016
Gadgets and gizmos 2016Gadgets and gizmos 2016
Gadgets and gizmos 2016
Karla Trout, MSLS

Carpe Diem: Attention, Awareness, and Interaction Design 2009
Carpe Diem: Attention, Awareness, and Interaction Design 2009Carpe Diem: Attention, Awareness, and Interaction Design 2009
Carpe Diem: Attention, Awareness, and Interaction Design 2009
Dan Saffer

Wearable technologies
Wearable technologiesWearable technologies
Wearable technologies
Asafak Husain

Latest Computer Gadget
Latest Computer GadgetLatest Computer Gadget
Latest Computer Gadget
laguna state polytechnic university

Tara Oakes New Technology Final Presentation Powerpoint
Tara Oakes New Technology Final Presentation PowerpointTara Oakes New Technology Final Presentation Powerpoint
Tara Oakes New Technology Final Presentation Powerpoint
toakes00

Presentation
PresentationPresentation
Presentation
Vijayeandra Parthepan

Gaming the Web: Using the Structure of Games to Design Better Web Apps
Gaming the Web: Using the Structure of Games to Design Better Web AppsGaming the Web: Using the Structure of Games to Design Better Web Apps
Gaming the Web: Using the Structure of Games to Design Better Web Apps
Dan Saffer

Design in the Post-PC Era
Design in the Post-PC EraDesign in the Post-PC Era
Design in the Post-PC Era
Dan Saffer

How to Lie with Design Strategy
How to Lie with Design StrategyHow to Lie with Design Strategy
How to Lie with Design Strategy
Dan Saffer

Designing Smart and Clever Applications
Designing Smart and Clever ApplicationsDesigning Smart and Clever Applications
Designing Smart and Clever Applications
Dan Saffer

Practical Creativity
Practical CreativityPractical Creativity
Practical Creativity
Dan Saffer

Designing from the Inside-Out: Behaviour as the Engine of Product Design
Designing from the Inside-Out: Behaviour as the Engine of Product DesignDesigning from the Inside-Out: Behaviour as the Engine of Product Design
Designing from the Inside-Out: Behaviour as the Engine of Product Design
Dan Saffer

New Technology 2017 L02 Evolution of Technology
New Technology 2017 L02 Evolution of TechnologyNew Technology 2017 L02 Evolution of Technology
New Technology 2017 L02 Evolution of Technology
Ólafur Andri Ragnarsson

New Sources of Inspiration for Interaction Designers
New Sources of Inspiration for Interaction DesignersNew Sources of Inspiration for Interaction Designers
New Sources of Inspiration for Interaction Designers
Dan Saffer


Viewers also liked (20)

New technology - the threat to our information
New technology - the threat to our informationNew technology - the threat to our information
New technology - the threat to our information

New Technology 2017 L01 introduction
New Technology 2017 L01 introductionNew Technology 2017 L01 introduction
New Technology 2017 L01 introduction

Silent sound technology NEW
Silent sound technology NEW Silent sound technology NEW
Silent sound technology NEW

Technology and Health Promotion: Implications for Clinical Psychology Practice
Technology and Health Promotion: Implications for Clinical Psychology PracticeTechnology and Health Promotion: Implications for Clinical Psychology Practice
Technology and Health Promotion: Implications for Clinical Psychology Practice

6000 Years of Device Design
6000 Years of Device Design6000 Years of Device Design
6000 Years of Device Design

Interaction as a Material
Interaction as a MaterialInteraction as a Material
Interaction as a Material

Gadgets and gizmos 2016
Gadgets and gizmos 2016Gadgets and gizmos 2016
Gadgets and gizmos 2016

Carpe Diem: Attention, Awareness, and Interaction Design 2009
Carpe Diem: Attention, Awareness, and Interaction Design 2009Carpe Diem: Attention, Awareness, and Interaction Design 2009
Carpe Diem: Attention, Awareness, and Interaction Design 2009

Wearable technologies
Wearable technologiesWearable technologies
Wearable technologies

Latest Computer Gadget
Latest Computer GadgetLatest Computer Gadget
Latest Computer Gadget

Tara Oakes New Technology Final Presentation Powerpoint
Tara Oakes New Technology Final Presentation PowerpointTara Oakes New Technology Final Presentation Powerpoint
Tara Oakes New Technology Final Presentation Powerpoint

Presentation
PresentationPresentation
Presentation

Gaming the Web: Using the Structure of Games to Design Better Web Apps
Gaming the Web: Using the Structure of Games to Design Better Web AppsGaming the Web: Using the Structure of Games to Design Better Web Apps
Gaming the Web: Using the Structure of Games to Design Better Web Apps

Design in the Post-PC Era
Design in the Post-PC EraDesign in the Post-PC Era
Design in the Post-PC Era

How to Lie with Design Strategy
How to Lie with Design StrategyHow to Lie with Design Strategy
How to Lie with Design Strategy

Designing Smart and Clever Applications
Designing Smart and Clever ApplicationsDesigning Smart and Clever Applications
Designing Smart and Clever Applications

Practical Creativity
Practical CreativityPractical Creativity
Practical Creativity

Designing from the Inside-Out: Behaviour as the Engine of Product Design
Designing from the Inside-Out: Behaviour as the Engine of Product DesignDesigning from the Inside-Out: Behaviour as the Engine of Product Design
Designing from the Inside-Out: Behaviour as the Engine of Product Design

New Technology 2017 L02 Evolution of Technology
New Technology 2017 L02 Evolution of TechnologyNew Technology 2017 L02 Evolution of Technology
New Technology 2017 L02 Evolution of Technology

New Sources of Inspiration for Interaction Designers
New Sources of Inspiration for Interaction DesignersNew Sources of Inspiration for Interaction Designers
New Sources of Inspiration for Interaction Designers


Similar to Designing for (and with) New Technology

Innovation and Product management
Innovation and Product managementInnovation and Product management
Innovation and Product management
kborah

Choose Boring Technology
Choose Boring TechnologyChoose Boring Technology
Choose Boring Technology
Dan McKinley

World Interaction Design Day 2019 // Mito Digital - Social Behavior Design
World Interaction Design Day 2019 // Mito Digital - Social Behavior DesignWorld Interaction Design Day 2019 // Mito Digital - Social Behavior Design
World Interaction Design Day 2019 // Mito Digital - Social Behavior Design
Mito

Working w/ Emerging Technologies Explained by GoodRead's Sr. PM
Working w/ Emerging Technologies Explained by GoodRead's Sr. PM Working w/ Emerging Technologies Explained by GoodRead's Sr. PM
Working w/ Emerging Technologies Explained by GoodRead's Sr. PM
Product School

Plan B Studio: Silicon Beach 2013
Plan B Studio: Silicon Beach 2013Plan B Studio: Silicon Beach 2013
Plan B Studio: Silicon Beach 2013
Plan-B Studio

modern life.pdf
modern life.pdfmodern life.pdf
modern life.pdf
yogeshchauhan170956

Human Robots.docx
Human Robots.docxHuman Robots.docx
Human Robots.docx
Akram Rangrej

2013 ia summit
2013 ia summit2013 ia summit
2013 ia summit
Scott Jenson

Using AI to Solve Data and IT Complexity -- And Better Enable AI
Using AI to Solve Data and IT Complexity -- And Better Enable AIUsing AI to Solve Data and IT Complexity -- And Better Enable AI
Using AI to Solve Data and IT Complexity -- And Better Enable AI
Dana Gardner

How Web Design will reinvent manufacturing
How Web Design will reinvent manufacturingHow Web Design will reinvent manufacturing
How Web Design will reinvent manufacturing
Mike Kuniavsky

Usability Testing
Usability TestingUsability Testing
Usability Testing
Andy Budd

Soft Interfaces: wishful thinking for the internet of things
Soft Interfaces: wishful thinking for the internet of thingsSoft Interfaces: wishful thinking for the internet of things
Soft Interfaces: wishful thinking for the internet of things
Alexandra Deschamps-Sonsino

SU Talk - Rotary - script
SU Talk - Rotary - scriptSU Talk - Rotary - script
SU Talk - Rotary - script
Gordon Casey

The Lean Hardware Toolbox
The Lean Hardware ToolboxThe Lean Hardware Toolbox
The Lean Hardware Toolbox
Lean Startup Co.

Experience Probes for Exploring the Impact of Novel Products
Experience Probes for Exploring the Impact of Novel ProductsExperience Probes for Exploring the Impact of Novel Products
Experience Probes for Exploring the Impact of Novel Products
Mike Kuniavsky

Bug Labs Gnomedex08 Presentation
Bug Labs Gnomedex08 PresentationBug Labs Gnomedex08 Presentation
Bug Labs Gnomedex08 Presentation
jtoeman

Shift Reports
Shift ReportsShift Reports
Shift Reports
Bogdan Medrea

3D printing
3D printing3D printing
3D printing
Sudheer Gadde

Iot opportunities-challenges
Iot opportunities-challengesIot opportunities-challenges
Iot opportunities-challenges
johnkbutcher

European Innovation Academy Kick-off 2014
European Innovation Academy Kick-off 2014European Innovation Academy Kick-off 2014
European Innovation Academy Kick-off 2014
European Innovation Academy


Similar to Designing for (and with) New Technology (20)

Innovation and Product management
Innovation and Product managementInnovation and Product management
Innovation and Product management

Choose Boring Technology
Choose Boring TechnologyChoose Boring Technology
Choose Boring Technology

World Interaction Design Day 2019 // Mito Digital - Social Behavior Design
World Interaction Design Day 2019 // Mito Digital - Social Behavior DesignWorld Interaction Design Day 2019 // Mito Digital - Social Behavior Design
World Interaction Design Day 2019 // Mito Digital - Social Behavior Design

Working w/ Emerging Technologies Explained by GoodRead's Sr. PM
Working w/ Emerging Technologies Explained by GoodRead's Sr. PM Working w/ Emerging Technologies Explained by GoodRead's Sr. PM
Working w/ Emerging Technologies Explained by GoodRead's Sr. PM

Plan B Studio: Silicon Beach 2013
Plan B Studio: Silicon Beach 2013Plan B Studio: Silicon Beach 2013
Plan B Studio: Silicon Beach 2013

modern life.pdf
modern life.pdfmodern life.pdf
modern life.pdf

Human Robots.docx
Human Robots.docxHuman Robots.docx
Human Robots.docx

2013 ia summit
2013 ia summit2013 ia summit
2013 ia summit

Using AI to Solve Data and IT Complexity -- And Better Enable AI
Using AI to Solve Data and IT Complexity -- And Better Enable AIUsing AI to Solve Data and IT Complexity -- And Better Enable AI
Using AI to Solve Data and IT Complexity -- And Better Enable AI

How Web Design will reinvent manufacturing
How Web Design will reinvent manufacturingHow Web Design will reinvent manufacturing
How Web Design will reinvent manufacturing

Usability Testing
Usability TestingUsability Testing
Usability Testing

Soft Interfaces: wishful thinking for the internet of things
Soft Interfaces: wishful thinking for the internet of thingsSoft Interfaces: wishful thinking for the internet of things
Soft Interfaces: wishful thinking for the internet of things

SU Talk - Rotary - script
SU Talk - Rotary - scriptSU Talk - Rotary - script
SU Talk - Rotary - script

The Lean Hardware Toolbox
The Lean Hardware ToolboxThe Lean Hardware Toolbox
The Lean Hardware Toolbox

Experience Probes for Exploring the Impact of Novel Products
Experience Probes for Exploring the Impact of Novel ProductsExperience Probes for Exploring the Impact of Novel Products
Experience Probes for Exploring the Impact of Novel Products

Bug Labs Gnomedex08 Presentation
Bug Labs Gnomedex08 PresentationBug Labs Gnomedex08 Presentation
Bug Labs Gnomedex08 Presentation

Shift Reports
Shift ReportsShift Reports
Shift Reports

3D printing
3D printing3D printing
3D printing

Iot opportunities-challenges
Iot opportunities-challengesIot opportunities-challenges
Iot opportunities-challenges

European Innovation Academy Kick-off 2014
European Innovation Academy Kick-off 2014European Innovation Academy Kick-off 2014
European Innovation Academy Kick-off 2014


Recently uploaded

Plastic Molding Infographic - RPWORLD.pdf
Plastic Molding Infographic - RPWORLD.pdfPlastic Molding Infographic - RPWORLD.pdf
Plastic Molding Infographic - RPWORLD.pdf
RPWORLD Manufacturing

一比一原版(Hull毕业证)英国哈珀亚当斯大学毕业证如何办理
一比一原版(Hull毕业证)英国哈珀亚当斯大学毕业证如何办理一比一原版(Hull毕业证)英国哈珀亚当斯大学毕业证如何办理
一比一原版(Hull毕业证)英国哈珀亚当斯大学毕业证如何办理
aonx8o5f

一比一原版(NU毕业证书)诺森比亚大学毕业证如何办理
一比一原版(NU毕业证书)诺森比亚大学毕业证如何办理一比一原版(NU毕业证书)诺森比亚大学毕业证如何办理
一比一原版(NU毕业证书)诺森比亚大学毕业证如何办理
21uul8se

一比一原版(lu毕业证书)英国拉夫堡大学毕业证如何办理
一比一原版(lu毕业证书)英国拉夫堡大学毕业证如何办理一比一原版(lu毕业证书)英国拉夫堡大学毕业证如何办理
一比一原版(lu毕业证书)英国拉夫堡大学毕业证如何办理
ubogumo

一比一原版(Deakin毕业证书)澳洲迪肯大学毕业证文凭如何办理
一比一原版(Deakin毕业证书)澳洲迪肯大学毕业证文凭如何办理一比一原版(Deakin毕业证书)澳洲迪肯大学毕业证文凭如何办理
一比一原版(Deakin毕业证书)澳洲迪肯大学毕业证文凭如何办理
k4krdgxx

一比一原版(ECU毕业证)澳洲埃迪斯科文大学毕业证如何办理
一比一原版(ECU毕业证)澳洲埃迪斯科文大学毕业证如何办理一比一原版(ECU毕业证)澳洲埃迪斯科文大学毕业证如何办理
一比一原版(ECU毕业证)澳洲埃迪斯科文大学毕业证如何办理
kohd1ci2

一比一原版(OU毕业证)美国俄克拉荷马大学毕业证如何办理
一比一原版(OU毕业证)美国俄克拉荷马大学毕业证如何办理一比一原版(OU毕业证)美国俄克拉荷马大学毕业证如何办理
一比一原版(OU毕业证)美国俄克拉荷马大学毕业证如何办理
67n7f53

欧洲杯足彩-欧洲杯足彩买球软件-欧洲杯足彩买球软件下载|【​网址​🎉ac123.net🎉​】
欧洲杯足彩-欧洲杯足彩买球软件-欧洲杯足彩买球软件下载|【​网址​🎉ac123.net🎉​】欧洲杯足彩-欧洲杯足彩买球软件-欧洲杯足彩买球软件下载|【​网址​🎉ac123.net🎉​】
欧洲杯足彩-欧洲杯足彩买球软件-欧洲杯足彩买球软件下载|【​网址​🎉ac123.net🎉​】
batchelorerbm45967

一比一原版英国伦敦大学毕业证(London学位证)如何办理
一比一原版英国伦敦大学毕业证(London学位证)如何办理一比一原版英国伦敦大学毕业证(London学位证)如何办理
一比一原版英国伦敦大学毕业证(London学位证)如何办理
k4krdgxx

一比一原版(KPU毕业证)加拿大昆特兰理工大学毕业证如何办理
一比一原版(KPU毕业证)加拿大昆特兰理工大学毕业证如何办理一比一原版(KPU毕业证)加拿大昆特兰理工大学毕业证如何办理
一比一原版(KPU毕业证)加拿大昆特兰理工大学毕业证如何办理
kmzsy4kn

一比一原版澳洲查理斯特大学毕业证(CSU学位证)如何办理
一比一原版澳洲查理斯特大学毕业证(CSU学位证)如何办理一比一原版澳洲查理斯特大学毕业证(CSU学位证)如何办理
一比一原版澳洲查理斯特大学毕业证(CSU学位证)如何办理
qa8dk1wm

The Power to Battle! Slideshow by: Kal-el
The Power to Battle! Slideshow by: Kal-elThe Power to Battle! Slideshow by: Kal-el
The Power to Battle! Slideshow by: Kal-el
Kal-el Shows

原版制作(MDIS毕业证书)新加坡管理发展学院毕业证学位证一模一样
原版制作(MDIS毕业证书)新加坡管理发展学院毕业证学位证一模一样原版制作(MDIS毕业证书)新加坡管理发展学院毕业证学位证一模一样
原版制作(MDIS毕业证书)新加坡管理发展学院毕业证学位证一模一样
hw2xf1m

一比一原版(UCB毕业证)英国伯明翰大学学院毕业证如何办理
一比一原版(UCB毕业证)英国伯明翰大学学院毕业证如何办理一比一原版(UCB毕业证)英国伯明翰大学学院毕业证如何办理
一比一原版(UCB毕业证)英国伯明翰大学学院毕业证如何办理
zv943dhb

一比一原版(falmouth毕业证书)法尔茅斯大学毕业证如何办理
一比一原版(falmouth毕业证书)法尔茅斯大学毕业证如何办理一比一原版(falmouth毕业证书)法尔茅斯大学毕业证如何办理
一比一原版(falmouth毕业证书)法尔茅斯大学毕业证如何办理
xnhwr8v

一比一原版澳洲莫纳什大学毕业证(Monash学位证)如何办理
一比一原版澳洲莫纳什大学毕业证(Monash学位证)如何办理一比一原版澳洲莫纳什大学毕业证(Monash学位证)如何办理
一比一原版澳洲莫纳什大学毕业证(Monash学位证)如何办理
10h6bbc4

一比一原版(CSUEB毕业证)美国加州州立大学东湾分校毕业证如何办理
一比一原版(CSUEB毕业证)美国加州州立大学东湾分校毕业证如何办理一比一原版(CSUEB毕业证)美国加州州立大学东湾分校毕业证如何办理
一比一原版(CSUEB毕业证)美国加州州立大学东湾分校毕业证如何办理
stgq9v39

一比一原版(LSE毕业证书)伦敦政治经济学院毕业证如何办理
一比一原版(LSE毕业证书)伦敦政治经济学院毕业证如何办理一比一原版(LSE毕业证书)伦敦政治经济学院毕业证如何办理
一比一原版(LSE毕业证书)伦敦政治经济学院毕业证如何办理
340qn0m1

一比一原版英国伦敦政治经济学院毕业证(LSE学位证)如何办理
一比一原版英国伦敦政治经济学院毕业证(LSE学位证)如何办理一比一原版英国伦敦政治经济学院毕业证(LSE学位证)如何办理
一比一原版英国伦敦政治经济学院毕业证(LSE学位证)如何办理
k4krdgxx

一比一原版(UofM毕业证)美国密歇根大学毕业证如何办理
一比一原版(UofM毕业证)美国密歇根大学毕业证如何办理一比一原版(UofM毕业证)美国密歇根大学毕业证如何办理
一比一原版(UofM毕业证)美国密歇根大学毕业证如何办理
yk5hdsnr


Recently uploaded (20)

Plastic Molding Infographic - RPWORLD.pdf
Plastic Molding Infographic - RPWORLD.pdfPlastic Molding Infographic - RPWORLD.pdf
Plastic Molding Infographic - RPWORLD.pdf

一比一原版(Hull毕业证)英国哈珀亚当斯大学毕业证如何办理
一比一原版(Hull毕业证)英国哈珀亚当斯大学毕业证如何办理一比一原版(Hull毕业证)英国哈珀亚当斯大学毕业证如何办理
一比一原版(Hull毕业证)英国哈珀亚当斯大学毕业证如何办理

一比一原版(NU毕业证书)诺森比亚大学毕业证如何办理
一比一原版(NU毕业证书)诺森比亚大学毕业证如何办理一比一原版(NU毕业证书)诺森比亚大学毕业证如何办理
一比一原版(NU毕业证书)诺森比亚大学毕业证如何办理

一比一原版(lu毕业证书)英国拉夫堡大学毕业证如何办理
一比一原版(lu毕业证书)英国拉夫堡大学毕业证如何办理一比一原版(lu毕业证书)英国拉夫堡大学毕业证如何办理
一比一原版(lu毕业证书)英国拉夫堡大学毕业证如何办理

一比一原版(Deakin毕业证书)澳洲迪肯大学毕业证文凭如何办理
一比一原版(Deakin毕业证书)澳洲迪肯大学毕业证文凭如何办理一比一原版(Deakin毕业证书)澳洲迪肯大学毕业证文凭如何办理
一比一原版(Deakin毕业证书)澳洲迪肯大学毕业证文凭如何办理

一比一原版(ECU毕业证)澳洲埃迪斯科文大学毕业证如何办理
一比一原版(ECU毕业证)澳洲埃迪斯科文大学毕业证如何办理一比一原版(ECU毕业证)澳洲埃迪斯科文大学毕业证如何办理
一比一原版(ECU毕业证)澳洲埃迪斯科文大学毕业证如何办理

一比一原版(OU毕业证)美国俄克拉荷马大学毕业证如何办理
一比一原版(OU毕业证)美国俄克拉荷马大学毕业证如何办理一比一原版(OU毕业证)美国俄克拉荷马大学毕业证如何办理
一比一原版(OU毕业证)美国俄克拉荷马大学毕业证如何办理

欧洲杯足彩-欧洲杯足彩买球软件-欧洲杯足彩买球软件下载|【​网址​🎉ac123.net🎉​】
欧洲杯足彩-欧洲杯足彩买球软件-欧洲杯足彩买球软件下载|【​网址​🎉ac123.net🎉​】欧洲杯足彩-欧洲杯足彩买球软件-欧洲杯足彩买球软件下载|【​网址​🎉ac123.net🎉​】
欧洲杯足彩-欧洲杯足彩买球软件-欧洲杯足彩买球软件下载|【​网址​🎉ac123.net🎉​】

一比一原版英国伦敦大学毕业证(London学位证)如何办理
一比一原版英国伦敦大学毕业证(London学位证)如何办理一比一原版英国伦敦大学毕业证(London学位证)如何办理
一比一原版英国伦敦大学毕业证(London学位证)如何办理

一比一原版(KPU毕业证)加拿大昆特兰理工大学毕业证如何办理
一比一原版(KPU毕业证)加拿大昆特兰理工大学毕业证如何办理一比一原版(KPU毕业证)加拿大昆特兰理工大学毕业证如何办理
一比一原版(KPU毕业证)加拿大昆特兰理工大学毕业证如何办理

一比一原版澳洲查理斯特大学毕业证(CSU学位证)如何办理
一比一原版澳洲查理斯特大学毕业证(CSU学位证)如何办理一比一原版澳洲查理斯特大学毕业证(CSU学位证)如何办理
一比一原版澳洲查理斯特大学毕业证(CSU学位证)如何办理

The Power to Battle! Slideshow by: Kal-el
The Power to Battle! Slideshow by: Kal-elThe Power to Battle! Slideshow by: Kal-el
The Power to Battle! Slideshow by: Kal-el

原版制作(MDIS毕业证书)新加坡管理发展学院毕业证学位证一模一样
原版制作(MDIS毕业证书)新加坡管理发展学院毕业证学位证一模一样原版制作(MDIS毕业证书)新加坡管理发展学院毕业证学位证一模一样
原版制作(MDIS毕业证书)新加坡管理发展学院毕业证学位证一模一样

一比一原版(UCB毕业证)英国伯明翰大学学院毕业证如何办理
一比一原版(UCB毕业证)英国伯明翰大学学院毕业证如何办理一比一原版(UCB毕业证)英国伯明翰大学学院毕业证如何办理
一比一原版(UCB毕业证)英国伯明翰大学学院毕业证如何办理

一比一原版(falmouth毕业证书)法尔茅斯大学毕业证如何办理
一比一原版(falmouth毕业证书)法尔茅斯大学毕业证如何办理一比一原版(falmouth毕业证书)法尔茅斯大学毕业证如何办理
一比一原版(falmouth毕业证书)法尔茅斯大学毕业证如何办理

一比一原版澳洲莫纳什大学毕业证(Monash学位证)如何办理
一比一原版澳洲莫纳什大学毕业证(Monash学位证)如何办理一比一原版澳洲莫纳什大学毕业证(Monash学位证)如何办理
一比一原版澳洲莫纳什大学毕业证(Monash学位证)如何办理

一比一原版(CSUEB毕业证)美国加州州立大学东湾分校毕业证如何办理
一比一原版(CSUEB毕业证)美国加州州立大学东湾分校毕业证如何办理一比一原版(CSUEB毕业证)美国加州州立大学东湾分校毕业证如何办理
一比一原版(CSUEB毕业证)美国加州州立大学东湾分校毕业证如何办理

一比一原版(LSE毕业证书)伦敦政治经济学院毕业证如何办理
一比一原版(LSE毕业证书)伦敦政治经济学院毕业证如何办理一比一原版(LSE毕业证书)伦敦政治经济学院毕业证如何办理
一比一原版(LSE毕业证书)伦敦政治经济学院毕业证如何办理

一比一原版英国伦敦政治经济学院毕业证(LSE学位证)如何办理
一比一原版英国伦敦政治经济学院毕业证(LSE学位证)如何办理一比一原版英国伦敦政治经济学院毕业证(LSE学位证)如何办理
一比一原版英国伦敦政治经济学院毕业证(LSE学位证)如何办理

一比一原版(UofM毕业证)美国密歇根大学毕业证如何办理
一比一原版(UofM毕业证)美国密歇根大学毕业证如何办理一比一原版(UofM毕业证)美国密歇根大学毕业证如何办理
一比一原版(UofM毕业证)美国密歇根大学毕业证如何办理


Designing for (and with) New Technology

  • 1. Designing for (and with) New Technology Dan Saffer, Kicker Studio @odannyboy @kickerstudio
  • 2. “NEW” Let’s talk about NEW for a second. When I talk about NEW technology, I’m not necessarily talking about the latest technology to roll out of research labs.
  • 3. The bulk of innovation behind the latest "wow" moment is also low-amplitude and takes place over a long period— but well before the "new" idea has become generally known, much less reached the tipping point. Bill Buxton In fact, as Bill Buxton points out, most of the time this isn’t true anyway.
  • 4. Bill Buxton’s “Long Nose of Innovation” The mirror of the Long Tail Effect
  • 5. Example: Touchscreens 1970s 1980s 2000s An example of the last wave of NEW technology, touchscreens, germinated over 30 years before wide consumer use.
  • 6. New... to the world to the market to an industry to a company to...you? So when I say NEW technology, it could mean all these different kinds of new. At some point in your career, you’ll be work with a piece of technology you’ve never worked with before.
  • 7. Technology I’m also not going to talk about any one specific technology. This talk is specifically technology-agnostic. I’m going to reference some technology that is fairly “new” but this talk isn’t only about today’s new technology, but about tomorrow’s, the one you’re going to encounter out in the field one day when someone hands you it.
  • 8. Almost everything around us is technology of one sort or another. We just forget that at one time, it was new technology.
  • 9. Examples of current “new” technology: Adding sensors to previously blind objects.
  • 10. Adding networking to a stand-alone device like the Sonos.
  • 11. New algorythms and data visualizations, like this from the Swiss-Spain game yesterday from the Guardian.
  • 13. Unusual use of old technology, like combining GPS with the mobile phone camera to create augmented reality applications.
  • 14. Digitizing previously analog activities such as putting a DJ’s turntables onto iPads.
  • 15. Radical improvement of an existing technology. This is an example of an older Canesta camera.
  • 16. And then there is the radical new technology that change everything. The microchip is the greatest example. This is an RFID tag which, along with all the related and associated technologies around near-field communication, has the power to radically transform most objects on the planet.
  • 17. Where does technology come from? Discovery of the possible through science and engineering. But what it doesn’t usually come from is via user needs. Scientists and engineers make what is POSSIBLE, but not always what is useful or usable or even wanted.
  • 18. Although we would prefer to believe that conceptual breakthroughs occur because of a detailed consideration of human needs, especially fundamental but unspoken hidden needs so beloved by the design research community, the fact is that it simply doesn't happen. Don Norman Don says, rightly I think, that the technology comes first, then the need for it comes later. That’s where we come in. Designers help give the technology meaning. People will rightly ask What does it do? How should I use this? And most importantly WHY should I use this? As designers, it’s our job to help answer those questions.
  • 19. New technology + Old product = The same product somewhat better (or worse)
  • 20. Add a touchscreen to a computer, and you can get a Tablet PC.
  • 21. Or you can add a touchscreen to a computer and get something like the iPad.
  • 22. New technology + Old product = A different product What you decide is up to you and your strategic goals. In some cases, it makes sense to not change the meaning of the product. but creating a new product that redefines what the product is is a very powerful product differentiator.
  • 24. Canesta Gestural Entertainment Center Throughout this talk, I’ll be referencing a project my company did about a year ago.
  • 25. Canesta Gestural Entertainment Center. Find out more at http://kickerstudio.com/ canesta.html
  • 26. PRACTICAL CONSIDERATIONS Before we dive into the more theoretical topics, let’s talk about some things to keep in mind.
  • 27. Extra Time New technologies, like other large constraints, always seem to take more time than you expect. The technology doesn’t work right, or has unexpected bugs, or any number of flaws and constraints you’ll only discover once you start trying to make something with it. Build in extra time into the schedule.
  • 28. Limitations of the Technology + Context You’re going to be wrestling with two things during the course of the project: the limitations of the technology (what it CAN’T do) and where the technology is going to be deployed. By context, I mean the physical or digital space where the technology is likely to be used. (With a mobile technology, this is obviously a harder challenge.)
  • 29. When we did the Canesta TV project, we observed people and ourselves watching TV to see what we did. This definitely changed the kinds of gestures we were going to choose. [Mute story] This is Jennifer Bove, another Kicker principal. She’s wearing gloves because the camera couldn’t see fingers at the time.
  • 30. Understand what’s already there... When you’re introducing a new technology into an existing environment, you want to make sure that you understand you understand that environment, even if your technology is going to disrupt that environment.
  • 31. ...because you could disrupt it. When you’re introducing a new technology into an existing environment, you want to make sure that you understand you understand that environment, even if your technology is going to disrupt that environment. You want to be able to predict HOW the disruption is going to happen, so that it doesn’t negatively affect the environment.
  • 32. Prototyping Prototyping is obviously more important with new technology, because until it’s up and running, you might have no idea what it feels like to use. You’ll really get a sense of its limitations once you start playing with it.
  • 33. Make it work. Make it work right. Make it work fast. In that order. Paul Hammond It’s fine to start with low fidelity methods for prototyping too. Paper, cardboard, and so called “Wizard of Oz” techniques with “the man behind the curtain” controlling fake results. On the Canesta project, because the camera wasn’t ready yet, we had test subjects sit in front of a regular TV and make gestures, while we changed the channel with an ordinary remote. Use scaffolding.
  • 34. Help Sell It You’re going to need to help sell the technology. This will not only help users, it will help you understand how the technology will be perceived better and what meaning you are trying to give the technology.
  • 35. For Canesta, we produced a series of marketing images to help make the technology more appealing and better understood.
  • 36.
  • 37. Words matter. What you call the technology and HOW you explain it is extremely important for potential users’ comprehension of what it is.
  • 38. Using the word Find instead of Search helped explain what the Yolink product was.
  • 39. Testing As with anything new, testing prototypes with users is recommended, with one caveat:
  • 40. Great ideas can’t be tested. Only mediocre ideas can be tested. George Lois A word of caution about testing from George Lois. If the technology you’re working with is really a departure from what users are used to, there could be some resistance to even the idea of the technology, or just a simple lack of understanding of why they would use it.
  • 41. EXPECTATIONS Human beings’s brains are set up to expect that things will work as they have in the past. New technology disrupts this process. But even so, users are coming to your product with a set of expectations about it is going to work, and with new technology, it might not work like they think it does, or should.
  • 42. We have high expectations for our devices now. And users get used to a level of technology speed, power, and execution.
  • 43. M A Y A It’s good to keep this acronym in mind, invented by this guy, Raymond Loewy, a famous French-American industrial designer from the mid-20th century. He coined the term MAYA: Most Advanced, Yet Acceptable. You don’t want your design to be SO radically new that users have no idea where to even start with it. You need to keep the YA Yet Acceptable in mind.
  • 44. Pattern Recognition This is because humans are pattern recognition creatures. It’s startling to our brains when things don’t work as we’re used to.
  • 45. Predictability...is so profoundly soothing...it gives you a sense of order, that everything’s going to be all right. David Foster Wallace Creating discernible patterns quickly is incredibly important with new technology. You want the product, although new and exciting, to seem PREDICTABLE.
  • 46. Once our brains find a pattern, we make predictions based on that pattern. And if we discover the pattern isn’t there, we feel robbed or cheated or wronged. It’s dissonance for the brain. It causes tension because we don’t know what’s coming next. We don’t know how the pattern will resolve.
  • 47. Follow conventions unless the new alternative is measurably better. Alan Cooper If you can surround your new technology with conventions users understand, the technology itself stands a better chance of being adopted.
  • 48. Just as one example, look at how much early cars resembled the carriages that came before them.
  • 49. New patterns eventually become old patterns. Luckily, we adapt quickly.
  • 50. The Of Course Factor What we should be striving for when working with new technology is this near-immediate creation of the Of Course factor.
  • 51. Most companies are looking to “wow” with their products, when in reality what they should be looking for is an “of course” reaction. Christian Lindholm Done right, the new technology itself will provide the wow factor. So we don’t need to worry about that. What we need to concern ourselves with is the making the use of the new technology seem OBVIOUS and PREDICTABLE.
  • 52. Affordances Affordances (or technically perceived affordances) are the visible pieces of an product that allow users to understand what can be done with it. A cup affords putting liquid into it. A button affords pushing. And so on. With new technology, being able to understand WHAT DO I DO HERE? is essential for adoption. This is where affordances come in: do I push it, click it, drag it...how do I get started? where do I begin?
  • 53. Affordances are particularly important in digital products because a button on a screen doesn’t have to look like a button at all. If you want people to push it, it should look like it can be pushed. With Canesta, Some kind of indicator of the gesture you could use to do something.
  • 54. Attraction Affordance Sometimes people need help getting started.
  • 55. Metaphor Asking yourself What that exists is this product like? can help you come up with a design language and affordances that can help explain the technology to users.
  • 56. Metaphor allows us to understand the abstract.
  • 57. People won’t buy a product if they can’t understand it immediately. They can’t understand it immediately if their worldview doesn’t already have a readymade place for it. And their worldview won’t have a readymade place for it, if they’ve never seen anything like it before. Amy Hoy Metaphor can help bridge this gap that Amy is talking about here. If we’ve never seen ANYTHING like it, our minds flail about and we’re confused. But when you have a metaphor, it helps the human brain understand what is going on.
  • 58. Metaphor is something the brain does when complexity renders it incapable of thinking straight. Gary Greenberg The brain can’t stand a pattern it doesn’t recognize. If your users don’t understand what is going on, they will make up a reason for why something is happening (or not happening). And that reason could be the wrong one and the user will get the wrong mental model of how the product works.
  • 59. Only 5 percent of consumer electronics products returned to retailers are malfunctioning—yet many people who return working products think they are broken, a new study indicates... Accenture estimates that 68 percent of returns are products that work properly but do not meet customers' expectations for some reason. http://www.pcworld.com/article/146576/ most_returned_products_work_fine_study_says.html This is fascinating, I think. The products WORK AS DESIGNED but are designed so poorly that people cannot figure them out!
  • 60. The average consumer in the US will struggle for 20 minutes to get a device working before giving up. Elke den Ouden
  • 61. Make it a Toy Few people are afraid of toys, or experimenting with a toy or playing with one. It is a good go-to metaphor, one we used for Canesta too.
  • 62. Don't be discouraged if what you produce initially is something other people dismiss as a toy. In fact, that's a good sign. That's probably why everyone else has been overlooking the idea. The first microcomputers were dismissed as toys. And the first planes, and the first cars. Paul Graham People might dismiss what you’ve made as a toy anyway. Add Facebook and Twitter to Paul Graham’s list here as well.
  • 63. Design Languages from Other Areas One powerful thing about metaphor is that it allows you to bring in thinking from other design areas.
  • 64. For instance, before he worked at Apple, Jonathan Ive designed kitchen and bathroom appliances. Having this background allowed him to take some of that design language and apply it to personal computers.
  • 65. PERSONALITY One benefit of this, was giving personal computers a different personality. If you give your product a personality, not only will users be more forgiving and interested in it, but they’ll become more attached to it as well.
  • 66. What is the voice of this technology? Ask yourself: how does it speak to the user? What positive emotion does it make them feel?
  • 67. Failure is an area to show personality. When you are designing with more established technology, it is easy to forget about things like error messages and use cases when something bad happens. With new technology you can’t do that because it’s guaranteed not to work as expected quite often. Luckily, this is a time when the product can show off its personality.
  • 68. Flickr, which utilized new technology several rounds of new technology ago, does this very well.
  • 69. Emotion Of course, what I’m really talking about here is emotion. If we have an emotional connection to something, we’re more willing to forgive its faults and experiment with it more.
  • 70. Creating a product means creating an emotional connection whether we mean to or not. So we should deliberately MEAN to. How should people feel about the product?
  • 71. Emotion is almost always found in the small details. Emotion isn’t usually in the functionality of a product itself, but in THE EXPRESSION of that functionality: in the feedback, in the transitions between pieces of functionality or content, in the small details.
  • 72. Small details are hard to replicate. No matter how new, how inventive, how earth-shattering your technology is, sonner or later, it will be replicated, either exactly or almost-so. But if you’ve paid attention to the product details, the emotional component will be difficult to replicate.
  • 73. How does using this technology make users feel? Technologies (and their context of use) have their own emotional weight.
  • 74. Sound Design I just want to put a plug in here for the importance of sound design. The Web almost ruined sound design with too many horrible sites blaring music at you. But sound can really give a lot of character to a product.
  • 75. MEANING Only two things typically create innovative products: technology and meaning. As designers, we’re uniquely poised to work with both.
  • 76. Any time you have a new device...it also doesn't make a lot of sense. It simply doesn't fit with anything that we're currently used to. Ben Fry In other words, it doesn’t have meaning. What Ben is saying applies equally to new kinds of websites and software too. As designers we have to help make MEANING of new technology. Meaning starts by asking this:
  • 77. What is the deepest reason people would use this technology?
  • 78. New technology often hides a more powerful meaning. Eventually a company discovers and reveals that quiescent meaning–celebrating what I call a technology epiphany–and in doing so becomes the market leader. Roberto Verganti The combination of technology innovation with meaning is a powerful innovator.
  • 80. What does this technology do that is BETTER (not just different) from what currently exists?
  • 81.
  • 83. Canesta Gestural Entertainment Center Be able to use it on a date. Be as lazy as possible. Use it with a bottle in one hand.
  • 85. Some people (they are wrong) say design is about solving problems. Obviously designers do solve problems, but then so do dentists. Design is about cultural invention. Jack Schulze I want to end with this bit by Jack. Yes, Jack, Yes! New technologies offer us the opportunity to be inventors of culture, and I hope when the chance comes to do so, you will seize it.
  • 86. Good products change the way we think about that type of product. Great products change the way we think about the world. Because after all... I hope you all go out and make great products.
